Towards an SDLC for Projects Involving Distributed Systems

Rodrigo Augusto dos Santos, Avelino F. Zorzo and Sabrina Marczak

Faculdade de Informática, Pontifícia Universidade Católica do Rio Grande do Sul, Ipiranga Avenue, Porto Alegre, Brazil

Keywords: Distributed Systems, Distributed Teams, Project Management, Life Cycle, SDLC, PLC.

Abstract: Since the 1970’s, Distributed Systems have been turning into a more viable and reliable option for the

implementation of information systems. This evolution continued ever since, and now they are applicable to

a variety of purposes, such as online games, cloud computational solutions, etc. It is possible then to assume

that today, Distributed Systems are found everywhere, and that there is a great probability for any given in-

progress software development project to be using this paradigm as part of its delivery. Thus, it is relevant to

study the impacts that Distributed Systems bring to Project Management. In this paper we discuss those

impacts and challenges, as well as propose a Software Development Lifecycle and some associated practices

that are to be used for software development projects involving Distributed Systems. Such practices are

optimized for implementation under a Waterfall model, but are also adaptable for use with well known agile

framework Scrum. The preliminary validation with industry professionals suggests that our proposals do

support more appropriate management and execution of projects involving Distributed Systems solutions.

1 INTRODUCTION

A project is defined by PMI (2015) as being “a

temporary endeavour in that it has a defined

beginning and end in time, and therefore defined

scope and resources”. According to PMBoK (2013),

“Project Management is the application of

knowledge, skills, tools and techniques to project

activities to meet the project requirements”.

By 1970, the wide adoption of Distributed

Systems (DS) became a fact, and Information

Technology (IT) Project Managers around the world

were forced to deal with it. DS, according to Couloris

et al (2012), “are the ones in which hardware or

software components, located at networked

computers, communicate and coordinate their actions

only by passing messages”.

Couloris et al (2012) also provides some examples

that fit this definition, such as web search, multiplayer

online games, and financial trading systems, thus

stating that DS includes “many of the most significant

technological developments of recent years”,

“ranging from a small intranet to the Internet”. This

obviously turns the intersection between PM and DS

into a relevant research area.

Our hypothesis though is that system distribution

in a project may be regularly “abstracted” by IT

project teams, with decisions regarding it becoming

delegated to development teams only. The rest of the

project team would focus on supposedly “attention-

worthy, value-driven requirements”, such as screens,

reports, and other “tangible” features, thus, greatly

increasing the risk of project failure.

This abstraction culture would also reflect upon

academia, with small attention from researches on the

intersection of DS and PM. In order to shed some

light into our hypothesis, we performed a Systematic

Mapping Study (SMS) (Section 2.1), seeking to

understand how the intersection between DS and PM

has been studied in academia. We also performed an

interview-based field study (Section 2.2) to

understand industry’s perception about the topic.

The results from the SMS and field-based study

led us to propose a Software Devolopment Life Cycle

(SDLC) and some practices associated with it, both

tailored for Software Develpment Projects involving

DS (Section 3). These proposals were preliminarily

validated through the process of member checking

(Section 3.2). The limitations and future work are

described in Section 3.2 and Section 4, respectively.

2 RESEARCH BACKGROUND

In this section we present the methodologies used in

our Systematic Mapping Study (SMS) and interview-

based field study, as well as their results.

158

Santos, R., Zorzo, A. and Marczak, S.

Towards an SDLC for Projects Involving Distributed Systems.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 158-165

ISBN: 978-989-758-187-8

2.1 Systematic Mapping Study

As a comparison measure for the volume of research

on DS PM, we have used PM involving Distributed

Teams (DT). Since DT has been adopted by many

organizations distributing their software development

projects worldwide, seeking cost and quality

advantages (Herbsleb,2001), DT PM became a

popular research topic.

Although DS and DT are two distinct subjects,

with no direct relation between them, both topics are

present in a great number of today’s IT projects,

having the research on each of them the same

characteristic of being able to intersect with PM. The

SMS, thus, was performed for confirming the level of

attention provided to DS PM when compared to the

volume of studies focusing on DT PM.

The number of papers selected as a result of

systematic search was 37 out of 127. Out of these, 28

focused on PM intersection with DT, 8 focused on

PM intersection with DS and only 1 focused on PM

intersecting both DT and DS at the same time. These

results demonstrate an imbalance in the academic

interest towards both DT and DS. Another imbalance

indicator is that out of the 8 DS PM papers, 50% of

them were published before year 2000.

2.2 Interview-based Field Study

Due to the SMS results, we designed an interview-

based field study with IT industry professionals. Our

intent was to better understand the practical relation

of the DS and PM areas, what are today’s challenges

of projects involving DS, as well as what could be

used as possible countermeasures for such challenges.

Semi-structured interviews were conducted with

16 professionals from Brazil (14) and United States

(2). The selection criteria was based on their IT

industry experience (at least 10 years) and ability to

be critical (as perceived by the researchers).

Their role distribution was: 9 project managers, 2

development leaders, 2 test leaders, 1 business

analyst, 1 architect, and 1 IT Manager. In average,

they had: 17.2 years of work experience, 12.5 years

of technical work experience, 6.7 years of managerial

experience, and 5.8 years of experience with the

current exployer. Next, we briefly present the

findings of our field-based study.

2.2.1 Technical Project Managers

The perception of 68.75% of our interviewees is that

project managers usually are not involved with

technical aspects in the projects they manage. Still,

62.5% considered beneficial, project delivery wise, to

have project managers with technical knowledge.

2.2.2 Awareness of System Distribution

Regarding awareness of what DS is, 62.5% of the

interviewees were not even familiar with the concept.

After Section 1 definition was provided, all

interviewees confirmed they now understood the

concept, having 84% of them claimed to have

participated in DS projects in the past 5 years.

Therefore, the high volume of today’s software

development projects involving DS does make it

difficult even for experienced professionals to realize

how frequently they are inserted in such context. For

them, these are “just regular projects”, where DS is a

almost a mandatory solution aspect. This constitutes

evidence of an “abstraction trend” of the DS feature.

2.2.3 The Challenges from DS Projects

The discussed challenges of DS projects were either

technical or managerial aspects of software

development. Each interviewee was allowed to

provide as many challenges as they wanted, including

ones for a same item. The challenges were then

grouped into categories.

The list of categorized main technical challenges

and their individual occurences is as follows: Testing

(14), IT infrastructure (17), integrations (6), fidelity

of non-production to production environments (4),

system security (3), system architecture (6),

requirements (7), deployments (7), existence of too

many implementation options (3) and others (8).

We also discussed managerial challenges related

to DS projects. The list of categorized main

managerial challenges and their individual

occurences is as follows: obtain a skilled team (5),

risk management (9), knowledge management (5),

team management (4), communication (8), vendor

management (5), project planning (6) and others (7).

After the interviews, the main definition of

“system distribution” of our study was restricted to

solutions that are: (i) distributed regarding their IT

infrastructure, e.g. a software distributed between an

application server and a database server; and (ii)

distributed among different softwares, integrated with

each other through interfaces or other mechanisms

that allow exchanges, such as of data, tokens, etc.

2.2.4 Failed DS Projects

From the DS projects that the interviewees

participated in the last 5 years, an average project

failure of 38,44% was reported, having 81,25% of the

Towards an SDLC for Projects Involving Distributed Systems

159

interviewees claimed, based solely on their

perceptions, to see failure reasons that could be linked

to the system distribution aspect and the

aforementioned technical and managerial challenges.

The interviewees then provided a set of

countermeasure choices they would like to have for

dealing with DS projects challenges. The most

recurring one was a Software Development Life

Cycle (SDLC) specialized in DS (9 occurrences). The

other choices were a development framework (2), PM

framework (1), diverse tools (3) and others (1).

According to Taylor (2004), “an SDLC is a subset

of the project life cycle”, “focused on accomplishing

the product requirements”. The main difference from

Project Life Cycle (PLC) activities is that SDLC

activities focus on technical aspects of project

deliverables while PLC ones are more related to

management and leadership (Taylor, 2004).

3 AN APPROACH FOR DS SDLC

Given the discussed results, we propose an SDLC

optimized for running Software Development

Projects involving DS. The top-level structure of our

SDLC contains its key phases, activities, and

deliverables, all adherent to the generic SDLC

process defined by Taylor (2004).

Because of this generic nature, our main

contribution is thereby on the differentiated practices

we are proposing, and that should be used in

association with the organized structure of the SDLC.

These practices are adaptations on well-known and

disseminated items, such as a Project Architecture

Document or a System Requirements Document for

example, tailoring them for use within DS Projects.

Our Phase-Activity-Deliverable structure has to

be viewed then as a non-prescriptionary guide. It can

be used as is, but it also is easily mappable against

different SDLC versions in use by IT companies

around the world, which means they could keep using

their own processes while simply adding our

proposals to them, as they see fit.

3.1 Overall View of Our DS SDLC

The proposed SDLC is designed for an optimal

implementation with Waterfall (Pressman, 2001).

Adaptations are also proposed for use with Scrum,

since one cannot ignore its growing use in today’s

industry, as demonstrated by VersionOne (2015).

We present our DS SDLC and its associated

practices next, all in high-level detail due to space

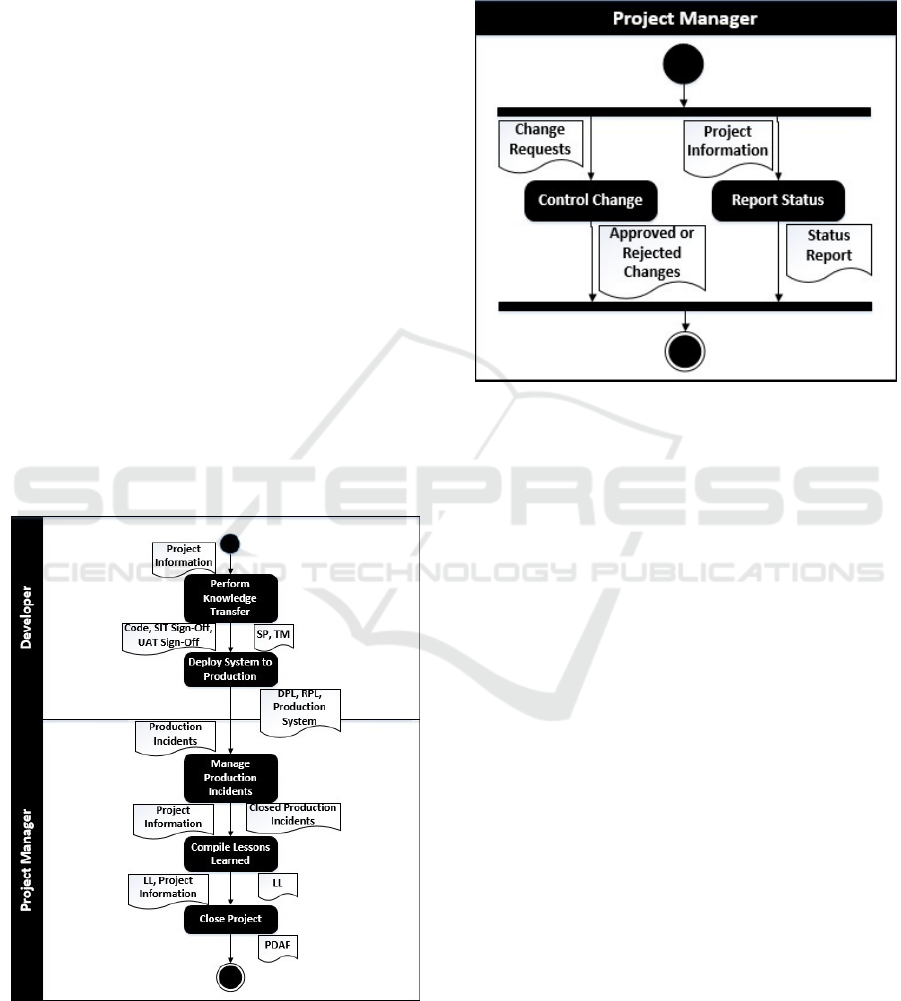

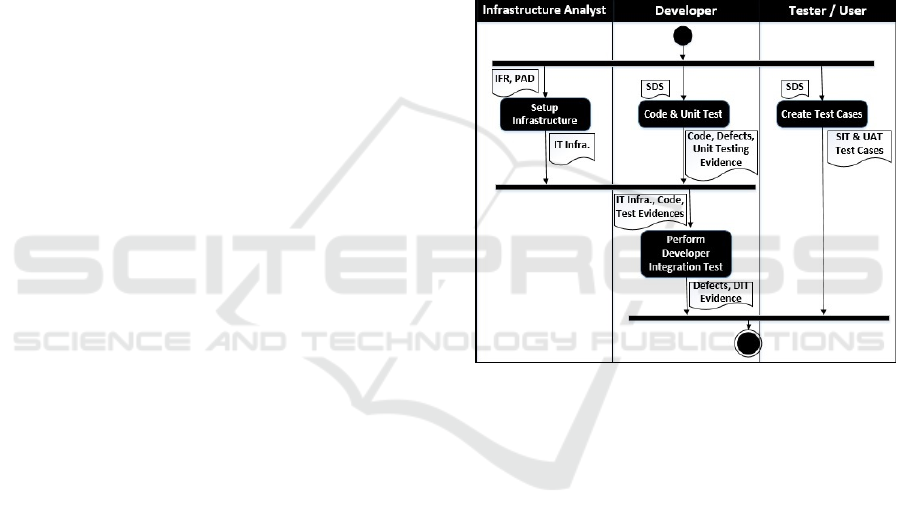

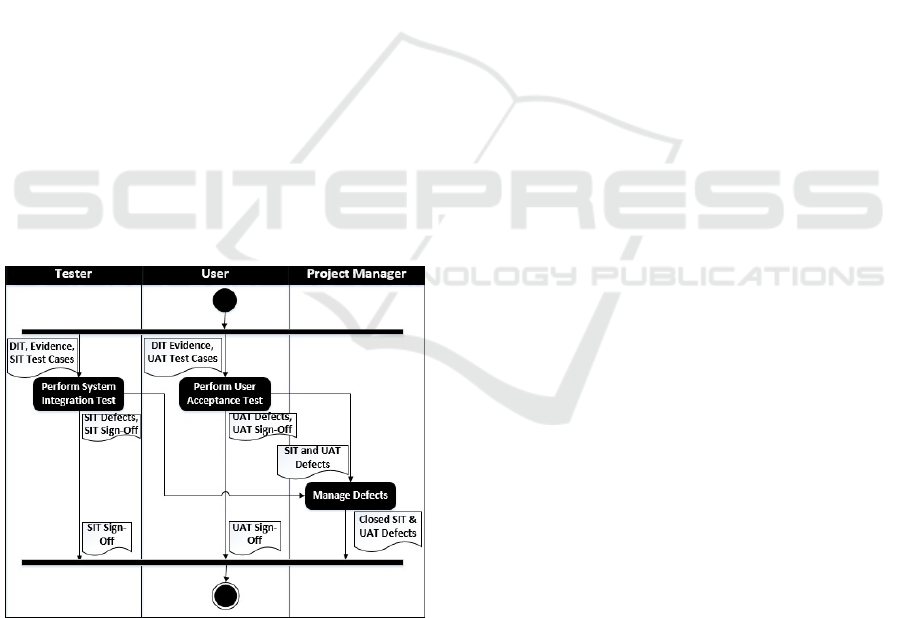

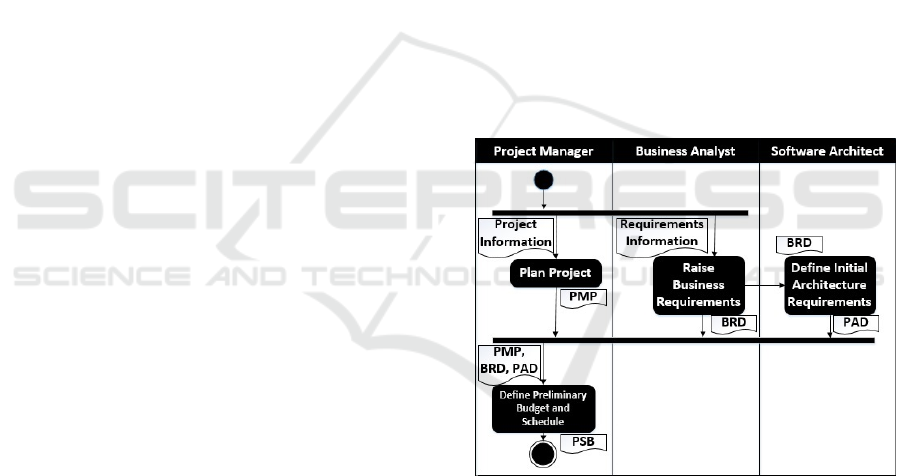

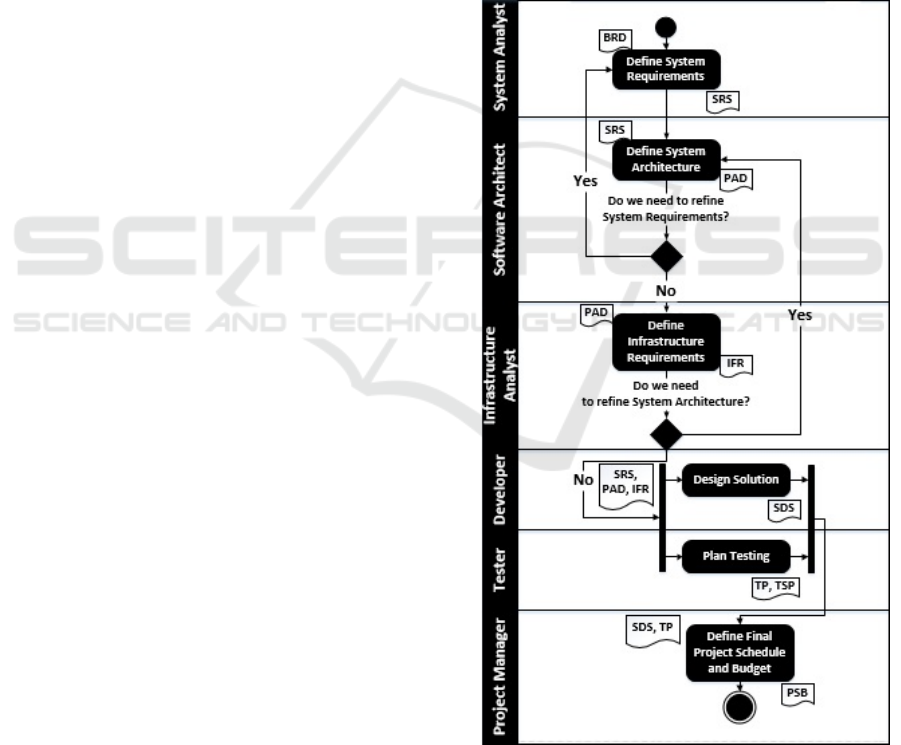

restrictions. We have represented the activitiy flows

of each phase through activity diagrams, compliant

with Unified Modeling Language (UML) notations.

One customization to the notations was made, related

to the representation in the diagrams of inputs and

outputs for each activity. Inputs are represented on

top left and outputs on bottom right of each activity.

Our suggested SDLC practices and some

examples related to them are textually described. For

the software integration proposals (type of solution

‘ii’ as defined in Section 2.2.3), examples are based

on software integrated data-wise (exchange of data

through data interfaces, for example).

3.1.1 Vision Phase

In the Vision Phase, the Project is initiated through

the assignment of a Project Manager and initial

project team. Preliminary project planning is made by

obtaining high-level time and cost estimates.

Visibility on DS Project challenges should exist, so

that due countermeasures can be planned and

implemented, as early as possible in the project. An

overall view of the Vision Phase activities, with its

inputs and outputs can be seen in Figure 1.

Figure 1: Vision phase of proposed Waterfall cycle.

Our Recommended Practices for Waterfall

 Business Requirements Document (BRD) should

have a section for “Business Integrations”, which

is filled in with key details of all identifiable

integrations at a business level (business process,

data flow, integration class, etc.);

 DS Non-Functional Requirements (NFR) should

be documented in the BRD for the application

being developed and for each of its integrations

(level of availability needed, number of

simultaneous connections, data volume and data

periodicity, etc);

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

160

 Project Architecture Document (PAD) should

have a DS Section, containing visual, incremental

architecture information. Business requirements

are mapped against integration / infrastructure

requirements;

 PAD should include applicable

integration/infrastructure technical information,

such as data format, data contract, security

measures, error handling and logging etc;

 Due care is provided for Project Management

Plan (PMP) auxiliary plans, such as Stakeholder

and Communication Plans. A customer, a

technical and a management liaisons are

appointed for each integration;

 Risk Register (RR) should start with a default list

of DS risks. The list is continually refined by

Project Management Office (PMO) through

feedback coming from live projects. It becomes

available for upcoming projects;

 All documents above are protential inputs for the

Project Schedule and Budget (PSB);

 PMP, BRD and PSB are baselined.

How These Practices Support Waterfall?

 Provision of visibility around integrations /

infrastructure demands, as early as possible;

 Better stakeholder identification, reducing the

chances of late engagement and Change Requests;

 Helps all stakeholders in setting up their new

mindset about the true complexities of their

project, as early as possible;

 Schedule and budget are more realistic, as the

distribution characteristic is now considered.

Adapting These Practices for Scrum

 Product Owner identifies integration needs before

Project start;

 Integration / infrastructure needs are discussed

during the first project meeting, usually the

Release Planning one;

 Infrastructure and support teams are encouraged

to be on-board the discussion already in this

phase, early in the project;

 Integration / infrastructure requirements should be

treated as user stories, added to the Product

Backlog and prioritized according to their value;

 Definition Of Ready (DOR) should take in

consideration the DS characteristics of the project

in question. For example, it could include

“complete data contract being available” and/or

“data sample being available”.

How These Practices Support Scrum?

 “All” project aspects really become visible to

everyone at all times, including the ones related to

system distribution, which tended to be

“suppressed” before;

 Delivered functionalities will tend to be more

stable, as DS key characteristics receive proper

attention. Value delivered and perceived increase.

3.1.2 Planning Phase

In this Phase, one executes final project planning

based on information now available. Full architecture

and infrastructure requirements assessments are now

possible, and any gaps before execution should be

addressed. System design is complete. An overall

view of the Planning activities, with its inputs and

outputs can be seen in Figure 2.

Figure 2: Planning phase of proposed Waterfall cycle.

Our Recommended Practices for Waterfall

 PAD registers the detailed business process flows

that will support the solution;

Towards an SDLC for Projects Involving Distributed Systems

161

 The Infrastructure Document (IFR) should

infrastructure. Hardware, software and

networking needs are mapped, especially the ones

affecting system distribution, such as servers’

latencies and locations, ports and protocols, etc;

 RR is updated with new risks, including DS ones;

 System Requirement Specification (SRS) must be

created and kept in close alignment with BRD and

PAD, thus making sure no previoulsy raised

system distribution key definitons are lost. These

should instead only be incremented in the SRS,

thus making the work to create this artifact easier;

 Test Plan (TP) must include detailed information

about the needed environments, data masses, log

testing etc. It also could include the plan for test

environment redundancy, in case part of tests are

in the Project’s critical path;

 Test specification must be created and kept in

close alignment with SRS, thus making sure no

previoulsy raised system distribution key

definitons are lost;

 System Design Specification (SDS) must be

created and kept in close alignment with the SRS,

thus making sure no previoulsy raised system

distribution key definitons are lost. They should

instead only be incremented in the SDS;

 SRS, PMP and PSB are updated and re-baselined.

How These Practices Support Waterfall?

 End of Planning phase has all major solution

specifications and a complete design, all

considering the DS characteristics of the project;

 Improved visibility acquired regarding what are

the main technical constraints and risks for the rest

of the project, before execution.

Adapting These Practices for Scrum

 There should be acceptance criterion created for

each infrastructure / integration story, such as:

 What should be the systems’ behavior when

the integrations are and are not available?

 What should be the systems’ behavior when

the data contract is or is not being respected,

regarding for example, data consumption and

data transformation?

 Integration / infrastructure scope are treated as

user stories and are added into a Sprint Planning

scope, if Ready criteria is met.

How These Practices Support Scrum?

 Clear prioritization of Integration and

Infrastructure aspects in relation to regular

software requirements, all based on their now

perceived value for the solution;

 Raised DS acceptance criterion will later be used

during development and testing cycles. Due

importance is provided to the validation of the

system distribution key characteristic.

3.1.3 Building Phase

In the Building Phase, one assembles the required

Non-Production and Production infrastructures, as

well as creates the software product through

codification and developer´s level testing. Finished

Test Cases are also an output of this phase. An overall

view of the Building phase activities, with its inputs

and outputs can be seen in Figure 3.

Figure 3: Building phase of proposed Waterfall cycle.

Our Recommended Practices for Waterfall

 IT Infrastructure, non-production (and production

if possible), is raised during this phase. Attention

to all needs mapped in the infrastructure

document is essential;

 Logging and monitoring functionalities must be

implemented according to the strategy previously

mapped in the PAD. This allows easier

traceability of defects in non-production

environment, as it will be possible to quickly

identify from which application the defect comes.

Also, when in production, traceability of incidents

will also be benefited by the same approach;

 Developer Integration Test (DIT) first includes

only mocked integrations, but in a second

moment, if possible, will be done with all

integrations in the non-production environment,

thus simulating what will be found in production.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

162

How These Practices Support Waterfall?

 Completion of the development step with a much

more stable code, mainly due to attention given to

key distribution details.

Adapting These Practices for Scrum

 Sprint Zero includes the assembly of non-

production infrastructure;

 Sprint Zero includes test analysis for test

scenarios generation. Next sprints have the same

approach. This generates better coverage during

test execution.

How These Practices Support Scrum?

 System analysis team is one step ahead of the rest

of the team, thus making sure requirements are

well understood before actual implementation.

Same happens to test team, and now the project

benefits from the “planned in advance” testing.

3.1.4 Testing Phase

In this phase one performs detailed integrated testing

from both the test team’s and user’s perspectives.

Defect management and handling happen during the

entire phase. Performance testing, when applicable, is

also carried out on this phase. An overall view of the

Testing Phase activities, with its inputs and outputs

can be seen in Figure 4.

Figure 4: Testing phase of proposed Waterfall cycle.

Our Recommended Practices for Waterfall

 Testing should provide an important focus on the

Non-Functional Requirements (NFRs),

considering they highly influence the system

distribution decisions;

 Mocked data should be avoided at this stage. The

use of data masses that are the closest possible to

production is encouraged;

 Mocked integrations should be avoided at this

stage. It is ideal to have all systems integrated in

the testing non-production environment;

 Test infrastructure and overall environment in use

must be the closest possible to production;

 Sign-offs should be received from who is

performing the tests by the end of System

Integration Testing (SIT) and User Acceptance

Testing (UAT).

How These Practices Support Waterfall?

 An independent test team will validate what was

built and delivered;

 Stabilization of defects prior to handing the

system over to users for UAT testing;

 Realistic testing will help in preventing many

incidents in production.

Adapting These Practices for Scrum

 Production environment can be raised and be

continuously refined at this point;

 Proposed waterfall test practices can be used

equally in Scrum, without adaptations.

How These Practices Support Scrum?

 The benefits are the same coming from the

proposed practices in Waterfall Testing phase.

3.1.5 Releasing Phase

In this phase one provides the support team and users

with the application training. Application is made

available for use in production. Provision of warranty

for the application, through the solution of production

incidents. Project closure is executed. An overall

view of the Releasing Phase activities, with its inputs

and outputs can be seen in Figure 5.

Our Recommended Practices for Waterfall

 A deployment and rollback plans should be

available for tracking of all the deployment tasks

and their impacts to each integration;

 A post-deployment plan should be available in

order to help validating if all core functionalities

from the deployed / integrated systems are

unnafected and available;

 A “System Profile” Document (SPD) describes, in

business terms, the implemented system, its

purpose, integration points, data flowing in and

out, etc. This is the base of the Knowledge

Transfer (KT) for the support team and users;

Towards an SDLC for Projects Involving Distributed Systems

163

 Lessons learned document captures learned items

that will be inputs to upcoming projects. A DS

section exists in the document.

How These Practices Support Waterfall?

 Project closure occurs when the system is fully

transitioned to production and accepted by users;

 System transition to the support team is also

needed for closing out the project.

Adapting These Practices for Scrum

 If there is not enough time in last sprint, then

create a “Sprint-F” (for Final), for carrying out KT

and the remaining documentation, including SPD;

 Lessons learned are filled out as part of final

Sprint Review and Sprint Restrospective, using

Sprint-F for that as well, if needed.

How These Practices Support Scrum?

 Documentation is generated only until it generates

value for the users / customers;

 Project closure happens when expected product

value has been delivered;

 System maintenance is considered, as there is the

foment of KT for that purpose;

 Continuous improvement of projects through the

raise of lessons learned.

Figure 5: Releasing phase of proposed Waterfall cycle.

3.1.6 Monitoring and Controlling Phase

This phase happens in parallel to the project,

providing oversight for all phases. Change impacts

are monitored, action being taken when needed and

status being reported. An overall view of the

Monitoring and Controlling (M&C) Phase activities,

with its inputs and outputs can be seen in Figure 6.

Figure 6: M&C phase of proposed Waterfall cycle.

Our Recommended Practices for Waterfall

 Status reports addresses the DS aspect, describing

what is the status on infrastructure as well as on

each integration. Items such as difficulties faced,

steps completed, opportunities, risks, teams

engagement, etc should be on the report.

How These Practices Support Waterfall?

 Synchronization of all stakeholders’ visibility on

all key project aspects, including the DS one;

 Foment of the whole team’s participation on all

project issues and decisions.

Adapting These Practices for Scrum

 Daily Scrums, Sprint Plannings and Release

Plannings may have part of their time dedicated

for the review of the teams’ accomplishments

regarding infrastructure / integrations items.

How These Practices Support Scrum?

 “All” project aspects become visible to

everyone, including the ones related to DS.

3.2 Validation and Limitations

We define this research as an empirical, qualitative

one. As such, our DS SDLC and practices, after

created, went through the process of “member

checking”, a traditional validation technique used in

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

164

empirical work (Singer, 2007).

We invited 5 participants from the 16 IT

professionals, who had previously participated on our

interview-based field study, to participate again in the

validation session. They were chosen due to the

authors’ perception of their highly critical opinions as

well as the importance of their previous contibutions.

We also invited 2 additional professionals that had

no previous contact whatsoever with this research.

They were selected based on their seniority as IT

professionals, each one having more than 15 years of

work experience in IT. Both were from Brazil.

The feedback obtained was encouraging. These

professionals all agreed that many practical benefits

should come from the implementation of our

proposed SDLC and practices. All of them also had

their own inputs with improvements, which in turn

led to the version of our model discussed in this paper.

We did not include in preliminary validation the

application of the SDLC in real-life projects given

time constraints. However, the field study provided

us with an initial rich data set that suffices before we

continue our work. Our next step is, then, to observe

how the SDLC is welcomed in real-life projects and

what suggestions industry professionals will make to

improve and further its scope, if any. For now, the

current limitations of our study are as follows:

 No practical experiments with real projects

and/or companies conducted so far;

 Field study participants were from Brazil and

the United States only while member checking

participants were from Brazil only;

 Small diversity of companies, (one American

company providing 9 out of 16 participants);

 Our SDLC currently does not drill down to

task-step structure;

 The SDLC has some generic management

activities and deliverables. These will migrate

into an independent PLC in the future.

4 CONCLUSIONS

In this work we discussed the many challenges

brought by DS to Software Development Projects.

Little research exists though on the intersection of

Distributed Systems and Project Management.

As presented in our results, professionals from the

IT industry do recognize the importance of

understanding those challenges and taking systematic

actions in order to mitigate or eliminate most of them.

We believe that our SDLC and related practices

are in line with the industry needs for an effective

countermeasure for the identified challenges,

addressing them by broadening project teams´

awareness about the importance of properly handling

the System Distribution aspect on the projects they

are inserted in.

The SDLC will also provide elements to facilitate

communication with users and customers, allowing

them to realize how complex a software truly is, not

only from a regular requirements perspective, but

from technical and infrastructure perspectives as well.

More research is still needed for verifying the

effectiveness of our proposals, as well as their

easiness of use, both when used by themselves as well

as when simply coupled to other SDLCs. This is the

cornerstone of our research’s next step.

REFERENCES

PMI Inc., 2015. What is Project Management?. Consulted

on October 13, 2015. Available at http://www.pmi.org

/about-us/about-us-what-is-project-management.aspx.

PMI, 2013. A Guide to the Project Management Body of

Knowledge: PMBoK Guide. Project Management

Institute. Pennsylvania, 5

edition.

Coulouris, G., Dollimore, J., Kindberg, T., Blair, G., 2012.

Distributed Systems Concepts and Design, Addison-

Wesley, Boston, 5

edition.

Taylor, J., 2004. Managing Information Technology

Projects: Applying Project Management Strategies to

Software, Hardware and Integration Initiatives.

AMACOM. New York.

Version One, 2015. “The 9

Annual State of Agile Report”.

Consulted on October 07, 2015. Available

at http://info.versionone.com/state-of-agile-developme

nt-survey-ninth.html.

Herbsleb, J. D., Moitra, D. 2001. Global Software

Development. In IEEE Software, V.16, n.2, 16-20.

IEEE.

Pressman, R, Maxim, Bruce, 2014. Software Engineering

A Practitioner’s Approach. McGraw-Hill. New York,

edition.

Shull, F., Singer, J., Sjoberg, Dag, 2007. Guide to

Advanced Empirical Software Engineering. Springer.

New Jersey, 2008 edition.

Towards an SDLC for Projects Involving Distributed Systems

165
