A Language for Defining and Detecting Interrelated Complex
Changes on RDF(S) Knowledge Bases
Theodora Galani
1,2
, George Papastefanatos
1
and Yannis Stavrakas
1
1
Institute for the Management of Information Systems, RC ATHENA, Artemidos 6 & Epidavrou, Marousi, Greece
2
School of Electrical and Computer Engineering, NTUA, Zografou, Athens, Greece
Keywords: Change Management, Data Evolution, RDF(S).
Abstract: The dynamic nature of web data brings forward the need for maintaining data versions as well as identifying
changes between them. In this paper, we deal with problems regarding understanding evolution, focusing on
RDF(S) knowledge bases, as RDF is a de-facto standard for representing data on the web. We argue that
revisiting past snapshots or the differences between them is not enough for understanding how and why data
evolved. Instead, changes should be treated as first-class-citizens. In our view, this involves supporting
semantically rich, user-defined changes that we call complex changes, as well as identifying the
interrelations between them. In this paper, we present our perspective regarding complex changes, propose a
declarative language for defining complex changes for RDF(S) knowledge bases, and show how this
language is used to detect complex change instances among dataset versions.
1 INTRODUCTION
The increasing amount of information published on
the web poses new challenges for data management.
A central issue concerns evolution management.
Data published on the web frequently change, as
errors may need to be fixed or new knowledge has to
be incorporated. Data consumers need to know what
changed among versions, as well as how and why it
changed. Thus, the need for maintaining data
versions and identifying changes becomes evident.
In this paper we focus on interpreting evolution
on RDF(S) knowledge-bases, as RDF is the de-facto
standard for representing data on the web. A typical
approach for handling changes among dataset
versions is computing diffs between them, leading to
a machine-readable representation of changes based
on triple additions and deletions. This approach does
not provide any intuition about change semantics or
possible relations between them. An ideal approach
would compute human-readable, semantically rich
changes along with any interrelations between them.
For example, consider a simplified ontology
representing a company's employees, as in Figure 1.
Figure 1(a) depicts the initial version, while Figure
1(b) the version after the modifications. Note that
classes are in bold font. Each employee is described
by her name, salary, position and optionally grade
and projects assigned. Employees are organised in a
hierarchical structure, depicting position hierarchy,
as each one refers to another. In Figure 1(b),
modified parts are depicted in light grey. Initially,
employee "theo" is leading a small team of
programmers, comprising of "mary" and "kate"
working on project A. Later, he gets an excellent
appraisal turning his grade from 9 to 10. As a result,
he gains a salary increase. Also, he gets promoted to
a manager. The promotion leads to an additional
salary increase and overall the salary doubles. As the
business goes well, a new employee has to be hired
in order to organize the increasing team
responsibilities. As a result, a new team leader is
added, "nick", serving as senior employee, guiding
"mary" and "kate", and reporting to the manager.
From now on, the projects are assigned to him and
thus they are moved from "mary" and "kate" to him.
Computing the diff between these two versions
totally misses capturing change semantics and
dependencies. Understanding the intentions behind
data modifications can be even more complicated for
large datasets, where changes are numerous and
dispersed. Instead, Figure 2 depicts an intuitive and
descriptive representation of how data changed.
Figure 2(a) depicts the modifications regarding
"theo", while Figure 2(b) regarding "nick". Each
472
Galani T., Papastefanatos G. and Stavrakas Y.
A Language for Defining and Detecting Interrelated Complex Changes on RDF(S) Knowledge Bases.
DOI: 10.5220/0005833804720481
In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016), pages 472-481
ISBN: 978-989-758-187-8
Copyright
c
2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

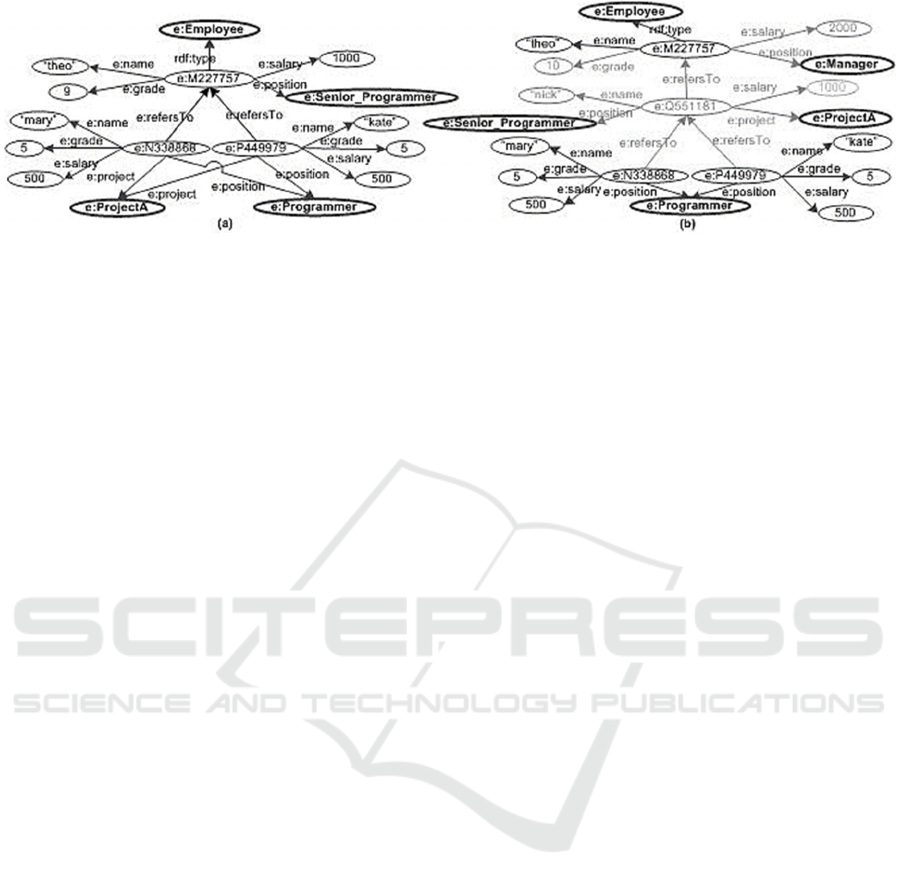

Figure 1: Simplified part of an employee ontology. (a) Initial version. (b) Version after modifications.
node represents a change instance detected between
the aforementioned dataset versions. Change
instances on leaf nodes (in grey) are fine-grained
and model-specific, meaning that they do not
comprise of other change instances and their
semantics suit to the RDF data model. Each one
corresponds to an added or deleted triple, having a
suitable name and descriptive parameters. They are
simple change instances. The rest change instances
(in white) are coarse-grained and application/data-
specific, meaning that they demonstrate structure
and semantics suitable to the employee example.
The hierarchical structure indicates that a change
instance is build on top of others, demonstrating
relations and dependencies among changes. They are
complex change instances.
Consider the change instances Add_Grade and
Delete_Grade in Figure 2(a). They serve as
specializations of the model specific Add_Property
_Instance and Delete_Property_Instance,
respectively. This holds for all similar change
instances regarding employee properties.
Employee_Positive_Appraisal instance contains
them, modelling the positive evaluation that took
place. Similarly, Employee_Promotion_Manager
and Employee_Salary_Increase group change
instances providing richer semantics on how data
changed. Employee_Salary_Increase is caused by
Employee_Positive_Appraisal and
Employee_Promotion_Manager. Causality is
modelled on top of these changes through
Salary_Increase_after_Positive_Appraisal and
Salary_Increase_after_Promotion_Manager. These
change instances are overlapping as they share a
common part, Employee_Salary_Increase,
modelling that they cause the same effect on data.
Similar properties are demonstrated on change
instances of Figure 2(b). Add_Employee instance
groups all properties related to a newly added
employee. Add_Senior_Employee instance is a
specialization of Add_ Employee, where the added
employee (with id e:Q551181, i.e. "nick") reports to
a manager (with id e:M227757, i.e. "theo") and
serves as a leader to other employees (with ids
e:N338868 and e:P449979, i.e. "mary" and "kate").
This is modelled by the position he gets in the
hierarchy, via Add_Reference instances. Also,
Add_Senior_Employee instance contains a
Move_Project_Assignment instance, as project A is
moved from "mary" and "kate" to "nick", and
Delete_Reference instances as these employees
initially had "theo" as a leader. These changes are
secondary and may happen when adding a senior
employee.
In this paper, we argue that for understanding
data evolution, changes should be treated as first-
class-citizens. In our view, this involves supporting
human-readable, semantically rich, user-defined
changes, named complex changes. These changes
are application/data-specific and coarse-grained,
defined over primitive and model-specific changes,
named simple changes. Modelling explicitly
complex changes provides additional information for
interpreting past data, while supporting user-defined
changes allows interpreting evolution in multiple
ways. On top of this, supporting interrelated
complex changes, through nesting and overlaps, is
an additional feature that enriches the complex
changes' expressivity. A complex change may be
part of another, may generalize/ specialize another,
may cause another or may provide supplementary
interpretation of evolution. Section 3 contains the
basic concepts of our approach. Given these
concepts, we provide a declarative language for
defining complex changes (Section 4). We then
define a process for detecting complex change
instances among dataset versions (Section 5). Both
the language and detection algorithm are influenced
by our main contribution of supporting interrelated
complex changes. Section 2 discusses related work
and Section 6 concludes the paper.
A Language for Defining and Detecting Interrelated Complex Changes on RDF(S) Knowledge Bases
473

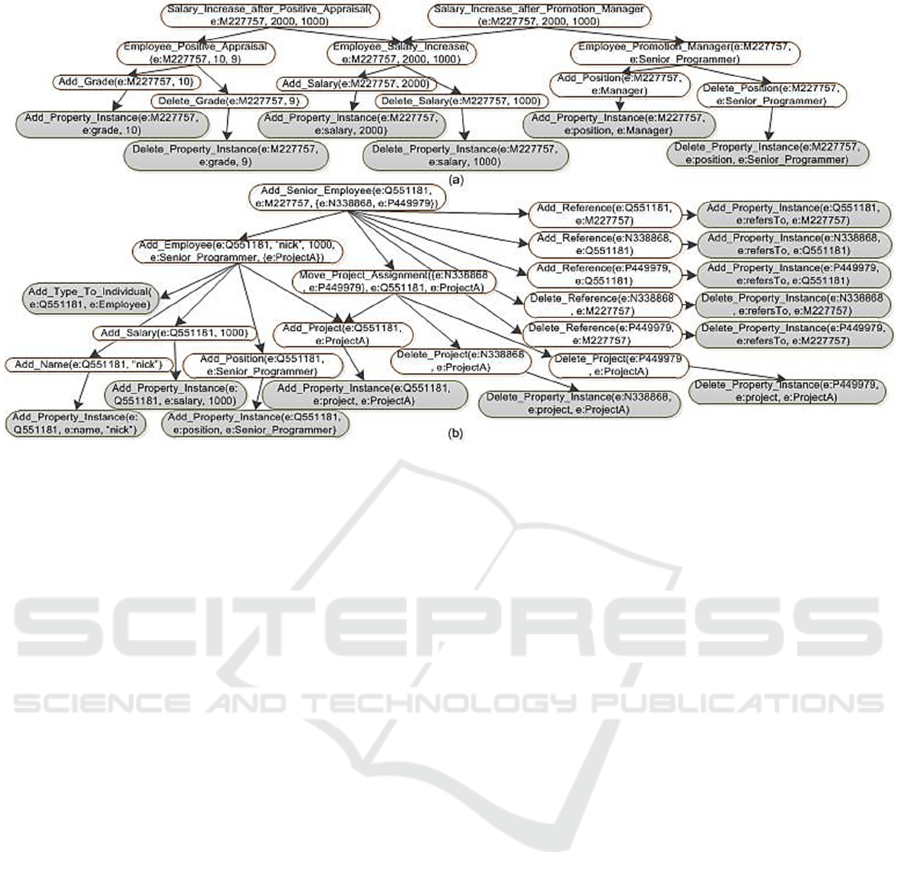

Figure 2: Hierarchy of detected simple and complex change instances (in grey and white fill respectively) of the employee
ontology of Fig. 1. (a) Change instances regarding "theo". (b) Change instances regarding "nick".
2 RELATED WORK
A number of works focus on computing the
differences between knowledge bases. In (Berners-
Lee and Connolly, 2004) an ontology for
representing differences between RDF graphs, in the
form of insertions and deletions, is proposed. RDF
graphs comparison is discussed, as well as updating
a graph from a set of differences. In (Volkel et al.,
2005) two diff algorithms are proposed: one
computing a structural diff (as the set-based
difference of the triples explicitly recorded into the
two graphs), and one semantic diff (taking into
consideration the semantically inferred triples). In
(Franconi et al., 2010), an approach for computing a
semantic diff is proposed, focusing on propositional
logic knowledge bases but also being applicable to
more expressive logics. A number of desired
properties are discussed, like semantic diff
uniqueness, the principal of minimal change, the
ability to undo changes and version reconstruction.
Similar properties are supported in (Zeginis et al.
2011), which focuses on computing deltas over
RDF(S) knowledge bases. In (Noy and Musen,
2002; Klein, 2004), a fixed point algorithm for
detecting ontology change is proposed. It employs
heuristic-based matchers, introducing uncertainty to
results.
Other works focus on supporting human-
readable changes. In (Papavasileiou et al., 2013), a
set of predefined high-level changes for RDF(S)
knowledge bases and an algorithm for their detection
are proposed. Changes verify the properties of
completeness and unambiguity, for guaranteeing that
every added or deleted triple is consumed by one
detected high-level change and that detected high-
level changes are not overlapping, respectively. In
(Roussakis et al., 2015), an extension of
(Papavasileiou et al., 2013) is proposed, providing a
more generic change definition framework, based on
SPARQL queries. In (Plessers, De Troyer and
Casteleyn, 2007), Change Definition Language is
proposed for defining and detecting changes over a
version log using temporal queries. In (Auer and
Herre, 2007) a framework for supporting evolution
in RDF knowledge bases is discussed. Changes are
triple additions and deletions and aggregated triples,
resulting in a hierarchy of changes. However, neither
a detection process, nor a specific language of
changes is defined. In (Klein, 2004), an extension of
(Noy and Musen, 2002) is proposed for detecting
some of the proposed basic and composite changes.
In general, (Klein, 2004), (Papavasileiou et al.,
2013) and (Stojanovic, 2004) provide human
readable changes in similar categories regarding
granularity and semantics.
Our approach focuses on human readable
changes. A visionary work was presented in (Galani
et al., 2015). Similar to (Klein, 2004),
(Papavasileiou et al., 2013), (Roussakis et al., 2015)
and (Stojanovic, 2004) we assume primitive
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
474
changes, as simple changes, and groupings of them,
as complex changes. Instead of providing a
predefined list of complex changes, we support user-
defined complex changes in order to capture richer
semantics and multiple interpretations of evolution,
as (Plessers, De Troyer and Casteleyn, 2007) and
(Roussakis et al., 2015). Our main contribution is
supporting interrelated complex changes providing a
language for defining complex changes over simple
or other complex changes and an appropriate
detection algorithm. (Plessers, De Troyer and
Casteleyn, 2007) and (Roussakis et al., 2015) do not
support interrelated complex changes.
3 SIMPLE AND COMPLEX
CHANGES
Modelling changes as first class citizens involves
taking into account granularity and semantics of
changes. Granularity poses the question of having
fine-grained or coarse-grained changes. Fine-grained
changes have the advantage of describing primitive
changes, while coarse-grained changes provide
semantics and conciseness by grouping primitive
changes in logical units. Semantics poses the
question of having model-specific or
application/data-specific changes. Model-specific
changes describe modifications that appear in a
specific model, constituting a fixed set of generic
changes. Application/data-specific changes suit
specific use-cases and may be user-defined, allowing
multiple interpretations of evolution.
As a result, we distinguish between simple and
complex changes. Simple changes constitute a fixed
set of fine-grained, model-specific changes.
Complex changes are coarse-grained, user-defined,
application/data-specific changes providing richer
semantics on how data changed. Definitions 1 and 2
formally define simple and complex changes.
Definition 1: A simple change is a tuple
,
,
where:
is the name of , which must be unique.
is the list of descriptive parameters of ,
where each one has a unique name within .
Definition 2: A complex change is a quadruple
,,,
, where:
is the name of , which must be unique and
different from the simple change names.
is the list of descriptive parameters of ,
where each one has a unique name within .
is the set of simple (
) and complex
changes (
) that comprises of, where
=
∪
,
∩
=∅ and ≠.
is the set of constraints (
) that changes in
verify and bindings (
) specifying the
parameters in , where =
∪
and
=∅. Constraints are on changes (

) or
change parameters (

), where
=


and

∩

=∅.
For simple changes we rely on (Papavasileiou et
al., 2013). Appendix summarizes the simple changes
considered. They verify completeness and
unambiguity properties, constituting a first layer of
human-readable changes. Simple changes are
additions, deletions and terminological changes
(rename, split, merge) of RDF(S) entities (classes,
properties, individuals). As stated, simple changes
are fine-grained, i.e. they cannot be decomposed in
more granular changes. This holds for additions/
deletions, but not for terminological changes, as they
can be expressed as additions/ deletions plus extra
conditions. For example, a class rename can be
considered as an add class plus a delete class, which
have the same "neighbourhood" (properties,
connections to classes). However, we prefer them as
simple changes in order to distinguish at simple
change level real additions/deletions from virtual
ones representing terminological changes. Thus,
simple changes' set is not minimal.
A complex change is defined in terms of simple
or other complex changes verifying constraints.
Constraints specialize its meaning and are divided
into those defined on changes and those on change
parameters. Bindings specify complex change
parameter values. Section 4 includes more details.
The ultimate goal of supporting simple and
complex changes is detecting actual instances
between dataset versions. Detection process leads
into instantiating change parameters with values,
indicating that specific data elements have been
affected by a change in a specific manner.
Definitions 3 and 4 define simple and complex
change instances. Figure 2 presents simple and
complex change instance examples.
Definition 3: A simple change instance of a
simple change
,
, is a tuple
,
where is an
instantiation of the parameters .
Definition 4: A complex change instance of a
complex change
,,,
, is a tuple
,
where
is an instantiation of the parameters .
For simple change detection we rely on
(Papavasileiou et al., 2013). For complex changes
we provide an algorithm in Section 5. Definition 5
defines when a complex change instance is detected.
Definitions 6 and 7 define possible relations among
A Language for Defining and Detecting Interrelated Complex Changes on RDF(S) Knowledge Bases
475
change instances, as interrelations between changes
are reflected on them.
Definition 5: Let =
, , ,
be a complex
change and
and
two dataset versions. A
complex change instance
=
,
is detected if
for all changes in instances are detected between
and
, forming
, such that constraints in
are
verified on
,
and
, bindings in
applied on
form and
is maximal.
We say that the set of change instances
corresponding to
verifies the complex change .
Definition 6: Let
be an instance of complex
change and
the corresponding set of change
instances verifying .
contains the change
instances in
.
Definition 7: Let
and
be two complex
change instances, where
does not contain
and
vice versa. They are overlapping if they both contain
at least one common simple or complex change
instance.
Containment is transitive. Complex change
instances may form a hierarchy due to containment
and overlaps, as in Figure 2.
4 A LANGUAGE FOR DEFINING
COMPLEX CHANGES
We believe that an intuitive, user-friendly language
based on change semantics should be provided for
defining complex changes. Complex change
definitions are then used for detecting respective
instances. In this section, we propose a declarative
language for defining complex changes. We provide
its syntax by means of EBNF specification (Table 1)
and some illustrative examples (Table 2) concerning
the employee ontology in Figure 1.
A complex change definition is composed by a
heading and a body. The heading contains a unique
name and a list of descriptive parameters. The body
contains a list of changes that the complex change
comprises of, constraints on the changes appearing
in the list and their parameters, and parameter
bindings declaring how complex change parameters
are evaluated. Constraints and bindings are optional.
A complex change definition is nested if complex
changes appear in its change list. Thus, complex
changes are defined as interrelated. Constraints are
divided into cardinality, testing value, relational,
pre/post-conditions and functions.
Cardinality constraint determines whether zero,
one or multiple instances of a specific change are to
be grouped into a complex change. In case of one or
multiple change instances, the change is defined as
mandatory. In case of zero instances the change is
defined as optional, and if no instance is detected,
the respective complex change can be still detected.
Thus, complex changes are flexible and tolerant in
partially performed modifications of minor
significance. Posing a cardinality constraint is
optional. If it is not defined, the default case is one
change instance for the respective change. The
following notations hold: at least one change
instance "+", zero or one "?", zero or more "*".
Parameter bindings determine how complex
change parameters are evaluated. In general, a
complex change parameter equals a parameter of a
change in its change list. However, recall that due to
cardinality constraints multiple change instances of a
specific change type may be grouped. In such case, a
complex change parameter equals the union of the
parameter values for all the change instances of a
specific type grouped. As a result, complex change
parameters are distinguished into those that evaluate
into type set and those that evaluate into scalar
values. In order to distinguish the parameter types,
parameters evaluating into scalar values start with a
lowercase letter, while those evaluating into sets
with an uppercase letter. Parameter bindings are
optional, in case they can be inferred by repeating
each parameter into the contained changes and
respective constraints.
Testing value constraints, relational constraints,
pre/post-conditions and functions are constraints
defined on change parameters. Testing value
constraints limit a parameter value against a given
constant, while relational constraints involve two
change parameters defining how changes are
connected. For these constraints binary operators are
supported. Pre/post-conditions define how
parameters are related in the version before (V
b
) or
after (V
a
) the change, stating whether a triple must
or must not exist in the version before or after. If a
triple may be inferred in a version, this is denoted by
the flag "inferred". Constraints may also be in the
form of predefined functions of return type boolean.
For example consider common functions on strings,
like contains, which checks whether a string
contains another given string. Constraints may form
composite conditions, when combined in boolean
expressions using logical and, or, not.
As complex changes are used in nested
definitions and complex change parameters may
evaluate into set or scalar values, we support binary
operators between sets and between sets and scalar
values. Also, in order to write conditions on set
elements we use quantified expressions, which may
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
476

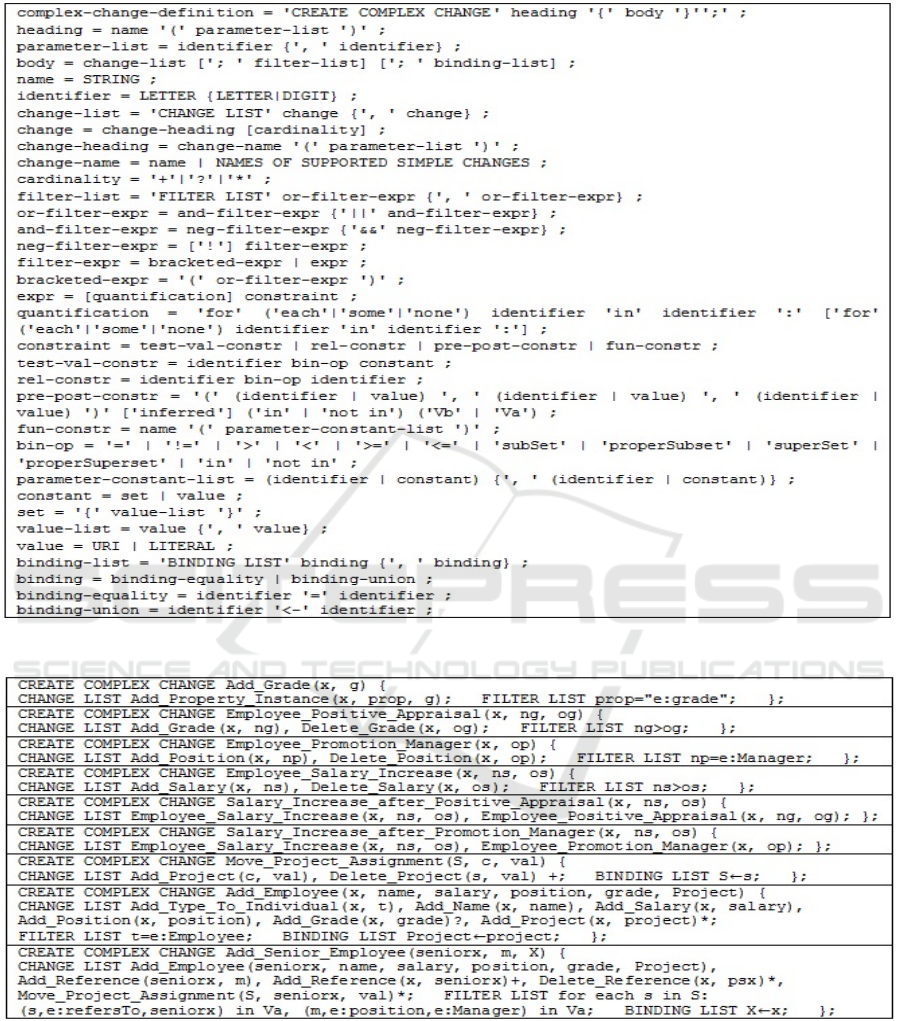

Table 1: The EBNF specification of the complex change definition language.
Table 2: Complex change definitions regarding the employee ontology of Figure 1.
be in the form
∀, ∃,
 :
or
∀, ∃,

:
∀, ∃,
 :
,
, where
and
,
are constraints on parameters evaluating into scalar
values.
Table 2 contains complex change definitions
regarding the changes of the employee ontology in
Figure 1 discussed in introduction. Add_Grade
models the case where a new grade property with
value g is assigned to employee x. The changes it
comprises of are declared in the "change list", while
constraints in the "filter list". Add_Grade is a
specialization of simple change Add_Property_
Instance, where the property equals to "e:grade".
This is a testing value constraint over parameter
prop. Notice that no binding is defined explicitly, as
they are inferred by repeating complex change
A Language for Defining and Detecting Interrelated Complex Changes on RDF(S) Knowledge Bases
477
parameters as parameters of the changes in change
list. Besides Add_Property_Instance no cardinality
constraint is defined, meaning that cardinality one is
inferred. Similar complex change definitions for all
employees' properties can be given, but are omitted
due to space limitations. Employee_
Positive_Appraisal models the case when an
employee x gets a new grade, ng, greater than the
old one, og. It comprises of Add_Grade, so that the
new grade is assigned to the employee, and Delete
_Grade, so that the old grade is removed, both
referring to the same employee x. A relational filter
compares the new and the old grade.
Empployee_Salary_Increase is similarly defined.
Employee_Promotion_Manager models the case
when an employee x becomes a manager. Add_
Position assigns the new position to x and Delete_
Position deletes the old one. A testing value
constraint specifies the new position as e:Manager.
The complex change Salary_Increase_after_
Positive_Appraisal comprises of Employee_Salary
_Increase and Employee_Positive_Appraisal,
modelling the case when a salary increase of
employee x is caused after receiving positive
appraisal. Thus, complex changes are grouped due to
a causality relation. A similar concept holds for
Salary_Increase_after_Promotion_Manager. These
changes both base on Employee_Salary_Increase, as
they try to explain why this increase has been
caused. Thus, respective instances may overlap, if
they both refer to the same employee, like "theo" in
Figure 1 and 2. Due to nested definitions the
respective instances lead to a hierarchical structure.
Move_Project_Assignment models the case
where a project val, initially assigned to a set of
employees S, is later assigned to another employee
c. It comprises of Add_Project, as the project is
assigned to c, and Delete_Project, as the project is
deleted from another employee s. Both changes refer
to the same project, as val is repeated in both.
Besides Delete_Project "+" is noted. This is a
cardinality constraint defining that there might be
multiple deletions. The project may be initially
assigned to multiple employees and then deleted
from many of them. In such case, all these
Delete_Project instances will be grouped into the
respective complex change instance (through
detection process). Now, consider that similarly the
project can be moved to multiple employees too.
This would cause multiple Add_Project instances.
But, on Add_Project it is assumed cardinality one.
Therefore, only one instance will be grouped in
every complex change instance and multiple
complex change instances will be detected, one for
each Add_Project instance. As a result, supporting
cardinality is important in order to define how
change instances are grouped. We choose to follow
cardinality as in Table 2 in order to construct
groupings per project and per employee it has been
moved to. Due to cardinality constraint, parameter S
holds all employee' ids that the project has been
removed from, as defined in the binding list.
Add_Employee models the case where a new
employee is added with a number of descriptive
properties. x is of type e:Employee, as defined in the
testing value constraint. Property grade is optionally
added, as defined by "?" besides Add_ Grade.
Add_Project is optional too, but if it is added there
might be many instances ("*"). Add_
Senior_Employee is a specialization of Add_
Employee and thus it is defined on top of it. It
models the case when a newly added employee
refers to a manager and leads other employees. This
is described by e:refersTo property, through
Add_Reference changes. The fact that the added
employee refers to a manager is defined by the
second post-condition. Also, it is likely that projects
are moved to the added employee from the
employees he leads. This is demonstrated by
Move_Project_Assignment and the first post-
condition. A quantified expression is used in order to
write the post-condition on the elements of set S.
5 COMPLEX CHANGE
DETECTION
Complex change detection is the process of
identifying complex change instances. It requires as
input a set of simple change instances detected
between two dataset versions (
), the actual dataset
versions (before
and after
) and the complex
change definitions that will be evaluated for
detecting respective instances (). We focus on how
nested complex change definitions are handled and
how constraints are evaluated. In order to implement
the language, we translate it into an already
implemented language. As this approach concerns
RDF data, we choose to rely on SPARQL, which
provides similar capabilities to our language. The
presented Algorithm involves two steps: the first
step handles nested definitions, the second produces
complex change instances.
As for the first step, suppose a complex change
whose definition is based on a set of complex
changes (
≠∅). The detection of instances
depends on detecting the instances of each complex
change in
and therefore follows their detection.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
478
Note that mutually dependent complex changes are
not supported. In general, complex change
definitions constitute a directed acyclic graph, where
nodes represent changes and edges dependencies
between them. An edge departing from a complex
change arrives at changes in
according to its
definition. Thus, detection follows a post-order
depth-first scheme on the induced dependency graph
by complex change definitions. This is stated in line
2 of proposed Algorithm. postOrderDfs function call
runs over the set of complex changes identifying
the dependencies among changes, returning a queue
of all changes in , where the order of elements
defines the order in which they have to be detected.
As for the second step, for each complex change
in , instances are computed (lines 3-10). The
main idea is that our language is translated into
SPARQL queries. Accordingly, simple and complex
change instances and dataset versions are encoded as
RDF data, so that constructed SPARQL queries are
applied on them. Therefore, for each complex
change an appropriate SPARQL query is created
through createQuery function call (line 5). For this,
changes in
, constraints on their parameters and
bindings are employed. Bindings indicate how to
select complex change parameter values. Cardinality
is taken into account to identify whether a change is
optional. This query is executed on the detected
change instances and dataset versions (line 6) in
order to select change instances that verify the
defined constraints. The query results are further
elaborated, through createInstances function call
(line 7), so that selected changes are grouped based
on cardinality. Computed instances are added into
the set of instances to be reported (line 8,
initialized in line 1), and are combined with simple
change instances in order to be available for
detecting depending complex change instances (line
9). Finally, the algorithm returns the set of detected
complex change instances (line 11).
Regarding query generation, testing value and
relational constraints map to SPARQL filter
expressions or nested queries with aggregation (in
case they involve parameters evaluating into sets),
while pre/post-conditions map to filter exists/not
exists expressions over appropriate graphs holding
the version before or after the change. Quantified
expressions are also mapped to appropriate nested
queries. Cardinality "?" and "*" map to optional
declaration, indicating that respective changes may
not be present. Bindings guide how query variables
in select clause, representing complex change
parameters, match query variables in where clause.
Algorithm: Complex Change Detection
Input: A set of complex changes , a dataset
version before
and after
, a set of
simple change instances
Output: A set of complex changes instances
of
1 ←
;
2 queue ←
; //complex
changes are sorted following dependencies
3 while !.
do
4 ←.
;
5  
,
;
6  
,
,
,
;
7
,

;
8 ←
; //report instances
9
←
∪
; // instances are available
for detecting depending changes
10 end while
11 return ;
Regarding instance generation, the query results
have to be iterated so that they are grouped
appropriately given cardinality constraints for
constructing complex change instances.
For example consider the following query, which
corresponds to Add_Senior_Employee defined in
Table 2. In the select clause we consider query
variables corresponding to contained changes'
identifiers (?c1, ?c2, ?c3, ?c4 and ?c5) and the
values which will be assigned to the complex change
instance parameters (?sx, ?m and ?x). In the where
clause we consider the changes defined in change
list and the constraints defined in filter list. For
Delete_Reference and Move_Project _Assignment
we use optional parts, due to "*" cardinality
constraint. For post-conditions we use appropriate
SPARQL filter expressions evaluating over the
graph holding V
a
. The first post-condition refers to
Move_Project_Assignment and thus it is placed into
the respective optional part. Also, it involves
quantification, which is implemented through a
nested query. The query results should be iterated
for creating instances. Notice that Add_Employee
and the first Add_Reference have cardinality equal
to one. Thus, all rows having the same value in the
respective query variables (?c1, ?c2) will form one
complex change instance.
SELECT ?c1 ?sx ?c2 ?m ?c3 ?x ?c4 ?c5
WHERE { ?c1 rdf:type ch:Add_Employee;
ch:aep1 ?sx.
?c2 rdf:type ch:Add_Reference; ch:ar1
?sx; ch:ar2 ?m.
FILTER EXISTS {GRAPH <http://employeeVa>
{?m e:position e:Manager.}}
?c3 rdf:type ch:Add_Reference; ch:ar1 ?x;
ch:ar2 ?sx.
OPTIONAL {?c4 rdf:type ch:Delete_
Reference; ch:dr1 ?x; ch:dr2 ?psx.}
OPTIONAL {?c5 rdf:type ch:Move_Project_
Assignment; ch:mpap1 ?s; ch:mpap2 ?sx;
ch:mpap3 ?v.{SELECT ?c5 WHERE{?c5 rdf:type
A Language for Defining and Detecting Interrelated Complex Changes on RDF(S) Knowledge Bases
479
ch:Move_Project_Assignment; ch:mpap1 ?s;
ch:mpap2 ?sx. FILTER NOT EXISTS {GRAPH
<http://employeeVa> {?s e:refersTo
?sx.}}}GROUP BY ?c5 HAVING(count(?s)=0)}}}
6 CONCLUSIONS
In this paper we argued that treating changes as first
class citizens is a central issue in evolution
management. This involves modelling, defining and
detecting complex changes. Thus semantically rich
changes and their interrelations are supported for
interpreting evolution in multiple ways. We
proposed our perception regarding complex changes,
a declarative language for defining them on RDF(S)
knowledge bases and a process for detecting
complex change instances. Future work is directed
in evaluating our approach in terms of language
expressiveness and detection efficiency.
ACKNOWLEDGEMENTS
Supported by the EU-funded ICT project
"DIACHRON" (agreement no 601043).
REFERENCES
Auer, S., H. Herre, 2007. A versioning and evolution
framework for RDF knowledge bases. In Perspectives
of Systems Informatics.
Berners-Lee, Τ., Connolly, D., 2004. Delta: An ontology
for the distribution of differences between RDF
graphs.http://www.w3.org/DesignIssues/Diff (version:
2006-05-12).
Franconi, E., Meyer, T., Varzinczak. I., 2010. Semantic
diff as the basis for knowledge base versioning. In
NMR.
Galani, T., Stavrakas, Y., Papastefanatos, G., Flouris, G.,
2015. Supporting Complex Changes in RDF(S)
Knowledge Bases. In MEPDaW-15.
Klein, M., 2004. Change management for distributed
ontologies. Ph.D. thesis, Vrije University.
Noy, N.F., Musen, M., 2002. PromptDiff: A fixed-point
algorithm for comparing ontology versions. In AAAI.
Papastefanatos, G., Stavrakas, Y., Galani, T., 2013.
Capturing the history and change structure of evolving
data. In DBKDA.
Papavasileiou, V., Flouris, G., Fundulaki, I., Kotzinos, D.,
Christophides, V., 2013. High-level change detection
in RDF(S) KBs. In ACM Trans. Database Syst., 38(1).
Plessers, P., De Troyer, O., Casteleyn, S., 2007.
Understanding ontology evolution: A change detection
approach. In J. Web Sem. 5(1): 39-49.
Roussakis, Y., Chrysakis, I., Stefanidis, K., Flouris, G.,
Stavrakas, Y., 2015. A flexible framework for
understanding the dynamics of evolving RDF datasets.
In ISWC.
Stojanovic, L., 2004. Methods and tools for ontology
evolution. Ph.D. thesis, University of Karlsruhe.
Volkel, M., Winkler, W., Sure, Y., Kruk, S., Synak, M.,
2005. SemVersion: A versioning system for RDF and
ontologies. In ESWC.
Zeginis, D., Tzitzikas, Y., Christophides, V., 2011. On
computing deltas of RDF/S knowledge bases. In ACM
Transactions on the Web.
APPENDIX
Simple Changes on RDF(S) Knowledge Bases.
Add_Type_Class(a): Add object a of type rdfs:class.
Delete_Type_Class(a): Delete object a of type rdfs: class.
Rename_Class(a): Rename class a to b. Merge_Classes(A,
b): Merge classes contained in A into b. Merge_Classes_
Into_Existing(A,b): Merge classes in A into b, bA. Split_
Class(a,B): Split class a into classes contained in B. Split_
Class_Into_Existing(a,B): Split class a into classes in B,
aB. Add_Type_Property(a): Add object a of type
rdf:property. Delete_Type_Property(a): Delete object a of
type rdf:property. Rename_Property(a,b): Rename property
a to b. Merge_Properties(A,b): Merge properties contained
in A into b. Merge_Properties_Into_Existing(A, b): Merge
A into b, bA. Split_Property(a,B): Split property a into
properties contained in B. Split_Property_
Into_Existing(a,B): Split a into properties in B, aB. Add_
Type_Individual(a): Add object a of type rdfs:resource.
Delete_Type_Individual(a): Delete object a of type rdfs:
resource. Merge_Individuals(A,b): Merge individuals
contained in A into b. Merge_Individuals_Into_Existing
(A,b): Merge A into b, bA. Split_Individual(a,B): Split
individual a into individuals in B. Split_Individual_Into_
Existing(a,B): Split a into individuals in B, aB. Add_
Superclass(a,b): Parent b of class a is added. Delete_
Superclass(a,b): Parent b of class a is deleted. Add_
Superproperty(a,b): Parent b of property a is added.
Delete_Superproperty(a,b): Parent b of property a is
deleted. Add_Type_To_Individual(a,b): Type b of
individual a is added. Delete_Type_From_Individual(a,b):
Type b of individual a is deleted. Add_Property_Instance
(a
1
,a
2
,b): Add property instance of property b. Delete_
Property_Instance(a
1
,a
2
,b): Delete instance of property b.
Add_Domain(a,b): Domain b of property a is added.
Delete_Domain(a,b): Domain b of property a is deleted.
Add_Range(a,b): Range b of property a is added. Delete_
Range(a,b): Range b of property a is deleted. Add_
Comment(a,b): Comment b of object a is added. Delete_
Comment(a,b): Comment b of object a is deleted. Change_
Comment(u,a,b): Change comment of resource u from a to b.
Add_Label(a,b): Label b of object a is added. Delete_
Label(a,b): Label b of object a is deleted. Change_
Label(u,a,b): Change label of resource u from a to b.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
480
