Towards Advanced Enterprise Information Systems Engineering

Solving Resilience, Security and Usability Issues within the Paradigms of

Socio-Technical Systems

Wilson Goudalo

1,2

and Christophe Kolski

LAMIH-UMR CNRS 8201, University of Valenciennes, Valenciennes, France

Research and Innovation Department, ABE - Advanced Business Engineering, Lagny, France

Keywords: Enterprise Information System, System Resilience, Information Security, Privacy,

Human-Computer Interaction, Usability, User eXperience, Socio-Technical Systems, Design Patterns.

Abstract: Resilience and Security are very important attributes for most enterprise Information Systems (IS). These

systems have human users with various capabilities, experiences and behaviors. Therefore, they have to be

resilient, secure and usable. Resilience requires the capacity to prepare and adapt, facing perpetuating

evolutionary conditions, and to restore full capability after an incident or an attack. We track and solve

Resilience, Security and Usability issues jointly in Enterprise IS. This challenge requires considering the

ergonomics of interactions, effectiveness and efficiency of the task realization, user satisfaction, and trust as

well as human feelings when using the secure services. In this paper, we propose an approach based on

paradigms of socio-technical systems to model the interplay between resilience, security and usability. We

detail a case study illustrating the proposed approach and detailing the elaboration of user-experience-based

design patterns.

1 INTRODUCTION

Information systems, and more precisely the services

they deliver, have completely invaded our lives and

play an increasingly prominent role. This is verified

for individuals, as well as for organizations and for

enterprises (Larson, 2008).

Security concerns are crucial in many services

(SBIC, 2008), (IBM, 2014), (KPMG, 2014) and

(Umhoefer, 2014). As a quality attribute, the

meanings of security have evolved, and the

technologies in the industry and in the standards

have adapted to this evolution. In the field of IT

systems, the initiatives were mostly based on

“securing the perimeter”. In the case of Information

system and the extended enterprise, initiatives have

evolved into guaranteeing security strategy in depth.

To improve the security strategy in depth, Goudalo

and Seret (Goudalo, 2008) proposed a

methodological approach that operates on building a

membership canvas of all stakeholders of the

company.

Therefore, there is an urgent need for new

approaches focusing on human aspects including

usability to ensure the security of systems. Indeed

systems are used by humans, although they are

increasingly automated. Ferrary showed that human

resources are now at the heart of the business model

of organizations and indicated “the human factor as

a main source of operational risk in banking”

(Ferrary, 2014). Cranor and Garfinkel’s book

indicates the research trends in security and usability

(Cranor, 2005). Clarke and Furnell’s book presents

the state of the art on “the human aspect in success

of the security” (Clarke, 2014). Most initiatives are

carried on specific security solutions. We notice a

lack of research on the overall engineering of

security from the point of view of HCI (Human-

Computer Interaction).

In this paper, we introduce first the concept of

socio-technical systems as an engineering approach.

We also explain how resilience, usability and

security can be addressed by using a socio-technical

systems approach. We introduce then our socio-

technical systems resilience approach, through

design patterns based on user experiences. A case

study on medical analysis laboratory is used to

illustrate the application of our suggested approach.

400

Goudalo, W. and Kolski, C.

Towards Advanced Enterprise Information Systems Engineer ing - Solving Resilience, Security and Usability Issues within the Paradigms of Socio-Technical Systems.

In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 2, pages 400-411

ISBN: 978-989-758-187-8

2 PARADIGMS OF

SOCIO-TECHNICAL SYSTEMS

2.1 Socio-technical Systems versus

Information Systems

The concept of socio-technical system was created in

the context of labor studies by the Tavistock

Institute in London by the end of the 50’s (Trist,

1967) and (Emery, 1967). Sperber and Wilson treat

the relevance of communication (and cognition) in

social context (Sperber, 1995). Socio-technical

systems aim to model all together human, social and

technological capabilities in using and dealing with

value added services. Singh defines socio-technical

systems (STS) as multi-stakeholder cyber physical

systems (Singh, 2013). They contend with

complexity and change in both the cyber and the

physical (social) worlds.

Socio-technical approaches can help the design

of organizational structures and business processes

as well as technical systems. It is largely

acknowledged that systems which are developed

using a socio-technical approach are more likely to

be acceptable to end-users and to deliver real value

to stakeholders. There are notable differences

between IT systems and socio-technical systems

modeling and engineering approaches in terms of

interactions (figure 1):

(1) IT systems modeling focuses on the technical

description of the components of the systems

and the interactions between them in order to

deliver a certain service.

(2) Social systems include all human interactions

and cooperation, on social and cultural values.

(3) Information systems include all users’

interactions with the IT systems, integrating

their organization, implementation and

management.

(4) Social-technical systems provide a way of

understanding all human interactions with the

various IT systems, their components, as well

as cooperation with other systems. Socio-

technical systems approach also the

interactions between the systems, all the

stakeholders and their organization and the

entire social environment, both the cyber and

the physical worlds.

These dimensions define the information in

terms of interactions among actors, which can be:

social reliance (actors rely on others to achieve their

goals), and information exchange (actors exchange

relevant information). As it will be detailed later on,

many security issues arise from the interaction

between actors, and on how the exchanged

information is accessed. Therefore, user experiences

are a main concern when analyzing security.

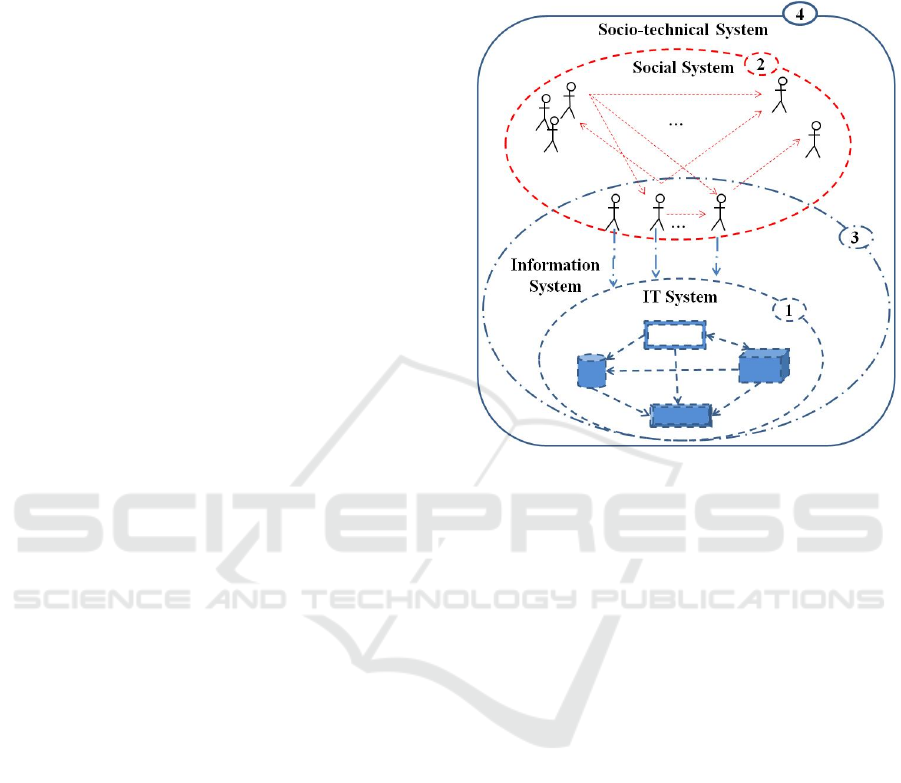

Figure 1: Socio-technical system representation.

2.2 Security and Privacy in

Socio-technical Systems

In socio-technical systems, a set of human and

automated agents (organized or not) interact to

complete tasks, according to a certain objective.

These have characters converging and/or diverging

characters or conflicting objectives. Feelings and

conflict situations are quickly transposed into the

socio-technical systems.

In other words, users of the systems can be

animated by malicious intents. This is the case of

hackers who find their playground in the socio-

technical systems. At the same time, the systems

process personal data, sensitive data and very private

character data. The tasks and data are sensitive and

highly valuable.

In socio-technical systems, privacy is an

important matter as well and must be protected.

Actually, in the case of medical health data, the

privacy requires special attention in terms of

confidentiality. This is one of the objectives of

security. Another objective of security is to

guarantee the safety, the integrity and the reliability

in processing all tasks. Difficulties of security in

socio-technical systems arise in ensuring these

objectives, due to two reasons.

Towards Advanced Enterprise Information Systems Engineering - Solving Resilience, Security and Usability Issues within the Paradigms of

Socio-Technical Systems

401

First, solutions of security (a too constraining

usage) may constitute security vulnerability or may

prevent the completion of tasks. Secondly, users’

behavior (errors, unintentional actions) may

constitute security vulnerability. Human factors are a

main source of operational risk in companies

(Ferrary, 2014), and the trust of users in the socio-

technical system is necessary (IBM, 2014). Clarke

and Furnell’s work reports success of security from

the human aspect point of view (Clarke, 2014).

2.3 Usability Difficulties in

Socio-technical Systems

Socio-technical systems expose users to social issues

and to technology issues. Users resort to technology

to deal with social issues and vice versa. Usability is

a property that depends on interactions among users,

systems, tasks, and environments where processes

are operated in both the cyber and the physical

words. Human factors are the main source of

operational risk in companies (Ferrary, 2014).

Usability concerns human factors. Usability is not a

specific property of persons or of things, which we

may measure by a “usability thermometer”, or

evaluate by applying widely accepted scientific

formulas (Lewis, 2014).

Usability difficulties are focused on: Personal

human factors experiments; Measuring behaviors

and attitudes captured when users complete the key

tasks; Measuring capabilities of the systems to

provide adequate conditions for carrying out tasks

(Cranor, 2015).

3 FOUNDATIONS

In this section, we define the concepts of resilience

applied to socio-technical systems, usability and of

security as well as the interplay between them.

3.1 Resilience Applied to

Socio-technical Systems

Resilience is a major concern nowadays, in order to

prevent an accident and more to restore a safer state

after an accident or intentional fault (Laprie, 2008)

and (ReSIST, 2015). Resilience, actually in relation

to the concern of accident (Hollnagel, 2006), is

applied in many domains such as socio-technical

systems engineering.

Luzeaux (Luzeaux, 2011) wrote that “resilience

is obtained via the capacity to monitor conditions at

the edges of the performance envelope, and the

ability to adapt the operational behavior of the

system to potential developments in this envelope”.

Luzeaux (Luzeaux, 2011) defined the four

functions of the resilience, which are “avoidance

(capacity for anticipation), resistance (the capacity

for absorption), adaptation (the capacity for

reconfiguration) and recovery (the capacity of

restoration)”. Figure 2 illustrates the resilience as an

active virtue integrated in all operations and

systems, in the field of defense (Palin, 2013).

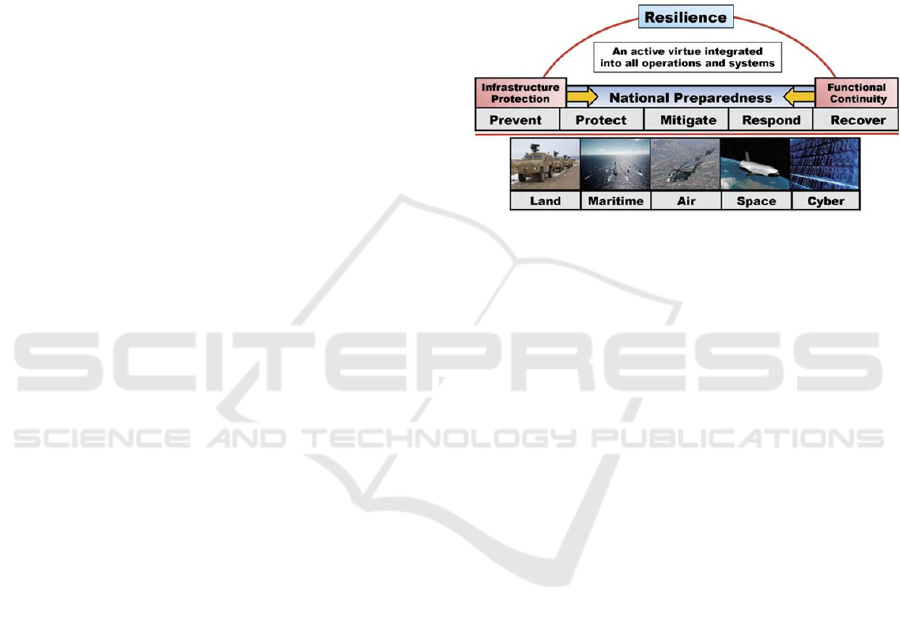

Figure 2: Illustration of resilience in the field of defense

(Palin, 2013).

Resilience is also applied in the field of

information technology and security. In this case,

resilience is defined as “the capacity to perform

during an incident (unintentional accident or

intentional fault) and then to come back to a normal

state” (ANSSI, 2014).

In this context, we define resilience as the

capacity to prepare and adapt facing perpetuating

evolutionary conditions and to restore full capability

after an accident or an attack.

3.2 Usability Models

HCI researchers have suggested different approaches

in usability studies. Hertzum and his colleagues

included cultural aspects in usability studies

(Hertzum, 2007). Bevan suggested including

flexibility and safety to create a more comprehensive

quality-of-use model (Bevan, 2009). Seffah and his

colleagues suggested quality-of-use schemes that

included 10 factors, 26 sub-factors, and 127 specific

metrics (Seffah, 2006); see also (Braz, 2007). Winter

and his colleagues proposed a two-dimensional

model of usability that associated a large number of

system properties with user activities (Winter,

2007).

In socio-technical systems, usability rhymes with

both the absence of usability problems and the

measurements of effectiveness, efficiency, and

satisfaction. Usability implies the ergonomic quality

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

402

of the Human Computer-Interaction, regardless of

the type of access media.

In terms of ergonomic requirements, the ISO has

published a number of standards. The ISO 9241-12

published in 1998 (ISO 9241-12, 1998) explains the

seven principles for the presentation of information.

We define them briefly: Clarity (the content is

displayed quickly and accurately), Discriminability

(the information can be distinguished with

precision), Brevity (only the information required for

the task are displayed), Consistency (the same

information is presented identically on the entire

application), Detectability (information is properly

encoded in the right place), Readability (the

information is easy to read), Comprehensiveness (the

meaning of terms is clearly understandable). The

ISO 9241-110, published in 2006 (ISO 9241-110,

2006), describes seven high-level principles for the

design of dialogues: suitability for the task, self-

descriptiveness, controllability, conformity with user

expectations, error tolerance, suitability for

individualization, and suitability for learning.

Shackel proposed three criteria to measure

usability: performance of the task, user satisfaction

and costs of use (Shackel, 2009). For the

performance of the task, we consider the

effectiveness and efficiency of interaction. An

interaction is effective if users can perform the task

successfully. An interaction is efficient if users can

perform the task successfully for an acceptable

period, with a consumption of acceptable resources.

Satisfaction of users during the interaction considers

the performance of the task and subjective feelings.

The cost of the use considers, beyond the

consumption of acceptable resources, the impact of

the interaction on the health and safety of users, and

on the reputation integrity of users in the socio-

technical systems. The system must adapt to any

user, within the predefined population, without

distinction of age, size, ethnicity, educational or

linguistic level, as well as those who have difficulty

with some physical or cognitive operations. This

adaptation must also comply with security

requirements.

3.3 Security and Privacy Models

The family of standards ISO 2700x (ISO/IEC 2700x,

2010) is entirely dedicated to information security

including the organizational dimension (private or

public companies). The standards present how to

establish, implement, maintain and continually

improve a management system for information

security. These standards model security in terms of

confidentiality, integrity and availability of

information by applying a risk management process.

They give to all interested parties (users, operators

and owners of socio-technical systems) the

insurance that security risks are managed

appropriately.

On one hand, we noticed how security risks are

managed using a harmonized process, and secondly

we noticed the three fundamental criteria of security

that are confidentiality, integrity and availability of

information. Briefly, we develop each of these four

points:

1- The process incorporates the interested parties

and their respective requirements. It takes into

account the interfaces and dependencies between

the activities of the organization and its

stakeholders within the extended enterprise.

2- Confidentiality (Information should neither be

made available or disclosed to a user, entity or

unauthorized process).

3- Integrity (The information must not be modified,

altered or destroyed in an unauthorized manner).

4- Availability (Access by an entity, an authorized

user or process to the services offered by the

socio-technical system must always be possible;

Operations to illegally occupy the processing

time must be detected). Other properties of the

security of Information Systems, such as Proof,

Traceability and Authenticity derived from these

three basic criteria.

The security criteria characterize constraints or

properties on system assets, describing their security

needs. The harmonious process brings the answer,

dealing with company issues that are human,

financial, branding, regulatory and legal. Goudalo

and Seret (Goudalo, 2009) define the process for the

engineering of security of enterprise information

systems in seven major activities designated by the

term Security Acts. The first two of them (Identifying

business assets and Defining security goals to

achieve) assess security needs on corporate assets.

Other international standards also address security

and security risks of information system. This is the

case of the ISO 15408 (Common Criteria, CC)

focusing on three audiences that are producers,

evaluators and users, the ISO 13335 and ISO 21827.

We also identify local standards and norms as

Cramm (in the United Kingdom), Mehari and Ebios

(in France), Octave (USA and Canada). The basic

criteria of security remain the same, and to them are

added the various properties and attributes of

security such as proof, trace, non-repudiation,

identification, authentication, privacy, trust and

others.

Towards Advanced Enterprise Information Systems Engineering - Solving Resilience, Security and Usability Issues within the Paradigms of

Socio-Technical Systems

403

In socio-technical systems, the attributes of

Privacy and Trust undeniably join to security.

Westin, in his notable book “Privacy and freedom”

opening the modern field of law and privacy,

defined Privacy as “the request of individuals,

groups and institutions to determine for themselves

(on their own) when, how and to what extent

information about them can be communicated to

others” (Westin, 1968). Alain Westin adds that

“every individual is constantly engaged in personal

adjustment process in which balance the desire for

intimacy with the desire of disclosure and

communication.” Moreover, Privacy is a legal topic

with a critical issue, since disruption of Privacy

deals with penal/criminal law (French Penal Code,

2015). We use Privacy as both the confidentiality

and the integrity of information dealing with the

private aspects of individuals, groups and

institutions in society. In her course materials

(Cranor, 2006) and (Cranor, 2015), Cranor defines

different views on privacy: Privacy as limited access

to oneself (the extent to which we are known to

others and the extent to which the others have a

physical access to us); Privacy as control of

information (beyond limit of what others know

about us, we must control, which implies individual

autonomy, we can control the information in a

meaningful way).

The presence of respect for the privacy policy

(Privacy) builds consumer confidence. Rousseau et

al. (Rousseau, 1998) define the trust as a

psychological condition including the intention to

accept vulnerability based on positive expectations

of the intentions or behavior of another.

Trustworthiness (reliability from the point of view of

security) defines the property of a system which

performs only what is required (except for an

interruption of the environment, user errors and

human operators, and attacks by hostile parts) and

that does not make things (Schneider, 1998).

3.4 User Experience in Socio-technical

Systems

The socio-technical system approach facilitates the

identification and formulation of user experiences. A

positive user experience is usually based on

convenience (time savings or reduced physical or

mental work), the confidence that the socio-technical

system “works properly”, and the perception of its

usefulness. The concept of “works properly” implies

(instills) the trust. According to Sasse (Sasse, 2007),

the user experience takes into account all the

usability criteria, with additional factors (Cranor,

2015). Birge (Birge, 2009) emphasizes the lack of

research on the design of technical solutions for

communication and information technology in the

field of “user experience and security” (Trust and

User eXperience - TUX).

In summary, the security objective is to evaluate,

eradicate and prevent errors, faults and attacks. If

occurrences, the resilience objective is to tolerate

and outdo the impacts, and to guarantee services in

degraded mode according to the conditions of the

service layer agreements. The objectives of security

and resilience must be ensured, while maintaining a

positive user experience.

We specify that a good usability (HCI and

positive user experience) should promote the success

of the security and resilience. It is although vice

versa.

4 A RESILIENT BUILT-IN

APPROACH OF

SOCIO-TECHNICAL SYSTEMS,

BASED UPON DESIGN

PATTERNS

Today, most of the security built-in systems are not

usable. Users who have to use these systems bypass

the security devices and this behavior generates

security gaps.

The issue is to replace a security built-in system

approach by a resilient built-in socio-technical

system approach based on design patterns. This

socio-technical approach takes into account

interdependence between security and usability.

In such a way, this approach allows to adapt

facing perpetuating evolutionary usage conditions

and usability problems. Figure 3 portrays the

underlying process in the proposed approach.

We use patterns to describe the problems and the

solutions of security/usability problem. Patterns

have been widely considered in many human

endeavors that require a combination of skill and

training. In the 70’s architect Alexander pioneered

the recognition, naming, and use of patterns, while

working on urban planning. In the late 80’s

computer scientists working in the field of object-

oriented design discovered Alexander’s work and

adapted design patterns to software (Salloway,

2002). Schumacher (Schumacher, 2003) argues that

the security engineering can benefit from the use of

patterns, but he fails to present specific patterns to

accomplish this goal. The Open Group has edited a

book on security design patterns (Blakley, 2004), but

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

404

has not addressed the alignment between usability

and security.

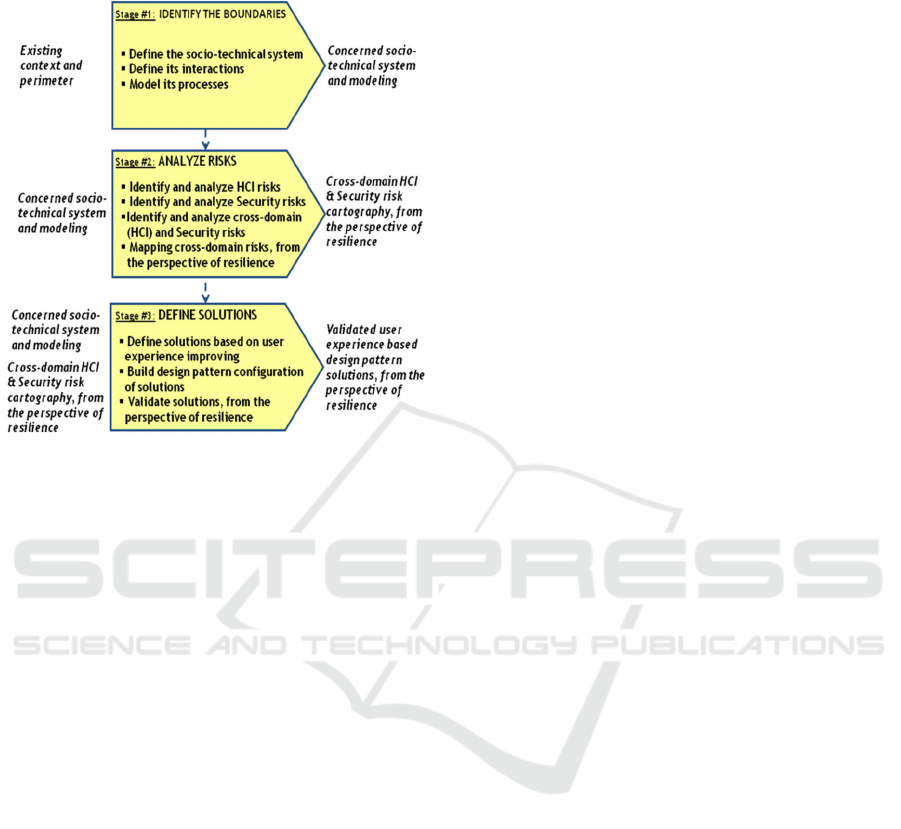

Figure 3: User experience based design pattern approach.

4.1 Stage #1: Identify the Boundaries

This stage consists in defining the boundaries of the

eco-systems including the entire social environment

and the various actors. We integrate their interactions

in both the cyber and the physical worlds, using

BPMN (Business Process Modelling Notation) to

model the processes, activities (sub-processes) and

individual tasks performed by each actor involved in

the process. The detailed description of the

interactions between the technical components of the

information system is described using UML diagrams

including use cases. Links between the BPMN and

UML diagrams (misuse cases) are also described

during this stage (Piètre-Cambacèdés, 2010).

4.2 Stage #2: Analyze Risks

This stage produces the list of potential problems.

We use different methods to analyze the description

of the socio-technical system produced during the

previous stage including cognitive walkthrough

(Wharton, 1994) (Mahatody, 2010), marked Petri

Nets, simple and cross-domain risk analysis methods

(DCSSI, 2009). Risks include on the one hand

security threats (such as faults, frauds, blackmail,

identity usurpation) and on the other hand usability

issues. They lead to malfunction, denial of service or

destruction of the socio-technical system.

The study focuses on the problem, the origins

and the reasons as well as the consequences of not

improving some aspects. This study highlights the

relations of proximity and interdependence between

the HCI and the privacy security. Our proposal uses

firstly a multi-domain approach to risk analysis, and

secondly it focuses on human factors. Problems are

documented using for instance a storytelling

approach detailing user experience, its failures and

its possible improvement points (other methods are

available in the literature). Problem documentation

is based on learning and operational feedback about

any other kind of incidents dealing with these risks.

4.3 Stage #3: Define Solutions

In the final stage, we resort to user experience in

order to define the solutions that solve the points

highlighted during the second stage. Actually, we

look for the best improvement of user experience

that underlies these identified points. The significant

question addressed here is what makes the solution

seen as a better – or worse – design concept, from a

usable security perspective. Thus, how to detect a

bad design in order to correct it?

We base the actions of this step on various

experiments both in industry and academic research.

As mentioned in section 3.3, Goudalo defined seven

security acts constituting the engineering of

information security (Goudalo, 2011). Although

several researchers have discussed usable security

design, Kai-Ping Yee has proposed a list of guidelines

for addressing valid and nontrivial problems specific

to usable security design (Yee, 2002): path of least

resistance, active authorization, revocability,

visibility, self-awareness, trusted path, expressiveness,

relevant boundaries, identifiability and foresight.

This stage consists also in documenting each

pattern using the format:

• Name of the design pattern;

• Description of the problem (or class of problems);

• Description of the solution;

• Consequences of applying the design solution;

• Validity of the solution. Qualitatively, each

pattern should improve the user experience, e.g.

according to one of the guidelines given by Kai-

Ping Yee. Quantitatively, patterns should

enhance in a measurable way the compromise

between usability and security.

The design patterns for resilient built-in socio-

technical systems must integrate both usability and

security concerns in order to design efficient and

usable security systems. These design patterns have

to complete other works dealing with security

architecture of systems (Ruault, 2015).

Towards Advanced Enterprise Information Systems Engineering - Solving Resilience, Security and Usability Issues within the Paradigms of

Socio-Technical Systems

405

5 CASE STUDY

The case study, called FI MedLab, is related to the

information system in a medical laboratory, also called

clinical laboratory. Credibility of medical laboratories

is paramount to the health and safety of the patients

relying on the testing services provided by these labs.

The international standard in use today for the

accreditation of medical laboratories is ISO 15189 –

Medical laboratories – particular requirements for

quality and competence. A laboratory conducts tests on

clinical specimens in order to get information about

the health of a patient as pertaining to the diagnosis,

treatment, and prevention of disease. Such information

is highly security-sensitive, any error may have a direct

impact on patient safety, privacy and the reputation of

the laboratory.

An information system is in use in most

laboratories today. It allows collecting data about

patients, test records and the interpretation of test

results. Information security and privacy risks have

grown with the rapid growth in the number and

types of people who have a legitimate role to

provide access, use and transform the information

and medical records. Tension often exists between

security, privacy controls and usability needs. For

example, access to the information system can be

delayed by the need to first authenticate to ensure

he/she is legitimate, and is provided with the right

level of system access he or she requested. Some

information has to be quickly available to a

physician in the case of an emergency situation, but

has not to be communicated broadly, since it deals

with health and privacy. On the other hand,

disclosing such information is a punishable offence,

in many countries, for instance the article 226-22 of

the French Penal Code.

The same can be said about anyone who wants to

enter data in the system. Data entry errors because of

a usability issue have fatal impact on the integrity of

data, which is a key measure of security and privacy.

5.1 Stage #1: Identifying the

Boundaries

FI MedLab is a socio-technical system which

involves patients, internal and external operators,

laboratories or medical partners, medical equipment

suppliers, regulatory agency as well as IT services

and applications providers, sometimes datacenters.

The socio-technical system comprises various

operational business processes (BP) that are grouped

into three categories: pre-analytical, analytical and

post-analytical processes (see Table 1).

Some operators have to access to certain kinds of

information, but not to other ones. This depends

upon the level of authorization and the user

authentication. So, within the organizations, groups

of users with respective roles and responsibilities

have to be defined. Figure 4 shows a simplified

model of these business processes using BPMN

(Business Process Modeling Notation).

Figure 4: Modelling Business Processes (with focus on

tasks with potential problems).

Table 1: Three business processes of FI MEDLAB.

1- Prepare the medical tests

1.1- Manage the patient file (Create, Update, or

Archive) (see Table 2)

1.2- Register a request for medical tests

1.3- Charge the demand for medical tests

1.4- Collect and sample the blood of a patient,

1.5- Receive the blood sample extracted elsewhere

1.6- Process and store the blood samples prior to

analysis

2- Realize the medical tests

2.1- Switch on and calibrate the devices (see Table 2)

2.2- Pass a series of tests (technical analysis)

2.3- Validate the technical tests

2.4- Maintain the equipments

3- Conclude the medical tests

3.1- Interpret the biological validation tests

3.2- Archive the blood samples

3.3- Communicate the results (see Table 2)

3.4- Archive the results

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

406

The activities (sub-processes) consist of tasks.

We will detail some activities, that illustrate Stage#2

“Analyzing risks” (see Figure 2).

5.2 Stage #2: Analyzing Risks

Table 2 is a detailed description of three of the sub-

processes detailed in the previous section. We will

use this description to explain how we have been

analyzing risks of usability, privacy and security in

the socio-technical system of FI MedLab.

Such risks are due to the interdependence

between usability and security. Users need to access

to information, function of their role and their task.

But the modality to access this information depends

upon the context of the task (indoor/outdoor, time

pressure…), the quality of the security device, its

adequacy to the task and its context.

Table 2: Three detailed activities.

1.1- Manage the patient file (Create, Update, or

Archive)

Input : Identity document of patient or his

representative

Output: Updated patient record

Tasks:

1.1.a- The patient or his representative indicates the

required information to the administrative

operator of FI MedLab, including address for

sending medical analysis results.

1.1.b- The administrative operator of FI MedLab

enters information in the FI MedLab socio-

technical system, for creation and/or update of

the patient’s record.

1.1.c- A scheduled event triggers and alerts the

administrative operator to archive records of

some patients.

1.1.d- The administrative operator carries out the

administrative processing and archives the

corresponding patients’ records.

2.1- Switch on and calibrate the devices

Input: Identity document of the manager of

technical operators.

Output: Devices switched on and calibrated for

operating medical tests.

Tasks:

2.1.a- The manager performs biometric authentication

(retinal scan and scan of the identity

document).

2.1.b- The authenticated manager starts and calibrates

the devices.

2.1.c- The devices initialize and load the signatures of

the biologists’ managers (who interpret the

biological validation of tests).

3.3- Communicate the results

Input : Results validated and interpreted.

Output: Results communicated by three ways

(sent to the physician, sent to the patient by

mail, made available on the secure website of

FI MeddLab).

Tasks:

3.3.a- Administrative operator sends the results to the

physician.

3.3.b- Administrative operator sends the results to the

patient address by mail.

3.3.c- Administrative operator puts the results on the

secure website of FI MedLab.

As a matter of example, we have investigated

more deeply the following scenarios.

Scenario T1: The patient gives his business address.

He does not notice that the results of his medical tests

will be sent to this address and the administrative

operator does not indicate this helpful clarification to

the patient. When results reach the patient, he is absent

and his assistant handles the mail, like any business

mail. This is a serious problem in terms of privacy and

confidentiality that we detect during this phase. This

scenario deals with the confusion between professional

and personal information, within the professional email

box. The assistant can open the email box and read the

emails in this box, since these emails are supposed to

be professional.

Scenario T2: The manager of technical operations

faces serious difficulties in being accepted by the

biometric authentication system. The camera system

is not well positioned for this manager sportsman who

measures 1.92m (for information, the average height

of his colleagues is 1.76m). The manager is not

comfortable in such a situation; he can no longer find

his good inclination to be authenticated. In this

context, he runs the backup procedure; he logs into

the system and activates the devices. The devices are

initialized, but do not load the signatures of the

biologists’ managers (who interpret the biological

validation of tests). There is no alert. The manager

does not notice the error. We are faced with a problem

of usability and ergonomics (first on the internal

procedures of the system and secondly, on the

communication user interfaces). This problem creates

security vulnerability on all the medical tests that will

be performed during the day (no traceability and no

respect for integrity on the interpretation and

validation of medical test results).

The security device does not fit to the task and to

the users. The user bypasses the security device,

using a backup procedure. Moreover, there is no

alarm alerting this barrier bypassing. This kind of

behavior deals with barriers bypassing rules, it is a

critical security issue.

Scenario T3: The patient is on vacation when

medical analysis results are ready. From his vacation

Towards Advanced Enterprise Information Systems Engineering - Solving Resilience, Security and Usability Issues within the Paradigms of

Socio-Technical Systems

407

location (Cayman Islands), he decides to access the

secure website of FI MedLab. He receives a message

asking to enter the code that has just been sent to his

phone via SMS. This may lead to three problems: a

privacy problem (the vacation location could be a

“non-public information”, but is found out by the

web site security system of FI MedLab, leading to

potential rumor about the reputation of the patient);

a trust and confidence problem (one category of

patients could say: “I have too much confidence in

the FI MedLab system, as I feel that my data is

protected”, another category of patients could say: “I

do not have any trust in the FI MedLab system, I feel

spied”); a problem of comfort and simplicity (due to

the additional verification).

This scenario deals with the context of the task,

namely, vacation. Moreover, it deals with the low

level of the security device that can open to fraudulent

access to information with bad consequences such as

identity usurpation or blackmail (“I feel spied”).

5.3 Stage #3: Developing Solutions

The previous three scenarios describe a user

experience; each one of them highlights a usability

security or privacy problem.

Scenario T1, for example, details a typical

problem of privacy and confidentiality, due to

misunderstanding of the use made of the information

requested to the user (the patient or responsible).

Table 3 details possible solutions of this problem.

Table 3: Design Pattern Solution for Trouble T1.

Name

Awareness

Description of

the problem

Misunderstanding and poor

knowledge of the use made with the

information requested from the user.

Description of

the Design

Pattern solution

Provide users with the explanation,

understanding and analysis of any of

the information indicated in the

socio-technical system. This will

require an individualized support

and pedagogy. Operationally, we

can put flyers and (interactive)

information terminals in the lobby

of FI MedLab. An alternative

solution should be to “send all mail

of the results via letters”.

Another solution consists to add a

tag “confidential personal

information” in the object of the

message, and a note presenting the

law inside the text of the message, in

order to alert the assistant and “to

increase” its awareness.

Consequences The alternative solution has the

direct benefit of avoiding another

person in handling mail

(recommended letter). But in the era

of service industry, of socio-

technical systems and of Big Data,

the main solution should address the

fundamental problem of our time in

accompanying users in improving

their vigilance skills.

In Scenario T2, it is a more complex problem

with several interrelated dimensions: T2.1- Bad

usability of the biometric authentication system;

T2.2- Non-effectiveness of the emergency

procedure; T2.3- Difficulties in understanding the

emergency procedure by the manager; T2.4-

Detecting barrier bypassing by the manager. Table 4,

Table 5, Table 6 and Table 7 describe four possible

solutions.

Table 4: Design Pattern Solution for Trouble T2.1.

Name Anticipation

Description of

the problem

Bad usability of biometric

authentication system.

Description of

the Design

Pattern solution

Repositioning the camera and

reconfiguring the biometric

authentication system to account

for all employees of the team.

People need to use secure solution,

in simple and efficient way.

Consequences Simple and efficient usage of

secure solution is an important step,

for ensuring the security in the

context of a socio-technical system.

Table 5: Design Pattern Solution for Trouble T2.2.

Design pattern solution for Trouble T2.2

Name Regular test of the procedures

Description of

the problem

Non-effectiveness of the

emergency procedure.

Description of

the Design

Pattern solution

The repetition frequency of the

tests and their results should be

integrated into the systems of

controlling and auditing.

Consequences This problem is well-known in

safety issues of critical systems.

The repetition of exercises

develops more confidence of

operators, and in case of failure

they still trust the procedures.

Regularly testing the emergency

procedures is a way to improve the

user operator experiences.

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

408

Table 6: Design Pattern Solution for Trouble T2.3.

Design pattern solution for Trouble T2.3

Name of the

Design Pattern

solution

Training of operators

Description of

the problem

Lack of mastering the emergency

procedure by the manager.

Description of

the Design

Pattern solution

Training of operators in all the

procedures they will face. These

training activities should be

embedded in the systems of

controlling and auditing.

Consequences This problem is well known in

critical systems. Operator training

helps improve their user experience.

Table 7: Design Pattern Solution for Trouble T2.4.

Design pattern solution for Trouble T2.4

Name of the

Design Pattern

solution

Detection and alert following barrier

bypassing

Description of

the problem

Due to usability problems, the

security device is bypassed, using a

backup procedure.

Description of

the Design

Pattern solution

Usage of security device has to be

monitored in order to detect barrier

bypassing and to alert the system

security administrator. Then, the

security administrator can improve

security device usability and adapt it

to the current usage.

Consequences This problem is also well-known in

critical systems in which such a

pattern is suggested.

In Trouble T3, we are faced with three problems

again: T3.1- Feeling of privacy problem; T3.2-

Feeling of trust and confidence problem; T3.3-

Comfort and simplicity problem. The search for

improved user experience provides an effective

response to all of these three points (Table 7).

Table 8: Design Pattern Solution for Trouble T3.

Design pattern solution for Trouble T3 (T3.1, T3.2,

T3.3)

Name of the

Design Pattern

solution

Sensitization and pedagogy.

Description of

the problem

Eventual stress of the user.

Description of

the Design

Pattern solution

In the early stages, provide users

with the explanation, understanding

of the operating of the socio-

technical systems.

Consequences In the era of service industry,

personalized monitoring and

pedagogy are a good way to

improve user experience.

These representative scenarios illustrate that

usability problems impact security, and conversely.

By identifying business processes, the roles and

tasks of users, as well as their needs for private

information or, on the opposite, the inability to

access to this private information, context of use and

other usability issues, we have elaborated design

patterns. Such design patterns are the keystone of

resilient built-in socio-technical systems, since they

integrate security and usability issues together.

6 CONCLUSION AND FUTURE

WORK

Various tools have been proposed to provide a more

usable interface for a specific security problem or a

more easy-to-use security technology. However,

there is still a need for engineering approaches to

designing and to ensuring security and usability

trade-offs. We strive to provide an answer to this

lack. We have introduced a socio-technical approach

in order to engineer the compromise between

security and usability that we considered as a sub-

factor of security. The socio-technical system

approach connects the system and its services with

people, users and stakeholders included. We suggest

using BPMN and UML to model and describe the

various interactions in socio-technical systems. Such

a description is used then to identify possible

usability and security problems and their solutions.

We propose to use patterns to document these

solutions and design resilient built-in socio-technical

systems.

One important added value of the proposed

socio-technical systems approach is that the humans

and their experiences are explicitly considered. This

will overcome somehow the lack of training and

experience in security, the lack of security in terms of

corporate strategy (operations, proceedings) and the

difficulties of communicating about security issues.

One of the remaining challenges is to raise

awareness and effectively convey a good sense of

usability as a security attribute, facilitating a

weighted consideration of security in the thoughts,

decisions and activities done. We have proposed to

address this issue in the future while considering the

user experience for all stakeholders of the socio-

technical systems (end users, operators, managers,

etc.). Patterns will be extended also to integrate

explicitly measures of trust, privacy and other

subjective criteria measuring user experiences, user

feeling.

Towards Advanced Enterprise Information Systems Engineering - Solving Resilience, Security and Usability Issues within the Paradigms of

Socio-Technical Systems

409

ACKNOWLEDGEMENTS

The authors thank Prof. Ahmed Seffah

(Lappeenranta University of Technology) for his

numerous relevant remarks and suggestions on

preliminary versions of this paper. They thank also

warmly Dr. Jean-René Ruault for his strong

contribution to the last versions.

REFERENCES

Alexander, C, Ishikawa, S & Silverstein, M 1977, 'A

Pattern Language: Towns, Buildings, Construction',

Oxford University Press, New-York.

ANSSI, 2014, 'Résilience de lʼInternet français', Internet

resources http://www.ssi.gouv.fr/ [Accessed:

11/11/2015].

Bevan, N 2009, 'Extending quality in use to provide a

framework for usability measurement', In M. Kurosu

(ed), Human centered design, HCII 2009, pp.13–22,

Heidelberg, Germany, Springer-Verlag.

Birge, C 2009, 'Enhancing Research into Usable Privacy

and Security', SIGDOC 09: Proceedings of the 27th

ACM international conference on Design of

communication, October 2009.

Blakley, B, Heath, C and members of The Open Group

Security Forum 2004, 'Security design patterns',

Technical Report G031, The Open Group, Apr. 2004.

URL http://www.opengroup.org/publications/catalog/g

031.htm, [Accessed: 13/11/2015].

Braz, C, Seffah, A, Raihi, DM, 2007, 'Designing a Trade-

Off Between Usability and Security: A Metrics Based-

Model', In Proc. Interact, LNCS 4663, pp. 114–126.

Clarke, N & Furnell, S 2014, '8th Int’l Symposium on

Human Aspects of Information Security & Assurance

(HAISA 2014)', Nathan Clarke, Steven Furnell (eds),

Plymouth, UK, July 8-9, 2014. ISBN: 978-1-84102-

375-5.

Cranor, L 2006, 'Usable Privacy and Security', Lorrie

Cranor's courses, Internet resources http://cups.cs.cmu.

edu/courses/ups-sp06/ [Accessed: 13/11/2015].

Cranor, LF & Blase, U 2015, 'Usable Privacy and

Security', Lecturer materials, Courses January 2015,

Carnegie Mellon University, CyLab. http://cups.cs.cm

u.edu/courses/ups-sp14 [Accessed: 13/11/2015].

Cranor, LF & Garfinkel, S 2005, 'Security and Usability:

Designing Secure Systems that People Can Use', Ed.

O'Reilly, ISBN-13: 978-0596008277.

DCSSI 2009, 'Fiche d'expression rationnelle des objectifs

de sécurité', http://circulaire.legifrance.gouv.fr/pdf/200

9/04/cir_1982.pdf [Accessed: 14/11/2015].

Emery, E 1967, 'The next thirty years: concepts, methods

and anticipation', Human relations #20, pp. 199-237.

Ferrary, M 2014, 'Management des ressources humaines:

Marché du travail et acteurs stratégiques', Ed. Dunod,

Paris, France, ISBN-13: 978-2100713172.

French penal code 2015, 'De l'atteinte à la vie privée',

article 226-1, [Accessed: 14/11/2015].

Goudalo, W & Seret, D 2008, 'Towards the Engineering of

Security of Information Systems (ESIS): UML and the

IS Confidentiality', Proceedings at the Second

International Conference on Emerging Security

Information, Systems and Technologies, pp. 248-256,

IEEE Computer Society Washington, DC, USA.

Goudalo, W & Seret, D 2009, 'The Process of Engineering

of Security of Information Systems (ESIS): The

Formalism of Business Processes', SECURWARE

2009, 3rd Int’l Conf on Emerging Security

Information, Systems and Technologies, IARIA,

pp.105-113.

Goudalo, W 2011, 'Toward Engineering of Security of

Information Systems: The Security Acts', Proc. 5th

Int’l Conf. Emerging Security Information, Systems

and Technologies, IARIA, 2011, pp.44-50.

Hertzum, M, Clemmensen, T, Hornbæk, K, Kumar, J,

Qingxin, S & Yammiyavar, P 2007, 'Usability

constructs: A cross-cultural study of how users and

developers experience their use of information

systems', In Proceedings of HCI International 2007,

pp. 317–326, Beijing, China: Springer-Verlag.

Hollnagel, E, Woods, D, D & Leveson, N 2006,

'Resilience engineering. Concepts and precepts',

Ashgate, Aldershot.

IBM Corporation 2014, 'Understanding big data so you

can act with confidence', Doc. Ref. IMM14123USEN,

June 2014, http://www-01.ibm.com, [Accessed:

13/11/2015].

ISO 9241-110 2006, 'Ergonomics of human-system

interaction', Part 110 Dialogue principles.

ISO 9241-12 1998, 'Ergonomic requirements for office

work with visual display terminals (VDTs)', Part 12

Presentation of information.

ISO/IEC 2700x 2010, 'Information technology Security

techniques'.

KPMG International 2014, 'Managing the data challenge

in banking. Why is it so hard?', Document published

on June 2014, http://www.kpmg.com, [Accessed:

13/11/2015].

Laprie, JC 2008, “From dependability to resilience”, dans

Proceedings of the 38th Annual IEEE/IFIP

International Conference on Dependable Systems and

Networks (DSN 2008), Supplemental Volume,

Anchorage, USA, june 2008.

Larson, RC 2008, 'Service science: At the intersection of

management, social, and engineering sciences', IBM

Systems Journal, 47, pp.41–51.

Lewis, JR 2014, 'Usability: Lessons Learned … and Yet to

Be Learned', International Journal of Human-

Computer Interaction, 30:9, pp. 663-684.

Luzeaux, D 2011, 'Engineering Large-Scale Complex

Systems', In Luzeaux D., Ruault J.-R. & Wippler J.-L.

(eds), Complex Systems and Systems of Systems

Engineering, ISTE-Wiley, London, pp.3-84.

Mahatody, T, Sagar, M & Kolski, C 2010, 'State of the Art

on the Cognitive Walkthrough method, its variants and

ICEIS 2016 - 18th International Conference on Enterprise Information Systems

410

evolutions', International Journal of Human-Computer

Interaction, 26 (8), pp.741-785.

Palin, PJ 2013, 'Resilience: Cultivating the virtue', Internet

resources http://www.hlswatch.com/2013/08/29/resilie

nce-cultivating-the-virtue/ [Accessed: 11/11/2015].

Piètre-Cambacèdés, L 2010, 'Des relations entre sûreté et

sécurité', Ph.D in Software and Network, Paris.

ReSIST 2015, 'Resilience for Survivability in IST', A

European Network of Excellence, http://www.resist-

noe.org, [Accessed: 13/11/2015].

Rousseau, DM, Sitkin,S, B, Burt, R, S & Camerer, C

1998, 'Not So Different After All: A Cross-Discipline

View Of Trust', Academy of Management

Review,vol.23 no.3 pp.393-404.

Ruault, J.R, Kolski, C, Vanderhaegen, F & Luzeaux, D,

2015, 'Sûreté et sécurité : différences et

complémentarités', Conférence C&ESAR 2015,

Résilience des systèmes numériques, Rennes, France.

Salloway, A & Trott, J, R 2002, 'Design patterns par la

pratique', Eyrolles, Paris.

Sasse, MA 2007, 'Red-Eye Blink, Bendy Shuffle, and the

Yuck Factor: A User Experience of Biometric Airport

Systems', IEEE Security & Privacy, vol. 5, no. 3,

May/June 2007, pp.78-81.

SBIC (Security for Business Innovation Council) 2008,

'The Time is now: making information security

strategic to business innovation', RSA Security,

Bedford MA.

Schneider, FB 1998, 'Trust in Cyberspace', Committee on

Information Systems Trustworthiness, National

Research Council, Washington, D.C.

Schumacher, M 2003, 'Security engineering with patterns:

origins, theoretical models, and new applications',

Springer, 2003, LCNS 2754

Seffah, A, Donyaee, M, Kline, R,B, Padda, H, K 2006,

'Usability measurement and metrics: A consolidated

model', Software Quality Journal, vol. 14, pp.159–178.

Shackel, B 2009, 'Usability—Context, Framework,

Definition, Design, and Evaluation', Human Factors

for Informatics Usability, B. Shackel and S.

Richardson (eds), Cambridge Univ. Press, pp.21–37.

Singh, MP 2013, 'Norms as a basis for governing

sociotechnical systems', ACM Transactions on

Intelligent Systems and Technology (TIST) - Special

Section on Intelligent Mobile Knowledge Discovery

and Management Systems and Special Issue on Social

Web Mining archive. Volume 5 Issue 1, December

2013. New York, NY, USA.

Sperber, D, Wilson, D 1995, "Relevance: Communication

and Cognition", 2nd Edition, ISBN: 978-0-631-19878-

9, 338 pages, December 1995, Wiley-Blackwell

Trist, EL, Higgin, G,W, Murray, H & Pollock, A,B 1963,

'Organizational Choice: Capabilities of Groups at the

Coal Face under Changing Technologies', The Loss,

Rediscovery & Transformation of a Work Tradition,

Tavistock Publications, London.

Umhoefer, C, Rofé, J & Lemarchand, S 2014, 'Le big data

face au défi de la confiance', Document published on

June 2014 http://www.bcg.fr, [Accessed: 13/11/2015].

Westin, AF 1968, 'Privacy And Freedom', 25 Wash. & Lee

L. Rev. 166, http://scholarlycommons.law.wlu.edu/wl

ulr/vol25/iss1/20 [Accessed: 13/11/2015].

Wharton, C, Rieman, J, Lewis, C & Polson, P 1994, 'The

cognitive walkthrough method: A practitioner’s guide',

In J. Nielsen & R. L. Mack (Eds.),

Usability

inspection methods, John Wiley & Sons, New York,

pp.105-140.

Winter, S, Wagner, S & Deissenboeck, F 2007, 'A

comprehensive model of usability', In Engineering

Interactive Systems, pp.106–122, Heidelberg,

Germany: International Federation for Information

Processing.

Yee, KP 2002, 'User Interaction Design for Secure

Systems', Proc. 4th Int’l Conf. Information and

Communications Security, Springer-Verlag, 2002, pp.

278–290.

Towards Advanced Enterprise Information Systems Engineering - Solving Resilience, Security and Usability Issues within the Paradigms of

Socio-Technical Systems

411
