Application Splitting in the Cloud: A Performance Study

Franz Faul

, Rafael Arizcorreta

, Florian Dudouet

and Thomas Michael Bohnert

Swiss Re, Zurich, Switzerland

Zurich University of Applied Sciences, Winterthur, Switzerland

Keywords:

Cloud Computing, Performance, Database, Hybrid Cloud.

Abstract:

Cloud-based deployments have become more and more mainstream in recent years, with many companies

evaluating moving their infrastructure to the cloud, whether a public cloud, a private cloud, or a mix of the two

through the hybrid cloud concept. One service offered by many clouds providers is Database-as-a-Service,

where a user is offered a direct endpoint and access credentials to a chosen type of database. In this paper,

we evaluate the performance impact of application splitting in a Hybrid Cloud environment. In this context,

the database may be located in a cloud setting and the application servers on another cloud or on-premises, or

the other way around. We found that for applications with low database latency and throughput requirements,

moving to a public cloud environment can be a cost saving solution. None of the cloud providers evaluated

were able to provide comparable performance for database-heavy database applications when compared to an

optimized enterprise environment. Evaluating application splitting, we conclude that bursting to the cloud is a

viable option in most cases, provided that the data is moved to the cloud before performing the requests.

1 INTRODUCTION

With the introduction of cloud technology, many new

paradigms appeared in the the industry to exploit the

concept of on demand, pay-as-you-go resources. Ser-

vices do not need to remain in the on premise data-

center, but can be spread to an internal private cloud

or externally among different public cloud providers.

This new concept challenges the traditional IT en-

vironment and provides an unprecedented ﬂexibility

that pushes traditional data and compute services to

their limit. In this paper the focus is on the im-

pact of the Cloud paradigm in regards to the usage

of Databases in a large enterprise context.

To measure and compare performance we investi-

gate three different scenarios involving the usage of

resources located in a cloud, either private or pub-

lic. These scenarios essentially differ with the loca-

tion of the database and compute power (i.e. internal

computing resources and external database, as well as

the counterpart with an internal database and external

cloud computing resources). To achieve more mean-

ingful results, these scenarios were run multiple times

using resources from different cloud providers, either

on premise (private cloud) or on their hosting loca-

tions (public cloud). The concept of Hybrid Cloud

is further used to evaluate the feasibility of extending

on-premises resources with remote ones from a public

cloud provider, which is a technique known as Cloud

Bursting. The main topic is not only the latency and

bandwidth results but additinally the impact of differ-

ently sized cloud resources.

This study is done in the context of Swiss Re

(Swiss Re, 2014), one of the largest reinsurance com-

panys worldwide. The core asset of reinsurance is the

know-how of past loss events in order to compute the

price for new contracts and offerings. These events

are extremely diverse and are all taken into account

in the pricing algorithms, which explains why large

amounts of data need to be fetched from databases

and computed in order to achieve cost-optimized re-

sults. Exploiting the Cloud means that the data the

computing power - or both - are moved to the cloud.

2 OBJECTIVES AND

EVALUATION

METHODOLOGY

The evaluation documented here has speciﬁc goals

within Swiss Re but was aimed to make it generic

and usable in other environments, which is why the

essential focus was on public cloud providers using

commonly available products. Additionally, private

cloud evaluation is made using an OpenStack (The

Faul, F., Arizcorreta, R., Dudouet, F. and Bohnert, T.

Application Splitting in the Cloud: A Performance Study.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 245-252

ISBN: 978-989-758-182-3

245

OpenStack Foundation, 2014) based cloud, which is

a readily available Open-Source cloud management

software allowing for benchmark reproducibility in

other environments. In all cases we use Commodity

Hardware.

The tests were run from the following environ-

ments: Amazon Web Services, Google Cloud, the

ICC Cloud Lab and the Swiss Re environment. Fur-

ther the pricing models of two large cloud providers

used for the tests are brieﬂy described.

2.1 Benchmarking Methodology

Benchmarks need to be repeatable, observable,

portable, realistic and runnable. What exactly is being

tested as well as the possible limitations of the bench-

marks have to be clear. In our context, the focus is on

standardized and industry accepted test suites. As the

benchmarking suite needs to run in the cloud provided

application server, the scope was set to Java based ap-

plications. We identiﬁed two software suites which

are both meet the requirements:

TPC-C: The most industry-wide accepted bench-

marking method for TPC-Benchmark (TPC,

2014a) to evaluate Online Transaction Processing

(OLTP) applications. TPC-C generates an eas-

ily comparable metric through the simulation of

queries sent to a sample OLTP web application.

TPC provides Java bindings to run TPC-C through

a Java application, which makes it easy to inte-

grate into our testing framework. There are other

variants of TPC tests, such as TPC-E. We decided

to choose TPC-C since the TPC-C tests are still

more common as well as more write intensive (1.9

reads per 1 write) compared to the TPC-E ones

(9.7 reads per 1 write). (Chen et al., 2011)

JMeter: Is a commonly used load-testing tool devel-

oped by the Apache group. It can be customized

visually or through conﬁguration ﬁles. JMeter is

open-source and completely written in Java. As a

very customizable tool, it is used to create speciﬁc

test-runs adapted to Swiss Re in size and complex-

ity.

While TPC-C benchmarks are made to simulate

traditional applications, typically reproducing a ware-

house storing problem, it was necessary to bench-

mark something closer to the real-life workloads in

the Swiss Re environment to validate the generic re-

sults. In this regard, real life tests based on an ap-

plication productively used in Swiss Re were built

on top of JMeter. The application chosen provides

a much more complex database structure. It is known

what queries are the most frequent ones and which

queries are more work intensive. These were chosen

to benchmark the performance of the underlying in-

frastructure. The data used was randomly generated

but followed the application guide lines.

The following section describes these two test

suites and how they are used in the framework of our

evaluation in detail.

2.2 Benchmark Details

2.2.1 TPC-C

To deﬁne industry-wide accepted transaction process-

ing and database benchmarks, the Transaction Pro-

cessing Performance Council (TPC) was founded as

a non-proﬁt organization in 1988. TPC-C was intro-

duced by the TPC in August 1992 after a develop-

ment process of more than two years (Levine, 2014a)

(Raab, 2014).

TPC-C is a benchmark for OLTP workloads. It

was developed based on the old TPC-A test, which

did not work with multiple transaction types and had a

less complex database and execution structure (TPC,

2014b). TPC-C was designed to accelerate the pro-

cess of benchmarking by deﬁning an industry-wide

accepted standard that can be easily interpreted and

compared. This was realized by working together

with 8 vendors during the design process (Levine,

2014b).

The TPC-C Benchmark consists of read- and

update-intensive transactions that simulate activities

of a complex OLTP application (TPC, 2014). It mea-

sures the number of business transactions that create

orders and uses it as comparable value when tested

against different systems. The metrics for these tests

are represented as successful business transactions per

minute (tpmC).

The speciﬁcations for the TPC-C benchmark can

be found on the ofﬁcial TPC website (TPC, 2014).

The current version is 5.1.1 and was deﬁned on Febru-

ary 2010. There are already several implementa-

tions available to use. OLTP Benchmark provides an

out of the box implementation that allows the ﬁne-

grained setting of TPC-C conﬁgurations. This in-

cludes the distribution between the different queries

used in TPC-C. In this setup, the default settings were

used.

During the test, TPC-C simulates the OLTP work-

load of an artiﬁcial wholesale supplier company. The

Database Setup consists of 9 separate tables as ex-

plained in ﬁgure 1. No views are used in the setup.

The test consists of ﬁve types of transactions: new

order, payment, order-status, delivery and stock-level

transaction. The most important type is the new or-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

246

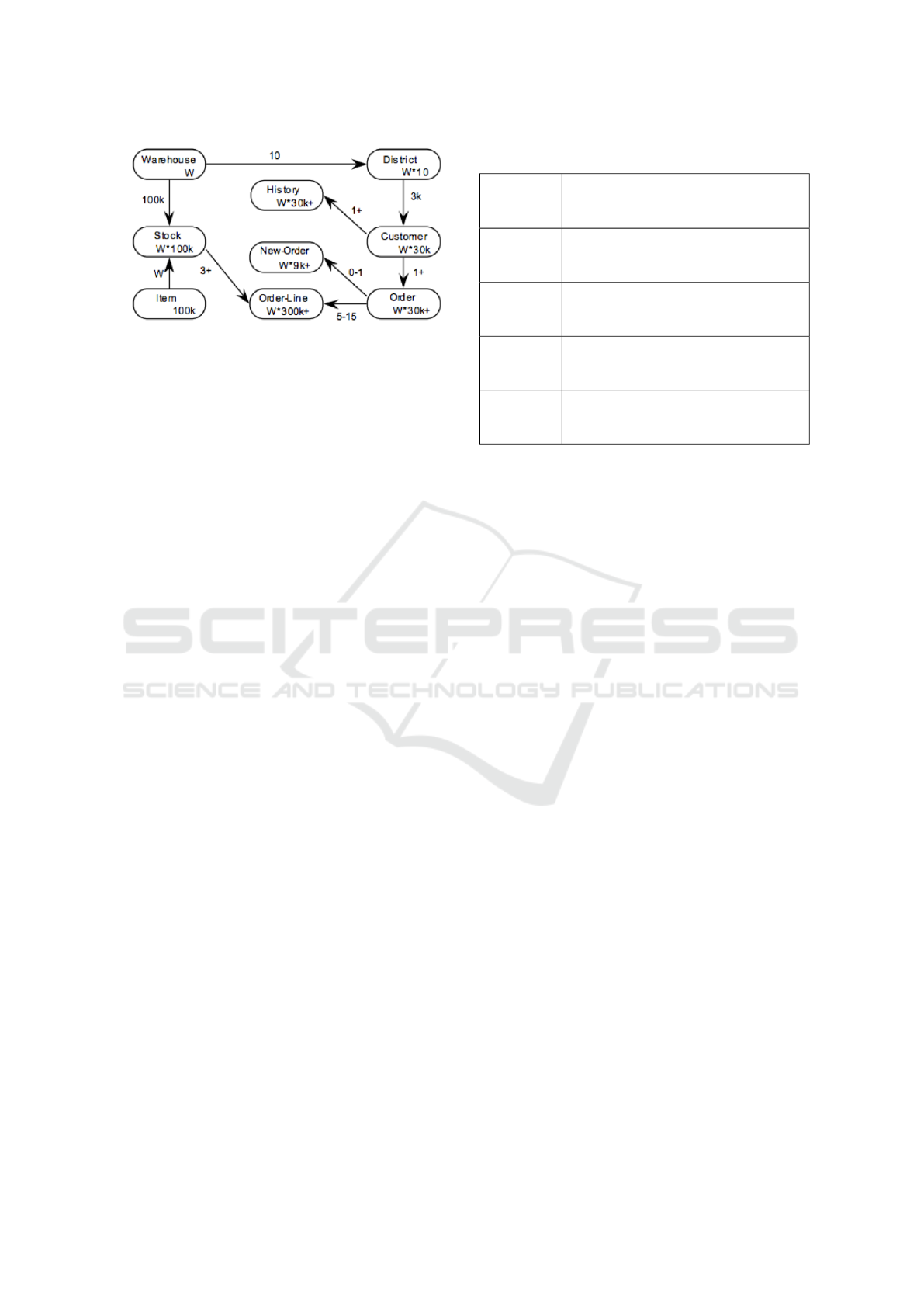

Figure 1: TPC-C Table Structure.

der, which enters a complete order in a single database

transaction. It was designed to simulate the variable

workload found in productive OLTP environments.

The payment transaction lowers the customer’s

balance and adds it to the warehouse sales statistics.

Compared to the new order query it is lightweight.

The order status transaction gets the status of the cus-

tomer’s last order. It is a read-only transaction that

has a low execution frequency. The delivery trans-

action processes a batch of 10 new, not yet processed

orders. It is not executed very frequently, and can take

a little longer than the others, as each order requires a

read and write operation. The stock-level transaction

is used to determine the number of recently sold items

that are now below a certain threshold. It is a heavy

read-only transaction.

The ﬁctional company has a conﬁgurable number

of warehouses that serve a district. Each warehouse

serves 10 districts. Each district again has 30000 cus-

tomers. The warehouses keep stock for the 100000

different items the company sells. Each warehouse

has a deﬁned number of terminals. This is a represen-

tation of workers in the warehouses who process the

orders made by the customers. (TPC, 2014)

2.2.2 JMeter as a Test Suite

Apache JMeter is an open source software, a 100%

Java application designed to load test functional be-

haviours and measure performance. It was originally

designed for testing web applications but has since ex-

panded to other test functions (Apache, 2014).

The wrapper supports the remote start of differ-

ent predeﬁned tests that run in the JMeter application.

The idea behind JMeter is that the user creates test

cases (i.e. speciﬁc queries) which can then be exe-

cuted on different machines. The results of these test

cases are the metrics deﬁned.

The tests were split up in single steps with differ-

ent speciﬁcations.

All the tests are set up to have 10 Threads which

run in parallel. The amount of query executions in a

Table 1: Description of the different JMeter tests.

Test name Description

Small Simple query with a return of 1 row

and a size of 773 Bytes

CCAS Multiple queries on 5 different tables

and return 30 rows of a total size of

1667 Bytes

RuleSet Multiple queries on 3 different tables

and return 864 rows of a total size of

46440 Bytes

StressTest Simple query with a return of 3250

rows and a size of a total size of

17579 Bytes

Account Simple query on one table with 8000

rows returned in a total size of

422936 Bytes

single thread varies per tests.

• 5,000 Small tests

• 10,000 CCAS tests

• 10,000 RuleSet tests

• 20,000 StressTest tests

• 5,000 Account tests

For the JMeter tests, a part of a database structure

which is currently in use in an application at Swiss

Re has been chosen. The content of the tables in the

database structure is randomized. The database con-

sists of approximately 60 tables and has a hierarchical

structure. The structure can be split into two sections,

the rule section and the reference data section. They

are connected via mapping entities. On this overview

all the tables which are used in the test queries and

their relations are displayed. The JMeter test cases

for all tests are performed with queries.

2.2.3 Application

The cloud deployable web application is written in

Java 6 and optimized for Tomcat. All the interac-

tions are done using three different servlets. One for

triggering the TPC-C tests and two for the SQL and

HTTP JMeter tests. The application is self-contained

and can be easily deployed to the various cloud

providers using provided APIs. The result of the tests

can be downloaded directly through the application.

Tomcat was chosen because it is the most promi-

nent application server (Salnikov-Tarnovski, 2014).

It is lightweight, available on all the selected cloud

providers and is easy to install. The conﬁguration is

the same on all the environments (default conﬁgura-

tion as of version 7).

MySQL is available on all the evaluated public

cloud providers as a service (SaaS model) with the

Application Splitting in the Cloud: A Performance Study

247

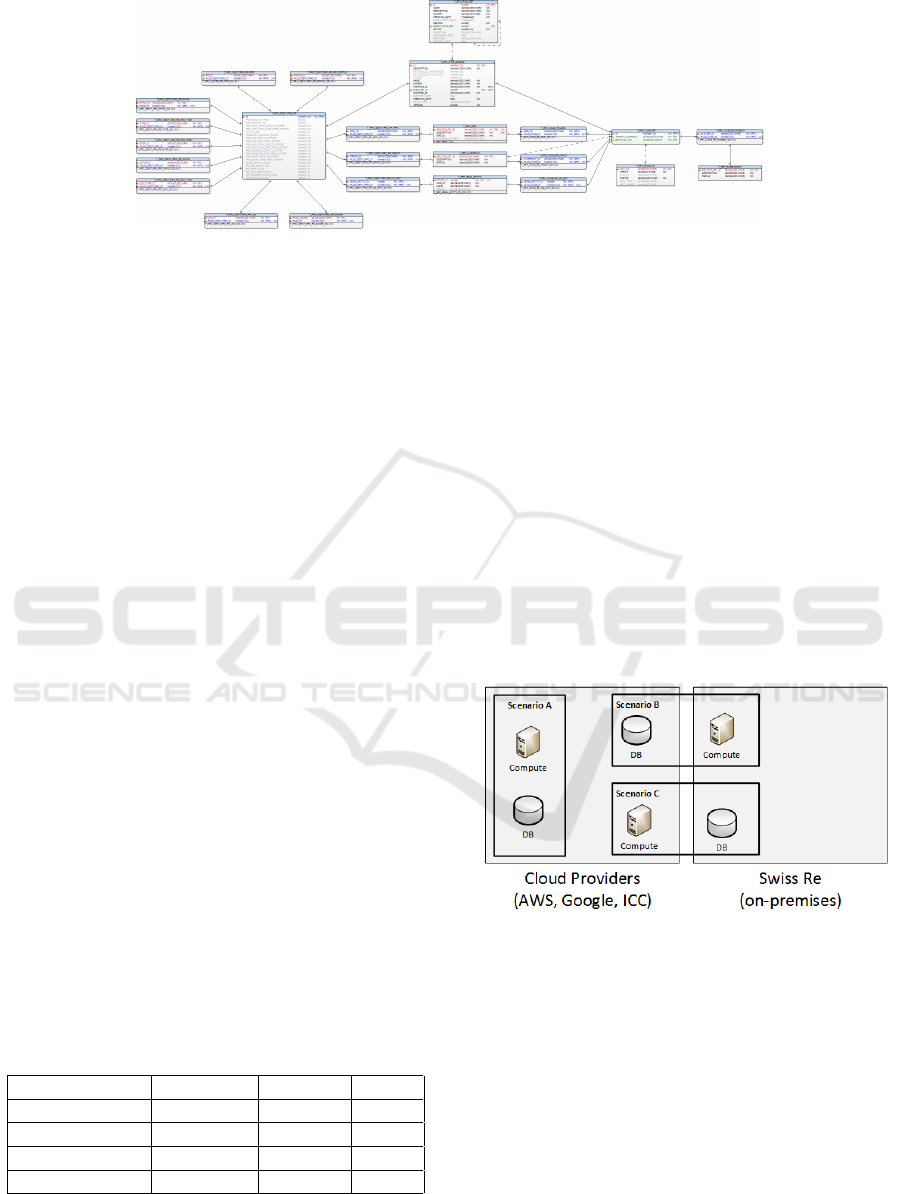

Figure 2: High level table structure overview.

possibility of choosing the size of the VM backing the

database. We chose to evaluate this service model as

it is what a typical customer would do if they simply

wanted a database running on the Cloud. On the other

hand, the MySQL service was manually installed on

the ICC Lab, as there is no MySQL-as-a-Service com-

ponent on this purely IaaS Cloud. The default conﬁg-

uration as of version 5.6 was selected.

2.3 Expected Issues

It is expected that when connecting to the database

through the internet, the throughput will be much less

than in a LAN. This is not only due to the lower band-

width, but also due to the higher latency between the

application and the database. The latency has a high

impact when, like a heavy database reliant applica-

tion, many calls to the database are done. If packages

could be grouped, the impact of the latency could be

lowered and the performance increased. An example

impact of latency can be found in table 2 showing ex-

pected impact.

Unpredictability of results is also one of the ex-

pected issues, which is why each test will be repeated

several times over multiple days to evaluate the vari-

ance, if any, of our results.

These issues are expected, and it will come as no

surprise that an application connecting to a distant

database will be slower. Despite this, it is still im-

portant to measure how much these applications are

slowed down and in which cases they remain usable

and economically viable.

Table 2: Example calculation of latency impact.

# of SQL Calls Location Lat [ms] Hours

1’000’000 Local 1 3

1’000’000 CH to CH 10 28

1’000’000 CH to NY 100 278

1’000’000 CH to SY 300 833

2.4 Tested Cloud Providers

The list of public clouds which will be evaluated is

shown in table 3. For all compute nodes, meaning

the nodes where the application server is running, we

selected the standard size available. For the databases

we chose different sizes to compare the throughput.

In the AWS cloud, 3 different database tiers have been

tested. For the Google cloud two have been chosen.

3 EXPERIMENTS

For the evaluation of the performances between the

different cloud set ups, we evaluated three different

scenarios, with a generic summary shown in Figure

Figure 3: Test scenarios overview.

3.1 Test Scenarios

Scenario A is a simple comparison of the different

public cloud providers. We execute the tests on differ-

ent servers of each cloud provider with the database

provided by the same cloud provider. With this sce-

nario we can identify substantial differences between

the cloud provider with the set ups we have chosen.

We added a test where the compute and the database

layer are on the same local machine.

In scenario B we connect from a WebSphere in-

stance on premise to the different databases provided

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

248

Table 3: Considered Cloud Platforms.

Tier Zone DB Version Price Network attachment

AWS: Database Small db.t1.micro Ireland MySQL 5.6 $0.035/h Very Low

AWS: Database Med db.m1.medium Ireland MySQL 5.6 $0.120/h Moderate

AWS: Database xLarge db.m1.xlarge Ireland MySQL 5.6 $0.495/h High

Google: D1 Std-D1-512MB europe-west1-a MySQL 5.5 $1.46/d N/A

Google: D8 Std-D8-4GB europe-west1-a MySQL 5.5 $11.71/d N/A

by the different cloud providers. With this scenario

we want to see if outsourcing the database layer to a

cloud provider is a viable option.

In scenario C a connection from AWS web servers

to Swiss Re is made. This is not a direct database

connection. The connection is made through a servlet

which makes database calls and converts the results to

JSON and sends those back as an answer. This sce-

nario aims to evaluate the feasibility of using external

compute power for compute-heavy applications with-

out moving the data.

In each case, no other user-speciﬁc application is

running during experiments.

4 RESULTS

4.1 Scenario A

As one can see from the test results of the cloud

providers, ICC in the current setup is the best per-

forming. The cloud the authors could work with in

ZHAW is infrequently used yet and can be described

as almost dedicated. It actually is a private cloud for

researchers and students rather than a public cloud.

The whole network in the ICC Lab environment is set

up with 10Gbit Ethernet and not very saturated, which

allows a very high throughput.

The communication in AWS and Google Cloud

internally is not very different. This was an unex-

pected result as AWS promotes their bigger instances

with better network connectivity. We concluded that

this result is because the network is a shared resource

and limited though Quality of Service (QoS).

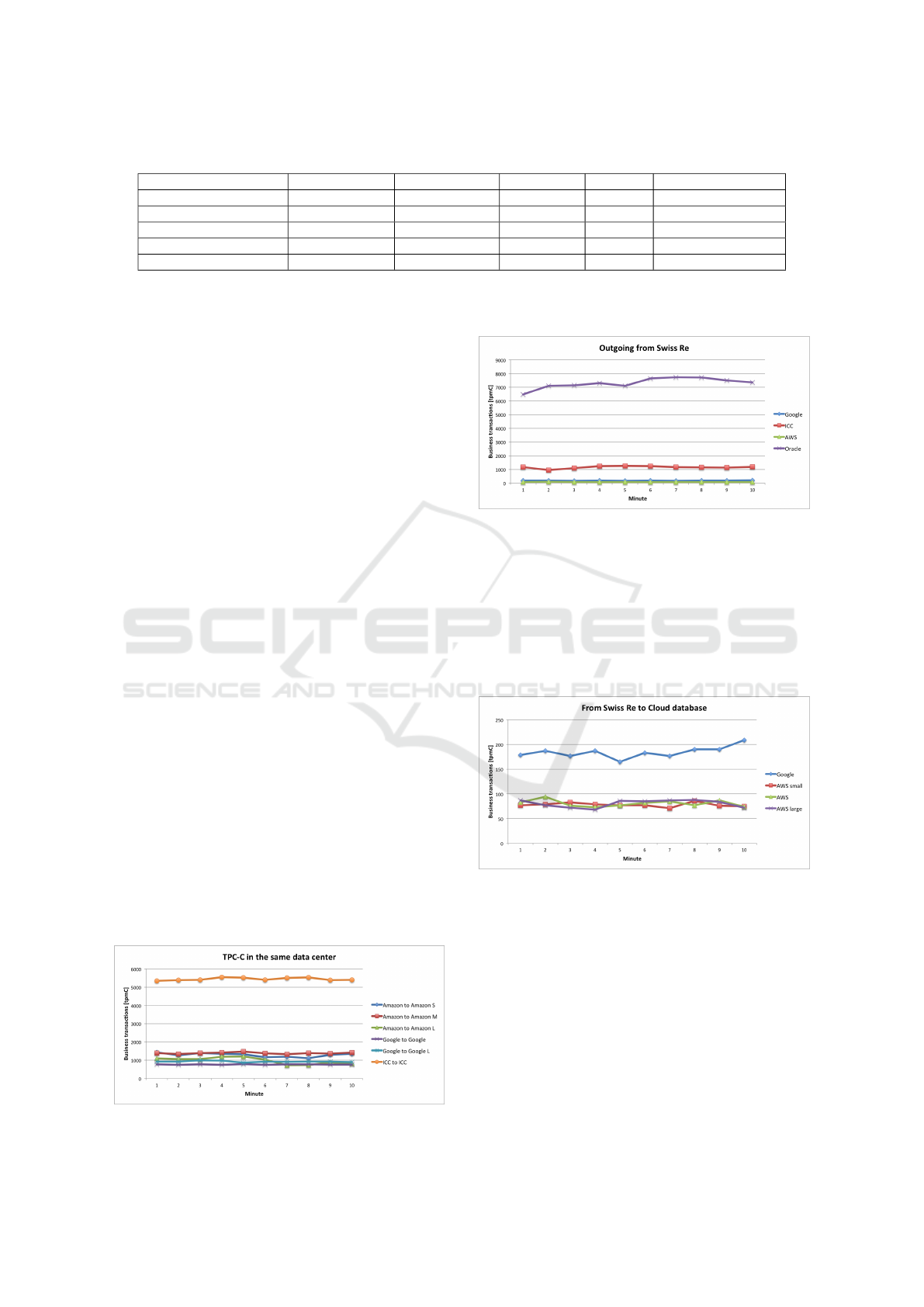

Figure 4: TPCC in datacenter.

4.2 Scenario B

Figure 5: TPCC Swiss Re to different DB.

It can clearly be seen that when working with Swiss

Re internal compute nodes and external databases the

performance is almost unusable. The access through

the Internet slows the performance and in this case it

is the bottleneck. The tests were concluded without

a Coarse-grained API concept, as an additional trans-

formation from JDBC would have been required, this

is not a service provided by cloud providers.

Figure 6: TPCC Swiss Re to Cloud DB.

As ﬁgure 5 does not show the difference between

the cloud offerings well, the Oracle instance and the

ICC lab were removed in ﬁgure 6.

The same pattern as in the test from ICC in regard

to the AWS servers can be observed. The database

tier did not make a difference when connecting from

Swiss Re.

4.3 Scenario C

When very small packages are sent, the latency can

vary depending on whether trafﬁc shaping is activated

Application Splitting in the Cloud: A Performance Study

249

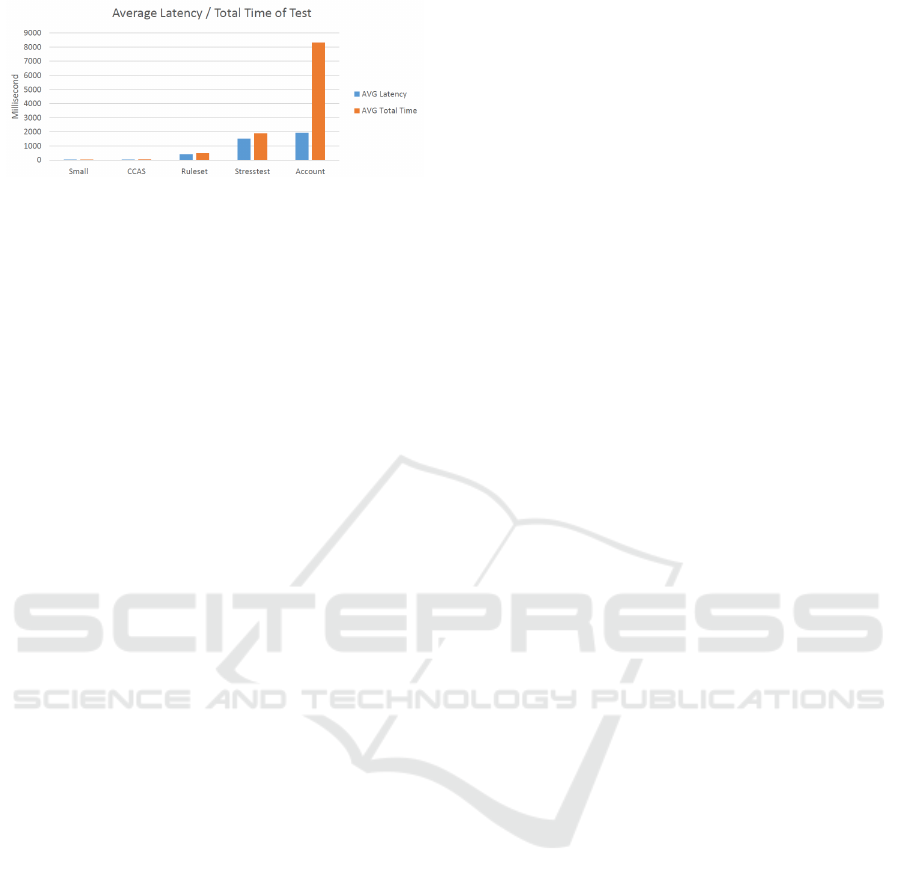

Figure 7: JMeter Proxy Test with AWS.

or not. Trafﬁc Shaping is used to improve latency

and optimize performance by delaying some pack-

ages and transferring them as a batch. The results

of the different test cases from AWS to the Swiss Re

database are compared, one can see that the latency

and the total time deviate with bigger package size.

This is expected, since the more data has to be trans-

ferred, the more packages have to be created and sent

through the Internet.

4.4 Tests in Non-Swiss Re Environment

The TPCC tests have shown that in-cloud commu-

nications are still useable for web applications, but

expanding a private cloud with compute power from

outside and working with internal data causes a huge

performance impact. The latency for packages The

JMeter tests support the conclusions drawn with the

TPCC tests. It also shows that trafﬁc shaping is a bad

idea when big batches of data have to be transferred.

4.5 Tests in Swiss Re Environment

Swiss Re has a stable and fast network, which has

grown over the years with huge unused potential. This

would be a good baseline for setting up a private cloud

The JMeter tests with the Servlet have shown that

small data transfer is feasible with the application in

the cloud and the database in Swiss Re. The response

time is slower than within Swiss Re but is still short

enough for applications with small data trafﬁc. Inter-

active applications would run better than performance

dependent batch calculations.

4.6 Performance

As expected, the performance in the cloud is weaker

than the performance in the existing enterprise envi-

ronment. The split-up of applications is even more

critical than moving the combined application and

database to the cloud. The overall performance for

small applications that are not database intensive is

still sufﬁcient (See ﬁgure 4). When the application

and the database are moved to a cloud as a package,

even moderately database-dependent applications can

be operated in a public cloud environment.

Applications that rely on the database heavily

should be operated within the internal environment.

This can be in a traditional IT setup or a private cloud.

Current enterprise environments perform a lot faster

than any of the tested cloud environments (See ﬁgure

4).

Connecting to a database hosted externally from

an internal compute resource showed one of the

biggest performance differences (See ﬁgure 6). The

throughput declined drastically. If because of a burst

in the on premise private environment, additional

compute power from an external cloud provider is re-

quired, the transport time for the data has to be con-

sidered (See table 2). However, if the application it-

self relies heavily on the database, such as in model

calculations the performance gain will not be drastic

unless everything is moved to the cloud (See ﬁgure 4

and 6).

When connecting from outside of a cloud, the dif-

ference in performance of the various database tiers

can almost be ignored (See ﬁgure 5). This only has

an impact when connecting from the cloud itself, but

also marginal (See ﬁgure 4). Tests showed that the ap-

plication does not require all of the available CPU or

memory, especially on systems with a slow network

connection and it was able to run as many requests as

possible.

5 CONCLUSION

5.1 Use Case

One reason to go to a public cloud is to lower opera-

tional effort. This can be done by letting the cloud

provider operate the infrastructure. The enterprise

just uses it as a service and take advantage of the cloud

providers economics of scale (Urquhart, 2014). This

would be mainly feasible for non-production applica-

tions, where performance and data security are not the

main focus.

For short tests and new environments made of

small applications, the cloud can help to keep Capi-

tal Expenditure (CAPEX) low, as no hardware needs

to be acquired, and the pas-as-you-go model allows

for short time bursting at a controlled price.

When moving to the cloud, it is mandatory to take

into account the initial data transfer, especially if the

use case involves temporary cloud usage, as the cost

of transfer is high. Additionally, a process needs to

be put in place to freeze the current database when

moving it to the cloud. This is not always feasible for

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

250

production databases which can not be stopped at all,

in this case techniques such as ones used in VM Live

Migration (Sv

ard et al., ) can be exploited to seam-

lessly transfer hard drive and live memory data.

If because of short bursts, additional compute

power should be added to the private cloud, to create

a hybrid offering, the throughput difference between

the internal and the external compute nodes need to

be considered (See ﬁgures 5 and 6). If the bursts can

be foreseen, the data can be replicated to the cloud

and the performance loss is not as high as if the com-

pute nodes need to talk to the on premise database

through a web service, as most company do not ex-

pose their databases to the internet. However, the ad-

ditionally gained performance for database intensive

applications will be drastically lower than the ones of

the private cloud. As this would most probably be

done only in the production environment, it currently

is not recommended.

When the data is required in the cloud and on

premise, an asynchronous data replication should be

considered; this helps to keep the performance up but

could lead to data mismatch until the data is fully

transferred to the other location.

5.2 Suggestions

As a remainder, the suggestions below are made ac-

cording to our ﬁndings in our tests and relative to the

use case described in the introduction. Conclusions

would be different if the application considered can

be re-engineered, as we have focused on use cases

where no changes can be performed on the database

and a JDBC connection is mandatory between appli-

cation servers and databases.

In essence, public cloud can be a cheap and fast al-

ternative, especially with low data exchange volume.

On the other hand, when performance is a strict re-

quirement, we ﬁnd that a private cloud with enterprise

ready databases offers the best match.

When migrating to the cloud for development and

testing, an important characteristic to consider is that

the different tier types of databases do not have a very

big impact. An evaluation has to be conducted in-

ternally to verify if the small performance beneﬁt or

larger offering is worth the additional price and re-

sources.

The lower performance can be accepted for ap-

plications that run small queries, but when having

database intensive applications the situation can lead

to negative feedback of the users.

In web applications which have low trafﬁc and in

which the number of concurrent users is not too high,

a replacement of the traditional infrastructure can be

considered. For example a seasonal application, with

a relatively small number of users, is a good candi-

date for migration. The beneﬁt is that the application

would cost less and with the few users, transaction

time with the database of less than 1 second can be

guaranteed. This time span is according to Nielsen

(Nielsen, 1993), the maximum time allowed for an

application with user interaction. This basic advice

regarding response times has been around for the last

thirty years.

Overall we conclude that development and test

systems can be easily moved to the public cloud with-

out a large impact on user satisfaction. Web appli-

cations with few database interactions could also be

considered to be moved to a public cloud. Systems

in a productive Environment which are time-critical

should not be moved to a public cloud. Adding tem-

porary computing resources for those is also not rec-

ommended.

REFERENCES

Apache (2014). Apache JMeter. Retrieved 2014-06-02,

from http://jmeter.apache.org/

Chen, S., Ailamaki, A., Athanassoulis, M., Gibbons, P. B.,

Johnson, R., Pandis, I., and Stoica, R. (2011). Tpc-

e vs. tpc-c: Characterizing the new tpc-e benchmark

via an i/o comparison study. ACM SIGMOD Record,

39(3):5–10.

Levine, C. (2014a). Standard benchmarks for database sys-

tems - tpc-c overview. Retrieved from http://www.

tpc.org/information/sessions/sigmod/sld007.htm

Levine, C. (2014b). Standard benchmarks for

database systems - what is tpc. Retrieved from

http://www.tpc.org/information/sessions/sigmod/sld

006.htm

Nielsen, J. (1993). Usability Engineering. US: Morgan

Kaufmann.

Raab, F. (2014). TPC-C – The Standard Benchmark

for Online transaction Processsing (OLTP). Retrieved

from http://research.microsoft.com/en-us/um/people/

gray/benchmarkhandbook/ chapter12.pdf

Salnikov-Tarnovski, N. (2014). Most popular ap-

plication servers. Retrieved 2014-06-02, from

http://java.dzone.com/articles/most-popular-

application

ard, P., Hudzia, B., Walsh, S., Tordsson, J., and Elmroth,

E. The noble art of live vm migration-principles and

performance of precopy, postcopy and hybrid migra-

tion of demanding workloads. Technical report, Tech-

nical report, 2014. Tech Report UMINF 14.10. Sub-

mitted.

Swiss Re (2014). Swiss re homepage. Retrieved from

http://www.swissre.com/

The OpenStack Foundation (2014). Openstack homepage.

Retrieved from http://www.openstack.org/

Application Splitting in the Cloud: A Performance Study

251

TPC (2014). TPC Benchmark C - Standard Speciﬁcations.

Retrieved from http://www.tpc.org/tpcc/spec/tpcc cur-

rent.pdf

TPC (2014a). TPC benchmarks. Retrieved from

http://www.tpc.org/information/benchmarks.asp

TPC (2014b). Tpc-c. Retrieved from

http://www.tpc.org/tpcc/

Urquhart, J. (2014). Apache JMeter. Retrieved 2014-06-05,

from http://www.cnet.com/news/james-hamilton -on-

cloud-economies-of-scale/

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

252
