Benchmarking Hadoop Performance in the Cloud

An in Depth Study of Resource Management and Energy Consumption

Aymen Jlassi

1,2

and Patrick Martineau

Universit

e Franc¸ois-Rabelais de Tours, CNRS, LI EA 6300, OC ERL CNRS 6305, Tours, France

Groupe Cyr

es, Tours, France

Keywords:

Cloud Computing, Virtualization, Green Consumption, Docker Container, Hadoop, Resources Consumption.

Abstract:

Virtual technologies have proven their capabilities to ensure good performance in the context of high perfor-

mance computing (HPC). During the last decade, the big data tools have been emerging, they have their own

needs in performance and infrastructure. Having a wide breadth of experience in the HPC domain, the experts

can evaluate the infrastructures used to run big data tools easily. The outcome of this paper is the evaluation

of two technologies of virtualization in the context of big data tools. We compare the performance and the

energy consumption of two technologies of virtualization (Docker containers and VMware) and bench-

mark the software Hadoop (JoshBaer, 2015) using these environments. Firstly, the aim is the reduction of

the Hadoop deployment cost using the cloud. Secondly, we discuss and analyze the assumptions learned from

the HPC experiments and their applicability in the big data context. Thirdly, the Hadoop community ﬁnds

an in-depth study of the resource consumption depending on the deployment environment. We come to the

point that the use of the Docker container gives better performance in most experiments. Besides, the energy

consumption varies according to the executed workload.

1 INTRODUCTION

The cloud-computing domain is based on the quality

of the services offered to customers and the capacity

of providers to ensure performances and security. The

virtualization tools are the most important technology

that has the capacity to hide the complexity of the

infrastructure and to optimize resource exploitation.

It helps providers to reduce costs. The virtualiza-

tion technology was introduced in 1960 by IBM (Wen

et al., 2012). It transparently enables time-sharing

and resource-sharing on servers. It aims at improv-

ing the overall productivity by enabling many virtual

machines to run on the same physical support. Many

categories of virtualization tools (Wen et al., 2012) are

used in data centers. In this paper, we classify them on

the full and light virtualization: The full virtualization

is based on the management of virtual machine (VM).

The VM is guest operating system (OS) that runs in

parallel over physical hosts. A hypervisor ensures the

interpretation of instruction from the guest OS to the

host OS. The light virtualization is based on the man-

agement of containers on a physical host, the contain-

ers share functions from the kernel of the host OS and

have direct access to its library. In the last decade,

the light technology of virtualization has been shifting

quickly, it allows to obtain a cost-effective clusters of

servers. Docker is the most sophisticated tool in its

category; it offers a large and more intensive range of

capability to manage hardware resources. This classi-

ﬁcation is also used in (Reshetova et al., 2014). Tradi-

tionally, the cloud computing and big data (Gandomi

and Haider, 2015) environments are mainly based on

the heavy virtualization tools. The main reason is

the companies’ lack of conﬁdence in the following

points: (i) the emerging technologies,(ii) the respect-

ful efﬁciency of heavy virtualization,(iii) the complete

isolation of the environment between guests and host

OS. Nowadays, the Docker technology offers multi-

ple capabilities of resource isolation. It reaches an

adequate level of maturity and it can be tested with

big data tools. Hadoop software is a big data envi-

ronment, it is based on the MapReduce Model, which

was introduced by Google in 2004 (Dean and Ghe-

mawat, 2008) as a parallel and distributed computa-

tion model. It is largely adopted in companies and

data centers; for example Facebook (JoshBaer, 2015)

and Amazon (JoshBaer, 2015) use it to answer the

computation needs.

In this work, we study and compare the two cat-

192

Jlassi, A. and Martineau, P.

Benchmarking Hadoop Performance in the Cloud - An in Depth Study of Resource Management and Energy Consumption.

In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 2, pages 192-201

ISBN: 978-989-758-182-3

egories of virtualization. The experiments must be

made using the Docker technology, the VMware tech-

nology and the Hadoop software. We therefore ana-

lyze the inﬂuence of the platform’s resource varia-

tion. During the evaluation, we consider (i) the com-

pletion time of the workload,(ii) the quantity of hard-

ware resources and (iii) the energy consumption cri-

teria. We prove, then, that this technology gives a

cost-effective cluster with a better efﬁciency in most

cases.

The remainder is as follows. In section two, the

previous studies on literature are presented. In sec-

tion three, concept and terms used in this paper are

reminded. In section four, the methodology used in

the experiments is presented. In section ﬁve, the re-

sults are presented and discussed. The conclusion is

presented in the last section.

2 RELATED WORKS

Since the last decade, Hadoop has been interesting the

scientists community. Many benchmarks and evalua-

tion tests have been done in order to evaluate its per-

formances or to compare it to other softwares. There

are mainly two levels in the benchmark of the soft-

ware Hadoop.

The ﬁrst one focuses on the comparison of

Hadoop with the existing engine in the big data com-

puting. For example, Fadika et al. (Fadika et al.,

2012) benchmark Hadoop with three data-intensive

operations to evaluate the impact of the ﬁle system,

network and programming model on performances.

Stonebraker et al. (Stonebraker et al., 2010) compare

Mapreduce model to parallel database, they focus on

the performance aspect. Pavlo et al. (Pavlo et al.,

2009a) prove that Hadoop is slower than two state-of-

the-art parallel database systems, in performing a va-

riety of analytical tasks, by a factor of 3.1 to 6.5. Jiang

et al. (Jiang et al., 2010) give an in-depth study of

MapReduce performance to identify bottleneck fac-

tors that affect the performance on Hadoop, they show

that the best tuning of these factors improves the same

benchmark used in (Pavlo et al., 2009a) and (Pavlo

et al., 2009b) by a factor of 2.5 to 3.5. Zechariah et

al. (Fadika et al., 2011) compare Hadoop, LEMO-MR

and twister (three implementations of the MapReduce

model). Gu et al. (Gu and Grossman, 2009) compare

Hadoop software (HDFS/ MapReduce) to the soft-

wares Sector/Sphere. Jefrey et al. (Shafer et al., 2010)

focus on the ﬁle system to identify bottlenecks, they

identify the weaknesses of the Hadoop ﬁle system to

solve and the best practices to follow in the cluster

deployment.

The second one focuses on the performances and

the energetic consumption of Hadoop using different

deployment architectures. For example, Kontagora

et al. (Kontagora and Gonzalez-Velez, 2010) bench-

mark Hadoop performances using full-virtualization

(using VMware Workstation). The paper (Xu et al.,

2012) evaluates Hadoop’s performances using open-

Stack, KVM and XEN. It compares performances

using openStack deployment with the physical de-

ployment. (Gomes Xavier et al., 2014) compare the

Hadoop software using different tools of container

technology, however, neither Docker technology nor

heavy technology are considered in the comparison.

The Docker technology is benchmarked in other

contexts as the HPC technology. For example, Xavier

et al. (Xavier et al., 2013) present an in-depth perfor-

mance evaluation of the containers based on the vir-

tualization for HPC. They present the evaluation of

the tradeoff between performance and isolation. In

the same context, (Gantikow et al., 2015) compares

the job executions using containers with executions

using physical infrastructure deployment, it conﬁrms

that the overload due to the use of the container and

the time completion are about 5 %. (Reshetova et al.,

2014) analyzes the resource isolation in the context of

Docker technology and conﬁrms that container iso-

lation is less secure than isolation offered by tradi-

tional tools of virtualization (heavy). For an accu-

rate study, (Peinl and Holzschuher, 2015) presents the

state of the art of all open source projects, which adapt

Docker technology to the context of the Cloud.

We conclude that the Docker technology has been

evaluated in the context of HPC technology, which

has its speciﬁcity. In most cases, the big data and

HPC are two divergent ﬁelds of technologies. Each

one has its own scheduling policies, resources re-

quirements workloads afﬁnities. The topic of this

paper focuses on the use of Hadoop software with

the Docker technology as a light virtualization tool.

It compares this emerging technology with the tra-

ditional virtualization technology. It focuses on the

resources exploitation, the time completion of the

benchmarks and the energetic consumption. It anal-

yse and discuss assumptions acquired from experi-

ments performed in the HPC context.

3 BACKGROUND

This section contains deﬁnitions of various concepts

and terms used in this work. It presents the Hadoop

software characteristics and it deﬁnes the heavy and

light virtualization technologies.

Google introduced the model MapReduce as a dis-

Benchmarking Hadoop Performance in the Cloud - An in Depth Study of Resource Management and Energy Consumption

193

tributed and parallel Model for data intensive comput-

ing. Every job generates a set of “map” and “reduce”

tasks, which is executed in a distributed fashion over

a cluster of machines. “Map” tasks have to be exe-

cuted before “reduce” tasks. Tasks have to be exe-

cuted the nearest to the needed data input. Data out-

puts of tasks map are transferred from the machine

where tasks “map” run to the machines where “re-

duce” tasks run using the network.

3.1 The Hadoop Implementation

Hadoop implements the MapReduce model; the com-

putation level is named “Yarn” and is composed of

three elements, which manage job execution. At

ﬁrst, the Resource Manager (RM) is the master dae-

mon; it assures synchronization over different ele-

ments and distributes resources between jobs. On

a second point, the Node Manager (NM) is the re-

sponsible for the resource exploitation per slave ma-

chine. The Application Master (AM) is responsible

for managing the lifecycle of a job. The scheduler

in the RM is responsible for the management of the

resources.The scheduling policies are based on these

assumptions:

1. the scheduler considers the homogeneity criteria

of the cluster thus slave machines run jobs at the

same rate.

2. the tasks progress linearly during a they tend to

ﬁnish in waves, thus tasks having a low progress

rate are considered as slow tasks

3. the tasks in the same category require the same

amount of resources

The storage level is named Hadoop ﬁle system (DFS)

and is composed of the NameNode (NN) as a server,

which contains the cartography of blocks’s ﬁle. The

datanode is the second element of the storage archi-

tecture: it is responsible for maintaining data blocks

and communicates with namenode to perform opera-

tions like adding, moving, deleting. It also applies a

number of NN decisions like ensuring data replication

and load balancing operations. The sizes of the ﬁles

in DFS are from megabytes up to terabytes. They are

partitioned into data blocks. The size of a block is a

decisive point to reduce the duration of the workload

execution. When the scheduler cannot assign tasks to

machines where data are stored, network bandwidth

is allocated to migrate blocks.

3.2 The Heavy Virtualization

The heavy virtualization consists in a virtual ma-

chine monitor and in a virtual machine (VM). VM

has its own operating system that is completely iso-

lated from the host operating system. The virtual

machine concept is the basis of the full and para-

virtualization approach (David, 2007). VMs have

their own booked memory, disk space, network band-

width and CPU’s share. Thus we cannot afford to ig-

nore the caused overhead, which is due to :(i) the vir-

tual device drivers, (ii) the intermediate level which

transforms instruction of the guest OS, (iii) the hy-

pervisor that gives the administrator the possibility

to run in parallel many OS per physical host. Ei-

ther commercial or open source solution, a big work

is done to limit mentioned overhead. The resource

isolation in the full virtualization approach is at the

hardware (Intel, 2015) and software level. We use

VMware workstation

 hypervisor to manage VMs

in our experiment.

3.3 The Light or Container Technology

Either LXC and Docker containers use the kernel con-

trol groups (Cgroups), systemd (cores, 2015) and ker-

nel namespaces libraries for (1) limiting and isolat-

ing resource consumption and (2) the process man-

agement.

In the context of this work, the Docker container

guarantees the same function as the virtual machine

and it has the same architecture. It is based on a man-

agement engine, it has the same role of the hypervi-

sor in the traditional virtualization. However, the re-

sources policy used for the containers management is

more ﬂexible than the one issued from the policy used

in the full virtualization approach. CPU resources are

an example, we can (1) ﬁx the number of the CPU

cores to allocate to each container or (2) deﬁne a rel-

ative share of the CPU resources between all contain-

ers on the physical host. In the second policy (2), the

containers beneﬁts from free CPU resources disposed

on the physical host and releases them when they will

be used by another process. Concerning the memory

resources, a container requires consumed memory not

provisioned memory, thus the containers offer better

management of idle resources than VM.

The Docker technology introduces policies to

manage four resources: memory, CPU, network IO

and disk space management. Containers are able to

share the same application libraries and the kernel of

the host. The intermediate level that transforms in-

structions from guest to host OS is limited, therefore

the container technology presents a lower overhead,

it is considered as light virtualization. In big compa-

nies like Facebook and Yahoo, a cluster of Hadoop

contains a large number of machines. The optimiza-

tion of the resource exploitation offers the opportu-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

194

Table 1: Conﬁguration of machines (physical or virtual)

used in the experiments.

Host machine Client machine

Processor Intel

Xeon(R) CPU E5-26200 @

2.00GHz

CPU cores 12 2 cores (4

threads)

RAM

(GB)

31.5 5

HDD

(GB)

500 80

OS Ubuntu 14.10

nity to reduce costs and increase beneﬁts. The com-

panies proﬁt from the virtualization in the cloud to

improve resource exploitation. As the energy man-

agement presents an important ﬁeld, much research

over the Cloud aim minimize the electric consump-

tion of the data center. This paper analyse the effect of

the use of virtualization tools over the energetic con-

sumption. It presents proportional relations between

different kinds of resources and the consumption of

energy. It is important to mention that the energetic

gain over a cluster of four machines will be weak.

The idea is to detect the variation of the consumption

as small as it is. In a large cluster scale, the varia-

tion in energy consumption is not negligible and has

an important impact on the overall cost.

4 METHODOLOGY

The experiments are repeated with both types of virtu-

alization tools. The ﬁrst topic of this work is to com-

pare the performance variation using the two tech-

nologies of virtualization; we compare the time com-

pletion of the used benchmarks. The second topic is to

focus on the Docker technology and give and in-depth

study of this technology; we aim to identify the inade-

quate or badly spent resources. The third topic analy-

ses the variation of the energy consumption according

to the experiments and tests. Two sets of experiments

have been carried out, the ﬁrst set uses an homogenu-

ous cluster of machine. In the second set, we vary re-

source capacities to thoroughly analyze performance

variations between heterogeneous and homogeneous

platforms. CPU, memory, hard disk and total load

over physical machine are recuperated during the ex-

perimentations. We consider the time execution of the

job. In all these works, the physical host has 12 CPU

cores, 31.5 GB of RAM and 500 GB of hard disk (Ta-

ble 1). The experiments are partitioned on two main

parts: when we study Hadoop in homogenuous clus-

ter, the virtual machines and the containers have the

same conﬁguration; they have 2 cores (and 2 thread

per core), 5 GB of RAM and 80 GB of hard disk (Ta-

ble 1). To ensure the best evaluation of the platform,

some conﬁguration parameter could be ﬁxed. For ex-

ample, the rate of data replication is two (this number

is depending on the size of the cluster) and the ca-

pacity of node manager is set to 3 GB of RAM and

3 cores. When we address the problems in the het-

erogeneous cluster, we use another conﬁguration of

virtual machines (VMs and containers) depending on

the resource we are studying. The experiments are

based on two levels, the ﬁrst one considers two slave

machines and the second one considers four slave ma-

chines. The slave machines can be virtual machines

or containers. All experiments are repeated 5 times.

The Ganglia software is used to recuperate LOAD,

CPU, RAM metrics. It overloads the Hadoop clus-

ter with 2 per cent (Intel, 2015). The software hsﬂow

is combined to Ganglia to retrieve I/O bound of the

hard disk access on the slave machines. These met-

rics offer the possibility of an in-depth study in the

variation in resource utilization during experiments.

In order to measure energetic consumption, we use

a speciﬁc engine mounted to the electrical outlet, it

measures overall the energy consumption of the clus-

ter machines every 2 seconds and save it on an ex-

ternal memory card. Four workloads (TestDFSIO-

read, TestDFSIO-write, Teragen, Terasort ) are used

in our benchmarks. In order to reach the topic of this

work; we use the benchmarks Teragen and TeraSort

and TestDFSIO. They are used by Vmware organisa-

tion; intel (Huang et al., 2010) and AMD (Devices,

2012) to evaluate their products. They are consid-

ered as a reference and are used in many other works

like (Fadika et al., 2012). The ﬁrst kind of workloads

is Teragen and TestDFSIO. They stress the hard disk

and I/O resources, they are based on a set of “map”

tasks which writes random data in HDFS in the a se-

quential manner. In these works; they generate three

sizes of data 10, 15 and 20 GB using 2 then 4 slave

machines.

The second one is TeraSort, this benchmark

stresses: memory, network and compute resources.

Each data generated with Teragen is sorted with Tera-

sort. Terasort is knwon for the capacity to aggregate

output of the Teragen workload. It is based on a set

of “map” tasks and “reduce” tasks. The job Tera-

Sort is forced to use four reduce tasks, we aim to dis-

patch the compute on many slave machines. The four

workloads (TestDFSIO-read, TestDFSIO-write, Tera-

gen, Terasort ) used in the evaluation are based on the

MapReduce model; each of them has the capacity to

stress speciﬁc resource thus the evaluation results will

be more accurate.

Benchmarking Hadoop Performance in the Cloud - An in Depth Study of Resource Management and Energy Consumption

195

Table 2: Conﬁguration of Slave Machines and (NM) Used in Heterogenuous Context.

Resources Slave machine 1 Slave machines 2 and 3 Slave node conﬁguration

CPU (cores/Vcores) 4 cores (4 threads) 2 cores (4 threads) 6 Virtual cores

Memory (GB) 10 5 6

HDD space (GB) 80 80 -

Hadoop is designed to work on a homogeneous

cluster. Deﬁned policies (conﬁguration of ﬁles and

the default schedulers) don’t consider the conﬁgu-

ration of machines when they schedule tasks, how-

ever, the clusters and technologies grow up contin-

uously and companies don’t have guarantee to sup-

ply the cluster with the same machine’s conﬁgura-

tions. Thus, we study the inﬂuence of the variation of

the machine conﬁguration on the performance of the

workloads executions. We vary the quantity of the re-

sources of the Hadoop slave machines and we analyse

experiments results. We double the RAM and CPU

resources of slave machines in the cluster and the re-

source capacities of the slave node. The slave node is

the Node Manager (NN) of the Hadoop’s cluster. The

table 2 introduces the conﬁguration of the slave ma-

chines (VM or container) and nodes (which give the

conﬁguration of slaves in the Hadoop) considered at

this part of experiences.

5 EXPERIMENTAL RESULTS

AND DISCUSSION

In this section, we provide the results of the exper-

iments. The ﬁrst subsection discusses the inﬂuence

of the execution workloads on the performance of the

two types of virtual clusters. In the second subsection,

we focus on the variation in the resources i.e. CPU

and I/O bounds. In the third subsection, we consider

a heterogeneous cluster to analyse the variation of re-

source utilizations during experiments. In the fourth

subsection, we study the inﬂuence of overload of the

energy consumption.

5.1 Evaluation of the Machine’s

Overload Capacity

The overload of a machine can be deﬁned as the dif-

ference between load of a physical machine (without

any slave machine) and load after the start of slave

machines on it. Figure 1 presents (i) the overload

of the physical machines without the running of any

slave machines (ii) the overload of the physical ma-

chine with slave VM when they are idle (iii) the over-

load of the physical machine with Docker containers

Figure 1: Resources overload with different number of vir-

tual machines and different types of virtualization tools.

when they are idle. We have noticed that the virtual

machines reserve total conﬁgured memory since its

start: thus 17 GB of memory is booked (3 VM) for

cluster with two slaves and 28 GB is booked for the

cluster with 4 slaves (5 VM). But the containers use

resources only when they need them. The host uses 5

GB of memory with three containers and 10 GB with

5 containers. This is the minimum memory needed

to start hosts, guest operating systems and Hadoop

daemons. The Figure 1 shows that the overload is

measured between 3-5% for Docker containers and

between 10-25% for the commercial tools. During

experiments, we record overload of the physical ma-

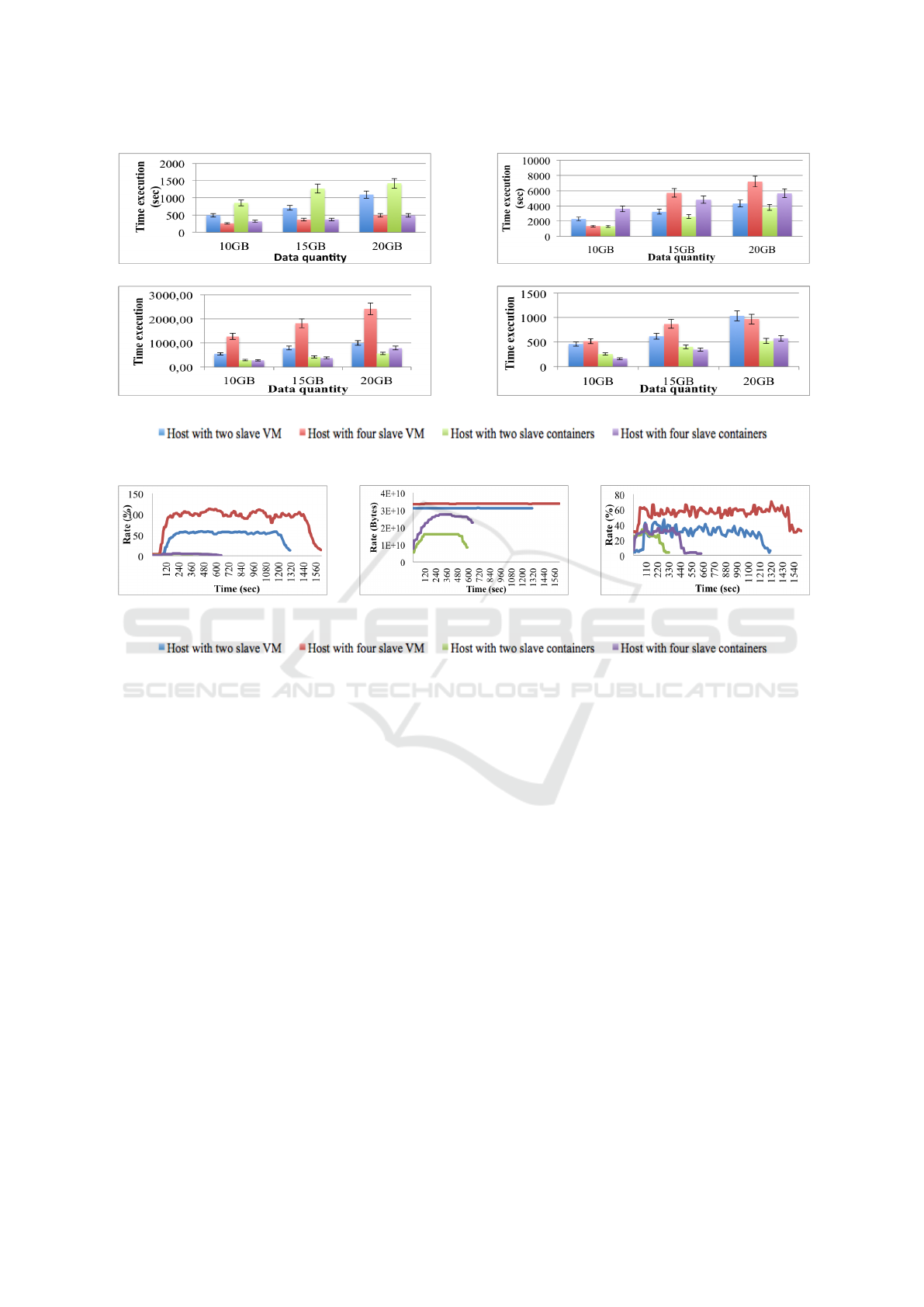

chine. Figure 3 compares the overload capacity using

the two technologies of virtualization and the work-

load Teragen. These experiments also consider dif-

ferent size of Hadoop cluster and 20 GB of generated

data. We remark in these conditions that container is

lighter than traditional virtual machine and for axam-

ple, the workload Teragen causes less overhead than

VM. The Figure 3(a) illustrates the total overload due

to the execution of Teragen. The difference is inter-

esting because it is a large difference in load between

the two types of virtualization. The heavy virtualiza-

tion is characterized by the reservation of the needed

memory when these VMs start. It is visible from Fig-

ure 3(b) that the amount of memory reserved by the

traditional virtualization increases compared to the re-

sults of memory consumption, shown in Figure 1. The

additional memory is used by the hypervisors to in-

terpret the guest operations which are executed by the

host operating system.

Docker technology uses only the amount of mem-

ory needed to run their process, otherwise memory

would be released. This behavior is due to the Docker

container policy. The last requires consuming mem-

ory not a provisioned memory, thus the memory man-

agement in Docker is more ﬂexible than the memory

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

196

management in traditional virtualization tool. The

Docker containers cause less memory overload than

traditional VM which reserves 100-200 MB mem-

ory per VM for hypervisor. In addition, traditional

VM independently reserves a ﬁxed amount of mem-

ory. The Docker containers offer the possibility to ﬁx

a maximum amount of memory a container can use.

However, when this memory is not explored by the

container, it can be used by another processes. Con-

cerning the variation of the CPU cores and memory,

we present analyses and we give an in-depth descrip-

tion. We take as an example the execution of different

job with 20 GB of data and we noticed that with the

jobs Teragen and Terasort, the cluster using Docker

technology is more efﬁcient than cluster with tradi-

tional virtualization (Figure 2(a) and 2(b)).

We obtained same results for the same job, executed

on the same size of a clusters. The use of two slave

machines gives better performances than the use of

four slave machines. Thus, the number of slave ma-

chines should be correctly chosen to avoid the degra-

dation in performances. We give in next part an in-

depth study of Hard disk and CPU bounds explo-

ration.

5.2 I/O-bound Variation and CPU

Bound

The TestDFSIO benchmarks are used to evaluate the

HDFS health, they utilize the hard disk resource more

than other resources as memory or CPU cores. We run

TestDFSIO benchmarks on 2 and 4 hadoop slave ma-

chines, using the two technologies of virtualization.

Then we also vary the writable data sizes (10, 15 and

20 GB). We present the experimental results of the

disk write and read throughput and average IO in Fig-

ure 4. The results of the job execution: TestDFSIO-

write, (Figure 4(a) to 4(c)) proves that the throughput

and average I/O are inversely proportional with the

overload measured during the execution. For exam-

ple, using 4 VMs over 20 GB of data, the overload

is about 85%, but throughput and averageI/O highly

decreases. The management of hard disk bound in-

ﬂuences directly the completion time of the workload

execution. The results proves that Docker technology

use a best policy to manage access to the hard disk

compare to the VMware tool.

We use the workloads Teragen and Terasort to

stress the CPU bound. It has a considerable inﬂu-

ence over the performance and the energy consump-

tion. In our experiments, we use two cores per slave

machines. Docker technology offers two policies to

manage CPU resources. The ﬁrst method is to re-

serve a speciﬁed number of cores per container. The

second one uses a relative share rate between contain-

ers. It associates a weight to each container and it

shares the existing compute resources between them.

Please note that all the experiments, explained earlier

use the ﬁrst reservation policy. We will focus on the

fair share policy in Section 5.3. We notice that using

Teragen (Figure 3(a)) and TeraSort; containers cause

about the half of the CPU overload than traditional

virtualization tool. Figures 2(a) and 2(b) shows the

completion time of the used workﬂow over a cluster

of 2 and 4 slave machines. The cluster with two slave

machines gives better performances than the cluster

with four. One reason is the architecture, the use of

four slave machines increases the competition to ac-

cess resources and the total overload increases in con-

sequence. For example, when we evaluate the cluster

with two slave machines, six cores (CPU) are booked

for the virtual cluster so the host OS has the six other

cores to use and to run the instructions. However,

cluster with four slave machines uses 10 cores (CPU)

thus only two cores are used by the host OS. We ob-

serve the same behavior for the memory resource use.

Thus, we note a performance degradation. As we use

the same policy to manage CPU resource in the two

cases of study ( 2 and 4 slave machines), we conclude

that the main reason of the performance degradation

is the management of throughput and memory poli-

cies. We use TestDFSIO read workload to test the

read throughput. The results are summarized on Fig-

ure 4(a) to 4(c). We noticed that the running of mul-

tiple slave machines on the same physical host cre-

ates a concurrent access to the hard disk. Despite the

replication of data used in Hadoop (which is equal to

2), there is a difference in performance between slave

machines, depending on the used technology. We give

an in-depth description of the memory management

policies in Docker technology in section 5.1.

Despite the congestion of resources, when we

work with a cluster of four slave machines, in most

cases, the Docker container offers better perfor-

mances in most cases.

In the next subsection, we focus on the execution

of the workloads on a heterogeneous cluster and com-

pare the two technologies of CPU management, avail-

able in the Docker technology.

5.3 Performance Variation in a

Heterogeneous Cluster

We analyse in this subsection the inﬂuence of the het-

erogeneous cluster on the performance of Hadoop.

The ﬁrst step of the experiments uses two different

conﬁgurations of slave machines. The second step

changes the capacity of each resource and analyses

Benchmarking Hadoop Performance in the Cloud - An in Depth Study of Resource Management and Energy Consumption

197

(a) Teragen (b) TeraSort

Figure 2: Time execution in function of the data quantity and type of slave machines.

(a) Total Teragen overload (b) Memory consumption of the job Ter-

agen

Figure 3: An exemple of the variation of the overload due to use of different virtualization tools.

the inﬂuence of each resource variation in Hadoop

performances. In the ﬁrst step, we use an additional

conﬁguration of slave machine, then we obtain new

Hadoop cluster with two types of slave machine’s

conﬁgurations: one conﬁguration has 4 cores, 10 GB

of RAM and 80 GB of hard disk, the second has 2

cores, 5 GB of RAM and 80 GB of hard disk. The

results of the execution of the workloads Teragen and

Terasort over a heterogeneous and homogeneous clus-

ter of three slave machines is presented in Figure 5(a).

It conﬁrms that Hadoop outperforms better with ho-

mogeneous cluster. In the Figure 5-b, we focus on

the Docker technology performances. We run the two

jobs in this four use cases: (1) homogeneous clus-

ter of three machines, (2) heterogeneous cluster (de-

scribed in table 2), (3) heterogeneous cluster with in-

creasing the memory and (4) heterogeneous cluster

with increasing only of the number of cores. Then

we conclude from this experiment that varying only

RAM or CPU resources is not helpful for the Hadoop

performances. There are two reasons of this conclu-

sion. The ﬁrst one is that increasing the capacity of

memory in client machines stresses the host operat-

ing system and limits its performances. In the same

manner, increasing the number of virtual cores per

container limits the number of CPU cores used by

the host system and decreases its computing capac-

ity. The second one is noted at the scheduling level.

After observing the tasks assignement at the Hadoop

scheduler level with the two technologies, in the ﬁrst

third of the time execution, we noticed that workloads

have a high rate of tasks failures on the slave machine

(SM) two and three. However, there is no task fail-

ure in the ﬁrst SM. These results are due to: (i) The

homogeneity of the cluster, considered by the sched-

uler (capacity scheduler is used in experiments). (ii)

The mismatch between the resource deﬁnition in the

conﬁguration ﬁles. (iii) The available resources on

the cluster. During the remaining period of execution

of Terasoft and Teragen, the scheduler has the ten-

dency to re-run the failed tasks with double capacity

of resources. The scheduler adapts its behavior and

affects the major quantity of tasks, which have double

capacity of resources to SM-1. For example, behind

the capacity of Nodemanager’s resources in table 2

(slave daemon on the Hadoop cluster), the SM-1 runs

three tasks all the time, two tasks have 2GB of mem-

ory and the third has 1GB of memory. The SM-2 and

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

198

(a) TestDFSIO-Write Average IO (b) TestDFSIO-Read Avarage IO (c) Write/Read Throughputs (20 GB)

Figure 4: Throughput and Average IO of the job TestDFSIO execution with different virtualization tools.

SM-3 have the tendency to execute tasks with 1GB

of memory, four times more than tasks having 2 GB

of RAM. We notice that the scheduler always affects

one Vcores (virtual cores) per task. This is caused by

the fact that Hadoop considers the criteria for resource

homogeneity during scheduling of the tasks.

In Figure 5(c); we focus on the CPU resources. In

previous experiments, we use the reservation policy

to affect CPU cores in containers (section 4-3). On

the next step, we compare the two policies, given by

Docker to explore computing capacity between con-

tainers. The results show that there is a thin differ-

ence between policy on the described environment of

experiments. The sharing method (with CPU-share

option) performs better than the affectation method

(reservation policy with the CPU-set). The share pol-

icy gives the opportunity to share unused compute re-

sources between containers and don’t limit them to a

speciﬁc number of cores. As the Hadoop context is

concerned, The share policy increases the capacity of

slots on the slave machines. Thus, it increases perfor-

mances without having the negative aspect on the host

OS. When the number of slave machines per physi-

cal host is maintained, the share policy gives better

performances. It ensure a minimum rate of computa-

tional capacity per container. When the host machine

has a free computational resources, these resources

are shared respecting the relative share between con-

tainers. As a result, the compute capacity per hadoop

NM deamon increases and will have a good inﬂuence

on the completion time of the workloads. When the

overload limit is reached, the two methods have the

same behavior and the decrease on performances.

5.4 Evaluation of the Energy

Consumption

The energy consumption is an important issue in

the big data context i.e. Yahoo deploys a Hadoop

cluster over more than 2000 servers; Facebook de-

ploys Hadoop over 600 servers; General Electric de-

ploys Hadoop on a cluster of 1700 servers. At this

scale, the energy is a critical aspect which inﬂuences

considerably the cost of cluster exploitation. A re-

search realized by the U.S. Environmental Protection

Agency (Agency, 2007) and the Natural Resources

Defense Council (Council, 2014) announced in 2007

that the cost of energy consumption for cluster man-

agement was very high. The commission in the Eu-

ropean Union deﬁned the code of conduct on data-

center energy efﬁciency since 2008 (for Energy and

(IET), 2015). Through the experiences, it is clear

that the load and the energy consumption are propor-

tional, when we run 4 slave machines. The overload

and energy consumption increase and they are higher

than the case of 2 slave machines. We can conclude

that when the overload of physical machine increases

(more than 85 %), the performance degrades and then,

energy consumption increases. Installing many vir-

tual machines on the physical host increases the en-

ergy consumption and they have negative inﬂuence on

the job’s execution performances. The overload on

physical host is proportional to the number of slave

machines and the workload running on them. Fig-

ure 2(a) and 2(b) show the completion time of Tera-

gen and TeraSort workloads over a cluster with dif-

ferent slave machines. The cluster of two slave ma-

chines is better performing than the cluster with four

machines and has a bit lower consumption than four

slave machines cluster. The virtualization technology

is used by the server providers to manage the load on

the physical machine and to optimize energetic con-

sumption. The overload on the physical machine is

the aggregation of all overload of their guest when

the VMs run in a higher load. Working with the same

type of job, size of cluster and quantity of data (Fig-

ure 6), there is a thin difference between the use of

the two virtualization tools. Docker technology con-

sumes less energy than traditional tools. This one is

caused by the use of containers instead of the overload

due to the use of virtual machines.

6 CONCLUSIONS

This paper has four objectives: (i) The analysis and

Benchmarking Hadoop Performance in the Cloud - An in Depth Study of Resource Management and Energy Consumption

199

(a) Inﬂuence of the heterogeneous cluster

(two types of virtualization)

(b) Inﬂuence of resources variations of

Docker containers on the execution of jobs

cies for managing the CPU resource al-

lowed by the Docker technology

Figure 5: Completion time of the workloads Teragen and TeraSort with heterogeneous platforms.

120

125

130

135

140

145

150

100

120

140

160

180

200

220

(kWh)

Time (sec)

TeraSort -4 VM

Teragen -2 VM

TeraSort -4 Containers

Teragen -2 containers

Figure 6: Energetic Consumption of different size of clus-

ters with jobs Teragen and Terasort.

the study of many assumptions concerning the con-

ﬁgurations of big data platforms. (ii) The comparison

of performances of the Hadoop platform with the two

technologies of virtualization. (iii) The study of the

variation of the performance for the case of homoge-

neous and heterogeneous platforms and (iv) The deals

with the energy consumption on the Hadoop cluster.

(refer to Section 5.2). We can conﬁrm that assump-

tions performed from experiments in the HPC domain

and focus on the container technology. The deploy-

ment of the Hadoop cluster either by using traditional

virtualization or containers technology, optimizes the

resource exploitation and minimizes idle resources.

However, using the two technologies decreases the

efﬁciency and the cluster’s performance. In general,

the container technology exceeds the traditional vir-

tualization technology. In the major part of the test,

the containers cause less overhead on CPU resources,

however the two policies given by the Docker technol-

ogy in order to manage computing resources should

be used carefully. Hadoop is based on the sharing of

the computing capacity between a numbers of slots

through time. The fair share policy can increase the

rate of computing resources. However, it strongly in-

ﬂuences the performance of the host operating sys-

tem since it limits the resources of the clusters. We

choose to ﬁx the number of cores per slave machine.

Hence, this method offers an accurate report about the

resource exploitation and it allows a better compari-

son between these results.

The containers have an efﬁcient policy to manage

memory resources; free memory can be recuperated

by the host operating system in order to improve gen-

eral performance of the physical host. The Hardware

and network bandwidth are shared between guests

that are localized on the host. We only consider the re-

source isolation, the other kinds of isolation (like user

or session isolation) are not targeted in this work. The

two technologies used in this paper can isolate CPU,

memory and Hard disk resources. However, despite

the evolution of the hard disk resource isolation (as

blkio controller), the access rate to hard disks remains

an open problem. The main reasons are: (i) the over-

load due to the workload execution or due to the num-

ber of slave machines per host. (ii) The I/O schedul-

ing, when tasks are running; a big quantity of data

is transferred between the slave machines. It ensures

data replication and merging between tasks. Thus, the

I/O scheduling has a direct inﬂuence on the Hadoop

cluster’s efﬁciency. The I/O environment considers

the network bandwidth and harddisk access.

The Hadoop software is adapted to be used with

homogeneous platforms. However, hardware tech-

nologies are changing continuously and it is not possi-

ble to ensure the same Hardware conﬁgurations when

the cluster is evolving. On the other hand, our experi-

ments argue that heterogeneous platforms degrade the

performances, the main reason is being the schedul-

ing policies because the scheduler in Hadoop is per-

formed to work on homogenuous cluster and the only

policy used to speed up the processing of the applica-

tions is to run a copy of delayed tasks on other ma-

chines. The energy consumption is directly related

to the load of resources on the physical host i.e. the

higher is the load of physical host, the higher is the

energy consumption. However, the performance de-

pends on the number of slave machines per host and

it also depends on the execution of workloads.

In this work, benchmarks argue that the light vir-

tual technology is the best to use in the Hadoop

context. In the future, we will focus on the opti-

mization of the Hadoop performances by working on

the scheduling policies, in order to improve perfor-

mances. The approach mentioned in (Jlassi et al.,

2015), presents the deﬁnition of the scheduling prob-

CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science

200

lem on the Hadoop cluster. We take into account the

performances and the energy consumption in a bicri-

teria problem.

ACKNOWLEDGEMENTS

This work was sponsored in part by the CYRES

GROUP in France and French National Research

Agency under the grant CIFRE n

2012/1403.

REFERENCES

Agency, U. E. P. (2007). Report to congress on server and

data center energy efﬁciency.

cores (2015). Getting started with systemd. https://

coreos.com/docs/launching-containers/launching/

getting-started-with-systemd/.

Council, N. R. D. (2014). American data centers are wast-

ing huge amounts of energy.

David, M. (2007). Understanding full virtualization, par-

avirtualization and hardware assist. White Paper.

Dean, J. and Ghemawat, S. (2008). Mapreduce: Simpli-

ﬁed data processing on large clusters. Commun. ACM,

51(1):107–113.

Devices, A. M. (2012). Hadoop performance tuning guide

- amd.

Fadika, Z., Dede, E., Govindaraju, M., and Ramakrishnan,

L. (2011). Benchmarking mapreduce implementa-

tions for application usage scenarios. In Grid 2011,

pages 90–97.

Fadika, Z., Govindaraju, M., Canon, R., and Ramakrish-

nan, L. (2012). Evaluating hadoop for data-intensive

scientiﬁc operations. IEEE CLOUD 2012.

for Energy, I. and (IET), T. (2015). Data centres energy

efﬁciency. http://iet.jrc.ec.europa.eu/energyefﬁciency/

ict-codes-conduct/data-centres-energy-efﬁciency.

Gandomi, A. and Haider, M. (2015). Beyond the hype: Big

data concepts, methods, and analytics. International

Journal of Information Management, 35(2):137 – 144.

Gantikow, H., Klingberg, S., and Reich, C. (2015).

Container-based virtualization for hpc. In CLOSER

2015, pages 543–551.

Gomes Xavier, M., Veiga Neves, M., and Fonticielha de

Rose, C. (2014). A performance comparison of

container-based virtualization systems for mapreduce

clusters. In 22nd Euromicro International Conference

on Parallel, Distributed and Network-Based Process-

ing (PDP).

Gu, Y. and Grossman, R. L. (2009). Lessons learned from

a year’s worth of benchmarks of large data clouds.

MTAGS ’09, pages 31–36. ACM.

Huang, S., Huang, J., Dai, J., Xie, T., and Huang, B. (2010).

The hibench benchmark suite: Characterization of the

mapreduce-based data analysis. In Data Engineering

Workshops (ICDEW), 2010, pages 41–51.

Intel (2015). Intel virtualization technology (intel vt). http://

www.intel.com/content/www/us/en/virtualization/

virtualization-technology/intel-virtualization-

technology.html.

Jiang, D., Ooi, B. C., Shi, L., and Wu, S. (2010). The perfor-

mance of mapreduce: An in-depth study. Proc. VLDB

Endow., 3(1-2):472–483.

Jlassi, A., Martineau, P., and Tkindt, V. (2015). Ofﬂine

scheduling of map and reduce tasks on hadoop sys-

tems. In CLOSER 2015, pages 178–185.

JoshBaer (2015). Hadoop wiki powerby. https://wiki.

apache.org/hadoop/PoweredBy.

Kontagora, M. and Gonzalez-Velez, H. (2010). Benchmark-

ing a mapreduce environment on a full virtualisation

platform. In CISIS 2010, pages 433–438.

Pavlo, A., Paulson, E., Rasin, A., Abadi, D. J., DeWitt,

D. J., Madden, S., and Stonebraker, M. (2009a). A

comparison of approaches to large-scale data analy-

sis. SIGMOD ’09, pages 165–178, New York, NY,

USA.

Pavlo, A., Paulson, E., Rasin, A., Abadi, D. J., DeWitt,

D. J., Madden, S., and Stonebraker, M. (2009b). A

comparison of approaches to large-scale data analysis.

SIGMOD ’09, pages 165–178.

Peinl, R. and Holzschuher, F. (2015). The docker ecosystem

needs consolidation. In CLOSER 2015, pages 535–

542.

Reshetova, E., Karhunen, J., Nyman, T., and Asokan, N.

(2014). Security of OS-level virtualization technolo-

gies: Technical report. ArXiv e-prints.

Shafer, J., Rixner, S., and Cox, A. (2010). The hadoop dis-

tributed ﬁlesystem: Balancing portability and perfor-

mance. In ISPASS 2010, pages 122–133.

Stonebraker, M., Abadi, D., DeWitt, D. J., Madden, S.,

Paulson, E., Pavlo, A., and Rasin, A. (2010). Mapre-

duce and parallel dbmss: Friends or foes? Commun.

ACM, 53(1):64–71.

Wen, Y., Zhao, J., Zhao, G., Chen, H., and Wang, D. (2012).

A survey of virtualization technologies focusing on

untrusted code execution. In IMIS’12, pages 378–383.

Xavier, M., Neves, M., Rossi, F., Ferreto, T., Lange, T.,

and De Rose, C. (2013). Performance evaluation of

container-based virtualization for high performance

computing environments. In PDP, 2013, pages 233–

240.

Xu, G., Xu, F., and Ma, H. (2012). Deploying and research-

ing hadoop in virtual machines. In ICAL ’12, pages

395–399.

Benchmarking Hadoop Performance in the Cloud - An in Depth Study of Resource Management and Energy Consumption

201
