Adaptation Services-oriented Systems LifeCycle
I. Elmagrouni
1
, A. Kenzi
2
, M. Lethrech
1
and A. Kriouile
1
1
SIME Laboratory, ENSIAS, Mohammed V University, Rabat, Morocco
2
Sidi Mohamed Ben Abdellah University, Fes, Morocco
Keywords: Development Process, SOC, CAC, SOA / Web Services, MDA.
Abstract: This work presents the approach of the Development of adaptable Services-oriented Systems. Not the only
adaptability is important for the survival and success of Services-oriented Systems, but it is also important
for the rapid changes in technology, organizational structure, human perception and needs. This paper
discusses the shortcomings of current solutions for adaptive service-oriented System. To address those
shortcomings, some techniques are used to build and evolve proactive Services-oriented Systems. Using
those techniques in an integrated way is described along the phases of the service lifecycle.
1 INTRODUCTION
The service-oriented computing (SOC) uses services
as basic constructs to support the rapid development
of low cost, and easy composition of distributed
applications even in heterogeneouscomputing
environments.SOCperspectiveis to join services in a
network of loosely coupled services, create flexible
business processes and agile applications that can
span different organizations and computing
platforms.Besides, CAC (Context-Aware
Computing) has been proposed to adapt applications
and software systems to different useful contexts.
These cover all the information that characterizes the
situation of an entity. An entity can be a person,
place, or object that may be relevant to the
interaction between the user and the application.
One of the challenges oflifecycleservicesis the stage
that identifies the services that support the business
activities of the organization.There are many
objectives of this paper. Firstly,is the definition of a
development process to guide the development of
adaptable SOS from business requirements.
Secondly, is the definition of phases, activities, and
artifacts that allow the identification, specification
and implementation of adaptive services.The life-
cycle models; for Service-Based applications that
have been presented in the literature (examples
include SLDC, RUP for SOA, SOMA, and SOAD)
are mainly focused on the phases that precede the
release of software; and even in the cases in which
they focus on the operation phases, they usually do
not consider the possibility for to adapt dynamically
to new situations, contexts, requirement needs,
service faults, etc.Specifically, the following aspects
have not been yet considered in those life-cycle
models: Requirements elicitation, design for
adaptation.
The first section briefly presents the work and
the approaches that are related to the study. The
second section describes the case study to illustrate
the approach. The Third section focuses on the
process definition which will enable the
development of adaptive services. Last but not least,
the article will be summed up with a conclusion and
outlook.
2 RELATED WORK
(S.Lane et al., 2011).conducted identified adaptation
activities that could be used to adapt Service
oriented system (SOS). These activities combined
with a skeleton life-cycle model; proposed by the S-
Cube consortium, formed the basis of reference
process model’ frame for adapting Service-Based
applications (SBA). This frame of reference was
used to guide interviews with development
practitioners who had experience and could provide
expert’ opinion Service-Based applications’
adaptation. Thecollected data of these interviews
was transcribed and analyzed by using qualified
content analysis techniques. The result of adaptation
activities and tasks were constructed into a detailed
Elmagrouni, I., Kenzi, A., Lethrech, M. and Kriouile, A.
Adaptation Services-oriented Systems LifeCycle.
In Proceedings of the 18th International Conference on Enterprise Information Systems (ICEIS 2016) - Volume 1, pages 223-231
ISBN: 978-989-758-187-8
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
223
process model identifying the relevant stakeholders
and development artifacts for each stage of the
process. The model’s transfer and ability were
demonstrated during an evaluation process where
the model was systematically compared to a
component-based application adaptation model and
an empirically based SBA development life-cycle.
The approach’s advantages are over similar
approaches because it focused and based on input
provided by experts from the field.
A method proposed by Azevedo et al. [14] with
activities to guide the designer to identify the
most suitable set of services to support the
business activities of the organization. The method
consists of the following steps: (1) Selection of
activities subject to automation - this stage selects
process activities TO-BE where can be identified
candidate services, (2) Process models are
represented using the Event-driven Process
Chains (EPC) and Function Allocation
Diagram (FAD), (3) Candidate services
identification and classification - activities
identified in the previous step are analyzed
within their contexts in process models according
to a set of heuristics, and (4) Consolidation of
candidate services supported by the use of heuristics.
A guideline is proposed by Shirazi et al. [15]
for the service identification using two
approaches: top-down and bottom-up. The bottom-
up approach is used to identify applications and
entities services; while top-down approach’s goal
is to recognize the business services and services
oriented tasks. The method consists of the
following steps: identifying business processes,
making business use-case model, identifying
entity-centric services, recognizing application
services, identifying task-centric services and
recognizing process centric services. Marks and Bell
proposed a Service Lifecycle; this cycle includes the
service evolution from conception to maturity along
its execution. The identification of business services
is performed using a top-down and bottom-up
approach in iterative cycles. In order to identify new
candidate business services, the author proposes
an analysis of the following sources: business
process, entities (interest and principal), budgeted
projects, business experience, preexisting services
and existing business applications. Arsanjani et al.
[8] presented a method for service-oriented solutions
developing called Service-Oriented Modeling and
Architecture (SOMA). Specifically for services
identification phase, the paper points out that a good
practice uses a set of complementary techniques to
identify services and cites three service
identification techniques: (1) Goal-Service
Modelling (GSM), treats the services aligned to the
business goals, (2) Domain decomposition is
performed through a top-down analysis of
business domains and business processes
modelling that are identified services, components
and flows. The aim is to consider the static and
dynamic view of the business including information
rules and variations.
(3) Analysis of the existing asset is performed by
bottom-upanalysis of the existing application
portfolio and other assets and patterns that can be
used to identify candidate services. After the
application of the described techniques, the method
also comprises the following step:
refactoring and rationalization of the service
whose service granularity is determined. Finally, a
series of criteria are applied to determine
which service is appropriate for candidates’
publication.
3 E-TOURIST MOTIVATING
SCENARIOS
Let us consider the following scenarios. Assume that
a user would like to use a mobile device (e.g., PDA,
iPhone, Smartphone, BlackBerry, etc.) with
thedifferent operating system (IOS, Android, etc.)
which is equipped with a GPS (Global Positioning
System) to find relevant restaurants with/without
open gardens. Figure 1 shows a model of application
mobile “Restaurant Finder”. Customers want to
browse available restaurants to view offered food
items and their cost. To this aim they must search a
set of potential restaurants and select one among
them. This application also aims to collect the
customers’ feedbacks regarding selected restaurants.
Finally, the average satisfaction of all customers
must be high. It can utilize various other services,
such as the Reverse Geocoding for mapping GPS
information to addresses, the Google Map for
finding businesses close to an address, the
Restaurant Data Service for searching restaurants
based on the user preferences, and the Weather
Information Service for obtaining weather
information. The service also offers graphical
information to the user with a reasonable delay
(Wifi, 3G, and text/image).
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
224
Figure 1: The Restaurant Finder.
4 ADAPTABLE SOS
DEVELOPMENT PROCESS
The proposed method described in Figure 2 is based
on MDA (Model driven architecture). It is composed
of three abstraction layers: the CIM (Computation
Independent model) which describes the system’s
requirements, the PIM (Platform independent
Model) which specifies the system independently of
any platform and the PSM (platform specific model)
which contains the service models related to a
specific platform.
Figure 2: Development Process of adaptable Service
Oriented System.
The first phase “Global analysis" is interested in
the feasibility study.
Furthermore, the method is composed of two
sub-processes:
An Evolution Process composed of the following
activities: analysis and design service identify
business requirement and implementation service.
An Adaptability Process which the main
activities is: analysis and design Adaptation
concerns the adaptation where system processes
should adapt to certain conditions and
implementation Adaptation.
4.1 Preparation
This phase is the preliminary study of the
complicated organization that identifies two points:
(1) business motivation model (2), Legacy system
analysis.
4.1.1 Business Motivation Model
We define business requirements for business
processes as the overall set ofrequirements that
relate to business processes as given by the Business
Motivation Model (BMM) of OMG, such as vision,
mission, goal, strategy, objective andtactic. More
specifically, a vision describes the future state of the
application, withoutregard to how it is to be
achieved, and mission indicates the ongoing activity
thatmakes the vision a reality. A goal indicates what
must be satisfied on a continuingbasis to effectively
attain the vision, and a strategy is a long-term
activity designed toachieve a goal. An objective is a
specific and measurable statement of intent
whoseachievement supports a goal, and a tactic is a
short-term action designed to achieve anobjective.
Figure 3: Business Model Motivation of Restaurant
provider.
4.1.2 Legacy System Analysis
In this step, the decomposition of existing systems in
the form of application modules is used to provide
an implementation for business services that were
previously identified. Then, we apply a bottom-up
approach, i.e. starting from the existing system to the
business services and business processes.
4.2 Services Analysis and Design
Business service identification is critical. Identifying
appropriate services with the right level of
granularity can have a major influence on the whole
system. It is agreed that all business services should
be identified to meet a business goal. Goals can be
formulated at different levels of abstraction; ranging
Adaptation Services-oriented Systems LifeCycle
225
from ahigh level and strategic to low level and
operational.
4.2.1 Business Process Design with Goal
Models
A goal model is used to capture why a business
process is needed – its purpose or goal – and the
different ways from which a goal can be attained.
The goal model has been designed based on the
design principle of Object-oriented Design, namely
Decomposition and Abstraction. Decomposition
principle is used to decompose a large problem into
subproblems. Each sub problem is at the same level
of detail, can be solved independently and can be
combined to solve the original problem. Based on
the above definition the goal model is designed to
specify a high-level goal which is decomposed into
subgoals and a hierarchical ordering of the subgoals
is done. Goal tree structure is used to represent the
model. In this, the high-level goal (problem) is
decomposed into one or more subgoals
(subproblems) and each subgoal is decomposed
further into one or lower level subgoals. This goal
becomes the root of the goal model. It is refined
using AND/OR decompositions until the resultant
subgoals can be delegated to either human actors or
software services.
Figure 4 shows the goal of Restaurant Provider
by tool OpenOME is an Eclipse-based tool designed
to support goal-oriented, agent-oriented and aspect-
orientedmodeling and analysis.
Figure 4: A goal model for the “Tourist System
Management” business process.
The general goal is to provide Restaurants that
AND-refined into the following sub-goals: Find
Restaurant withhigh quality service and which
provide both textual and graphical mode.
4.2.2 Enriching Goal Models for BP
Modeling
Since we are interested in the automated execution
of business processes, we needto capture more
information about BPs than the basic goal models
allow. A few annotationsare introduced for this
purpose. Note that the annotations presented here
arenot required to be formal. We use the following
control flow annotations when employinggoal
models to represent business processes:
• Parallel (“Para”) and sequence (“Seq”) annotations
can be used with ANDdecomposedgoals to specify
whether or not their subgoals are to be achievedin a
temporal order. For example, billing customers and
shipping goods are doneconcurrently in the process.
• Sel (“if(condition)”) indicate the necessary
conditions for achievingsubgoals. For example, in
Fig. 2 the goal Order Out Of Stock Product
isachieved only if the item is not already in stock.
•Loops (“while(condition)” or “for(setOfItems)”).
For instance, the goal Add OrderItem must be
achieved for all items in the order.
Table 1: Annotation for Business Processes.
Annotation Meaning
Seq Sequential execution of activities
Loop Repeated execution of activities in a
loop
Sel Conditional selection of activities
Para Parallel execution of activities with
complete synchronization
4.2.3 Modeling of Input/Output
Modeling of input/output parameters of goals is also
important for BP modeling. Identifying inputs and
outputs during the analysis of a business domain
help in determining resource requirements for
achieving goals as well as for the sequencing of the
goals. The types of inputs and outputs can also be
specified. While optional, the input/output types can
be used to generate detailed specifications for
messages and service interfaces in a BP
implementation.
Name: Collect Requests
Input/Output:
r: ReceiveRequest; rc :RestaurantsCollection
DomainPrecondition:
rc:state = default
DomainPostcondition:
rc:state = req initialized
RequiredPrecondition:
rc:keyword = “” ^ rc:date = null
^rc:distance = “” (r:keyword “”˅ r:date null˅ r:distance “”)
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
226
RequiredPostcondition:rc:keyword = r:keyword ^ rc:date
= r:date ^ rc.distance=r:distance^Collect(rc:keyword;rc:date)
User: Tourist
Context: Device, Location, Time, Profile, Resturants
Preference, Weather
Name: Find Graphical Content
Input/Output:
rc :RestaurantsCollection
DomainPrecondition:rc:state = req_initialized
DomainPostcondition:
rc:state = restaurants received
RequiredPrecondition:rc:keyword = “” ^ rc:date = null ^
rc:distance=“” ^ (r:keyword “”˅ r:date null˅r.distance “”)
RequiredPostcondition:
n rc:restaurants: n:keyword
= rc:keyword˅rc:date n:date˅ rc:distance= n:distance ^n:text
null ^ n:images null
User
: Tourist
Context: Device, Location, Time, Profile, Resturants
Preference, Weather
An operation is defined through name, input and
output values and pre- and post-conditions. Required
preconditions (ReqPre) define when the
operationcan be executed.Required post-conditions
(ReqPost) define additional conditions that mustbe
true after execution. Domain pre- (DomPre) and
post-conditions (DomPost) define the effects of the
operation on the domain.The definition of operation
Find Text Content is similar to operation Find
Graphical Content except for the required post
condition that is specified as follows:
ReqPost:
n rc:restaurants: n:keyword = rc:keyword ˅
rc:date n:date˅ rc:distance= n:distance ^n:text null ^ n:images
= null
4.3 Adaptation Analysis and Design
It is interested in capturingspecific adaptation
requirement for SOS. To control service Adaptation,
a designer needs to knowwhy a change was made,
what are the implications, and whether the change is
consistent or not. Eliminating spuriousresults and
inconsistencies; that occur due to uncontrolled
changes, is a necessary condition for services
toevolve gracefully, ensure stability and handle
variety on their behavior.
4.3.1 Typology of Adaptation
The nature of service Adaptations can be
classifieddepending on their causal effects as
follows:
• Minor Adaptations: these are small-scale
incremental changes that are localized to a service or
arerestricted to the clients of that service.
• Major Adaptation: these are large-scale
transformational changes cascading beyond the
clients of aservice, possibly to entire value chains.
Typical Minor Adaptation focuses on structural level
changes (service types, messages,
interfaces,andoperations) and business protocol
changes (the conversations in which the service
participates). TypicalMajor adaptation
includespolicy-induced (pertaining to business
agreements between service providers
andconsumers.
Figure 5: Minor and Major Adaptation.
4.3.2 Dealing with Adaptations
Service Adaptation requires an adaptation-oriented
service lifecycle methodology to provide a sound
foundation for spreading changes in an organized
fashion that impacted services in a servicechain are
appropriately configured, aligned and controlled as
thechanges occur.
The purpose of the adaptation-oriented service life
cycle is to ensure that standardized methods
andprocedures are used for efficient and prompt
handling of all servicechanges in order to minimize
theimpact of change-related incidents upon service
operation and quality. This means that in addition
tofunctional (structural and behavioral) changes,
adaptation-oriented service life cycle must deal with
policy-induced operational behavior and non-
functional changes. Figure 6 illustrates an adaptation-
oriented service life cycle that comprises a set of
inter-related phases, activities, and tasks that define
the change process from the start through to
completion. Each phaseproduces a deliveredmajor
that contributes towards achieving change objectives.
Logical breaks arealso provided in the change process
and are associated with key decision points. The
phases of the lifecycle are discussed in the next part.
Figure 6: adaptation-oriented service life cycle.
Adaptation Services-oriented Systems LifeCycle
227
The initial phase Figure 6 “Define Adaptation
Requirement” focuses on identifying the need for
adaptation and scoping its extent. One of the major
elements of this phase is understanding the causes of
the need for adaptation and their potential
implications.
The secondin Figure 6 (“Analyze impact of
Adaptation”) focuses on the actual analysis, re-
designor improvement of existing services. The
ultimate objective of service adaptation analysis is to
provide an in-depth understanding of function,
scope, reuse, and granularity of services that are
identified for adaptation. The problem lies in
determining the difference between existing and
future service function.To analyze and assess the
impact of changes, organizations rely on the
existence of an “as-is” and a “tobe”service model
rather than applying the changes directly to
operational services. Analysts rely on an
as-is”
service model tounderstandthe portfolio of available
services. This model is used as thebasis
forconducting a thorough re-engineering analysis of
the current portfolio of available services that need
toevolve. The “to-be” service model is used as
thebasis for describing the target service
functionandperformance levels after applying the
requiredadaptation.To determine the differences
between these two models, a gap analysis model is
used to help prioritize, improve and measure the
impact of service adaptation.
During the third and final phase “Identify
adaptation strategy and trigger in Figure 6, In
order to select the adaptation strategy which should
be applied, it is necessary to consider that adaptation
maybe associated with a set of conditions and a
trigger that are important for designing and
performing adaptation. The trigger states when the
adaptation Service must be activated. Each
adaptation Service is operated through adaptation
actions as explained in Table 2.
Table 2: Description of the two adaptation action.
Adaptation
Action
Description
Substitution The Possibility of configuration with a
dynamic substitution of the service with
another one
Performance The possibility of going back in the
process for performing an alternative
path or redoing the same set of tasks
4.4 Service Implementation
It is based on the following step: Generating
Business Processes
4.4.1 Generating Executive Business
Processes
A method has been devised for using goal models to
assist with the development and configuration of
high- adaptability (flexible) BPEL processes. This
makes it possible to generate BPEL processes that are
easily readable by humans and are structured after the
respective goal models. The BPEL code generation is
semi-automatic. The generated code is not
immediately executive so it needs to be completed.
Nevertheless, provides valuable help in producing an
executable BP based on the source goal model, the
code is to be further developed by integration
developers, who will also be selecting/designing Web
services to be used by the process.
Figure 7: Example of WS-BPEL 2.0 code generation.
We start BPEL generation from the root goal and
recursively through the goal tree until we reach leaf
goals. Some of the goal models are presented to
BPEL mappings through the example in Fig. 5,
which shows a generic annotated goal model
fragment. The root goal G has a sequential AND
refinement, so it corresponds to the sequence
operator in BPEL. G1 has a similar AND
refinement, so it maps to the flow construct. G2 has
a data-driven OR refinement, so it generates the if-
elseif(BPEL 2.0) or the switch (BPEL 1.1) operator.
Note that the conditions c1 and c2, which
areinformal descriptions in the goal model, will be
replaced with the appropriate conditions by a BPEL
developer. While we abstract from some of the low-
level BPEL details such as correlations, with the
information captured in the annotated goal models,
we also generate the following aspects of
BPEL/WSDL specifications.
• We do an initial setup by defining the appropriate
interface (portType), etc. for the process. A special
portType for invoking the process and providing it
with the (initial) configuration is also defined.
• A conditional/loop annotation for a goal G is
mapped to the appropriate BPEL construct (e.g., if-
elseif or switch, while, etc.) with the activity to be
executed being the result of mapping the goal model
subtree rooted at G into BPEL. The formal
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
228
conditions currently have to be specified manually.
• Leaf-level goals map into Web service invocations.
The information in the goal model helps in defining
the interface for the Web services invoked by the
BP. We define appropriate WSDL messages based
on input/output parameters of these goals. If data
types are omitted from the goal model, they have to
be supplied by a developer.
• Softgoals are used as the evaluation criteria in the
configuration process and thus do not map into the
resulting BPEL specification.
4.5 Adaptation Implementation
This activity involves in the implementation of the
adaptation Mechanisms that were described in the
phase analyze and design adaptation. Each
conventional goal, which represents a functional
requirement (i.e., it is operationalized),is mapped onto
the corresponding sequence activity in the BPEL
process. If the goal represents a non-functional
requirement, but its nearest ancestor goal is
operationalized, it is associated with the same sequence
of its parent goal. This activity must represent an
interaction of the process with its partner services (e.g.,
invoke, pick, and receive).Each adaptation goal is
associated with a set of actions that must be performed
at theprocess level.A triggering rule activates the
evaluation of the trigger associated with the goal. A
condition rule evaluates the conditions linked to the
goal. If the two previous rules provide positive
feedback, an activation rule is in charge of the actual
execution of the adaptation actions. Performed when an
adaptation goal can potentially fire (i.e., the
corresponding Activation fact is available in the
working memory) and is selected by the rule engine to
be performed, among the other adaptation goals that
can be performed as well. It executes the actions
associated with that adaptation goal. For example, the
triggering rule associated with ABG1 is the following:
when
Goal(id=="FGR", satisfaction < 1)
then
workmemory.insert(new
Trigger("TriggerABG1));
5 ADAPTATION ASPECTS
WEAVER
The adaptation Implementation follows a three-step
process (see Figure 10):
1. Context detection consists of checking the
runtime context information, in order to detect
possible context changes. These tasks are performed
by the Context Manager Service which is developed
as a Web service in the BPEL process.
2. Aspect Activation is responsible for the plug-in
and the removal of pre-defined Aspects into the
BPEL process using the Aspect Activator
Module.The Aspect Activator Module is conceived
as an extension to the BPEL engine when running a
process instance; the Aspect Activator receives the
context change information from the Context
Manager Service.
3. Updating original BPEL Process by activating the
right Aspect which is executed in the BPEL process.
Figure 8: The adaptation process.
5.1 Adaptation Tools
We propose an evolved adaptationtool, based on the
context manager and aspect, this tool allows
selectingwhich services to invoke, and adapt them.
These toolsare divided into three distinct layers,
namely (see Figure 9): Application layer, Adaptation
layer, and a Resource layer. These different layers
are described as follows in the following.
Figure 9: Technical architecture of adaptation.
Adaptation Services-oriented Systems LifeCycle
229
Application Layer: It is the top layer of the
technical architecture, including application platform
which we implement our approach to adaptation.
The central element of this layer application server.
Typically, an application server is a server that Are
installed applications used by customers.
Adaptation Layer: This is the second layer of this
architecture. Placed between the application layer
and resource, it contains components which will
ensure the processing context information and any
other operations required to carry out the adaptation
of invoking services. Essentially, this layer contains
two modules:
The context manager is charged to collect the
information in context and to detect the possible
changes of this information. The context manager
will be called upon by process BPEL like any other
web service.
The second module is the activation of aspect.
Just like the context manager, the activation of
aspect is implemented under the form of a Web
service to interact better with the other elements of
the architecture. This module is always placed after
the context Manager in the process BPEL.

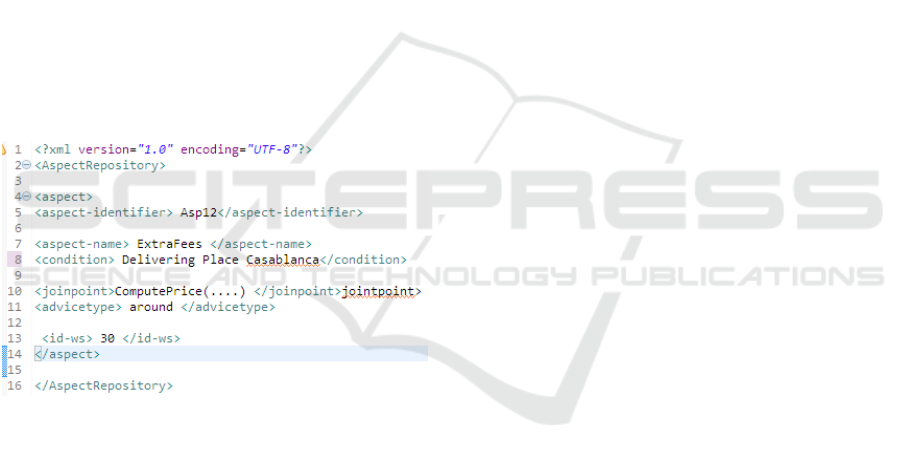

Figure 10: Aspect ExtraFes.
Resource Layer: It represents the third layer of this
technical architecture. The resource layer includes
all the resources needed for the other two layers. It
interacts essentially with the matching layer at the
two matching modules: the context manager and the
aspect activation module. The resource layer
includes the following:
- Repository Process: it lists all processes deployed
to the BPEL engine.
-Repository Service: this case represents the
functional service implemented as Web services.
-Repository Aspect: contains all aspects represented
as an XML tree. Every aspect is a node in the tree
characterized by an identifier and condition that
represents a value of a context parameter.
-Repository Context: is supplied and updated by the
context manager, the repository stores the context
parameters related to the client and to the
opportunity of cooperation.
6 CONCLUSIONS
In the previous sections, an approach is proposed to
develop service-oriented systems that can be adapted
to different contexts that deal with the effects of both
major and minor. An adaptable-oriented service life
cycle methodology is used to address and describe
its phases. In particular, it discussed when a change
in a service is triggered, how to analyze its impact
and what are the possible implications of the
implementation of the change for the service
provider and consumers. A formal model for minor
and majoradaptation,on the basis of the one, is the
main goal of our future work.
REFERENCES
M.lethrech, I.Elmagrouni, A.Kenzi, M.Nassar and
A.Kriouile“DSL and SOA, Exploratory Study”
JDTIC, 2012.
H. Hafiddi, H. Baidouri, M. Nassar and A. Kriouile“A
Model Driven Approach for Context-Aware Services
Development”, in the 2nd International Conference on
Multimedia Computing and Systems
(ICMCSmodel'11), Ouarzazate, Morocco, April 2011.
S.Lane,I.Richardson, A Process reference model
developing adaptable service-based applications:
information and software Technology (2011).
M. Shahrbanoo, M. Ali, and M. Mehran, “An Approach
for Agile SOA Development Using Agile Principals,”
arXiv preprint arXiv:1204.0368, 2012.
S.consortium,S-Cube knowledge model, 2011,
http://www.s-cube-network.eu/km>.URL<http:/ /http:/
/www.s-cube-network.eu/km>
K. Boukadi, L. Vincent, P. Burlat, Modeling adaptable
business service for enterprise collaboration, Springer,
Thessaloniki, Greece, 2009, pp. 51–60.
A. Arsanjani, S. Ghosh, A. Allam, T. Abdollah, S.
Ganapathy, K.Holley, SOMA: a method for
developing service-oriented solutions, IBM Systems
Journal, 47 (2008) 377–396.
M.P. Papazoglou,W.V.D. Heuvel, Service-oriented design
and development methodology, International Journal
of Web Engineering and Technology, 2 (2006) 412–
442.
A. Kenzi, B. El Asri, M. Nassar, A. Kriouile, A model
driven framework for multiview service oriented
system development, IEEE Computer Society, 2009,
pp. 404–411.
S.K. Johnson, A.W. Brown, A model-driven development
approach to creating service-oriented solutions,
Springer, 2006, pp. 624–636.
ICEIS 2016 - 18th International Conference on Enterprise Information Systems
230
C. Canal, J.M. Murillo Software adaptation 12 (1) (2006).
I. Christou, S. Ponis, E. Palaiologou, Experiences of Using
the Agile Unified Process in the Banking Sector,
Software, IEEE PP (2009) 1–1.
A. Kenzi, B. El Asri, M. Nassar, A. Kriouile, A mdel
driven framework for multiview service oriented
system development, in: IEEE Computer Society,
2009.
C.Pahl, Semantic model-driven architecting of service-
based software systems, Information and Software
Technology, 49(2007) 838-850.
S. Mittal, Devs unified process for integrated development
and testing of soa, University of Arizona 2007.
C. SooHo, A systematic analysis and design approach to.
develop adaptable services in service oriented
computing, in: Congress on Services (Services 2007),
pp. 375–378.
Her, J., La, H., Kim, S.: A Formal Approach to Devising
a Practical Method for ModelingReusable Services. In:
Proc. of 2008 IEEE Int’l. Conf. on e-Business
Engineering.
(ICEBE 2008), pp. 221–228 (2008).
S. Consortium, State of the art report on software
engineering design knowledge and survey of HCI and
contextual knowledge, Tech. Rep. PO-JRA- 1.1.1,
July 2008.
Erl, T.: Service-Oriented Architecture: Concepts. Prentice-
Hall, Englewood Cliffs (2005).
Cappiello C, Pernici B (2009) Design of repairable
processes. In: Cardoso J, van der Aalst W (eds)
Handbook of Research on Business Process,
Information Science Publishing.
Bucchiarone A, Cappiello C, Di Nitto E, Kazhamiakin R,
Mazza V, Pistore M (2009) Design for Adaptation of
Service-Based Applications: Main Issues and
Requirements. In: Proc. of Fifth International
Workshop on Engineering Service-Oriented
Applications: Supporting Software Service
Development Lifecycles (WESOA).
Adaptation Services-oriented Systems LifeCycle
231
