What Should We Add to Syntax-oriented Generation of Random
Expressions to Meet Pedagogical Needs?
Rein Prank
Institute of Computer Science, University of Tartu, Liivi Str 2, Tartu, Estonia
Keywords: Exercise Environments, Algebraic Expressions, Random Generation, Propositional Logic.
Abstract: The paper looks for an exercise environment where the teacher program would enable to fix parameters of
random generation so that the generated tasks have desired pedagogical properties. In particular, it should be
possible to prescribe qualitative content and size of the solution and its parts, opportunities to make certain
errors, probabilities of different decisions to be made by the student. We analyse two existing environments
for algebraic exercises in Propositional Logic and identify what additional options are necessary and what
computational engines or precomputed resources could produce the desired properties.
1 INTRODUCTION
Random generation of expressions has become a
widely used technique in Computer-Aided Learning
of Mathematics. There are many websites and pro-
grams, which enable students to solve randomly
generated drill tasks on virtually all technical topics
of Basic School. Teachers use random generation of
individualized tasks to ensure that students complete
their independent work and tests without plagiarism.
They often prefer random homework and test tasks
even if they require different amount of work from
different students. The importance of random gener-
ation will increase with the development of MOOC
(Massive Open Online Courses) by the universities.
Exercise software often contains teacher tools for
compiling homework and test task sets. The teacher
can usually design a task chain by selecting for each
task the task type and by entering ‘difficulty level
or the values of generation parameters. Quite often
the optional parameters describe mainly the syntac-
tic properties of generated expressions and do not
enable specification of tasks with desired properties
of solutions. In this case the teacher can implement
his/her pedagogical ideas only partially or has to use
fixed tasks that are the same for all students.
This paper analyses random generation options
of two environments that are implemented and used
at our institute for algebraic exercises in Proposi-
tional Logic. Both environments use quite typical
syntax-oriented formula generation algorithms
where the main teacher-defined parameters are the
number of variables and numbers of each of the
logical operators. We identify what solution-oriented
generation parameters are necessary to add to such
generators and what computational engines or pre-
computed resources could produce the desired prop-
erties of tasks.
Section 2 of this paper describes related work. In
Section 3 we attempt to present a list of typical ped-
agogical requirements for a random generation algo-
rithm and for a set of teacher-definable generation
parameters. Section 4 introduces our software for
computerized propositional exercises. Sections 5 and
6 analyze random generation in our truth-table and
formula manipulation environments in the frame-
work of the requirements introduced in Section 3.
Section 7 contains a summary.
2 RELATED WORKS
There are many websites that offer students a possi-
bility to solve randomly generated tasks belonging to
virtually all task types in Basic School algebra.
Many such sites give teachers the possibility to
compile worksheets consisting of tasks of one or
more task types. For example, a web search with the
phrase ‘random generation algebra’ gave us seven
quite universal websites (beginning with Coolmath
in References). The website of IXL.com lists hun-
dreds of task types but offers no difficulty levels or
482
Prank, R.
What Should We Add to Syntax-oriented Generation of Random Expressions to Meet Pedagogical Needs?.
In Proceedings of the 8th International Conference on Computer Supported Education (CSEDU 2016) - Volume 1, pages 482-487
ISBN: 978-989-758-179-3
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
specification of more detailed properties of expres-
sions within the types. The website of Mathmix.com
does not contain nearly as many types but the ex-
pression generation can be driven by a number of
parameters (Figure 1).

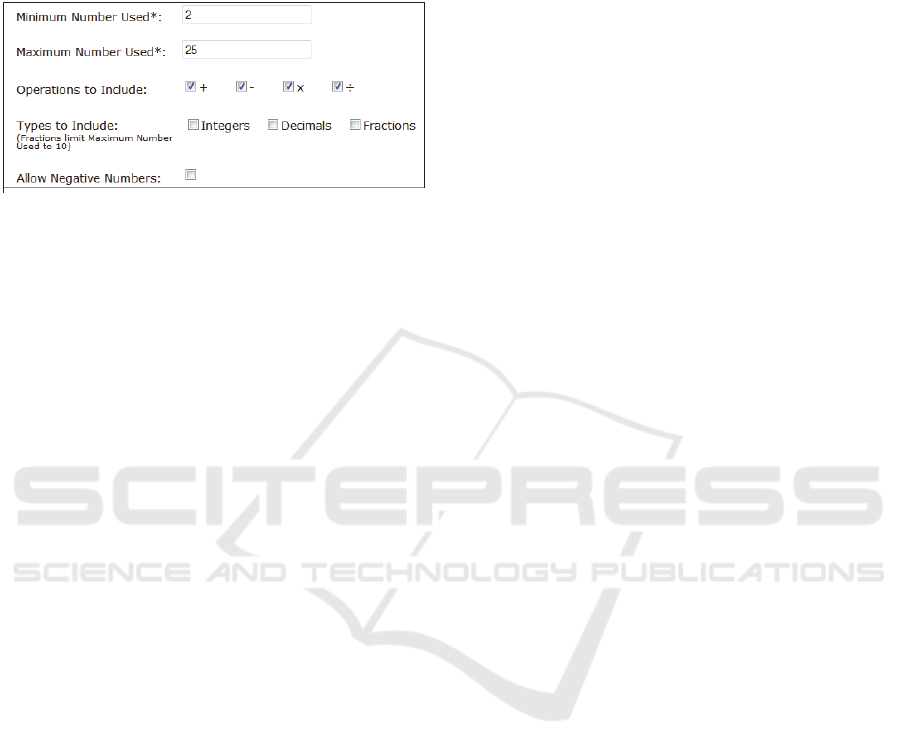

Figure 1: Task generation parameters for two-step linear
equations in Mathmix.com.
Available websites demonstrate the features
that are currently available for students and teachers,
the pedagogical and computational level of applica-
tions. It is clear that none of the websites enable the
teacher to compile task chains which contain all the
cases that are covered by exercises in textbooks. The
menus simply do not contain enough options and
usually the generated expressions contain only 2-4
operations (fractions, monomials etc).
Another relevant tool is Wolfram Problem
Generator (Wolfram). It generates problems, checks
answers, provides hints and displays step by step
solutions for a small number of most relevant task
types. The tasks have three difficulty levels, with the
advanced tasks having much more complex expres-
sions than the aforementioned websites.
Several authors have created syntactical tools
that can be used for random generation of expres-
sions from predefined operators and functions. Ex-
amples include: RANDPOLY (Wright,1994),
Matlab Expression Generator, Math Expression
Generator (see References).
There are only a few published papers about the
use of random generation of expressions with peda-
gogical objectives. The best-known are the papers
on major systems of Computer Aided Assessment.
These systems are designed for task creators who are
able to use some more powerful language for de-
scription of desired expressions. AIM is a well-
known test system that uses computer algebra.
N. Strickland states in (Strickland, 2002): “Current-
ly all AIM questions are written using a kind of
mark-up language incorporating elements of Maple
code and elements of LaTeX. STACK, a more
recent system, allows describing random generation
of expressions based on templates with variable
coefficients and expressions for generation of each
coefficient (Sangwin, 2006). Similar features of the
ActiveMath system are described in (Mavrikis and
Gonzales, 2004). In these systems pedagogical con-
siderations are not so much concern of generating
mechanism but concern of people who create the
templates. The same is true for Basic Logic Tutor
ORGANON (Dostalova and Lang, 2011) where the
authors state "Therefore the database is not filled up
by concrete exercises but by PATTERNS". Unfortu-
nately the authors do not demonstrate the spectrum
of exercises derived from one pattern.
T-algebra is an interactive exercise environ-
ment for Basic School Algebra (Prank et al, 2007).
A system of task types and difficulty levels and the
functioning of random generation at each level can
be observed when trying to compose task files with
the T-algebra teacher program (T-algebra).
A series of papers on random generation of
tasks in different topics has been published by a
group of researchers supported by Microsoft where
S. Gulwani seems to be the key person. The paper
(Andersen, Gulwani and Popovic, 2013) traces the
use of operations in standard solutions of tasks. The
received traces are used for comparison of problems,
analysis and synthesis of problem sets.
3 DESIRED FEATURES OF A
GENERATION ALGORITHM
AND TEACHER CONTROL
Many task types in our package for Mathematical
Logic (Prank, 1991) and all the 60+ task types in T-
algebra (Prank et al, 2007) contain random genera-
tion of exercises. We have had many discussions
with university colleagues and school teachers about
their expectations in that regard. We now try to for-
mulate general requirements for random generation
of initial expressions of tasks. Requirements A and
B describe mainly the features of generation algo-
rithm while C-F indicate what should be possible to
specify by selection of generation parameters.
A. Sufficient variety of generated expressions.
The set of possible initial expressions should
cover initial expressions of usual textbook exer-
cises.
B. Exception of cases that are forbidden for
particular task type or are trivial.
C. Sufficiently precise specification of qualita-
tive content of student’s work. In case of our
propositional exercises it should specify:
what operations are performed by filling
the truth-table,
What Should We Add to Syntax-oriented Generation of Random Expressions to Meet Pedagogical Needs?
483
what patterns are to be used for finding the
formula corresponding to given column of
values,
what conversion rules are necessary for
formula transformation.
D. Specification of opportunities to make cer-
tain errors/inappropriate steps.
E. Specification of solution size (amount of
student’s work):
─ general size,
size of particular parts of the solution
(stages of solution algorithm).
F. Equal or teacher-definable probabilities of
positive and negative answers about tautologi-
city, equivalence etc.
Requirement A is satisfied practically by any
usual (string- or tree-based) syntax-oriented genera-
tion algorithm if the allowed number of variables
and length of generated expressions is not too small.
In our course the only task types where some ini-
tial formulas are forbidden are conversions to nor-
mal form where tautologically false/true initial ex-
pressions do not have disjunctive/conjunctive NF.
Our random generator takes the task type into ac-
count and does not generate forbidden initial formu-
las. The generators also do not generate formulas
where an operation is to be performed between two
copies of the same variable. We discuss type-
specific trivial cases and requirements C-F in the
context of concrete environment and task types.
4 OUR SOFTWARE FOR
PROPOSITIONAL LOGIC
The content of the two following sections is based
on our experience with the design, implementation
and use of exercise environments for truth-table and
formula manipulation exercises. In 1987-1993 we
computerized ten 90-minute exercise labs together
with homework and tests. The computerized exer-
cise labs were introduced in our third-semester
course Introduction to Mathematical Logic, begin-
ning from 1991 (Prank, 1991).
Having been created many years ago, the soft-
ware has required upgrades in task types, user inter-
face, hint facilities, security, support for teacher’s
work, web access, etc. The programs have been re-
implemented as Bachelor and Master projects. How-
ever, even implementation of the minimum neces-
sary mechanisms of the exercise environments usu-
ally exceeded the normal size of a thesis. Next round
in our work will be implementation of desired new
features. In the next two Sections of the paper we
describe what can be added to our existing computa-
tional tools and random generation schemes to
achieve sufficient meeting of didactical needs.
5 TRUTH-TABLE EXERCISES
Our truth-table environment contains the following
exercise types:
1) Filling the truth-table,
2) Checking of tautology,
3) Checking of satisfiability,
4) Checking of equivalence of two formulas,
5) Checking whether the first formula implies
the second,
6) Construction of formula having a given re-
sulting truth-column.
The solution dialogs of tasks of types 2-5 begin
with filling the rows of the table until it is possible to
justify the decision (positive or negative).

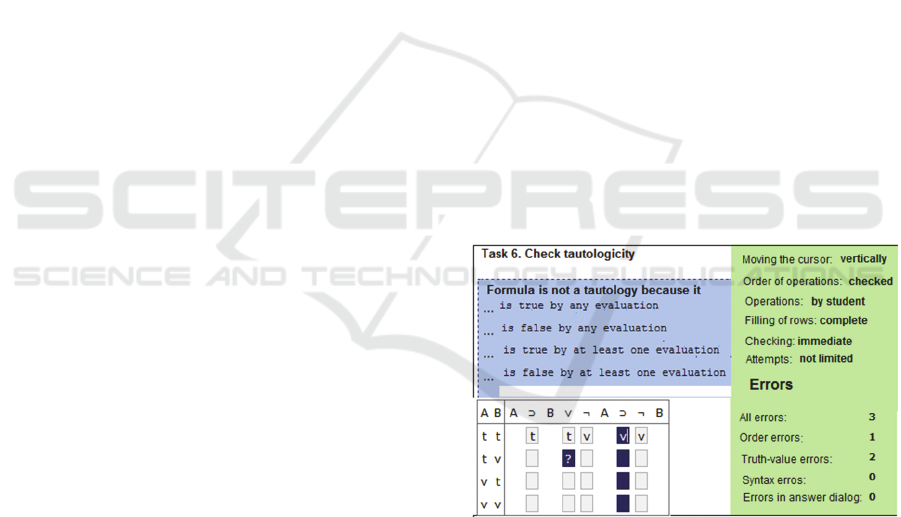

Figure 2 depicts the solution window for tautol-
ogy checking (original Estonian texts have been
replaced with English). The student has filled one
row and switched to answer dialog because the
truth-value on this row was (false). The student
should now select from the menu the reason why the
formula is not a tautology.
Figure 2: Solution window for tautology checking task.
For formula construction tasks the program dis-
plays the required column of truth-values. When the
student enters the formula, the program automatical-
ly calculates its truth-table. In case of a wrong an-
swer the student should correct the formula.
For random generation the teacher program ena-
bles to specify the number of variables, the numbers
of each of the propositional connectives
, &,⋁,
,~and the percentage of truth-values true in the
column of values (0-25, 26-50, 51-75, 76-100 or
unspecified). For example, initial formula of Figure
CSEDU 2016 - 8th International Conference on Computer Supported Education
484
2 can be received when the teacher selects 2 varia-
bles, 1 disjunction, 2 implications and 2 negations.
Consider now our pedagogical aims for different
task types and expression generation principles that
allow implementing them. Our task sets contain for
each exercise type some tasks with fixed formulas.
The fixed tasks of types 2-5 contain classical exam-
ples and counterexamples of formulas with and
without corresponding properties, and a collection of
the main propositional equivalencies to be proved
using a truth-table. In type 6 there are some fixed
tasks that guide the student to recognize patterns of
all binary connectives and their negations and a
series of tasks that directs the student to discover the
possibility to build the formula with given truth-
values in disjunctive normal form (before introduc-
tion of NF in lectures). However, to ensure inde-
pendent work of students in every task type, we
include tasks with randomly generated formulas.
Propositional connectives are completely new
material for the students. Weaker students need a
considerable amount of training, with the program
checking the truth-values and the order of opera-
tions. The available generating parameters allow
adjusting the content of tasks and corresponding
error opportunities (requirements C-D) by specifying
the connectives in the formula. The amount of work
(req. E) is sufficiently well determined by the num-
ber of variables and total number of connectives.
The same is true for task types 2-5 where filling the
table constitutes the bulk of the work and remaining
part of the content is defined by the task type.
For checking of tautology, satisfiability etc it
would be desirable to have nearly equal probabilities
of positive and negative answers (requirement F).
Our current control of parameters does not enable
this. Currently we generate formulas with 76-100
percents of values true for tautology and 0-25 per-
cents of true for satisfiability checking but in prac-
tice we only get a few tautological and a few non-
satisfiable formulas. The generator could work in
two stages, first choosing the answer (tautology/not)
and then generating formulas until the suitable truth-
column is received.
With our current generation control options, we
generate for equivalence checking two formulas
with the lowest or highest percentage of true. For
inference checking we generate first a formula with
0-25 percent of true and second a formula with max-
imum number of true. This produces quite a satisfac-
tory distribution of results for inference but not for
equivalence. It is clear that the formulas for types 4-
5 should actually be generated together, choosing
first the answer true/false and then iterating the gen
eration.
Consider now the tasks on construction of a for-
mula for a given column of truth-values. After pre-
senting and practicing the above-described ideas of
pattern recognition and normal form we assign a
series of randomly generated tasks with three varia-
bles and 3-6 values true. The student is asked to find
a formula of ‘reasonable’ length. Having 3-6 values
true guarantees that the normal forms are longer
than the ‘reasonable’ formula.
Note here that our current task parameters do not
enable to set an upper limit for the length of the
formula (in terms of the number of connectives or
symbols). This feature can easily be added but it
should be used carefully. The task of finding the
formula is quite difficult for weaker students and
there should remain some opportunity to get partial
credit for the long answer in DNF.
In our obligatory exercises we do not require that
the shortest formula for given truth-values should be
found. This task is too difficult. However, we have
assigned such tasks for bonus points outside of com-
puterized environment. Could we generate reasona-
ble shortest formula tasks randomly? It proves to be
easier than expected. The usual breadth-first algo-
rithm produces the shortest formulas (containing all
connectives or a specified subset of them) for three-
variable columns very quickly and for four-variable
columns within seconds (on a standard laptop or
desktop computer). In the latter case we can also use
pre-computed files with 64K formulas. This allows
generation of training series with a growing length
of optimal formulas, tasks with equal complexity for
tests, tasks with maximum complexity, etc.
Knowledge about the shortest formula can also be
used for elimination of trivial cases (like tftftftf) by
generating the truth-columns for standard tasks.
6 FORMULA MANIPULATION
EXERCISES
Our environment for algebraic manipulation imple-
ments the following exercise types for propositional
formulas:
1) Three task types on expression of formula using
, &, ,∨, , ⊃,
2) Conversion to disjunctive/conjunctive normal
form (DNF/CNF),
3) Conversion to full disjunctive/conjunctive nor-
mal form (FDNF/FCNF),
4) Moving negations inside/outside,
5) Free conversion (the program checks only
What Should We Add to Syntax-oriented Generation of Random Expressions to Meet Pedagogical Needs?
485
equivalence at each step).
While working with our program, the student en-
ters the solution step by step. Each conversion step
is entered in two substeps. At the first substep the
student marks a subformula to be changed. For the
second substep the program has two different work-
ing modes. In Input mode the student enters a sub-
formula that replaces the marked part. In Rule mode
the student selects a conversion rule from the menu
and the program applies it. Figure 3 shows the solu-
tion window in Rule mode. The student has elimi-
nated biconditional and implications and intends
now to move negation inside (it could be better to
begin with the outermost negation).

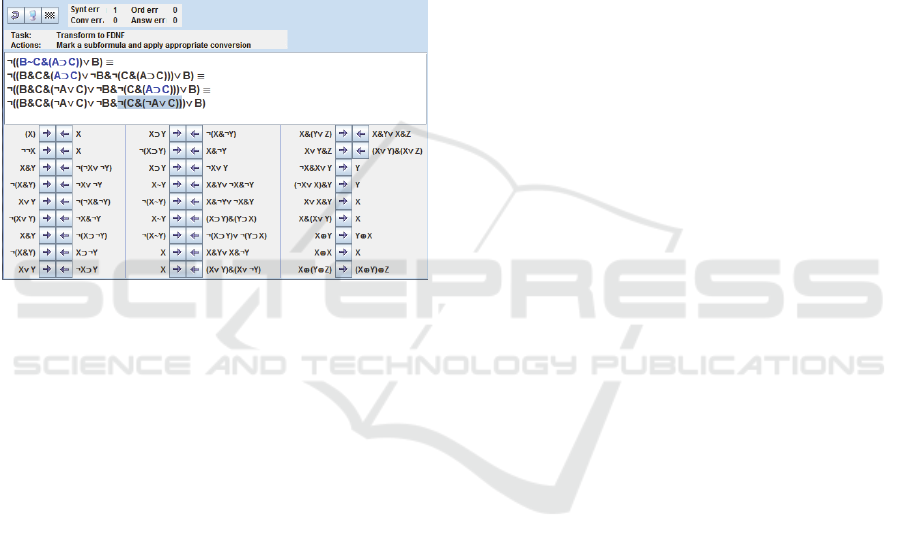

Figure 3: Solution window of Formula Manipulation Envi-
ronment in Rule mode. The student has performed three
solution steps and marked a subformula for the fourth step.
Our exercise labs in Elements of Discrete Math-
ematics contain exercises of types 1 and conversion
to full disjunctive normal form.
The teacher program allows specification of the
number of variables and the numbers of proposition-
al connectives for random generation of a formula.
Consider now our type-specific pedagogical aims
and corresponding ideas for task generation.
In the first task types on expression of formulas
using given connectives the solution algorithm is
trivial: eliminate the undesired connectives one by
one. The qualitative content of tasks and error op-
portunities mean then: what equivalencies (conver-
sion rules) are necessary in the tasks. Requirements
C and D are satisfied because the teacher can
(roughly speaking) specify the left side of the con-
version rule by placing the corresponding connective
in the initial formula and the right side by specifying
the task type (what connectives are allowed in the
result).
Concerning requirement E we see that the size of
solution can be very directly specified by connec-
tives in the initial and target formula. Every conjunc-
tion, disjunction and implication can be eliminated
in one step. Biconditional requires 2-4 steps depend-
ing on binary target connective. Additional steps for
simplification of the result (mainly related to nega-
tions) are considerably easier and do not have great
impact.
There is yet one issue that affects the difficulty
of generated tasks (both on expression through given
connectives and DNF). The conversion rules for
elimination of biconditional multiply the arguments
of biconditional into two copies and make the for-
mula longer. For example, ~ & &.
This impact is small if the arguments of bicondition-
al are only variables or their negations, and is much
larger if the arguments are complex formulas (see
Fig. 3). It means that the amount and complexity of
work on tasks to be solved by different students has
a random component. For elimination of this ran-
domness it could be desirable to add a generation
parameter that defines the size(s) of arguments of
biconditional or at least have some lower bound (for
example, at least one argument/both arguments
should contain a binary connective).
Consider now FDNF exercises. We present in
our lectures the following version (Palm and Prank,
2004) of the usual algorithm for conversion of a
formula to FDNF :
1) Eliminate implications and biconditionals from
the formula;
2) Move negations inside;
3) Use distributive law to expand the conjunctions
of disjunctions;
4) Exclude contradictory conjunctions and redun-
dant copies of literals;
5) Add missing variables to conjunctions;
6) Order variables alphabetically, exclude redun-
dant copies of conjunctions.
Requirements C-E mean in FDNF exercises
mainly control over the numbers of steps to be made
at stages 1-6 of the algorithm. The teacher program
enables to generate formulas with the desired num-
ber of implications and biconditionals for stage 1.
We can also get a high probability of nontrivial stage
2, generating formulas with 3-4 negations. Using
existing generating parameters, we have limited
control over stages 3-6. The use of reverse engineer-
ing does not show much promise. The 6-stage algo-
rithm is too long for this. What can be added?
There is a quite simple opportunity for regulation
of sizes of stages 5-6 and partially of stages 3-4. The
number of necessary steps in these stages depends,
to a great extent, on the number of members in full
DNF. It means that the control over the number of
truth-values true would improve the situation with
CSEDU 2016 - 8th International Conference on Computer Supported Education
486
regard to requirements C-E.
More promising seems to be to generate the ini-
tial formulas and pick out those that meet our peda-
gogical needs. For this we need an Automated Solv-
er. How far are we from it? Our student program of
2013 already contains a solution engine that is used
for giving hints for next step (what to mark and how
to replace the marked part). It even creates full solu-
tions but does not make them available outside. On
the other hand, the student program saves in the
solution file the whole student solution together with
conversion rules used at each step (in case of Rule
mode). This means that, combining these two mech-
anisms, we would not have to program any new
engines for solving the task and checking what stag-
es of the algorithm are active. Our experience with
random generation for school algebra program T-
algebra shows that it is also possible to solve the
computation speed problems.
7 SUMMARY
In Sections 5 and 6 we found several possibilities for
giving the teacher better control over the properties
of generated tasks:
1. The teacher can specify precisely the acceptable
numbers of values true for generated formulas.
2. The program first randomly chooses the desired
answer (tautology/not, etc) and then generates
the corresponding formula(s).
3. The program is able to find the shortest formula
with a given column of values (using a corre-
sponding program module or a precomputed list
of formulas).
4. The teacher can specify the sizes of arguments
of biconditionals in generated formulas.
5. The program computes the solution stages of
generated normal form tasks, finds their sizes
and chooses appropriate formulas.
Addition of features 1-4 to our programs can be
implemented in a Bachelor thesis. Addition of fea-
ture 5 could result in a strong Master thesis. In fact,
our program already contains an algorithm for find-
ing the solution but it is necessary to experiment and
find sufficiently quick ways of generation.
ACKNOWLEDGEMENTS
Current study is supported by Study IT in
Estonia programme.
REFERENCES
Andersen, E., Gulwani, S., Popovic, Z., 2013. A Trace-
based Framework for Analyzing and Synthesizing
Educational Progressions. In CHI '13, Proceedings of
the SIGCHI Conference on Human Factors in Compu-
ting Systems, pp. 773-882. ACM.
Dostálova, L., Lang, J., 2011. ORGANON: Learning
Manament System for Basic Logic Courses. In Black-
burn, P. et al (eds.) TICTTL 2011. LNAI 6680, pp. 46-
53.
Mavrikis, M., Gonzalez, A. P., 2004. Mathematical Inter-
active Exercise Generation from Static Documents.
Electronic Notes in Theoretical Computer Science, 93,
183-201.
Palm, R., Prank, R., 2004. Sissejuhatus matemaatilisse
loogikasse. University of Tartu.
Prank, R., 1991. Using Computerised Exercises on
Mathematical Logic, In Informatik und Schule 1991.
Informatik-Fachberichte 292, pp. 34-38, Springer.
Prank, R., Issakova, M., Lepp, D., Tonisson, E., Vaiksaar,
V., 2007. Integrating Rule-based and Input-based
Approaches for Better Error Diagnosis in Expression
Manipulation Tasks. In Li, S., Wang, D., Zhang, J.
(eds). Symbolic Computation and Education. pp. 174-
191, World Scientific.
Sangwin, C.J., Grove, M., 2006. STACK: addressing the
needs of the neglected learners. In Seppälä, M.,
Xambo, S, Caprotti, O. (eds.). WebALT 2006
Proceedings, pp. 81-96. http://web.mat.bham.ac.uk/
C.J.Sangwin/Publications/2006WebAlt.pdf.
Strickland, N., 2002. Alice Interactive Mathematics.
MSOR Connections, 2(1), 27-30. http://
ltsn.mathstore.ac.uk/newsletter/feb2002/pdf/aim.pdf.
Wright, F.J.: RANDPOLY: A Random Polynomial
Generator. (1994) http://www.reduce-algebra.com/
docs/randpoly.pdf.
Coolmath Algebra, http://coolmath.com/algebra/
index.html.
Dynamically Created Math Worksheets, http://www.math-
aids.com/
HomeSchoolmath, http://www.homeschoolmath.net/
worksheets/
IXL Maths, http://eu.ixl.com/math/
Math.com Algebra Worksheet Generator, http://
www.math.com/students/worksheet/algebra_sp.htm.
Math Mix, http://www.mathmix.com/worksheets/Algebra/
StudyMaths.co.uk, http://studymaths.co.uk/workoutMenu.
php?type=algebra.
Wolfram Problem Generator, http://www.wolframalpha.com/
problem-generator/
Matlab Expression Generator, http://m2matlabdb.ma.
tum.de/download.jsp?MC_ID=9&MP_ID=118.
Math Expression Generator, http://www.softwareriviera.
com/indexMathExpressionGenerator.php.
T-algebra, http://math.ut.ee/T-algebra/
What Should We Add to Syntax-oriented Generation of Random Expressions to Meet Pedagogical Needs?
487
