Towards Resilience Metrics for Future Cloud Applications
Marko Novak
, Syed Noorulhassan Shirazi
, Aleksandar Hudic
, Thomas Hecht
, Markus Tauber
David Hutchison
, Silia Maksuti
and Ani Bicaku
Austrian Institute of Technology, Vienna, Austria
InfoLab21, School of Computing and Communications, Lancaster University, Lancaster, U.K.
University of Applied Science Burgenland, Eisenstadt, Austria
Security Metrics, Technology Trend Analysis, Threat Trend Analysis, Cloud Applications, Resilience
An analysis of new technologies can yield insight into the way these technologies will be used. Inevitably,
new technologies and their uses are likely to result in new security issues regarding threats, vulnerabilities and
attack vectors. In this paper, we investigate and analyse technological and security trends and their potential
to become future threats by systematically examining industry reports on existing technologies. Using a cloud
computing use case we identify potential resilience metrics that can shed light on the security properties of the
Technology has become a common part of
everyday life. In fact, technology is concerned
with improvements in a variety of human and
organizational endeavours through the design,
development, and use of technologically based
systems and processes that enhance the efficiency
and effectiveness of our daily operations. Therefore,
the analysis of technological trends is vital to all
organizations for their future overall effectiveness.
Cloud computing is evolving as an obvious
solution for user requirements, due to their intrinsic
capabilities of elasticity and resource transparency.
Consequently, they are becoming increasingly
mission-critical since they provide always-on
services for many everyday applications (e.g.,
IPTV), critical industrial services (e.g., Air Traffic
Control (ATC) networks), critical manufacturing
services (e.g., utility networks and Industrial Control
Systems) and critical real-time services (e.g.,
surveillance systems). This trend is emphasised in
report (Dekker, 2012) published by ENISA, which
provides specific guidelines in this area. Despite
the potential benefits of cloud computing, deploying
services increases various concerns because the high
degree of virtualization and resource abstraction
offered by cloud environments comes with a new
set of challenges in terms of security and resilience.
These challenges include malicious behaviour,
cyber-attacks, worms and viruses-compounded
with privacy and legal issues. Compared to
non-cloud-based systems, understanding of the
nature of challenges experienced by cloud providers
is also somewhat opaque, as highlighted in the
literature (Grobauer et al., 2011). Therefore, the
resilience and ability of such cloud environments to
remain operational in the face of challenges becomes
paramount, and it should be thoroughly addressed by
considering the inherent operational characteristics
and investigation of technological trends that bear
the potential to become future threats in cloud
This paper is based on EU FP7 project SECCRIT
(SEcure Cloud computing for CRitical infrastructure
IT). The project aims to analyse and evaluate cloud
computing technologies with respect to security
risks in sensitive environments, and consequently
to develop methodologies, technologies, and best
practices for creating a secure, trustworthy, and
high assurance cloud computing environment for
critical infrastructures (Simpson et al., 2013). More
precisely, the work presented here is oriented on
cloud assurance activities and resilience management
activities, which includes assurance and resilience
management frameworks supported by monitoring of
Novak, M., Shirazi, S., Hudic, A., Hecht, T., Tauber, M., Hutchison, D., Maksuti, S. and Bicaku, A.
Towards Resilience Metrics for Future Cloud Applications.
In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 295-301
ISBN: 978-989-758-182-3
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
cloud services (Shirazi et al., 2015), (Hudic et al.,
2014), (Scholler et al., 2013).
Forecasting of the next generation technologies and
their usage faces considerable difficulties. Related
work in (Khajeh et al., 2010), (Khajeh et al.,
2011) and (Khajeh et al., 2012) has developed
research results about the cloud adaptation to other
technologies. However, none of these results mention
a resilience as a major issue in cloud operational
context. Various monitoring systems have been
developed, as in (Ballard et al., 2010), (Ibrahim et al.,
2011) and (Payne et al., 2008), but likewise none
of them mention resilience as a monitoring subject.
Using trend analysis, a use case, and by adding a
resilience as a ”big thing” for better cloud operability,
we believe that our work present an approach for
detecting hot spots of the security issues in future
based cloud applications.
3.1 Technology Trend Analysis
The method used for collecting information with
regard to technological trends and threats follow
the pattern of the information collection, analysis
and collation. We considered public information
from research work performed by governments,
organisations, and industries. This approach complies
with the principles of Open-Source Intelligence.
As stated in (Authorization., 2006), ”OSINT
is intelligence that is produced from publicly
available information and is collected, exploited, and
disseminated in a timely manner to an appropriate
audience for the purpose of addressing a specific
intelligence requirement”, applied to enable a broader
view of the system, i.e., a representation of the
whole system from the perspective of a related set
of concerns. For the analysis of technological trends
and future threats, we have used aggregation approach
in order to harmonize all trends. Harmonisation of
the all trend analysis results provided by the experts
presents correct lines to get precise future trend
analysis. In order to get summary of the results, we
created cross-mapping table with technology trends
and proposed sources. Raw data has been compressed
and we added some simple calculation to get required
results (see Figure 1).

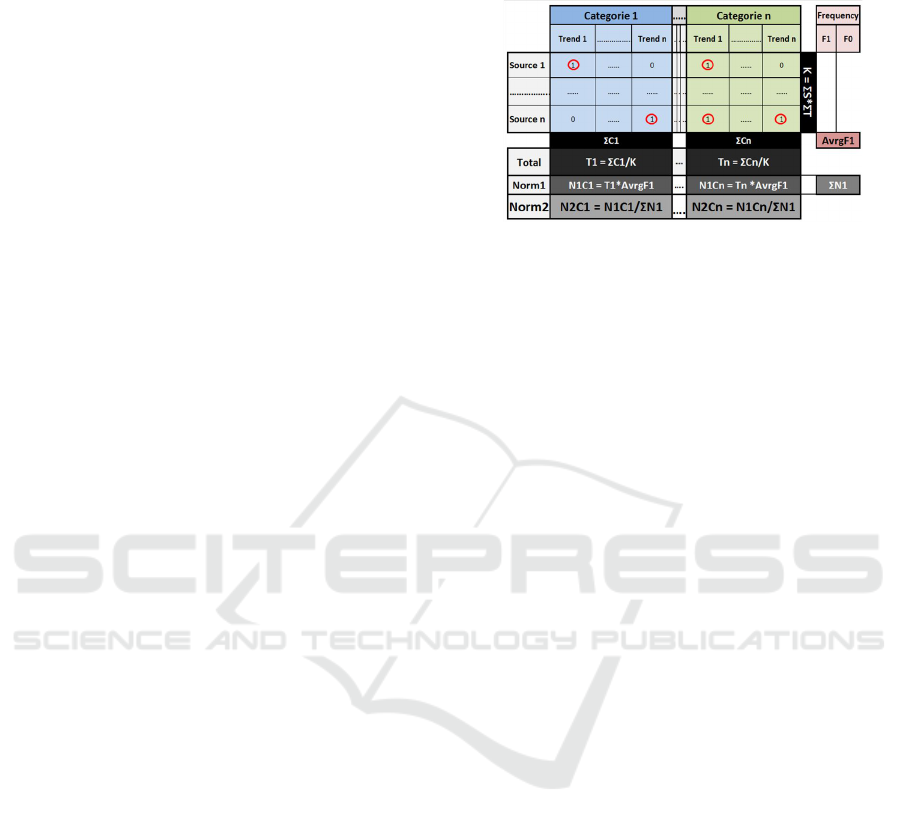

Figure 1: Calculation Model.
Relevant information is cross-mapping block
indexed with ”1”, which presents trend identified by
a corresponding source. The calculation method is
structured as follows:
Total percentage for the category is calculated
with the sum of blocks indexed with ”1” within
category divided with the number of the trend and
sources combination, (T 1 =
Normalization1 is calculated by multiplying of
the total percentage with index ”1” frequency
average, (N1C1 = T 1 × AvrgF1).
Normalization2, which gets required results is
calculated by dividing of the Normalization 1
value with its sum from the all categories,
(N2C1 = N1C1/
Technology trends are structured as follows:
Mobile Technologies - Internet of Things, Mobile
Applications, Digital Payments, Wifi Calling, Soft
SIM Cards and Beacons.
Cloud Computing - Hybrid Cloud, Cloud/Client
Architecture, Software Defined Networking
(SDN), Docker and other container technologies,
Agile infrastructures, Challengers to AWS, Era of
personal cloud.
Market and Device Diversity - Mobility
(BYOD), Chinese brands, Telecoms
Consolidation, Smart machines, Third Platform
(mobile computing) and 3rd Smartphone business
model (Xiaomi).
Network Protocols - VoLTE (Voice over LTE),
NFC (Near Field Communication) and 3GPP.
Others - Wearable and 3D Printing.

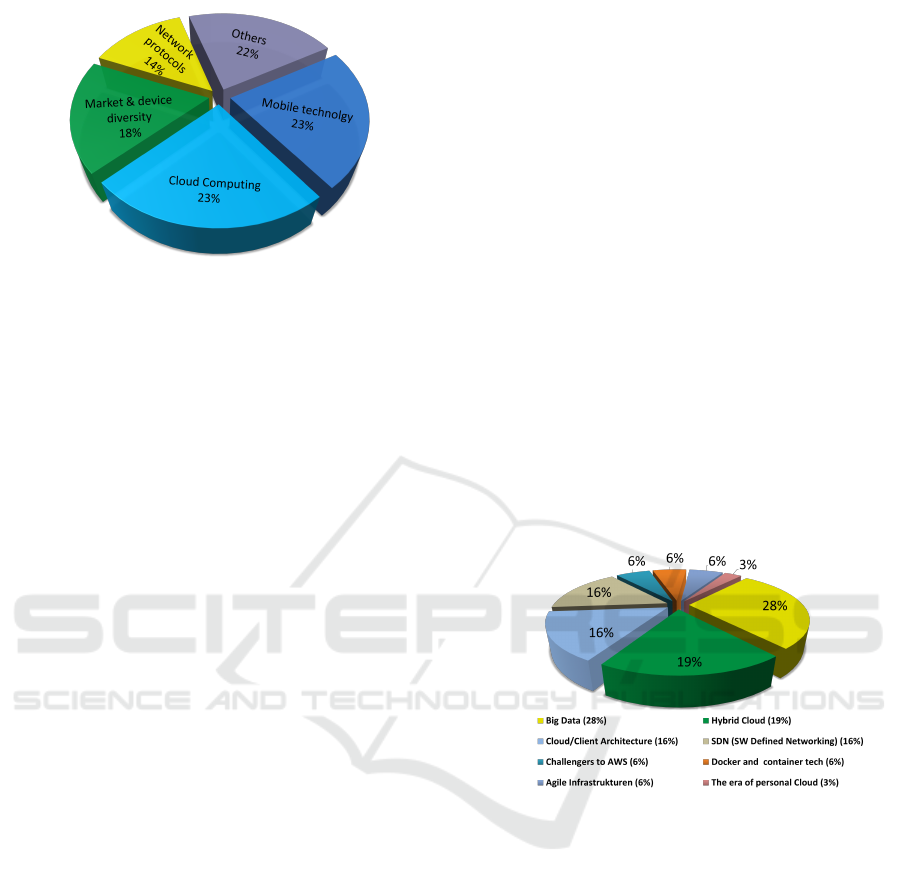

Summary of the technology trend forecast from our
sources is showed in Figure 2. Percentage values
represent expectation index, or more closely output of
the relevant sources chosen for the future technology
trend analysis.
CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science
Figure 2: Technology Trends.
3.2 Future Cloud Trends
Big Data - Big Data spending will grow with
video, audio and image analytic taking on
more importance. Data visualisation, wireless
communications, and cloud infrastructure are
extending the power and reach of information
(McKinsey and Company, 2015). (KPMG, IDC
(BRZ), Consol, ISreport, NetApp, UK Business
Hybrid Cloud - Bringing together personal
clouds and external private cloud services is
an imperative. Hybrid cloud services can be
composed in many ways, varying from relatively
static to very dynamic (Gartner, 2014), (Forbes,
ISreport, NetApp).
Cloud/Client Architecture - Cloud/client
computing models are shifting. Increasingly
complex demands of mobile users will drive apps
to demand increasing amounts of server-side
computing and storage capacity (McKinsey and
Company, 2015), (Gartner, KPMG, Forbes).
Software Defined Networking (SDN) - SDN is
a collective term that encapsulates the growing
market momentum for improved standards for
infrastructure programmability and data center
interoperability driven by automation inherent to
cloud computing, DevOps and fast infrastructure
provisioning (Gartner, 2014), (Cisco, Forbes,
Docker and other Container Technology -
As new applications for SaaS or large-scale
enterprise use cases are written using the
scale-out micro services model, Docker
application containers have proven to be
more resource efficient than VMs with a complete
OS (Insider, 2014), (NetApp).
Agile Infrastructures - Agility will be one of the
most important criteria for the company’s success
and thus one of the trends in future. Agile system
landscapes and infrastructures are required to
insist about disruptive technologies and business
models in a market or to require Big Data analysis
amendments and adjustments (IsReport, 2014).
Challenges to Amazon Web Services (AWS) -
Companies are learning to test and experiment
using this type of data. Many advanced marketing
organisations are assembling data from real-time
monitoring of blogs, news reports, and tweets to
detect subtle shifts in sentiment that can affect
product and pricing strategy (Gartner, 2014), (UK
Business Insider).
Era of Personal Cloud - The personal cloud era
will mark a power shift away from devices toward
services. Access to the cloud and the content
stored or shared from the cloud will be managed
and secured, rather than solely focusing on the
device itself (McKinsey and Company, 2015),
Figure 3 shows in detail a Cloud trend expectation
summarised by sources.
Figure 3: Cloud Computing Trends.
Since presentation of future technology trends does
not appear to be the only base of information for
creation of the use case relevant for our research,
we also did threat trend analysis which includes
all potential future threats in technology evaluation

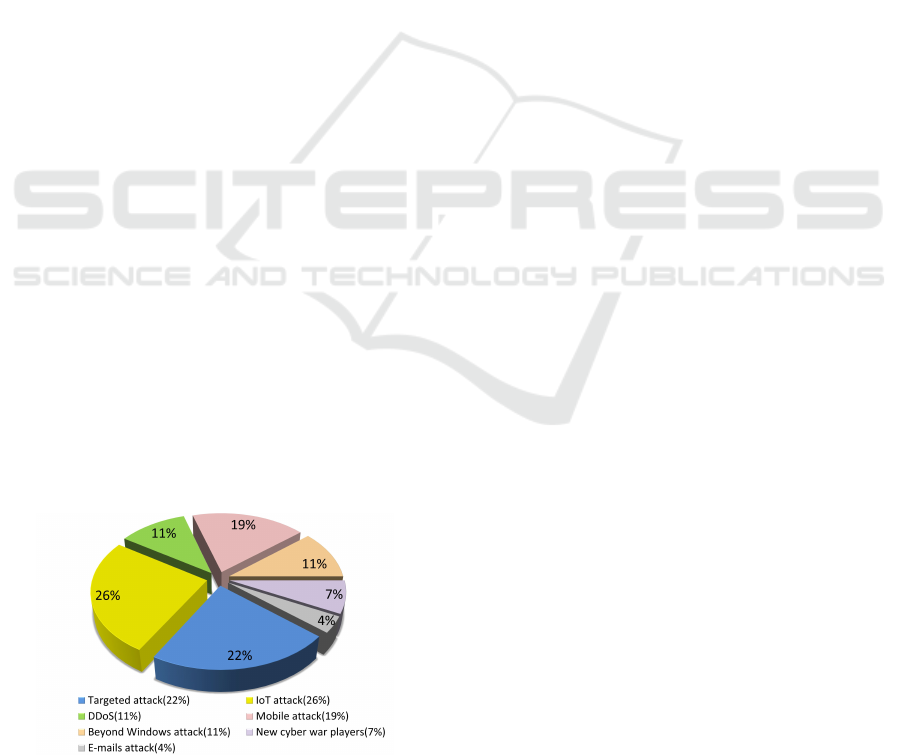

shown in Figure 4. The process of threat trend
analysis has the same approach like in previous
section with sources listed in. Future threat trends
are categorised as follows based on Symantec,
Kaspersky, Sophos, Symantec, and SentinelOne:
Targeted Attacks - Cyber criminals developed
attacks that only execute on a specific machine or
set up. Since they behave like a benign application
on the way to the target machine these threats
Towards Resilience Metrics for Future Cloud Applications
are able to evade layers of detection mechanisms
(Kaspersky, 2014).
Internet of Things Attacks - Attacks on Internet
of Things devices will increase rapidly due to
hyper growth in the number of connected objects,
poor security hygiene and the high value of data
on IoT devices (Kaspersky, 2014).
Distributed Denial of Service (DDoS) Attacks
- The installation of malicious applications and
the visit malicious websites will no longer pose
infection vectors which are valid exclusively
for the mobile telecommunications sector. The
cross-platform exploitation of vulnerabilities, will
be a far greater threat to rest of the technologies
(Kaspersky, 2014).
Mobile Attacks - Mobile attacks will continue
to grow rapidly as new technologies expand
the attack surface and App. store abuse goes
unchecked (McAfee, 2014).
Beyond Windows Attacks - The Shellshock
vulnerability will fuel non-Windows malware
attacks that will continue for years. Attackers
will capitalise on Shellshock by exfiltrating data,
holding systems ransom, and assimilating spam
bots (McAfee, 2014).
New Cyber War Players - This refers to
prediction that states will continue to use
cyber-attacks as a political retaliation tool. More
specifically, some states will continue to carry
out brute force cyber-attacks and espionage
campaigns, primarily against the other countries
and human rights activists (WebSense, 2014).
E-mail Attacks - An email exploit is an exploit
embedded that can be executed on the recipient’s
machine once the user opens or receives the
email. This allows a hacker to bypass firewalls
and anti-virus products (WebSense, 2014).
Figure 4: Threat Trends.
With the summary of the results from trend analysis
we define a use case scenario which includes expected
trends in the cloud computing environments including
attack scenarios/vectors. A trend hybrid cloud spans
at least one public and one private cloud, with
the workload distributed across the two which also
communicates with the cloud infrastructure provider.
The client may also have a private, on-premises
virtualized environment that is connected to a public
cloud. Stored data on the cloud infrastructure
provider present users data maintained by cloud
service provider. On the other side, communication
between the client and the private/public cloud
service provider will be determined as a cloud/client
architecture trend. The future cloud trend big data
fits perfectly for the created architecture since users
are constantly facing with the lack of resources. Big
data is also one of the main reasons for developing
hybrid technologies to the cloud. SDN is used for
the realization of the networking, means that available
software will maintain the resource and network
usage in the proposed data centres. SDN will be
based on open-source tools, like OpenStack. Other
cloud trends like Docker and container technologies
could be also included but the result of the cloud
trend analysis exclude their relevance for the use case.
The use case presented in Figure 5, is structured
as: Private Cloud - Company Cloud, continuously
monitoring of the user data, high-level protection,
Client - Employer of the company, any employer of
the company which uses any kind of service on the
internet, Cloud Service Provider - Provides services
across the Internet, Cloud Infrastructure Provider -
Keep sensitive data from the users of the services
managed by cloud service provider The threat trends
relevant for our use case are:
Targeted Attacks - The client can act as a
”bridge” to run targeted attacks to collect sensitive
information in public clouds.
DDoS Attacks - According to (Kaspersky,
2014), irresponsible behaviour from the client
on the open network can lead to unimaginable
consequences, which would suggest the use of a
private cloud infrastructure.
Mobile Attacks - Because App stores present
a vulnerable environment, there is a significant
possibility that the client could be a victim by
unwittingly downloading malicious applications.
Other attacks are either not related to our use case or
did not get any attention from our sources, so for that
reason we deem them to be less relevant.
CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science
Figure 5: Use Case Scenario, Future Cloud based
To achieve the maximum security for our use case, we
take a resilience perspective as the key concern for the
overall system. In doing so, we aim to derive relevant
metrics for expected hazards, weak points and attack
methods in future cloud based applications.
6.1 Relation to the Use Case
Resilience is a wide-ranging concern, and can
be defined as the ability of a system to provide
an acceptable level of service in light of various
challenges (Sterbenz et al., 2010). Resilience is
supposed to be a fundamental property of Cloud
service provisioning platforms. However, a number
of significant outages have occurred that demonstrate
Cloud services are not as resilient as one would
hope, particularly for providing critical infrastructure
services (Neal, 2011). The potential resilience
related issues relevant to our use case include: (i)
Attacks aiming to break confidentiality (e.g., sniffing
and scanning) and integrity (e.g., session hijacking),
and (ii) Denial of Service based on techniques,
e.g., flooding attacks resulting in performance
degradation, i.e., its reliability and availability.
6.2 Monitoring Metrics
It is important to define correctly the metrics that will
be used in order to measure resilience. These could
also be used for creating the service levels that will be
agreed with the cloud provider and in order to monitor
whether there are any violations of these agreements.
In this work, the metrics discussed are related to
security and resilience, but others that could have an
effect directly or indirectly should be added in a real
scenario (assurance, legal etc.). Services offered by
a provider can have one or more attributes, and these
can be represented by one or more metrics. A few
examples of the possible attributes and metrics used
are service availability, mean time between failures,
mean time to repair, mean time to invoke remediation
action, mean time to recovery, scalability etc.
In relation to the use case, we argue that a
systematic approach is required. Conceptually, the
resilience management can be instantiated in cloud
infrastructure provider, addressing management in
both single and cross domain cases as sketched in
use case. Such a resilience manager compose of
multiple components which mainly include collector,
detector, and remediation. The services offered by
a provider in our use case can have one or many
attributes, and they can be represented by one or
more metrics. Firstly, collector collects those metrics
given that cloud provider provision those resources
in detector supervised part of the infrastructure and
as per the resilience requirements of a tenant. In
case of challenge such as Denial of service attacks,
relevant metrics by collector fed into detector which
consume these metrics to compute a likelihood of
anomaly score and subsequently alert the remediation
component. Later will then invoke actions based on
policies and eventually recovering the system from
challenge. These mechanisms are also supported by
UCE framework developed within the scope of
SECCRIT (Jung et al., 2015).
Figure 6 shows some of the relevant metrics for
such attributes at network and service levels.
Avai l ability
Mean time to
Mean time to
No. of
Bytes count
No. of nodes Link density
Avg. node
Figure 6: Example metrics for resilience.
6.3 Monitoring Solution
Monitoring is an essential component and helps to
control the infrastructure by collecting and analysing
data (e.g., bandwidth, disk and CPU utilisation)
from various components at host and VM level.
Monitoring is becoming increasingly difficult due to
the changing workload patterns and scalability of
cloud environments. It is becoming even harder
with increasing user expectations for resilience and
security. The SECCRIT consortium has proposed
a resilience management framework that introduces
novel mechanisms to support overall resilience to
Towards Resilience Metrics for Future Cloud Applications
challenges arising in cloud environments. More
specifically, it introduced an online anomaly detection
technique based on data density that can be applied
at the cloud infrastructure level. The method
is embodied by a resilience architecture that was
initially defined in (Simpson et al., 2013) and
further explored in (Shirazi et al., 2014) and
(Shirazi et al., 2015). The framework uses
monitoring API Monasca
that leverage high speed
message queues and computational engines. It also
supports authentication of all data associated with an
OpenStack tenant to support multi-tenancy. Metrics
and events are received by the API and published
to a message queue (Kafka)
. The anomaly engine
consumes metrics from the same message queue,
predict metrics and evaluate likelihood and anomaly
score as probabilities in order to provide overall
resilience to challenges.
In this paper, we have analysed technological trends,
and considered their potential to become future
threats. We did this by means of a systematic
examination of industry reports on existing and
emerging technologies. Using a cloud use case we
have identified potential resilience metrics that can
shed light on the security properties of cloud systems.
The research also gives a basic overview as to what
may be expected in terms of technology futures
with the aid of threat analysis for their adoption in
critical infrastructure environments where there are
stringent security requirements. As cloud computing
is expanding very fast and new threats arising from
security issues are being created, we believe that
our research presents a basis for helping create more
secure cloud systems.
Future work should include other relevant topics,
for example assurance and legal issues, as a next
step towards achieving a high security level in future
cloud applications. Also, the approach should help
to improve network monitoring and management
systems through such a technology evaluation.
The research presented in this paper has been funded
by the European Union (FP7 Project SECCRIT, grant
agreement no. 312758).
Authorization., N. D. (2006). National defense
authoriazation act for fiscal year 2006.
Ballard, J. R., Rae, I., and Akella, A. (2010). Extensible and
scalable network monitoring using opensafe. Proc.
INM/WREN, pages 8–8.
Dekker, M. (2012). Critical cloud computing: A ciip
perspective on cloud computing services. Technical
report, European Network and Information Security
Agency (ENISA).
Gartner (2014). Gartner symphosium it xpo, executive
summary report.
Grobauer, B., Walloschek, T., and Stocker, E. (2011).
Understanding cloud computing vulnerabilities. IEEE
Security and Privacy, 9(2):50–57.
Hudic, A., Tauber, M., Lorunser, T., Krotsiani, M.,
Spanoudakis, G., Mauthe, A., and Weippl, E.
(2014). A multi-layer and multitenant cloud assurance
evaluation methodology. In Cloud Computing
Technology and Science (CloudCom), 2014 IEEE 6th
International Conference on, pages 386–393.
Ibrahim, A. S., Hamlyn-Harris, J., Grundy, J., and Almorsy,
M. (2011). Cloudsec: a security monitoring appliance
for virtual machines in the iaas cloud model. Network
and System Security (NSS), 2011 5th International
Conference, pages 113–120.
IDC (2014). Idc predictions 2015: Accelerating innovation
and growth on the 3rd platform.
Insider, U. B. (2014). Billions of dollars are set to flow into
these 7 areas of tech in 2015.
IsReport (2014). Information platform for business
solutions, it forecast for 2015.
Jung, C., Schwarz, R., Rudolf, M., Moucha, C., and Eitel,
A. (2015). Seccrit deliverable d4.4 policy decision and
enforcement tools.
Kaspersky (2014). Next 9 security predictions for 2015.
Khajeh, H. A., Greenwood, D., Smith, J. W., and
Sommerville, I. (2012). The cloud adoption toolkit:
Supporting cloud adoption decisions in the enterprise.
Software Practice and Experience, 42:447–465.
Khajeh, H. A., Greenwood, D., and Sommerville, I.
(2010). Cloud migration: A case study of migrating
an enterprise it system to iaas. Cloud Computing
(CLOUD), pages 450–457.
Khajeh, H. A., Sommerville, I., Bogaerts, J., and
Teregowda, P. (2011). Decision support tools for
cloud migration in the enterprise. Cloud Computing
(CLOUD), pages 541 – 548.
Mason, A. (2015). Global telecoms market: trends and
forecasts 20152020.
McAfee (2014). Information platform for business
solutions, it forecast for 2015.
McKinsey and Company (2015). Ten it enabled business
trends for the decade ahead.
Neal, D. (2011). Amazon web services outages raise serious
cloud questions.
Payne, B. D., Carbone, M., Sharif, M., and Lee, W. (2008).
Lares: An architecture for secure active monitoring
CLOSER 2016 - 6th International Conference on Cloud Computing and Services Science
using virtualization. Security and Privacy, 2008. SP
2008. IEEE Symposium, pages 233–247.
Scholler, M., Bless, R., Pallas, F., Horneber, J.,
and Smith, P. (2013). An architectural model
for deploying critical infrastructure services in the
cloud. In Cloud Computing Technology and
Science (CloudCom), 2013 IEEE 5th International
Conference on, volume 1, pages 458–466. IEEE.
Shirazi, N., Simpson, S., Marnerides, A., Watson, M.,
Mauthe, A., and Hutchison, D. (2014). Assessing
the impact of intra-cloud live migration on anomaly
detection. In Cloud Networking (CloudNet), 2014
IEEE 3rd International Conference on, pages 52–57.
Shirazi, N., Simpson, S., Oechsner, S., Mauthe, A., and
Hutchison, D. (2015). A framework for resilience
management in the cloud. e & i Elektrotechnik und
Informationstechnik, 132(2):122–132.
Simpson, S., Shirazi, N., Hutchison, D., and Backhaus, H.
(2013). Seccrit deliverable d4.2 anomaly detection
techniques for cloud computing.
Sterbenz, J. P., Hutchison, D., C¸ etinkaya, E. K.,
Jabbar, A., Rohrer, J. P., Sch
oller, M., and
Smith, P. (2010). Resilience and survivability
in communication networks: Strategies, principles,
and survey of disciplines. Computer Networks,
WebSense (2014). Websense security labs 2015.
Towards Resilience Metrics for Future Cloud Applications
