Cryptography Arbitration: Security Complexities of Cloud Enabled

IoT in Europe and Beyond

Morgan Eldred, Hassan Alnoon and Sultan AlTamimi

School of Computing, University of Portsmouth, Portsmouth, U.K.

Keywords: Arbitration, Cloud, Cryptography, Data Protection, Internet of Things (IoT).

Abstract: The global nature of the Internet of Things and cloud has and will result in emerging challenges, such as

whom is liable for data protection and security breaches of personal data. This paper puts forward the concept

of ‘cryptography arbitration’ and the need to design and architect legally compliant solutions. As the world

becomes more interconnected we are likely to see more example of technology practices sweeping the globe

and raising further data protection challenges; much like the fault lines between tectonic plates. This paper

provides contribution by capturing some emerging impacts and challenges and how they relate to the internet

of things and the need for solutions to have the appropriate cryptography safeguards.

1 INTERNET OF THINGS

There are many definitions of the internet of things

(IoT) such as:

A network of items-each embedded with sensors-

which are connected to the Internet (IEEE, 2014),

“the network of physical objects that contain

embedded technology to communicate and sense or

interact with their internal states or the external

environment” (Gartner). “The IoT links smart objects

to the Internet. It can enable an exchange of data

never available before, and bring users information in

a more secure way” (Cisco).

For the purposes of this paper the definition of

cloud enabled IoT taken is that it is it is a network of

physical objects that contain embedded technologies

to interact via the cloud with an external environment

and uses the below layered three-tiered architecture,

which is a modified lightweight version of IEEE

P2413 standard for an Architectural Framework for

the Internet of Things.

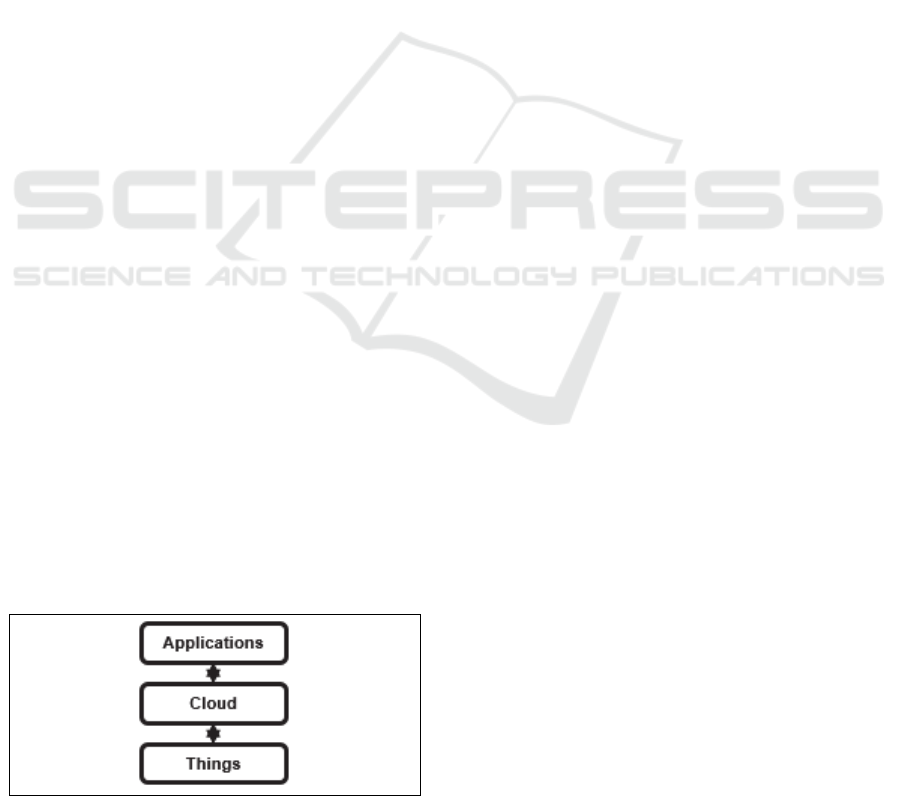

Figure 1: Cloud Enabled IoT.

This architecture consists of three critical layers:

Applications - are the software that controls,

monitors and provides the user interface for the IoT

application.

Cloud - is the network connectivity between the

applications and physical equipment, identified as

things.

Things - are the physical objects/device that

contain embedded technology to communicate, sense

and interact with the external format.

An example of the cloud internet of things, would

be a drone that is used by a retailer to deliver

purchased items. If the drone was to take a

photograph of a facial images or car registration plate

and inadvertently delivered that image by accident to

a third party, then data protection acts could be

breached, whom then would be liable and for what

extended would they be liable. Considering that it has

been indicated that the security of user’s data has the

highest priority and concern from users (Chang and

Ramachandran, 2016). In such an example, if legal

proceedings occurred, it could be beneficial to have a

security framework that is verified and vetted by a

security/cryptographic specialist. Lessons learned

from the cloud computing adoption framework

(CCAF) that has security suitable for business clouds,

based upon a three major security technologies:

firewall, identity management, and encryption based

on the development of enterprise file sync and share

356

Eldred, M., Alnoon, H. and AlTamimi, S.

Cryptography Arbitration: Security Complexities of Cloud Enabled IoT in Europe and Beyond.

DOI: 10.5220/0005922103560361

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 356-361

ISBN: 978-989-758-183-0

technologies (Chang, Kuo, and Ramachandran,

2016).

2 CRYPTOGRAPHY

Cryptology is the art and science of making and

breaking secret codes. Most people are interested in

Cryptography which is the art of making secret codes.

Cryptography is required in securing communication

lines, whether it is wireless or wired communication

lines against leakage of private and confidential

information to undesirable individuals or parties

while ensuring the basic pillars of information

security are met which are confidentiality, integrity

and availability of data; and also the authentication

and non-repudiation of the individuals involved in the

communication are protected.

While using cryptography in IoT the information

security basics are important, it ensures that the

devices and signals sent over the network are not

compromised and ensures the safety and privacy of

the user (Ning and Liu, 2012). The confidentiality of

a signal being sent to a connected device over the

cloud is important and is enforced by making sure that

the signal is encrypted. If the signal sent is

compromised an adversary can easily understand the

type of signals being sent to the connected device, and

therefore be able to take control of the device in

question. Sending an encrypted signal can’t be useful

by itself, if an adversary can also change certain

values in the encrypted signal without the device

having a way of checking the integrity of the signal,

an adversary can try random changes until a device

reacts different and therefore understands more about

how the device mechanism works. However having

high security and integrity, with powerful

cryptography and protocols used to communicate

with the device would certainly cause delay in

transmitting the signal to the device and therefore

cause an issue with availability of the device

mechanism. It is important when building an IoT

communication between the different things in the

cloud to ensure synergy between the three security

pillars (confidentiality, integrity and accessibility)

(CIA) (Ning, Liu and Yang, 2013).

Authentication is also another important aspect of

information security that needs to be preserved in a

cloud IoT environment. Being able to authenticate a

device or a user is crucial to the communication that

happens in IoT, if the authentication processes is not

done in a proper cryptographic fashion using a strong

secure protocols then both the devices and the user

can be vulnerable. Communication protocols are

complicated to build, most of the sophisticated

attacks rely on weakness in the mathematical aspect

of the protocols, formal verification methods are

required to ensure such protocols are secure.

Weakness in authentication and integrity of the

communication can cause a repudiation of the

messages sent, this can cause legal aspects, such as

the leaking of personal data and that is why it is

important that a protocol is capable of preserving the

non-repudiation aspect of the communication. As

provided before in the cloud IoT use case, if the image

that was taken was not properly secured, what would

be the liability of the company that did not properly

secure the personal data of customers.

Cryptography Arbitration can be tricky due to the

complexity that arises from establishing and

implementing a cryptographic algorithm or protocols.

To fully understand the underlying aspect of the

cryptography a good combination of expertise in the

fields of mathematics, computer science, and

electrical engineering is required. To understand the

complexity of cryptography, it is classified into the

following categories:

Symmetric Key Cryptography, involves using

the same key for both the encryption and decryption

of data. Symmetric key crypto is typically used to

create fast stream or block cipher algorithms. Popular

symmetric ciphers are AES, 3-DES, TwoFish and

RC4 etc.

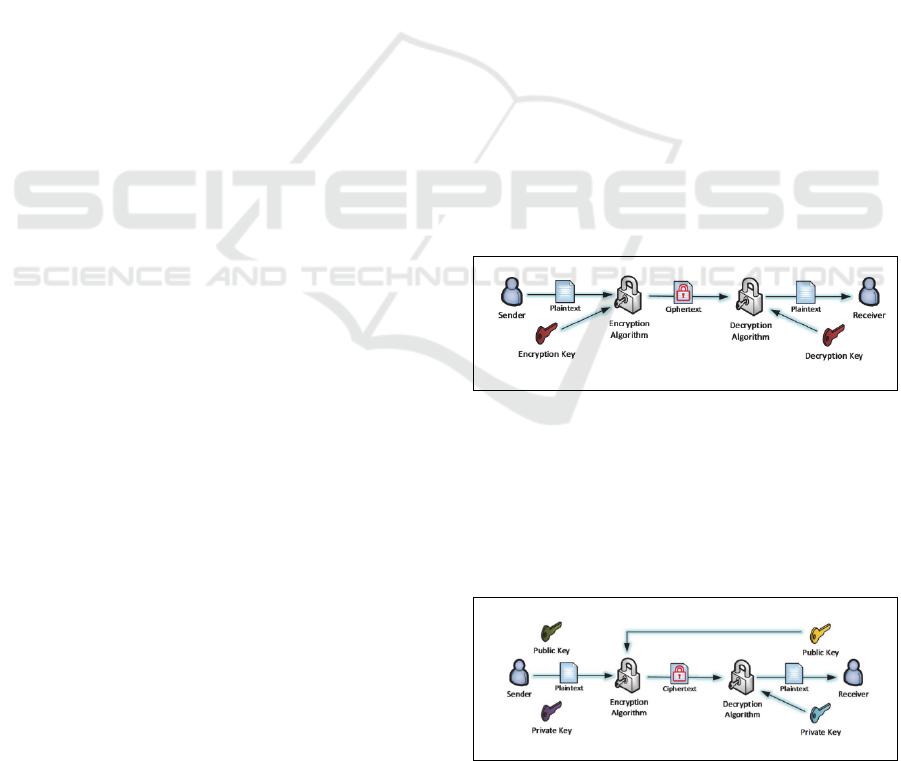

Figure 2: Symmetric Key Cryptography.

Asymmetric Key Cryptography, involves creating

two separate keys, one for encryption and one for

decryption of data. Asymmetric key crypto is

typically used for transferring keys and digital

signatures. Popular asymmetric ciphers are RSA,

ECC etc.

Figure 3: Asymmetric Key Cryptography.

Cryptography Arbitration: Security Complexities of Cloud Enabled IoT in Europe and Beyond

357

Hashing Algorithm, involves creating techniques

where we are able to map data of any size to data of

fixed size (Digest). This process should be

irreversible Hashing algorithms are typically used for

data integrity. Popular hash ciphers are SHA-256,

SHA3, MD5 etc.

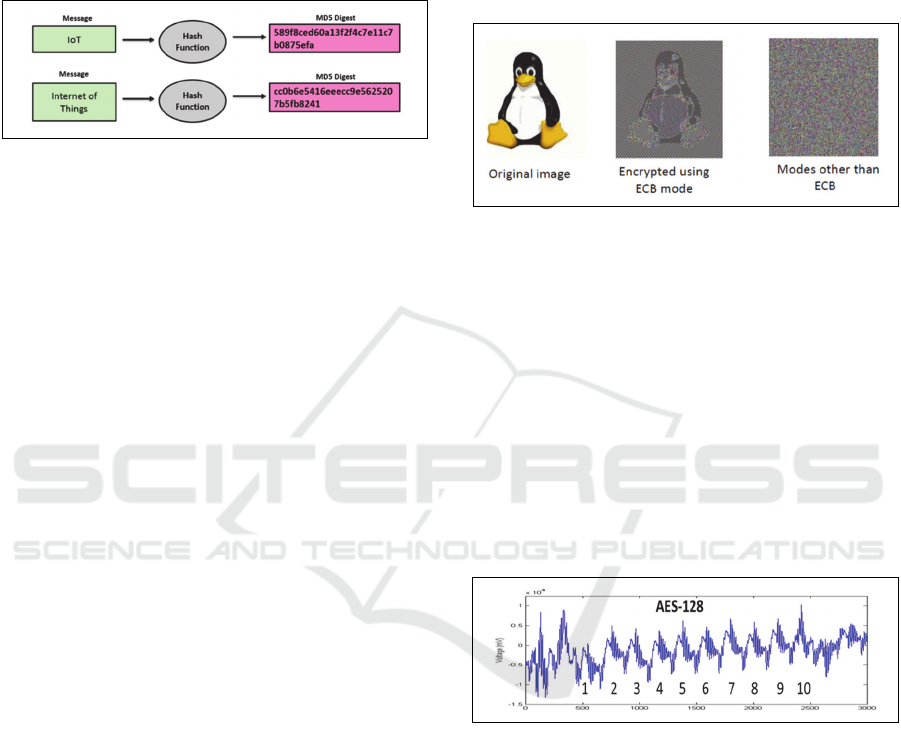

Figure 4: Hashing Algorithm Cryptography.

Message Authentication Code, is similar to a hash

algorithm but provides the capability to authenticate

the digest. MACs are typically used for Data Integrity

and Authenticity. Popular MAC ciphers are HMAC,

CMAC, CBC-MAC etc.

Key Management and Key Exchange

Protocols, are an extremely important aspect of

cryptography (Martin, 2006). Key management

basically involves the generation, exchange, storage,

use and replacement of keys used in the

cryptosystems. The initial suspect in any

cryptographic failure of a system would be due to

weaknesses in the key management or the key

exchange protocols. Most of the algorithms

mentioned above have their source code and logic

published online, that is mainly because these

algorithm have been proven mathematically to be

secure with today’s available computational power.

Though the keys used in any cryptosystem has to be

well guarded and never be published publically or to

any individual who shouldn’t be part of that specific

system. Key management even becomes a bigger

challenge in IoT and cloud based solutions (NIST,

2013).

To do cryptography arbitration a person has to

understand how these different cryptographic

classification work together and the proper

implementation procedures. Since most of the

algorithms are published online, a crypto arbitrator

has to understand the different mechanism to

implement an algorithm, as a wrong implementation

can cause a serious risk to the system. For example,

the most used symmetric key cipher is AES, even

though AES is a very powerful cipher, its

implementation in both software and hardware can

cause the overall security of the system to fail. While

implementing AES you have to choose a mode-of-

operation which is a technique that helps you

implement the algorithm and deal with large amount

of data to be encrypted. There are several modes-of-

operation for example an ECB (Electronic Codebook)

mode-of-operation can be very vulnerable whereas

Cipher Feedback (CFB) can provide a better

implementation security (Eng, 2008). A popular

example that is used to generally help understand

implementation difference is the following diagram:

Figure 5: Cryptography differences.

Another attack on AES implementation which would

also relate to IoT is a hardware based attack, where

even a proper mode-of-operation usage can cause a

side-channel attack on the algorithm. A very simple

example of such an attack is power analysis attack,

where an adversary monitors the power consumption

of the device to understand more about the key or the

algorithm being used (Gurkaynak, Oswald and

Preneel, 2004). In the figure below a person doing a

power analysis attack can understand more about the

algorithm being used in the device by counting the

number sets and how they relate to the inner works of

the algorithm (algorithm rounds).

Figure 6: AES Power Consumption.

3 DATA COLLECTION AND

ANALYSIS

A short survey was conducted on a sample of 39 IT

managing professionals coming from a host of

industries such as retail, finance, manufacturing and

petrochemicals. The question asked the importance of

cryptography in cloud IoT on a rating scale of 1 to 5,

with 1 being very low and 5 being very high. The

participants selection criteria, was that they needed to

be involved with setting up the organisations cloud

strategy, substantial management scope (over $5

IoTBD 2016 - International Conference on Internet of Things and Big Data

358

million budget, and 50 people). The hypothesis was

that cryptography would be an importance aspect.

Table 1: Importance of Crytography in Cloud IoT.

Mean Standard

Deviation

P Value

3.33 1.108183277 0.002565532

The mean resulted in an average over neutral in terms

of the importance of cryptography, slightly moving

towards the importance of cryptography in cloud IoT.

The standard deviation was a little over one place,

while the p value indicated a null hypothesis.

The participants then answered if they had

engaged in a cloud iot project, of which the majority

(74.358%) said no and then if they would go to a

cryptography arbitrator of which a slight majority

(53.846%) indicated they would. The data collection

calculated yes as a one and no as a zero.

Table 2: Yes or No Survey Questions.

Question Response

MEAN STANDARD

DEVIATION

Yes No

Have you

engaged in

a cloud iot

project

29 0.25641 0.538

Is a crypto-

arbitrator

relevant

21 18 0.538461 0.505035

4 EUROPEAN DATA

PROTECTION

The current guiding European directive on the

protection of individuals with regard to the processing

of personal data and its free movement is the

Directive 95/46/EC dated 24th of October 1995. A

basic protection level of personal data is explicitly

included in the EU’s Charter of Fundamental Rights

(Article 8), but also in the Treaty on the Functioning

of the European Union (Article 16).

According to the Directive 95/46/EC the meaning

of personal data is “any information relating to an

identified natural person (data subject).” When it

comes to the processing of personal data, the

Directive 95/46/EC points to “any operation or set of

operations which is performed upon personal data,

whether or not by automatic means, such as

collection, recording, organization, storage, adaption

or alteration, retrieval, consultation, use, disclosure

by transmission, dissemination or otherwise making

available, alignment or combination, blocking,

erasure or destruction.”

The Directive identifies the subjects involved in

the processing of personal data as the controller,

processor, third party and the recipient. All subjects

refer to a natural or legal person, public authority,

agency or any other body, with the controller

determining the purpose and means of the processing,

the processor being the one that processes the

personal data on behalf of the controller, while the

recipient is the one to whom data is disclosed. The

third party refers to any other subject that is

authorized to process the personal data.

Data protection is enforced within the European

Union through the principle of applicable national

law. Under Article 4, the Directive 95/46/EC

specifies that each Member State shall apply the

national provisions defined pursuant to the Directive

for any controller that has activities of an

establishment set on the territory of the Member

State. If multiple European establishments exist, the

controller must comply with local requirements put

forth by each Member State. In the example used for

this paper, if the company was European it would be

liable under Directive 95/46/EC, and if based in the

UK, then it would also be liable under the Data

Protection Act, 1998.

5 ARBITRATION & CORPORATE

RULES

The current European Directive 95/46/EC on data

protection is outdated and does not take the impact of

cloud or IoT into consideration as it leaves a gap in

the data protection area that cannot easily be covered

through legislative efforts. Indeed, the European

Commission is actively engaged in reformation

processes that target to clarify the missing pieces,

while modernizing the legal framework, but this is

viewed as a long-term result.

Besides the extended duration of legislative

reforms, analyzed proposals could be implemented in

a very distinct format than the one when they were

initially proposed. Taking all these aspects into

consideration, it is imperative that at least a partial

clarification and solution be introduced while the

more advanced legislative process unfolds. “Binding

corporate rules (BCR)” is a term that is increasingly

used when it comes to international data transfers that

imply third countries. However it would not be

difficult to adjust binding corporate rules for external

organisations that will have physical devices that

Cryptography Arbitration: Security Complexities of Cloud Enabled IoT in Europe and Beyond

359

interact with each other via the cloud. In an adjusted

manner the approval of the binding corporate rules

given by one organization is also enriched with

expansion coverage power over all national

authorities in the light of the Directive proposal.

After a successful application of binding

corporate rules at the level of controllers, the Article

29 Data Protection Working Party advanced to

another level by adopting in June 2012 a working

document on binding corporate rules for processors,

both companies and data protection authorities. BCR

are viewed as “internal rules applicable to entities of

a multinational company and contain key principles

legally covering the transfers of personal data coming

from the European Union”. They are regarded as an

alternative to the Safe Harbor Principles and the

European Commission’s Standard Contractual

Clauses. When transcended at the level of processors,

binding corporate rules should be able to provide

clients with the security and privacy of their data

under European Union data protection regulations.

The Article 29 Working Party’s working document

provides processors with a conditions checklist that

must be fulfilled for being granted their adequacy.

The A29 DPWP working paper also came as a

response to the industry’s numerous requests to move

the usage of binding corporate rules at the level of

processors, as well. There are also voices that demand

BCRs to be included for community cloud,

considering that there might be cases when

community members that belong to different

corporate groups might own similar interests. Even

though improvements at the level of binding

corporate rules are definitely a step forward, their

approval process remains a long and expensive

procedure under the current regulations. While

Member States grant approval based on diverse

conditions, there is still a range of Member States that

tends to remain on the safe side requesting an

individual approval for each transfer under an already

approved BCR.

If applied on a large scale, binding corporate rules

could solve one of the main issues implied by both

adequacy findings and Safe Harbor compliance –

their restrictive geographical reach. In a July 2012

paper on cloud computing adopted by the Article 29

Data Protection Working Party, the organization

states that companies that export data should act with

increased diligence and question the statement of the

data importer that it owns a Safe Harbor certification.

Also, cloud clients should verify that standard

contractual terms comply with national requirements

regarding contractual data processing. Within cloud

IoT the same policies could work to include

cryptography arbitration. Whereby a third party is

engaged to determine if the appropriate technical

considerations where conducted in the design and

architecture of the system. This would need to be

agreed up front and drafted in end user license

agreements, to provide the appropriate level of

protection. Further challenges would come in the

form of determining what type of organization would

be certified as a cryptography arbitrator and what

standards would be legally sound from a quality

perspective, rather than just technical forensic

solutions.

6 CONCLUSIONS

This paper has put forward the concept of

cryptography arbitration and the need for its inclusion

within designing cloud iot solutions. The research

itself requires much more analysis to bring the

concept out, such as increasing the survey question

and sample frame, looking at other legal and

cryptography aspects and other use cases. However

the paper has put forward the position of the need for

cryptography arbitration, and has looked at the

security and legal challenges, providing

recommendations to learn from lessons learned from

existing cloud security frameworks, and in using

existing legal frameworks, such as corporate binding

rules.

REFERENCES

Chang, V., Kuo, Y.-H. and Ramachandran, M. (2016)

‘Cloud computing adoption framework: A security

framework for business clouds’, Future Generation

Computer Systems, 57, pp. 24–41. doi:

10.1016/j.future.2015.09.031.

Chang, V. and Ramachandran, M. (2016) Towards

achieving data security with the cloud computing

adoption framework. Available at:

http://ieeexplore.ieee.org/xpl/abstractMetrics.jsp?arnu

mber=7299312 (Accessed: 17 March 2016).

Ning, H. and Liu, H. (2012). Cyber-Physical-Social Based

Security Architecture for Future Internet of Things.

Advances in Internet of Things, 02(01), pp.1-7.

Ning, H., Liu, H. and Yang, L. (2013). Cyberentity Security

in the Internet of Things. Computer, 46(4), pp.46-53.

NIST, (2013). Cryptographic Key Management Issues &

Challenges in Cloud Services (NISTIR 7956).

Martin, K. (2006). Cryptographic Key Management. Eng,

C. (2008). Cryptography for Penetration Testers.

Gurkaynak, F., Oswald, E. and Preneel, B. (2004).

IoTBD 2016 - International Conference on Internet of Things and Big Data

360

Power-Analysis Attack on an ASIC AES

Implementation. In: Information Technology: Coding

and Computing. Leuven, Belgium: IEEE.

IEEE, Retrieved from http://iot.ieee.org/about.html on

05/01/2016.

Gartner, Retreived from http://www.gartner.com/it-

glossary/internet-of-things/) on 05/01/2016.

Cisco, Retreived from http://www.cisco.com/c/en/us/

solutions/internet-of-things/overview.html on 05/01/

2016.

Cryptography Arbitration: Security Complexities of Cloud Enabled IoT in Europe and Beyond

361
