Design and Implementation of the CloudMdsQL Multistore System
Boyan Kolev
1
, Carlyna Bondiombouy
1
, Oleksandra Levchenko
1
, Patrick Valduriez
1
,
Ricardo Jimenez
2
, Raquel Pau
3
and Jose Pereira
4
1
Inria and LIRMM, University of Montpellier, Montpellier, France
2
LeanXcale and Universidad Politécnica de Madrid, Madrid, Spain
3
Sparsity Technologies, Barcelona, Spain
4
INESC TEC and University of Minho, Braga, Portugal
Keywords: Cloud, Multistore System, Heterogeneous Data Stores, SQL and NoSQL Integration.
Abstract: The blooming of different cloud data management infrastructures has turned multistore systems to a major
topic in the nowadays cloud landscape. In this paper, we give an overview of the design of a Cloud
Multidatastore Query Language (CloudMdsQL), and the implementation of its query engine. CloudMdsQL
is a functional SQL-like language, capable of querying multiple heterogeneous data stores (relational,
NoSQL, HDFS) within a single query that can contain embedded invocations to each data store’s native
query interface. The major innovation is that a CloudMdsQL query can exploit the full power of local data
stores, by simply allowing some local data store native queries (e.g. a breadth-first search query against a
graph database) to be called as functions, and at the same time be optimized.
1 INTRODUCTION
The blooming of different cloud data management
infrastructures, specialized for different kinds of data
and tasks, has led to a wide diversification of DBMS
interfaces and the loss of a common programming
paradigm. This makes it very hard for a user to
integrate and analyze her data sitting in different
data stores, e.g. RDBMS, NoSQL, and HDFS. For
example, a media planning application, which needs
to find top influencers inside social media
communities for a list of topics, has to search for
communities by keywords from a key-value store,
then analyze the impact of influencers for each
community using complex graph database traversals,
and finally retrieve the influencers’ profiles from an
RDBMS and an excerpt of their blog posts from a
document database. The CoherentPaaS project
(CoherentPaaS, 2013) addresses this problem, by
providing a rich platform integrating different data
management systems specialized for particular tasks,
data and workloads. The platform is designed to
provide a common programming model and
language to query multiple data stores, which we
herewith present.
The problem of accessing heterogeneous data
sources has long been studied in the context of
multidatabase and data integration systems (Özsu
and Valduriez, 2011). More recently, with the
advent of cloud databases and big data processing
frameworks, the solution has evolved towards
multistore systems that provide integrated access to
a number of RDBMS, NoSQL and HDFS data stores
through a common query engine. Data mediation
SQL engines, such as Apache Drill, Spark SQL
(Armbrust et al., 2015), and SQL++ provide
common interfaces that allow different data sources
to be plugged in (through the use of wrappers) and
queried using SQL. The polystore BigDAWG
(Duggan et al., 2015) goes one step further by
enabling queries across “islands of information”,
where each island corresponds to a specific data
model and its language and provides transparent
access to a subset of the underlying data stores
through the island’s data model. Another family of
multistore systems (DeWitt et al., 2013, LeFevre et
al., 2014) has been introduced with the goal of
tightly integrating big data analytics frameworks
(e.g. Hadoop MapReduce) with traditional RDBMS,
by sacrificing the extensibility with other data
sources. However, since none of these approaches
supports the ad-hoc usage of native queries, they do
not preserve the full expressivity of an arbitrary data
store’s query language. But what we want to give
the user is the ability to express powerful ad-hoc
queries that exploit the full power of the different
352
Kolev, B., Bondiombouy, C., Levchenko, O., Valduriez, P., Jimenez-Peris, R., Pau, R. and Pereira, J.
Design and Implementation of the CloudMdsQL Multistore System.
In Proceedings of the 6th International Conference on Cloud Computing and Services Science (CLOSER 2016) - Volume 1, pages 352-359
ISBN: 978-989-758-182-3
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
data store languages, e.g. directly express a path
traversal in a graph database. Therefore, the current
multistore solutions do not directly apply to solve
our problem.
In this paper, we give an overview of the design
of a Cloud multidatastore query language
(CloudMdsQL) and the implementation of its query
engine. CloudMdsQL is a functional SQL-like
language, capable of querying multiple
heterogeneous databases (e.g. relational, NoSQL and
HDFS) within a single query containing nested
subqueries (Kolev et al., 2015). Thus, the major
innovation is that a CloudMdsQL query can exploit
the full power of local data stores, by simply
allowing some local data store native queries (e.g. a
breadth-first search query against a graph database)
to be called as functions, and at the same time be
optimized based on a simple cost model, e.g. by
pushing down select predicates, using bind join,
performing join ordering, or planning intermediate
data shipping. CloudMdsQL has been extended
(Bondiombouy et al., 2015) to address distributed
processing frameworks such as Apache Spark by
enabling the ad-hoc usage of user defined
map/filter/reduce operators as subqueries, yet
allowing for pushing down predicates and bind join
conditions.
2 LANGUAGE OVERVIEW
The CloudMdsQL language is SQL-based with the
extended capabilities for embedding subqueries
expressed in terms of each data store’s native query
interface (Kolev et al., 2015). The common data
model respectively is table-based, with support of
rich datatypes that can capture a wide range of the
underlying data stores’ datatypes, such as arrays and
JSON objects, in order to handle non-flat and nested
data, with basic operators over such composite
datatypes.
Queries that integrate data from several data
stores usually consist of subqueries and an
integration
SELECT statement. A subquery is defined
as a named table expression, i.e. an expression that
returns a table and has a name and signature. The
signature defines the names and types of the
columns of the returned relation. Thus, each query,
although agnostic to the underlying data stores’
schemas, is executed in the context of an ad-hoc
schema, formed by all named table expressions
within the query. A named table expression can be
defined by means of either an SQL
SELECT
statement (that the query compiler is able to analyze
and possibly rewrite) or a native expression (that the
query engine considers as a black box and delegates
its processing directly to the data store). For
example, the following simple CloudMdsQL query
contains two subqueries, defined by the named table
expressions
T1 and T2, and addressed respectively
against the data stores
rdb (an SQL database) and
mongo (a MongoDB database):
T1(x int, y int)@rdb =
(SELECT x, y FROM A)
T2(x int, z array)@mongo = {*
db.B.find({$lt: {x, 10}}, {x:1, z:1})
*}
SELECT T1.x, T2.z
FROM T1, T2
WHERE T1.x = T2.x AND T1.y <= 3

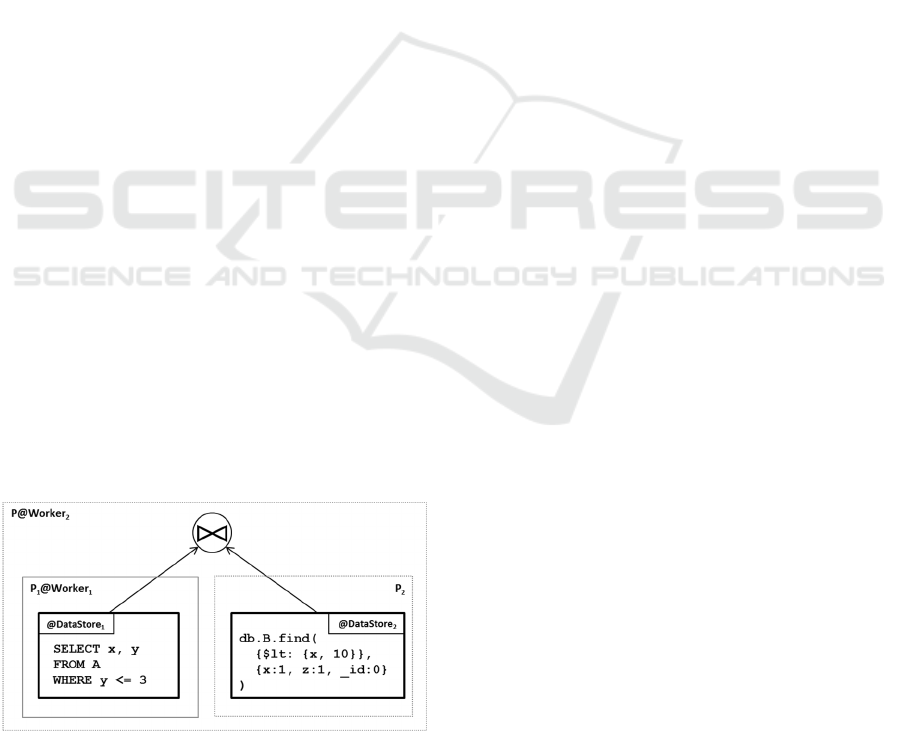

The purpose of this query is to perform relational
algebra operations (expressed in the main
SELECT
statement) on two datasets retrieved from a
relational and a document database. The two
subqueries are sent independently for execution
against their data stores in order the retrieved
relations to be joined by the common query engine.
The SQL table expression
T1 is defined by an SQL
subquery, while
T2 is a native expression (identified
by the special bracket symbols
{* *}) expressed as
a native MongoDB call. The subquery of expression
T1 is subject to rewriting by pushing into it the filter
condition
y <= 3, specified in the main SELECT
statement, thus reducing the amount of the retrieved
data by increasing the subquery selectivity. Note that
subqueries to some NoSQL data stores can also be
expressed as SQL statements; in such cases, the
wrapper must provide the translation from relational
operators to native calls.
CloudMdsQL allows named table expressions to
be defined as Python functions, which is useful for
querying data stores that have only API-based query
interface. A Python expression yields tuples to its
result set much like a user-defined table function. It
can also use as input the result of other subqueries.
Furthermore, named table expressions can be
parameterized by declaring parameters in the
expression’s signature. For example, the following
Python expression uses the intermediate data
retrieved by
T2 to return another table containing the
number of occurrences of the parameter
v in the
array
T2.z.
T3(x int, c int
WITHPARAMS v string)@python =
{*
for (x, z) in CloudMdsQL.T2:
yield( x, z.count(v) )
*}
Design and Implementation of the CloudMdsQL Multistore System
353
A (parameterized) named table can then be
instantiated by passing actual parameter values from
another native/Python expression, as a table function
in a
FROM
clause, or even as a scalar function (e.g. in
the
SELECT
list). Calling a named table as a scalar
function is useful e.g. to express direct lookups into
a key-value data store.
Note that parametrization and nesting is also
available in SQL and native named tables. For
example, we validated the query engine with a use
case that involves the Sparksee graph database and
we use its Python API to express subqueries that
benefit from all of the features described above
(Kolev et al., 2015). In fact, our initial query engine
implementation enables Python integration; however
support for other languages (e.g. JavaScript) for
user-defined operations can be easily added.
In order to also address distributed processing
frameworks (such as Apache Spark) as data stores,
we introduce a formal notation that enables the ad-
hoc usage of user-defined Map/Filter/Reduce (MFR)
operators as subqueries in CloudMdsQL to request
data processing in an underlying big data processing
framework (DPF) (Bondiombouy et al., 2015). An
MFR statement represents a sequence of MFR
operations on datasets. In terms of Apache Spark, a
dataset corresponds to an RDD (Resilient
Distributed Dataset – the basic programming unit of
Spark). Each of the three major MFR operations
(
MAP
,
FILTER
and
REDUCE
) takes as input a dataset
and produces another dataset by performing the
corresponding transformation. Therefore, for each
operation there should be specified the
transformation that needs to be applied on tuples
from the input dataset to produce the output tuples.
Normally, a transformation is expressed with an
SQL-like expression that involves special variables;
however, more specific transformations may be
defined through the use of lambda functions. Let us
consider the following simple example inspired by
the popular MapReduce tutorial application “word
count”. We assume that the input dataset for the
MFR statement is a text file containing a list of
words. To count the words that contain the string
‘cloud’, we write the following composition of MFR
operations:
T4(word string, count int)@hdfs = {*
SCAN(TEXT,'words.txt')
.MAP(KEY,1)
.FILTER( KEY LIKE '%cloud%' )
.REDUCE(SUM)
.PROJECT(KEY,VALUE)
*}
This MFR subquery is also a subject to rewriting
according to rules based on the algebraic properties
of the MFR operators. In the example above, the
MAP
and
FILTER
operations will be swapped, thus
allowing the filter to be applied earlier. The same
rules apply for any pushed down predicates.

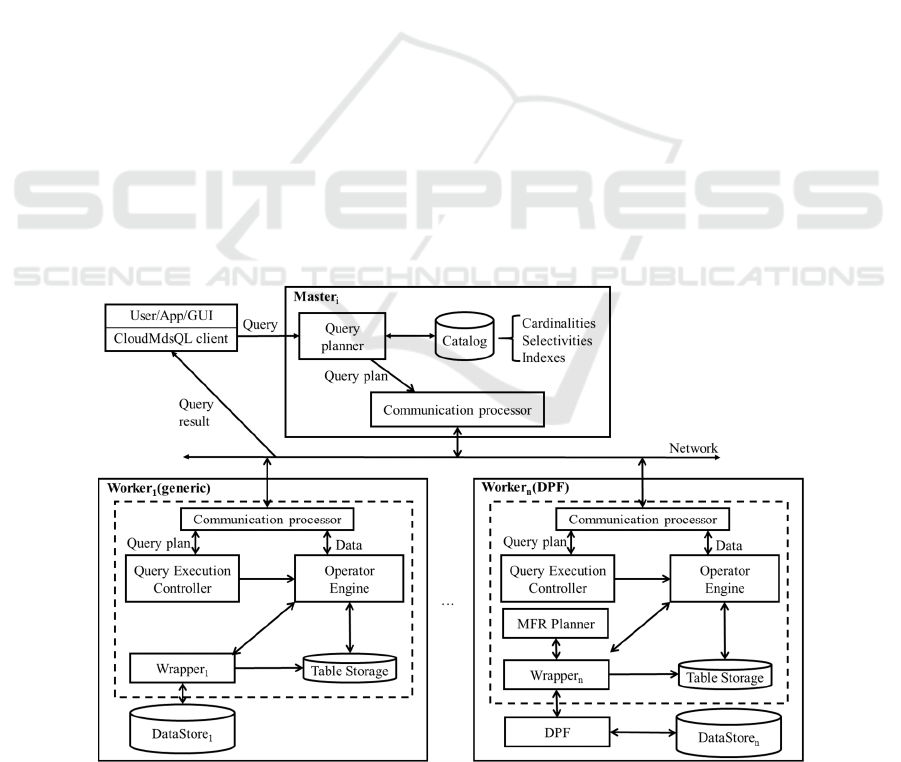

Figure 1: Architecture of the query engine.
DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP
and OLAP
354
3 SYSTEM OVERVIEW
In this section, we introduce the generic architecture
of the query engine, with its main components. The
design of the query engine takes advantage of the
fact that it operates in a cloud platform, with full
control over where the system components can be
installed. The architecture of the query engine is
fully distributed (see Figure 1), so that query engine
nodes can directly communicate with each other, by
exchanging code (query plans) and data.
Each query engine node consists of two parts –
master and worker – and is collocated at each data
store node in a computer cluster. Each master or
worker has a communication processor that supports
send and receive operators to exchange data and
commands between nodes. To ease readability in
Figure 1, we separate master and worker, which
makes it clear that for a given query, there will be
one master in charge of query planning and one or
more workers in charge of query execution. To
illustrate query processing with a simple example,
let us consider a query Q on two data stores in a
cluster with two nodes (e.g. the query introduced in
Section 2). Then a possible scenario for processing
Q, where the node id is written in subscript, is the
following:
At client, send Q to Master
1
.
At Master
1
, produce a query plan P (see Figure
2) for Q and send it to Worker
2
, which will
control the execution of P.
At Worker
2
, send part of P, say P
1
, to Worker
1
,
and start executing the other part of P, say P
2
, by
querying DataStore
2
.
At Worker
1
, execute P
1
by querying DataStore
1
,
and send result to Worker
2
.
At Worker
2
, complete the execution of P
2
(by
integrating local data with data received from
Worker
1
), and send the final result to the client.
Figure 2: A simple query plan.
This simple example shows that query execution
can be fully distributed among the two nodes and the
result sent from where it is produced directly to the
client, without the need for an intermediate node.
A master node takes as input a query and
produces a query plan, which it sends to one chosen
query engine node for execution. The query planner
performs query analysis and optimization, and
produces a query plan serialized in a JSON-based
intermediate format that can be easily transferred
across query engine nodes. The plan is abstracted as
a tree of operations, each of which carries the
identifier of the query engine node that is in charge
of performing it. This allows us to reuse query
decomposition and optimization techniques from
distributed query processing (Özsu and Valduriez,
2011), which we adapt to our fully distributed
architecture. In particular, we strive to:
Minimize local execution time in the data stores,
by pushing down select operations in the data
store subqueries and exploiting bind join by
subquery rewriting;
Minimize communication cost and network
traffic by reducing data transfers between
workers.
To compare alternative rewritings of a query, the
query planner uses a simple catalog, which is
replicated at all nodes in primary copy mode. The
catalog provides basic information about data store
collections such as cardinalities, attribute
selectivities and indexes, and a simple cost model.
Such information can be given with the help of the
data store administrators or collected by wrappers in
local catalogs which are then merged into the global
catalog. The query language provides a possibility
for the user to define cost and selectivity functions
whenever they cannot be derived from the catalog,
mostly in the case of using native subqueries.
The query engine is designed to verify the
executability of rewritten subqueries to data stores,
e.g. due to selection pushdowns or usage of bind
join. For this reason, each wrapper may provide the
query planner with the capabilities of its data store to
perform operations supported by the common data
model.
Workers collaborate to execute a query plan,
produced by a master, against the underlying data
stores involved in the query. As illustrated above,
there is a particular worker, selected by the query
planner, which becomes in charge of controlling the
execution of the query plan. This worker can
subcontract parts of the query plan to other workers
and integrate the intermediate results to produce the
final result.
Design and Implementation of the CloudMdsQL Multistore System
355
Each worker node acts as a lightweight runtime
database processor atop a data store and is composed
of three generic modules (i.e. same code library) -
query execution controller, operator engine, and
table storage - and one wrapper module that is
specific to a data store. These modules provide the
following capabilities:
Query execution controller: initiates and controls
the execution of a query plan (received from a
master or worker) by interacting with the operator
engine for local execution or with one or more
workers (through communication processors).
Operator engine: executes the query plan
operators on data retrieved from the wrapper,
from another worker, or from the table storage.
The operator engine may write an intermediate
relation to the table storage, e.g. when it needs to
be consumed by more than one operator or when
it participates in a blocking operation.
Table Storage: provides efficient, uniform storage
(main memory and disk) for intermediate and
result data in the form of tables.
Wrapper: interacts with its data store through its
native API to retrieve data, transforms the result
in the form of table, and writes the result in table
storage or delivers it to the operator engine.
In addition to the generic modules, which are
valid for all the workers, the components of a
worker collocated with a data processing framework
as data store, have some specifics. First, the worker
implements a parallel operator engine, thus
providing a tighter coupling between the query
processor and the underlying DPF and hence taking
more advantage of massive parallelism when
processing HDFS data. Second, the wrapper of the
distributed data processing framework has a slightly
different behavior as it processes MFR expressions
wrapped in native subqueries. It parses and
interprets a subquery written in MFR notation; then
uses an MFR planner to find optimization
opportunities; and finally translates the resulting
sequence of MFR operations to a sequence of DPF’s
API methods to be executed. The MFR planner
decides where to position pushed down filter
operations to apply them as early as possible, using
rules for reordering MFR operators that take into
account their algebraic properties.
4 IMPLEMENTATION
For the current implementation of the query engine,
we modified the open source Derby database to
accept CloudMdsQL queries and transform the
corresponding execution plan into Derby SQL
operations. We developed the query planner and the
query execution controller and linked them to the
Derby core, which we use as the operator engine. In
this section, we focus on the implementation of the
components, which each query engine node consists
of (Figure 3).

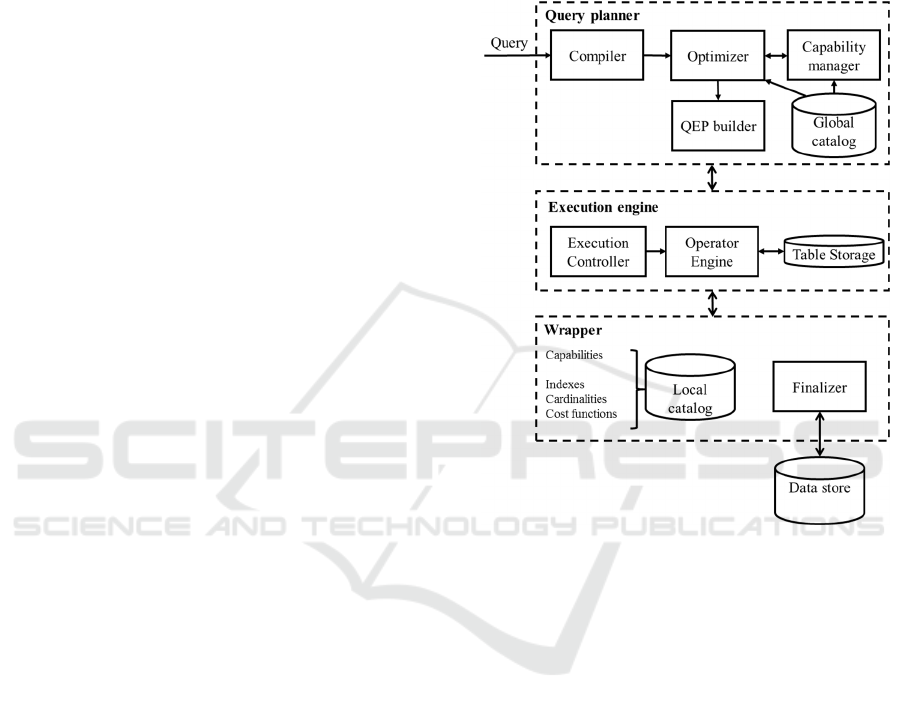

Figure 3: Query engine implementation components.
4.1 Query Planner
The query planner is implemented in C++; it
compiles a CloudMdsQL query and generates a
query execution plan (QEP) to be processed by the
query execution engine. The result of the query
planning is the JSON serialization of the generated
QEP, which is represented as a directed acyclic
graph, where leaf nodes are references to named
tables and all other nodes represent relational
algebra operations. The query planning process goes
through several phases, which we briefly focus on
below.
The query compiler uses the Boost.Spirit
framework for parsing context-free grammars,
following the recursive descent approach.
Boost.Spirit allows grammar rules to be defined by
means of C++ template metaprogramming
techniques. Each grammar rule has an associated
semantic action, which is a C++ function that should
return an object, corresponding to the grammar rule.
DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP
and OLAP
356
The compiler first performs lexical and syntax
analyses of a CloudMdsQL query to decompose it
into an abstract syntax tree (AST) that corresponds
to the syntax clauses of the query.
At this stage the compiler identifies a forest of
sub-trees within the AST, each of which is
associated to a certain data store (labelled by a
named table) and meant to be delivered to the
corresponding wrapper to translate it to a native
query and execute it against the data store. The rest
of the AST is the part that will be handled by the
common query engine (the common query AST).
Furthermore, the compiler performs a semantic
analysis of the AST by first resolving the names of
tables and columns according to the ad-hoc schema
of the query following named table signatures.
Datatype analysis takes place to check for datatype
compatibilities between operands in expressions and
to infer the return datatype of each operation in the
expression tree, which may be further verified
against a named table signature, thus identifying
implicit typecasts or type mismatches. WHERE
clause analysis is performed to discover implicit
equi-join conditions and opportunities for moving
predicates earlier in the common plan. The cross-
reference analysis aims at building a graph of
dependencies across named tables. Thus the
compiler identifies named tables that participate in
more than one operation, which helps the execution
controller to plan for storing such intermediate data
in the table storage. In addition, the optimizer avoids
pushing down operations in the sub-trees of such
named tables. To make sure that the dependency
graph has no cycles, hence the generated QEP will
be a directed acyclic graph, the compiler implements
a depth-first search algorithm to detect and reject
any query that has circular references.
Error handling is performed at the compilation
phase. Errors are reported as soon as they are
identified (terminating the compilation execution),
together with the type of the error and the context,
within which they were found (e.g. unknown table
or column, ambiguous column references,
incompatible types in expression, etc.).
The query optimizer uses the cost information in
the global catalog and implements a simple
exhaustive search strategy to explore all possible
rewritings of the initial query, by pushing down
select operations, expressing bind joins, join
ordering, and intermediate data shipping.
Furthermore, it uses the capability manager to
validate each rewritten subquery against its data
store capability specification, which is exported by
the wrapper into the global catalog in the form of a
JSON schema. Thus, the capability manager simply
serializes each sub-tree of the AST into a JSON
object and attempts to validate it against the
corresponding JSON schema. This allows a
rewritten sub-plan to a data store to be validated by
the query planner before it is actually delivered to
the wrapper for execution; and in case the validation
fails, the rewriting action (e.g. selection pushdown)
is reverted.
The QEP builder is responsible for the
generation of the final QEP, ready to be handled by
the query execution engine, which also includes:
resolving attribute names to column ordinal
positions considering the named table expression
signatures, removing columns from intermediate
projections in case they are no longer used by the
operations above (e.g. as a result of operation
pushdown), and serializing the QEP to JSON.
4.2 Operator Engine
The main reasons to choose Derby database to
implement the operator engine are because Derby:
Allows extending the set of SQL operations by
means of
CREATE FUNCTION statements. This
type of statements creates an alias, which an
optional set of parameters, to invoke a specific
Java component as part of an execution plan.
Has all the relational algebra operations fully
implemented and tested.
Has a complete implementation of the JDBC API.
Allows extending the set of SQL types by means
of
CREATE TYPE statements. It allows working
with dictionaries and arrays.
Having a way to extend the available Derby SQL
operations allows designing the resolution of the
named table expressions. In fact, the query engine
requires three different components to resolve the
result sets retrieved from the named table
expressions:
WrapperFunction: To send the partial
execution plan to a specific data store using the
wrappers interfaces and retrieve the results.
PythonFunction: To process intermediate
result sets using Python code.
NestedFunction: To process nested
CloudMdsQL queries.
Named table expressions admit parameters using
the keyword
WITHPARAMS. However, the current
implementation of the
CREATE FUNCTION statement
is designed to bind each parameter declared in the
statement with a specific Java method parameter. In
fact, it is not designed to work with Java methods
Design and Implementation of the CloudMdsQL Multistore System
357
that can be called with a variable number of
parameters, which is a feature introduced since Java
6. To solve this gap, we have modified the internal
validation of the
CREATE FUNCTION statement and
how to invoke Java methods with a variable number
of parameters during the evaluation of the execution
plan. For example, imagine that the user declares a
named table expression
T1 that returns 2 columns (x
and
y) and has a parameter called a as follows:
T1(x int, y string
WITHPARAMS a string)@db1 =
( SELECT x, y FROM tbl WHERE id = $a )
The query execution controller will produce
dynamically the following
CREATE FUNCTION
statement:
CREATE FUNCTION T1 ( a VARCHAR( 50 ) )
RETURNS TABLE ( x INT, y VARCHAR( 50 ))
LANGUAGE JAVA
PARAMETER STYLE DERBY_JDBC_RESULT_SET
READS SQL DATA
EXTERNAL NAME 'WrapperFunction.execute'
It is linked to the following Java component,
which will use the wrapper interfaces to establish a
communication with the data store
db1:
public class WrapperFunction {
public static ResultSet execute(
String namedExprName,
Long queryId,
Object... args
/*dynamic args*/
) throws Exception {
//Code to invoke the wrappers
}
}
Therefore, after accepting the execution plan in
JSON format, the query execution controller parses
it, identifies the sub-plans within the plan that are
associated to a named table expression and
dynamically executes as many
CREATE FUNCTION
statements as named table expressions exist with a
unique name. As a second step, the execution engine
evaluates which named expressions are queried
more than once and must be cached into the
temporary table storage, which will be always
queried and updated from the specified Java
functions to reduce the query execution time.
Finally, the last step consists of translating all
operation nodes that appear in the execution plan
into a Derby specific SQL execution plan. Once the
SQL execution plan is valid, the Derby core (which
acts as the operator engine) produces a dynamic byte
code that resolves the query that can be executed as
many times as the application needs.
Derby implements the JDBC interface and an
application can send queries though the Statement
class. So, when the user has processed the query
result and closed the statement, the query execution
controller drops the previously created functions and
cleans the temporary table storage.
To process data in distributed data stores we
used a specific implementation of the Operator
Engine and the MFR wrapper, adapting the parallel
SQL engine Spark SQL (Armbrust et al., 2015) to
serve as the operator engine, thus taking full
advantage of massive parallelism when joining
HDFS with relational data. To do this, each
execution (sub-)plan is translated to a flow of
invocations of Spark SQL’s DataFrame API
methods.
4.3 Wrappers
The wrappers are Java classes implementing a
common interface used by the operator engine to
interact with them. A wrapper may store locally
catalog information and capabilities, which it
provides to the query planner periodically or on
demand. Each wrapper also implements a finalizer,
which translates a CloudMdsQL sub-plan to a native
data store query.
We have validated the query engine using four
data stores – Sparksee (a graph database with Python
API), Derby (a relational database accessed through
its Java Database Connectivity (JDBC) driver),
MongoDB (a document database with a Java API),
and unstructured data stored in an HDFS cluster and
processed using Apache Spark as big data
processing framework (DPF). To be able to embed
subqueries against these data stores, we developed
wrappers for each of them as follows.
The wrapper for Sparksee accepts as raw text the
Python code that needs to be executed against the
graph database using its Python client API in the
environment of a Python interpreter embedded
within the wrapper.
The wrapper for Derby executes SQL statements
against the relational database using its JDBC driver.
It exports an
explain() function that the query
planner invokes to get an estimation of the cost of a
subquery. It can also be queried by the query planner
about the existence of certain indexes on table
columns and their types. The query planner may
then cache this metadata information in the catalog.
The wrapper for MongoDB is implemented as a
wrapper to an SQL compatible data store, i.e. it
performs native MongoDB query invocations
according to their SQL equivalent. The wrapper
DataDiversityConvergence 2016 - Workshop on Towards Convergence of Big Data, SQL, NoSQL, NewSQL, Data streaming/CEP, OLTP
and OLAP
358
maintains the catalog information by running
probing queries such as
db.collection.count()
to keep actual database statistics, e.g. cardinalities of
document collections. Similarly to the Derby
wrapper, it also provides information about available
indexes on document attributes.
The MFR wrapper implements an MFR planner
to optimize MFR expressions in accordance with
any pushed down selections. The wrapper uses
Spark’s Python API, and thus translates each
transformation to Python lambda functions. Besides,
it also accepts raw Python lambda functions as
transformation definitions. The wrapper executes the
dynamically built Python code using the reflection
capabilities of Python by means of the
eval()
function. Then, it transforms the resulting RDD into
a Spark DataFrame.
5 CONCLUSIONS
In this paper, we presented CloudMdsQL, a common
language for querying and integrating data from
heterogeneous cloud data stores and the
implementation of its query engine. By combining
the expressivity of functional languages and the
manipulability of declarative relational languages, it
stands in “the golden mean” between the two major
categories of query languages with respect to the
problem of unifying a diverse set of data
management systems. CloudMdsQL satisfies all the
legacy requirements for a common query language,
namely: support of nested queries across data stores,
data-metadata transformations, schema
independence, and optimizability. In addition, it
allows embedded invocations to each data store’s
native query interface, in order to exploit the full
power of data stores’ query mechanism.
The architecture of CloudMdsQL query engine is
fully distributed, so that query engine nodes can
directly communicate with each other, by
exchanging code (query plans) and data. Thus, the
query engine does not follow the traditional
mediator/wrapper architectural model where
mediator and wrappers are centralized. This
distributed architecture yields important
optimization opportunities, e.g. minimizing data
transfers by moving the smallest intermediate data
for subsequent processing by one particular node.
The wrappers are designed to be transparent, making
the heterogeneity explicit in the query in favor of
preserving the expressivity of local data stores
query languages. CloudMdsQL sticks to the
relational data model, because of its intuitive data
representation, wide acceptance and ability to
integrate datasets by applying joins, unions and
other relational algebra operations.
The CloudMdsQL query engine has been
validated (Kolev et al., 2015; Bondiombouy et al.,
2015) with four different database management
systems – Sparksee (a graph database with Python
API), Derby (a relational database accessed through
its JDBC driver), MongoDB (a document database
with a Java API) and Apache Spark (a parallel
framework processing distributed data stored in
HDFS, accessed by Apache Spark API). The
performed experiments have evaluated the impact of
the used optimization techniques on the overall
query execution performance (Kolev et al., 2015;
Bondiombouy et al., 2015).
REFERENCES
Armbrust, M., Xin, R., Lian, C., Huai, Y., Liu, D.,
Bradley, J., Meng, X., Kaftan, T., Franklin, M.,
Ghodsi, A., Zaharia, M. 2015. Spark SQL: Relational
Data Processing in Spark. In ACM SIGMOD (2015),
1383-1394.
Bondiombouy, C., Kolev, B., Levchenko, O., Valduriez,
P. 2015. Integrating Big Data and Relational Data
with a Functional SQL-like Query Language. Int.
Conf. on Databases and Expert Systems Applications
(DEXA) (2015), 170-185.
CoherentPaaS, http://coherentpaas.eu (2013).
DeWitt, D., Halverson, A., Nehme, R., Shankar, S.,
Aguilar-Saborit J., Avanes, A., Flasza, M., Gramling,
J. 2013. Split Query Processing in Polybase. In ACM
SIGMOD (2013), 1255-1266.
Duggan, J., Elmore, A. J., Stonebraker, M., Balazinska,
M., Howe, B., Kepner, J., Madden, S., Maier, D.,
Mattson, T., Zdonik, S. 2015. The BigDAWG
Polystore System. SIGMOD Rec. 44, 2 (August 2015),
11-16.
Kolev, B., Valduriez, P., Bondiombouy, C., Jiménez-Peris,
R., Pau, R., Pereira, J. 2015. CloudMdsQL: Querying
Heterogeneous Cloud Data Stores with a Common
Language. Distributed and Parallel Databases, pp 1-
41, http://hal-lirmm.ccsd.cnrs.fr/lirmm-01184016.
LeFevre, J., Sankaranarayanan, J., Hacıgümüs, H.,
Tatemura, J., Polyzotis, N., Carey, M. 2014. MISO:
Souping Up Big Data Query Processing with a
Multistore System. In ACM SIGMOD (2014), 1591-
1602.
Özsu, T., Valduriez, P. 2011. Principles of Distributed
Database Systems – Third Edition. Springer, 850
pages.
Design and Implementation of the CloudMdsQL Multistore System
359
