Formal Behavioural Models to Facilitate Distributed Development and
Commissioning in Industrial Automation
James Harland, Jan Olaf Blech, Ian Peake and Luke Trodd
RMIT University, Melbourne, Australia
Keywords:
Software Engineering, Spatial Modeling, Cyber-physical Systems.
Abstract:
We aim to facilitate semi-automated collaborative distributed development, commissioning, operation and
maintenance using formal behavioural models. We are interested in a whole-of-system context, where proper-
ties of the physical systems increasingly depend explicitly on software configuration, thus requiring validation.
Our models are cyber-physical, comprising not only the control software itself but also mechatronic elements
under control involving sensing/actuators, such as pneumatics, hydraulics, and motor drives. We discuss vari-
ous issues relevant to the problems of collaboration, and we provide requirements for collaboration in a specific
experimental context involving elements of a small-scale food packaging plant.
1 INTRODUCTION
Cyber-physical systems involve both physical aspects
such as sensors, actuators, pneumatics, hydraulics and
motor drives as well as various kinds of software
for controlling them. Such systems often have sev-
eral components which contain sensors and actuators,
which allows the components to operate without any
direct control based purely on their sensor inputs.
We are interested in modelling such systems us-
ing behavioural models in order to analyse and pre-
dict overall properties of the system. The increas-
ing dependence of such systems on software control
makes it increasingly important not only to validate
such software but also to explore possible configura-
tions of the system. The variety and sophistication
of the technologies used means that the development
and commissioning of such systems usually requires
a team of varied skills, such as electrical engineering,
mechatronics, hydraulics and software development.
An appropriate formal model of the system will thus
provide both a framework for co-operative work as
well as a method of dividing work amongst the team.
Dividing tasks such as the development of a com-
ponent into subtasks and assigning them to different
teams as well as the identification of communication
dependencies between the teams and its individual
members (Figure 1) can benefit from automatic so-
lutions. Here, we are targeting formal methods based
solutions.
Our particular context is a small-scale demon-











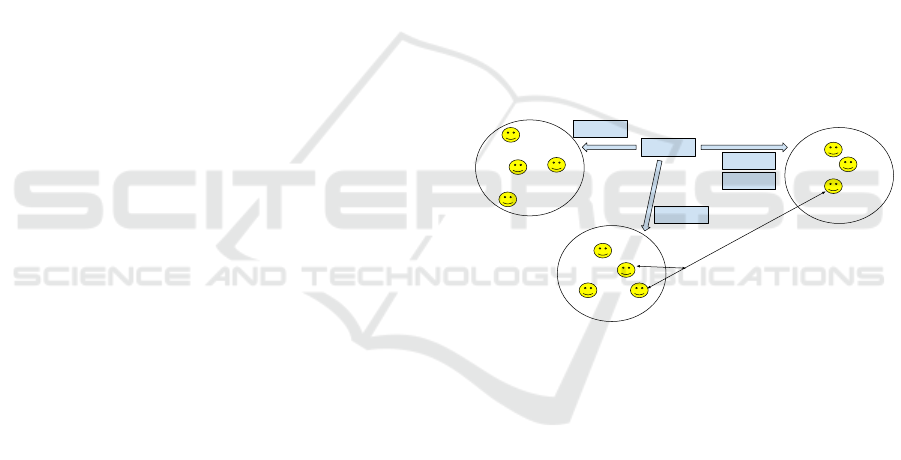

Figure 1: Collaboration overview.
strator food plant. This has a number of compo-
nents which are connected by programmable logic
controllers (PLCs) and other devices (see Figure 2).
We are particularly interested in the handling of bot-
tle caps in preparation for placing caps onto bottles.
Blue colour-coded elements and clear tubes are for
pneumatic (air pressure) actuation. Black cables carry
sensor/actuator signals. A piston feeds pushes caps
from a column of caps (right of centre in Figure 2)
to a pickup plate. A pneumatic lever rotates to the
plate to pick up the cap and then rotates to a raised
conveyor (centre of Figure 2). A mechanical gripper
(left of centre in Figure 2) picks caps off the conveyor,
lifts them and places them onto bottles. The opera-
tion of the level can be better seen in Figure 3; the
lever moves a single cap (pushed out from the col-
umn of caps by the piston) onto the end of the con-
veyor (at the right of Figure 3). Once the cap reaches
the end of the conveyor, the gripper moves to a posi-
tion above the cap, and then descends. Once the cap
Harland, J., Blech, J., Peake, I. and Trodd, L.
Formal Behavioural Models to Facilitate Distributed Development and Commissioning in Industrial Automation.
In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 363-369
ISBN: 978-989-758-189-2
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
363

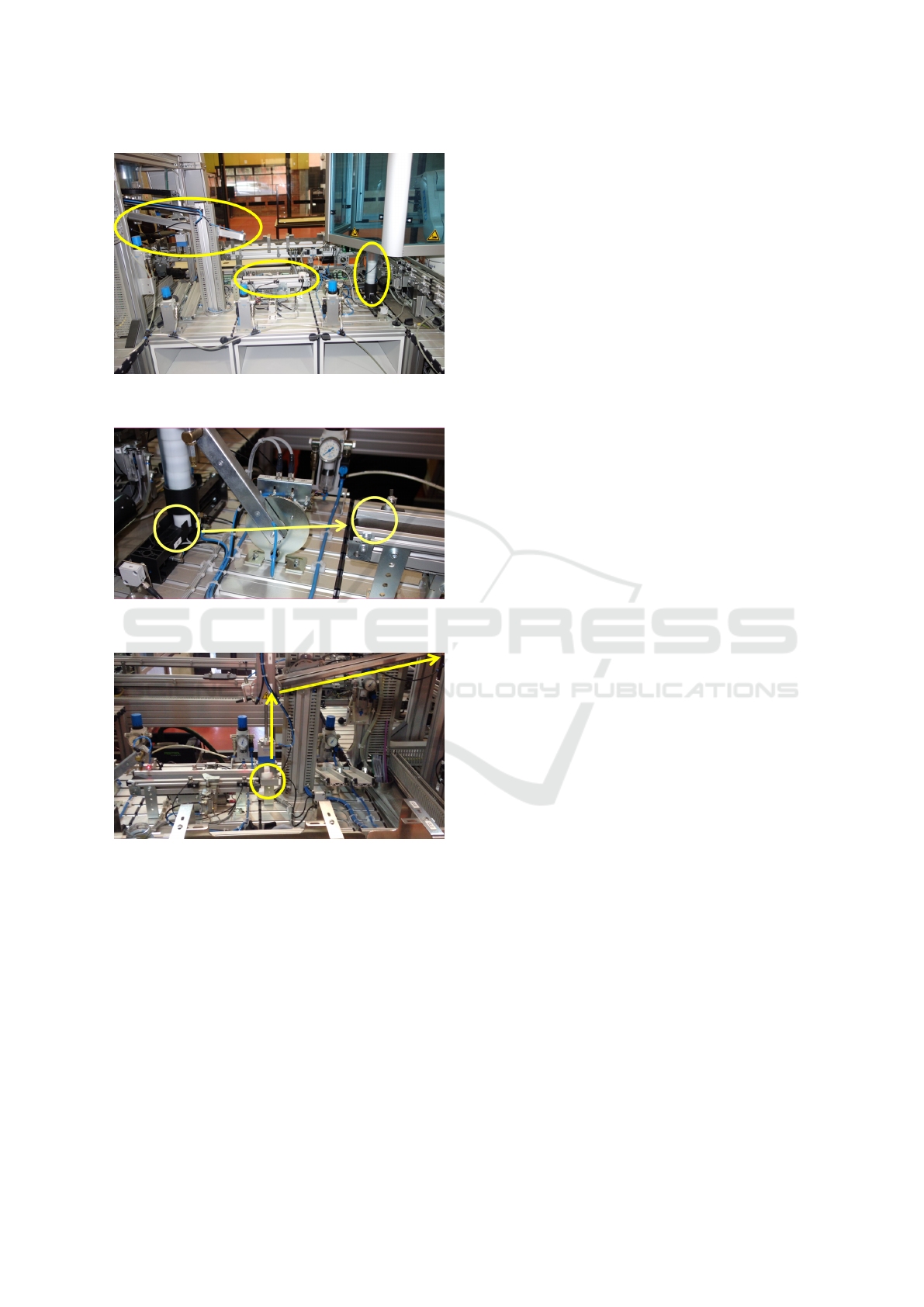

Figure 2: Experimental setup — mini food processing plant
with relevant parts highlighted.
Figure 3: Experimental setup — mini food processing plant
2 with cap movement highlighted.
Figure 4: Experimental setup gripper with motion path
highlighted.
is in its grasp, the gripper reverses its path, moving
the cap upwards and then across (see the motion path
highlighted in Figure 4).
Components in such systems typically operate via
sensors. When the sensor is activated (for example,
by the piston detecting the presence of a bottle cap),
the component is activated. The recent development
of cheap miniature computers such as the Raspberry
Pi (Raspberry Pi) means that it is now possible to in-
troduce more intricate control mechanisms into envi-
ronments such as this, which provide greater oppor-
tunities for exploring possible configurations of the
bottling system, and particularly when it comes to co-
ordination of concurrent activities. For example, the
lever can only pick up the cap when one is present,
which could be detected by a sensor. However, if the
controller (i.e. the Raspberry Pi) knows that a cap has
just been put into position, there is no need to sense
whether one is present or not, and the lever can be
activated independently of its sensor. This allows for
greater variations of co-operation during the concur-
rent operation of the components by centralising some
aspects of control in the Raspberry Pi. Raspberry Pis
are now a well-known technology designed for exper-
imentation and innovative applications. They are also
cheap, based on open source software and are rela-
tively well-documented. This makes Raspberry Pis
an attractive platform for analysing the possibilities
for controlling the bottling system.
In this position paper we discuss the ways in
which we can apply the techniques of formal meth-
ods in order to analyse configurations of the bot-
tling system. As noted above, there are a variety of
skills needed to investigate end-to-end properties of
this system, such as throughput, safety, energy effi-
ciency and robustness. In particular, the presence of
the Raspberry Pis means that it is possible to investi-
gate tradeoffs between co-ordination via sensors and
via explicit control. The naturally reactive nature of
co-ordination via sensors has a greater amount of ro-
bustness and redundancy, but allowing programmed
control will allow for potentially greater exploitation
of global properties of the system.
It should be noted that this context requires an ag-
ile approach to configuration and deployment. This
is due to not only the multi-disciplinary nature of the
skills needed to deploy the system but also the dy-
namic nature of the environment in which it operates.
Over the life of the plant, not only may components
and other parts of the system change or be replaced,
but also the requirements for the system may evolve.
This means that we expect a cycle of continuous up-
dates to the system, which will involve regular recon-
figuration and refinement. Hence we are not using
formal methods for the articulation and satisfaction
of deployment constraints, but as a means of captur-
ing properties of the system in a way which will al-
low regular reconfiguration and collaboration. This
will also allow us to explore “what if” scenarios, such
as potential reconfigurations, and specific ideas about
what constitutes optimality for the system (whether
it be safety properties, numbers of sensors required,
measures of concurrency, or an ability to recover from
mishaps).
This also means that the semantics will need to be
able to express contracts for each component. For ex-
ample, the piston that moves the bottle caps forward
COLAFORM 2016 - Special Session on Collaborative Aspects of Formal Methods
364
may vary the way in which its internal hydraulics
work, but as long as there is no change in the fre-
quency at which the caps can be moved or the way in
which it is triggered, the rest of the system need not
be concerned. However, if a change to the hydraulics
affects, say, the power consumption, or the timing at
which the caps can be moved, then there is a need to
collaborate in order to reconfigure the system appro-
priately. This means that the formal description of the
system becomes an important element of the collab-
oration, as it is the place where interactions between
the components are expressed and analysed. This will
also provide a means for standardising the terminol-
ogy used.
This means that our point of distinction from other
approaches is to use the food processing plant as a
concrete case study of how to organise collabora-
tion between a diverse group of people. In particu-
lar, supervision of the plant is often where the need
for collaboration arises. For example, a new man-
ager may need to have an overview of what the plant
does and how the various components work together.
This overview may result in some changes in the man-
agement of the plant, such as prioritising electronics
over hydraulics due to the availability of local exper-
tise. In general, there may be mismatches between
skills required for the plant and the local availability
of qualified personnel, or imperfections in some com-
ponents that require some subtle changes to the way
the plant operates. Suppliers may change over the
lifetime of the plant, or come from various different
parts of the world, which, together with local market
factors (taxes, exchange rates etc.) may vary the way
in which components are valued. Naturally recalling
and exchanging components is much less preferable
than adapting existing ones to changing conditions.
It is also worth noting that collaboration may
come in a number of forms. One is collabora-
tion across disciplines, but there is also a need to
collaborate over temporal differences (e.g. compo-
nents that change over time), distance (e.g. mining
operations controlled from hundreds of kilometres
away), or across phases as in the well-known V-model
(ISO26262). There may be many forms of collabora-
tion, and it is important to allow as wide a variety of
collaboration as possible.
A further pragmatic issue is that the semantics
must be sufficiently simple so that it can be readily
understood by a wide variety of professionals. This
means that temporal logics and other semantically
rich formalisms are not appropriate in our context.
Whilst such formalisms are well-known in software
engineering, it is highly likely that people outside the
formal methods community will find them too diffi-
cult to use. This means that our semantics will be
based around finite state automata, and particular vari-
ants such as timed automata (Alur and Dill 1994).
This also has the advantage of being able to switch be-
tween levels of abstraction. For example, if we wish
to focus our attention on the gripper, rather than the
system of the piston, lever, conveyor and gripper, then
it is relatively straightforward to consider the gripper
as the configuration of a number of components, such
as the gripper arm itself, the pin that moves vertically
up and down, and the mechanism that moves the grip-
per horizontally.
A key observation is that we are interested in vali-
dation of the current configuration, no matter what the
current stage of development may be. This is in the
same spirit as the V-model, in that at any point in the
process, we are able to identify validation issues, and
potentially address them. This is another reason for
keeping the semantics relatively simple, as it is more
focused on the interaction between components than
on the particular properties of the components them-
selves.
While the number of components in our example
is small, and hence can be manually reconfigured as
need be, in general it will be a lot more difficult to
revise and validate a particular configuration of the
plant. For this reason we anticipate using satisfiability
modulo theory (SMT) solvers and related technolo-
gies in order to analyse configurations of the plant.
This seems particularly appropriate given the poten-
tially global nature of the control mechanisms made
possible by the Raspberry Pis, and in particular the
way in which the overall properties of a configuration
can be inferred from the properties of individual com-
ponents. The problem of determining an appropriate
architectural configuration can then be transformed
into a problem of determining whether a specific for-
mula is satisfiable or not, which can then be provided
as input to an SMT solver.
2 EXAMPLE SYSTEM
As shown in Figures 2 and 3, we focus on a partic-
ular part of the Festo installation. A column of bot-
tle caps (which can be seen in the left of Figure 3) is
supplied, and the bottom cap in this column is pushed
forward by the piston so that it is underneath the pneu-
matic lever. The lever then descends and collects the
cap, rotates through around 135
before halting and
dropping the cap on the conveyor. The conveyor then
moves the cap around 30cm to the other end, where
the gripper then descends, collects the cap and places
it on a rotating platform (to the right of Figure 4),
Formal Behavioural Models to Facilitate Distributed Development and Commissioning in Industrial Automation
365



















Figure 5: Overview on our methodology.
from which the caps are placed onto bottles (by an-
other part of the plant). The cap’s journey from the
initial column to the rotating platform takes about 20
seconds.
One point to note is that in the configuration in
the plant, the lever can only rest when it is at the po-
sition where it drops the cap onto the conveyor belt.
However, in order for the cap to move along the con-
veyor, the lever has to be moved from this position,
because otherwise the end of the lever remains inside
the cap. This means that an extra iteration of the lever
movement is required (so that the lever has to make
two movements in order to move one cap) to allow
the tip of the lever to be out of the way when the cap
is moved by the conveyor. This is an artefact of the
cyber-physical nature of the system.
We construct a possible abstract specification of
the physical process. In this example our method is
based on composition and synchronisation of cyclic
state machines of local processes corresponding to
underlying cyber-physical components including ma-
chinery and their associated sensors and/or actuators,
following the approach in (Schmidt et al 2003). State
machines capture that local physical processes are in
contact with neighboring processes via synchronisa-
tion such that output actions of one process corre-
spond to input actions of a contacting process. For
several components, actions imply synonyms for la-
bels on corresponding input or output transitions link-
ing connecting states: The piston is initially home,
then push(ing), at limit of extension (output: limit),
retracting (input: retract) or in the home position.
The lever and gripper are either carrying, waiting to
drop, dropping, or (return)ing. The conveyor is ei-
ther moving or stopped. Sensors on the conveyor in-
dicate via transitions when a cap at the entry (placed
by lever) and exit (lifted by gripper) positions arrived
or departed, hence for example the overall cyclic se-
quence: entry.arr, entry.dep, exit.arr, exit.dep. The
(rotating) platform is either moving or stopped.
The overall behaviour of the system is a synchro-
nised composition of all these. The description of the
system can be derived incrementally by pointwise-
synchronising pairs of component processes. In com-
position, for example, the conveyor states are guarded
by actions move and stop which are paired with ac-
tions in a synchronisation process which interacts
with the lever and the gripper.
3 COLLABORATIVE SCENARIOS
Figure 5 provides an overview of our methodology.
The Festo equipment is designed to be flexible, and
hence generally requires tailoring to specific needs.
The introduction of the Raspberry Pis means that
there are greater possibilities for co-operation than
when the components are operated by sensors alone.
This means that we may be able to alter some of the
end-to-end properties of the configuration by utilising
more explicit control mechanisms. For example, it
takes around 20 seconds for the cap to travel from the
initial column to the place where it is put down by the
gripper. We can potentially increase the throughput
of the system by utilising the conveyor as a buffer for
caps. From the images, it seems that around 6 caps
would fit on the conveyor at one time (note that there
is an arm on the conveyor which means the caps can-
not proceed past a certain point without an explicit
command from a controller). The time taken for the
piston to move the cap is about 1 second, and the time
for one cycle of the lever and the gripper is about 3
seconds and 8 seconds respectively. It takes the con-
veyor around 3 seconds to move the cap from one end
to the other. This means that it would be possible to
have up to 3 caps on the conveyor at any one time,
with the gripper (being the slower of the two moving
arms) working continuously while the lever can work
at a slower rate, as it only needs to ensure that there
are 3 caps on the conveyor at any time.
We may also wish to experiment with the fre-
quency of the lever action, as it may be better (for
hydraulic, electrical or maintenance reasons) to move
the lever for three continuous cycles (to fill an other-
wise empty conveyor) and then remain idle for three
cycles (allowing the conveyor’s store of caps to emp-
tied before moving again), rather than to initially fill
the conveyor (for three cycles) and then work one cy-
cle at a time to maintain three caps on the conveyor
(i.e. synchronise the movement of the lever with the
gripper). As mentioned above, we also need to take
into account the property that caps cannot move on
the conveyor when the lever is at rest at 135
, mean-
ing that it may be necessary to move the lever even if
there is no cap to collect.
Alternatively, we may wish to maximise the pos-
sibility of recover from an error, such as the lever
COLAFORM 2016 - Special Session on Collaborative Aspects of Formal Methods
366
placing the caps on the conveyor in slightly different
ways each time, which may mean it is safer to limit
the number of caps on the conveyor at any time to 2.
We may also want to minimise the number of active
sensors (or other parts) in the system, or to focus con-
trol on the most critical aspect of the system (such as
the number of caps on the conveyor at any one time)
and allow the other components to be operated purely
by sensors.
We may also wish to reconfigure the lever itself, so
that it can come to rest at a vertical position after drop-
ping the cap. This will avoid the problem of having
to move the lever so that the conveyor can move the
cap, but requires more sophisticated hydraulic man-
agement, and will presumably mean that the lever
moves at a significantly slower pace. The change of
the properties of the lever will be reflected in the se-
mantics, which can then be used as a tool for com-
munication and hence collaboration between the hy-
draulics expert, the conveyor expert and the software
engineer in charge of the Raspberry Pis.
The semantics could also be used as a specifica-
tion of what behaviour is desired, which can then be
used to investigate the potential behaviour of the sys-
tem. In the above example with the lever, the soft-
ware engineer may be interested to know if the lever
can be made to rest in a vertical position with a cy-
cle time (including picking up the cap from the piston
and placing it on the conveyor) within 9 seconds; the
hydraulics expert can then analyse whether this is pos-
sible or not, and what other consequences there may
be. This is how we envisage the semantics assisting
with collaboration, in that it provides a means of stat-
ing precisely what the (ideal or actual) behaviour of a
specific component may be, as well as how the vari-
ous components interact. This also means that the ex-
pression of a contract, i.e. the properties of one com-
ponent of interest to another, will also need to be a
central part of the semantics.
4 APPROACH
Our approach is to develop the semantics for each
component (in our running example, the piston, lever,
conveyor, and gripper) and then to compose the se-
mantics of the overall system from those for each
component. This will involve both the internal states
for each component (with the associated transition
conditions between states) and the interfaces between
components. Our running example is fairly small,
and in general it seems possible to handle the seman-
tics for this system by hand. However, for a system
with dozens of components, it is likely that some au-
tomated tools will be required to manage the scale in-
volved. For this reason we anticipate using tools such
as SMT solvers to manage the overall configuration of
the system. In particular, we envisage a specification
of a desired configuration of the system being mapped
to a specific physical configuration, with the mapping
between the two being found by the SMT solver.
It should be noted that we do not necessarily ex-
pect this process to be fully automatic; in fact, it is
likely that this will only be feasible with some human
input at critical points, especially for larger systems.
In the extreme, there may even be a completely hu-
man specification that is checked by the solver, but in
many cases a human expert may provide some partial
input, such as the configuration for a particularly intri-
cate or critical component, with the SMT solver being
used to fill in the rest of the configuration task. It may
also be that the solver will provide some choices, from
which a team of humans may choose the most appro-
priate one. In this way the use of formal models with
appropriate tool support can provide opportunities for
collaboration and distributed development.
The use of a solver in this way means that it is pos-
sible for collaboration to take place across distances,
with the semantics for each component being input
to a solver in the cloud. It also means that it is not
required that any one person in the team know the
global properties of the system, but only the proper-
ties of the components for which they are responsible.
5 RELATED WORK
Our demonstrator is based on Festo equipment, cus-
tomized using Raspberry Pis as controllers running
on the 4DIAC (Strasser et al. 2008) runtime environ-
ment. A similar demonstrator setup has been used
in (Wenger et al. 2015) where formal models (behav-
ioral types) serve as a specification basis for monitor-
ing of an IEC 61499 based system. Moreover, similar
specifications have been extended for cyber-physical
systems (Blech and Herrmann 2015). Ultimately, our
work is intended to complement a framework that
supports other aspects of collaboration such as spatio-
temporal models and decision support based on them.
Such a framework has been introduced in (Blech et
al. 2015). (Blech et al. 2014) describes usages for
specifications for similar demonstrators.
The V-model (as e.g., incorporated in the ISO
26262 standard (ISO26262) in the automotive do-
main) uses a divide and conquer approach for iden-
tifying and developing components. This provides
some suggestion on possible teams, tasks and de-
pendencies in the development of cyber-physical sys-
Formal Behavioural Models to Facilitate Distributed Development and Commissioning in Industrial Automation
367
tems.
Interface automata (Alfaro and Henzinger 2001)
are one form of component-based specifications that
inspired the modeling formalisms proposed in this
paper. Component descriptions in (Alfaro and Hen-
zinger 2001) are based on timed automata. The
focus of interface automata is on interactions be-
tween components and as in our work can serve as
a basis for facilitating collaboration between differ-
ent development teams. Behavioral types from the
Ptolemy framework (Lee and Xiong 2004) are a mod-
eling mechanism for components and are primarily
aimed towards the software part of real-time systems
such as execution time of code. External State Ma-
chines (Kraemer and Herrmann 2009) are based on
UML state machines describing the interface behav-
ior of software components or building blocks for the
control of cyber-physical systems. Tangible user in-
terfaces (Shaer and Hornecker 2010) provide another
way of exemplifying underlying principles of cyber-
physical specifications. Cyber-physical characteris-
tics can be described using a behavioral specification,
e.g., using a domain specific language.
Ways to use SMT solvers for generating PLC
functionality have been described in (Cheng et al.
2014) (Cheng et al. 2012). In contrast to this, we
are investigating solutions to facilitate the collabora-
tion between different stakeholders. We propose the
use of solvers to facilitate this. Formula is a frame-
work for specifying systems and using SMT-based
constraint solving to ensure properties
1
. The frame-
work is specifically tailored towards the use of the z3
SMT solver (Moura and Bjøner). Modelica is another
logic-based specification framework
2
which has been
applied in a variety of contexts.
Several industry-academia collaborations have de-
veloped frameworks for component interfaces and
aim at facilitating collaboration between different
stakeholders for different system components. The
combest project (Bensalem et al.)
3
, Recomp
4
, d-
mils
5
, and Aramis
6
all follow these goals providing
some sort of component description language. Ap-
plication domains include industrial automation, au-
tomotive engineering, avionics and trains.
Formula (Jackson et al. 2009) provides a generic
modeling language for specifying properties of com-
1
http://research.microsoft.com/en-us/um/people/
ejackson/
2
https://www.modelica.org/documents/
ModelicaSpec33Revision1.pdf http://book.xogeny.com
3
http://combest.imag.fr/home
4
https://artemis-ia.eu/project/21-recomp.html
5
http://www.d-mils.org/page/publications-1
6
http://www.projekt-aramis.de/projekt/ziele
ponents and means to reason about them. Reasoning
is based on SMT solving. The framework targets non-
functional requirements of software systems.
Modelica (Fritzson 2010) is a language aimed to-
wards the modeling of cyber-physical systems. Spec-
ification of industrial automation systems using a the-
orem prover has been investigated, e.g., in (Blech
and Ould Biha 2011). The specification is based
on the IEC 61131–3 standard for programming pro-
grammable logic controllers. In our work, we are
not addressing a particular programming standard, but
are experimenting with IEC 61131–3, IEC 61499 and
Python code running on our Raspberry Pi based con-
trollers.
6 CONCLUSION
This position paper is an outline of our plans for
developing an appropriate semantics for reasoning
about the properties of the Festo system. We will
further develop the semantics for the Festo system
described above, and to use it to investigate various
properties. This will provide us with a specific sce-
nario for the discussion of reconfiguration problems
and related issues. We envisage using tools such as
the SMT solver z3 for this purpose. We also plan to
empirically derive requirements for collaborative sce-
narios based on an observational study of a project
involving the Festo system.
REFERENCES
L. de Alfaro, T.A. Henzinger (2001). Interface Automata. In
Symposium on Foundations of Software Engineering,
ACM.
R. Alur, D. Dill (1994, April). A theory of timed automata.
Theoretical Computer Science 126(2):183-235.
S. Bensalem, M. Bozga, T.-H. Nguyen, J. Sifakis (2010,
June). Compositional verification for component-
based systems and application. In Software,
IET, vol.4, no.3, pp.181-193. doi: 10.1049/iet-
sen.2009.0011
J. O. Blech, M. Spichkova, I. Peake, H. Schmidt (2014).
Cyber-Virtual Systems: Simulation, Validation & Vi-
sualization. Evaluation of Novel Approaches to Soft-
ware Engineering. SciTePress ISBN 978-989-758-
030-7.
J. O. Blech, P. Herrmann (2015). Behavioral Types for
Space-aware Systems. Model-based Architecting of
Cyber-Physical and Embedded Systems. CEUR pro-
ceedings, vol. 1508.
J. O. Blech, S. Ould Biha (2011). Verification of PLC Prop-
erties Based on Formal Semantics in Coq. 9th In-
ternational Conference on Software Engineering and
COLAFORM 2016 - Special Session on Collaborative Aspects of Formal Methods
368
Formal Methods (SEFM), Montevideo, Uruguay, vol.
7041 of LNCS, Springer.
J. O. Blech, I. Peake, H. Schmidt, M. Kande, A. Rahman,
S. Ramaswamy, S.D. Sudarsan, V. Narayanan (2015).
Efficient Incident Handling in Industrial Automation
through Collaborative Engineering. Emerging Tech-
nologies and Factory Automation (ETFA), IEEE.
C.H. Cheng, C.H. Huang, H. Ruess, S. Stattelmann (2014,
January). G4LTL-ST: Automatic generation of PLC
programs. InComputer Aided Verification (pp. 541-
549). Springer International Publishing. ISO 690
C.H. Cheng, M. Geisinger, H. Ruess, C. Buckl, A. Knoll
(2012, January). MGSyn: Automatic synthesis for in-
dustrial automation. In Computer Aided Verification
(pp. 658-664). Springer Berlin Heidelberg.
P. Fritzson (2010). Principles of object-oriented modeling
and simulation with Modelica 2.1. ohn Wiley & Sons.
ISO 690
ISO 26262 standard (2011), ISO, Geneva.
E.K. Jackson, D. Seifert, M. Dahlweid, T. Santen, N.
Bjørner, W. Schulte (2009, January). Specifying and
composing non-functional requirements in model-
based development. In Software Composition (pp. 72-
89). Springer Berlin Heidelberg.
F. A. Kraemer and P. Herrmann (2009). Automated En-
capsulation of UML Activities for Incremental Devel-
opment and Verification. In Model Driven Engineer-
ing Languages and Systems (MoDELS), vol. 5795 of
LNCS, pages 571–585. Springer-Verlag.
E. A. Lee, Y. Xiong (2004). A Behavioral Type System
and its Application in Ptolemy II. Formal Aspects of
Computing, 16(3):210–237.
L. Moura, N. Bjørner (2008). Z3: An Efficient SMT Solver.
In Proceedings of the 14 International Conference on
Tools and Algorithms for the Construction and Analy-
sis of Systems (pp. 337-340).
Raspberry Pi. https://www.raspberrypi.org. Accessed De-
cember 2015.
H. Schmidt et al. (2003). Modelling predictable component-
based distributed control architectures. In the Ninth
IEEE International Workshop on Object-Oriented
Real-Time Dependable Systems, 2003. WORDS 2003
Fall.
O. Shaer, E. Hornecker (2010). Tangible user interfaces:
past, present, and future directions. Foundations and
Trends in Human-Computer Interaction 3(!-2):1-137.
T. Strasser, M. Rooker, G. Ebenhofer, A. Zoitl, C.
S
¨
under, A. Valentini, A. Martel (2008, July). Frame-
work for distributed industrial automation and con-
trol (4DIAC). In Industrial Informatics, 2008. INDIN
2008. 6th IEEE International Conference on (pp. 283-
288). IEEE.
M. Wenger, J. O. Blech, A. Zoitl. Behavioral Type-based
Monitoring for IEC 61499 (2015). Emerging Tech-
nologies and Factory Automation (ETFA), IEEE.
Formal Behavioural Models to Facilitate Distributed Development and Commissioning in Industrial Automation
369
