Security and Privacy for Emerging Smart Community Infrastructures

Bogdan Copos

, Karl Levitt

, Jeff Rowe

, Parisa Kianmajd

, Chen-Nee Chuah

and George Kesidis

University of California Davis, Davis, CA, U.S.A.

Penn State University, State College, PA, U.S.A.

Keywords:

Cyber-security, Privacy, Internet-of-Things, Microgrids, Software Deﬁned Networks (SDN), Cloudlet.

Abstract:

Smart communities of the future have features that make them susceptible to novel forms of cyber-attack

and a potential loss of privacy for the citizens they serve. We view these communities as metro level wide

area control systems with sensors and actuators located in residences, the workplace, in mobile vehicles and

even worn on the body. In addition, this distributed system may not be subject to centralized control. It

needs to be responsive to the individual needs of citizen owners yet still maintain the ability to coordinate

actions across a neighborhood, or larger metropolitan area. The question we wish to address is, as frameworks

emerge to handle these unique challenges, how can we provide security and privacy for such and open and

decentralized environment? We suggest ways to add security and privacy to low level IoT devices, to a cloudlet

based application platform, to a wide area SDN for coordination, and to negotiation protocols for citizen

coordination.

1 INTRODUCTION

By connecting rapidly emerging cyber-enabled sen-

sors and actuators and providing communications

protocols, a wide variety of novel beneﬁcial appli-

cations become available. Communicating position

and speed between vehicles and with the roadside in-

frastructure can enable optimal highway trafﬁc man-

agement (A. Thiagarajan and Eriksson, 2009; Houn-

sell et al., 1998; James, 1995; Amoozadeh et al.,

2015; A. Chen and Zhang, 2006; Khorashadi et al.,

2011; B. Liu and Zhang, 2010) applications, includ-

ing smart intersections and efﬁcient vehicle platoon-

ing. Wearable health monitoring devices that commu-

nicate physical activity, heart rates and other biomed-

ical data to health care professionals provides for new

health maintenance and independent living lifestyles.

Coordination of residential solar arrays, battery stor-

age, and plug-in electric vehicle chargers would allow

novel distributed optimal microgrid control schemes

(Alizadeh et al., 2013b; Alizadeh et al., 2014a; Al-

izadeh et al., 2014b; Alizadeh et al., 2013a; Lu et al.,

2013) for neighborhoods. It is critically important,

however, that the introduction of these new technolo-

gies doesn’t introduce new cyber-security vulnerabil-

ities and threats to citizens’ privacy.

As new architectures are designed and developed,

provisions for robustness and resiliency in the pres-

ence of both natural faults and malicious attack must

be included. Emerging IoT routing protocols include

self-healing and tolerating intermittent loss. Similar

treatment for cyber-security and privacy mechanisms

should be built in from the outset. This includes sepa-

ration of privilege, network and device access control,

and runtime monitoring among other things. Towards

a general smart community secure framework, we de-

ﬁne a smart community metro-scale network as the

infrastructure that enables coordination and control

over a wide variety of cyber-physical systems. This

framework includes,

• Internet of Things (IoT) devices and communi-

cations protocols - low-powered, resource poor

physical sensor and actuator devices with limited

communications capabilities.

• Mobile Cloudlet Infrastructure - an intermediate

software application infrastructure that is located

very close to the IoT or mobile devices, can han-

dle resource intensive computations, can migrate

through the network with mobile devices and has

a high-quality connection to standard ﬁxed cloud

services.

• Smart Community SDN - an SDN backbone

running over the wired Internet that connects

cloudlets and provides tunneling of IoT protocols

for mobile IoT devices.

Figure 1 gives a notional overview of this architecture.

148

Copos, B., Levitt, K., Rowe, J., Kianmajd, P., Chuah, C-N. and Kesidis, G.

Security and Privacy for Emerging Smart Community Infrastructures.

DOI: 10.5220/0005929901480155

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 148-155

ISBN: 978-989-758-183-0

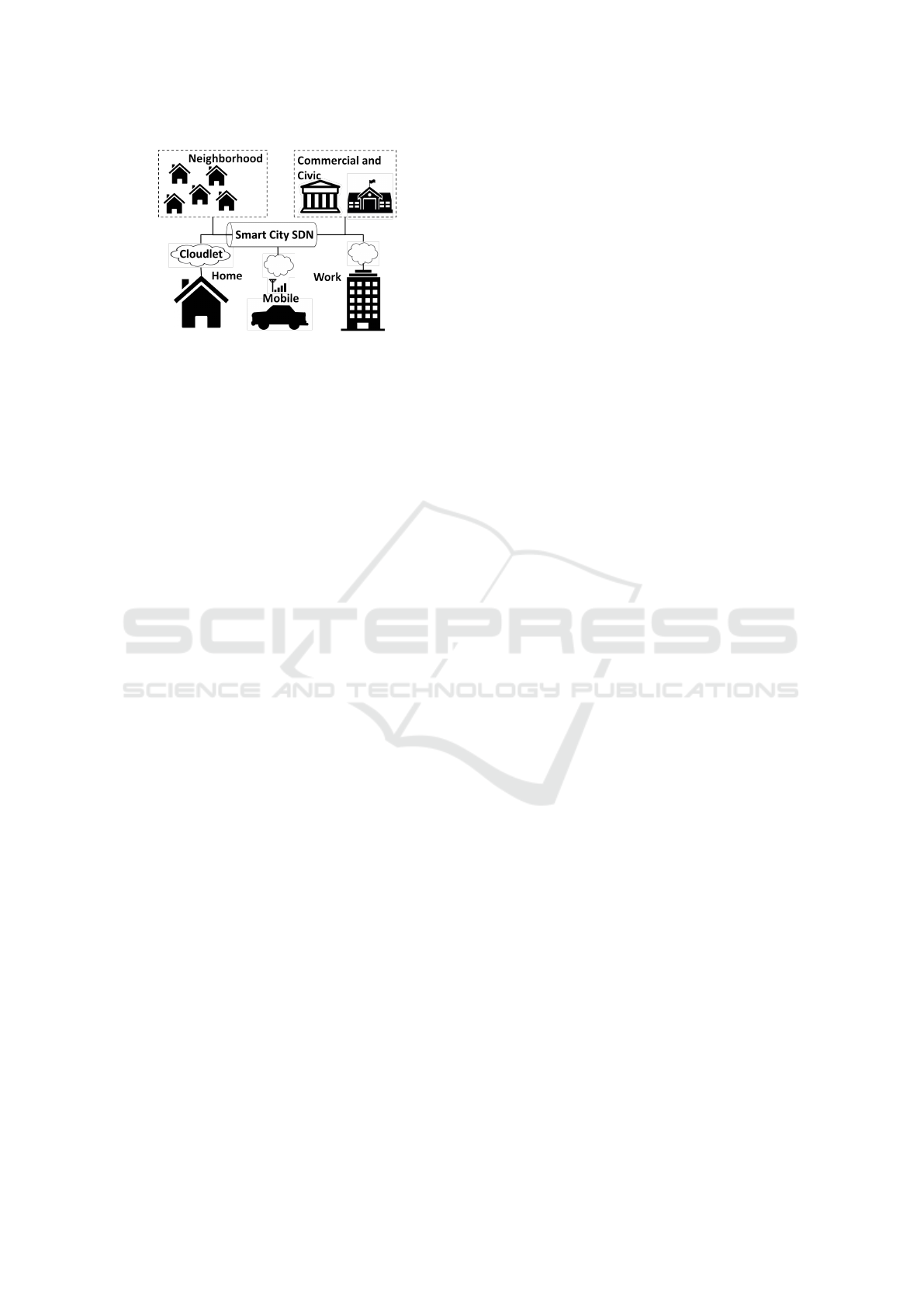

Figure 1: A notional smart community network architec-

ture.

Individual buildings or sites maintain an internal

IoT device network. IoT devices are networked to

communicate with the site “root” gateway using the

RPL routing protocol designed speciﬁcally for such

networks that is rapidly becoming a standard for IoT.

The Internet ingress location is provisioned to host

a cloudlet that manages compute intensive applica-

tions to provide high level control of a site’s devices.

These cloudlets can migrate from ingress to ingress

point for mobile devices as they travel. A software-

deﬁne network (SDN) is used over the wired Inter-

net backbone to enable mobile IoT devices to operate

seamlessly with the ﬁxed site devices and to provide

access control and isolation between sites and appli-

cations. Cooperating sites use the SDN to implement

metro scale control applications that use IoT devices

of all users as sensors and actuators. Present consen-

sus is that SDN is used to simplify network conﬁgura-

tion including virtualized network functions (VNFs).

VNFs could include intrusion detection systems and

ﬁrewalls deployed at the site’s Internet gateway, WiFI

router or at a nearby cloudlet (the cloudlet generally in

support of mobile/cellular communications). For the

remainder of this paper, we discuss how each compo-

nent of this framework would be used and how secu-

rity and privacy concerns can be addressed.

2 SECURITY OF THE

LOCALIZED SITE NETWORK

The ﬁrst link in a smart community control network

is the connection to low-power, low-resource IoT de-

vices that serve as sensors and actuators at a particular

site, like a residence, a commercial building or public

property. We assume that each of these sites will have

some gateway to a high-capacity, high-availability

network backbone, either wired or wireless. The

question is, how can we avoid introducing a new po-

tential attack vector of the localized IoT site network

with this IoT device routing protocol. The routing

protocol must support low power IoT devices and ef-

ﬁciently handle lossy ad-hoc networks constructed by

such devices. The protocol must also allow for ﬂexi-

bility on the criteria used for optimizing routing. For

example, in some scenarios, routing should be opti-

mized based on the number of hops while in other

cases, the reliability of the transmissions may be more

important. With the emergence of IoT devices, the In-

ternet Engineering Task Force (IETF) recognized the

need for a standardized IPv6 routing solution for IoT

networks. As a result, a working group was formed

and assigned with this task. After careful analysis and

several experiments, the group produced RPL. The

RPL protocol has since been adopted and serves as

the standard routing protocol for low power lossy net-

works (LLNs) (Vasseur et al., 2011). Its role as the

standard routing protocol in LLNs and useful features

make it an ideal candidate for our framework.

2.1 RPL Routing Protocol Overview

RPL is a routing protocol for low-power lossy net-

works in which nodes are connected through multi-

hop paths to a root device, creating a Destination Ori-

ented Directed Acyclic Graph (DODAG). The root

device is typically a hub or border router that has

some limited responsibility for localized device co-

ordination and that serves as a gateway to a more reli-

able high-speed network. Every node in a DODAG

has a rank which is computed using an Objective

Function (OF). The rank indicates the position of a

node with respect to the DODAG root. Consequently,

ranks strictly increase with the number of hops from

the root. The Objective Function deﬁnes routing con-

strains and other properties taken in consideration

during topology construction.

In the initial phase of topology construction,

nodes listen for DODAG Information Objects (DIO)

messages which includes RPL instance ID, IPv6 ad-

dress of the root, etc. Nodes process these messages

and, depending on their preference, select a DODAG

to join. The ﬁrst step of joining a DODAG is select-

ing a parent. During parent selection, the node scans

for nodes in its range and selects the node with the

best (i.e. lowest) rank as the parent. After parent se-

lection, the node computes its own rank using the OF

and sends Destination Advertisement Object (DAO)

messages. DAO messages are used to propagate des-

tination information upwards, toward the root.

Since every node maintains information about

their parent, upward routing is straight-forward.

However, to enable downward routing, RPL has two

modes of operations: nonstoring mode and storing

Security and Privacy for Emerging Smart Community Infrastructures

149

mode. In nonstoring mode, each packet contains the

route the packet is expected to follow through the net-

work. The route is computed by the root, which is

required to maintain information about each node in

the network. On the other hand, when storing mode is

used, RPL uses stateful in-network routing tables. In

other words, every node in the network keeps routing

tables to differentiate between the packets heading to-

wards the root and the packets heading away from the

root. Through the use of upward routing, downward

trafﬁc, or a combination of the two, RPL supports

various kinds of trafﬁc including Multipoint-to-Point

(MP2P), Point-to-Multipoint (P2MP), and Point-to-

Point (P2P).

RPL also has a number of other useful features,

including self-healing capabilities. There are two re-

pair mechanisms, global and local, which are applied

if a link or node failure is detected. If a link or node

failure is detected, the local repair mechanism will at-

tempt to identify a new parent or path. If multiple lo-

cal failures occur, a global repair will be performed

where the entire DODAG is rebuilt. Furthermore,

RPL uses a trickle timer to efﬁciently handle incon-

sistencies such as loops, joining of new nodes, rank

changes. If the network is stable, the trickle timer in-

terval is large. An inconsistency will cause the timer

to be reset and DIO messages to be transmitted.

2.2 RPL Security

Despite having loop detection and self-healing capa-

bilities, the RPL protocol is not equipped with any

protection mechanisms against traditional routing at-

tacks. In (Wallgren et al., 2013) the authors show

that RPL is vulnerable to a variety of traditional rout-

ing attacks, including sinkhole, selective forwarding,

blackhole, wormhole, HELLO ﬂood, and clone ID at-

tacks. All these arise because of the ability of nodes

to advertise false ranks. For example, an attacker

can falsely advertise a beneﬁcial rank thus making

the neighboring nodes route trafﬁc through it. Once

trafﬁc is routed through the attacker, the attacker can

eavesdrop or execute Denial-of-Service by dropping

all packets it receives. A HELLO ﬂood attack can be

executed using DIO messages, which are used to ad-

vertise information about DODAGs to new nodes. In

such an attack, a malicious node with strong signal

power sends DIO messages to various nodes on the

network causing those nodes to route trafﬁc through

it. Since most of the benign nodes do not have an

equally strong signal power, their messages will not

be successfully transmitted. Unfortunately, the built

in self-healing mechanism, designed to deal with nat-

ural faults, is ineffective against the malicious attacks.

While in some cases, given enough time, the self-

healing process helps mediate the attacks, it is never

able to fully eliminate the effects of the attacks.

We are exploring two different approaches to

lightweight monitoring of IoT ad-hoc routing proto-

cols. In the ﬁrst approach, we use ideas borrowed

from our previous work in monitoring wired net-

works (Cheung and Levitt, 1997). This approach

uses conservation-of-ﬂow to identify and isolate mis-

behaving routing nodes. Each routing node maintains

a sum of the sizes of all network packets that it sends

and receives on each link. Periodically, this value is

shared with other neighboring routing nodes in the

network. After receipt of ﬂow summaries, each de-

vice can compute the net sum of a all trafﬁc entering

and exiting a subset of the ad-hoc network graph, and

if the net value is sufﬁciently far from zero, it can be

assumed that a node in the subset is either dropping

packets or injecting false trafﬁc. This approach re-

lies upon having multiple paths to a speciﬁc device

for data sharing and for providing an alternate route if

isolation of the subset is required. Since RPL gener-

ates a tree routing structure directed at the root node,

we use lightweight cryptographic authentication to

sign shared ﬂows, preventing a malicious device in

the path from supplying false information.

Since IoT devices are supplied by third-parties

and have computing power limited to a speciﬁc ap-

plication, implementing such a ubiquitous veriﬁcation

scheme would not be practical. We also consider in-

cluding an IoT device whose sole purpose is to pro-

vide runtime monitoring, without necessarily serving

as a physical sensor or actuator. These low-cost, low-

power IoT security devices would need to be located

on enough routing paths to be able to isolate subsets

of the RPL network. We are investigating modiﬁca-

tions to the RPL routing OF that includes not only

optimal connectivity, but also path security metrics.

Routing node rank would be higher for paths that

include one of these IoT security monitors. A se-

curity monitor device that sees rank advertisements

from other security devices could dynamically alter

its rank to be lower to ensure that not all monitors

cluster in one isolated path. In this manner, routing

integrity can be maintained against both natural and

malicious faults even in networks of off-the-shelf de-

vices programmed without any speciﬁc routing secu-

rity in mind.

IoTBD 2016 - International Conference on Internet of Things and Big Data

150

3 SECURITY AND PRIVACY

WITH A MOBILE CLOUDLET

GATEWAY

Current commercial IoT devices, such as the Nest

family of products, rely heavily upon a centralized

cloud service for conﬁguration and control. The cur-

rent generation of devices are conﬁgured by the user

only with credentials necessary for accessing a site’s

WiFi gateway. Once a network connection to the

cloud controller is established, no other on-site com-

puting resources are involved. This architecture leads

to several security and privacy concerns. First, attack-

ers who compromise the central cloud controller will

own all devices on all sites and have access to users’

information. The IoT devices send a citizen’s per-

sonal and potentially sensitive information to a third-

party which may have different interests. Network

disruptions can result in signiﬁcant loss of function-

ality if a device is unable to acquire important con-

trol information in a timely manner. Other IoT de-

vices, such as the SmartThings family, use a dedi-

cated central controller device. The controller is con-

nected to the site’s Internet gateway and serves as the

communications hub for all other SmartThings sen-

sors and actuators. Such an architecture allows the

device owner to have more control over personal pri-

vacy and is more robust to external disruptions to the

Internet. However this presents its own set of draw-

backs. Mobile IoT devices, such as wearable health

monitors, personal key-fob trackers or vehicle based

devices will often times be out of range of the central

hub. Some applications might tax the power of a ded-

icated communications hub which isn’t designed for

general purpose computing, such as voice or image

recognition.

We investigate a mobile cloudlet architecture that

can provide resource intensive compute services to

the IoT devices under the control of a single site,

regardless of where they are located geographically.

Cloudlets are an emerging platform for handling mo-

bile high-performance applications. Currently, com-

mon cellphone applications, such as map navigation,

voice and image recognition and language translation

are run by cloud services at locations widely sepa-

rated from the device. When a user is moving, this

can lead to service degradation as the path to the cloud

is constantly updated. Cloudlets have been proposed

that run on provisioned hardware located at ﬁrst-hop

Internet ingress points.

Cloudlets are virtual software containers that mi-

grate from location to location as the user moves

about so that high performance can be maintained for

compute intensive services. These containers can also

be used to supply security and privacy services to both

ﬁxed and mobile devices of a site in a smart commu-

nity. Since the cloudlet isn’t controlled by a single

3rd party, the exposure of potentially sensitive user in-

formation would require gaining access to that user’s

site cloudlet. The information of all smart community

citizens is distributed across multiple sites under the

control of the citizens themselves, providing a greater

measure of isolation and separation of privilege.

The RPL protocol monitoring previously dis-

cussed protects the routing infrastructure but doesn’t

address attacks on the control application itself. Ap-

plication level runtime monitoring requires signiﬁcant

computing resources to analyze message content and

to track the state of devices. We investigate cloudlet

based application monitoring based upon physical

speciﬁcations we call “rationality checks”, borrowed

from the automotive industry. Rationality checks

track the state of physical devices based upon applica-

tion protocol messages sent from sensors and control

messages sent to actuators.

Two types of consistency checks are possible.

First, checks on the consistency of protocol state can

detect malicious message injection that attempts to

subvert IoT devices. For example, suppose an appli-

cation is designed so that a temperature sensor request

is sent every time the motion detector is triggered so

that the A/C can be turned on only when the occu-

pant is at home. An attacker that has compromised a

site device might be able to forge a false temperature

report to activate the A/C even if the occupant is ab-

sent. The rationality check in this case would see that

a temperature response without a corresponding mo-

tion detector request violates the state speciﬁcation of

the application protocol. Another type of rationality

check is a constraint based upon the physical prop-

erties of the system. A message from the thermostat

showing a 20 degree temperature rise in the course of

several minutes, for example, would be an obvious vi-

olation of the physical properties driving the sensor;

it would be impossible for the building heater to in-

crease the temperature by that amount in a short time

period. A cloudlet based application gateway pro-

vides both privacy of IoT generated information as

well as a platform for performing compute intensive

cyber-security analysis.

4 SECURE SDN FOR SMART

COMMUNITIES

Smart community applications will use communica-

tions between sites and mobile users to coordinate

speciﬁc activities of the community’s citizens. This

Security and Privacy for Emerging Smart Community Infrastructures

151

coordination can be disrupted by attackers target-

ing the smart community backbone network connec-

tion, through denial-of-service, injection of malicious

packets or eavesdropping on sensitive communica-

tions. We envision using an SDN that can provide en-

hanced security services and countermeasures when

attacks are recognized.

An SDN can add to the security of the network,

but along with this ﬂexibility comes added risk. Au-

thorization and authentication in the SDN switch are

more complicated. For example, commands recon-

ﬁguring the switch must come from a trusted, autho-

rized source, as must updates. SDN switches can also

provide several security services to protect their net-

works. Generated statistics are more accurate than

those supplied by ISPs, which can provide better

data to an intrusion detection system or rationality

checker. OpenFlow Random Host Mutation dynam-

ically allocates a random virtual IP address mapped

to the real IP address, hiding the real IP address from

external sites which can protect the privacy of citi-

zens. The controller can enforce dynamic access con-

trol policies based on ﬂow-level information to pre-

vent emerging denial-of-service attacks in their earli-

est stages. Finally, applications can act as edge-based

network authentication gateways to ensure that forged

packets claiming to originate at false smart commu-

nity sites are recognized and blocked.

We are also investigating the use of the SDN to

provide a seamless IoT environment for mobile de-

vices. Low-power, low resource IoT devices such

as motion trackers and heart rate monitors may not

be able to recognize the context of their environment

to alter their behavior. For example, a health moni-

tor that travels with a user from home to the work-

place might still need to communicate with devices

that remain in the home. The mobile cloudlet travel-

ing with the user provides the high-level application

controller but not one that includes other stationary

devices in other locations. We investigate SDN pro-

tocols for tunneling low level RPL type routing mes-

sages through the backbone network so that resource

limited IoT devices maintain their application context

regardless of physical location within the site.

5 PRIVATE DECENTRALIZED

SMART COMMUNITY

COORDINATION

A ﬁnal component of secure and private smart com-

munities is the coordination mechanism among com-

munity citizens. In order to provide enhanced ser-

vices and optimize the usage of shared resources, cit-

izens must have some method to reach agreement on

a collection of actions. This might be explicitly con-

strained by the application, such as fairness in wait

times at a smart intersection, which doesn’t require

any citizen interaction. Other applications require a

period of negotiation before an agreement can be met.

We choose a virtual smart electric microgrid as our

application. It is well known that solar power arrays

suffer from the problem of inelastic demand. The

power is generated based upon solar radiance, which

doesn’t match immediate demand. This problem will

only become worse with the increase in plug-in hy-

brid electric vehicles which begin their charging cycle

when the sun has started to set in the evening. Resi-

dential power storage in the form of batteries are al-

ready becoming available, which can alleviate some

of the problem.

To optimally use these devices we consider a

smart community power sharing application, which

serves as a virtual microgrid. Citizens in a neighbor-

hood have a variety of renewable power devices and

a variety of usage load proﬁles. By sharing genera-

tion and storage resources and agreeing upon a usage

schedule, the collection of devices can be optimized

to the advantage of all participants. The question is,

how can citizens coordinate this activity without re-

vealing details of their power use to others, which is

a major privacy concern today. Analyzing a site’s en-

ergy usage information can leak private their house-

hold appliance use data. By analyzing your energy

usage one can ﬁnd out about kind of appliances used,

time of use, as well as, when you are or are not at

home or asleep. We are investigating a novel pri-

vate coordination mechanism that is applicable to a

wide variety of smart community applications based

upon cryptographic blockchains similar to those used

in digital currencies such as BitCoin.

5.1 Decentralized Coordination using

Blockchain

The current literature has shown that applications of

blockchains can go far beyond the ﬁnancial domain.

From distributed storage for private information, to

distributed online marketing, blockchain can be used

to provide distributed audit records (Zyskind et al.,

2015). Blockchain distributed agreement is a good

choice for smart community negotiation and coordi-

nation protocols since it can provide the means to

build and maintain a distributed storage of privacy-

sensitive energy usage information without a single

owner. Also, blockchain provides us with an append-

only immutable records which is essential for our sys-

IoTBD 2016 - International Conference on Internet of Things and Big Data

152

tem and ensures the users cannot insert fake points to

their energy usage points history.

The general idea is that similarly to the current

power grid, generation and load scheduling is per-

formed in advance. Typically this is done with a

week-ahead market that matches bids to offers. The

schedule is updated daily as conditions change, with

a ﬁnal generation and usage schedule generated 5

minutes ahead of runtime. This is currently per-

formed by a central regional power authority in to-

day’s grid. The same type of advanced scheduling

can be performed in our neighborhood microgrid us-

ing distributed bidding with a blockchain. The pri-

vacy of citizens would be maintained using random

nonce identiﬁers generated by sites. Bids would be

added to the blockchain and forwarded to all coop-

erating sites. The blockchain mechanism guaran-

tees that bids cannot be altered or forged just like

in the Bitcoin digital currency. All sites share the

same bid/offer blockchain and can compute an op-

timal schedule which they also share. Agreements

to the schedule are appended until all participants

reach consensus. Throughout this process, individual

site usage need not be revealed. Additionally, bids

and agreements cannot be modiﬁed. Details of this

scheme are given below.

5.2 Cryptographic Building Blocks

5.2.1 Commitment Scheme

A commitment scheme is the cryptographic relative

of an envelope and aims at temporarily hiding a

value, while ensuring that it cannot be changed later

(like a sealed bid at an auction). A commitment

scheme consists of two steps: forming the commit-

ment and verifying the commitment. We use the no-

tation c = Com(m;r) to mean that c is a commitment

to the message m using some randomness r (called de-

commitment key). The commitment c is like a sealed

envelope with two properties: hiding, and binding,

which state that the committer is the only one who

can unseal the envelope, and the receiver will not be

able to learn anything about its contents before the

committer reveals it. To reveal the commitment, the

committer has to reveal the random de-commitment

key r to the receiver.

We use “Pedersen” commitment scheme (Peder-

sen, 1991) in our system, that has homomorphic prop-

erty such that if c

is a commitment to m

with ran-

domness r

, and c

is a commitment to m

with

randomness r

, then c

will be a commitment to

+ m

with randomness r

+ r

. Below comes the

description of Pedersen commitment scheme (Peder-

sen, 1991):

• Setup: receiver chooses:

– large primes p and q such that p = 2

q + 1 for

w > 1.

– Random generators g, h such that G = hgi = hhi

and G is a subgroup of Z

∗

∗ Values p, q, g, h are public, r is secret

• Commit: to commit to some x ∈ Z

∗

, the commit-

ter chooses random r ∈ Z

∗

and sends cl = g

mod p to the receiver

• Reveal: to open the commitment, sender reveals

x and r, receiver veriﬁes that cl = g

mod p

5.2.2 Discrete Logarithm Problem

Pedersen commitment scheme is based on the difﬁ-

culty of ﬁnding an answer to discrete logarithm prob-

lem which is described below: Given g

mod p where

p is a large prime, it is “difﬁcult” to learn x (i.e. there

is no known polynomial-time algorithm to learn x). g

is a generator of a multiplicative group Z

∗

5.3 Our Framework

Bidding Phase

Each household j makes an estimate x

for the amount

of energy they will need for the next energy sharing

time period and sends the commitment to that b

com(x

, r

) together with the decommitment key r

the blockchain.

Allocation Phase

The system decides if requests for energy can be ful-

ﬁlled. First it will ensure that the amount of energy

requested by each user does not go beyond a speciﬁc

limit. We rely on the range proofs of Boudot (Boudot,

2000) and Camenisch (Camenisch et al., 2008) for

this step.

Recording Phase

Let e be a symmetric encryption. Periodically,

the tamper proof meter installed for each house-

hold u

, sends values of p

= e(x

||timestamp) to the

blockchain, where x

is the current energy usage at

time timestamp. The meter also sends the commit-

ment to that value cu

= (comm(p

, r

)) off to the

blockchain.

Veriﬁcation Phase

Let x

total

be the total energy that was consumed at the

end of energy sharing time period by the whole neigh-

borhood. The coordinating algorithm ﬁrst checks this

Security and Privacy for Emerging Smart Community Infrastructures

153

amount does not exceed the sum of the requested en-

ergy by each of the households. Using homomorphic

characteristic of our commitment scheme, we check

if the following equation is held.

com(x

total

∑

i=1

) =

∏

i=1

Where x

, x

, ..., x

are the bids by the households

and r

, r

, ... are the decommitment keys they each

provided.

Evidence Gathering Phase

If the result of veriﬁcation phase shows that the to-

tal energy used in the neighborhood is more than the

sum of the requested energy by each household, we

can conclude that one (or more) household have used

more energy than what they had asked for. To ﬁnd

those who disobeyed the protocol, we should check

if the total energy used by each household matches

with the amount that they had asked for in the Bid-

ding phase.

∀user u

: (b

∑

) → 0, 1

5.4 Cryptographic Construction

Our scheme is secure under the Strong RSA and Dis-

crete Logarithm assumptions, and the existence of a

zero-knowledge proof system.

We now describe the algorithms:

• Setup(1

) → params. Generate p, q large primes

such that p = 2

q + 1 for w ≤ 1. Select random

generators g, h such that G = hgi = hhi and G is a

subgroup of Z

∗

. Output params = (p, q, g, h).

• Bid(params, x)) → (c

, r

). Select r

← Z

∗

and

compute c

← g

mod p and output (c

, r

• Verify(params, x

total

, r

total

, C

total

) → 0, 1. Given

a total energy usage x

total

in the entire neighbor-

hood, if x

total

= g

total

output 1, otherwise

output 0.

Our protocol assumes a trusted setup process for gen-

erating the parameters. We stress that the accumu-

lator trapdoor (p, q) is not used subsequent to the

Setup procedure, and can therefore be destroyed im-

mediately after the parameters are generated. Alter-

natively, Sander describes a technique for generating

accumulator parameters without a trapdoor (Sander,

1999).

6 CONCLUSIONS

When designing architectures and frameworks for

next generation smart communities and associated

metropolitan-scale networks and applications, it is es-

sential to build in security and privacy mechanism at

the outset. This includes security and privacy at the

IoT device level, at the controller application level,

at the network level and built in to the coordination

protocols themselves. We have presented our ongo-

ing work in designed-in security mechanisms for the

RPL protocol that connects low-power, low-resource

IoT devices. We also investigate novel cloudlet based

architectures that can provide a measure of privacy

to citizens whose devices are subject to the applica-

tion control, and that can serve as the platform for re-

source intensive security monitoring and analysis. A

smart community SDN can provide isolation, protec-

tion against denial-of-service and provide application

context to low-resource mobile IoT devices without

extensive reconﬁguration. We ﬁnally present a pri-

vate and secure method for distributed coordination

and agreement based upon a shared blockchain data

structure.

ACKNOWLEDGEMENTS

We wish to acknowledge the generous support of the

UC Davis RISE initiative and the NSF SaTC program

which funded portions of this work.

REFERENCES

A. Chen, B. Khorashadi, C.-N. C. D. G. and Zhang,

M. (2006). Smoothing vehicular trafﬁc ﬂow using

vehicular-based ad hoc networking amp; computing

grid (vgrid). In Intelligent Transportation Systems

Conference, 2006. ITSC ’06. IEEE, pages 349 –354.

A. Thiagarajan, L. Ravindranath, K. L. S. M. H. B. S. T. and

Eriksson, J. (2009). Vtrack: accurate, energy-aware

road trafﬁc delay estimation using mobile phones. In

Proceedings of the 7th ACM Conference on Embedded

Networked Sensor Systems, SenSys ’09, pages 85–98,

New York, NY, USA. ACM.

Alizadeh, M., Scaglione, A., Applebaum, A., Kesidis, G.,

and Levitt, K. (2014a). Reduced-order load models

for large populations of ﬂexible appliances. IEEE

Transactions on Power Systems, PP(99):1–17.

Alizadeh, M., Scaglione, A., and Kesidis, G. (Nov. 2013a).

Clustering consumption in queues: A scalable model

for electric vehicle scheduling. In Proc. IEEE Asilo-

mar Conference, invited session on Signal Processing

for the Smart Grid.

Alizadeh, M., Scaglione, A., and Kesidis, G. (Oct. 2013b).

Scalable model predictive control of demand for ancil-

lary services. In Proc. IEEE SmartGridsComm, Van-

couver, BC.

IoTBD 2016 - International Conference on Internet of Things and Big Data

154

Alizadeh, M., Xiao, Y., Scaglione, A., and van der Schaar,

M. (2014b). Dynamic incentive design for participa-

tion in direct load scheduling programs. IEEE Journal

of Selected Topics in Signal Processing, PP(99):1–1.

Amoozadeh, M., Raghuramu, A., Chuah, C.-n., Ghosal, D.,

Zhang, H. M., Rowe, J., and Levitt, K. (2015). Secu-

rity vulnerabilities of connected vehicle streams and

their impact on cooperative driving. Communications

Magazine, IEEE, 53(6):126–132.

B. Liu, B. Khorashadi, D. G. C. C. and Zhang, M. (2010).

Assessing the vanet’s local information storage capa-

bility under different trafﬁc mobility. In INFOCOM,

pages 116–120.

Boudot, F. (2000). Efﬁcient proofs that a committed number

lies in an interval. In Advances in CryptologyEURO-

CRYPT 2000, pages 431–444. Springer.

Camenisch, J., Chaabouni, R., et al. (2008). Efﬁcient pro-

tocols for set membership and range proofs. In Ad-

vances in Cryptology-ASIACRYPT 2008, pages 234–

252. Springer.

Cheung, S. and Levitt, K. N. (1997). Protecting Routing

Infrastructures from Denial of Service Using Cooper-

ative Intrusion Detection. In Proceedings of the 1997

New Security Paradigms Workshop (NSPW).

Hounsell, N., Landles, J., Bretherton, R. D., and Gardener,

K. (1998). Intelligent systems for priority at trafﬁc

signals in london: the INCOME project. Number 454.

IEEE.

James, R. D. (1995). Automated highway system. EP Patent

0,683,911.

Khorashadi, B., Liu, F., Ghosal, D., Zhang, M., and Chuah,

C. (2011). Distributed automated incident detection

with vgrid. Wireless Communications, IEEE, 18(1):64

–73.

Lu, H., Pang, G., and Kesidis, G. (Oct. 2013). Automated

scheduling of deferrable PEV/PHEV load by power-

proﬁle unevenness. In Proc. IEEE SmartGridsComm,

Vancouver, BC.

Pedersen, T. P. (1991). Non-interactive and information-

theoretic secure veriﬁable secret sharing. In Advances

in CryptologyCRYPTO91, pages 129–140. Springer.

Sander, T. (1999). Efﬁcient accumulators without trapdoor

extended abstract. In Information and Communication

Security, pages 252–262. Springer.

Vasseur, J., Agarwal, N., Hui, J., Shelby, Z., Bertrand, P.,

and Chauvenet, C. (2011). Rpl: The ip routing proto-

col designed for low power and lossy networks. Inter-

net Protocol for Smart Objects (IPSO) Alliance, 36.

Wallgren, L., Raza, S., and Voigt, T. (2013). Routing at-

tacks and countermeasures in the rpl-based internet of

things. International Journal of Distributed Sensor

Networks, 2013.

Zyskind, G., Nathan, O., and Pentland, A. (2015). De-

centralizing privacy: Using blockchain to protect per-

sonal data. In Security and Privacy Workshops (SPW),

2015 IEEE, pages 180–184. IEEE.

Security and Privacy for Emerging Smart Community Infrastructures

155
