Detecting Functional Requirements Inconsistencies within

Multi-teams Projects Framed into a Model-based Web Methodology

J. A. García-García

, M. Urbieta

, J. G. Enríquez

and M. J. Escalona

Web Engineering and Early Testing (IWT2) Research Group, University of Seville, Seville, Spain

LIFIA, Facultad de Informática, UNLP, Buenos Aires, Argentina

Keywords: Functional Requirements, NDT, Consistency, Ambiguity, Requirement Gathering, Distributed Teams.

Abstract: One of the most essential processes within the software project life cycle is the REP (Requirements

Engineering Process) because it allows specifying the software product requirements. This specification

should be as consistent as possible because it allows estimating in a suitable manner the effort required to

obtain the final product. REP is complex in itself, but this complexity is greatly increased in big, distributed

and heterogeneous projects with multiple analyst teams and high integration between functional modules.

This paper presents an approach for the systematic conciliation of functional requirements in big projects

dealing with a web model-based approach and how this approach may be implemented in the context of the

NDT (Navigational Development Techniques): a web methodology. This paper also describes the empirical

evaluation in the CALIPSOneo project by analyzing the improvements obtained with our approach.

1 INTRODUCTION

Requirements Engineering Process (REP) is the

process of eliciting, understanding, specifying and

validating customers’ and users’ requirements. The

elicitation and specification of these requirements is

the most critical tasks in requirements engineering

(Robles et al., 2010) and it is a complex, an iterative

and co-operative process as it is necessary to analyze

and identify the functionality that the system has to

fulfill in order to satisfy the users’ and customers’

needs.

In projects, being for the software or not, where

analysts teams carry out the application’s

requirements eliciting, it can appear ambiguities or

inconsistencies due to different points of view of the

same business concept (Kotonya and Sommerville,

1996). These ambiguities and/or inconsistencies can

cause variations in the project scheduling which can

overestimate the required effort. These problems may

be exacerbated in projects where: (i) high integration

between its modules is required; and (ii) big teams of

analysts are simultaneously working but in different

modules. Consequently, it’s necessary to carry out a

validation and conciliation process which may be

composed by analysis and consistency checking tasks

between requirements in order to eliminate

requirements ambiguity and contradictions. After

performing this process in an iterative manner, the

quality in the requirements specification can be

improved which may imply an important reduction of

development cost.

Traditionally, conciliation tasks are performed

through meeting-based techniques and tools (De

Lucia and Qusef, 2010). However, a high number of

requirement inconsistencies are not usually detected

on time (being this one of the most severe reason of

project cost overrun (Yang et al., 2008)). In this

context, the effort to correct the faults is several

orders of magnitude higher than correcting

requirements at the early stages (Leffingwell, 1997).

These problems may be increased when any

methodology is used. In this sense, we propose to

extend a highly used methodology in business and

academia environments in order to define model-

based systematic mechanisms to detect

inconsistencies between requirements in early stages.

This methodology is NDT (Navigational

Development Techniques) (Escalona and Aragon,

2008) which is briefly described in Section 4.

This paper proposes a formal and systematic

technique to detect inconsistencies in the catalog of

requirements and a software tool with which it is

possible to automate the early detection of these

ambiguities and conciliate software requirements in

MDE (Model-driven Engineering (Schmidt, 2006))

García-García, J., Urbieta, M., Enríquez, J. and Escalona, M.

Detecting Functional Requirements Inconsistencies within Multi-teams Projects Framed into a Model-based Web Methodology.

In Proceedings of the 12th International Conference on Web Information Systems and Technologies (WEBIST 2016) - Volume 1, pages 327-335

ISBN: 978-989-758-186-1

327

environments.

To achieve these objectives, we continue a

previous paper (García-García et al., 2012) where we

laid the foundations of our formal technical and its

supporting tool which is named NDT-Merge. This

tool detects conflicts from a lexical point of view.

Now, this paper aims to propose a process in order to

detect inconsistencies from a structural perspective

based on models and later, it proposes solutions to

solve these conflicts. In addition, this paper aims to

implement this process within NDT-Merge.

Once defined the improvements mentioned on the

NDT methodology for detecting conflicts, we have

applied it on a real project called CALIPSOneo

(Section 3). This project has been launched by Airbus

Military and some work-packages were executed by

the IWT2 Research Group.

Although the NDT methodology is purely focused

on software projects, it was possible to successfully

apply this methodology on CALIPSOneo where a

methodological framework was needed during the

capture of requirements and the analysis of the project

as well as the testing phase.

The rest of this paper is structured as follows.

Section 2 offers a global vision of NDT. Section 3

presents the problem which has been our catalyst to

carry out this research. Section 4 presents some

related work in requirements validation. Section 5

describes our previous work based on systematic

conflicts and presents our model-based approach for

detecting inconsistencies and dealing with them

based on NDT by means of an illustrative example.

In section 5, it is expliained the requirement quality

impact in budget And, finally, Section 6 concludes by

discussing the lessons learned, our main conclusions

and some further work on this subject.

2 NDT

NDT (Navigational Development Techniques)

(Escalona and Aragon, 2008) is a Model-Driven

methodology that was initially defined to deal with

requirements in Web development. NDT has evolved

in the last years and it offers a complete MDE-based

support for each phase of the software development

lifecycle: the feasibility study, requirements, analysis,

design, construction, implementation, as well as the

maintenance and testing phases.

At present, NDT defines formally a set of

metamodels for each phase of its lifecycle and it uses

OCL (International Organization for Standardization,

2012) in order to define semantic constraints which

ensure the definition of well-defined models. In

addition, NDT defines transformation rules (using

QVT (Object Management Group, 2008)) with which

it is possible to generate models from others

systematically. This implies a lower cost and a quality

improvement for the software development.

However, this paper is mainly focused on the

requirements phase. In this phase, NDT offers a set of

techniques to capture, define and validate different

kinds of requirements that are formally defined by a

metamodel and they can be traced to the remaining

artifacts of the lifecycle by managing them in a

suitable manner. NDT uses information previously

captured, defined and validated in the requirements

phase as the basis for the analysis phase.

3 MOTIVATING SCENARIO:

CALIPSOneo PROJECT

CALIPSOneo (advanCed Aeronautical soLutIons

using Plm proceSses & tOols) (Escalona et al., 2013)

has been developed in Airbus Military and where

multiple teams have worked. From the experience of

this project we know requirements are difficult to

conciliate in projects involving multiple teams. This

paper proposes improving the NDT methodology

using in CALIPSOneo project to solve these

problems during requirements’ analysis phase.

In CALIPSOneo we have three interrelated

subprojects (MARS, ELARA and PROTEUS) and

independent teams (you can find more information in

(Escalona et al., 2013)). However, subprojects have

to be coordinated and they have to be correctly

integrated because they have common actors who

demand common functionality. Consequently, a

flexible software methodology was needed to ensure

the success of the CALIPSOneo project and the

communication between different teams that were

working on CALIPSOneo.

In this sense, NDT and NDT-Suite were adapted

to work on this project where a collaborative and

distributed environment was necessary taking into

account the quality assurance during the specification

and development of the project. In this context, NDT-

Profile was adapted to provide a collaborative

environment according to NDT; NDT-Quality was

used to measure and ensure the quality and

traceability between project results and NDT-Driver

was used to automate the systematic generation of

analysis models and testing models from the

requirements phase.

For instance, in a particular way, NDT-Profile

was adapted to enable use functional requirements of

a specific subproject (e.g., MARS) in the

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

328

specification of other subproject (e.g., ELARA). In

this case, use case diagrams were used to identify and

organize functional requirements.

In PROTEUS, a hierarchical structure with two

levels was defined. In the first level, use case

diagram, four use cases were defined: Process

definition in DPE (DELMIA Process Engineering),

Process validation in DPM (DELMIA digital Process

for Manufacturing), Process simulation in DPM and

Product import. Each of these use cases were

decomposed into a second level use case diagram. For

instance, the Process validation in DPM contained

verification of product, resources and process, and

verification of lifecycles. Each second level use case

has an activity diagram to define the flow of activities

to be carried out by the main actor, in this case the

manufacturing planner shows an extract, in NDT-

Profile, of the activity diagram of the use case

Verification of product, resources and process.

The activity diagram has three objectives. The

first one is to define the sequence of tasks, as a step-

by-step guide, for the main actor. Such sequence

defines the working process. The second objective is

to define in detail the lower level tasks to be carried

out, allowing to identify where it is necessary to

conduct an application development to assist the main

actor or to automate a task. Once an application

development is identified, a class diagram is created

to specify the concepts to be implemented by such

application. The third objective is to be used as basis

for the definition of the diagrams for the testing phase

of CALIPSOneo.

Considering these aspects and the collaborative

nature of the CALIPSOneo project, we have

considered necessary to research, propose and define

formal technical with which is possible the early

detection of ambiguities and inconsistencies when

software requirements (specifically, functional

requirements) are defined using use cases models and

activity models. In addition, it is also necessary to

conciliate different points of view of the same

requirement once detection has been carried out.

4 RELATED WORK

Before developing our proposal to detect

inconsistencies in functional requirements

inconsistencies within multi-team projects, a

Systematic Literature Review (SLR) has been carried

out in order to know the state-of-the-art about this

issue and take into account the proposals existing

before tackling the indicated problem. This SLR is

based on the protocol defined by (Kitchenham et al.,

2007). Above, several works related to requirements

validation are mentioned in this section.

Requirements Engineering (RE) is a coordinated

effort to allow clients, users, and software engineers

to jointly formulate assumptions, constraints, and

goals about a software solution. However, one of the

most challenging aspects of RE is the detection of

inconsistencies between requirements in the

requirements phase. Thus, this phase is considered the

most critical tasks in RE (Robles et al., 2010). A

global view presented in (Escalona and Koch, 2004)

divides this phase in three main tasks: requirements

capture, requirements definition and requirements

validation. The detection of conflicts is normally

executed in the last one.

Focusing only on the detection of conflicts, over

the last decade have been several proposals. Below,

some of these proposals are described.

In (Brito et al., 2007), authors propose to detect

concerned conflicts using a Multiple Criteria

Decision Making method to support aspectual

conflicts management in aspect-oriented

requirements. It results limited since it points out the

treatment of aspect-oriented requirements and it only

deals with concerned conflicts.

From a UML-based perspective, the conflict-

detection process in other phases of the software life

cycle has been deeply studied. In (Altmanninger,

2007), author proposes to detect conflicts in a twofold

process: analyzing syntactic differences by raising

candidate conflicts and understanding these

differences from a semantic view.

In (Sardinha et al., 2009), authors present a tool

for identifying conflict in aspect-oriented

requirements called EA-Analized that process

Requirement Definition Language (RDL)

specifications. By classifying text using Naive Bayes

learning method, it is possible to detect conflict

dependencies with high accuracy.

Others authors propose to solve the detection of

inconsistencies between requirements using

knowledge-based techniques. In (Tuong Huan

Nguyen et al., 2012), a knowledge-based

requirements engineering tool, named REInDetector,

is presented. This tool supports automatic detection

of inconsistencies studying the semantic of

requirements after capturing each requirement using

its description logic language.

Moreover, UML has been widely studied for

providing extensions and tools that allow modeling

and developing high quality applications. In

(Nugroho, 2008) it has been empirically analyzed the

relation of level of detail of UML models and the

resultant application’s defect density. The outcome

Detecting Functional Requirements Inconsistencies within Multi-teams Projects Framed into a Model-based Web Methodology

329

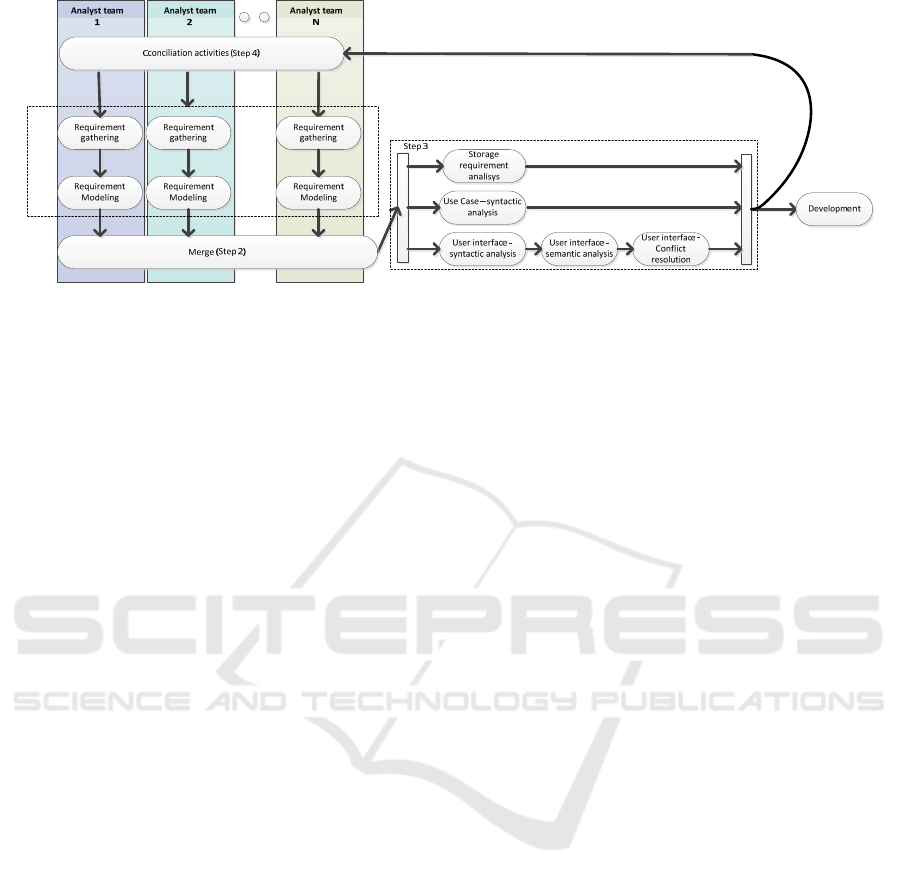

Figure 1: Distributed requirement gathering process.

showed that more detailed are models less defects

report. Same authors provided a throughout empirical

research about consequences of imperfect models.

They point out, that although there are defects that are

easily detected by developers, most of defects, such

as Classes duplication, are hardly detected by them

and therefore propagated in the solution. Duplicated

element definitions in models such as Classes or

Business Processes are named clones. Different

technics has been addressed for detecting Clones in

UML models (Störrle, 2010) or models repositories

(Ekanayake et al., 2012).

5 OUR APPROACH FOR

DETECTING CONFLICTS

WITH NDT

Our approach to detect conflicts in the Software

Requirement Specification (SRS) extends our

previous proposal (Escalona et al., 2008). With this

paper, we aim to extend our proposal introduced in

(Escalona et al., 2008) taking into account the

peculiarities of the functional requirements within

distributed and heterogeneous projects where the

NDT methodology is applied.

Due to large project complexity, our approach

proposes a four steps process based on dividing and

conquering by promoting different analyst teams that

can focus in a specific subset of requirements. Each

analyst team uses NDT approach for specifying

application requirements.

Figure 1 shows an overall schema for our process

and takes into account each NDT specification that

comprises different models such as storage,

functional and interaction requirements. The process

is applied iteratively each time a new set of

requirement rises (Harth and Koch, 2012). The new

incoming set of requirements is checked with each of

the already consolidated requirements of the system

space.

Step 1. Requirement Gathering and Requirement

Modelling. We propose to combine classical capture

requirements techniques such as interviews or

brainstorming for the requirements gathering; for the

requirements modelling, we propose NDT-Profile.

When analysts have completed the requirements

catalogue represented in NDT-Profile, they should

execute the next steps with the aim of detecting

requirements inconsistencies.

Step 2. Requirement Merge. When analyst teams

are specifying different functional modules with a

high degree of interaction and integration among

them, it is necessary to merge their works. This

commitment is audited by a cross domain analyst who

watches over the consistency of SRS. This kind of

guardian is responsible keep SRS consistent and

watches for the correct use of NDT guidelines. Each

team’s SRS is a perspective of the application

meanwhile SRS is a stable view of the whole solution.

Step 3. Inconsistency Detection in Functional

Requirements. When dealing with model oriented

approaches like NDT, requirements are formalized

using specific languages that provide facilities for

describing system behavior. These models face same

ambiguity issues when specifying requirements than

traditional requirement gathering techniques does but

have as advantage that reality has already been

preprocessed by the analyst obtaining a simplified

and clear problem to be solved.

Thus, once the “merge step” has been completed, a

conciliation task start taking place where functional

requirements are analyzed in order to look syntactic

and structural inconsistencies. After that, if an issue

is detected, it is reported to those analysts that their

artifacts reported the issue.

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

330

As abovementioned, NDT specification is built of

artifacts which compliant with diverse model

schemas. Therefore, we had to define specific

techniques for each kind of model for detecting

ambiguities. Next we describe each technique.

1) Storage Requirement Analysis. Searching for

syntactic conflicts aims to detect when two NDT

artefacts are textually defining the same

functional requirement. For this, we carried out

the analysis of text using the technique described

in (Salton and Buckley, 1988): «the vector space

model technique». Both the use of this technique

as its applications in NDT is described in (García-

García et al., 2012). Thus, we are going to

describe it briefly.

The identification of object’ duplication depends on

the analysis of the objects’ description. Our paper has

used a variation of «the vector space model

technique» based on the statistic «term frequency-

inverse document frequency technique». This

technique associates a mathematical equivalence to

any text, i.e., n-dimensional vector where n is the

numbers of terms of the text. Each component stores

the weight of each term. This weight of each word is

calculated by the multiplication of two parameters: tf

* idf.

On the one hand, tf indicates the frequency of the

word in the text, i.e., the number of occurrences of the

term in the text divided by the total number of terms

in the text.

On the other hand, idf is the inverse document

frequency, and it evaluates the importance of the

considered term in the whole set of descriptions. Its

definition allows giving a greater weight to the less

frequent terms, which are considered as the most

characteristic words. It is calculated by taking the

logarithm of the quotient obtained by dividing the

number of descriptions by the number of descriptions

that contains the term. Then, the mathematical

expression of idf is presented.

idf (t,D) = log (|D| / (1+|{d

∈

D : t

∈

}|))

(1)

With:

 |D|. D is the corpus or set of descriptions analyzed

and |D| is the number of descriptions in the corpus.

 (1 + | {d

∈∈

D : t d} | This mathematical

expression represents the number of descriptions

in which the term t appears. The number of

descriptions where the term t appears. This

expression avoids a division-by-zero in the case in

which the term would be absent.

Finally, the mathematical expression of tf * idf is

presented:

tf * idf (t,d,D) = tf (t,d) * idf (t,D) (2)

The similarity of the descriptions is evaluated

considering that descriptions are vectors of words.

Since we consider vectors, we have to apply a single

order of words. All the words of the whole set of

descriptions have to be considered and each new one

is a new dimension in the vector. Then, the

description's original order is not relevant, it is only

necessary to have all the words.

After building the two vectors, we can know what

is the similarity between the two descriptions. For

this, we apply the cosine to calculate of the angle

between two vectors. The cosine with value 1 implies

that the angle between the vectors is 0, which implies

that the texts are similar.

cos(α) = V1.V2 / (||VI||.||V2||),

(0≤cosine≤1)

(3)

To apply the technique described, first of all, the

words are stemmed to their roots so that plurals,

verbal forms or other forms are not considered. We

also don’t consider pronouns, articles and other

connection terms. Then, the cosine similarity is

applied; the algorithm calculates cosines between two

vectors. Therefore, we understand that all the relevant

words of the corpus have to be represented in the

vectors.

The algorithm returns a number for similarity

ratio between 0 and 1 when comparing two texts.

Zero means completely different texts and numbers

near to one mean similar texts. When comparing texts

in Spanish, using the Spanish stemmer, the algorithm

returned lower values for unrelated texts and higher

numbers for similar texts.

In order to find similar objects, we had to compare

each requirement to each other, and then filter the

results that returned the higher values. We defined

filter threshold 0.5 to filter those results above such

number.

In requirement gathering process we could detect

two related definitions by analyzing storage

requirements. Next we present both requirements that

describe the same system need but they were defined

differently. Analysts were warned by our tool because

its similarity ratio 0.62856 was above defined

threshold.

2) Use Case Analysis. Searching for use case

conflict aims at detecting when two NDT

functional requirements are defining the same

functionality of the system in a different manner.

For this, we are going to take advantage of this

situation for introducing automatic analysis of

modeled requirements using well-known graph

theory. NDT uses UML Activity diagram as tool

Detecting Functional Requirements Inconsistencies within Multi-teams Projects Framed into a Model-based Web Methodology

331

for describing use cases in such a way models can

be analyzed as graph using algorithms developed

in graph similarity or graph isomorphism research

line.

In order to avoid model duplications and

inconsistencies, we profit from developments

performed in UML field by (Störrle, 2010); (Kelter et

al., 2005).

Our analysis tool takes each FR as UML Activity

diagram modeled and stored in an Enterprise

Architect document and builds an equivalent graph

that represents each element of Activity Diagram but

adds extra information that is not present in

Enterprise Architect´s diagram. For instance,

Activities in EA´s models are not related with

swimlanes. Elements are placed over swimlanes in

such a way they overlap but a relationship between

them is not defined although it is perceivable by a

designer. The translation is straightforward because

object oriented models are by definition graph were

objects are Vertex and relationships are Edges. In

figure 2, we show two simple activity diagrams, their

corresponding graph and how their differences are

detected. The lower activity diagram has a start state,

a simple states and a final state. Its graph

representation shows five nodes. On the other hand,

the upper activity diagram is a little bit more complex

and has a start state, two linked states and a final state.

Its graph representation has seven nodes; two

additional nodes highlighted with grey. These last

two nodes represent the difference between two

activity diagrams.

Once activity diagrams have been derived to a

navigable graph, firstly the tool takes two graphs and

compares them looking for equality in graph

definition (same vertexes and edges) and inclusion.

By means of identifying equality, we can improve

estimation of budget because a given requirement is

not computed twice. By detecting inclusion, it allows

defining reusable concepts that will simplify

development and maintenance tasks.

In order to detect differences between models, we

used well-known graph algorithms for isomorphism

and equivalence analysis. Our tool was built on top of

JGraphT library which provides a framework for

graph computation.

We identified a couple common problems when

modelling that can be identified using graph

manipulation. Next we list two supported

inconsistencies identification with a simplified graph

operation.

 Similarity on Elements Definition. By means of

comparing elements in model specification, it is

defined a similarity ratio based on amount if diffe-

rent element over total graph elements.

Ratio values are in a range from 0 to 1 where 0 stand

for totally different models and values closer to 1

means similar models.

ratio(ad,ad2) = (((graph

ad1

∪ graph

ad2

(Δ(graph

ad1

, graph

ad2

)))) / (graph

ad1

∪

graph

ad2

)

(4)

 Duplications. Occurrences of models

duplications within other elements. This analysis

is quite straightforward because, after removing

redundant element such as initial and final state, it

is checked whether a model is included within

others.

1< graph

ad1

∩ (graph

ad2

– {initial state,

final state})

(5)

 When the intersection result is not empty, it means

that both diagrams share few elements definition.

3) User Interface Models. We propose a twofold

process for analyzing NDT user interfaces: a

syntactic step that compares each model in order

to detect differences and a second step called

semantic analysis that compares two models that

show to be similar called conflict in order to

evaluate if they are equivalent semantically.

A candidate conflict arises when the set of syntactic

differences among requirements appear as a

consequence of: (i) the absence of an element in one

user interface model that is present in the other; (ii)

the usage of two different artefacts for describing the

same information; or (iii) a configuration difference

in an element such as the properties values of an

artefact. This situation may arise when two different

stakeholders have different views of a single

functionality, or when an evolution requirement

contradicts an original one.

As the result of the structural analysis of models,

a list of candidate conflicts is reported; this list must

be verified in order to detect false positives (i.e.

conflicts that actually are not conflicts since the

compromised specifications describe the same

requirement). This issue has been already studied in

(Altmanninger, 2007) and (Li and Ling, 2004) where

models are analyzed in order to expose their

underlying goals. When the underlying goals are

different, we are facing a confirmed conflict.

On the other hand, there are requirements that can

be documented twice in different NDT diagrams

duplicating specifications and injuring requirement

traceability. These cases are also studied in this

process.

We use an approach proposed in (Altmanninger,

2007) which focuses on having an additional seman-

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

332

State1 State2

Name:start

Type:InitialState

Name: -

Type:Transition

Name: State1

Type:State

Name: -

Type:Transition

Name: State2

Type:State

Name: -

Type:Transition

Name: end

Type:FinalState

Name:start

Type:InitialState

Name: -

Type:Transition

Name: State1

Type:State

Name: -

Type:Transition

Name: end

Type:FinalState

State1

Activity Diagram 2

Activity Diagram 1

Graph 1

Graph 2

Figure 2: Graph representation of activity diagrams.

tic view of requirements that complements the

existing syntactic view. For achieving this,

requirements models are downgraded in terms of

abstraction, obtaining a simplified model formed only

by semantically simple elements.

This approach is twofold: a meta-model called

semantic view, in this case it is NDT requirement

meta-model without those meta-model elements that

give RIA support, and a transformation from the

source model to one that obeys the semantic view.

For each detected conflict, the compromised

models (the new and the stable one) are transformed

into a semantic view where the derived models are

finally compared syntactically. This approach avoids

false positives because the semantically equivalent

constructions compositions are disambiguated.

Step 4. Conciliation Process. So far, we have shown

how to detect conflicts that must be resolved in order

to keep the requirements document sound and

complete. Next we will introduce a set of heuristics

that helps resolving structural and navigation

conflicts that have been implemented as suggested

refactoring.

6 IMPACT IN BUDGET

CALIPSOneo has already finished and we cannot

replicate the whole process. However, we could do

our experiment to measure the grade of efficiency and

effectiveness reached when applying it.

This project was managed in a particular manner.

In each subproject (MARS, PROTEUS and ELARA),

meetings were held weekly during which, work teams

discussed about possible integration problems when

they were defining a catalog of requirements.

In this mechanism of reviewing two main

problems were detected:

 Inconsistences were “discovered”, without any

special mechanism or technique and their

detection depended on the experience of the team.

 When an inconsistence was detected, the way to

solve it was to discuss between teams. Depending

of the kind of inconsistence, this discussion was

in a local team (MARS, PROTEUS or ELARA)

or even, if the inconsistence affected several

subprojects, it provoked global meetings

involving several teams.

Apart of “the luck” in the detection of inconsistences,

the execution of the second point affects directly to

the cost of the project. In this meetings, mainly if they

affect to the three teams, resulted too expensive.

In these meetings analyst for each member,

project leader of the affected subprojects and

functional users had to participate and discuss about

different solutions.

As no systematic mechanism were detected. Each

subproject teams have weekly meeting to review the

evolution of the requirements and monthly a global

meeting was celebrated. Besides, the quality team of

the project participated in each meeting. The cost of

these meetings was too high and it could be reduced

using approaches like proposed in this paper.

7 IMPACT IN BUDGET

In a software project, one of the most relevant phases

Detecting Functional Requirements Inconsistencies within Multi-teams Projects Framed into a Model-based Web Methodology

333

in the lifecycle is the requirements phase, which

conditions the development through all the aspects of

the project, mainly economic. With the increase of

complexity of applications with big, distributed and

heterogeneous projects, this phase acquires a more

relevant role because often, these systems are

specified by multiple analyst teams and in this

context, it is necessary to perform an effective

conciliation of requirements.

When there are different set of requirements, they

have been merged in order to obtain conciliated

requirements to initiate the system development.

However, this task frequently depends on the

analyst’s experience or is done manually. Thus, it is

necessary to establish formal mechanisms to combine

different requirement specifications and detect

conflicts among these requirements.

This paper extends a previous paper in which we

had presented the application of a general MDE

approach for the systematic detection of requirements

inconsistencies and how that approach was extended

to improve the NDT methodology.

Our proposal is based in techniques for detecting

similarities between graphs and techniques for the

detection of syntactic conflicting in a textual manner.

This paper illustrates the application of our proposal

on the CALIPSOneo project that originally was

conciliated by hand without the use of any

mechanism to check it.

ACKNOWLEDGEMENTS

This research has been supported by the MeGUS

project (TIN2013-46928-C3-3-R), by the SoftPLM

Network (TIN2015-71938-REDT) of the Spanish

Ministry of Economy and Competitiveness, and

CALIPSOneo Project.

REFERENCES

International Organization for Standardization, 2012.

ISO/IEC. ISO/IEC 19507:2012 Object Management

Group Object Constraint Language (OCL). 2012.

Kitchenham, B., Charters, S. Guidelines for performing

Systematic Literature Reviews in Software

Engineering. Version 2.3. Department of Computer

Science, University of Durham. EBSE-2007-01. 2007.

Kotonya, G.; Sommerville, I.: Requirements engineering

with viewpoints. Software Engineering Journal, vol.11,

no.1, pp.5-18 (1996).

De Lucia, A., Qusef, A.: Requirements Engineering in

Agile Software Development. In Journal of Emerging

Technologies in Web Intelligence, Vol. 2, No 3 (2010),

212-220 (2010).

Yang, D., Wang, Q., Li, M., Yang, Y., Ye, K., Du, J.: A

survey on software cost estimation in the Chinese

software industry. ESEM 2008:253-262 (2008).

Leffingwell, D.: Calculating the Return on Investment from

More Effective Requirements Management. American

Programmer, 1997, VOL 10; NUMBER 4, pages 13-

16 (1997).

Escalona, M. J., Garcia-Garcia, J. A., Mas, F., Oliva, M.,

Del Valle, C. Applying model-driven paradigm:

CALIPSOneo experience. Conference on Advanced

Information Systems Engineering 2013 (CAiSE'13),

vol. 1017, pp 25-32. 2013.

Robles, E., Garrigós, I., Grigera, J., Winckler, M.: Capture

and Evolution of Web Requirements Using WebSpec.

ICWE 2010:173-188 (2010).

Escalona, M. J., Koch, N.: Requirements Engineering for

Web Applications: A Survey. Journal of Web

Engineering. Vol. II. Nº2. pp. 193-212 (2004).

Escalona, M.J., Aragón, G. 2008. NDT: A Model-Driven

Approach for Web requirements, IEEE Transactions on

Software Engineering. Vol. 34, no. 3. pp 370-390.

Escalona, M. J., Urbieta, M., Rossi, G., Garcia-Garcia, J.,

Luna, E.. Detecting Web requirements conflicts and

inconsistencies under a model-based perspective.

Journal of Systems and Software, 86(12), 2013.

Brito, I. S., Vieira, F., Moreira, A., Ribeiro, R. A.: Handling

conflicts in aspectual requirements compositions. In

Transactions on aspect-oriented software development

III, LNCS, Vol. 4620. Springer-Verlag, Berlin,

Heidelberg 144-166 (2007).

Altmanninger, K.: Models in Conflict - Towards a

Semantically Enhanced Version Control System for

Models. MoDELS Workshops 2007:293-304 (2007).

Sardinha A., Chitchyan R., Weston N., Greenwood P.,

Awais Rashid: EA-Analyzer: Automating Conflict

Detection in Aspect-Oriented Requirements. ASE 2009:

530-534, (2009).

Tuong Huan Nguyen, Bao Quoc Vo, Markus Lumpe, and

John Grundy. 2012. REInDetector: a framework for

knowledge-based requirements engineering.

DOI=10.1145/2351676.2351754. 2012.

García-García J. A., Escalona M. J., Ravel E., Rossi G.,

Urbieta M. NDT-merge: a future tool for conciliating

software requirements in MDE environments. iiWAS

2012:177-186 (2012). ISBN/ISSN: 978-1-4503-1306-

3. Bali, Indonesia. 2012b.

Salton G., Buckley C. 1988. Term-Weighting approaches

in automatic text retrieval. Department of Computer

Science, Cornell University, Ithaca, NY 14853, USA.

A. Nugroho, B. Flaton, and M. R. Chaudron. Empirical

Analysis of the Relation between Level of Detail in

UML Models and Defect Density. In Proceedings of the

11th int. conference on Model Driven Engineering

Languages and Systems (MoDELS '08).

C. C. Ekanayake, M. Dumas, L. García-Bañuelos, M. La

Rosa, and A. H. M. ter Hofstede. 2012. Approximate

clone detection in repositories of business process

models. In Proceedings of the 10th int. conference on

Business Process Management (BPM'12).

APMDWE 2016 - International Workshop on Avanced practices in Model-Driven Web Engineering

334

Li, C., Ling, T. W.: OWL-Based Semantic Conflicts

Detection and Resolution for Data Interoperability. ER

(Workshops) 2004:266-277 (2004).

Harth, A., & Koch, N. (2012). Current Trends in Web

Engineering: Workshops, Doctoral Symposium, and

Tutorials, Held at ICWE 2011, Paphos, Cyprus, June

20-21, 2011. Revised Selected Papers. Springer Science

& Business Media.

Schmidt, D. C., 2006. Model-Driven Engineering.

Published by the IEEE Computer Society vol 39.

Harald Störrle. 2010. Towards clone detection in UML

domain models. In Proceedings of the Fourth European

Conference on Software Architecture: Companion

Volume (ECSA '10), Carlos E. Cuesta (Ed.). ACM, New

York, NY, USA, 285-293.

Kelter, U., Wehren, J. & Niere, J. (2005). A Generic

Difference Algorithm for UML Models. In P.

Liggesmeyer, K. Pohl & M. Goedicke (eds.), Software

Engineering (p./pp. 105-116).

Detecting Functional Requirements Inconsistencies within Multi-teams Projects Framed into a Model-based Web Methodology

335
