An Agent Architecture to Enable Self-healing and Context-aware Web of

Things Applications

Rafael Angarita

1,2

, Maude Manouvrier

and Marta Rukoz

1,2

Université Paris Ouest Nanterre La Défense, Paris, France

PSL Université Paris-Dauphine, CNRS, LAMSADE UMR 7243, 75775 Paris Cedex 16, France

Keywords:

Internet of Things, Web of Things, Self-healing, Fault-tolerance, Context-aware.

Abstract:

The Internet of Things (IoT) paradigm promises to connect billions of objects in an Internet-like structure.

Applications composed from connected objects in the IoT are expected to have a huge impact in the trans-

portation and logistics, healthcare, smart environments, and personal and social domains. The world of things

is much more complex, dynamic, mobile, and failure prone than the world of computers, with contexts chang-

ing rapidly and unpredictably. The growing complexity of IoT applications will be unmanageable, and will

hamper the creation of new services and applications, unless the systems will show “self-*” functionality such

as self-management, self-healing and self-conﬁguration. The Web of Things (WoT) builds on top of the IoT to

create applications composed of smart things relying on standard and well-known Web technologies. In this

paper, we present a new agent architecture to enable self-healing and context-aware WoT applications.

1 INTRODUCTION

The Internet of Things (IoT) paradigm has gained

ground, both in the industry and in research

worlds (Atzori et al., 2010). It was also included

by the US National Intelligence Council in the “Dis-

ruptive Civil Technologies - Six Technologies With

Potential Impacts on US Interests Out to 2025” con-

ference report (National Intelligence Council, 2008).

The EU has invested more than 100 million euros

in projects related to the IoT, and the government of

China released the 12th Five-Year Plan for IoT de-

velopment (Chen et al., 2014). Failures in IoT appli-

cations may lead to loss of production time, equip-

ment damage, environmental catastrophes, or loss of

human life (Alho and Mattila, 2015).

The world of things is much more dynamic,

mobile, and failure prone than the world of com-

puters, with contexts changing rapidly and unpre-

dictably (Mattern and Floerkemeier, 2010). In the IoT

Strategic Research Roadmap (Vermesan et al., 2011),

Vermesan and his coauthors placeautonomousand re-

sponsible behavior of resources as one of the fourth

macro trends that will shape the future of the IoT. We

extract the following:

“ ... the trend is towards the autonomous

and responsible behaviour of resources. The

ever growing complexity of systems will be

unmanageable, and will hamper the creation

of new services and applications, unless the

systems will show “self-*” functionality such

as self-management, self-healing and self-

conﬁguration.”

In another IoT research directions paper,

Stankovic stated that the areas of distributed and

adaptive control are not developed well enough

to support the open, dynamic environment of the

IoT (Stankovic, 2014). Petersen and his coauthors

argue that fault-tolerance and survivability play a key

role in the designing of IoT applications (Petersen

et al., 2015). They propose a mandatory “disaster

mode” for IoT devices, allowing applications to

continue working only with vital functionalities even

in the presence of failures. Athreya and his coauthors

suggest that the natural direction for IoT devices is to

manage themselves in terms of software, hardware,

and resource consumption (Athreya et al., 2013).

Cherrier and his coauthors also underline the im-

portance of fault tolerance, recovery, and coherence

mechanism in the IoT applications (Cherrier et al.,

2014). It is clear that fault-tolerance, resilience,

self-healing, and other self-* research are very active

Angarita, R., Manouvrier, M. and Rukoz, M.

An Agent Architecture to Enable Self-healing and Context-aware Web of Things Applications.

DOI: 10.5220/0005932200820087

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 82-87

ISBN: 978-989-758-183-0

areas since they face new challenges in the IoT

context due to its promise of connecting billions of

devices in an Internet-like structure.

The Web of Things (WoT) (Guinard et al., 2011)

builds on top of the IoT to create applications com-

posed of smart things using standard and well-known

Web technologies. In this paper, we present an agent

architecture to enable self-healing and context-aware

WoT applications. Our agents are the representation

of physical objects, Web services, or humans in the

Web, and they may be hosted and run inside physical

objects or in a cloud infrastructure. In our architec-

ture, an agent may also be responsible of managing

and monitoring WoT applications.

The rest of this paper is organized as follows. We

provide an overview of our proposed architecture in

Section 2. We present a case study to illustrate our

proposal in Section 3. This is followed by related

work, and conclusions and future work directions in

Sections 4 and 5, respectively.

2 OUR AGENT ARCHITECTURE

In this section, we present the main aspects of our

agent architecture for self-healing and context-aware

WoT applications. First, we describe the building

block of our approach: the WoT Agent. Then, we

present the WoT Application Manager, which is in

charge of WoT applications. Before going into further

detail, we present our deﬁnition of a WoT application.

Deﬁnition 1. WoT Application. A WoT application is

a composition of things linked by data or control de-

pendency, where things may be physical objects, Web

services, or human beings. A WoT application has

an associated QoS (e.g., execution time) which is the

aggregation of the participating things QoS.

In our approach, all things participating in a WoT

application, independently of their nature, are repre-

sented virtually by a WoT agent, which we deﬁne in

the following paragraphs.

WoT Agent. Inspired from our previous

work (Angarita et al., 2015), we introduce the WoT

application component agent depicted in Fig. 1. It is

in charge of executing an operation in a WoT applica-

tion, communicating with peers, and applying fault-

tolerance mechanisms if necessary. It may be imple-

mented using Node.js, and its main components are

the following:

• API: an interface to communicate with the WoT

agent via JSON objects indicating the id of the

WoT application, the sender, and data types and

their values. A WoT agent may also act in a

context-free way.

• Core: it contains the basic execution control ele-

ments of WoT application component agents; that

is, waiting for inputs, invoking its corresponding

operation, and sending produced outputs, if any.

• Autonomic Component: it represents the con-

trol loop of the autonomic computing (Psaier and

Dustdar, 2011), and it detects local or global

degradations on the application behavior, selects

an appropriate action, and applies it.

• Context Manager and Knowledge Base: It han-

dles information regarding the WoT applications

the WoT agents is participating in. Its main com-

ponents are:

– Knowledge Base: it contains information de-

scribed in RDF regarding WoT applications:

rules indicating normal behavior and collabora-

tors, requirement veriﬁcation, self-healing ac-

tions, replacement operations, and replacement

WoT agents.

– Inference Engine: it infers logical conse-

quences from a set of asserted facts in the

knowledge base. Apache Jena may be used to

reason over RDF graphs and query them using

SPARQL.

• WoT Application Manager: stores and monitors

WoT applications.

• Object Interface: it is in charge of the communi-

cation with its corresponding object.

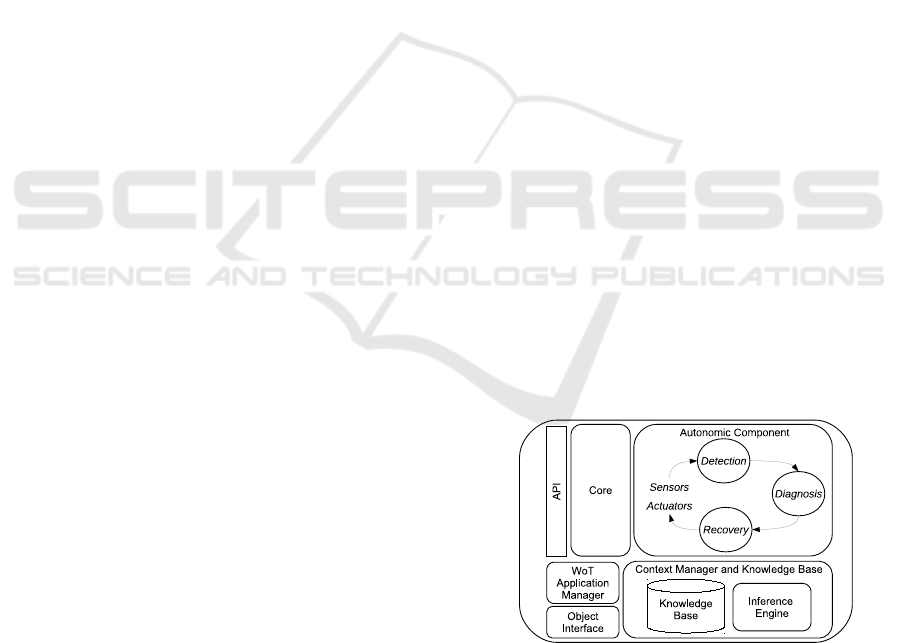

Figure 1: WoT Agent Architecture.

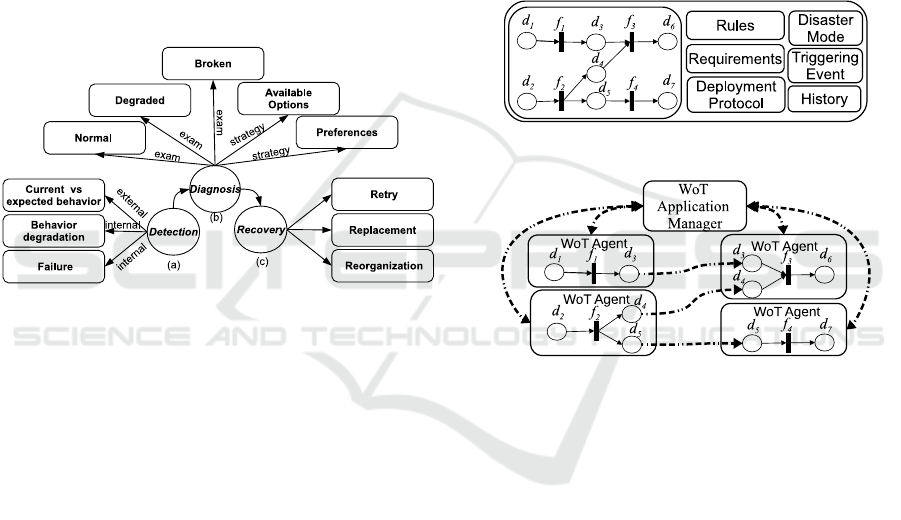

We present in detail the autonomic component of

the WoT agent architecture in Figure 2. The detection

component (Figure 2 (a)) takes into account one ex-

ternal and two internal data sources. The external in-

formation regards the expected QoS; for example, the

WoT application manager may allow a certain QoS

An Agent Architecture to Enable Self-healing and Context-aware Web of Things Applications

degradation. The internal information refers to the

QoS degradation or failure of its corresponding op-

eration

The diagnosis component (Figure 2 (b)) analyzes

the current degradation and computes a solution. The

three possible diagnosis correspond to the three states

of a self-healing system: normal; degraded; and bro-

ken. The choice of the recovery mechanism is in-

ﬂuenced by available options (e.g., retry or replace-

ment), and constraints imposed by the WoT applica-

tion manager (e.g., expected QoS).

The recovery component (Figure 2 (c)) is in

charge of applying the selected fault tolerance mech-

anism. A WoT agent may retry or replace its own op-

eration, retry the communication with another WoT

agent, or replace another WoT agent.

Figure 2: Autonomic Component.

WoT Application Manager. We present an

overview of the WoT Application Manager in Fig-

ure 3. A WoT agent may manage a set of WoT appli-

cations consisting of its participants components and

their data relationship, a set rules and requirements

of the WoT application, a triggering event indicating

when the WoT application starts its execution, a disas-

ter mode specifying what to do in case of irreparable

failures, its historical executions, and a deployment

protocol.

The deployment protocol analyzes participating

components, deﬁnes the WoT application execution

mode, creates the necessary components, and sends

them the required information. A WoT application

manager may create agents to control participating

components or communicate with existing agents.

The deployment protocol contacts participating com-

ponents and veriﬁes their capacity to manage appli-

cation context. A WoT application has the following

execution modes (or a combination of them):

• Locally-hosted: WoT agents are hosted and run

in the component managing the WoT applica-

tion. This may happen when dealing with agent-

less components of a WoT application such as re-

sourcesless objects or RESTful services, in the ab-

sence of a cloud infrastructure, and when the host

component has enough resources to manage the

WoT application.

• Cloud-based: WoT agents are hosted and run in

a cloud infrastructure. This also may be the case

when dealing with agentless components. Also,

WoT agents may be already provided by their cor-

responding objects but hosted in a a cloud infras-

tructure.

• Distributed: WoT agents are managed and hosted

by their respective objects.

Figure 3: WoT Application Manager.

Figure 4: WoT Application Deployment.

Figure 4 shows a deployed WoT application. The

WoT Application Manager sends the required infor-

mation to all participant WoT agents, which may then

communicate between them during the WoT applica-

tion execution.

WoT Agent Failure. The corresponding opera-

tion of a WoT agent may fail; in this case, the failure

may be ﬁxed by operation retry or replacement, simi-

larly as showed in our previous work (Angarita et al.,

2012; Angarita et al., 2015). In the WoT application

context, WoT agents may fail themselves, specially

if they are hosted in mobile physical objects. In this

case, the failed agent must be detected and the WoT

application must be reconﬁgured. We propose two

WoT agent failure detection mechanisms:

1. Predecessor Detection: when a WoT agent sends

a message to another WoT agent, it waits for the

status code

. If it receives another status code,

or it gives timeout, it may retry or replace its suc-

cessor WoT agent, or execute the disaster mode.

IoTBD 2016 - International Conference on Internet of Things and Big Data

2. WoT application timeout: if a WoT agent crashes

during the executing of its operation, the WoT ap-

plication manager eventually gives timeout, check

which WoT agents are not alive, and performs

retry, replacement, or executes the disaster mode.

For further details about application timeout de-

tection see (Angarita Arocha, 2015).

3 CASE STUDY

Figure 5 shows a ﬁctional e-Health application we

adapted from (Angarita Arocha, 2015). This ap-

plication is built from 9 components, and it is in-

stalled in the mobile phone of a patient called Jenny;

that is, the phone has a WoT agent which also

plays the role of the WoT application manager, rep-

resented by phone

♦

and phone



. The WoT ap-

plication triggering event speciﬁes that it runs ev-

ery 30 minutes. Jenny wears the SugarImplant and

VitalSignsImplant smarts devices that gather infor-

mation about her health. When the WoT application

starts, phone

♦

tells both devices to send their data

to SugarAnalysisandVitalSignsAnalysis,which send

their conclusions to Diagnoser. Diagnoser sends its

results to the appropriate components depending on

the necessary actions.

Table 1 shows the manager and location of each

of the components according to the deployment

protocol described in Section 2. SugarImplant and

VitalSignsImplant are powerful objects hosting

WoT agents. SugarAnalysis, VitalSignsAnalysis,

and Diagnoser are not physical objects; however,

they are provided as WoT agents hosted in a cloud

infrastructure. CallEmergency, NotifyContact,

NotifyDoctor, and DisplayMessage are RESTful

services which do not have WoT agents. Their

corresponding WoT agents are created in Jenny’s

mobile phone (Phone).

Table 1: WoT agents managers and hosts.

Component Manager Host

SugarImplant Itsel f Itsel f

VitalSignsImplant Itsel f Itsel f

SugarAnalysis Itsel f Cloud

VitalSignsAnalysis Itsel f Cloud

Diagnoser Itsel f Cloud

CallEmergency Phone Phone

NotifyContact Phone Phone

NotifyDoctor Phone Phone

DisplayMessage Phone Phone

To understand context-awareness, sup-

pose that the application started its execution,

SugarImplant, VitalSignsImplant, SugarAnalysis,

and VitalSignsAnalysis analysis were successfully

invoked. SugarAnalysis and VitalSignsAnalysis

send their messages to Diagnoser (Listings 1 and 2).

Note that both messages indicate the id of the WoT

application they belong to. In this case, the id

corresponds to Jenny’s application. Diagnoser may

receive data from other applications or processing

context-free requests.

{ " id " : " e427b92 cfb 07e68215110b6e8 f 7b" ,

" send er " : " SugarAnalys is " ,

" data " : [ {"name " : " sugar R e s u l t 1" , "

value " : " someValue1"} ,

{"name " : " sugarRes u l t 2" , " value " : "

someValue2"} ]

} \ vspace {−1 . 6mm}

Listing 1: SugarAnalysis Message.

{ " id " : " e427b92 cfb 07e68215110b6e8 f 7b" ,

" send er " : " V i t al S i gnsAnal y s i s " ,

" data " : [ {"name " : " v i t a l S i gn s R e s u l t 1 "

, " value " : " vi t a l S i g n s V a lue "} ]

}

Listing 2: VitalSignsAnalysis Message.

When Diagnoser receives Jenny’s data from

SugarAnalysis and VitalSignsAnalysis, it performs

its corresponding operation which may produce

the following output: NORMAL, WARNING, or

EMERGENCY. Diagnoser also contains the moni-

toring rules associated to Jenny’s application showed

in Listing 3. These rules are stored in the knowledge

base of Diagnoser and veriﬁed by its autonomic com-

ponent (see Figure 1). The rules showed in Listing 3

are all post-condition rules, but other kind may exist

such as QoS monitoring rules.

id : " e427b92 cfb 07e68215110b6e8 f 7b"

i f output = NORMAL, send Jenny ’ s

inf or m a t ion to DisplayMessage ;

i f output = WARNING, send Jenny ’ s

inf or m a t ion to DisplayMessage , and

NotifyDoctor ;

i f output = EMERGENCY, send Jenny ’ s

inf or m a t ion to DisplayMessage ,

NotifyDoctor , Notif yContac t , and

CallEmergency ;

i f FAILURE, execut e DISASTER_MODE;

Listing 3: Jenny’s Rules.

An Agent Architecture to Enable Self-healing and Context-aware Web of Things Applications

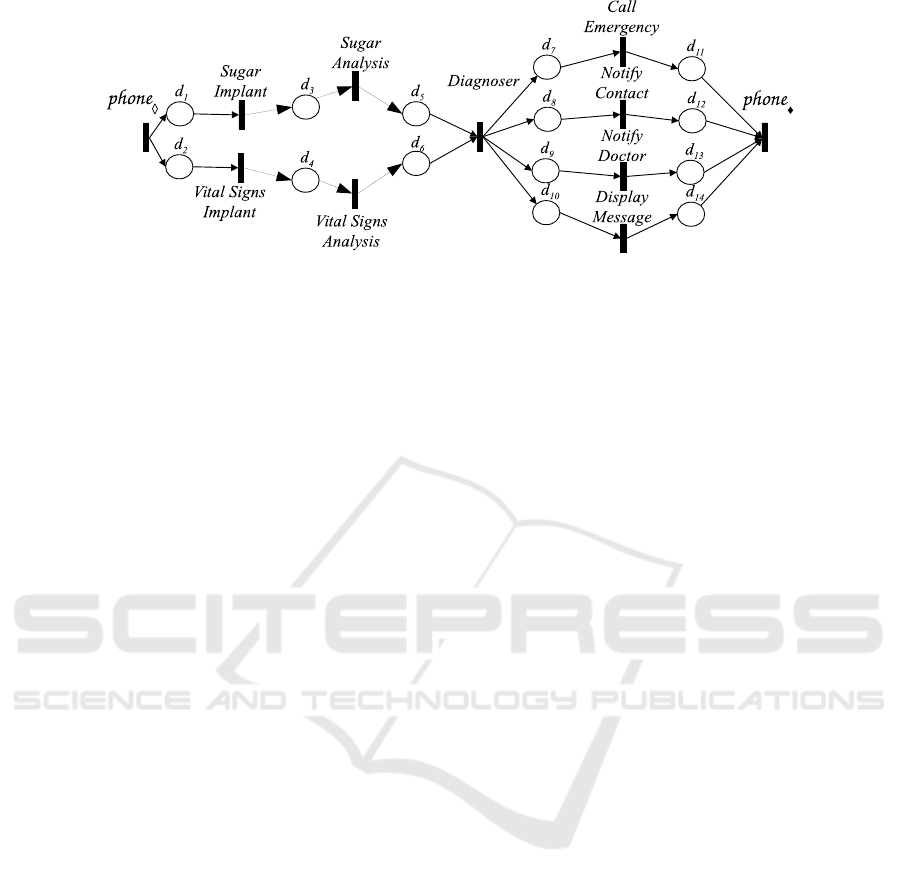

Figure 5: Case Study: the e-Health WoT application.

At the end of the execution, CallEmergency,

NotifyContact, NotifyDoctor, and DisplayMessage

send a message to phone



indicating they ﬁnished

successfully.

4 RELATED WORK

In 2001, IBM published the Autonomic Comput-

ing (IBM, 2001) manifesto expressing their concerns

about the inevitable increasing of the size and com-

plexity of computer systems. For them, it was clear

that such complexity of heterogeneousand distributed

systems will minimize the beneﬁts of future tech-

nology; therefore, solving the increasing complex-

ity problem was the “next Grand Challenge”. Two

years later, we had the Vision of Autonomic Com-

puting (Kephart and Chess, 2003) where the authors

reafﬁrmed that the only solution to the software com-

plexity crisis was through computing systems that

can manage themselves. They presented the concept

of self-management as the building block of auto-

nomic computing, which includes four main aspects:

self-conﬁguration,self-optimization, self-healing, and

self-protection.

Kephart and Chess described the self-healing

property of autonomic systems as the system’s abil-

ity to automatically detect, diagnose, and repair soft-

ware and hardware problems. In a survey published

in 2007, Ghosh and his coauthors presented the now

well-known concepts of self-healing states and prop-

erties (Ghosh et al., 2007). They explained that the

vision of large scale systems was already a reality

and that self-healing research was active. Psaiser

and Dustar published a survey showing the advance-

ments on self-healing research (Psaier and Dustdar,

2011). The collected self-healing research areas in

this survey included embedded systems, operating

systems, architecture based, cross/multi-layer-based,

multi agent-based, reﬂective-middleware, legacy ap-

plication and Aspect Oriented Programming, discov-

ery systems, and Web services and QoS-based.

In (Mrissa et al., 2015), the authors propose a soft-

ware component called avatar for the WoT. The idea

is to give objects a virtual representation in the Web

so the may rely on Web languages, protocols, and

semantic annotations. These avatars collaborate to-

gether in composed applications; however, they ex-

hibit neither fault-tolerance nor self-healing proper-

ties. Also, they do not provide mechanisms to han-

dle application context; that is, avatars function in a

request-response way, and WoT applications need to

be managed by a central coordinator. Moreover, they

are not able to act differently depending on the appli-

cation the are participating in.

5 CONCLUSIONS AND

RESEARCH DIRECTIONS

We have presented a proposal to enable self-healing

and context-aware WoT applications. The building

block of our approach is a software component called

WoT agent, which are the representation of physical

objects, Web services, or humans in WoT applica-

tions. These agents are equipped with a knowledge

base to handle application speciﬁc information, and

with an autonomic component to exhibit self-healing

properties. Our next steps are the formal deﬁnition

of our approach, the implementation of its main func-

tionalities, and its experimental evaluation.

REFERENCES

Alho, P. and Mattila, J. (2015). Service-oriented Approach

to Fault Tolerance in CPSs. J. Syst. Softw., 105(C):1–

17.

IoTBD 2016 - International Conference on Internet of Things and Big Data

Angarita, R., Cardinale, Y., and Rukoz, M. (2012). The Se-

mantic Web: ESWC 2012 Satellite Events, Heraklion,

Greece, May 27-31, 2012., chapter FaCETa: Back-

ward and Forward Recovery for Execution of Trans-

actional Composite WS, pages 343–357. Springer

Berlin Heidelberg.

Angarita, R., Rukoz, M., and Cardinale, Y. (2015). Model-

ing dynamic recovery strategy for composite web ser-

vices execution. World Wide Web, 19(1):89–109.

Angarita Arocha, R. E. (2015). An approach for Self-

healing Transactional Composite Services. Theses,

Université Paris Dauphine - Paris IX.

Athreya, A., DeBruhl, B., and Tague, P. (2013). Design-

ing for self-conﬁguration and self-adaptation in the

IoT. In Collaboratecom, 2013 9th Int. Conference on,

pages 585–592.

Atzori, L., Iera, A., and Morabito, G. (2010). The IoT: A

survey. Computer Networks, 54(15):2787 – 2805.

Chen, S., Xu, H., Liu, D., Hu, B., and Wang, H. (2014). A

Vision of IoT: Applications, Challenges, and Oppor-

tunities With China Perspective. IoT Journal, IEEE,

1(4):349–359.

Cherrier, S., Ghamri-Doudane, Y., Lohier, S., and Roussel,

G. (2014). Fault-recovery and coherence in IoT chore-

ographies. In IoT (WF-IoT), 2014 IEEE World Forum

on, pages 532–537.

Ghosh, D., Sharman, R., Raghav Rao, H., and Upadhyaya,

S. (2007). Self-healing Systems - Survey and Synthe-

sis. Decis. Support Syst., 42(4):2164–2185.

Guinard, D., Trifa, V., Mattern, F., and Wilde, E. (2011).

Architecting the IoT, chapter From the IoT to the Web

of Things: Resource-oriented Architecture and Best

Practices, pages 97–129. Springer Berlin Heidelberg.

IBM (2001). Autonomic computing: IBM’s Perspective on

the state of IT. IBM.

Kephart, J. and Chess, D. (2003). The vision of autonomic

computing. Computer, 36(1):41–50.

Mattern, F. and Floerkemeier, C. (2010). From the Internet

of Computers to the IoT. In From Active Data Man-

agement to Event-Based Systems and More, volume

6462 of LNCS, pages 242–259. Springer Berlin Hei-

delberg.

Mrissa, M., Medini, L., Jamont, J.-P., Le Sommer, N., and

Laplace, J. (2015). An Avatar Architecture for the

WoT. Internet Comp., IEEE, 19(2):30–38.

National Intelligence Council (2008). Disruptive Civil

Technologies - Six Technologies with Potential Im-

pacts on US Interests Out to 2025 - Conference Report

CR 2008-07, April 2008.

Petersen, H., Baccelli, E., Wählisch, M., Schmidt, T. C., and

Schiller, J. (2015). The Role of the IoT in Network Re-

silience. IoT. IoT Infrastructures: First International

Summit, pages 283–296.

Psaier, H. and Dustdar, S. (2011). A Survey on Self-

healing Systems: Approaches and Systems. Comput-

ing, 91(1):43–73.

Stankovic, J. (2014). Research Directions for the IoT. IoT

Journal, IEEE, 1(1):3–9.

Vermesan, O., Friess, P., Guillemin, P., et al. (2011). IoT

strategic research roadmap. IoT: Global Technologi-

cal and Societal Trends, 1:9–52.

An Agent Architecture to Enable Self-healing and Context-aware Web of Things Applications
