A Human Activity Recognition Framework for Healthcare Applications:

Ontology, Labelling Strategies, and Best Practice

Przemyslaw R. Woznowski

, Rachel King

, William Harwin

and Ian Craddock

Faculty of Engineering, University of Bristol, Woodland Road, Bristol, U.K.

School of Systems Engineering, University of Reading, Whiteknights, Reading, U.K.

{

Keywords:

Activity Recognition, Ontology, Annotation, Video.

Abstract:

Human Activity Recognition (AR) is an area of great importance for health and well-being applications includ-

ing Ambient Intelligent (AmI) spaces, Ambient Assisted Living (AAL) environments, and wearable healthcare

systems. Such intelligent systems reason over large amounts of sensor-derived data in order to recognise users’

actions. The design of AR algorithms relies on ground-truth data of sufﬁcient quality and quantity to enable

rigorous training and validation. Ground-truth is often acquired using video recordings which can produce de-

tailed results given the appropriate labels. However, video annotation is not a trivial task and is, by deﬁnition,

subjective. In addition, the sensitive nature of the recordings has to be foremost in minds of the researchers

to protect the identity and privacy of participants. In this paper, a hierarchical ontology for the annotation

of human activity recognition in the home is proposed. Strategies that support different levels of granularity

are presented enabling consistent, and repeatable annotations for training and validating activity recognition

algorithms. Best practice regarding the handling of this type of sensitive data is discussed.

1 INTRODUCTION

Healthcare needs have changed dramatically in re-

cent times. An ageing population and the increase in

chronic illnesses, such as diabetes, obesity, cardiovas-

cular and neurological conditions, have inﬂuenced re-

search, directing it towards Information Communica-

tion and Technology (ICT) solutions. Technology has

also advanced enabling low cost sensors and sensing

systems to become widely available, and rapid devel-

opments in the Internet of Things (IoT). These tech-

nologies complement research in ﬁeld of Ambient In-

telligent (AmI) spaces, including Activity Recogni-

tion (AR) and Ambient Assisted Living (AAL) for

healthcare applications.

The design and implementation of AmI applica-

tions pose many challenges including, but not limited

to: the selection of suitable hardware (sensors and

gateways); system architecture and infrastructure de-

sign; software design, including the training and vali-

dation of data mining/data fusion algorithms; system

testing and deployment; and the appropriate dissemi-

nation of collected knowledge. Each of these steps re-

quires the consideration of the needs and preferences

of particular stakeholders. This paper will focus on a

speciﬁc aspect of the training and validation process:

the acquisition of usable ground-truth data.

AmI spaces process large quantities of sensor-

derived data and require robust and accurate data min-

ing strategies in order to recognise activities of inter-

est to monitor health, well-being, or other personal

beneﬁts such as ﬁtness level. To validate these strate-

gies, the output from these algorithms is usually com-

pared with ground-truth or benchmark data i.e labels

or semantics that describe what the data actually rep-

resents in the same form as the algorithm’s output.

Ground-truth data is also often used to train algo-

rithms when using supervised training strategies.

Acquiring ground-truth data has three main

stages: 1) collecting suitable information upon which

to base the ground-truth data; 2) determining the ap-

propriate labels to be applied to the raw data; and

3) annotating or labelling the data. The ﬁrst step is

challenging and requires a suitable strategy to ensure

there is enough known about the activities being con-

ducted, to enable precision and detailed annotation.

Often studies are focused on speciﬁc aspects of activ-

ity, such as gait and ambulation, transitions, postures,

or speciﬁc diseases. As such, for the second stage,

labels are often research speciﬁc and often not glob-

ally applicable. The ﬁnal step is to annotate or trans-

form this data to carry the same labels/semantics as

Woznowski, P., King, R., Harwin, W. and Craddock, I.

A Human Activity Recognition Framework for Healthcare Applications: Ontology, Labelling Strategies, and Best Practice.

DOI: 10.5220/0005932503690377

In Proceedings of the International Conference on Internet of Things and Big Data (IoTBD 2016), pages 369-377

ISBN: 978-989-758-183-0

369

output of the algorithms. However, accurate and con-

sistent annotation of video to provide labels for the

design and validation of algorithms for activity recog-

nition is expensive and time consuming. The task is

not trivial and if performed by multiple annotators can

result in vastly different and inconsistent results. Re-

searchers want to ensure consistency and high-quality

of annotations, while annotators need clear and con-

cise instructions on how to perform this task. Multi-

ple strategies can be applied, yet there is no deﬁnitive

solution to this problem.

In this paper, background on methods to collect

and annotate ground-truth data are described. A

method for collecting data for annotation is provided

based on a script including prescriptive and informal

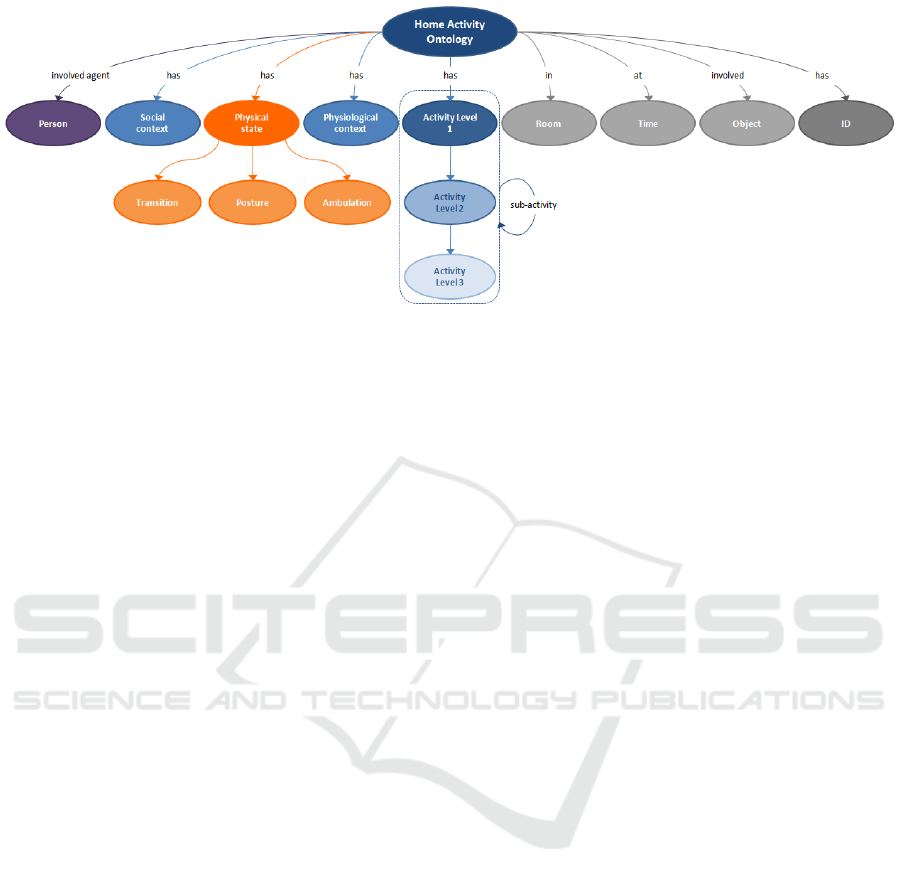

activities (stage 1). An ontology for the annotation

of activities in the home environment for healthcare

applications is then described with an emphasis, not

only on the activity a person is performing, but the

context of the activity (stage 2). The translation of

the ontology into a framework for annotating human

activities in the home is described including the de-

velopment of strategies to provide consistent and re-

peatable annotation (stage 3). This paper concludes

after a discussion on the efﬁcacy of the annotation

framework presented in this paper for the acquisition

of high quality ground-truth data.

2 BACKGROUND

Ground-truth data acquisition involves three stages:

collecting data upon which to base the ground-truth,

deciding what labels are appropriate to describe the

data, and applying these labels annotating the data to

obtain the ground-truth. These stages are not nec-

essarily applied linearly, but are often developed as

a result of an iterative process to determine the best

data collection methods, most appropriate labels to

use, and a suitable way to annotate the data to pro-

duce consistent and informative ground truth.

Self report or diaries are imperfect as they rely

purely on participant’s compliance and their subjec-

tive perception and may not be accurate enough to

use for developing activity recognition algorithms and

validation. It is also unrealistic to expect detailed ac-

tivity diaries with the exact timings of the activities.

Allen et al. (Allen et al., 2006) collected unsuper-

vised activity data in the home using a computer set

up to take participants through a routine. Input from

the user was in the form of a button press from which

the data was annotated. Bao and Intille (Bao and In-

tille, 2004) used a semi-supervised strategy to collect

annotated data for AR based on scripts. Unobserved

participants labelled the beginning and end time of

the activities. Kasteren et al. (van Kasteren et al.,

2008) asked participants to wear a Bluetooth headset

that used speech recognition to label the ground-truth

data. This method is inexpensive, however there is a

limit to the amount of detail that can be captured.

Another strategy is for the researcher to record the

activity and context during data collection (P

arkk

et al., 2006; Maurer et al., 2006). P

arkk

a et al.

arkk

a et al., 2006) adopted a semi-supervised ap-

proach to collecting data for AR classiﬁcation based

on realistic activities. A single researcher followed

the participant during the experiment and used an an-

notation app to record the activities. Even with this

approach it was noted that there were annotation in-

accuracies that might explain inaccuracies in classiﬁ-

cation.

Method using video recordings provide an objec-

tive reﬂection of participant’s activities enabling a

far more accurate and detailed activity ground-truth

data, however these require additional attention in the

form of ontology. Data can also be collected in an

unsupervised environment, encouraging natural be-

haviour; however it can also be perceived as intrusive

and will only capture actions with no room for par-

ticipant interpretation. Atallah et al. (Atallah et al.,

2009) used video to annotate activities during labo-

ratory experiments to train AR classiﬁers. Tsipouras

et al. (Tsipouras et al., 2012) used video recordings

to annotate data to develop a system for the automatic

assessment of levodopa-induced dyskinesia in Parkin-

son’s disease.

Video annotation can be costly and time consum-

ing. Active learning is a technique that can reduce the

amount of annotated data needed for training a clas-

siﬁer. In this approach, classiﬁers are initially trained

on a small set of data. When the classiﬁer is applied

to unlabelled data, the user is asked to label only data

that, for example, is classiﬁed with low conﬁdence or

those with disagreement between classes (Stikic et al.,

2008). Hoque and Stankovic (Hoque and Stankovic,

2012) employed a clustering technique to group smart

home environmental data into activities and the user

labelled the clusters. Another application for active

learning, is to update classiﬁers or personalise them

(Longstaff et al., 2010). While attractive, these meth-

ods rely on a collaborative effort on the part of the

user.

An alternative to attempting to reduce the amount

of annotated data required could be to increase the

number of annotators to label the data. By crowd-

sourcing, video annotation tasks can be opened up

to the online community. Vondrick et al. (Vondrick

et al., 2013) developed an open platform for crowd-

IoTBD 2016 - International Conference on Internet of Things and Big Data

370

sourcing video labeling, VATIC (Video Annotation

Tool from Irvine, California). This platform enables

the labelling and tracking of objects of interest within

the scene and associate attributes to the object using

bounding boxes.

There are a number of available software tools

which are suitable for video annotation, such as

ANVIL

video annotation tool (Kipp, 2012) or

ELAN

(Brugman and Russel, 2004) developed by

the Max Planck Institute for Psycholinguistics, The

Language Archive, Nijmegen, The Netherlands.

The labels used to annotate data is another anno-

tation consideration. Labels are often application spe-

ciﬁc, e.g. P

arkk

a et al. (P

arkk

a et al., 2006) used a hi-

erarchical list of labels, aimed at capturing the context

of the activities, where as, (Tsipouras et al., 2012) fo-

cused purely on a speciﬁc disease and the associated

symptoms. Logan et al. (Logan et al., 2007) presented

a detailed activity ontology for the home using a cus-

tom tool that enabled annotators to label foreground

and background activities for when the participant’s

attention is focused on another activity, addressing

the fact that humans naturally multitask. Roggen et

al. (Roggen et al., 2010) used a four ”track” annota-

tion scheme for annotating human activities based on

video data including tracks for locomotion, left and

right hand activities (with an additional attribute that

indicates the object they are using), and the high level

activity.

In the SPHERE project data mining algorithms

are initially trained and validated against recordings

from a head-mounted video camera worn by partic-

ipants. The data originates from the three differ-

ent sensing modalities (depth-camera, wearable ac-

celerometer and environmental sensors) deployed in a

real house, which constitutes the testbed (Woznowski

et al., 2015). The same ontology, presented in this

paper, underpins system-generated data and the con-

trolled vocabulary used in video annotation. In this

paper we propose two annotation strategies – based

on a controlled vocabulary derived from SPHERE on-

tology of activities of daily living (ADL) – which

provide simple frameworks for video annotation of

ground-truth video data.

3 DATA COLLECTION

The script-based data collection took place in the

SPHERE testbed – a typical two storey, two bedroom

house with two bedrooms on the upper ﬂow and two

http://www.anvil-software.org/

https://tla.mpi.nl/tools/tla-tools/elan/

rooms on the ground ﬂoor. The platform deployed

in this testbed is based on three sensing technologies:

a Body Sensor Network made up of ultra low-power

wearable sensors; a Video Sensor Network focusing

on recognition of activities through video analysis of

home inhabitants; and an Environment Sensor Net-

work made up of hardware sensing the home ambi-

ence. More detailed description of the sensing plat-

form, together with system architecture can be found

in (Woznowski et al., 2015). The presented taxonomy

applies more widely and is not limited to the testbed

setup. Scripted data has been collected for 11 partici-

pants.

3.1 Script

The script for data collection has been designed based

on several objectives and involves one participant at a

time. Firstly, it aims at exercising all types of sen-

sors deployed in the house – from electricity moni-

toring of individual appliances to RGB-D cameras in

the hallway. Secondly, the participant is asked to visit

all locations in the house which allows us to observe

sensor activations, their coverage, temporal relation-

ships, etc. Finally, the script consists of a represen-

tative set of activities and posture transitions which

provides data mining algorithms with training data.

3.2 Protocol

Prior to data collection each participant was issued

with a consent form and a copy of the script. Copy

of the script was provided in order to ensure partic-

ipants were fully aware of the tasks they would be

asked to do and also to resolve any questions or ambi-

guities before the start of an experiment. Each par-

ticipant was asked to execute the script twice with

a short break in between the two runs. This break

was not only to allow the participant to rest/ask fur-

ther questions but also to reassure that all the systems

were working correctly and no data was lost.

Participants were asked to wear three devices.

A head-mounted, wide-angle, 4K resolution camera

(Panasonic HX-A500E-K

). A Motorola TLKR T80

walkie talkie consumer radio

with hands-free VOX

setup over an earpiece headset. The third device, worn

on the dominant hand, was the wearable device in-

corporating two three-axial accelerometers (Fafoutis

et al., 2016). The full setup in Fig. 1.

http://www.panasonic.com/uk/consumer/cameras-camco

rders/camcorders/active-hd-camcorders/hx-a500e.html

http://www.motorolasolutions.com/en xu/products/consu

mer-two-way-radios/t80e.html

A Human Activity Recognition Framework for Healthcare Applications: Ontology, Labelling Strategies, and Best Practice

371

Figure 1: Data collection participant setup: head mounted

camera (head and left arm), wearable accelerometer (domi-

nant, right arm) and walkie talkie (belt + earpiece).

Experiments involved two people: participant and

experimenter. The experimenter remained on site, out

of sensors’ view, and read instructions over the walkie

talkie radio to the participant. Instructions were pre-

cise enough for the participant to understand what

was required from them, however allowed for some

degree of variability since participants were only in-

structed on what to do but not precisely on how to do

it i.e. prepare yourself a cup of tea (without explicit

instructions on how to do it, where cups and teabags

are, etc.). Each experiment started and ﬁnished with

jumping in front of the mirror activity in order to pro-

vide alignment point between and within the three

sensing modalities and the head-mounted camera. Al-

though the sensing platform is NTP-synchronised,

this was seen as a good practise and a backup strategy

if any of the sensing modalities was out of sync. There

are more sophisticated techniques for time synchro-

nisation in AAL spaces e.g. (Cippitelli et al., 2015)

used a series of LED lights, however having a unique

stamp of participant’s jump (clear accelerometer and

video signatures) was seen satisfactory.

4 ONTOLOGY FOR ACTIVITIES

OF DAILY LIVING

The SPHERE ontology for activities of daily living

lists and categorises activities occurring in the home

environment. No model is fully complete, hence this

ontology is expected to evolve over time. The ini-

tial dictionary of ADLs was compiled during project

meetings between researchers and clinicians involved

on the project. The result of this collaborative ef-

fort has been extended for completeness mainly with

activities found in the Compendium of Physical Ac-

tivities

. The ﬁnal stage involved merging it with

BoxLab’s Activity Labels

and thus extending their

model. Compliance with existing models ensures in-

teroperability and applicability of collected datasets

beyond the project.

In-line with BoxLab’s model, ACTIVITY has the

following properties: activity, physical state (pos-

ture/ambulation in BoxLab’s model), social context

and room. Furthermore, as represented by Fig. 2, the

ontology has been extended with additional proper-

ties, namely physiological context, (at) time, (involve)

object, (involvedAgent) person, ID, and sub-activity

with a self referencing relation. Thus, each activity

occurs at a certain point in time, is identiﬁable by

some unique ID. Moreover it can involve physical ob-

jects, people and might be made up of a number of

sub-activities. Physiological context is also of impor-

tance due to application of this ontology for health-

care and monitoring people living independently in

their own homes. Overall, AAL technologies have

to ensure user’s safety and monitoring physiological

signs is one possible method. The growing wearable

sensor market and smart-phone apps reﬂects this in-

terest, as more products offer heart rate monitoring

features. Fig. 2 depicts the structure of the proposed

ontology, the latest version of which, in the OBO

format, is available from http://data.bris.ac.uk (DOI:

10.5523/bris.1234ym4ulx3r11i2z5b13g93n7).

4.1 Activity Hierarchy

In the proposed ontology, ADL are organised hierar-

chically. Activity has 20 sub-classes out of which 15

are present (albeit some names may differ slightly)

in the BoxLab ontology. Five categories were added

to the original ontology to capture additional ADL

and to reﬂect aspects related to health. These include

https://sites.google.com/site/compendiumofphysicalactivi

ties/Activity-Categories/home-activity

http://boxlab.wikispaces.com/Activity+Labels

http://oboedit.org/

IoTBD 2016 - International Conference on Internet of Things and Big Data

372

Figure 2: High-level view of proposed ADL ontology.

Atomic home activities, Health condition, Social in-

teraction, Working, and Miscellaneous (shortened to

”Misc”). These categories are further described in the

reminder of this section. Detailed description of the

15 sub-classes which are present in both ontologies,

can be found at BoxLab website

Activities often involve interactions with one or

more object. These interactions/activities have been

reﬂected in the ontology in the Atomic home activi-

ties class and its subclasses. These capture the low-

level activities or simple actions which form the basic

building blocks for other activities (evidencing sub-

activities). Video annotators can use these labels to

identify short actions for use in AR algorithms. With

the increasing sophistication of wearable technology

and sensing, research into identifying these types of

activities will become more prominent. In the cur-

rent version of the ontology, Atomic home activities

has the following subclasses: door interaction, win-

dow interaction, object interaction, tap interaction,

cupboard interaction, draw interaction, and electri-

cal appliance interaction, each with a further level of

subclasses (omitted for brevity).

The Health condition class is essential to describe

activities and behaviours in the context of a persons

health. By training algorithms for AmI or AAL appli-

cations and associating activities (or lack of) with a

persons well-being, early warning signs that someone

is unwell or in need of assistance or medical treatment

could be predicted. This is especially important given

the health challenges and the inherent socioeconomic

impact facing society today. This category currently

includes: coughing, fall, fever/infection, shaking and

sweating.

Social interaction is comprised of: receive vis-

itors, social media, talking (with subclasses), and

video calling activities. Finally, Working is further

divided into intellectual and physical work. Every

subclass of Activity has a misc member to enable an-

notation of knowledge which the ontology does not

explicitly capture. Misc is for activity labels which do

not ﬁt into any of the existing classes and currently

has smoking tobacco.

4.2 Ambulation, Posture & Transition

The structure of Physical state directly reﬂects

BoxLab’s ontology posture/ambulation category, yet

has been extended with additional entities. It has three

subclasses, namely ambulation, posture, and transi-

tion. Since activities do not always describe a per-

son’s posture (with some exceptions e.g. running

where the posture is inherent in the activity), it is im-

portant to capture this information separately.

4.3 Contextual Information

Room/location, social context and physiological con-

text make up contextual information. For any activ-

ity it is beneﬁcial to know the context in which it

occurred. Some activities are associated with a par-

ticular location (bathing activity in bathroom loca-

tion) where some can occur anywhere inside or out-

side the home environment. From the healthcare point

of view, it is also important to capture social context

as people’s behaviour can be affected by presence of

other individuals. Finally, physiological context such

as blood pressure or glucose level have inﬂuence on

our well-being and behaviour. Information captured

without context is of limited value as it does not fully

reﬂect reality.

In addition, activities consist of (involved) object

and (involvedAgent) person properties, which capture

object(s) and people involved in a particular activ-

ity. Since some activities can be made up of shorter

(in duration) activities, sub-activity relation was intro-

A Human Activity Recognition Framework for Healthcare Applications: Ontology, Labelling Strategies, and Best Practice

373

duced. For completeness, (has) ID attribute was intro-

duced to allow to differentiate between activities. All

these properties and relations are captured in Fig. 2

5 PROPOSED ANNOTATION

STRATEGIES

Given the proposed ontology, a structure was devel-

oped to map the ontology into a form that could be

intuitively used by a human annotator. Video and au-

dio annotation software, such as Anvil

and ELAN

provide a tier-based solution that lends itself well to

the hierarchical activity structure of the proposed on-

tology. These tiers can also be used to provide the

context of the activities, e.g. the time, location, and

social context. The work presented in this paper uses

ELAN for annotating the script video data.

Three tiers were assigned to describe activities in

terms of detail from high level activities to low level

activities called ADL: Tier1 e.g. cleaning, ADL: Tier2

e.g. hoovering, and ADL: Tier3 e.g. object interac-

tions. For each tier a controlled vocabulary (CV) was

deﬁned using ontology labels. Further tiers were as-

signed with CVs based on the ontology, to annotate

physical state (Posture/ambulation), room (Location),

and social context (Social Interaction).

Two annotation strategies have been explored.

The ﬁrst annotation method directs the annotator to

label the activity the participant is focused on at

the time. Some researchers report that “Humans

(...) don’t do lots of things simultaneously. Instead,

we switch our attention from task to task extremely

quickly”(Hamilton, 2008). With this view in mind,

this strategy assumes no concurrency in annotated ac-

tivities. In this strategy, the three activity tiers, ADL:

Tier 1 - 3, are used. Such an approach may result

in annotating a large number of short and potentially

unﬁnished activities. The second annotation method

allocates two sets of activity tiers enabling the capture

of concurrent activities.

To demonstrate the impact of these different

strategies consider a situation in which a person is

cooking (kitchen) and watching TV (living room) at

the same time – as illustrated in Fig. 3. Using the ﬁrst

strategy i.e. annotating based on the user’s attention,

cooking would have a total duration of 1h with the

same duration of 1h for watching tv. Using the second

strategy, i.e. labelling concurrent activities, cooking

activity could be annotated as lasting 1.5h and watch-

ing tv as 2h long activity.

In the strategy 1, the user’s attention shifts be-

tween the two activities with a physical change in lo-

cation. Without further information or context these

Figure 3: Example of concurrent activities.

tasks are considered independent. For many applica-

tions, this may be suitable and is often the annota-

tion strategy used to annotate much of the research

in AR. However, if additional information is present

that indicates the bouts of cooking are related, i.e. the

same meal being prepared, annotating both activities

concurrently maybe more suitable. This would be es-

pecially useful for modelling higher level behaviour

routines and trends.

6 VIDEO ANNOTATION

Video annotation task is not simple due to multiple

factors such as complexity of human actions, mul-

titasking/switching between tasks, complex interac-

tion with surrounding environment, angle/orientation

of the camera, etc. Moreover, human annotators use

their own subjective judgment and can interpret the

same actions/activities in different ways. Video (with

audio) is a very rich source of information and hence

some clues/pieces of information are not always ap-

parent. Furthermore, people execute the same activi-

ties in different ways.

6.1 Recruitment

Annotators for the video annotation task were re-

cruited via an internal job advertisement. A half-

day workshop was organised to train and select un-

dergraduate students from the University to perform

the annotation. During the workshop students were

given an overview of the SPHERE project, the ADL

ontology, and the annotation task at hand. The two

different annotation strategies described in this paper,

and the relationship of the controlled vocabulary to

the ontology, were explained with examples of each.

The workshop concluded with two annotation tasks

to be completed using the ELAN video and audio an-

notation tool where attendees had the opportunity to

apply these strategies. For each task, students were

provided with a 10min long video, annotation tem-

plates with preloaded controlled vocabularies, and 40

minutes to annotate as much as possible of the video.

Prior to attempting these tasks they were given an op-

portunity to practise simple annotations and ask ques-

tions. At the end of the workshop, attendees submit-

ted their video annotations for both tasks which were

visually evaluated for attention to detail, application

IoTBD 2016 - International Conference on Internet of Things and Big Data

374

of appropriate annotation labels, and consistency of

annotations.

6.2 Annotation of Scripted Experiments

The annotation of scripted experiments to provide

ground-truth serves several purposes. One of which

being to provide researchers addressing data min-

ing/activity recognition problem with a base-line to

compare the results from their algorithm’s to. Vali-

dation of AR algorithms is required to demonstrate

how well they work and to calculate accuracy met-

rics such as precision and recall. Providing annotators

the ADL ontology via controlled vocabularies opens

up an opportunity to test the integrity of the ontol-

ogy. Annotators were asked to report on any prob-

lems faced including missing labels which then could

be added to the ontology. Since every video is anno-

tated by two different annotators, there is scope for

comparing the two annotations to highlight conﬂicts

(and remove bias) and/or merge the two to provide a

more complete picture of the real world.

Annotation of videos, performed by students us-

ing two different strategies, allowed us to compare the

usefulness of each technique and identify their short-

comings. In the provided workshop, annotators were

asked to make a note of any difﬁculties experienced

while performing the task, such as missing activity la-

bels, inability to capture some information, etc. Qual-

itative data collected in this way has been analysed

and some suggestions were adopted.

The ontology of ADL was found to be fairly com-

plete with few amendments made based on annota-

tors’ feedback. Most of the annotators’ comments

contributed to the growth of classes in the atomic

home activities category. Moreover, the ongoing

video annotation task provides continuous feedback

and annotators are reporting (as they get to know the

dictionary better) to spend less time on every subse-

quent annotation.

7 DISCUSSION

The model described in this paper and visualised in

Fig. 2 captures all the necessary information required

to describe some activity. It provides a hierarchical

structure of activities, together with all the relevant

and important contextual information. Hence, when

the AR algorithm recognises a particular activity, it

can produce an output in the format conforming to

the proposed ontology. Therefore, the inferred activ-

ity would happen in a particular time interval, in a

particular room, involving certain object(s) and peo-

ple, in a given social context with the subject being in

a particular physical state and physiological context,

and could be composed of a number of sub-activities

– all of which can be captured via use of available

properties.

Both annotation strategies presented in this paper

reﬂect the hierarchical structure of the activity classes

allowing for different levels of precision when anno-

tating videos. For example, with limited human or

ﬁnancial resources, or based on the application of the

AR algorithms, one may wish to annotate videos only

at Tier 1 to know the classes of the activities occur-

ring. Mirroring the ontology structure allows for di-

rect comparison between annotation labels and activ-

ities recognised by AR algorithms. The choice of the

annotation strategy can be based on the type of the al-

gorithm which is to be validated and its underlying as-

sumptions. The ﬁrst annotation method is well suited

for e.g. (Filippaki et al., 2011) which uses the con-

cept of activity resources (tangible and intangible). In

their work, “two complex activities are in conﬂict, if

their time-intervals overlap and they use common re-

sources’ (Filippaki et al., 2011). Since user attention

is an intangible resource, cooking and watching tv ac-

tivities would be identiﬁed as conﬂicting cases and the

conﬂict resolution strategy would resolve it resulting

in activities which do not overlap in time. The sec-

ond annotation method is more annotator-friendly, in

the sense that fewer annotations are required, and is

well suited for AR algorithms which work with the

assumption that humans can multitask and/or look for

unique sensor signatures which indicate start and ﬁn-

ish of the activity (and hence assume that the activity

continued from start to ﬁnish time) e.g. (Woznowski,

2013). Holding the assumption about people’s abil-

ity to multitask, a limit has to be set in order not

to have three or more tracks to capture concurrent

activities (as this would complicate the task and re-

sult in far too many annotation tracks). However, if

the subject in the annotated video switches between

three or more tasks, the ﬁrst annotation strategy (task-

switching) can be applied to the two activity tracks of

the second strategy.

8 FUTURE WORK

The work presented in this paper can be taken fur-

ther in multiple directions. Firstly, since every video

is annotated twice by randomly selected annotators,

it is possible to carry out intra-annotation correlation

analysis. Such analysis would take into consideration

agreement between individual labels in a given tier

A Human Activity Recognition Framework for Healthcare Applications: Ontology, Labelling Strategies, and Best Practice

375

(Activity, Physical state, etc.) as well as start and ﬁn-

ish time (and duration) of each annotation. Labels

with low agreement score, could then be revisited and

resolved.

One way to improve, or rather make activity

labels more intuitive, would be to provide more

user-friendly activity labels by considering their syn-

onyms. This information can either be acquired from

dictionaries or by running a user study with annota-

tors. Currently the naming of activity categories and

actual activities is more scientiﬁc/encyclopedic than

commonly used language. More colloquial naming

would enable annotators to navigate quicker and more

freely in the ontology hierarchy.

Since only scripted experiments’ data has been

considered in the presented study, analysis of free-

living recordings is the next logical step. This

would stress-test the ADL ontology for missing la-

bels. Moreover, data collection subjects could be

asked to annotate their own video. Such approach

would remove ambiguities, yet would require partic-

ipants to undertake some training in order to famil-

iarise themselves with the video annotation software

and the controlled vocabulary.

9 CONCLUSION

The aim of this work and presented video annota-

tion strategies was to design two approaches which

provide good and easy to follow annotation frame-

works. The purpose of annotating videos captured

during scripted experiments is to provide ground-truth

data against which activity recognition algorithms can

be trained and validated. Based on the hypothesis

undermining AR algorithms (whether multitasking is

considered or not), one can chose an annotation strat-

egy which supports that assumption. Furthermore, al-

gorithms can work at different levels i.e. from pro-

viding a very ﬁne level (at the atomic home activi-

ties level) of detail to only producing high-level ac-

tivity labels (cleaning). The two presented annotation

approaches work at different level of granularity and

hence e.g. only Tier 1 activities, which correspond to

the high-level activity categories, might be annotated

if required.

The two annotation approaches were tested on a

group of students with different backgrounds. The

analysis of feedback from the video annotation work-

shop reassured us that the selected annotation strate-

gies are easy to comprehend and work with. More-

over, it highlighted areas which needed improving

i.e. missing activity labels. The approach to map the

controlled vocabulary to the ontology of ADL was

found to be appropriate as it enables direct compar-

ison of output of AR algorithms against annotated

activity labels. Moreover, adopted approaches pro-

vide other contextual information such as location,

social context, physiological context, physical state

(posture/ambulation/transition) and to some extent in-

teraction with objects (via ADL Tier 3). All these

pieces of information captured during the annotation

process are important in the context of validating AR

algorithms. Moreover, annotations resulting from ei-

ther of the presented approaches can validate other

algorithms such as those sitting behind various ser-

vices that intelligent spaces can provide e.g. real-time

location service (RTLS). In order to accelerate re-

search in AmI and AAL spaces, sensors’ data together

with ground-truth data from the SPHERE project will

be made available online to the research community.

Since design, implementation and collection of intel-

ligent spaces’ data (with ground-truth data for vali-

dation) is time consuming and expensive, we share

the view that results of efforts in this space should be

made publicly available.

ETHICAL APPROVAL

Ethical approval for this study has been granted from

the Faculty of Engineering Research Ethics Commit-

tee (FREC), University of Bristol (ref: 14841).

ACKNOWLEDGEMENTS

We thank all the volunteers for participating in our tri-

als and video annotators for their hard work. Many

thanks to the SPHERE team for implementing a

sensor-rich testbed in which all the data was collected.

This work was performed under the SPHERE IRC,

funded by the UK Engineering and Physical Sciences

Research Council (EPSRC), Grant EP/K031910/1.

REFERENCES

Allen, F. R., Ambikairajah, E., Lovell, N. H., and Celler,

B. G. (2006). Classiﬁcation of a known sequence of

motions and postures from accelerometry data using

adapted Gaussian mixture models. 27(10):935–51.

Atallah, L., Lo, B., Ali, R., King, R., and Yang, G.-Z.

(2009). Real-time activity classiﬁcation using ambient

and wearable sensors. IEEE transactions on informa-

tion technology in biomedicine : a publication of the

IEEE Engineering in Medicine and Biology Society,

13(6):1031–9.

IoTBD 2016 - International Conference on Internet of Things and Big Data

376

Bao, L. and Intille, S. S. (2004). Activity Recognition from

User-Annotated Acceleration Data. Proceedings of

PERVASIVE 2004, pages 1–17.

Brugman, H. and Russel, A. (2004). Annotating multi-

media / multi-modal resources with ELAN. Proceed-

ings of the 4th International Conference on Language

Resources and Language Evaluation (LREC 2004),

pages 2065–2068.

Cippitelli, E., Gasparrini, S., Gambi, E., Spinsante, S.,

Wahslen, J., Orhan, I., and Lindh, T. (2015). Time

synchronization and data fusion for rgb-depth cam-

eras and wearable inertial sensors in aal applications.

In IEEE ICC Workshop on ICT-enabled services and

technologies for eHealth and AAL.

Fafoutis, X., Tsimbalo, E., Mellios, E., Hilton, G.,

Piechocki, R., and Craddock, I. (2016). A residential

maintenance-free long-term activity monitoring sys-

tem for healthcare applications. EURASIP Journal on

Wireless Communications and Networking, 2016(31).

Filippaki, C., Antoniou, G., and Tsamardinos, I. (2011). Us-

ing constraint optimization for conﬂict resolution and

detail control in activity recognition. In Ambient In-

telligence, pages 51–60. Springer.

Hamilton, J. (2008). Think you’re multitasking? think

again. Morning Edition, National Public Radio (2 Oc-

tober 2008).

Hoque, E. and Stankovic, J. (2012). AALO: Activity recog-

nition in smart homes using Active Learning in the

presence of Overlapped activities. Proceedings of the

6th International Conference on Pervasive Computing

Technologies for Healthcare, pages 139–146.

Kipp, M. (2012). Annotation Facilities for the Reliable

Analysis of Human Motion. In Proceedings of the

Eighth International Conference on Language Re-

sources and Evaluation (LREC), pages 4103–4107.

Logan, B., Healey, J., Philipose, M., Tapia, E. M., and In-

tille, S. (2007). A Long-term Evaluation of Sensing

Modalities for Activity Recognition. In Proceedings

of the 9th International Conference on Ubiquitous

Computing, UbiComp ’07, pages 483–500, Berlin,

Heidelberg. Springer-Verlag.

Longstaff, B., Reddy, S., and Estrin, D. (2010). Improving

activity classiﬁcation for health applications on mo-

bile devices using active and semi-supervised learn-

ing. In Proceedings of the 4th International ICST

Conference on Pervasive Computing Technologies for

Healthcare, pages 1–7.

Maurer, U., Smailagic, A., Siewiorek, D., and Deisher, M.

(2006). Activity Recognition and Monitoring Using

Multiple Sensors on Different Body Positions. In In-

ternational Workshop on Wearable and Implantable

Body Sensor Networks (BSN’06), pages 113–116.

IEEE.

arkk

a, J., Ermes, M., Korpip

a, P., M

antyj

arvi, J., Peltola,

J., and Korhonen, I. (2006). Activity classiﬁcation us-

ing realistic data from wearable sensors. IEEE Trans-

actions on Information Technology in Biomedicine.

Roggen, D., Calatroni, A., Rossi, M., Holleczek, T., Forster,

K., Troster, G., Lukowicz, P., Bannach, D., Pirkl, G.,

Ferscha, A., Doppler, J., Holzmann, C., Kurz, M.,

Holl, G., Chavarriaga, R., Sagha, H., Bayati, H., Crea-

tura, M., and Millan, J. d. R. (2010). Collecting com-

plex activity datasets in highly rich networked sensor

environments. In 2010 Seventh International Con-

ference on Networked Sensing Systems (INSS), pages

233–240. IEEE.

Stikic, M., Van Laerhoven, K., and Schiele, B. (2008). Ex-

ploring semi-supervised and active learning for activ-

ity recognition. 2008 12th IEEE International Sympo-

sium on Wearable Computers, pages 81–88.

Tsipouras, M. G., Tzallas, A. T., Rigas, G., Tsouli, S., Fo-

tiadis, D. I., and Konitsiotis, S. (2012). An automated

methodology for levodopa-induced dyskinesia: as-

sessment based on gyroscope and accelerometer sig-

nals. Artiﬁcial intelligence in medicine, 55(2):127–35.

van Kasteren, T., Noulas, A., Englebienne, G., and Kr

ose,

B. (2008). Accurate activity recognition in a home set-

ting. In Proceedings of the 10th international confer-

ence on Ubiquitous computing - UbiComp ’08, New

York, New York, USA. ACM Press.

Vondrick, C., Patterson, D., and Ramanan, D. (2013).

Efﬁciently Scaling up Crowdsourced Video Anno-

tation. International Journal of Computer Vision,

101(1):184–204.

Woznowski, P. (2013). Rule-based semantic sensing plat-

form for activity monitoring. PhD thesis, Cardiff Uni-

versity.

Woznowski, P., Fafoutis, X., Song, T., Hannuna, S.,

Camplani, M., Tao, L., Paiement, A., Mellios, E.,

Haghighi, M., Zhu, N., et al. (2015). A multi-modal

sensor infrastructure for healthcare in a residential en-

vironment. In IEEE ICC Workshop on ICT-enabled

services and technologies for eHealth and AAL.

A Human Activity Recognition Framework for Healthcare Applications: Ontology, Labelling Strategies, and Best Practice

377
