Improving IP Prefix Hijacking Detection by Tracing Hijack

Fingerprints and Verifying Them through RIR Databases

Hussain Alshamrani and Bogdan Ghita

Centre for Security, Communications and Network Research (CSCAN), Plymouth University, Plymouth, U.K.

Keywords: RIPE Database, ASNs and IP Prefix Delegators, Information Correlation, False Positives.

Abstract: In spite of significant on-going research, the Border Gateway Protocol (BGP) still encompasses conceptual

vulnerability issues regarding impersonating the ownership of IP prefixes for ASes (Autonomous Systems).

In this context, a number of research studies focused on securing BGP through historical-based and

statistical-based behavioural models. This paper improves the earlier IP prefix hijack detection method

presented in (Alshamrani et al. 2015) by identifying false positives showing up due to the organisations that

may use multiple ASNs (Autonomous System Numbers) to advertise their routes. To solve this issue, we

link a Verification Database to the previously proposed detection method to improve the accuracy. The

method extracts the organisation names (unique code) and associated ASNs from different ASN delegators

and RIRs (Regional Internet Registries), more specifically the RIPE (Reseaux IP Europeans) dump database

(John Stamatakis 2014) in order to evaluate the method. Since the organisation name is not available in the

BGP updates, the data are extracted and processed to produce a structured database (Verification DB). The

algorithm excludes false positive IP prefix hijack detection events in the SFL (Suspicious Findings List)

introduced in (Alshamrani et al. 2015). Finally, the algorithm is validated using the 2008 YouTube Pakistan

hijack event and the Con-Edison hijack (2006); the analysis demonstrates that the improved algorithm

qualitatively increases the accuracy of detecting the IP prefix hijacks, specifically reducing the false

positives.

1 INTRODUCTION

BGP remains the protocol of choice for core Internet

interconnectivity. Although a number of BGP

security issues have been identified for almost two

decades, the protocol remains vulnerable to IP prefix

attack (Goldberg 2014). These weaknesses cause

serious attacks and open the door for attacker to

perform spam attack (Schlamp et al. 2015), traffic

interception and DDoS (Vervier et al. 2015). On

Oct, 2014 Sharon Goldberg pointed out that the

main reasons why BGP is taking so long to be

secured is that, apart from the fact that the BGP

security solutions are not deployable, BGP lacks a

single centralised authority, each organisation

deploys its own routing security solution

autonomously, so a complete or mass deployment is

unlikely to take place (Goldberg 2014).

Previous studies tried to detect IP prefix hijacks

based on monitoring routers’ stability, but their

methods could not reliably distinguish IP prefix

hijacks from normal events, such as power cut-off

and submarine cuts (de Urbina Cazenave et al.

2011). In addition, RPKI (Resource Publication

Infrastructure) was put forward to detect BGP route

hijacking, but the system had several false positives

and negatives and need further refinements

(Wählisch et al. 2012).

Lastly, some methods propose analysing the

routing tables in order to detect IP prefix hijacks, but

they are likely to have a limited impact, as

organisations may refuse to provide their routing tables

or are unable to timely detect a hijack event (Cao et al.

2009). In addition, previous solutions do not support

collaboration among routers to detect the IP prefix

hijacks, collaboration could limit the attack spreading

out and affecting a large number of networks.

This paper aims to address the false positives

caused by the limitations of the algorithm in

(Alshamrani et al. 2015). After investigating the main

reasons we found that route aggregation and AS

confederation or reflection BGP operations do not

affect the accuracy of the IP prefix detection

algorithm proposed previously (Alshamrani et al.

2015) although they have a direct effect on the routes.

Alshamrani, H. and Ghita, B.

Improving IP Preﬁx Hijacking Detection by Tracing Hijack Fingerprints and Verifying Them through RIR Databases.

DOI: 10.5220/0005934200570063

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 1: DCNET, pages 57-63

ISBN: 978-989-758-196-0

One of the factors affecting the algorithm is that

big organisation can announce their routes with

multiple different ASNs; to counteract this issue, a

novel combination of RIRs and ASNs delegation

database and BGP updates (Meyer n.d.) is proposed

in order to accurately and timely detect IP prefix

hijacking events.

In section 2, the paper discusses the previous

detection method and the limitations of its

algorithm. Section 3 shows the creation of the

Verification DB based on the RIPE database. In

Section 4 we describe the proposed improvements to

the IP prefix detection method based on the

information from the Verification DB, together with

findings and algorithm challenges. Section 5

describes the collaboration between routers to detect

the IP prefix hijacks before it spreads out. Section 6

proposes a general structure of the detection method

to be linked with the BGP routers so it can work

efficiently. The paper finishes with the conclusion

and future work in section 7.

2 PREVIOUS DETECTION

METHOD

The detection method presented in (Alshamrani et

al. 2015) consists of three main parts: pre-

processing, analysis and the algorithm, as shown in

Figure 1. This section shows that the algorithm did

not have a mechanism to validate the output. It

makes decision directly and displays the result either

benign or malicious.

The next two subsections explain that by

providing an overview of the algorithm functionality

and highlight its limitations, specifically the

shortcomings that we aim to improve in this paper.

BGPdump is a tool used to convert updates from

binary data to ASCII data.

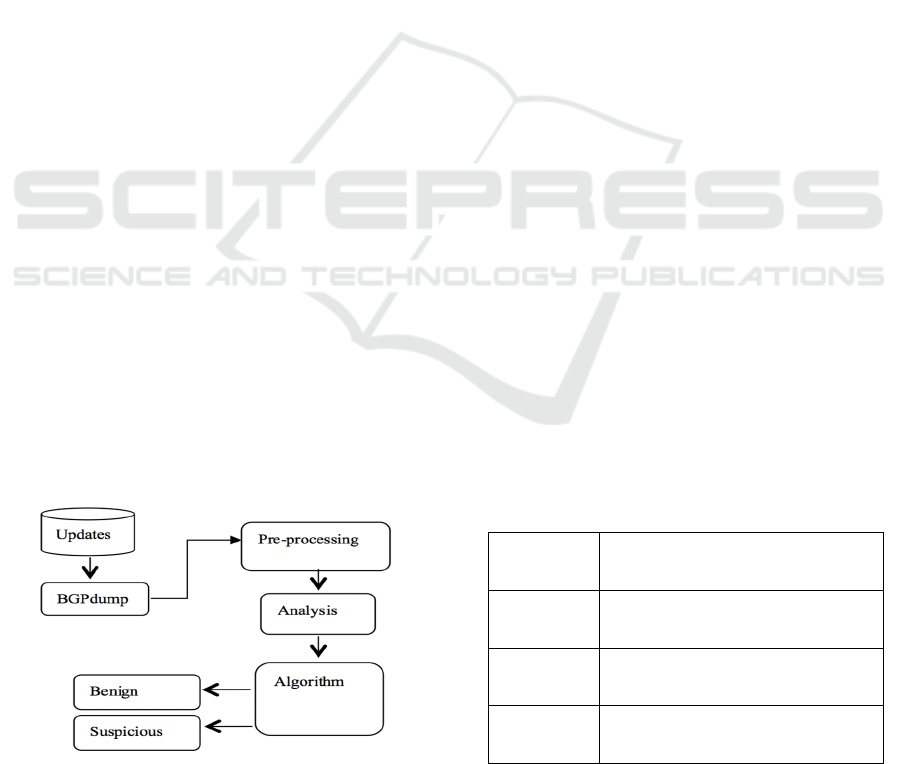

Figure 1: Previous structure of the IP prefix hijack

detection method.

2.1 Algorithm

The algorithm has three objectives – firstly,

associates the announcer (origin AS) with each

advertised IP prefix. Secondly, removes duplications

of associated origin ASes and IP prefixes. Finally,

identifies any IP prefixes that were announced by

more than one AS.

The algorithm receives the origin ASes and their

IP prefixes from two different data sources, every

fifteen minutes. Origin ASes are mapped on their IP

prefixes using a cell array in MatLab (Alshamrani et

al. 2015) allowing assignment of one ASN to

multiple IP prefixes.

Data reduction is then applied to the dataset by

removing duplicated origin ASNs and IP prefixes,

which allows the algorithm to categorise faster the

input dataset in order to detect suspicious

announcements. After computing unique origin

ASes and their associated IP prefixes, the algorithm

compares the IP prefix of each AS to the IP prefixes

of all origin ASes reported during each time interval

to find out IP prefixes that were advertised by

multiple ASes.

The analysis performs a comparison between

individual AS-IP prefix rows in the cell array using

the BSA (Binary Search Algorithm) (Dalal 2004)

O(log N) due to its ability to execute array

comparisons exponentially faster than linear search

algorithm (LSA) (Horvath 2012). The algorithm lists

the detected incidents (suspicious hijacks) in a new

matrix composed of two columns.

Table 1 shows the format of the Mapping Cell

Array for Origin ASes and IP prefixes. The

comparison part shows the outputs as normal or

suspicious routes. However, the algorithm in [1] has

some false positives as it is going to be explained in

the following subsection.

Table 1: Example of mapping cell array in quarter 82.

Origin ASes IP prefixes

137 369760021

151 369760021; 369760023; 697600524

174 139438524; 244296124

DCNET 2016 - International Conference on Data Communication Networking

2.2 Previous Algorithm Limitation

The algorithm proposed in (Alshamrani et al. 2015)

has a significant limitation, as it cannot take into

account organisations using multiple different ASNs

to advertise their own routes. To address this

limitation, this paper introduces a Verification

database to be included in the detection method in

order to enhance the accuracy of the algorithm.

Since BGP updates lack the organisation names

(codes), we extract data from the RIRs and process

them to produce a dataset that links the AS numbers

to the unique codes for the organisations that own

them.

3 MAPPING OF AS NUMBERS

AND ORGANISATIONS

This section discusses the processing of RIR

information (specifically the RIPE Whois database

(John Stamatakis 2014)) to enhance the BGP update

fields used as input and support the algorithm

described in (Alshamrani et al. 2015) to reduce the

false positives.

3.1 Extracting and Numerating

Organisations’ ASNs and Their

Unique Codes

As part of the RIR registration, each organisation

has a unique code to uniquely identify it. For

instance, in RIPE, ORG-YE1-RIPE field represents

Yahoo in Europe but ORG-HBp1-RIPE represents

HSBC Bank plc. The Verification DB is processed

in three phases.

1. PHASE 1

This phase extracts the ASNs and organisation

codes fields from the RIPE dump database and

stores data into corresponding fields, aut-nums and

orgs, such as autonomous system number AS20535

and its code ORG-IG12-RIPE.

2. PHASE 2

Since RIPE includes ASNs without an associated

organisation code (name), the incomplete records are

filtered out, which does inherently limit the

capabilities of the presented method because they

confuse the order of searching the ownership of

specific IP prefix and mix them up.

3. PHASE 3

The organisation code (name) field is structured

as an array and was created to include all

organisations codes that facing every ASN in RIPE.

Each organisation code (organisation name) is

divided into three parts (ORG, IG12 and RIPE for

example) and saved in an array called ORG. Second

and third index in ORG array respectively represent

the organisation name and data resource (e.g. RIPE).

Currently, the most important part is the second field

of the array because it uniquely identifies the

organisations.

The third field of the organisation code array

represents the database (e.g. RIRs or ASN delegator)

that provided the record; this helps to differentiate

between multiple database source owners. To

optimise the analysis, these two parts are converted

to numeric data. Table 2 shows one record of the

final structure format of the Verification DB. First

column is used as a primary key to be linked to

ASNs in the Suspicious Findings List (Alshamrani et

al. 2015).

Table 2: Example of the final format to the

VerificationDB.

ASNs ORG codes and sources

200912 18191226

3.2 Filtering Organisations with One

ASN

Given the method focuses on organisations with

more than one ASN in order to refine the results, all

organisations that have only one ASN are filtered

out, allowing the algorithm based on (Alshamrani et

al. 2015) to parse a significantly smaller dataset in

order to determine whether suspicious IP prefix

hijacks are real or not.

In the case of RIPE database from February 2015

(Meyer n.d.), the size of the Verification Database

before filtering out organisations with only one ASN

was 25580 records, reduced to 6283 records through

filtering. The improved detection method verifies its

results (suspicious hijacks) based on the reduced

Verification DB. The general structure of processing

the Verification Database is shown in Figure 2.

Improving IP Preﬁx Hijacking Detection by Tracing Hijack Fingerprints and Verifying Them through RIR Databases

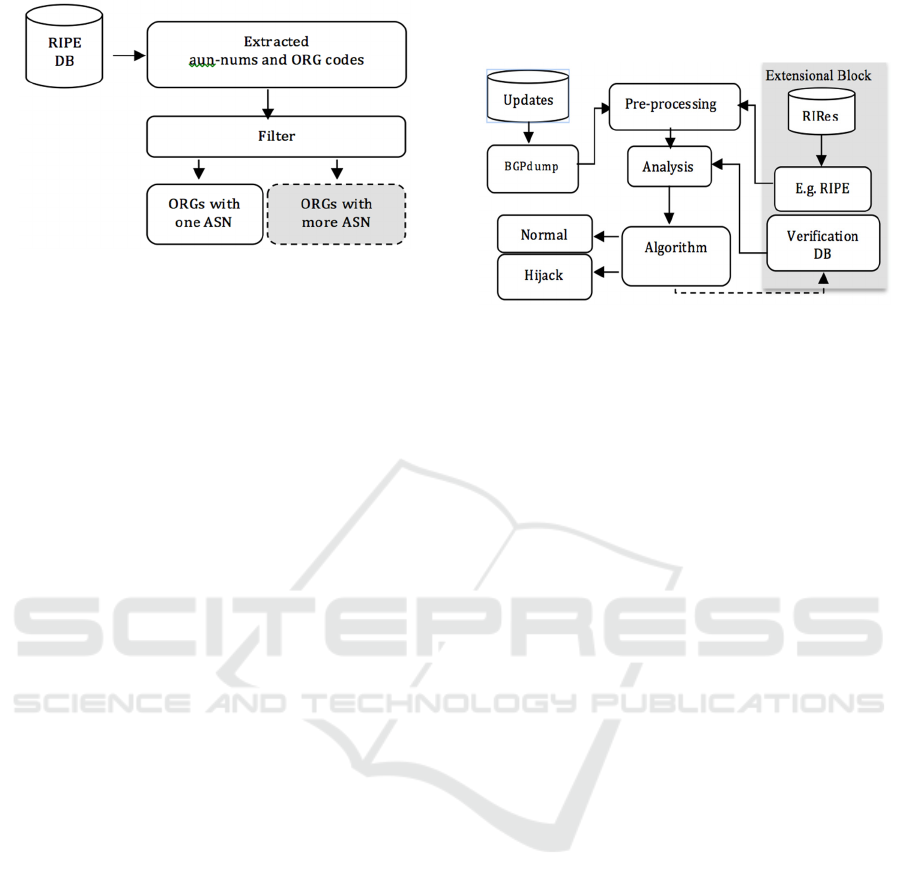

Figure 2: Structure of Verification DB of organisations

that have multiple ASNs.

4 IMPROVED DETECTION

METHOD

This section discusses the use of the Verification DB

in the IP hijack detection method (Alshamrani et al.

2015). The encompassing algorithm validates its

outputs based on this database. It also demonstrates

the results of the detection method after the

improvement.

In the previous work (Alshamrani et al. 2015),

the algorithm directly translates the results into two

categories, normal and suspicious, but it does not

verify the decision against organisations owning

multiple ASes. To expand, if an organisation

relocates a prefix between two of the ASes it owns,

the algorithm would flag the change as a suspicious

event; in fact, given both ASes are owned by the

same organisation, it is likely that it is due to

addressing and logistics ASes and IP prefixes

management rather than a hijacking incident. In this

paper, we introduce the Verification DB to check

against the owners of the ASes involved in the

suspicious events.

The Verification DB maps the autonomous

system numbers and the corresponding organisations

owning them. The extended comparison allows us to

verify if a suspicious event is due to an IP prefix

being migrated between ASes owned by distinct

organisations. If an IP prefix is indeed migrated

between ASes owned by different organisations, the

event is further flagged as suspicious; if however the

migration is between ASes of the same owner, the

algorithm concludes that the change is not a

suspicious event and continues with the search.

Figure 3 provides a block-diagram overview of

the improved detection method, including input from

RIRs into the decision process. In the diagram, the

Extensional Block provides the required

functionality for the RIR information and

verification DB processing.

Figure 3: Improved structure of the IP prefix hijack

detection method.

5 VALIDATION OF IMPROVED

DETECTION METHOD

The algorithm proposed in the previous section was

applied to two incidents: the whole day of Pakistan

and YouTube hijacking day (24/02/2008) and the

day of the Con-Edison hijack (22/01/2006). In other

words, before the algorithm takes a decision with the

suspicious routes, it checks out if two suspicious

routers that were impersonating the same IP prefix

exist in the Verification DB with one organisation

name; if so, they are ignored otherwise the

advertisement will be flagged as a hijack. Pseudo

code below explains the steps of the validation in

details. The algorithm develops the accuracy of the

suspicious results that were already caught by

searching for the signature attack of IP prefix

hijackings. It takes each two suspicious ASes in the

list of Suspicious Finding List and searches for them

in VerificationDB which contains organisations that

have more than one ASN; if they exist in the SFL,

the ASes will be removed from suspicious list as

they are not a real signature for the IP prefix

hijackings.

Suspicious = dlmread

(Suspicious_Finding_List);

suspiciouslen = length (suspicious);

VerifDBLen = length(ORGsWithMultiASN);

CASE = 1;

ORGCODE = [1 0; 2 1];

WHILE CASE <= suspiciouslen

ASN1 = suspicious (CASE, 4);

ASN2 = suspicious (CASE+1,4);

CHECK = 1;

WHILE CHECK < VerifDBLen

DCNET 2016 - International Conference on Data Communication Networking

ASN3=ORGsWithMultiASN (CHECK,

1);

IF (ASN1 == ASN3 OR ASN2 ==

ASN3)

IF (ASN1 == ASN3)

ORGCODE (1,1)=CASE;

ORGCODE (1,2)= . . .

ORGsWithMultiASN

(CHECK,2);

ELSEIF (ASN2 == ASN3)

ORGCODE (2,1)= CASE;

ORGCODE (2,2)= . . .

ORGsWithMultiASN

(CHECK,2);

END

IF (ORGCODE (1,2) ==

ORGCODE(2,2)

ORGCODE (1,1) == ORGCODE

(2,1))

suspicious(CASE-1: CASE+1,:)=[];

suspiciouslen= . . .

length(suspicious);

ORGCODE (1,2)=0;

ORGCODE (2,2)=1;

END

CHECK= CHECK+1;

END

CASE= CASE+3;

END

5.1 Findings

The improved algorithm added functionality has two

advantages: it can detect multiple occurrences of the

same incident and allows the algorithm to identify

organisations that announce their routes with more

than one ASN. In the specific example of the

YouTube hijack, the algorithm from (Alshamrani et

al. 2015) identifies 1767 incidents; following the

analysis of repeated incidents, 975 unique incidents

can be identified. Parsing the analysis through the

Verification DB, the number of Suspicious hijacks

drops to 969, due to the SLF suspicious hijack

exclusions. Following a similar processing, the

events from (the 22

Jan 2006) do not show any

improvement because the incidents took place

outside RIPE, so the Suspicious Findings List from

RIPE is empty (none of suspicious results in the

findings list is in the RIPE database). Thus, the

algorithm needs several sources such as AFRINIC

(Africa Region), APNIC (Asia/Pacific Region) and

ARIN (North America Region) to improve its

accuracy.

5.2 Algorithm Challenges and Solutions

Since the Verification DB uses only the RIPE

database as a case study, the results would still

include false positives but with lower percentage.

The algorithm would be more accurate if the number

of different sources (RIRs’ and ASN delegators’

database) used for the Verification DB increases.

This challenge can be addressed as described at the

end of the previous sub-section.

Second challenge is that the RIRs and ASNs

delegators’ databases need to be updated regularly

and concurrently with the changes to ASNs and

organisation names. Third difficulty is the algorithm

detects IP prefix hijacks based on off-line analysis.

Furthermore, some organisations do not include

their code in their associated record in the RIPE

database. In addition, some RIRs do not keep

historical records of old Whois registrations details.

Once a record is updated or deleted, the old record is

not stored in an archived database. As a result, the

algorithm cannot evaluate organisation names and

ASNs changes when it compares past suspicious

hijacks to the current Verification DB.

Finally, prefix hijacks may be transparent for the

algorithm on a subset of routers due to partially

propagated prefix updates; therefore routers need to

work collaboratively to compare and aggregate

update information with their neighbours. The

following section discusses the steps of this

collaboration.

6 PROPOSED DETECTION

ARCHITECTURE

This section describes a possible architecture that

allows aggregating data collaboratively on several

different routers. The aim of the architecture is to

allow BGP routers to jointly benefit from the

independently identified events on each router and,

subsequently, lead to higher accuracy when

detecting anomalous behaviour.

6.1 Architecture Method and the

Advantages

Routers that run the hijack detection algorithm

should work together in order to improve the

reliability and timeliness of the information derived

from the UPDATE messages. An IP prefix hijack

might not significantly affect traffic exchanged with

the impersonated AS until it spreads to

Improving IP Preﬁx Hijacking Detection by Tracing Hijack Fingerprints and Verifying Them through RIR Databases

multiple/different ASes; to alleviate the effect of the

hijack, the algorithm has to work collaboratively to

prevent the propagation of invalid routes. The

detection algorithm operates independently from

BGP and categorises network events, but may

benefit from sharing and receiving data from other

neighbouring routers in order to detect the effect of

the attack rapidly. The BGP updates may be

collected and aggregated by a router over a specific

operational timeslot, while bearing in mind that

anomaly detection becomes stale with higher

aggregation slots. In case of detecting a suspicious

route, an alarm of the invalid route would be sent to

all neighbours.

The algorithm should run in each router, based

on the different information received. In addition to

the use BSA (of Binary search algorithm), making

the routers work collaboratively and independently

would increase the detection speed and would not

require any modifications of the infrastructure of the

BGP routers. Figure 4 shows the general structure of

the improved detection method when linked to the

BGP routers.

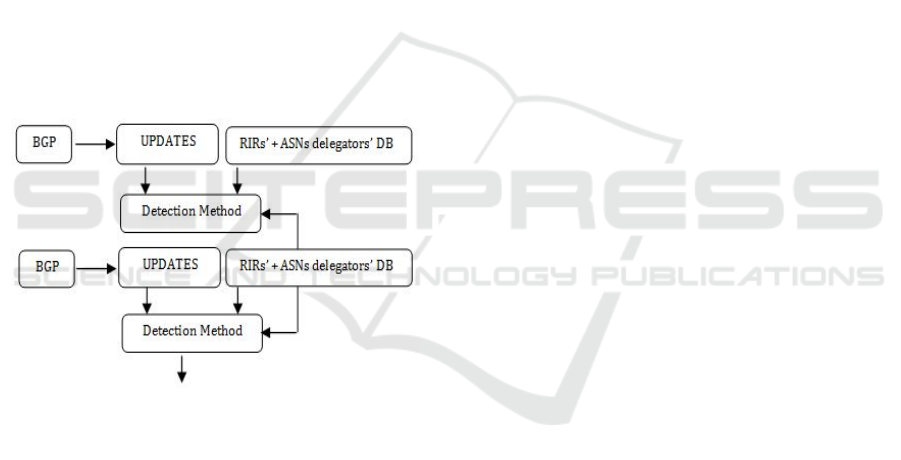

Figure 4: Architectural method of linking BGP to the

detection method.

Moreover, if some routers do not actively run the

detection system, the other routers may identify and

publicise the anomaly. By doing so, each BGP

router will have a chance to suppress any suspicious

routes to prevent itself from further propagating the

hijacked routes.

6.2 The Effectiveness of the

Architecture over the Algorithm

The advantage of a collaborative architecture in the

BGP context is that each router can only check its

own received update packets so there is no load to

the algorithm to find out the hijack. Another

advantage of this collaboration is that the check will

be periodic, with timeslot starting times distributed

over time. For example, if Router A cannot detect

the hijack at 1:15 AM because it is not the time slot

to do the check, there may be another copy of the

algorithm in the neighbouring routers doing the

check and detecting the hijack faster.

7 CONCLUSION AND FUTURE

WORK

A new framework was proposed to enhance the

accuracy of a previously proposed method for IP

prefix hijack detection. The framework extracts the

unique code and associated ASNs of organisations

from different RIRs; the algorithm then excludes

previously detected IP prefix hijacks that are likely

to be false positives. After proposing the framework,

its efficiency is validated on the Pakistan IP

hijacking event from 24

Feb 2008 and the Con-

Edison hijack (22

Jan 2006). The analysis used the

RIPE dump database from the two respective dates

as a case study to evaluate the proposed framework.

In the evaluation, the algorithm was able to improve

the accuracy of the IP prefix hijacks, reducing the

false positives by 0.61% (18 suspicious hijack) for

the two events.

From the results, it is clear that the algorithm can

work accurately but also could omit some events;

more specifically, several incidents from 22

Jan

2006 were still false positives, since the analysis was

based only on the RIPE database. Additionally, if an

AS announces an IP prefix in the absence of the real

origin AS, the algorithm will not be able to detect

the impersonation when it works independently

(non-collaboratively).

In terms of router interconnectivity, some routers

do not have a direct connection to the hijacker. In

other words, the detection method ought to be

decentralised in order to collect direct information

regarding the hijacker and detect the hijack faster.

Another advantage of the decentralisation is that

detection of anomalies can be done for various,

partially overlapping timeslots. Another challenge of

the algorithm is that the hijacker could impersonate

one of the net-range IP prefixes (sub-prefixes), event

that may be transparent for the algorithm. Last, the

period gap (synchronisation) between fetching BGP

updates and the current status of the ASN of an

organisation, together with the IP prefixes changes,

could have a negative impact on the accuracy of the

algorithm.

DCNET 2016 - International Conference on Data Communication Networking

In future, the proposed approach may provide

further insight into and refine the rationale behind

organisations announcing the same IP prefix with

different ASN. This is needed in order to distinguish

between normal BGP operations and malicious ones,

and then address the false positive errors.

REFERENCES

Alshamrani, H., Ghita, B. & Lancaster, D., 2015.

Detecting IP prefix hijacking using data reduction-

based and Binary Search Algorithm. In 2015 Internet

Technologies and Applications (ITA). Wrexham:

IEEE, pp. 78–84. Available at: http://ieeexplore.iee

e.org/lpdocs/epic03/wrapper.htm?arnumber=7317374.

Cao, H. et al., 2009. A Packet-Based Anomaly Detection

Model for Inter-domain Routing. In 2009 IEEE

International Conference on Networking,

Architecture, and Storage. Hunan: IEEE, pp. 192–195.

Available at: http://ieeexplore.ieee.org/lpdocs/epic03

/wrapper.htm?arnumber=5197320 [Accessed

December 6, 2013].

Dalal, A., 2004. Searching and Sorting Algorithms. ,

(100), pp.1–13. Available at: http://www.cs.carle

ton.edu/faculty/adalal/teaching/f04/117/notes/searchSo

rt.pdf [Accessed December 8, 2014].

Goldberg, S., 2014. Why is it taking so long to secure

internet routing? Communications of the ACM, 57(10),

pp.56–63. Available at: http://dl.acm.org/citation.cfm?

doid=2661061.2659899.

Horvath, A., 2012. Quicksort, binary search and linear

search performance - far from what you believe. , p.6.

Available at: http://blog.teamleadnet.com/2012/02/q

uicksort-binary-search-and-linear.html [Accessed

August 5, 2013].

John Stamatakis, 2014. Pen Test Live: Download

Database. Available at: http://www.pentestlive.com

[Accessed January 9, 2014].

Meyer, D., University of Oregon Route Views Archive

Project. University of Oregon. Available at:

http://archive.routeviews.org/bgpdata/2008.02/UPDA

TES/ [Accessed October 5, 2013].

Schlamp, J. et al., 2015. The Abandoned Side of the

Internet: Hijacking Internet Resources When Domain

Names Expire. In arXiv preprint arXiv: …. pp. 188–

201. Available at: http://link.springer.com/10.1007

/978-3-319-17172-2_13.

de Urbina Cazenave, I.O., Kosluk, E. & Ganiz, M.C.,

2011. An anomaly detection framework for BGP. In

2011 International Symposium on Innovations in

Intelligent Systems and Applications. Istanbul: IEEE,

pp. 107–111. Available at: http://ieeexplore.ieee.org/l

pdocs/epic03/wrapper.htm?arnumber=5946083.

Vervier, P., Thonnard, O. & Dacier, M., 2015. Mind Your

Blocks: On the Stealthiness of Malicious BGP

Hijacks. In Proceedings 2015 Network and

Distributed System Security Symposium. Reston, VA:

Internet Society, pp. 8–11. Available at:

http://www.internetsociety.org/doc/mind-your-blocks-

stealthiness-malicious-bgp-hijacks.

Wählisch, M., Maennel, O. & Schmidt, T.C., 2012.

Towards detecting BGP route hijacking using the

RPKI. ACM SIGCOMM Computer Communication

Review, 42(4), p.103. Available at: http://dl.acm

.org/citation.cfm?doid=2377677.2377702.

Improving IP Preﬁx Hijacking Detection by Tracing Hijack Fingerprints and Verifying Them through RIR Databases
