Combining Invariant Violation with Execution Path Classiﬁcation for

Detecting Multiple Types of Logical Errors and Race Conditions

George Stergiopoulos

, Panayiotis Katsaros

, Dimitris Gritzalis

and Theodore Apostolopoulos

Information Security & Critical Infrastructure Protection Laboratory, Dept. of Informatics,

Athens University of Economics & Business, 76 Patission Ave., GR-10434, Athens, Greece

Dept. of Informatics, Aristotle University of Thessaloniki, Thessaloniki, Greece

Keywords:

Code Classiﬁcation, Logical Errors, Dynamic Invariants, Source Code, Execution Path, Assertions, Vulnera-

bility, Exploit, Automatic, Analysis, Information Gain, Fuzzy Logic.

Abstract:

Context: Modern automated source code analysis techniques can be very successful in detecting a priori de-

ﬁned defect patterns and security vulnerabilities. Yet, they cannot detect ﬂaws that manifest due to erroneous

translation of the software’s functional requirements into the source code. The automated detection of logical

errors that are attributed to a faulty implementation of applications’ functionality, is a relatively uncharted

territory. In previous research, we proposed a combination of automated analyses for logical error detection.

In this paper, we develop a novel business-logic oriented method able to ﬁlter mathematical depictions of soft-

ware logic in order to augment logical error detection, eliminate previous limitations in analysis and provide a

formal tested logical error detection classiﬁcation without subjective discrepancies. As a proof of concept, our

method has been implemented in a prototype tool called PLATO that can detect various types of logical errors.

Potential logical errors are thus detected that are ranked using a fuzzy logic system with two scales character-

izing their impact: (i) a Severity scale, based on the execution paths’ characteristics and Information Gain, (ii)

a Reliability scale, based on the measured program’s Computational Density. The method’s effectiveness is

shown using diverse experiments. Albeit not without restrictions, the proposed automated analysis seems able

to detect a wide variety of logical errors, while at the same time limiting the false positives.

1 INTRODUCTION

The sum of all functional requirements of an appli-

cation reﬂect the intended program behavior; that is,

what the programmer wants his code to do and what

not to do. During software development, functional

requirements are translated into source code. A soft-

ware error or fault is the difference between a com-

puted, observed, or measured value and the true, spec-

iﬁed or theoretically correct value or condition inside

the software code (Peng and Wallace, 1993). A (soft-

ware) vulnerability is a weakness in a system or appli-

cation that is subject to exploitation or misuse (Scar-

fone et al., 2008). It is also deﬁned as a mistake in

software that can be leveraged to gain access, violate

a reasonable security policy or force software to ex-

hibit unintended behavior (CVE, 2015).

Research on automated detection of software er-

rors and vulnerabilities has mainly focused on static

analysis and software model checking techniques that

are effective in detecting a priori speciﬁed errors

(e.g. Time Of Check - Time Of Use errors, null

pointer dereferences etc.), bad coding patterns and

some types of exploitable vulnerabilities (e.g. unsan-

itized input data, buffer overﬂows etc.). Yet, errors

related to the intended program functionality, which

are broadly called logical errors, are not a priori

known. In a code auditing process, they cannot be an-

alyzed as pattern-speciﬁc errors since they are rather

application-speciﬁc. At the level of the program’s ex-

ecution ﬂow, these errors will cause execution diver-

sions that manifest as unintended program behaviour

(Felmetsger et al., 2010).

Since logical errors in an Application under

Test (AUT) are essentially execution deviations from

its intended functionality, their automated detection

needs to be based on some model of the AUT’s op-

erational logic. Such a model can be inferred in

the form of likely invariants from the dynamic anal-

ysis of ofﬁcial executions of the AUT’s functional-

ity (i.e. execution of scenarios). Dynamic invariants

are properties that are likely true at a certain point or

points of the program and, in effect, reveal informa-

tion about the goal behaviour, the particular imple-

Stergiopoulos, G., Katsaros, P., Gritzalis, D. and Apostolopoulos, T.

Combining Invariant Violation with Execution Path Classiﬁcation for Detecting Multiple Types of Logical Errors and Race Conditions.

DOI: 10.5220/0005947200280040

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 28-40

ISBN: 978-989-758-196-0

mentation and the environment (inputs) under which

the program runs (Ernst et al., 2007). Our method for

the automated detection of logical errors extends pre-

vious research (Felmetsger et al., 2010) (Stergiopou-

los et al., 2012) (Stergiopoulos et al., 2013)(Ster-

giopoulos et al., 2014) (Stergiopoulos et al., 2015b)

(Stergiopoulos et al., 2015a) by combining methods

utilized in vulnerability detection, albeit not for log-

ical errors. The same combination of tools was used

in the aforementioned articles, but there are important

differences and at the end, only basic concepts from

those works are kept. In PLATO, dynamic invari-

ants are evaluated using different techniques. The tool

is now capable of analyzing the full range of instru-

mented invariants, while keeping spurious invariants

to a minimum using a new classiﬁcation system that

uses the Information Gain algorithm. Its present ver-

sion implements two new formal classiﬁers, which re-

place the previously used empirical, text-based rules.

Classiﬁcation functions are trained using data collec-

tions of known code vulnerabilities from the National

Institute of Standards and Technology (NIST) to clas-

sify source code paths using information gain algo-

rithms.

Overall, the main contributions of this article are

summarized as follows:

1. We show how most types of information ﬂow de-

pendent logical errors can be detected by classi-

fying invariant violations and their corresponding

execution paths based on information gain. Dan-

gerous source code methods recorded by major

databases are used as indicators of risk, according

to their appearance in real-world vulnerabilities.

PLATO’s logical error detections are classiﬁed in

two different groups of sets as follows:

• the Severity sets, quantifying the danger level

of an execution path π (the impact of an error,

if it were to manifest on path π during execu-

tion). Severity is based on an algorithm which

uses Information Gain for classiﬁcation from

data mining.

• the Reliability sets, quantifying a path π with an

invariant violation based on the size and com-

plexity of the code traversed by path π.

2. To test the diversity of errors that can be detected,

we develop and evaluate the PLATO tool on dif-

ferent AUTs containing logical errors that mani-

fest different types of vulnerabilities: (i) A multi-

threaded airline control ticketing system; previ-

ously used in a controlled experimentation with

program analysis. (ii) An aggregated AUT test-

bed that aims to evaluate PLATO’s Severity clas-

siﬁcation system using multiple vulnerable code

examples from NIST’s source code vulnerability

suite (Boland and Black, 2012). The choice of the

experimental scenarios was based on analyzing

real-world source code containing the most com-

mon types of logical errors recorded in software

development, according to (Martin and Barnum,

2008) and speciﬁcally (cwe, 2016).

2 RELATED WORK

Recent developments in debugging techniques also

focus on the detection of logical errors, but they do

not aim to a fully automated program analysis. Delta

debugging (Zeller, 2002) is a state-altering technique

that systematically narrows the difference between

the states of a failed program run from the states of

a failure-free run, down to a small set of variables.

The intuition is that any difference between the two

execution paths could be the failure cause. Predi-

cate switching is a variant of delta debugging (Zhang

et al., 2006) that alters predicate truth values during

of a program execution. Given a failing execution,

the goal is to ﬁnd the predicate that, if switched from

false to true or the opposite, it causes the program

to execute successfully. A limitation of state-altering

techniques is that they do not address the problem of

semantic consistency; there is no guarantee that by

altering a state the new execution path will still be a

valid program run (Baah, 2012). A second limitation

is the usability of this technique, since the program

has to re-run after every single state alternation. In

our approach for detecting logical errors, state alter-

nation is avoided through the use of dynamic invari-

ants along with a one-time symbolic execution of the

AUT.

In (Doup´e et al., 2011), the authors focus exclu-

sively on the detection of speciﬁc ﬂaws found in web

applications, whereas in (Balzarotti et al., 2007) web

applications are analyzed for multi-module vulnera-

bilities using a combination of analysis techniques.

However, both works do not address the problem of

proﬁling the source code behavior or detecting logi-

cal errors per se.

In (Godefroid et al., 2005), authors present DART

for automatically testing software that combines (1)

automated extraction of interface using static source-

code parsing, (2) automatic generation of a test driver

to perform random testing and simulate a general en-

vironment and (3) dynamic analysis of how the pro-

gram behaves under random testing and automatic

generation of new test inputs to direct execution along

alternative program paths. DART detects errors such

as program crashes, assertion violations, and non-

Combining Invariant Violation with Execution Path Classiﬁcation for Detecting Multiple Types of Logical Errors and Race Conditions

termination. Although detections from DART and

from our approach will certainly occasionally over-

lap, still DART cannot detect logical ﬂaws that do

not lead to one of the aforementioned errors (e.g. a

program crash). If AUT execution terminates nor-

mally, DART cannot understand semantic differences

in functionality during similar executions. Our ap-

proach utilizes a basic notion and theory of this pa-

per, namely the fact that ”directed search usually pro-

vides much better code coverage than a simple ran-

dom search” (Godefroid et al., 2005). Our approach

uses directed dynamic monitoring of executions to

provide functionality coverage and extract dynamic

invariants that can adequately describe functionality.

Certain types of logical errors in web applications can

be detected with the approach discussed in (Felmets-

ger et al., 2010). A set of likely invariants that char-

acterize the execution of the AUTs is inferred using

the Daikon tool (Ernst et al., 2007)(dai, 2015). The

Daikon results are then used in JPF (P˘as˘areanu and

Visser, 2004)(jpf, 2015) to model-check the behav-

ior of the AUT over symbolic input. Our approach

can be applied on any type of standalone applica-

tion (even GUI applications), with no predeﬁned map-

pings of inputs, which can range over inﬁnite domains

(in (Felmetsger et al., 2010), analysis is restricted to

a web.xml ﬁle). To cope with this difference, input

vectors and information ﬂows are derived by monitor-

ing user executions. Variants of our method were pre-

sented previously in (Stergiopoulos et al., 2012) and

(Stergiopoulos et al., 2013). In (Stergiopoulos et al.,

2012), we speciﬁcally targeted logical errors in GUI

applications. We described a preliminary deployment

of a Fuzzy Logic ranking system to mitigate the pos-

sibility of false positives and we applied the method

on lab test-beds. In (Stergiopoulos et al., 2013), the

Fuzzy Logic ranking system was formally deﬁned

and further developed. In this work, the classiﬁcation

mechanism that was proposed and evolved in (Ster-

giopoulos et al., 2012), (Stergiopoulos et al., 2013)

and in (Stergiopoulos et al., 2014) changes to a dif-

ferent approach that experiments indicate to be capa-

ble to analyze real-world applications instead of test-

beds and simple GUI AUTs while limiting subjectiv-

ity in detection classiﬁcation, due to formal classiﬁca-

tion mechanisms and different invariant ﬁltering tech-

niques than the previous approaches. Speciﬁcally, the

current classiﬁcation method is based on well-known

data mining techniques for source code classiﬁcation

((Ugurel et al., 2002)), trained upon a internationally

accepted dataset of example vulnerabilities (NIST’s

Juliet Suite (Boland and Black, 2012)) for danger-

ous source code and corresponding inferred invari-

ants. Previous methodologies followed (Felmetsger

et al., 2010) and contributed an empirical classiﬁca-

tion mechanism and test variations. (Stergiopoulos

et al., 2015b) was the ﬁrst publication to detect logical

errors in real-world SCADA high-level software over

the MODBUS protocol, but neither its classiﬁcation

system used any formal method, nor tests were thor-

ough enough to adequately present a detection range.

3 ANALYSIS BUILDING BLOCKS

In this section, the main building blocks of PLATO’s

methodology are described, namely: (i) how the be-

haviour of an AUT is modeled using likely dynamic

invariants, (ii) how the obtained likely invariants are

veriﬁed through symbolically executing the AUT and

(iii) how the results are classiﬁed using fuzzy logic

to measure the impact and the size/complexity of the

affected code, for each detection.

3.1 Overview

In this subsection, we will walk readers through key

intuitions of the presented methodology before div-

ing deeper into more technical aspects. Generally, the

entire method is comprised of three steps:

• Software-under-Test is executed while Daikon’s

agent is monitoring its memory and code. Daikon

then produces logical rules for variables called in-

variants the can describe software business logic.

• Invariants are ﬁltered by PLATO based on a

data classiﬁcation algorithm that utilizes a for-

mal mathematical technique called Information

Gain to keep only invariants that refer to ”danger-

ous” aspects of the software-under-test business

logic. PLATO discards the rest. This Severity

method for ﬁltering invariants according to ma-

chine learning and data classiﬁcation algorithms

is the biggest novelty of this publication.

• Selected invariants are then inserted inside the

software-under-test source code in the form of

code assertions.

• NASA’s JPF symbolically executes the newly in-

strumented code, trying to traverse as many valid

execution paths as possible, while a listener is

checking for invariant assertion violations or en-

forcements (i.e. if they hold true or not in numer-

ous execution ﬂows).

• If same invariant is found to be both enforced

and violated in different versions of the same sub-

execution ﬂow, PLATO ﬂags this event as a logi-

cal error detection.

SECRYPT 2016 - International Conference on Security and Cryptography

3.2 Dynamic Invariants for Proﬁling the

Behavior of the Source Code

The functionality of an AUT is captured in the form

of dynamic invariants, generated by the Daikon tool

(Ernst et al., 2007)(dai, 2015). These invariants

are logical rules for variables (e.g.

p!=null

var=="string"

) that hold true at certain point(s) of

a program in all monitored executions. As far as

PLATOs tests is concerned, Daikons monitoring is a

type of functional testing. Functionality test suites

aim to verify that the AUT behaves correctly from

a business perspective and functions according to its

business requirements. A business requirement is ”a

condition or capability to which a system must con-

form” (Zielczynski, 2006). It is a speciﬁc business be-

haviour of an application as observed by a user. Func-

tional test cases are used to validate the way an AUT

performs in accordance to those requirements.

The generated dynamic invariants can reﬂect the

intended functionality of the AUT, if they are derived

from monitored executions of representative use-case

scenarios. To achieve adequate coverage during func-

tional testing, we adopt two typical rules of thumb:

First, we require a test case for each possible ﬂow

of events inside a use case (this corresponds to a dia-

gram path in a UML use case diagram (Zielczynski,

2006)).

Second, we test as many variations (i.e. combi-

nations of input) of each test case as possible (Ziel-

czynski, 2006); i.e. we ”fuzz” the UML’s input data

to cover multiple input scenarios. Experience has

showed that no hardcore fuzzing is needed here, just

indicative data input cases. These input variations are

hidden in the statements or conditions that guide ac-

tions and activities in the AUT (business rules).

The validity of the inferred dynamic invariants

(i.e. the inferred program behaviour) is tested against

as many execution paths of the AUT as possible, using

symbolic execution of the AUT. Intuitively, if there is

an execution path, which violates a (combination of)

dynamic invariant(s), then a logical error may exist,

which affects the variable(s) referred in the invariant.

3.3 Symbolic Execution for Verifying

Dynamic Invariants

PLATO converts the likely invariants into Java asser-

tions and instruments them into the source code. For

example, let us consider that the invariant

p!=null

holds true when the execution ﬂow enters a method.

In this case, PLATO creates the assertion

[assert

(p!=null);]

and instruments it at the beginning

of that method, just before any other method exe-

cution. Likely dynamic invariants are ﬁltered ac-

cording to two ﬁltering criteria: invariants concern-

ing variables which affect the execution ﬂow and in-

variants related to source code methods which are

tied to known application vulnerabilities (Martin and

Barnum, 2008)(Harold, 2006). For the former, we

particularly focus on the conditional expressions in

branches and loops. The latter is implemented by us-

ing a taxonomy that classiﬁes source code methods

according to their danger level. This taxonomy is em-

bedded in PLATO and is based on the taxonomies

presented in (Martin and Barnum, 2008), the Ora-

cle’s Java Taxonomy (Gosling et al., 2014)(jap, 2015)

and reports from code audits (Hovemeyer and Pugh,

2004). More information on this taxonomy is pro-

vided in Section 4.2.1 which covers technical details.

Daikon’s invariants are then cross-checked with

a set of ﬁnite execution paths and their variable

valuations for each tested path. For this purpose,

PLATO obviously needs execution paths that ade-

quately cover the functionality of the AUT. PLATO

leverages NASA’s JPF tool to execute the AUT sym-

bolically. Speciﬁcally, we developed an extension lis-

tener for Java Symbolic PathFinder’s (SPF) to col-

laborate with PLATO, named PlatoListener. SPF

symbolically executes Java byte-code programs (jpf,

2015). One of its main features is automated genera-

tion of test inputs to explore a high number of differ-

ent execution paths of an AUT. Our PlatoListener re-

alized a listener extension able to monitor AUT states

and paths during SPF’s constraint solving and path

traversal. This way it managed to evaluate invariant

assertions as instrumented and executed through the

model checker.

3.4 Fuzzy Logic Classiﬁcation of

Detections

It is not true that all the logical errors can divert

the programs’ execution to exploitable states and that

they have comparable impact on the functionality of

an AUT. Thus, similarly to a code auditor’s reasoning,

PLATO classiﬁes detections using a fuzzy set theory

approach combined with two advanced classiﬁcation

functions. Every assertion violation along with a exe-

cution path are classiﬁed into two different groups of

sets:

• the Severity sets, which quantify the danger level

of the execution path, i.e. the impact that an ex-

ploitable error would have, if it would be mani-

fested on that path;

• the Reliability sets, which quantify the overall re-

liability of an execution path based on the size and

Combining Invariant Violation with Execution Path Classiﬁcation for Detecting Multiple Types of Logical Errors and Race Conditions

the complexity of the code traversed in it (a code

metric is used named Cyclomatic Density).

With this fuzzy logic approach, we also aim to

confront two inherent problems in automated logical

error detection: the large data sets of the processed

AUT execution paths. PLATO helps the code audi-

tor to focus only to those path transitions that appear

having high ratings in the classiﬁcation system.

3.4.1 Severity

For an execution path π, Severity(π) measures π’s

membership degree in a Severity fuzzy set that re-

ﬂects how dangerous is a ﬂaw if it were to manifest

in path π, i.e. its relative impact. Execution path

π is weighted based on how its transitions and cor-

responding executed source code methods affect the

program’s execution: if there are transitions in the

path that are known to manifest exploitable behaviour,

then π is considered dangerous and is assigned higher

Severity ranks.

Deﬁnition 1. Given the execution path π, we deﬁne

Severity(π) = ν ∈ [1, 5]

to measure the severity of π on a Likert-type scale

from 1 to 5.

Likert scales are a convenient way to quantify

facts (Albaum, 1997) that, in our case, refer to a pro-

gram’s ﬂow. If an exploitable behaviour were to man-

ifest in an execution path, the scale-range captures

the intensity of its impact in the program’s control

ﬂow. In order to weight paths, Severity is based on the

Statistical Information Gain, a measure used to clas-

sify execution paths in one out of ﬁve Severity cate-

gories that are ranked from one to ﬁve. Categories are

then grouped into Fuzzy Logic sets using labels: high

severity (4-5), medium (3) or low (1 or 2).

3.4.2 Measuring Severity of Execution Paths

using its Statistical Information Gain

Our Severity classiﬁcation approach is based on the

Expected Information Gain (aka Expected Entropy

Loss) statistical measure (Abramson, 1964) that has

been successful in feature selection for information

retrieval (Etzkornand Davis, 1997). Information Gain

has been used before by Glover et al. (Glover et al.,

2001) and Ugurel et al. (Ugurel et al., 2002) for clas-

sifying source code. Here, we use it to classify execu-

tion paths and their corresponding source code meth-

ods into danger levels.

To measure the Expected Information Gain of an

execution path, we need characteristics (features) to

look for. PLATO uses a taxonomy of dangerous

source code methods. These methods are recorded

to be tied to known vulnerability types (Martin and

Barnum, 2008),(nvd, 2015). The taxonomy is divided

into 5 subsets of source code methods that act as sets

of attributes to classify execution paths. Each sub-

set’s code methods are considered to have the same

impact level (i.e. they are known to be involved in

similar types of vulnerabilities). Each set is charac-

terized by a number on the Likert scale (1 to 5) de-

picting the danger level of its source code methods:

Set 1 contains the least dangerous methods while Set

5 contains the most dangerous source code methods,

known to be involved in many critical vulnerabili-

ties. For example, the

System.exec()

source code

method is knownto be tied to OS injection vulnerabil-

ities (Martin and Barnum, 2008). Therefore

exec()

grouped in Set 5 of the taxonomy. Severity ratings are

applied by classifying each execution path into one of

these ﬁve Severity sets of attributes which correspond

to speciﬁc impact levels.

In the followingparagraphs, we providea brief de-

scription of this theory (Abramson, 1964). Let Pr(C)

be the probability of a transition in the path that in-

dicates that the path is considered dangerous. Pr(C)

is quantiﬁed as the ratio of the dangerous source code

methods over the total number of methods in the path.

Let f be the event that a speciﬁc source code method

or statement exists in the path. We also denote by

and f the negations of C and f.

The prior entropy e is the probability distribution

that expresses how certain we are that an execution

path is considered dangerous, before feature f is taken

into account:

e = −Pr(C)lgPr(C) − Pr(C) lgPr(C) (1)

where lg is the binary logarithm (logarithm to the base

2). The posterior entropy, when feature f has been

detected in the path is

= −Pr(C| f)lgPr(C| f) − Pr(

C| f)lgPr(C| f) (2)

whereas the posterior entropy, when the feature is ab-

sent is

= −Pr(C|

f)lgPr(C| f) − Pr(C| f) lgPr(C| f) (3)

Thus, the expected overall posterior entropy (EOPE)

is given by

EOPE = e

Pr( f) + e

Pr(

f) (4)

and the expected Information Gain (EIG) for a given

feature f is

EIG = e− e

Pr( f) − e

Pr(

f) (5)

The higher the EIG for a given set of attributes of

source code methods f, the more certain we are that

this set f best describes the execution path.

SECRYPT 2016 - International Conference on Security and Cryptography

Table 1: Severity classiﬁcation examples - Data input methods.

Rank Example of classiﬁed methods Set of Attributes

Low javax.servlet.http.Cookie (new Cookie()) Set 1 (Level 1)

Low java.lang.reﬂection.Field.set() Set 2 (Level 2)

Medium java.io.PipedInputStream (new PipedInputStream()) Set 3 (Level 3)

High java.io.FileInputStream (new FileInputStream()) Set 4 (Level 4)

High java.sql.PreparedStatement.prepareStatement() Set 5 (Level 5)

Similarly to (Ugurel et al., 2002), EIG is calcu-

lated based on ratios between source code methods

in a path that are considered dangerous (e.g. meth-

ods executing data, like

exec()

) and the total num-

ber of source code methods executed in the transi-

tions of each execution path. The taxonomy of Java

source code methods acts as the sets of attributes (cor-

responding to the event f in the above equations). Ex-

ample source code methods of the taxonomy and their

classiﬁcation into sets of attributes are given in Ta-

ble 1 below. Different classiﬁcation ranks reﬂect the

different danger level. More technical details on the

taxonomy are given in Section 4.2.1.

Severity (π) basically tells us which set of at-

tributes best characterizes a path π; the one that ex-

hibits the highest overall EIG. Since each set of at-

tributes f is tied to a speciﬁc impact (danger) level,

then this level also indicates the danger level of the

corresponding execution path.

3.4.3 Reliability

As a measuring function, Reliability is used to clas-

sify execution paths into Reliability sets. It quantiﬁes

how reliable an execution path is by computing the

likelihood that an exploitable behavior is manifested

in a variable usage.

Deﬁnition 2. Given the execution path π, with a set

of state variables, we deﬁne Reliability as

Reliability(π) = ν ∈ [1, 5]

to measure the reliability of π on a Likert scale from

1 to 5.

Similarly to the Severity function, our fuzzy logic

system classiﬁes execution paths in categories: high

severity (4-5), medium (3) or low (1 or 2).

3.4.4 Measuring code Reliability with

Cyclomatic Density

The inherent risk or risk build-up of an AUT is

connected to its source code’s complexity (Chhabra

and Bansal, 2014). A broadly accepted measure is

the well-known Cyclomatic Complexity (Bray et al.,

1997) that measures the maximum number of linearly

independent circuits in a program’s control ﬂow graph

(Gill and Kemerer, 1991). The original McCabe met-

ric is deﬁned as

V(G) = e− n+ 2

where V(G) is the cyclomatic complexity of the ﬂow

graph G of a program, e is the number of edges and n

is the number of nodes in the graph. McCabe showed

that V(G) can be computed by applying the following

steps (Hansen, 1978):

1. increment by one for every IF, CASE or other al-

ternate execution construct;

2. increment by one for every DO, DO-WHILE or

other repetitive construct;

3. add two less than the number of logical alterna-

tives in a CASE;

4. add one for each logical operator (AND, OR) in

an IF.

However, Cyclomatic Complexity does not take

into consideration the size of the analyzed code. Re-

search conducted in the Software Assurance Technol-

ogy Center of NASA has showed that the most effec-

tive evaluation of the inherent risk of an AUT should

be based on a combination of the (cyclomatic) com-

plexity and the code’s size (Rosenberg and Hammer,

1998). Modules with both a high complexity and a

large size tend to have the lowest reliability. Mod-

ules with smaller size and high complexity are also a

reliability risk, because they feature very terse code,

which is difﬁcult to change or to be modiﬁed.

To this end, PLATO implements heuristics that as-

sign Reliability ratings to execution paths through a

cyclomatic density analysis. The proposed method is

based on McCabe’s algorithm and the computation

of the Cyclomatic Density for each execution path.

The Cyclomatic Density is the ratio of the Cyclomatic

Complexity to the logical lines-of-code, which mea-

sures the number of executable “statements” in the

path (some statements are excluded like for example

a variable assignment) (McC, 2015). This ratio repre-

sents the normalized complexity of the source code of

an execution path π and it is considered a statistically

signiﬁcant single-value predictor of code’s maintain-

ability (Rosenberg and Hammer, 1998)(McC, 2015).

The higher the Cyclomatic density value, the denser

the logic. Thus, low output valuesfrom the Reliability

Combining Invariant Violation with Execution Path Classiﬁcation for Detecting Multiple Types of Logical Errors and Race Conditions

classiﬁcation function reﬂect reliable paths, whereas

high values reﬂect complex, error-prone code. Re-

lated research (Rosenberg and Hammer, 1998)(McC,

2015) proposes that Cyclomatic Density values for

the code to be simple and comprehensible should be

in the range of .14 to .42 .

Table 2: Reliability categories based on Cyclomatic Density

values.

Rank Example of classiﬁed methods Lvl

Safe Cycl.Density <= 0.1 1

Safe

Cycl.Density >0.1 &&

Cycl.Density <= 0.2

Average

Cycl.Density >0.2 &&

Cycl.Density <= 0.3

ErrorProne

Cycl.Density >0.3 &&

Cycl.Density <= 0.4

ErrorProne Cycl. Density >0.4 5

Each path is assigned a density value. The higher

the value, the more complex the logic of the traversed

code is and therefore more likely to have logical er-

rors lurking in its transitions (Rosenberg and Ham-

mer, 1998)(McC, 2015). Table 2 depicts the classiﬁ-

cation categories for execution paths that can be ap-

plied using the Reliability classiﬁcation function.

3.4.5 Risk: Combining Severity and Reliability

Ratings

According to OWASP, the standard risk formulation

is an operation over the likelihood and the impact of

a ﬁnding (Martin and Barnum, 2008):

Risk = Likelihood ∗ Impact

We adopt this notion of risk to enhance the logical

error classiﬁcation approach. For each execution path

, an estimate of the associated risk is computed by

combining Severity(π) and Reliability(π). Aggrega-

tion operations combine several fuzzy sets to produce

a single fuzzy set. The Risk rank of an execution path

π is calculated using Fuzzy Logic’s IF-THEN rules.

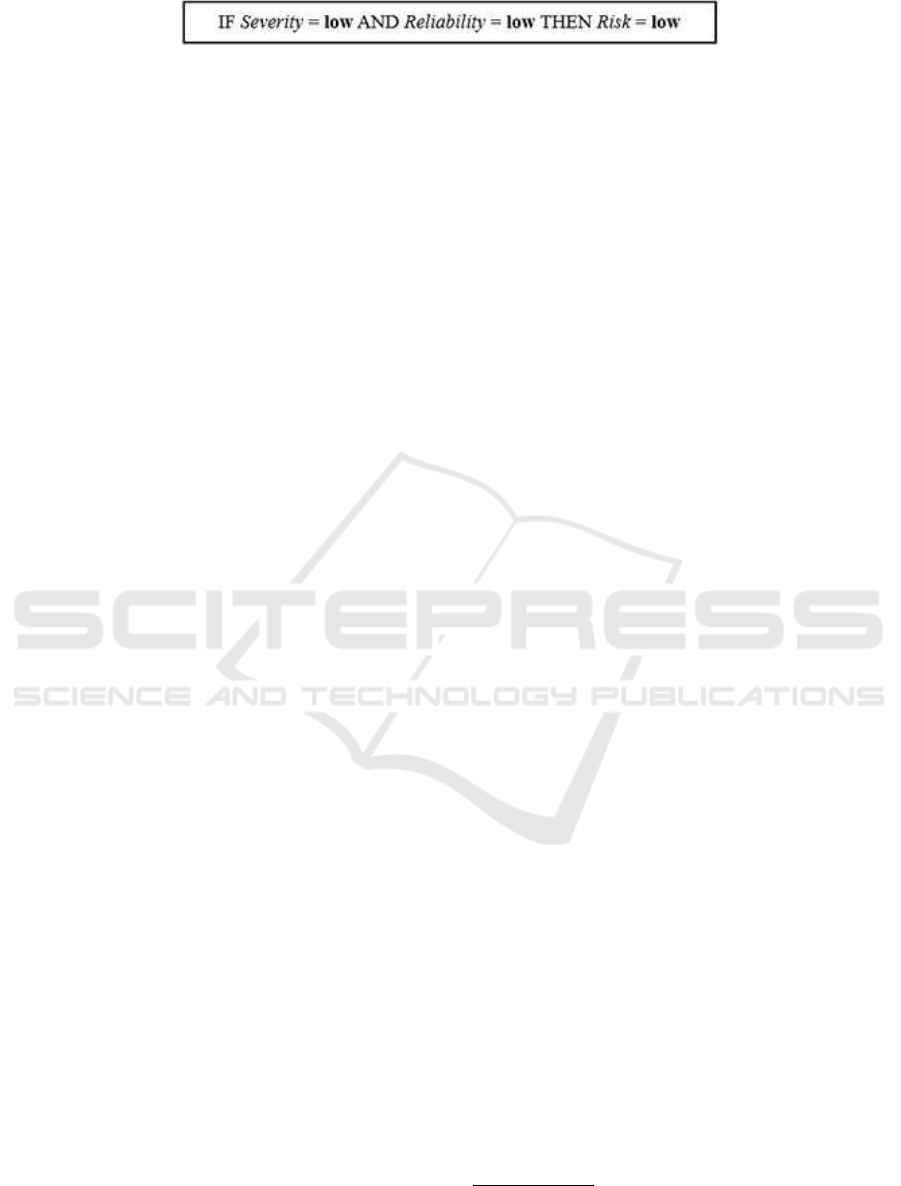

An example is given in Figure 1.

The fuzzy logic classiﬁcation system uses the fol-

lowing membership sets for ranks 1 to 5. For each

pair (a, b), a depicts the rank value and b depicts

the membership percentage of that rank in the corre-

sponding set. For example, Severity-Medium = (2.5,

1) means that an output rank of 2.5 is a member if the

Medium Severity set with 100% (1) certainty. This

way PLATO plots ranks 1 to 5 into membership sets.

The rest of all intermediate values are plotted based

on the mathematical equation deﬁned by these points

(a, b):

1. The Severity set: partitions the [1..5] impact

scale to groups Low, Medium and High as: Low

=(0,1) (3,0), M =(1.5,0) (2.5,1) (3.5,0), H =(3,0) (5,

1).

2. The Reliability set: partitions the [1..10] time

scale to groups Early, Medium, Late and Very Late

periods as: Low =(0, 1) (1, 1) (3,0), Medium =(0, 0)

(3, 1) (5, 0), High =(0,0) (5,1).

By using the pre-computed tables with all ex-

pected values for Severity and Reliability, it is now

possible to assess the fuzzy estimation of the Risk val-

ues, for a given logical error detection.

Risk calculations are performed as follows: Ini-

tially, the appropriate IF-THEN rules are invoked and

generate a result for each rule. Then these results are

combined to output truth values. Each IF-THEN re-

sult is, essentially, a membership function and truth

value controlling the output set, i.e. the linguistic

variables Severity and Reliability. The membership

Percentages concerning Risk indicate the Risk group

(Low, Medium or High) that a logical error belongs

to.

Table 3 shows the fuzzy logic output for Risk,

based on the aggregation of Severity and Reliability.

Table 3: Severity x Reliability = R - Risk sets.

Sev/ty

Rel/ty

Low Medium High

Safe Low Low Medium

Medium Low Medium High

Error-Prone Medium High High

Risk, Severity and Reliability ratings are supple-

mentary to invariant violations and do not provide the

basic mechanism for logical error detection; they just

provide a more clear view for the code auditor. Also,

high Severity rankings have more weight than Relia-

bility rankings. Rightmost maximum is found to have

closer-to-the-truth ranking results since Severity rat-

ings take into consideration source code methods exe-

cuted inside path transitions whilst Reliability ratings

provide only a generic view of the execution path’s

overall complexity.

The Fuzzy Logic system has been implemented

using the jFuzzyLogic library (Cingolani and Alcala-

Fdez, 2012).

4 A METHOD TO DETECT

LOGICAL ERRORS IN SOURCE

CODE

4.1 The Method’s Workﬂow

The analysis building blocks described in section 3

and implemented in PLATO are part of our workﬂow

SECRYPT 2016 - International Conference on Security and Cryptography

Figure 1: Example of a Fuzzy Logic rule.

for logical error detection with the following steps:

1. Use Case Scenarios. We assume the existence

of a test suite with use case scenarios that exer-

cises the functionality of the AUT. The selected

use-case scenarios must cover the intended AUT’s

functionality to a sufﬁcient degree. This can be

quantiﬁed by appropriate coverage metrics.

2. For each use-case scenario, a dynamic analysis

with the Daikon tool is performed. A set of in-

ferred dynamic invariants is obtained that charac-

terize the functionality of the AUT based on the

executed use case scenarios.

3. Daikon invariants are loaded in PLATO and are

processed as follows:

• The inferred dynamic invariants are ﬁltered

by PLATO, in order to use only those refer-

ring to high-risk transitions, i.e. (i) statements

that affect the program’s execution ﬂow, and

(ii) source code methods that are connected to

the manifestation of exploitable behaviour (e.g.

method System.exec() for executing OS com-

mands with user input).

• PLATO instruments the AUT code with the

critical dynamic invariants, which are embed-

ded into the code as Java assertions (Martin and

Barnum, 2008).

The instrumented source code is symboli-

cally executed in NASA’s JPF tool with our

PlatoListener

extension. A sufﬁciently large

number of feasible execution paths has to be cov-

ered, far more than the initial use case scenarios

covering the intended functionality. JPF relies on

the

PlatoListener

so as to check for existing as-

sertion violations and then ﬂags the invariants in-

volved.

4. PLATO gathers PlatoListener detections

and classiﬁes each of them into Severity and Re-

liability levels. A Risk value is then computed

using Fuzzy Logic. The more suspicious an in-

variant violation and its corresponding execution

path is, the higher it scores in the Risk scale.

PLATO accepts input from Daikon (step 2) and

automates the analysis of the source in step 3. Fi-

nally, the PlatoListener is used in step 4 for monitor-

ing JPF’s symbolic execution.

4.2 Classifying Execution Paths

Following Oracle’s JAVA API and the related

documentation in ((Harold, 2006)(Gosling et al.,

2014)(jap, 2015)), three categories of Java source

code methods are proposed for the classiﬁcation of

execution paths with respect to their Severity and Re-

liability values. Severity ranking is based on (i) In-

put Vectors and (ii) potentially exploitable methods

(sinks). Reliability ranking is based on (iii) Control

Flow checks (e.g. if-statements).

4.2.1 A Taxonomony of Source Code Methods

for Severity Calculations

About 159 Java methods were reviewed and then

grouped into sets depicting danger levels. These sets

are used as features in the Information Gain algorithm

to compute the Severity rating of execution paths.

Classiﬁed source code methods were gathered from

NIST’s Software Assurance Reference Dataset suites

(SARD) (Boland and Black, 2012), a set of known

security ﬂaws together with source code test-beds.

Five sets of attributes are proposed, correspond-

ing to ﬁve danger levels from 1 to 5. The taxonomy

was based on rankings of bugs and vulnerabilities

recorded in NIST’s National Vulnerability Database

(NVD) (nvd, 2015), the U.S. government repository

of standards based vulnerability management data.

NVD provides scores that represent the innate charac-

teristics of each vulnerability using the CVSS scoring

system (nvd, 2015), which is an open and standard-

ized method for rating IT vulnerabilities.

Thus, each source code method in the taxonomy

is assigned to the set of attributes representing the ap-

propriate danger level. The correct set of attributes is

inferred based on the CVSS scores in the NVD repos-

itory. This was implemented using the following al-

gorithm:

1. For each source code method, we checked the

lowest and highest ratings of NVD vulnerabilities

that use this source code method

2. The characteristics of the identiﬁed vulnerabilities

are then inputed in the CVSS 3.0 scoring calcula-

tor

, in order to calculate the lowest and highest

possible vulnerability scores.

Bugs were gathered from the NVD repository:

https://web.nvd.nist.gov/view/vuln/search-advanced

https://www.ﬁrst.org/cvss/calculator/3.0

Combining Invariant Violation with Execution Path Classiﬁcation for Detecting Multiple Types of Logical Errors and Race Conditions

3. Each source code method was then added in a set

of attributes corresponding to the result of previ-

ous step. Source code methods detected in vul-

nerabilities with scores 7 or above were grouped

in Set 5. Methods with score 6 to 7 in Set 4, those

with score 5 to 6 in Set 3, those with score 4 to 5

in Set 2 and those with score 1 to 4 in Set 1.

Example: The

java.lang.Runtime.exec()

source

code method (jap, 2015) is widely-known to be used

in many OS command injection exploits. NVD vul-

nerabilities recorded using this source code method

have an impact rating ranging from 6.5 up to 10 out

of 10. Using the characteristics of these records, the

CVSS scoring calculator outputted a rating of high

(7) to very high (10). This was expected, because

exec()

is often used to execute code with application

level privileges. Thus, the

System.exec()

method

was classiﬁed in PLATO’s taxonomy in the very high

(5/5) danger level category.

Tables 4 and 5 provide examples for various types.

For the full taxonomy, the reader can access the link

at the end of this article.

Table 4: Example group - Input Vector Methods taxonomy.

java.io.BufferedReader.readLine()

java.io.ByteArrayInputStream.read()

java.lang.System.getenv()

Table 5: Example group - Sink methods taxonomy.

java.lang.Runtime.exec()

java.sql.Statement.executeQuery()

java.lang.System.setProperty()

java.io.File (new File())

4.2.2 Statements and Methods for Reliability

Calculations

Computing the Cyclomatic Density of a source code

is tied to the number of execution-branch statements

inside the code. Thus, Reliability calculations take

into consideration Java statements that affect the pro-

gram’s control ﬂow.

• Control Flow Statements

According to (Harold, 2006) and (Felmetsger

et al., 2010), boolean expressions determine the

control ﬂow. Such expressions are found in the

statements shown in Figure 2.

All source code methods from the mentioned

types were gathered from the ofﬁcial Java documen-

tation (jap, 2015)(Harold, 2006) and are used for the

computations of the Cyclomatic Density algorithm of

Section 3.4.4.

Figure 2: Example types of methods and statements in-

cluded in PLATO’s taxonomy.

5 EXPERIMENTAL RESULTS

The choice of the experimental scenarios was based

on analyzing real-world source code containing the

most common types of logical errors recorded in soft-

ware development, according to (Martin and Barnum,

2008) and speciﬁcally (cwe, 2016).

We are not aware of any commercial, stand-alone

suite or open-source revision(s) of software with a re-

ported set of existing logical errors to use as a test-

ing ground. Also, testing is restricted by JPF’s lim-

itations in symbolically executing software. For this

reason, our experiments were selected as to contain

real-world implementations of source code with dif-

ferent types of logical ﬂaws often detected in real-

world code audits, in an effort to prove that diverse

types of logical errors can be detected and ranked ef-

fectively.

5.1 Experiment 1: Real-world Airline

Test from the SIR Object Database

The Software-artifact Infrastructure Repository (SIR)

(Rothermel et al., 2006) is a repository of software ar-

tifacts that supports controlled experimentation with

program analysis and software testing techniques (Do

et al., 2005), (Wright et al., 2010).

Our method was tested against a real-world AUT

from the SIR repository, which exhibits the character-

istics of a multithreaded activity requiring arbitration.

The AUT was a multi-threaded Java program for an

airline to sell tickets. The fact that this is a known

and well-documented error that can be detected using

different techniques (e.g. model checking) does not

cancel the goal of this experiment, which was to show

that our method can also detect logical errors that re-

sult in race conditions. This particular race condi-

tion is not detected through model checking but rather

through an inferred invariant violation, thus providing

that invariant violation method can be used to detect

the subset of logical errors that produce race condi-

tions.

The Logical Error. The logical error manifested

in this example leads to a race condition causing the

SECRYPT 2016 - International Conference on Security and Cryptography

airline application to sell more tickets than the avail-

able airplane seats. Each time the program sells a

ticket, it checks if the agents had previously sold all

the seats. If yes, the program stops the processing

of additional transactions. Variable

StopSales

indi-

cates that all the available tickets were sold and that

issuing new tickets should be stopped. The logical er-

ror manifests when

StopSales

is updated by selling

posts and, at the time more tickets are sold by the run-

ning threads (agents). The AUT’s code is shown in

Figure 3.

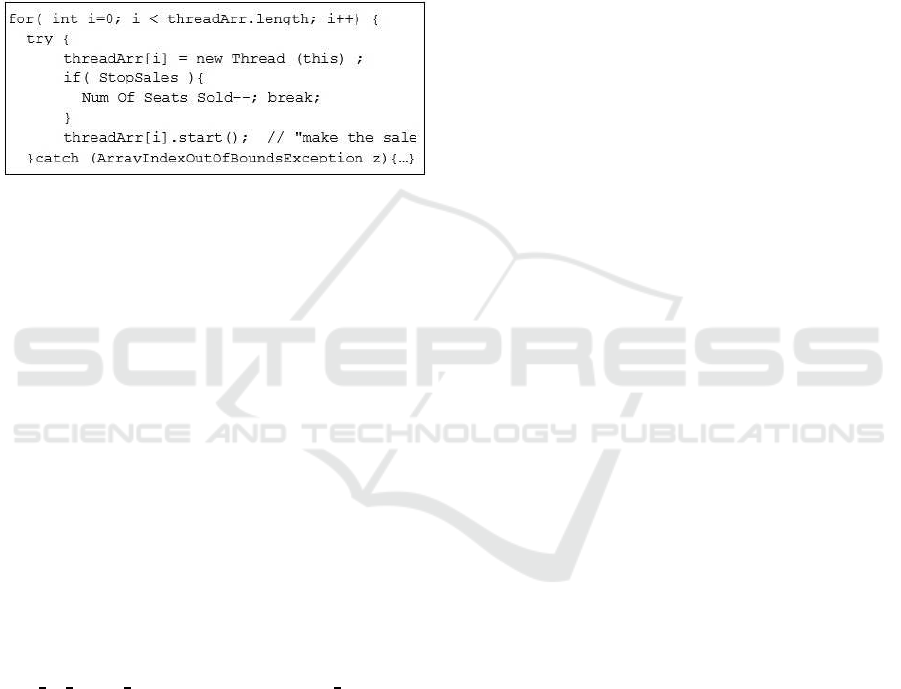

Figure 3: SIR AUT example code able to create i threads

(agents) which sell tickets.

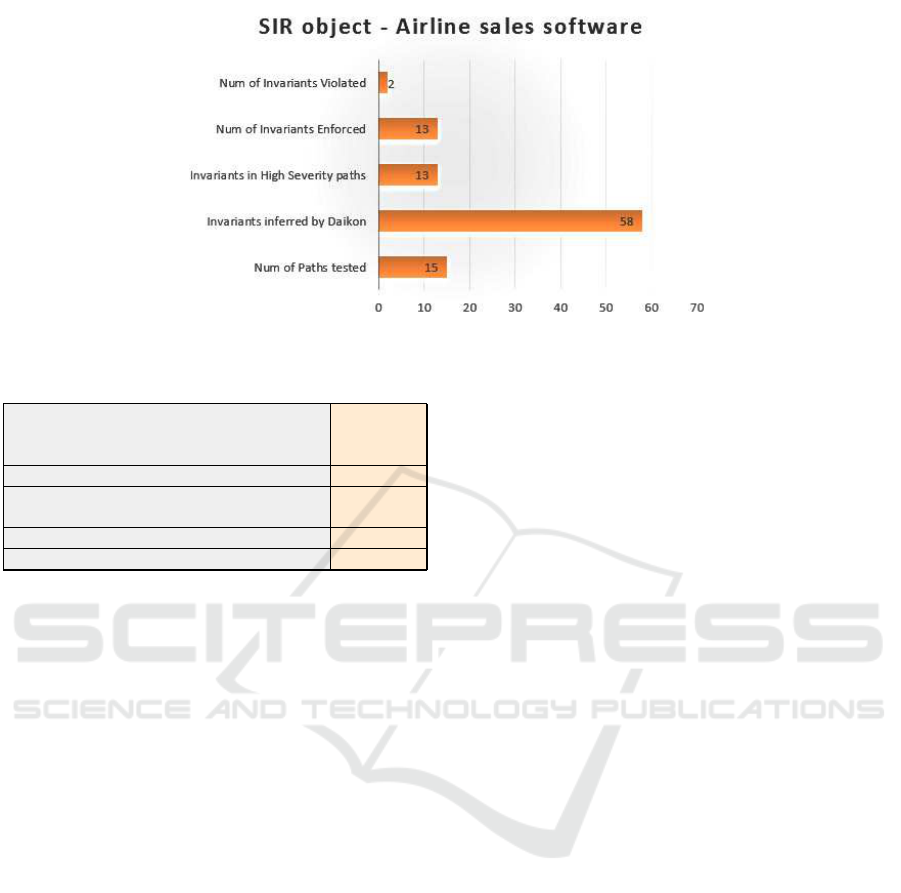

PLATO’s analysis for this test returned the results

shown in Figure 4. We now present in detail the

results obtained in the different steps of our workﬂow:

Step 1-2. There is only one function point to test.

• Single test-case: Functionality has only one ﬂow

of events (multithreaded server accepting ticket

sale information and registering them).

• Numerous test-case variations: Inﬁnite possible

variations for input (number of seats and cushion

to limit maximum saling of tickets).

Thus, we executed 20 variations of the test-case

for the airline server functionality, while trying to uti-

lize boundary values as input. Daikon monitored in-

puts ranging from 1 seat with 1 sailing agent limit up

to 1000 seats with 1000 agents and extracted the fol-

lowing invariant amongst others:

Num Of Seats Sold <= this.Maximum Capacity

Step 3. Dynamic invariants were instrumented in

the source code and the software was symbolically

executed in JPF. An assertion violation was detected

for the method

runBug()

: two executions were

found where the mentioned invariant was enforced

and violated respectively, thus implying a possible

logical error.

Step 4. Our method classiﬁed the path in which

the invariant assertion was violated with a Severity =

5 score and a Reliability = 3, thus yielding a total

Risk value of 4.5.

5.2 Experiment 2: Multiple Execution

Path Classiﬁcation for Logical

Errors

To test the proposed classiﬁcation method imple-

mented inside PLATO, we needed to execute it on an

appropriate test suite. We had two options: Either

utilize open-source applications or ”artiﬁcially made”

programs, common in benchmarking various source

code analysis tools. Both options have positive and

negative characteristics.

To this end, we endorsed the National Security

Agency’s (NSA) comparison results from (Agency,

2011) and (Agency, 2012), which state that ”the ben-

eﬁts of using artiﬁcial code outweigh the associ-

ated disadvantages” when testing source code analy-

sis tools. Therefore, we created a test-bed application

based on the source code provided by NIST’s Juliet

Test Case suite, a formal collection of artiﬁcially-

made programs (Boland and Black, 2012) packed

with well-known and recorded exploits. The Juliet

Test Suite is ”a collection of over 81.000 synthetic

C/C++ and Java programs with a priori known ﬂaws.

The suites Java tests contain cases for 112 different

CWEs (exploits)” (Boland and Black, 2012). Each

test case focuses on one type of ﬂaw, but some tests

contain multiple ﬂaws. Each test has a bad() method

in each test-program that manifests an exploit. A

good() method is essentially a safe way of coding

(true negative).

For our purposes we created an test suite that is,

essentially, an aggregation of multiple Juliet test ﬁlled

with various vulnerabilities of different danger-level;

ranging from medium information leakage to serious

OS execution injection. The test suit had both true

positives and true negatives. The CWE types of vul-

nerabilities that manifested inside the analyzed test

suite, as deﬁned in NIST’s formal CWE taxonomy

(CVE, 2015), were: CWE-840 (business logic er-

rors), CWE-78 (OS Command Injection) and CWE-

315 (Cleartext Storage of Sensitive Information in a

Cookie).

Test scores and Information Gain output for dan-

gerous source code methods detected in execution

paths are provided at Table 6. We can see from ta-

ble 6 that PLATO’s classiﬁcation system yielded an

overall Severity Rank = 3 out of 5 for the aggregated

test suite but ranked speciﬁc individual paths with a

Severity Rank = 5 out of 5. Interestingly, the execu-

tion paths that scored the highest were manifesting the

most dangerous vulnerability of all ﬂaws present in

the AUT (CWE-79, OS command injection). This can

be seen from the fact that te most dangerous (Rank 4)

source code methods detected in dangerous paths in-

Combining Invariant Violation with Execution Path Classiﬁcation for Detecting Multiple Types of Logical Errors and Race Conditions

Figure 4: Airline sales: No of inferred invariants, chosen assertions and violations.

Table 6: Experiment 2: Information Gain classiﬁcation.

Entire Source code - Prior Entropy 0.402179

Entire Source code - Prior Severity 3

Entropy Loss for println(Rank 2) 0.162292

Entropy Loss for readLine(Rank 4) 0.242292

Entropy Loss for addCookie(Rank 2) 0.162292

Entropy Loss for exec(Rank 4) 0.242292

Entropy Loss for getPassword(Rank 2) 0.162292

Entropy Loss for getUserName Rank 2) 0.162292

side the AUT presented the highest Gain (0.2423) on

both occasions; thus scoring higher than all the rest.

As seen in table 6, the ﬁrst highest-ranked method is

the exec() (Rank 4) method which is a sink utilized

for OS command injection exploits.

PLATO’s Severity mechanism (i) detected all

paths prone to vulnerabilities due to the use of dan-

gerous source code methods, and (ii) successfully

ranked them to appropriate danger-levels based on

their ﬂaws; thus effectively representing their danger-

level. We should underline here that this experiment

was executed in order to demonstrate the classiﬁca-

tion capabilities of the Severity function. Data pro-

vided refer only to the classiﬁcation mechanism.

6 CONCLUSIONS

Although detection rate was close to 100% success,

still, the sample upon which PLATO was tested re-

mains small to claim such a high average detection

rate. The applicability of the method presented de-

pends on how thoroughly the input vectors and dy-

namic invariants are analyzed. Yet, publications in

software engineering during the last years (Bastani

et al., 2015) (Barr et al., 2015) continue indicate that

Daikon is able to capture information ﬂows and gen-

eral execution logic behind the source code, if exe-

cuted properly. The second most difﬁcult problem

in logical error detection, namely classifying infor-

mation ﬂows and invariant violations according to

their impact on business logic, seems manageable if

we utilize formal classiﬁcation of these ﬂows using

functional characteristics from common experience

in software development (e.g. method and libraries

known to be error prone). This what PLATO does: It

can classify likely invariants and their violations by

utilizing a formal classiﬁer, trained by NIST’s source

code error and vulnerability suite.

State explosion remains a major issue, since it is a

problem inherited by the used analysis techniques, al-

beit now it seems manageable since we leverage JPF’s

memory management and implement all invariants as

assertions instead of trying to analyze them in mem-

ory. Although not tested in really large applications

due to JPF’s aforementioned restrictions, our test re-

sults imply this. We are in the process of developing

a fully-functional meta-tool that will be able to ana-

lyze any type of application by using targeted code

analysis.

6.1 Advantages and Limitations

One of our method’s limitations is the need for in-

put data from live execution of AUTs, while Daikon

infers the likely dynamic invariants. This is an inher-

ent problem in all empirical methods, since empiri-

cal approaches rely on repetitive observations to form

rules. Our method does not model the business logic

of AUTs using formal methods, but is rather depen-

dent on the soundness of the likely dynamic invariants

provided by Daikon and the various executions of the

AUT. If PLATO were to examine AUTs of thousands

of source code lines in entirety, problems would arise,

mostly due to JPF’s inability to handle large, com-

plex applications and also due to state explosion. Still,

JPF is the best symbolic execution software currently

available. Future test-beds can include more complex

SECRYPT 2016 - International Conference on Security and Cryptography

utilization of JPF by creating an automated conﬁgu-

ration mechanism to ”tweak” JPF per test-case and

break testing into multiple executions.

Although empirical methods are often criticized

for the lack of sound foundations in software engi-

neering, it is obvious that, in order for a tool to detect

ﬂaws in the logic of applications, it needs to model

knowledge that reﬂects intended functionality.

Also, (provided that it is executed in the correct

manner and that it covers the entire functionality of

an AUT) Daikon’s output does reﬂect the AUT’s in-

tended functionality, since its dynamic invariants are

properties that were true over the observed executions

(Ernst et al., 2007). PLATO’s results enforce this no-

tion.

Based on the above notion and our tests, we drew

some signiﬁcant conclusions:

• PLATO can indeed detect logical errors in ap-

plications using reasonable limits in the size and

complexity of AUTs, something no other tool can

claim at the time this article was written.

• Results have shown that this method goes beyond

logical error detection and can provide valid de-

tections of other types of ﬂaws. The unexpected

detection of race conditions in one of our experi-

ments, although it was an unintended side effect,

proved this to be the case. As shown in previous

results, limiting a variables value in an airplane

ticket store not only led to a logical error that was

essentially a race condition ﬂaw, but also to a log-

ical vulnerability that could lead the airline to sell

more tickets that its seats.

• Logical errors must be detected using productive

reasoning and not inductive because logical er-

rors can manifest in widely different contexts. For

example, a race condition can lead to a logical

vulnerability and is indeed a subtype of logical

programming errors, but it can also lead to other

types of errors (null pointer exception, division

by zero etc.) or even to no errors at all. In-

stead, PLATO’s deductive approach, not only de-

tects different types of logical errors but also pro-

vides insight on the impact of each error.

REFERENCES

(2015). Common vulnerabilities and exposures, us-cert,

mitre, CVE. MITRE, CVE-ID CVE-2014-0160.

(2015). The daikon invariant detector manual.

(2015). The java pathﬁnder tool.

(2015). Java platform, standard edition 7 api speciﬁcation.

(2015). National vulnerability database. [online]

http://nvd.nist.gov.

(2015). Using code quality metrics in management of out-

sourced development and maintenance.

(2016). Cwe-840: Business logic errors.

Abramson, N. A. (1964). Introduction to Information The-

ory and Coding. McGraw Hill.

Agency, N. S. (2011). NSA, On Analyzing Static Analysis

Tools. National Security Agency.

Agency, N. S. (2012). NSA,Static Analysis Tool Study-

Methodology. National Security Agency.

Albaum, G. (1997). The likert scale revisited. Journal-

Market research society, 39:331–348.

Baah, G. K. (2012). Statistical causal analysis for fault lo-

calization.

Balzarotti, D., Cova, M., Felmetsger, V. V., and Vigna, G.

(2007). Multi-module vulnerability analysis of web-

based applications. In Proceedings of the 14th ACM

conference on Computer and communications secu-

rity, pages 25–35. ACM.

Barr, E. T., Harman, M., McMinn, P., Shahbaz, M., and

Yoo, S. (2015). The oracle problem in software test-

ing: A survey. Software Engineering, IEEE Transac-

tions on, 41(5):507–525.

Bastani, O., Anand, S., and Aiken, A. (2015). Interactively

verifying absence of explicit information ﬂows in an-

droid apps. In Proceedings of the 2015 ACM SIG-

PLAN International Conference on Object-Oriented

Programming, Systems, Languages, and Applications,

pages 299–315. ACM.

Boland, T. and Black, P. E. (2012). Juliet 1.1 c/c++ and java

test suite. Computer, (10):88–90.

Bray, M., Brune, K., Fisher, D. A., Foreman, J., and Gerken,

M. (1997). C4 software technology reference guide-a

prototype. Technical report, DTIC Document.

Chhabra, P. and Bansal, L. (2014). An effective implemen-

tation of improved halstead metrics for software pa-

rameters analysis.

Cingolani, P. and Alcala-Fdez, J. (2012). jfuzzylogic: a

robust and ﬂexible fuzzy-logic inference system lan-

guage implementation. In FUZZ-IEEE, pages 1–8.

Citeseer.

Do, H., Elbaum, S., and Rothermel, G. (2005). Supporting

controlled experimentation with testing techniques:

An infrastructure and its potential impact. Empirical

Software Engineering, 10(4):405–435.

Doup´e, A., Boe, B., Kruegel, C., and Vigna, G. (2011).

Fear the ear: discovering and mitigating execution af-

ter redirect vulnerabilities. In Proceedings of the 18th

ACM conference on Computer and communications

security, pages 251–262. ACM.

Ernst, M. D., Perkins, J. H., Guo, P. J., McCamant,

S., Pacheco, C., Tschantz, M. S., and Xiao, C.

(2007). The daikon system for dynamic detection of

likely invariants. Science of Computer Programming,

69(1):35–45.

Etzkorn, L. H. and Davis, C. G. (1997). Automati-

cally identifying reusable oo legacy code. Computer,

30(10):66–71.

Felmetsger, V., Cavedon, L., Kruegel, C., and Vigna, G.

(2010). Toward automated detection of logic vulnera-

Combining Invariant Violation with Execution Path Classiﬁcation for Detecting Multiple Types of Logical Errors and Race Conditions

bilities in web applications. In USENIX Security Sym-

posium, pages 143–160.

Gill, G. K. and Kemerer, C. F. (1991). Cyclomatic com-

plexity density and software maintenance productiv-

ity. Software Engineering, IEEE Transactions on,

17(12):1284–1288.

Glover, E. J., Flake, G. W., Lawrence, S., Birmingham,

W. P., Kruger, A., Giles, C. L., and Pennock, D. M.

(2001). Improving category speciﬁc web search by

learning query modiﬁcations. In Applications and

the Internet, 2001. Proceedings. 2001 Symposium on,

pages 23–32. IEEE.

Godefroid, P., Klarlund, N., and Sen, K. (2005). Dart:

Directed automated random testing. SIGPLAN Not.,

40(6):213–223.

Gosling, J., Joy, B., Steele Jr, G. L., Bracha, G., and Buck-

ley, A. (2014). The Java Language Speciﬁcation.

Pearson Education.

Hansen, W. J. (1978). Measurement of program complexity

by the pair:(cyclomatic number, operator count). ACM

SIGPLan Notices, 13(3):29–33.

Harold, E. R. (2006). Java I/O. ” O’Reilly Media, Inc.”.

Hovemeyer, D. and Pugh, W. (2004). Finding bugs is easy.

ACM Sigplan Notices, 39(12):92–106.

Martin, R. A. and Barnum, S. (2008). Common weakness

enumeration (cwe) status update. ACM SIGAda Ada

Letters, 28(1):88–91.

P˘as˘areanu, C. S. and Visser, W. (2004). Veriﬁcation of java

programs using symbolic execution and invariant gen-

eration. In Model Checking Software, pages 164–181.

Springer.

Peng, W. W. and Wallace, D. R. (1993). Software error

analysis. NIST Special Publication, 500:209.

Rosenberg, L. and Hammer, T. (1998). Metrics for quality

assurance and risk assessment. Proc. Eleventh Inter-

national Software Quality Week, San Francisco, CA.

Rothermel, G., Elbaum, S., Kinneer, A., and Do, H. (2006).

Software-artifact infrastructure repository.

Scarfone, K. A., Grance, T., and Masone, K. (2008). Sp

800-61 rev. 1. computer security incident handling

guide. Technical report, Gaithersburg, MD, United

States.

Stergiopoulos, G., Katsaros, P., and Gritzalis, D. (2014).

Automated detection of logical errors in programs. In

Proc. of the 9th International Conference on Risks &

Security of Internet and Systems.

Stergiopoulos, G., Petsanas, P., Katsaros, P., and Gritzalis,

D. (2015a). Automated exploit detection using path

proﬁling - the disposition should matter, not the posi-

tion. In Proceedings of the 12th International Confer-

ence on Security and Cryptography, pages 100–111.

Stergiopoulos, G., Theoharidou, M., and Gritzalis, D.

(2015b). Using logical error detection in remote-

terminal units to predict initiating events of critical in-

frastructures failures. In Proc. of the 3rd International

Conference on Human Aspects of Information Secu-

rity, Privacy and Trust (HCI-2015), Springer, USA.

Stergiopoulos, G., Tsoumas, B., and Gritzalis, D. (2012).

Hunting application-level logical errors. In Engi-

neering Secure Software and Systems, pages 135–142.

Springer.

Stergiopoulos, G., Tsoumas, B., and Gritzalis, D. (2013).

On business logic vulnerabilities hunting: The

app

loggic framework. In Network and System Secu-

rity, pages 236–249. Springer.

Ugurel, S., Krovetz, R., and Giles, C. L. (2002). What’s

the code?: automatic classiﬁcation of source code

archives. In Proceedings of the eighth ACM SIGKDD

international conference on Knowledge discovery and

data mining, pages 632–638. ACM.

Wright, H. K., Kim, M., and Perry, D. E. (2010). Validity

concerns in software engineering research. In Pro-

ceedings of the FSE/SDP workshop on Future of soft-

ware engineering research, pages 411–414. ACM.

Zeller, A. (2002). Isolating cause-effect chains from com-

puter programs. In Proceedings of the 10th ACM SIG-

SOFT symposium on Foundations of software engi-

neering, pages 1–10. ACM.

Zhang, X., Gupta, N., and Gupta, R. (2006). Locating faults

through automated predicate switching. In Proceed-

ings of the 28th international conference on Software

engineering, pages 272–281. ACM.

Zielczynski, P. (May 2006). Traceability from use cases to

test cases. IBM developerWorks.

SECRYPT 2016 - International Conference on Security and Cryptography
