FPGA Implementation of HS1-SIV

Gerben Geltink and Sergei Volokitin

Institute for Computing and Information Sciences, Radboud University, Toernooiveld 212, Nijmegen, The Netherlands

Keywords:

HS1-SIV, CAESAR, Authenticated Encryption, FPGA, VHDL.

Abstract:

This work describes a hardware implementation of HS1-SIV with regular cipher parameter settings for the

second round of the CAESAR competition. The implementation encompasses both the HS1-SIV hardware

implementation, which is conforming to the speciﬁcations of the authenticated cipher, as well as a hardware

API. The implemented API is conforming to the speciﬁcations of the GMU Hardware API for authenticated

ciphers. On the target device Xilinx Virtex-7, using Xilinx XST High Level Synthesis, we achieved a through-

put of 122.20 Mbit/s and an area of 103,214 LUTs with the data length of the message and the associated data

set at 64 bytes and the data length of the key set at 32 bytes. Our performance results suggest that the area

overhead of the API is between 8% (8-byte data length) and 15% (2048-byte data length) in comparison the

the cipher-core.

1 INTRODUCTION

Due to the reason that encryption algorithms only pro-

vide conﬁdentiality of the encrypted data, real life ap-

plications of encryption require the use of additional

mechanisms to provide integrity and authenticity of

messages. Although it is possible to build an au-

thenticated encryption scheme using an encryption al-

gorithm and a message authentication code (MAC),

such an approach is often less computationally efﬁ-

cient. Authenticated encryption schemes are designed

to perform encryption of the message and provide

a message authentication code. Additionally, Au-

thenticated encryption with associated data (AEAD)

not only provides an authentication code of the se-

cret message but also authenticates the associated data

which is often a header.

As part of the second round of the Competition

for Authenticated Encryption: Security, Applicabil-

ity, and Robustness (CAESAR), candidates have to

submit a hardware implementation of their authenti-

cated cipher (Bernstein, 2016). The competition was

announced in 2013 at the Early Symmetric Crypto

workshop in Mondorf-les-Bains, Luxembourg. Simi-

larly to AES (Daemen and Rijmen, 1999), eSTREAM

(Babbage et al., 2008), SHA-3 (Keccak (Bertoni et al.,

2011)) and PHC (Argon2 (Biryukov et al., 2015)),

CAESAR seeks to select a portfolio of algorithms

which most likely will include a number of encryp-

tion algorithms. With this portfolio, the conﬁdence in

the security, applicability and robustness of authenti-

cated encryption ciphers will be improved.

Although functional software requirements have

been set for the CAESAR candidates, details of the

hardware Application Programming Interface (API)

have not yet been speciﬁed. However, the GMU

Hardware API, which was introduced to provide a ba-

sis for benchmarking the hardware implementations

of the CAESAR candidates, is considered as a stan-

dard amongst the hardware implementers of the CAE-

SAR candidates (Homsirikamol et al., 2015). This

API provides speciﬁcations for the interface (AEAD-

core) of the authenticated cipher-core as well as the

communication protocol needed.

Implementing HS1-SIV is not trivial due to a

number of reasons. First, HS1-SIV is designed to be

efﬁcient on 32-bit architectures, which means that the

numerous amount of multiplications and modulo op-

erations have to be implemented thoughtfully. Sec-

ond, the computation of the hashes require the en-

tire input message, which means that the architecture

needs to be implemented such that these continuous

computations are supported.

We describe the ﬁrst effort to implement HS1-SIV

(Krovetz, 2014) with regular security parameter set-

tings (hereafter called HS1-SIV-MED) on a Field Pro-

grammable Gate Array (FPGA). Regular security set-

tings of the cipher include:

• the number of bytes used by the hashing algo-

rithm, which is equal to 64 bytes;

• the collision level of the hashing algorithm, which

Geltink, G. and Volokitin, S.

FPGA Implementation of HS1-SIV.

DOI: 10.5220/0005950100410048

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 41-48

ISBN: 978-989-758-196-0

is equal to 4 bytes;

• the number of internal rounds of the steam cipher,

which is equal to 12 bytes;

• the byte length of synthetic IV, which is equal to

16 bytes.

The structure of the paper is as follows.

In Section 2, we describe the authenticated encryp-

tion cipher HS1-SIV-MED and its subroutines. Sec-

tion 3 describes the related work. Section 4 describes

our contributions. In Section 5, we describe the hard-

ware design of the HS1-SIV-MED cipher-core. In

Section 6, we present the performance results of the

implementation. Section 7 describes some topics for

future research. And ﬁnally, Section 8 concludes the

paper.

2 HS1-SIV

HS1-SIV is an abbreviation for “Hash-Stream 1 -

Synthetic Initialization Vector”. As the name suggests

the algorithm of HS1-SIV uses HS1 as a Pseudo-

Random Function (PRF) to provide deterministic au-

thenticated encryption with Rogaway and Shrimp-

ton’s SIV mode (Rogaway and Shrimpton, 2007).

Speciﬁcally, HS1-SIV is composed of six subrou-

tines: HS1-SIV-Encrypt, HS1-SIV-Decrypt, HS1,

HS1-Hash, HS1-Subkeygen and ChaCha. This sec-

tion describes these subroutines for HS1-SIV-MED

using Python pseudocode. The subroutines in the

pseudocode contain comments about the required in-

puts and provided outputs.

2.1 HS1-SIV-Encrypt

HS1-SIV-Encrypt is the main algorithm which en-

crypts a message using a key, an initialization vector

and associated data. The algorithm uses the HS1 and

HS1-Subkeygen subroutines.

def HS1_SIV_ENCRYPT(K, M, A, N):

# K, a list containing up to 32 bytes

# M, A, a list containing up to 2**64 bytes

# N, a list containing 12 bytes

# T, a list of 16 bytes

# C, a list of len(M) bytes

k = HS1_SUBKEYGEN(K)

A_ = pad(64,A)

M_ = pad(16,M)

A_len = pad(8,[len(A)])

M_len = pad(8,[len(M)])

M_prime = (A_ + M_ + A_len + M_len)

T = HS1(k, M_prime, N, 16)

C_ = HS1(k,T,N,64+len(M))[64:64+len(M)]

C = map(xor, M, C_)

return (T,C)

2.2 HS1-SIV-Decrypt

HS1-SIV-Decrypt is the main algorithm which can

decrypt a cipher-text using a key, an initialization vec-

tor, an authenticator for the associated data and the as-

sociated data itself. The algorithm uses the HS1 and

the HS1-Subkeygen subroutines.

def HS1_SIV_DECRYPT(K, (T,C), A, N):

# K, a list containing up to 32 bytes

# T, a list of 16 bytes

# C, A, a list containing up to 2**64 bytes

# N, a list containing 12 bytes

# M, a list of len(C) bytes

k = HS1_SUBKEYGEN(K)

M_ = HS1(k,T,N,64+len(C))[64:64+len(C)]

M = map(xor, C, M_)

A_ = pad(64, A)

M_ = pad(16, M)

A_len = pad(8, [len(A)])

M_len = pad(8, [len(M)])

M_prime = A_ + M_ + A_len + M_len

T_prime = HS1(k, M_prime, N, 16)

if T == T_prime:

return M

else:

return []

2.3 HS1

HS1 is the algorithm for HS1-SIV’s PRF, it uses four

results from HS1-Hash to supply as a key for ChaCha

(Bernstein, 2008).

def HS1(k, M, N, y):

# k, a list [K_S, k_N, k_P] containing

# K_S, a list of 32 bytes

# k_N, is a list of 28 integers

# k_N, is a list of 4 integers

# M, a list containing any number of bytes

# N, a list containing 12 bytes

# y, an integer

K_S = k[0]

k_N = k[1]

k_P = k[2]

a = []

s = [0x00]*y

for i in range(4):

a += HS1_HASH(k_N[4*i:4*i+16],k_P[i],M)

a = pad(32, a)

key = map(xor, a, K_S)

Y = CHACHA(12, key, 0, N, s)

return Y

2.4 HS1-Hash

HS1-Hash is the subroutine to produce the hash of

a message using several sub-keys produced by HS1-

Subkeygen. It also uses the NH-function in order to

produce NH hashes.

SECRYPT 2016 - International Conference on Security and Cryptography

def HS1_HASH(k_N, k_P, M):

# k_N, a list of 16 integers

# k_P, an integer

# M, a list containing any number of bytes

# Y, a list of 8 bytes

n = int(max(math.ceil(len(M)/(64.0)),1))

h = k_P**n

for i in range(n):

M_i = M[i*64:i*64 + 64]

m_i = toInts(4, pad(16,M_i))

a_i =(NH(k_N,m_i)+(len(M_i)%16))%2**60

h += (a_i * k_P ** (n - i - 1))

h %= (2**61-1)

Y = toStr(8,h)

return Y

def NH(v1, v2):

# v1, v2 a list of a multiple of 4 integers

n = min(len(v1), len(v2))

res = 0

for i in range(1, n/4+1):

res += (

((v1[4*i-4]+v2[4*i-4]) % 2**32) *

((v1[4*i-2]+v2[4*i-2]) % 2**32) +

((v1[4*i-3]+v2[4*i-3]) % 2**32) *

((v1[4*i-1]+v2[4*i-1]) % 2**32)

)

return res % 2**64

2.5 HS1-Subkeygen

HS1-Subkeygen is the subroutine to produce the sub-

keys, it uses the ChaCha subroutine.

def HS1_SUBKEYGEN(K):

# K, a list containing up to 32 bytes

# k, a list [K_S, k_N, k_P] containing

# K_S, a list of 32 bytes

# k_N, is a list of 28 integers

# k_N, is a list of 4 integers

K_ = K

while len(K_) < 32:

K_ += K_

K_prime = K_[:32]

N = (

[len(K), 0x00, 0x10, 0x00] +

[0x0c, 0x04, 0x40] + [0x00] * 5

)

T = CHACHA(12, K_prime, 0, N, [0x00]*152)

K_S = T[:32]

k_N = toInts(4,T[32:128])

k_P_ = toInts(8,T[128:152]

m = 2**60

k_P = map(mod, k_P_, [m, m, m, m])

k = (K_S, k_N, k_P)

return k

2.6 ChaCha

ChaCha is HS1-SIV’s stream cipher to encrypt inter-

mediate results. For details on the setState, round

and addStates we encourage the reader to consult

(Nir and Langley, 2015).

def CHACHA(r, K, b, N, M):

# r, b, an integer

# K, a list of 32 bytes

# N, a list of 12 bytes

# M, a list containing any number of bytes

Y = []

n = int(max(math.ceil(len(M)/64.0),1))

for j in range(n):

s = setState(K, N, b)

b += 1

ws = s[:]

for i in range(r/2):

ws = round(ws)

state = addStates(s, ws)

Y += serialize(s)

Y = map(xor,Y[0:len(M)],M)

return Y

3 RELATED WORK

As mentioned in the introduction there is a lot of on-

going research in the area of authenticated encryption

schemes with associated data. There were 57 submit-

ted ciphers in the ﬁrst round of the CEASAR com-

petition and 29 of them were selected for the second

round. With the beginning of the second round the

focus of research shifted from the analysis of the al-

gorithms in general to the study of hardware and soft-

ware implementations and their optimizations.

In a recent paper (Kotegawa et al., 2016) a number

of hardware implementations of CAESAR candidate

ciphers were optimized and their performance was an-

alyzed. The paper focuses on implementation and op-

timization of four CAESAR candidates, namely AES-

OTR, SILC, AES-COPA and POET. In the results

section we compare the performance of these ciphers

with our performance.

One paper (Morawiecki et al., 2014) presents ICE-

POLE, a high-speed hardware-oriented authenticated

encryption algorithm which also made it to the sec-

ond round of the CAESAR competition. The algo-

rithm was designed initially to be efﬁcient when im-

plemented on hardware. The paper states that the ba-

sic iterative architecture reaches 41 Gbit/s throughput.

The paper describing the API for hardware imple-

mentations (Homsirikamol et al., 2015) also presents

the performance results and API overhead for eight

CAESAR candidates. This presented data will be dis-

cussed in details in the results section.

Although there is a lot of research in the area of

hardware implementations of authenticated encryp-

tion algorithms there are no published results on HS1-

SIV implementations and its optimizations.

FPGA Implementation of HS1-SIV

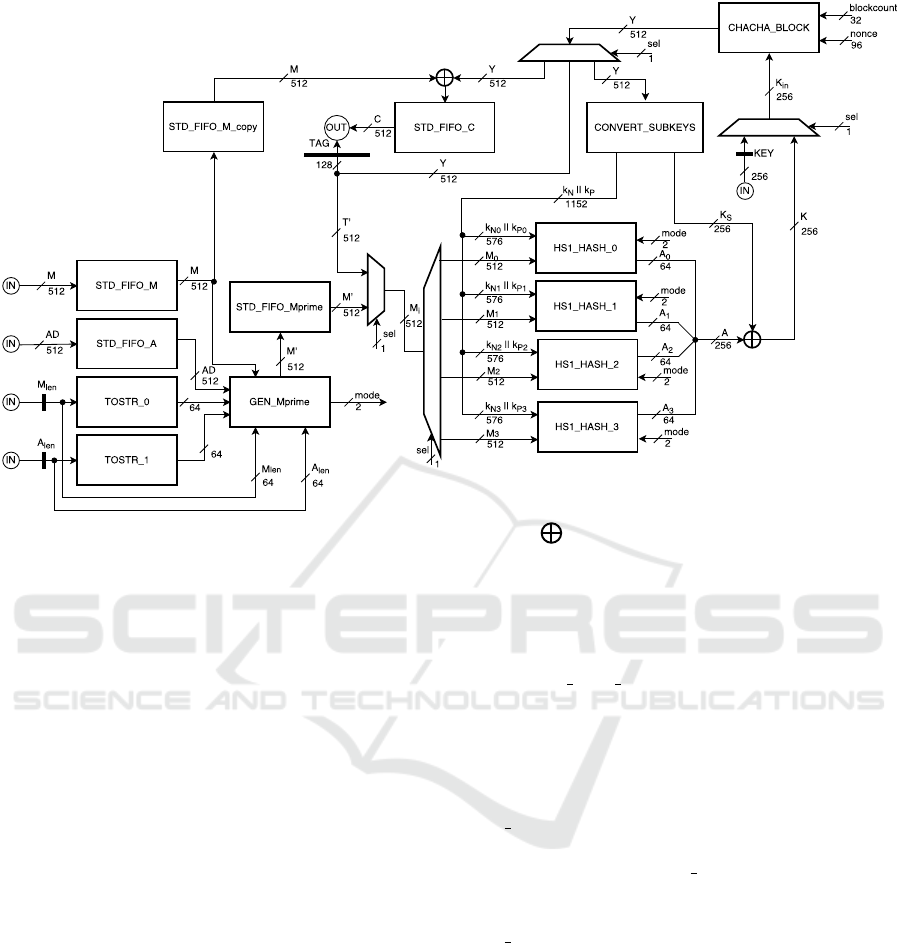

Figure 1: Hardware architecture of HS1-HS1-MED. denotes a bitwise XOR.

4 CONTRIBUTION

The main contribution of this paper is presenting the

ﬁrst effort to implement HS1-SIV with regular param-

eter settings including an API on a FPGA such that it

can be used as a reference implementation in further

research. To our best knowledge, there are no other

hardware implementations of HS1-SIV yet.

5 DESIGN

This section describes the hardware design of HS1-

SIV-MED. All hardware descriptions are written in

VHSIC Hardware Description Language (VHDL)

and synthesized using Xilinx ISE 14.7.

We implemented HS1-SIV-MED using the hard-

ware architecture illustrated in Figure 1 and a state-

machine. For clariﬁcation purposes of this paper, the

ﬁgure only illustrates the general outline of the archi-

tecture. That means that the selection signals (sel),

blockcount, nonce and mode signals are controlled

by the state-machine. Also, in the architecture, IN and

OUT denotes that signals communicate through the IO

buffers of HS1-SIV-MED. Apart from these signals

and the standard clock and reset signal, the imple-

mentation acts on an input instruction signal indicat-

ing the kind of data that is on the input, an input signal

indicating encryption or decryption and an output sig-

nal indicating that the encryption or decryption is ﬁn-

ished. The block also contains a generic which speci-

ﬁes the MAX DATA SIZE of either the message/cipher-

text or the associated data which is needed to reserve

memory for the FIFOs.

Upon encryption the state-machine ﬁrst loads the

message, the associated data, the nonce and the

key, before computing the sub-keys. Then, using

GEN Mprime, the algorithm pads and stores the as-

sociated data, the message and both their lengths

in the Mprime FIFO. GEN Mprime also produces a

mode signal which indicates the amount of data of

the last 64 byte block in Mprime (this is needed for

HS1 HASH). Following, the algorithm computes the

tag using Mprime and stores it in a register. When the

tag is computed, the cipher-text is produced using this

tag and stored in the C FIFO. Finally, the cipher-text

and the tag are ready to be unloaded.

Upon decryption, all previously mentioned inputs

and the tag are loaded before the sub-keys are com-

puted. Then, the cipher-text is being decrypted and

stored in the C FIFO. Following, the tag is being com-

puted using the resulting decrypted cipher-text and

compared to the loaded tag. If the computed tag is

equal to the loaded tag, the resulting decrypted cipher-

text is ready to be unloaded.

The hardware implementation includes ﬁve FI-

SECRYPT 2016 - International Conference on Security and Cryptography

Figure 2: Hardware architecture of HS1 HASH. v

n−>m

denotes bits n (MSB) to m (LSB) of v where n > m and 0 ≤ n, m < |v|

(if n+m < |v|−1 then v is padded with zeros at the MSB), denotes an addition in GF(2

) and denotes a multiplication

in GF(2

128

FOs, two TOSTR blocks, a GEN Mprime block, four

HS1 HASH blocks, a CONVERT SUBKEYS block, a

CHACHA BLOCK block, several registers and several

multiplexers. The remaining paragraphs of this sec-

tion describe the hardware architectures of these

blocks in more detail.

5.1 Generate Mprime

GEN Mprime pads the associated data and message up

to respectively 64 bytes and 16 bytes and stores this

in STD FIFO Mprime before concatenating them with

their lengths. The behavior of this block is given in

Formula 1.

M = pad(64, A) || pad(16, M) ||

toStr(8, |A|) || toStr(8, |M|)

(1)

Each clock cycle, 64 bytes are stored into

STD FIFO Mprime.

Because the last message fragment can either be

16 bytes, 32 bytes, 48 bytes or 64 bytes, a mode

signal is generated by the block as an indication for

HS1 HASH.

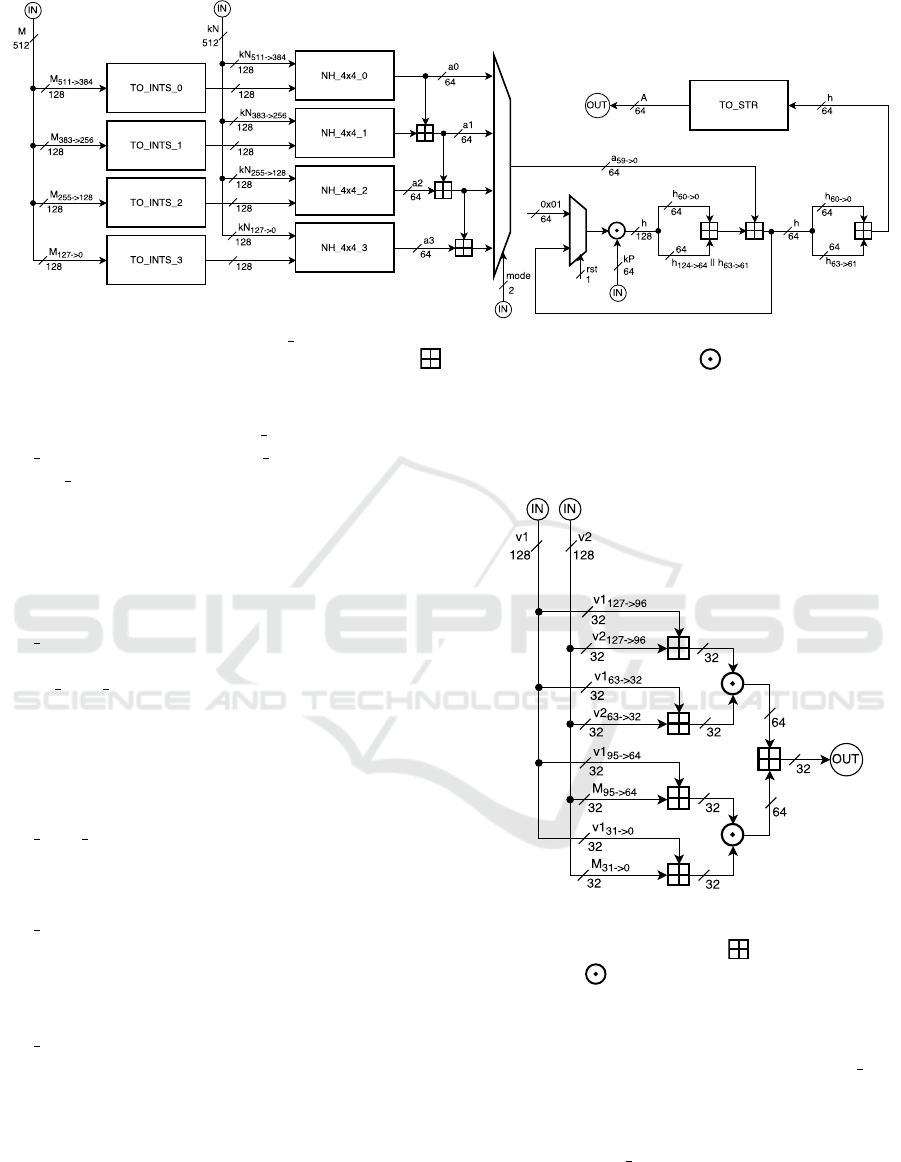

5.2 HS1 Hash

Figure 2 illustrates the hardware architecture of

HS1 HASH. The HS1 hash block implements the hash-

ing functionality of the cipher. With regular parame-

ter settings for HS1-SIV, HS1 hash acts on message

fragments of 64 bytes up to the last message frag-

ment. Hence, our input message length for the HS1

hash block is 64 bytes. The last message fragment can

either be 16 bytes, 32 bytes, 48 bytes or 64 bytes. De-

pending on which of these four modes the HS1 hash

block operates, the results of the NH function blocks

are added up.

Also note that the HS1 hash block modiﬁes the in-

termediate result h on each clock/input until the block

is being reset again.

Figure 3: Hardware architecture of the NH (4x4) func-

tion. v

n−>m

denotes bits n (MSB) to m (LSB) of v where

n > m and 0 ≤ n, m < n

max

, m

max

, denotes an addition

in GF(2

) and denotes a multiplication in GF(2

5.2.1 NH Function

Figure 3 shows the hardware architecture of NH 4x4.

Because there are four different message fragment

lengths, it is convenient to split the NH function block

into four blocks that each act on two vectors of four

4-byte integers (NH 4x4). Depending on the mode of

HS1 hash, the result of all four, the ﬁrst three or the

ﬁrst two NH function blocks are added up and re-

turned or the result of the ﬁrst NH function block is

returned.

FPGA Implementation of HS1-SIV

5.3 Convert Subkeys

The convert sub-keys block is needed to convert the

ChaCha output into usable sub-keys. For this, the im-

plementation uses a block to convert the streams into

4-byte little-endian integers (for kN) and 8-byte little-

endian integers (for kP).

5.4 ChaCha Block

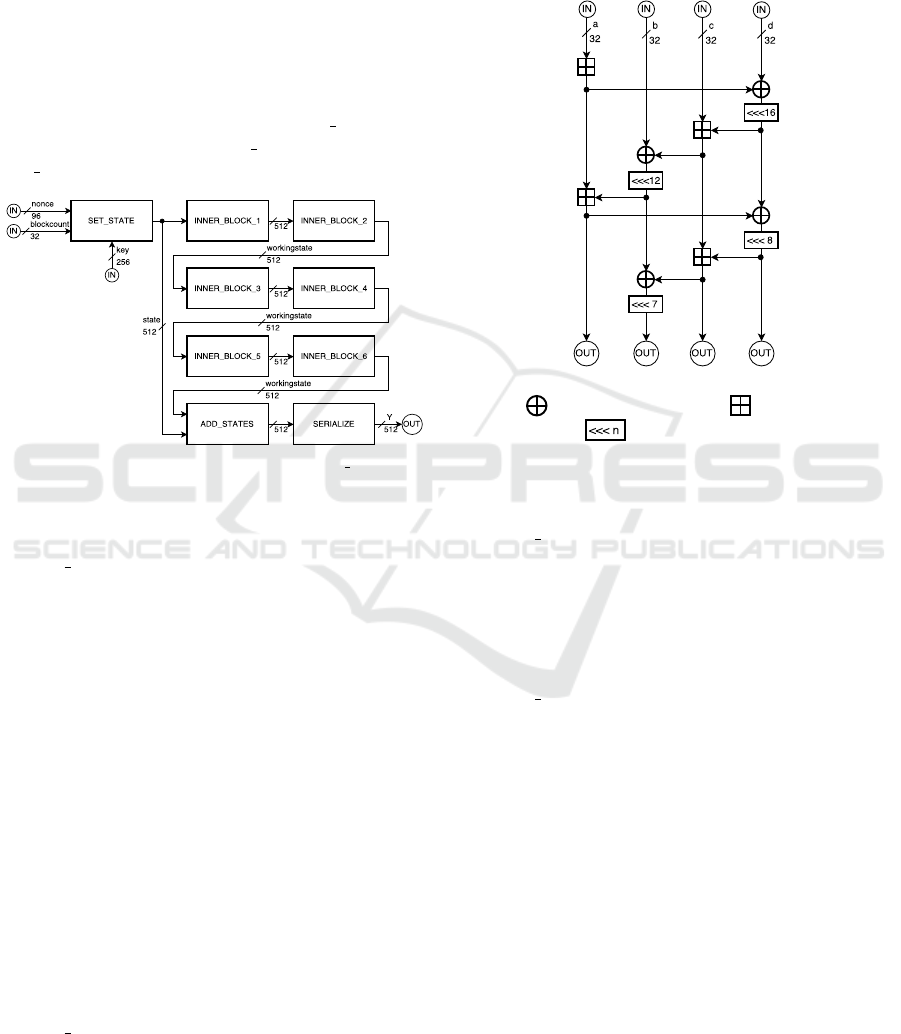

The hardware architecture of the ChaCha block

is illustrated in Figure 4. CHACHA

BLOCK has

four different sub-blocks, SET STATE, INNERBLOCK,

ADD STATES and SERIALIZE.

Figure 4: Hardware architecture of CHACHA BLOCK.

5.4.1 Setstate

CHACHA SETSTATE rewires the key, block-count and

nonce into a signal of 512 bits that represents the

ChaCha state. This 512-bit state is composed of 16

words of 32 bit long. The ChaCha state is initialized

as follows:

• The ﬁrst four words (indexed 0-3) are con-

stants: 0x61707865, 0x3320646e, 0x79622d32,

0x6b206574.

• The next eight words (indexed 4-11) are taken

from the 256-bit key by reading the bytes in little-

endian order, in 4-byte chunks.

• Word 12 is a block counter.

• Words 13-15 are a nonce. The 13th word is the

ﬁrst 32 bits of the input nonce taken as a little-

endian integer, while the 15th word is the last 32

bits.

5.4.2 Innerblock

CHACHA INNERBLOCK contains the logic for two

ChaCha rounds. As a result, the ChaCha block

contains six of these blocks (HS1-SIV-MED has 12

ChaCha rounds). The inner block contains four

quarter-round blocks that represent the ‘column’

ChaCha round and four quarter-round blocks that rep-

resent the ‘diagonal’ ChaCha round. The architecture

of the quarter-round is depicted in Figure 5. Here, de-

pending on the round, a, b, c and d are 32-bit words

drawn from the ChaCha state.

Figure 5: Hardware architecture of the ChaCha quarter-

round. denotes a bitwise XOR, denotes an addition

in GF(2

) and denotes a left-rotation over n bits.

5.4.3 Addstates

CHACHA ADDSTATES contains the logic to add the

working state to the current state. For this, the in-

put words are added up with the output words from

the working state.

5.4.4 Serialize

CHACHA SERIALIZE contains the logic to return the

serialized output of the ChaCha block. For this, the

words are sequenced one-by-one in little-endian or-

der.

6 RESULTS

This section describes the analysis of the performance

of HS1-SIV-MED’s AEAD-core. Table 1 shows the

performance results of HS1-SIV-MED’s AEAD-core

using Xilinx XST High Level Synthesis (HLS) on a

Virtex-7 device. These results have been achieved by

restricting the use of Block RAM and DSP. Moreover,

the optimization goal is set on Area and the optimiza-

tion effort on Normal. The key length was ﬁxed to

32 bytes. We found out that the area overhead of

the AEAD-core is between 8% (8-byte data length)

SECRYPT 2016 - International Conference on Security and Cryptography

Table 1: Performance results of HS1-SIV-MED’s AEAD-

core using Xilinx XST HLS on a Virtex-7 device.

Data Area Throughput Throughput

length [LUT] [Mbit/s] /Area

[bytes] [(Kbit/s)

/LUT]

8 100,397 28.039 0.279

16 100,925 50.539 0.501

32 101,004 84.406 0.836

64 103,214 122.200 1.184

128 103,967 156.697 1.507

256 107,325 182.449 1.700

512 111,919 198.784 1.776

1024 122,813 208.100 1.694

2048 155,666 213.093 1.369

and 15% (2048-byte data length) in comparison to the

cipher-core.

In the table, Data length corresponds to both the

length of the associated data as well as the length of

the message. The difference in area is mainly because

of the memory that needs to be reserved for the FI-

FOs.

The performance results of the throughput-to-area

ratio is also given in Figure 6. This ﬁgure shows that

the optimal data length is at 512 bits. At 512 bits, the

AEAD-core has a throughput of 198.784 Mbit/s, an

area of 111,919 LUTs and an throughput-to-area ratio

of 1.776 (Kbit/s)/LUT. In comparison to the ATHENa

Database of Results (Cryptographic Engineering Re-

search Group (CERG) at GMU, 2016), the perfor-

mance of this hardware implementation of HS1-SIV-

MED is not as good as some other ciphers. For ex-

ample, the area required by the HS1-SIV-MED im-

plementation takes over 8 times more than the AES-

COPA implementation.

The performance results of AES-OTR, SILC,

AES-COPA and POET high level synthesis is pre-

sented in the paper (Kotegawa et al., 2016) with op-

timization goal on Area are 122 Mbit/s, 126 Mbit/s,

117 Mbit/s and 124 Mbit/s respectively. It is clear

to see that our implementation of HS1-SIV outper-

forms all of those implementation in throughput. Un-

fortunately, direct comparison of the area that is being

used by the ciphers to the area that is being used by

HS1-SIV is not possible because the paper presents

the area of the ciphers in logic slices whereas the HS1-

SIV area is measured in LUTs. The ICEPOLE cipher

(Morawiecki et al., 2014) basic iterative implementa-

tion achieved 41 Gbit/s throughput on FPGA Virtex-

6 without usage of any dedicated resources such as

Block RAM or DSP. The presented performance re-

sults are much higher than other published results on

hardware implementation performances of CAESAR

256

512

1,024 2,048

0.5

1.5

(512, 1.776)

Data length in bytes

Throughput/Area in (Kbit/s)/LUT

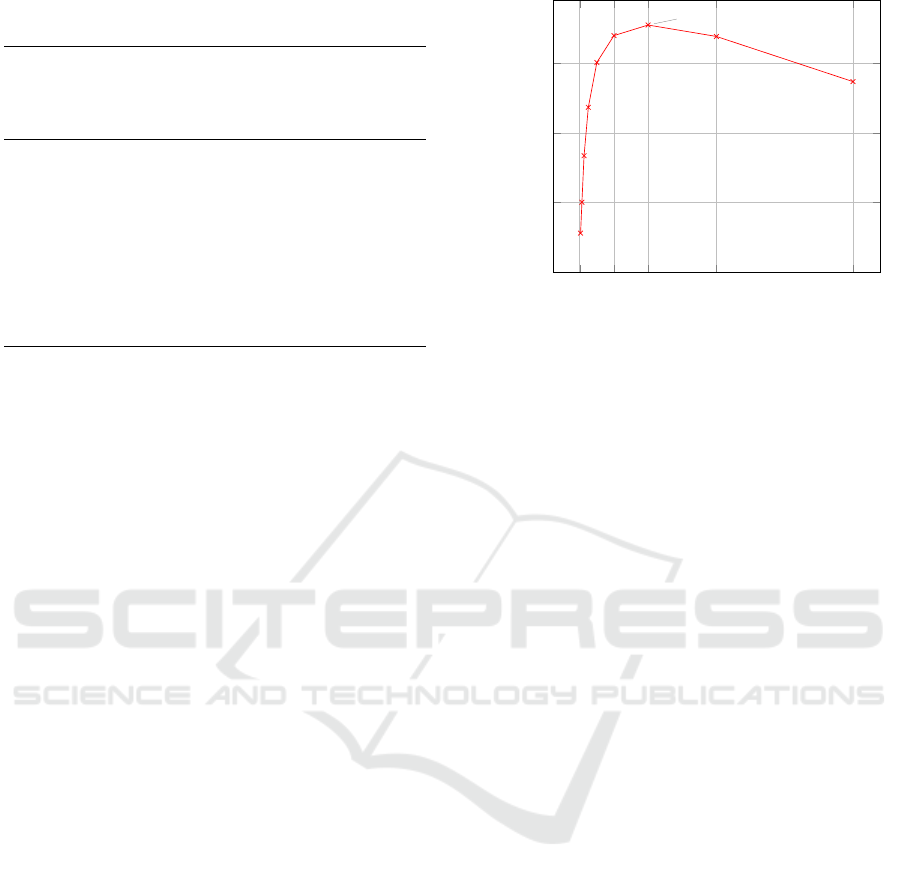

Figure 6: Performance results of the throughput-to-area ra-

tio of HS1-SIV-MED’s AEAD-core using Xilinx XST HLS

on a Virtex-7 device.

candidates. It is not possible to compare performance

results of ICEPOLE and HS1-SIV because the ICE-

POLE implementation presented in the paper does not

include an API which highly likely will cause some

overhead. Despite the fact it is obvious that ICE-

POLE cipher has higher throughput by a few orders of

magnitude. One of the reasons only moderate perfor-

mance results of HS1-SIV are achieved in comparison

to the ICEPOLE cipher is that the design of HS1-SIV

was optimized to be efﬁcient running on x86 archi-

tecture and other 32-bit platforms, whereas ICEPOLE

was initially designed to provide a high throughput on

hardware. A larger area required for the implementa-

tion of HS1-SIV can be explained by the bigger input

sizes of the message and the nonce. For instance, the

ICEPOLE cipher takes 128-bit inputs whereas HS1-

SIV operates on 64-byte long blocks.

7 FUTURE WORK

We have seen that the cipher uses quite a lot of FPGA

resources. Although we have not focused on opti-

mizing the implementation, we think that this is also

an unfortunate characteristic of HS1-SIV. Future im-

provements that focus on optimizing the operations

and the number of instructions should conﬁrm this

prediction. The paper proposed by At et al. (At et al.,

2014) provides a good basis for optimizing ChaCha.

Also, our paper only describes the hardware im-

plementation of HS1-SIV with regular parameter set-

tings, different parameter settings will have different

results. For HS1-SIV on high parameter settings, in

general, the intermediate keys get larger and more

ChaCha rounds need to be executed. On the other

hand, HS1-SIV on low parameter settings requires

FPGA Implementation of HS1-SIV

less ChaCha rounds and uses smaller intermediate

keys.

Another possible future improvement is to sim-

plify the implemented architecture. Now, the AEAD-

core does not contain a pre- and post-processor,

meaning that upon unloading the results, no new data

can be loaded. Also, the HS1-HASH function in-

cludes four blocks which in our implementation are

executed in parallel. Each HS1 HASH block requires

approximately 1500 LUTs, thus a serial computa-

tion of these blocks might decrease the area by up to

4500 LUTs. The same holds for the NH 4x4 blocks

in HS1 HASH, the INNER BLOCK blocks in ChaCha and

the quarter-rounds in ChaCha’s INNER BLOCK.

Finally, the state-machines in both the AEAD-

core as well as the cipher-core are very large, a fu-

ture study towards a new hardware architecture with

a reduced number of states could reveal whether the

overall performance can be optimized.

8 CONCLUSIONS

In this paper, we have presented the ﬁrst effort to im-

plement HS1-SIV with regular parameter settings in-

cluding the API on hardware. With this hardware im-

plementation, the requirement of the second round of

the CAESAR competition has been met for HS1-SIV.

Future improvements, analysis and study should indi-

cate whether HS1-SIV on hardware provides enough

security, applicability and robustness.

ACKNOWLEDGMENTS

We would like to thank Ted Krovetz for answering our

questions regarding HS1-SIV. Also, our thanks go out

to Antonio de la Piedra and Kostas Papagiannopoulos

for their support and technical expertise.

REFERENCES

At, N., Beuchat, J.-L., Okamoto, E., San, I., and Yamazaki,

T. (2014). Compact Hardware Implementations of

ChaCha, BLAKE, Threeﬁsh, and Skein on FPGA.

Circuits and Systems I: Regular Papers, IEEE Trans-

actions on, 61(2):485–498.

Babbage, S., Canniere, C., Canteaut, A., Cid, C., Gilbert,

H., Johansson, T., Parker, M., Preneel, B., Rijmen, V.,

and Robshaw, M. (2008). The eSTREAM portfolio.

eSTREAM, ECRYPT Stream Cipher Project.

Bernstein, D. J. (2008). ChaCha, a variant of Salsa20. In

Workshop Record of SASC: The State of the Art of

Stream Ciphers, volume 8.

Bernstein, D. J. (2016). CAESAR: Competition for Au-

thenticated Encryption: Security, Applicability, and

Robustness. http://competitions.cr.yp.to/caesar.html.

Bertoni, G., Daemen, J., Peeters, M., and Van Assche, G.

(2011). The keccak sha-3 submission. Submission to

NIST (Round 3), 6(7):16.

Biryukov, A., Dinu, D.-D., and Khovratovich, D. (2015).

Argon and Argon2.

Cryptographic Engineering Research Group (CERG)

at GMU (2016). ATHENa Database of Results.

https://cryptography.gmu.edu/athenadb/fpga auth cip

her/rankings view.

Daemen, J. and Rijmen, V. (1999). AES proposal: Rijndael.

Homsirikamol, E., Diehl, W., Ferozpuri, A., Farahmand, F.,

Sharif, M. U., and Gaj, K. (2015). GMU Hardware

API for Authenticated Ciphers. Cryptology ePrint

Archive, Report 2015/669. http://eprint.iacr.org/.

Kotegawa, M., Iwai, K., Tanaka, H., and Kurokawa, T.

(2016). Optimization of hardware implementations

with high-level synthesis of authenticated encryption.

Bulletin of Networking, Computing, Systems, and

Software, 5(1):26–33.

Krovetz, T. (2014). HS1-SIV (v2). CAESAR 2nd Round,

competitions.cr.yp.to/round2/hs1sivv2.pdf.

Morawiecki, P., Gaj, K., Homsirikamol, E., Matusiewicz,

K., Pieprzyk, J., Rogawski, M., Srebrny, M., and

ojcik, M. (2014). Icepole: high-speed, hardware-

oriented authenticated encryption. In Cryptographic

Hardware and Embedded Systems–CHES 2014, pages

392–413. Springer.

Nir, Y. and Langley, A. (2015). ChaCha20 and Poly1305

for IETF Protocols. Technical report, RFC 7539,

DOI 10.17487/RFC7539, May 2015, http://www. rfc-

editor. org/info/rfc7539.

Rogaway, P. and Shrimpton, T. (2007). Deterministic

Authenticated-Encryption A Provable-Security Treat-

ment of the Key-Wrap Problem.

SECRYPT 2016 - International Conference on Security and Cryptography
