A Pre-clustering Method To Improve Anomaly Detection

Denis Hock

, Martin Kappes

and Bogdan Ghita

Frankfurt University of Applied Sciences, Frankfurt am Main, Germany

Plymouth University, Plymouth, U.K.

Keywords:

Computer Networks, Network Anomaly Detection, Clustering.

Abstract:

While Anomaly Detection is commonly accepted as an appropriate technique to uncover yet unknown net-

work misuse patterns and malware, detection rates are often diminished by, e.g., unpredictable user behavior,

new applications and concept changes. In this paper, we propose and evaluate the beneﬁts of using clustering

methods for data preprocessing in Anomaly Detection in order to improve detection rates even in the presence

of such events. We study our pre-clustering approach for different features such as IP addresses, trafﬁc char-

acteristics and application layer protocols. Our results obtained by analyzing detection rates for real network

trafﬁc with actual intrusions indicates that our approach does indeed signiﬁcantly improve detection rates and,

moreover, is practically feasible.

1 INTRODUCTION

IT-Systems and their underlying networks have per-

vaded business and private life and are ubiquitously

used in virtually every area. The paramount economic

and social impact raised the protection of IP-based

networks and associated devices to an increasingly

important matter. Lately, these systems are often sub-

ject of malicious software attacks that aim to cause

damage to users and may affect the functions of de-

vices and network. Network intrusions, deﬁned by

(Heady et al., 1990) as ”any set of actions that attempt

to compromise the integrity, conﬁdentiality, or avail-

ability of a resource”, can cause lost revenue, damage

to the reputation or corrupt critical processes and sen-

sitive data.

A countermeasure to detect these malicious ac-

tions in time are Intrusion Detection Systems (IDS).

However, traditional IDS require extensive knowl-

edge of attack signatures and are not capable of de-

tecting new attacks, due to the time lag between pub-

lication and implementation of an attack signature.

With noticeable rise in the number of threats and so-

phistication, the challenges and requirements of in-

trusion detection increase as well. These reasons ad-

vanced the interest in Anomaly Detection Systems,

with the ability to discover even unknown and new

attacks by analyzing statistical deviations from a de-

ﬁned normal behavior. But what sounds simple is

rather complicated in practice: Statistical noise and

inconsistency, attributed to the On/Off behavior of

users, trafﬁc peak times and the workings of under-

lying protocols (e.g. TCP Congestion Control) ag-

gravate to separate between irregular patterns, noise

and real outliers. Our aim is to reduce this noise

by analyzing subsets of network trafﬁc with more

deterministic and predictable trafﬁc. Clustering, the

task of sub-dividing a data set into statistically simi-

lar groups, can be used to discover patterns, relation-

ships, and structures in large amounts of data. In this

paper, we use clustering as data preprocessing tech-

nique to reduce the amount of network trafﬁc noise

and simplify the detection of anomalous pattern by

analyzing statistically related network trafﬁc.

In the remainder, we present an overview of re-

lated literature and the theoretical advantages of pre-

clustering. Subsequently, we study the feasibility

of different metrics for efﬁciently clustering network

trafﬁc into suitable subsets. We provide a profound

theoretical explanation and analyze the complexity,

noise reduction and characteristics of the resulting

subsets. Our experiment, consulting an Anomaly De-

tection System on malicious network trafﬁc, shows

indeed that clustering is well suited to preprocess net-

work trafﬁc and can uncover networks attacks which

remain undetected when the identical Anomaly De-

tection method is applied to cumulative network traf-

ﬁc without clustering.

Hock, D., Kappes, M. and Ghita, B.

A Pre-clustering Method To Improve Anomaly Detection.

DOI: 10.5220/0005953003910396

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 391-396

ISBN: 978-989-758-196-0

391

2 RELATED WORK

Since Dorothy Denning published the initial paper on

Anomaly Detection (Denning, 1987), a large variety

of techniques based on machine learning, statistics

and data mining have been published. Several pub-

lications (Leung and Leckie, 2005; M

unz et al., 2007;

Izakian and Pedrycz, 2014) utilize clustering-based

methods to classify malicious network trafﬁc.

Some early Anomaly Detection approaches, such

as PHAD (Mahoney and Chan, 2001) and SnortAD

(Szmit et al., 2012) use very simple methods to split

network trafﬁc into TCP, UDP and ICMP as part of

the Anomaly Detection algorithm. But, they did not

analyze the effect of the splitting on noise or utilize

the split groups to improve their results.

(Bouzida et al., 2004) uses PCA as preprocess-

ing to derive a new set of signiﬁcant features as data

preprocessing. Further common data preprocessing

methods used for Anomaly Detection (e.g. selection,

transformation and cleaning) have been reviewed by

(Davis and Clark, 2011).

However, to the best of our knowledge, clustering

has not been proposed as method to reduce noise and

optimize thresholds during the data preprocessing, in

previous works.

3 METHOD

In the following, we will brieﬂy outline the rationale

behind our approach. This section demonstrates the

optimization of thresholds and impact of clustering

on noise.

3.1 Advantages of Pre-clustering

In contrast to other approaches, Anomaly Detection

does not depend on the existence of malicious exam-

ples. Instead, it aims to detect statistical deviations

from normal network trafﬁc, which results in the ca-

pability to detect previously unseen events. Anomaly

Detection Systems can assign a certain probability p

(or alternatively a numerical score) to each event in-

dicating its abnormality, where p is generated by a

function which compares the current trafﬁc to refer-

ence values from historical data.

The binary result r ∈ {0,1} (where 0 denotes nor-

mal and 1 abnormal) depends on a threshold θ.

r =

(

1 if p is > θ

0 if p is ≤ θ

(1)

If an event was assigned a probability p above the

threshold θ, but was actually legitimate trafﬁc, we call

the result a false positive. If an event was assigned a

p below θ, but was actually unwanted trafﬁc, we call

the result a false negative.

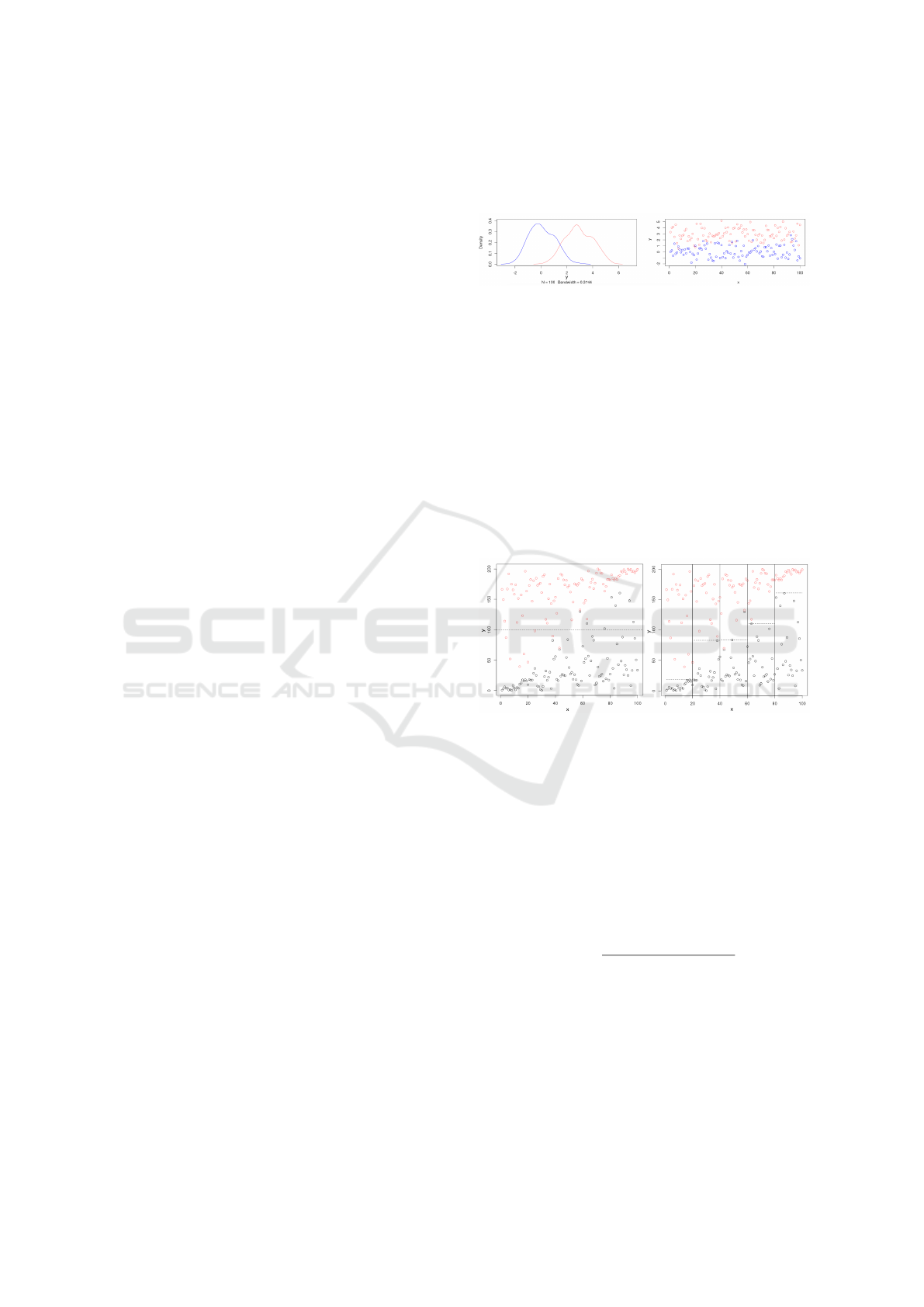

Figure 1: Classiﬁcation problem on two normal distribu-

tions.

Figure 1 illustrates the concept of classiﬁcation

based on thresholds with an artiﬁcial sample. Our

example includes two distinct set of data (light and

dark), which are both normal distributed with N =

100. The right-hand side shows the density curves,

the left-hand side a plot with dark dots (µ = 0,σ = 1)

that symbolize normal data and light dots are consid-

ered intrusive (µ = 3,σ = 1). The area where both

sets overlap (which is 7,3%) is a region where an al-

gorithm can not reliably predict a value as intrusive or

normal - we can only decide to favor false positives or

false negatives by adapting the threshold.

Figure 2: Classiﬁcation problem on a heavy-tailed distri-

bution.

Figure 2 presents a heavy-tailed distribution, as

they occur on several network trafﬁc features such

as byte-size. The left-hand side shows the classiﬁca-

tion with a single threshold, the right-hand side uses

several different thresholds to optimize the amount of

false positives (FP) and negatives (FN) as well as the

true positives (TP) and negatives (TN). Each range

has been optimized using the threshold θ with max-

imal accuracy A.

max

T P + T N

T P + FP + T N + FN

(2)

where TP, FP, TN, and FN depend on θ.

While the ﬁgure is a simpliﬁed case for illustration

and unlikely to occur in actual network trafﬁc, we can

transfer our approaches to the real world: If we clus-

ter network trafﬁc into classes with distinct groups of

normal and malicious trafﬁc, we can optimize each

threshold using training data and outperform a cumu-

lative threshold. Setting up different thresholds for

SECRYPT 2016 - International Conference on Security and Cryptography

392

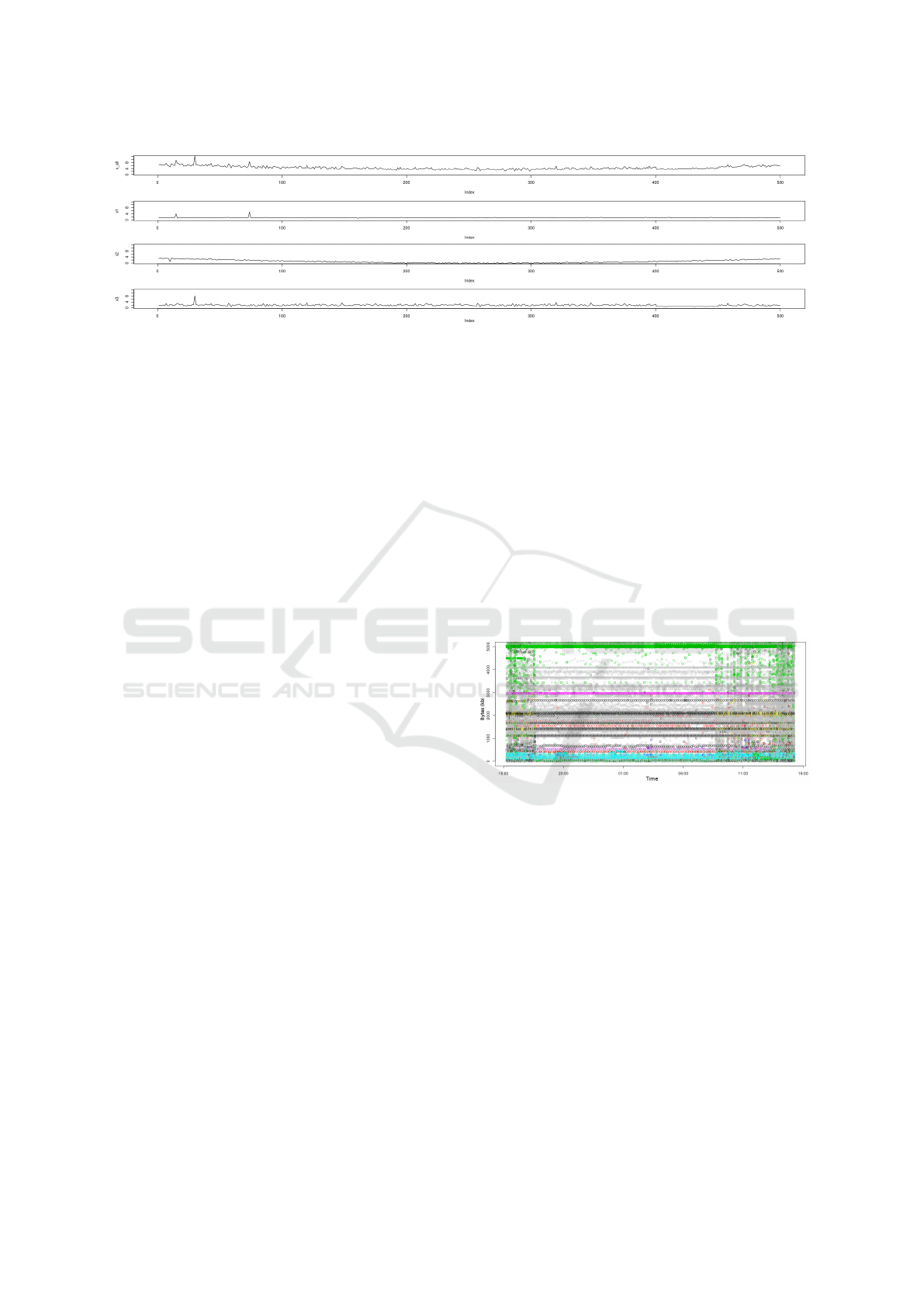

Figure 3: Time-series clustered and cumulative.

different clusters, as it is suggested here, might seem

to lack in its scalability because setting up thresholds

manually would be a tedious task. But using equa-

tion 2, it is obviously possible to automatize the ﬁnd-

ing and setting of those. Moreover, it is unlikely to

have a vast amount of clusters, since the number of

clusters heavily depend upon the limited number of

network characteristics with the ability to split the

trafﬁc in a meaningful way.

Clustering applies statistical properties to rear-

range related data into predeﬁned smaller classes.

Naturally, smaller classes also have a smaller standard

deviation, which is noise. The optimal case would be

statistically independent groups, when we let a and b

denote any two curves where a and b are independent,

then var(a +b) = var(a) +var(b). A commonly used

method to detects malicious actions is time-series

analysis in combination with volume-based metrics

such as the amount of bytes. Figure 3 shows an ar-

tiﬁcial time-series dataset with a x-axis ranging from

0 to 500. The three bottom graphs (x1,x2,x3) show

the clustered data, while the top graph (xall) contains

the cumulative data - we could archive such a setup

e.g. by splitting the trafﬁc using the layer 4 protocol.

At ﬁrst glance, the cumulative data is not only much

more noisy, it also contain the trends of graphs x1,x2

and x3. To measure the impact of the reduced noise,

we located four outliers on different positions of the

x-axis when we generated the data: In graph x1 on

point 15 and 74, in graph x2 on 10 and x3 on 30.

An outlier detection algorithm - following Chen

and Liu (Chen and Liu, 1993) proposed procedure -

showed, that it is much more difﬁcult to reliably de-

tect the injected outliers within the cumulative data.

The result showed, that the algorithm returned one

false negative and several false positives on the cu-

mulative data, while archiving perfect results for each

individual graph.

3.2 Metrics to Cluster Network Trafﬁc

In the following, we propose three metrics to split net-

work trafﬁc and outline their properties: IP addresses,

ﬂow characteristics and a combination of Principle

Component Analysis (PCA) and k-means clustering.

The proposed metrics are only a few possible ex-

amples and their capability may vary for different

anomaly detection methods and environments (e.g.

splitting by IP addresses would fail if our network has

only a single subnet).

The following examples have been achieved with

the network traces over one day, including approx-

imately one hundred thousand ﬂows to the Internet

and other networks, captured on a university network.

The network consisted of several personal comput-

ers, servers and other network devices such as VoIP

phones, printers and managed switches.

Figure 4: Byte size for each netﬂow.

Figure 4 displays the entire network traces, which

are clustered later. Each dot depicts the byte size (y-

axis) of a connection with different colors for each

destination port (<1024). The ﬁgures aims to show

the tremendous amount of variation, which prevents

us to distinguish regular pattern from noise, detect

deviations or ﬁnd network pattern. The latter ap-

proaches try to split this trafﬁc into smaller logical

classes.

3.2.1 Splitting Trafﬁc by IP Addresses

IP addresses can reveal a lot of information when used

to compare the trafﬁc of different subnets. We aim

to depict subnets of the local area network with our

clusters, because they may logically separate smaller

networks used for server applications, virtual private

A Pre-clustering Method To Improve Anomaly Detection

393

networks or network administration.

Network traces do not contain any information on

subnets, and there is a possibility that we have to

many small subnets to reﬂect each in a single clus-

ter. Therefore, we strongly simpliﬁed our operation

by using the ﬁrst 24 bit to determine the classes. In ad-

dition, we assume for our dataset, that the local area

network is represented by the class with the highest

number of participants.

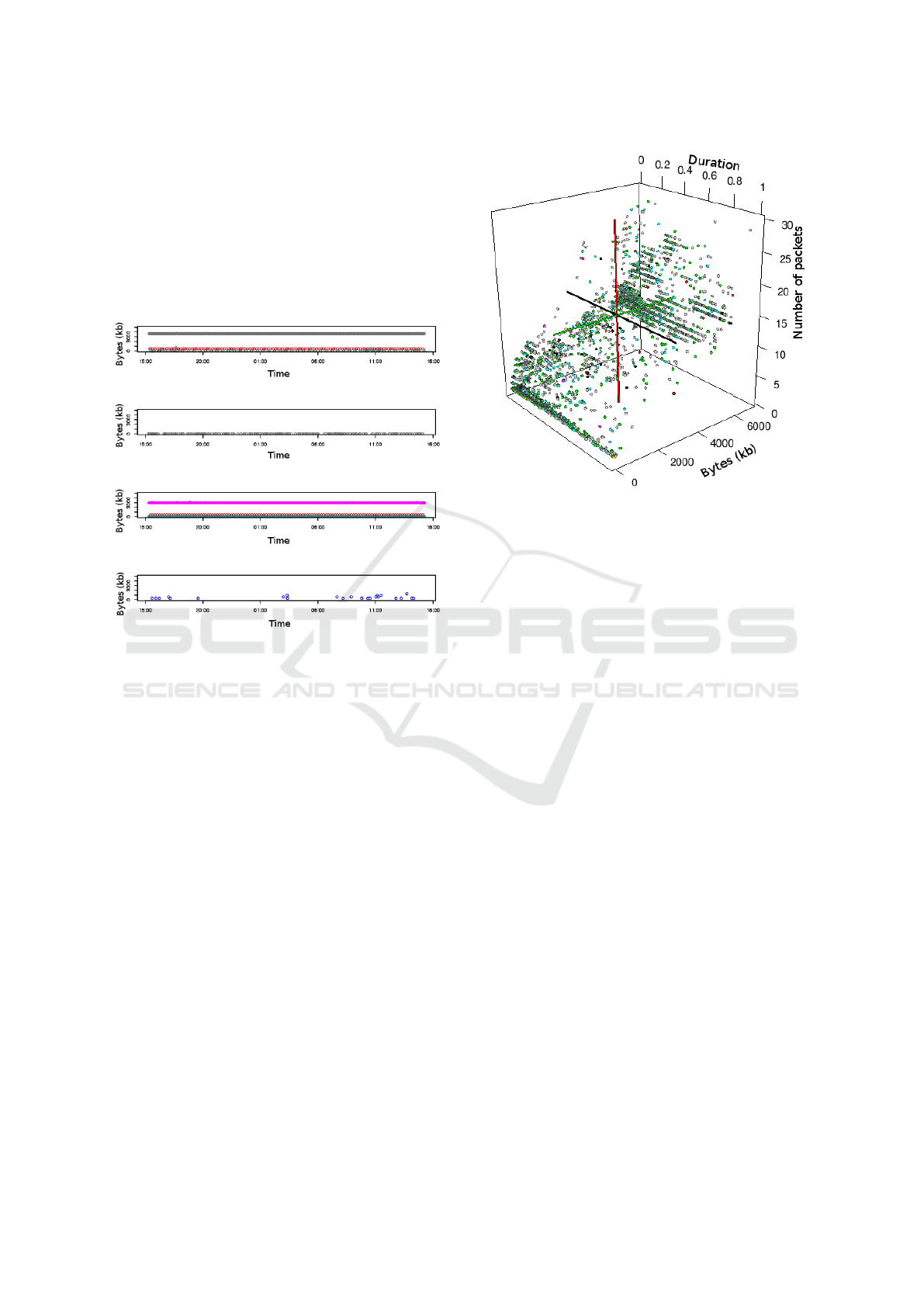

Figure 5: Byte size for the different subnets.

Figure 5 shows the ﬁrst four classes we created.

Each ﬁgure displays the transfered byte per ﬂow for

a class. The x axis show the time and the y axis the

ﬂow size in byte. The color visualizes the used desti-

nation port - all ports greater than 1024 are displayed

in gray. Even if one of the subnets (not included in

Figure 5) contains a major part of the complete traf-

ﬁc with eighty thousand ﬂows, compared to the graph

with all ﬂows, we can see clear patterns in our classes.

3.2.2 Splitting Trafﬁc by Flow Characteristics

Flow characteristics have been previously used to pre-

dict applications. Here, we split trafﬁc using the ﬂow

duration, byte size and number of packets per ﬂow.

Figure 6 shows a 3D visualization of the mentioned

metrics. The x axis shows the byte size from 0 - 6000

byte, the y axis the amount of packets from 0 to 30

packets and the z axis the duration from 0 to 1 sec-

ond. A small amount of ﬂows outside these ranges

(with extreme values such as 100.000 bytes) were re-

moved as outliers.

The color for each dot symbolizes the destination

port as in the previous diagrams, the cross in the di-

agram shows our 8 different classes. Analyzing the

classes, we concluded, that the characteristics split

Figure 6: Byte size vs. packets vs. duration.

our ﬂows into constant network activity, which are

most likely network services, and user dependent ac-

tivity which occured intensiﬁed on certain times of

the day.

3.2.3 Splitting Trafﬁc by Application Layer

Protocols

Our last method utilizes Principle Component Analy-

sis (PCA) and a k-means clustering, which delegates

all logic entirely to a machine learning algorithm and

aims to conclude for a human obscure higher-level in-

formation. PCA is a procedure which aims to create

a set of linearly uncorrelated variables, deﬁned by the

largest possible variance. The input data used for our

PCA model are the layer 4 protocol, destination port,

number of packets and byte size for each ﬂow. We

derived four principle components and generate eight

clusters with the k-means algorithm. Figure 7 shows

the byte size of every ﬂow for the ﬁrst four of the

eight clusters. In contrast to the approach using IP ad-

dresses, we obtain classes with a more equal number

of ﬂows. The color represents the destination port.

Altogether, we can conclude that each cluster

has the potential to simplify the detection of certain

attacks. Each approach to cluster showed several

classes with unique characteristics (e.g. only TCP

trafﬁc above Port 1024, only UDP packets to Port

51, or only a small set of different protocols with

ﬁxed byte size) and all clusters with a small amount

of good deﬁned trafﬁc can support in ﬁnding anoma-

lies, which are unexpected, rare and previously un-

seen events. It was not in the scope of this work to test

SECRYPT 2016 - International Conference on Security and Cryptography

394

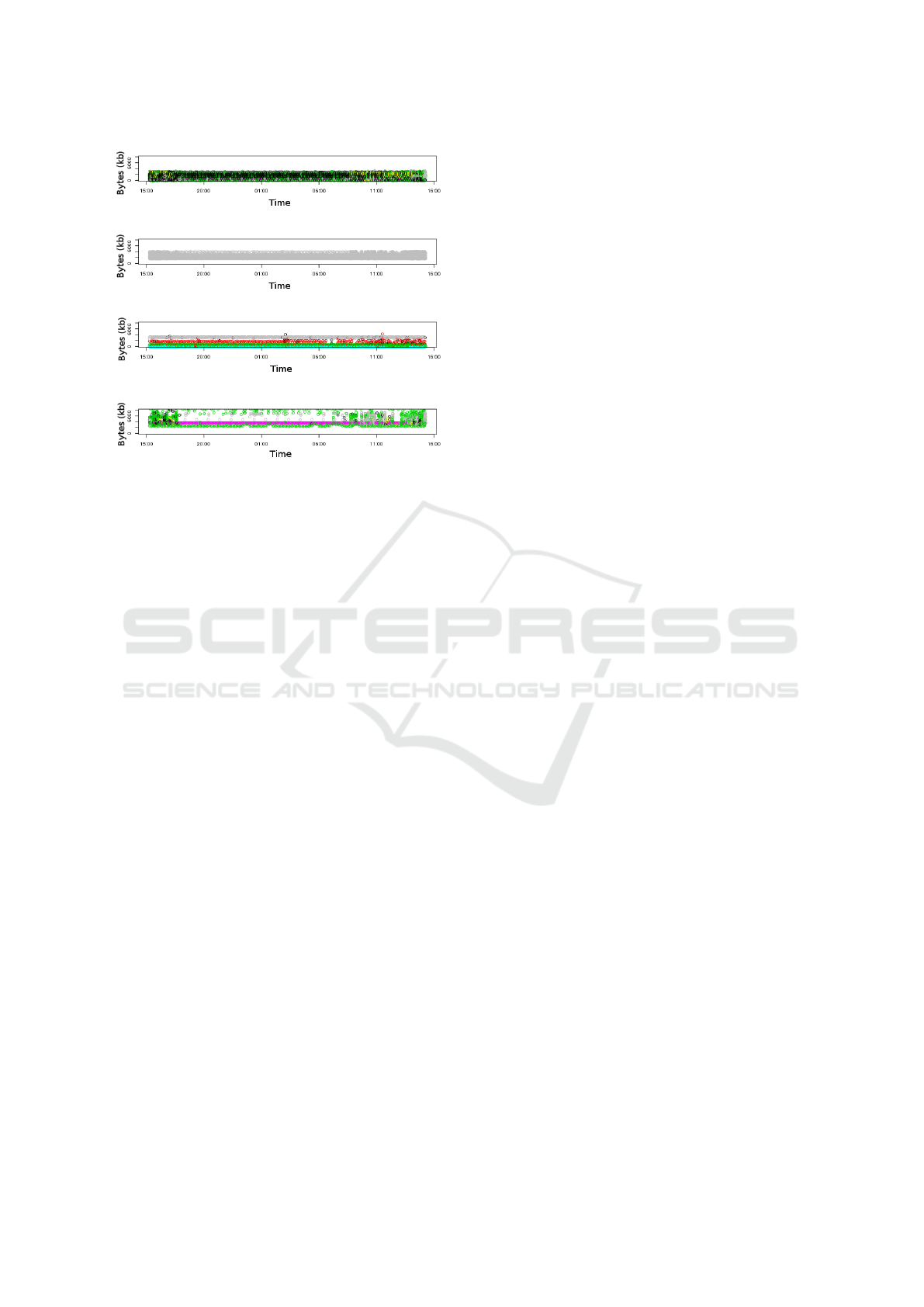

Figure 7: Byte size for each PCA cluster.

or justify a different number of clusters, which would

be interesting. Here, we used the maximum number

of clusters, where we could constantly observe traf-

ﬁc in each class, which is a tradeoff between usability

and performance.

4 RESULTS

The aim of our study was to evaluate the effect of pre-

clustering on Anomaly Detection. Here, we brieﬂy

presented a prototypical evaluation with and without

prior clustering. While some state of the art Anomaly

Detection Systems aim to unveal Advanced Persistant

Threats, we use a strongly simpliﬁed Anomaly Detec-

tion algorithm and only focus on a particular subset

of Network Anomaly Detection, namely network in-

trusions which visibly alter the statistical properties

of network trafﬁc. However, the contribution of this

paper (preprocessing) can be applied to improve any

modern detection alogrithm.

Our data consists of a training set, which is the

previously introduced ﬂow data, and a smaller test set

captured on the same network. The test set contains

three labeled attacks. The ﬁrst two attacks aimed to

compromise a managed switch from inside the net-

work: First, a stealthy port scan, executed with nmap,

discovered running services and open ports. Then,

we manually tried six wrong passwords to log-in via

SSH. The third attack was a SYN-ﬂood on port 80

with random source addresses, executed with the tool

hping3. The data has been acquired over a period of

approximately 10 minutes and contains about 5500

ﬂows and also contains regular background trafﬁc.

However, most ﬂows belong to the attack, since ev-

ery random IP address started a new ﬂow.

We used an Anomaly Detection scheme which as-

signs, based on the number of occurrences o in his-

torical data, a probability for being abnormal to each

connection. Thus, previously unseen and rare events

are marked as suspicious and receive a higher prob-

ability to be anomalous. Our historic (training-) data

consists of the traces introduced in the previous chap-

ter. We extracted vectors using the amount of pack-

ets, delay, destination port, bytes and layer 4 proto-

col and converted the values to categorical data (by

rounding the each value to the next 1000) to prevent

to many unique occurrences. We counts the num-

ber of occurrences in the historic data and calculated

the probability p with p = (100 − o)/100. The bi-

nary result (decision) is made classifying each event

as positive or negative based on a threshold. We cal-

culated the trade-off between true positive (beneﬁts)

and false positive (costs) at various threshold settings

using ROC-Curves. The clustering has been applied

as introduced in the previous chapter. We used the

mean value of all probabilities to create a ROC curve

for the Anomaly Detection with clustering. The area

under curve (AUC), which is 0.47 without cluster and

0.83 with cluster, is equal to the probability that our

Anomaly Detection System assigns a higher anomaly

score to abnormal trafﬁc than normal trafﬁc. Our rea-

soning for the good performance of the clusters is,

that the stealthy scan and SSH intrusion (which is nor-

mally very hard to detect with just ﬂow data) appeared

unusual in the classes which contains trafﬁc of the

managed switch. The denial of service on the other

hand appeared in a class very common for HTTP traf-

ﬁc and has been found because it was unusual in com-

parison to earlier trafﬁc with similar characteristics.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we presented an approach for reducing

noise of network trafﬁc and optimizing thresholds for

Anomaly Detection Systems. These ﬁrst results intro-

duced the output of three different methods to clus-

ter network trafﬁc into smaller subsets. The clustered

trafﬁc shows a signiﬁcantly reduced noise and clearly

visible patterns in byte size, ﬂow amount and destina-

tion port. We showed that pre-clustering can improve

Anomaly Detection through noise reduction and in-

dependent threshold setting - The concept was eval-

uated with a prototype implementation and showed

acceptable results. The optimal cluster can vary de-

pending on the network infrastructure, used applica-

A Pre-clustering Method To Improve Anomaly Detection

395

tions and Anomaly Detection method. But we can

conclude that a good cluster needs to contain intrusive

and normal trafﬁc in order to optimize the threshold

cluster by cluster and is at best statistical independent

to reduce as much noise as possible. Our experiment

pointed out that a proﬁcient clustering can uncover

abnormal trafﬁc which is difﬁcult to detect in the cu-

mulative data. Especially our manual SSH intrusion

attempt and the stealthy scans are normally difﬁcult

to detect by Anomaly Detection methods, because

they do not transparently change volume or shape of

the network trafﬁc. However, we were easily able

to detect them. It is likely that both, Anomaly De-

tection with and without clustering, could be equally

improved by using more complex detection methods.

There is a wide range of, here unused, Anomaly De-

tection schemes (e.g. Local Outlier Detection) and

metrics (packets per second) available, which proved

useful in other publications. However, we deliber-

ately wanted to keep the experiment simple and focus

on the effect of our preprocessing instead Anomaly

Detection. We are aware that our approach heav-

ily depends on the network characteristics. Our ex-

perimentation provided good results, because it was

possible to separate networks into sub-networks with

unique characteristics. It remains an open question

whether it is possible to always reach this goal with

any network. We belief that the task of ﬁnding signif-

icant features to split the trafﬁc is event simpler when

the network is larger than the network used for our

experiments. In this work, we only performed tests

on a single data set and artiﬁcal data, because we

avoided the use of obsolete public data sets. As future

prospects we would like to extend our experiments to

a variaty of networks, evaluate more parameters and

extend our work with ways to cluster obfuscated pro-

tocols and encrypted trafﬁc.

REFERENCES

Bouzida, Y., Cuppens, F., Cuppens-Boulahia, N., and Gom-

bault, S. (2004). Efﬁcient intrusion detection using

principal component analysis. In 3

eme Conf

erence sur

la S

ecurit

e et Architectures R

eseaux (SAR), La Londe,

France.

Brauckhoff, D., Salamatian, K., and May, M. (2009). Ap-

plying pca for trafﬁc anomaly detection: Problems

and solutions. In INFOCOM 2009, IEEE, pages

2866–2870. IEEE.

Chen, C. and Liu, L.-M. (1993). Joint estimation of model

parameters and outlier effects in time series. Journal

of the American Statistical Association, 88(421):284–

297.

Chhabra, P., Scott, C., Kolaczyk, E. D., and Crovella, M.

(2008). Distributed spatial anomaly detection. In

INFOCOM 2008. The 27th Conference on Computer

Communications. IEEE. IEEE.

Cretu-Ciocarlie, G. F., Stavrou, A., Locasto, M. E., and

Stolfo, S. J. (2009). Adaptive anomaly detection via

self-calibration and dynamic updating. In Recent Ad-

vances in Intrusion Detection, pages 41–60. Springer.

Davis, J. J. and Clark, A. J. (2011). Data preprocessing for

anomaly based network intrusion detection: A review.

Computers & Security, 30(6):353–375.

Denning, D. E. (1987). An intrusion-detection model. Soft-

ware Engineering, IEEE Transactions on, (2):222–

232.

Heady, R., Luger, G., Maccabe, A., and Servilla, M. (1990).

The architecture of a network-level intrusion detection

system. Department of Computer Science, College of

Engineering, University of New Mexico.

Izakian, H. and Pedrycz, W. (2014). Anomaly detection and

characterization in spatial time series data: A cluster-

centric approach.

Kim, J. and Bentley, P. J. (2002). Towards an artiﬁcial

immune system for network intrusion detection: an

investigation of dynamic clonal selection. In Evolu-

tionary Computation, 2002. CEC’02. Proceedings of

the 2002 Congress on, volume 2, pages 1015–1020.

IEEE.

Kim, M.-S., Kong, H.-J., Hong, S.-C., Chung, S.-H., and

Hong, J. W. (2004). A ﬂow-based method for ab-

normal network trafﬁc detection. In Network Op-

erations and Management Symposium, 2004. NOMS

2004. IEEE/IFIP, volume 1, pages 599–612. IEEE.

Leung, K. and Leckie, C. (2005). Unsupervised anomaly

detection in network intrusion detection using clus-

ters. In Proceedings of the Twenty-eighth Australasian

conference on Computer Science-Volume 38, pages

333–342. Australian Computer Society, Inc.

Li, Z., Gao, Y., and Chen, Y. (2005). Towards a high-speed

router-based anomaly/intrusion detection system.

Mahoney, M. and Chan, P. K. (2001). Phad: Packet header

anomaly detection for identifying hostile network traf-

ﬁc.

unz, G., Li, S., and Carle, G. (2007). Trafﬁc anomaly de-

tection using k-means clustering. In GI/ITG Workshop

MMBnet.

Szmit, M., Adamus, S., Bugała, S., and Szmit, A. (2012).

Anomaly detection 3.0 for snort. Snort. AD Project.

SECRYPT 2016 - International Conference on Security and Cryptography

396
