Towards a Software Approach to Mitigate Correlation Power Analysis

Ibraheem Frieslaar

1, 2

and Barry Irwin

Modelling and Digital Science, Council for Scientiﬁc and Industrial Research, Pretoria, South Africa

Department of Computer Science, Rhodes University, Grahamstown, South Africa

Keywords:

Software Countermeasure, AES, CPA, Threads, Task Scheduler, Resistance.

Abstract:

In this research we present a novel implementation for a software countermeasure to mitigate Correlation

Power Analysis (CPA). This countermeasure combines pseudo controlled-random dummy code and a task

scheduler using multi threads to form dynamic power traces which obscures the occurrence of critical opera-

tions of the AES-128 algorithm. This work investigates the use of a task scheduler to generate noise at speciﬁc

areas in the AES-128 algorithm to mitigate the CPA attack. The dynamic power traces have shown to be an

effective contermeasure, as it obscures the CPA into predicting the incorrect secret key. Furthermore, the coun-

termeasure is tested on an ATmega and an ATxmega microcontroller. The basic side channel analysis attack

resistance has been increased and in both scenarios the proposed countermeasure has reduced the correlation

accuracy and forced the CPA to predict the incorect key. The correlation accuracy decreased from 97.6% to

53.6% on the ATmega microntroller, and decreased from 82% to 51.4% on the ATxmega microcontroller.

1 INTRODUCTION

Since the introduction of side channel analysis (SCA)

(Kocher et al., 1999), SCA has grown to be a pow-

erful technique used to attack various embedded sys-

tems that employ cryptographic algorithms for secu-

rity such as the AES algorithm. These cryptographic

algorithms assist in protecting vital information of an

individual or a system. The AES algorithm has be-

come the main standard for encrypting data, therefore

the research community have focused much of their

attention on attacking the AES implementations on

embedded devices (Brier et al., 2004; Schramm et al.,

2004; Kocher et al., 2011; O’Flynn and Chen, 2015).

Kocher et al. have shown that there is a correla-

tion between the power usage of a cryptographic sys-

tem and its secret key-dependent intermediate vari-

ables. SCA uses this information to retrieve the se-

cret key that was used to encrypt the data. SCA con-

sists of three main types of attacks, simple power

analysis (SPA), differential power analysis (DPA),

and correlation power analysis (CPA). To mitigate

these SCA attacks, various software countermeasures

have been introduced such as boolean and arithmetic

masking (Bl¨omer et al., 2004; Oswald and Schramm,

2005); hiding (Tillich et al., 2007); random precharg-

ing (Hoogvorst et al., 2011) and shufﬂing (Veyrat-

Charvillon et al., 2012).

This work aims to combine the knowledge of the

hiding technique within the time frequency domain

and combines it with mullti threads and a task sched-

uler to generate dynamic power traces on each exe-

cution of the AES-128 algorithm to create a software

solution for a hardwareproblem. Thebest possible lo-

cation to insert the pseudo controlled-randomdummy

code into the algorithm and the amount of threads that

are required to be inserted to generate a noise pattern

that hides informationand forms a mask forthe power

traces are investigated.

1.1 Our Contribution

This research presents a novel implementation of a

software countermeasure to mitigate the CPA attack

on microcontrollers. The implementation consists of

combining pseudo controlled-random dummy code

that hides the occurrence of critical operations of the

algorithm. Additionally, time dilation is used in com-

bination with the task scheduler and multi threads to

generate dynamic power traces. To the best of our

knowledge we have not come across a software coun-

termeasure that makes use of a threaded approach.

The use of a task scheduler to generate noise at

speciﬁc areas in the AES-128 algorithm to mitigate

the CPA attack is investigated. The dynamic power

traces has shown to be an effective measure, as it ob-

scures the CPA into predicting the incorrect secret

key. The countermeasure is tested on an ATmega

Frieslaar, I. and Irwin, B.

Towards a Software Approach to Mitigate Correlation Power Analysis.

DOI: 10.5220/0005955604030410

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 403-410

ISBN: 978-989-758-196-0

403

and an ATxmega microcontroller, in both scenarios

the countermeasure has reduced the correlation accu-

racy signiﬁcantly and has prevented the correct secret

key from being predicted on both microcontrollers.

Furthermore, the countermeasure have increased the

attack resistance from p =

(T+1)·16

to p =

(T+1)

·17

with a minimal execution overhead.

1.2 Organization

The remainder of this paper is organized as follows:

Sections 2 discusses the research carried out in the

ﬁeld of software countermeasures against SCA; Sec-

tion 3 elaborates on the equipment and techniques

used to capture and analyze the data; Section 4 details

the proposed countermeasure the system implements;

followed by Section 5 and Section 6 which presents

on the results and analysis of the results; and ﬁnally,

the paper is concluded in Section 7.

2 SOFTWARE

COUNTERMEASURES

This section discusses the most prominent exist-

ing techniques used as a software countermea-

sures against SCA. These techniques are random

precharging, masking, hiding and shufﬂing. Random

precharging in a software environment requires the

datapath to be ﬁlled with random operand instruc-

tions before and after an important value is executed

(Tillich and Großsch¨adl, 2007).

The masking countermeasure generates a mask to

camouﬂage the intermediate values of the algorithm

with a random value not known to the attacker. There-

fore the intermediate values will become independent

from the power consumption of the device.

Hiding can possibly occur in two domains. These

are the amplitude and time domains. Hiding infor-

mation in the amplitude domain attempts to diminish

the power consumption of various executions of the

algorithm to reduce the overall power consumption

whereas, the time domain requires the use of random-

ization of a speciﬁc execution of the algorithm to oc-

cur at different positions in time for every execution

of the algorithm.

It is naturally easier to implement the hiding tech-

nique in the time domain as a software countermea-

sure. This type of hiding reduces the correlation be-

tween the power usage and its secret key-dependent

intermediate variables. To achieve the randomization

that leads to the speciﬁc execution of the algorithm

occurring at various time locations, two methods can

be used. These two methods are inserting dummy op-

erations and shufﬂing the operations of algorithm. It

is important that the dummy code not be recognized

from the normal code, as the attacker could ignore the

dummy code.

A good SCA resistance is achieved by using both

the shufﬂing and insertion of dummyoperations in the

AES algorithm. (Tillich et al., 2007). The most effec-

tive location in the AES algorithm for this approach

is at the S-box round of encryption. The AES round

consists of 16 S-boxes (Daemen and Rijmen, 2002)

thus the probability to locate a speciﬁc value at a spe-

ciﬁc point in time is p =

. Dummy operations (T)

can be inserted at the S-box round, this leads to T op-

erations added to 16 true states. On each execution of

the algorithm the randomizer would integrate the true

states with the dummy operations randomly. There-

fore, the probability for ﬁnding a speciﬁc value at a

speciﬁc point in time becomes.

p =

(T + 1) · 16

(1)

The protection against SCA attacks is determined by

the value of p. Therefore, the greater the probability

the moreresistant thealgorithm becomesagainst SCA

attacks (Tillich et al., 2007).

3 EXPERIMENT SETUP

This section is separated into three subsections. Sub-

section 3.1will discuss theequipment thatwas used to

carry out a CPA attack, Subsection 3.2 will elaborate

on the CPA attack algorithm, followed by Subsection

3.3 which discusses the experiments that were carried

out.

3.1 Equipment

This subsection describes the equipment and settings

used to carry out a successful CPA attack on the mi-

crocontrollers. In order to capture the data, we make

use of a complete platform called the ChipWhisperer

kit (O’Flynn and Chen, 2014). This kit serves as a

platform for SCA attacks as it consists of the main

elements required for an attack: a target device, mea-

suring equipment,capturing software, and attack soft-

ware. The hardware consists of a ﬁeld-programmable

gate array (FPGA). The ZTEX FPGA Module uses a

Spartan 6 LX25 FPGA (ZTEX, 2016).

The hardware allows the attacker to use syn-

chronous sampling. This grants the ability to syn-

chronize the sample clock with the device clock.

SECRYPT 2016 - International Conference on Security and Cryptography

404

It is demonstrated that sampling at 96 MS/s syn-

chronously achieves the same results as sampling at

2 GS/s asynchronously (O’Flynn and Chen, 2012).

Once the system clock and the device clock is syn-

chronized it is possible to multiple the digital signal.

The attack is carried out by using the provided

board known as the multi-target board. The multi-

target board is connected to the FPGA module. The

multi-target board consists of various areas that can

target different devices such as an AVR microproces-

sor or a smartcard. For this research the AVR section

of the multi-target board was used as the target area.

In this research the countermeasure has been

tested on two different types of microcontrollers

(MCU). The two MCUs that were used are the AT-

mega328p and the ATxmega128D4 MCUs. Addi-

tionally, two versions of the ChipWhisperer were

used as well. The ChipWhisperer Capture Rev2 was

used to capture data for the ATmega328p MCU and

the ChipWhisperer Lite was used to capture data for

ATxmega128D4 MCU. Both versions of the Chip-

Whisperer uses the same FPGA.

These MCUs are part of the 8-bit microproces-

sors from Atmel. They offers on-chip Flash, SRAM

and internal EEPROM memories. These types of

MCU have been used in various scientiﬁc research

and in industrial applications (Kunikowski et al.,

2015). Therefore, this research makes use of these

two MCUs.

Both ChipWhisperers were conﬁgured to use the

same variables when an attack was carried out. These

variables are as follows: the gain was set to a low

setting and the signal amplitude was increased by

34.5039 decibel (dB); the trigger was set to use the

rising edge, thus the power traces would be captured

at a rising edge logic level; and ﬁnally, the base clock

frequency of 7.375 MHz was multiplied by 4 to give

a frequency of 29.5 MHz. These set variables assisted

in increasing the power output and remained constant

for all experiments.

3.2 Attack Procedure

This subsection explains the type of SCA attack that

will be used in this research. In this research the CPA

attack would be used (Brier et al., 2004). It is known

that the CPA out performs the standard DPA attack.

The CPA is much faster in processing data since it

only requires a few power traces whereas the DPA is

slower and needs thousands of power traces. Further-

more, CPA is more accurate at predicting the correct

subkeys as it looks at the correlation between all the

key guesses (Brier et al., 2004).

Firstly, the mathematical approach of the CPA

would be explained followed by an implementation

of using it to retrieve the secret keys from the AES

algorithm.

It is assumed that the attacker has captured a

power trace t

d, j

with d = 1, 2, 3. . . D being the total

amount of traces, and t = 1, 2, 3. . . T is the time index

per power trace. Therefore, the attack system takes D

measurements with each measurement being T points

long. If the attacker has the knowledge of the exact

point the encryption process occurs, then only a sin-

gle point would be measured such that T = 1 for each

d trace. The plaintext that corresponds to the power

trace is also known by the attacker and is deﬁned as

It is assumed that the microcontroller’spower con-

sumption is dependent on the intermediate value’s

hamming weight. h

d,i

= l((P

, i)) is deﬁned, where

a given intermediate value’s leakage model is l(x),

and w(p, i) produces and intermediate value based

on the given input plaintext with a guess number

i = 1, 2, 3. . . I.

In terms of AES, the intermediate value would

be selected as follows: each byte of the plaintext

is XOR’d with each subkey byte of the secret key.

Therefore we have:

l(x) = HammingWeight(x)

w(p, i) = p⊕ i (2)

This implies that a single byte of the plaintext p

is being attacked at a time. Therefore the AES key is

being attacked a single byte at a time. It is known that

AES-128 algorithm consists of 16 subkeys (Daemen

and Rijmen, 2002) thus, there is only 16 × 2

possi-

bilities, instead of 2

128

possibilities.

The next procedure is to establish a linear rela-

tionship between the captured power traces t

d, j

and

the predicted power consumption model l(x) using

the correlation coefﬁcient. The aim is to ensure that

there is a non-linear relationship between w(p, i) and

either p or i. For this case it is possible to attack the

the AES-128 algorithm at the point of the non-linear

substitution boxes (S-Boxes). The ﬁnal step is to cal-

culate the correlation coefﬁcient for each of the pos-

sible subkey values I over all traces D for each points

of j, the equation is as follows:

i, j

∑

d=1

[(h

d,i

−

)(t

d, j

−

)]

∑

d=1

d,i

−

)

∑

d=1

d, j

−

)

(3)

Where h is the hypothetical values produced by

the power consumption model.

Based on the mathematical explanation of the

CPA in order to obtain the secret key of the AES-

128 algorithm, four steps needs to be accomplished.

These four steps are as follows:

Towards a Software Approach to Mitigate Correlation Power Analysis

405

1. Capturing the power trace, along with the input

text when the encryption process is executed.

2. Implement a power leakage model, where the

known input text is used with a guess of the key

byte.

3. Implement the correlation equation that loops

through all the captured power traces.

4. Create a ranking procedure that determines the

most likely key based on the correlation equation.

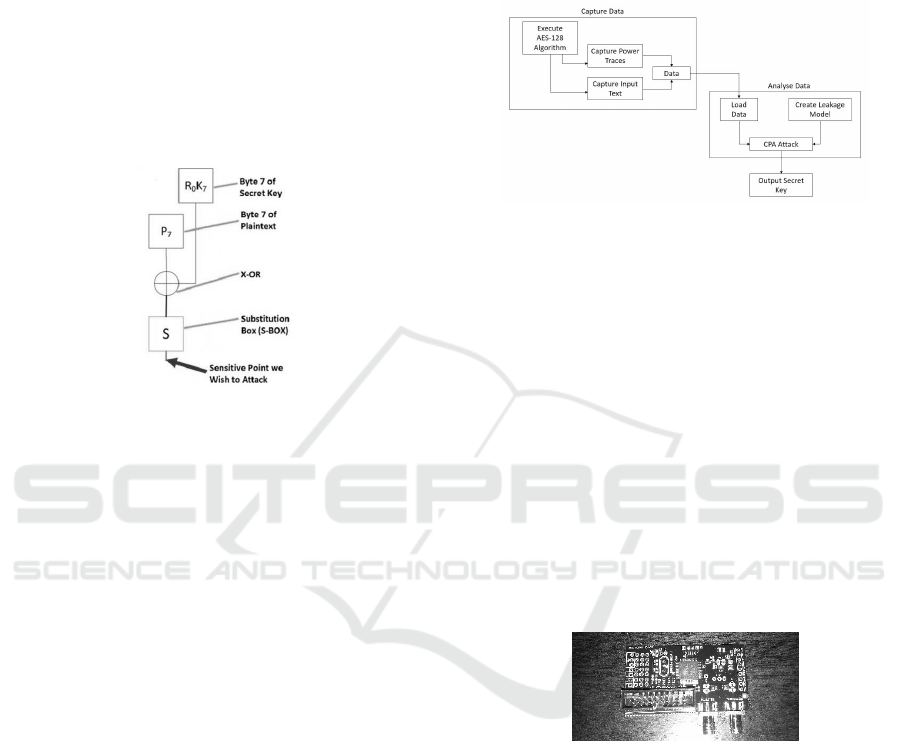

Figure 1 illustrates a snippet of the AES algorithm at

the ﬁrst round of the algorithm.

Figure 1: A snippet of the AES algorithm with an arrow

poitning at the point of attack.

It is depicted that each input byte of text is XOR’d

with the secret key which passes through an S-Box (a

lookup table). The output of the S-Box is the target

area where the attack will take place, this can be seen

by the red arrow in the ﬁgure.

After the data is acquired, the next step is to per-

form a guess and create a power leakage model. A

single subkey is attacked at a time, thus the attack sys-

tem loops through a single subkey and guesses every

possibility for that subkey. The guessed values range

from 0 – 255. Upon acquiring the guess, the inter-

mediate value corresponding to the guess needs to be

calculated. Therefore, a single byte of input and a

single byte of the guessed key, is used to return the

output of the S-Box. For each guess, the number is

converted to binary and the total number of 1’s of that

binary output is accumulated to determine the weight,

known as the hamming weight power model (Mestiri

et al., 2013).

The correlationis calculated by substituting all the

acquired data into Equation 3. It is possible to ob-

tain a negative correlation. However, only the value

is required, thus the absolute value of the correlation

is used. Furthermore, only the maximum correlation

across all points in the trace are stored. In order to

achieve a ranking system the maximum correlation is

used to ﬁnd which hypothetical key caused that maxi-

mum correlation, this intern is the subkey of the secret

key.

3.3 Experiments

The experimental setup can be broken down into two

phases the capture data and analyze data phases as

seen in Figure 2.

Figure 2: The ﬂow diagram of the experimental setup.

In order to capture the data, the Atmel AT-

mega328p and ATxmega128D4 MCUs was pro-

grammed to execute the AES-128 cryptographic al-

gorithm. The ATmega328pwas placed into the multi-

target board, the target board was connected to the

FPGA which was connected to a computer. Python

is used to send commands from the computer to the

FPGA, issuing the commands to MCU to execute the

AES-128 algorithm. While the algorithm is being ex-

ecuted the power traces along with its correspond-

ing input text are captured. The ATxmega128D4 is

an embedded MCU and it is embedded onto a pcb,

known as the device under test as seen Figure 3. The

device under test is connected to the FPGA of the

ChipWhisperer Lite and the same procedure to cap-

ture data from the ATmega328p is used.

Figure 3: The device under test with the embedded MCU of

the Atmel ATxmega128D4.

Once the data has been acquired it is sent to a

Python program where it determines the secret key.

This program consists of the leakage model and CPA

attack discussed in the previous subsection to guess

the correct secret key.

The ﬁrst experiment is to create a baseline for

future experiments. The baseline is determined by

implementing the AES-128 on both MCUs with no

countermeasures in place and using the CPA tech-

nique to retrieve the secret key. While the MCUs are

executing the AES-128 algorithm, the power traces

and its corresponding input text would be collected.

The data collection will be repeated 50 times, on each

occasion the same secret key and different random in-

SECRYPT 2016 - International Conference on Security and Cryptography

406

put text would be used. Therefore, each set would

consist of 50 power traces with the same secret key

and different input text. Upon acquiring the data,

the CPA attack would be performed on these power

traces.

In order to determine the best location to insert

the noise threads two pre-experiments were carried.

Experiment A inserted the noise threads at the odd

subkeys and Experiment B inserted the noise threads

at all the subkeys.

The second and third experiments would con-

sist of implementing the countermeasure on the AT-

mega328p and ATxmega128D4, respectively. The

same procedure would be used as discussed previ-

ously. Additionally, each experiment consists of an

additional 25 test cases. These 25 test cases used dif-

ferent secret keys. The secret keys were generated by

RANDOM.ORG which uses atmospheric noise as a

True Random Number Generator (TRNG) to gener-

ate their data (RANDOM.ORG, 2016).

The robustness and scalability of the countermea-

sure will be tested in experiment four and ﬁve, where

the number of trace would be increased from 50 to

200. On each increment of 50 power traces, the data

would be used as input for the attack procedure for

both MCUs. To test the added overhead introduced

by the countermeasure in experiment four and ﬁve,

the time it takes to execute one run of the algorithm

will be recorded for all test scenarios.

4 PROPOSED

COUNTERMEASURE

This section discusses the proposed countermeasure

that the system will implement. The countermeasure

aims to improve on the basic hiding and shufﬂing

techniques and introduces a new approach of using

a multi threads and a task scheduler.

The countermeasure makes use of the li-

brary implemented by Dean Ferreyra, known as

the AVR Threads Library.(Ferreyra, 2008) The

AVR Threads Library provides basic preemptive

multitasking/multi-threading to the Atmel AVR fam-

ily of microcontrollers. The library was implemented

in assembly and in C language. A simple round-

robin style task switcher is implemented. Origi-

nally, the library was designed for the ATmega128

and AT90S8515 MCUs, the library has been modi-

ﬁed and recompiled to work with ATmega328p and

ATxmega128D4 MCUs.

The basic idea is to have the AES-128 algorithm

executing on one thread, while multiple other threads

would be executing at the same time. These multi-

ple threads would consist of dummy code, and will be

known as noise threads. These noise threads would

be executed at the S-boxes. Furthermore, on each ex-

ecution of the code, the noise threads would vary.

A random number (x) would be generated be-

tween 0 – 15 this would server as the amount of

threads to use. The next step in the procedure is to

use that number and generate noise threads at ran-

dom subkeys y[x]. To calculate at which location of

the subkey the noise would appear each y[ ] value was

randomized between 0 – 15, a check is performed to

make sure that none of the y[ ] values are the same.

Thus, the noise would be placed at different locations

of the subkeys and generate dynamic power traces.

Therefore, on each execution of the algorithm the

power traces would differ. This approach gives us a

resistance of:

p =

(T + 1) · 16

(4)

Where T is the number of threads. The resis-

tance to SCA attacks is the same to that of Equation 1.

The resistance is further increased by having different

types of noise threads. Each noise thread can execute

a different set of dummy code. These dummy sets of

code are various mathematical instructions. These in-

structions were placed inside the printf method. This

generates a more robust power signal.

Below is a code snippet that illustrates at line 7 –

9, the Noise method making a call to the arithmetic

method which is located at line 1 – 5. In order to en-

capsulate the Noise method into the thread framework

it is called at line 9.

Begin

1 int ArthmPlus(int A, int B){

2 int x;

3 x = A+B;

4 return x;

5 }

6 void Noise(void){

7 printf("%d\n",ArthmPlus(10,20));

8 }

9 avr_thread_start(&fn_context,Noise,

fn_stack, sizeof(fn_stack));

End.

The resistance is increased by having each noise

thread perform a different instruction. The type of

noise generated by the noise thread is randomly se-

lected. Therefore the new resistance becomes:

p =

(T + 1)

· 16

(5)

Where N is the number of different types of noise

that are produced. It is noted that at the execution

location of a subkey, there can be more than one noise

thread. In this research only one noise thread would

be generatedat a subkey, since the ChipWhisperer has

Towards a Software Approach to Mitigate Correlation Power Analysis

407

a hardware limitation of only be able to capture24000

points. Therefore, this technique already shows it has

the capabilities of deterring attackers that use low cost

equipment to attack microcontrollers.

On the initial startup a value was stored into the

EEPROM of the MCUs. This value is used to ensure

that the algorithm is generating a different sequence

of random values on each execution. Before the S-

box procedure is called, the value is pulled from the

EEPROM and used by the srand() method to change

the random sequence. After the S-box procedure has

been completed this value is incremented and stored

back into the EEPROM to be used for the next pro-

gram execution. Furthermore, to create more confu-

sion and increase the resistance, this value is XOR’D

and gets passed through the same S-box the AES al-

gorithm uses. By inserting an additional XOR into

the algorithm, locating a speciﬁc value at a speciﬁc

point in time is no longer

but now

. Therefore,

the resistance becomes:

p =

(T + 1)

· 17

(6)

5 RESULTS

This section examines the results of the experiments

explained in Subsection 3.3. The ﬁrst step is to ana-

lyze the ﬁndings from experiment one. Table 1 shows

the results for the CPA attack against both microcon-

trollers, while no countermeasures are in place. Fur-

thermore, the table indicates the results for experi-

ments A and B. These results will serve as the base-

line that the other experiments are compared to. The

table illustrates the correlation accuracy that the at-

tack predicts for each subkey of the AES-128 algo-

rithm, followed by a total average accuracy for all the

subkeys.

Referring to Table 1, it is indicated that using

50 traces as input, CPA achieves an average ac-

curacy of 97.66% while the ATmega328p MCU is

under test and an average accuracy of 82% as the

ATxmega128D4 is under test. In both experiments,

the secret key is successfully retrieved. Furthermore,

the table illustrates the results of experiments A and

B. A slight reduction in accuracy is observed in com-

parison to the base results. However, the CPA attack

still predicts the correct secret key. This is due to the

fact that the CPA can handle power traces with the

same type of noise even at different locations.

Tables 2 consists of ﬁve columns, with the ﬁrst

column referring to the microcontroller under test.

The second column denotes whether the secret is re-

coverable. The third column indicates the number of

recoverable subkeys over all cases, followed by its

predication rate for recovering a subkey, in column

four. In order to calculate the correct subkey predic-

tion rate, the number of correct subkeys is divided by

the total number of subkeys and multiplied by 100.

Finally, column ﬁve indicates the average correlation

accuracy. As explained in Subsection 3.2, the corre-

lation accuracy is determined by the ranking system.

The rankingsystem list all possible subkeys with their

correspondingcorrelation values. The correlationval-

ues of the real subkeys are summed up and averaged,

to givethe average correlationaccuracy. Furthermore,

Table 3, second column depicts the number of traces

used as input, followed by, if the secret key is recov-

erable, number of subkeys recoverable, and the corre-

lation accuracy columns.

The next discussion will elaborate on the ﬁndings

of experiment two and three, as the software counter-

measure is on both microcontrollers. It is observed

in Table 2, the CPA predicts the secret keys incor-

rectly and thus the countermeasure is working. It has

only predicted two subkeys out of 400 subkeys cor-

rectly. The correct subkey prediction rate on the AT-

mega328p MCU is 0.5%. Therefore, 0.5% of the time

CPA predicts a correct subkey. Furthermore, the av-

erage correlation accuracy is only 53.6%. Therefore

the base correlation accuracy of 97.66% using the AT-

mega328 MCU has seen a reduction of 43.96%in cor-

relation accuracy. The results further indicate that the

countermeasure prevents the secret keys from being

correctly predicted on the ATxmega128D4. The CPA

attack correlation drops from 82% to an average of

51.4% in correlation accuracy. Furthermore, only 1

subkey out of 400 subkeys is predicted correctly. The

system has a correct subkey prediction rate of 0.25%

on the ATxmega128D4 MCU.

The next evaluation of the system is testing the

scalability of the countermeasure as explained earlier

in Subsection 3.3.

Table 3 illustrates the results for experiments four

and ﬁve. Observing the table, the ﬁrst noticeable ﬁnd-

ing is that the CPA attack predicts the incorrect secret

keys on all four occasions. As the number of sam-

ple traces increase the correlation accuracy decreases.

By adding an additional 150 traces, the correlation

accuracy decreases to 26.8% from 53.6% as the AT-

mega328p is in use. A similar result is obtained as the

ATxmega128D4 is in use. The correlation accuracy

decreases from 51.4% to 26.3%.

The ﬁnal experiment is to determine, the extent of

extra overhead the countermeasure has on the algo-

rithm. Table 4, depicts the average time it took to ex-

ecute one instance of the AES-128 algorithm on the

ATmega328p and ATxmega128D4 MCUs with and

SECRYPT 2016 - International Conference on Security and Cryptography

408

Table 1: The results for the CPA attack against both microcontrollers, when no countermeasure is in place. All subkey values

are in percentage(%)

Subkey

MCU 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Total

ATmega328p 98,0 98,8 98,7 98,1 96,8 98,3 94,4 98,6 95,9 98,5 98,5 98,8 97,5 98,2 97,2 96,2 97,6

ATxmega128D4 71,7 86,4 88,7 85 84,7 84,8 75,8 91,0 82,7 71,3 80,2 85,3 75,4 79,4 81,8 87,1 82,0

Experiment A 91,5 88,4 95,2 90,2 93,0 88,0 91,7 82,0 92,7 74,4 91,4 95,7 95,2 89,0 93,8 90,2 90,1

Experiment B 90,4 98,6 97,5 92,9 91,4 98,4 93,3 97,8 91,5 97,7 89,9 81,4 92,6 98,0 91,0 92,0 93,4

Table 2: Result of the CPA attack using various trace samples on the ATmega328p.

MCU Secret Key Predicted Num. of SubKeys Predicted SubKey Prediction Rate (%) Correlation Accuracy (%)

ATmega328p No 2 0.5 53.6

ATxmega128D4

No 1 0.25 51.4

Table 3: Result of the CPA attack using various trace samples on the ATmega328p.

MCU Traces Secret Key Predicted Num. of SubKeys Predicted Correlation Accuracy(%)

ATmega328p 100 No 0 38.9

ATmega328p

200 No 0 27.7

ATxmega128D4

100 No 0 37.4

ATxmega128D4

200 No 0 26.3

Table 4: Time taken to execute the code with and without

the countermeasure

MCU

Time (s)

ATmega328p 0.102

ATmega328p + Countermeasure

0.170

ATxmega128D4

0.115

ATxmega128D4 + Countermeasure

0.198

without the countermeasure.

It is observed that the difference in time on the

ATmega328pMCU with and without the countermea-

sure is only 0,068 milliseconds and the difference

on the ATxmega128D4 MCU is 0,084 milliseconds.

Thus, by adding the countermeasure code with the

existing AES-128algorithm the execution time differ-

ence has a minimal increase on both the ATmega328p

and ATxmega128D4 MCUs.

6 ANALYSIS

As we know the CPA attack only require less than a

100 power traces to carry out a successful attack. This

is evident in experiment one and two where 50 power

traces were needed to predict the correct secret key

on two different microcontrollers. This is due to the

strength of the CPA attack. Before the proposedcoun-

termeasure was implemented it was seen from the re-

sults in experiment A and B that inserting the same

type of noise at every subkey or at everyodd subkey in

the substitution round, the CPA attack still predicted

the correct secret key. This is due to the fact that the

power traces had little change in each execution of the

algorithm and each subkey was attacked.

Once the proposed countermeasure was in place,

the CPA attack started loosing correlation accuracy

tremendously. The power leakage model of the CPA

relies on the power traces to have small changes when

each subkey is attacked and since the proposed coun-

termeasure produces dynamic power traces where the

power trace is different on each occasion, causing

confusion to the CPA attack model. Therefore, hav-

ing more permutations of the dynamic power trace

would lead to the CPA producing an even lower ac-

curacy. This is further evident by the fact that when

more power traces were added to the input, the corre-

lation accuracy decreased and the attack predicted the

incorrect secret keys.

These dynamic power traces are very effective

against attackers that make use of low cost equipment,

such as the ChipWhisperer, since it is possible to pro-

gram the algorithm to use more noise threads at each

subkey location. This will force the CHipWhisperer

to only capture half or less of the actual runtime of

the encryption process. This prevents the attackers

from gaining useful data to carry out an attack. Fur-

thermore, the proposed countermeasure has a mini-

mal execution overhead. This leads to a slowdown in

performance. However, the tradeoff is a more secured

implementation.

7 CONCLUSION

In this work we present a novel software countermea-

sure to mitigate CPA. The implementation consists of

combiningpseudo controlled-random dummy code to

hide the occurrence of critical operations of the AES-

128 algorithm. Additionally, time dilation is used in

Towards a Software Approach to Mitigate Correlation Power Analysis

409

combination with multi threads and a task scheduler

to generate dynamic power traces. We have inves-

tigated the use of a task scheduler to generate noise

at speciﬁc areas in the AES-128 algorithm to miti-

gate the CPA attack. The dynamic power traces have

shown to be an effective countermeasure, as it ob-

scures the CPA into predicting the incorrect secret

key. Furthermore, the countermeasure was shown

to work on an ATmega and an ATxmega microcon-

troller.

In both scenarios the countermeasure reduced the

correlation accuracy signiﬁcantly and prevented the

correct secret key from being predicted. The research

has also displayed that the extra overhead introduced

by the countermeasure is minimal in execution time

and that the basic SCA resistance has increased when

using this countermeasure. Therefore, this research

has introduced a novel low overheard software solu-

tion that uses multi threads and a task scheduler for a

hardware security problem.

8 FUTURE WORK

Although, the countermeasure has demonstrated that

it is able to mitigate the CPA attack, the issue of

performing instructions sequentially still remains on

these microcontrollers. It is intended to improve on

this work by implementing the countermeasure on an

embedded device that supports true multi threading

functionality where it would be able to execute the

noise and the AES threads in parallel. Additionally, it

is aimed to create a system where the algorithm learns

to manipulate the data such that it never produces the

same power trace twice.

ACKNOWLEDGEMENTS

The authors would like to thank the department of

Modelling and Digital Science at CSIR for providing

funding and support.

REFERENCES

Bl¨omer, J., Guajardo, J., and Krummel, V. (2004). Provably

secure masking of AES. In Selected Areas in Cryp-

tography, pages 69–83. Springer.

Brier, E., Clavier, C., and Olivier, F. (2004). Correla-

tion power analysis with a leakage model. In Cryp-

tographic Hardware and Embedded Systems-CHES

2004, pages 16–29. Springer.

Daemen, J. and Rijmen, V. (2002). The design of rijndael:

AES. The Advanced Encryption Standard.

Ferreyra, D. (2008). AVR development.

http://www.bourbonstreetsoftware.com/AVRDevelop

ment.html.

Hoogvorst, P., Duc, G., and Danger, J.-L. (2011). Software

implementation of dual-rail representation. COSADE,

February, pages 24–25.

Kocher, P., Jaffe, J., and Jun, B. (1999). Differential power

analysis. In Advances in CryptologyCRYPTO99,

pages 388–397. Springer.

Kocher, P., Jaffe, J., Jun, B., and Rohatgi, P. (2011). In-

troduction to differential power analysis. Journal of

Cryptographic Engineering, 1(1):5–27.

Kunikowski, W., Czerwi´nski, E., Olejnik, P., and Awre-

jcewicz, J. (2015). An overview of ATmega AVR mi-

crocontrollers used in scientiﬁc research and industrial

applications. Pomiary, Automatyka, Robotyka, 19.

Mestiri, H., Benhadjyoussef, N., Machhout, M., and Tourki,

R. (2013). A comparative study of power consump-

tion models for CPA attack. International Journal of

Computer Network and Information Security, 5(3):25.

O’Flynn, C. and Chen, Z. (2012). A case study of side-

channel analysis using decoupling capacitor power

measurement with the OpenADC. In Foundations and

Practice of Security, pages 341–356. Springer.

O’Flynn, C. and Chen, Z. D. (2014). Chipwhisperer: An

open-source platform for hardware embedded security

research. In Constructive Side-Channel Analysis and

Secure Design, pages 243–260. Springer.

O’Flynn, C. and Chen, Z. D. (2015). Side channel power

analysis of an AES-256 bootloader. In Electrical and

Computer Engineering (CCECE), 2015 IEEE 28th

Canadian Conference on, pages 750–755. IEEE.

Oswald, E. and Schramm, K. (2005). An efﬁcient mask-

ing scheme for AES software implementations. In

Information Security Applications, pages 292–305.

Springer.

RANDOM.ORG (2016). Introduction to randomness and

random numbers. https://www.random.org/random

ness/.

Schramm, K., Leander, G., Felke, P., and Paar, C. (2004). A

collision-attack on AES. In Cryptographic Hardware

and Embedded Systems-CHES 2004, pages 163–175.

Springer.

Tillich, S. and Großsch¨adl, J. (2007). Power analysis re-

sistant AES implementation with instruction set exten-

sions. Springer.

Tillich, S., Herbst, C., and Mangard, S. (2007). Protecting

AES software implementations on 32-bit processors

against power analysis. In Applied Cryptography and

Network Security, pages 141–157. Springer.

Veyrat-Charvillon, N., Medwed, M., Kerckhof, S., and

Standaert, F.-X. (2012). Shufﬂing against side-

channel attacks: A comprehensive study with cau-

tionary note. In Advances in Cryptology–ASIACRYPT

2012, pages 740–757. Springer.

ZTEX (2016). Spartan 6 LX9 to LX25 FPGA board.

http://www.ztex.de/usb-fpga-1/usb-fpga-1.11.e.html.

SECRYPT 2016 - International Conference on Security and Cryptography

410
