Simpliﬁcation of Moving 3D Scene Data on GPU

Rajesh Chenchu, Nick Michiels, Sammy Rogmans and Philippe Bekaert

Hasselt University - iMinds, Expertise Centre for Digital Media, Wetenschapspark 2, 3590, Diepenbeek, Belgium

Keywords:

Billboard, Scene Simpliﬁcation, GPU, Real-time Rendering.

Abstract:

Real-time large scale continuous image and geometry based data visualization, with an uninterrupted content

delivery, quality and rendering, on home and mobile devices is difﬁcult or even mostly impossible because of

the low processing capabilities of these hardware devices. However, a gracefully simpliﬁed version of the same

data can enable us to view the content without signiﬁcant quality degradation. To do this in a graceful manner,

we extended a well-known concept - called ’billboard cloud’ - for animated scene data and implemented this

technique using the capabilities of the GPU to generate the simpliﬁed versions of large scale data sets.

1 INTRODUCTION

Scene data is a combination of both image and ge-

ometry. Visualizing the same scene data in real-time

on mobile devices is cumbersome because most de-

tailed scene data is complex and occupies huge stor-

age and high bandwidth on the network. Simpliﬁ-

cation methods create a simpler version of the scene

data targeted for mobile platforms. The main goal of

scene simpliﬁcation is to transform an input represen-

tation into an output representation that can be stored,

distributed and rendered more easily and precisely on

(light-weight) home and mobile platforms.

As each frame of the scene data is a combination

of both image and geometry, creating a simpler ver-

sion with an uninterrupted content delivery, quality

and rendering in real-time is a great challenge for the

coming years. Mesh decimation has dramatically pro-

gressed, and techniques such as edge collapse permit

efﬁcient and accurate simpliﬁcation, e.g., [(Garland

and Heckbert, 1997), (Puppo and Scopigno, 1997),

(Luebke, 2001)]. However, these methods work best

on ﬁnely tessellated smooth manifolds, and often re-

quire mesh connectivity. Moreover the quality of

the simpliﬁed model often becomes unacceptable and

doesn’t work for large sets of data combining differ-

ent disconnected objects, subjects and scenes. On the

other hand, image-based acceleration is very efﬁcient

for distant scenery, as it can naturally fuse multiple

objects, but offers only limited parallax effects.

A billboard cloud (D

ecoret et al., 2003) method is

used for simpliﬁcation in this paper. This method sim-

pliﬁes 3D models into a set of planes with texture and

transparency maps and results in better output com-

pared to other techniques. This method was proposed

for static objects, we extended current method to sup-

port moving scenes by using the capabilities of the

GPU. Our method generates a simpliﬁed version of

each frame in the scene data and render on the target

device.

2 PROPOSED METHOD

There are different methods to implement billboard

cloud techniques. Hough transform, Stochastic

method (Lacewell et al., 2006) and K-means cluster-

ing algorithm (Huang, 2004) are well known methods

for identifying planes for billboard clouds. The orig-

inal method introduced by D

ecoret (D

ecoret et al.,

2003) uses Hough transform and greedy method.

The greedy method uses recursive sub-division ap-

proach for ﬁnding the best-plane. The existing Hough

transform method takes a lot of time for processing

even one million triangular meshes and a possibil-

ity to hit an inﬁnite loop during recursion. The pro-

posed method eliminates the recursive sub-division

approach and uses Hough transform, mipmap tech-

niques and the capabilities of a compute shader unit

to generate billboard clouds for scene data. These re-

sults were realized in the context of the SCENE EU

FP7 project (SCENE, 2014).

2.1 Hough Transform

The Hough transform for planes is a voting procedure

where each feature (triangle) in a mesh votes for all

possible planes passing through that feature. All votes

are stored in the so called Hough space, which is three

dimensional for the Hough transform for planes. The

Chenchu, R., Michiels, N., Rogmans, S. and Bekaert, P.

Simpliﬁcation of Moving 3D Scene Data on GPU.

DOI: 10.5220/0005962000950098

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 5: SIGMAP, pages 95-98

ISBN: 978-989-758-196-0

size of the Hough space is determined by the size of

the mesh and the required accuracy for the parame-

terization of the planes. Scene frame triangles are

used as input and the output consists of parameter-

ized planes. Planes are commonly represented by a

signed distance d to the origin of the coordinate sys-

tem and the slopes m

and m

in the direction of the

x- and y-axis, respectively:

z = m

x + m

y + d (1)

To avoid problems due to inﬁnite slopes when try-

ing to represent vertical planes, another usual deﬁni-

tion of a plane is the Hesse normal form. A plane is

thereby given by a point p on the plane, the normal

vector n that is perpendicular to the plane and the dis-

tance d to the origin

p.n = p

+ p

= d (2)

Considering the angles between the normal vector and

the coordinate system, the coordinates of n are factor-

ized to

.cosθ.sinφ + p

.cosφ + p

.sinφ.sinθ = d (3)

Given a feature p in Cartesian coordinates, Our

method will ﬁnd all possible planes that the feature

lies on, i.e., ﬁnd all planes that satisfy Eq.(3). Mark-

ing each point in a triangle in the Hough space leads

to a 3D sinusoid curve and the intersection of three

curves in Hough space corresponds to the polar coor-

dinates deﬁning the plane spanned by the three points.

Given a set P of features (point or triangle) in Carte-

sian coordinates, one transforms all features p

∈ P

into Hough space. The more curves intersect h

∈ (θ,

φ, d), the more features (point or triangle) lie on the

plane represented by h

and the higher is the proba-

bility that h

is actually extracted from P.

3 IMPLEMENTATION

A view-independent billboard cloud generation

method is implemented in three modules i.e., plane

generation, texture generation and renderer. Texture

generation method takes the input data from the plane

generation module and the renderer method takes the

input data from texture generation. These modules

are executed independently.

3.1 Plane Generation

Plane identiﬁcation for billboard cloud using Hough

transform is implemented using compute shaders.

The input for the plane generation module is a nor-

malized scene data frame. Once the plane informa-

tion is generated for one frame in the scene data then it

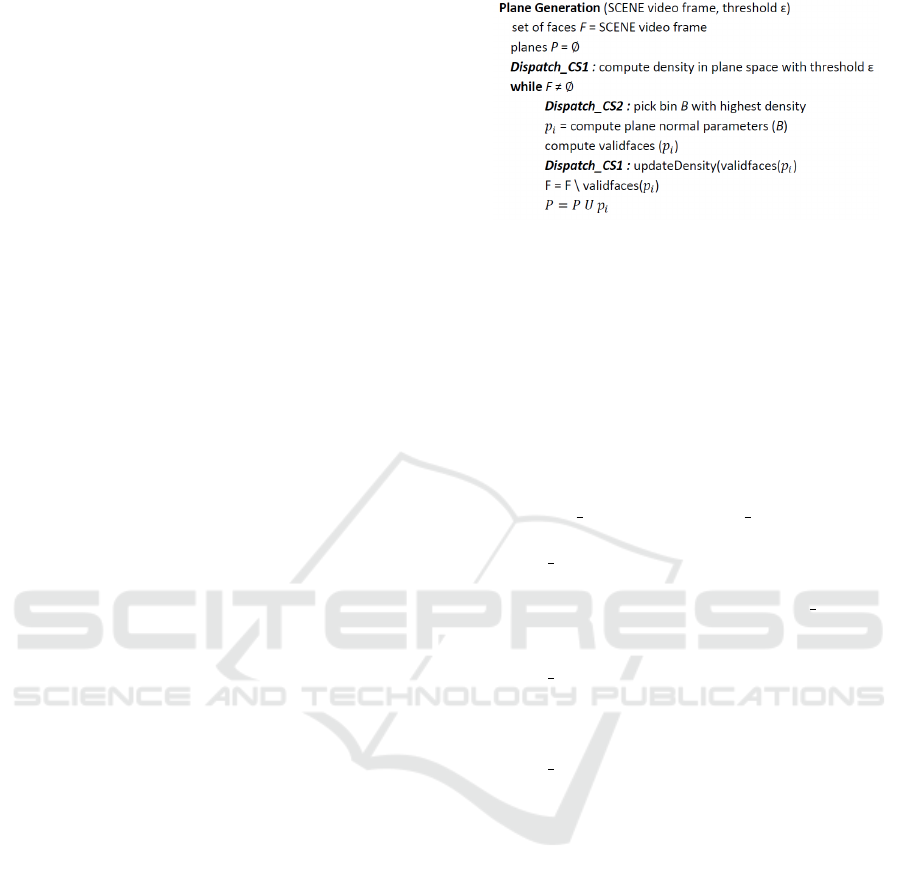

Figure 1: Pseudocode for Plane Generation.

takes the next frame and continues for the entire scene

video. Each frame in the scene data needs to be nor-

malized and centered w.r.t (0, 0, 0) before processing

to avoid misalignments. Usually scene mesh data res-

olution is high during 3D-reconstruction, for example

more than one million triangles for each frame, so our

method generates different sets of plane information

for mobile and TV, based on the target device resolu-

tion. The pseudo code for the selection of planes for

a single frame is shown in Figure 1.

Dispatch CS1 and Dispatch CS2 code blocks

are executed on the GPU computer shader unit.

Dispatch CS1 block is implemented to update his-

togram table when adding or removing the faces

to/from the accumulator and the Dispatch CS2 block

is implemented with a mipmap technique to ﬁnd

the highest density bin in the 3D plane space.

Dispatch CS1 shader can be invoked for all faces at

once, if the GPU is capable to process within the spec-

iﬁed timeout. Otherwise mesh data needs to be split

into batches and submit to the GPU by invoking the

Dispatch CS1 shader every time. There are options to

change/disable the GPU timeout to process all faces at

once but this is not always recommended.

3.2 Validity

The plane-space grid uses a simple validity. The Eu-

clidean distance between a point and its simpliﬁcation

should be less than a small threshold ε. This means

that a point is allowed to move only in a sphere of

radius epsilon, i.e., a plane p yields a valid repre-

sentation of a point v if there exists a point p on P

such that ||vp|| < ε . The validity domain of v as the

set of planes that can represent it, which is denoted

by valid

(v). It is the set of planes that intersect the

sphere of radius ε centred on v. A plane is valid for

a polygon if it is valid for all its vertices. The valid-

ity domain valid

( f ) of a face f is the intersection

of the validity domain of its vertices. Geometrically,

this corresponds to the set of planes intersecting a set

of spheres. We will interchangeably say that a face

SIGMAP 2016 - International Conference on Signal Processing and Multimedia Applications

is valid for a plane, and that the plane is valid for the

face.

3.3 Cost Function

The cost function for updating the density value is 1

at the time of adding a face to the histogram and −1

for removing a face from the histogram. We can also

consider the traingle area as a cost function weight for

adding and removing the faces from the histogram.

3.4 Crack Reduction

A general solution to minimize cracks between adja-

cent billboards is to render the faces onto the textures

of all planes for which they are valid. This opera-

tion is easily performed by rendering the entire scene

in the texture, using extra clipping planes to restrict

imaging to the valid region around the plane.

3.5 Texture Generation

Billboard cloud textures are generated by ﬁnding the

minimum bounding rectangle of the projection of the

faces in a texture plane and shooting a texture by ren-

dering all valid faces using an orthographic projec-

tion. Texture resolution is automatically selected ac-

cording to the object-space size of the bounding rect-

angle. If the normal maps are computed together with

the textures, a billboard cloud can be relit in real-

time. Texture and normal map packing in a single

or multiple texture atlas improves the performance

during run-time. Our method uses a simple greedy

packing algorithm (Coffman et al., 1997) to store all

the textures of an entire billboard-cloud into a sin-

gle/multiple texture atlas which optimizes the mem-

ory usage and minimizes texture switching.

3.6 Renderer

For rendering textured billboards, our method will

ﬁnd the correct mapping between the texture and

plane coordinates. For proper alpha-compositing and

mip-mapping, our method uses black background and

pre-composited alpha (Porter and Duff, 1984). The

rendering of a billboard cloud is penalized mainly by

the ﬁll rate: when 100 interleaved billboards are ren-

dered, lots of pixels are drawn many times (the worst

case being parallel billboards viewed from the front).

Therefore, a billboard cloud is useful when its pro-

jected screen size is not too large. When an object is

far away, using a billboard cloud simpliﬁcation gives

higher quality results than a geometrically simpliﬁed

approach.

Figure 2: Scene frame data: original(left) vs simpli-

ﬁed(right).

Figure 3: Frames in the scene video ﬁle.

4 RESULTS

The result of the proposed technique is shown in Fig-

ure 2 for a single scene frame. The 3D-reconstructed

frame is shown on the left and the simpliﬁed version

of the billboard cloud is shown on the right. Our

method focuses on the visual quality of the results,

without optimizing for resource usage. The tech-

nique always converges and yields a billboard cloud

where all original faces have been collapsed on at

least one billboard, while enforcing the error bound.

A few frames of the scene video ﬁle are shown in

Figure 3. A billboard cloud is generated for each

frame and stored in the scene format. The renderer

module on the target device reads the billboard cloud

data from the scene format and renders each frame

continuously. Normal maps are used to relight the

scene if required. Usually the number of billboards

are less for simpler objects but complex irregular ob-

jects generate more billboards to retain all features in

the scene. Figure 4 shows the correlation between the

number of triangles in the scene frame and the gener-

ated billboards. More billboards were identiﬁed when

the scene frame contains more triangles. Normally

Simpliﬁcation of Moving 3D Scene Data on GPU

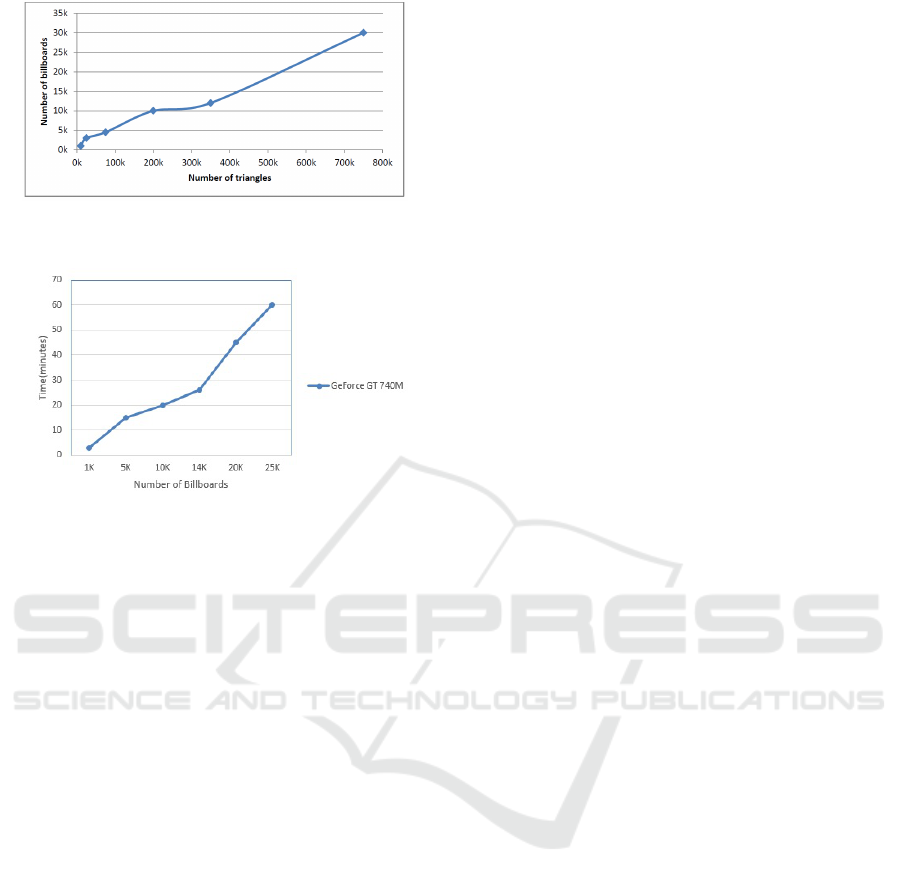

Figure 4: Number of triangles in the scene frame data vs

generated billboards.

Figure 5: Number of billboards vs processing time.

a complex mesh will generate more billboards than

a simpler mesh to preserve the same visual quality.

Figure 5 shows the correlation between the generated

billboards and GPU processing time.

5 CONCLUSIONS

Our method generates a simpler version of the scene

data that can be stored, distributed and rendered more

easily and precisely on home and mobile platforms.

Our simpliﬁcation approach of scene frame data us-

ing billboard clouds gives promosing results. The

extreme case of a single billboard would obviously

look ﬂat, to retain the same visual quality with origi-

nal frame, the proposed method generates a sufﬁcient

number of billboards for each frame and also shows

a signiﬁcant performance improvement on high-end

GPUs. Our method is not recursive and completely

works with independent parallel threads on GPU, so

there is no chance to get into an inﬁnite loop at any

stage, in contrast to existing methods. We also ren-

dered a few scene frames on mobile devices for test-

ing purposes and the presented results look good. A

few remaining performance bottlenecks will be ad-

dressed in the future work.

ACKNOWLEDGEMENTS

The authors acknowledge ﬁnancial support from

iMinds and the SCENE EU STREP project (grant nr

287639).

REFERENCES

Coffman, Jr., E. G., Garey, M. R., and Johnson, D. S.

(1997). Approximation algorithms for np-hard prob-

lems. chapter Approximation Algorithms for Bin

Packing: A Survey, pages 46–93. PWS Publishing

Co., Boston, MA, USA.

ecoret, X., Durand, F., Sillion, F. X., and Dorsey, J.

(2003). Billboard clouds for extreme model simpli-

ﬁcation. In ACM SIGGRAPH 2003 Papers, SIG-

GRAPH ’03, pages 689–696, New York, NY, USA.

ACM.

Garland, M. and Heckbert, P. S. (1997). Surface simpliﬁ-

cation using quadric error metrics. In Proceedings of

the 24th Annual Conference on Computer Graphics

and Interactive Techniques, SIGGRAPH ’97, pages

209–216, New York, NY, USA. ACM Press/Addison-

Wesley Publishing Co.

Huang, I. (2004). Improved Billboard Clouds for Extreme

Model Simpliﬁcation. Computer Science)–University

of Auckland.

Lacewell, J. D., Edwards, D., Shirley, P., and Thompson,

W. B. (2006). Stochastic billboard clouds for interac-

tive foliage rendering. J. Graphics Tools, 11(1):1–12.

Luebke, D. P. (2001). A developer’s survey of polygo-

nal simpliﬁcation algorithms. IEEE Comput. Graph.

Appl., 21(3):24–35.

Porter, T. and Duff, T. (1984). Compositing digital images.

In Proceedings of the 11th Annual Conference on

Computer Graphics and Interactive Techniques, SIG-

GRAPH ’84, pages 253–259, New York, NY, USA.

ACM.

Puppo, E. and Scopigno, R. (1997). Simpliﬁcation, lod and

multiresolution - principles and applications.

SCENE (2014). Scene. http://3d-scene.eu/. SCENE is co-

funded by the European Commission under the Sev-

enth Framework Programme FP7 ICT.

SIGMAP 2016 - International Conference on Signal Processing and Multimedia Applications
