Fault Tolerance Logging-based Model for Deterministic Systems

Óscar Mortágua Pereira, David Simões and Rui L. Aguiar

Instituto de Telecomunicações, DETI, University of Aveiro, Aveiro, Portugal

Keywords: Fault Tolerance, Logging Mechanism, Software Architecture, Transactional System.

Abstract: Fault tolerance allows a system to remain operational to some degree when some of its components fail.

One of the most common fault tolerance mechanisms consists on logging the system state periodically, and

recovering the system to a consistent state in the event of a failure. This paper describes a general fault

tolerance logging-based mechanism, which can be layered over deterministic systems. Our proposal

describes how a logging mechanism can recover the underlying system to a consistent state, even if an

action or set of actions were interrupted mid-way, due to a server crash. We also propose different methods

of storing the logging information, and describe how to deploy a fault tolerant master-slave cluster for

information replication. We adapt our model to a previously proposed framework, which provided common

relational features, like transactions with atomic, consistent, isolated and durable properties, to NoSQL

database management systems.

1 INTRODUCTION

Fault tolerance enables a system to continue its

operation in the event of failure of some of its

components (Randell et al., 1978). A fault tolerant

system either maintains its operating quality in case

of failure or decreases it proportionally to the

severity of the failure. On the other hand, a fault

intolerant system completely breaks down with a

small failure. Fault tolerance is particularly valued in

high-availability or life-critical systems.

Relational Database Management Systems

(DBMS) are systems that usually enforce

information consistency and provide atomic,

consistent, isolated and durable (ACID) properties in

transactions (Sumathi and Esakkirajan, 2007).

However, without any sort of fault-tolerance

mechanism, both atomicity and consistency are not

guaranteed in case of failure (Gray and others,

1981).

We have previously proposed a framework

named Database Feature Abstraction Framework

(DFAF) (Pereira et al., 2015), based in Call Level

Interfaces (CLI), that acts as an external layer and

provides common relational features to NoSQL

DBMS. These features included ACID transactions,

but our framework lacked fault-tolerance

mechanisms and, in case of failure, did not

guarantee atomicity or consistency of information.

This paper presents a model that can be used to

provide fault-tolerance to deterministic systems

through external layers. We describe how to log the

system state, so that it is possible to recover and

restore it when the system crashes; possible ways to

store the state, either remotely or locally; and how to

revert the state after a crash.

We prove our concept by extending DFAF with

the proposed logging mechanisms in order to

provide fault-tolerant ACID transactions to NoSQL

DBMS. DFAF acts the external layer over a

deterministic system (a DBMS). We consider that

non-deterministic events can happen in the

deterministic systems and are either expected (e.g.:

receiving a message), triggering deterministic

behaviour, or unexpected (e.g.: crashing), leading to

undefined behaviour.

The remainder of this paper is organized as

follows. Section 2 describes common fault tolerance

techniques and presents the state of the art. Section 3

provides some context about the DFAF and Section

4 formalizes our fault tolerance model, describing

what information is stored and how to store it.

Section 5 describes a fault-tolerant data replication

cluster which can be used for performance

enhancements and Section 6 shows our proof of

concept and evaluates our results. Finally, and

Section 7 presents our conclusions.

Pereira, Ó., Simões, D. and Aguiar, R.

Fault Tolerance Logging-based Model for Deterministic Systems.

DOI: 10.5220/0005979101190126

In Proceedings of the 5th International Conference on Data Management Technologies and Applications (DATA 2016), pages 119-126

ISBN: 978-989-758-193-9

119

2 STATE OF THE ART

Fault tolerance is usually achieved by anticipating

exceptional conditions and designing the system to

cope with them. Randell et al. define an erroneous

state as a state in which further processing, by the

normal algorithms of the system, will lead to a

failure (Randell et al., 1978). When failures leave

the system in an erroneous state, a roll-back

mechanism can be used to set the system back in a

safe state. Systems rely on techniques like check-

pointing, a popular and general technique that

records the state of the system, to roll-back and

resume from a safe point, instead of restarting

completely. Log-based protocols (Johnson, 1989)

are check-pointing techniques that require

deterministic systems. Non-deterministic events,

such as the contents and order of incoming

messages, are recorded and used to replay events

that occurred since the previous checkpoint. Other

non-deterministic events, such as hardware failures,

are meant to be recovered from. Indirectly, they are

recorded as lack of information.

In the fault tolerance context, logging

mechanisms and their concepts and implementation

techniques have been discussed and researched

extensively (Gray and Reuter, 1992), with popular

write-ahead logging approaches (Mohan et al., 1992)

having become common in DBMS to guarantee both

atomicity and durability in ACID transactions. There

are also other approaches which do not rely on

logging systems to provide fault tolerance, like

Huang et al.’s method and schemes for error

detection and correction in matrix operations (Huang

et al., 1984); Rabin et al.’s algorithm to efficiently

and reliable transmit information in a network

(Rabin, 1989); or Hadoop’s data replication

approach for reliability in highly distributed file

systems (Borthakur, 2007). Some relational DBMS

use shadow paging techniques (Ylönen, 1992) to

provide the ACID properties. However, the above

described fault tolerance mechanisms are not

suitable to be used in an external fault-tolerance

layer, since they are very dependent on the

architecture of the systems they were designed for.

The most general proposals fall in the category

of data replication, where several algorithms and

mechanisms have been proposed. These include

Hadoop’s data replication approach for reliability in

highly distributed file systems (Borthakur, 2007);

(Oki and Liskov, 1988), which is based on a primary

copy technique; (Shih and Srinivasan, 2003), an

LDAP-based replication mechanism; or (Wolfson et

al., 1997), which provides an adaptive algorithm that

replicates information based on its access pattern.

Recently, proposals have also focused on byzantine

failure tolerance (Castro and Liskov 1999; Cowling

et al. 2006; Merideth and Iyengar 2005; Chun et al.

2008; Castro and Liskov 2002; Kotla and Dahlin

2004). Byzantine fault-tolerant algorithms have been

considered increasingly important because malicious

attacks and software errors can cause faulty nodes to

exhibit arbitrary behaviour. However, the byzantine

assumption requires a much more complex protocol

with cryptographic authentication, an extra pre-

prepare phase, and a different set of techniques to

reach consensus.

To the best of our knowledge, there has not been

work done with the goal of defining a general

logging model that provides fault tolerance as an

external layer to an underlying deterministic system.

Some solutions provide fault tolerance, but are

adapted to a specific context or system. Others are

overly-abstract general models, like data replication,

and do not cover how to generate the necessary said

data from an external layer to provide fault-tolerance

to the underlying system. Not only that, but many

data replication systems also assume conditions we

do not, such as the possibility of byzantine failures,

or overly complex data access patterns. While

byzantine failures are of enormous importance in

distributed unsafe systems, such as in the BitCoin

environment (Nakamoto, 2008), we consider their

countermeasures to be complex and performance-

hindering in the scope of our research. Not only that,

but byzantine assumptions have been proven to

allow only up to 1/3 of the nodes to be faulty. We

intend to focus on fault-tolerance for underlying

deterministic systems through a logging system, and

while distributed data replication is used for

reliability, expected DFAF use cases do not assume

malicious attacks to tamper with the network.

However, our model is general enough that it

supports the use of any data replication techniques to

replicate logging information across several

machines.

3 CONTEXT

We have previously mentioned the DFAF, which

allows a system architect to simulate non-existent

features on the underlying DBMS for client

applications to use, transparently to them. Our

framework acts as a layer that interacts with the

underlying DBMS and with clients, which do not

access the DBMS directly. It allowed ACID

transactions, among other features, on NoSQL

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

120

DBMS, but was not fault tolerant. Typically,

NoSQL DBMS provide no support to ACID

transactions. An ACID transaction allows a database

system user to arrange a sequence of interactions

with the database which will be treated as atomic, in

order to maintain the desired consistency constraints.

For reasons of performance, transactions are usually

executed concurrently, so atomicity, consistency and

isolation can be provided by file- or record-locking

strategies. Transactions are also a way to prevent

hardware failures from putting a database in an

inconsistent state. Our framework must be adjusted

to take hardware failures into account with multi-

statement transactions. In a failure free execution,

our framework registers what actions are being

executed in the DBMS and how to reverse them,

using a reverser mechanism (explained further

below). Actions are executed in the DBMS

immediately and are undone if the transaction is

rolled-back.

However, during a DFAF server crash, the ACID

properties are not enforced. As an example, consider

a transaction with two insert statements. If the

DFAF server crashed after the first insert, even

though the client had not committed the transaction,

the value would remain in the database, which

would mean the atomic aspect of the transaction was

not being enforced. To enforce it, we propose a

logging mechanism, whose records are stored

somewhere deemed safe from hardware crashes.

That logging system will keep track of the

transactions occurring at all times and what actions

have been performed so far. When a hardware crash

occurs, the logging system is verified and

interrupted transactions are rolled-back before the

system comes back on-line. Our logging system is

an extension to DFAF and is a log-based protocol

where the underlying DBMS acts as the

deterministic system mentioned previously. Each

action in a transaction represents a non-deterministic

event and is, as such, recorded, so that the chain of

events can be recreated and undone when the system

is recovering from failure.

4 LOGGING SYSTEM

Logging systems for fault-tolerance mechanisms

have several different aspects that need to be

defined: firstly, the logging system must be designed

in a way that the logging is not affected by hardware

failures. In other words, if the server crashes while a

database state was being logged, the system must be

able to handle an incomplete log and must be able to

recover its previous state. Secondly, logging an

action is not done at the same time as that action is

executed. Taking an insertion in a database as an

example, the system logs that a value is going to be

inserted, the value is inserted and the system logs

that the insertion is over. However, if the system

crashes between both log commands, there is no

record of whether the insert took place or not. To

solve this, the underlying system must be analysed

to check if it matches the state prior to the insertion

or not. Thirdly, while recovering from a failure, the

server can crash again, which means the recovery

process itself must also be fault tolerant. Finally,

cascading actions imply multiple states of the

underlying system, all of which must be logged so

that they can all be rolled-back. In other words, if an

insert in a database triggers an update, then the

database has three states to be logged: the initial

state, the state with the insertion and the state with

the insertion and the update. Because the server can

crash at any of these states, they all need to be

logged so that the recovery process rolls-back all the

states and nothing more than those states.

4.1 Logging Information

In order to provide fault tolerance, there are two

choices to compensate for the failure (Garcia-Molina

and Salem, 1987): backward recovery, or executing

the remainder of the transaction (forward recovery).

For forward recovery, it is necessary to know a

priori the entire execution flow of the transaction,

which is not always possible. DFAF uses the

backward recovery model to avoid leaving the

system in an inconsistent state when a rollback is

issued by a client. To do so, along with the actions

performed, DFAF registers how to undo them. In

other words, when a client issues a command, the

command to revert it, referred to as the reverser, is

calculated. In a SQL database, for example, an

insert’s reverser is a delete. Reversers are executed

backwards in a recovery process to keep the

underlying system in a consistent state. However,

logging actions and performing them cannot be done

at the same time. It is also not adequate to log an

action after it has already been performed, since the

server could crash between both stages, and there

would be no record that anything had happened.

Therefore, actions (and their reversers) must be

logged before they are executed on the underlying

system. However, if the server crashes between the

log and the execution, the recovery process would

try to reverse an action that had not been executed.

Because we have no assumptions regarding when

Fault Tolerance Logging-based Model for Deterministic Systems

121

the system can crash, the only way to solve this

problem is to directly assess the underlying system’s

state to figure out whether the action has been

performed or not. Since we have access to the

underlying system’s state prior to the action being

executed, we can find a condition that describes

whether the action has been executed or not. This

condition will be referred to as verifier from now on.

For example, after the insertion of value A, it is

trivial to verify if the value has been inserted or not

by the amount of rows with value A that existed

prior to the insertion. If there were two As and the

transaction crashed during the insertion of a third, by

counting how many exist in the database, we can

infer whether we need to reverse this action in the

transaction (if we now have three As) or if the action

did not get completed (if we still have two As). The

concept is extended to cascading actions. A reverser

is determined for each cascading action in DFAF,

which means a verifier must also be calculated to

determine whether that effect happened and needs to

be rolled-back or not. If the server crashes during

these triggered actions or during a rollback, each

verifier must be checked before applying the

corresponding reverser, to ensure that 1) we are not

reverting the same action twice, and that 2) we are

not reverting an action that was not executed. During

the recovery process, reversers are executed

backwards. If a verifier shows that an action has not

been completed, or after an action has been reversed,

its record (along with the reverser and verifier) is

removed from the log. If the server crashes during a

recovery, due the verifier system, there is no risk of

reverting actions that need not be reverted or that

have not yet been executed.

4.2 Logging Information Storage

We have implemented two possible information

storage mechanisms: a local and a remote one. These

can be used with regular hardware and standard

computational resources nowadays. Other storage

mechanisms are supported, such as using a relational

DBMS to store and retrieve the logs. The only

requirement is that the mechanisms are fault-

tolerant.

The local mechanism relies on writing the

logging information to disk: fault tolerance is

supported even in a complete system crash, but with

heavy performance costs. It does not require any

additional software, other than file system calls. The

remote mechanism tries to leverage both

performance and fault tolerance and relies on a

remote machine to keep the logging information in

memory. I/O operations are not as heavy on

performance as writing to disk, but fault tolerance is

only guaranteed if the logging server does not crash.

We have designed a fault-tolerant master-slave

architecture, deemed a Cluster Network (CN), to

allow several machines to coordinate and replicate

information among them. This system can be used to

store the logs from the remote mechanism, which

allows some machines to crash without loss of

information. In a CN, the only case where the logs

would be lost would be a scenario where all

machines crashed, which is unlikely if the machines

are geographically spread. We expect the

performance of this mechanism to be superior in

comparison with the local mechanism. The remote

mechanism uses TCP sockets to exchange

information between the servers. Because TCP

provides reliability and error control, both machines

know when a message has been properly delivered

and the system server can perform the requested

actions while the logging server keeps the

information in memory. Both servers can detect if

the network failed or the remaining server has

crashed. In these cases, the recovery process can be

initiated until connectivity is re-established.

The local mechanism, as previously stated, was

designed to store the information in the file system.

We assume that the hardware crashes will not be so

severe that they render the hard drive contents

unrecoverable, or that a back-up system is deployed

to allow the recovery of a defective file system.

Most file systems do not provide fault-tolerant

atomic file creation, removal, copy, movement,

appending or writing operations, so we need to first

address this issue and prevent the logging system

from entering an inconsistent state, if there is a crash

during a logging operation. We start by creating a

file for each transaction occurring in the system. The

file is created as soon as a transaction is started and

deleted just before it is complete. If the server

crashes when the transaction is starting and creating

the file, the file can either exist and be empty, or not

exist. There are no actions to be rolled-back, so

either case is fine and the file is ignored. If the

server crashes when deleting the file and closing the

transaction, the file can either exist with its contents

still intact, or not exist. If it does not exist, the

transaction was already over. If it still exists, then it

is possible to read it and rollback the database. The

log file update must be done in a way that the

logging system’s last state must be recoverable. As

such, to prevent file corruption, a copy of the old

state is kept until the new one is completely defined.

Firstly, we create a file, temp, that signals we were

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

122

updating the log and whose existence means that the

original log file is valid. After we create it, we copy

the log to a copy file. When all of the contents have

been copied, we delete temp. If the server crashes at

any point and temp exists, log is still valid and the

server ignores copy. If temp does not exist, but copy

exists, then copy is valid and the server ignores the

original log. After temp has been deleted, log is

updated with the new information (a new state in the

database, for example). After log has been fully

updated, copy can be deleted, since it is no longer

necessary. Table 1 shows the several stages

described above.

Table 1: A log-update cycle, with the several stages of the

update, the state of each of the files, and what file is

chosen on each stage.

Stage: 1 2 3 4 5 6 7 8

log (L)

    

 

temp

       

copy (C)

 

    

File: L L L L C C C L

With the two proposed mechanisms, a recorded

log of executed actions on the database can be safely

stored and used to return the underlying system to a

consistent state.

5 CLUSTER NETWORK

Our remote logging mechanism can rely on a

cluster-based system to store the needed

information. This allows for fast interactions,

reliability and consistency. Data replication

techniques such as byzantine tolerant approaches are

a valid option, but have an associated performance

decay due to the byzantine assumption and a low

threshold for the amount of faulty machines. As

such, we designed a fault-tolerance master-slave

network that replicates information across all the

slaves and better fits DFAF’s requirements.

We require our Cluster Network to be able to

grow as needed, without having to interrupt service

or without having maintenance downtime. We

considered that nodes should be symmetrical to

avoid the human error factor present in id-based

systems. We also want a stable algorithm (a master

stays as master until it crashes) to avoid unnecessary

operations when an ex-master is turned back on.

Finally, we consider that an IP network is not perfect

and that network elements (switches, routers) and

well as network links can crash at any time. We

therefore allow a set of any number of nodes that

communicate through IP where any of the nodes can

crash and be restarted at any given time. The master

node is contacted by clients and it forwards the

information to the slave nodes. Clients can find the

master node through any number of methods, like

DNS requests, manual configuration, broadcast

inquiries, etc. If the master crashes, one of the slaves

is nominated to be master and, because all the

information was replicated among the slaves, it can

resume the master’s process.

Our election algorithm is inspired in Gusella et

al.’s election algorithm (Gusella and Zatti, 1985).

While many other leader election algorithms would

be supported, this one suits the DFAF requirements

the best. The authors have developed a Leader

Election algorithm that is dynamic (nodes can crash

and restart at any time), symmetric (randomization is

used to differ between nodes), stable (no leader is

elected unless there is no leader in the cluster) and

that uses User Datagram Protocol (UDP)

communication (non-reliable, non-ordered). It

supports dynamic topology changes to some degree,

but it is not self-stabilizing (nodes start in a defined

state, not in an arbitrary one). When a master is

defined, the master is the one receiving requests

from clients. In order to guarantee consistency

among all the nodes, the master forwards any

incoming requests to the slaves before answering the

client with the corresponding response. This

guarantees that all the slaves will have the same

information as the master. If the master crashes

during this process, because the client still has not

been answered, he will retry the request to the new

master, which will store it (while avoiding request

duplication) and forward it to the slaves. When a

slave joins the network, he contacts the master and

requests the current system information (in this case,

the current log). A mutual exclusion mechanism is

necessary to avoid information inconsistency when

information is being relayed to a new slave. To

avoid request duplication from clients when the

master node crashes, a request identification number

is used. Using this approach means that up to N-1

nodes in the CN can crash without information being

lost or corrupted. Using other approaches for data

replication, such as (Castro and Liskov, 1999) only

allows up to N/3 nodes to be faulty and is expected

to have worse performance. However, byzantine-

tolerant approaches are more robust and, as

previously stated, our logging model is general

enough that any data replication mechanism can be

used to safe-keep the logging information.

Fault Tolerance Logging-based Model for Deterministic Systems

123

6 PROOF OF CONCEPT

We extended the previously mentioned DFAF with

our proposed logging mechanism, in order to

guarantee the atomic and consistent properties of

transactions. This way, even if the DFAF server

crashed during multiple concurrent transactions,

those transactions will all be rolled-back and the

underlying database will be on a consistent state

when the recovery process has finished. The reverser

and verifier system in DFAF depends on the

underlying DBMS schema and query language.

Different schemas can imply different cascading

actions, if, for example, different triggers are defined

in each schema. However, NoSQL DBMS don’t

usually support cascading actions such as triggers,

and they do not fall under the expected use cases of

DFAF. Different query languages also imply

different reversers and verifiers, since an insert in

SQL has a very different syntax from a NoSQL

DBMS’s custom query language. However, the

reverser and verifier creation mechanism is trivial

for most SQL and SQL-like languages. Verifiers are

select statements related with the values being

inserted, deleted or updated. Reversers are delete

statements for insert statements, insert statements

for delete statements, and update statements for

update statements. Having multiple transactions

occurring at the same time implies having either

multiple log files or a single log file with

information from all transactions. This could lead to

problems during the recovery process, if the order of

actions in separate transactions was not being

logged. However, the fact that transactions

guarantee the isolation property means that each of

their actions will not affect other transactions.

Therefore, the order in which each transaction is

rolled-back is irrelevant, as long as the statements in

each transaction are executed backwards. To prove

our concept, we tested the local logging mechanism

using DFAF with a single client connecting to the

database. The client starts a transaction, inserts a

value and updates that value, finishing the

transaction. During this process, the logging

information is stored in a local file. We crashed the

transaction on several stages (shown in Table 1) and

verified that the recovery process could correctly

interpret the correct log file and set the database in a

correct state, the one previous to the transaction. In

order to interrupt the process on particular stages,

exceptions were purposely induced in the code,

which were thrown at the appropriate moments. The

recovery process was then started and tested as to

whether it could successfully recover and interpret

logged information and, if needed, rollback the

database to a previous state. Results showed that the

system was always able to recover from a failed

transaction and returned the database to a safe state.

To prove our concept with the remote mechanism,

we deployed a network with a client connected to a

DBMS and to a CN, as shown in Figure 1.

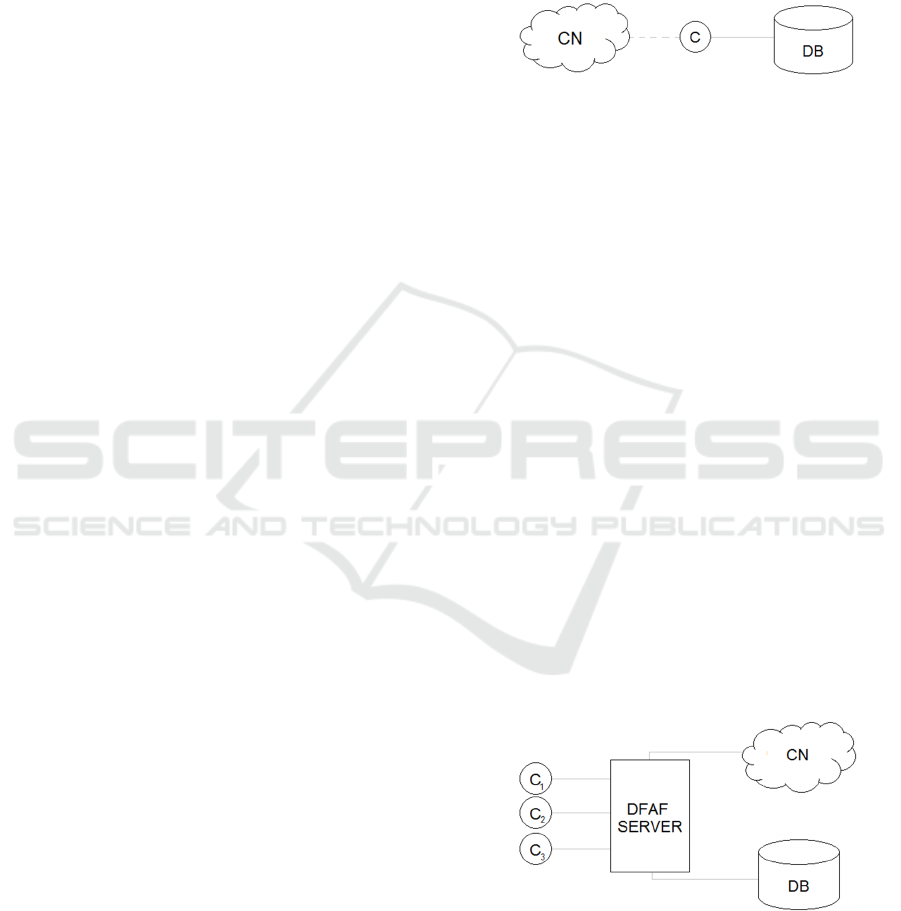

Figure 1: The deployed network for tests with the remote

mechanism and a single client.

We used the same transaction used to test the

local mechanism. In our first test, we checked

whether the CN could detect and roll-back failed

transactions. We crashed the client after the first

insertion and the CN immediately detected the crash

and rolled-back the transaction. In our second test,

we checked if a correct rollback was ensued with

crashes on different stages of the transaction. We

crashed the client at several stages of the transaction

(before logging the action, after logging but before

performing the action, after performing but before

logging that it has been performed and after logging

that the action had been done) and monitored the

roll-back procedure to guarantee the database was in

the correct state after the recovery process had

finished. Finally, we checked whether several

concurrent transactions occurring in a DFAF server

could all be rolled-back without concurrency issues.

We used a DFAF server to handle several clients

while connected to a CN, as can be seen in Figure 2,

and crashed the server during the client’s

transactions. The CN detected the crash and rolled-

back all transactions, leaving the database once more

in a consistent state.

Figure 2: The deployed network for tests with the remote

mechanism and multiple clients.

To demonstrate the soundness of our approach in

a practical environment, we examined the

performance of our logging mechanism’s

implementation and of our CN using a 64-bit Linux

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

124

Mint 17.1 with an Intel i5-4210U @ 1.70GHz, 8GB

of RAM and a Solid State Drive. For tests involving

a CN, a second machine was used, running 64-bit

Windows 7 with an Intel i7 Q720 @ 1.60GHz, 8GB

of RAM and a Hard Disk Drive. A 100Mbit cable

network was used as an underlying communication

system between both nodes. Figure 3 shows how the

local (green) and remote (red) logging mechanisms,

using as a basis for comparison a transaction with up

to 1000 statements on a SQLite table. This number

of statements was based on previous DFAF

evaluations. Tests were repeated several times to get

an average of the values, the 95% confidence

interval was calculated, and the base time for

operations was removed to allow for a more intuitive

graph analysis. The CN used for the remote

mechanism was a local single-node, which removed

most of the network interference with the tests.

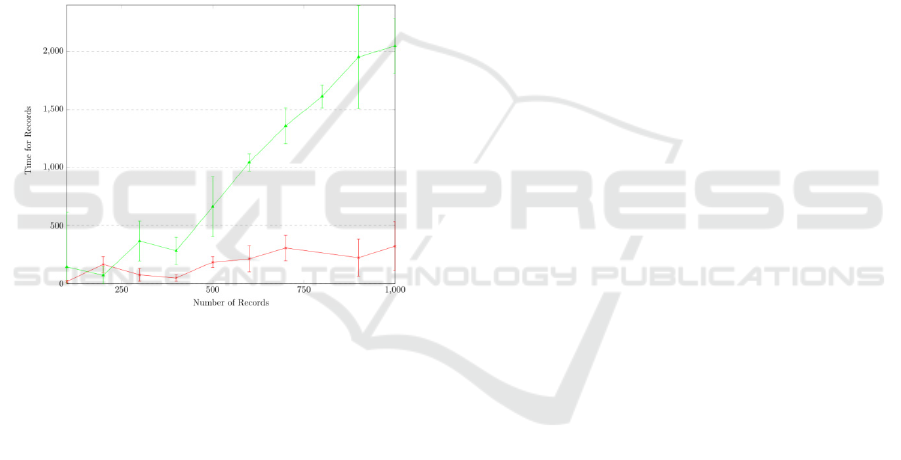

Figure 3: Performance (in milliseconds) of the different

logging mechanisms.

As expected, the most performant mechanism is

the remote mechanism, where a sub-second

performance decay is noticed (around 321±209

milliseconds for 1000 operations). The baseline time

for 1000 operations was 10295±1142 milliseconds,

which means remote mechanism has a performance

decay of approximately 3.1%. The local mechanism

is the least performant, due to the high amount of

disk operations, with around 2047±237 milliseconds

for 1000 operations, a 19.8% performance decay.

The performance difference of an order of

magnitude between both mechanisms is due to the

fact that, as the logging file gets bigger, it takes

longer to read, copy and write it. This means that,

with a transaction of 1000 insertions, for example,

the 1000th insertion will take a lot longer than the

1st insertion, while the remote mechanism takes the

same amount of time for any insertion.

We tested Cluster Networks to find how long it

takes to find a master and make the information

consistent among them. These values have a direct

correlation to the defined time-outs on each state of

the network, as defined by Gusella et al.’s algorithm.

We created two-node networks (1 master, 1 slave)

and measured the times taken for each node to

become a master/slave (with a confidence interval of

95%) and to guarantee the consistency of

information among them. Tests with more nodes

were not feasible, due to hardware restraints. Tests

show an average of 5±1 milliseconds to get a node

from any given phase of the election algorithm to the

next, excluding the defined time-outs. The time

taken to exchange all the information from a master

to a slave depends on the current information state,

but in our tests, any new slave took approximately

8±1 milliseconds to check whether information was

consistent with the master. Transferring the log with

1000 records from the first test took approximately

20±4 milliseconds.

7 CONCLUSIONS

We have previously proposed DFAF, a CLI-based

framework that implements common relational

features on any underlying DBMS. These features

include ACID transactions, local memory structure

operations and database-stored functions, like Stored

Procedures. However, the proposal lacked a fault

tolerance mechanism to ensure the atomic property

of transactions in case of failure. We now propose a

fault tolerance model, general enough to work with

several underlying deterministic systems, but

adapted to DFAF.

Our model is a logging mechanism which

requires the performed action, its verifier (that

checks whether it has been executed or not) and its

reverser (to undo it, in case of failure). We describe

two ways of storing the information: either locally in

the file system, or remotely in a dedicated server.

Because operating systems do not usually provide

atomic operations, to prevent the logging

information from becoming corrupted, we also

describe how to update the information. In order to

guarantee that the remote server is also fault tolerant

and the information is not lost in case of failure, we

describe a master-slave network that can be used to

replicate the information. Clients contact the master,

which replicates the information to slaves without

consistency issues. Our performance results show

that the use of our logging mechanism can be

suitable for a real-life scenario. There is an expected

performance degradation, but a fault tolerant system

Fault Tolerance Logging-based Model for Deterministic Systems

125

provides several advantages over a slightly more

performant fault intolerant system. Not only that, but

the performance decay using the remote mechanism

is nearly negligible.

In the future, we intend to improve both the local

and remote mechanisms. Regarding the file system,

we intend to develop a highly performant algorithm,

that does not rely on copying the previous log on

each update. Regarding the remote mechanism, we

intend to adapt the CN for other requirements, in

order to improve performance. This can be done by

allowing priority nodes and removing the symmetry

factor. This way, servers can preferentially become

masters, if they have better hardware or conditions.

The CN can also be improved by changing the

underlying communication protocol, which at the

moment is assumed to be unreliable. We also intend

to develop a master look-up mechanism, like DNS

registration. At the moment, there is no such

mechanism, and clients resort to finding masters

manually.

In conclusion, we extended DFAF with a log-

based fault-tolerance model, this way guaranteeing

ACID properties on the underlying DBMS

transactions. We describe two ways of storing the

information, to leverage performance and reliability,

but support other models. We also propose a master-

slave fault tolerant network which can be used as a

remote server to keep information replicated and

consistent. Both the logging model and the CN can

be used for other applications as well; we have for

example adapted the CN to act as a concurrency

handler in another module of DFAF.

ACKNOWLEDGEMENTS

This work is funded by National Funds through FCT

- Fundação para a Ciência e a Tecnologia under the

project UID/EEA/50008/2013.

REFERENCES

Borthakur, D., 2007. The hadoop distributed file system:

Architecture and design. Hadoop Project Website,

11(2007), p.21.

Castro, M. and Liskov, B., 1999. Practical Byzantine fault

tolerance. OSDI.

Castro, M. and Liskov, B., 2002. Practical Byzantine fault

tolerance and proactive recovery. ACM Transactions

on Computer Systems (TOCS).

Chun, B., Maniatis, P. and Shenker, S., 2008. Diverse

Replication for Single-Machine Byzantine-Fault

Tolerance. USENIX Annual Technical Conference.

Cowling, J., Myers, D. and Liskov, B., 2006. HQ

replication: A hybrid quorum protocol for Byzantine

fault tolerance. Proceedings of the 7th ….

Garcia-Molina, H. and Salem, K., 1987. Sagas, ACM.

Gray, J. and others, 1981. The transaction concept: Virtues

and limitations. In VLDB. pp. 144–154.

Gray, J. and Reuter, A., 1992. Transaction Processing:

Concepts and Techniques 1st ed., San Francisco, CA,

USA: Morgan Kaufmann Publishers Inc.

Gusella, R. and Zatti, S., 1985. An election algorithm for a

distributed clock synchronization program,

Huang, K.-H., Abraham, J. and others, 1984. Algorithm-

based fault tolerance for matrix operations.

Computers, IEEE Transactions on, 100(6), pp.518–

528.

Johnson, D.B., 1989. Distributed System Fault Tolerance

Using Message Logging and Checkpointing by.

Sciences-New York, 1892(December).

Kotla, R. and Dahlin, M., 2004. High throughput

Byzantine fault tolerance. Dependable Systems and

Networks, 2004 ….

Merideth, M. and Iyengar, A., 2005. Thema: Byzantine-

fault-tolerant middleware for web-service applications.

… , 2005. SRDS 2005. ….

Mohan, C. et al., 1992. ARIES: a transaction recovery

method supporting fine-granularity locking and partial

rollbacks using write-ahead logging. ACM

Transactions on Database Systems (TODS), 17(1),

pp.94–162.

Nakamoto, S., 2008. Bitcoin: A peer-to-peer electronic

cash system. Available at: http://www.cryptovest.co.u

k/resources/Bitcoin paper Original.pdf [Accessed

February 15, 2016].

Oki, B.M. and Liskov, B.H., 1988. Viewstamped

replication: A new primary copy method to support

highly-available distributed systems. In Proceedings

of the seventh annual ACM Symposium on Principles

of distributed computing. pp. 8–17.

Pereira, Ó.M., Simões, D.A. and Aguiar, R.L., 2015.

Endowing NoSQL DBMS with SQL Features

Through Standard Call Level Interfaces. In SEKE

2015 - Intl. Conf. on Software Engineering and

Knowledge Engineering. pp. 201–207.

Rabin, M.O., 1989. Efficient dispersal of information for

security, load balancing, and fault tolerance. Journal

of the ACM (JACM), 36(2), pp.335–348.

Randell, B., Lee, P. and Treleaven, P.C., 1978. Reliability

Issues in Computing System Design. ACM Computing

Surveys, 10(2), pp.123–165.

Shih, K.-Y. and Srinivasan, U., 2003. Method and system

for data replication.

Sumathi, S. and Esakkirajan, S., 2007. Fundamentals of

relational database management systems, Springer.

Wolfson, O., Jajodia, S. and Huang, Y., 1997. An adaptive

data replication algorithm. ACM Transactions on

Database Systems (TODS), 22(2), pp.255–314.

Ylönen, T., 1992. Concurrent Shadow Paging: A New

Direction for Database Research.

DATA 2016 - 5th International Conference on Data Management Technologies and Applications

126
