Practical Application of Order-preserving Encryption in

Wide Column Stores

Tim Waage, Daniel Homann and Lena Wiese

Institute of Computer Science, Georg-August-University, Goldschmidtstraße 7, G

ottingen, Germany

Keywords:

Order-preserving Encryption, NoSQL, Wide Column Stores, Apache Cassandra, Apache HBase.

Abstract:

Order-preserving encryption (OPE) produces ciphertexts that preserve the relative order of the underlying

plaintexts. Thus, it is very suitable for range queries over encrypted outsourced data, as it is a popular case

in cloud database scenarios. Unfortunately, most schemes suffer from infeasibility in practice due to require-

ments like hardly maintainable data structures or additional architectural components. While OPE is a widely

discussed topic in theory, to our knowledge only one OPE scheme received noticeable practical attention

((Boldyreva et al., 2009) for SQL-based systems in (Popa et al., 2011; Tu et al., 2013)). Therefore, our work

identiﬁes the practical requirements for utilizing OPE in real world usage with focus on existing NoSQL cloud

database technologies. We evaluate a variety of popular schemes and propose improvements for two of them

in order to further improve their practicability. Then we assess the performance of our modiﬁcations in com-

parison to the approach of (Boldyreva et al., 2011) (which can be considered the successor of (Boldyreva et al.,

2009) by a runtime analysis in combination with two popular NoSQL wide column store databases.

1 INTRODUCTION

In Big Data applications large amounts of informa-

tion are processed by database systems. In par-

ticular, modern web services have a high demand

for availability, consistency, partition tolerance, per-

formance, and scalability, that are at best difﬁcult

and expensive to achieve with traditional relational

databases. NoSQL databases, especially the sub-

category of wide column stores (WCSs), were de-

signed to meet those requirements. They run in dis-

tributed cloud environments as key technology behind

many popular platforms, e.g. Apache HBase behind

Facebook (Borthakur et al., 2011), Apache Cassan-

dra behind eBay or Google’s BigTable behind almost

every Google service (Chang et al., 2008). Due to

the increased amount of data being produced every

day (e.g. in social media platforms as well as by

business or research), these databases are often out-

sourced to remote and potentially untrusted servers.

Unfortunately security was not a primary concern of

their designers (Okman et al., 2011).

Encryption is a tool to protect data conﬁdential-

ity in such untrustworthy environments, but it also

limits the options for interacting with the data that

was encrypted. Using traditional encryption methods

like AES or RSA is unfeasible, because they do not

preserve the plaintext properties, that WCSs rely on

(see section 2.2). Since a very common task in cloud

database systems is executing range queries to select

rows with consecutive row IDs, we focus on order-

preserving encryption (OPE). It preserves the order

of the row IDs and thereby allows range queries to be

executed on the encrypted data as on plaintext data.

Although OPE is an active ﬁeld of research, the

practical feasibility of most schemes is insufﬁcient.

Thus, our work makes the following contributions:

• It identiﬁes the requirements for utilizing OPE in

NoSQL WCSs.

• Based on those criteria it evaluates the practical

feasibility of popular OPE schemes and proposes

modiﬁcations for two of them to improve it.

• It conducts a practical performance comparison

of the two proposed modiﬁcations and the pop-

ular approach of (Boldyreva et al., 2011) based

on our own implementations using the currently

most popular NoSQL WCSs

Apache Cassandra

(Lakshman and Malik, 2010) and Apache HBase

(Borthakur et al., 2011) as underlying platforms.

Solit-IT: DB-engines ranking - http://db-

engines.com/en/ranking (all URLs have been checked

on April 7th 2016.

352

Waage, T., Homann, D. and Wiese, L.

Practical Application of Order-preserving Encryption in Wide Column Stores.

DOI: 10.5220/0005991403520359

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 4: SECRYPT, pages 352-359

ISBN: 978-989-758-196-0

2 BACKGROUND

2.1 Order Preserving Encryption

Formally speaking, an order-preserving (symmetric)

encryption scheme with plaintext space D (domain)

and ciphertext space R (range) is a tuple of al-

gorithms (KGen, Enc, Dec) satisfying the following

conditions:

• The key-generation algorithm KGen outputs a

random key k.

• The encryption algorithm Enc uses k and a plain-

text p to output the ciphertext c = Enc

(p).

• The decryption algorithm Dec uses k and a cipher-

text c to output the plaintext p. Thus it holds:

Dec

(Enc

(p)) = p.

• The order relation of plaintexts is preserved, i.e.

≤ p

⇒ Enc

) ≤ Enc

) for all p

, p

∈

(Agrawal et al., 2004) were the ﬁrst to intro-

duce the notation of OPE and proposed a theoretical

scheme to address it. In database applications OPE

is a very powerful primitive, because it allows the

database system to make comparisons between the

ciphertexts that result in the same outcomes as if it

had operated on the corresponding plaintexts. Thus,

the database can still build efﬁcient indexes on the

encrypted input for answering range queries quickly

in the same way as on plaintext data. Unfortunately

most OPE approaches deﬁne their own security no-

tion (see Table 1), which makes a comparison of their

security levels rather difﬁcult. However, as the scope

of this paper is practical feasibility of OPE rather than

security, we refer the reader in particular to the work

of (Boldyreva et al., 2009; Boldyreva et al., 2011)

who did the ﬁrst mathematical groundwork in proof-

ing OPE security.

2.2 Wide Column Stores

As surveyed for example in (Harrison, 2015) different

WCSs follow different principles in terms of architec-

ture, querying, data types, node coordination, etc. De-

spite this diversity they all use a similar data model,

which can be roughly described as follows.

WCSs can formally be considered sparse,

distributed, multidimensional maps of the form

(table, rowkey, column, timestamp) → value, for-

mally described in detail in (Chang et al., 2008).

The concept of tables, rows and columns is used

like in traditional relational (SQL-based) databases.

However, the main difference is that columns are cre-

ated for each row instead of being predeﬁned by the

table structure. Every row has an identiﬁer that has to

be unique for the table (commonly referred to as “row

key”). Data is maintained in lexicographic order by

that key. As WCSs are distributed systems, ranges

of such row keys serve as units of distribution. Hence

similar row keys (and thus data items that are likely to

be semantically related to each other) are always kept

physically close together, in the best case on neigh-

boring sectors of a disk, but at least on the same node

of a cluster. Thus, reads of ranges require only com-

munication of a minimal number of machines.

3 FEASIBILITY OF OPE IN WCS

3.1 Criteria

Due to the general working principles of WCSs de-

scribed in the previous section, OPE schemes have to

satisfy certain requirements. Hence we evaluate their

practical feasibility in WCS database scenarios based

on ﬁve criteria:

(I) Ciphertext (im-)mutability. The ciphertext

produced by an OPE scheme is called mutable, if it

may change as more and more input gets encrypted.

An example of this category is (Kerschbaum and

Schr

opfer, 2014), described in section 3.2.2. OPE

schemes producing immutable ciphertexts avoid the

re-encryption overhead in the ﬁrst place. Immutable

means once a plaintext is encrypted, the correspond-

ing ciphertext is ﬁnal. An instance of this category is

(Wozniak et al., 2013), described in section 3.2.1.

As discussed in section 2.2 an encryption of the

row keys should be order-preserving to preserve the

order of the rows and thus the way data gets dis-

tributed in the cluster. The usage of a mutable OPE

for the row keys would cause row keys to change

over time and hence would result in changing the

data’s physical position inside the database (cluster),

which is prohibitively expensive (and thus, generally

not supported by WCS databases). However, muta-

ble OPE schemes should be used for the column data

itself to gain more performance, as can be observed

in section 4. Note that ciphertext mutability is often

strongly related to criterion II and V.

(II) Need for Additional Data Structures. If they

are not stateless OPE schemes require additional

data structures for storing at least their plaintext-

ciphertext-mappings. That can be done using in-

dexes, trees, dictionaries etc., either on clientside

(or at least a trusted enviroment), e.g. (Kerschbaum

Practical Application of Order-preserving Encryption in Wide Column Stores

353

and Schr

opfer, 2014), or on serverside, e.g. (Popa

et al., 2013; Roche et al., 2015). Note that in par-

ticular maintaining tree structures is usually expen-

sive for (non-graph-based) database systems. Hence,

sometimes additional components on serverside are

proposed for performance reasons (see criterion III),

which makes practical implementations rather com-

plex.

(III) Need for Additional Architectural Compo-

nents. Client applications and database platforms

normally do not have built-in mechanisms for OPE.

Thus additional components are required for both

rewriting queries to make them work with the server-

side data structures (as they might have to be altered

for functioning with the OPE schemes) as well as for

performing decryption and encryption itself. Usu-

ally those components have to reside in the trusted

(clientside) environment (e.g. (Popa et al., 2011; Tu

et al., 2013)). However some OPE schemes even re-

quire components running co-located to the database

server (e.g. (Popa et al., 2013)), which cannot be con-

sidered practical due to the architectural overhead. In

particular database-as-a-service providers usually do

not support that.

(IV) Input Capabilities. The authors of all OPE

proposals that we have encountered assume only pos-

itive integer input for their schemes. This is hard to

apply to real world datasets in which we also ﬁnd neg-

ative or ﬂoating point numbers. One option to deal

with negative input would be adding an offset value

to the plaintext space, that is large enough to push

every value above zero. The question is how to de-

termine this offset, when the entire plaintext space

is not known in advance. Handling ﬂoating point

data is an even bigger problem. To our knowledge

there is no technique converting ﬂoating point num-

bers to integers in an order-preserving way without

loss of precision. This rises the question whether ex-

isting OPE schemes can be modiﬁed to also work with

negative and/or ﬂoating point input. We will answer

that for the schemes we have investigated in section

3.2. However, independent from the input type, some

OPE schemes further require detailed knowledge of

all the plaintexts before encryption (e.g. (Liu and

Wang, 2012)), which is hard to realize in practical

scenarios as databases may grow unpredictably over

time. Some schemes even need to encrypt the whole

plaintext space D in advance (Wozniak et al., 2013;

Liu et al., 2014), instead of encrypting only the de-

sired values on demand. The unfeasibility of such an

approach can be illustrated easily using the follow-

ing example: let D be deﬁned by a common Integer

datatype. Having a typical length of 32 bit, |D| would

be of size 2

, which means 4.3 billion items would

have to be pre-computed and stored (even if the ma-

jority is never used).

(V) Security. The ﬁrst formal security analysis of

OPE (Boldyreva et al., 2009) proved that ideal se-

curity

with immutable ciphertexts can only be ac-

complished, if the ciphertext space size |R| is expo-

nential in the plaintext space size |D|, which is hard

to achieve in practice. OPE schemes deal with this

problem in different ways (which often has a direct

impact on the criteria II and III). Examples are mod-

ular plaintext shifting (Boldyreva et al., 2011) (easy

to implement, but only a small security enhancement)

or using fake queries to hide the query distribution

(Mavroforakis et al., 2015) (causing communication

and computation overhead). In practice ideal security

can be achieved more easily by OPE schemes pro-

ducing mutable ciphertexts, because they do not have

the requirement of a ciphertext space size being ex-

ponential in the plaintext space size. They also hide

the frequency distribution of plaintext-ciphertext as-

signments much better, being able to achieve an al-

most uniform distribution (as shown e.g. by (Woz-

niak et al., 2013)). Still, that also means dealing with

unavoidable re-encryptions of (at least parts of) the ci-

phertext, that is already stored in the database. Recent

schemes try to keep the number of such updates to a

minimum (Kerschbaum and Schr

opfer, 2014) or take

the burden of reassigning ciphertexts to components

on serverside (Popa et al., 2013) to reduce at least

communication costs. An alternative approach to

avoid re-encryption in the ﬁrst place is pre-encrypting

as discussed in criterion IV.

(Naveed et al., 2015) proposed two attacks on

OPE-encrypted databases. Their attacks either re-

quire the cipherspace to be small compared to the

number of encrypted values (e.g. the largest ci-

pherspace they consider has a size of 365 while the ta-

bles contain at least a few hundred rows) or the plain-

texts to deviate strongly from a uniform distribution.

If OPE is applied on reasonably chosen columns, i.e.

where the number of ciphertexts is at least an order

of magnitude smaller than the size of the cipherspace

and where the corresponding plaintexts are uniformly

distributed, OPE still provides a good level of secu-

rity.

Meaning “IND-OCPA”: ciphertexts reveal nothing, but

their order.

SECRYPT 2016 - International Conference on Security and Cryptography

354

3.2 Selection of Practically Feasible

OPE Schemes

For a quick overview and brief evaluation of the

schemes that we investigated based on the criteria in-

troduced in section 3.1, see Table 1. We selected the

most promising three for implementation and testing

in real world WCSs. Detailed explanations of these

schemes and our modiﬁcations to improve the practi-

cal feasibility of two of them are given in the chapters

3.2.3 - 3.2.2. For not losing scope of this paper we

do not explain the concepts of the schemes that we

ruled out. However to give an idea of why we con-

sider those OPE schemes impractical, we point out a

few of their characteristics that cannot be read from

this table.

The approaches of (Kadhem et al., 2010) and (Liu

et al., 2014) require splitting and partitioning of the

plaintext space. Hence, they have to keep track of

more metadata than most other schemes. The scheme

of (Liu and Wang, 2012) requires detailed knowledge

of the plaintext space. In particular it needs to know

the smallest distance between two input values for

adding random noise to the ciphertexts in a way that

does not corrupt the original order. Again, in prac-

tice we usually do not have this detailed information

about the plaintext in advance. Furthermore, this is a

tricky problem when encrypting ﬂoating point num-

bers, since in theory the minimum distance between

such numbers can be arbitrarily small. As mentioned

before the approach of (Popa et al., 2013) needs

an additional component running co-located to the

database server, which they call “OPE-server”. It is

responsible for performing re-encryption operations

as described in section 3.1-I. In real world scenarios

running additional applications on the same platform

as or co-located to the database server often is not pos-

sible. The approach of (Chenette et al., 2015) (calling

it order-revealing encryption) completely lacks a de-

cryption functionality. Instead it comes with a cus-

tom compare operator. Thus it is not applicable for a

database scenario, since it surely would preserve the

order of the plaintext, but their exact values would not

be recoverable.

In the following sections, we will give a brief

introduction for each of the selected OPE schemes,

identify their practical weaknesses and describe our

modiﬁcations in order to overcome them as far as pos-

sible.

Only rather informal security analysis provided by the

authors.

No security analysis provided by the authors.

Table 1: Evaluation of the practical feasibility of popular

OPE schemes regarding the criteria introduced in section

3.1, (“>” = proved by the authors to be better than...).

OPE Scheme I II III IV V

Kadhem, ’10 + −− + − ?

Boldyreva, ’11 + ++ + − ROPF

Liu, ’12 + −− + −− ?

Popa, ’13 − −− − ++ IND-OCPA

Wozniak, ’13 + − + + > IND-OCPA

Liu, ’14 + − + − ?

Kerschb., ’14 − − + ++ IND-OCPA

Chenette, ’15 + + + − > ROPF

3.2.1 Random Subrange Selection using

Random Uniform Sampling by (Wozniak

et al., 2013)

Description. The authors introduce three OPE

schemes, namely random offset addition (ROA), ran-

dom uniform sampling (RUS) and random subrange

selection (RSS). Since ROA is somewhat trivial and

an attacker only needs to know a single plaintext-

ciphertext-pair to break the encryption, we focus on

RSS with RUS being a sub-procedure of it.

RSS can roughly be described as follows. First

of all, randomly decide how to draw the lower and

upper bounds r

min

and r

max

of the range R, either by

choosing r

min

∈ [1, |R| − |D| + 1] and r

max

∈ [r

min

|D|−1, |R|] or by choosing r

max

∈ [|D|, |R|] and r

min

∈

[1, r

max

− |D| + 1]. Afterwards an order-preserving

function (OPF) from D = [1, |D|] to R = [1, r

max

−

min

+ 1] is sampled using an alternative OPE con-

struction scheme. We use the authors’ RUS as de-

scribed in the next paragraph. Finally add r

min

− 1 to

all ciphertexts.

RUS gets initialized with an empty OPF f and the

minimum and maximum elements of D and R as spec-

iﬁed by RRS before. A recursive sample procedure

then randomly selects an element p ∈ [d

min

, d

max

] and

c ∈ [r

min

+ p −d

min

, r

max

+ p −d

max

]. Thus, p splits D

in a lower and a higher sub-domain and c splits R in a

lower and a higher sub-range. The pair (p, c) is added

to f and the sample procedure continues recursively

as before with the new sub-domains and sub-ranges

until D is completely covered.

Weaknesses. RSS with RUS has mainly two practi-

cal disadvantages. Firstly, it can handle only positive

numerical inputs. Secondly, it processes the whole

domain D instead of computing and returning only

the ciphertexts for actually desired plaintexts on de-

mand (an example illustrating the impracticability of

this approach was given in section 3.1-IV).

Practical Application of Order-preserving Encryption in Wide Column Stores

355

20000

40000

60000

80000

100000

120000

140000

160000

180000

200000

0 2000 4000 6000 8000 10000

number of samplings

number of inserted numerical values

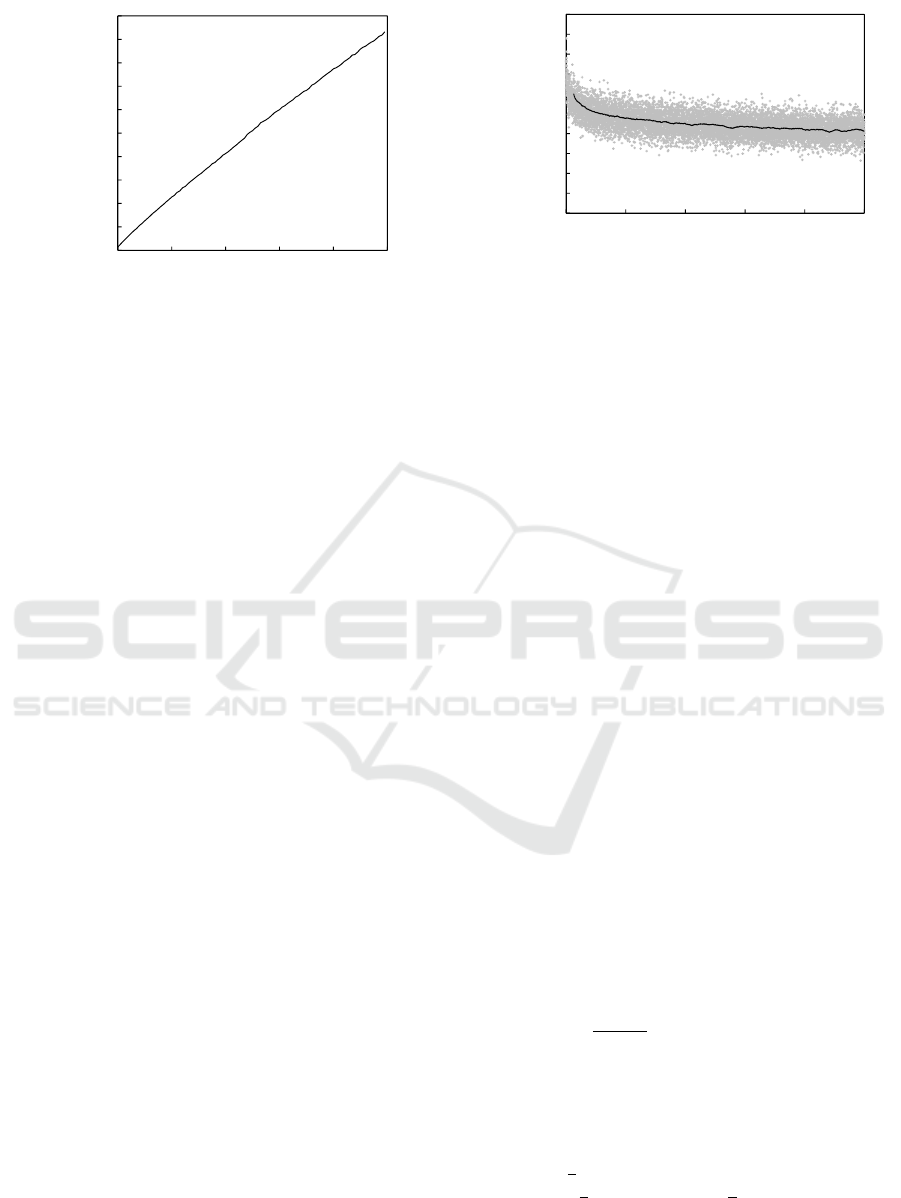

Figure 1: Average number of samplings required in (Woz-

niak et al., 2013) with increasing dataset size.

Our Modiﬁcations. We can get rid of the ﬁrst

weakness trivially by initializing the sample function

in RUS with a negative value for d

min

instead of 1.

This extends the domain D into the range of nega-

tive numbers (as far as we want). Since the algorithm

only works with random selections in intervals and

some additions and subtractions, that does not affect

its working principle. We can eliminate the second

weakness by modifying RRS and RUS in the follow-

ing way.

First of all, we deﬁne p

specifying the plaintext

value that we are actually aiming for in the encryp-

tion process (instead of the whole domain D). We

modify the sample procedure of RUS by adding an

extra parameter for p

. Now instead of always con-

tinuing recursively after a split for the lower sub-

domain [d

min

, p − 1] and the higher sub-domain [p +

1, d

max

], we only process the lower sub-domain if

∈ [d

min

, p − 1] or the higher sub-domain if p

∈

[p + 1, d

max

. This reduces the average number of sam-

ple function executions (in the following short: “sam-

plings”) from |R| to log

(|R|).

Then we modify RSS itself. Instead of always

starting with the full domain |D| (which in combi-

nation with our RUS sample function modiﬁcation

would result in an inconsistent encryption anyway),

we now initialize the sample function of RUS only

with the sub-domain [d

, d

], in which d

is the high-

est already encrypted value smaller than p

and d

the smallest already encrypted value greater than p

As more and more values get encrypted, this reduces

the average number of samplings further (see Figure

1). In order to make that work for the ﬁrst p

that

we would like to encrypt after we have determined

min

and r

max

in the initialization phase of RSS, we

add the minimum and maximum pairs (p

min

, c

min

) and

max

, c

max

) to f by sampling c

min

from [r

min

, r

max

−1]

and c

max

from [c

min

+ 1, r

max

Figure 1 and 2 present an example that illustrates

0 2000 4000 6000 8000 10000

number of samples necessary to

compute the targeted value p'

number of inserted numerical values

Figure 2: Average number of samplings required per en-

cryption in (Wozniak et al., 2013) with increasing dataset

size.

the improvements by showing the average number of

necessary samplings for computing the ciphertexts of

10000 uniformly and randomly generated 32 bit Inte-

ger plaintext values 20 times. Instead of always hav-

ing to sample |D| = 2

= 4294967296 times to cover

the whole domain and then pick the 10000 (p, c) pairs

that we actually wanted, we only need 186.287 sam-

plings (= 0.004%) for those 10000 values on average.

Note that our implentation (for details see section 4)

is able to do this in less than a second. Of course

this number gets lower, if less values are supposed

to be encrypted (see Figure 1). Furthermore it can

be observed, that as more and more values have al-

ready been encrypted, the average number of neces-

sary samplings required per value decreases from the

expected log

(|R|) = log

) = 32 for the ﬁrst en-

cryption to 21 for the 10000th encryption (see Figure

2).

3.2.2 Optimal Average-complexity

Ideal-security OPE by (Kerschbaum and

Schr

opfer, 2014)

Description. The OPE scheme introduced in (Ker-

schbaum and Schr

opfer, 2014) can be brieﬂy de-

scribed as follows. The OPF f is initialized with

two plaintext-ciphertext-pairs, namely (−1, −1) and

(|D|, |R|). New pairs (p, c) are always inserted be-

tween (p

, c

) and (p

n+1

, c

n+1

) with p

≤ p < p

n+1

and c = c

+ d

n+1

−c

e. If p = p

, the value was al-

ready encrypted. If c

n+1

−c

= 1 there is no gap large

enough to accommodate the new ciphertext c. In this

case a re-encryption procedure is executed: From all

the sorted and distinct plaintexts p

...p

that have al-

ready been encrypted, start over like described above

with p = p

c+1

and continue recursively with the in-

terval p

...p

if m > 1 and p

c+2

...p

if m > 2.

SECRYPT 2016 - International Conference on Security and Cryptography

356

Practical Weaknesses. This scheme comes with

a couple of weaknesses. The most obvious one

is its re-encryption phase, because in practice that

means reading all already encrypted values from the

database, re-encrypt them and ﬁnally write them back

into the database. In order to keep the occurrences

of those re-encryptions as rare as possible, the cipher-

text space should be chosen large enough. Having a

plaintext space of length n bit the authors recommend

a ciphertext space of size λn bits, with a theoretical

safe upper bound of λ = 6.31107, but they also show

in their practical experiments that λ = 3 (sometimes

even λ = 2) is already sufﬁcient for most datasets.

Another practical weakness of this scheme is the fact,

that the insertion order matters. The best case is when

all elements of a perfectly balanced binary search tree

are inserted in pre-order traversal order. The average

case is a uniform input distribution. The worst case is

inserting pre-sorted values, which should be avoided

at all (see section 4). Last but not least the scheme

cannot handle negative input by the authors’ deﬁni-

tion. Even though this scheme comes with all these

practical weaknesses, we chose it because it works

with very simple computations, that do not even in-

volve randomness. Thus it is very promising in terms

of speed.

Our Modiﬁcations. Since we cannot avoid the re-

encrytion phase other than by deﬁning the range large

enough and we also might not have any inﬂuence

on the insertion order of the plaintexts later on, the

only modiﬁcation we can apply is initializing f with

(−|D|, −|R|) and (|D|, |D|

), instead of (−1, −1) and

(|D|, |R|). Similar to our modiﬁcation for (Wozniak

et al., 2013) this extends the domain to also cover

negative input. To make sure this does not increase

the number of necessary re-balancings, we adjusted

the ciphertext space as recommended by the authors.

3.2.3 mOPE by (Boldyreva et al., 2011)

Description. mOPE is an extension of (Boldyreva

et al., 2009). It is based on the fact that any order-

preserving function from {1...M} to {1...N} can be

represented by a combination of M out of N ordered

items. Thus, ciphertexts can be computed by sam-

pling values according to the hypergeometric distribu-

tion. mOPE adds a secret modular shift to the encryp-

tion in the following way: if DEC

OPE

and ENC

OPE

are the decryption and encryption function of the stan-

dard Boldyreva OPE (Boldyreva et al., 2009), then

ENC

mOPE

(x) = ENC(x + m) (where m is a secret

offset) and DEC

mOPE

(x) = DEC

OPE

(x)−m mod |D|

(where |D| is the size of the plaintext space).

Practical Weaknesses. The core element of this al-

gorithm is sampling from the hypergeometric distri-

bution, which is computationally expensive and re-

quires the input to be a positive Integer. However,

we still consider (Boldyreva et al., 2011) to be an in-

teresting candidate for practical usage because to our

knowledge, it is the only OPE scheme that does not

require maintaining a state. That makes it easy to

implement the algorithm for client server scenarios.

Furthermore, since to our knowledge its predeces-

sor (Boldyreva et al., 2009) is the only OPE scheme

of practical relevance so far (implemented in (Popa

et al., 2011; Tu et al., 2013)), it is interesting to com-

pare it to the other OPE schemes.

4 IMPLEMENTATION AND

EXPERIMENTS

Since disk access and memory management in WCSs

are performed at column family level, we imple-

mented the indexes of (Wozniak et al., 2013; Ker-

schbaum and Schr

opfer, 2014) in the same way. For

our experiments we inserted up to 20000 uniformly

distributed and randomly created 32-bit Integer val-

ues into Cassandra and HBase using the three OPE

schemes as described in section 3.2.1 - 3.2.3. While

for (Boldyreva et al., 2011; Wozniak et al., 2013) the

order of insertion does not matter, for (Kerschbaum

and Schr

opfer, 2014) we tested the three cases as de-

scribed in section 3.2.2. We used local installations to

avoid network effects, as we wanted to measure the

computation time of the schemes in combination with

the insertion speed of the databases. All implementa-

tions were done in Java 8. We ran our experiments on

an Intel Core i7-4600U CPU @ 2.10GHz, 8GB RAM,

a Samsung PM851 256GB SSD using Ubuntu 15.04.

2000 4000 6000 8000 10000 12000 14000 16000 18000 20000

time [s]

number of inserted numeric values

unencrypted

Boldyreva11

Wozniak13

Kerschb14 (best)

Kerschb14 (average)

Kerschb14 (worst)

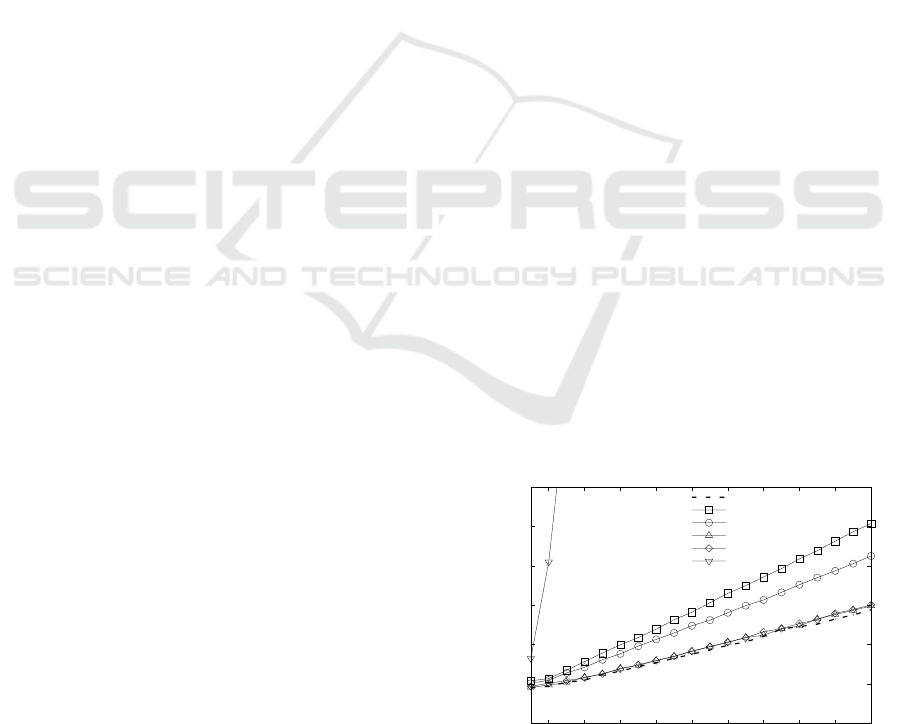

Figure 3: Time needed for encryption with increasing data

set size in Apache Cassandra.

Practical Application of Order-preserving Encryption in Wide Column Stores

357

2000 4000 6000 8000 10000 12000 14000 16000 18000 20000

time [s]

number of inserted numeric values

unencrypted

Boldyreva11

Wozniak13

Kerschb14 (best)

Kerschb14 (average)

Kerschb14 (worst)

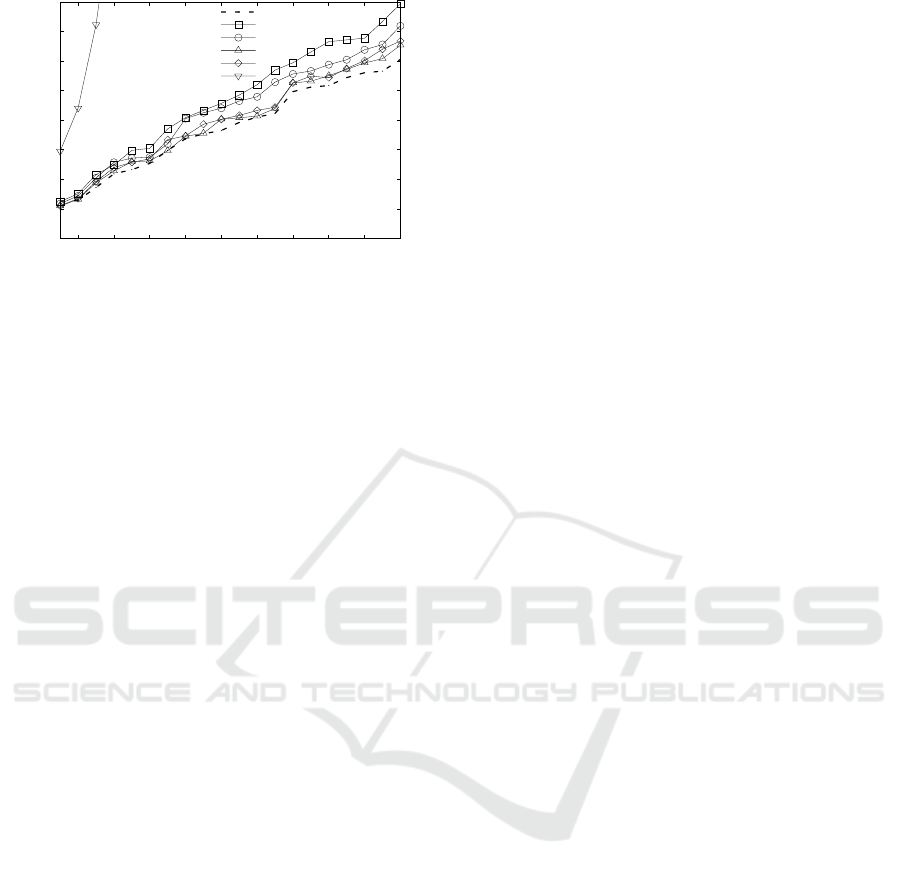

Figure 4: Time needed for encryption with increasing data

set size in Apache HBase.

Figure 3 and 4 present the results, showing the av-

erage of ten measurements. Even though they have an

index to maintain the approaches of (Wozniak et al.,

2013; Kerschbaum and Schr

opfer, 2014) are gener-

ally faster than the stateless scheme of (Boldyreva

et al., 2011). The only exception is using (Ker-

schbaum and Schr

opfer, 2014) with pre-sorted input,

which is prohibitively slow and should be avoided.

The best combination of OPE scheme and WCS is

(Kerschbaum and Schr

opfer, 2014) in its best and av-

erage case with Cassandra, where the encryption step

causes a performance loss of only 3%.

Cassandra is generally ca. 40% faster than HBase,

mainly because (Wozniak et al., 2013; Kerschbaum

and Schr

opfer, 2014) are so fast that the database sys-

tem’s mere insertion time requires a signiﬁcant share

in the overall process of encrypting and inserting.

With Cassandra being optimized for writes it takes ad-

vantage of this. An exception is the worst case usage

of (Kerschbaum and Schr

opfer, 2014), where because

of the re-balancing phases not only writing but also

reading performance matters. In this case HBase is

always 12-15% faster than Cassandra, which seems

to reﬂect the fact, that while Cassandra is optimized

for writes, HBase is optimized for reads.

Because decrypting is very simple, we do not

elaborate on it in the same level of detail as we did

for encrypting. In (Wozniak et al., 2013) and (Ker-

schbaum and Schr

opfer, 2014) it is just a lookup in the

index which takes less than 1 ms. (Boldyreva et al.,

2011) is computational more expensive, since it has

no index to use. Hence it requires up to 5 ms for de-

cryption.

5 DISCUSSION

The results show that OPE can be used in WCSs ef-

ﬁciently. However, when choosing an OPE scheme

it makes sense to think about the future use of the

database. If speed matters and there is a low probabil-

ity of pre-sorted inputs, the scheme of (Kerschbaum

and Schr

opfer, 2014) is advisable. If an index should

be avoided and ciphertexts are required to be im-

mutable (Boldyreva et al., 2011) is the way to go.

(Wozniak et al., 2013) is a compromise between both.

It delivers immutable ciphertext almost as fast as

(Kerschbaum and Schr

opfer, 2014) for every input,

but it requires an index.

Of course in the practical application a combina-

tion of the different OPE schemes is most promis-

ing. Row keys should be encrypted with the OPE

of (Boldyreva et al., 2011) or (Wozniak et al., 2013)

Regular, unordered columns can be encrypted with

the scheme of (Kerschbaum and Schr

opfer, 2014).

For regular columns with ordered data the algorithm

of (Wozniak et al., 2013) is the best choice.

6 RELATED WORK

So far there is not much work using OPE with real

world technologies besides the work that we already

mentioned throughout the paper. The most popu-

lar example surely is “CryptDB” (Popa et al., 2011)

utilizing the immutable scheme of (Boldyreva et al.,

2009), tweaked by operating with a binary search tree

and caching in the background. Another system for

executing queries over encrypted data is “Monomi”

(Tu et al., 2013), also using (Boldyreva et al., 2009)

for OPE. Both approaches are designed for working

with SQL-based systems.

7 CONCLUSION AND FUTURE

WORK

We discussed how OPE can be used in NoSQL

WCSs and quantiﬁed the performance of three OPE

schemes on the two currently most popular platforms.

Since we have already done the same for a couple

of schemes for searchable encryption (Waage et al.,

2015), our next goal is to build a seamless integrating

proxy client similar to “CryptDB” for executing more

sophisticated queries on encrypted WCS databases.

Furthermore we plan support for Apache Accumulo.

SECRYPT 2016 - International Conference on Security and Cryptography

358

ACKNOWLEDGEMENT

This work was funded by the DFG under grant num-

ber WI 4086/2-1.

REFERENCES

Agrawal, R., Kiernan, J., Srikant, R., and Xu, Y. (2004).

Order preserving encryption for numeric data. In Pro-

ceedings of the 2004 ACM SIGMOD International

Conference on Management of Data, pages 563–574.

ACM.

Boldyreva, A., Chenette, N., Lee, Y., and O’Neill, A.

(2009). Order-preserving symmetric encryption. In

Advances in Cryptology-EUROCRYPT 2009, pages

224–241. Springer.

Boldyreva, A., Chenette, N., and O’Neill, A. (2011). Order-

preserving encryption revisited: Improved security

analysis and alternative solutions. In Advances in

Cryptology–CRYPTO 2011, pages 578–595. Springer.

Borthakur, D., Gray, J., Sarma, J. S., Muthukkaruppan,

K., Spiegelberg, N., Kuang, H., Ranganathan, K.,

Molkov, D., and Menon, A. (2011). Apache hadoop

goes realtime at facebook. In Proceedings of the SIG-

MOD International Conference on Management of

Data, pages 1071–1080. ACM.

Chang, F., Dean, J., Ghemawat, S., Hsieh, W. C., Wal-

lach, D. A., Burrows, M., Chandra, T., and Fikes, A.

(2008). Bigtable: A distributed storage system for

structured data. ACM Transactions on Computer Sys-

tems (TOCS), 26(2):4.

Chenette, N., Lewi, K., Weis, S. A., and Wu, D. J. (2015).

Practical order-revealing encryption with limited leak-

age.

Harrison, G. (2015). Database survey. In Next Generation

Databases, pages 217–228. Springer.

Kadhem, H., Amagasa, T., and Kitagawa, H. (2010).

Mv-opes: Multivalued-order preserving encryption

scheme: A novel scheme for encrypting integer value

to many different values. IEICE TRANSACTIONS on

Information and Systems, 93(9):2520–2533.

Kerschbaum, F. and Schr

opfer, A. (2014). Optimal average-

complexity ideal-security order-preserving encryp-

tion. In Proceedings of the 2014 ACM SIGSAC Con-

ference on Computer and Communications Security,

pages 275–286. ACM.

Lakshman, A. and Malik, P. (2010). Cassandra: a decen-

tralized structured storage system. ACM SIGOPS Op-

erating Systems Review, 44(2):35–40.

Liu, D. and Wang, S. (2012). Programmable order-

preserving secure index for encrypted database query

in service cloud environments. In Cloud Computing

(CLOUD), 2012 IEEE 5th International Conference

on, pages 502–509. IEEE.

Liu, Z., Chen, X., Yang, J., Jia, C., and You, I. (2014). New

order preserving encryption model for outsourced

databases in cloud environments. Journal of Network

and Computer Applications.

Mavroforakis, C., Chenette, N., O’Neill, A., Kollios, G.,

and Canetti, R. (2015). Modular order-preserving en-

cryption, revisited. In Proceedings of the 2015 ACM

SIGMOD International Conference on Management

of Data, pages 763–777. ACM.

Naveed, M., Kamara, S., and Wright, C. V. (2015).

Inference attacks on property-preserving encrypted

databases. In Proceedings of the 22nd ACM SIGSAC

Conference on Computer and Communications Secu-

rity, pages 644–655. ACM.

Okman, L., Gal-Oz, N., Gonen, Y., Gudes, E., and

Abramov, J. (2011). Security issues in nosql

databases. In Trust, Security and Privacy in Com-

puting and Communications, 2011 IEEE 10th Inter-

national Conference on, pages 541–547. IEEE.

Popa, R. A., Li, F. H., and Zeldovich, N. (2013). An ideal-

security protocol for order-preserving encoding. In

IEEE Symposium on Security and Privacy, pages 463–

477.

Popa, R. A., Redﬁeld, C., Zeldovich, N., and Balakrish-

nan, H. (2011). Cryptdb: protecting conﬁdentiality

with encrypted query processing. In Proceedings of

the 23rd ACM Symposium on Operating Systems Prin-

ciples, pages 85–100. ACM.

Roche, D., Apon, D., Choi, S. G., and Yerukhimov, A.

(2015). Pope: Partial order-preserving encoding.

Technical report, Cryptology ePrint Arch. 2015/1106.

Tu, S., Kaashoek, M. F., Madden, S., and Zeldovich, N.

(2013). Processing analytical queries over encrypted

data. In Proceedings of the VLDB Endowment, vol-

ume 6, pages 289–300. VLDB Endowment.

Waage, T., Jhajj, R. S., and Wiese, L. (2015). Searchable

encryption in apache cassandra. In Proceedings of the

8th Symposium on Foundations and Practice of Secu-

rity (FPS). Springer.

Wozniak, S., Rossberg, M., Grau, S., Alshawish, A., and

Schaefer, G. (2013). Beyond the ideal object: to-

wards disclosure-resilient order-preserving encryption

schemes. In Proceedings of the 2013 ACM workshop

on Cloud computing security, pages 89–100. ACM.

Practical Application of Order-preserving Encryption in Wide Column Stores

359
