TOWER: Topology Optimization for netWork Enhanced Resilience

Enrique de la Hoz

, Jose Manuel Gimenez-Guzman

, German Lopez-Civera

, Ivan Marsa-Maestre

and David Orden

Computer Engineering Department, University of Alcala, Alcala de Henares, Madrid, Spain

Physics and Mathematics Department, University of Alcala, Alcala de Henares, Madrid, Spain

Keywords: Network Resilience, Critical Infrastructures, Graph Modelling, Network Reshaping.

Abstract: Nowadays society is more and more dependent on critical infrastructures. Critical network infrastructures

(CNI) are communication networks whose disruption can create a severe impact on other systems including

critical infrastructures. In this work, we propose TOWER, a framework for the provision of adequate

strategies to optimize service provision and system resilience in CNIs. The goal of TOWER is being able to

compute new network topologies for CNIs under the event of malicious attacks. For doing this, TOWER

takes into account a risk analysis of the CNI, the results from a cyber-physical IDS and a multilayer model

of the network, for taking into account all the existing dependences. TOWER analyses the network structure

in order to determine the best strategy for obtaining a network topology, taking into account the existing

dependences and the potential conflicting interests when not all requirements can be met. Finally, we

present some lines for further development of TOWER.

1 INTRODUCTION

Since mid-90s, multiple events caused by natural

disasters or by humans have brought to the fore the

high level of dependency that our society has on

what are known as critical infrastructures. If one of

these infrastructures is compromised, it will have a

serious impact in our life and disrupt the normal

society order as a whole. Therefore, the protection of

critical infrastructures is a top priority in the agendas

of our governments and critical service operators.

Critical infrastructures are characterized by a

high level of interconnection. Many physical, logical

or virtual dependencies are not revealed until a crisis

arises. This high level of interdependencies may lead

to cascading failures. At the same time, small

disruptions can be enough to unleash dramatic

consequences in high complexity systems.

Critical network infrastructures (CNI) are one

subset of this kind of systems. By CNI, we mean

those communication network infrastructures whose

disruption, intentional or accidental, has a high

impact because of either its massive, even global,

deployment (e.g., Internet, cell provider networks)

or its supporting role for other critical infrastructures

(e.g., the network for the internal communications of

a control system in a nuclear facility, or the

communication network for the electrical grid).

When addressing the challenge of offering

robustness to CNI, the concept of network resilience

emerges. We can define network resilience (Smith,

2011) as the ability of a network to defend itself and

keep an acceptable service level in the presence of

challenges such as malicious attacks, hardware

failures, human mistakes (hardware or software

misconfigurations) and large-scale natural disasters

that may threat its normal operation.

In this work, we propose TOWER, a framework

for the provision of adequate strategies to optimize

service provision and system resilience in CNIs. For

achieving this goal, TOWER will use as inputs a risk

analysis and alert reports coming from different

sources and will produce a proposal of a new

network topology. This network topology should be

able to tackle the malicious attack by isolating it and

minimizing its impact in the whole network as the

consequence of the potential cascading failure

induced as a result of the attack. The new topology

will be oriented to offer a robust answer to the

threats that may impact the services at CNI or the

network itself. Therefore, it has to take into account

multiple and heterogeneous input data. We have

identified three main sources: threat analysis, a

Hoz, E., Gimenez-Guzman, J., Lopez-Civera, G., Marsa-Maestre, I. and Orden, D.

TOWER: Topology Optimization for netWork Enhanced Resilience.

DOI: 10.5220/0006017101210128

In Proceedings of the 13th International Joint Conference on e-Business and Telecommunications (ICETE 2016) - Volume 1: DCNET, pages 121-128

ISBN: 978-989-758-196-0

121

multi-layer model of the network and the results

from a cyber-physical intrusion detection system. It

is important to note that, although malicious attacks

are not the only challenge to cope with in CNIs, this

type of attacks use to be the most harmful ones as

they are focused on the blockage of the network-

provided network services. In fact, there are studies

(Albert, 2000) that claim that network resilience

obeys to different structural network properties in

case of malicious attacks, human errors or natural

disasters, due to the fact that these two last ones

have a more random and distributed nature, while

the first ones (malicious attacks) are usually focused

on specific nodes that play an essential role in the

network.

The rest of the paper is organized as follows.

Section 2 presents a review of the state of the art.

Section 3 introduces multilayer networks. In Section

4, the main components and challenges of TOWER

are described. Section 5 discusses network resilience

for CNI. Section 6 presents the main concepts on

network topology adaptation that area applied in

TOWER. Finally, some conclusions and future work

are presented.

2 RELATED WORK

In the last decade, there has been a growing interest

on maximizing the resilience of CNIs. Regarding the

Internet, its vulnerability has been widely

acknowledged (DHS, 2009) (Lin, 2007), and it has

been shown in different global scale incidents, both

accidental (Zmijewski, 2009) and as a result of

malicious activities (Goldberg, 2014). Also, the role

of communication networks in critical

infrastructures has been studied, as there are

interdependences between both (Rinaldi, 2001)

(DHS, 2009). Electrical grids are one of the clearest

examples of this. On the one hand, the

communication networks rely on the power provided

by the electrical grid to work. On the other hand, and

increasingly, the electrical grid relies on the

communication networks for its proper performance,

as it is based on SCADA systems for its

management.

There are some works in different areas that can

be related to the study of resilience in complex

networks. First, mobile ad-hoc networks and

vehicular ad-hoc networks (MANET and VANET).

In these networks, nodes are constantly moving, and,

accordingly, the connectivity must evolve to deal

with this. For these scenarios, it is critical to

guarantee service continuity under this dynamicity

(Landmark, 2015) (Su, 2015) (Dietzel, 2016).

Second, delay tolerant networks (Fan, 2015), where

service interruption after power failures, attacks or

node dispersion are taken into account, has attracted

much interest and its study has been promoted by

DARPA. And last, wireless sensor networks, where

it is necessary to create resilient network topologies

able to provide connectivity even after some sensors

stop contributing as a result of a battery outage

(Younis, 2014) (Yao, 2015).

With this background, there are some works that

face resilience in critical infrastructures by

modelling them as complex networks. The closest

works to our proposal are (Shao, 2015) and

(Berezin, 2015). These works study the robustness

of complex networks under attacks targeted to the

most sensitive points of the network and are more

theoretical than the ones that we propose. While they

deal with generic complex networks, we want to

include more realistic network models. Also, we

propose to use a multi-layer network model, to

capture the features of real-world networks. Finally,

we employ optimization techniques based on

negotiation to keep network resilience in a

distributed and self-organized way.

As research on complex networks has evolved, it

has been clearer the need of going further than

monolayer graph modelling and exploring more

realistic and complex models. Multiplex or multi-

relational networks connect nodes using links that

can express different kinds of relationships (Yagan,

2012). Multilevel networks and meta-networks

enable also hierarchical structures and node and

links of different types (Carley, 2007). Recently,

(Kivelä, 2014) has presented a unified modelling for

multi-layer networks that include these concepts in a

unified manner that takes advantage of the different

mathematical tools available in the state of the art.

In the last years, there have been significant

advances on complex system optimization in

domains that could be modelled as CNIs.

Techniques potentially suited for these domains

include auctions, optimization techniques, and

negotiation protocols. Combinatorial auctions (Xia,

2005) (Sandholm, 2015) can enable large-scale

collective decision-making in nonlinear domains,

but only of limited type (i.e. negotiations consisting

solely of resource/item allocation decisions). Multi-

attribute auctions (Pham, 2015) are also aimed at a

fundamentally limited problem –purchase

negotiations– and require full revelation of

preference information. Constraint-based and other

optimization tools (Chechetka, 2006) (Davin, 2005)

offer good solutions with interdependent issues, but

DCCI 2016 - SPECIAL SESSION ON DATA COMMUNICATION FOR CRITICAL INFRASTRUCTURES

122

have not been applied to contexts with self-

interested parties, thereby ignoring strategic issues

derived from participant’s selfish behaviour. In

particular, the vast majority of these approaches

assume that agreements will be honoured (e.g. after

an auction, the winner will pay the agreed amount to

the auctioneer). In many CNIs domains, however,

this “agreement honouring” assumption cannot be

made (e.g. you can suggest network reshapes to

different network domains, but you cannot force

them to accept them).

The distributed and adaptive nature of CNIs,

along with the need to reach a consensus between

conflictive individual goals to benefit a social goal,

suggests the use of negotiation techniques. However,

most negotiation research has focused on problems

with one issue (typically price) or a few independent

issues (Ren, 2013) and are demonstrably sub-

optimal for negotiations with multiple

interdependent issues (Klein, 2003). A number of

research efforts (Marsa-Maestre, 2009) (Li, 2009)

have attempted to address this challenge, facing

serious limitations in terms of outcome optimality,

strategic stability and scalability. These three

performance indicators are key enablers for the

success of optimization systems in large real-world

CNIs infrastructures, due to their continuous

increase in network size, structural complexity and

dynamicity (Strogatz, 2001). If we want to keep

relying on these exponentially growing

infrastructures for our development as a society, new

distributed optimization mechanisms should be

devised for their management.

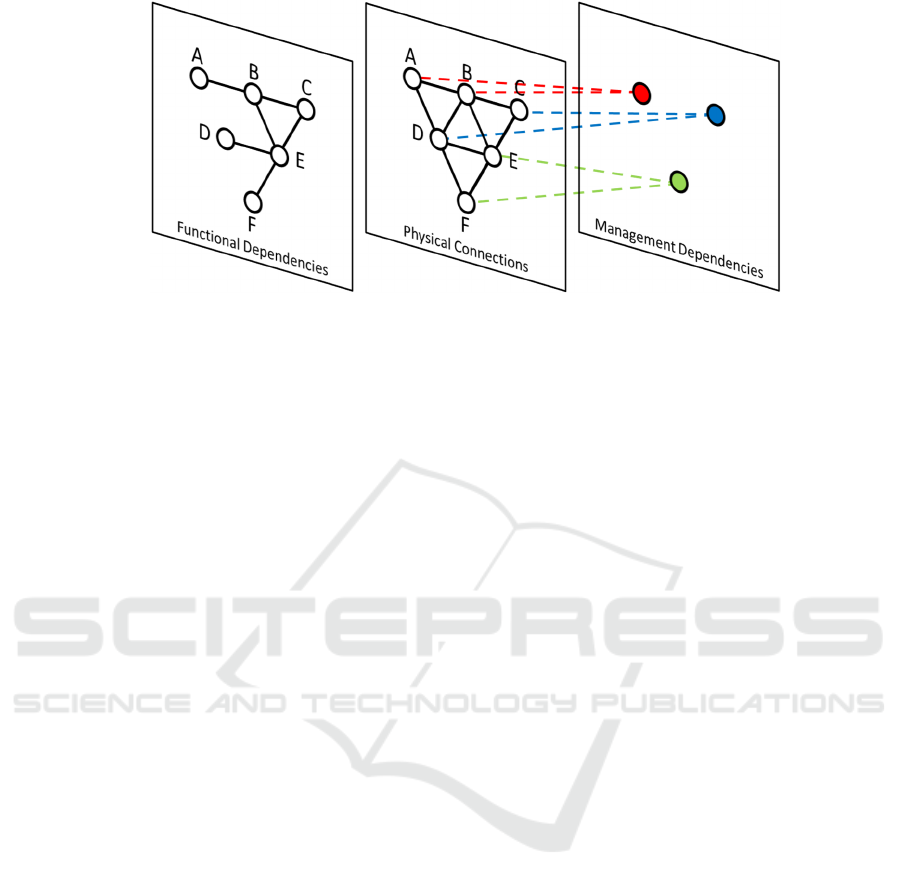

3 MULTILAYER NETWORKS

To achieve our purpose, and in order to take

effectively into account the underlying complexity

of CNI, the first step consists in modeling them by

means of multilayer graphs. Graphs have shown to

be a useful tool to model complex systems, as vertex

or nodes can be employed to represent the functional

elements of the system, while edges show the

relationships between them. However, CNIs are

usually complex networks that include intricate

relations between their elements, so a simple graph

can hardly capture these relations. For that reason,

we use multilayer graphs to account for those

relations in a more intuitive and powerful manner.

As described in (Boccaletti, 2006) (Kivelä, 2014),

multilayer networks incorporate multiple levels of

connectivity and provide a natural framework to

describe systems connected through different types

of connections: each channel (relationship, activity

or category) is represented by a layer and the same

node or entity may have different kinds of

interactions (different set of neighbors in each

layer).

As shown in Fig. 1, and for example, a

multilayer graph can be composed by different

layers that express the physical location of the

systems, the communication paths existing between

them and also the functional and management

dependencies. Apart from the more technical

aspects, characteristics like the social or corporate

dependencies present at any kind of critical

infrastructure could be also easily modeled by means

of new layers with their respective inter- and intra-

layer dependencies.

4 TOPOLOGY OPTIMIZATION

FOR NETWORK ENHANCED

RESILIENCE (TOWER)

The main objective of TOWER is to provide

adequate strategies to optimize service provision and

system resilience by taking as input the risk analysis

and alert reports and proposing a new network

topology. This topology will be oriented to offer a

robust answer to the threats that may impact the

services at the critical infrastructure or the network

that supports them. Therefore, it has to take into

account multiple and heterogeneous input data that

can be summarized into three main blocks:

1. Threat analysis: Before the TOWER module can

be deployed a threat analysis and a contingency

plan must be developed. These processes aim to

create an initial status report for the system that

provides enough information to TOWER to start

working. This analysis must include a detailed

analysis of the value, implicit risk and attack

resilience of all the assets that must be protected.

2. A multilayer network model: As described in

section 3, a multilayer network model is needed

to represent the complex system underlying to

the CNI. This transformation will enable to

express hidden dependencies between assets that

would not be covered otherwise. At the same

time, this kind of model provides a wider

perspective over the consequences of an attack as

it can show how the malicious behavior or its

consequences would spread throughout the

network (e.g. a cascading failure). This data

representation could be useful for an intrusion

prevention system to take better decisions about

TOWER: Topology Optimization for netWork Enhanced Resilience

123

Figure 1: Example of three-layer graph.

how to isolate and protect the CNI in the event of

an attack. All this process will be performed

offline, that is, before the system is fully

deployed. The model can be updated lately if

new assets are introduced in the network but a

first model must be created before the online

process begins.

3. IDS alerts: These alerts contain information

about the type of attack, its location and the

assets involved. Based on this data, TOWER will

be able to evaluate the overall status of the

network and respond accordingly. Therefore, a

consistent and meaningful communication

channel must be developed to link the cyber-

physical IDS and the recovery module.

After analyzing all this data, TOWER will

compute a network topology intended to isolate the

attack and minimize its impact. This topology will

consider the required paths that must be always

linked and make use of backup links or modified

routing paths to create new ways to reach each point

of the network. TOWER will offer a ranked list of

different topologies, ordered by a score metric. This

ranked list will provide different options for the rest

of the recovery module. Therefore, if a particular

topology cannot be deployed in the network, other

options that will also reduce the impact of an attack

should be available.

The purpose of the topology computation engine

inside TOWER is to prevent not only the direct

consequences of a loss of connectivity or a system

failure (produced by an attacker or not), but also to

avoid the cascading effects that it may produce.

Consequently, TOWER will analyze the

interdependencies that may emerge from the

network elements and the risk analysis performed

over them. All this information has to be translated

into graph elements and this is when multilayer

network modelling becomes useful for modelling all

this complexity into multiple graphs for the

representation of the existing different kinds of

dependencies between network nodes. This

relationship between the multiple layers of the

network model provides an easier way to create a

data structure for TOWER to find hidden

consequences that cannot be directly traced to a

failure in a network node.

The kind of network topology that TOWER will

compute will be highly dependent on the type of

attack detected. Different kinds of attacks will imply

a particular type of topology modification, not only

due to its location but also because of its inner

characteristics. This implies that TOWER must take

into account how the threat could spread through the

network. For example, if the infrastructure is

suffering a DDoS attack, TOWER may modify the

network by cutting the paths under attack and

reroute traffic through other alternative paths. On the

other side, if a server gets compromised, TOWER

will isolate the node and limit the communications

made by all the computers that could have been

reached from that server. Therefore, pivoting attacks

that employ accessible servers to reach the internal

network, that could not be attacked otherwise, are

also covered by the TOWER approach.

One of the main challenges TOWER will face is

the situation where updating the topology will

protect part of the network but may introduce new

threats or attack surface. Unfortunately, this is the

most common case as computer networks tend to be

highly coupled with some central nodes that manage

a large amount of traffic. The existence of these

nodes may create central points of failure which can

originate a cascading effect if they are compromised.

The purpose of the initial network topology

deployment and all modifications made to it through

TOWER is to minimize these interdependencies and

maintain the network in a resilient state.

DCCI 2016 - SPECIAL SESSION ON DATA COMMUNICATION FOR CRITICAL INFRASTRUCTURES

124

To achieve this purpose, different approaches are

being studied, but the main efforts are focused on

employing graph theory techniques to analyze the

status of the network and compute how to react

against an attack or a system malfunction. Apart

from this data representation, the progress made in

TOWER module is focused on finding relevant

graph metrics that helps to characterize the network

they model. These metrics are different than the

characteristics modelled through the use of multiple

layer networks. The layers are employed to show the

dependencies present in the network at different

levels, while these metrics describe the behavior of

the dependencies. For example, if a layer of the

network model is composed by the existing

communications flows between the nodes, a metric,

e.g. node degree, can help identifying the nodes that

are the origin or destination of the majority of the

traffic. One of the long-term purposes of our work is

to study how the network structural properties of a

problem influence the performance of optimization

and the choice of the negotiation approaches best

suited to it. To this end, we have selected a number

of graph metrics from the literature, being the

following:

1. Graph order: the number of nodes in the graph.

2. Graph diameter: the longest distance (number

of traversed edges) between any pair of nodes in

the graph (Newman, 2010).

3. Wiener index: gives a measure of graph

complexity from the distances in the graph. It is

computed as,

where |N| are the number of vertices of the graph

and d(n

, n

) is the shortest distance between

nodes (Wiener, 1947).

4. Graph density: the ratio between the number of

edges in the graph and the maximum possible

number of edges (that is, for a fully-connected

graph).

5. Clustering coefficient: a measure of the degree

to which nodes in a graph tend to cluster

together. The cluster coefficient of a graph is

computed as the average of the local clustering

coefficient of its nodes, which is the ratio

between the number of links between a node’s

neighbors and the maximum possible number of

links between them (that is, if they were fully

connected).

Another relevant type of metric are the centrality

metrics. These metrics allow to identify the most

important nodes inside a network, which can be

critical to know the most vulnerable points at each

ground station. There are a number of centrality

metrics in the literature, such as degree centrality

(Freeman, 1979), hub and authority centrality

(Chakrabarti, 1999), PageRank centrality (Brin,

1998), Katz centrality (Katz, 1953) or betweenness

centrality (Freeman, 1979) (Koschützki, 2005). In

particular, betweenness centrality of a node is the

ratio of shortest paths in the graph that traverse the

node.

In particular, due to the need for TOWER to

respond in a timely fashion to incidents, we are

testing efficient methods to approximate these

metrics, such as the ones in (Chierichetti, 2015)

(Ohara, 2014) (Kimura, 2016).

We are studying the relevance of these and other

metrics on the resilience of different kinds of

networks, and we expect to be able to derive novel

metrics and methods to detect the cascading effects

of an attack and be able to react proactively to

network intrusions. This way the system will not

only react when an attack is made but also it will

prevent the actual attacks strengthening the security

measures or creating new backup paths if needed.

Finally, another set of techniques that allow to

split a graph into multiple pieces are being studied

during the design of TOWER module. These

techniques allow to distribute the computational cost

of running complex algorithms against big scale

graphs. Clustering algorithms may be employed to

detect sets of vertex that are more tied and therefore,

should not be split when dividing the network.

Particular cautions are needed here, since this kind

of division may hide dependencies that could be

relevant when deciding how to protect the network.

Consequently, distributed computation algorithms

will be evaluated against different use cases to

explore how they impact the computation of new

topologies compared to centralized algorithms.

5 NETWORK RESILIENCE

One of the main objectives of TOWER is being able

to improve network resilience for CNI. For this to

succeed, we need a way to identify and measure

resilience in a network. In this section we will point

out the most important points that should be taken

into account.

To characterize a resilient network three levels of

functional dependencies can be identified:

1. System properties: these entities represent the

functions of the system that have to be protected

and must be working permanently.

TOWER: Topology Optimization for netWork Enhanced Resilience

125

2. System attributes: they show the characteristics

that tells us if a system property is robust enough

to resist an attack. Some examples are the

following:

1. Diversity: It tells how much different kinds

of elements are used in the network. The

more diverse the system is, the more

complex is to attack it as the adversary has

to find vulnerabilities on multiple kind of

systems. This attribute has to reach a point

where the redundancy of the system is not

compromised since redundant systems tend

to be built using the same infrastructure

employed for the replicated element.

2. Fault tolerance: Is the system able to

guarantee correct operation if the presence

of a failure? This attribute is applied to

distributed system where if a node fails, the

remaining nodes must be able to continue

working.

3. Deceptiveness: It measures how much

information can be manipulated about the

infrastructure to fool the attacker.

4. Velocity/Fluidity: this concept expresses the

level of uncertainty offered to an attacker

when he tries to attack the infrastructure.

For example, the IP address of a system can

change over time or there can be different

ways to obtain the same information from

different locations, making it harder to

identify patterns or security measures.

5. Self-stability: No matter how the system is

compromised, the reaction performed has to

lead to a stable state where the normal

operation of the infrastructure is

guaranteed.

3. Metrics: All the attributes described above

cannot be measured directly (i.e. it does not exist

a fault tolerance indicator on our systems).

Therefore, specific observations must be

performed on the infrastructure to determine the

level of fulfillment of all these attributes. For

example, to measure the diversity of the network,

we may need a system inventory where the

number of different operating systems and

versions are described.

The metrics have to be carefully chosen as they

generate the vision the system will have of the actual

status of the network. They can also be modeled as

part of the graph representation, showing the

dependencies that exist between different attributes

and metrics and the function they cover in the

infrastructure.

6 ADAPTATION OF NETWORK

TOPOLOGY

Up to this point, we have presented the main

underlying concepts and technologies to TOWER

for identifying and modelling the dependencies of a

CNI. Using this information, and taking into account

the threat model, TOWER will produce a proposal

of new network topologies. These network

topologies will be oriented to offer a robust answer

to the threats that may impact the services at CNI or

the network itself. In practice, this means that

TOWER should be able to lead the CNI from a

potentially harmful state, e.g. the preliminary steps

of an attack or early signs of a system being

compromised, to a new good state, ensuring or

minimizing the impact for the whole network. It is

when evaluating this impact, that the previous

models reveal its importance: we ensure that no

important dependence is missing. It can also be the

case that it is not possible to ensure the safe

operation of the whole network. For agreeing on the

best outcomes for all the interesting parties,

negotiation techniques, such as the one pointed out

in section 2, can be used.

We also need to know how to reach a specific

state. To do so, we need to model the viable

transitions that exist between states, describing

which methods or procedures have to be employed

to get to that state. These transitions can also be

modeled as a graph where the nodes represent the

states the system can be and the edges show how to

go from one state to another. To decide which path

to follow inside this transition graph a decision

system has to be developed. This system has to

come up with the decision of which the best way is

for protecting the network and the actions that have

to be taken to reach a stable state that can guarantee

the normal operation of the system.

To do so, first we need to perform an exhaustive

enumeration of the states the system could be at.

Since the computational cost of this enumeration

process can exceed the time requirements of the

platform, clustering techniques may be applied

during offline pre-computation to reduce the number

of nodes in the graph. Apart from the normal or

working states of the system, we need also to model

the states where the system is compromised.

Therefore, we need to create also “bad” states that

account for an attacker getting inside the network,

with different degrees of success. These states must

be based on the risk analysis used as input to the

TOWER module. Using these compromised states,

the system would be able to predict a malicious

DCCI 2016 - SPECIAL SESSION ON DATA COMMUNICATION FOR CRITICAL INFRASTRUCTURES

126

behavior based on the preliminary states that can

lead to the actual attack. For example, typically

reconnaissance techniques are performed before

launching an attack, thus if a port scan alert is

received it can be mapped to a prior-attack state that

can trigger preemptive security measures. Moreover,

post-attack states will be also included in the

enumeration as they can show how an attack could

have cascading effects on multiple elements of the

network. This analysis will help to choose the

appropriate reaction method and also to determine

the coverage of the response action.

Once these states are modeled, the next step

consists on determining the current status of the

system. In order to do so, a method that maps the

information collected from the alerts to one of the

states generated before has to be developed. To

achieve this purpose, clustering techniques can also

be employed, as they can compute the nearest or

more similar state.

Once we know the condition of the system, we

have translated it to an actual state node in our graph

and we know the transitions we can employ to travel

the graph from that node; we are ready to continue.

The final step is to compute the path we have to

follow to a better state. Distributed agent-based

decision systems are being studied to solve this

problem. This kind of systems allow to get a

response even in the case where a particular action

may only benefit part of the infrastructure. This way

the overall operation of the infrastructure is

guaranteed even if part of it has to be partially

harmed during the transition.

Game theory (Myerson, 2013) techniques are

also being applied to model the behavior of an

adversarial attack and predict how he can breach

into the system, taking additional security measures

at weak points. Therefore, we can also model the

steps an attacker can take to compromise the

systems and identify if the infrastructure actual state

is leading to one of them, preventing further

consequences. These techniques help also to reduce

the amount of information that an attacker can

obtain from the system, as this information is the

input for the algorithm.

7 CONCLUSIONS

This paper presents TOWER (Topology

Optimization for netWork Enhanced Resilience), a

decision support system intended to provide

topology alternatives in Critical Network

Infrastructures (CNI), so that the impact of an attack

on data communication is mitigated. The system

operates from a multilayer network model of the

asset inventory of the CNI, which specifies the

dependencies between nodes and the associated

risks, and is able to react to network incidents

(modeled as perturbations in the network) by

providing a ranked set of alternative topologies

maximizing network resiliency. We discuss the most

important design principles behind TOWER and

finally, point out some research lines and ideas that

will guide future TOWER development.

ACKNOWLEDGEMENTS

This work was partially supported by SCOUT, a

research project supported by the European

Commission under its 7th Framework Program

(contract-no. 607019). The views and conclusions

contained herein are those of the authors and should

not be interpreted as necessarily representing the

official policies or endorsements, either expressed or

implied, of the SCOUT project or the European

Commission.

REFERENCES

Albert, R. Error and attack tolerance of complex

networks. Nature, 406(6794), 378-382.

Berezin, Y. “Localized attacks on spatially embedded

networks with dependencies,” Scientific reports 5.

Boccaletti, S., Latora, V., Moreno, Y., Chavez, M. and

Hwang, D. U. Complex networks: Structure and

dynamics. Physics reports, 424(4), 175-308. (2006).

Brin, S. and Page, L.: The anatomy of a large-scale

hypertextual web search engine. Computer Networks

and ISDN Systems 30, 107–117 (1998).

Carley, K.M. "Toward an interoperable dynamic network

analysis toolkit." Decis. Support Syst., 43, 1324–1347.

(2007).

Chakrabarti, S., Dom, B., Kumar, R., Raghavan, P.,

Rajagopalan, S., Tomkins, A., Gibson, and D.,

Kleinberg, J.: Mining the web’s link structure. IEEE

Computer 32, 60–67 (1999).

Chechetka, A. and K. Sycara, No-commitment branch and

bound search for distributed constraint optimization.

AAMAS International Conference. Hakodate, Japan.

(2006).

Chierichetti, F., Epasto, A., Kumar, R., Lattanzi, and S.,

Mirrokni, V.: Efficient algorithms for public-private

social networks. In: Proceedings of the 21st

ACMSIGKDD International Conference on

Knowledge Discovery and Data Mining (KDD’15).

pp. 139–148 (2015).

TOWER: Topology Optimization for netWork Enhanced Resilience

127

Davin, J. and Modi, P.J. Impact of problem centralization

in distributed constraint optimization algorithms.

AAMAS International Conference. (2005).

DHS, A Roadmap for Cybersecurity Research, Technical

Report, Department of Homeland Security (DHS).

(2009).

Davin, K. Impact of problem centralization in distributed

constraint optimization algorithms. In Proceedings of

The 4th International Conference on Autonomous

Agents and Multiagent Systems AAMAS. (2005).

Dietzel, S. A resilient in-network aggregation mechanism

for VANETs based on dissemination redundancy, Ad

Hoc Networks 37, 101-109. (2016).

Fan, R. RobustGeo: A Disruption-Tolerant Geo-Routing

Protocol, 24th International Conference on Computer

Communication and Networks (ICCCN). (2015).

Freeman, L.: Centrality in social networks: Conceptual

clarification. Social Networks 1, 215–239 (1979).

Goldberg, S. Why is it taking so long to secure internet

routing? Communications of the ACM, 57(10), 56-63.

(2014).

Katz, L. A New Status Index Derived from Sociometric

Index. Psychometrika, 39-43. (1953).

Kimura, M., Saito, K., Ohara, K., and Motoda, H.:

Speeding-up node influence computation for huge

social networks. International Journal of Data Science

and Analytics 1, 1–14 (2016).

Kivelä, M. Multilayer networks, Journal of Complex

Networks, 2(3), 203-271. (2014).

Klein, M., P. Faratin, H. Sayama and Y. Bar-Yam.

Negotiating Complex Contracts. Group Decision and

Negotiation 12(2), 111 - 125. (2003).

Koschützki, D., Lehmann, K.A, Peeters, L., Richter, S.

Tenfelde-Podehl, D. and Zlotowski, O.. Centrality

indices. Network analysis. Lecture Notes in Computer

Science. 3418:16–61, (2005).

Landmark, L. Resilient internetwork routing over

heterogeneous mobile military networks, IEEE

Military Communications Conference (MILCOM),

388-394. (2015).

Li, M., Q. B. Vo and R. Kowalczyk Searching for fair

joint gains in agent-based negotiation. Autonomous

Agents and Multi-agent Systems (AAMAS-09). (2009).

Lin, H. S. and Goodman S. E. Toward a Safer and More

Secure Cyberspace, National Academies Press (2007).

Marsa-Maestre, I., Lopez-Carmona, M. A., Velasco, J. R.,

and de la Hoz, E. Effective bidding and deal

identification for negotiations in highly nonlinear

scenarios. In Proceedings of The 8th International

Conference on Autonomous Agents and Multiagent

Systems 2, 1057-1064. (2009).

Myerson, Roger B. Game theory. Harvard university

press, (2013).

Newman, M. Networks: an introduction. Oxford

University Press, (2010).

Ohara, K., Saito, K., Kimura, and M., Motoda, H.:

Resampling-based framework for estimating node

centrality of large social network. In: Proceedings of

the 17th International Conference on Discovery

Science (DS’14). pp. 228–239. LNAI 8777 (2014).

Pham, L., Teich, J., Wallenius, H., and Wallenius, J.

Multi-attribute online reverse auctions: Recent

research trends. European Journal of Operational

Research, 242(1), 1-9. (2015).

Ren, F., and Zhang, M. Bilateral single-issue negotiation

model considering nonlinear utility and time

constraint. Decision Support Systems. 60, 29-38.

(2013).

Rinaldi, S.M. Identifying, understanding and analyzing

critical infrastructures interdependencies, IEEE

Control Systems Magazine, 21(6), 11-25. (2001).

Sandholm, T., and Likhodedov, A. Automated design of

revenue-maximizing combinatorial auctions.

Operations Research, 63(5), 1000-1025. (2015).

Shao, S. Percolation of localized attack on complex

networks, New Journal of Physics, 17, 023049.

(2015).

Smith, P. Network resilience: a systematic approach, IEEE

Communications Magazine, 49(7), 88-97. (2011).

Strogatz, S. H. Exploring complex networks. Nature,

410(6825), 268-276. (2001).

Su, M.Y. A resilient routing approach for Mobile Ad Hoc

Networks, International Conference on High

Performance Computing & Simulation (HPCS).

(2015).

Wiener, H. Structural determination of paraffin boiling

points. Journal of the American Chemical Society,

69(1):17–20, (1947).

Xia, M., Stallaert, J. and A. B. Whinston. Solving the

combinatorial double auction problem. European

Journal of Operational Research 164(1), 239-251.

(2005).

Yağan, O. and Gligor, V. Analysis of complex contagions

in random multiplex networks. Physical Review E,

86(3), 036103. (2012).

Yao,Y. EDAL: An Energy-Efficient, Delay-Aware, and

Lifetime-Balancing Data Collection Protocol for

Heterogeneous Wireless Sensor Networks, in

IEEE/ACM Transactions on Networking, 23(3), 810-

823. (2015).

Younis, M. Topology management techniques for

tolerating node failures in wireless sensor networks: A

survey, Computer Networks, 58, 254-283. (2014).

Zmijewski, Reckless Driving on the Internet,

http://research.dyn.com/2009/02/the-flap-heard-around

-the-world/ .(2009).

DCCI 2016 - SPECIAL SESSION ON DATA COMMUNICATION FOR CRITICAL INFRASTRUCTURES

128
