EvoloPy: An Open-source Nature-inspired Optimization Framework in
Python
Hossam Faris
1
, Ibrahim Aljarah
1
, Seyedali Mirjalili
2
, Pedro A. Castillo
3
and Juan J. Merelo
3
1
Department of Business Information Technology, King Abdullah II School for Information Technology,
The University of Jordan, Amman, Jordan
2
School of Information and Communication Technology, Griffith University, Nathan, Brisbane, QLD 4111, Australia
3
ETSIIT-CITIC, University of Granada, Granada, Spain
Keywords:
Evolutionary, Swarm Optimization, Metaheuristic, Optimization, Python, Framework.
Abstract:
EvoloPy is an open source and cross-platform Python framework that implements a wide range of classical
and recent nature-inspired metaheuristic algorithms. The goal of this framework is to facilitate the use of
metaheuristic algorithms by non-specialists coming from different domains. With a simple interface and
minimal dependencies, it is easier for researchers and practitioners to utilize EvoloPy for optimizing and
benchmarking their own defined problems using the most powerful metaheuristic optimizers in the literature.
This framework facilitates designing new algorithms or improving, hybridizing and analyzing the current ones.
The source code of EvoloPy is publicly available at GitHub (https://github.com/7ossam81/EvoloPy).
1 INTRODUCTION
In general, nature-inspired algorithms are population-
based metaheuristics which are inspired by different
phenomena in nature. Due to their stochastic and non-
deterministic nature, there has been a growing interest
in investigating their applications for solving complex
problems when the search space is extremely large
and when it is impossible to solve them with conven-
tional search methods (Yang, 2013).
In general, nature-inspired algorithms can fall into
two main categories: Swarm Intelligence and Evolu-
tionary Algorithms. Swarm intelligence algorithms
simulate the natural swarms such as flocks of birds,
ant colonies, and schools of fishes. Popular algo-
rithms that fall in this category are Particle Swarm
Optimization (PSO) (Kennedy and Eberhart, 1995),
and Ant Colony Optimization (ACO) (Koro
ˇ
sec and
ˇ
Silc, 2009). More recent Swarm intelligence algo-
rithms include Cuckoo Search (CS) (Yang and Deb,
2009), Grey Wolf Optimizer (GWO) (Mirjalili et al.,
2014), Multi-Verse Optimizer (MVO) (Mirjalili et al.,
2016), Moth-flame optimization (MFO) (Mirjalili,
2015), Whale Optimization Algorithm (WOA) (Mir-
jalili and Lewis, 2016), Bat Algorithm (BAT) (Yang,
2010b), Firefly Algorithm (FFA) (Yang, 2010a), and
many others. Most of Swarm intelligence algorithms
reach the best solution by exchanging the information
between the swarm’s individuals.
On the other hand, evolutionary-based algorithms
are inspired by some concepts from the Darwinian
theory about evolution and natural selection. Such
algorithms include Genetic algorithm (GA) (Hol-
land, 1992), Genetic Programming (GP)(Koza, 1992),
and Evolution Strategy (ES) (Beyer and Schwefel,
2002). These algorithms maintain different strategies
to evolve and find good solutions for difficult prob-
lems based on evolutionary operators like mutation,
crossover and elitism.
An important twist in the research field was made
when the No Free Lunch Theorem (NFL) was re-
leased (Wolpert and Macready, 1997; Ho and Pepyne,
2002). NFL states that no algorithm is superior to
all other algorithms when considering all optimiza-
tion problems. This means that if an algorithm A out-
performs another algorithm B on some type of opti-
mization problems then algorithm B outperforms A
in another types of problems. Since the release of
NFL, researchers and practitioners have developed
a wide range of metaheuristic algorithms and inves-
tigated their applications in different types of chal-
lenging optimization problems. In the last decade,
most of the researchers implemented and shared their
proposed optimizers in Matlab (Yang, 2010a; Yang,
2010b; Mirjalili et al., 2014; Mirjalili, 2015). This is
due to its simplicity and ease of use. However, Matlab
Faris, H., Aljarah, I., Mirjalili, S., Castillo, P. and Merelo, J.
EvoloPy: An Open-source Nature-inspired Optimization Framework in Python.
DOI: 10.5220/0006048201710177
In Proceedings of the 8th International Joint Conference on Computational Intelligence (IJCCI 2016) - Volume 1: ECTA, pages 171-177
ISBN: 978-989-758-201-1
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
171
is a commercial and expensive software and portabil-
ity is a big issue.
In this paper, we introduce EvoloPy which is
a framework written in Python that provides well-
regarded and recent nature-inspired optimizers. The
goal of the framework is to take the advantage of
the rapidly growing scientific community of Python
and provide a set of robust optimizers as free and
open source software. We believe that implementing
such algorithms in Python will increase their popular-
ity and portability among researchers. Moreover, the
powerful libraries and packages available in Python
will make it more feasible to apply metaheuristic al-
gorithms for solving complex problems on a much
higher scale.
2 RELATED WORK
Today, many different nature-inspired optimization li-
braries and frameworks are available. Some of them
are developed for special type of nature-inspired op-
timization like GEATbx (Hartmut Pohlheim, 2006),
which is a framework that contains many variants
of the Genetic Algorithms, and Genetic Program-
ming. GEATbx is implemented in MATLAB envi-
ronment and provides many global optimization ca-
pabilities. The authors in (Matthew Wall, 1996) de-
veloped GAlib library, which contains a set of C++
genetic algorithm tools and operators for different op-
timization problems. In addtion, GAlib is built on
UNIX platforms and is implemented to support dis-
tributed/parallel environments.
In (Fortin et al., 2012), the authors developed a
novel evolutionary computation Python framework
called DEAP to simplify the execution of many op-
timization ideas with parallelization features. The
DEAP Framework includes many nature-inspired al-
gorithms with different variations such as: GA, GP,
ES, PSO, Differential Evolution (DE), and multi-
objective optimization. In addition, DEAP includes
Benchmarks modules containing many test functions
for evaluations. In (Wagner and Affenzeller, 2004),
the authors present a generic optimization environ-
ment named HeuristicLab, which is implemented
using C# language. HeuristicLab is a framework
for heuristic, evolutionary algorithms, and machine
learning. HeuristicLab includes many algorithms
such as: Genetic Programming, Age-layered Popu-
lation, Structure (ALPS), Evolution Strategy, Genetic
Algorithm, Island Genetic Algorithm, Particle Swarm
Optimization, Relevant Alleles Preserving GA, and
many others.
In (Durillo and Nebro, 2011), jMetal is devel-
oped, which is a framework that contains many meta-
heuristic algorithms implemented in Java language.
The authors employ the object-oriented architecture
to develop the framework. jMetal includes many
features such as: multi-objective algorithms, paral-
lel algorithms, constrained problems, and different
representations of the problem variables. In (Ca-
hon et al., 2004; Humeau et al., 2013), the authors
present a white-box object-oriented framework called
ParadisEO. ParadisEO is developed by integrating
Evolving Objects (EO) - which is an C++ evolution-
ary computation framework - and many distributed
metaheuristics including local searches (LS), and hy-
bridization mechanisms.
Most of the existing optimization and metaheuris-
tic based frameworks include classical evolutionary
and nature-inspired algorithms such as: GA, GP, PSO
and ES. However few of them implement recent meta-
heuristic algorithms. In contrast to previous frame-
works, we propose our framework as an initiative to
keep an implementation of the recent nature-inspired
metaheuristics as well as the classical and well re-
garded ones in a single open source framework. To
the best of our knowledge, EvoloPy framework is the
first tool that implements most of these algorithms in
Python language. EvoloPy is designed in an efficient
way to solve computationally expensive optimization
functions with very high dimensions.
Our own research group has been involved on the
development of many metaheuristic libraries, from
EO (Merelo-Guerv
´
os et al., 2000) to, lately, Algo-
rithm::Evolutionary (Merelo-Guervs et al., 2010) and
NodEO (Merelo Guerv
´
os, 2014). These libraries have
been mainly focused on evolutionary algorithms. The
library we present in this paper has a wider breadth
and, besides explores the possibilities of a new lan-
guage, Python. We will explain this election next.
3 WHY PYTHON?
Python is a general purpose scripting language which
has a clear and simple syntax. With the rapid de-
velopment of mature, advanced and open source sci-
entific computing libraries and packages, Python be-
came as one of the most popular and powerful lan-
guages for scientific computing. Moreover, Python
has cross-platform runability, which works with dif-
ferent operating systems, and has ability to access li-
braries written in different programming languages
and computing environments. Python also can sup-
port small-form devices, embedded systems, and mi-
crocontrollers. In addition, Python needs very mini-
mal setup procedure to start with. Python uses modu-
ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications
172
lar and object based programming, which is a popular
methodology to organize classes, functions, and pro-
cedures into hierarchical namespaces. All these rea-
sons have turned Python to be a popular language in
a huge community of scientists.

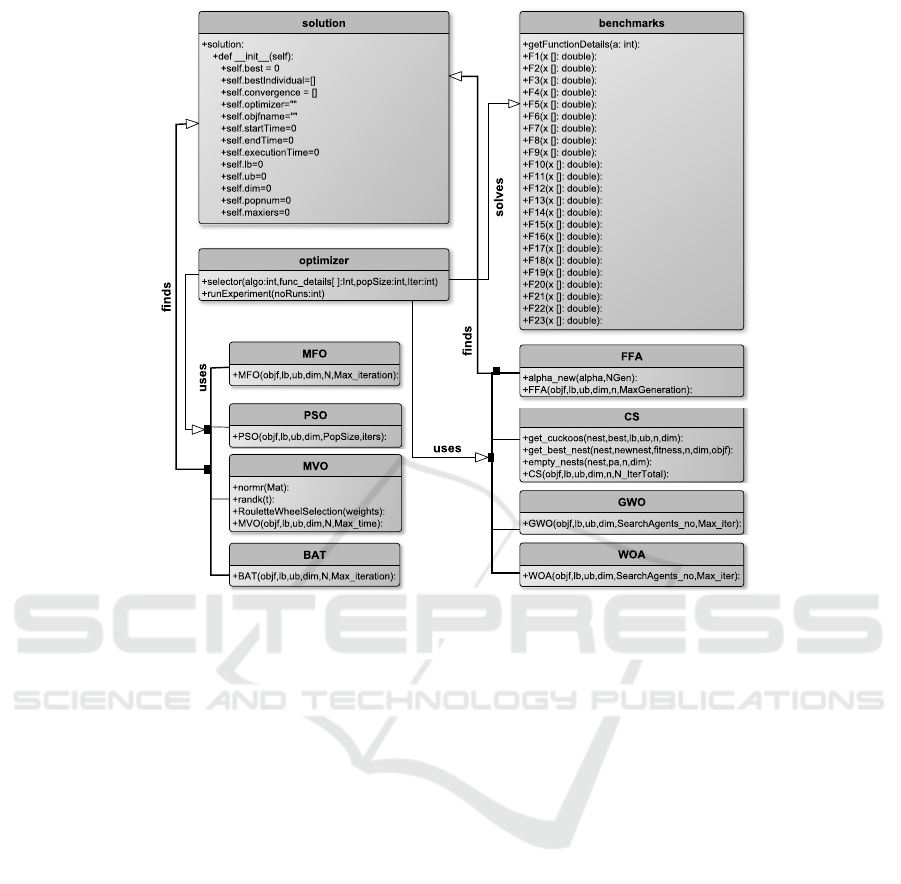

4 FRAMEWORK OVERVIEW
EvoloPy provides a set of classical and recent nature-
inspired metaheuristic optimizers with an easy-to-use
interface. The framework incorporates four main
components which are described as follows:
The Optimizer: this is the main interface of the
framework in which the users can select a list of
optimizers to run in their experiment. Using this
interface, the user can configure common parame-
ters for the algorithms like the maximum number
of iterations for each run, the size of the popula-
tion and the number of runs. In addition, a list of
benchmark problems can be selected.
The metaheuristic algorithms: simply this part in-
cludes the list of implemented optimizers in the
framework. At the time of writing this paper,
the following eight algorithms have been imple-
mented:
Particle Swarm Optimization (PSO)
Firefly Algorithm (FFA) (Yang, 2010a)
Gray Wolf Optimizer (GWO)(Mirjalili et al.,
2014)
Whale Optimization Algorithm (WOA) (Mir-
jalili and Lewis, 2016)
Multi-Verse Optimizer (MVO) (Mirjalili et al.,
2016)
Moth Flame Optimizer (MFO) (Mirjalili, 2015)
Bat Algorithm (BAT) (Yang, 2010b)
Cuckoo Search Algorithm (CS) (Yang and Deb,
2009)
Benchmark functions and problem definitions:
This part includes a set of benchmark problems
commonly used in the literature for the purpose
of comparing different metaheuristic algorithms.
Any new user-defined cost function could be
added to this list.
Results management: this component is responsi-
ble for exporting the results and storing them in
one common CSV file.
5 DESIGN ISSUES
Most of nature-inspired metaheuristics are
population-based algorithms. These algorithms
start by randomly initializing a set of individuals
each of which represents a candidate solution.
Conventionally, in most of state-of-art evolutionary
algorithms frameworks, populations are implemented
as 2-dimensional arrays while individuals are im-
plemented as 1-dimensional arrays. For example an
individual I and a population P can be represented as
given in equations 1 and 2.
I
i
= [
x
1
i
x
2
i
... x
d
i
] (1)
P =
x
1
1
x
2
1
... x
d
1
x
1
2
x
2
2
... x
d
2
.
.
.
.
.
.
.
.
.
.
.
.
x
1
n
x
2
n
... x
d
n
(2)
In EvoloPy, Numpy is chosen to define and repre-
sent the populations and individuals in the optimizers.
Numpy is an open-source extension to Python that pro-
vides common scientific computing and mathematical
routines as pre-compiled and fast functions. NumPy
also supports large multidimensional arrays and ma-
trices and it offers a varied range of functions to han-
dle and perform common operations on these arrays.
Numpy has many things in common with Matlab. This
makes it easier for researchers who are familiar with
Matlab to use EvoloPy.
The core data structure ndarray (abbreviation for
N-dimensional array) in Numpy is used to define 1-
dimensional and 2-dimensional arrays that represent
individuals and populations, respectively. For exam-
ple, to define a randomly generated initial population
with 50 individuals and 100 dimensions the following
python line of code can be used
initialPop = np.random.rand(50,100)
Moreover, with Numpy it is possible to perform
vector operations in simple and compact syntax. For
example, one of the common operations used in many
metaheuristic algorithms is to check the boundaries of
the elements of the individuals after updating them.
This can be performed all at once with Numpy as fol-
lows:
newPop=numpy.clip(oldPop, lb, ub)
Where lb and ub are the upper and lower bounds
respectively.
To demonstrate the main components of EvoloPy
framework we use the UML representation. A class
diagram illustrating the EvoloPy components and
their relationships is presented in Figure 1. The
EvoloPy framework consists of eleven classes, three
EvoloPy: An Open-source Nature-inspired Optimization Framework in Python
173
Figure 1: Class diagram of the EvoloPy framework.
of them for coordinating and simplifying the opti-
mization process, namely; optimizer, benchmarks,
and solution. On the other hand, the other eight
classes represent the actual nature-inspired optimiz-
ers. The core flow of EvoloPy relies in that an op-
timizer solves a benchmark using one or more opti-
mizers to find global solutions. We have used generic
classes names in the framework in order to make it
very easy to flow and general enough to be modified
and usable.
6 COMPARISON WITH MATLAB
In this section we compare the metaheuristic algo-
rithms implemented so far in EvoloPy with their peers
in Matlab based on their running time. The idea
here is to measure the running time of the main loop
of each algorithm in EvoloPy and Matlab with an
equal number of function evaluations. The experi-
ments were performed on a personal machine with
an Intel(R) Core(TM) i5-2400 CPU at 3.10Ghz and
a memory of 4 GB running Windows 7 professional
32bit operating system. In all experiments, the popu-
lation size and the number of iterations were set to 50,
and 100, respectively for all algorithms. In order to
study the effect of the size of the problem on the run-
ning time of the algorithms, all optimizer were exe-
cuted using different dimension lengths ranging from
a small number of 50 elements reaching up to 20,000
in both implementations, Matlab and EvoloPy. Note
that the dimension length here indicates the number
of elements in a single individual or in another words,
the number of variables in the objective function. All
optimizers were applied to minimize the unimodal
function given in Equation 3.
f (x) =
n1
i=0
(
i1
j=0
x
j
)
2
(3)
The results of EvoloPy and Matlab implementa-
tions are shown in Figure 2. It can be noticed that
with small dimension sizes there is no significant dif-
ference in the running time between the two imple-
mentations. In most of the optimizers and up to a di-
mension size of 500 the running time was less than
250 second. However, for higher sizes, the difference
in the running time remarkably increases. On a di-
mension length of 20,000 the ratio is around 1:2 for
most of the optimizers.
The efficient running time of EvoloPy compared
to Matlab implementation when applied for solving
problems with large number of variables can be ex-
ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications
174

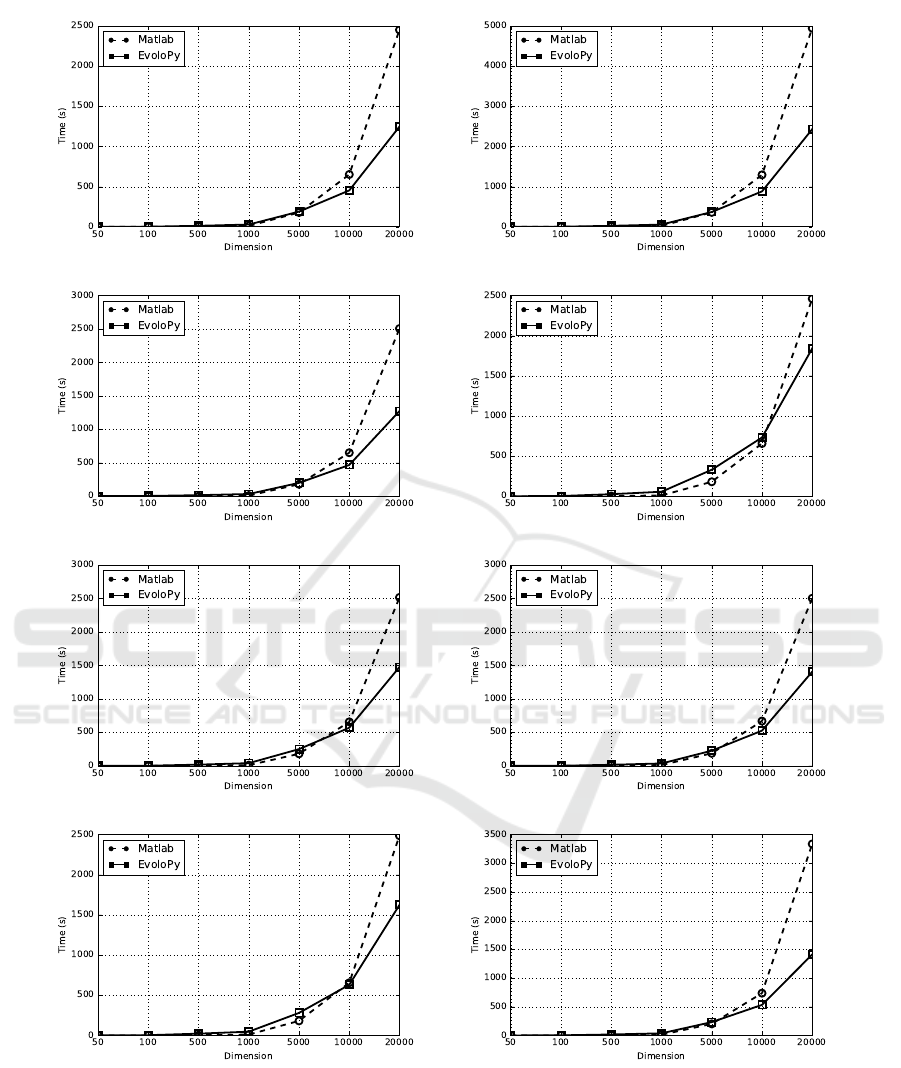

(a) BAT (b) CS
(c) FFA (d) GWO
(e) MFO (f) MVO
(g) PSO (h) WOA
Figure 2: Comparison of running time between the metaheuristic optimizers in EvoloPy and Matlab based on the running
time of the main iteration.
plained due to the use of the powerful N-dimensional
array object NumPY to represent individuals and popu-
lations.
7 CONCLUSIONS AND FUTURE
WORK
EvoloPy is a framework written in Python that pro-
vides and maintains classical and recent nature-
EvoloPy: An Open-source Nature-inspired Optimization Framework in Python
175
inspired metaheuristic algorithms. Being coded in
Python with its NumPy extension, the implemented
algorithms are boosted by the powerful and efficient
multi-dimensional objects. In comparison with Mat-
lab, EvoloPy shows more efficiency in terms of run-
ning time for problems with high dimension and large
number of variables. This proves that the open source
tool Python should be considered over and preferably
other proprietary tools for carrying out experiments in
metaheuristics, and, for that matter, scientific comput-
ing in general, because besides being free and gratis,
it offers better efficiency and, inherently to its open
source nature, reproducibility.
The first steps after this paper will be to carry out
a profiling of the tool to identify inefficiencies and
make it run faster. After that, more recent and robust
metaheuristic algorithms are planned to be added to
the framework. It is also interesting to expand the
experiments presented in this paper to include a com-
parison with Matlab or other implementations based
on more challenging and sophisticated optimization
functions rather than simple ones.
ACKNOWLEDGEMENTS
This paper has been supported in part by
http://geneura.wordpress.comGeNeura Team,
projects TIN2014-56494-C4-3-P (Spanish Ministry
of Economy and Competitiveness).
REFERENCES
Beyer, H.-G. and Schwefel, H.-P. (2002). Evolution strate-
gies a comprehensive introduction. Natural Com-
puting, 1(1):3–52.
Cahon, S., Melab, N., and Talbi, E.-G. (2004). Par-
adiseo: A framework for the reusable design of paral-
lel and distributed metaheuristics. Journal of Heuris-
tics, 10(3):357–380.
Durillo, J. J. and Nebro, A. J. (2011). jmetal: A java frame-
work for multi-objective optimization. Advances in
Engineering Software, 42:760–771.
Fortin, F.-A., De Rainville, F.-M., Gardner, M.-A., Parizeau,
M., and Gagn
´
e, C. (2012). DEAP: Evolutionary algo-
rithms made easy. Journal of Machine Learning Re-
search, 13:2171–2175.
Hartmut Pohlheim (2006). Geatbx - the genetic and evolu-
tionary algorithm toolbox for matlab.
Ho, Y.-C. and Pepyne, D. L. (2002). Simple explana-
tion of the no-free-lunch theorem and its implica-
tions. Journal of optimization theory and applications,
115(3):549–570.
Holland, J. (1992). Genetic algorithms. Scientific American,
pages 66–72.
Humeau, J., Liefooghe, A., Talbi, E.-G., and Verel, S.
(2013). ParadisEO-MO: From Fitness Landscape
Analysis to Efficient Local Search Algorithms. Re-
search Report RR-7871, INRIA.
Kennedy, J. and Eberhart, R. (1995). Particle swarm op-
timization. In Neural Networks, 1995. Proceedings.,
IEEE International Conference on, volume 4, pages
1942–1948 vol.4.
Koro
ˇ
sec, P. and
ˇ
Silc, J. (2009). A distributed ant-based al-
gorithm for numerical optimization. In Proceedings
of the 2009 workshop on Bio-inspired algorithms for
distributed systems - BADS 09. Association for Com-
puting Machinery (ACM).
Koza, J. R. (1992). Genetic Programming: On the Pro-
gramming of Computers by Means of Natural Selec-
tion. MIT Press, Cambridge, MA, USA.
Matthew Wall (1996). Galib: A c++ library of genetic al-
gorithm components.
Merelo Guerv
´
os, J. J. (2014). NodEO, a evo-
lutionary algorithm library in Node. Tech-
nical report, GeNeura group. Available at
http://figshare.com/articles/nodeo/972892.
Merelo-Guerv
´
os, J.-J., Arenas, M. G., Carpio, J., Castillo,
P., Rivas, V. M., Romero, G., and Schoenauer, M.
(2000). Evolving objects. In Wang, P. P., editor,
Proc. JCIS 2000 (Joint Conference on Information
Sciences), volume I, pages 1083–1086. ISBN: 0-
9643456-9-2.
Merelo-Guervs, J.-J., Castillo, P.-A., and Alba, E. (2010).
Algorithm::Evolutionary, a flexible Perl mod-
ule for evolutionary computation. Soft Computing,
14(10):1091–1109. Accesible at http://sl.ugr.es/000K.
Mirjalili, S. (2015). Moth-flame optimization algorithm: A
novel nature-inspired heuristic paradigm. Knowledge-
Based Systems, 89:228 – 249.
Mirjalili, S. and Lewis, A. (2016). The whale optimization
algorithm. Advances in Engineering Software, 95:51
– 67.
Mirjalili, S., Mirjalili, S. M., and Hatamlou, A. (2016).
Multi-verse optimizer: a nature-inspired algorithm for
global optimization. Neural Computing and Applica-
tions, 27(2):495–513.
Mirjalili, S., Mirjalili, S. M., and Lewis, A. (2014). Grey
wolf optimizer. Advances in Engineering Software,
69:46 – 61.
Wagner, S. and Affenzeller, M. (2004). The heuristiclab op-
timization environment. Technical report, University
of Applied Sciences Upper Austria.
Wolpert, D. H. and Macready, W. G. (1997). No free lunch
theorems for optimization. Evolutionary Computa-
tion, IEEE Transactions on, 1(1):67–82.
Yang, X.-S. (2010a). Firefly algorithm, stochastic test func-
tions and design optimisation. Int. J. Bio-Inspired
Comput., 2(2):78–84.
Yang, X.-S. (2010b). A new metaheuristic bat-inspired
algorithm. In Gonz
´
alez, J. R., Pelta, D. A., Cruz,
C., Terrazas, G., and Krasnogor, N., editors, Na-
ture Inspired Cooperative Strategies for Optimiza-
tion (NICSO 2010), pages 65–74, Berlin, Heidelberg.
Springer Berlin Heidelberg.
Yang, X.-S. (2013). Metaheuristic optimization: Nature-
inspired algorithms and applications. In Studies in
ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications
176
Computational Intelligence, pages 405–420. Springer
Science Business Media.
Yang, X. S. and Deb, S. (2009). Cuckoo search via levy
flights. In Nature Biologically Inspired Computing,
2009. NaBIC 2009. World Congress on, pages 210–
214.
EvoloPy: An Open-source Nature-inspired Optimization Framework in Python
177
