Evolving Art using Aesthetic Analogies

Evolutionary Supervised Learning to Generate Art with Grammatical Evolution

Aidan Breen and Colm O’Riordan

Computational Intelligence Research Group, National University of Ireland Galway, Galway, Ireland

Keywords:

Genetic Algorithms, Evolutionary Art and Design, Genetic Programming, Hybrid Systems, Computational

Analogy, Aesthetics.

Abstract:

In this paper we describe an evolutionary approach using models of human aesthetic experience to evolve

expressions capable of generating real-time aesthetic analogies between two different artistic domains. We

outline a conceptual structure used to deﬁne aesthetic analogies and guide the collection of empirical data

used to build aesthetic models. We also present a Grammatical Evolution based system making use of aes-

thetic models with a heuristic based ﬁtness calculation approach to evaluate evolved expressions. We demon-

strate a working model that has been designed to implement this system and use the evolved expressions to

generate real-time aesthetic analogies with input music and output visuals. With this system we can generate

novel artistic visual displays, similar to a light show at a music concert, which can react to the musician’s

performance in real-time.

1 INTRODUCTION

Analogy is the comparison of separate domains. The

process of analogy has strong applications in com-

munication, logical reasoning, and creativity. A hu-

man artist will often take some source material as

inspiration and create an equivalent, or related art

piece in their chosen artistic domain. This process of

metaphor is the equivalent of making an artistic anal-

ogy and has been used successfully in a literal form by

artists like Klee (Klee, 1925), Kandinsky (Kandinsky

and Rebay, 1947) and more recently Snibbe (Snibbe

and Levin, 2000). Similar approaches are often taken

in a less direct form by stage lighting designers or ﬁlm

soundtrack composers.

Our aim is to make computational analogies be-

tween the domains of music and visuals by making

use of aesthetic models, computational analogy, and

grammatical evolution.

This work has direct practical applications for live

performance and stage lighting design. The work in

this paper may also have less direct applications in

user interface and user experience design with par-

ticular use in the automatic generation of user inter-

faces and subconscious feedback mechanisms. Be-

yond these application domains, our research motiva-

tion also includes gaining insight into aesthetics and

analogical reasoning.

1.1 Creating Aesthetic Analogies

One of the major challenges of computational art is to

understand what makes an art piece good. Indeed the

cultural and contextual inﬂuences of an art piece may

deﬁne what makes it emotive, such as Duchamp’s

Fountain (Cameld, 1990) or Ren Magritte’s The

Treachery of Images (Magritte, 1928), but beyond

that we rely on the aesthetics of an object to decide

if it is pleasurable to perceive. Aesthetics provide an

objective description of this perception. We use this

objective description as a tool upon which to build our

analogies.

Every domain has its own aesthetic measures —

musical harmony, visual symmetry, rhythm and com-

binations thereof. In some cases, these measures can

be used to describe objects in more than one do-

main. Symmetry, for example, can describe both a

visual image, and a phrase of music. The example we

demonstrate in this paper is harmony. Musical har-

mony can be measured by the consonance or disso-

nance of musical notes. Visual harmony can be mea-

sured directly as the harmony of colours.

The analogy we are hoping to create is described

as follows: Given some musical input with harmony

value x, a mapping expression can be created to gen-

erate a visual output with a harmony value y such that

x ' y. Furthermore, we posit that when performed to-

Breen, A. and O’Riordan, C.

Evolving Art using Aesthetic Analogies - Evolutionary Supervised Learning to Generate Art with Grammatical Evolution.

DOI: 10.5220/0006048400590068

In Proceedings of the 8th International Joint Conference on Computational Intelligence (IJCCI 2016) - Volume 1: ECTA, pages 59-68

ISBN: 978-989-758-201-1

gether, both input music and output visuals will cre-

ate a pleasing experience. In other words, can we take

music and create a visual with a similar harmony and

will they go together?

For this simple example, it is clear that a suit-

able expression could be created by hand with some

knowledge of music and colour theory. However, if

we extend the system to include more aesthetic mea-

sures, such as symmetry, intensity, contrast or gran-

ularity, deﬁning an analogy by use of a mapping ex-

pression becomes far more complex. While develop-

ing a system to capture more complex mappings is

beyond the scope of this paper, we aim to build the

system such that it may be extended to do so.

1.2 Grammatical Evolution and

Mapping Expressions

A genetic algorithm (GA) provides a useful method

of traversing an artistic search space, as demonstrated

by Boden and Edmonds in their 2009 review (Boden

and Edmonds, 2009). Grammatical evolution (GE)

(O’Neil and Ryan, 2003), in particular allows us to

provide a simple grammar which deﬁnes the struc-

ture of mapping expressions which can be evolved us-

ing a GA. This allows us to ﬂexibly incorporate aes-

thetic data, operators and constants while producing

human readable output. Importantly, we make no as-

sumptions about the relationships between input and

output. This approach does not restrict the output to

any rigid pattern; potentially allowing the creation of

novel and interesting relationships between any two

domains, music and visuals or otherwise.

No single set of mapping expressions would be

capable of creating pleasing output in every circum-

stance. In this respect, we intend to ﬁnd suitable ex-

pressions for a speciﬁc input, such as a verse, chorus

or phrase. Expressions may then be used in real-time

when required and would handle improvisation or un-

expected performance variations. Expressions pro-

duced by Grammatical Evolution are naturally well

suited to this task as they can be stored or loaded when

necessary, and evaluated in real-time.

1.3 Contributions and Layout

The main contribution of this work is an implementa-

tion of Grammatical Evolution using music and em-

pirically developed aesthetic models to produce novel

visual displays. Secondary contributions include a

structural framework for aesthetic analogies used to

guide the gathering of data and development of evo-

lutionary art using mapping expressions, and prelim-

inary results produced by our implementation of the

system.

The layout of this paper is as follows. Section 2

outlines related work in the areas of computational

analogy, computational aesthetics, and computational

art. Section 3 introduces our proposed method in-

cluding a general description of our analogy structure,

aesthetic models and the structure of our evolution-

ary system. Section 4 presents the details of our im-

plementation in two distinct phases, the evolutionary

phase (Section 4.1) and the evaluation phase (Section

4.2). Our results are presented in Section 5 followed

by our conclusion in Section 6 including a brief dis-

cussion of future work (Section 6.1).

2 RELATED WORK

“Analogy underpins language, art, music, invention

and science” (Gentner and Forbus, 2011). In par-

ticular, Computational Analogy (CA) combines com-

puter science and psychology. CA aims to gain some

insight into analogy making through computational

experimentation. As a research domain, it has been

active since the late 1960s, accelerated in the 1980s

and continues today. Computational analogy sys-

tems historically fall into three main categories: sym-

bolic systems, connectionist systems and hybrid sys-

tems. Symbolic systems make use of symbolic logic,

means-ends analysis and search heuristics. Connec-

tionist systems make use of networks with spreading

activation and back-propagation techniques. Hybrid

systems often use agent based systems taking aspects

of both symbolic and connectionist systems. For fur-

ther reading, see (French, 2002) and (Hall, 1989).

Birkhoff is often cited as one of the ﬁrst to

consider aesthetics from a scientiﬁc point of view.

His simplistic ‘aesthetic measure’ formula M = O/C

was simply the ratio of order (O) to complexity (C)

(Birkhoff, 1933). Of course, this is over simpliﬁed

and abstract, but it did begin a long running discus-

sion on aesthetics and how we can use aesthetics to

learn about the higher functions of human cognition.

More recently, the discussion has been reignited

by Ramachandran who has outlined a set of 8 ‘laws

of artistic experience’ (Ramachandran and Hirstein,

1999). In this paper a number of factors are out-

lined which may inﬂuence how the human brain per-

ceives art. Some of these factors are measurable, such

as contrast and symmetry, but others remain more

abstract such as the grouping of ﬁgures. Nonethe-

less, it has inspired further discussion (Goguen, 1999;

Huang, 2009; Hagendoorn, 2003; Palmer et al.,

2013).

Within speciﬁc domains, heuristics can be formal-

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

ized and used to generate derivative pieces in a partic-

ular style or to solve particular challenges in the cre-

ation of the art itself. GAs in particular have proven

to be quite effective due to their ability to traverse a

large search space. In music for example, GAs have

been used to piece together particular musical phrases

(Todd and Werner, 1999), generate complex rhyth-

mic patterns (Eigenfeldt, 2009) or even generate en-

tire music pieces (Fox and Crawford, 2016). Similar

systems have also been used to create visuals (Heidar-

pour and Hoseini, 2015; Garca-S

anchez et al., 2013),

sculpture (Bergen and Ross, 2013) and even poetry

(Yang et al., 2016).

Indeed the use of aesthetic measures in combi-

nation with GAs has also been reviewed (den Heijer

and Eiben, 2010) and an approach has been outlined

to demonstrate the potential application of Multi-

Objective Optimization to combine these measures

(den Heijer and Eiben, 2011). While the system does

produce computational art that may be described as

aesthetic, it is also limited strictly by the aesthetic

measures used, without any artistic context.

It is clear that computational systems can work in

tandem with aesthetics to generate art and explore the

possible applications of computational intelligence.

Up to this point however, popular approaches have

been remarkably rigid. Our work aims to explore a

more ﬂexible approach and perhaps discover a more

natural artistic framework through analogy.

3 PROPOSED METHOD

3.1 Analogy Structure

We make use of a conceptual structure to provide a

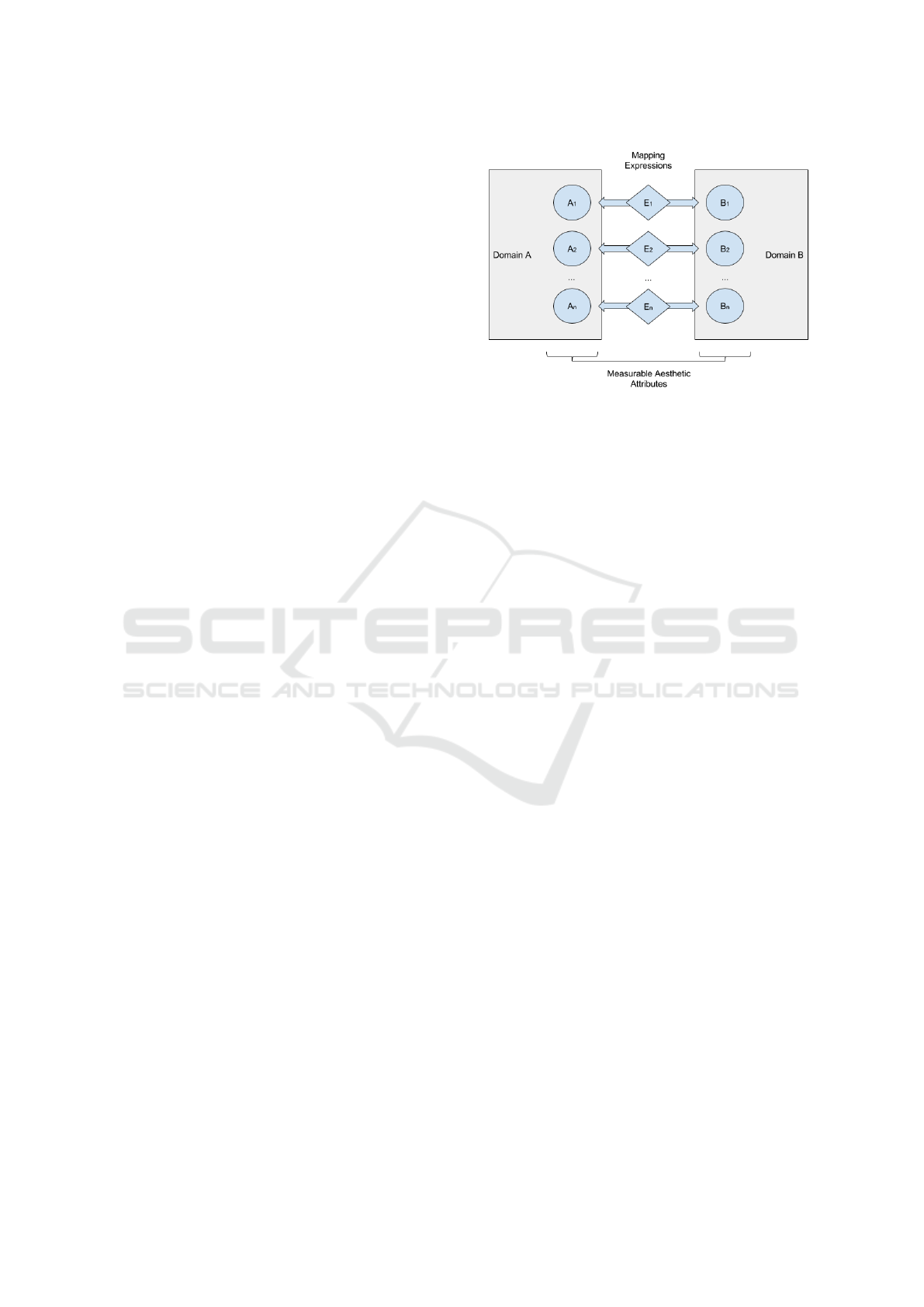

basis for our aesthetic data and analogies. The struc-

ture is shown in Figure 1 with measurable aesthetic at-

tributes in separate domains which are connected by

a set of mapping expressions which may be evolved

using grammatical evolution. The implementation in

this paper uses a single attribute in each domain, how-

ever, the structure is not restricted to a bijective map-

ping.

Some aesthetic attributes may be more suitable

than others for use in a structure as described in Fig-

ure 1. Harmony is selected for use in this paper as it

has a strong impact on the overall aesthetic quality of

an art piece, and can be measured quite easily in sep-

arate domains. In music, the harmony of notes being

played is often referred to as the consonance — or

conversely, dissonance — of those notes. While the

timbre of notes has an impact, an estimate can be ob-

tained from pitch alone. In the visual domain, colour

Figure 1: Analogy structure overview. The Mapping Ex-

pressions, E

to E

, are encoded as chromosomes and

evolved using the genetic algorithm.

harmony, or how pleasing a set of colours are in com-

bination, can be measured as a function of the posi-

tions of those colours in some colour space. This pro-

vides a convenient and understandable starting point.

Consonance values for any two notes have been

measured (Malmberg, 1918; Kameoka and Kuriya-

gawa, 1969; Breen and O’Riordan, 2015) and nu-

merous methods have been proposed that suggest a

consonance value can be obtained for larger sets of

notes (Von Helmholtz, 1912; Plomp and Levelt, 1965;

Hutchinson and Knopoff, 1978; Vassilakis, 2005).

The simplest general approach is to sum the conso-

nances for all pairs of notes in a set. This provides a

good estimation for chords with the same number of

notes and can be normalized to account for chords of

different cardinalities.

For this preliminary implementation, we enforce

a number of restrictions. Firstly, we restrict the num-

ber of inputs to two musical notes at any one time.

This simpliﬁes the grammar and allows us to more

easily analyse the output mapping expressions. Sec-

ondly, musical harmony is calculated using just 12

note classes within a single octave. This helps to

avoid consonance variations for lower frequencies.

Figure 2 shows the consonance values for note pairs

used based on results by Breen and O’Riordan (Breen

and O’Riordan, 2015).

Similarly, colour harmony values can be measured

and modelled (Chuang and Ou, 2001; Szab

o et al.,

2010; Schloss and Palmer, 2011). While the harmony

of more than 2 colours may be obtained with a sim-

ilar approach to music chords, the pattern in which

colours are displayed adds an extra level of complex-

ity. To combat this, we assume our visual display is

not a strict two dimensional image, but rather a pair

of lights emitting coloured light into some space. For

example, a pair of LED stage lights for a small musi-

Evolving Art using Aesthetic Analogies - Evolutionary Supervised Learning to Generate Art with Grammatical Evolution

2 4

8 10

Semitone offset

Average Consonance Ranking

Musical Consonance Values

Figure 2: Consonance Values for musical intervals used to

calculate musical Harmony Values.

120 180 240 300

Degree Offset

Average Harmony Ranking

Colour Harmony Values

Figure 3: Average Colour Harmony values.

cal performance. Figure 3 shows the average harmony

values for colour pairs based on our own study of 30

individuals based on the approach taken by Breen and

O’Riordan (Breen and O’Riordan, 2015).

3.2 Evolutionary System

Our evolutionary approach is based upon Grammat-

ical Evolution. We use a Genetic Algorithm (GA)

to evolve mapping expressions based upon a given

grammar. The evolved expression allows us to create

a real time system rather than a single visual output.

In this way, any particular performance is not limited

to a strict musical input thereby allowing improvisa-

tion, timing and phrasing variation, and handling of

human error. Other advantages of this particular GA

approach include the ﬂexibility by which we can in-

corporate aesthetic data and the human readability of

the output expression.

Mapping expressions are evolved by using an in-

dividual chromosome to guide the construction of a

symbolic expression by use of the given grammar.

The following is an example of a symbolic expres-

sion representing a nested list of operators (addition

and multiplication) and parameters (2, 8 and 5) using

preﬁx notation.

(+ 2 (* 8 5))

The grammar deﬁnes the structure of an expres-

sion using terminal and non-terminal lexical opera-

tors. Terminals are literal symbols that may appear

within the expression. Non-terminals are symbols

that can be replaced. Non-terminals often represent

a class of symbols such as operators of a speciﬁc car-

dinality, other non-terminals, or speciﬁc terminals.

Beginning with a starting non-terminal, each value

in the chromosome is used in series as the index of

the next legal terminal or non-terminal. This mapping

continues until either the expression requires no more

arguments, or a size limit is reached. If the chromo-

some is not long enough to complete the expression,

we simply begin reading from the start of the chro-

mosome again. See the appendix for further details

on expression encoding.

Calculating the ﬁtness of any mapping expression

without some guidelines would be extremely subjec-

tive. In our implementation we take a heuristic ap-

proach that rewards solutions that produce outputs

with a similar normalized aesthetic value as inputs.

An in-depth description of the implemented ﬁtness

function is presented in Section 4.1.

4 IMPLEMENTATION

We now discuss how the structure introduced above

together with the data gathered has been imple-

mented. We demonstrate how the following system

has been used to evolve mapping expressions that

generate a visual output when given a musical input.

The system may be used to generate visuals in time

with music by use of a time synchronized subsystem

utilizing a music synthesizer and visualization server.

4.1 Evolution Phase

Figure 4 shows the structure of the Evolution Phase.

This phase is centred about the GE algorithm. In our

implementation we use a population of 50 chromo-

somes. Chromosomes are stored as 8 bit integer ar-

rays, with values between 0 and 255. A chromosome

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

Figure 4: Evolution Phase overview.

length of 60 integer values was used in the work pre-

sented in this paper.

Musical input is taken in the form of Musical In-

strument Digital Interface (MIDI) data. The MIDI

protocol represents digital music signals, originally

designed as a transmission protocol to allow musical

signals to be sent between instruments and synthesiz-

ers. Musical notes are sent as packet pairs (note on

and note off ) containing the note pitch and the ‘veloc-

ity’, or strength of the note which is often translated

to volume. The MIDI protocol also allows data to be

stored as a ﬁle with each packet containing a timing

value. We use a ﬁle to store a sample musical input

using this format and determine which notes are being

played using the timing value.

Table 1: Grammar terminal operators.

Expression Arguments

Plus 90 degrees 1

Plus 180 degrees 1

Sin 1

Cos 1

Log 1

Addition 2

Subtraction 2

Multiplication 2

Division 2

Music Harmony Constant 2

Visual Harmony Constant 2

Ternary Conditional Operator 3

Table 2: Grammar terminal values.

Expression Range

Constant integer value 0-255

Musical input 1 0-255

Musical input 2 0-255

The implemented grammar contains a list of oper-

ators, and values (variables and constants) which are

presented in Tables 1 and 2. Of note here are the aes-

thetic values for music (input) and visuals which can

be inserted directly into an expression as constants, or

read at run-time as variables. The aesthetic models

use normalized values based on the values shown in

Figures 2 and 3. Aesthetic constant expressions take

two arguments, representing two music notes or two

colour hues, and return the aesthetic value of those

two values.

Our ﬁtness function, as introduced above, aims to

maximize the similarity between input and output har-

mony. The ﬁtness for any n pairs of notes is calculated

as follows, where M is a function representing the mu-

sical harmony of a pair of notes, and V is a function

representing the visual harmony of a pair of colour

hues.

f itness =

∑

i=1

255 − |M(input) −V (out put)| (1)

Both M and V are normalized between 0 and 255,

which produces a ﬁtness range of 0 to 255.

Tournament selection is carried out to select indi-

viduals for evolution. A combination of single point

and double point crossover is used to build a succeed-

ing generation. Elitism is used to maintain the maxi-

mum ﬁtness of the population by promoting the best

performing individuals to the next generation without

crossover or mutation.

Mutation is applied at the gene level. A gene is

mutated by randomly resetting its value. The muta-

tion rate is the probability with which a gene will be

mutated. The mutation rate is varied based on the

number of generations since a new peak ﬁtness has

been reached. This allows us to optimize locally for

a period, and introduce hyper-mutation after an ap-

propriate number of generations without any increase

in peak ﬁtness. We call this the Mutation Threshold.

The standard mutation rate (Mut

) is calculated as:

Mut



0.02



+ 0.01 (2)

where α represents the number of generations since a

new peak ﬁtness was reached.

After the Mutation Threshold is reached, indicat-

ing a local optima, hyper-mutation (Mut

) is intro-

duced to explore further.

Mut

= 1.0 (3)

If a ﬁtter solution is discovered, mutation is again

reduced to Mut

to allow smaller variations to occur.

Evolution is halted after a Halting Threshold of

generations without an increase of peak ﬁtness has

been reached. Details of the parameters used can be

found in Table 3.

The output of this process is a mapping expression

which, when passed a set of values representing mu-

sic, returns a set of values representing visuals. Vi-

sual data is structured using an augmented form of

the MIDI protocol developed for this implementation.

Evolving Art using Aesthetic Analogies - Evolutionary Supervised Learning to Generate Art with Grammatical Evolution

Rather than the pitch of the musical note, we encode

the colour as a value representing its hue. Further de-

tails of the visual generation process can be found in

the appendix.

Table 3: Genetic Algorithm Parameters.

Parameter Value

Population Size 50

Chromosome Length 60

Crossover Rate 0.8

Standard Mutation Rate (Mut

) See Equation 2

Hyper-Mutation Rate (Mut

) 1.0

Mutation Threshold 100

Halting Threshold 200

Figure 5: Evaluation Phase overview.

4.2 Evaluation Phase

In order to evaluate the performance of an evolved

mapping expression, we must play both music and vi-

suals together. To this end, we have built the evalua-

tion system as outlined in Figure 5.

In order to perform music in synchrony with gen-

erated visuals, an extended MIDI player subsystem

is required. Musical data (MIDI) and visual data are

combined in an extended MIDI ﬁle (MIDIX). The ex-

tended MIDI player then parses this ﬁle and uses an

internal time synchronization to send MIDI signals to

a music synthesizer and a visualization server in real-

time.

The music synthesizer is a common tool in music

creation and performance. Synthesizers listen for in-

put, often in the form of MIDI signals, and produce

a sound output using some hardware or software. We

use a standard MIDI port to send and receive musical

data to an open source software synthesizer, part of

the Reaper digital audio workstation (Cockos, 2016).

We created the visualization server speciﬁcally for

this implementation which listens for signals sent by

the extended MIDI player using http web sockets.

This allows us to generate visuals in real-time and re-

main in synchrony with the music synthesizer.

4.3 Supervised Fitness

Using the evaluation system outlined above, we can

interactively evaluate the performance of a particular

Random Evolved

100

150

200

250

Expressions

Fitness

Fitness of Mapping Expressions

Figure 6: Fitness of 100 randomly generated Mapping Ex-

pressions vs Evolved expressions.

mapping expression. We can either use a static MIDI

ﬁle to compare individual expressions or we can use

a live MIDI instrument to send live MIDI signals to

evaluate how it performs with improvised and varying

input.

Expressions that are deemed ﬁt by human supervi-

sion may then be reintroduced to the evolution phase

to continue the process. This step is independent of

the ﬁtness function in order to capture aesthetic re-

sults beyond its capabilities.

5 RESULTS

5.1 Evolutionary Phase

Using the approach outlined above we successfully

evolved mapping expressions capable of mapping

musical input to visual output.

Many of the random seed expressions such as the

following example simply produced constant values:

[’plus180’,[’plus90’,[’sin’, 215]]]

In later generations however, we see more com-

plex expressions producing better ﬁtting results:

[’add’,56, [’mh’,94,[’cos’,’mus2’]]]

Here we see the expression makes use of the in-

put variable mus2 and the musical harmony constant

musicalHarmony (abbreviated here to mh) which pro-

duces a dynamic output. The example chosen here is

one of the smallest expressions created.

Figure 6 demonstrates the distribution of ﬁtness

values for randomly generated expressions versus

evolved expressions. We see the distribution for ran-

dom expressions is heavily skewed towards the min-

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

2 4

8 10

100

200

Input Music Interval

Output Harmony

Mapping Expression Output

Ancestors

Evolved

Target Output

Figure 7: Output of one evolved expression and its ances-

tors compared to target visual harmony.

imum value of 100. This is due to the number of ex-

pressions which produce a constant output. Evolved

expressions however show a much tighter distribution

with signiﬁcantly higher ﬁtness values.

The distribution of intervals in the input M will af-

fect the ﬁtness of the evolved expression. An evolved

expression may be directly compared to the target vi-

sual harmony by using an equally distributed input.

Our input is a set of 11 note intervals, 1 to 11, ex-

cluding the unison and octave intervals 0 and 12 re-

spectively. In Figure 7 we see a demonstration of

this comparison. Previous generations are shown as

dotted lines with the ﬁnal ﬁttest individual in solid

black. The target output is shown in red. We see

as the generations pass, the output matches the target

more closely. Of note here are the horizontal dotted

lines indicating older generations producing constant

outputs which have been superseded by generations

producing closer matching dynamic outputs.

Figure 8 shows the ﬁtness of a single population

across a number of generations. We see incremen-

tal increases in ﬁtness as local optima are discovered

with low mutation. Hyper-mutation then allows us to

ﬁnd ﬁtter solutions preventing premature population

convergence at a local optima.

5.2 Evaluation Phase

Preliminary results have been obtained based on the

implementation described in Section 4.2 demonstrat-

ing that a visual display can be produced based on

musical data in real time. The extended MIDI player

was used to play a ﬁle containing a 10 second music

piece with intervals of varying harmony. Visuals gen-

erated by a mapping expression were displayed on a

0 200 400

600

100

150

200

Generation

Fitness

Population Fitness

Best Fitness

Average Fitness

Figure 8: Population ﬁtness for 631 generations of a typical

run.

computer screen. Visuals were observed to be in time

with the synthesized music. An example of the visual

display with screenshots taken at 2 second intervals

are shown in Figure 9. The pattern used to display

colours was similar to that used to collect colour har-

mony data.

Initial subjective testing of colours and synchro-

nized music indicates that the analogy does produce a

more enjoyable experience than random colours.

Figure 9: Generated visual display.

6 CONCLUSION

The results obtained from this implementation show

that mapping expressions can be evolved using Gram-

matical Evolution to generate visual displays by use

of musical input data and aesthetic models. Evolved

expressions show a much higher ﬁtness with a tighter

distribution than their random counterparts. Visual

outputs have been evolved with with harmony closely

matching the target output, showing a strong corre-

lation between music and visual aesthetic values. A

population of expressions is presented which demon-

strates how peak ﬁtness increases over time with in-

Evolving Art using Aesthetic Analogies - Evolutionary Supervised Learning to Generate Art with Grammatical Evolution

cremental improvements correlated with low muta-

tion rates. Hyper-mutation is also introduced to pre-

vent premature convergence.

Evolved mapping expressions have been used in a

working model with preliminary results showing time

synchronization between input music and output vi-

suals may be possible.

6.1 Future Work

We have shown that mapping expressions can be

evolved using a ﬁtness function based on empirically

developed aesthetic models. However, we have not

evaluated the perceived aesthetic differences between

expressions of varying ﬁtness. Further research is re-

quired to fully evaluate the strength of this correlation.

At present we restrict the number of input musical

notes to simplify the grammar and allow analysis of

the evolved expressions. This clearly limits the appli-

cation of this system greatly. Future iterations should

accommodate varying musical input lengths.

The results presented were obtained using only

one mapping expression between musical consonance

and colour harmony. We have not explored the pos-

sibilities of using multiple mapping expressions in-

corporating many attributes. We believe this will im-

prove the quality of generated visuals dramatically.

As shown in Section 5, the ﬁtness of a population

has certain limitations. We hope to improve the speed

at which ﬁtness increases and also increase the max-

imum ﬁtness achievable by any individual by tuning

the parameters of the genetic operators.

The extended MIDI format has a number of use-

ful applications beyond its use in this implementation.

The format may also be useful for predeﬁned visual

displays and synchronized performances. With this in

mind, we would like to fully deﬁne our version of the

protocol and make it available to the public.

In a similar vein, the visualization server, which

uses the extended MIDI format may also be improved.

Most immediately, it should be able to handle all of

the attributes used by mapping expressions to gener-

ate varied and immersing visual displays. Also, the

server is currently restricted to displaying visual dis-

plays on a computer screen, which is not suitable for

a live performance. We hope to develop functionality

to allow the visualization server to accept an extended

MIDI signal and control stage lighting hardware using

industry standard protocols.

6.2 Implementation Evaluation

The outlined system is certainly capable of producing

some visual output. Whether that output is deemed

aesthetically pleasing is still an open question. In or-

der to determine the actual performance of the ﬁnal

output of the system, we hope to conduct a study with

human subjects. Our hypothesis here is: the system

produces more pleasing visual displays than random

colour changes.

The proposed study would demonstrate if we are

moving in the right direction, however, the overall

goal of this research is to create a system that can cre-

ate art, and perform it. To this end, the success of the

system should be evaluated with a live performance.

ACKNOWLEDGEMENTS

Funded by the Hardiman scholarship, NUIG.

REFERENCES

Bergen, S. and Ross, B. J. (2013). Aesthetic 3D model

evolution. Genetic Programming and Evolvable Ma-

chines, 14(3):339–367.

Birkhoff, G. (1933). Aesthetic Measure. Cambridge Uni-

versity Press.

Boden, M. A. and Edmonds, E. A. (2009). What is genera-

tive art? Digital Creativity, 20(1-2):21–46.

Breen, A. and O’Riordan, C. (2015). Capturing and Rank-

ing Perspectives on the Consonance and Dissonance

of Dyads. In Sound and Music Computing Confer-

ence, pages 125–132, Maynooth.

Cameld, W. A. (1990). Marcel Duchamp’s fountain: Its

history and aesthetics in the context of 1917. Marcel

Duchamp: Artist of the century.

Chuang, M.-C. and Ou, L.-C. (2001). Inﬂuence of a holistic

color interval on color harmony. COLOR research and

application, 26(1):29–39.

Cockos (2016). Reaper.

den Heijer, E. and Eiben, A. E. (2010). Comparing aesthetic

measures for evolutionary art. In Applications of Evo-

lutionary Computation, pages 311–320. Springer.

den Heijer, E. and Eiben, A. E. (2011). Evolving art using

multiple aesthetic measures. In Applications of Evo-

lutionary Computation, pages 234–243. Springer.

Eigenfeldt, A. (2009). The evolution of evolutionary soft-

ware: intelligent rhythm generation in Kinetic En-

gine. In Applications of Evolutionary Computing,

pages 498–507. Springer.

Fox, R. and Crawford, R. (2016). A Hybrid Approach to

Automated Music Composition. In Artiﬁcial Intelli-

gence Perspectives in Intelligent Systems, pages 213–

223. Springer.

French, R. M. (2002). The computational modeling

of analogy-making. Trends in cognitive sciences,

6(5):200–205.

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications

Garca-S

anchez, P., Merelo, J. J., Calandria, D., Pelegrina,

A. B., Morcillo, R., Palacio, F., and Garca-Ortega,

R. H. (2013). Testing the Differences of Using RGB

and HSV Histograms During Evolution in Evolution-

ary Art. ECTA.

Gentner, D. and Forbus, K. D. (2011). Computational mod-

els of analogy. Wiley Interdisciplinary Reviews: Cog-

nitive Science, 2(3):266–276.

Goguen, J. A. (1999). Art and the Brain: Editorial introduc-

tion. Journal of Consciousness Studies, 6(6):5–14.

Hagendoorn, I. (2003). The dancing brain. Cerebrum: The

Dana Forum on Brain Science, 5(2):19–34.

Hall, R. P. (1989). Computational Approaches to Analog-

ical Reasoning : A Comparative Analysis. Artiﬁcial

Intelligence, pages 39–120.

Heidarpour, M. and Hoseini, S. M. (2015). Generating

art tile patterns using genetic algorithm. In Fuzzy

and Intelligent Systems (CFIS), 2015 4th Iranian Joint

Congress on, pages 1–4. IEEE.

Huang, M. (2009). The Neuroscience of Art. Stanford Jour-

nal of Neuroscience, 2(1):24–26.

Hutchinson, W. and Knopoff, L. (1978). The acoustic com-

ponent of Western consonance. Journal of New Music

Research, 7(1):1–29.

Kameoka, A. and Kuriyagawa, M. (1969). Consonance the-

ory part I: Consonance of dyads. The Journal of the

Acoustical Society of America, 45(6):1451–1459.

Kandinsky, W. and Rebay, H. (1947). Point and line to

plane. Courier Corporation.

Klee, P. (1925). Pedagogical Sketchbook. Praeger Publish-

ers, Washington.

Magritte, R. (1928). The Treachery of Images. Oil on can-

vas, 231(2):1928–1929.

Malmberg, C. F. (1918). The perception of consonance and

dissonance. Psychological Monographs, 25(2):93–

133.

O’Neil, M. and Ryan, C. (2003). Grammatical evolution.

In Grammatical Evolution, pages 33–47. Springer.

Palmer, S. E., Schloss, K. B., and Sammartino, J. (2013).

Visual aesthetics and human preference. Annual re-

view of psychology, 64:77–107.

Plomp, R. and Levelt, W. J. M. (1965). Tonal consonance

and critical bandwidth. The journal of the Acoustical

Society of America, 38(4):548–560.

Ramachandran, V. S. and Hirstein, W. (1999). The science

of art: a neurological theory of aesthetic experience.

Journal of Consciousness Studies, 6(6):15–35.

Schloss, K. B. and Palmer, S. E. (2011). Aesthetic response

to color combinations: preference, harmony, and

similarity. Attention, Perception, & Psychophysics,

73(2):551–571.

Snibbe, S. S. and Levin, G. (2000). Interactive dynamic

abstraction. In Proceedings of the 1st international

symposium on Non-photorealistic animation and ren-

dering, pages 21–29. ACM.

Szab

o, F., Bodrogi, P., and Schanda, J. (2010). Experimen-

tal modeling of colour harmony. Color Research &

Application, 35(1):34–49.

Todd, P. M. and Werner, G. M. (1999). Frankensteinian

methods for evolutionary music. Musical networks:

parallel distributed perception and performace, page

313.

Vassilakis, P. N. (2005). Auditory roughness as means of

musical expression. Selected Reports in Ethnomusi-

cology, 12:119–144.

Von Helmholtz, H. (1912). On the Sensations of Tone as a

Physiological Basis for the Theory of Music. Long-

mans, Green.

Yang, W., Cheng, Y., He, J., Hu, W., and Lin, X. (2016).

Research on Community Competition and Adaptive

Genetic Algorithm for Automatic Generation of Tang

Poetry. Mathematical Problems in Engineering, 2016.

APPENDIX

Expression Encoding

A chromosome is converted to a mapping expres-

sion using the grammar terms — terminals and non-

terminals — shown in tables 1, 2 and 4. Non-

terminals are recursively replaced by terms deﬁned by

the grammar, shown in table 4. Beginning with the

starting non-terminal, the ﬁrst gene, or element in the

chromosome array, is used to determine its replace-

ment. All legal replacement terms are distributed

across the possible values of the gene. For example,

an Expression non-terminal may be replaced by any

one of the six results shown in table 4. The six re-

placement terms are distributed in six approximately

equal groups across the 256 possible values. If the

chromosome is not long enough to complete an ex-

pression, the process repeats from the ﬁrst element in

the chromosome array.

The replacement process continues until either an

expression is generated, or a size threshold is reached.

If the size threshold is reached, the expression build-

ing sub-system throws an error which ensures the in-

dividual is given a minimum ﬁtness and the expres-

sion is not evaluated. The size threshold is deﬁned

as a maximum depth of nested expressions, which, in

this work, was approximately 1000.

Generation of Visuals

A sample MIDI ﬁle containing pairs of notes of vary-

ing harmony was used to create the visuals displayed

in ﬁgure 9. The extended MIDI player loaded the

music ﬁle into memory and, using an internal tim-

ing system, sent MIDI messages to the visualization

server and a music synthesizer. The MIDI messages

sent to the music synthesizer were identical to those

in the sample MIDI ﬁle, however, the messages sent

Evolving Art using Aesthetic Analogies - Evolutionary Supervised Learning to Generate Art with Grammatical Evolution

Table 4: Grammar non-terminals.

Non-terminal Abbr. Result

Start None exp

Expression exp (op1, exp), (op2, exp, exp), (op3, exp, exp, exp), const, var

Single argument operator op1 Any expression in table 1 with 1 argument

Double argument operator op2 Any expression in table 1 with 2 arguments

Ternary operator op3 Conditional operator with 3 arguments, see 1

Constant const A constant integer value, see 2

Variable var Any variable, such as musical inputs, see 2

to the visualization server were augmented based on

a mapping expression. The mapping expression used

to generate the visuals in ﬁgure 9 was the ﬁttest in-

dividual of the population shown in ﬁgures 7 and 8.

For each pair of notes, the single octave pitch classes

(1-11) were calculated and passed to the mapping ex-

pression as Musical Input 1 and Musical Input 2 (see

table 1). The output value from the mapping expres-

sion, representing a hue offset, was then sent to the

visualisation server as a MIDI message. The visual-

ization server then generated a random base colour

and a second colour offset by the received value.

ECTA 2016 - 8th International Conference on Evolutionary Computation Theory and Applications
