Fast and Reliable Software Translation of Programming Languages
to Natural Language
Iaakov Exman and Olesya Shapira
Software Engineering Dept., The Jerusalem College of Engineering JCE - Azrieli, POB 3566, Jerusalem, Israel
Keywords: Software Translation, Source Code, Natural Language, Programming Languages, Software Tool, Fast
Translation, Generality, Relevance and Reliability.
Abstract: An experienced software professional with several years of programming in some languages is usually
expected to read or write with proficiency in a new programming language. However, if severe time
constraints are involved, and given the current availability of internet sources, there is no reason to avoid
shortcuts supporting fast translation of source code keywords into Natural Language. This work describes
our tool coined PL-to-NL Translator, the main ideas behind it, and its extensions. One basic assumption that
was clear from the beginning of this work is the need to keep as far as possible a clear separation between
generic infra-structure and the specifics of particular programming languages. Moreover, the tool keeps its
generality relative to programming languages, enabling through its contributor engine, addition of any
desired current or future programming language. The ideas and the software tool characteristics are
illustrated by some case studies involving a few sufficiently different programming languages.
1 INTRODUCTION
There a few different motivations to translate source
code in a given programming language to natural
language, as an explanation of a poorly understood
code:
Experienced programmer with new
language a programmer with several
years of programming in some languages,
needs to read or write a program in a new
language;
Novice learning a student or a newly
hired recent graduate, needs to learn his
first or second programming language;
Legacy program lacking documentation
say someone needs to substitute a previous
worker that moved to another company.
In all the above cases time may be a critical
resource and one cannot learn the new/old
programming language in a linear leisurely way.
One needs to find shortcuts to comprehend in a short
time, not the whole language, but the specific
limited task one was assigned.
This work describes a software tool PL-to-NL
(standing for “Programming Language to Natural
Language) Translator which is able to translate fast
and reliably code fragments in a programming
language, say C++, to plain explanations in a natural
language, say English.
Software professionals are familiar with
programming languages as formal means of
expressing programs to be run by computers.
Programming languages are strictly restricted by
their syntax.
Program documentation and any explanations of
usage of programming languages are expected and
given in natural language. This is one of the many
roles of natural language related to software, which
is the topic of the next paragraphs.
1.1 The Roles of Natural Language
Concerning Software
We are not looking at this issue in its most general
sense, as space limitations prevent us to deal with it.
It suffices here to list some possible roles, and point
out the relevant role in this work.
There are at least three possibilities regarding this
issue, concisely formulated as follows:
1. Highest level of software abstraction we
have claimed elsewhere (Exman and Plebe,
2015), (Exman and Iskusnov, 2014, 2015)
that natural language concepts are the highest
Exman, I. and Shapira, O.
Fast and Reliable Software Translation of Programming Languages to Natural Language.
DOI: 10.5220/0006081200570064
In Proceedings of the 7th International Workshop on Software Knowledge (SKY 2016), pages 57-64
ISBN: 978-989-758-202-8
Copyright
c
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
57
level of software abstraction, viz. one can
obtain UML class diagrams from application
ontologies;
2. Software Assets Explicitly in Natural
Language there are software assets, besides
programs, say Software Requirements, that
explicitly start from Natural Language
sentences, that may be later refined into more
formal and precise formulations with a
specialized restricted syntax;
3. Documentation as Explanations
documentation on software may exist as
separate files or as inline comments within
programs.
The current work focusses on the third role.
1.2 Related Work
The literature relevant to this work is naturally
divided by the different motivations, mentioned in
the beginning of this Introduction.
Novice programmer learning is dealt with in a
few recent papers, e.g. by Corney and collaborators
(Corney et al., 2014). They claim that there is a clear
correlation of the ability to read and explain
programs, with writing programs’ capabilities.
Another paper (Teague and Lister, 2014) has an
interesting proposal of testing programming ability
by means of reversibility: providing the students
with a small code fragment and asking them to write
code that undoes the effect of that code. They also
conducted think aloud studies during the reversing
task.
Reading other people’s code is hard; there is
probably a widely agreed consensus about this
statement. For instance, this is the message of the
personal blog by Alan Skorkin (Skorkin, 2010). But
reading code is important both as a way to acquire
proficiency from experienced programmers and as
part of the software system development task of
“code review”. Hansen et al. (Hansen et al., 2013) in
their paper “What Makes Code Hard to
Understand? state that programs coherent with
expectations take less time to understand and the
code human interpretation is closer to correct.
We now mention a few works concerning the
processing of programming languages. An
influential early paper originally lectures given in
1967 is the paper by Strachey on Fundamental
Concepts in Programming Languages (Strachey,
2000). Nilson et al. (Nilsson et al., 2009) claim that
data-driven parsing approaches developed for
natural languages are robust and have quite high
accuracy when applied to parsing of software.
An approach to documentation, different from
the work in this paper, can be described under the
“Living Documentation” rubric. This is exemplified
by the works of (Brown, 2011) which takes
executable specs to be applied also to
documentation, and (Martraire, 2016) which
understands living documentation as being always
up-to-date.
In particular, living documentation can be
implemented by means of Wikipedia, e.g. by
(Krotzsch et al., 2007) with their Semantic
Wikipedia and by (Yagel, 2015) which bases living
documentation on Wiki with domain knowledge.
There have been efforts to build a similar
interactive tool, such as (cdecl, 2016) which
translates “C” code fragments to English. Another
related commercial information source of potential
interest is displayed in “programmers stack
exchange” (stackExchange, 2016) where one finds a
discussion on “how to better in explaining the code
to other developers”.
1.3 Paper Organization
The remaining of the paper is organized as follows.
In section 2 we introduce the software architecture
of the PL-to-NL Translator tool; in section 3 we
describe the Relevance & Reliability ideas of the
Translator; in section 4 a concise pseudo-code of the
Translator algorithm is given; in section 5 case
studies illustrate the Translator usage; in section 6
there is a very short description of implementation;
in section 7 the paper is concluded with a discussion.
2 THE PL-TO-NL
TRANSLATOR’S SOFTWARE
ARCHITECTURE
Here we shortly describe the PL-to-NL Translator
software architecture. First, some principles are
provided, the types of users are described, the main
Translator modules are presented and finally the
server’s class diagram is shown.
2.1 Software Architecture Principles
The central principles behind the Translator software
architecture are:
1. Long Term Information is stored in a DB
the Translator tool is conceived as a
multiple use, long term tool, which is
SKY 2016 - 7th International Workshop on Software Knowledge
58
gradually improved by its usage and
contributions from endorsed users;
2. Generality and Flexibility in terms of
Programming Languages we assume that
programming languages will continue to be
invented and combined for diverse
purposes. Thus the Translator is built taking
into account a clear separation of the
generic infra-structure from the specifics of
any given language.
2.2 Types of Users
The PL-to-NL Translator assumes two types of
users:
1. Guest Users these are the users interested
in the basic purpose of the tool: to obtain
translations to Natural Language of code
fragments or even a single keyword from a
given Programming Language;
2. Contributors these are more experienced
users, which should be endorsed by the tool
administrators, and wish from time to time
to contribute a new or better specific
translation in a given language, or add a
whole new language to the tool.
2.3 Main Translator Modules
The Translator architecture is seen in Fig. 1.

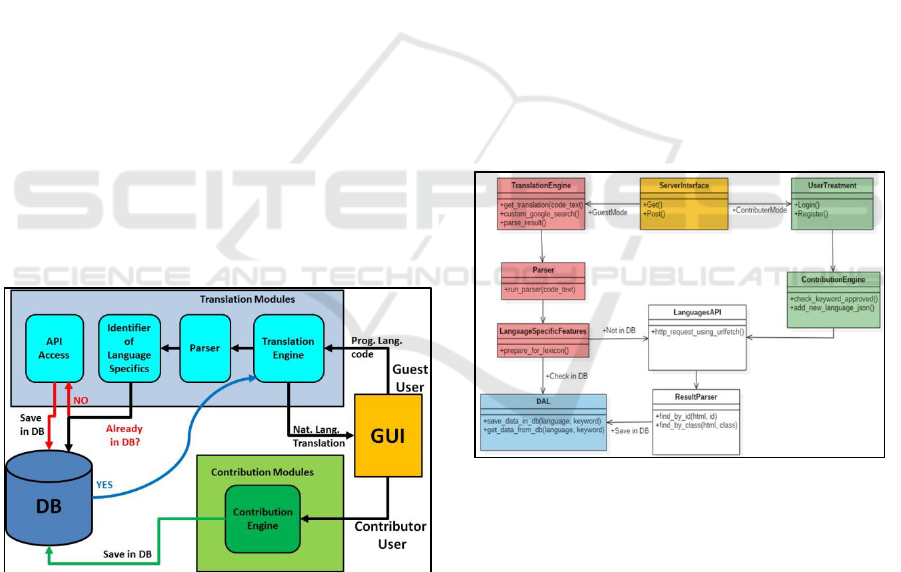

Figure 1: PL-to-NL Translator Software Architecture Its
modules are: a- GUI input/output in the right hand side; b-
Translation Modules; c- Contribution Modules; d- DB, a
database. Arrows point to receiver of data transmitted. The
GUI is the client and all other modules constitute the
server of the Translator.
The main PL-to-NL Translator modules
schematically shown in Fig. 1 are:
1. GUI the Graphical User Interface, a Web
Application, is the place for input/output;
2. Translation Modules whose Translation
Engine receives code in a Programming
Language, passes it to the Parser, and in
turn to the identifier of Language Specific
Features; the outcome is to check whether
the translation is already in the DB;
3. DB the Database stores previously known
keywords etc.; these stored “translations”
are sent to the Translation engine when
needed and provided to the GUI;
4. API Access if an identifier is not found in
the DB, the relevant API is accessed and
the result is saved in the DB;
5. Contribution Engine if an endorsed user
decides that a translation is lacking or not
satisfactory, he may contribute a new
translation through the contribution engine,
which saves the contribution in the DB.
Further details about the classes within the
modules are provided in the next subsection.
2.4 Server Class Diagram
The PL-to-NL Translator Server class diagram is
seen in Fig. 2.
Figure 2: PL-to-NL Translator Server Class Diagram
The Server interface communicates with the Client GUI.
The contribution classes are in the right-hand-side (green
color). The Translation modules’ classes are in the left-
hand-side (pink color). The DAL class accesses the DB. In
the middle one finds the API access classes.
Some interesting points about the classes in Fig.
2 are as follows:
check_keyword_approved this is a
method in the Contribution Engine class;
there exists for each keyword a Boolean
variable, whose default value is “FALSE”,
until a contributor approves it, turning it
into “TRUE;
Fast and Reliable Software Translation of Programming Languages to Natural Language
59
custom_google_search this method in the
Translation Engine class, is part of the
mechanism of finding acceptable
translations in the internet, as explained in
the next section;
prepare_for_lexicon this method in the
Language Specific Features class, prepares
new added languages from “parsing DB” to
the format that the parser gets as input the
lexicon.
3 THE PL-TO-NL TRANSLATOR
ESSENTIAL IDEAS
Once we decide that the main source of information
to translate keywords or code fragments in a given
programming language to natural language is the
Internet, there are two consequences:
a) use of commercial search engine there is
no reason to develop from scratch a new
search engine specific for translation
purposes;
b) efficiently filtering of information the
information obtained from the commercial
search engine may be either useless because
it is irrelevant or unreliable. Thus, efficient
filtering of information quality is essential.
3.1 Main Idea: Relevance & Reliability
The main idea is to have a means to assure both
Relevance and Reliability. This is the justification
for the approach taken and the respective algorithm.

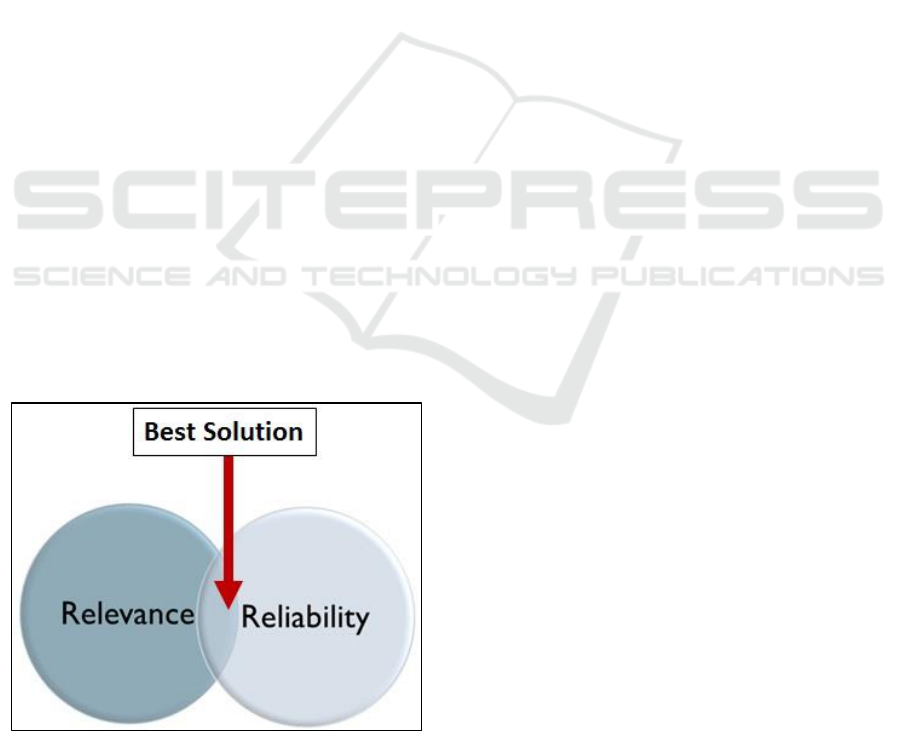

Figure 3: Relevance And Reliability our approach to
search in the Internet for sources of translation from a
programming language to natural language.
Relevance implies that the web site found by the
commercial search engine indeed contains the
necessary information. Reliability means that one
has somehow checked the quality and veracity of the
information: it is true and accurate.
3.2 Approach Overview
A graphical scheme of the approach is seen in Fig. 3.
It assumes that we should have a solution that
combines generic search from a commercial search
engine providing relevance, with some (partial)
assurance of reliability from a different and
independent source of chosen web-sites.
4 PL-TO-NL TRANSLATOR
ALGORITHM
4.1 PL-to-NL Translator Algorithm
Ideas
The Translator algorithm works in two phases:
1. Prepare two groups of web sites one
group is obtained by search for a specific
language, a chosen keyword among those
with a given keyword type; the other group
is chosen by humans the translator
administrators and their advisors;
2. Loop mutually checking the two groups of
web site if a certain url is found in the
intersection of the two groups (as in Fig. 3),
this is a candidate url; otherwise choose the
higher ranked url among the relevant ones.
What is the essential meaning of this algorithm?
The important point is that the best solution is
the intersection of Relevance and Reliability (as
shown in Fig. 3). However, if for some reason no
overlap is found between Relevance and Reliability,
preference is given to the relevant in detriment to the
reliable ones, eventually (but not necessarily) paying
a reliability price.
4.2 The Relevance & Reliability
Algorithm
A pseudo-code of the Relevance & Reliability
algorithm is shown in the next text-box.
The outcome RELEVANT_URLS[0] refers to
the 1
st
member of the Relevant urls, i.e. that with the
higher search rank, which is assumed to be that with
the higher relevance.
SKY 2016 - 7th International Workshop on Software Knowledge
60
5 CASE STUDIES
The case studies in this section illustrate the
application of the Relevance & Reliability
algorithm, as opposed to a simplistic approach.
5.1 Searching “Package” in Java
Suppose that we google search for:
“java package keyword site: docs.oracle.com”.
The first result of the search is:
https://docs.oracle.com/javase/tutorial/java/java
OO/accesscontrol.html
which describes “Controlling access to members of a
class”, which has nothing to do with “package”.
On the other hand, using the Relevance &
Reliability algorithm, one searches for:
“java package keyword”
The first site from the RELIABLE_URLS that
appears is:
http://www.tutorialspoint.com/java/java_package
s.htm
which describes exactly what we wanted.
5.2 Searching Keywords in a Python
Code Fragment
Now suppose that we choose the language Python
and insert a code fragment containing various types
of keywords. One such example is in the partial
screen-print of the PL-to-NL Translator system seen
in Fig. 4. A few different types of possible keywords
to be translated to natural language are:
Errors and Exceptions say try and
except”;
Simple Statements say “return”;
Built-in functions say info”.

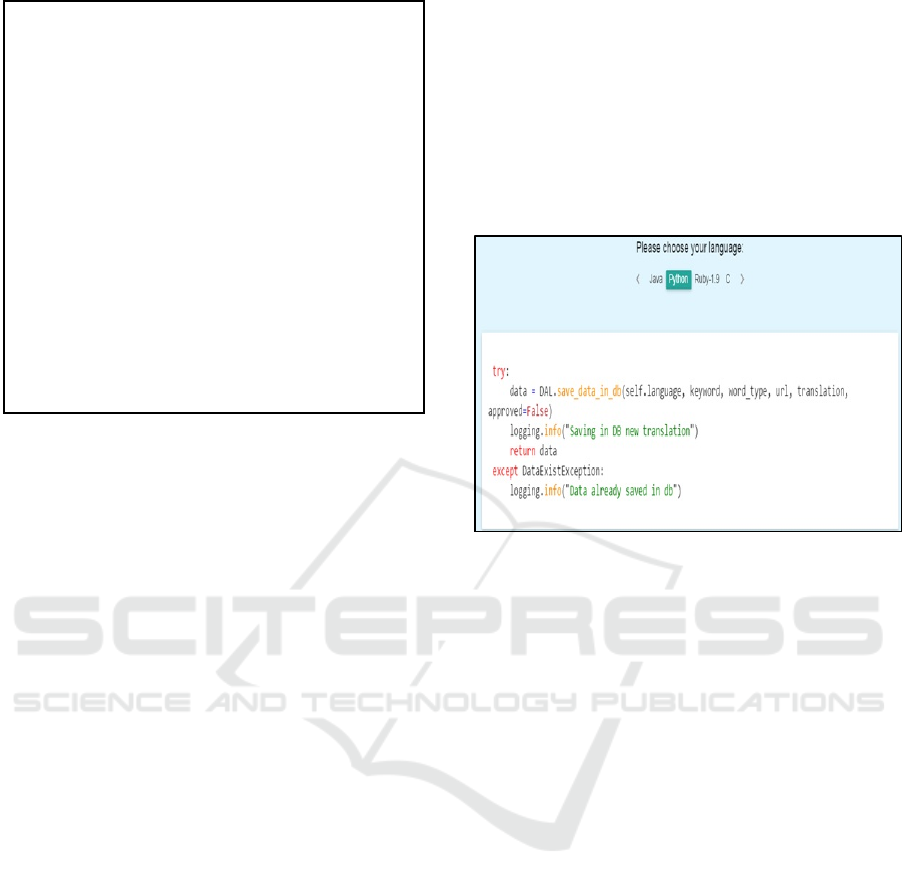

Figure 4: Translation Of Code Fragment One sees
a PL-to-NL Translator system guest user partial
screen-print, for the chosen Python language. The
system marks different keyword types with different
colors: language keywords such as try and return (in
red), functions either built-in such as info, or user
functions such as save_data_in_db (in yellow), and
ignoring strings within double quotations (in green).
Translation is offered only for marked language
keywords and built-in functions.
This case study shows that the system is able to
concurrently deal with a set of keywords in a code
fragment. In this code fragment, the Translator
system ignores strings (within double quotations)
and function arguments. More generally, it also
ignores comments.
6 IMPLEMENTATION
The PL-to-NL Translator system has been developed
and actually implemented using the GAE (Google
App Engine) platform.
This platform provides tools for the Server side
such as a datastore, and support for the Python
language. The tools provided for the client side
include support for AJAX, JQuery and JS above
HTML.
Relevance & Reliability Algorithm
//Initialize two groups of web sites
RELEVANT_URLS = google search by
“<language> <keyword> <keyword type>”;
RELIABLE_URLS = independent list of
approved web sites;
//Loop to obtain Relevance & Best Reliability
For ulr in RELEVANT_URLS{
For def_url in RELIABLE_URLS{
If (url == def_url)
Return url;
}}
//No Relevance & Reliability overlap
If (no url returned yet)
Return RELEVANT_URLS[0]
Fast and Reliable Software Translation of Programming Languages to Natural Language
61
6.1 Parser Implementation
The parser is implemented under the following
assumptions:
Find the most common programming
languages
Find the biggest common part for most of
the languages
Build the parser based on the assumption
that all languages have common features
Find existing fundamental module; PLEX
has been used, where PLEX is a Python
module for constructing lexical analyzers.
The common desired features include: keywords,
literals, operators, function calls and libraries.
The parser is generic. It was implemented for 3
programming languages (Java, Python, Ruby) to
prove generality. The choice of these languages was
dictated by their popularity among users see e.g.
(Cass, 2015).
The PL-to-NL Translator system allows the
contributor to add a new language. This contributor
functionality was successfully tested by the addition
of the “C” language also found in the ranking of
(Cass, 2015).
7 DISCUSSION
This discussion refers to fundamental issues,
comparison with other approaches and future work.
It is concluded with a short statement of the main
contribution.
7.1 Fundamental Issues
The following fundamental issues deserve further
investigation:
a. Generic Programming Language
Infrastructure Can one define in a formal
way, what is the generic common
infrastructure for all the programming
languages? If not, is this possible for at
least certain defined families of
programming languages, such as imperative
or functional?
b. Minimal Number of Programming
Languages What is the minimal (or
optimal) number of programming
languages that a serious professional should
formally learn? This issue is related to the
previous question. One would be tempted
to state that just one language would
suffice, and such a professional would
easily be able to learn by oneself a 2
nd
or a
3
rd
language, and so forth. But a
demonstration of such a statement would
involve complex cognitive functions, which
are certainly beyond the scope of this paper.
c. Understanding Languages Why is it
easier to understand a freely evolving and
unrestricted natural language than
programming languages that have restricted
syntax? This issue is raised since one
usually expects program documentation
and explanations to be given in natural
language, despite the complexities of
natural languages, such as ambiguity,
metaphors, etc.
d. Diversity of Natural Languages all this
work was performed with regards the
natural language “English”. How easy is to
reproduce the results of the Translator for
other languages? Can we find a “Generic
Base” common to families of natural
languages, such as Indo-European,
Germanic or Slavic languages, with regard
to software explanations?
e. Learning system in principle we could
insert learning capabilities into the
Translator system, at least with two
respects: 1- recognition of the programming
language of a code fragment; 2- analysis of
the natural language explanation in order to
shorten it or focus it according to the
perceived user interests.
7.2 Comparison with other Approaches
The main characterization of our approach to the
PL-to-NL Translator is its generality and flexibility.
In other words, we refer to its applicability to any
programming language, provided that the chosen
language has a well-defined syntax and semantics,
which were published and available through the
web.
The intended generality implies that we do not
start with a complete and closed set of programming
languages. We actually start with a small set of
languages, chosen by their ranking in some
popularity scale among users e.g. (Cass, 2015).
The contributor engine enables eventual adding of
any future language even not currently existing
ones. This is the most stringent challenge to our
approach.
SKY 2016 - 7th International Workshop on Software Knowledge
62
The referred generality also explains why we do
not just apply existing tools e.g. parsers and their
components for existing specific languages, even
if they are of the highest possible quality.
An important infra-structure feature needed for
generality is to keep well-separated generic features
common to various programming languages of a
given family, from those features specific to a given
language.
An example of an alternative approach to
documentation and translation is the specific use of
Wiki tools see e.g. (Krotzsch et al., 2007), (Yagel,
2015). Despite the fact that Wiki tools have a broad
enough usage, they still represent a kind of
restriction to our proposed generality.
7.3 Future Work
In order to increase confidence in the PL-to-NL
Translator it would be necessary to perform more
extensive tests, including additional programming
languages, perhaps from different families.
In principle this approach could be extended to
operating systems such as scripting languages
found in UNIX or LINUX versions and effectively
to any kind of software tools with languages that
may justify the investment in a Translator tool.
The system described in this paper was primarily
motivated by its usefulness for an experienced
programmer that has some local difficulties with a
new language. It was neither intended to systematic
comprehensive learning of a whole new language,
nor to deal with whole long programs. This is not to
say that the approach cannot be extended to these
other goals. Specifically referring to whole
programs, at least the GUI (Graphical User
Interface) of the PL-to-NL Translator should be
adapted to facilitate dealing with long inputs, instead
of just small code fragments.
Finally, an investigation from the point of view
of users satisfaction should probably be performed.
7.4 Main Contribution
The main contribution of this work is the Relevance
& Reliability algorithm to find in the Internet the
sources to translate Programming Languages to
Natural Languages. Relevance & Reliability is the
basis for the generality and flexibility of our PL-to-
NL Translator approach.
ACKNOWLEDGEMENT
Olesia Shapira wishes to thank Itamar Sharify for his
help in originating the idea of the Programming
Language to Natural Language Translator.
REFERENCES
Brown, K., 2011. “Taking executable specs to the next
level: Executable Documentation”, Available from:
http://keithps.wordpress.com/2011/06/26/takingexecut
able-specs-to-the-next-level-executabledocumentation/
Cass, S., 2015. “The 2015 Top Ten Programming
Languages”, IEEE Spectrum, available from site:
http://www.csee.umbc.edu/courses/undergraduate/202/fall
15_marron/lectures/l01/the_2015_top_ten_programmi
ng_languages.pdf
cdecl, 2016. An interactive tool to translate “C” to
English. Web site: http://cdecl.org/
Corney, M., Fitzgerald, S., Hanks, B., Lister, R.,
McCauley, R. and Murphy, L., 2014. “‘Explain in
Plain English’ Questions Revisited: Data Structures
Problems”, in SICCSE’14 Proc. of 45
th
ACM
Technical Symposium on Computer Science
Education, pp. 591-596, ACM. Web site:
http://eprints.qut.edu.au/68093/. DOI:
http://doi.acm.org/10.1145/2538862.2538911
Exman, I. and Iskusnov, D., 2014. “Apogee: Application
Ontology Generation from Domain Ontologies”, in
SKY’2014, Proc. 5
th
International Workshop on
Software Knowledge, pp. 31-42. DOI:
10.5220/0005181000310042.
Exman, I. and Iskusnov, D., 2015. “Apogee: Application
Ontology Generation with Size Optimization”, in
Knowledge Discovery, Knowledge Engineering and
Knowledge Management, Vol. 553, CCIS, pp. 477-
492, Springer-Verlag, . DOI: 10.1007/978-3-319-
25840-9_29.
Exman, I. and Plebe, A., 2015. “Software, Is it Poetry or
Prose? Conceptual Content at the Higher Abstraction
Levels”, in SKY’2015 Proc. 6
th
International
Workshop on Software Knowledge, pp. 9-17. DOI:
10.5220/0005625500050013.
Hansen, M., Goldstone, R.L. and Lumsdaine, A., 2013.
“What Makes Code Hard to Understand?”, Web site:
http://arxiv.org/pdf/1304.5257.pdf
Krotzsch M., Vrandecic D., Volkel M., Haller H., Studer
R., 2007. Semantic Wikipedia. In Journal of Web
Semantics 5/2007, pp. 251261. Elsevier.
Martraire C., 2016. Living Documentation - A low-effort
approach of Documentation that is always up-to-
date,inspired by Domain-Driven Design. Leanpub
(expected). http://leanpub.com/livingdocumentation.
Nilsson, J., Lowe, W., Hall, J. and Nivre, J., 2009.
“Parsing Formal Languages using Natural Language
Parsing Techniques”, in IWPT Proc. 11
th
Int. Conf. on
Fast and Reliable Software Translation of Programming Languages to Natural Language
63
Parsing Technologies, pp. 49-60. ACM. Web site:
http://www.aclweb.org/anthology/W09-38#page=65
Skorkin, A., 2010. “Why I Love Reading other People’s
Code and you should too”, Personal Blog, Web site:
http://www.skorks.com/2010/05/why-i-love-reading-
other-peoples-code-and-you-should-too/
StackExchange, 2016. A discussion about: “improving
explanations of code to other developers”. Web site:
http://programmers.stackexchange.com/questions/187
882/how-can-i-become-better-on-explaining-the-code-
to-other-developers
Strachey, C., 2000. “Fundamental Concepts in
Programming Languages”, Higher-Order and
Symbolic Computation, Vol. 13, pp. 11-49, DOI:
10.1023/A:1010000313106
Teague, D. and Lister, R., 2014. “Programming: Reading,
Writing and Reversing, in ITICSE’14 Proc. of 2014
conf. on Innovation & Technology in Computer
Science Education, pp. 285-290, ACM. DOI:
http://dx.doi.org/10.1145/2591708.2591712
Yagel, R., 2015. “LIDO Wiki based Living
Documentation with Domain Knowledge”, Proc.
SKY’2015 6
th
International Workshop on Software
Knowledge, pp. 26-30, DOI: http://dx.doi.org/
10.5220/0005643700220026
SKY 2016 - 7th International Workshop on Software Knowledge
64
