A Dynamic Ddos Protection Mechanism for WLAN based on SDS

Architecture

Zhenyu Wang

1, 2

, Heng He

1, 2

, Yan Hu

1, 2

, Ji Zhang

1, 2

, Wei Xia

1, 2

School of Computer Science and Technology, Wuhan University of Science and Technology, Wuhan, Hubei 430065, China

Hubei Province Key Laboratory of Intelligent Information Processing and Real-time Industrial System, Wuhan University

of Science and Technology, Wuhan, Hubei 430065, China

374487006@qq.com, heheng@wust.edu.cn, 1540823670@qq.com, 1143828107@qq.com, xiawei137hao@sina.com

Keywords: Distributed Denial of Service, Software Defined Networking, Protection Mechanism, Wireless Local Area

Network.

Abstract: The impact of distributed denial of service (DDoS) attacks has become more and more serious and

widespread in wireless local area network (WLAN). Traditional DDoS protection mechanisms become less

reliable and cannot easily adapt to the diverse types of DDoS attacks. Meanwhile, the emergence of

software defined networking (SDN) has provided a new solution to solve the security problem in WLAN. In

this paper, we propose a dynamic DDoS protection mechanism for WLAN based on software defined

security, which is a branch of SDN architecture in the network security. When outer-net data flow streams

into the network, the mechanism can judge the credibility of the flow by its self-detection function, and then

it will deploy different security strategies to handle the data flow according to the credibility before server

responds to it. The analysis and experiment show that compared with traditional DDoS protection

mechanisms, the proposed mechanism is a priori detection method, and is more flexible and efficient.

1 INTRODUCTION

With the rapid technological development of the

Wireless Local Area Network (WLAN), the user

requirements for security and trust of WLAN are

also increasing significantly. Because WLAN has its

own unique security threats, for instance, the IEEE

802.11 series standards and WEP/WPA encryption

protocol have obvious defects, the WLAN security

issues have become increasingly prominent.

Distributed Denial of Service (DDoS) attack is a

kind of typical attack in WLAN and the DDoS

protection mechanism of WLAN has become a hot

topic in the research field of network security (Yu et

al., 2011), (Tupakula et al., 2011).

DDoS attack is an attempt to make a machine or

network resource unavailable to its intended users.

Although the means to carry out, the motives for,

and the targets of a DDoS attack vary, it generally

consists of efforts to temporarily or indefinitely

interrupt or suspend services of a host connected to

the Internet. DDoS attack in WLAN is mainly

divided into the following types: bandwidth

consumption attacks, resource consumption attacks,

identity fraud attacks, interference type attacks, etc.

Bandwidth consumption attacks include ICMP

flooding, UDP flooding, etc. Resource consumption

attacks include SYN flooding, auth flooding, etc.

Identity fraud attacks include deauth flooding,

association flooding, disassociation flooding, etc.

Interference type attacks include teardrop, RF

Jamming, etc. Based on these attacking types, there

are lots of protection solutions proposed in recent

years, such as route-based filtering (Park, 2003),

packets analysis (Zhang et al., 2009) anomaly

detection (Thatte et al., 2011), etc. However, most of

the solutions are efficient for certain type of attack,

but work little to other types of attacks, while DDoS

attacks are presenting more diverse and complicated

trend in WLAN. Therefore, it’s necessary to propose

a dynamic solution by integrating the previous ones,

which is flexible to deal with most of the types of

attacks.

Nowadays, network technology becomes more

mature and gradually develops into a new network

architecture, Software Defined Networking (SDN)

(Thomas and Ken, 2014). It is an emerging

He H., Xia W., Hu Y., Wang Z. and Zhang J.

A Dynamic DDoS Protection Mechanism for WLAN based on SDS Architecture.

DOI: 10.5220/0006443400410047

In ISME 2016 - Information Science and Management Engineering IV (ISME 2016), pages 41-47

ISBN: 978-989-758-208-0

architecture purporting to be dynamic, manageable,

cost-effective, adaptable, and seeking to be suitable

for the high-bandwidth, dynamic nature of today's

applications. The SDN architecture decouples

network control and forwarding functions, enabling

network control to be directly programmable and the

underlying infrastructure to be abstracted from

applications and network services. OpenFlow (OF)

(Lei, 2013) protocol is a foundational element for

building SDN solutions. OF separates the control

plane and data plane of network equipment, so as to

realize the flexible control of network traffic and

provide a good platform for the core network and

innovative applications. As a result, SDN offers

more new possibilities to solve network security

problems, including DDoS attacks. Software

Defined Security (SDS) is a branch of SDN

architecture in the network security, and it achieves

the separation and reconstruction of the data surface

and control surface, realizing modularity,

servitization and reusability.

In this paper, based on SDS architecture and

existing approaches, we propose a Dynamic DDoS

Protection Mechanism for WLAN, namely DDPM,

to solve the problem of diverse and complicated

DDoS attacks in WLAN effectively. According to

the types of DDoS attacks, DDPM deploys different

security strategies for the underlying network.

When outer-net data flow streams into the SDN

network, the system can judge the credibility of the

flow by its self-detection function, and then it will

make decision to handle the data flow according to

the credibility before server responds to it.

Compared with traditional DDoS protection

mechanisms, DDPM is a priori detection method,

which is more flexible and efficient.

2 DYNAMIC PROTECTION

MECHANISM BASED ON SDS

2.1 Architecture

DDPM inherits three main features of SDN

framework: centralized control, open interface and

virtualized network (Lei, 2013). The separation of

the data plane and the control plane atomizes the

functions and divides the system into five service

modules, which provide northern interface for the

invocation by higher layer. Meanwhile the

virtualized network shields the realization of devices

and thus reduces the difficulty of deployment.

Figure 1 shows the architecture of DDPM.

In Figure 1, DDPM is divided into five function

modules: Threat Detection module (TD), Credit

Evaluation module (CE), State Table module (ST),

Core Strategy module (CS) and Traffic

Identification module (TI).

Infrastructure

Layer

Thre at

Detection

module

Credit

Evaluation

module

Stat e

Table

module

Core

Strategy

module

Controller:

Floodlight,

Beacon,

Nox,

Traffic

Identificati

on module

Service

Layer

Control

Layer

SDN controller

OFSwitc h OFSwitch

OFRouter

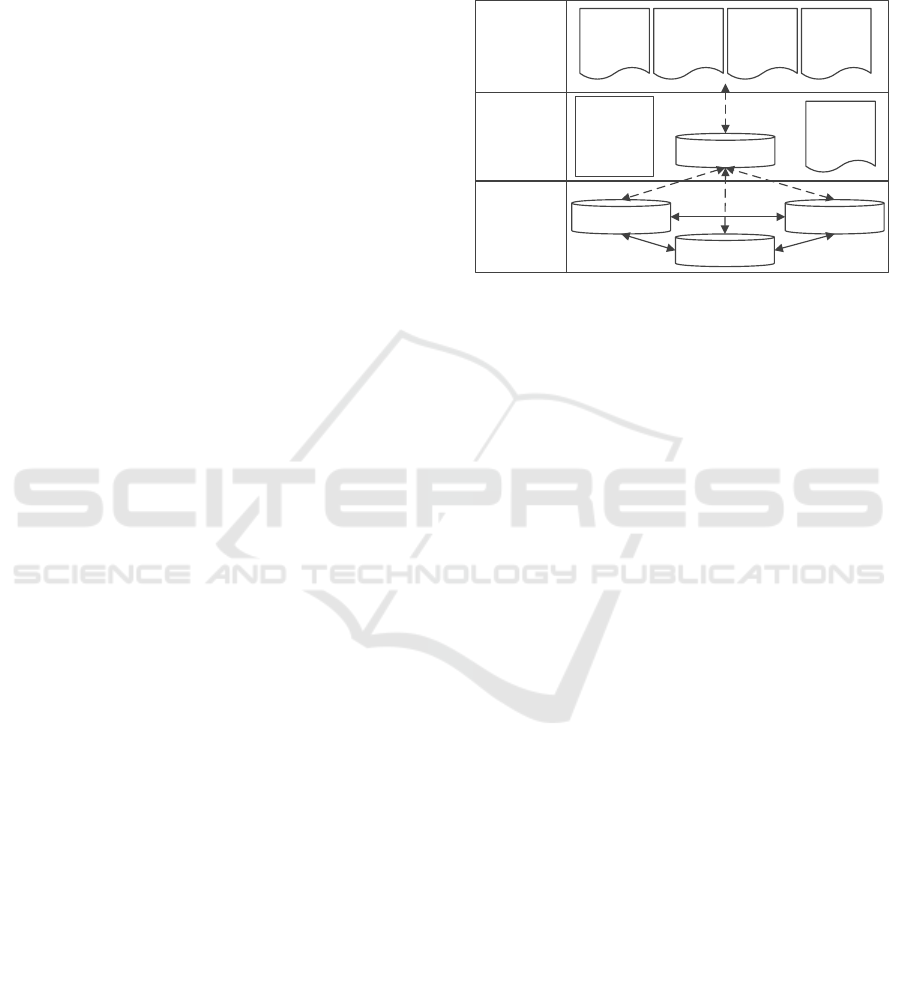

Figure 1: Architecture of DDPM.

On the Infrastructure Layer, OFSwitch and

OFRouter, which are deployed in the SDN network,

maintain flow tables, device status and other

important information. When data flow streams into

the SDN network, these devices will specify

its action to forward or to discard.

On the Control Layer, SDN controller maintains

the underlying network topology, manages network

information, issues forwarding strategy and provides

northern interface to the higher layer. More

specifically, TI, which is deployed in the SDN

controller, processes the data flow that Infrastructure

Layer could not identify and then delivers the

underlying network information to Service Layer.

After receiving the developed strategy from Service

Layer, SDN controller transfers the strategy into

flow tables that specify data flow’s action and status

tables that maintain devices’ status.

Service Layer contains concrete implement of

DDPM. Firstly, TD detects the current status of

network according to the underlying network

information. Secondly, CE evaluates the credit level

of the data flow and preserves the values in the ST.

Actually, these three modules associated with each

other. Finally, CS will develop the newest strategy

according to the information from previous modules

if the system has detected the change of current

network status, and issue this strategy to the Control

Layer. Figure 2 shows the execution flow of DDPM.

2.2 Implement of the Modules

TI, as the function module of Control Layer,

provides intermediate hub for the Service Layer and

ISME 2016 - Information Science and Management Engineering IV

ISME 2016 - International Conference on Information System and Management Engineering

Infrastructure Layer. Data flow will be matched to

the flow tables, when it streams into the access layer

switch. After failing to match any flow tables, the

access layer switch will package this flow into a

Packet_In message and send it to the SDN

controller. Then, the controller will send the

message to TI for processing. First, TI will cluster

data flows’ information (Ramos et al., 2008), (Lee et

al., 2008) such as MAC, IP, data packet type and

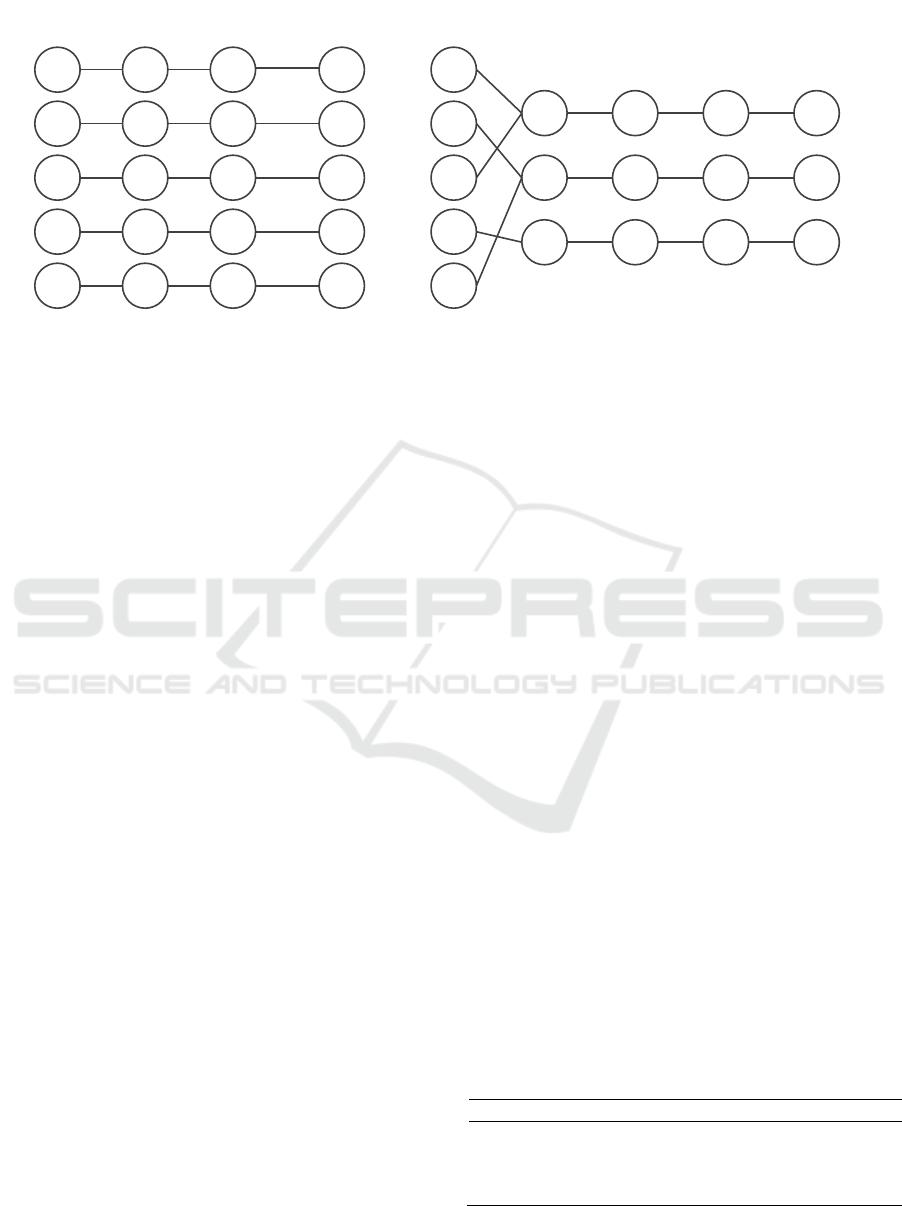

port and so on. Figure 3 (1) shows the discrete

model of flows, with each record as a tuple. Figure 3

(2) shows the aggregation model of the flows. It

clusters source IP and integrates the same network

segment into one record. Compared to the discrete

model, aggregation model can greatly reduce the

number of records and the scale of flow table, which

greatly reduces the load between controller and

switch.

start

Outer data flow

streams into network node

Whether it match

flow table?

Identify and

classify flow

Add status table

information

Initial credit value

Issue flow table by

controller

Update status table

information

Check according to

credit level and

status table

Update credit value

Detect threat

level of flow

Yes

Select strategy 1 Select strategy N

…

1 N

Is it different

from original

strategy?

Issue strategy by

controller

Modify flow table

and network settings

end

Yes

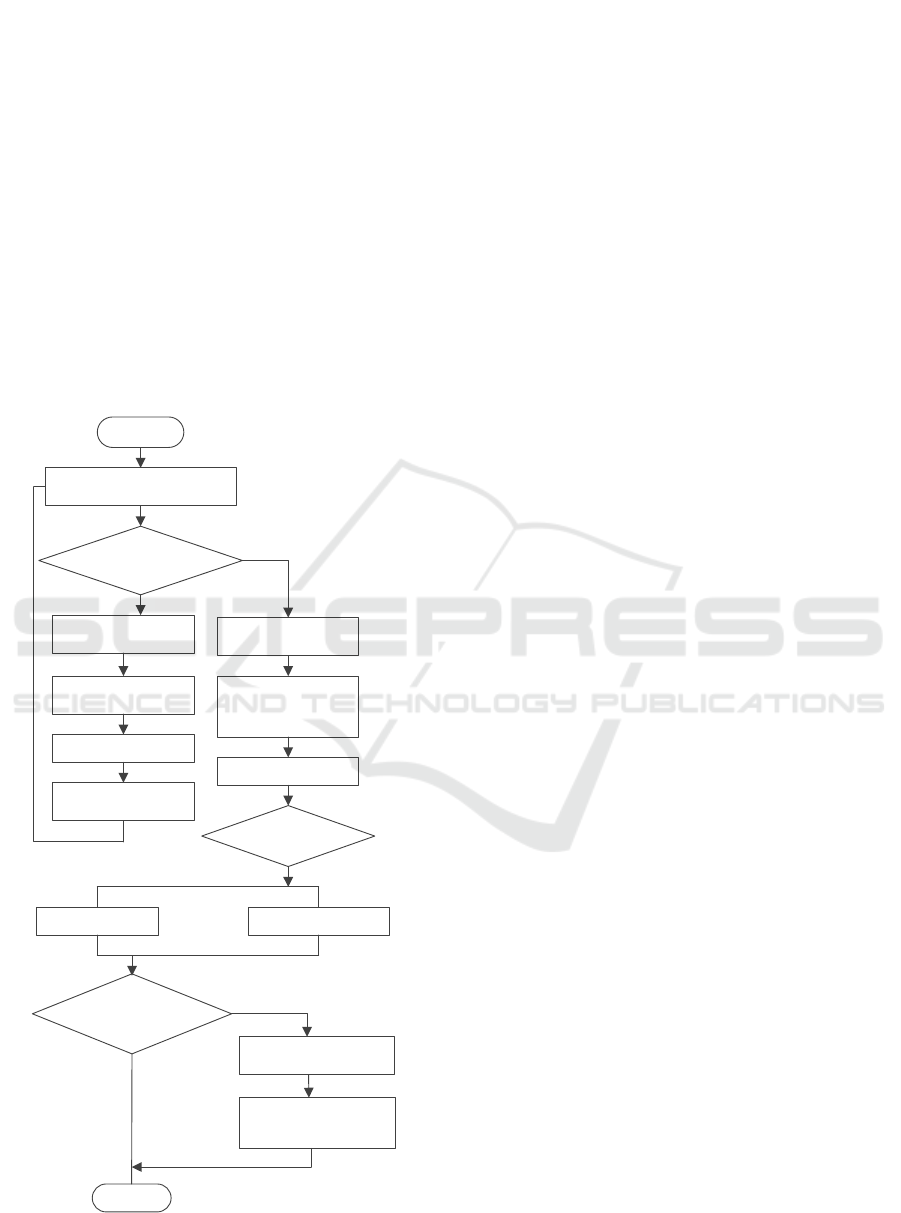

Figure 2: Execution flow of DDPM.

After TI identifies the unrecorded flows, ST will

store each result in the library as one record. Once

the records are set up, ST will update the records

according to the information of the flow tables and

OFSwitch’s status which is obtained by SDN

controller as the same type of flows stream into the

switch. Every time ST updates its records, TD will

do once self-similarity detection (Xiang, 2004),

which aims to detect the change rate of information

including bandwidth, sending rate of packet,

amounts of flow tables and other important indexes.

First, detection of bandwidth change rate can

monitor the SDN network loads, so it can detect the

bandwidth consumption attack effectively. Second,

aggregating the flow tables based on source network

segment and calculating its matching frequency can

reflect DDoS attacks’ strength effectively, because

most cases of the sources of attacks come from a

handful of network even the forged sources.

However, given the trend of diverse attacks, TD also

detects the change rate of the amounts of flow

tables. When attacks come from many sources, the

scale of flow tables will increase dramatically.

CE, based on the results of TD’s detection,

evaluates each data flow’s credit. It divides the

credit into five levels: safety, alert, emergency,

danger and destruction, by which CS develops five

different strategies. Every time the certain flow is

over each level’s threshold, SDN controller will

send the packaged raw data flow to TD which will

analyze the data flow and separate the flow into two

parts. One part is the same with previous flow, while

another is the definite one over the threshold.

More specifically, after TI identifies the new data

flow, CE will mark the data flow as the default value:

safety. And then CS develops and issues a

forwarding strategy that the data flow selects the

optimal path to forward according to Dijkstra

algorithm. With the increasing sending rate of

certain flow over the alert-credit threshold, CE

marks it for “alert” and then CS changes this flow’s

forwarding strategy to select another lighter-load

forwarding path. By this way, it can reduce the load

of certain link and best utilize available bandwidth.

Furthermore, if the certain data flow is over the

emergency-credit threshold, CE will mark it for

“emergency” and then changes the strategy to drop

the certain packet type of the flow. This flow is

actually based on series of flows which comes from

different source MAC/ IP but same network segment.

As a result, which flow the system is going to drop

is the flow with definitized source MAC/IP and

packet type, while other flows within the same flow

cluster will not be limited. Once certain flow is over

A Dynamic DDoS Protection Mechanism for WLAN based on SDS Architecture

Source Network Packet Destination Destination

IP Segment Type IP Port

Source Packet Destination Destination

IP Type IP Port

（1）

（2）

Figure 3: Discrete and aggregation model of data flows.

danger-credit threshold, CS will change the strategy

to drop all this source-based flows. The

communication between server and normal users

will not be affected until any flows exceed the

destruction-credit threshold. At the time, CE marks

the flow for “destruction” and informs CS to change

the strategy to limit the receive rate of certain port

that this data flow streams into through issuing the

status-change command to the OFSwitch. There is

no doubt that all flows from this port will be affected

by limiting the import of the OFSwitch.

The process of DDPM’s protection is dynamic. It

offers several different strategies to handle different

intensities of data forwarding. Once certain flow

recovers to lower credit level, CS also needs to

change the strategy to temperate one. In addition,

with higher level of the flows’ credit, there are larger

scale of flow tables and higher frequency of data

receiving. As a result, it’s an elastic, real-time and

reliable mechanism but also has much higher

requirements of the performance of hardware.

3 ANALYSIS AND EVALUATION

It’s SDN network that makes this elastic and

dynamic mechanism possible. The characteristic of

service atomization makes DDPM easy to extend

new function modules to improve its reliability.

Compared to single and static traditional solutions,

DDPM is more like a set containing different

solutions. Based on different detection indexes, it

provides several detection results. Therefore, it’s

more reliable for DDPM because while one index

might be not relative to certain type of attack,

another index could be correlative to it.

On the way of protection, DDPM provides five-

level strategies, which means that all situations have

been divided into five different intensities of attacks.

With the increasing intensity of data transmission

rate, the system develops the stricter strategy. More

importantly, the data flow sending to server will be

detected as long as it streams into the SDN network.

In order words, DDPM can resist the potential DDoS

attack before server is under attack. Apparently, it’s

more efficient and safer to protect server from DDoS

attack than the traditional solutions which are based

on analysis of packets that server has received.

To build a SDN network requires only

OFSwitch, OFRouter and SDN controller because

DDPM is accomplished primarily in software and

does not need any other expensive protective

equipments. On the other hand, it also requires the

higher performance of these network equipments.

Under the enormous amounts of data flows,

forwarding devices need to match quantities of flow

tables simultaneously and SDN controller needs to

process large numbers of unrecognized data flows.

Moreover, it is difficult to ensure the reliability of

single controller within a large scale network.

However, the SDN technique is developing rapidly

and the collaboration among multiple controllers

will be well achieved in the near future. Above all,

the comprehensive comparison is shown in Table 1.

Table 1: Comprehensive comparison.

Solutions Traditional mechanism DDPM

Scalability Low High

Reliability Low High

Flexibility Low High

Protective method Single Multiple

ISME 2016 - Information Science and Management Engineering IV

ISME 2016 - International Conference on Information System and Management Engineering

30M

Network 1

Network 2

Network 3

Server

SDN controller

OFSwitch 1 OFSwitch 2

OFSwitch 3

OFSwitch 4

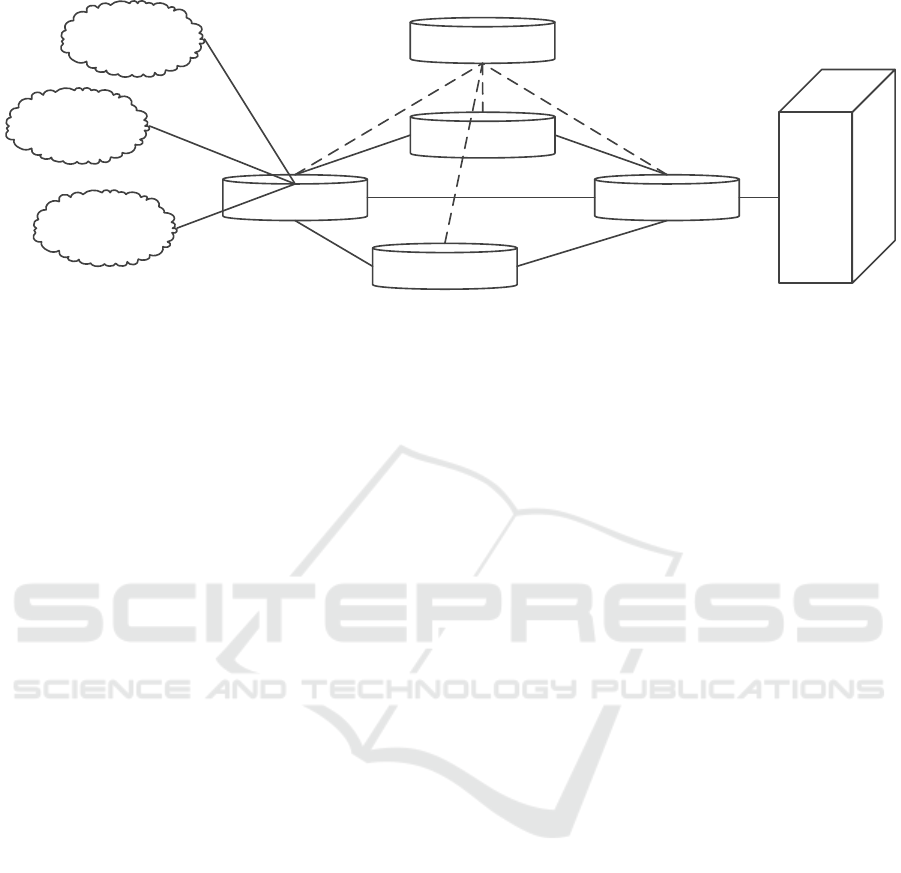

Figure 4: Experimental structure.

4 EXPERIMENTAL EXAMPLE

In order to illustrate the feasibility and effectiveness

of DDPM, we construct an experimental example in

which we simulate common ICMP flooding and

SYN flooding as two types of DDoS attacks. ICMP

flooding is a type of attack that consumes the

bandwidth of victim’s network, while SYN flooding

is aiming to exhaust the resources of victim. The

experimental structure is shown as Figure 4.

In Figure 4, SDN network consists of OFSwitch

1~4, SDN controller and server. Firstly, OFSwitch 1

is used to connect with outer network 1~3. Secondly,

OFSwitch 2 connects with OFSwitch 1 by a 15M

link. Thirdly, OFSwitch 3 and OFSwitch 4 are both

linked between OFSwitch 1 and OFSwitch 2 and the

bandwidth of the links are all set for 30M. Finally,

SDN controller controls the underlying network by

southern interface. In addition, the link between

OFSwitch 1 and OFSwitch 2 is the shortest path but

not always the optimal path, which is determined by

the actual loads of each link. Data flows from

network 1 act as the normal data request, while data

flows from network 2~3 act as the abnormal ones.

Detail steps are given:

Step1: Outer network sends data flows to server.

(Network 1 sends few steady data flows, network 2

sends quantities of TCP requests accompanied with

few ICMP requests and network 3 sends quantities

of ICMP requests with few TCP requests.)

Step2: All varieties of data flows stream into

SDN network. If OFSwitch 1 cannot process the

data flows, it will deliver them to SDN controller by

Packet_In messages. And then turn to Step3.

Otherwise, turn to Step6.

Step3: SDN controller delivers the messages to

TI to analyse them. The results of analysis are

submitted to Service Layer by SDN controller.

Step4: Each module of Service Layer works

coordinately. CS develops the newest strategy for

the data flows and issues to SDN controller.

Step5: SDN controller issues the flow tables and

OFSwitch’s status tables to the relative OFSwitch

according to the strategy.

Step6: Data flows match the flow tables and

OFSwitchs set their status. Data flows’ action will

be specified to be forwarded, limited or dropped

according to the records. Then the information of

network will be updated. Turn to Step1.

The experimental process is shown as follows:

As can be seen from Figure 5, data from network

2~3 increase dramatically in different time points

respectively, while data from network 1 stay steady

throughout the experiment. When data sending rate

is over the first threshold (20Mbits/ 3s, in Figure 5

and Figure 6), the system chooses to drop the

packets with the type that leads to exceed the

threshold (at 30s from network 2 and 69s from

network 3, in Figure 6). When data sending rate is

over the second threshold (30Mbits/ 3s, in Figure 5

and Figure 6), the system drops the packets with

source ip from certain network (at 63s from network

2 and 84s from network 3, in Figure 6). Moreover, at

the beginning, the data flows are forwarding on the

link: s1 to s2. With the increasing loads of the link,

the system splits the flows (data from network 1

transmitted on link: s1 to s2; data from network 2

transmitted on link: s1 to s3; data from network 3

transmitted on link: s1 to s4) when the loads of each

link are over its threshold (s1 to s2: 10Mbits, s1 to

s3: 20Mbits, s1 to s4: 20Mbits, in Figure 7). It can

be seen that DDPM is feasible and efficient.

A Dynamic DDoS Protection Mechanism for WLAN based on SDS Architecture

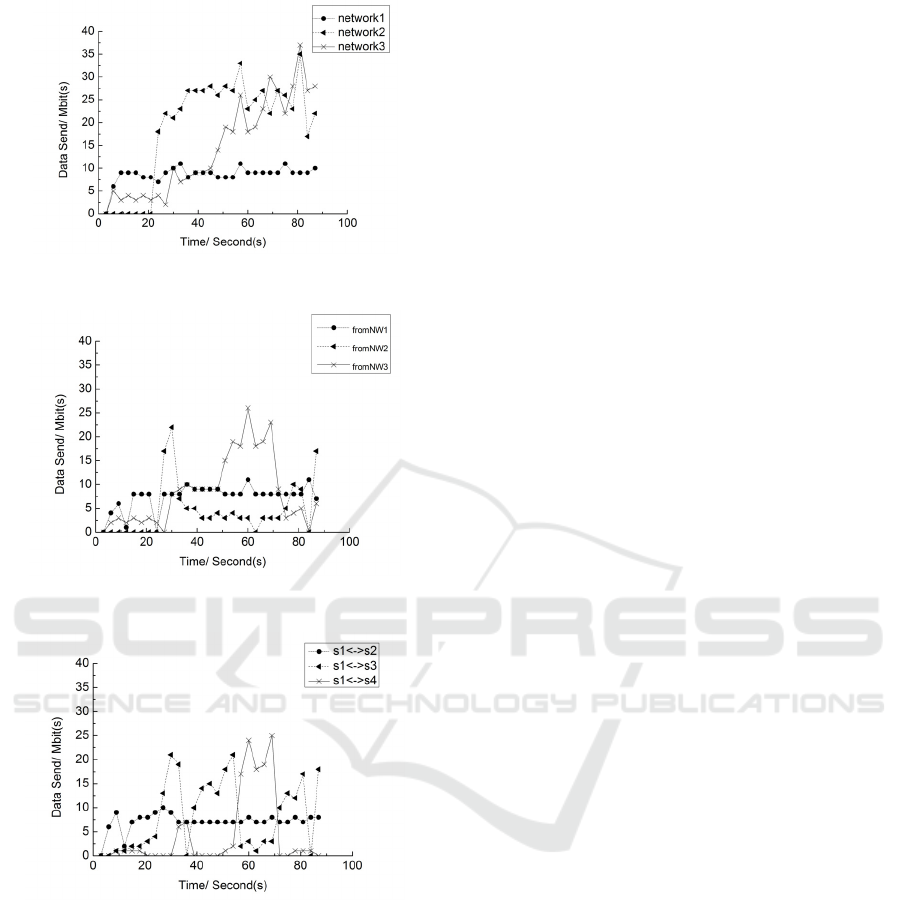

Figure 5: Data sent by outer network.

Figure 6: Data received by server.

Figure 7: Loads of each link.

5 CONCLUSIONS

DDPM achieves a new dynamic protection

mechanism to prevent DDoS attacks flexibly

according to the intensity of attacks in WLAN. The

characteristic of service atomization makes DDPM

easy to extend new function modules to improve its

reliability. Moreover, DDPM can resist the potential

DDoS attacks before the server is under attack.

Therefore, DDPM can deal with the diverse and

complicated types of DDoS attacks efficiently. In

future work, we will focus on the design of security

protection mechanism based on multiple controllers

in large scale network.

ACKNOWLEDGEMENTS

This work was supported by the National Natural

Science Foundation of China under Grant No.

61602351, No. 61502359, No. 61602349 and No.

61303117, the Young Scientist Foundation of

Wuhan University of Science and Technology under

Grant No. 2015XG005, the Open Foundation of

Hubei Province Key Laboratory of Intelligent

Information Processing and Real-time Industrial

System under Grant No. 2016znss10B, and the

College Student Innovation Foundation of Wuhan

University of Science and Technology under Grant

No. 15ZRA096. Heng He is the corresponding

author of the article.

REFERENCES

Lee, K., Kim, J., Kwon, K., Han, Y., Kim, S., 2008.

DDoS attack detection method using cluster analysis.

Expert Systems with Applications, 34(3), pp. 1659-

1665.

Lei, B., 2013. Deciphering SDN: Core Techniques and

Practical Guide. Publishing House of Electronics

Industry. Beijing.

Park, K., 2003. Scalable DDoS protection using route-

based filtering. In Proceedings of DARPA Information

Survivability Conference and Exposition, pp. 97-97.

IEEE Computer Society: Washington, DC.

Pelechrinis, K., Iliofotou, M., Krishnamurthy, S., V., 2011.

Denial of service attacks in wireless networks: The

case of jammers. Communications Surveys &

Tutorials, 13(2), pp. 245-257. IEEE.

Ramos, E., Chae, S., Kim, M., Choi, M., 2008. The

optimistic schemes of cluster analysis and k-NN

classifier method in detecting and counteracting

learned DDoS attack. In Proceedings of New

Technologies, Mobility and Security, pp. 1-5. IEEE

Computer Society: Tangier.

Thatte, G., Mitra, U., Heidemann, J., 2011. Parametric

methods for anomaly detection in aggregate traffic.

IEEE/ACM Transactions on Networking, 19(2),

pp.512-525.

Thomas, D., Ken, G., 2014. SDN: Software Defined

Networks. People's Posts and Telecommunications

Press. Beijing.

Tupakula, U., Varadharajan, V., Vuppala, S., K., 2011.

Counteracting DDoS attacks in WLAN. In

Proceedings of the 4th International Conference on

Security of Information and Networks, pp. 119-126.

ACM.

ISME 2016 - Information Science and Management Engineering IV

ISME 2016 - International Conference on Information System and Management Engineering

Xiang, Y., Lin, Y., Lei, W., Huang, S., 2004. Detecting

DDoS attack based on network self-similarity. IEE

Proceeding on Communications, 151(3), pp. 292-295.

Zhang, Y., Wan, Z., Wu, M., 2009. An active DDoS

defence model based on packet marking. In

Proceedings of the 2nd International Workshop on

Computer Science and Engineering, pp. 435-438.

IEEE Computer Society.

A Dynamic DDoS Protection Mechanism for WLAN based on SDS Architecture
