World Wide Modeling Made Easy

A Simple, Lightweight Model Server

Olivier Le Goaer, Eric Cariou and Franck Barbier

Computer Science Laboratory, University of Pau, Pau, France

Keywords: Model-driven Engineering, Client-server, Knowledge Sharing, Reuse, API, JavaScript.

Abstract: Sharing Models across organizations is a good idea but the lack of a tailored and lightweight tool hinders its

adoption. In this paper, we explain how to turn any computer into a Model server, which is a server

specialized in Models’ location and retrieval. Such a server relies exclusively on specific URIs and

commands thereof. The result, called “WWM”, is an out-of-the-box module built upon Node.js. WWM

targets the EMF ecosystem and takes the form of a JavaScript API for both server-side and client-side

programming.

1 INTRODUCTION

“World Wide Modeling” (WWM) is a quite recent

idea that Models have to be distributed and shared in

as vast and immediate a way was the Web (Desfray,

2015). Indeed, the situation where everyone

produces Models individually (in a manual or

automated way, as well) has certainly been a brake

on the adoption of the Model-Driven Engineering

(MDE), yet recognized as providing powerful

techniques. In particular, Models are no longer

throw-away artefacts and reusing them off-the-shelf,

assuming the fact they have been well designed and

tested by experts of a domain (often enough to be

promoted as « reference models »), is a key factor of

success to reach fast development of software

applications in that domain. Besides, what we may

observe is that these sets of reference models are

more and more frequently used in reproducible

experiments, to compare different approaches or

tools. So, only from this condition, that of large-

scale Model sharing (and knowledge thereof), MDE

is able to keep his promises in classroom, research,

and industrial practice.

There exist some modeling portal initiatives and

central repositories ((Ulrich et al., 2007), (France et

al., 2006), (Zaytsev, 2015), (Basciani et al., 2014))

but they clearly failed to fulfil this role. This hard

fact promotes the emergence of another class of

hosting service: a Model server. Such a server let’s

Models to be reused among teams of a given

company and, ultimately, crosses the frontiers of the

enterprise. In both cases, a Model server aims at

freely storing and publishing a predefined set of

models, while working in a completely autonomous

and decentralized way.

When looking at the overall 3-layer modeling

stack promoted by OMG (see Figure 1), it becomes

clear that a huge number of Models can be

potentially shared. In addition, it must be taken into

account the crucial conformance relationship (a.k.a

metaness (Kühne, 2006)) that holds between levels

when sharing models. Indeed, the basic but cogent

principle behind the modeling stack is that a given

layer M

has been instantiated from the M

n+1

layer

and hence, conforms to the latter. From a reuse

perspective, it means that retrieving a Model without

the possibility of knowing and/or retrieving the

language in which it has been written, is totally

unsound.

Figure 1: Standard modeling stack according to the OMG.

Le Goaer O., Cariou E. and Barbier F.

World Wide Modeling Made Easy - A Simple, Lightweight Model Server.

DOI: 10.5220/0006110802690276

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 269-276

ISBN: 978-989-758-210-3

269

So, the key idea at this point is that any MOF-

compliant modeling activities are eligible for a

world-wide dissemination. But paradoxically, even

the technical assets of well-known OMG’ standards

like UML, SysML or BPMN are still a headache to

obtain in a convenient and steady way. This is even

truer for domain-specific languages (DSL), which

have a more restricted audience.

Meanwhile, Eclipse Modeling Framework

(EMF) is a very popular modeling workbench that

implements the 3-layer modeling stack, and in which

(Essential) MOF is embodied by the Ecore meta-

language. The prevalent serialization mechanism of

EMF is XMI. As a direct consequence, the solution

proposed in this article is designed for, but is not

limited to, the EMF ecosystem, provided that there

is a XML-based storage under the hood. This means

that remote Models are purposely retrieved so that

they can be integrated into EMF projects or as inputs

of EMF-based tools.

To illustrate the aforesaid hurdles, most of EMF

tools are based on Models locally registered through

platform-independent identifiers (“nsURIs” in the

jargon) that are actually neither linked to anything

tangible nor commonly shared. One of our ambitions

is that these URIs become effective, delivered by

clearly identified Model servers, starting with those

of the OMG itself.

Besides, it is worthwhile recalling that a Model

server is useless without a Model client thereof. That

is why these two programs, which are two sides of

the same corner, have all together been merged into

a single package dubbed “wwm”, and built using

Node.js (https://nodejs.org). In doing so, we want to

encourage developers to build various applications

on top of this JavaScript API.

Notice that in this paper the term “Model”

(notice the uppercase first letter) is used in its

broadest sense, referring indifferently to M3, M2 or

M1, whereas “model” strictly refers to an instance of

a metamodel. Once this assumption made, the

remainder of this paper is the following: Section 2

gives rationales for building a Model server. Section

3 describes the features of such a server while

Section 4 elaborates on some aspects of its

implementation. Section 5 can be viewed as a user

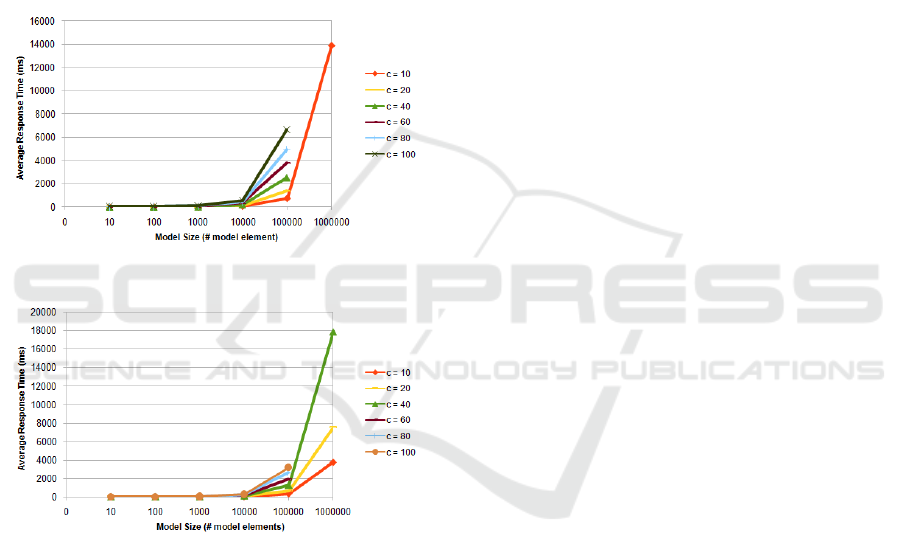

manual. Section 6 provides a rigorous evaluation of

performances of the server when reached by the

default client. Conclusions and some perspectives

are given in Section 7.

2 MOTIVATION

The original motivation of this proposal comes from

another work on executable modeling, experienced

on the Android platform in (Le Goaer et al., 2016),

where a UML statechart could be “run” directly on a

mobile device through PauWare Engine

(www.pauware.com).

2.1 On the Need for a Model Server

Among the benefits claimed in the aforementioned

publication, the issue of mobile applications

updating was tackled thanks to an architecture in

which models are delivered on-demand by a

dedicated server: a so-called “Model server”. This

lets envisioning a panel of interesting capabilities

like on-the-fly replacement of a model deployed on

a device (sketched on Figure 2). This also enables

Models exchange procedures among a set of

connected objects provided that these objects are

acting as Model servers in a peer-to-peer mode.

Figure 2: Model-based updatable Android architecture

coming from (Le Goaer et al., 2016).

As far as we know, there is no really operational

model server available. At best, model repositories

technologies are part of an integrated modeling tool

suite, and hence cannot be exported as a standalone

feature. Moreover, such vendor-dependant solutions

are cumbersome and are rarely free.

2.2 A Domain-Specific Server

The first question that may spring to mind is: Why

not merely hosting the models on a regular server

(e.g. HTTP, FTP, Version Control System …)? One

may observe the same skepticism about domain-

specific languages whilst general-purpose languages

can do everything. Yet, they are legitimate since

they are special for a narrow area of interest. The

same applies for servers.

Firstly, it must be pinpointed that a Web server

(saying, Apache HTTP server) is a heavy, general-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

270

purpose container that can deliver evenly any kind

of resources like pages, images, videos…. Only the

MIME type differs and brings a few semantics when

comes the time to handle resources. Yet, Models are

specific abstractions on their own. Also, the gateway

program layer provided by any modern Web Server

is useless for inert resources, as are the cases of

Models. Secondly, resources are arbitrarily

organized so that URLs cannot exhibit any recurring

pattern and hence no automated processing in a

given scope or field. Thirdly, a Model is an example

of linked data: to be useful, it has often to come

along with other Models (ascending/descending

conformance or siblings). Again, Models cannot be

view just as raw, meaningless files and this is where

regular servers fall short.

For all these reasons, it appears highly desirable

to build a flyweight server able to run on top of

devices with limited capacities. It has to be MDE-

compliant and to offer just enough features: “the

right tool for the job”, in short.

3 PROPOSED SOLUTION

From a client point of view, any Model becomes

identified by an URI that has roughly the following

pattern:

model://host[:port]/M3/M2/M1#fragment

Any other URI format will be considered ill-

formed by the server.

3.1 Scheme, Host and Port

The scheme part of the URI is model (without the

trailing colon). The host is the IP of the computer

running the model server or a name (resolved as an

IP). Port sets the entry-point on which the server is

listening clients’ requests. Default port for a model

server is 6464.

In the rest of the paper, for the sake of clarity, we

exemplifies with a local Model server. All works

exactly the same for a production-ready server of

course.

3.2 Path and Segments

The path is hierarchical, as the strict reflect of the

conformance relationship between the modeling

levels M3, M2 and M1. Hence, it is decomposed as

three depth levels of segments: the first segment

exclusively refers to a metametamodel, the second

exclusively refers to a metamodel and the last one

exclusively refers to a model.

Example of metametamodel:

model://localhost:6464/ECORE/

Examples of metamodels:

model://localhost:6464/ECORE/UML/

model://localhost:6464/ECORE/ATL/

Examples of models:

model://localhost:6464/ECORE/UML/thermo

stat

model://localhost:6464/ECORE/ATL/class2

table

Playing with this segmented URI, the end-user

can seamlessly navigate through the OMG’s

modeling stack and has the insurance to get a Model

serialized in the XMI format. At each level within

the URI, the real file extension is omitted because it

is inferred from the segment’s name preceding it (all

works case-insensitively). As an example,

/UML/foo means that we want to get the model

file named foo.uml (or foo.xmi if not found)

stored on server-side. Because the M3 level is self-

defined, we get directly Ecore.ecore from the

root segment /ECORE/.

3.3 Fragments

Fragments aim at corresponding to a given piece of

the entire Model, provided that pieces have been

properly identified and labelled beforehand.

As a first striking example, it could be wise to

consider the sequence diagram language definition

as a fragment of the entire – thick – UML

specification superstructure, as follows:

model://localhost:6464/ECORE/UML#Seq

uenceDiagram

As a second example, we may consider the

compound state “Operate” as a fragment of the

complete behavior of a programmable thermostat

defined with the UML statechart formalism

(example given on the Franck Barbier’s website):

model://localhost:6464/ECORE/UML/thermo

stat#Operate

3.4 Commands

Additionally to the aforesaid elements, two query

commands are available: ?info and ?list.

The ?list command allows us to see all the

available Models at a given segment level.

Naturally, this command does not work for the last

segment. Below its usage to know all the models

hosted on the server that are written in UML:

model://localhost:6464/ECORE/UML?list

The ?info command returns information about

a Model in a format that is simple to parse and easy

World Wide Modeling Made Easy - A Simple, Lightweight Model Server

271

to read (See Section 4.3). Namely, who produced it?

When? How? And so on. It works at any segment

level. Here are examples:

model://localhost:6464/ECORE/UML?info

model://localhost:6464/ECORE/UML/

thermostat?info

4 IMPLEMENTATION

Writing a server from scratch is a tedious task.

Instead, we choose Node.js, a JavaScript library that

had become increasingly popular over the last few

years, and fast for server-side programming. In

addition, Node.js provides a powerful package

manager that eases its distribution and installation.

This Section shows important technical choices that

are behind the scene of a Model server.

4.1 Communication Protocol

The Model server was built upon the TCP/IP layer.

It is basically a running service that accepts

connections through a given socket. It supports a

request-response communication protocol style,

which relies on a custom JSON-based encapsulation

of data. The server closes the connection once a

response is sent to the client in order to improve

scalability. Last advantage: a simple DNS lookup

mechanism is already available. Henceforth, the

model protocol holds at the very same level than the

http protocol and challenges the latter.

4.2 Server File System

A specific arrangement of directories and files on

server-side stands behind the proposed URI

mechanism and looks like that:

wwm

|-- metametamodel

|-- Ecore.ecore

|-- Ecore.nfo

|-- metamodel

|-- UML.ecore

|-- UML.nfo

|-- ATL.ecore

|-- model

|-- thermostat.uml

|-- thermostat.nfo

|-- myshop.uml

|-- class2table.atl

The root directory is wwm. It contains three

mandatory directories: metametamodel,

metamodel and model. Subdirectories are not

allowed. The owner of the server ought to place

her/his Model files into the suitable directories.

4.3 .nfo Descriptor

It is an ASCII text file which is optional but it is

required in order for the ?info command to work.

This simple solution is an answer to the lack of

metadata about a Model in general.

An .nfo file is a bulk, free, string format as a

collection of text lines. Lines can contain a section

name (starting with a # character) or a property. All

the properties are in the form of field:value

terminated by \r\n. Here is an example:

# General

creation: 2008/10/03

title: definition of a programmable

thermostat with the statechart

formalism

# Producer

author: John Doe

tool: Poseidon for UML

contact: john.doe@example.org

# Miscellaneous

metrics: 19 states

licence: Creative Commons

4.4 Fragment Markups

Unfortunately, there is no native solution to divide a

Model into sub-model regions. This technical

limitation remains even true at the XMI level. So, as

a last resort, we can succeed to implement this

feature with a low-level trick. Indeed, the idea is to

leverage from standards XML comments markups

. They have the advantage of being non-

intrusive in the original file, but should not interfere

with actual comments. They are much more

annotations, and as such, must meet some

conventions to be processed by our tool.

A Model fragment is then an enclosed chunk of

XMI, and is labelled with a unique identifier. The

simplest way to do that is to use a pair of markups,

as follows:

...

<eClassifiersxsi:type="ecore:EClass"

name="PackageableElement"

abstract="true"

eSuperTypes="#//NamedElement

#//ParameterableElement">

<eAnnotations

source="http://www.eclipse.org/emf/2002

/GenModel">

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

272

...

</eAnnotations>

</eClassifiers>

...

...

...

In the current state, this lowbrow mechanism

works. However, defining fragments that do not

break existing dependencies (i.e. XMI attributes

references) so that they remain consistent, is a non-

trivial task, and even sometimes impossible. We

think that more advanced techniques like Model

slicing (Blouin et al., 2011) or theory of

fragmentation (Amálio et al., 2015) should solve

this issue

4.5 JSON Listing

The preferred way to provide a listing, as a result of

the ?list command, is a JSON format. Indeed, this

lightweight format can be natively handled with the

JavaScript language and is easy to understand.

Reconsidering a previous example, listing all the

UML models should returns:

{

"path":"model://localhost:6464/ECORE/U

ML/"

"models":["thermostat", "myshop"]

"count":2

}

The following structure has been thought to ease

a recursive usage because any concatenation of both

path and models values rebuilds valid URIs. These

can in turn be requested (See 5.2.2 for a sample), in

the spirit of the HATEOAS principles.

5 GETTING STARTED

The wwm package is currently hosted on the official

package registry (www.npmjs.com) and weighs only

11KB once minified. The command line to install

our node.js package is the following:

$> npm install wwm

5.1 Server Setup

The specific directories are created when the module

is first launched. This structure has to be perennial

for the Model server run in a correct way. To that

purpose, an integrity checking subroutine is

performed every time the server boots.

As attested by the code below, launching the

server is a breeze. Optionally, a callback allows

listening which URIs are requested (line 3) by a

client. Argument passed through the callback is a

custom object modeling the URI and providing a set

of useful methods to know its pattern.

1. var wwm = require('wwm');

2. var server = wwm.createServer('loc

alhost', 6464);

3. server.on('request',

function (uri) {

4. if (uri.isFragment()) {

5. console.log('Someone asked for

a fragment at' + Date.now());

6. }

7. });

5.2 Client Setup

The asynchronous nature of the server built with

Node.js implies that the end-user defines her/his

own callback functions to freely process the various

responses of the Model server. The snippets given in

the following are minimal for the sake of clarity.

However, of course, much more sophisticated code

can be written, the native language being JavaScript.

5.2.1 Callbacks

As explained in the previous section, what is

received from the Model server depends on the URI

pattern used. Consequently, there exist five specific

event-based callbacks:

 on model: triggered once a plain Model is

received. Argument passed through the

callback is a custom object (name & content

fields).

 on fragment: triggered once a model fragment

is received. Argument passed through the

callback is a custom object (name & content

fields).

 on info: triggered once an info descriptor is

received. Argument passed through the

callback is an ASCII text.

 on list: triggered once a listing result is

received. Argument passed through the

callback is a JSON object (see fields in 4.5).

 on error: triggered once something went

World Wide Modeling Made Easy - A Simple, Lightweight Model Server

273

wrong on server-side. Argument passed

through the callback is a simple string

describing the problem.

5.2.2 Samples

We first illustrate an exhaustive assignment of

callbacks in order to handle all cases (ranging from

line 3 to 14). Notice that method chaining is a

convenient way to do that.

1. var wwm = require('wwm');

2. var client = wwm.createClient();

3. client.on('model', function (m) {

wwm.util.save(m);

4. console.log(m.name + 'downloade

d');

5. }).on('info', function (i) {

6. console.log(i);

7. }).on('error', function (e) {

8. console.error(e);

9. }).on('list', function (l) {

10. console.log (l.count + ' found'

);

11. }).on('fragment', function (f) {

12. wwm.util.save(f);

13. });

14.

15. client.connect('model://localhost:

6464/ECORE/UML'); //ask for a meta

model

16.

17. client.connect('model://localhost:

6464/ECORE/UML/myshop'); //ask for

a model

Once the chosen callbacks functions are

assigned, the client is ready for requesting the server

with connect(). Here, the “UML” metamodel

then “myshop” business model are requested, that

will both trigger the same callback. Thus, the elected

code (lines 4-5) calls save(), a helper bundled

with wwm that creates a physical file with the proper

XMI content on the client-side, and finally displays

a message to the console.

As a second illustration, we give a programming

idiom that solves nicely a frequent client-side intent,

which consists in sending a list command having the

final purpose to retrieve all the available Models.

1. client.on('model', function(m) {

wwm.util.save(m);

2. }).on('list', function(l) {

3. for (m in l.models) {

4. //loop of requests

5. this.connect(l.path + m);

6. }

7. });

9. //ask for listing

10. client.connect('model://localhost:

6464/ECORE/UML?list');

The idea is to send a ?list command (line 11)

while having planned within the corresponding

callback (lines 3-7) an iteration about the results so

that Models are requested in the wake with

connect(). When received, one after the other,

the other callback (line 1-2) does the job thanks to,

again, the save() helper.

6 STRESS TEST

Whilst there exists http load testing and

benchmarking utilities (Siege, ab, Gatling ...),

benchmarking a custom model protocol is quite new.

We decided to write our very-own command line

tool that spits its results out in csv format: wwm-

bench. The example below requests a server for a

Model 1000 times with a max of 50 concurrent

clients:

wwm-bench –n 1000 –c 50 <ModelURI>

Again, the Model server is locally installed,

thereby ignoring the unpredictable networking

aspects during the test.

6.1 Preparation

Response times for the info? and list?

commands are not primal concerns. Our measures

have been therefore conducted on both Model and

Model fragment access throughout the default

Model client. For both tests, we experimented with a

fixed pool of 5000 requests, ensuring an acceptable

accuracy for average response time.

To that purpose, we started with a homemade

DSL previously used in (Pierre et al., 2014) and then

we automatically generated a set of dummy models

containing an exponential number of model

elements. In each one, fragment markups have been

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

274

inserted in such a way they represent 1/3 of the

entire content. We used an unrefined generator,

where meta-elements are arbitrarily instantiated until

a given limit is reached. For a more controlled

generation of instances, note that some tools exist,

like (Ferdjoukh et al., 2015).

6.2 Results

We conducted experiments within 8 hours, using 2

vCores CPU 2.4 GHz with 8GB RAM. Figure 3 and

Figure 4 show the results obtained for Model and

Fragment respectively. Notice that we used a

logarithmic scale (log-10) for the horizontal axis.

Figure 3: Model benchmark.

Figure 4: Fragment benchmark.

6.3 Observations

We can see that the average response time for

models is consistently higher than for fragments,

varying from one to triple, as the number of model

elements increases. This result is logical since

Models have a high transfer cost due to the verbosity

of XMI. Fragments require also time-consuming

operations for their real-time extraction, but this is

counterbalanced by a lower transfer cost. Moreover,

the performance loss is limited because we used

string buffer operations rather than using xml

parsing.

As we increase the number of concurrent requests,

the average response time decreases. For instance,

the response time for the smallest model size was on

average 4.50 ms with 10 concurrent requests, and

31.67 ms with 100 concurrent requests. The average

response time has a linear correlation to the number

of concurrent requests, keeping the requests that can

be served per second pretty constant. This good

result is due to the single-threaded concurrency

model of Node.js, relying on event-driven, non-

blocking I/O. That is already the case with Web

servers, where Node.js applications are noticeably

faster than their equivalents (Lei et al., 2014).

We observed failures (timeout errors) for 10

model elements when concurrency exceeded 10 in

the case of a model request, and 40 in the case of a

fragment request. These threshold values represent a

significant stress level for a non-optimized server,

thereby demonstrating it perfectly fits to a normal

use in MDE.

7 CONCLUSIONS

Model-based engineering never became a

mainstream industrial practice partly due to a poor

reuse level. In some respects, the tremendous

success of Web is truly inspiring when looking at

how models are nowadays unsatisfactory shared by

engineers working in the MDE field.

In this paper, we clearly advocated in favor of a

pure Model server so that any computer is amenable

to host models reachable in read-only mode from all

over the world. Every Model is turned into a URI

outright, which exhibits a logical organization

mapped with a physical organization on server-side.

Its specific pattern enables simple but powerful

features and, above all, ensures a global consistency

for reuse. Owing much to the Node.js architecture,

benchmarks showed it is enough scalable to face

realistic usages.

We are expecting that its tiny size and its quick

install procedure should ease its adoption, at least

within the MDE community. From a practical point

of view, while the server part of our solution can run

effortlessly on any computer once the Node.js

interpreter is installed, the default client currently

written in JavaScript is not really intended to mobile

OS, albeit this is technically possible on Android.

So, the straightforward way to carry out the Android

architecture introduced in Figure 2 is to write a

whole new Android Java client. Nevertheless,

Microsoft for example is hoping to power the IoT

revolution and has announced new native support for

World Wide Modeling Made Easy - A Simple, Lightweight Model Server

275

bringing Node.js to its Windows Phone OS. It's a

safe bet that other platforms will do the same in a

near future. Beyond mobile computing concerns, a

Model client directly integrated into EMF as a

plugin is probably a good idea for language

engineers.

To broaden the discussion, assuming that the

idea of putting open source modeling material at the

disposal of the community thanks to Model server is

well established, another challenge arises: a global

index is missing. Indeed, the highly decentralized

and autonomous nature of our solution requires a

discovery mechanism, undoubtedly under the form

of a Model search engine, like the “Moogle” of

(Lucrédio et al., 2010). But crawling, indexing and

complex querying on such Model servers are open

research perspectives.

REFERENCES

Philippe Desfray, 2015. World wide modeling: The agility

of the web applied to model repositories. In Model-

Driven Engineering and Software Development,

volume 506 of Communications in Computer and

Information Science, pages 3-11. Springer

International Publishing.

Frank Ulrich, Strecker Stefan, and Stefan Koch, 2007.

Open Model, ein Vorschlag für ein

Forschungsprogramm der Wirtschaftsinformatik

Wirtschaftinformatik. Paper 69.

Olivier Le Goaer, Franck Barbier and Eric Cariou, 2016.

Android Executable Modeling: Beyond Android

Programming. Modern Software Engineering

Methodologies for Mobile and Cloud Environments.

IGI Global. Pages 269-283.

Robert France, Jim Bieman, and Betty H. C. Cheng, 2006.

Repository for Model Driven Development

(ReMoDD). In Proceedings of the 2006 international

conference on Models in software engineering, pages

311-317. Springer Berlin Heidelberg, Berlin,

Heidelberg.

Vadim Zaytsev. Grammar zoo: A corpus of experimental

grammarware, 2015. Science of Computer

Programming, 98, Part 1. Fifth issue of Experimental

Software and Toolkits (EST): A special issue on

Academics Modelling with Eclipse (ACME2012).

Thomas Kühne. Matters of (meta-) modeling, 2006.

Software & Systems Modeling, 5(4): pages 369-385.

Daniel Lucrédio, Renata P. M. Fortes, and Jon Whittle,

2010. Moogle: a metamodel-based model search

engine. Software & Systems Modeling, 11(2): pages

183-208.

Arnaud Blouin, Benoit Combemale, Benoit Baudry, and

Olivier Beaudoux, 2011. Modeling Model Slicers. In

ACM/IEEE 14th International Conference on Model

Driven Engineering Languages and Systems, volume

6981, pages 62-76, Springer Berlin/Heidelberg.

Adel Ferdjoukh, Anne-Elisabeth Baert, Eric Bourreau,

Annie Chateau, Rémi Coletta, and Clémentine Nebut,

2015. Instantiation of Meta-models Constrained with

OCL: a CSP Approach. In MODELSWARD,

International Conference on Model-Driven

Engineering and Software Development, pages 213-

222.

Nuno Amálio, Juan de Lara, and Esther Guerra, 2015.

Fragmenta: A theory of fragmentation for MDE. In

ACM/IEEE 18th International Conference on Model

Driven Engineering Languages and Systems, pages

106-115. IEEE.

K. Lei, Y. Ma, and Z. Tan, 2014. Performance comparison

and evaluation of web development technologies in

php, python, and node.js. In IEEE 17th International

Conference on Computational Science and

Engineering (CSE), pages 661-668.

Francesco Basciani, Juri Di Rocco, Davide Di Ruscio,

Amleto Di Salle, Ludovico Iovino, Alfonso

Pierantonio, 2014. MDEForge: an Extensible Web-

Based Modeling Platform. CloudMDE@MoDELS,

pages 66-75.

Samson Pierre, Eric Cariou, Olivier Le Goaer, and Franck

Barbier, 2014. A Family-based Framework for i-

DSML Adaptation, in European Conference on

Modelling Foundations and Applications (ECMFA

2014), volume 8569 of LNCS, Springer, pages 164-

179.

Franck Barbier’s thermostat example. http://web.univ-

pau.fr/~barbier/PauWare/Programmable_thermostat/Pr

ogrammable_thermostat.png.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

276
