Adversarial Reinforcement Learning in a Cyber Security Simulation

Richard Elderman

, Leon J. J. Pater

, Albert S. Thie

, Madalina M. Drugan

and Marco A. Wiering

Institute of Artiﬁcial Intelligence and Cognitive Engineering, University of Groningen, Groningen, The Netherlands

Mathematics and Computer Science Department, Technical University of Eindhoven, Eindhoven, The Netherlands

Keywords:

Reinforcement Learning, Adversarial Setting, Markov Games, Cyber Security in Networks.

Abstract:

This paper focuses on cyber-security simulations in networks modeled as a Markov game with incomplete

information and stochastic elements. The resulting game is an adversarial sequential decision making problem

played with two agents, the attacker and defender. The two agents pit one reinforcement learning technique,

like neural networks, Monte Carlo learning and Q-learning, against each other and examine their effectiveness

against learning opponents. The results showed that Monte Carlo learning with the Softmax exploration

strategy is most effective in performing the defender role and also for learning attacking strategies.

1 INTRODUCTION

In an ever changing world, providing security to indi-

viduals and institutions is a complex task. Not only is

there a wide diversity of threats and possible attack-

ers, many avenues of attack exist in any target rang-

ing from a web-site to be hacked to a stadium to be

attacked during a major event. The detection of an at-

tack is an important aspect. The authors in (Sharma

et al., 2011) showed that 62% of the incidents in the

study were detected only after attacks have already

damaged the system. Recognizing attacks is there-

fore crucial for improving the system. The balance

between prevention and detection is a delicate one,

which brings unique hurdles with it. Our aim is to

evaluate the effectiveness of reinforcement learning

in a newly developed cyber security simulation with

stochastic elements and incomplete information.

Related Work. Markov games (Littman, 1994)

are played between two adversarial agents with a min-

max version of the popular Q-learning algorithm. Ad-

versarial reinforcement learning (Uther and Veloso,

2003) has been used for playing soccer with two play-

ers using a Q-learning variant. In his book (Tambe,

2011), Tambe describes a variety of methods to best

use limited resources in security scenarios. Some

problems mentioned in that book are: 1) Address-

ing the uncertainty that may arise because of an ad-

versary’s inability to conduct detailed surveillance,

and 2) Addressing the defender’s uncertainty about

attackers payoffs. In this paper, we will address these

problems.

A Novel Cyber-security Game for Networks.

Consider a network consisting of nodes representing a

server or network connected with each other. The at-

tacker attempts to ﬁnd a way through a network con-

sisting of various locations, to reach and penetrate the

location containing the important asset. The defender

can prevent this by either protecting certain avenues

of attack by raising its defense or choosing to improve

the capability of the location to detect an attack in

progress. The attacker executes previously success-

ful strategies, and in the same time adapts to the de-

fender’s strategies. The environment resembles a dy-

namic network that is constantly changing at the end

of a game due to the opponent’s behavior.

Adversarial Reinforcement Learning Agents.

In our setting, a number of reinforcement learning al-

gorithms (Sutton and Barto, 1998; Wiering and van

Otterlo, 2012) are pitted against each other as the de-

fender and attacker in a simulation of an adversarial

game with partially observable states and incomplete

information. Reinforcement learning techniques for

the attacker that are used are Monte Carlo learning

with some exploration strategies: ε-greedy, Softmax,

Upper Conﬁdence Bound 1 (Auer et al., 2002), and

Discounted Upper Conﬁdence Bound (Garivier and

Moulines, 2008), and backward Q-learning with ε-

greedy exploration (Wang et al., 2013). The defender

uses the same algorithms and two different neural net-

works with back-propagation as extra algorithms.

As the attacker becomes more successful in suc-

cessive games, the defender creates new situations

for the attacker. The same holds true the other way

Elderman R., J. J. Pater L., S. Thie A., M. Drugan M. and M. Wiering M.

Adversarial Reinforcement Learning in a Cyber Security Simulation.

DOI: 10.5220/0006197105590566

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 559-566

ISBN: 978-989-758-220-2

559

around. This process becomes more complicated by

the fact that in the beginning the attacker has no

knowledge of the network. The attacker can only gain

access to knowledge about the network by penetrat-

ing the defenses. The defender in turn does know the

internal network, but not the position or type of at-

tack of the attacker. Adapting different strategies to

unobservable opponents is crucial in dealing with the

realities of cyber attacks (Chung et al., 2016).

Outline. In Section 2 the cyber security game is

described and explained. In Section 3 the used rein-

forcement learning techniques and algorithms are de-

scribed. Section 4 explains the experimental setup,

and Section 5 presents the experimental results for

the simulations and discusses these results. Finally,

in Section 6 the main ﬁndings are summarized.

2 CYBER SECURITY GAME

In cyber security in the real world, one server with

valuable data gets attacked by many hackers at the

same time, depending on the value of the data con-

tent. It is also often the case that one network contains

more than one location with valuable data. However,

in the simulation made for this study, only one at-

tacker and one defender play against each other, while

there is only one asset. This is chosen for the sake of

little complexity of the ”world”, such that agents do

not have to learn very long before they become aware

of any good strategy.

2.1 Network

In the simulation the attacker and defender play on

a network representing a part of the internet. The

network consists of nodes, which are higher abstrac-

tions of servers in a cyber network, such as login

servers, data servers, internet servers, etc. Nodes can

be connected with each other, which represents a dig-

ital path: it is possible to go from one server to an-

other one, only if they are (in)directly connected. Ev-

ery connection is symmetric. In the network there are

three types of nodes:

1. The starting node, START , is the node in which

the attacker is at the beginning of each game. It

has no asset value. It can be seen as the attacker’s

personal computer.

2. Intermediate nodes. These are nodes without asset

values, in between the start node and the end node.

They must be hacked by the attacker in order to

reach the end node.

3. The end node, DATA, is the node in the network

containing the asset. If the attacker successfully

attacks this node, the game is over and the attacker

has won the game.

An attacker node is deﬁned as n(a

, a

, ..., a

), where

each a is the attack value of an attack type on

the node. A node for the defender is deﬁned as

n(d

, d

, ..., d

, det) where each d is the defense

value of an attack type on the node and det is the

detection value on the node. Each node consists of

10 different attack values, 10 different defense val-

ues, and a detection value. Each value in a node has a

maximal value of 10.

Even the standard network of 4 nodes, see Fig-

ure 1, creates a huge number of possible environmen-

tal states. The attack and defense values are paired,

each pair represents the attack strength and security

level of a particular hacking strategy. The detection

value represents the strength of detection, which rep-

resents the chance that, after a successfully blocked

attack, the hacker can be detected and caught. The en-

vironmental state of the network can be summarized

as a combination of the attack values, defense values

and detection value of each node. Both the attacker

and defender agents have internal states representing

parts of the entire environmental state, on which they

base their actions.

The game is a stochastic game due to the

detection-chance variable. When an attack on a node

fails (which is very likely), a chance equal to the

detection parameter determines if the attacker gets

caught. This resembles a real-life scenario because

attacks can remain unnoticed, and the chance that an

attack is unnoticed decreases if there is more detec-

tion.

2.2 Agents

In the simulation there are two agents, one defender

agent and one attacker agent. Each agent has limited

access to the network, just like in the real world, and it

has only inﬂuence on its side of the values in the nodes

(security levels or attack strengths). Both agents have

the goal to win as many games as possible.

The Attacker. Has the goal of hacking the net-

work and get the asset in the network. An attacker

wins the game when it has successfully attacked the

node in the network in which the asset is stored. For

every node n that is accessible by the attacker, only

the values for the attack strengths are known by the

attacker, a

, . . . , a

. The attacker has access to the

node it is currently in, and knows the nodes directly

accessible from that server. With a particular attacker

action, the attack value of the attacked node n from

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

560

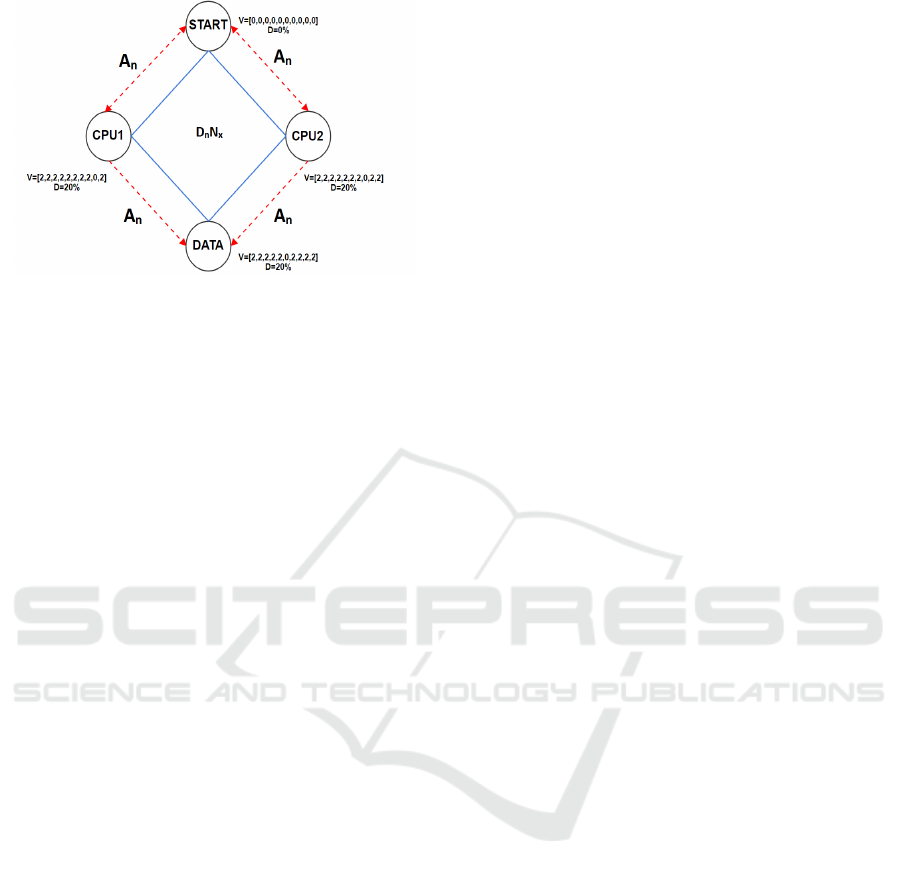

Figure 1: The game from the Attacker’s and Defender’s per-

spective. Arrows indicate possible attacks A with attack

type n from the current node. All initial attack values are

equal to zero. The attacker starts at the start-node. For the

defender, the V values indicate the initial defense values. D

stands for the initial detection-chance if an attack fails.

node m and a speciﬁc attack type a

is incremented by

one. Per game step, an attacker is allowed to attack

only one of the accessible nodes, for which the value

is not already the maximal value.

The Defender. Has the goal to detect the attack

agent before it has taken the asset in the network. We

assume that the defender has access to every node in

the network, and that the defender only knows the de-

fend and detection values on each node, but not the

attack values. Per game step, the defender is allowed

to increment one detection value on one node in the

network or to increase the defend values of an attack

type in a node. By incrementing a defend value, it be-

comes harder for the attacker to hack the node using

a speciﬁc attack type. By incrementing the detection

value, the chance that an unsuccessful attack is de-

tected becomes higher.

2.3 Standard Network

In our simulations, the agents play on the standard

network, consisting of four nodes connected with

each other in a diamond shape. The starting node,

START , is connected with two intermediate nodes,

which are both connected with the end node (see Fig-

ure 1).

All attack and defense values on the start node are

initially zero: both agents need to learn that putting

effort in this node has no positive effect on their win

rate, since the attacker cannot take the asset here and

the defender therefore does not need to defend this

node. By design, both intermediate nodes have a ma-

jor security ﬂaw represented by one attack type hav-

ing an initial security level of zero, leaving the at-

tacker two best actions from the start node. The end

node, DATA, contains data. This node containing the

asset has a similar security ﬂaw as well giving the at-

tacker an easy path towards its goal. The defender

must identify this path and ﬁx the security ﬂaws by

investing in the security level of the attack type with

initially low security on the node.

2.4 Game Procedure

When starting each game, the attacker is in the start

node. The values in all the nodes are initialized as

shown in Table 1. Each game step, both agents choose

an action from their set of possible actions. The ac-

tions are performed in the network, and the outcome

is determined. The node on which the attack value of

an attack type was incremented determines if the at-

tack was successful. If the attack value for the attack

type is higher than the defend value for that attack

type, then the attack overpowers the defense and the

attack was successful. In this case, the attacker moves

to the attacked node. When this node is the end node,

the game ends and the attacker wins. When the attack

value of the attack type is lower than or equal to the

defense value, the attack is blocked. In this case, the

attack is detected with some probability given by the

detection value, a number between 0 and 10, of the

node that was attacked. The chance to be detected is

(detection value * 10)%. If the attack was indeed de-

tected, the game ends and the defender wins. If the

attack was not detected, another game step is played.

At the end of each game, the winner gets a re-

ward with the value 100, and the loser gets a reward

with the value -100. One agent’s gain is equivalent to

another’s loss, and therefore this game is a zero-sum

game (Neumann and Morgenstern, 2007).

An Example Game. An example game on the

standard network is shown in Table 1. In game step 1

the attacker attacks the gap in one of the intermediate

nodes, while the defender ﬁxes the ﬂaw in the other

node. The attacker now moves to the attacked inter-

mediate node. Then the attacker attacks the security

ﬂaw in the end node, while the defender increments

the same value as in the previous game step. Now

the attacker moves to the end node and has won the

game. The agents update the Q-values of the state-

action pairs played in the game, and a new game will

be started. A game on the standard network lasts at

least 1 time step, and at most 400 time steps.

3 REINFORCEMENT LEARNING

The agents in the simulation need to learn to optimize

their behavior, such that they win as many games as

possible. In each game step, an agent needs to choose

Adversarial Reinforcement Learning in a Cyber Security Simulation

561

Table 1: An example game showing the attacker moving to CPU2 and subsequently to the DATA node. The defender performs

two defense actions in CPU1. Therefore, in this example game the attacker wins after two moves.

Gamestep Action Attacker Action Defender Node Attack Values Defense Values

0 - - START [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

CPU1 [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [0, 2, 2, 2, 2, 2, 2, 2, 2, 2]

CPU2 [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [2, 0, 2, 2, 2, 2, 2, 2, 2, 2]

DATA [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [2, 2, 0, 2, 2, 2, 2, 2, 2, 2]

1 CPU2, Attack Type 2 CPU1, Defense Type 1 START [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

CPU1 [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [1, 2, 2, 2, 2, 2, 2, 2, 2, 2]

CPU2 [0, 1, 0, 0, 0, 0, 0, 0, 0, 0] [2, 0, 2, 2, 2, 2, 2, 2, 2, 2]

DATA [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [2, 2, 0, 2, 2, 2, 2, 2, 2, 2]

2 DATA, Attack Type 3 CPU1, Defense Type 1 START [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

CPU1 [0, 0, 0, 0, 0, 0, 0, 0, 0, 0] [2, 2, 2, 2, 2, 2, 2, 2, 2, 2]

CPU2 [0, 1, 0, 0, 0, 0, 0, 0, 0, 0] [2, 0, 2, 2, 2, 2, 2, 2, 2, 2]

DATA [0, 0, 1, 0, 0, 0, 0, 0, 0, 0] [2, 2, 0, 2, 2, 2, 2, 2, 2, 2]

an action out of a set of possible actions. Agents

base their decision on the current state of the network.

States are deﬁned differently for both agents, because

the complete state of the network is partially observ-

able for both agents, and they have access to different

kinds of information about the network. The agents

also have different actions to choose from.

The Attacker. States are deﬁned as s(n), where n

is the node the agent is currently in. An action is de-

ﬁned as A(n

, a), where n

is one of the neighbouring

nodes of node n that is chosen to be attacked and a

an attack type as before. In each state, the number of

possible actions is 10 * the number of neighbours of n

minus the actions that increment any attack value that

is already maximum (has the value 10).

The Defender. For a defender agent, the state is

deﬁned as s(n

, n

, ..., n

), where each n

is the i-th

node in the network. An action for a defender is de-

ﬁned as A(n, a), where n is the node in the network

that is chosen to invest in, and a ∈ d

, d

, ..., d

, det

the defend values and detection value. In each state,

the number of possible actions is 11 * the number of

nodes minus the actions that increment the defense

value of an attack type or detection value that is al-

ready maximum (has the value 10).

The Monte-Carlo and Q-learning agents do not

have an internal state representation, but they base

their actions on previous success, regardless of the en-

vironmental state. The neural and linear networks use

the entire observable environmental state as an input.

3.1 Monte Carlo Learning

In the ﬁrst reinforcement learning technique, agents

learn using Monte Carlo learning (Sutton and Barto,

1998). The agents have a table with possible state-

action pairs, along with estimated reward values.

After each game the agents update the estimated

reward values of the state-action pairs that were se-

lected during the game. Monte Carlo learning up-

dates each state the agent visited with the same reward

value, using:

t+1

(s, a) = Q

(s, a) + α ∗ (R − Q

(s, a))

where α is the learning rate which is a parameter rang-

ing from 0 to 1 that represents how much the agent

should learn from a new observation. R is the re-

ward obtained at the end of each game. The Q-values

are the estimated reward values. They represent how

much the agent expects to get after performing an ac-

tion. The s is the current state of the world, for the at-

tacker the node it currently is in and for the defender

it is empty: the state s has always the value 0. The

a is a possible action to do in that state (see also the

start of this section). For the defender the state s used

in the learning algorithm has always the value 0, be-

cause using a tabular approach it is unfeasible to store

all possible states. Although the state value is 0, the

environmental state determines which actions can be

selected. The attacker has information of the node it

currently is in, and this forms the state.

A reinforcement learning agent has the dilemma

between choosing the action that is considered best

(exploitation) and choosing some other action, to

see if that action is better (exploration). For Monte

Carlo learning, four different exploration algorithms

are implemented that try to deal with this problem

in the cyber security game. The four algorithms

are ε-greedy, Softmax, Upper Conﬁdence Bound 1

(Auer et al., 2002), and Discounted Upper Conﬁdence

Bound (Garivier and Moulines, 2008), which we will

now shortly describe.

ε-greedy Strategy. The ﬁrst method is the ε-

greedy exploration strategy. This strategy selects the

best action with probability 1 − ε, and in the other

cases it selects a random action out of the set of pos-

sible actions. ε is here a value between 0 and 1, deter-

mining the amount of exploration.

Softmax. The second exploration strategy is Soft-

max. This strategy gives every action in the set of

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

562

possible actions a chance to be chosen, based on the

estimated reward value of the action. Actions with

higher values will have a bigger chance to be chosen.

A Boltzmann distribution is used in this algorithm to

calculate the action-selection probabilities:

(a) =

(s,a)

∑

i=1

(s,i)

where P

(a) is the chance that action a will be cho-

sen. K is the total number of possible actions. τ is the

temperature parameter, which indicates the amount of

exploration.

UCB-1. The third exploration strategy is called

Upper Conﬁdence Bound 1 (UCB-1) (Auer et al.,

2002). This algorithm bases its action selection on the

estimated reward values and on the number of previ-

ous tries of the action. The less an action is tried be-

fore, the higher the exploration bonus that is added to

that value for the action selection. At the start of the

simulation, actions will be chosen that have not been

tried before. After no such actions are left, the action

will be chosen that maximizes V

(a), computed by:

(a) = Q

(s, a) +

c ∗ ln n

n(a)

where n(a) is the number of previous tries of action

a over all previously played games in the simulation.

n is the total number of previous tries for all actions

currently available over all previously played games

in the simulation. c is the exploration rate.

Discounted UCB. The last exploration strategy

is called Discounted Upper Conﬁdence Bound (Dis-

counted UCB), and is a modiﬁcation of the UCB-1

algorithm (Garivier and Moulines, 2008). It is based

on the same idea, but more recent previous tries have

more inﬂuence on the value than tries longer ago.

This algorithm was proposed as an improvement of

the UCB-1 algorithm when used in a non-stationary

environment like the simulation in this study.

Like in UCB-1, at the start of the simulation ac-

tions will be chosen that have not been tried before,

and after no such actions are left the action will be

chosen that maximizes V

(a), computed by:

(a) = Q

(s, a) + 2B

ξlog n

(γ)

(γ, a)

B is the maximal reward that can be obtained in a

game. ξ is the exploration rate. n

(γ) is deﬁned as:

(γ) =

∑

i=1

(γ, i)

K is the number of possible actions in time step t.

(γ, i) is deﬁned as:

(γ, i) =

∑

s=1

t−s

=i}

is the condition that the value for time step

s must only be added to the sum if action i was per-

formed in time step s. γ is the discount factor that

determines the inﬂuence of previous tries on the ex-

ploration term.

3.2 Q-Learning

Q-learning is a model-free reinforcement learning

technique. In (Watkins and Dayan, 1992) it was

proved that Q-learning converges to an optimal pol-

icy for a ﬁnite set of states and actions for a single

agent. The Backward Q-learning algorithm (Wang

et al., 2013) is used here to train the attacker and

defender agents. We combined the (Backward) Q-

learning algorithm only with the ε-greedy exploration

strategy. The ’backward’ here signiﬁes that the up-

date starts at the last visited state, and from thereon

updates each previous action until the ﬁrst. The

backward Q-learning algorithm can enhance learning

speed and improve ﬁnal performance over the normal

Q-learning algorithm.

The last action brings the agent in a goal state, and

therefore it has no future states. Hence the last state-

action pair is updated as follows:

t+1

(s, a) = Q

(s, a) + α ∗ (R − Q

(s, a))

For every other state-action pair but the last one the

learning update is given by:

t+1

(s, a) = Q

(s, a) + α ∗ (γ max Q

, b) − Q

(s, a))

Normally the reward is also a part of the second for-

mula, but it is omitted here for the reason that only

the last state-action pair gets an immediate reward. γ

is the discount parameter. γ ∈ [0, 1] and serves to ﬁnd

a balance between future and current rewards.

3.3 Neural Network

The neural network (multi-layer perceptron) is only

implemented for the defender agent and not for the

attacker. Compared to the tabular approaches, the

neural network has the advantage that it can use input

units denoting the observable environmental state.

The neural network uses stochastic gradient de-

scent back-propagation to train its weights. It uses

an input neuron for each defense or detection value

in the network and an output neuron for each possi-

ble action. In the hidden layer the sigmoid activation

Adversarial Reinforcement Learning in a Cyber Security Simulation

563

Table 2: Parameter settings for the attacker agent that result

in the highest win score against the optimized ε-greedy de-

fender (except for the ε-greedy attacker which is optimized

against a defender with random action selection).

Learning technique Learning Rate Parameter(s)

Discounted UCB α = 0.05 ξ = 6, γ = 0.6

ε-greedy α = 0.05 ε = 0.05

Q-learning α = 0.1 γ = 1.0, ε = 0.04

Softmax α = 0.05 τ = 5

UCB-1 α = 0.05 c = 4

function is used. Rewards for the neural network are

calculated after each game as the Monte Carlo algo-

rithm with rewards normalized to 1 for winning and

-1 for losing, using only the selected action (output

neuron) per game step as the basis for the stochas-

tic gradient descent algorithm. Training is done by

way of experience replay (Lin, 1993), using the last n

games t times for updating the network.

In total, there are 44 input and output neurons.

Preliminary testing showed that 6 neurons in the hid-

den layer connected to the 44 input and output neu-

rons provided the best results, using experience replay

parameters n = 10 and t = 2. The 44 output neurons

represent each of the 44 moves available to the de-

fender at any game step. The highest activation value

amongst the output nodes of the network represents

the defensive action that is taken.

3.4 Linear Network

The linear network follows the same approach as well,

but has no hidden layer. It therefore directly calcu-

lates its output based on an input layer of 44 nodes,

again representing each of the defense and detection

values in the network, with weighted connections to

the output layer. Each of the outputs represents a pos-

sible move in the game. Experience replay did not

show to signiﬁcantly increase the result of the Linear

network, so it is not used in the experiments. The out-

put with the highest activation is selected as the move

to be played.

4 EXPERIMENTAL SETUP

To test the performance of the different reinforcement

learning techniques, simulations are run in which the

attacker and defender agent play the game with dif-

ferent techniques. The attacker plays with six differ-

ent techniques: random action selection, four differ-

ent Monte Carlo learning techniques and Q-learning,

while the defender plays with eight different tech-

niques, the six from the attacker and the two neural

Table 3: Parameter settings for the defender agent that result

in the highest win score against the optimized ε-greedy at-

tacker (except for the ε-greedy defender which is optimized

against an attacker with random action selection).

Learning technique Learning Rate Parameter(s)

Discounted UCB α = 0.05 ξ = 4, γ = 0.6

ε-greedy α = 0.05 ε = 0.1

Linear Network α = 0.1 -

Neural Network α = 0.01 hiddenneurons = 6, n = 10, t = 2

Q-learning α = 0.05 γ = 0.91, ε = 0.07

Softmax α = 0.05 τ = 4

UCB-1 α = 0.05 c = 5

networks.

Every technique is optimized for both agents, by

changing the learning rate and its own parameter(s).

The Monte Carlo learning technique with ε-greedy

exploration is for both agents taken as a basis, this

technique is optimized against an opponent with ran-

dom action selection. All other learning techniques

are optimized against an opponent using this opti-

mized technique. For every parameter setting 10 runs

of 20000 games are simulated, and the one with the

highest total average win score is selected as the opti-

mal parameter setting. The optimal parameter settings

can be seen in Tables 2 and 3.

5 RESULTS

The obtained results can be seen in Table 4, which

displays the average win score over the full 10 sim-

ulations of 20000 games. The average scores come

along with their standard deviations. Each win score

is a value between -1 and 1, -1 indicates the attacker

has won everything, 1 means the defender did always

win. In the bottom row and rightmost column, the

best attacker(A)/defender(D) for that column/row is

displayed.

From the ”average” row and column in the table,

which shows the average score against all opponents,

it can be concluded that for both agents there is not a

single algorithm that always performs best. Softmax

is a good learning algorithm for the defender, against

all opponents it is, if not the best, among the best

performing defenders, but ε-greedy, UCB-1, and Q-

learning are also doing pretty well. For the attacker all

different exploration strategies used for Monte Carlo

learning show good results, with Softmax having a

slight lead over the others.

When we take a look at the individual results of

the algorithms from the attacker’s perspective, it turns

out that the algorithm with random action selection is

by far the worst performing algorithm, with an aver-

age win score of 0.93, which means it only wins about

3 percent of the games. The second worst attacker’s

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

564

Table 4: Average score of 10 complete simulations of 20000 games for each strategy pair along with the standard deviation.

DUC = discounted UCB, GRE = ε-greedy, LN = linear network, NN = neural network, QL = Q-learning, RND = Random,

SFT = Softmax, UCB = UCB-1. The average row/column shows the total average score for each attacker/defender strategy

against all opponents.

D ↓ A → DUC GRE QL RND SFT UCB average BEST A

DUC -0.26 ± 0.14 -0.26 ± 0.08 -0.14 ± 0.11 0.93 ± 0.02 -0.42 ± 0.13 -0.26 ± 0.09 -0.07 ± 0.46 SFT

GRE -0.13 ± 0.05 -0.15 ± 0.03 0.08 ± 0.07 0.97 ± 0.004 -0.19 ± 0.03 -0.15 ± 0.05 0.07 ± 0.41 SFT

LN -0.95 ± 0.03 -0.87 ± 0.04 0.07 ± 0.66 0.93 ± 0.008 -0.94 ± 0.04 -0.95 ± 0.02 -0.45 ± 0.77 DUC/UCB

NN -0.41 ± 0.17 -0.43 ± 0.24 -0.44 ± 0.18 0.93 ± 0.02 -0.41 ± 0.19 -0.32 ± 0.05 -0.18 ± 0.53 QL

QL -0.15 ± 0.04 -0.16 ± 0.01 0.25 ± 0.05 0.94 ± 0.005 -0.19 ± 0.02 -0.13 ± 0.02 0.09 ± 0.41 SFT

RND -0.96 ± 0.01 -0.91 ± 0.02 -0.91 ± 0.004 0.92 ± 0.002 -0.95 ± 0.05 -0.96 ± 0.007 -0.63 ± 0.69 DUC/UCB

SFT -0.07 ± 0.08 -0.08 ± 0.05 0.35 ± 0.07 0.95 ± 0.02 -0.10 ± 0.06 -0.10 ± 0.07 0.16 ± 0.39 SFT/UCB

UCB -0.16 ± 0.06 -0.15 ± 0.04 0.37 ± 0.17 0.89 ± 0.01 -0.19 ± 0.05 -0.17 ± 0.03 0.10 ± 0.41 SFT

average -0.39 ± 0.35 -0.38 ± 0.33 -0.05 ± 0.48 0.93 ± 0.02 -0.43 ± 0.33 -0.38 ± 0.34 -0.11 ± 0.59 SFT

BEST D SFT SFT UCB GRE SFT SFT SFT

algorithm turns out to be Q-learning, which wins on

average just more than half of its games (win score -

0.05). The remaining four Monte Carlo learning algo-

rithms with each a different exploration strategy per-

form on average almost equally well, with a win score

between -0.38 and -0.43.

The two worst performing algorithms for the de-

fender agent turn out to be random action selection

(average win score = -0.63) and the Linear Network

(average win score = -0.45). The Neural Network per-

forms better, with an average win score of -0.18, but

it is still worse than the learning algorithms that use

tabular representations. Only one of these defender

algorithms has a win score less than zero, and this

is, surprisingly, Monte Carlo learning with discounted

UCB exploration, with an average win score of -0.07.

The four best performing defender algorithms have

an almost equal average win score between 0.07 and

0.16.

There is a huge initial advantage of the defender

agent with respect to the attacker agent when the

game is played: when both agents do not learn, the

defender wins about 95% of the games. This is most

likely caused by the random selection procedure of

the attacker, which makes it highly unlikely that it se-

lects a node more than once (which is required for

most attack types to break through a node).

5.1 Notable Aspects of the Results

An interesting part of the results is that for the de-

fender agent both algorithms based on neural net-

works perform worse than all algorithms based on

tabular representations. This reﬂects the problem that

neural networks have with adversarial learning. The

network is slower in adapting to a constantly chang-

ing environment than other algorithms, therefore be-

ing consistently beaten by attackers.

Another remarkable result is that Q-learning is

among the best algorithms for the defender agent,

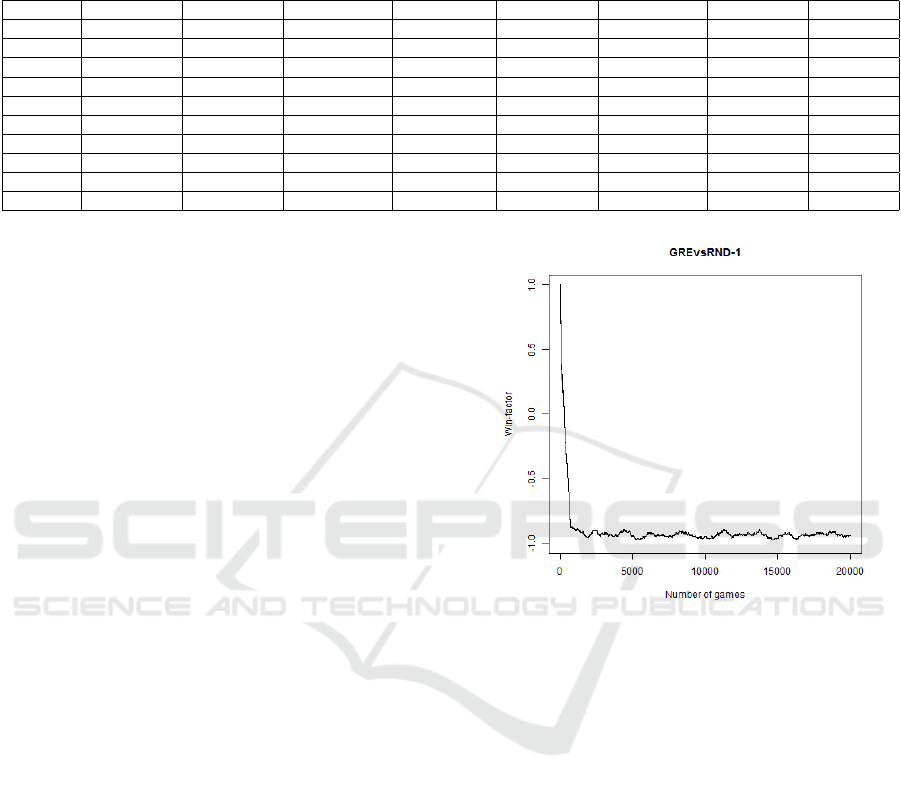

Figure 2: Plot of the running average of the win score over

the previous 500 games for ε-Greedy against Random.

while it is among the worst for the attacker agent. This

is probably the case because the action-chains, or op-

timal policy is less clear for the attacker. Another pos-

sible explanation for the Q-learning attacker under-

performing the Monte Carlo ε-greedy algorithm could

be that Q-learning takes slightly longer to ﬁnd an op-

timal policy. This also supports the earlier study from

(Szepesv

ari, 1997), who found that Q-learning may

suffer from a slow rate of convergence. The last-

mentioned is crucial in an environment with a chang-

ing optimal policy.

A very surprising result is that the Monte Carlo al-

gorithm with Discounted UCB exploration performs

for both agents not better than the same learning al-

gorithm with UCB-1. This seems to contradict with

the argument made in (Garivier and Moulines, 2008),

which states that the Discounted UCB algorithm per-

forms better than UCB-1 in non-stationary environ-

ments like the simulation in this paper.

Adversarial Reinforcement Learning in a Cyber Security Simulation

565

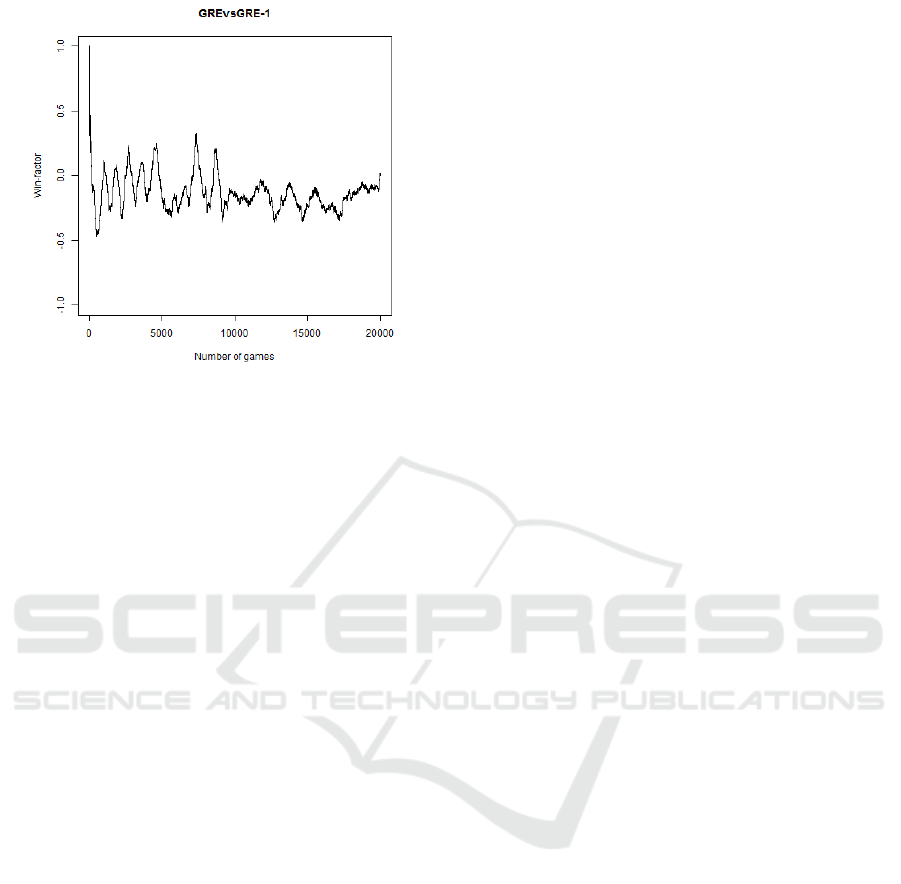

Figure 3: Plot of the running average of the win score over

the previous 500 games for ε-Greedy against ε-Greedy.

5.2 Visual Analysis of Simulations

To get some insight in the adversarial learning effects

during a simulation, plots are made for a simulation

that display the running average of the average win

score over the previous 500 games in the simulation.

These plots can be seen in Figures 2 and 3. Figure 2

shows that the ε-greedy attacker in after only a couple

of hundred games manages to win almost every game

against the random agent, and so it learns very fast

to attack the security ﬂaws in the network. It turns

out that a simulation of any of the learning attackers

against a defender with random action selection re-

sults in a similar plot as in Figure 2.

Figure 3 shows the behavior of the agents when

both learn using ε-greedy. The win rate shows a lot

of ﬂuctuations, which means the agents try to opti-

mize their behavior by adapting to each other, and

overall the attacker optimizes slightly better than the

defender, resulting in an average win rate of around

-0.15. This adversarial learning behavior creates a

non-stationary environment in which the agents are

not able to maintain a good win score over a large

amount of games.

6 CONCLUSION

In this paper we described a cyber security simulation

with two learning agents playing against each other

on a cyber network. The simulation is modelled as a

Markov game with incomplete information in which

the attacker tries to hack the network and the de-

fender tries to protect it and stop the attacker. Monte

Carlo learning with several exploration strategies (ε-

greedy, Softmax, UCB-1 and Discounted UCB) and

Q-learning for the attacker and two additional neu-

ral networks using stochastic gradient descent back-

propagation for the defender (one linear network and

one with a hidden layer) are evaluated. Both agents

needed to use the algorithms to learn a strategy to win

as many games as possible, and due to the compe-

tition the environment became highly non-stationary.

The results showed that the neural networks were not

able to handle with this vey well, but the Monte Carlo

and Q-learning algorithms were able to adapt to the

changes in behavior of the opponent. For the de-

fender, Monte Carlo with Softmax exploration per-

formed best, while the same holds for learning effec-

tive attacking strategies.

REFERENCES

Auer, P., Cesa-Bianchi, N., and Fischer, P. (2002). Finite-

time analysis of the multiarmed bandit problem. Ma-

chine Learning, 47:235–256.

Chung, K., Kamhoua, C., Kwiat, K., Kalbarczyk, Z., and

Iyer, K. (2016). Game theory with learning for cyber

security monitoring. IEEE HASE, pages 1–8.

Garivier, A. and Moulines, E. (2008). On upper-conﬁdence

bound policies for non-stationary bandit problems.

ALT.

Lin, L.-J. (1993). Reinforcement Learning for Robots Us-

ing Neural Networks. PhD thesis, Carnegie Mellon

University.

Littman, M. L. (1994). Markov games as a framework for

multi-agent reinforcement learning. In ICML, pages

157–163.

Neumann, J. V. and Morgenstern, O. (2007). Theory of

games and economic behavior. Princeton University

Press.

Sharma, A., Kalbarczyk, Z., Barlow, J., and Iyer, R. (2011).

Analysis of security data from a large computing or-

ganization. In 2011 IEEE/IFIP DSN, pages 506–517.

Sutton, R. S. and Barto, A. G. (1998). Reinforcement Learn-

ing: An Introduction. The MIT press, Cambridge MA.

Szepesv

ari, C. (1997). The asymptotic convergence-rate of

q-learning. In NIPS, pages 1064–1070.

Tambe, M. (2011). Security and Game Theory: Algorithms,

Deployed Systems, Lessons Learned. Cambridge Uni-

versity Press, New York, NY, USA, 1st edition.

Uther, W. and Veloso, M. (2003). Adversarial reinforce-

ment learning. Technical Report CMU-CS-03-107.

Wang, Y., Li, T., and Lin, C. (2013). Backward q-learning:

The combination of sarsa algorithm and q-learning.

Eng. Appl. of AI, 26:2184–2193.

Watkins, C. and Dayan, P. (1992). Q-learning. Machine

Learning, 8:279–292.

Wiering, M. and van Otterlo, M. (2012). Reinforcement

Learning: State of the Art. Springer Verlag.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

566
