Modelling Agile Requirements

using Context-based Persona Stories

Jorge Sedeño

, Eva-Maria Schön

2,3

, Carlos Torrecilla-Salinas

, Jörg Thomaschewski

Maria José Escalona

and Manuel Mejias

Agencia Andaluza de Instituciones Culturales and University of Seville, Seville, Spain

CGI, Hamburg, Germany

University of Seville, Spain

Department of Computer Languages and Systems, University of Seville, Seville, Spain

University of Applied Sciences of Emden/Leer, Emden, Germany

Keywords: User Involvement, User Experience Design, Human Computer Interaction, Assistive Technologies, Agility

in IS Development, Model-driven Web Engineering, User Centered Design, Personas, User Stories, Agile

Software Development.

Abstract: In recent years hybrid approaches focusing on user needs by integrating Agile methodologies (e.g. Scrum,

Kanban or Extreme Programming) with Human-Centered Design (HCD) have proven to be particularly

suitable for the development of Web systems. On the one hand, HCD techniques are used for requirements

elicitation and, on the other hand, they can be utilized to elicit navigation relationships in Web projects.

Navigation is one of the basic pillars of Web systems and also a fundamental element for the methodologies

within the Model-Driven Web Engineering (MDWE) field. This paper presents an approach to model Agile

requirements by means of integrating HCD techniques into Agile software development. We contribute to

the software development body of knowledge by creating the concept of a Context-based Persona Story

(CBPS) and formalizing it through a metamodel. Our approach covers the modelling of users and

stakeholders by personas as well as the visualization of the context of use by storyboards. The attributes of

the context of use enable us to elicit acceptance criteria for describing the scope of an Agile requirement.

1 INTRODUCTION

Agile approaches can be seen as an evolution of the

previously existing iterative and incremental

approaches, with the objective of providing

organizations with tools to quickly adapt to changing

requirements and also to ensure the early value-

delivery of results to business. Agile is as a label

grouping different frameworks and methodologies

sharing a common set of principles and values that

can be found in what is known as “Agile Manifesto”

(Beck et al., 2001). Some examples of Agile

approaches are Lean Software Development

(Poppendieck and Poppendieck, 2003), Scrum

(Sutherland and Schwaber, 2011) eXtreme

Programming (XP) (Beck, 2000) or Kanban

(Anderson, 2010). Besides, Web systems are those

developed to be published and consumed on the

Internet, being the subject of study of Web

Engineering (Deshpande et al., 2002). This field can

be defined as the systematic, quantifiable and

structured application of methodological approaches

to development, evaluation and maintenance of Web

systems (Deshpande et al., 2002). The navigational

model, which defines how users can navigate

through the information, is a basic element in Web

Engineering approaches (Valderas and Pelachano,

2011), especially in requirements elicitation and

analysis phases.

Web-based systems are characterized, among

other aspects, by flexible approach to requirements

and quick user-feedback, in order to easily adapt and

adjust to changing needs (Hu et al., 2008). Besides,

Web-based development has also special

characteristics that differentiate it from other type of

development projects, such as: complex navigational

structure (Escalona and Aragon, 2008), (Escalona et

al., 2004) or quick adaptation to changing

196

Sedeño, J., Schön, E-M., Torrecilla-Salinas, C., Thomaschewski, J., Escalona, M. and Mejías, M.

Modelling Agile Requirements using Context-based Persona Stories.

DOI: 10.5220/0006220301960203

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 196-203

ISBN: 978-989-758-246-2

requirements (Mendes and Mosley, 2005)

(Pressman, 2000) (Reifer, 2000). The latter is

becoming a key success factor in Web-based

systems. As it is known, one of the principles of

Agile methodologies is embracing changes (Beck et

al., 2001), thus Agile approaches might offer a

suitable framework for the exposed Web

development characteristics (Hu et al., 2008).

The classical approach to requirements is based

on an up-front detailed requirements engineering

phase. This kind of approach demands a stable

environment, which is not often the case in Web

projects, as requirements might have a fluidic scope

(Mendes and Mosley, 2005) (Pressman, 2000). The

incremental and iterative way of processing

requirements that Agile approaches provide (Dyba et

al., 2008) may better fit this particular case. There

are examples, as the one described by Torrecilla-

Salinas et al. (Torrecilla-Salinas et al., 2015) that

shows successful application of Agile approaches to

Web environments.

One of the main changes that Agile approaches

bring is the move from a plan-driven deliverable

centered approach to a value-driven one (Schön et

al., 2017), in which human interactions become a

relevant element, as the Agile manifesto (Beck et al.,

2001) states. In this context, Agile proposes several

approaches to requirements, among which user

stories (Cohn, 2004) and personas (Cooper, 1999)

(Maguire, 2013) are some of the most popular ones.

On the one hand, user stories technique represents a

way to express user needs in an “in-formal” way,

which allows discovering the details of the

requirement through interactions with customers or

their representatives at the same time functionality is

developed. On the other hand, persona technique

depicts an imaginary person that will represent a

certain target group of users. It is a common

approach on Agile projects to refine user roles and

user profiles. Several authors propose the

combinations of these two techniques into what is

called “Persona-driven user stories” (Winter et al.,

2012), which tries to combine user needs and user

profiling simultaneously.

Our paper goes a step forward to this approach,

by including in addition to the “need” (user story)

and “who” has this need (persona), the “context”

where this need appears (Context of Use, ISO 9241-

210, 2010). This can be defined as Context-based

Persona Story (CBPS).

Based on the foregoing, our paper has the

following goals:

 Define CBPS concept.

 Illustrate, by means of different proposed

techniques, how CBPS can be elicited.

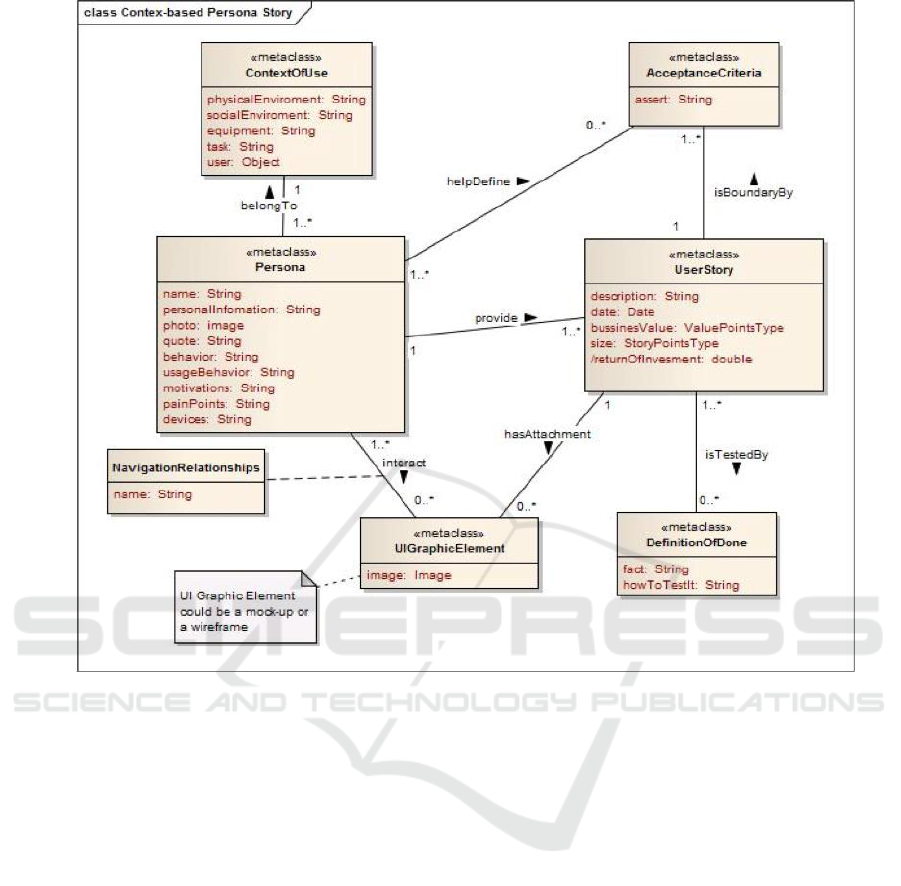

 Propose a metamodel to formalize the

definition of CBPS.

 Draft meaningful conclusions and suggest

further lines of research.

For this purpose, it is organized into the

following sections: after this introduction, Section 2

will offer a view of the related work. Afterwards,

Section 3 will describe, through an example, how to

obtain CBPS and it will also present the proposed

metamodel. Section 4 will define the limitations of

the model, and finally Section 5 will draft the main

conclusions of the paper and will propose further

lines of research.

2 RELATED WORK

User stories have their origin in eXtreme

Programing (XP) (Beck, 2000). They consist of

three essential elements (Cohn, 2004) (Jeffries,

2001): the written part, which is used as a reminder

to the requirement; the conversation around the

story, which supports building shared understanding;

and the acceptance criteria, which serve as

boundaries for the scope of a story. During the last

years, this established schema of user story has

evolved. In the field of Human-Centered Agile

Development (HCAD), different types of user

stories exist that aim to describe requirements from

users perspective considering their needs and

motivations.

Cohn (Cohn, 2004) suggests replacing the role of

story with persona. The benefits of the integration of

persona are also discussed in Winter et al. (Winter et

al., 2012) and Jeffries (Jeffries, 2001). Personas

support the project team to gain common

understanding concerning user and stakeholder, as

well as their needs and behaviors by utilizing them

as actors in user stories. The concept of persona

stories is also discussed by Hudson (Hudson, 2013).

He stresses that personas assist understanding how

and when tasks are performed. In addition, he states

that one of the main benefits is that their resulting

scenarios and visual designs are prescriptive by

means of doing user research rather than just

guessing how users will interact with the system.

Näkki (Näkki et al., 2011) recommends using

“needs-based user stories”. They collect users

everyday needs and challenges regarding a specific

domain to create this type of stories. Furthermore,

Näkki et al. involve users during requirements

Modelling Agile Requirements using Context-based Persona Stories

197

elaboration, by commenting and rating features in

order to allow prioritization.

Harbers (Harbers et al., 2015) introduces the

concept of “value-based user stories", which are

created during a “Value Story workshop”, where

different stakeholders participate. This contribution

enables stakeholder values to be embedded into

requirements.

Analyzing the existing work, we can conclude

that there are multiple ways of including user and

stakeholder needs into system development by using

persona stories, needs-based user stories or value-

based user stories. One common goal of these

approaches is making Agile Software Development

(ASD) more human-centric. However, one major

gap they share is not considering that value or needs

might vary, even from the same user type,

depending on the context in which the story is

executed. We can therefore conclude that the related

work lacks in defining this context of use (ISO

9241-210, 2010), which usually plays an important

role when it comes to estimating and prioritizing

requirements. Taking into account the attributes of

the context of use (users, tasks, equipment and

physical and social environments in which a system

is used) enables us to elicit the acceptance criteria of

a persona story and also to give it a scope. To this

end, and as main contribution, we introduce the

concept of “Context-based Persona Stories” (CBPS).

On the one hand, needs and values are covered by

using personas; on the other hand, the context of use

is comprised by means of a storyboard.

3 MODELING CONTEXT-BASED

PERSONA STORY

Our proposed model will include all the specific

goals of Web systems requirements engineering:

identification of content requirements, identification

of functional requirements in terms of navigation

needs and businesses processes, and definition of

interaction scenarios for different groups of Web

users (Escalona and Koch, 2007).

As it has been mentioned, we propose the CBPS

approach that will allow us to formalize the

aforementioned objectives by taking users needs and

stakeholders value as our starting point, and by

utilizing, in a coordinated way, a set of Agile

techniques that will ensure the involvement of users.

In this section, we will present our proposal by

introducing the application of persona technique to

model user needs and values and explaining how to

identify the context of use by means of storyboards.

Later, we will describe the formalization of CBPS

and finally we will introduce a metamodel

representing CBPS Agile requirements.

The next sections will illustrate an example of

how to identify the modelled CBPS by means of

different Agile techniques.

3.1 Modelling User Needs and

Stakeholder Values

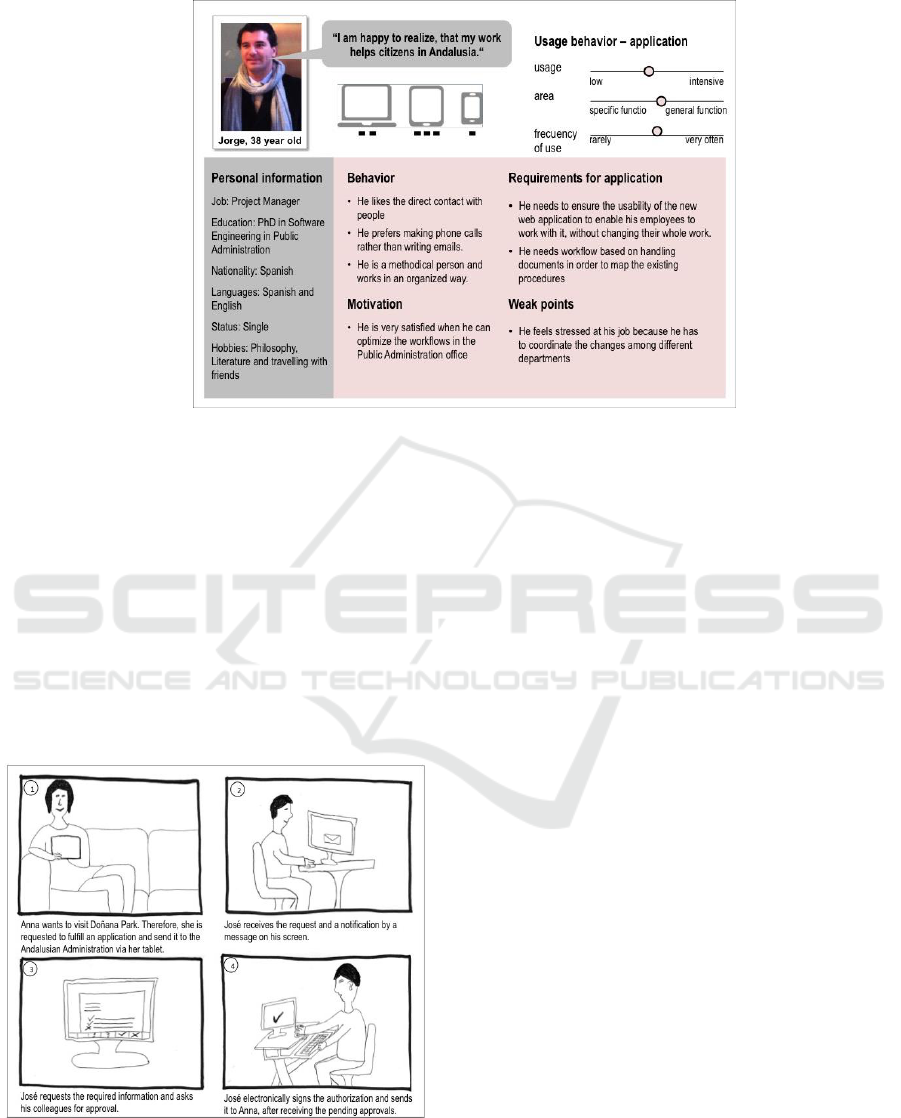

Personas are used as representatives of real users

during system development in HCD (Cooper, 1999),

(Pruitt and Adlin, 2010). They became an

established artefact in the Agile community during

the past years. Persona specifically describes a

potential user of the system to be developed and it

represents a larger part of the target group. In

addition to modelling users through personas, we

can also use this technique for modelling

stakeholders. One of their main contributions to

system development is enabling project members to

generate an empathetic focus on user needs and

values (Pruitt and Adlin, 2010). It allows preventing

self-referential design, where project members lead

their own needs and motivations to the user.

Figure 1 presents an example of persona. It

shows how a representative of the Andalusian civil

servant community is modelled by deeply

identifying his character, behaviour and motivations.

Additionally, elements like the way the application

is consumed (e.g. What devices does it use? When

and how often it is used?) are included in the

definition of persona.

3.2 Modelling Context of Use

Storyboards can be used to visualize the workflow

and user-system interaction (Truong et al., 2006).

They consist of a sequence of pictures, which show

significant steps of the workflow. In particular, they

support visualizing the conditions of Web projects

(e.g. light conditions and connection to the Internet

by means of connection type and bandwidth) and

they can be linked to one or more personas. Thus,

storyboards can be used to model the context of use

as defined by ISO (ISO 9241-210, 2010). This

context of use is composed of users, tasks,

equipment (hardware, software and materials), and

physical and social environments in which the

product is used.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

198

Figure 1: Example of a persona providing photo, personal information (e.g. name, age or nationality, among others) and

data regarding user behavior, motivation and pain points.

Figure 2 shows an example of a storyboard named

"requesting a sight visit", which shows the workflow

associated with how a citizen of Andalusia gets

permission to a sight. On the one hand, it displays

the users who are involved in the process and the

interactions among them; on the other hand, it shows

how to communicate with the software they use

through a storyboard. As seen, the already defined

personas are the actors of our story in the storyboard

with the aim of representing graphically the context

where the application is used.

Figure 2: Example of a storyboard in the area of E-

government describing the workflow to get permission for

a tourist visit.

3.3 Creating Context-based Persona

Story

In Agile Software Development user stories are

utilized in order to describe the functional

requirements of a system from users viewpoint,

according to a specific format as shown below:

As a <role>, I want < feature> so that I can

achieve <goal>

(1)

As discussed above, this formal representation of

a user story lacks in defining a specific user, his/her

needs and the environment in which the specified

feature of the story is applied. To this end, we

recommend using CBPS instead of this well-known

format. Firstly, we can model users, stakeholders

and their needs by including the information given

by our already defined personas. Secondly, we can

take into account the context of use represented by

our storyboards.

Our metamodel (see Figure 4) offers support by

means of formalizing CBPS as follows:

<Persona> in the <Context of Use>, wants

to achieve <Goal>, so that <benefit>

(2)

Based on the information provided by personas

and storyboards, we can create these CBPS (as

Figure 3 shows). This approach allows connecting

Modelling Agile Requirements using Context-based Persona Stories

199

the functionality described by different CBPS to

each other and we can declare how interaction

among different personas takes place in order to

achieve one common business objective (“reduce

processing time of a case”).

Figure 3: Example of CBPS.

3.4 Metamodel for a Context-based

Persona Story

The aforementioned objectives in section 3 can be

formalized by an UML metamodel representing an

Agile requirement, which is shown in Figure 4. It

describes the relationships between the main Agile

artifacts and includes the key elements and

relationships of a CBPS.

As Figure 4 displays, three key entities can be

found in the metamodel: “User Story”, “Persona”

and “Navigation Relationships”.

Together with the key entities, the metamodel

will include the minimum and mandatory set of

attributes that will allow a real understanding of the

modeled Agile requirement. The main goal is to

obtain a set of requirements as much homogeneous

and complete as possible at a certain moment of the

development process. Our metamodel enables us to

define the meaning of homogeneity and

completeness by means of a set of attributes. Among

them, we will now highlight the following ones:

 From the ones related to “User Story” entity,

we would like to point to those like business

value, size and ROI (Return Of Investment)

that will help order and prioritize the list of

Agile requirements. “User Story” entity

describes a value-based perspective of a

particular user need by means of the ROI

attribute. This attribute is calculated as the

result of dividing Story business value (the

value it brings to the business, given by the

business representatives) by Story size (how

much building the story will cost, indicated by

the development team). We can also find

“Acceptance Criteria” and “Definition of

Done” entities, linked to “User Story”. They

will allow better defining the boundaries of

each user need in order to narrow its scope.

 From the ones related to “Persona” entity, we

would like to refer to those making possible

the differentiation among the diverse types of

users and stakeholders and the relationships

between them and the identified user stories

(like motivations or personal information).

The metamodel also includes the mandatory

attributes that describe in-depth “Context of

Use”, defining the environmental aspects (e.g.

physical or social environment in which the

functional need is present). Linked to

“Persona” entity, we can also find “UI

Graphic Elements” entity, which will help

better describe the functionality contained in

user stories. This supports a formal description

of the navigation within the system, expressed

as an interaction of users (represented by

“Persona” entity) with their needs

(represented by “User Story” entity).

 From the ones related to “Navigation

Relationship” entity, we would like to remark

those associated with the navigational model.

These attributes represent the interactions

between personas and user interface graphical

elements (as wireframes or mock-ups) to

materialize a particular User Story.

As it can be seen, the metamodel has helped us

cover the above-mentioned three goals of Web

Systems requirements elicitation phase:

identification of content requirements (by means of

“User Story”, “Acceptance Criteria” and

“Definition of Done” entities), identification of

functional and non-functional requirements in terms

of navigation needs and businesses processes (by

means of “Navigational Relationships” and “UI

Graphic Element”, and their relationships with

“User Story” entity), and definition of interaction

scenarios for different groups of Web users (by

means of “Persona” and “Context of Use” entities).

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

200

Figure 4: Context-based Persona Story Metamodel.

3.5 An Example in the Industry

It was in between 2008-2012 that the Regional

Ministry of Culture of Andalusia, Spain, (Junta de

Andalucía, España) transformed itself into an

organization able to operate under SOA paradigm,

but it was in between 2012-2015 that it started using

an own Agile methodology (Torrecilla et al., 2015).

However, there was something left: the integration

of an activity in the early stages of ASD where

executing the process of discovering services that

cover the requirements represented by User Stories.

This problem is related to software reusability in

early stages of development of the lifecycle. In light

of this, a process that consisted of five steps was

proposed, as shown below:

 Indexing the Services Portfolio.

 Formalizing the Agile requirement (Figure 4).

 Transforming this formalization into a query.

 Launching this query against this index.

 Obtaining the Services that could cover this

Agile requirement.

This is an example of how the use of CBPS

approach could connect Agile requirements

elicitation to other fields of software engineering.

4 LIMITATIONS AND FURTHER

DISCUSSION

This section will present some limitations and

discussions the proposed model poses in order to

clarify when and how it can be used.

Regarding drawbacks, we have identified a list of

criteria that should be present to define good CBPS.

This is what we have named as “must-have criteria”,

that is to say, their presence or absence conditions

that make the definition of CBPS succeed or fail.

As it has been stated in this paper, our approach

mainly depends on Agile and HCD techniques (by

means of techniques like persona, storyboards and

user stories). Thus, the use of CBPS will require a

HCAD environment, which in turn will demand full

Modelling Agile Requirements using Context-based Persona Stories

201

users involvement, as it will clarify notions like

context of use (stakeholders, not only users of the

systems, but also people interested in outputs and

outcomes, can help clarify this context). Finally, our

approach is also conceived in terms of Web

Systems, as it includes elements like navigation

relationships that may not make too much sense in

other type of software development projects.

In addition to “must-have criteria”, we have

identified some other criteria that are very useful to

have, although they are not mandatory to define

successfully CBPS. We have named them as “nice-

to-have criteria”. This latter category includes the

participation of stakeholders. Table 1 summarizes

both “must-have” and “nice-to-have” criteria:

Table 1: Must-have and nice-to-have criteria.

Criteria

Must-

have

Nice-

to-have

Agile Environment

User involvement

Web System

User interaction with UI

techniques

HCD techniques

Involvement of

stakeholders

Even though the model has some limitations,

expressed by the described criteria, we can also

highlight that CBPS might be useful to initially

populate the Product Backlog of a Web Project in

what is known as “Sprint-0” or “Iteration-0”

(Torrecilla-Salinas et al., 2015). In this case, the

Product Backlog might be an ordered list of CBPS.

This way of defining Agile requirements might

allow a systematic definition of roles, user needs and

scenarios of usage (by means of a gathering

personas, user stories and storyboards) without a

significant increase in the overhead of the

development process (in the cost/benefit ratio).

Once the Product Backlog is initially defined, the

technique should be used along “Product Backlog

grooming” sessions (Cohn, 2009), as well. The idea

is that those sessions will review and enrich the

process of gathering personas, storyboards and user

stories, by adding, modifying or deleting elements so

as to keep the Product Backlog always updated.

5 CONCLUSIONS AND FUTURE

WORK

The main contribution of this paper is the definition

of the concept CBPS. Together with this new

concept, its formalization through a metamodel

allows linking it to different fields of Software

Engineering. A CBPS can be utilized as a way to

formalize Agile requirements in Web projects.

Along this paper, we have shown how user and

stakeholder needs can be modeled by personas as

well as how the context of use can be visualized by

storyboards. These artifacts enable us to create this

new type of user stories in which all the relevant

elements and its interactions have been presented.

Furthermore, we have provided a real life example

of our artifacts related to a Web project in the area of

E-government. Finally, we have discussed the

limitations of our approach, establishing the

different criteria that should be required in order to

successfully apply the technique. Together with the

restrictions identified, we have also pointed out that

the proposed model will need more empirical

validation, which could be fulfilled in future work.

As it can be explained, formalizing an Agile

requirement by means of a CBPS provides an

important link between Agile approaches and other

Software Engineering fields that might benefit from

the HCAD approach proposed in our work.

An example of this link, and also a first future

line of research, is Model-Driven Web Engineering,

which could take advantage of the use of the

presented techniques in order to define formally

requirements in an Agile way, that could lead to the

automatic generation of a “draft Product Backlog” to

be implemented during the development project.

Additionally, as a second future line of research,

this approach can also be useful for those

researchers and practitioners that work on

connecting Agile to maturity models like those of

CMMI family (Torrecilla-Salinas et al., 2016). The

idea of formalizing requirements in an Agile way

without a significant increasing overhead might help

in the process of institutionalizing Agile without

loosing agility.

As a third and last future line of research, the

proposed model might be an initial step in order to

associate Agile requirements engineering with

Human-Centered Design, with the goal of making

Agile Software Development more human-centric.

Finally, it must be stated that the elicitation of

“Agile UI techniques” could be an interesting

research topic derived from our approach.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

202

ACKNOWLEDGEMENTS

This research has been supported by the MeGUS

project (TIN2013-46928-C3-3-R), Pololas project

(TIN2016-76956-C3-2-R) and by the SoftPLM

Network (TIN2015-71938-REDT) of the Spanish

Ministry of Economy and Competitiveness.

REFERENCES

Anderson, D.J., 2010. Kanban - Successful Evolutionary

Change for your Technology Business, Blue Hole

Press.

Beck, K. et al., 2001. Manifesto for Agile Software

Development. 2001. http://www.agilemanifesto.org.

Accessed April 1, 2016.

Beck, K., 2000. Extreme Programming Explained:

Embrace Change, Boston: Addison-Wesley.

Cohn, M., 2009. Succeeding with Agile Using Scrum,

Boston: Addison-Wesley.

Cohn, M., 2004. User Stories Applied: For Agile Software

Development, Boston: Addison-Wesley.

Cooper, A., 1999. The inmates are running the asylum,

Sams. Indianapolis, USA.

Deshpande, Y., Marugesan, S., Ginige, A., Hanse, S.,

Schawabe, D., Gaedke, M., White, B., 2002. Web

Engineering. Journal of Web Engineering Vol. 1 Nº 1,

pp. 3-17.

Dybå, T., et al., 2008 Empirical Studies of Agile Software

Development: A Systematic Review. Inf. Software

Technology 50 (9-10), 833-859.

Escalona, M.J., Aragón, G., 2008. NDT: A Model-Driven

Approach for Web requirements. IEEE Transactions

on Software Engineering, 34 (3), 370-390.

Escalona, M.J., Koch, N., 2007. Metamodeling the

Requirements of Web Systems. Web Information

System and Technologies, pp. 267–280, Springer,

Heidelberg.

Escalona, M.J., Mejías, M., Torres, J., 2004. Developing

systems with NDT & NDT-Tool. In: Proceeding of

13th International conference on information systems

development: methods and tools, theory and practice,

pp. 149-159. Vilna, Lithuania.

Harbers, M., Detweiler, C., Neerincx, M.A., 2015.

Embedding Stakeholder Values in the Requirements

Engineering Process. In: Proceedings of 21st

International Working Conference, pp. 318-332.

Germany.

Hu, R., Wang, Z., Hu, J., Xu, J., Xie, J., 2008. Agile Web

Development with Web Framework. In: Proceedings

of 4th International Conference on Wireless

Communications, Networking and Mobile Computing.

IEEE, Dalian, China.

Hudson, W., 2013 User stories don't help users,

Interactions, pp. 50-53.

ISO: ISO 9241-210:2010 - Ergonomics of human-system

interaction - Part 210: Human-centred design for

interactive systems.

Jeffries, R., 2001. Essential XP: Card, Conversation,

Confirmation. http://ronjeffries.com/xprog/articles/

expcardconversationconfirmation/. Accessed April 1,

2016.

Maguire, M., 2013. Using human factors standards to

support user experience and agile design. In:

Proceedings of the International Conference, UAHCI

2013, Held as Part of HCI International 2013. Las

Vegas, USA.

Mendes, E., Mosley, N., 2005. Web Cost Estimation: An

Introduction. Web Engineering: Principles and

Techniques, pp 182-202, IGI Global.

Näkki, P., Koskela, K., Pikkarainen, M., 2011. Practical

model for user-driven innovation in agile software

development. In Proceedings of the 17th International

Conference on Concurrent Enterprising, pp. 1-8.

Germany.

Poppendieck, M., Poppendieck, T., 2003. Lean Software

Development. An Agile Toolkit, Boston: Addison-

Wesley.

Pressman, R.S., 2000. What a Tangled Web We Weave.

IEEE Software (1-2), pp 18-21.

Pruitt, J., Adlin, T., 2010. The persona lifecycle: keeping

people in mind throughout product design, Morgan

Kaufmann.

Reifer, D.J., 2000. Web Development: Estimating quick-

to-market software. IEEE Software (1-2), pp. 57-64.

Schön, E.-M., Thomaschewski J., Escalona, M. J., 2017.

Agile Requirements Engineering: A systematic

literature review. Computer Standards & Interfaces

(49). pp. 79–91.

Sutherland, J., Schwaber, K., 2011. The Scrum Guide: The

Definitive Guide to Scrum, http://www.scrum.org/

Scrum-Guides. Accessed April 1, 2016.

Torrecilla Salinas, C.J., Sedeño, J., Escalona, M.J., Mejías,

M., 2015. Estimating, planning and managing Agile

Web development projects under a value-based

perspective. Information and Software Technology 61,

124–144 .

Torrecilla Salinas, C.J., Sedeño, J., Escalona, M.J., Mejías,

M., 2016. Agile, Web Engineering and Capability

Maturity Model Integration: A systematic literature

review. Information and Soft. Technology 71, 92-107.

Truong, K.N., Hayes, G.R., Abowd, G.D.: Storyboarding:

An Empirical Determination of Best Practices and

Effective Guidelines. In: Proceedings of the 6th

Conference on Designing Interactive Systems, pp. 12-

21, New York, USA (2006).

Valderas, P., Pelechano, V., 2011. A Survey of

Requirements Specification in Model-Driven

Development of Web Applications. ACM Trans. Web

5 (2), 10.

Winter, D., Holt, E.M., Thomaschewski, J., 2012. Persona

driven agile development. Build up a vision with

personas, sketches and persona driven user stories. In:

Proceedings of the 7th Conference on Information

Systems and Technologies. Madrid, Spain.

Modelling Agile Requirements using Context-based Persona Stories

203
