Wireless Sensor Networks IKE Phase One Negotiation Approach

based on Multivariate Quadratic Quasi-groups

Yassine Essadraoui and Mohamed Dafir Ech-cherif El Kettani

Information Security Research Team ISeRT, Mohammed V University in Rabat, Rabat, Morocco

Keywords: Internet Key Exchange, Wireless Sensor Network, Multivariate Quadratic Quasigroups, Internet of Things.

Abstract: Key management is one of the biggest problems in IoT security. The Internet Key Exchange (IKE) protocol

is well known as a secure key exchange protocol to establish secure channels between two hosts. However,

IKE uses RSA as public key cryptography algorithm that is based on Diffie-Hellman (DH) key exchange

which is very heavy, in term of arithmetic operations, for very constrained resources devices such as the

case for WSNs. In this paper, we propose to use Multivariate Quadratic Quasigroups (MQQ) to negotiate

and share a secret key between two sensors. Phase 1 of the IKE protocol is supposed, by the proposal in this

paper, to use MQQ instead of Diffie-Hellman (DH) key exchange.

1 INTRODUCTION

Internet is the biggest network used for different

goals and offers different services. Each service

requires some level of security (integrity,

authorization, confidentiality, ...) and to achieve this

goal different algorithms and protocols have been

proposed and used. The most used protocol is IPsec.

IPsec uses two protocols to provide traffic security

services, Authentication Header (AH) and

Encapsulating Security Payload (ESP)(R.~Atkinson,

1995). The Internet Key Exchange (IKE) protocol

belongs to IPsec protocol suite and is used to

establish secure channels between hosts

implementing IPsec. IKE prepares what’s called

security associations (SA) that will be used, by IPsec

protocol, for transmitting data securely between

nodes involved in a communication (Hallqvist and

Keromytis, 2000). In symmetric cryptography, two

peers share a secret key and use it for encryption and

decryption. This kind of cryptography is secure as

well as the secret key is protected and kept secret

between the two parties involved in the

communication. As we can see peers need to

exchange the secret key securely, with big systems

where many communications should be established

it’s not easy to keep and exchange securely all

shared keys. The Internet Key Exchange (IKE)

protocol is used to produce, independently and

dynamically, the same key in each communicating

peer. IKE proceeds by authenticating both sides and

negotiating encryption algorithms. The result of an

IKE negotiation is a Security Association.

Internet Key Exchange relies on Diffie-Hellman

(DH) algorithm to exchange the shared secret key

between hosts. DH builds the shared secret key on

each side without having to exchange the secret key

between peers. In our context of wireless sensor

networks (WSN) using IKE without modification

won’t be practical viewing WSN’s constraints

(limited calculation power, memory, energy, ...) also

the Diffie-Hellman algorithm is a little heavy, in

term of arithmetic operations needed to share the

secret key between peers in communication, to be

used in a sensor. Our approach is to use Multivariate

Quadratic Quasi-groups to exchange the shared key

and to do mutual authentication of communicating

nodes. Our work will be based on a previous work

(Essadraoui and Dafir Ech-cherif El Kettani, 2015)

which proposed an authentication approach based on

Multivariate Quadratic Quasi-groups (MQQ). In the

proposed approach nodes do mutual authentication

and share a secret key that could be used for

symmetric encryption and decryption.

MQQ has emerged as an alternative to classical

cryptography schemes and was seen that MQQ is

faster in encryption and decryption. In (El-Hadedy et

al., 2008) authors have done an implementation that

is 10,000 times faster in decryption and 17,000 times

faster in encryption than RSA. In (Quirino and

Moreno, 2013) authors have found that in ARM

224

Essadraoui, Y. and Kettani, M.

Wireless Sensor Networks IKE Phase One Negotiation Approach based on Multivariate Quadratic Quasi-groups.

DOI: 10.5220/0006241902240231

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 224-231

ISBN: 978-989-758-245-5

Copyright © 2017 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

platform MQQ is faster and uses less amount of

memory compared to ECC (Zhu et al., 2008) and

RSA(Breu et al., 2008).

The remaining of this paper will be organized as

follow, section 2 gives an overview of Internet

exchange protocol, in section 3 we introduce

multivariate quadratic quasi-groups, in section 4 an

overview of wireless sensor networks is given, in

section 5 we present the proposed lightweight

version of IKE for WSNs, in section 6 we give a

security analysis of the proposed protocol and in

section 7 we give a conclusion.

2 OVERVIEW OF INTERNET

KEY EXCHANGE (IKE)

Internet Key Exchange protocol (IKE) (Kivinen and

Snyder, 2015) is used in conjunction with IPsec to

dynamically and automatically create security

associations (SA), especially for a large scale

deployment IKE becomes very useful. IKE is based

on the Internet Security Association and Key

Management Protocol (ISAKMP), Oakley key

management protocol and SKEME key management

protocol. The IKE is two phases protocol. Phase One

starts the process to establish SA between two peers

by authenticating all peers, then creating a Diffie-

Hellman key and agreeing on methods for phase two

of IKE. The creation of Diffie-Hellman key means

that peers will have a shared secret key. All

exchanges and agreements preformed during phase

one must be done securely. Figure 1 depicts IKE

phase one process.

Phase Two consists of using all algorithms,

methods and keys that have been chosen by

agreements performed in phase one. During phase

two a new security association is going to be built

and prepared for IPsec, in fact IPsec security

association is an agreement on methods and keys

that will be used by IPsec. Figure 2 depicts IKE

phase two process.

At the end we can say that IKE phase one

prepares methods and keys for IKE phase two which

itself prepares methods and keys for IPsec.

3 OVERVIEW OF

MULTIVARIATE QUADRATIC

QUASI-GROUPS (MQQ)

Multivariate Quadratic Quasi-groups (MQQ) is a

system of m multivariate quadratic equations with n

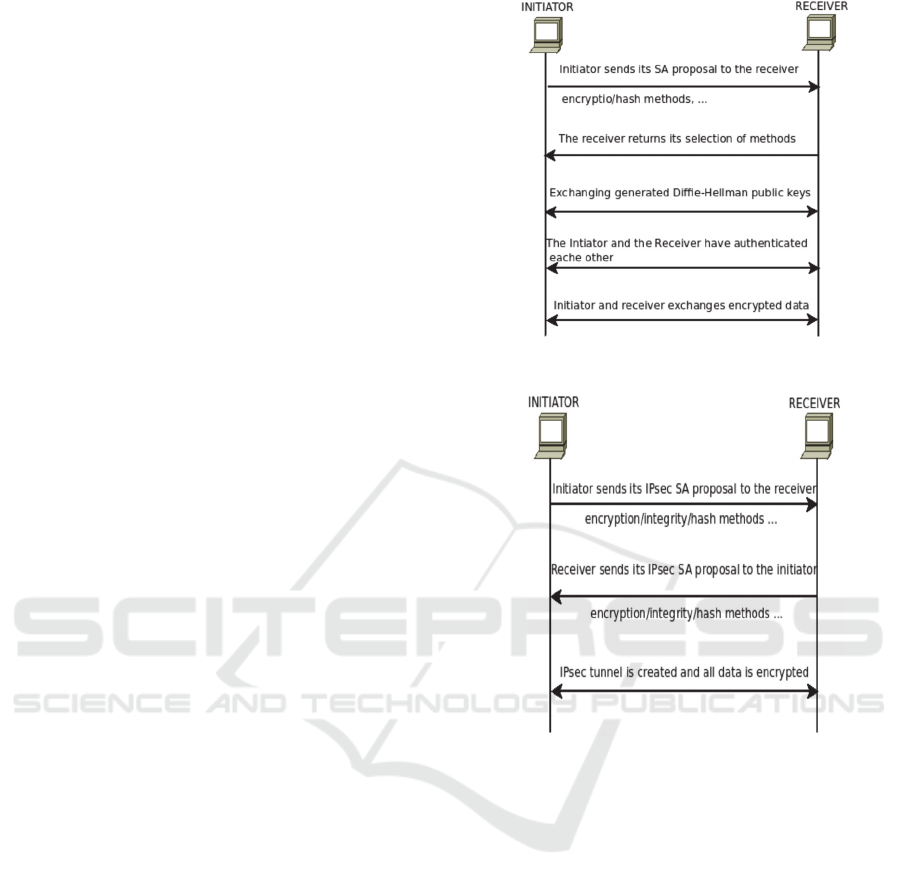

Figure 1: IKE phase one process.

Figure 2: IKE phase two process.

variables over a finite field F. This system of

multivariate quadratic equations is easy to evaluate

for some given values from F but it’s very difficult

to find its inverse and if a brute force attack is

launched against this system the time needed will be

exponential depending on the number of variables.

A MQQ system is considered secure because it

doesn't rely on the difficulty of calculation of the

problem of factorization and the discrete logarithms.

STS (Shamir, 1994), TTM (Moh, 1999), HFE

(Patarin, 1996), UOV (Kipnis et al., 1999) are

examples of systems that have been proposed based

on multivariate quadratic (MQ) problem but most of

these schemes have been broken. In 2008 a new

approach called Multivariate Quadratic Quasi-

groups (MQQ)(Gligoroski et al., 2008a)(Gligoroski

et al., 2008b) have been proposed by Gligoroski et al

based on the theory of quasi-groups.

Multivariate Quadratic cryptography consists of

solving systems of multivariate quadratic equations

Wireless Sensor Networks IKE Phase One Negotiation Approach based on Multivariate Quadratic Quasi-groups

225

over a finite field.

Let’s consider a system P of m multivariate

quadratic polynomial equations with n variables

over a finite field F.

(1)

where y

i

belongs to F. Each p

k

is a polynomial of

degree two over F of the form:

(2)

where a

ij

(k)

, b

i

(k)

, c

(k)

belong to F and 1 ≤ k ≤ m. The

coefficients a

k

, b

k

and c

k

are called the quadratic,

linear and constant parts of the polynomial p

k

,

respectively. The challenge is to find a solution x to

the system P. The MQ-problem is a NP-complete

problem (Patarin et al., 1997).

The m multivariate quadratic equations of P

system are composing the public key, as we

mentioned before the MQ problem is NP-complete

so we need an easily invertible (Ding and Yang,

2009) trapdoor function to be defined into

polynomial equations.

The construction of P, the public key, is done

through a composition of three functions S, P’ and T

such as P = T○P’○S where S: F

n

→ F

n

and T: F

m

→

F

m

are linear or affine transformations and are easily

invertible and they are used to hide the function P’

which is a quadratic function such as P’: F

n

→ F

m

.

P’ should be easily invertible. The private key is the

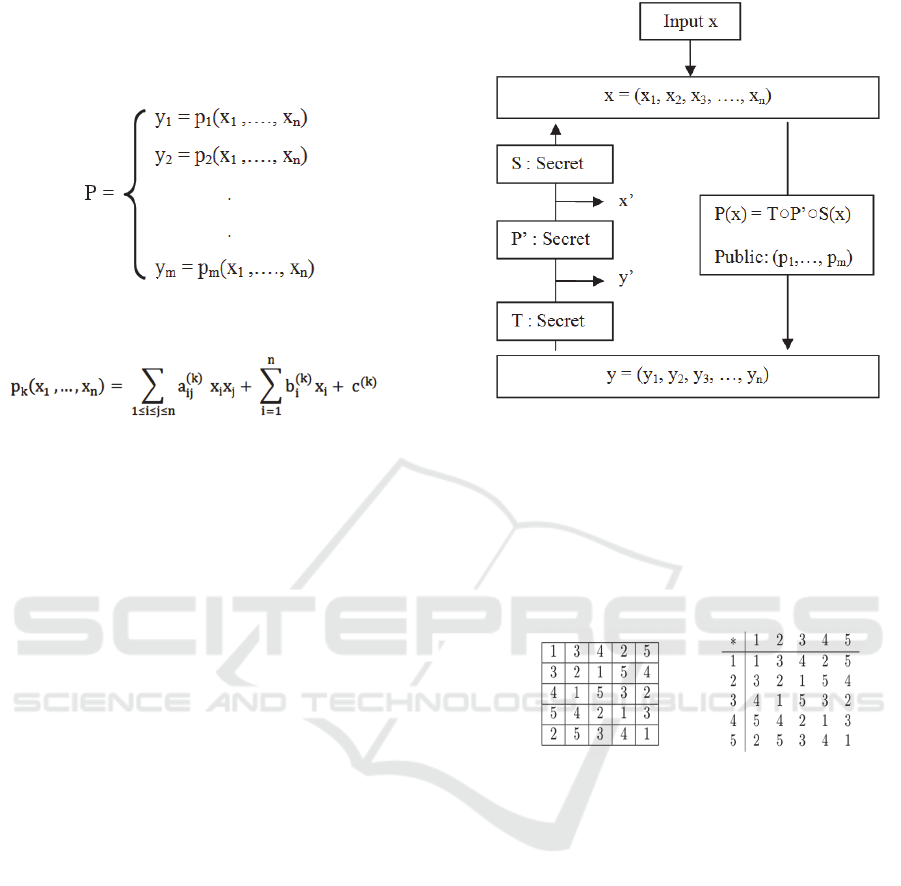

triple (S, P’, T). Figure 3 illustrates how to use the

MQ public and private key in cryptography.

In this paper we are interested in MQ-schemes

that are based on quasi-groups which means that the

central map P’ will be constructed using quasi-

groups. Any multiplication group is a quasi-group.

In particular, an abelian group is where

multiplication is commutative and associative.

However, quasi-group multiplications are not

required to be associative. It is in this sense that

quasi-groups are considered to be “non associative

groups”. Finite quasi-groups are characterized as

having bordered Latin squares for their

multiplication tables. (Smith, 2007)

Figure 3: Public key encryption based on MQ system.

As an example of Quasi-groups we mention

Latin squares. A Latin square is an n × n square

filled with n different symbols, in such a way that

each symbol occurs exactly once in each column and

in each row. Each Latin square is a multiplication

table of a quasi-group. Tables in Figure 4 list a Latin

square and a corresponding finite quasi-group.

Figure 4: A Latin square and its corresponding Quasi-

group.

A quasigroup (Q, *) of order 2

d

is called

Multivariate Quadratic Quasigroup (MQQ) of type

Quad

d-k

Lin

k

if exactly d - k of the polynomials f

i

are

of degree 2 (i.e., are quadratic) and k of them are of

degree 1 (i.e., are linear), where 0 ≤ k < d.

(Gligoroski et al., 2008b)

Q is a quasi-group such that a1,a2, a3,... an

belong to it, then the encryption operation, which is

defined over the defined elements, maps those

elements to another vector b

1

, b

2

, b

3

,...b

n

such that

the elements of the resultant vector also belong to

the same quasi-group. Markovski and Dimitrova

(Dimitrova and Markovski, 2004) show that

mapping of an incoming stream of data depends on

the initial multiplier element. The mathematical

equation used for encryption (Dimitrova and

Markovski, 2004) is defined by:

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

226

E

a

(a

1

, a

2

, a

3

, ..., a

n

) = b

1

, b

2

, b

3

,..., b

n

(3)

where the output sequence is defined by:

b

1

=a * a

1

(4)

where i increments from 2 to the number of elements

that have to be encrypted, and a is the hidden key.

A MQQ system looks like the following system:

y

1

= x

12

+ x

1

x

3

+ x

2

x

3

+ x

2

x

4

+ x

32

+ x

3

x

4

+ 1

y

2

= x

12

+ x

1

x

2

+ x

1

x

3

+ x

22

+ x

2

x

4

+ x

32

+ x

42

+ 1

y

3

= x

1

x

2

+ x

1

x

4

+ x

2

x

3

+ x

2

x

4

+ x

32

+ x

3

x

4

+ x

42

y

4

= x

1

x

2

+ x

1

x

3

+ x

22

+ x

2

x

3

+ x

3

x

4

(5)

with x, y belong to (F

q

)

n

and F is a finite field.

Solving this system is NP-complete over any field.

The system of equations must include a hidden

trapdoor function P' and two other functions S and

T. P' is a quadratic form, that is easily invertible

[12]. T and S are affine forms that are very hard to

guess or calculate. The public key P is the

composition of T, P' and S, we hide the trapdoor

function P' by composition with T and S as follows:

P = T○P'○S

(6)

Public key must be a one-way function. The

private key is the secret matrices T, P', S.

4 OVERVIEW OF WIRELESS

SENSOR NETWORKS (WSN)

A Wireless Sensor Network (WSN) is a network of

nodes called sensors. Sensors are resource

constrained devices which have as main role sensing

data and send it to other sensors or a more powerful

Base Station (BS). The BS will gather all sent data

from sensors and process it. All sensors in a WSN

communicate through a wireless connectivity, these

sensors have, in general, as mission to sense data

and send it to a Base Station (BS), which is, in

general, a static node see Figure 5.

Sensor nodes wait for a specific event (smoke,

fire, sound …) to happen. Once the event of interest

occurs, the sensor node (one or many) that have

detected the event gathers all relevant data to the

event and sends it to the Base Station. The sensor

node can send data directly to the BS (if it was near

to it) or by hope-by-hope until the BS. It may

happen that the BS receives multiple reports on the

same event by the event's surrounding nodes.

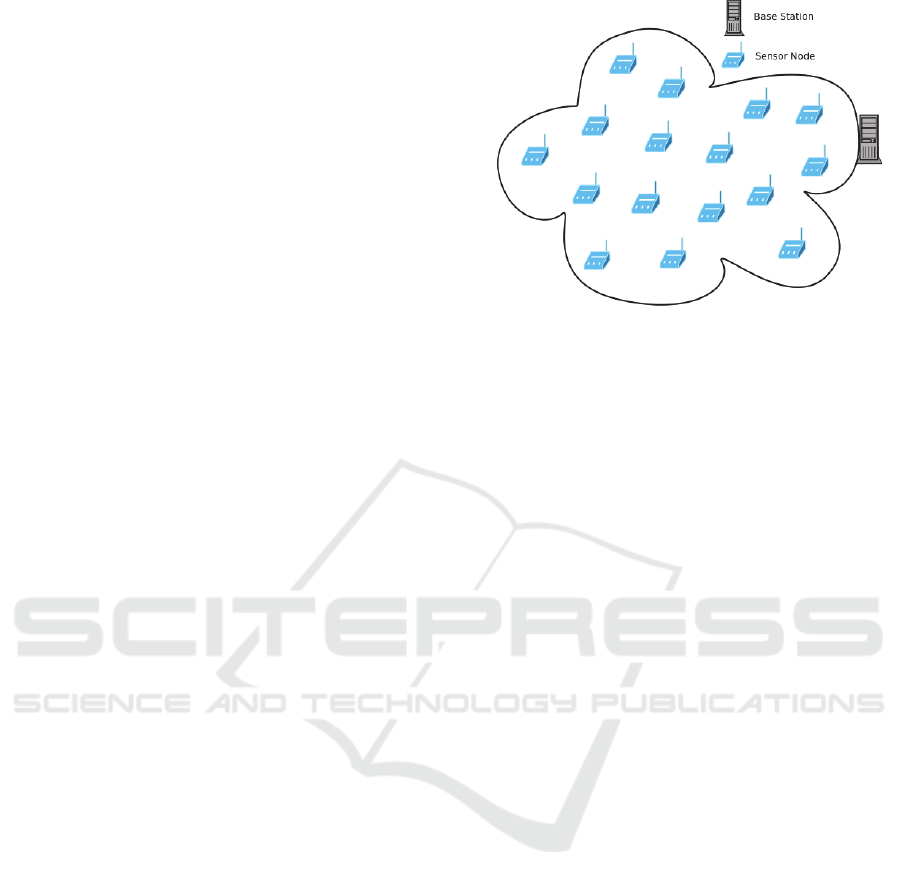

Figure 5: Wireless sensor network architecture.

Surrounding nodes may collaborate to send one

single report to the BS. The BS after receiving the

report can process it and decide whether to send

orders to concerned nodes in view to have more

details or to express its need of a specific

information or to forward the result of its processing

to the external world. As you can see the BS is

acting as a gateway between the WSN and the

external world.

WSN permit observing places that were

unobservable or were difficult to observe and give a

way to monitor specific event for long duration.

WSN also offers a variety of potential applications

to industry, science, transportation, security, ...

Flexibility of deployment that offers WSN has,

Conversely, many challenges such as

Responsiveness, Self-Configuration and Adaptation,

Scalability, Privacy and Security, Energy Efficiency,

Heterogeneity, ...

Before starting the conception of a security

protocol that satisfy requirements above, we should

emphasize that sensor nodes are resource

constrained devices which is a limiting factor for

designing efficient security procedures. We focus

on two main constraints: Memory and Energy.

Memory: Sensor nodes are not designed to store

a huge amount of data, this is because the very little

amount of available memory. Little memory size is a

limiting factor for designing sophisticated security

algorithms or using existing security algorithms

(RSA, ...). In order to build an efficient security

scheme, the code size of the security algorithm must

be small. A typical sensor node processor is of 4-8

MHz, having 4KB of RAM, 128KB flash and

ideally 916 MHz of radio frequency (Kavitha and

Sridharan, 2010). For example, TelosB has a 16-bit,

8 MHz RISC CPU with only 10K RAM, 48K

program memory, and 1024K flash storage.

Wireless Sensor Networks IKE Phase One Negotiation Approach based on Multivariate Quadratic Quasi-groups

227

Energy: Sensor nodes, besides having small

amount of memory, have also limited amount of

energy, in fact each sensor node has a small battery

power. Sensor nodes haven't to do complicated

processing that consumes energy. Energy is a very

constraining factor for wireless sensor nodes. Once a

sensor node has been deployed in WSN it’s difficult

or very expensive to try to recharge it or to replace

it. Hence, sensor node’s battery life must be

extended as longer as possible and for any

conception or implementation of a security

algorithm in a sensor node the energy consumption

must be well studied and measured. Adding a

security protocol to a sensor node without

considering the energy factor is not a wise strategy

and this will affect and make troubles for the whole

network as well as for the sensor node itself. When

we talk about energy consumed by a security

algorithm, mainly we talk about the processing

needed for security procedures like encryption,

decryption, signing and verifying data. Several

WSN’s Operating systems provide features to save

and economize energy (Healy et al., 2007)

Sensor nodes are widely used in many fields like

health, military, environmental conditions, …

viewing their critical mission sensor nodes need to

be secured and viewing their limited memory and

energy need efficient and optimized security

algorithms. Wireless communication between sensor

nodes facilitates intruders mission where the need to

guarantee integrity and confidentiality of exchanged

data and authenticity of all sensor nodes in a way

that only legal nodes that will participate in

communications. (Shi and Perrig, 2004)

5 PROPOSED LIGHTWEIGHT

IKE FOR WSN

A wireless sensor network is a set of sensors.

Sensors are resource constrained devices (small

amount of memory, low computational power, ...) so

for any protocol conception those constraints should

be taken into account. In this work we propose a

light version of IKE protocol suitable for sensors,

more precisely we suggest an approach of

authentication and common secret key sharing

between peers and using IKE. Peers authentication

and sharing secret key are performed during IKE

phase one. We consider the scheme in Figure 5.

At first the Base Station (BS) generates its Public

(BS

PK

= T

BS

○P’

BS

○S

BS

) and Private (T

BS

, P’

BS

, S

BS

)

MQQ-based keys and publishes the public key to all

nodes. Any node who desires to join the network

should first be registered by the BS. At the end of

registration phase, the joining sensor’s MQQ-based

public key could be published as a registered sensor

node. The BS serves as a certification authority, it

guarantees that a specific public key belongs to the

node who claims it belongs to.

In the registration phase, a Sensor Node (SN)

who desires to join the network sends its ID to the

BS. The SN generates its MQQ-based Public/Private

keys and uses BS public key (BS

PK

=T

BS

○P’

BS

○S

BS

)

to resend its public key (SN

PK

= T

SN

○P’

SN

○S

SN

) plus

the signature of its MAC address encrypted using

the known BS public key (BS

PK

): T

BS

○P’

BS

○S

BS

(Sig(ID) + Sig(MAC) + SN

PK

). BS is the only node

able to decrypt the message. The BS gets the SN’s

public key then declares the SN as a registered node

and publishes SN’s MQQ-based public key.

After registration, SNs, in view to communicate,

must authenticate each other and share a secret key.

The Initiator sends its list of cryptographic proposals

(SA

prop

) to the receiver. The receiver selects from the

proposals and responds by sending its selected list of

cryptographic algorithms (SA

select

). At this point we

have started the IKE phase one process and all

exchanged messages have the ISAKMP (Maughan

D, Schertler M, Schneider M, 1998) header (HDR).

HDR contains:

Initiator’s Cookie (8 octets)

Receiver’s Cookie (8 octets)

Next Payload (1 octet)

Major Version (4 bits)

Minor Version (4 bits)

Exchange Type (1 octet)

Flags (1 octet)

Message ID (4 octets)

Length (4 octets)

In view to share a secret key and do mutual

authentication peers do as follows:

1) The Initiator generates its cookie C

I

, prepares its

proposals list SA

prop

and sends them to the

receiver with signature of its ID

I

plus timestamp

T

I

using its MQQ-based private key (T

SNI

, P’

SNI

,

S

SNI

). The Initiator encrypts the signature of its

ID

I

and T

I

using the receiver’s published public

key (SN

PKR

= T

SNR

○P’

SNR

○S

SNR

) to be sure that

only the Receiver that could decrypt the

message.

2) The receiver responds with its selected proposal

SA

select

, its generated cookie C

R

and the

signature of its ID

R

plus a timestamp T

R

using

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

228

its MQQ-based private key (T

SNR

, P’

SNR

, S

SNR

).

The receiver encrypts the signature of its ID

R

and T

R

using the Initiator’s MQQ-based public

key (SN

PKI

= T

SNI

○P’

SNI

○S

SNI

) to be sure that

only the Initiator that could decrypt the

message.

The Initiator decrypts the received message from

the receiver, then gets the Receiver’s ID

R

, the

timestamp T

R

.

The receiver decrypts the received message from

the Initiator, then gets the Initiator’s ID

I

, the

timestamp T

I

.

3) At this stage both peers have exchanged their

IDs and identified each other’s public keys, then

the Initiator calculates a hash of a generated

nonce N

I

HASH(N

I

) and encrypts the hash with

the Receiver’s public key then sends it to the

Receiver.

4) The receiver extracts the nonce N

I

and also do

the same by calculating a hash of a generated

nonce N

R

HASH(N

R

) and encrypts the hash

with the initiator’s public key and sends it to the

Initiator.

Now both peers have succeeded to exchange

their generated nonce and they could construct their

shared secret key by doing a composition of both

nonces N

I

*N

R

. We summarize this process of mutual

authentication and sharing secret key in Figure 6.

6 SECURITY CONSIDERATIONS

Man-in-the-middle Attack

Man-in-the-middle attack is where two peers believe

that they are communicating directly to each other,

but in reality they are communicating through an

intruder node that have succeeded to impersonate

both peers and have gained access to their

information and their exchanged messages.

Let’s consider this situation where 2 sensor

nodes SNA and SNB are initiating an IKE session

and a malicious node SNC tries to enter in between

SNA and SNB to do a Man-in-the-middle attack.

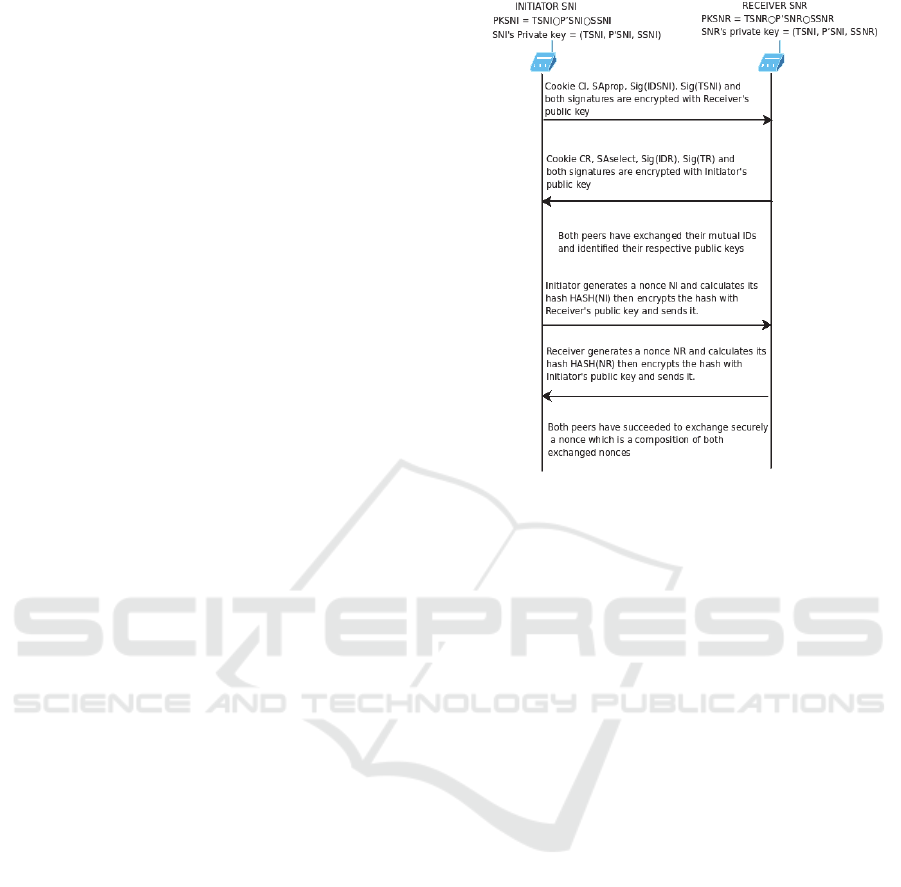

Figure 6: Authentication and share of secret nonce.

Our proposal is free from this attack viewing that

any joining sensor node is first registered by the

Base Station (BS) that stores each sensor node’s

MQQ-based public key, ID and MAC address. In the

process of exchanging nonces sensor nodes

exchange their mutual IDs encrypted using the

public key, which have been already published by

the BS, of the other sensor node. A malicious node

can’t do a man-in-the-middle attack because all

public keys are published by the BS and sensor

nodes have exchanged their IDs encrypted using

each other’s public key.

Replay Attack

A replay attack is where a malicious node

intercepts a message and tries later to reuse it by

resending the intercepted message to a receiver in

view to trick it or to gain some privileges illegally.

Our proposal is free from this attack viewing that

any exchanged message between 2 sensor nodes

contains the cookie (ISAKMP header) of the

Initiator or the Receiver and among information

included in a peer’s cookie is the timestamp that the

sender estimated for the moment when the message

was sent. Any sensor node compares any received

message’s timestamp with the last received

timestamp and it cancels the communication if there

was any inconsistency between timestamps.

Denial-of-service (DoS) Attack

Wireless Sensor Networks IKE Phase One Negotiation Approach based on Multivariate Quadratic Quasi-groups

229

A denial-of-service happens when a network or a

node is targeted in view to make it unavailable or

unresponsive temporally or permanently.

Our proposal is free from this attack viewing that

every exchanged message contains ISAKMP header

which contains Initiator’s and Receiver’s cookie (C

I

,

C

R

)

Impersonation Attack

An impersonation attack is where a malicious

node presents itself to other network nodes by

impersonating a legitimate node in view to exchange

messages on behalf the legitimate node.

Our proposal is free from this attack viewing that

an attacker couldn’t read a message encrypted by the

legitimate node’s MQQ-based public key (which has

been already published by the BS).

7 CONCLUSION

A lightweight version of the IKE protocol based on

Multivariate Quadratic Quasi-groups (MQQ) is

discussed in this paper. MQQ is not based, like RSA

or ECC, on the difficulty of solving factorization

problem or discrete logarithm and is for this reason

MQQ is considered as a

post-quantum algorithm.

MQQ has emerged as an alternative to classical

cryptography schemes and was seen, as mentioned

before, that MQQ is faster, than RSA and ECC, in

encryption and decryption so it’s a promising public

key cryptography alternative, especially to adapt

existing protocols, like IKE in this paper, to wireless

sensor network’s context. A security analysis of the

proposed protocol against some known attacks is

done and is shown that the proposed protocol is

secure. We are in preparation of some

implementation for this approach to endorse it with

experimental results.

REFERENCES

Breu, F., Guggenbichler, S., Wollmann, J., 2008. PKCS

#1: RSA Encryption Version 1.5. Vasa, Request for

Comments 1–19.

Dimitrova, V., Markovski, J., 2004. On Quasigroup

Pseudo Random Sequence Generators. Proc. 1-st Balk.

Conf. Informatics, Y. Manolopoulos P. Spirakis eds

21–23.

Ding, J., Yang, B.-Y., 2009. Multivariate public key

cryptography, in: Bernstein, D.J., Buchmann, J.,

Dahmen, E. (Eds.), Post-Quantum Cryptography.

Springer Berlin Heidelberg, Berlin, Heidelberg, pp.

193–241. doi:10.1007/978-3-540-88702-7_6

El-Hadedy, M., Gligoroski, D., Knapskog, S.J., 2008.

High performance implementation of a public key

block cipher-mqq, for fpga platforms, in:

Reconfigurable Computing and FPGAs, 2008.

ReConFig’08. International Conference on. pp. 427–

432.

Essadraoui, Y., Dafir Ech-cherif El Kettani, M., 2015.

Wireless sensor node’s authentication scheme based

on Multivariate Quadratic Quasi-groups. 2015 Third

World Conf. Complex Syst. 1–6.

doi:10.1109/ICoCS.2015.7483320

Gligoroski, D., Markovski, S., Knapskog, S.J., 2008a. A

Public Key Block Cipher Based on Multivariate

Quadratic Quasigroups. Proc. Am. Conf. Appl. Math.

abs/0808.0, 44–49.

Gligoroski, D., Markovski, S., Knapskog, S.J., 2008b.

Multivariate Quadratic Trapdoor Functions Based on

Multivariate Quadratic Quasigroups, in: Proceedings

of the American Conference on Applied Mathematics,

MATH’08. World Scientific and Engineering

Academy and Society (WSEAS), Stevens Point,

Wisconsin, USA, pp. 44–49.

Hallqvist, N., Keromytis, A. ~D., 2000. Implementing

Internet Key Exchange (IKE), in: Proceedings of the

Annual USENIX Technical Conference, Freenix

Track, ATEC ’00. USENIX Association, Berkeley,

CA, USA, pp. 201–214.

Healy, M., Newe, T., Lewis, E., 2007. Power Management

in Operating Systems for Wireless Sensor Nodes, in:

Sensors Applications Symposium, 2007. SAS ’07.

IEEE. pp. 1–6. doi:10.1109/SAS.2007.374366

Kavitha, T., Sridharan, D., 2010. Security vulnerabilities

in wireless sensor networks: A survey. J. Inf. Assur.

Secur. 5, 31–44.

Kipnis, A., Patarin, J., Goubin, L., 1999. Unbalanced oil

and vinegar signature schemes, in: Lecture Notes in

Computer Science (Including Subseries Lecture Notes

in Artificial Intelligence and Lecture Notes in

Bioinformatics), EUROCRYPT’99. Springer-Verlag,

Berlin, Heidelberg, pp. 206–222. doi:10.1007/3-540-

48910-X_15

Kivinen, T., Snyder, J., 2015. Signature Authentication in

the Internet Key Exchange Version 2 (IKEv2).

Request for Comments 1–18. doi:10.17487/rfc7427

Maughan D, Schertler M, Schneider M, T.J., 1998.

Internet Security Association and Key Management

Protocol (ISAKMP), Rfc 2408, Request for

Comments. IETF. doi:10.17487/rfc2408

Moh, T., 1999. A public key system with signature and

master key functions. Comm. Algebr. 27, 2207–2222.

Patarin, J., 1996. Hidden fields equations (HFE) and

isomorphisms of polynomials (IP): Two new families

of asymmetric algorithms. Adv. Cryptology-

EUROCRYPT, EUROCRYPT’96 1–40.

doi:10.1007/3-540-68339-9_4

Patarin, J., Patarin, J., Goubin, L., Goubin, L., 1997.

Trapdoor one-way permutations and multivariate

polynominals. Inf. Commun. Secur. First Int. Conf.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

230

ICICS’97, Beijing, China, Novemb. 11-14, 1997,

Proc. 1334, 356–368. doi:10.1007/BFb0028491

Quirino, G.S., Moreno, E.D., 2013. Architectural

Evaluation of Asymmetric Algorithms in ARM

Processors. Int. J. Electron. Electr. Eng. 1, 39–43.

doi:10.12720/ijeee.1.1.39-43

R.~Atkinson, 1995. {S}ecurity {A}rchitecture for the

{I}nternet {P}rotocol, Request for Comments. IETF.

Shamir, A., 1994. Efficient Signature Schemes Based on

Birational Permutations, in: \ifnum\shortbib=1

{CRYPTO}\else{Advances in Cryptology --

{CRYPTO}}\fi’93. Springer-Verlag, pp. 1–12.

doi:10.1007/3-540-48329-2_1

Shi, E., Perrig, A., 2004. Designing secure sensor

networks. IEEE Wirel. Commun. 11, 38–43.

doi:10.1109/MWC.2004.1368895

Smith, J.D.H., 2007. An Introduction to Quasigroups and

Their Representations. CRC Press.

Zhu, L., Jaganathan, K., Lauter, K., 2008. Elliptic Curve

Cryptography (ECC) Support for Public Key

Cryptography for Initial Authentication in Kerberos

(PKINIT). Request for Comments.

231
