Privacy Agents for IoT Cloud Communication

Syed Khuram Shahzad, Muhammad Waseem Iqbal and Nadeem Ahmad

The Department of Computer Science & Information Technology, The University of Lahore, Lahore, Pakistan

Keywords: Privacy, Trust, Internet of Things, Agents, IoT Architecture.

Abstract: Internet of Things (IoT) has been shaped to a phenomenon from some technical framework. The smart

environment based on IoT has been introduced by the construction of smart cities, offices, universities and

factories. These smart environments consist of smart devices replacing simple appliances from our home

and workplaces. With this interconnected environment we are connected, accessible and smartly managed

through intelligent systems. These intelligent systems work on our personal, historical and current data. This

data sharing brought new challenges of the privacy preservation of individuals living in this smart world.

This paper provides a study of the issues related to the data sharing through these smart devices over service

providing cloud. It proposes communication architecture by introducing an intermediate layer of data

sharing control consisting of privacy agents. It also includes a methodology to define a customized privacy

policy for different personal properties within different business models.

1 INTRODUCTION

The era has been bringing in smart device in our

daily life replacing simple electronic device. These

smart devices are no longer independent stand alone

household item but it is a part of bigger network

named Internet of Things (IoT). The IoT can use any

medium or solution to communicate over network

like tagging (RFID, NFC etc.), embedded smart

service capabilities like smart phones or smart TV.

All variants of technical applications of smart device

have common function of being identified by unique

ID, communication over networks and capability of

acquiring services from network servers. Moreover

they form household and business infrastructures of

smart environment. IoT has become the part of daily

life even household appliances are forming

household network of the smart devices

(Chamberlain, 2016). There are very common

examples of tracking, GPS facility in vehicles and

video on-demand and other entertainment facilities

at home (Crabtree, 2016). With facilitation the

information and service sharing, the smart

environment brings new challenges of personal

privacy assurance in data sharing. The more we use

IoT for personal and domestic purpose, the more we

share our personal information over this network.

This paper discusses the privacy threats in

communication between personal smart devices and

cloud environment. It suggests a mediatory layer for

privacy preservation and access control with defined

privacy and trust policy. The next section of this

paper provides a summarized view of historical

work and problem identification. The methodology

states the privacy matrix, the privacy preservation

agents and overall architectural view. The model

provided in methodology is discussed by

implementing at three different scenarios in the

section of discussion over business model. The

conclusion and future work is provided in the last

section of the paper.

2 LITERATURE REVIEW

IoT is understood as a world of objects connected

with each other. Radio Frequency Identification

(RFID) and sensor network technologies will be

used normally for collecting information from

surrounding environment (Gubbi, 2013)

(Sundmaeker, 2010) (Al-Sakran, 2015). In 2020, it is

estimated that there will be around 26 billion units

connected together in IoT. The Cisco Company

claimed in a study, that smarter cities will produce

$1.9 trillion value from IoT (Bradley, 2015). The

massive data will produce new challenges for

personal security and privacy. IoT, usually, has

limited processing and storage capacity with some

Shahzad, S., Iqbal, M. and Ahmad, N.

Privacy Agents for IoT Cloud Communication.

DOI: 10.5220/0006286502390245

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 239-245

ISBN: 978-989-758-245-5

239

challenging issues like reliability, security, privacy

and performance. The integration of IOT with cloud

will expand the processing and storage capacity over

the network. The Cloud will also benefit from IoT

by delivering extensive services in more distributed

manner (Babu, 2015). Considering the privacy issue,

there are efforts under go to reduce the privacy

threats some of the researches talk about providing

privacy layers in communications like gateways

(Medaglia, 2010) or rule mining for information

sharing from household networks (Crabtree, 2015).

2.1 Privacy Issues

Whenever there is discussion over IoT the privacy is

listed at the top from introduction of RFID to latest

research (Henze, 2014). The threats to the privacy

are being revealed in many forms and levels like

data storage, ownership, communication protocols,

access control to the identification attribute and trust

in legal and technical terms (Perera, 2015)

(Ziegeldorf, 2014). Consequently many solutions are

proposed for respective privacy threats (Alpár,

2016). Here we focus on the data sharing over IoT

cloud communication. Researchers have defined two

major techniques for access control and data sharing

while communication at IoT. The first method is to

provide an intermediate layer for privacy control

between device and public cloud including severs &

other devices (Williams, 2014), while the second

method talks about attribute level authentication for

different devices and users (Aazam, 2014). The first

methods providing the privacy layer doesn’t look

deep for the service request and attributes shared

that can block some service acquisition. It is focused

at the trust policy development for information

sharing over public network. The second method

provides too much technical details to be managed

by the end user. This methodology talks about the

individual privacy policy (Kozlov, 2012). Here we

need a trade off approach which can not only

facilitate user for managing all the attribute level

access control but also assist them to perform the

task. Here we argue that the trust policy and privacy

policy should not be detached from each other. The

distance between these two policies can bring

unwanted results or they are not workable together.

So it is required that the trust policy should have

capacity to imply the rules defined at user level in

his privacy policy.

2.2 Web Trust Models

Privacy over any network has been an issue since the

birth of network. Privacy is the concern related to

the unauthorized or harmful access of data even at

standalone device (Cranor, 1999) (Rubin, 1998)

(Grandison, 2001) (Glen, 2000). Within a network

environment the threat has been strengthen due to

connected environment allowing access to any

machine form any remote site. Many privacy and

trust models have been developed in early 90s for

World Wide Web (WWW). The privacy models

avoid any unauthorized access by providing security

layers at the data sent to WWW. While on the other

hand the trust models provide the ranking and

validation of all trusted destinations over internet.

This ranking of the internet node, including websites

and servers nodes, describes the assurance model to

the privacy (Grandison, 2001) (Glen, 2000). Similar

trust models developed and applied for IoT (Sicari,

2015). We have adopted the same model for ranking

the service providers over cloud to share the

required information with service requests.

Considering the available trust models for IoT, The

ranking methodology and technical details are not

discussed in the current writing. These ranking

enable the device and privacy engine to determine

the secure destination to share any kind of

information with minimum privacy threat.

3 METHODOLOGY

To resolve the problems of privacy and personal

information sharing, we introduced network

architecture with a privacy layer. It is not possible to

disconnect the person from smart environment or

create total new replica for privacy issues. This can

control the access of shareable and non-shareable

attributes of requesting device from cloud. This

filtration and access identification is achieved

through a classification of all device properties. The

classification schema is part of request-response

protocol of smart device-cloud communication

(Smart net). It will assist user to categorize all the

properties while default classes and categorized list

with complete privacy policy will be provided by the

device at initial installation while user can change

them according to their needs.

3.1 Privacy Matrix

Here we develop a matrix of all device properties

shared over smart net while rendering any services.

We have developed few classification and ranking

mechanism to limit a risky and unnecessary sharing

of personal information. We have made

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

240

classification of different personal information that

need to be shared over web. The provided

classification list some basic classes while it can be

enhances by introducing new classes at same level

or vertically by subclasses. This privacy matrix

provides a table to develop a privacy policy at user

level (Mattern, 2010). On the other has the privacy

layer between devices and cloud keeps the trust

policy defining trusted, blacklisted and public node

over cloud.

3.1.1 Personal Identification Properties

(PIP)

These properties include the information that can be

used for identification of persons that smart device is

belonged. It includes the identification of person or

business at whose name the device is registered.

This information is required for some contractual

matters like purchase and maintenance contracts. It

includes name, date of birth, social security number

or taxation identification. There are some business

properties similar to personal information or defined

as subclass that list also some other business values

like buyer’s Credit Card details at purchasing a

mobile phone contract, Driving License information

of smart car owner (Santucci, 2010). At current

model these are considered as PIP.

3.1.2 Location Properties

These are properties that can be used to trace a

device in terms of spatial measures. It may be static

values of street address or dynamic latitude,

longitude measurements.

3.1.3 Device Properties

These properties include properties related to the

device it includes static device identification

properties or variant of device status properties.

Device identification properties include, brand,

model and serial number, while the status properties

include the working status of the device like OS,

networks, storage application installed etc (Mattern,

2010) (Santucci, 2010) (Medaglia, 2010).

In current framework, we have attached the

properties classification module with the device.

Considering the properties classification an access

control protocol has be devised for sharing these

properties over cloud. The properties from the

privacy matrix is hidden, shared or replicated by soft

identities from the requested servers.

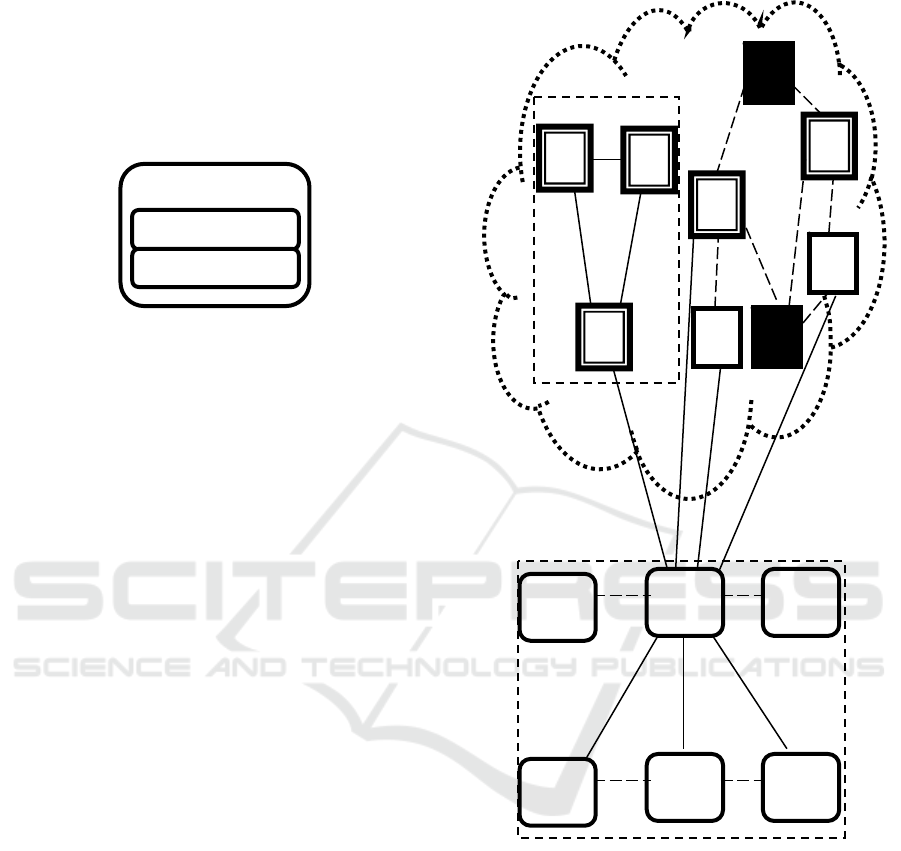

3.2 Trust Points and Ranking Cloud

Nodes

The properties classification is not enough to make

an automated decision mechanism for information

sharing over cloud. It is also depends at the trust

policy of smart net. The policy also ranked the

servers and other nodes over web as simple public

server, trusted server and blacklisted servers (Weber,

2010).

The privacy agent can rank (in a ranking table)

some clouds nodes as trusted servers based on

signatures, user ranking and other factors. All the

servers of private network associated to the device

and privacy agent will be ranked as trusted server.

All the unranked cloud service providing nodes

can be treated as public servers.

The privacy agent may create a list of black

listed servers to avoid any service request to be sent

there.

3.3 Privacy Layers

Once the attributes of personal information are

categorized and servers are ranked, the Privacy

Layer model is formed to map the property classes

to the ranked server. These layers define the access

level according to the property classification and

trust ranking of servers as shown in Table 1. The

higher level of trust we define the more access

privileges will be provided for the property classes.

These privacy layers spans from the device to black

listed nodes over cloud, mapping full access to all

property classes to no access at all respectively. The

first layer is defined as the device layer, residing at

the device level. All properties belonged to any of

above defined class in can be accessed and used at

this level. Further user level access protocols

(Admin, Power user, Operator etc.) can be defined at

device level. We have not established any user level

privacy that is mostly defined with the smart device.

All of the properties categorized as private, stay

within device layer and never shared over network.

Majority of the physical properties of devices like

some of the personal identification or device

identification properties are limited to this level and

never shared to the network.

The layer above device layer is defined as local

network layer. This layer includes all the nodes

device registered at the agent forming a local

network. Information like local IP, identification

properties stays within the local network (LAN).

While the privacy agent may produce some soft

identities for the properties required to request a

Privacy Agents for IoT Cloud Communication

241

service from any node above LAN. The local

network level information sharing is done with a

smart environment developed in small residential or

business areas.

The third level of access is the private network

(VPN) layer. It can be created for some environment

for specific smart enterprise over cloud. This private

network includes all agents and server nodes for all

devices registered to the enterprise network. Mostly

the business information is shared over this level.

While rendering service out of the private network

may define some other soft identities for these

business properties (Weber, 2010).

There may exist some other trusted node or

servers over cloud based on signatures and user

ranking other than the private network. The next

access layer Trusted Nodes Layers that allow of

requesting these nodes and provided access to the

provided attributes.

Table 1: Access Layers.

Access Layer Access Level

(0 - lowest)

Device Layer 5 (Full Access)

Local Network Layer 4

Private Network (VPN) Layer 3

Trusted Network Layer 2

Cloud Layers 1

Blocked Layer 0 ( No Access)

The top most level of access is the public cloud

layer. It includes all trusted and public server at

which a service request can be sent. Only the

attributes categorized as public or soft identities can

be shared over this layer.

These access layers protocols excludes black-

listed server while there will no request sent to these

server or cloud nodes. A Blocked Layer may be

created for all black listed that can be an invisible

layer for communication.

The device layer and blocked layer have defined

access to all properties. All intermediate layers may

vary access level with the context including service

types and business model defined in the discussion

section. All the attributes are tagged with that

authorization level while none of the attributes can

be tagged with blocked layer access. The complete

model including properties classification, network

nodes ranking an associated privacy layers provide a

platform to build a privacy matrix for any device or

group of devices. Quantification of the privacy

matrix provides us a privacy policy for each device

or group of devices. The access level tags can be

associated with individual of attributes or any

defined class of attributes according to the privacy

policy. Moreover soft-identities with higher access

level can be used replacing all identification

properties to provide access to most levels of cloud

layers (Friess, 2013).

3.4 Privacy Agents

The agent is somewhat intelligent that make it

similar to a privacy server while the smart devices

act like a client. There is no explicit privacy request

and response protocol adopted but the privacy agent

provides services of proxy, gateway (Medaglia,

2010) and domain controlling enabling it to work as

server for the local network. This component of the

communication architecture is the backbone of

whole privacy preservation model designed in

current study. It also ensures the privacy by sharing

information over network according to the defined

cloud.

3.4.1 Agents Components

The privacy agent has three major types of

components as shown in Figure 1.

Figure 1: Components of Privacy Agent.

Network related components enable this agent to

controlling protocols. The component above local

network management component is used for request

analysis and access identification.

The next component is used to routing the

request to the server or cloud layer according to

specified access. This component is somewhat

intelligent using simple decision tree mechanism

based on the least access level provided with the

Privac

ent

Route

Request Parser

Access Identifier

Routing Algo

Gateway /

Proxy server

DHCP Server / Domain Controlle

Routing Table

Local Address/ NAT

Blacklisted Nodes

Trusted nodes

VPN Addresses

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

242

updated request with all required attributes either

original values or soft-identities

The third component is the database in

conventional filing system with specific indices

storing routing tables. The access controller

identifies access of all properties and attributes by

the associated access level tags with them. These

attributes are tagged at client level by the device.

Figure 2: Privacy components in Smart Device.

Here we have established the Access classifies

and request builder component to tag the attributes

and build the service request respectively. Figure 2

provide the components of the smart device. These

components reside just before the communication

layer of smart devices. The attributes access

classification vary based on the business model and

service types, e.g. for some security services the

location properties may be tagged as local network

level access while same properties may be defined

public for location based service requests (Babar,

2010).

3.4.2 Network Architecture

With the detailed description of privacy agents and

privacy matrix the network architecture explanation

will provide whole concept and working of proposed

privacy framework. Here Figure 3 provides an

overview of the network including a privacy layer.

The bottom layer is the local network layer of smart

devices registered to a privacy agent. The privacy

agents collectively form a privacy layer. Above that

the privacy layer, privacy agents connect the devices

with service cloud with specified authorization and

access privileges. The cloud resides as the top layer

consisting of all kind of server nodes and defined

VPNs. These server nodes are presented in Figure 3

as Trusted Node (TN), Public Node (PN) and

Blacklisted Nodes (BN). These layers forms

different level of access as described in privacy

layers based on trust level.

Figure 3: The IoT Cloud Architecture with Privacy Layer.

4 DISCUSSION OVER BUSINESS

MODELS

The explored framework of the research has been

applied for three basic business models.

The first model defines the Service Based

Privacy Agent. These agents are connected to all

service provider of similar services like Security

services, Health services, location based service etc.

With the specialized agents, the classification of

properties is done depending of the need of service.

If an agent is specialized for location based service

VPN

Local

Network

Smart

Device

Smart

Device

Smart

Device

Privacy

Agent

Privacy

Agent

Privacy

Agent

Smart Device

Request Builder

Access Classifier

Privacy Agents for IoT Cloud Communication

243

location properties must be required to share with

the servers. This business model use mostly trusted

servers and server ranking by the users. In the

current scenario the devices are registered over these

privacy agents irrespective of device location and

other association. Thus these privacy agents or are

also ranked by the users with history and their

profiles. This scenario is described in Figure 3 with

all server nodes (trusted and public nodes) without

forming any VPN.

Next two business models use a VPN as a private

cloud based on either location or enterprise. The

second model defines all the access privileges over a

VPN based on a location, where privacy agents are

associated with any location e.g. a locality or town.

In experimentation we have developed one for a

model residential scheme. The idea is to have

privacy agents for some smart environment a

campus, city etc. where the residents of the locality

use provided locality services.

The third business model provides maximum

access mostly at the VPN of a specific enterprise

over cloud. It uses an Enterprise Privacy Agent

currently this architecture is mostly used for smart

communication devices. It provides access and

authentication agents for brand specific devices or

applications. These enterprises have created their

own cloud service like Google, SAMSUNG,

SIEMENS and IBM. Other than device

manufacturing devices, there are service providing

organizations that have built their own cloud

architecture like Amazon. The majority of the

information floats through their specific VPN, while

rendering a third party service there is an access

control protocol required. Only few public defined

attributes or alternative soft-identities are floated

with the services request outside the VPN.

There may be some other hybrid approaches of

enterprise agents and service specific agents, with

any organization provide specific kind of services

through their own cloud or user registers at different

enterprise agents for different kind of services to get

improved quality of services.

5 CONCLUSION AND FUTURE

WORK

The problem described earlier was not questioning

all the privacy issues but only the information

sharing over cloud via service request. The answer

was found by development of an intermediate

privacy layer with a trust policy and user defined

of two method intermediate layer induction and

attribute level access control. Default access control

policies and device attributes classification can be

provided with the deployment of the device to assist

user at initial configuration. Moreover it enabled the

smart environment to develop uniform privacy

matrix for the uniform context like a specific smart

enterprise, smart campus or smart residential block

with similar devices and user needs. This research

still have many privacy question unanswered like

security measures (Medaglia, 2010) during

communication e.g. data & request encryption

methods, legal standings and binding of the privacy

providing agents. These and many other questions

are needed to answer in the future work. We will

continue our work in these directions. It is also

possible to define intelligent privacy agents by

defining dynamic the privacy matrix, history enabled

profiling of cloud nodes etc.

ACKNOWLEDGEMENTS

This contribution is presented with the

acknowledgements of the Higher Education

Commission of Pakistan (HEC). HEC is the higher

education organizing body that has funded this

research contribution presentation.

REFERENCES

Chamberlain, A., Crabtree, A., 2016. Searching for music:

understanding the discovery, acquisition, processing

and organization of music in a domestic set-ting for

design. In Personal and Ubiquitous Computing, 20

(4), pp. 559–571.

Crabtree, A., Lodge T., Colley, J., Greenhalgh, C.,

Mortier, R., Haddadi H., 2016. Enabling the new

economic actor: data protection, the digital economy,

and the Databox, In Personal and Ubiquitous

Computing, pp. 1–11.

Crabtree A., Rodden, T., Tolmie, P., Mortier, R., Lodge,

T., Brundell, P., Pantidi, N., 2015. House Rules: The

collaborative nature of policy in domestic networks, In

Personal and Ubiquitous Computing, 19(1), pp. 203–

215.

Gubbi, J., Buyya, R., Marusic, S., Palaniswami, M., 2013.

Internet of Things (IoT): A vision, architectural

elements, and future directions. In Future Generation

Computer Systems, 29(7), 1645–1660.

Sundmaeker, H., Guillemin, P., Friess, P., Woelfflé, S.,

2010. Vision and challenges for realising the Internet

of Things. In Cluster of European Research Projects

on the Internet of Things, European Commission.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

244

Al-Sakran, H. O., 2015. Intelligent traffic information

system based on integration of Internet of Things and

agent technology. In International Journal of

Advanced Computer Science and Applications

(IJACSA), 6(2), 37–43.

Bradley, J., Reberger, C., Dixit, A., Gupta, V., 2013.

Internet of everything: A 4.6 trillion public sector

opportunity. In Cisco White Paper. CISCO Corp.

Babu, S. M., Lakshmi, A. J., Rao, B. T., 2015. A study on

cloud based Internet of Things: Cloud IoT. In Global

Conference in Communication Technologies (GCCT),

pp. 60–65. IEEE.

Henze, M., Hermerschmidt, L., Kerpen, D., Häußling, R.,

Rumpe, B., Wehrle, K., 2014. User driven privacy

enforcement for cloud based services in the internet of

things. In International Conference on Future Internet

of Things and Cloud (FiCloud), pp. 191–196. IEEE.

Perera, C., Ranjan, R., Wang, L., Khan, S. U., Zomaya,

A. Y., 2015. Big data privacy in the internet of things

era. In IT Professional, 17(3), pp. 32–39.

Alpár, G., Batina, L., Batten, L., Moonsamy, V.,

Krasnova, A., Guellier, A., Natgunanathan, I., 2016.

New directions in IoT privacy using attribute based

authentication. In Proceedings of the ACM

International Conference on Computing Frontiers, pp.

461–466. ACM.

Williams, J., 2014. Internet of Things: Science Fiction or

Business Fact?. In Harvard Business Review Analytic

Services Report.

Aazam, M., Khan, I., Alsaffar, A. A., Huh, E. N., 2014.

Cloud of Things: Integrating Internet of Things and

cloud computing and the issues involved. In

Proceedings of 11th International Bhurban

Conference on Applied Sciences & Technology

(IBCAST) Islamabad, Pakistan, 14th-18th January, pp.

414–419. IEEE.

Kozlov, D., Veijalainen, J., Ali, Y., 2012. Security and

privacy threats in IoT architectures. In Proceedings of

the 7th International Conference on Body Area

Networks, pp. 256–262. Institute for Computer

Sciences, Social-Informatics and Telecommunications

Engineering (ICST).

Weber, R. H., 2010. Internet of Things–New security and

privacy challenges. In Computer Law & Security

Review, 26(1), 23–30.

Mattern, F., Floerkemeier, C., 2010. From the Internet of

Computers to the Internet of Things. In From active

data management to event based systems and more,

pp. 242–259. Springer Berlin Heidelberg.

Friess, P., 2013. Internet of things: converging

technologies for smart environments and integrated

ecosystems. River Publishers.

Babar, S., Mahalle, P., Stango, A., Prasad, N., Prasad, R.,

2010. Proposed security model and threat taxonomy

for the Internet of Things (IoT). In International

Conference on Network Security and Applications, pp.

420–429. Springer Berlin Heidelberg.

Santucci, G., 2010. The Internet of Things: Between the

Revolution of the Internet and the Metamorphosis of

Objects. In Harald Sundmaeker, Patrick Guillemin,

Peter Friess, Sylvie Woelfflé Vision and Challenges

for Realising the Internet of Things, Cluster of

European Research Projects on the Internet of Things

(CERP- IoT).

Medaglia, C. M., Serbanati, A., 2010. An overview of

privacy and security issues in the internet of things. In

The Internet of Things, pp. 389–395. Springer New

York.

Ziegeldorf, J. H., Morchon, O. G., Wehrle, K., 2014.

Privacy in the Internet of Things: threats and

challenges. In Security and Communication Networks,

7(12), 2728–2742.

Cranor, L. F., 1999. Internet Privacy. In Communications

of the ACM, 42(2), pp 29–31.

Rubin, A. D., Daniel E. Geer Jr., 1998. A Survey of Web

Security. In IEEE Computer, pp 34–40.

Grandison, T., Sloman, M., 2001. A Survey of Trust in

Internet Applications. In IEEE Communications

Surveys and Tutorials, 3(4), pp 2–16.

Glen, L., Urban, F. S., William, J. Q., 2000. Placing Trust

at the center of your internet strategy. In Sloan

Management Review, 42 (1), pp 39–48.

Sicari, S., Rizzardi, A., Grieco, L. A., Coen-Porisini. A.,

2015. Survey Paper Security, privacy and trust in

Internet of Things: The road ahead. In Computer

Networks, 76, 146–164.

Privacy Agents for IoT Cloud Communication

245
