Deriving Domain Functional Requirements from Conceptual Model

Represented in OntoUML

Joselaine Valaski, Sheila Reinehr and Andreia Malucelli

Pontifical Catholic University of Paraná (PUCPR), Imaculada Conceição Street, 1155, Curitiba, Brazil

Keywords: Requirements Engineering, OntoUML, Conceptual Model, Functional Requirement.

Abstract: A conceptual model is an artifact that helps to understand a domain and therefore, may contribute with the

elicitation of related functional requirements. However, the expressiveness of this model depends on the

expressiveness of the language used. Considering that OntoUML is a language that proposes elements that

allow more semantics, it is possible to build models with better expressiveness which are more complete than,

for instance, models represented in UML language. For evaluating the possibility of deriving domain

functional requirements (DFR) from models represented in OntoUML, a heuristic was proposed. This

heuristic was obtained by reading and interpreting nine conceptual models represented in OntoUML. Once

the heuristic was obtained, it was applied in a systematized manner to six models. According to the results

obtained, using a conceptual model represented in OntoUML as a source to derive DFR is possible. In addition

to the identification of the DFR, the heuristic can identify possible faults in the model design, or even the

incompleteness of the model.

1 INTRODUCTION

Software Requirements Engineering (SRE) can be

defined as an iterative process of discovery and

analysis for producing a clear, complete, and concise

set of specifications about the software to be

developed (Robinson & Pawlowski, 1999;

Loucopoulos & Karakostas, 1995) During this

process, artifacts (documents, models, prototypes,

etc.) are built for the analysis of the domain and

design of the software that will be developed.

However, owing to changes in requirements or in

design and development decisions, there may be

erosion among these artifacts, and therefore, the loss

of conciseness and traceability between them

(Landhäußer et al., 2014).

One of the possible reasons for requirement

changes is the lack of understanding of the problem’s

domain for which the software will be developed. In

the early stages of SRE, the specification of the

software to be developed is often inaccurate and

inconsistent (Ding & Marchionini, 1997).

Requirement engineers’ lack of understanding of the

business and communication breakdown among the

stakeholders compromise the quality of information

(Jureta et al., 2010). Intensifying efforts to better

understand the domain before moving on to software

design and development is a practice that may

minimize future requirement changes.

One of the ways of understanding a problem is to

build conceptual models (Jalote, 1997). Conceptual

models have been an important resource not only for

requirement elicitation, but also for improving the

model transformation through the software phases

(Valaski et al., 2016). However, good models need

good modeling languages (Henderson-Sellers et al.

2015). A language that has flaws in expressiveness

may compromise the understanding of requirement

artifacts in later phases. According to Mylopoulos

(1992), the suitability of a conceptual modeling

notation is based on its contribution to the

construction of models that represent reality, thus

enabling a common understanding between their

human users. Henderson-Sellers et al. (2015) discuss

some of the most common problems about software

engineering modeling languages. Based on these

problems they claim to use a language with an

ontological commitment. Languages with an

ontological commitment can improve the

expressivity and quality of models (Valaski et al.,

2016).

In this regard, Guizzardi (2005) emphasizes the

use of languages with ontologically well-founded

Valaski, J., Reinehr, S. and Malucelli, A.

Deriving Domain Functional Requirements from Conceptual Model Represented in OntoUML.

DOI: 10.5220/0006290302630270

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 263-270

ISBN: 978-989-758-248-6

263

primitives that help represent the reality of a

problem’s domain as precisely as possible. Guizzardi

(2005) proposed OntoUML, a language used to

represent ontology-based conceptual models.

Because the language is ontology-based, the

conceptual models constructed in OntoUML are

assumed more expressive and to represent the real

world of the domain more faithfully than do other

languages of conceptual representation do. There are

practical situations where OntoUML is more

expressive than UML (Teixeira et al., 2014; Valaski

et al., 2016b).

Considering that conceptual models represented

in OntoUML allow a better representation of a reality,

we believe they are an important instrument to

identify the first requirements. In this context, the

main goal of this study is to evaluate the possibility

of using conceptual models represented in OntoUML

as a support to derive domain functional requirements

(DFR). A DFR is a denomination used in this study

to refer to high level functional requirements

generated from the representation of the Problem

Domain. The present study is organized as follows:

Section 2 presents the main OntoUML concepts.

Section 3 describes the method applied to obtain the

heuristic for the DFR reading and listing from the

OntoUML model. Section 4 presents and discusses

the result of the heuristic application. Section 5

discusses the limitations of this study. Section 6

presents the landscape of related studies. Final

considerations are presented in Section 7.

2 OntoUML: BACKGROUND

This section presents a few of the main OntoUML

language concepts because presenting all OntoUML

language constructs is not possible owing to space

limitation. OntoUML was proposed by Guizzardi

(2005) based on the need for an ontology-based

language that would provide the necessary semantics

to construct conceptual models using concepts

faithful to reality. The classes proposed in OntoUML

are representations of the Unified Foundational

Ontology (UFO) constructs. These constructs are

represented using UML stereotypes.

In this study, only the main constructs that

comprise the object type category are presented

(Guizzardi, 2005). In this category, constructs are

more closely related to the static conceptual modeling

of a domain. The Figure 1 shows a fragment of a

metamodel OntoUML related to Universals

constructs. Universals are constructs related to types

(classes) while Individuals are constructs related to

instances. The main constructs of the metamodel

OntoUML are presented in the follow subsections.

2.1 Substantial

Substantial constructs are applied to represent classes

of elements that have high degree of independence.

Substantials are specialized in Sortal and Non-sortal.

Sortals provide identity and individuation principles

to their instances, whereas Non-sortals do not supply

any clear identification principles.

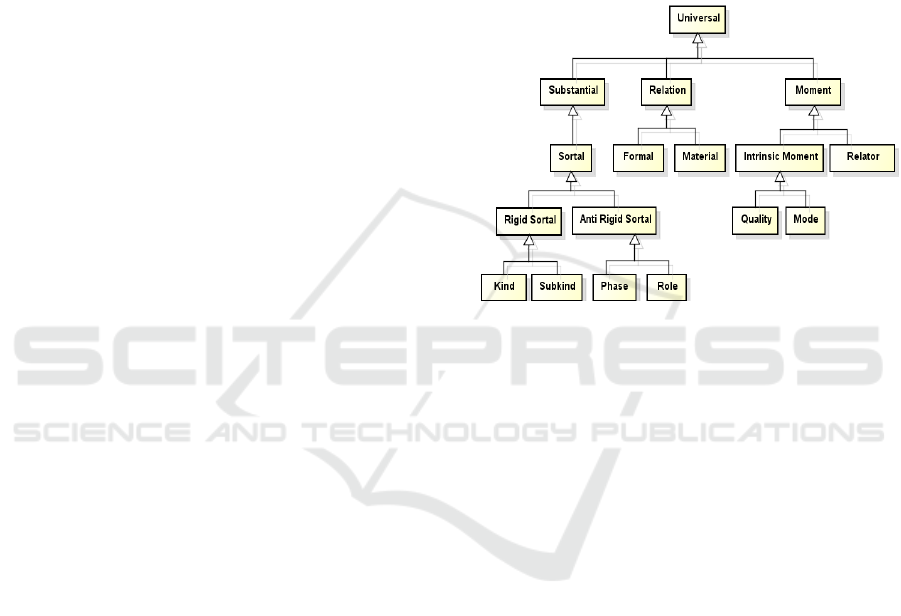

Figure 1 : Fragment of a metamodel OntoUML related to

Universals (Guizzardi, 2005).

Sortal constructs are classified as Rigid and Anti-rigid

Sortals. A Sortal is said to be rigid if it is necessarily

applied to all its instances in all possible worlds and

anti-rigid if it is not necessarily applied to all its

instances. Person is an example of Rigid Sortal and

Student is an example of Anti-rigid Sortal.

Rigid Sortals include Kind and Subkind

categories. A Kind is a Rigid Sortal and thus has

intrinsic material properties that provide clear identity

and individuation principles, for instance Person. It

determines existentially independent classes of things

or beings and are said to be functional complexes. A

Subkind is also a rigid type that provides an identity

principle and has some restrictions established and

related to the Kind construct. Man and Woman are

examples of Subkind category. Every object in a

conceptual model must be an instance of only one

Kind.

Two sub-categories of Anti-rigid sortals exist:

Phases and Roles. In both cases, instances may

change their types without affecting their identities.

During the Phase construct, changes may occur

because of changes to intrinsic properties. Teenager

and Living Person are examples of Phase category.

By contrast, in the Role construct, changes occur

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

264

because of relational properties. Student and Husband

are examples of role category.

2.2 Moment

Whereas the Moment is a construct used to represent

classes of elements which are existentially dependent

of other individuals. The Moment class is divided

into two categories, Intrinsic Moment and Relator.

The Intrinsic Moment class represents properties

that depend only on one individual. The Quality and

Mode Universal classes are specializations of the

Intrinsic Moment class. Weight, Color and Height are

examples of a Quality Universal class. Whereas,

Thoughts and Symptoms are examples of a Mode

class. The Relator class represents individuals who

depends of at least two distinct entities. Sale and

Registration are examples of adherent concepts to this

class.

2.3 Relation

The Relation construct represents relation categories

that may occur between Moments and Substantials.

The Relation class is divided into two general

categories: Material Relation and Formal Relation.

The Material Relation class has relations

mediated by a Relator. Relators (Moments) are

individuals with the power of connecting entities. The

Formal Relation class represents relations between

two or more direct entities without individual

mediation. Inherence and association are considered

Formal Relations. The Formal Relation can be

divided into basic formal and formal comparative

relations. For the basic formal relations, three

categories are proposed: Characterization, Mediation

and Derivation. The Formal Characterization relation

occurs between a Mode and a Universal; there is no

optional property in this relation. A Formal

Mediation relation occurs between a Relator and a

Substantial. A Derivation relation is the one between

a Material and a Relator from which this relation is

derived.

3 INTERPRETING OntoUML

MODEL

A method was defined with the purpose of obtaining

a heuristic able to extract possible DFRs in a

systematized manner from a conceptual model

represented in OntoUML.

During the process of obtaining the heuristic,

three main activities were executed: the selection of

conceptual models represented in OntoUML

language, transcription and identification of patterns

in the interpretation of the models, and lastly, the

definition of the heuristic. Further details on these

activities are presented next.

3.1 Selection of Conceptual Models

Initially, the selection of conceptual models that

represented a domain was performed. The OntoUML

Model Repository was used to obtain such models.

The OntoUML Model Repository (http://

www.menthor.net/model-repository.html) is an

endeavor made by Menthor to put in one place all the

OntoUML models scattered around the web,

conferences, journals and books. In total, nine models

were found. The represented domain and number of

existent elements of the models are summarized in

Table 1.

Table 1 : Quantity of elements of conceptual models by

domain.

Stereotype

Domain/Quantity

A B C D E F G H I

Category 0 0 0 1 0 0 0 0 0

Collective 0 0 0 7 2 1 1 2 0

Kind 5 4 4 6 2 7 6 6 3

Mixin 0 0 0 0 0 0 1 0 1

Mode 0 0 2 0 0 0 0 0 0

Phase 2 0 2 5 3 2 5 0 2

Relator 2 6 1 1 3 14 3 3 5

Role 6 2 2 2 4 15 9 15 18

Role Mixin 0 0 1 0 0 0 0 0 2

Subkind 0 0 2 2 0 4 17 3 4

Characterization 0 0 2 0 0 0 0 0 0

Formal 0 0 2 4 0 1 1 0 0

Material 3 0 0 6 6 1 1 7 2

Mediation 6 13 2 2 6 37 7 6 15

Generalization 8 2 8 14 6 8 36 18 30

Unknown 0 0 0 0 0 1 2 0 3

Total 32 27 28 50 32 91 89 60 85

Domain: A: Electronic Proxy; B: Route Bus; C: Project

Management; D: Health Organization; E: Conference; F:

Library; G: Music; H: Online Mentoring; I: School

Trans

ortation

The class stereotypes: enumeration, nominal quality,

non-perceivable quality, and perceivable quality and

Deriving Domain Functional Requirements from Conceptual Model Represented in OntoUML

265

quantity, were not evaluated because they were not

used in any of the nine models evaluated. The

associations stereotypes: componentOf, derivation,

memberOf, subColletionOf, and subQuantityOf,

were not included then, as they did not present

significant facts for this top-level DFR survey step.

However, these should be considered in future

evaluations.

3.2 Transcription and Identification of

Patterns

For each conceptual model, the reading and manual

transcription of the interpreted data was performed.

The aims of the reading were a) to identify a rule that

allowed navigation through all model elements with

no repetition; b) to transcribe the interpretation in the

reading; and c) to identify design patterns to define a

systematized heuristic. After many readings and

transcriptions, some patterns were identified, which

are summarized as follows:

 <<Relator>> is a class stereotype that always

groups the main domain functionalities. If the

reading always starts by the Relators, it is

possible to define a flow that runs through all

elements of the model. Owing to this

characteristic, the key word “control” was

attributed to describe the requirement;

 <<Category>>, <<Collective>>, <<Kind>>,

<<Mixin>>, and <<Subkind>> are class

stereotypes associated with entities that require

maintenance functionalities; therefore, the key

word “maintain” was attributed to describe the

requirement;

 <<Mode>> and <<Phase>> are class stereotypes

that require updating data from existing entities.

For the description of requirements associated

with these elements, the key word “inform” was

attributed;

 <<Role>> and <<Role Mixin>>: at first, these

class stereotypes no need to directly describe a

functional requirement, because the

identification of the relation between these

elements will generate a functional requirement;

 The association relationship

(<<Characterization>>; <<Formal>>,

<<Material>>, <<Mediation>>) generate

requirements to represent the association

between two elements (root and node). For this

situation, the key word “association” was

attributed; and

 The relationship of generalization does not

generate DFR when is related to a class that uses

the stereotypes: <<Category>>, <<Collective>>,

<<Kind>>, <<Mixin>> and <<Subkind>>. For

other situation, the key word “association” was

attributed.

3.3 Definition of the Heuristic

Based on the patterns mentioned in Section 3.2, the

heuristic was defined with the purpose of generating

the possible DFR.

In the proposed heuristic, all classes that use

stereotype <<Relator>> in the model are selected and

stored in an array. For each of these classes, a domain

functional requirement is generated. The classes that

use a stereotype <<Relator>> leads to the

identification of the relations between the dependent

elements. For each relation, a domain functional

requirement is generated. A domain functional

requirement is also generated according to the

dependent element (following the previously

mentioned patterns).

To illustrate the heuristic functions, a sketch of the

algorithm is presented in Algorithm 1. It is important

to emphasize that this algorithm does not represent

the implemented and complete version of the

proposed heuristic. Several rules were also added to

the algorithm to allow the systematized reading of the

model. The main rules are presented as follows:

 In the selection (DependElements) of the

dependent elements (classes and associations), if

the root element is a class that uses the stereotype

<<Relator>> and the node element is related to

the root element through an association that uses

the stereotype <<Material>>, this path is not

selected, since the association that uses the

stereotype <<Mediation>> meets the functional

requirement associated;

 In the selection of dependent elements, if the root

element is a class that uses the stereotype

<<Role>> and the node element is a

generalization related to another class that also

uses the stereotype <<Role>>, this path is not

selected. If the model design is correct, another

path (from another class that uses stereotype

<<Relator>>) will reach the specializations of

the class that uses the stereotype <<Role>>;

 The recursive call for print requirements verifies

if the node element is a class that uses the

stereotype <<Relator>>, if yes, the recursive call

is not performed. This rule is applied because all

relators have already been selected in the Main()

procedure. This rule guarantees the extraction of

requirements from the most relevant domain

functionalities. The recursive call is executed

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

266

until another class that uses the stereotype

<<Relator>> is reached or there are no more

dependent elements in the covered path. With

this rule it is possible to generate groups with the

requirement and their dependencies; and

 The recursive call for print requirements verifies

if the node element has already been covered. If

yes, the recursive call is not performed. This rule

avoids the duplication of the covered path.

procedure Main ()

begin

relator = SelectAllRelator();

for each relator do

Writeln(‘RF .. control’ +

relator.name);

PrintRequirements(relator);

end-for

end.

procedure PrintRequirements(rootElement)

begin

nodeElement=DependElements(rootElement);

for each nodeElement do

Writeln(‘RF .. association’ +

nodeElement+ to’+ rootElement.name);

if nodeElement.type in [‘Category’,

‘Collective’, ‘Kind’, ‘Subkind’,

‘Mixin’]

Writeln(‘RF .. maintain’+

nodeElement);

end-if

if nodeElement.type in [‘Phase,

‘Mode’]

Writeln(‘RF .. inform’+

nodeElement);

end-if

if nodeElement.type not in [‘Relator´]

or not ExistElement(nodeElement)

AddElement(nodeElement);

PrintRequirements(nodeElement);

end-if

end-for

end.

Continued ...

Algorithm 1 : Partial algorithm to read and extract domain

functional requirements from OntoUML conceptual

models.

4 DERIVATION OF DFR

With the heuristic defined in Section 3, its

systematized execution was evaluated. The heuristic

was applied in six conceptual models related in Table

1 (A: Electronic Proxy; B: Route Bus; C: Project

Management; D: Health Organization; E:

Conference; F: Library). The data presented in Table

1 indicates that the six selected models represent

different complexities (number of elements), and the

use of the different elements considered by the

heuristic.

4.1 DFR Listed by the Heuristic

Table 2 partially presents the list of DFR generated

by the Conference (ID: E) domain model. The

sequence of the requirement identifier helps to verify

the dependence and source, among other

requirements.

Table 2 : Partial DFR of Conference domain (ID: E).

ID Requirement description

RF1 System should control Review

RF1.1

System should provide the association of

Reviewer to Review

RF1.1.1

System should provide the association of

Person to Reviewer

RF1.1.1.1 System should maintain the data of Person

RF1.2

System should provide the association of

Paper to Review

RF1.2.1 System should maintain the data of Paper

RF1.2.1.1

System should allow to inform the Not

Evaluated Paper

RF1.2.1.2

System should allow to inform the

Rejected Paper

RF1.2.1.3

System should allow to inform the

Accepted Paper

RF2 System should control Submission

RF2.1

System should provide the association of

Author to Submission

RF2.1.1

System should provide the association of

Person to Author

RF2.2

System should provide the association of

Paper to Submission

continued...

The extracted requirements were listed in different

colors to emphasize the source; in black,

requirements extracted from classes that use

stereotype <<Relator>>, in blue, requirements

extracted from relations (association or

generalization), in purple, requirements extracted

from stereotypes: <<Category>>, <<Collective>>,

<<Kind>>, <<Mixin>>, and <<Subkind>>, and in

orange requirements extracted from stereotypes:

<<Phase>> and <<Mode>>.

Through the list presented in Table 2, it is possible

to observe that DFRs are generated from classes that

used stereotype <<Relator>> grouping other DFR.

The list might suggest sub-modules or groups, from

which uses cases and interface prototypes, among

others, can be generated. Figure 2 partially illustrates

the conceptual model represented in OntoUML

related to the Conference domain.

Deriving Domain Functional Requirements from Conceptual Model Represented in OntoUML

267

4.2 Verification of DFR Listed

With the result from the heuristic, two surveys were

performed with the aim to verify the consistency of

the results: 1) unidentified DFR due to fault in the

heuristic; 2) unidentified DFR due to fault in the

model design. To perform these verifications, three

variables were used for each one of the six domains

evaluated: the number of DFRs listed by the heuristic,

the number of DFRs not listed by element, and the

number of elements in the conceptual model. Table 3

presents these results.

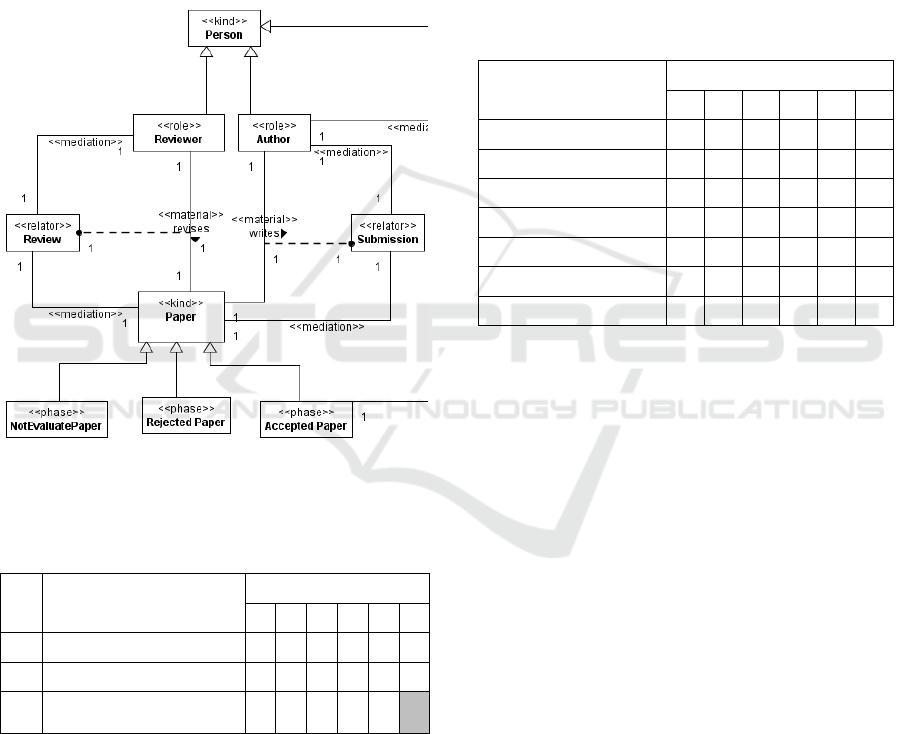

Figure 2: Partial OntoUML conceptual model of

Conference domain (ID: E).

Table 3: Quantity of DFR listed, elements without DFR

listed and elements from conceptual model by domain.

ID Description

Domain/Quantity

A B C D E F

x DFR listed 25 25 22 35 22 71

y Elements without DFR

7 2 5 15 10 17

z Elements from conceptual

model

32 27 28 50 32 91

4.2.1 Unidentified DFR Due to Fault in the

Heuristic

First, it was verified if any DFR was left unidentified

owing to a fault in the heuristic. All “elements

without DFR” were identified and grouped by type in

Table 4. After the individual and manual verification

for each element, the following analysis was

obtained: 1) The class that used the stereotype

<<Collective>> (domain ID: F) did not generate DFR

because it was related to an association that uses the

stereotype <<MemberOf>>, as predicted by the

heuristic; 2) The classes that used the stereotypes

<<Role>> and <<Role Mixin>> do not generate

DFR, as predicted by the heuristic; 3) The association

that used the stereotype <<Material>> do not

generate DFR. In such cases, the association that uses

the stereotype <<Mediation>> generates the

necessary DFR, as predicted by the heuristic; and 4)

The relationship of generalization does not generate

DFR, as also predicted by the heuristic.

Table 4 : Quantity of elements without DFR listed by

domain.

Stereotype

Domain/Quantity

A B C D E F

Collective 0 0 0 0 0 1

Role 6 2 2 2 4 15

Role Mixin 0 0 1 0 0 0

Characterization 0 0 0 0 0 0

Material 1 0 0 1 6 1

Generalization 0 0 2 12 0 0

Total 7 2 5 15 10 17

These analyses led to the conclusion that all situations

with no DFR generation were predicted by the

heuristic. Within the scope proposed for this first

version, the heuristic fulfilled its role. Improvements

should be proposed as the heuristic is applied to

models with different complexity.

4.2.2 Unidentified DFR Due to Fault in

Model Design

Considering that the heuristic generates the maximum

of one DFR for each element in the model and that

the number of unlisted DFR in Table 3 (line y) is

correct, we suppose that the sum of the listed DFR of

Table 3 (line x) and unlisted DFR of Table 3 (line y)

must be equivalent to the number of elements in the

conceptual model of Table 3 (line z). According to

this premise, in five of the six domains evaluated, this

verification was true. Only the Library domain (ID:

F) was missing three requirements.

After the manual analysis, it was possible to verify

a non-generated DFR from an “unknown” relation,

not predicted in the OntoUML, a situation that must

be corrected in the model. Two DFRs were not

generated due to the presence of an association that

used the stereotype <<Mediation>> between one

class that used the stereotype <<Role>> and one class

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

268

that used the stereotype <<Kind>>. It is a problem in

the model design because in OntoUML specification

is said that an association that use the stereotype

<<mediation>> must have in the origin a class that

uses a stereotype <<Relator>>. The results obtained

indicate that it is possible to use a conceptual model

represented in OntoUML as a source of DFR

derivation. Moreover, the heuristic can identify

possible faults of the model design or even the

incompleteness of the model. The results also indicate

that the conceptual model may represent an

instrument to support the traceability of the DFR, in

addition to generate metrics to estimate the

complexity of the domain.

5 LIMITATIONS OF THIS STUDY

The presented heuristic had the purpose of evaluating

the possibility of deriving DFR from OntoUML

conceptual models. Due to the presented results, we

consider its application to be possible. However, we

also believe that the present study has limitations and

that future studies are necessary to improve the

proposed heuristic. Although the location of

conceptual models with domain represented in

OntoUML is not trivial, it is necessary to find other

models, more complex, to apply the heuristic and

obtain new results.

It is also considered important to perform

experiments with domain specialists to evaluate the

completeness of the DFR. Although the entire process

presented here (reading, interpretation and extraction

of requirements from the models) is systematized, it

was generated manually. Computational tools are

being implemented to facilitate the processing of

conceptual models for the generation of the DFR list,

identification of sources and dependence, faults in the

model design or incompleteness of the model, as well

as some metrics. As the last item, we observed that

the quality of the terms used by the model designer,

as well as the proper use of the OntoUML constructs,

interfere directly on the quality of the DFR

transcriptions.

6 RELATED WORK

The concept of model transformation has been

proposed with the general purpose of maintaining the

consistency and traceability of the artifacts produced

during the software development. Three types of

approaches can be found in this concept: textual

requirements into analysis models and textual

requirements specification from software engineering

models, and textual requirements into analysis

models and back. An overview of each approach is

presented next.

Yue et al. (2011) performed a systematic literature

review with the aim of identifying the proposals

related to the generation of analysis models from text

requirements. With this purpose, 20 primary studies

were identified. Most studies presented proposals for

the generation of models in UML language, including

class diagrams, state diagrams and sequence

diagrams. The texts used for the generation of the

models were mostly extracted from use cases. Among

the main conclusions indicated by the review, despite

a significant amount of research, we still do not have

a practical, workable automated solution and most of

the approaches do not address traceability.

Nicolás and Toval (2009) present a systematic

review of the literature related to the generation of

textual requirement specifications from software

engineering models. In the present work, 25 primary

studies were identified with this approach. Most of

these cases utilized use case models or scenarios with

textual requirements generation source. Goal oriented

as i* and KAOS models were also used for the

generation of textual requirements. In this review,

five proposals for the derivation of requirements from

Software Product Lines (SPL) models were also

identified. The models used for the derivation were

the Feature model and Variability model. Among the

main conclusions from the review, in this approach

the effort of specifying those requirements is reduced.

However, without proper tools support these

approaches are not truly applicable in practice.

The textual requirements specifications into

analysis models and back approach proposes the

combination of the two previous approaches, i.e.,

mechanisms to allow the transformation of textual

requirements specifications into analysis models and

vice-versa. With this purpose, Landhäußer et al.

(2014) propose the Requirements Engineering

Feedback System (REFS), which automates the

process of keeping textual specification and models

consistent when the models change. The generated

models include class, activity and state diagrams

represented in UML. Several NLP tools for the pre-

processing of natural language texts are applied to

identify the changes and to suggest the update of the

models and textual requirements specification.

This brief review indicates that most

transformation processes proposed use models

represented in UML or languages without

compromising the ontology. Hence, there are efforts

Deriving Domain Functional Requirements from Conceptual Model Represented in OntoUML

269

to maintain the consistency and integrity of artifacts.

Part of the challenge stems from the fact that

requirements and architectures use different terms

and concepts to capture the model elements relevant

to each (Grunbacher et al., 2004). Because OntoUML

is ontology-based, the conceptual models constructed

are assumed to be more expressive and to represent

the real world of the domain more faithfully than do

other languages of conceptual representation.

7 FINAL CONSIDERATIONS

In the study presented by Henderson-Sellers et al.

(2015), one of the items in the authors’ wish list is for

conceptual models to have more semantics. A recent

review (Verdonck et al., 2015) also indicated that,

although ontology-oriented conceptual models are

proposed, which allows more semantics, people do

not know the reason for their application. Our study

has a very clear view of the purpose of using

OntoUML.

Considering that OntoUML is a language that

proposes elements that allow more semantics, there is

the possibility of building more expressive models

than, for instance, models represented in UML

language. The result of a more expressive conceptual

model reflects the better domain representation,

which can consequently reduce the requirement

changes and the efforts to maintain the traceability of

the generated artifacts.

With the purpose of evaluating the possibility of

deriving DFR in a systematized manner, a heuristic

was proposed. This heuristic was obtained with the

reading and interpretation of nine conceptual models

represented in OntoUML. After the heuristic was

obtained, it was applied in a systematized manner to

six models. The heuristic allowed the navigation

through all elements in the model and the extraction

of related DFR. As mentioned in the introduction

section, the proposal intention is to use ontological

conceptual models to derive the possible high level

functional requirements. To generate a detailed and

complete list of functional requirements it is needed

to move on to the next phases of software

development.

REFERENCES

Ding, W., Marchionini, G., 1997. A Study on Video

Browsing Strategies. Technical Report UMIACS-TR-

97-40, University of Maryland, College Park, MD.

Grunbacher P., Egyed, A., Medvidovic, N., 2004.

Reconciling software requirements and architectures

with intermediate models. Software and System

Modeling (SoSyM), v 3, n 3, Springer, pp 235-253.

Guizzardi, G., 2005. Ontological Foundations for Structural

Conceptual Models. Telematica Institut Fundamental

Research Series 15, Universal Press.

Henderson-Sellers, B., Gonzalez-Perez, C., Eriksson, O.,

Ågerfalk, P.J., 1992. Software modeling languages: a

wish list. In Seventh International Workshop on

Modeling in Software Engineering, pp 72-77.

Jalote, P., 1997. An Integrated Approach to Software

Engineering, Springer, New York.

Jureta, I.J., Borgida, A., Ernst, N., Mylopoulos, J., 2010.

Techne: Towards a New Generation of Requirements

Modeling Languages with Goals, Preferences, and

Inconsistency Handling. In International Requirements

Engineering Conference, pp 115–124.

Landhäußer, M., Körner, S. J., Tichy, W. F., 2014. From

requirements to UML models and back: how automatic

processing of text can support requirements

engineering. Software Quality Journal, 22, 1, pp 121-

149.

Loucopoulos, P., Karakostas, V., 1995. System

Requirements Engineering. McGraw-Hill.

Mylopoulos, J., 1992. Conceptual modeling and Telos,

In Conceptual modeling, databases and CASE: An

Integrated View of Information Systems Development,

Wiley, New York, pp 49-68.

Nicolás, J., Toval, A., 2009. On the generation of

requirements specifications from software engineering

models: A systematic literature review. Information and

Software Technology, v 51, i 9, pp 1291–130.

Robinson, W., Pawlowski, S., 1999. Managing

requirements inconsistency with development goal

monitors. IEEE Transactions on Software Engineering

25(6), pp 816-835.

Teixeira, M.G.S., Falbo, R., Guizzardi, G., 2014. Analyzing

the Behavior of Modelers in Interpreting Relationships

in Conceptual Models: An Empirical Study, In 3rd

International Workshop on Ontologies and Conceptual

Modeling, Rio de Janeiro, Brazil.

Verdonck, M., Gailly, F., de Cesare, S., Poels, G., 2015.

Ontology-driven conceptual modeling: A systematic

literature mapping and review. Applied Ontology, v 10,

n 3-4, pp. 197-227.

Valaski, J., Reinehr, S., Malucelli, A., 2016. Which Roles

Ontologies play on Software Requirements

Engineering? A Systematic Review. In International

Conference on Software Engineering Research &

Practice, pp 24-30, Las Vegas.

Valaski, J., Reinehr, S., Malucelli, A., 2016b. Evaluating

the Expressiveness of a Conceptual Model Represented

in OntoUML and UML. In ONTOBRAS, Curitiba,

Brazil.

Yue, T., Briand, L. C., Labiche, Y., 2011. A systematic

review of transformation approaches between user

requirements and analysis models. Requirements

Engineering, v.16, i.2, pp 75–99.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

270
