An Overview of Risk Estimation Techniques in Risk-based Access

Control for the Internet of Things

Hany F. Atlam

1, 2

, Ahmed Alenezi

, Robert J. Walters

and Gary B. Wills

Electronic and Computer Science Dept., University of Southampton, University Road, SO17 1BJ, Southampton, U.K.

Computer Science and Engineering Dept., Faculty of Electronic Engineering, Menoufia University, 32952, Menouf, Egypt

Keywords: Internet of Things, Security Risk, Access Control, Risk Estimation, Risk-based Access Control.

Abstract: The Internet of Things (IoT) represents a modern approach where boundaries between real and digital domains

are progressively eliminated by changing over consistently every physical device to smart object ready to

provide valuable services. These services provide a vital role in different life domains but at the same time

create new challenges particularly in security and privacy. Authentication and access control models are

considered as the essential elements to address these security and privacy challenges. Risk-based access

control model is one of the dynamic access control models that provides more flexibility in accessing system

resources. This model performs a risk analysis to estimate the security risk associated with each access request

and uses the estimated risk to make the access decision. One of the essential elements in this model is the risk

estimation process. Estimating risk is a complex operation that requires the consideration of a variety of

factors in the access control environment. Moreover, the interpretation and estimation of the risk might vary

depending on the working domain. This paper presents a review of different risk estimation techniques.

Existing risk-based access control models are discussed and compared in terms of the risk estimation

technique, risk factors, and the evaluation domain. Requirements for choosing the appropriate risk estimation

technique for the IoT system are also demonstrated.

1 INTRODUCTION

The Internet of Things (IoT) is growing in different

ways. It is considered the next stage of the evolution

of the Internet. In addition, the IoT is moving towards

a stage in which all items around us will be connected

to the Internet and will have the ability to

communicate with each other with the minimum

human intervention (Shanbhag and Shankarmani,

2015). The IoT faces many challenges that stand as a

barrier to the successful implementation of IoT

applications. Security and privacy are considered the

most difficult challenges that need to be addressed.

These challenges are complicated due to the dynamic

and heterogeneous nature of the IoT system (Shaikh

et al., 2012; Ricardo dos Santos et al., 2013).

Authentication and access control models are the

essential elements to address security and privacy

challenges in the IoT. They prevent unauthorized

users from gaining access to system resources,

prevent authorized users from accessing resources in

an unauthorized manner whilst still allowing

authorized users to access resources in an authorized

manner (Chen et al., 2007; Yin et al., 2006).

Due to the dynamic nature of the IoT, traditional

access control approaches cannot provide the

necessary security levels as they are context

insensitive and require a complex authentication

infrastructure. Dynamic access control approaches

are more appropriate to IoT systems. This is because

they are characterized by using not only the policies

but also environment features that are estimated in

real-time to determine access decisions. The dynamic

features can include trust, risk, context, history and

operational need (Kulk et al., 2009; Ni et al., 2010).

A risk-based access control model is one of the

dynamic models that permit or deny access requests

dynamically based on the estimated risk of each

access request (Chen et al., 2007). This model

performs a risk analysis on each user access request

to make the access decision (Dos Santos et al., 2014).

Risk estimation process is one of the primary tasks in

the risk-based access control model. This process is

concerned with estimating the risks that have been

specified and creating the data that will be needed for

making decisions. The objective of the estimation

254

Atlam, H., Alenezi, A., Walters, R. and Wills, G.

An Overview of Risk Estimation Techniques in Risk-based Access Control for the Internet of Things.

DOI: 10.5220/0006292602540260

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 254-260

ISBN: 978-989-758-245-5

process is to establish a way of arranging risks in the

order of importance and using the risk numeric values

for making the decision (Yin et al., 2006).

The main objective of this paper is to provide a

review of different risk estimation techniques that

have been used in existing risk-based access control

models. Furthermore, discussing requirements for

choosing the appropriate risk estimation technique for

the IoT system.

The rest of this paper is organized as follows:

Section II presents the concept of the access control

and different access control models; Section III

presents the risk-based access control model; Section

IV presents different risk estimation techniques;

Section V discusses the IoT requirements to

determine the appropriate risk estimation technique,

and Section VI is the conclusion 2.

2 ACCESS CONTROL MODELS

To ensure confidentiality and integrity of system

resources, an access control is used to guarantee that

only authorized users granted the appropriate access

permissions. There are several access control models

which can be divided into two classes; traditional and

dynamic access control models (Liu et al., 2012; Ye

et al., 2014).

Traditional access control approaches are based

on policies that are static and rigid in nature. These

policies are predefined and always give the same

outcome regardless of the situation. This static

approach fails to adapt to varied and changing

conditions when making access decisions in the IoT

system (Chen et al., 2007). There are three main

traditional access control models; Discretionary

Access Control (DAC), Mandatory Access Control

(MAC) and Role-based Access Control (RBAC). On

the other hand, dynamic access control approaches

are appropriate to the IoT system. This is because

they take into consideration not only access policies

to make access decisions, but also dynamic

contextual features which are estimated in real-time

at the time of making the access request. These real-

time features can include trust, risk, context, history

and operational need (Kulk et al., 2009; Ni et al.,

2010).

Using the security risk to make the access decision

is a promising research point in the IoT. The NIST

(Stoneburner et al., 2002) surveyed different access

control models in terms of flexibility as shown in

Figure 1. It showed that Risk Adaptable Access

Control (RAdAC) model provides more flexibility in

accessing system resources which make it as a

suitable model for the IoT.

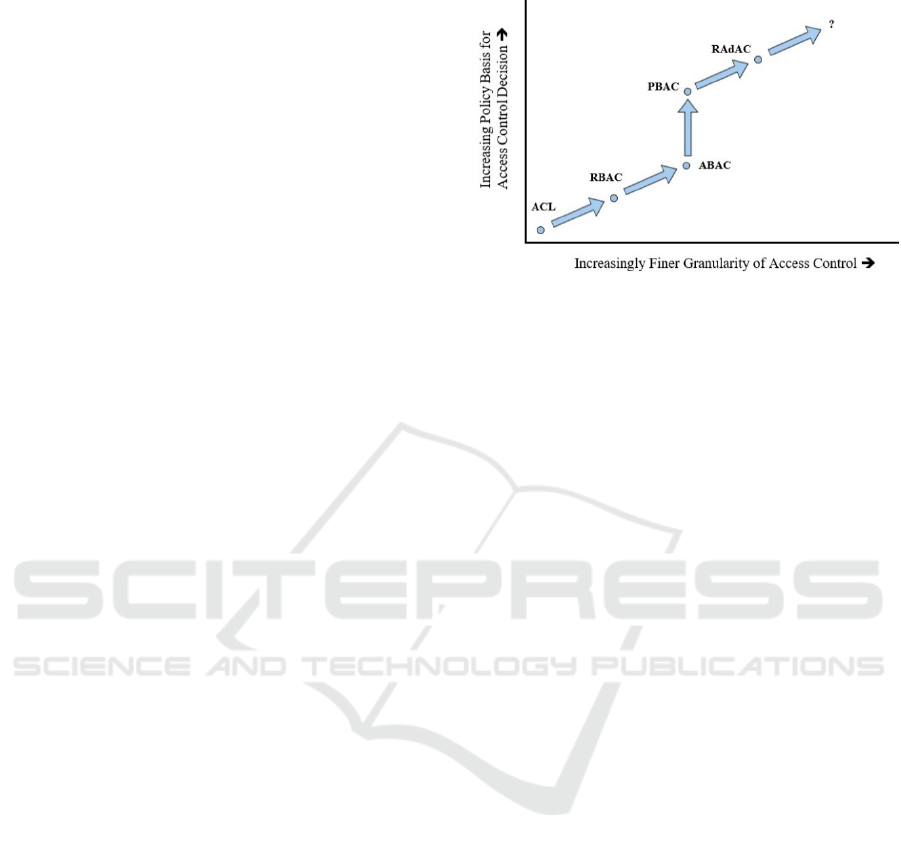

Figure 1: Progression of access control models in term of

flexibility (Zhi et al., 2009).

3 RISK-BASED ACCESS

CONTROL MODEL

The risk can be defined as the possibility of loss or

injury. Generally, the risk is about some event that

may occur in the future and cause losses. One such

risk is the leakage of sensitive information by users.

An access control is one of the approaches used to

mitigate against the security risk (Langaliya and

Aluvalu, 2015). Risk-based access control model

permits or denies access requests dynamically based

on the estimated risk of each access request (Chen et

al., 2007). This model performs a risk analysis on

each user access request to make the access decision

(Dos Santos et al., 2014). Mathematically, the most

common formula to represent the risk in quantitative

terms is:

Quantified Risk= Likelihood × Impact (1)

Where likelihood represents the probability of an

incident to happen while impact represents the

estimation of the value of the damage regarding that

incident (Chen et al., 2007).

There are several approaches for creating risk-

based access control models. These approaches share

some general characteristics from diverse models. An

overview of the risk-based access control model is

shown in Figure 2. There are three modules. The

access control manager is the main module. It

receives requests from users, analyses them, collects

other context parameters and sends the data to risk

estimation module. The risk estimation module is the

key part of the model. It estimates risk values based

on the input data collected by the context retrieval

module. After that, the access decision is made for

An Overview of Risk Estimation Techniques in Risk-based Access Control for the Internet of Things

255

each access request based on the estimated risk value

(Diep et al., 2007).

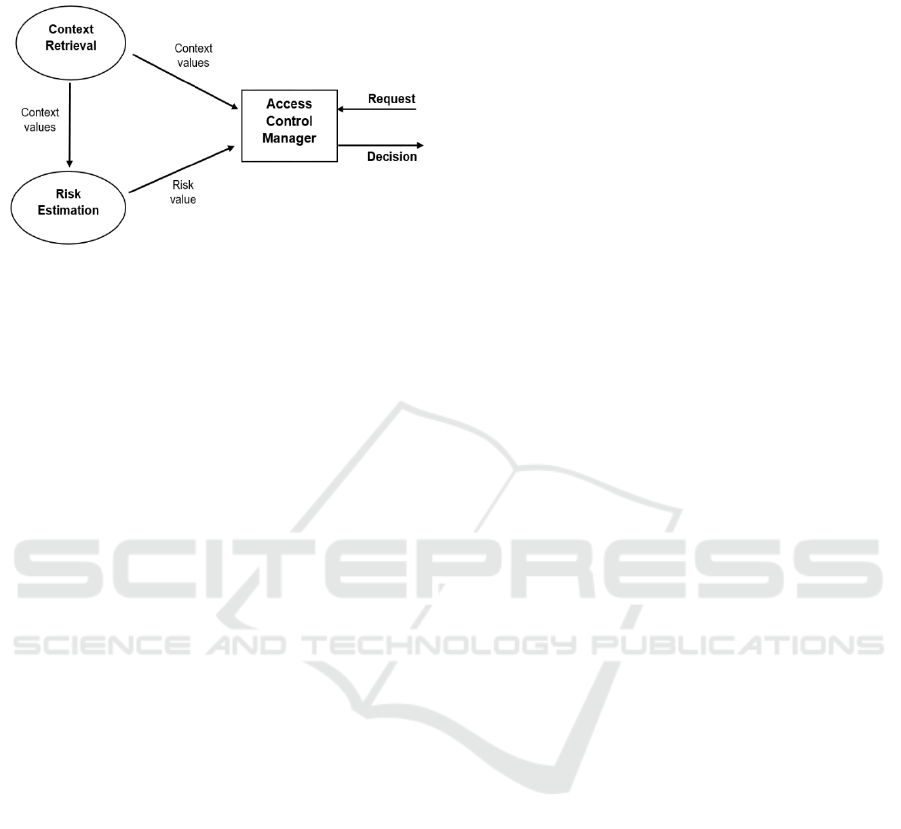

Figure 2: Risk-based access control overview (Diep et al.

2007).

4 RISK ESTIMATION

TECHNIQUES

The security risk can be used as an access control

feature where a risk analysis is performed on each

access request to make the access decision (Dos

Santos et al., 2014). The security risk can be defined

as the potential damage that can emerge from an

operation and is generally represented by the

probability of occurrence of an undesired incident

multiplied by its impact.

Clearly, the essential stage of developing a risk-

based access control model in the IoT is the risk

estimation process that based on the possibility of an

information leakage in the future and the value of this

information. The risk is estimated in different ways.

The objective of the risk estimation operation is to

create a way of arranging risks in the order of

importance and use risk numeric values for making

the decision. The risk estimation process can be

qualitative or quantitative (Yin et al., 2006). In this

paper, only quantitative risk estimation techniques

will be discussed. Quantitative risk estimation

attempts to attach specific numerical or linguistic

values to risks. These values can be like very risky,

not so risky; high, low, medium, high medium, and

low medium. Numerical techniques for decision

analysis are used in this approach (Kulk et al., 2009).

Quantitative risk estimation techniques are preferred

since it results in a numeric value for the risk.

Risk estimation process faces many challenges for

various reasons. For instance, the goal of the risk

estimation process is to predict the future possibility

of information disclosure that results from the current

access. Determining such a possibility is not an easy

task (Habib and Leister, 2015). Moreover, if the

estimation has relied on incomplete or imprecise

information and knowledge about relevant risk

features, it will result in difficulties in identifying the

value of information (Ni et al., 2010). Therefore, a

complete investigation about different risk estimation

techniques that are related to dynamic access control

models needs to be performed so as to select the

appropriate risk estimation technique for the IoT. An

overview of the most common risk estimation

techniques is provided in this section. These

techniques are as follows:

4.1 Fuzzy Logic

Fuzzy logic is a set of mathematical rules for

representing the knowledge that based on degrees of

membership. It manages degrees of membership and

degrees of truth. Moreover, it ensures that we do not

neglect human common sense, intuition, and

experiences (Li et al., 2013). Fuzzy logic and fuzzy

set operations enable characterization of defined

fuzzy sets of likelihood and consequence severity and

the mathematics to combine them using expert

knowledge (Abul-Haggag and Barakat, 2013). A

typical fuzzy logic estimation process comprises of

three stages: (1) Fuzzification of inputs, (2) Imprecise

reasoning using fuzzy rules, and (3) Defuzzification

of outputs. Input and output parameters can be either

linguistic or numeric. Fuzzification is the process of

finding the membership of an input variable with a

linguistic term. While the membership function can

be either defined by experts or analytically extracted

from data, and fuzzy rules are usually defined by

experts. Finally, defuzzification provides a crisp

number from the output fuzzy set (Pokorádi, 2002).

Many researchers are attracted to use the fuzzy

logic to estimate the risk in access control models.

Chen et al. (2007) used the fuzzy logic to build a

fuzzy Multi-Level Security (MLS) access control

model to allow humans to access information from

IBM systems. This fuzzy MLS model estimates the

risk of the access request based on differences

between the subject security level and the object

security level. For instance, the larger the difference

is, the higher the risk is. The result is described as a

real number in the interval [0, 1], where 1 represents

an absolute deny (the highest risk), and 0 represents

an absolute permit (the lowest risk). The fuzzy MLS

model further divides the interval [0, 1] into n

subintervals referred to as risk bands. If the risk of an

access request is evaluated to a band, then the request

is allowed only if the risk mitigation measures

associated with the band are applied. Also, Li et al.

(2013) presented a fuzzy modelling-based approach

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

256

for evaluating the risk associated with the access

request of a healthcare information access. In this

model, the risk value that is associated with the data

sensitivity, action severity, and risk history is

determined as a fuzzy value, which is used to

determine appropriate controls of the healthcare

information access in a cloud environment.

This

model showed that the fuzzy logic approach can

generate accurate and realistic outcomes in assessing

current risk and forecasting the scope and impact of

different risk factors. Ni et al. (2010) introduced a

fuzzy inference technique to estimate the risk. This

approach is used for estimating access risks and

develop an enforcement mechanism for the risk-

based access control model. The estimated risk is

computed by using the object security level and the

subject security level. However, the scalability of the

fuzzy inference-based access control model faces

some issues. The fuzzy inference system needs large

time to estimate risks especially when there are tens

of parameters and hundreds of fuzzy rules.

Furthermore, the access control model may need to

serve billions of users. Therefore, a fuzzy inference-

based access control model might be too

computationally expensive.

4.2 Risk Assessment

Risk assessment is one of the most important

processes in the risk management methodology.

People use the risk assessment to define the extent of

the potential threat and the risk associated with an IT

system. The goal of the risk assessment is to

determine the risk context and acceptability that can

be done by comparison to similar risks. The type of

risk analysis should be appropriate for the available

data and severity of potential loss. A successful risk

assessment offers many advantages. For instance, a

well-defined assessment of risks can provide a

rational basis for injury prevention and exposure

prevention (Stoneburner et al., 2002).

The risk assessment has been used in the existing

risk-based control models. For instance,

Khambhammettu et al. (2013) introduced three

different approaches that conduct a risk assessment

framework for the risk-based access control. The

three approaches are based on the object sensitivity

level, the subject trustworthiness level and the

difference between object sensitivity and subject

trustworthiness. This framework demonstrated that

risk estimates differ based on the risk assessment

approach that has been selected. The selected

approach can be based on the context of the

application or the priority of organizations.

Moreover, Diep et al. (2007) proposed an approach

for access control that based on risk assessment and

context. The risk assessment estimates the risk value

based on outcomes of actions in term of availability,

confidentiality, and integrity and context of the user,

environment, and resource. The risk value is

compared with the threshold, and then access control

manager returns the decision.

4.3 Game Theory

Game theory is a branch of applied mathematics that

has been used in many fields like economics, political

science, evolutionary biology, information security

and artificial intelligence. Game theory consists of

four elements: the players, their strategies, payoffs

and the information they have. The players are the

strategic decision makers within the context of the

game. Whereas, the strategy is the plan that the player

has to use in response to the contender’s movement.

Therefore, it is essential to find out the appropriate

strategies for the players. The payoff of a given player

is affected by both the actions performed by him and

the other player (Rajbhandari and Snekkenes, 2011).

Using game theory, the risk analysis can be based on

priority or values related to benefit which users can

provide rather than the probability. In addition, it can

be used in situations where no actuarial data is

available. This may increase the quality and

suitability of the overall risk analysis operation

(Hamdi and Abie, 2014).

Game theory has been used in the risk-based

access control. Rajbhandari and Snekkenes (2011)

presented a risk analysis approach that based on

preferences or values of benefit which the subjects

can provide rather than subjective probability using

the game theory. Moreover, a simple privacy scenario

between a user and an online bookstore is introduced

to provide an initial perception of the concept.

4.4 Decision Tree

A decision tree model is used to simplify decision

making based on a set of rules presented as a tree. It

uses the attributes of objects for classification and

decision. To develop a decision tree model, data are

divided into training and validation sets. Training

data are used to identify appropriate rules and find the

best partition for certain attributes using techniques

such as recursive partitioning. While validation data

are used to validate the decision tree and make

necessary adjustments to the tree (Shang and Hossen,

2013).

Decision tree paradigms are easy to understand

An Overview of Risk Estimation Techniques in Risk-based Access Control for the Internet of Things

257

and valuable for classification. They can work well

with insufficient data if all the rules can be

determined by experts. However, in a classical

decision tree model, the partition of attribute values is

based on classical set theory. A small change in the

value of an attribute could lead to a different

conclusion due to the discreteness of the partition.

Moreover, when the scale of the decision tree

becomes large, it will be difficult to understand and

more data will be needed to identify and validate the

rules (Wang et al., 2016).

4.5 Monte Carlo Simulation

The Monte Carlo Simulation (MCS) is a very

powerful method for estimating risks of a system by

calculating risks of hundreds or thousands of possible

scenarios. It produces a complete probability

distribution associated with risks and can provide

very realistic results. In the MCS method, the system

random behaviour is represented by performing a set

of experiments on the system in the form of

simulations (Goerdin et al., 2015a). The MCS method

requires high computing power and have become

increasingly interesting due to the availability of

high-speed computers. An advantage of the MCS is

that it can work with large complex systems.

Moreover, it can process the probabilistic behaviour

of multiple inputs to the system which in the

analytical technique are supposed to be constant

values (Goerdin et al., 2015b).

4.6 Expert Judgment

Expert judgment is an important source of

information in risk estimation in risk-based decision-

making processes that rely significantly on a

quantitative risk assessment that requires numerical

data describing the event frequencies and conditional

probabilities in the risk model (Kahneman et al.,

1974). In some cases, it will be very difficult to

quantify the risk value using traditional methods but

with an expert judgment, a correct value regarding a

specific scenario can be specified. Security experts

are asked to define a weight for the potential damage

regarding a specific security breach associated with

risk factors. Experts should be selected from diverse

fields to provide different points of views. In order for

the risk-based access control model to be valuable, a

larger number of experts in each field would need to

be interviewed (Pluess et al., 2013).

This section provides a summary of the risk-based

access control models that mentioned earlier as

shown in Table 1. It contains the risk estimation

technique that has been used, risk factors used to

estimate the risk value and the domain where the

model is evaluated.

Table 1: Some of the risk-based access control models.

Risk

models

Risk

Estimation

Technique

Risk factors

Domain

(Chen et

al. 2007)

Fuzzy MLS

Model

Difference

between subject

security level and

object security

level

IBM

System

(Li et al.

2013)

Fuzzy Model

Data sensitivity,

action severity,

and user risk

history

EHealth

(Ni et al.

2010)

Fuzzy

Inference

Object security

level and subject

security level

Numeric

Example

(Khambh

ammettu

et al.

2013)

Risk

Assessment

Object

sensitivity,

subject trust, and

Difference

between object

sensitivity and

subject trust

Numeric

Example

(Diep et

al. 2007)

Risk

Assessment

Outcomes of

actions

A case

study of a

hospital

(Rajbhan

dari &

Snekkene

s 2011)

Game Theory

Access benefits

of the subject

Scenarios

of online

bookstore

5 RISK ESTIMATION

TECHNIQUE FOR THE IoT

The distributed and dynamic nature of the IoT system

demands many requirements that should be taken into

consideration when choosing the appropriate risk

estimation technique of the risk-based access control

model for the IoT system. These requirements

include:

 Dynamic interaction: The access control

model required for the IoT should not be static

and predefined. It should be adjustable,

predictable, and specified in a dynamic and

continuous way by considering context

changing during the access control process

(Fremantle et al., 2014). Hence, the risk

estimation technique should have the ability to

adapt to environment changes and uses real-

time contextual information.

 Scalability: The IoT system connects billions

of devices. The increasing rate of newly

connected objects should be taken into

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

258

consideration when selecting the risk

estimation technique. Also, the performance

should not be affected.

 Limited resources: The resources associated

with IoT devices such as energy, memory, and

processing power are limited due to the small

size of these devices (Adda et al., 2015).

Therefore, the risk estimation technique

should support efficient solutions.

 Data availability: In order to accurately

calculate the risk associated with a particular

factor, data is needed. Once real world data is

collected, it can be used in various probability

distributions to calculate a much more

accurate risk value. So the availability of the

proper data will allow to analytically

determine the appropriate risk estimation

technique for the IoT.

6 CONCLUSIONS

The IoT has become the current technology

revolution that is intended to convert the existing

environment into a more pervasive and ubiquitous

domain. The successful deployment of the IoT in our

environment is related to conquer security and

privacy issues specifically authentication and access

control issues. Risk-based access control model

provides a dynamic and efficient way to make the

access decision depending on the risk estimates of

each access request. Risk estimation is a complex

operation that requires the consideration of a variety

of factors in the access control domain. Selecting the

appropriate risk estimation technique for the IoT is

not an easy task. In this paper, we provided an

overview of different risk estimation techniques that

are used in existing risk-based access control models.

Also, we have presented some of the IoT

requirements for selecting the appropriate risk

estimation technique. Our future direction would be

to empirically compare among these risk estimation

techniques to select the most appropriate technique

for the IoT system. However, the lack of the proper

data will be a big issue.

ACKNOWLEDGEMENTS

We acknowledge Egyptian cultural affairs and

mission sector and Menoufia University for their

scholarship to Hany Atlam that allows the research to

be undertaken.

REFERENCES

Abul-Haggag, O.Y. & Barakat, W., 2013. Application of

Fuzzy Logic for Risk Assessment using Risk Matrix.

International Journal of Emerging Technology and

Advanced Engineering, 3(1), pp.49–54.

Adda, M. et al., 2015. Toward an Access Control Model for

IOTCollab. The 6th International Conference on

Ambient Systems, Networks and Technologies, 52(Ant),

pp.428–435.

Chen, P. et al., 2007. Fuzzy Multi – Level Security : An

Experiment on Quantified Risk – Adaptive Access

Control. 2007 IEEE Symposium on Security and

Privacy(SP’07), pp.222–227.

Diep, N.N. et al., 2007. Enforcing Access Control Using

Risk Assessment. the Fourth European Conference on

Universal Multiservice Networks, pp.419–424.

Fremantle, P. et al., 2014. Federated Identity and Access

Management for the Internet of Things. 2014

International Workshop on Secure Internet of Things

(SIoT), pp.10–17.

Goerdin, S.A. V, Smit, J.J. & Mehairjan, R.P.Y., 2015a.

Monte Carlo simulation applied to support risk-based

decision making in electricity distribution networks.

2015 IEEE Eindhoven PowerTech, PowerTech 2015.

Goerdin, S.A. V, Smit, J.J. & Mehairjan, R.P.Y., 2015b.

Monte Carlo simulation applied to support risk-based

decision making in electricity distribution networks.

2015 IEEE Eindhoven PowerTech.

Habib, K. & Leister, W., 2015. Context-Aware

Authentication for the Internet of Things. The Eleventh

International Conference on Autonomic and

Autonomous Systems fined, pp.134–139.

Hamdi, M. & Abie, H., 2014. Game-based adaptive security

in the Internet of Things for eHealth. 2014 IEEE

International Conference on Communications, ICC

2014, pp.920–925.

Kahneman, D., Slovic, P. & Tversky, A., 1974. Judgment

under uncertainty: heuristics and biases. Science,

185(4157), pp.1124–1131.

Khambhammettu, H. et al., 2013. A framework for risk

assessment in access control systems. Computers &

Security, 39(Sec 2012), pp.86–103.

Kulk, G.P., Peters, R.J. & Verhoef, C., 2009. Quantifying

IT estimation risks. Science of Computer

Programming, 74(11–12), pp.900–933.

Langaliya, C. & Aluvalu, R., 2015. Enhancing Cloud

Security through Access Control Models : A Survey.

International Journal of Computer Applications,

112(7), pp.8–12.

Li, J., Bai, Y. & Zaman, N., 2013. A fuzzy modeling

approach for risk-based access control in eHealth cloud.

Proceedings - 12th IEEE International Conference on

Trust, Security, and Privacy in Computing and

Communications, TrustCom 2013, pp.17–23.

Liu, J., Xiao, Y. & Chen, C.L.P., 2012. Authentication and

access control in the Internet of things. Proceedings -

32nd IEEE International Conference on Distributed

Computing Systems Workshops, ICDCSW 2012,

pp.588–592.

An Overview of Risk Estimation Techniques in Risk-based Access Control for the Internet of Things

259

Ni, Q., Bertino, E. & Lobo, J., 2010. Risk-based access

control systems built on fuzzy inferences. in

Proceedings of the 5th ACM Symposium on

Information, Computer, and Communications Security,

ser. ASIACCS 10. New York, NY, USA: ACM, pp.250–

260.

Pluess, D., Groso, A. & Meyer, T., 2013. Expert

Judfgement in Risk Analysis: A Strategy to Overcome

Uncertainities. Chemical Engineering Transactions,

31, pp.307–312.

Pokorádi, L., 2002. Fuzzy logic-based risk assessment.

Academic and Applied Research in Military Science,

1(1), pp.63–73.

Rajbhandari, L. & Snekkenes, E.A., 2011. Using game

theory to analyze risk to privacy: An initial insight.

Privacy and Identity Management for Life, Springer

Berlin Heidelberg, pp.41–51.

Ricardo dos Santos, D., Westphall, C.M. & Westphall,

C.B., 2013. Risk-based Dynamic Access Control for a

Highly Scalable Cloud Federation. Proceedings of the

Seventh International Conference on Emerging

Security Information, Systems and Technologies

(SECUREWARE 2013), pp.8–13.

Dos Santos, D.R., Westphall, C.M. & Westphall, C.B.,

2014. A dynamic risk-based access control architecture

for cloud computing. IEEE/IFIP NOMS 2014 -

IEEE/IFIP Network Operations and Management

Symposium: Management in a Software Defined World,

pp.1–9.

Shaikh, R.A., Adi, K. & Logrippo, L., 2012. Dynamic risk-

based decision methods for access control systems.

Computers and Security, 31(4), pp.447–464.

Shanbhag, R. & Shankarmani, R., 2015. Architecture for

Internet of Things to minimize human intervention.

2015 International Conference on Advances in

Computing, Communications, and Informatics,

ICACCI 2015, pp.2348–2353.

Shang, K. & Hossen, Z., 2013. Applying Fuzzy Logic to

Risk Assessment and Decision-Making. Casualty

Actuarial Society, Canadian Institute of Actuaries,

Society of Actuaries, pp.1–59.

Stoneburner, G., Goguen, A. & Feringa, A., 2002. Risk

Management Guide for Information Technology

Systems. Nist Special Publication Sp, 30(30).

Stoneburner, G., Goguen, A. & Feringa, A., 2002. Risk

Management Guide for Information Technology

Systems. Nist Special Publication, 19, p.58.

Wang, S. et al., 2016. A Vertical Handoff Method via Self-

Selection Decision Tree for Internet of Vehicles. IEEE

Systems Journal, 10(3), pp.1183–1192.

Ye, N. et al., 2014. An efficient authentication and access

control scheme for perception layer of internet of

things. Applied Mathematics and Information Sciences,

8(4), pp.1617–1624.

Yin, J. et al., 2006. On estimating the security risks of

composite software services. In First Program Analysis

for Security and Safety Workshop Discussion

(PASSWORD 2006).

Zhi, L., Jing, W. & Xiao-su, C., 2009. Research on Policy-

based Access Control Model. , (1), pp.164–167.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

260
