A Quantitative Methodology for Cloud Security Risk Assessment

Srijita Basu

, Anirban Sengupta

and Chandan Mazumdar

Centre for Distributed Computing, Jadavpur University, 188 Raja S. C. Mullick Road, Kolkata, India

Department of Computer Science and Engineering, 188 Raja S. C. Mullick Road, Jadavpur University, Kolkata, India

Keywords: Asset Dependency, Cloud Security, Cloud Service Provider, Risk Assessment, Security Concern.

Abstract: Assets of Cloud stakeholders (Service Providers, Consumers and Third Parties) are the essential elements

required to carry out necessary functions / services of the cloud system. Assets usually contain

vulnerabilities that may be exploited by threats to jeopardize the functioning of the cloud system. Therefore

a proper risk assessment methodology is required to determine the asset-specific and stakeholder-specific

risks so as to be able to control them. Existing methodologies fail to comprehensively evaluate various risk

elements like asset value, vulnerabilities and threats. This paper is an attempt to quantitatively model all risk

elements and devise a methodology to assess risks to assets and stakeholders of a cloud system.

1 INTRODUCTION

Advances in Cloud Computing technologies have

resulted in rapid growth in the adoption of Cloud-

based services by small and medium-sized business

organizations. However, it has been discovered by

the Cloud Security Alliance (CSA) (CSA 2014) that

inadequate due diligence by such organizations is

one of the top threats to cloud computing. Usually, a

Cloud Service Customer (CSC) enters into an

agreement with a Cloud Service Provider (CSP)

before initiating the process of service provisioning;

this is referred to as a Service Level Agreement

(SLA). Proper insight of both the parties regarding

security and compliance requirements of their

organizational data is essential before signing the

SLA. Such requirements can be identified by

performing a correct assessment of security risks

that may arise due to provisioning of a cloud service.

Security risks may emanate from multiple sources.

For example, presence of inherent vulnerabilities

within the assets of CSP and / or CSC, combined

with the existence of relevant threats, may give rise

to risks in cloud services. Besides, legal and

regulatory issues regarding cross-border transfer of

sensitive data, encrypted storage etc. (Janson and

Grance 2011) may also give rise to risks that need

proper management. The situation gets further

complicated when a third-party service provider

(CTS) is involved. In some cases, CSP outsources

certain tasks (like auditing, billing, etc.) to a third

party. Therefore, identification and management of

security risks associated with third parties is critical

in such situations.

Though there have been some preliminary

research regarding the above issues, there is a dearth

of proper quantitative risk assessment methodologies

that can address the security issues which are

specific to cloud-based services. This paper attempts

to address this research gap by proposing a

quantitative Cloud risk assessment methodology.

Some of the fundamental notations and constructs of

this work have been derived from (Bhattacharjee,

Sengupta and Mazumdar 2013). The proposed

methodology identifies the Cloud assets and

evaluates those considering inter-asset dependencies.

The vulnerabilities within those assets are identified

and their Severity and Exploitability values are

calculated. Also, values of Likelihood of Occurrence

(LoC) of relevant threats are computed. Finally, two

categories of Risk Factors (Asset-specific and

Stakeholder-specific) are determined by combining

the above values. It may be noted that the Cloud

Computing Reference Architecture (CCRA) (ISO/

lEC 17789:2014(E)) has been used in this work to

describe the Cloud components (functional units and

assets).

Rest of the paper is organized as follows. Section

2 presents a survey of related work. Section 3

describes the process of identification of Cloud

assets and Section 4 presents their valuation

considering various inter-dependencies. Section 5

details the process of computing vulnerabilities and

Basu, S., Sengupta, A. and Mazumdar, C.

A Quantitative Methodology for Cloud Security Risk Assessment.

DOI: 10.5220/0006294401200131

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 92-103

ISBN: 978-989-758-243-1

threats. Section 6 describes the computation of risk

factors. Section 7 illustrates the proposed

methodology with the help of a case study. Finally,

Section 8 concludes the paper.

2 RELATED WORK

Cayirci et. al. (Cayirci Et. Al. 2014) proposed a

“Cloud Adoption Risk Assessment Model”

(CARAM). Here Cloud risk is classified under 3

heads viz. Security, Privacy and Service. The model

assesses risks for a particular CSP-CSC pair based

on Cloud Assessment Initiative Questionnaire

(CAIQ) of Cloud Security Alliance. An algorithm

has been designed that converts the answers of

CAIQ to discrete values. The probability and impact

factor of a Cloud-based incident, along with the

CAIQ values, are used to map the risk values on a

qualitative scale. Moreover a maximum acceptable

value of risk (R

max

) is calculated for each CSP which

is later used to select the best CSP from a group of

probable candidates whose risk values are less than

max

Djemame (Djemame Et. Al. 2016) proposed a

“A Risk Assessment Framework for Cloud

Computing” which assesses and even tries to lessen

Cloud risks at various stages of a Service life-cycle

of an Infrastructure Provider. The Risk Assessment

methodology followed here may be summarized in

six steps: 1) Preparation of Risk Inventory (elements

of Risks for Virtual Machines, Physical Hosts, and

SLA); 2) Vulnerability Identification (Using

Vulnerability Vectors represented by binary values);

3) Threat Identification (represented by binary

values); 4) Data Monitoring (Data requirement

which needs support are identified with the help of

Cloud Monitoring Infrastructure (Djemame Et. Al.

2016)); 5) Event Analysis (Likelihood of

Occurrence of a threat acting over a vulnerability);

and 6) Quantitative Risk Analysis (Based on

Likelihood of an event and its impact).

ENISA (ENISA 2009) provides a list of 35

incident scenarios, 31 Cloud Specific Vulnerabilities

and 23 classes of CSC assets that can be affected as

a result of Cloud service adoption. It provides a

method of predicting the levels of risk on the basis

of likelihood of a risk scenario mapped against the

estimated negative impact. This has been used in

many works for determining the risk factor of an

enterprise (Kaplan 1981)

Luna et. al. (Luna Et. Al. 2012) discussed Cloud

Security Level Agreements (SecLA) and proposed a

methodology to benchmark SecLA of CSPs with

respect to CSCs’ requirements (Luna Et. Al. 2012).

Both CSP SecLA necessities and user requirements

are depicted using a specific data structure termed as

Quantitative Policy Tree. It facilitates expressing

controls with varied granularity: CCM control areas,

control groups, and controls (corresponding to CAIQ

answers). The proposed approach utilizes the

Reference Evaluation Methodology (Casola Et. Al.

2005) as a technique to quantitatively evaluate

security policies. The authors describe their scheme

using data of several CSPs from Cloud Security

Alliance’s Security, Trust & Assurance Registry

(CSA STAR), by calculating security levels for

respective controls and control groups.

All the above approaches assess Cloud risks

either quantitatively or qualitatively. However, these

approaches are too generic and fail to address asset

dependencies. Besides, a comprehensive

mathematical approach to model all relevant factors,

namely Cloud asset values, vulnerabilities, threats,

and risks are not present in any of the above

methodologies. The proposed work tries to address

these gaps by formulating a mathematical model to

identify and assess Cloud-specific risks.

3 ASSETS AND THEIR

RELATIONSHIPS

As mentioned in Section 1, realization of cloud-

based services may involve three kinds of

stakeholders / organizations:

i) Cloud Service Provider (CSP)

ii) Cloud Service Customer (CSC)

iii) Cloud Third-Party Service Provider (CTS)

A risk assessment procedure generally begins

with the identification and evaluation of assets of

each of these stakeholders. Assets can be classified

into two major categories: Primary assets and

Supporting assets (ISO/lEC 27005 2011). Primary

assets are those that are absolutely critical for the

existence of the Cloud stakeholder. They are of two

types: (i) Cloud processes and activities, and (ii)

Cloud information assets. For example, the Cloud

business support systems process encompasses the

set of business-related management capabilities

dealing with customers and supporting processes

(ISO/ lEC 17789 2014). On the other hand,

information assets comprise of documents, records

as well as user credentials necessary for running

business operations, and maintaining information

security and compliance requirements, of the CSP.

Supporting assets are those that help to carry out

the service provisioning process of the CSP, while

maintaining the information assets required for the

A Quantitative Methodology for Cloud Security Risk Assessment

same. Thus, primary assets depend on supporting

assets to fulfil their objectives. Important supporting

assets are hardware, software, network and

personnel (ISO/lEC 27005 2011).

Table 1: CSP Asset list.

Asset Name P / S Asset Type

Datacenter S Hardware Asset

Host/Server S Hardware Asset

Resources S Hardware/Software

Asset

Virtual Machine (VM) S Software Asset

Virtual Machine Image

(VMI)

P Information Asset

Virtual Network S Network Asset

Personal Data of CSC P Information Asset

User Credentials P Information Asset

Data Storage (Files/disk

blocks) in the form of

SAN/NAS

P Information Asset

Services P Cloud processes

and activities

Security Logs P Information Asset

Functional Components

(Required for Support,

Patch and change

management,

Maintenance,

monitoring, security of

the deployed/offered

cloud services (ISO/

lEC 17789:2014(E)))

P Cloud processes

and activities

SLA (Software Level

Agreement) (with CSC

as well as CTS)

P Information Asset

Cloud Service

Management Interface

S Software Asset

Some of the important assets that are used by

CSP are shown in Table 1. The categories and types

of those assets have also been mentioned. In addition

to these, a CSP usually consists of the following

types of personnel (ISO/ lEC 17789 2014): i) Cloud

Service Operations Manager, ii) Cloud Service

Deployment Manager, iii) Cloud Service Manager,

iv) Cloud Service Business Manager, v) Customer

support and Care representative, vi) Inter-Cloud

Provider, vii) Cloud Service Security and Risk

Manager, and viii) Network Provider.

Responsibilities and functions of each of these

personnel have been detailed in (ISO/lEC 17789

2014).

Relationships between assets of the CSP are

defined in terms of the interactions they have with

each other. The following example illustrates such

an interaction.

Example: The security and risk manager is

responsible for ensuring that the CSP appropriately

manages the risks associated with the development,

delivery, use and support of cloud services. The

manager also ensures that all relevant security

policies and controls, mentioned in the SLA, are

maintained. For carrying out this particular task, the

manager is required to access the following

processes and activities: i) Manage security and risk,

ii) Design and implement service continuity, and iii)

Ensure compliance. These activities in turn access

several information assets like SLA, security logs,

etc. to carry out the necessary functions. Finally,

relevant hardware and software assets like VM,

physical hosts, IDS/IPS, firewall, etc. need to be

configured correctly to ensure protection of the

cloud management network and maintain privacy

and security of customer data and applications.

Thus, there exist inherent dependencies between

various assets of a CSP. Similar types of

dependencies exist between assets of CSC and CTS

as well.

Table 2: CSC Asset list.

Asset Name P / S Asset Type

User/Organization Data

(Includes PII i.e. Personally

identifiable information, Other

application data, data in form

of pictures, videos, etc.)

P Information

Asset

Encryption Keys S Software

Asset

Functional Components

(Required for Service Trial,

Monitoring, administering

security services, etc(ISO/ lEC

17789:2014(E)))

P Cloud

processes

and

activities

SLA (Software Level

Agreement) (with CSP as well

as CTS)

P Information

Asset

Cloud Service Management

Interface

S Software

Asset

Audit Report P Information

Asset

Table 2 lists the important assets of CSC. It

should be noted that a CSC may act as a CSP in

some cases. E.g. Suppose Organization A provides

IAAS (Mell and Grance 2011) (Infrastructure as a

Service) to Organization B. Organization B, in turn,

provides SaaS (Mell and Grance 2011) (Software as

a Service) to Organization C. Therefore

Organization B is the CSC with respect to

Organization A while it acts as a CSP with respect to

Organization C. Such cases should be considered

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

while identifying and establishing dependencies

between assets.

A Cloud Third-Party Service Provider (CTS) is

engaged in support of, or auxiliary to, the activities

of either the CSP or CSC, or both (ISO/lEC 17789

2014). The important assets of CTS are depicted in

Table 3.

Table 3: CTS Asset list.

Asset Name P / S Asset Type

Market Information (Includes

present market status/services

offered of/by various CSP and

CSC (ISO/ lEC

17789:2014(E)))

P Information

Asset

Functional Components

(Design Compose, Test

services, etc (ISO/ lEC

17789:2014(E))])

P Cloud

processes

and

activities

SLA (Software Level

Agreement) (with CSP as well

as CSC)

P Information

Asset

Cloud Service Management

Interface

S Software

Asset

Audit Report P Information

Asset

4 ASSET VALUATION

After identifying all assets within the scope of risk

assessment, their values need to be assigned, or

computed. In a Cloud environment, Asset Value

(AV) can be computed based on the following

parameters:

• Security (SR): This comprises of

confidentiality (C), integrity (I) and

availability (A) needs of an asset. SR may

be computed as follows:

SR = x*C + y*I + z*A, such that (x + y + z

= 1).

x, y and z are the relative weights associated with

each security requirement and may be configured by

the Cloud stakeholders based on their requirements

and kind of asset considered.

• Auditability (AR): Auditability may be

defined as the need for collecting, and

making available, necessary evidential

information related to the operation and use

of a cloud service, for the purpose of

conducting an audit (ISO/lEC 17789 2014).

Thus, AR denotes the significance of an

asset in the context of an overall audit.

• Governance (GR): This consists of

External Governance (EG) and Internal

Governance (IG). EG defines some sort of

agreement between the CSP, CSC and

CTS, or relevant regulations, for the use of

Cloud services. IG refers to the set of

internal policies followed by each of the

stakeholders for assuring the expected

delivery of services (ISO/lEC 17789 2014).

Asset Value may be calculated as follows:

AV= ceil(a*SR + b*AR + c*GR)

such that (a + b + c = 1).

(1)

Each of the above asset requirements may

assume an integer value within the range 1-5. a, b, c

are the relative weights associated with each asset

requirement and may be configured by the Cloud

stakeholders based on their requirements. Table 4

presents a set of guidelines that may be used by

different categories of organizations for assigning

values to asset requirements. It should be noted that

asset valuation is usually organization and sector

specific. The guidelines given in Table 4 are generic

in nature and may be tailored to suit the needs of a

particular organization.

The following section describes the

dependencies between different assets and shows

how the values of assets may be adjusted

accordingly.

4.1 Asset Dependency

Identifying and analyzing the existing asset

dependencies is essentially required for realizing the

varied relationships that exist between the assets of

an organization/stakeholder (CSP/CSC/CTS).

Based on the organizational framework of a

Cloud system, two types of dependencies may be

considered: Physical dependency and Logical

dependency. An asset is physically dependent on

another asset if it is connected to it, or included

within it (Sengupta, Mazumdar and Bagchi 2009). In

a Cloud environment, physical dependency may be

manifested as connections between host machines,

host and client machines, and host machines and

storage devices. Such connectivity is implemented

with the help of a physical network structure.

Another type of physical dependency occurs owing

to inclusion of documents/files within a VM or

physical hosts of a data center.

On the other hand, logical dependency exists due

to the need to know (read access) or need to use of a

particular asset (write, execute or modify accesses).

E.g. Processes pertaining to the management of

A Quantitative Methodology for Cloud Security Risk Assessment

Table 4: Guidelines for assigning values to asset requirements.

Asset Values 5 4 3 2 1

Security

(SR)

C Govt.

Organization/

Defense Data,

Encryption Keys

Hospital

Patient

Records

Public Sector

Data

Business

Enterprise Data

(Medium Sized)

Business

Enterprise Data

or Service

(Small Sized)/

Customer Id,

Product details

I Govt.

Organization/

Defense Data,

SLA

Hospital

Patient

Records

Public Sector

Data

Business

Enterprise Data

(Medium Sized)

Business

Enterprise Data

(Small Sized)/

Customer Id,

Product details

A Data Centre Physical Hosts VM

(Containing

Enterprise

Applications)

Service/Applicat

ion/Data (Mail

Service/ Bank

Applications),

Network, SLA

Audit Report

Auditability (AR) Cloud Data/

Services (Govt.

Organization/

Defense)

Hospital

Patient

Records, VM,

VMI

Public Sector

Data

Business

Enterprise Data

(Medium Sized)

Business

Enterprise Data

(Small Sized)/

Customer Id,

Product details

Governance (GR) Data/

Applications

with certain

compliance

requirement

Functional

Components

requiring

Internal Policy

Compliance

VM,VMI that

should follow

certain

constraints in

order to ensure

expected

delivery of

deployed

services

Physical Hosts

that should

follow certain

constraints in

order to ensure

expected

delivery of

deployed

services

Data centre,

Virtual Network

etc.

security risks access the SLA (read) to ensure that

proper security controls are being implemented.

Similarly, audit processes prepare audit reports

(read, write, modify), thus having logical

dependency with them.

It is important to note that, the values of asset

requirements (discussed in the previous section)

need to be adjusted based on identified

dependencies. Lack of such adjustments may lead to

undervaluation of an asset which, in turn, may give

rise to various risks. This is discussed in the

following section.

4.1.1 Physical Asset Dependency

In case of physical dependencies the asset values

may be adjusted as follows:

1. Assets a

, a

,… a

are included in another

asset a

In case of cloud, a common inclusion relation is:

Documents/Software<VM<Hosts<Datacenter

Where A<B signifies that asset A is contained in

or part of asset B

We now look at ways by which values of

security (SR), auditability (AR) and governance

(GR) requirements of asset a

can be adjusted in the

presence of included assets.

The adjusted SR value of asset a

can be

computed as

SR(

inc

)

ai1, ai2,… ain

= Max(SR(a

), SR(a

…SR(a

))

SR(

inc

)

ai1, ai2,… ain

can be interpreted as the

adjusted SR requirement value of asset a

owing to

existence of inclusion relations with assets a

, a

,…

. From this point onwards, we will use a more

compact notation as follows:

SR(

inc

) = Max(SR(a

), SR(a

SR(a

),…SR(a

))

(2a)

Values of AR and GR can be computed

similarly. Thus,

AR(

inc

) = Max(AR(a

), AR(a

…AR(a

))

(2b)

GR(

inc

) = Max(GR(a

), GR(a

…GR(a

))

(2c)

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

2. An asset a

is connected to another asset a

In case of connection relations, only SR

requirements of assets need to be adjusted. This is

owing to the fact that breach of security of an asset

may result in the propagation of the same to other

connected assets. However, the same does not hold

for other kinds of requirements.

Connection may result in two types of situations:

i) the value of SR of a

is greater than or equal to that

of a

The value adjustment can be carried out as follows:

Let SR(a

) ≥ SR(a

). Then

SR(

con

)

= SR(a

) (3a

)

Since, the SR value of a

is greater than that of a

no adjustment is needed.

ii) the value of SR of a

is less than that of a

In this case, the proposed value adjustment may be

carried out as follows:

SR(a

) < SR(a

). Then

SR(

con

)

= ceil(SR(a

) + ½ (SR(a

) - SR(a

)))

(3b)

Thus, the SR value of a

is increased by 50% of

the difference in values between a

and a

. This is

done to consider the security requirements of

connected assets, without being too conservative.

4.1.2 Logical Asset Dependency

As already mentioned, logical asset dependency

implies the access dependency between assets. This

may be illustrated with the help of the following

example.

Example: Processes pertaining to maintenance

of service levels need to have read access on the

SLA document in order to execute relevant actions.

Similarly, an asset may need write, modify,

delete or execute access on another asset in order to

carry out specific tasks. Each of these accesses may

either cause information flow or modification of

assets, or both. Hence, it is obvious that the security

requirements (SR) need to be adjusted accordingly.

We have adopted aspects of BellLaPadula rules

(Bell and LaPadula 1976) to propose the following

scheme for adjusting asset values considering logical

dependency:

If asset a

is allowed to have read or execute

access on asset a

, then

C(a

) = Max(C(a

), C({a

}) (4a)

If asset a

is allowed to have write, modify or

delete access on asset a

, then

I(a

) = Max(I(a

), I{a

}) (4b)

A(a

) = Max(A(a

), A{a

}) (4c)

This implies that security requirements of assets

need to be adjusted considering logical

dependencies.

5 VULNERABILITIES AND

THREATS

After the computation of asset values has been

completed, the vulnerabilities within assets, and

their corresponding threats, need to be identified.

These are discussed in the following sub-sections.

5.1 Vulnerabilities

Vulnerability is defined as an inherent weakness in

an asset that can be exploited by threat(s) to breach

security of assets (ISO/lEC 27005 2005). This

breach may be realized in one of the following ways:

1) Unauthorized subjects at CSP end may have

logical access to the CSC assets

2) Unauthorized subjects at CTS end may have

logical access to the CSC assets

3) Unauthorized customers (other CSCs) may

have logical access to the CSC assets

4) Unauthorized subjects at CSC/CTS end may

have physical/logical access to the CSP assets

5) Unauthorized subjects at CSP/CSC end may

have physical/logical access to the CTS assets

Vulnerabilities can be formally modelled with

the help of two properties - severity and

exploitability (Bhattacharjee, Sengupta and

Mazumdar 2013).

5.1.1 Severity

Severity (Sev) of vulnerability indicates how critical

the vulnerability is. In some cases, exploiting

vulnerability within an asset might result in other

(related or connected) assets to be impacted as well.

We have modelled severity of vulnerability on a 5-

point scale, as shown in Table 5.

A Quantitative Methodology for Cloud Security Risk Assessment

Table 5: Severity of Vulnerability.

Severity Interpretation

Very

High (5)

Unauthorized subjects (CSP, CTS and

other CSCs) can obtain logical access to

multiple CSC assets

Unauthorized subjects (CSC and CTS) can

obtain both physical and logical access to

multiple CSP assets

Unauthorized subjects (CSP and CSC) can

obtain both physical and logical access to

multiple CTS assets

High (4) Unauthorized subjects (CSP and CTS) can

obtain logical access to multiple CSC

assets

Unauthorized subjects (CSC or CTS) can

obtain both physical and logical access to

multiple CSP assets

Unauthorized subjects (CSP or CSC) can

obtain both physical and logical access to

multiple CTS assets

Medium

(3)

Unauthorized subjects (other CSCs) can

obtain logical access to multiple CSC

assets

Unauthorized subjects (CSC or CTS) can

obtain either physical or logical access to

multiple CSP assets

Unauthorized subjects (CSP or CSC) can

obtain either physical or logical access to

multiple CTS assets

Low (2) Unauthorized subjects (other CSCs) can

obtain logical access to a single CSC

assets

Unauthorized subjects (CSC or CTS) can

obtain either physical or logical access to a

single CSP assets

Unauthorized subjects (CSP or CSC) can

obtain either physical or logical access to a

single CTS assets

Very

Low (1)

Vulnerability allows neither physical nor

logical access to unauthorized subjects

5.1.2 Exploitability

Exploitability (Exp) of vulnerability denotes the ease

with which the vulnerability can be exploited by a

threat. It can be determined with the help of the

following factors (Mell et. al. 2007):

Physical Access Vector (PAV) - This indicates

the physical proximity requirement of the agent

(attacker) that may exploit the vulnerability. It can

assume values on a 3-point scale: (i) if local access

(access from the same VM where the asset with the

concerned vulnerability resides) is required, then

PAV = 1; (ii) if the attack can be launched from any

adjacent VM (i.e. within the same Physical Host) to

the one where the target asset (containing the

vulnerability) resides, then PAV = 2; (iii) if the

attack can be launched from any physical host, then

PAV = 3.

Logical Access Vector (LAV) - This denotes the

access requirement of the agent (attacker) that may

exploit the vulnerability. It can assume values on a

3-point scale: (i) if write, modify or delete access is

required for the attacker, then LAV = 1; (ii) if

execute access is required for the attacker, then LAV

= 2; (iii) if read access is required for the attacker,

then LAV = 3.

Attack Complexity (AC) - This factor signifies

the amount of difficulty that needs to be encountered

for launching a successful attack. Higher is the

complexity, lower is the corresponding exploitability

of vulnerability. This may include the cost

(financial/time/bandwidth etc.) that is associated

with launching an effective attack. AC assumes

subjective values as High (3), Medium (2), and Low

(1).

Authentication Level (AL) - This denotes the

number of authentication stages that are needed for

gaining access to the target asset. It can assume

values on a 3-point scale: (i) if multiple instances of

authentication are required before being granted

access to the target asset, then AL = 1; (ii) if a single

instance of authentication is needed, then AL = 2;

(iii) if no authentication needed, then AL = 3.

Based on the values of the factors stated above,

exploitability of vulnerability v is computed as:

Exp(v) = ceil((PAV * LAV * AL) / (6 * AC))

(5a)

Integer 6 is used in the denominator to scale

down the value. Thus, Exp(v)

(max)

= ceil((3 * 3 * 3) /

(6 * 1)) = 5 and Exp(v)

(min)

= ceil((1 * 1 * 1) / (6 *

3)) = 1

Hence, Exp(v) є {1, 2, 3, 4, 5}

(5b)

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

5.2 Threats

Threat is defined as an active agent that can exploit

vulnerabilities to cause harm to an asset (ISO/lEC

27005 2005). It comprises of: agent (primary and

secondary), motive, resource, and result. Primary

agents are the sources which initiate the exploitation

of vulnerability. These can be of the following types

(Bhattacharjee, Sengupta and Mazumdar 2013):

1) Nature (E.g. Earthquake, Flood, etc)

2) Environment (Power Fluctuation, Chemical

Contamination, Fire, etc)

3) Human Beings (Internal Stakeholders,

External Stakeholders)

The above mentioned agents may directly

exploit vulnerabilities or may use secondary agents

for the same. Secondary agents in a Cloud

environment include accounts, services, data,

interface, VM, VMI, hypervisor, virtual as well as

physical networks, and physical hosts.

Motive is related to primary agent; it indicates

the purpose or intent of the agent. Types of motives

are Deliberate (Malicious) intent and Accident.

Malicious intent is associated with human beings;

accidents can be caused by human beings as well as

the environment (e.g. fire); while, Nature has no

specific motive or agenda.

Different resources may be required for the

realization of a threat. Types of resources are: (i)

financial resource; (ii) manpower; (iii) knowledge or

expertise; (iv) tools, techniques, and infrastructure;

(v) time; and vi) administrative rights

The result (impact) caused by the exploitation of

vulnerabilities by threats in a Cloud environment can

be one or more of the following (Hashizume et. al.

2013):

1) Account or service hijacking: Account theft

may affect the confidentiality, integrity as

well as the availability of the associated

service

2) Data scavenging: In certain cases, data may

not be permanently deleted and may be

recovered by some malicious user. This

mainly affects the confidentiality of service

data.

3) Data Leakage: Data leakage happens when

it is accessed by an unauthorized user while

it is being transferred, stored, audited or

processed. This may again affect C, I, A

requirements of the data.

4) Denial of Service: This mainly affects the

availability of the services as well as data.

EDoS (Economic Denial of Sustainability)

is specific to Cloud environment which

results in exploitation of financial resources

of the concerned stakeholder.

5) VM escape: This is caused by exploitation

of the hypervisor (code) resulting in the

transfer of control of the underlying

hypervisor to the attacker. This mainly

causes loss of integrity of the infrastructure

(as a whole).

6) VM hopping: A VM may illegally gain

access to the resources as well as data of

another VM by manipulating hypervisor

code or by covert channel. It may be the

case that an illegal Virtual Network has

been set up between the two VMs for this

purpose.

7) Malicious VM creation: An attacker who

manages to create a valid user account in

the CSP end may upload malicious VMIs

(containing malware) into the Cloud VM

repository. A normal user who accesses this

VMI gets affected. The user’s data as well

as the CSPs infrastructure is

compromised

as an effect of this action.

8) Insecure VM migration: Exposure of VM

metadata and sensitive data within the VM

remain vital issues in the context of VM

migration. Both, during the migration of

VM through the network, and after the

migration is completed to some other

physical host, the VM data/metadata may

be compromised.

9) Sniffing/Spoofing virtual networks: This is

similar to (6) where virtual networks may

be utilized for establishing unauthorized

communications between two VMs

(Address Resolution Protocol spoofing may

be used to redirect packets illegally).

Threat can be formally modelled with the help of

its likelihood of occurrence.

Likelihood of Occurrence: Likelihood of

occurrence (LoC) defines the probability of

occurrence of a threat. This can be determined by

the following factors:

Past occurrences: This represents previous

incidents that have occurred due to the threat (being

considered). This includes incidents both in the

recent past as well as distant past (with appropriate

weights). This is denoted by t

(Bhattacharjee,

Sengupta and Mazumdar 2013). t

can be calculated

depending on the i) no. of occurrences of threat t;

and ii) time (year) when threat occurred.

A Quantitative Methodology for Cloud Security Risk Assessment

For example, if a 5-year period is considered,

and if “t” has occurred twice during the previous

year, 3 times during the year before, and so on, then

= 2 * 5 + 3 * 4 + ... , with greater weight having

been assigned to incidents that have occurred more

recently. Moreover, a threshold value is chosen for

no. of occurrences i.e. for 5 or more than 5 incidents

the value taken for calculation is 5 and for lower

occurrences that particular occurrence value is taken

for the calculation. Again, certain weights are

assigned depending on which year the incident had

occurred. A recent incident is assigned a higher

weight i.e. if an incident has occurred in the previous

year then the weight assigned is 5, if it has occurred

during the year before then the weight assigned is 4

and so on. This period may even be taken as a

“month”/ “week”/ “day” / “hour” depending on the

particular threat. Thus,

= ceil(Σ(count(t) * weight(period)) / Σ

weight(period)), when count(t) > 0

= 1, when count(t) = 0

(6a)

It can be seen that

max(t

) = ceil((5 * 5 + 5 * 4 + 5 * 3 + 5 * 2 +

5 * 1) / (5 + 4 + 3 + 2 + 1)) = ceil(75/15) = 5.

Hence, t

є {1, 2, 3, 4, 5}

(6b)

Proximity of assets to threat-prone areas: This

is mostly applicable to natural and environmental

threats. It represents the physical proximity of assets

to areas that are prone to threats. It is denoted by a

(Bhattacharjee, Sengupta and Mazumdar 2013). It is

determined on a 3-point scale. The areas where

natural threats (Earthquake prone regions, Volcanic

regions, High altitude areas etc.) exist can be

categorized into “danger zone” (most threat-prone),

“striking zone” (less prone to threats i.e. some

environmental threat like power fluctuations might

occur), and “safe zone”. If asset “a” is within the

“danger” zone, then a value of 3 may be assigned to

; if it is within “striking” zone, a value of 2 may be

assigned; anything beyond has value 1. If this is not

applicable for a threat, then a value of 1 is assigned

to a

(for ease of computation of LoC). Hence,

є {1, 2, 3} (6c)

Combining the above factors the likelihood of

occurrence of threat may be given by:

LoC(t) = ceil((t

* a

) / 3) (6d)

Integer 3 is used in the denominator to scale

down the value.

Thus, LoC(t)

(max)=

ceil((5 * 3) / 3) = 5 and

LoC(t)

(min)

= ceil((1 * 1) / 3) = 1

Hence, LoC(t) є {1, 2, 3, 4, 5} (6e)

6 SECURITY CONCERN AND

RISK

After computing asset, vulnerability and threat

values, the security concern and risk factors need to

be determined. Security concern (SC) may be

defined as the apprehension of the exploitation of a

particular vulnerability in an asset by some threat. It

can be mathematically expressed in terms of severity

of vulnerability (Sev) and Breachability.

Breachability defines the potential of a threat being

able to exploit a given vulnerability (Bhattacharjee,

Sengupta and Mazumdar 2013). Intuitively, this is

possible when vulnerability is exploitable and both

motive, as well as resources, for realization of a

threat, is present. Therefore, Breachability can be

computed as:

BT(t,v) = ceil((LoC(t) * Mvn(t) * Res(t) *

Exp(v)) / 5), when Mvn(t)=Res(t) = 1

= 1, otherwise

(7a)

Here, LoC(t) is the likelihood of occurrence of

threat t, Mvn(t) denotes the existence of motive of

threat t, Res(t) denotes resource availability for t,

and Exp(v) is the exploitability of vulnerability v.

Both Mvn(t) and Res(t) can be modelled on a binary

scale, with 0 representing absence of motive, or

resource, and 1 denoting presence of the same. It

may be noted that the formula for Breachability has

been devised in a way such that its minimum value

is 1. This has been done to reflect the fact that any

vulnerability is breachable, sooner or later. It

depends on the availability of resources, motive, etc.

Absence of sufficient threat factors at a particular

moment does not imply that the vulnerability will

never be breached.

It is obvious from (5b) and (6e) that

BT(t,v) є {1, 2, 3, 4, 5}

(7b)

Security concern is computed as:

SC(t, v) = ceil((BT(t, v) * Sev(v)) / 5)

(8a)

Here, SC(t, v) is the concern that threat “t” will

exploit vulnerability “v”, BT(t, v) is the

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

100

breachability of vulnerability v against threat “t”,

and Sev(v) is the severity of vulnerability “v”. The

denominator helps to scale down the value of SC.

Now the Max and Min values for SC(t, v) are as

follows:

SC(t, v)

max

= ceil(5 * 5 / 5) = 5

SC(t, v)

min

= ceil(1 * 1 / 5) = 1

Thus, SC(t, v) є {1, 2, 3, 4, 5}

(8b)

Finally, asset value and security concern are

combined to obtain the value of risk. As stated in

Section 1, the proposed methodology computes and

presents risk values in two forms – Asset-specific

risk and Stakeholder (CSP, CSC and CTS) specific

risk.

Assets of a stakeholder can be evaluated as

shown in Section 4. Moreover, the security concern

values for a stakeholder can be computed by

considering severity and breachability values for

only that particular stakeholder. These can be

combined to obtain stakeholder-specific risk values.

Let a

be an asset of CSP. Since, an asset may

contain multiple vulnerabilities, there will be

multiple security concern values corresponding to

each threat-vulnerability pair. Let SC

imax

denote the

maximum security concern value for asset a

. Then

the risk factor corresponding to asset a

is given by

RF(a

) = ceil((AV

* SC

imax

) / 5)

(9a)

where, AV

denotes the asset value of asset a

. It

can be seen from (1) and (8b) that

RF(a

) є {1, 2, 3, 4, 5}

(9b)

The combined risk value for all assets of CSP

can be computed as:

CSP

= RoundOff(∑(RF(a

) / n)

(9c)

where, i = 1,…,n, and “n” denotes the no. of

assets of the CSP.

It is obvious from (8b) that

CSP

є {1, 2, 3, 4, 5}

(9d)

The risk values for CSC and CTS can be

computed following a similar approach. The values

of RF may be interpreted as follows:

CSP

= 5  “Very High Risk”

CSP

= 4  “High Risk”

CSP

= 3  “Medium Risk”

CSP

= 2  “Low Risk”

CSP

= 1  “Very Low Risk”

Analyses of the value of risk factor (RF) show

that it is directly proportional to the values of (i)

security requirement (SR); (ii) auditability

requirement (AR); (iii) governance requirement

(GR); (iv) severity of vulnerability (Sev); (v)

likelihood of occurrence of threat (LoC); and (vi)

exploitability of vulnerability (Exp). This follows

from equations (1), (7a), (8a) and (9a). Hence, any

increase / decrease in values of those parameters

cause the risk factor to proportionately increase /

decrease. The percentage of change in the value of

RF is exactly same as that of the percentage of

change in the values of Sev, LoC and Exp. However,

the amount of change in RF vis-à-vis SR, AR and

GR would depend on the values of relative weights

of those parameters (a, b, c in Eq. 1).

It is important to identify stakeholder-specific

risk when a CSC selects a particular CSP for

availing its services. This is also required during the

selection of CTS by a CSP. The current risk value

helps a stakeholder evaluate the security posture of a

probable provider / partner, before availing of its

services. The calculation of stakeholder-specific risk

may be done by a third-party (e.g. Cloud Broker) or

the stakeholder itself. When a particular organization

opts for a Cloud-based service, the Cloud Broker or

the stakeholder can provide the values of RF to the

organization. This would help the organization to

make an informed decision regarding stakeholder

selection.

7 CASE STUDY

A case study is described here which applies the

proposed methodology to compute risks to assets of

a Cloud enterprise (CSP1). The enterprise has assets

as shown in Figure 1.

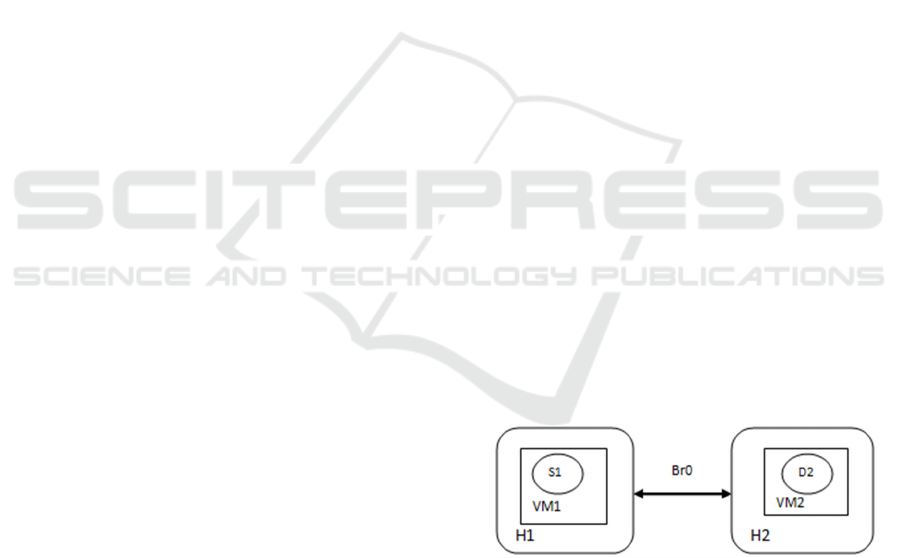

Figure 1: CSP1 Infrastructure.

H1& H2 are Physical Hosts residing in the CSP

premises. VM1 is the Virtual Machine in H1 and

VM2 is the Virtual Machine in H2. Service S1 is

deployed in VM1 and Data file D2 is stored in VM2.

Hosts H1 and H2 share the Bridge Network Br0

(assets may be referred from Table 1). The asset

values (with dependencies) for the above mentioned

assets have been listed in Table 6; these are based on

the guidelines depicted in Table 4.

A Quantitative Methodology for Cloud Security Risk Assessment

101

Table 6: Asset Values of CSP1.

Asset ID SR AR GR

C I A

H1 5 4 5 4 3

H2 4 3 4 4 3

VM1 5 4 5 4 3

VM2 4 3 4 4 3

S1 1 4 5 4 3

D2 4 3 2 4 3

Br0 1 1 5 2 2

Here RF(a

)

is calculated for each asset

depending up on the AV and SC values for each.

The Final value AV (Asset Value) for each asset is

calculated as follows:

= 5*.3 + 5*.3 + 4*.4 = 4.6 and AV

ceil(4.6*.3 + 4*.3 +3*.4) = 4

= 4*.3 + 3*.4 + 4*.3 = 3.6 and AV

ceil(3.6*.3 + 4*.3 +3*.4) = 4

VM1

= 5*.3 + 4*.4 + 5*.3 = 4.6 and AV

VM1

4.6*.3 + 4*.3 + 3*.4 = 4

VM2

= 4*.3 + 3*.4 + 4*.3 = 3.6 and AV

VM2

ceil(3.6*.3 + 4*.3 +3*.4) = 4

= 1*.5 + 4*.3 + 5*.2 = 2.7 and AV

ceil(2.7*.5 + 4*.1 +3*.4) = 3

= 4*.3 + 3*.4 + 2*.3 = 3 and AV

ceil(3*.4 + 4*.2 +3*.4) = 4

Br0

= 1*.3 + 1*.4 + 5*.3 = 2.2 and AV

ceil(2.2*.4 + 2*.3 +2*.3) = 3

The list of vulnerabilities and threats considered,

along with their corresponding values, has been

shown in Table 7.

Table 7: Vulnerability & Threat list.

Vulnerability Sev

(Severity)

Threat LoC

Information

about the

location of

the data

usually is

unavailable

or not

disclosed to

users(V1)

3 Data Scavenging

+ Data Leakage

(T1)

Uncontrolled

placement of

VM images

in public

repositories,

(V2)

4 Malicious VM

Creation

(T2)

Insufficient

input-data

validation

(V3)

5 Account/ Service

Hijacking

(T3)

Next the Exp values for V1, V2, and V3 are

calculated using Equation (5a).

Exp(V1) = 4, Exp(V2) = 4, Exp(V3)= 5

Considering α=0.5, β= 0, γ=0 and δ=0.5 (In Eqn.

7a),

BT(T1,V1)= ceil(3 * 4 / 5)= 3

BT(T2,V2)= Roundoff (3 * 4 / 5)= 3

BT(T3,V3)= Roundoff (4 * 5 / 5)= 4

Next the Security Concern, SC is computed as

Eq. 8a

SC(T1,V1) = ceil((BT(T1, V1) * Sev(V1))/5)

= ceil (3*3/5) = 2

SC(T2,V2)= ceil (3*4/5) = 3

SC(T3,V3)= ceil (4*5/5) = 4

Finally,

RF(H1) = ceil((AV

* SC

H1max

) / 5)

= ceil((4 * 2) / 5) = 2

Similarly, RF(H2) = 2, RF(VM1) = 2, RF(VM2)

= 2, RF(S1) = 3, RF(D2) = 4, & RF(Br0) = 2.

Therefore the value of RF

CSP1

RoundOff ((2+2+2+2+3+4+2)/6) = 3

Thus, assets of CSP1 exhibit “Medium Risk”

overall.

8 CONCLUSIONS

The quantitative Cloud risk assessment

methodology, proposed in this paper, models assets,

vulnerabilities, threats and computes the individual

risks associated with an asset. The methodology also

computes combined risk values from the perspective

of CSP, CSC and CTS. The proposed scheme first

lists the various assets of a Cloud organization.

Values are assigned to these assets after considering

the possible physical and logical dependencies

between them. The vulnerabilities associated with

these assets are modelled using their Severity and

Exploitability values. Similarly, modelling of threats

is performed using LoC (Likelihood of Occurrence)

values. Then, Breachability value is calculated for

threat-vulnerability pairs and Security Concern is

derived from Breachability and Severity values.

Finally, risk factors are computed for assets and

stakeholders.

It should be noted that the Asset-specific risk

factor is essential for a particular Cloud organization

for deciding the specific measures (mitigation/

prevention/ transfer/ acceptance) that should be

implemented to protect its assets. On the other hand,

when a Cloud organization needs to utilize the

services of another organization, the Stakeholder-

specific risk should be considered for choosing a

suitable service provider.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

102

Future work is geared towards the validation of

the proposed methodology in actual organizations

and subsequent development of a tool based on this.

Moreover, we intend to include information

regarding cloud security capabilities (e.g. Data at

rest encryption, multi-factor authentication, Trusted

Cloud Computing Platform) of the provider during

computation of risk factors. This would help provide

assurance about the security measures that are

deployed by the cloud service provider.

REFERENCES

Bell, D.E., and LaPadula, L.J., 1976 "Secure Computer

Systems: Unified Exposition and Multics

Interpretation", ESD-TR-75-306, MTR 2997 Rev. I,

Mitre Corporation, Bedford, Massachusetts, USA,

1976.

Bhattacharjee, J., Sengupta, A., and Mazumdar, M., 2013.

“A Formal Methodology for Enterprise Information

Security Risk Assessment”. In International

Conference on Risks and Security of Internet and

Systems (CRiSIS). France: IEEE, pp. 1-9.

Casola V., et.al. 2005. “A Reference Model for Security

Level Evaluation: Policy and Fuzzy Techniques.” In

Journal of Universal Computer Science. 11(1), pp.

150–174.

Cayirci, E., Garaga, A., Santana, A., and Roudier, Y.,

2014. “A Coud Adoption Risk Assessment Model”. In

7th International Conference on Utility and Cloud

Computing. London: IEEE, pp. 908-913.

CSA. (2014), The Notorious Nine Cloud Computing Top

Threats in 2013, [online] Available at

https://downloads.cloudsecurityalliance.org/initiatives/

top_threats/The_Notorious_Nine_Cloud_Computing_

Top_Threats_in_2013.pdf. [Accessed 16 November

2016]

Djemame, K., Armstrong D., Guitart J., and Macias M.,

2016. “A Risk Assessment Framework for Cloud

Computing”. In IEEE Transactions on Cloud

Computing. 4(3), pp. 265-278.

ENISA, “Cloud Computing; Benefits, Risks and

Recommendations for Information Security,” 2009

Edition, Place: Available at

http://www.enisa.europe.eu, [Accessed 16 November

2016]

Hashizume, K. Rosado, D.G., Fernández-Medina, E., and

Fernandez, E.B., 2013 “An analysis of security issues

for cloud computing”, In J. Int. Serv. App. vol. 4(5), .

pp. 1-13.

“ISO/lEC 27005:2005,” Information technology - Security

techniques - Code of practice for information security

management”, Switzerland, 1st Edition.

“ISO/lEC 27005:2011, “Information technology - Security

techniques Information security risk management”,

Switzerland, 1st Edition.

“ISO/ lEC 17789:2014(E), Information technology –

Cloud Computing – Reference Architecture”,

Switzerland, 1st Edition.

Jansen, W. and Grance, T., 2011. “Guidelines on Security

& Privacy in Public Cloud Computing”. In Computer

Security Publications from the National Institute of

Standards and Technology (NIST) SP 800-144.

Gaithersburg: National Institute of Standards &

Technology.

Kaplan, S., and Garrick B.J., 1981. “On The Quantitative

Definition of Risk,” In the Journal of Risk Analysis

1(1), pp. 11-27.

Luna, J. L., Langenberg, R., and Suri, N. 2012.

“Benchmarking cloud security level agreements using

quantitative policy trees”. Cloud Computing Security

Workshop, 103. doi:10.1145/2381913.2381932.

Mell, P. M., and T. Grance., 2011. “The NIST Definition

of Cloud Computing.” In Computer Security

Publications from the National Institute of Standards

and Technology (NIST) SP 800-145. Gaithersburg:

National Institute of Standards & Technology.

Mell, P., Scarfone, K., and Romanosky, S., 2007 “CVSS –

A Complete Guide to the Common Vulnerability

Scoring System Version 2.0”.

Sengupta, A., Mazumdar, C., and Bagchi, A., 2009. “A

Formal Methodology for Detection of Vulnerabilities

in an Enterprise Information System”, In Proceedings

of the Fourth International Conference on Risks and

Security of Internet and Systems (CRiSIS), 2009,

France:IEEE, 74-81.

A Quantitative Methodology for Cloud Security Risk Assessment

103
