SPMDSL Language Model

Onto a DSL for Agile Use Case Driven Software Project’s Management

Gilberto G. Gomes Ribeiro

, Ângela M. Amorim Barros

and António M. Rosado da Cruz

1,2

Polytechnic Institute of Viana do Castelo, Av. do Atlântico, s/n, Viana do Castelo, Portugal

Algoritmi Research Centre, University of Minho, Portugal

Keywords: DSL, Domain Specific Language, Ontology, Agile Use Case-driven Software Project Management.

Abstract: Project management involves applying knowledge, skills, tools and techniques to project activities to meet

the project requirements. Each project’s unique nature implies tailoring that knowledge, skills, tools and

techniques to adapt the management activities to cope with project constraints. Management and technical

activities meet at some points, namely on activities that have technical and management relevance. This

paper proposes SPMDSL and presents its language model and the domain analysis made during its

development. SPMDSL aims to be a DSL defining a set of representational primitives with which to model

projects in the domain of agile software project management. These primitives are represented as classes

and their interrelationships. The proposed DSL focuses on agile use case driven software development

project management, and so it also integrates concepts from software modeling. The goal is to enable

representing past projects’ information to facilitate retrieving information for lessons learned analysis.

1 INTRODUCTION

Software and other domain’s projects involve one or

more sequences of technical activities and project

management activities. These sequences of activities

intersect at some points, on activities with technical

and management relevance. Examples of such

intersecting activities can be found in the process of

requirements analysis and specification or in the

quality control process, among other processes.

According to the PMBOK Guide (PMI, 2013),

project management (PM) is the application of

knowledge, skills, tools and techniques to project

activities to meet the project requirements.

Managing a project typically includes (PMI, 2013):

 Identifying requirements;

 Managing the needs, concerns, and

expectations of the stakeholders;

 Managing and carrying out communications

with the stakeholders;

 Balancing the competing project constraints,

namely: Scope, Quality, Schedule, Budget,

Resources, and Risks.

The project manager needs to focus its efforts on

the project constraints that affect more a specific

project. Each project has different characteristics and

conditions that determine the constraints that need

more attention. Project managers make use of

software tools for helping them manage projects

according to several dimensions (e.g.: time, cost,

scope), which are bound by project constraints. A

software tool for assisting in managing projects must

allow the project manager to realize the full project

workflow, enabling a better resource management,

and helping manage the different project constraints.

Software projects also involve technical

activities, which typically follow a predefined

process. Development processes are, nowadays,

typically iterative in nature, where requirements,

plans, tasks, and their inner priorities, are

continuously assessed and refined. Agile Methods

are the best examples of this kind of processes.

Modern software development processes are also

typically use case or user story driven. Herein, the

terms use case and user story are used

interchangeably, because both describe system’s

features from the users’ point of view, and for our

purposes that supersedes any minor difference

between the two concepts. From the project’s point

of view, use cases define a unit of functionality that

is selectable for development in each iteration. A use

case is then as important for the product as it is for

the process that develops it.

Ribeiro, G., Barros, Â. and Cruz, A.

SPMDSL Language Model - Onto a DSL for Agile Use case driven Software Projects’ Management.

DOI: 10.5220/0006326804030410

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 403-410

ISBN: 978-989-758-248-6

403

This paper presents SPMDSL core language

model. The core language model is in fact an

Ontology for that knowledge domain. SPMDSL

intends to be a domain specific language (DSL) for

the management of agile use case driven software

projects, based on the good practices embodied in

the PMBOK Guide (PMI, 2013) and Agile Methods,

without overlooking concepts and good practices in

software engineering, namely from the Unified

Modeling Language (UML). The presented DSL

focuses on the main concepts of both PM and

software engineering domains. The DSL engineering

process is tailored from the one proposed by

Strembeck and Zdun (2009).

The rest of the paper is structured as follows:

next section overviews DSL artifacts and the process

of building a DSL. Section 3 briefly presents

PMBOK (PMI, 2013), the key Agile methodologies,

the main PM tools and existing proposals to PM

ontologies. The goal is to pave the road for eliciting

the main concepts and their interrelationships that

forms the SPMDSL core language model presented

in section 4, together with the appropriate

constraints. Section 5 concludes the paper and

presents some ideas for future work.

2 DEVELOPING A DSL

2.1 DSL Engineering

A DSL is a “tailor-made (computer) language for a

specific problem domain” (Strembeck and Zdun,

2009). A DSL comprises the development of:

 A Language model (Abstract Syntax),

defining the concepts and relationships (the

core language model), as well as a set of rules

enforcing well-formedness through static

semantics (model constraints). This may be

defined by an Ontology or Metamodel.

 A Concrete Syntax, establishing a textual or

graphical concrete notation for the language,

which defines the allowed language constructs

and phrases (Moody, 2009).

 A semantics for the allowed language phrases:

Giving meaning to those phrases, either

formally, through denotational semantics, or

more informally, through illustrative examples

of language usage and informal explanations

of those examples, among other ways.

DSL development involves an iterative lifecycle

with four activities (Strembeck and Zdun, 2009):

1. Defining the DSL’s core language model and

model constraints;

2. Defining DSL language elements’ behavior;

3. Defining the DSL’s concrete syntax(es);

4. Integrating DSL artefacts with the platform.

Each of these main activities is in itself a

subprocess that may be tailored to better meet the

influencing factors identified by Strembeck and

Zdun (2009). In this paper, we focus on defining the

DSL’s core language model and model constraints,

including reporting the domain analysis activities.

2.2 Tailored Subprocess for Defining

the DSL’s Language Model

This subsection presents the tailored subprocess

“Defining the DSL’s core language model and

constraints”, following (Strembeck and Zdun, 2009).

The tailored subprocess is depicted in Figure 1, and

comprises the following activities:

1. Domain Analysis: Covers the analysis of the

problem domain, in this case the standards and

practices in PMBOK and main Agile methods

for finding domain concepts, and the

identification of corresponding domain

abstractions, that take the form of language

elements added to the DSL being created;

2. Analysis of existing platforms and tools:

Identifying elements on existing PM tools and

defining or deriving language elements for the

DSL, if they aren’t already defined.

3. Integrate Domain Abstractions/Language

Elements to ensure that the defined DSL is not

redundant (there is no overload of language

elements) and does not have neither deficit nor

excess of language elements (Moody, 2009).

4. Define Language Model Constraints: Identify

rules and constraints in the domain, and reflect

them as Model Constraints.

5. Check Language Model: The language model,

comprising the core language model and the

constraints, must be checked for completeness

and correctness from a domain-oriented

perspective (Strembeck and Zdun, 2009).

In this work, domain knowledge is gathered both

inductively (bottom-up), by identifying elements in

existing PM tools and existing ontologies, and

deductively (top-down), by identifying domain

abstractions from the real world, embodied in the

PMBOK and the Agile Methodologies (Voelter,

2013). Then, the domain abstractions are associated

to existing or new language elements, and elements

from existing platforms and ontologies are used to

derive new language elements. These elements are

related to each other, also per the gathered

knowledge, and together form the DSL being built.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

404

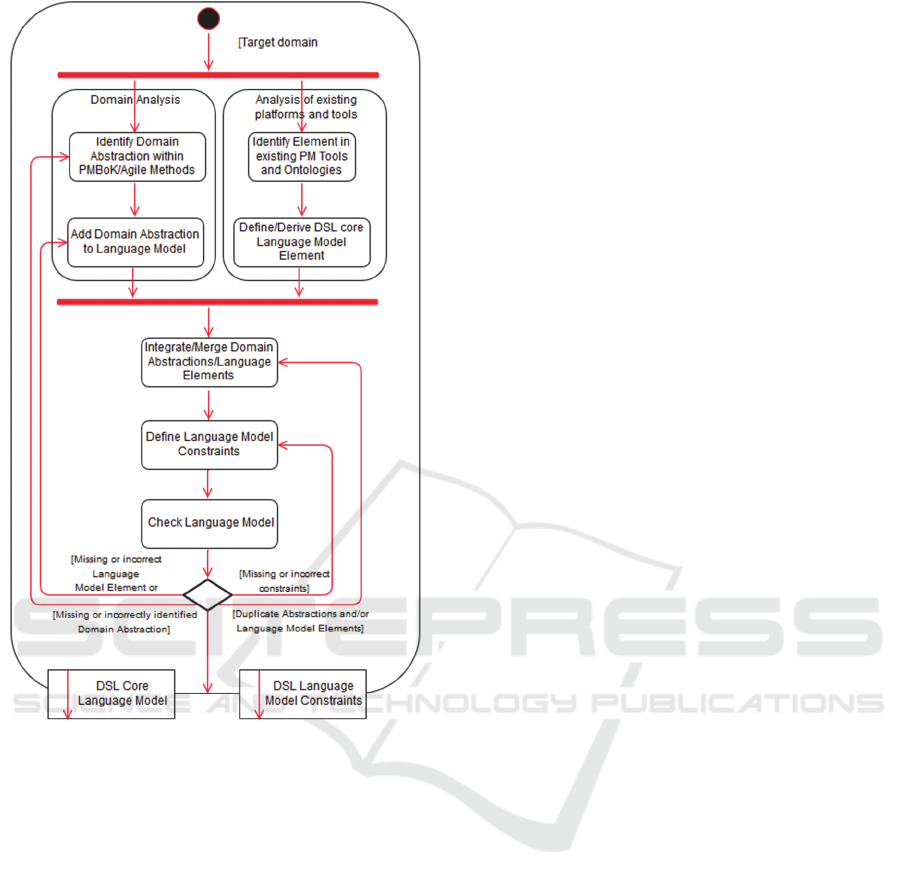

Figure 1: The subprocess for defining the DSL language

model, tailored from (Strembeck and Zdun, 2009).

3 ANALYSIS OF DOMAIN AND

OF EXISTING PM TOOLS AND

ONTOLOGIES

The process of constructing a DSL must gather

concepts and concept interrelationships of the

knowledge domain it addresses. The PMBOK Guide

(PMI, 2013) enfolds knowledge and good practices

in PM and forms a body of knowledge for the PM

domain. The next subsection introduces PMBOK.

Additionally, Agile Methods are used today in

almost every software project. Agile methods share

many concepts, useful for describing and discussing

software projects. As such, the domain analysis for

UC driven software projects must also address Agile

Methods, which are overviewed in subsection 3.2.

The study of existing applications in the PM

domain is also essential, so that the concepts already

in place in existing PM tools may be taken into

consideration. Subsection 3.3 outlines five PM tools.

Subsection 3.4 presents existing approaches to

domain ontologies related to project management.

3.1 The PMBOK Guide

The PMBOK guide (PMI, 2013) includes knowledge

and good practices about project management,

which have application in “most projects most of the

time”, and their value and usefulness is object of

consensus. The knowledge described is not directly

and uniformly applicable to all projects, being the

responsibility of each organization/project manager

to select and adapt what is applicable in each

particular project. The PMBOK guide does not

prescribe a process model, but rather a set of process

groups that may be selectively adapted to any

process model, including agile processes.

The PMBOK Guide also promotes a common

vocabulary within the PM domain, having published

the PMI Lexicon of Project Management Terms

(PMI, 2015), which provides a set of vocabulary that

can be consistently used by project managers and

other stakeholders. That vocabulary is not, however,

an ontology as it does not focus on PM main

concepts nor addresses their relationships. It mainly

focuses on concepts and terms used in the PMBOK

Guide when describing tools and techniques within

each process or process activity.

3.2 Agile Methodologies

In 2001, a group of developers established a set of

12 principles and called it the “Agile Manifesto”

(http://agilemanifesto.org), which focused more on

people than on processes. Those principles are the

basis to many variations of agile methods. Agile

methods involve a process definition and a set of

tools and techniques. Process and tools envisage to

embrace the Agile principles, whichever the specific

Agile method they belong to. Practice has leveraged

some Agile methods in detriment of other less used

ones. Scrum and XP (eXtreme Programming) are

commonly accepted as two of the most currently

used agile methods. XP can be characterized by

short development cycles, incremental planning,

continuous feedback, reliance on communication,

and evolutionary design (Beck, 2004). Scrum

focuses on the team work rather than a set of

specific software development rules. What Scrum

and XP have in common is a prioritized list of

SPMDSL Language Model - Onto a DSL for Agile Use case driven Software Projects’ Management

405

features, short iteration cycles for developing

selections of those features, frequent deliveries of

running software and an approach to development

that promotes developing simple yet needed

features, instead of nice to have but unrequired ones

(Beck, 2004; Schwaber and Sutherland, 2016).

Besides Scrum and XP, other Agile methods

made their way at different levels of adoptability.

Examples are Feature Driven Development (FDD)

and Extreme Modeling (XM). Unlike other

methodologies, FDD does not cover the entire

development process but rather focuses on the

design and building phases (Palmer and Felsing,

2002). FDD also has frequent deliverables, along

with accurate monitoring of the progress report. Its

five sequential steps include developing an overall

system model, which models requirements of the

whole system being developed, and progresses

together with the system (De Luca, n.d.). A domain

classes model is built, identifying attributes,

relationships and methods. FDD also develops a

prioritized features’ list to support the requirements.

Each feature identifies actions over objects of the

domain model, and new or changing requirements

are modeled back into the overall model. New or

changed features arise from the updated model.

“Model first, code later” is the main idea behind

Extreme Modeling (XM). XM claims that modeling

can be something done on the spur of the moment

whereas coding might not be as immediate or

practical, making the feedback not as easy to get. By

modeling first, the software developer can analyze

the problem prior to coding the solution. XM and

XP share the same values and principles. The main

practices of XM are model to communicate and

model to understand (Ambler, 2001).

3.3 Project Management Tools

This subsection presents five PM tools, which are

compared in terms of features and concepts elicited

from the PMBOK, but also from typical software

development process models, such as the Unified

Process and Scrum. The studied tools are Microsoft

Project (https://products.office.com/en/Project),

MSP, the most used PM tool, and the open source

tools Open Project (openproject.org), OP, LibrePlan

(libreplan.com), LP, Agilefant (agilefant.com), AF,

and Redmine (redmine.org), RM.

In software project management, requirements

are usually modeled through use cases or user

stories, and these typically drive the software

development activities, by being divided into work

items, and these further divided into work tasks.

This way, use cases are associated to project work

tasks, as the latter are defined by the need to

implement and satisfy the former.

MSP, LP, AF, OP, and RM allow an effective

project management, enabling some good practices

underlined by PMBOK. Task (work package)

management is supported, along with their

hierarchical structuring, enabling the establishment

of a Work Breakdown Structure (WBS). The first

two do not support the concepts of Requirement or

Use Case/User Story, which commonly leads to

confusion between requirements and project tasks.

All the surveyed tools allow defining task

dependencies (e.g. follows, precedes). AF, OP, LP

and RM also allow the creation of links between

tasks and external documents (e.g. text documents,

diagrams, images). Tasks may be associated to team

members.

MSP, AF, OP and LP allow creating budgets

associated to the defined project tasks, helping to

keep track of the effort and cost the project activities

require. Time, cost and resource management are,

then, well covered by these tools.

AF and OP allow a scrum management style by

enabling the definition of a product backlog (fairly

equivalent to a requirements list) and sprint

backlogs, along with user stories with the associated

priority level and effort story points. AF enables

defining dependencies between user stories. Scope

and resource management are also fairly addressed,

although scope change management is very poorly

covered. The notion of a change requests’ analysis

team, envisaged in PMBOK, is absent in every tool

surveyed.

Quality and risk management are not covered in

OP. LP, however, has some support for risk related

activities such as Monte Carlo simulation. In OP and

RM, communicating project information between

team members and stakeholders is centered on a

Wiki. In OP, meetings may also be scheduled and

messages sent through the system.

AF allows creating backlogs for different

stakeholders and let them feed in ideas or feedback

they have, and after validating the provided items,

these can be inserted into the product backlog.

3.4 Existing PM Ontologies

Existing approaches to domain ontologies related to

project management comprise PROMONT (Abels et

al., 2006), a PM ontology for virtual project

organizations, based on German standard DIN

69901 (DIN, 2009). Another standard for PM data

exchange is PMXML (Curran et al., 2004).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

406

Other PM ontology approaches include “Project

metrics ontology” (www.daml.org/ontologies/349),

a simple ontology focusing project metrics that

enables performance metrics comparison between

projects; Aramo-Immonen (2009) ontology proposal

puts together a PM ontology and a project learning

model, focusing project learning integrated in

project processes; Sheeba et al. (2012) proposes an

ontology to automatically classify learning materials

for the Project Management knowledge domain, in

order to facilitate the search for learning materials.

3.5 Unified Modeling Language

UML provides tools for generic system’s analysis

and design, and implementation of software-based

systems (OMG, 2015). It provides a metamodel that

supports modeling generic systems, especially

software systems, through several diagrams that may

be used to model specific views of the system. UML

structural semantics provides elements for building a

domain model, class model, etc.; UML behavioral

semantics provides model elements for building

activity diagrams, state machines, and so on; UML

supplemental modeling semantic area provides

elements for Use Case models, etc. (OMG, 2015).

We consider that a system model should have at

least the following model views (Cruz, 2015):

Structural View – modeled by a domain model,

which contains the entities/concepts from the system

or domain being modeled; Functionality View –

modeled by a Use Case Diagram, providing a vision

of the system functionality modeled as use cases;

Behavioral View – provides a more or less formal

specification of the system behavior; Presentational

View – provides an abstract model of the system’s

user interface. Since UML doesn’t foresee this last

kind of models, screen mockups are typically used.

4 SPMDSL LANGUAGE MODEL

The language model proposed in this section,

besides considering the PMBOK as a foundation for

the ontology building process, incorporates concepts

drawn from Agile methodologies, the studied PM

tools, and existing PM ontology approaches. The

proposed ontology/DSL core language model

focuses on project management in use case driven

software development projects, and so it also

incorporates concepts from software modeling and

design, namely model elements from the UML

definition (OMG, 2015), although some of them

have been renamed to avoid confusion with other

concepts (e.g.: Actor, UseCase, DomainEntity).

4.1 Identified Language Elements and

the Proposed Core Language

Model

In this subsection, the main concepts and their

interrelationships, elicited from the PMBOK, Agile

methods, studied PM tools and existing PM

ontologies, overviewed in the previous section, are

put together in a diagrammatic form, to embody the

proposed ontology and core DSL model. This is

depicted in Figure 2 (some entity attributes are left

out of the diagram, for improved readability). The

rest of this section should be read with continuous

reference to the ontology presented in the figure.

A Project aggregates stakeholders, requirements,

work activities and tasks, that breakdown the

project’s work structure, use cases, domain entities,

system models and screens (interaction spaces).

A Team member is a stakeholder that has a

working role on the project. Working roles demand

skills, which are provided by team members. Other

Stakeholders may be actively involved in the project

or be positively or negatively affected by it, thus

having a role in the project. Stakeholders have

communication needs or demands (PMI, 2013).

Project requirements, which are proposed by

stakeholders, may specify a degree of importance.

Requirements have a priority level of fulfilment, and

may pass through a set of defined states, as depicted

in the state machine diagram of Figure 3 (this is

explained in the next subsection).

Common software processes are use case (UC)

driven, having requirements specified as use cases.

A UC represents a specific usage of the system from

the user’s point of view. Each UC is further detailed

by including or being extended by other UCs. UCs

can also be further detailed through the specification

of Use Case Activities, which represent activities

within a UML activity diagram, and may be

constrained by a precedence order and activity

preconditions. When specifying UCs, from

requirements, domain entities are also identified and

related with other domain entities and with UCs.

Actors (users playing a role in the system) interact

with UCs through interaction spaces. Within a UC,

one or more domain entity is manipulated (Cruz,

2015). A project also aggregates system models,

which take the form of a set of diagrams of some

type. In UC driven software processes, work

activities (work packages) are identified from the

UCs specified. Work activities and tasks, as defined

in the ontology, enable building a WBS for each UC.

So, when a UC is selected for development, being

included in an iteration, a set of work tasks must be

started by team members, and these also have a

precedence order.

SPMDSL Language Model - Onto a DSL for Agile Use case driven Software Projects’ Management

407

SPMDSL core model also enables tracing back

and forth between any project management

processual or work element (e.g.: iteration, work

activity, work task) and the use cases that specify the

project requirements that justify it, and ultimately

from the use cases to the requirements themselves.

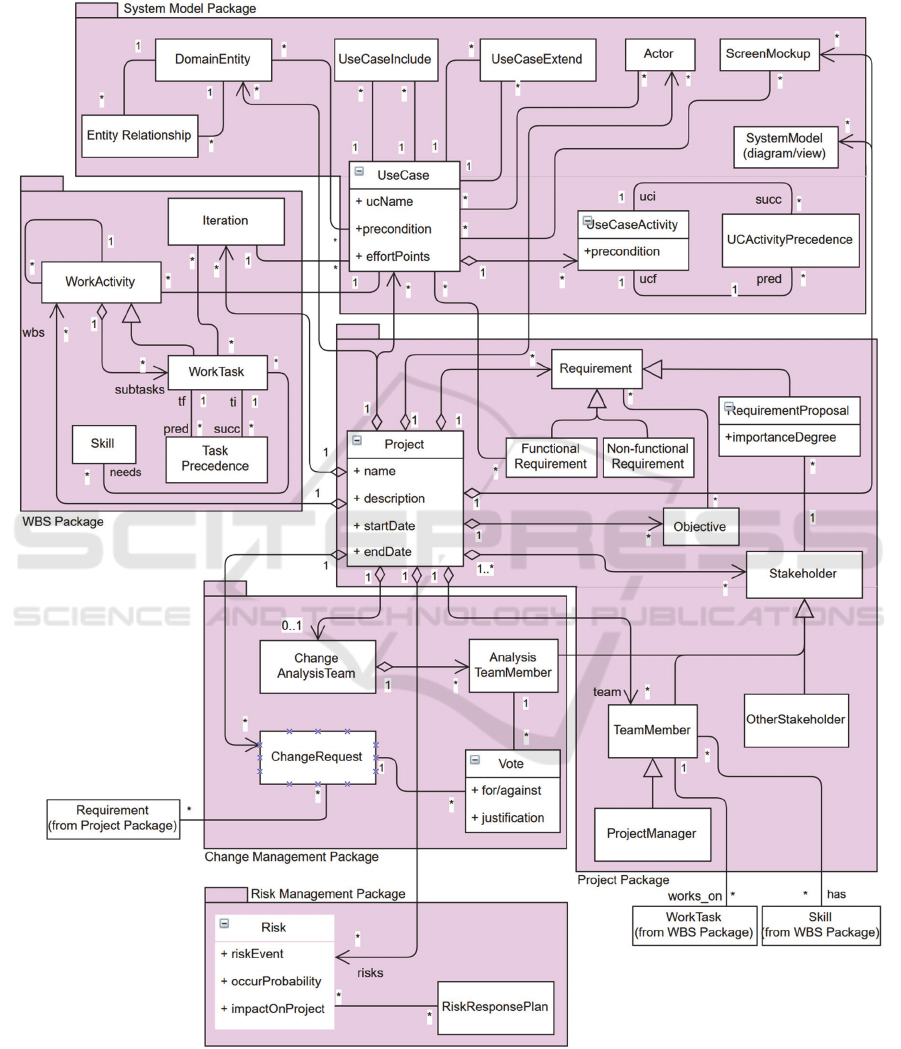

Figure 2: SPMDSL core language model/ontology.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

408

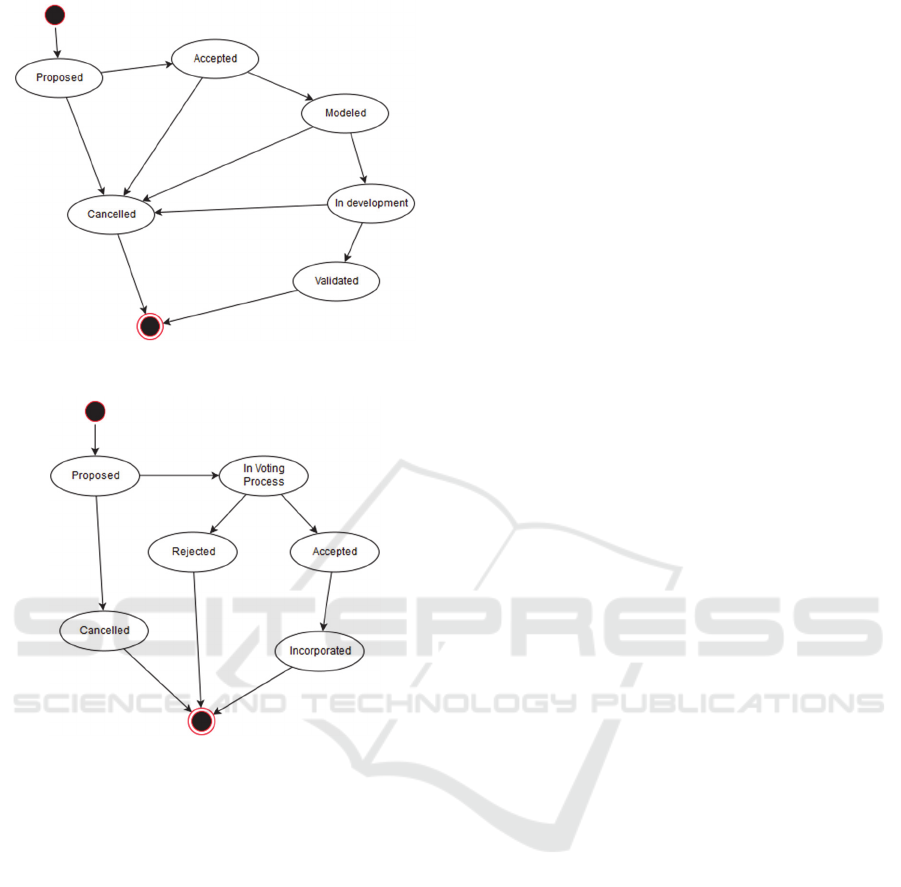

Figure 3: State-machine diagram for Requirement.

Figure 4: State-machine diagram for Change Request.

Note that the concept of use case, in a UC driven

software development project, is twofold. On one

hand, UCs specify user requirements. For this, they

may be further refined into more fine-grained use

cases and into activity diagrams, to specify system

level functions or packages of functionality (Cruz,

2015). On the other hand, use cases drive the

software development process, being selected for

development in each iteration. For this purpose, they

are detailed into work activities and work items,

which represent work that must be done to develop

the system for the functionality represented by the

UC. SPMDSL allows this two-folded vision of UCs.

A Change Request may be proposed by any

stakeholder, and may target one or more specific

requirements. As advocated by the PMBOK (PMI,

2013), a project may have a Change Analysis Team,

which is formed by the PM and other key

stakeholders, and is responsible for analyzing

change requests and deciding about their acceptance.

4.2 Model Constraints

The previous subsection presented the ontology/core

language model that underlies the proposed DSL.

However, for obtaining the SPMDSL language

model, some constraints need yet to be defined. This

subsection presents the needed constraints in the

form of state-machine diagrams and OCL.

As mentioned before, project requirements may

be proposed by stakeholders, and may have a set

degree of importance. Requirements have a priority

level of fulfilment, and they may pass through a set

of defined states, as depicted in the state machine

diagram of Figure 3. A Requirement Proposal is,

then, a Requirement in state “Proposed”.

A Change Request may be proposed by any

stakeholder and, if a Change Analysis Team exists,

may be voted on by members of the analysis team

and, as a result of that voting process, requests can

be accepted or rejected. Figure 4 shows the state-

machine diagram for Change Request.

Work tasks (WorkTask) may have a binary

precedence order between them (TaskPrecedence).

One must make sure that a work task is not preceded

by itself, in one or several steps. That is, it must be

illegal to define a work task as being transitively

preceded by itself. Being t1->closure(pred.ti) the set

of work tasks predecessors reachable from task t1 in

one or more steps, the following invariant constraint

must then be defined:

Context WorkTas

inv:

self->closure(wt : WorkTask |

wt.pred.ti)->excludes(sel

)

(1)

A similar invariant must be defined in the

context of UseCaseActivity, to prevent loops in

relation to UCActivityPrecedence.

As mentioned earlier, Work activities and tasks

allow to build a WBS (PMI, 2013), which is a tree

structure decomposing work. But only the leaves of

that structure, the work taks (work packages),

contain actual work to be done. These leaves don’t

have subtasks, and the binary precedence order,

TaskPrecedence, may only be defined on these kind

of work activities, as stated by the next invariant:

Context TaskPrecedence inv:

self.ti.subtasks->isEmpty()

and self.tf.subtasks->isEmpty()

(2)

Other constraints are needed, including one to

ensure that complete use cases are selected for

implementation in each iteration, and that every

work package of the selected use cases must be

automatically associated to the same iteration. A

SPMDSL Language Model - Onto a DSL for Agile Use case driven Software Projects’ Management

409

work package may, though, be also associated to

ulterior iterations, when they are postponed. Lack of

space impedes us to present these constraints here.

5 CONCLUSIONS

This paper has focused the language model

(metamodel/ontology), and its construction process,

of SPMDSL, a domain specific language for the

domain of agile use case driven software projects’

management. Per the Ontology building

methodology set by Uschold and King (1995), and

the DSL development process proposed by

Strembeck and Zdun (2009), the ontology capture

has been based on a domain analysis which involved

the identification of key concepts and relationships.

This has been made essentially from the PMBOK,

Agile methods, and UML. Then, from studied PM

Tools and ontologies, key terms and concepts were

identified and related to the previously known ones.

Guidelines for evaluating the ontology/language

model built, involve making a technical judgement

with respect to a frame of reference (Uschold and

King, 1995; Strembeck and Zdun, 2009). For this,

SPMDSL has been used as basis for developing two

prototype applications for the domain of use case

driven software project management (Ribeiro, 2015;

Barros, 2016). A comparative discussion between

the developed prototype and the studied PM tools

can be found in (Ribeiro, 2015).

The proposed DSL enables the description of

software project management artefacts, facilitating

the archiving and easy retrieval of these artefacts for

closed projects, contributing to a more effective

sharing of lessons learned and good practices from

previous projects within an organization or among

organizations in the software projects domain.

SPMDSL’s language model also aims to

contribute for establishing a common language for

use case driven software projects’ management and

to contribute to a complete Software PM Ontology.

Besides a well-defined Language Model, a DSL

needs a concrete language syntax or notation.

SPMDSL concrete notation is based on XML. This

suffices for representing past projects’ information

and serving as an exchange language between

software PM tools. Possible future research

directions may include the establishment of a more

human-readable concrete notation for SPMDSL.

REFERENCES

Abels, S., Ahlemann, F., Hahn, A., Hausmann, K.,

Strickmann, J., 2006. PROMONT - A Project

Management Ontology as a Reference for Virtual

Project Organizations. In OTM 2006 Workshops (vol.

1, pp. 813-823), Montpellier, France, Oct 29 - Nov 3.

Ambler, S.W., 2001, A Closer look at Extreme Modeling,

www.drdobbs.com/xm/184414729. Acc. 15April ‘16.

Aramo-Immonen, H., 2009. Project Management

Ontology – The Organizational Learning Perspective.

(PhD Thesis). Tampere Univ. of Technology, Finland.

Barros, A., 2016. Agile Management System for User

Requirements Mappable into Software Models. Project

Report, I. Politécnico de Viana do Castelo, Portugal.

Beck, K., 2004. Extreme Programming Explained:

Embrace Change. Addison-Wesley, 2

ed., Nov. 26.

Curran, K., Flanagan, L., Callan, M., 2004. PMXML: An

XML Vocabulary Intended for the Exchange of Task

Planning and Tracking Information. Information

Technology Journal; 3 (2): pp. 192-195.

Cruz, A.M.R., 2015. Use Case and User Interface Patterns

for Data Oriented Applications. In: Hammoudi, Pires,

Filipe, Neves (Eds.), MODELSWARD‘14, Revised

Selected Papers, CCIS, vol. 506, p. 117-133, Springer.

DIN, 2009. DIN 69901-4 Project management - Project

management systems - Part 4: Data, data model,

Deutsches Institut für Normung. http://www.din.de.

Moody, D. L., 2009. The “Physics” of Notations: Towards

a Scientific Basis for Constructing Visual Notations in

Software Engineering. In IEEE TSE, vol. 35, no. 5.

OMG, 2015. OMG Unified Modeling Language (OMG

UML). Version 2.5, March 2015.

PMI, 2013. A Guide to the Project Management Body of

Knowledge (PMBOK, 5th ed.), P.M.I., PA, USA.

PMI, 2015. Lexicon of Project Management Terms–

Version 3.0, Project Management Institute, PA, USA.

Sheeba, T., Krishnan, R., Bernard, M., 2012. An Ontology

in Project Management Knowledge Domain. Int’l

Journal of Computer Applications, vol 56–no 5, Oct.

Strembeck, M., Zdun, U., 2009. An approach for the

systematic development of domain-specific languages.

In Software-Practice and Experience, vol. 39, pp.

1253-1292. John Wiley & Sons, Ltd.

Ribeiro, G.G.G., 2015. Software para Gestão de Projetos

de Software. (MSc Thesis, in portuguese), Instituto

Politécnico de Viana do Castelo, Portugal.

Uschold, M., King, M., 1995. Towards a Methodology for

Building Ontologies. Workshop on Basic Ontological

Issues in Knowledge Sharing.

Palmer, S.R., Felsing, J.M., 2002. A Practical Guide to

Feature-Driven Development. NJ, Prentice-Hall.

De Luca, J., n.d.. Feature Driven Development Overview,

www.nebulon.com/articles/fdd. Accessed 15Apr 2016.

Schwaber, K., Sutherland, J., 2016. The Scrum Guide.

July 2016. Available at http://www.scrumguides.org/.

Voelter, M., 2013. DSL Engineering: Designing,

Implementing and Using Domain-Specific Languages.

Available at http://dslbook.org/.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

410
