Multi-agent Coordination using Reinforcement Learning

with a Relay Agent

Wiem Zemzem and Moncef Tagina

COSMOS Laboratory, National School of Computer Science, University of Manouba, Tunis, Tunisia

Keywords:

Distributed Reinforcement Learning, A Cooperative Action Selection Strategy, A Relay Agent, Unknown and

Stationary Environments.

Abstract:

This paper focuses on distributed reinforcement learning in cooperative multi-agent systems, where several

simultaneously and independently acting agents have to perform a common foraging task. To do that, a

novel cooperative action selection strategy and a new kind of agents, called ”relay agent”, are proposed.

The conducted simulation tests indicate that our proposals improve coordination between learners and are

extremely efﬁcient in terms of cooperation in large, unknown and stationary environments.

1 INTRODUCTION

Reinforcement learning (RL) negotiates the problem

of how an agent can learn by interacting with its en-

vironment and observing the results of these inter-

actions. It is an important technique for automatic

learning in uncertain environments. Though it has

been applied to many domains widely, the multiagent

case has not been investigated thoroughly. This is due

to the difﬁculty of applying the theory of the single-

agent RL to the multi-agent case and it becomes much

harder when dealing with more complex problems,

like cooperative learning in distributed systems (Par-

talas et al., 2008). It’s the main focus of the current

paper: we aim to coordinate a group of autonomous

agents in order to perform a cooperative foraging task

in a distributed manner.

Many existing works dealing with distributed co-

operative systems use independent learners (ILs).

These learners are called independent since they learn

independently from each other without taking into ac-

count the behaviors of the other agents (Torrey and

Taylor, 2012). They hence bring the beneﬁt of a state

space size independent of the number of agents but

suffers from the lack of multi-agent coordination. A

direct communication between ILs is, therefore, use-

ful in order to ensure knowledge sharing and transfer

among them.

As examples, the policy averaging (PA) method

(Tan, 1997) and the experience counting (EC) method

(Cunningham and Cao, 2012) are proposed as shar-

ing strategies that are adopted by all agents in the en-

vironment. Results show that these sharing methods

expedite learning and outperform independent learn-

ing methods. However, they assume that each agent

knows how many other agents are in the environ-

ment and has enough memory to store the informa-

tion learned by each of them. In real situations where

agents are robots and take on a physical form, these

assumptions may prove to be unrealistic. In addition

to that, at each learning iteration, all state/action pairs

are evaluated and updated after querying other agents

for their entire Qtables and, at the end of each step, all

agents will have the same stored data. Again, these

updates and information exchange are computation-

ally intensive, especially in the case of a large number

of agents and/or a large size of the environment.

Another method, called D-DCM-MultiQ (Guo

and Meng, 2010), seems to be more interesting than

these latter. By this approach, each agent stores a

simple QTable, like a single-agent system, and at

each learning step, it only updates the current ex-

perimented state/action pair using its own informa-

tion in addition to those of its local neighbors. The

multi-agent cooperation is then ensured with a lit-

tle amount of stored and exchanged data. However,

this method suffers from some limitations, namely the

non-continuous spread of the goal’s reward causing

the blockage of learning and even the no completion

of the assigned task. Our previous work, presented

in (Zemzem and Tagina, 2015), deals with the same

problem but in non stationary environments. The pro-

posed approach sort previous knowledge according

to the moment of its last modiﬁcations and uses the

Zemzem, W., Tagina, M. and Tagina, M.

Multi-agent Coordination using Reinforcement Learning with a Relay Agent.

DOI: 10.5220/0006327305370545

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 1, pages 537-545

ISBN: 978-989-758-247-9

537

information of the next state instead of the current

one, which increases the amount of stored informa-

tion and needs additional calculations. Using our pre-

vious approach, a satisfactory result was approved in

the case of dynamic environments. However, a sim-

pler and less costly approach can be adopted when

dealing with only stationary environments: this is the

objective of the current paper.

Several propositions have been made in the

present manuscript in order to overcome the short-

comings of the D-DCM-MultiQ method and improve

multi-agent learning in large, stationary and unknown

environments. The main contributions of this paper

are presented in the following points:

• In order to overcome the limitations of the D-

DCM-MultiQ method, the action selection strat-

egy is not only based on the own information

of the learner, but also on the information of its

neighbors which increases the efﬁciency of the

choice. In this regard, a new cooperative action

selection strategy is proposed and evaluated. This

proposed method is derived from the ε-greedy

policy (Coggan, 2004). Using this latter, no mem-

orization of exploration speciﬁc data is required,

which makes it particularly interesting for very

large or even continuous state-spaces.

• As the communication between agents is local, an

agent can trap between two states (one state in-

side the communication range of the neighboring

agent and another state outside its communication

range). To this end, a second form of agent, called

”relay agent”, is designed to ameliorate the co-

operation between learning agents by storing all

learners’ information. When choosing the next

action to perform, each learning agent should es-

pecially exploit the relay’s backups if it is within

its neighborhood.

• To ensure an efﬁcient learning regardless of the

environment size and the communication range,

the relay agent must move randomly during the

whole learning phase in order to cover different

regions of the environment over time and ensure

the resolution of bottleneck situations in a timely

manner.

• A particular update of the relay’s knowledge is

suggested in order to optimize the size of the

stored data; for each state/action pair, the relay

agent stores only the most promising value of all

neighbors’ information related to this pair, instead

of saving all learners’ information. As a result, the

relay retains a single Qvalue for each state/action

pair, like a learning agent.

The rest of the paper is organized as follows.

Problem statement is described in Section 2. In Sec-

tion 3, the D-DCM-Multi-Q approach is presented

and brieﬂy reviewed. Section 4 is dedicated to present

our suggestions for improvement. Several experi-

ences are conducted in Section 5 showing the efﬁ-

ciency of our proposals. Some concluding remarks

and future works are discussed in Section 6.

2 PROBLEM STATEMENT

The learning problem is a cooperative foraging task in

a large, stationary and two-dimensional discrete envi-

ronment. As in (Guo and Meng, 2010) and (Zemzem

and Tagina, 2015), agents can perform four actions:

”left”, ”right”, ”up” and ”down” and their decisions

are only based on the interaction with the environ-

ment as well as the interaction with local neighbors. It

is assumed that all agents are initially in the nest, and

each agent can locate itself using its on-board sensors

such as encoders and can detect the target or obstacles

using sonar sensors. Each agent has limited onboard

communication range and can share its state informa-

tion with its neighbors that are within its communica-

tion range.

The foraging task may be abstractly viewed as a

sequence of two alternating tasks for each agent:

• Start from the nest and reach the food source (For-

aging Phase). In this case, the learning method is

applied.

• Start from the food source, laden with food, and

reach the nest (Ferrying Phase). Every time one

agent ﬁnds the food source, it will wait for other

agents to reach the target (Waiting Phase). Once

all the agents ﬁnd the food source, they start a

collective transport phase. As agents must follow

the same path, they select the shortest path among

all agents’ foraging paths (Zemzem and Tagina,

2015).

To provide agents with distributed RL, we use a

model close to Markov Decision Processes (MDPs).

It is a tuple of (n,S, A, T, R), where n is the number of

agent’s neighbors. S is a set of states which is deﬁned

as S = [s

, .., s

], where m is the number of states each

of which is identiﬁed by the coordinates (x, y). A is a

set of actions available to an agent which is deﬁned as

A = [a

, .., a

]. R : S× A −→ r is the reward function

for an agent and T is a state transition function (T is

a probability distribution over S) (Bruno C. Da Silva,

Eduardo W. Basso, Ana L. C. Bazzan, 2006).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

538

3 A REVIEW OF THE

D-DCM-MultiQ METHOD

D-DCM-MultiQ is a distributed reinforcement learn-

ing method for multi-agent cooperation (Guo and

Meng, 2010). To update its Q-value at a state s

, the

agent uses its own Q-value at that state as well as

the Q-values of its neighboring agents at the next state

s’

(see Eq.1).

k+1,i

, a

) = (1− α

k,i

, a

) + α

∗

k,i

, a

) +

∑

j=1

max

k, j



′

, a



(1)

As noted in (Guo and Meng, 2010), Q

k+1,i

, a

)

represents the new Q-value of the i

agent after exe-

cuting action a

at state s

and receiving the immediate

reward R

k,i

, a

). α is the learning rate, γ is the de-

caying factor and N is the neighbors’ number of the

agent.

As to the action selection strategy, the Boltz-

mann policy (Coggan, 2004) was applied in (Guo and

Meng, 2010). At any state s, action a is selected ac-

cording to the following probability:

Q(s,a)

∑

Q(s,a)

(2)

where T, called temperature, decreases over time

according to the rule of T =

b+1

. b is the number of

tasks being ﬁnished by an agent.

According to Eq.1, the experiences of neighboring

agents is incorporated into the Q-value of the i

agent

through a weighted linear combination of their state

values. So, each agent can learn from the previous

experiences of its neighbors. However, these incor-

poration isn’t always advantageous. In the contrary,

the following problems can occur when applying the

D-DCM-MultiQ method:

• Impossible cooperation in the case of obstacle

avoidance scenario: If an agent A

hits an ob-

stacle and gets a penalty, it saves this experience

into its state value. When the same scenario oc-

curs to another agent A

and agent A

is within its

neighborhood, A

can’t proﬁt from the previous

experience of its neighbor to avoid that obstacle

since the multi-agent cooperation is only available

when updating a state-action pair (s, a). However,

according to the RL concept, this update is only

occurring after experiencing the action a in the

state s. A

could take advantage of prior knowl-

edge of its neighbor A

if the cooperation was in-

corporated in the choice of the next action to per-

form, but this was not the case of the Boltzmann

policy.

• Blockage of learning: By exploiting the knowl-

edge of its neighbors when updating each state/

action pair, an agent can spread promising in-

formation (related to the food source) to inter-

mediate states even before detecting the target.

This will lead to a non-continuous spread of the

goal’s reward from the food source to the nest

area. The agent can then trap between two inter-

mediate states because only its own information

is used when choosing the next action to perform.

As the Boltzmann temperature decreases, the ex-

ploration rate also decreases and the opportunity

to reach the target becomes increasingly difﬁcult.

This blockage is indeed due to an insufﬁcient co-

ordination between agents. Increasing exploration

can solve these situations but prevents the system

from constantly taking the best solution after con-

vergence.

In the next section, we will present our sug-

gestions to overcome these impasses, especially the

proposition of a cooperative action selection strategy

and the introduction of a new form of agent, called

”relay agent”, to improve the information exchange

between learners.

4 OUR PROPOSALS FOR

IMPROVING MULTI-AGENT

COORDINATION

When using the Qvalues of all existing agents in

the neighborhood, some of these values may be not

promising before the convergence of the learning al-

gorithm. For a better backward propagation of the

goal’s reward, a useful update of the Qvalue can be

obtained by using only the information of the agent

having the highest Qvalue in the next state. In this

case, equation (1) becomes:

k+1,i

, a

) = (1− α

k,i

, a

) + α

∗

k,i

, a

) + γmax

′

(max

k, j



′

, a

′



)) (3)

where agent j refers to agent i or one of its neigh-

bors.

Multi-agent Coordination using Reinforcement Learning with a Relay Agent

539

4.1 First Proposal: A Cooperative

Action Selection Strategy

To ensure that each agent gets the most out of its

neighborhood information, one possible solution is to

exploit this information in the action choice in addi-

tion to when updating the state/action values. Thus,

each agent chooses the next action to perform based

on its own information as well as the information of

its neighbors.

As a result, a new cooperative action selection

strategy, called CG-LRVS (Cooperative Greedy pol-

icy based on Least Recently Visited States), is pro-

posed. It’s deﬁned by Eq.4.

action

CG−LRVS











argmax

∗

(s, a) with probability ε

argmax

∗

(s, a) and

leadingtotheleast

recentlyvisitedstate with probability (1− ε)

(4)

where

∗

(s, a) | = max

rob

(s, a)| (5)

and rob refers to each agent in the communication

range, including the agent itself.

For each pair (s, a), max

rob

(s, a)| refers to

the largest absolute value of Q(s, a) of all agents in

the neighborhood. Once the agent selects the most re-

liable Qvalue of each available action in the current

state s (Q

∗

(s, a

), ..., Q

∗

(s, a

)) by using the absolute

value and exploiting the information of all its neigh-

borhood, it then applies the Boltzmann policy to se-

lect an action among all available ones.

The absolute value is particularly considered in or-

der to determine the action leading to an obstacle that

has already been tested by at least one agent. Thereby,

this obstacle can be avoided without being really ex-

perimented, which makes possible the cooperation in

the case of obstacle avoidance scenarios. The follow-

ing scenario is presented for further explanation:

Consider that a penalty of −90 is received by an

agent if it hits an obstacle and (s

, a

) is a state/action

pair leading to a collision. At time step t, an

agent R

is in the state s

and has a neighboring

agent R

; If the transition (s

, a

) is already exper-

imented by R

, a

) = −90) and not yet by

, a

) = 0). Without using absolute val-

ues, max

, a

), Q

, a

)) = max

(−90, 0) =

0. As a result, R

can choose the action a

and

make a bad decision in spite of its previous knowl-

edge. On the contrary, by using the absolute

value, max

rob

(|Q

, a

)|, |Q

, a

)|)= max

rob

(| −

90|, |0|) = 90. R

will consider that the transition

, a

) has a value of −90 (Q

∗

((s

, a

) = −90). The

probabilityassigned to this transition, using the Boltz-

mann policy, will be lower than some other transitions

, b). Consequently, R

will avoid this obstacle and

chooses a more trusted action in that state.

The same scenario will take place if this transition

is already experimented by R

, a

) = −90)

and not yet by R

, a

) = 0): By exploiting the

knowledge of R

, R

will avoid the obstacle without

the need to experiment it before.

Finally, as explained in our previous work

(Zemzem and Tagina, 2015), exploiting least recently

visited states accelerates learning since it encourages

the agent to visit new and distant areas. This exploita-

tion is possible using a new table Anc : S 7→ N storing

the last visit of each visited state. Anc(s) = t means

that the last visit of the state s was occurred at the

learning iteration t. Each agent i saves one table Anc

and updates it as follows:

For each pair (s,a) ∈ S × A: Anc(s, a) = Anc

(s, a),

where j refers to the same agent or one of its neigh-

bors having the largest value of Anc(s, a) (see Eq.6).

j = argmax

agent

(Anc

agent

(s, a), Anc

neighbor

(s, a),

..., Anc

neighbor

(s, a)) (6)

4.2 Limits of Cooperative Action

Selection Strategies

Because of the limited communication range, each

agent can’t take advantage of promising information

of another agent unless it is within its neighborhood.

As a result, even by using cooperativeaction selection

strategy, the blockage still occur in the limits of the

communication range and can’t be solved if the other

agent is waiting at the food source. Other blocking

situations can occur during intermediate episodes (not

the ﬁrst one) after the propagationof the goal’s reward

to several non-consecutive states. In that case, all

learning agents can trap between intermediate states

before reaching the target and remain at this situation

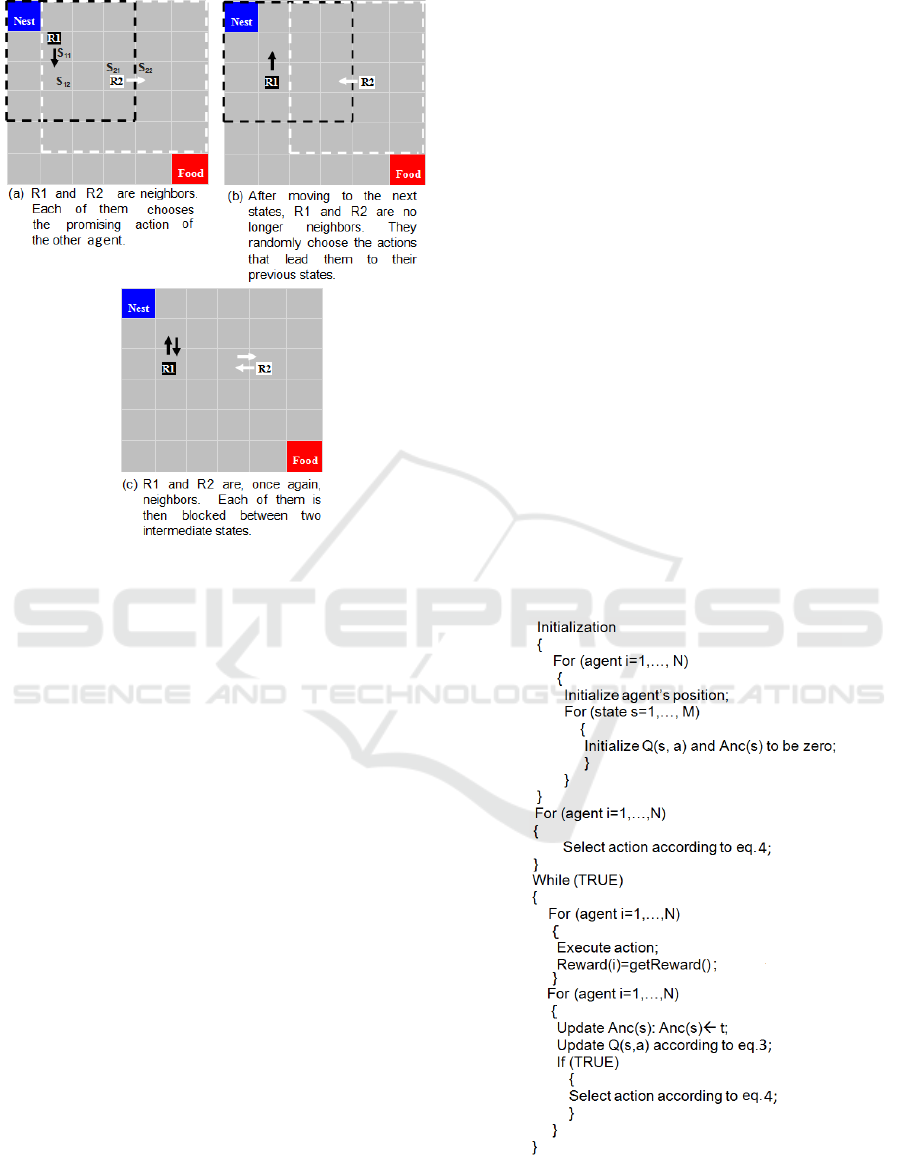

since no other agent can help them. Fig. 1 illustrates

this scenario. In this example, the communication

range is set to 3.

4.3 Second Proposal: Adding a ”Relay”

Agent

Our objective is to solve the problem of blockage

while maintaining the same properties of the D-DCM-

MultiQ approach namely, a model-free method and a

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

540

Figure 1: Failings of the ﬁrst proposal.

local communication range. To this end, we propose

to use a ”relay” agent storing the Qvalues functions

of all learning agents. Whenever a learning agent is

in the neighborhood of the relay agent, it transmits

its new function values to this relay agent. Thus, the

relay updates its old knowledge. Conversely, when

choosing the next action to perform, each learning

agent exploits, in preference, the information of the

relay if it is in its neighborhood. Otherwise, it uses the

knowledge of the neighboring learners. In the worst

case, if the neighborhoodis empty, the agent uses only

its own function values Q. Thus, by adding a ”relay”

agent, a learning agent can take advantage of promis-

ing information from another agent not necessarily in

its communication range. The same procedure is ap-

plied when updating the table Q and the table Anc (in

Eq. 3 and Eq6, j refers to the relay else neighboring

learners and in the worst case to the agent itself).

By this way, the blockage will be solved only in

the area inside the communication range of the relay.

As the relay’s communication is also limited, ﬁxing

the relay in a speciﬁc position is not promising; a

learning agent may be trapped between several states

that are not all covered by the relay nor by other learn-

ers. A better alternative is that, at each learning step,

the relay moves randomly and communicates with its

neighboring learners to update its stored information.

Using a moving relay, the blockage will be solved

whatever the size of the environment, the communi-

cation range and the number of learning agents. This

will be further explained in the experimental Section.

To avoid the storage of the Qtables of all learn-

ers, a reduction in the size of the relay’s informa-

tion is possible by retaining a single Qvalue for each

state/action pair, like a learning agent. For each pair

(s, a) ∈ S × A, the update of Q by the relay is then as

follows: Q(s, a) = Q

(s, a), where j refers to the relay

or one of the neighboring learners having the largest

absolute value of Q(s, a) (see Eq. 7).

j = argmax

(|Q

relay

(s, a)|, |Q

neighbor

(s, a)|, ...,

neighbor

(s, a)|) (7)

4.4 Algorithms’ Summary

Fig. 2 describes the learning procedure. Compared

to D-DCM-MultiQ, the novelty is in using the CG-

LRVS policy (Eq.4) for the action choice, the up-

date of the Q-value using only the information of the

agent having the highest Q-value in the next state

(Eq. 3), in addition to a slight modiﬁcation in the ex-

ecution of learning steps so that the learner uses the

same neighboring information to update the last expe-

rienced state/action pair as well as to choose the next

action to perform.

Figure 2: The pseudo code of the learner’s behavior.

The relay agent doesn’t use a learning approach.

Fig. 3 describes how it acts at each learning step.

Multi-agent Coordination using Reinforcement Learning with a Relay Agent

541

Figure 3: The pseudo code of the relay’s behavior.

5 EXPERIMENTS AND ANALYSIS

In this Section, we will evaluate the impact of our pro-

posals on distributed multi-agent decision-making.

As described earlier, the testing scenario is a coopera-

tive foragingtask with a static target. We aimto evalu-

ate the performance of our learning method in a wide

unknown environment. While the experiences done

in (Guo and Meng, 2010) are restricted to a 10 × 10

grid world, several experiences will be conducted in

what follows with varying the environment size, the

limit of the communication and the number of learn-

ing agents. The largest tested environnement contains

61 × 61 cells. It is then more than 37 times larger

than the environment which is considered in (Guo and

Meng, 2010).

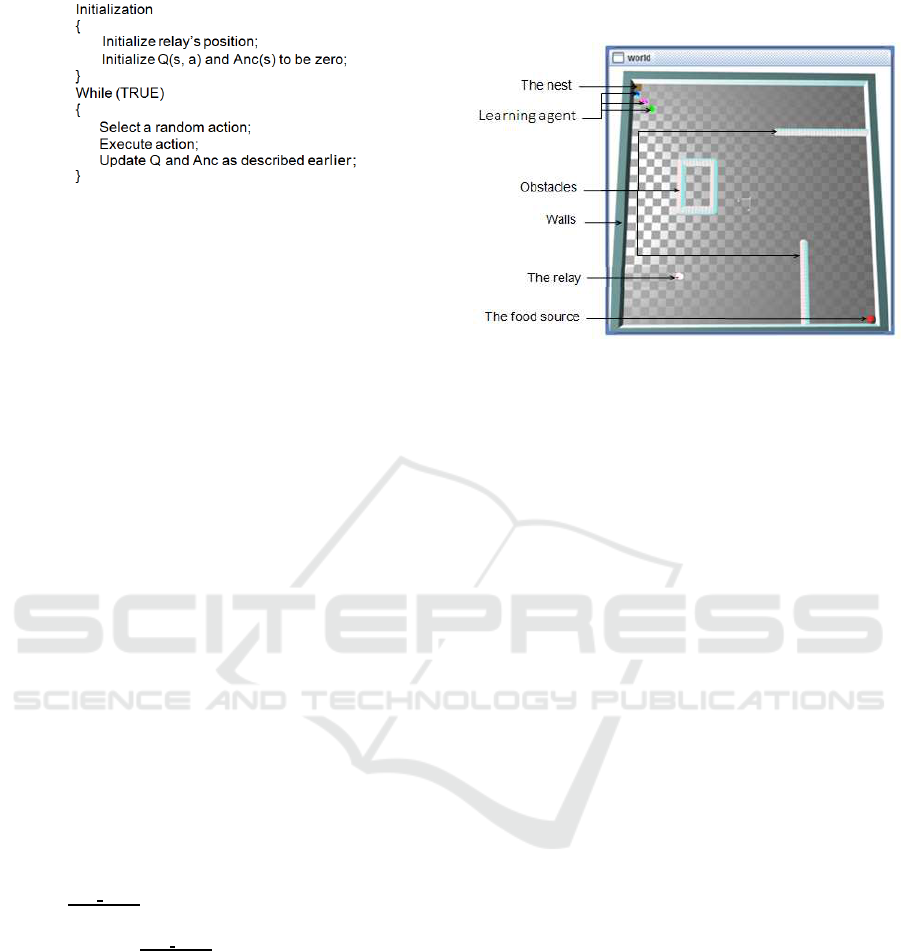

The testing environment is simulated using Sim-

bad, a Java 3d robot simulator (Hugues and Bredeche,

2006). A 30× 30 grid world is shown in Fig. 4. The

cell, called the nest, is the starting position. A ball,

situated at the bottom right corner, refers to the food.

The maze is surrounded by walls and contains obsta-

cles.

For all performed experiments, the Q-value of

each agent is setup to be zero initially. The explo-

ration rate is deﬁned as ε = 0.5. γ and α are de-

ﬁned as 0.9 for all agents. The neighborhood range

is set at

Grid

Width

for each agent. This means that two

agents can communicate when the distance between

them is less than

Grid

Width

cells (using the Manhattan

distance). It is assumed that agents can localize them-

selves within the grid map but they don’t know where

the target and obstacles are. The action set for each

agent are deﬁned as ”up”, ”right”, ”down” and ”left”.

Since it is a grid-based environment, we deﬁne the

actual position of the agent as its state variable. We

assume that every grid is large enough to contain sev-

eral agents at the same time. These parameter settings

and assumptions are used in (Guo and Meng, 2010) to

evaluate the D-DCM-MultiQ algorithm. Note that all

conducted experiences in the rest of the paper contain

only one relay which moves randomly and the size of

the multi-agent system corresponds to the number of

learning agents.

Figure 4: A 30× 30 grid world.

Finally, as we deal with a large state space, sev-

eral experiences have been made while varying the

goal’s reward and the best reward distribution is then

adopted. It is deﬁned as follows: r = 0 for regular ac-

tions, r = −90 for actions resulting collision with ob-

stacles and r = 18000 for actions leading to the food

source.

5.1 Result 1: The Impact of

Cooperative Action Selection on the

Learning Performance

In this Section, the proposed CG-LRVS policy (Eq. 4)

is evaluated. For that, two systems of three learning

agents are compared with varying the number and na-

ture of agents that cooperate when selecting actions in

each system:

• 1

system using a cooperative action selection

procedure (the agent exploits the relay’s informa-

tion if it’s within its neighborhood else all oth-

ers neighboring learners’ information and in the

worst case, only its own information) and a coop-

erative update of Q (Eq. 3).

• 2

system using a cooperativeupdate of Q (Eq. 3)

but without a cooperative action selection proce-

dure (the agent uses only its own information).

As described earlier, a minimum of cooperation

in the action selection policy must be satisﬁed in

order to avoid blocking situations and allow the

completion of the foraging task. For that, we keep

only one situation of cooperation between agents:

it’s when the relay and the learner are in the same

cell.

As shown in Fig. 5-a, learning is accelerated

through cooperative decisions. By exploiting more

knowledge in the choice of the next action to perform,

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

542

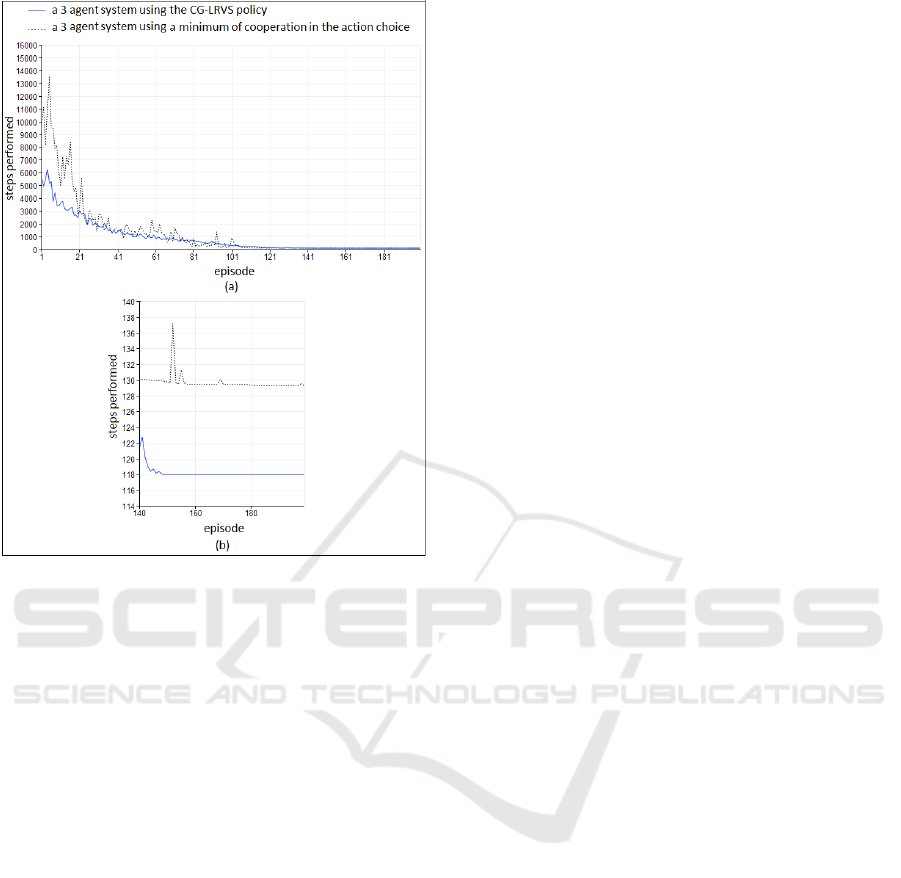

Figure 5: The average number of time steps needed on each

episode over time, with varying the level of cooperation dur-

ing the selection of actions (average of thirty experiences).

the chance to detect the food source at the earliest pos-

sible opportunity is increased and the length of learn-

ing episodes is therefore reduced. Moreover, com-

paring the learning curves in Fig. 5-b, the constructed

path is less efﬁcient when decreasing the cooperation

level between agents: the agent doesn’t beneﬁt from

other neighbors’ knowledge to optimize its own path.

That’s why the agents’ trajectories are often different

and haven’t the same length.

5.2 Result 2: The Impact of Modifying

the Size of the Environment, the

Number of Learning Agents and the

Communication Range on the

Learning Performance

It is of interest to understand the impact of modifying

the size of the environment, the number of learning

agents as well as the range of communication on our

proposed learning method. Speciﬁcally, we intend to

determine how the learning performance evolves in

addition to how the communication frequency is af-

fected.

To do that, several experiments are carried out

with varying the aforementioned elements. In each

experiment, results are calculated over 30 runs. The

reward is deﬁned as {−90, 0, 18000}.

The communication frequency measures how of-

ten information are transferred from one agent to an-

other. For each agent (relay and learner), the commu-

nication frequency (resp. Com-Freq-Relay and Com-

Freq-Learner) increases by 1 communication unit af-

ter receiving information from another agent. The

communication frequency of the entire system (Com-

Freq-System) is calculated by summing up the com-

munication frequency of all its agents.

We note that the communication frequency is only

recorded during the foraging phase. From the be-

ginning of learning, the relay moves randomly and

exchanges information with its neighboring learners.

Once the food source is reached by all learners and the

ferrying phase is started. Learning agents no longer

communicate with the relay. This latter remains mo-

tionless and stops communicating with its neighbors

until it is interrogated by one learning agent, which

means the beginning of a new foraging phase.

5.2.1 Learning Performance

Table. 1 records the conducted experiments, the num-

ber of episodes and the average number of time steps

required for the convergence of the system in each

studied case.

It can be seen that, regardless of the size of the

environment and the limit of the communication, the

number of episodes and time steps needed before

ﬁnding the optimal solution is decreased by increas-

ing the number of agents. Learning is also accelerated

by increasing the communication range; In the case of

the 30 × 30 grid world and with the same number of

agents, learning is expedited by raising the value of

the communication range. The same holds true for

the 61× 61 grid world.

5.2.2 Impact of Increasing the Communication

Range on the Communication Frequency

In this section, we aim to study the impact of increas-

ing the communication range on the communication

frequency. For that, two systems of several agents are

tested:

• In the 1

system, a 30 × 30 grid world is consid-

ered with varying the communication range from

5 to 10. The results are shown in Fig. 6.

• In the 2

system, a 61× 61 grid world is consid-

ered with varying the communication range from

10 to 20. The results are shown in Fig. 7.

After increasing the communication range (to 10

in the 1

system and to 20 in the 2

one), we note

Multi-agent Coordination using Reinforcement Learning with a Relay Agent

543

Table 1: This caption has one line so it is centered.

Marge

Com-

mu-

ni-

ca-

tion

Grid

Size

Num-

ber

learn-

ing

agents

Episodes

neces-

sary

for

con-

ver-

gence

Average

number of

time steps

needed for

convergence

(Mean val-

ues/Standard

error)

10× 10

2 24

3858.533±

88.33

4 14

2392.566±

60.611

8 8

1446.666±

41.632

30× 30

2 246

270440.566±

4141.963

4 158

208745.233±

3597.89

8 102

155556.566±

3473.187

12 74

122650.233±

2753.296

30× 30

2 189

215807.9±

3796.626

4 94

133714.566±

2745.421

8 54

79230.833±

1648.466

12 35

59355.966±

1352.006

61× 61

2 468

3.995·10

22891.716

8 208

2.314·10

18597.436

20 108

1.38· 10

13473.187

40 71

0.898·10

10298.942

that, in both cases, the difference between Com-Freq-

Relay and Com-Freq-learner becomes much greater

and that Com-Freq-Relay increases signiﬁcantly by

extending the number of agents, contrary to Com-

Freq-learner which increases much smaller in the 1

system (Fig. 6-a and Fig. 6-b) and even decreases in

the 2

one (Fig. 7-a and Fig. 7-b).

According to Fig. 6-b, we can see that in the case

of a 30 × 30 grid world, the increase of Com-freq-

learner is much smaller with Com-range=10 than that

with Com-range=5. Moreover, when the number of

learning agents exceeds 7, Com-Freq-Learner using

Com-range=10 is less than that using Com-range=5.

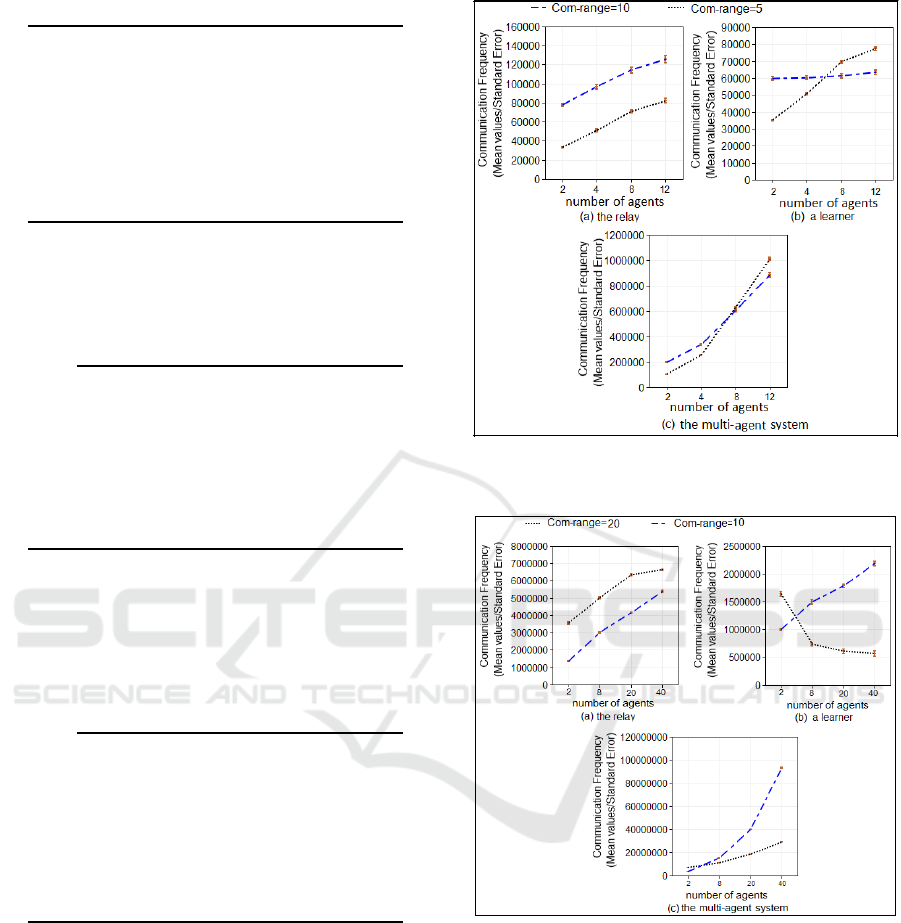

Figure 6: The impact of increasing the range of commu-

nication in the communication frequency (average of thirty

experiences in a 30× 30 grid world).

Figure 7: The impact of increasing the communication

range in the communication frequency (average of thirty ex-

periences in a 61× 61 grid world).

As a result, the communicationfrequencyof the entire

system is also decreased while the learning is accel-

erated. Fig. 6-c illustrates this result; if number-of-

agents> 7:

Com-Freq-Sys(Com-range=10)<Com-Freq-

Sys(Com-range=5)

The same holds true for the 61 × 61 grid world.

According to Fig. 7, we can see that with Com-

range=20, Com-Freq-Learnerdecreases by increasing

the number of learners. This is because the commu-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

544

nication with the relay is more favored which makes

the cooperation more efﬁcient. As a result, when the

number of learning agents exceeds 4, the communica-

tion frequency of the entire system is also decreased

while the learning is speeded up.

This justiﬁes again why our method outperforms

those storing all agents’ Qtables by each learner, as

EC (Cunningham and Cao, 2012) and PA (Tan, 1997).

Using these latter methods, each learning agent com-

municates with all its neighbors which will always

lead to the increase of Com-Freq-Sys. The gain made

by our proposed method is not limited to the commu-

nication frequency but other savings in memory and

computation are also ensured due to the decrease of

information saved and updated by each learner.

6 CONCLUSION AND FUTURE

WORKS

In this paper,a new distributed RL method for cooper-

ative multi-agent systems is proposed. Its is based on

a cooperative action selection policy and a relay agent

that accelerate learning and ensure a good multi-agent

coordination. However, to ensure an effective shar-

ing of information, this method ignores collisions be-

tween agents. We expect to further improve our work

by eliminating this restrictive assumption and trying

more complex scenarios. Possible test cases include

stochastic mazes (rather than deterministic mazes),

several targets, as well as continuous state spaces.

Real-world applications are usually characterized by

these complex elements.

ACKNOWLEDGEMENTS

This research received no speciﬁc grant from any

funding agency in the public, commercial or not-for-

proﬁt sectors.

REFERENCES

Bruno C. Da Silva, Eduardo W. Basso, Ana L. C. Bazzan,

P. M. E. (2006). Dealing with non-stationary environ-

ments using context detection. In the 23rd Interna-

tional Conference on Machine Learning, pages 217–

224. ACM Press.

Coggan, M. (2004). Exploration and exploitation in re-

inforcement learning. Research supervised by Prof.

Doina Precup, CRA-W DMP Project at McGill Uni-

versity.

Cunningham, B. and Cao, Y. (2012). Non-reciprocating

Sharing Methods in Cooperative Q-Learning Environ-

ments. In 2012 IEEE/WIC/ACMInternational Confer-

ences on Web Intelligence and Intelligent Agent Tech-

nology, pages 212–219. IEEE.

Guo, H. and Meng, Y. (2010). Distributed Reinforcement

Learning for Coordinate Multi-Robot Foraging. Jour-

nal of Intelligent and Robotic Systems, 60(3-4):531–

551.

Hugues, L. and Bredeche, N. (2006). Simbad: An Au-

tonomous Robot Simulation Package for Education

and Research. In International Conference on Simula-

tion of Adaptive Behavior, volume 4095, pages 831–

842. Springer Berlin Heidelberg.

Partalas, I., Feneris, I., and Vlahavas, I. (2008). A hy-

brid multiagent reinforcement learning approach us-

ing strategies and fusion. International Journal on

Artiﬁcial Intelligence Tools, 17(05):945–962.

Tan, M. (1997). Multi-agent reinforcement learning: in-

dependent vs. cooperative agents. In the tenth inter-

national conference on machine learning, pages 330–

337. Morgan Kaufmann Publishers Inc.

Torrey, L. and Taylor, M. E. (2012). Help an agent out:

Student/teacher learning in sequential decision tasks.

In Proceedings of the Adaptive and Learning Agents

Workshop 2012, ALA 2012 - Held in Conjunction with

the 11th International Conference on Autonomous

Agents and Multiagent Systems, AAMAS 2012, pages

41–48.

Zemzem, W. and Tagina, M. (2015). Cooperative multi-

agent learning in a large dynamic environment. In

Lecture Notes in Computer Science, chapter MDAI,

pages 155–166. Springer.

Multi-agent Coordination using Reinforcement Learning with a Relay Agent

545
