Memory Optimization of a Distributed Middleware

for Smart Grid Applications

Stephan Cejka

, Albin Frischenschlager

, Mario Faschang

and Mark Stefan

Siemens AG, Corporate Technology, Research in Digitalization and Automation, Siemensstraße 90,

1210 Vienna, Austria

AIT Austrian Institute of Technology GmbH, Energy Department, Donau-City-Straße 1,

1220 Vienna, Austria

Keywords:

IoT Application Management, Distributed Smart Grid Applications, Java Virtual Machine, Memory Optimi-

zation.

Abstract:

In order to exploit the full potential of IoT-enabled power distribution grids, Smart Grid applications are deve-

loped. Their operation on resource-constraint automation devices requires for memory optimized operation.

In this paper we present ﬁeld-approved operation and management solutions for Smart Grid applications, ba-

sed on a distributed middleware. We introduce a new entity to allow for dynamically loading Smart Grid

applications within one JVM. Presented experiments demonstrate the reduction of the memory footprint on

the physical device.

1 INTRODUCTION

Modern power distribution grids experience an Inter-

net of Things (IoT)-driven evolution. Power grid de-

vices (such as transformers, breakers, and switches)

evolve from former passively/manually operated de-

vices into communicating and interacting elements

(Yu and Xue, 2016). This evolution allows for a wide

range of novel applications with the purposes of efﬁ-

ciency increase and decarbonisation of the power sup-

ply system, as well as the creation of novel business

cases.

In the next sections, we introduce IoT-enabled po-

wer distribution grids, show the architecture of a fu-

ture smart secondary substation, and present the role

of Smart Grid applications on the substation level of

smart distribution grids. After that, we show how our

work has led us to a memory resource problem at the

substation-located automation component. We pro-

pose a memory optimization solution and an evalua-

tion in the sections afterwards.

1.1 IoT-enabled Power Distribution

Grids and the Role of Smart Grid

Applications

A wide range of IoT-enabled power grid devices (e.g.,

smart meters, smart breakers, electric vehicles, smart

storage systems) have already been introduced into

the market and being built into the Distribution, DER,

and Customer Premises domains (cf., domains of the

Smart Grid Architecture Model (CEN-CENELEC-

ETSI, 2012)).

A more economically and ecologically effective

and sustainable operation can be achieved by using

the modern power grid devices to actively operate

power distribution grids (Faschang et al., 2017). In

order to reach this goal, sophisticated functions and

services need to be developed, making use of ICT-

connected power grid components and external servi-

ces (e.g., forecasting, weather information) (Faschang

et al., 2017).

The evolution from passively operated to intelli-

gent secondary substations (iSSN) allows for these

novel functions (e.g., voltage and (re-)active power

control, distributed generation optimization, virtuali-

zation, or decentralized market interaction) by having

increased computational power and newly attained

communication. These functions are realized by dis-

tributed software components – so called Smart Grid

applications – primarily operated within the iSSN (Fi-

gure 1) (Faschang et al., 2017).

All these applications might be interlinked and in-

teracting through a common middleware, which in

our case is proprietary software called Gridlink.

Cejka, S., Frischenschlager, A., Faschang, M. and Stefan, M.

Memory Optimization of a Distributed Middleware for Smart Grid Applications.

DOI: 10.5220/0006350403310337

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 331-337

ISBN: 978-989-758-245-5

331

iSSN

Automation HW component

SW ecosystem

Apps

App

Manager

Data

Storage

SCADA

uplink

Apps

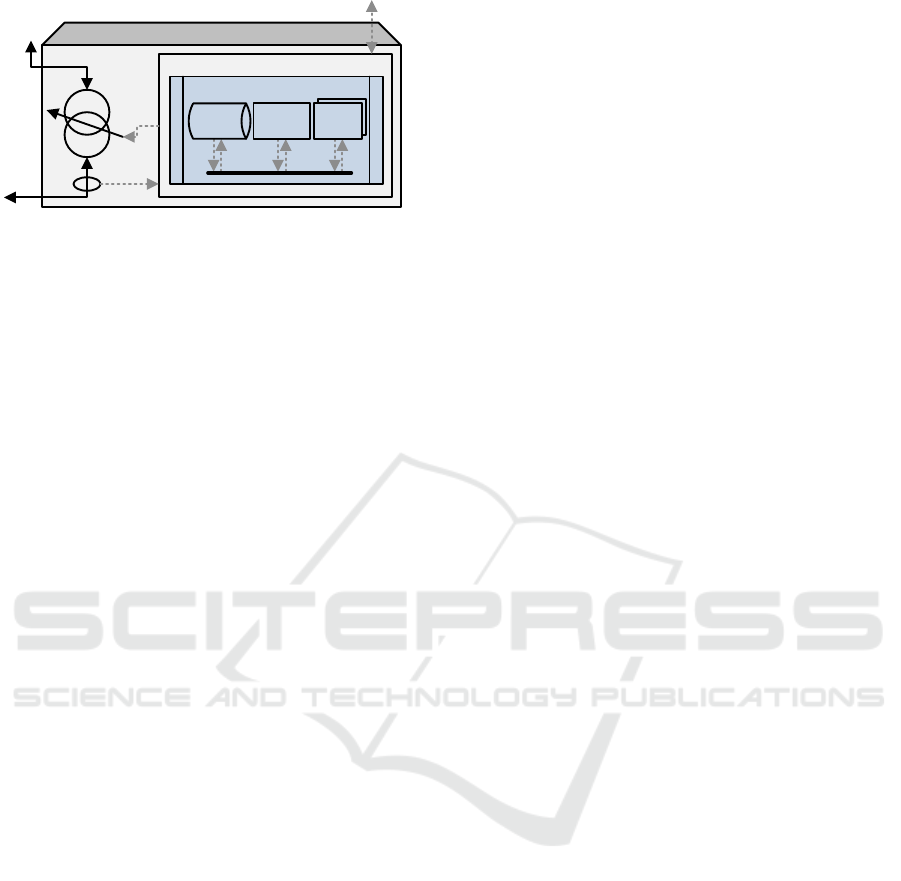

Figure 1: Architectural overview of the iSSN, contai-

ning power and communication links, a switchable medium

(MV) to low voltage (LV) transformer and an automation

hardware (HW) component – typically an industry-grade

computer – which operates the smart grid applications (Fas-

chang et al., 2017).

1.2 Memory Usage of Interacting

Distributed Applications

In our Smart Grid use case as well as in many other in-

dustrial applications, all of the interlinked Java appli-

cations currently run on one automation component

– an industry grade computer – each of them deman-

ding for a speciﬁc amount of computation and me-

mory resources. In the course of distribution grid di-

gitalization, thousands of substations need to be up-

graded. Consequently, the cost effectiveness of the

automation component is an important aspect. A large

number of IoT devices within an application pose for

a scalable middleware solution integrating provisio-

ning features.

These considerations can all be mapped to the IoT

concepts, where it is also required to achieve distribu-

ted functions by use of low priced components. The

requirements are almost the same: a distributed appli-

cation should be able to communicate with its parts,

terminologically called modules. The consequences

whether two modules are running on the same or on

independent devices should be limited. The hardware

platform to be used is not restricted, being a signiﬁ-

cant requirement in the heterogeneous world of IoT

devices. It needs however to be able to execute Java

SE programs and to have a main memory of at least

512 MB as yielded by ﬁeld test experiences.

1.3 Outline

In this paper we show that the desired modularity of

iSSN applications’ modules is somewhat contrary to

the limited computation resources that are available

and that our previous plans need to be adjusted by a

framework enhancement. In Section 2 we summarize

our previous work on iSSN applications, the Gridlink

and its provisioning features. Section 3 shows that

modularity jars with limited resources in the origi-

nal setup and introduces a framework enhancement

to comply. In Section 4, we compare the old with

the new solution and show that signiﬁcant savings in

resource consumption have been made. Section 5 ﬁ-

nally concludes this paper and shows possible future

work.

2 ISSN APPLICATION

FRAMEWORK

In previous work, we presented a ﬂexible and modular

software ecosystem for iSSNs including a communi-

cation infrastructure (Section 2.1) that allows for the

operation of distributed applications (Faschang et al.,

2016; Faschang et al., 2017; Cejka et al., 2016). Fi-

gure 1 shows the software ecosystem of the iSSN in-

cluding a data storage (Cejka et al., 2015) and the

AppManager with a remote uplink for allowing pro-

visioning features (Section 2.2). Other applications

include functions for

• acquisition, processing, and analyzing of ﬁeld

component measurement data (e.g., Smart Me-

ter measurements) (Faschang et al., 2016; Cejka

et al., 2016),

• linking the iSSN to the energy market (Gawron-

Deutsch et al., 2014; Gawron-Deutsch et al.,

2015), and

• making decisions, e.g., by a voltage controller

application able to switch the transformer’s tap-

changer based on historical and/or current data

(Einfalt et al., 2013; Cejka et al., 2016).

2.1 Gridlink

We introduced the Gridlink – based on vert.x and Ha-

zelcast – as a middleware solution for the iSSN (Cejka

et al., 2016; Faschang et al., 2017). It is – unlike many

typical IoT middleware solutions (e.g., listed in (Raz-

zaque et al., 2016)) – a distributed middleware with

the beneﬁt of not creating a single-point-failure within

the system.

Gridlink-based systems are built of several mo-

dules (written in Java), each of them communicating

with each other by exchanging messages. It uses a

distributed event bus based on an asynchronous com-

munication model, improves modules coupling with

new functions like a service registry, and enables pro-

visioning features. Modules run within their own Java

virtual machine (JVM), termed the node that dynami-

cally form a cluster of known instances during exe-

cution using multicast discovery. Modules are able

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

332

to join or leave at any time without inﬂuencing other

modules’ execution or communication. A cutback of

the overall function of the application on a module’s

failure is obvious, but can be limited by using redun-

dant modules and reasonable timeouts to react on fai-

led transmissions.

Message Exchange Gridlink message exchange in-

cludes the concepts of modules, roles/topics, and ser-

vices, shown in Figure 2. Modules act as a data

source by issuing messages to other Gridlink modu-

les. Messages (i.e., requests or events) are identiﬁed

by a type (e.g., createDataPoint), contain a desti-

nation address (e.g., the role storage) and may op-

tionally include a payload (e.g., the data point to be

created). They are either sent to a designated module

role address or published to a topic address reaching

all registered modules, usually being marshalled into

a JSON representation for transmission. Dedicated

proxies are executed after the module called the send

or publish command but before the message is really

transmitted. This allows for prior executing additio-

nal message processing steps, including the modiﬁ-

cation of a message (e.g., for encryption). The reci-

pient module, registered to the role or topic to which

the message was issues to, is the data sink. After the

respective proxies are executed on the recipient side,

e.g. for decryption, the received message is handed

over to the module’s service handler and processed,

which may include issuing a reply message to the

sender. Further process details and an in-depth des-

cription of Gridlink proxies are available in (Faschang

et al., 2017; Cejka et al., 2016).

StorageModule

storage

. . .

shutdown

createDataPoint

addMeasurement

getMostRecentValue

. . .

Figure 2: Modules, roles and services (Cejka et al., 2016)

A module StorageModule is registered for the roles storage

and shutdown. The role storage provides several services

(e.g., createDataPoint).

Gridlink Registry All modules have access to the

Gridlink Registry – a distributed list of all modules

that are currently attached and active. It includes all

roles/topics a module is registered to, a list of reque-

sts the according role/topic is able to handle, as well

as the proper format of these requests and of possi-

ble replies encoded in the JSON schema format. By

utilizing the Gridlink Registry, each module knows

at any time which modules are currently present and

can behave accordingly; by using the deﬁned message

schemata even components outside the Gridlink sy-

stem can establish communication to Gridlink modu-

les.

2.2 Provisioning

In ICT systems at some time it is necessary to install

new features, update applications, reconﬁgure them

or remove them at the end of their life cycle. These

steps are grouped under the term provisioning, requi-

ring – for cost efﬁciency – a functionality to initiate

these steps directly from the remote operator without

requiring staff on site.

iSSN

Utility Server

Webserver

BEMS-AA

App

Manager

Storage

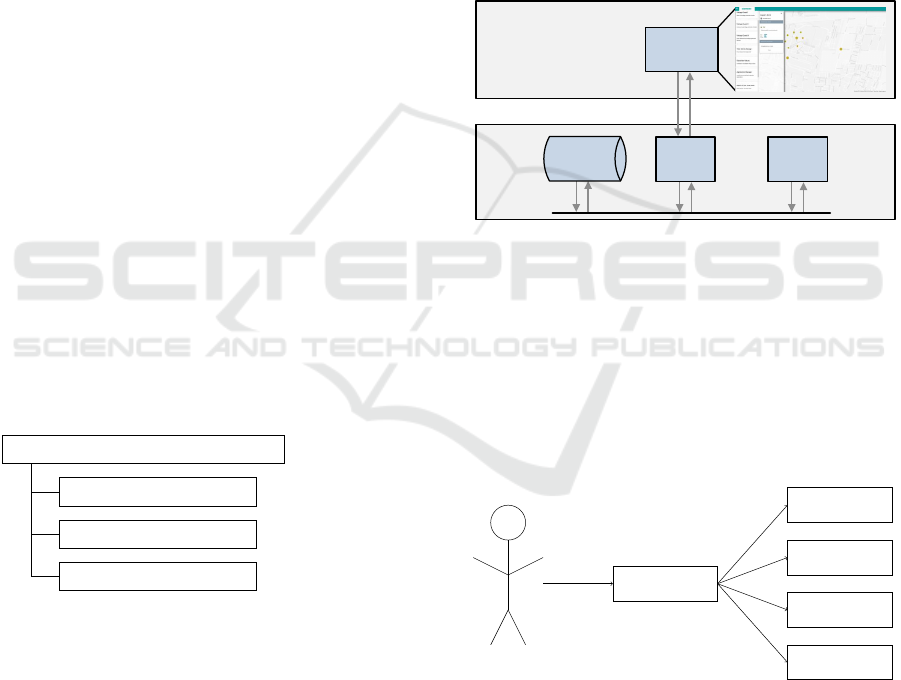

Figure 3: Provisioning tasks are initiated from the remote

site, e.g. by an operator’s dashboard, communicated to and

executed by the local AppManager module. Status informa-

tion is communicated back to the operator.

The AppManager module receives commands

from remote sites such as SCADA instances at the

operator (cf., Figure 3) and manages installation, con-

ﬁguration, updating, and removal of other modules.

Hence, these modules are termed managed modules

(cf., Figure 4).

Module A

Module B

Module C

Module D

User

starts

AppManager

starts

Figure 4: The AppManager and its managed modules

(Cejka et al., 2016).

While the modiﬁcation of a module’s conﬁgura-

tion shall not require a restart, an update of a module

to a newer version shall not lose the module’s current

state. As the AppManager itself is a normal Grid-

link module, it is able to communicate with any other

module. Since starting and stopping modules is tig-

htly connected with the AppManager, selected design

Memory Optimization of a Distributed Middleware for Smart Grid Applications

333

Node 1

AppManager

Node 2

Storage

Node 3

Module W

Node 4

Module X

Node 5

Module Y

Node 6

Module Z

Gridlink

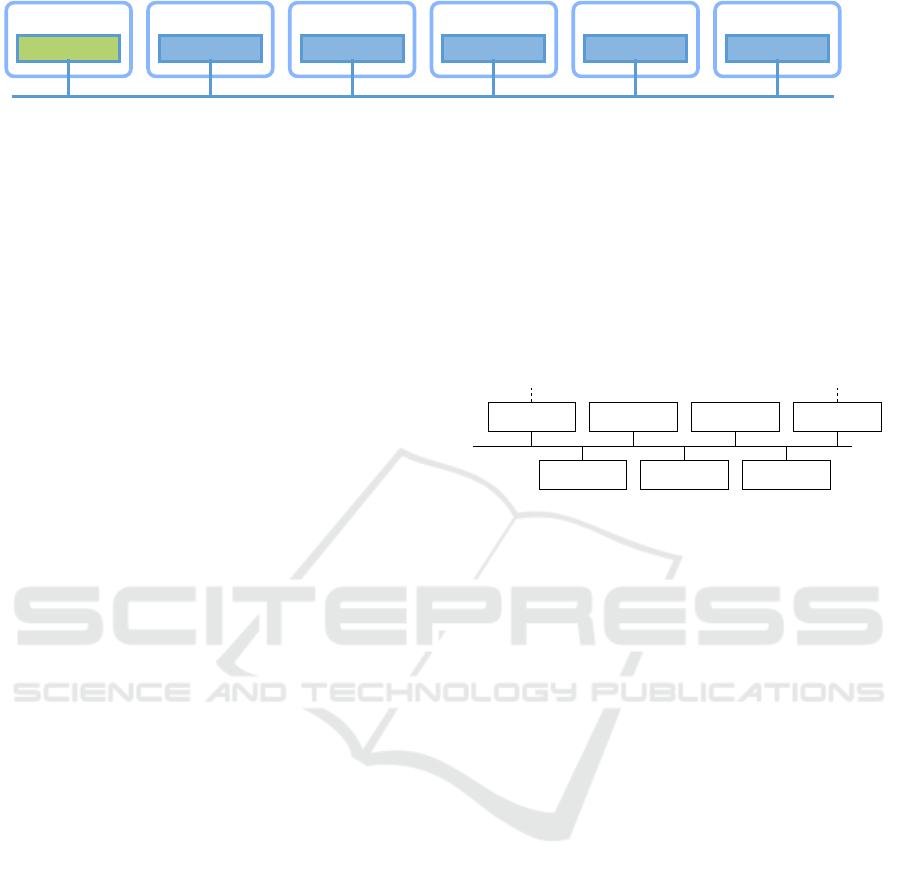

Figure 5: The current solution with one module per JVM/node.

choices of this software will be highlighted, to better

understand the later proposed solution.

Start-Up During the AppManager start-up, all

Gridlink modules in its managed directory are star-

ted – currently as a new Java process (cf., Figure 5).

These modules are then considered to be managed by

the AppManager.

Remote Installation After receiving an installation

command from the remote site and the respective do-

wnload of the new application, the content of the ar-

chive is extracted and started.

Conﬁguration Change Conﬁguration changes are

done directly on ﬁle system level. A new conﬁgu-

ration parameter value is written to the conﬁguration

ﬁle of the corresponding module which is automati-

cally notiﬁed.

Remote Uninstallation When a module shall be re-

moved, the AppManager sends a shutdown request

to the module and waits for the module to disappear

from the Gridlink Registry. On success, the module’s

directory is deleted from the ﬁle system. Otherwise,

the AppManager can be requested to kill the process

over its remote link.

3 OPTIMIZATION

The modularity of the approach requires running a

high number of various modules for small indepen-

dent tasks simultaneously. Previously, one Gridlink

node executed exactly one module (cf., Figure 5), i.e.

the AppManager initializes a new process for each

module it is managing, introducing a high overhead

in terms of main memory consumption. In conse-

quence, the number of required modules for a typical

Smart Grid use case is typically higher than the RAM-

constrained devices can host simultaneously, before

undesirable effects like trashing occur. The iSSN use

case (cf., (Cejka et al., 2016)), currently consisting

of seven modules being executed concurrently on the

same machine (cf., Figure 6), requires already more

than 800 MB of main memory, not available on the

target hardware platform. Furthermore, additional

modules are currently in development. Thus, a me-

chanism to execute multiple Gridlink modules in one

node and thus in one JVM process had to be develo-

ped (”scale up”). The proposed extensions shall ho-

wever not invalidate any of the Gridlink functions. It

shall be possible to run all modules as previously in-

tended, therefore decisions like the start-up of modu-

les, communication etc., should remain.

AppManager

Storage

Data Generator

Voltage

Problem Handler

Voltage Guard

OLTC

Controller

Dashboard

Interface

Gridlink

XMPP REST

Figure 6: iSSN use case scenario (Cejka et al., 2016).

To solve the described problem of excessive me-

mory consumption, a new Gridlink module – the

NodeManager – is proposed. It introduces the abi-

lity of managing multiple modules on the same node,

and thus, in the same JVM instance (Figure 7). To

avoid ambiguous use of the term ”managed”, we will

now distinguish between app-managed for manage-

ment by the AppManager, and node-managed for ma-

nagement by the NodeManager, respectively. The-

refore, the NodeManager is responsible for the mo-

dule’s start-up, provides a command line interface

to node-managed modules, and is able to undeploy

them. The process of application provisioning is nota-

bly inﬂuenced by the introduction of a NodeManager:

Start-Up The AppManager was introduced as an

unmanaged module (Cejka et al., 2016). However,

besides installing it on its own node (cf., Node 1 in

Figure 5), the AppManager now can – just like any

other module – be started parallel to and by a Node-

Manager – as a node-managed module (cf., Node 1 in

Figure 7). As in the old setup, all Gridlink modules in

the AppManager ’s managed folder are started during

its start-up by creating a new JVM process, including

a NodeManager module if it is contained in this folder

(cf., NodeManager on Node 2 in Figure 7). No spe-

cial handling is necessary, as the NodeManager com-

plies with the module structure conventions. On the

NodeManagers start-up, all Gridlink modules nested

inside its own managed subfolder are started within

the NodeManagers node/process (cf., the remaining

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

334

Node 1

AppManager

Storage

NodeManager1

Node 2

Module W Module X Module Y Module Z

NodeManager2

Gridlink

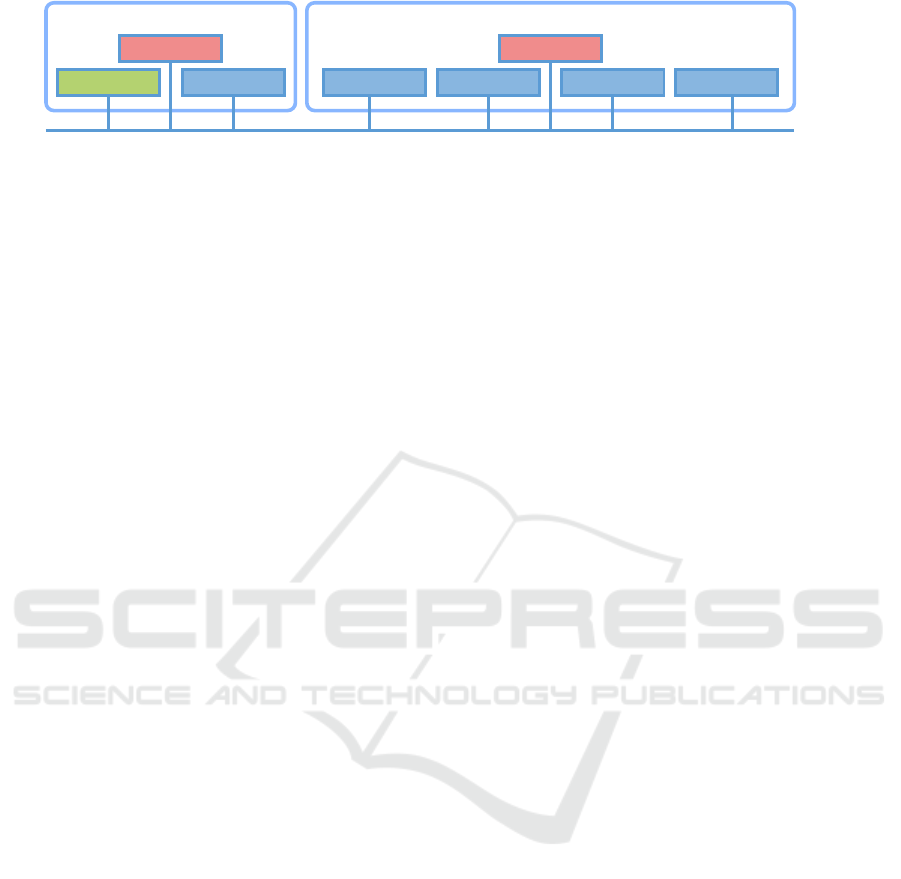

Figure 7: Solution with multiple modules on one JVM/node (”scale up”).

In this example it is decided to execute the AppManager and the Storage module on one node; all other modules together on

one other node, respectively.

modules on Node 2 in Figure 7). Special attention

has to be paid to libraries of these node-managed mo-

dules: Java does not allow for including two classes

with the same fully qualiﬁed name to the classpath.

By using an own class loader for each module, possi-

ble problems of inﬂuences between libraries are kept

to a minimum (cf., isolated bundles in OSGi (Geof-

fray et al., 2008; Gama and Donsez, 2009)).

Remote Installation The module’s conﬁguration

needs to include whether it shall be started traditio-

nally as its own process via the AppManager or on

an existing node next to a NodeManager. Based on

this decision, the artifact is extracted to the respective

directory. In the latter case the request to start the

module needs to be communicated to the respective

NodeManager module.

Conﬁguration Change Conﬁguration changes of a

module always reach the AppManager, which is re-

sponsible for the modiﬁcation of the JSON conﬁgura-

tion ﬁle. The location of a module’s conﬁguration ﬁle

depends on whether it is node-managed or not, as it

either is located in the NodeManager’s or in the App-

Manager’s managed directory. The AppManager in-

ternally knows all the modules it has started, but not

necessarily all modules started by other node mana-

gers (e.g. the Storage module in Figure 7). Howe-

ver, the AppManager is only responsible for its app-

managed modules and thus, all modules of which he

is capable of conﬁguration changes are known.

Remote Uninstallation In case of the node-

managed module’s refusal to shut down, the App-

Manager cannot kill the process as earlier, as this

would also shut down the NodeManager and every

other module on that node. It can however request the

managing NodeManager to stop the module, shifting

the responsibility. As for conﬁguration, for removal

of the module’s ﬁles the AppManager has to know

the directory location.

Summary In consequence, both AppManager and

NodeManager module are responsible for their ?-

managed modules. The difference is that app-

managed modules are started in their own JVM and

thus, have their own process; node-managed modu-

les are started beside the NodeManager in the already

existing process. Figure 7 shows both options:

1. NodeManager1 on Node 1 is an unmanaged mo-

dule, initially started.

2. It has started the Storage and the AppManager.

These two modules are node-managed modules –

managed by NodeManager1.

3. The AppManager on Node 1 has traditionally

started NodeManager2 as its own process on

Node 2. Therefore, NodeManager2 is an app-

managed module – managed by the AppManager

on Node 1.

4. Modules W, X, Y, Z may have either been star-

ted (node-managed) by NodeManager2 or by re-

quest of the AppManager to NodeManager2 (in

result being app-managed by the AppManager

and node-managed by NodeManager2).

As communication of all modules is done via the

Gridlink – and so are the start commands from the

AppManager to the NodeManager – the AppManager

is also able to request modules to be started on Node 1

by issuing requests to its own NodeManager1.

4 EVALUATION RESULTS

To show the impact of the new solution, we conducted

experiments using the iSSN use case shown in Fi-

gure 6. In the ﬁrst experiment, each of the seven

modules were started in their own JVM recording the

aggregated main memory consumption. The second

experiment uses the proposed NodeManager concept

to start all seven modules in one JVM.

Figure 8 compares the results of both experiments.

The data show that each JVM requires at least 100

MB main memory. Therefore, the start of the Node-

Manager module in the second experiment shows a

Memory Optimization of a Distributed Middleware for Smart Grid Applications

335

200

400

600

800

1000

Old New

MB RAM

NodeManager

AppManager

Storage

Dashboard Interface

Data Generator

OLTC Controller

Voltage Problem Handler

Voltage Guard

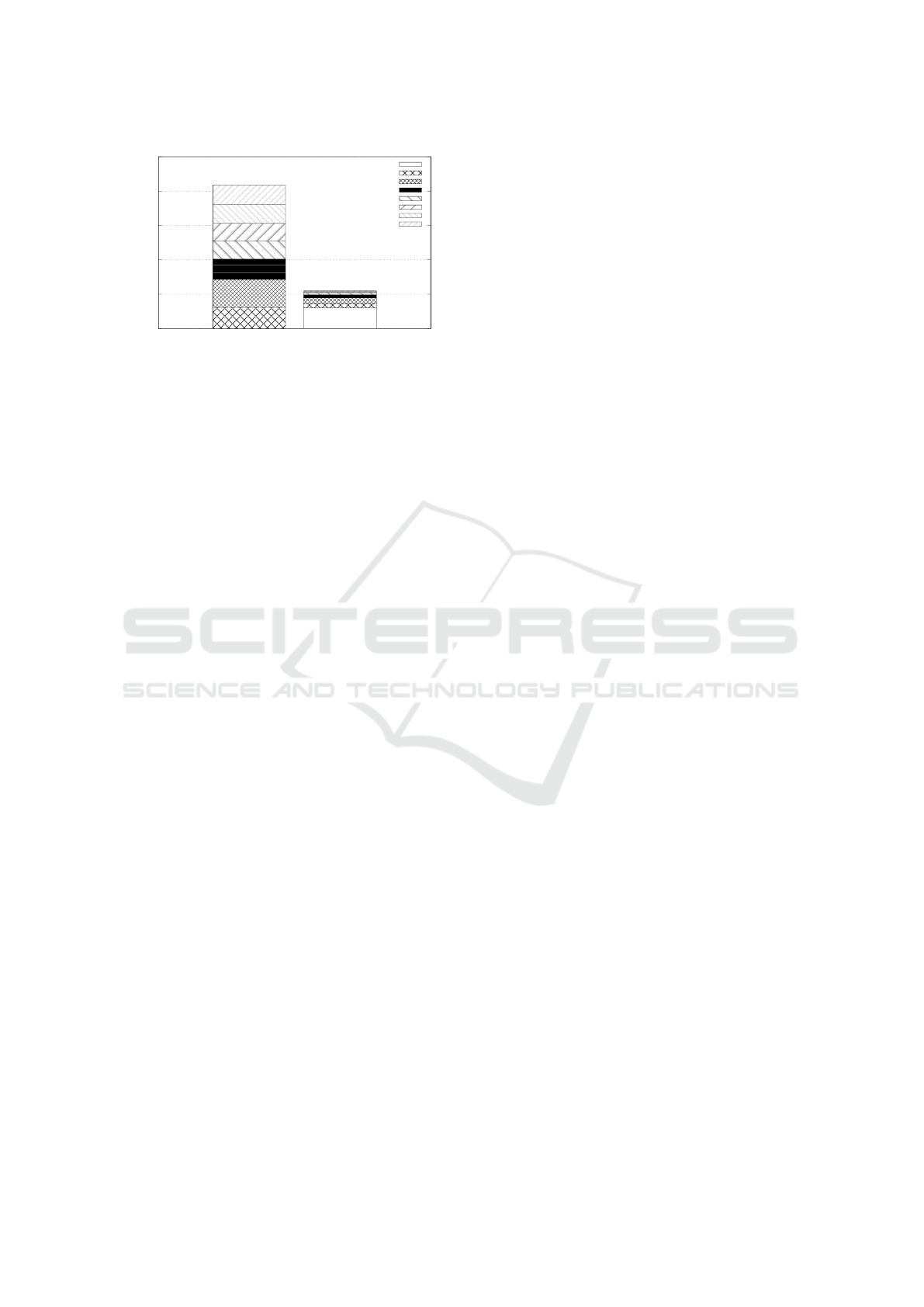

Figure 8: Evaluation results.

comparable memory consumption to each module in

the ﬁrst experiment. More speciﬁcally, for n modules

with their memory consumption for additional requi-

red libraries, its logic, and its data structures m

and a

(for simpliﬁcation assumed) constant amount of Grid-

link dependencies’ memory consumption c, the me-

mory consumption for the old solution was:

old

∑

i=0

(c + m

) = nc +

∑

i=0

The memory consumption of the new – Node-

Manager-based – solution requires Gridlink depen-

dencies to be load only once. This results in a sig-

niﬁcant reduction of the total memory consumption:

new

= c +

n+1

∑

i=0

Therefore, the higher the number of modules, the gre-

ater the difference of the required memory between

old and new Smart Grid application management so-

lutions becomes. However, when only one module

should be started on a host, the old system requires

less memory. This results from the NodeManager’s

memory requirements for its own logic and a small

Gridlink middleware overhead.

Note, that vert.x – and thus Gridlink – uses an

event bus thread shared between all modules running

on one node. While this was not signiﬁcantly relevant

for modules if another module got stuck or behaved

unexpectedly; the introduction of node management

makes this an important – and security relevant – as-

pect as one hanging module also affects all others on

the now shared event bus (Cejka et al., 2017). In con-

sequence, it could be preferred to move modules with

higher processor consumption or modules of which a

fast reply is necessary, lastly modules counted as fun-

damental, to their own node without using the Node-

Manager.

5 CONCLUSION AND OUTLOOK

Due to high memory usage of multiple modules run-

ning each on its own JVM instance, we introduced

a NodeManager, which can manage multiple Grid-

link modules within one JVM. This reduced memory

usage to a huge extent as dependency libraries are not

loaded twice. Therefore, no extra JVM-caused over-

head is introduced; additionally required main me-

mory just results from a module’s implementation.

We raised a potential problem by using modules

that block the event bus and thus block every other

module on the same node. As modules developed by

other parties are possible in our use cases, we need to

introduce the ability to certify modules in future work.

Joint operation of trusted and untrusted modules on

one node may be prohibited.

For various reasons it may be necessary to

run modules on different machines (”scale out”).

While Gridlink has always been able to communicate

beyond the barriers of physical machines, application

provisioning is more complicated in this setup. File

transfer to and process execution on the other machine

needs to be established, e.g. by the use of SFTP/SSH.

Being able to deploy applications on other machines,

various previously impossible use cases, such as load

balancing and the use of fault tolerant and standby

modules, are now achievable. Such functionalities are

future work, once needed in concrete use cases.

ACKNOWLEDGEMENTS

The presented work is developed in the Smart Grid

testbed of the Aspern Smart City Research (ASCR)

and conducted

(i) in the ”iNIS” project (849902), funded and sup-

ported by the Austrian Ministry for Transport, In-

novation and Technology (BMVIT) and the Au-

strian Research Promotion Agency (FFG), and

(ii) in the ”SCDA-Smart City Demo Aspern” project

(846141), funded and supported by the Austrian

Climate and Energy Fund (KLIEN).

REFERENCES

Cejka, S., Frischenschlager, A., Faschang, M., and Stefan,

M. (2017). Security concepts in a distributed midd-

leware for smart grid applications. In Symposium on

Innovative Smart Grid Cybersecurity Solutions 2017,

pages 104–108.

Cejka, S., Hanzlik, A., and Plank, A. (2016). A framework

for communication and provisioning in an intelligent

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

336

secondary substation. In 2016 IEEE 21st Internatio-

nal Conference on Emerging Technologies and Fac-

tory Automation (ETFA).

Cejka, S., Mosshammer, R., and Einfalt, A. (2015). Java

embedded storage for time series and meta data in

Smart Grids. In 2015 IEEE International Conference

on Smart Grid Communications (SmartGridComm),

pages 434–439.

CEN-CENELEC-ETSI (2012). Smart Grid Reference Ar-

chitecture. Technical Report, CEN-CENELEC-ETSI

Smart Grid Coordination Group.

Einfalt, A., Zeilinger, F., Schwalbe, R., Bletterie, B., and

Kadam, S. (2013). Controlling active low voltage dis-

tribution grids with minimum efforts on costs and en-

gineering. In 39th Annual Conference of the IEEE

Industrial Electronics Society (IECON), pages 7456–

7461.

Faschang, M., Cejka, S., Stefan, M., Frischenschlager, A.,

Einfalt, A., Diwold, K., Pr

ostl Andr

en, F., Strasser,

T., and Kupzog, F. (2017). Provisioning, deployment,

and operation of smart grid applications on substation

level. Computer Science - Research and Development,

32(1):117–130.

Faschang, M., Stefan, M., Kupzog, F., Einfalt, A., and

Cejka, S. (2016). ‘iSSN Application Frame’ – a ﬂex-

ible and performant framework hosting smart grid ap-

plications. In CIRED Workshop 2016. paper 255.

Gama, K. and Donsez, D. (2009). Towards Dynamic Com-

ponent Isolation in a Service Oriented Platform, pages

104–120. Springer Berlin Heidelberg, Berlin, Heidel-

berg.

Gawron-Deutsch, T., Cejka, S., Einfalt, A., and Lechner,

D. (2015). Proof-of-Concept for market based grid

quality assurance. In 23rd International Conference

on Electricity Distribution (CIRED). paper 1495.

Gawron-Deutsch, T., Kupzog, F., and Einfalt, A. (2014). In-

tegration of energy market and distribution grid ope-

ration by means of a ﬂexibility operator. e & i Elek-

trotechnik und Informationstechnik, 131(3):91–98.

Geoffray, N., Thomas, G., Folliot, B., and Cl

ement, C.

(2008). Towards a new isolation abstraction for osgi.

In Proceedings of the 1st Workshop on Isolation and

Integration in Embedded Systems, IIES ’08, pages 41–

45, New York, NY, USA. ACM.

Razzaque, M. A., Milojevic-Jevric, M., Palade, A., and

Clarke, S. (2016). Middleware for internet of things:

A survey. IEEE Internet of Things Journal, 3(1):70–

95.

Yu, X. and Xue, Y. (2016). Smart grids: A cyber-

physical systems perspective. Proceedings of the

IEEE, 104(5):1058–1070.

Memory Optimization of a Distributed Middleware for Smart Grid Applications

337
