A Preliminary Systematic Review of Computer Science Literature on

Cloud Computing Research using Open Source Simulation Platforms

Theo Lynn

, Anna Gourinovitch

, James Byrne

, P. J. Byrne

, Sergej Svorobej

Konstaninos Giannoutakis

, David Kenny

and John Morrison

Irish Centre for Cloud Computing and Commerce, DCU, Dublin, Ireland

The Centre for Research and Technology, Hellas, Thessaloniki, Greece

Irish Centre for Cloud Computing and Commerce, UCC, Cork, Ireland

Keywords: Cloud Computing, Open Source, Simulation, Simulator, Research Survey, Literature Review.

Abstract: Research and experimentation on live hyperscale clouds is limited by their scale, complexity, value and and

issues of commercial sensitivity. As a result, there has been an increase in the development, adaptation and

extension of cloud simulation platforms for cloud computing to enable enterprises, application developers

and researchers to undertake both testing and experimentation. While there have been numerous surveys of

cloud simulation platforms and their features, few surveys examine how these cloud simulation platforms

are being used for research purposes. This paper provides a preliminary systematic review of literature on

this topic covering 256 papers from 2009 to 2016. The paper aims to provide insights into the current status

of cloud computing research using open source cloud simulation platforms. Our two-level analysis scheme

includes a descriptive and synthetic analysis against a highly cited taxonomy of cloud computing. The

analysis uncovers some imbalances in research and the need for a more granular and refined taxonomy

against which to classify cloud computing research using simulators. The paper can be used to guide

literature reviews in the area and identifies potential research opportunities for cloud computing and

simulation researchers, complementing extant surveys on cloud simulation platforms.

1 INTRODUCTION

Cloud computing is increasingly a mainstream

technology for consumers and enterprises alike.

While the market is larger and growing, the public

cloud is dominated by a small number of extremely

large cloud service providers, most notably Amazon

Web Services, Microsoft and Google (Gartner,

2016). The scale, complexity, value and

commercially sensitive nature of the technology

these hyperscale cloud providers and the datacenters

that these providers operate means that enterprises

and researchers cannot easily undertake

experimental research on these platforms. Even if

access was provided, application developers would

be stimied by their inability to contol and process the

network environment and predict and control

network conditions (Tian et al. 2015).

Thus in tandem with the rise of and interest in

cloud computing, there has been a similar increase in

cloud simulators and analysis tools. Whereas there

has been numerous survey papers on simulators and

their features, there are few papers that explore what

researchers are using these simulators for. This

paper focuses on open source cloud simulation

platforms, toolkits and extensions to those platforms.

We make a preliminary attempt to understand the

type and focus of research on and using open source

cloud simulation platforms using both descriptive

and synthetic analysis. In our synthetic analysis, we

assess the efficacy of using Rimal, Choi and Lumb’s

(2009) taxonomy of cloud computing to classify

research undertaken using cloud simulation

platforms. Finally, we seek to identify trends and

potential gaps in research in this field, and contribute

to better quality research.

2 METHODS

Simulation of cloud computing remains an emerging

topic. Its evolution is impacted by both

Lynn, T., Gourinovitch, A., Byrne, J., Byr ne, P., Svorobej, S., Giannoutakis, K., Kenny, D. and Morrison, J.

A Preliminary Systematic Review of Computer Science Literature on Cloud Computing Research using Open Source Simulation Platforms.

DOI: 10.5220/0006351805650573

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 537-545

ISBN: 978-989-758-243-1

537

developments in cloud computing technologies and

simulation technologies and techniques. As such,

extant surveys are prone to be outdated regularly.

Furthermore, extant literature surveys tend to focus

exclusively on the features and performance of

simulators, and typically those to support discrete

event simulation, and not necessarily research gaps

in the cloud computing literature. With this in mind,

this preliminary systematic literature review to

describe the current state of computer science

research on the use of simulation for cloud

computing is appropriate at this time. And while

atheoretical, such literature reviews will assist in the

transfer and assimilation of related knowledge and

understanding on the topic (Rowe, 2014).

While Rowe (2014) suggests authors aim for

complete coverage, such coverage is neither possible

nor appropriate for a conference paper. Thus, we

limit this preliminary analysis to the computer

science discipline only and only publication outlets

featured in the IEEE Xplore digital library.

Furthermore, we focus our survey only on open

source simulation platforms or toolkits for cloud

computing identified systematically from the

literature. Using a variety of terms, we identified

281 articles in relation to the topic. After further

scrutiny, the final list was reduced to 256 (Lynn et

al. 2017). Papers were omitted on the grounds that

their main focus was not specifically cloud

computing, were errata, notices, keynotes or other

documents, or were not open source. The full

reference list for these papers and associated data are

available as an online dataset at

http://cloudlightning.eu/dissemination/publications/s

imulation-platforms/ and is referenced herein at

Lynn et al. (2017). In line with Rowe (2014), we

present a descriptive analysis in Section 3 and a

synthetic analysis in Section 4.

3 DESCRIPTIVE ANALYSIS

In this section, we present a descriptive analysis of

literature on cloud computing simulation research in

the IEEE Xplore Digital Library between 2009 and

2016 through three key lenses: (1) year of

publication, (2) publication outlets and (3) simulator

platform or toolkit. These lenses provide insights

into the trajectory of computer science research on

this topic as well as insights into platform selection.

The first publication on cloud computing

simulation research using open source platforms

appears in 2009 with Buyya, Ranjan and Calheiros’

introduction of the CloudSim toolkit. From 2009

onwards, publications on the topic increase

consistently, largely driven by papers relating to

CloudSim or the introduction of new cloud

simulation platforms. By 2015, cloud simulation

papers using open source platforms is a regular topic

in computer science publications having grown from

2 in 2009 to 78 in 2014 (See Figure 1). This reflects

the interest in cloud computing generally and the

growth of cloud computing adoption (Markets and

Markets, 2015).

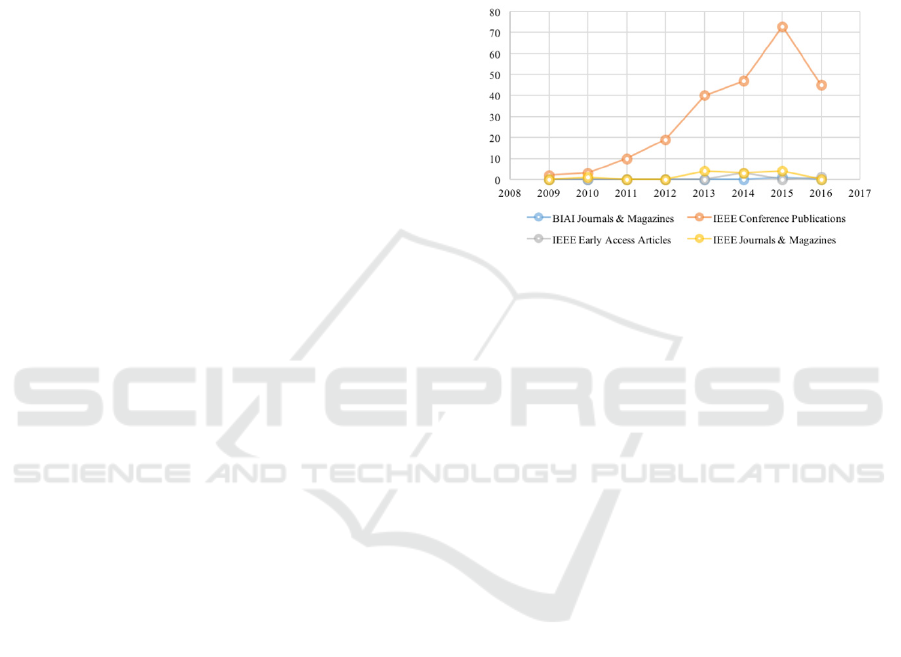

Figure 1: Cloud simulation research using open source

platforms by publication outlet and year.

Figure 1 presents a descriptive analysis from a

publication outlet perspective. This analysis shows

that the overwhelming majority of papers on the

topic in the IEEE Xplore Digital Library are

conference papers (93%). Only 18 (7%) of papers

are published in BIAI and IEEE journals or

magazines and these are relatively recent; the

earliest being 2013. This is not unsurprising given

the nascent stage of cloud computing, open source

simulation platforms and toolkits, and simulation

research on cloud computing generally.

As cloud computing is a relatively new field,

high ranking outlets dealing specifically with the

topic are scarce and those that do exist may not be

affiliated with IEEE or may require longer

turnaround times for acceptance. Given the high

number of conference papers since 2013, one would

expect a greater number of journal articles in the

coming years.

Finally, we look at publications by simulation

platform, extension or toolkit. For the purpose of

this analysis, we remove five papers that survey the

field, provide an overview, or compare one or more

simulation platforms. Of the remaining 256, 85%

(218) relate to CloudSim, extensions or derivative

simulators. Given the seminal nature of Buyya et

al.’s work on CloudSim, this is unsurprising. While

the sample features 25 simulation platforms,

extensions and toolkits, 12 are derivatives or

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

538

Table 1: Total publications by open source platform, toolkit or extension by year.

Simulator, Toolkit or Extension (Base

Platform)

2009 2010 2011 2012 2013 2014 2015 2016 Total

CACTOS (Palladio, SimuLizar,

CloudScale)

CDOSim (CloudSim) 1 1

CEPSim (CloudSim) 1 1

Cloud2Sim (CloudSim, AEF) 1 1

CloudAnalyst (CloudSim) 1 1 4 3 6 3 18

CloudNetSim++ 1 1

CloudReports (CloudSim) 1 1

CloudSched 1 1

CloudSim 1 1 7 9 29 43 61 37 188

CloudSimDisk (CloudSim) 1 1

CloudSimSDN (CloudSim) 1 1

CMCloudSimulator (CloudSim) 1 1

DartCSim (CloudSim) 1 1 2

DCSim(1) 1 2 4

DCSim(2) 1 1

GDCSim (Blue Tool) 1 1

GreenCloud 1 1 3 2 1 4 12

GroudSim/DISSECT-CF 1 1

iCanCloud (SimCan) 1 1 2

MDCSim (CSIM) 1 1

MR-CloudSim (CloudSim) 1 1

NetworkCloudSim (CloudSim) 1 1

SimGrid 1 2 4 7

SimIC (SimJava) 3 1 1 5

SPECI (SimKit) 1 1

WorkflowSim (CloudSim) 1 1

Total 2 4 10 19 44 53 78 46 256

extensions of CloudSim (See Table 3). Other

platforms and toolkits are introduced; however, few

have gained the traction of CloudSim; Green Cloud

lags significantly in publications with 12.

CloudSim’s dominance may be interpreted in a

variety ways. It may reflect ease of use, platform

stability, feature quality, the size of the user

community or a publication bias. It certainly

indicates CloudSim as the leading open source

platform for cloud modelling and simulation if not

the de facto standard. Of these 256, 45 papers relate

to the design, development and extension of

simulation platforms (see Table 3). The complete

reference list for these papers and associated data is

available at Lynn et al. (2017). Three platforms do

not feature in this sample (Groudsim/DISSECT-CF,

SPECI and CloudReports). The design papers for

these projects may feature in other digital libraries. It

should be noted that the overwhelming majority of

these platforms support discrete event simulations

and not continuous or real-time simulations although

Malik et al. (2014) and Aguero et al. (2015) suggest

that CloudNetSim++ and CloudSim respectively can

be used for near real-time simulations of

applications.

The remaining 211 papers in the sample relate to

the use of the platforms for research (See Lynn et al.

(2017) for complete reference list and associated

data). Again, the overwhelming majority are

undertaking research using CloudSim or derivatives

and extensions to CloudSim (92%). The increasing

use of CloudAnalyst can be explained by its utility

in providing a GUI for CloudSim.

4 SYNTHETIC ANALYSIS

To review the status and research trends in the

existing computer science literature on cloud

computing research using open source simulation

A Preliminary Systematic Review of Computer Science Literature on Cloud Computing Research using Open Source Simulation Platforms

539

Table 2: Research papers undertaking research using an open source simulation platform.

Simulator 2010 2011 2012 2013 2014 2015 2016 Total

CloudAnalyst*

1 4 2 6 3 16

CloudReports*

1 1

CloudSim

1 6 9 27 43 60 32 178

GreenCloud

3 2 4 9

GroudSim/

DISSECT-CF

1 1

SimGrid

2 2

SimIC

2 1 3

SPECI

1 1

Total

2 6 10 36 47 70 40 211

Table 3: Research papers on the design and development of open source simulation platforms by simulator type.

Simulator Papers References

CACTOS 2 Ostberg et al. (2014); Wesner et al. (2014)

CDOSim* 1 Fittkau et al. (2012)

CEPSim* 1 Higashino et al. (2015)

Cloud2Sim* 1 Kathiravelu and Veiga (2014)

CloudAnalyst* 2 Wickremashinge et al. (2010); Mahajan and Dahiya (2014)

CloudNetSim++ 1 Malik et al. (2014)

CloudSched 1 Tian et al. (2015)

CloudSim* 10 Buyya et al. (2009); Werner et al. (2011); Long et al. (2013); Suciu et al. (2013);

Nagamani et al. (2016); Kouba et al. (2016); Pittl et al. (2016a); Pittl et al. (2016b);

Aguero et al. (2015); Chavan et al. (2016)

CloudSimDisk* 1 Louis et al. (2015)

CloudSimSDN* 1 Son et al. (2015)

CMCloudSimulator* 1 Alves et al. (2016)

DartCSim* 2 Li et al. (2012); Li et al. (2013)

DCSim* 3 Tighe et al. (2012); Tighe et al. (2013); Keller et al. (2013)

DCSim** 1 Chen et al. (2012)

GDCSim 1 Gupta et al. (2011)

GreenCloud 3 Kliazovich et al. (2010); Kilazovich et al (2012); Sharkh et al. (2015)

iCanCloud 2 Nunez et al. (2011); Castane et al. (2012)

MDCSim 1 Lim et al. (2009)

MR-CloudSim* 1 Jung and Kim (2012)

NetworkCloudSim* 1 Garg and Buyya (2011)

SimGrid 5 Bobelin et al. (2012); Hirofuchi and Lebre (2013a) Hirofuchi et al. (2013b); Lebre et

al. (2015); Hirofuchi et a. (2015)

SimIC 2 Sotiriadis et al. (2013); Sotiriadis et al. (2014)

WorkflowSim* 1 Chen and Deelman (2012)

*denotes a simulator based on CloudSim. **Two simulators called DCSim were launched in 2012 independently of each

platforms, we employ the taxonomy of cloud

computing systems proposed by Rimal et al. (2009)

to classify the 211 papers dealing with the utilisation

of simulation platforms rather than the platforms per

se. For reference purposes, the classified data is

available at http://cloudlightning.eu/dissemination/

publications/simulation-platforms/ (Lynn et al.

2017).

The taxonomic analysis undertaken in this

review includes six key elements identified by Rimal

et al (2009):

 Architecture – includes private cloud, public

cloud, hybrid cloud and federated clouds.

 Virtualisation management – includes any

activity related to the abstraction of logical

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

540

resources away from their underlying physical

resources.

 Services – includes Infrastructure-as-a-Service

(IaaS), Software-as-a-Service (SaaS).

 Platform-as-a-Service (PaaS) and other

servitised software.

 Fault tolerance - includes simulations of

outages

 Security – includes attack simulation and

methods for enhanced security or trust.

 Other – includes load balancing,

interoperability, and data storage.

The primary focus of the papers analysed was

hyperscale data center performance and typically are

indiscriminate on whether the data center is an

enterprise (private cloud) or hyperscale. It can be

reasonably assumed that the primary architectural

focus is public cloud. A small number of papers

specify explicitly the cloud architecture they are

seeking to address e.g. Canedo et al. (2012), Simao

and Veiga (2013) and Sujan and Devi (2015) have

private clouds as a specific focus and Sqalli et al.

(2012) focus on hybrid clouds. Sotiriadis et al.

address the issue of inter-cloud simulation in a series

of papers using the SimIC simulation toolkit

(Sotiriadis et al. 2013a, 2013b, and 2015) and

similarly Hamze et al. (2014) and Aazam and Huh

(2014) seek to simulate inter-cloud scenarios using

CloudSim. A further five papers address related

federated cloud simulation scenarios (Patel and

Sarje, 2012; Aazam and Huh, 2014; Aral and

Ovatman, 2015; Wen et al. 2016; Pacini et al. 2016).

The vast majority of papers in our review dealt with

some aspect of virtualisation/resource management.

For classifying papers, we employ Singh and

Chana’s high level taxonomy of resource

management (Singh and Chana, 2016).

Classifying simulation papers by resource

management is difficult due to overlapping between

various resource management concerns. Resource

scheduling is particularly prevalent; it is not

surprising that a significant number of papers seek to

address this issue as it is considered as hard as a

Nondeterministic Polynomial (NP) optimization

problem (Zhan et al. 2015). In contrast, studies using

open source simulation platforms to explore

monitoring for resource management are relatively

recent and few. An additional catch-all category was

added to capture papers simulating multiple

virtualisation stages and processes in different

contexts e.g. mobile (Li and Li, 2013; Artail et al.

2015), IOT (Shaoling et al., 2015) and

manufacturing (Dong and Jianling, 2013).

Classification of the cloud simulation literature

identified in this paper by service type does not

provide any substantial insights. Due to the nature of

the simulation platforms and toolkits available and

reviewed, the focus is primarily data centers and the

IaaS layer. Indeed, only 14 papers specifically

identify IaaS. None specify the PaaS layer, and only

two specifically identify the SaaS layer other than in

the wider layered sense of cloud computing. Two

papers, Nuaimi et al. (2013) and Zhihua (2013)

address Data-as-a-Service and Network-as-a-Service

respectively.

There are few papers on fault tolerance as a

discrete topic of study within the papers reviewed.

Six papers identify fault tolerance as a focus of

study. Four (Wang et al. 2015; Goutam et al. 2014;

and Bosilca et al. 2014; Abderrahim and Choukair,

2015) have fault tolerance and fault tolerance

mechanisms as a primary focus whereas two papers

refer to improved fault tolerance as an outcome of

their architecture and algorithms respectively

(Pardesi et al. 2014; Yadav and Kushwaha; 2014).

Despite the wider focus on security in cloud

computing as a major barrier to adoption and

concern to enterprises, the general public and

policymakers, the papers reviewed did not feature a

significant number of papers on security. The seven

papers identified can be classified into five

categories: security as a system requirement (Wen et

al. 2016), attack simulations (Karthik and Shah;

2014), malicious virtual machines (Bazm et al.

2015), novel methods for secure data management

(Hani and Dichter, 2016; Xu et al. 2016; Zardari et

al. 2014; Boomija, 2016) and security education (Shi

et al. 2016).

43 papers addressed the issue of load balancing.

In cloud computing, load balancing occurs in three

stages - data center selection, virtual machine

scheduling, and task scheduling at a selected data

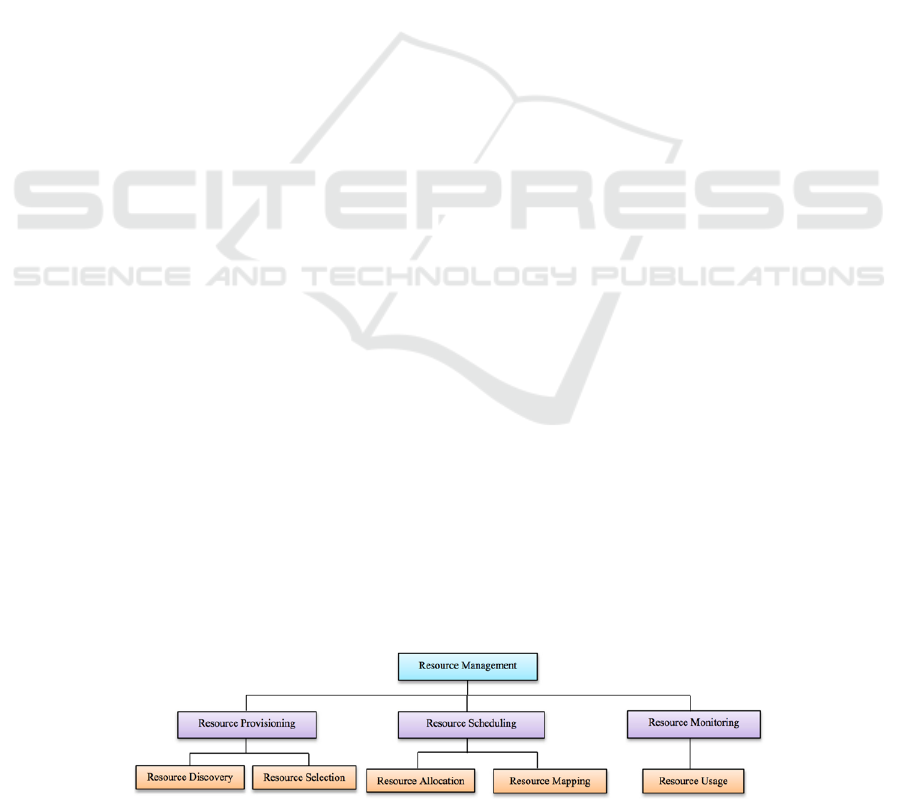

Figure 2: Taxonomy of Resource Management in Cloud Computing (Singh and Chana, 2016).

A Preliminary Systematic Review of Computer Science Literature on Cloud Computing Research using Open Source Simulation Platforms

541

Table 4: Classification of papers using open source simulators by Singh and Chana’s (2016) Taxonomy of Resource

Management.

Category Topics Papers References

Architecture Public* NA NA

Architecture Private 3 Canedo et al. (2012), Simao and Veiga (2013); Sujan and Devi (2015)

Architecture Hybrid 1 Sqalli et al. (2012)

Architecture Other 10

Patel and Sarje (2012); Sotiriadis et al. (2013a) Sotiriadis et al. (2013b); Aazam and Huh

(2014); Hamze et al. (2014); Aazam and Huh (2014); Sotiriadis et al. (2015); Aral and

Ovatman (2015); Wen et al. (2016); Pacini et al.(2016)

Service IaaS 13

Kim et al. (2011); Achar and Thilagam (2014); Abar et al. (2014); Rodriguez and Buyya

(2014); Hamze et al. (2014); Karthik and Shah (2014) Tian et al. (2015); Luo et al. (2015);

Sotiriadis et al. (2015); Pittl et al. (2015); Chowdhury et al. (2015); C. Sequin et al. (2015);

Pittl et al. (2016)

Service PaaS - -

Service SaaS 3 Achar et al. (2012); Huang et al. (2012); Zotkiewicz et al. (2016)

Virtualisation

Management

Resource

Provisioning

Sriram and Cliff (2010); Shi et al. (2011); Bose et al. (2011); Canedo et al. (2012) Patel and

Sarje (2012); Huang et al. (2012); Cao and Zhu (2013); Patel et al. (2013); Sotiriadis et al.

(2013), Tao and Dong (2013); Kord and Haghighi (2013); Masoumzadeh and Hlavacs

(2013); Achar and Thilagam (2014); Sahal and Omara (2014); Udeze et al. (2014); Lo et al.

(2014); Abar et al. (2014); Rodriguez and Buyya (2014); Cao et al. (2014); Azzam and

Huh (2015a); Aazam and Huh (2015b); Garala and Dobariya (2015); Sotiriadis et al.

(2015); Xavier et al. (2015); Fakhfakh et al. (2015a); Fakhfakh et al. (2015b); Thaman and

Singh (2015); Monil and Rahman (2015); Chowdhury et al. (2015); Rekik et al. (2015);

Alhiyari and El-Mousa (2015); Sharma and Mahrishi (2015); Chen et al. (2015); Li et al.

(2015); Xue et al. (2016); Vedova et al. (2016); Pacini et al. (2016); Ranjana et al. (2016);

Selim et al. (2016); Shidik et al. (2016); Xavier et al. (2016);

Virtualisation

Management

Resource

Scheduling

Jeyarani et al. (2010); Li et al. (2011); Taheri and Zamanifar (2011); Achar et al. (2012);

Simao and Veiga (2013); Pacini et al. (2013); Sotiriadis et al. (2013); Domanal and Reddy

(2013); Kilazovich et al. (2013); Dubey et al. (2013); Yu et al. (2013); Yun (2013);

Takouna et al. (2013); Tawfeek et al. (2013); Guerout and Alaya (2013); Jung et al. (2013);

Vijayalakshmi and Prathibha (2013); Perret et al. (2013); Hu and Yu (2013); Li et al.

(2013); Chen et al. (2013a); Chen et al. (2013b); Ru and Keung (2013); Royaee and.

Mohammadi (2013); Ming et al. (2014); Limrattanasilp and Gertpho (2014); Li et al.

(2014); Garg and Krishna (2014); Haidiri et al. (2014); Gupta et al. (2014); Rodriguez and

Buyya (2014); Yadav and Kushwaha (2014); Bagwaiya and Raghuwanshi (2014); Mathew

et al. (2014); Saxena and Chouhan (2014); Faria et al. (2014); Sharma and Bharti (2014);

Komarasamy and Muthuswamy (2014); Sahal and Omara (2014); Lou et al. (2014); Tsai et

al. (2014); Luo and Yi (2014); Malekloo and Nara (2014); Indira and KavithaDevi (2014);

Ashwin et al. (2014); Chen et al. (2015); Zhu et al. (2015); Sujan and Devi (2015);

Domanal and Reddy (2015); Tian et al. (2015); Wang et al. (2015); Sotiriadis et al. (2015);

Whittington et al. (2015); Alahmadi et al. (2015); Khedher and Jarraya (2015);

Komarasamy and Muthuswamy (2015); Rajeshwari and Dakshayini (2015); Garala and

Dobariya (2015); Bhutani et al. (2015); Saxena and Saxena (2015a); Mennour et al. (2015);

Khalili and Babamir (2015); Kumari et al. (2015); Ali and Hamad (2015); Saxena and

Saxena (2015b); Adrian and Heryawan (2015); Al-Olimat et al. (2015); Alhiyari and El-

Mousa (2015); Bruneo et al. (2015); Khanna and Sarishma (2015); Fareh et al. (2015);

Asemi et al. (2015); Tareghian and Bornaee (2015); Thanh et al. (2015); Santra and Mali

(2015); Elhady and Tawfeek (2015); Ali and Ozkasap (2016a); Ali and Ozkasap (2016b);

Zotkiewicz et al. (2016); Pacini et al. (2016); Simao and Veiga (2016); Vedova et al.

(2016); Atiewi et al. (2016); Qiu and Hwang (2016); Gupta et al. (2016); Kimpan and

Kruekaew (2016); Ettikyala and Latha (2016); Hguyen et al. (2016); Wang et al. (2016);

Nehru et al. (2016); Aslanpour and Dashti (2016)

Virtualisation

Management

Resource

Monitoring

Koushal and Johri (2013); Monil et al. (2014); Quwaider and Jararweh (2014); Abar et al.

(2014); Sotiriadis et al. (2014); Lu et al. (2015); Wang et al. (2015); Rekik et al. (2015);

Monil and Rahman (2015); Chen et al. (2015); Rajeshwari and Dakshayini (2015); Aazam

et al. (2016)

Virtualisation

Management

VM Placement 14

Bose et al. (2011); Guerout and Alaya (2013); Kord and Haghighi (2013); Varalakshmi and

Maheshwari (2013); Zhang et al. (2014); Malekloo and Kara (2014); Aral and Ovatman

(2015); Chowdhury et al. (2015a); Chowdhury et al. (2015b); Chavan and Kaveri (2015);

Benali et al. (2016); Ranjana et al. (2016); Alharbi and Yang (2016); Malekzai et al. (2016)

Virtualisation

Management

VM Migration 12

Takouna et al. (2012); Takouna et al. (2013); Masoumzadeh and Hlavacs (2013); Razali et

al. (2014); Monil et al. (2014); Yakhchi et al. (2015); Ghafari et al. (2015); Chowdhury et

al. (2015); Monil and Rahman (2015); Alhiyari and El-Mousa (2015); Selim et al. (2016);

Shidik et al. (2016); Maio et al. (2016)

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

542

Table 4: Classification of papers using open source simulators by Singh and Chana’s (2016) Taxonomy of Resource

Management (cont.).

Virtualisation

Management

Other 20

Chen et al. (2011); Sallam and Li (2012); Shiraz et al. (2012); Dong and Jianling (2013);

Shiraz et al. (2012)); Guzek et al. (2013); Li and Li (2013); Householder et al. (2014);

Moreno et al. (2014); Chavan and Kaveri (2014); Hussein et al. (2014); Nguyen et al.

(2015); Li et al. (2015); Artail et al. (2015); Shaoling et al. (2015); Bonacquisto et al.

(2015);Yusof et al. (2015); Tsai et al. (2015); Akbari et al. (2016); Rawat et al. (2016);

Fang et al. (2016)

Fault Tolerance

Fault

Tolerance

Wang et al. (2015); Goutam et al. (2014); Bosilca et al. (2014); Pardesi et al. (2014); Yadav

and Kushwaha (2014); Abderrahim and Choukair (2015);

Security Security 8

Zardari et al. (2014); Karthik and Shah (2014); Bazm et al. (2015); Wen et al. (2016) Hani

and Dichter (2016) Xu et al (2016); Boomija (2016); Shi et al. (2016).

Other

Load

Balancing

Jeyarani et al. (2010); Li et al. (2011); Rawat et al. (2012); Chen et al. (2013); Domanal

and Reddy (2013); Kliazovich (2013); Deye et al. (2013); Nuaimi et al. (2013); Goutam et

al. (2014); Domanal and Reddy (2014); Mesbahi et al. (2014); Roopa et al. (2014); Lou et

al. (2014); Bagwaiya et al. (2014); Ashwin et al. (2014); Razali et al. (2014); Dhurandher et

al. (2014); Haidri et al. (2014); Soni and Kalra (2014); Aazam and Huh (2014); Tang et al.

(2014); Aslanzadeh and Chaczko (2015); Luo et al. (2015); Domanal and Reddy (2015);

Rajeshwari and Dakshayini (2015); Garala and Dobariya (2015); Santra and Mali (2015);

Dam et al. (2015); Ghumman and Kaur (2015); Kulkarni and Annappa (2015); Panwar and

Mallick (2015); Garg et al. (2015); Sowmya et al. (2015); Yakhchi et al. (2015); Qiu and

Hwang (2016); Kimpan and Kruekaew (2016); Ye et al. (2016); Atiewi et al. (2016);

Mesbahi et al. (2016); Kumar and Kalra (2016); Ettikyala and Latha (2016); Nishad et al.

(2016)

Other Interoperability 13

Sotiriadis et al (2013a); Sotiriadis et al. (2013b); Azzam and Huh (2014a); Hamze et al.

(2014); Achar and Thilagam (2014); Mahalle et al. (2015); Pacini et al. (2016); Sqalli et al.

(2012); Azzam and Huh (2014b); Sotiriadis et al. (2015); Xavier et al. (2015); Giupta et al.

(2016); Benali et al. (2016)

Other Storage 11

Bose et al. (2011); Nuaimi et al. (2013); Kaveri and Chavan (2013); Roopa et al. (2014);

Zhang et al. (2014); Quwaider and Jararweh (2014); Seguin et al. (2015); Guthmuller et al.

(2015); Xue et al. (2016); Zhou et al. (2016); Xu et al. (2016)

*The vast majority of papers address public cloud but do not necessarily specify it

center (Atiewi et al. 2016). As such it is dealt with

independently of resource management and resource

scheduling although more efficient load balancing is

often an objective of papers in both the resource

management and scheduling literature that we

reviewed. Accordingly, there may be some

misclassification or duplication in classification in

this context. It should be noted that while clustering

and load balancing are often used interchangeably

by practitioners, we have excluded papers on

clustering in our count as load balancing can occur

without clustering. There were relatively few papers

(13) addressing the issue of interoperability

specifically and these tended to focus on inter-cloud,

federation and brokerage scenarios. Even then,

interoperability may be considered a secondary goal

or rather a necessity given the context of those

studies. Similarly, there are relatively few papers

addressing storage (11). These are wider than

scalable storage and include studies on addressing

the impact of data replication (Bose et al. (2011);

Nuaimi et al. (2013); Zhang et al. (2014); Xue et al.

(2016)), distributed file systems (Seguin et al. 2015),

security (Xu et al. 2016) and wider approaches and

techniques for performance optimization (Kaveri

and Chavan (2013); Roopa et al. (2014); Quwaider

and Jararweh (2014); Guthmuller et al. (2015); and

Zhou et al. (2016)).

5 CONCLUSIONS

This paper completed a preliminary systematic

literature review of articles on and using open source

simulation platforms featured in the IEEE Xplore

digital library. We employed two complementary

analyses – a descriptive analysis and a synthetic

analysis. The synthetic analysis employed a highly

cited taxonomy of cloud computing to organise the

literature (Rimal et al. 2009). The objectives of this

paper were multifold. Firstly, we sought to organise

research on and using open source cloud simulation

platforms. Secondly, we sought to assess the

efficacy of using Rimal et al.’s taxonomy of cloud

computing to classify research. Thirdly, we sought

to identify trends and potential gaps in research in

this field, and to contribute to better quality research.

There are numerous surveys of cloud simulation

platform literature. These papers typically focus on

the features of the platforms rather than how these

platforms have been applied. This paper makes an

original contribution by examining the application of

A Preliminary Systematic Review of Computer Science Literature on Cloud Computing Research using Open Source Simulation Platforms

543

the simulation platforms in a cloud computing

context. Notwithstanding this contribution, the paper

is limited to the IEEE Xplore Library and open

source simulators. Further surveys are needed

including studies using commercial and proprietary

simulation platforms and with a wider set of

publication outlets along the lines of Paulsson et al.

(2016).

The descriptive analysis identifies clear trends

and areas for further research. Cloud simulation

platform research has become an established domain

now and is consistently featured in IEEE

conferences. The momentum developed since 2009

should result in a higher number of journal

publications in the coming years. Notwithstanding

this, there is a clear need for more comprehensive

publications in journals. This may be a factor of

journal editorial inflection, the quality of

publications or the volume of papers submitted.

Clearly, CloudSim is the dominant cloud simulation

platform for research and this paper provides strong

supporting evidence for the selection of CloudSim

for future research initiatives. Such dominance can

be perceived as both a positive and negative factor.

For example, there is a dearth of research on

continuous and (near) real-time simulations,

possibly due to limitations by existing platforms

including CloudSim.

The employment of a taxonomy of cloud

computing to classify papers was of benefit. Again,

it highlights areas for increased focus and clarity.

From a communications perspective, researchers

presenting cloud research should possibly provide

greater clarity on the applicability of their research

for target architectures and services. Cloud

simulation platforms provide a valuable service to

resource management researchers. The relatively

high volume of research reflects both the complexity

of the area and the interest of researchers. However,

from a market-focussed perspective, one might

argue that security, QoS and reliability may be of

more interest. This is where Rimal et al.’s taxonomy,

while useful as a high-level frame of analysis, is

lacking. It does not provide the sufficient granularity

and detail needed to provide a more robust

classification of literature in this area. Even by

augmenting the analysis with Singh and Chana

(2015), evidently a new more complete taxonomy is

need for cloud computing. Future research should

not only develop a more comprehensive taxonomy

for classification but accommodate emerging

themes. Motivations such as energy efficiency,

profitability cost effectiveness feature in the

literature as well as new and emerging use cases e.g.

the impact of heterogeneous resources, autonomic

and self-adaptive management techniques, mobile

clouds, IOT and FOG computing, MapReduce and

Hadoop, and HPC in the cloud. Content mining and

autonomic classification may help identify new

insights and relationships in a way that the

systematic approach employed in this paper does not

clearly implies an imbalance in focus with a heavy

emphasis on resource provisioning, scheduling and

load balancing. One could argue that the literature

reviewed is more academically-focussed than

market-focussed. This might explain the relatively

few papers on security including the highly topical

areas of data protection and security, interoperability

and fault tolerance. Similarly, the lack of papers on

PaaS and SaaS, while understandable, presents an

opportunity for future research on and using open

source simulation platforms. Similarly, while the

papers feature studies on new and emerging issues

and applications such as those mentioned in the

previous paragraph, these are relatively few and are

areas worthy of greater focus. Finally, the majority

of studies focus on discrete event simulations and

not continuous or (near) real-time cloud simulations.

While these are both conceptually and technically

challenging, they should not be disregarded.

Open source cloud simulation platforms will

continue to evolve over time. Updated surveys are

needed to keep researchers informed on both the

evolving features and performance of these

platforms. However, such surveys are only one part

of the story. There is also a need to present surveys

and literature on the use of these platforms in

research. This paper provides an initial contribution.

ACKNOWLEDGEMENTS

This work is partially funded by the European

Union’s Horizon 2020 Research and Innovation

Programme through the CloudLightning project

(http://www.cloudlightning.eu) under Grant

Agreement Number 643946 and the RECAP project

(http://www.recap-project.eu) under Grant

Agreement Number 732667.

REFERENCES

Due to the large number of papers reviewed in this study

and conference page limitations, the full reference list

can be found at http://cloudlightning.eu/dissemination/

publications/simulation-platforms/ (Lynn et al. 2017).

Buyya, R., Ranjan, R., & Calheiros, R. N. (2009, June).

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

544

Modeling and simulation of scalable Cloud computing

environments and the CloudSim toolkit: Challenges

and opportunities. In High Performance Computing &

Simulation, 2009. HPCS'09. International Conference

on (pp. 1-11). IEEE.

Gartner, Inc (2016). Magic Quadrant for Cloud.

Lynn, T., Gourinovitch, A., Byrne, J., Byrne, P. J.,

Svorobej, S., Giannoutakis, K., Kenny, D. and

Morrison, J. (2017, January). A Preliminary

Systematic Review of Computer Science Literature on

Cloud Computing Research Using Open Source

Simulation Platforms [Data and Full References].

http://cloudlightning.eu/dissemination/publications/si

mulation-platforms/

Markets and Markets. (2015). Cloud Services Brokerage

Market by Types - Global Forecast to 2020. June

2016. Retrieved from http://www.researchandmarkets.

com/research/xwbvvz/cloud_services.

Paulsson, V., Emeakaroha, V., Morrison, J., & Lynn, T.

(2016). Cloud Service Brokerage: A systematic

literature review using a software development

lifecycle. In AMCIS 2016.

Rimal, B. P., Choi, E., & Lumb, I. (2009). A taxonomy

and survey of cloud computing systems. INC, IMS

and IDC, 44-51.

Rowe, F. (2014). What literature review is not: diversity,

boundaries and recommendations. European Journal of

Information Systems, 23(3), 241-255.

Singh, S., & Chana, I. (2016). Cloud resource

provisioning: survey, status and future research

directions. Knowledge and Information Systems,

49(3), 1005-1069.

Tian, W., Zhao, Y., Xu, M., Zhong, Y., & Sun, X. (2015).

A toolkit for modeling and simulation of real-time

virtual machine allocation in a cloud data center. IEEE

Transactions on Automation Science and

Engineering, 12(1), 153-161.

Zhan, Z. H., Liu, X. F., Gong, Y. J., Zhang, J., Chung, H.

S. H., & Li, Y. (2015). Cloud computing resource

scheduling and a survey of its evolutionary

approaches. ACM Computing Surveys (CSUR),

47(4), 6.

A Preliminary Systematic Review of Computer Science Literature on Cloud Computing Research using Open Source Simulation Platforms

545
