PrEstoCloud: Proactive Cloud Resources Management at the Edge

for Efficient Real-Time Big Data Processing

Yiannis Verginadis

, Iyad Alshabani

, Gregoris Mentzas

and Nenad Stojanovic

Institute of Communications and Computer Systems, National Technical University of Athens, Athens, Greece

Activeeon, Valbonne, France,

Nissatech Innovation Centre, Nis, Serbia

Keywords: Big Data Processing, Dynamic Resources Management, Edge Computing.

Abstract: Among the greatest challenges of cloud computing is to automatically and efficiently exploit infrastructural

resources in a way that minimises cloud fees without compromising the performance of resource demanding

cloud applications. In this aspect the consideration of using processing nodes at the edge of the network,

increases considerably the complexity of these challenges. PrEstoCloud idea encapsulates a dynamic,

distributed, self-adaptive and proactively configurable architecture for processing Big Data streams. In

particular, PrEstoCloud aims to combine real-time Big Data, mobile processing and cloud computing research

in a unique way that entails proactiveness of cloud resources use and extension of the fog computing paradigm

to the extreme edge of the network. The envisioned PrEstoCloud solution is driven by the microservices

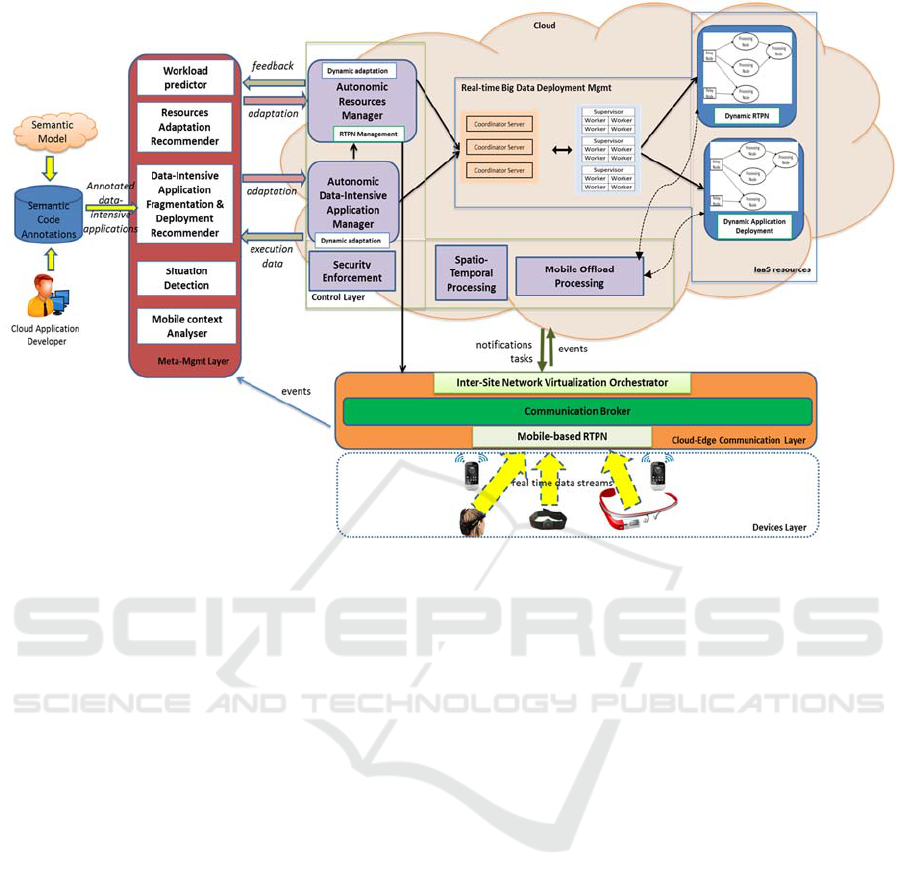

paradigm and has been structured across five different conceptual layers: i) Meta-management; ii) Control;

iii) Cloud infrastructure; iv) Cloud/Edge communication and v) Devices, layers.

1 INTRODUCTION

Cloud computing is “the infrastructure” for real-time

data-intensive applications due mainly to its

theoretically boundless scalability power. However,

in dynamic IoT-based and Big Data driven

environments, there are still valid challenges with

respect to efficient and reliable real-time processing,

since the existing widely adopted technologies (e.g.

Hadoop) are not applicable for real-time processing

due to their static nature (Mone, 2013). In addition,

although more recent and dynamic technologies like

STORM (http://storm.apache.org/) or SPARK

(http://spark.apache.org/), offer a very efficient

computational solution for soft real-time processing,

they don’t exploit new decentralised paradigms (e.g.

distributed clouds, edge (Cuomo et al., 2013) and fog

computing (Cisco, 2015).

Regardless of the processing approach that could

be adopted, one of the best choices for dealing

efficiently with the dynamicity of such domains

includes the cloud computing paradigm or extensions

of it. In terms of infrastructural support, it is evident

that cloud resources scalability is critical for dealing

with the most challenging aspects of data-intensive

processing. Cloud computing represents a significant

shift in the way IT resources have been traditionally

managed and consumed, with significant advantages

in terms of cost, flexibility and business agility

(Cisco, 2015). Nowadays, the use of cloud computing

becomes a necessity in domains characterized by

dense real-time sensing and large numbers of

distributed heterogeneous information sources. So, it

is true that the cloud computing has been recognized

as a paradigm for real-time big data processing

(Gartner, 2016).

Nevertheless, there are arguments that highlight

as a major potential downside of cloud computing the

slower-than-desirable performance due to networks’

bandwidth limitations (Mims, 2014). The problem of

how to process efficiently on the cloud is becoming

all the more acute as more and more objects become

"smart," or able to sense their environments, connect

to the Internet, and even receive commands remotely.

Modern 3G and 4G cellular networks simply aren't

fast enough to transmit data from devices to the cloud

at the pace it is generated. Because of this fact,

recently there is a change in focus and new efforts on

fog computing become more popular since they store

and process the torrent of data being generated by the

Internet of Things (IoT) on the “things” themselves,

or on devices that sit between our things and the

Verginadis, Y., Alshabani, I., Mentzas, G. and Stojanovic, N.

PrEstoCloud: Proactive Cloud Resources Management at the Edge for Efﬁcient Real-Time Big Data Processing.

DOI: 10.5220/0006359106110617

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 583-589

ISBN: 978-989-758-243-1

583

Internet. According to Cisco (2015), the fog extends

the cloud to be closer to the things that produce and

act on IoT data. These devices, called fog nodes, can

be deployed anywhere with a network connection: on

a factory floor, on top of a power pole, alongside a

railway track, in a vehicle, or on an oil rig. Any device

with computing, storage, and network connectivity

can be a fog node. Examples include industrial

controllers, switches, routers, embedded servers, and

video surveillance cameras.

Nevertheless, the challenge still remains with

respect to even higher efficiency and means for

dealing with the immense amount of data that the

billions of distributed IoT sensors can generate (Shi

et al., 2016). Thus, there is the need to extend the fog

computing paradigm and reach the extreme edge of

the network and beyond, where even data stream

sources themselves can participate in aspects of the

processing (e.g. smartphones), orchestrated in a

controlled way with the rest of cloud resources.

Moreover, the dynamic nature of Big Data

environments, which involve real-time changes in

data streams, also requires soft real-time (self-)

adaptation of cloud resources in order to cope with

the imposed scalability challenges. Real-time sources

introduce a continuous need for adaptation to the

changes in the sensed or observed data, leading to the

concept of self-adaptive processing architectures. We

note that we focus on soft real-time adaptation of

cloud-based systems where the goal is to meet a

certain subset of deadlines in order to optimize some

application-specific criteria. Thus, a major concern

about Information and Communications Technology

(ICT) systems operating in a real-time, big data-

driven environments, is the anticipation of the

reactivity and even the proactiveness to changes in

such environment. The inevitable use of cloud

resources introduces additional possible failure points

and security issues, hence complicating the system

adaptation processes that are frequently needed in

such dynamic environments and significantly raising

costs and security concerns. Moreover, this adaptivity

requires managing the usage of cloud resources on

another abstraction level, leading to the proactivity in

cloud and (more generically) network resource

management. Airplanes are a great example of the

amount of available data and the benefits of the

appropriate processing. In a new Boeing Co. 747,

almost every part of the plane is connected to the

Internet, recording and, in some cases, sending

continuous streams of data about its status. General

Electric Co. has said (Mims, 2014) that in a single

flight, one of its jet engines generates and transmits

half a terabyte of data. Predictive analytics lets such

companies know which part of a jet engine might

need maintenance, even before the plane carrying it

has landed.

Based on this, recent trends in cloud computing

go towards the development of new paradigms in the

cloud (e.g. heterogeneous, federated, distributed

multi-clouds and extending them beyond the fog

computing) alleviating the tight interactions between

the computing and networking infrastructures, with

the purpose of optimising the use of cloud resources

with respect to cost, flexibility and scalability.

However, the ever increasing requirements for

efficient and resilient data-intensive applications that

are able to cope with the variety, volume and velocity

of Big Data, lead to the big challenge of new agile

architecture paradigms that enhance the dynamic

processing even at the extreme edge of the network.

In this paper we describe such a novel processing

architecture that deals with such soft real-time

adaptation issues, structuring the content as follows:

In Section 2, we discuss the envisioned evolution of

Real-time Big Data Processing through the

PrEstoCloud Approach, providing a detailed

conceptual architecture of the solution. In Section 3,

we shortly provide the limitations of the current state-

of-the-art while in Section 4, we summarise this

position paper by discussing the next steps for

implementing and validating this work.

2 PrEstoCloud CONCEPT

2.1 Evolution of Real-time Big Data

Processing through the

PrEstoCloud Approach

PrEstoCloud envisions to advance the state-of-the-art

with respect to Cloud, Edge computing and real-time

data intensive processing in order to provide a

dynamic, distributed and proactively configurable

architecture for self-adaptive processing of real-time

streams. This PrEstoCloud vision can be wrapped

around two main drivers:

 in a highly challenging Big Data-driven

environment, end users seek for personalised

innovative services and superior user-experience

that can only be achieved through novel

technologies that combine edge analytics, stream

mining, processing and exploitation for QoS;

 IT solution providers (esp. SMEs) are facing the

limitation of the traditional real-time big data

processing architectures, while they need to

exploit any business opportunity inherited from

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

584

dynamic and efficient processing of real-time

data streams (incl. on mobile devices)

capabilities.

The resolution of these two business needs opens

very challenging research questions of designing and

developing novel processing architectures based on

cloud computing infrastructures and resources at the

edge of the network. The main problem in developing

data-intensive processing architectures is the

dynamicity of the input data which cannot be

precisely predicted in advance. We note that we focus

on application scenarios where the speed of an

adaptation or a reconfiguration action is not that

important as it is to detect or predict a potential issue

on time for avoiding system failures and adequate

QoS. Contrary to querying historical data, searching

in real time streams is related to “guessing” which

data will be available in real-time especially with

respect to the velocity and variety of data. By

assuming that real-time streams are usually coming

from sensor devices which can generate a huge

amount of data (e.g. 15K events per sec/per sensor) it

is clear that dealing with real time streams requires

elastic processing infrastructure. Therefore,

processing architectures should be able to sense

changes in input data streams and adapt themselves

accordingly. At the same time the always increasing

computing demand will require proactive capability

of the resources allocation, i.e. the cloud should be

also able to sense situations that require adaptation.

As already discussed, existing real-time

processing architectures (like Storm or Lambda

(Kiran et al., 2015)), usually don’t exploit multi-cloud

environments and present limited adaptation

capabilities, while cloud-based data intensive

applications, up to now, cannot anticipate adaptations

based on real-time changes on the input streams (i.e.

proactivity). We summarise the main challenges that

we want to point out and address in this position paper

as follows: i) exploit multi-cloud environments for

deploying Big Data processing frameworks, ii) make

intelligent cloud placements and configurations of

applications based on the anticipated processing load

with respect to data volume and velocity, iii)

elaborate on components that are capable to

recommend and implement adaptations in real-time.

PrEstoCloud covers, exactly, these challenges

and limitations, contributing to the evolution of real-

time Big Data processing. The main driver of the

PrEstoCloud architecture is the “change” in data

streams, that is an ever emerging concept in real-time

data, since it depicts not only velocity (speed of data),

but also the “speed of changes” in the Big Data.

Traditional monitoring systems are observing when

QoS attributes will exceed certain thresholds and then

trigger reactions. PrEstoCloud principle is more

dynamic, in the sense that it will observe and focus on

the dynamics of the trends in changes and reacting if

the velocity of the change seems critical (e.g. an

increase of the memory consumption on a certain

processing node of more than 20% in 30 msec).

Therefore, one of the most innovative aspects in

PrEstoCloud is the treatment of “changes” as the first

class citizen.

2.2 PrEstoCloud Framework

PrEstoCloud aims to address the challenge of cloud-

based self-adaptive real-time Big Data processing,

including mobile stream processing. The envisioned

PrEstoCloud solution is driven by the microservices

paradigm that is the use of a software architecture

style in which complex applications are composed of

small, independent processes communicating with

each other by using language-agnostic APIs. As such,

the approach used by PrEstoCloud is superior to any

other monolithic solution, since each of the

PrEstoCloud components can be instantiated as many

times it is needed in order to cope with the scalability

requirements of such dynamic environments and

satisfy all the availability constraints.

The conceptual architecture of PrEstoCloud is

presented in Figure 1 and is briefly discussed below.

We note that with respect to real-time data-intensive

processing, this solution envisions an architecture

inspired by the STORM computational system (i.e.

real-time, stateless, stream processing), enhanced in

such way that exploits the advantages of multi-cloud

environments and Edge computing (i.e. a topology for

real-time adaptive and stateful stream processing). In

addition, we consider using appropriate models for

enabling developers to perform annotations on cloud

applications, in order to define their meaningful

fragments that may be deployed in a distributed way.

The PrEstoCloud architecture has been structured

across 5 different layers: i) Meta-management; ii)

Control; iii) Cloud infrastructure; iv) Cloud-edge

communication and v) Devices layers. The first four

layers are discussed below while the fifth one

consolidates any kind of device that can be used as a

Big Data stream source or as a mobile computational

node at the extreme edge of the network.

The Meta management layer mainly consists of

decision logic capabilities required for enhancing the

PrEstoCloud Control layer (e.g. Autonomic

Resources Manager, Autonomic Data-Intensive

Application Manager). This layer involves the

following modules:

PrEstoCloud: Proactive Cloud Resources Management at the Edge for Efﬁcient Real-Time Big Data Processing

585

Figure 1: PrEstoCloud Conceptual Architecture.

Resources Adaptation Recommender that will use as

input the situation details, the variation of the Big

Data streams and the context of the mobile devices at

the extreme edge of the network in order to

recommend at the appropriate time, the necessary

adaptations of used resources in the real-time

processing network (RTPN). These input details will

be provided by the Situation Detection mechanism

and the Mobile Context Analyser respectively. In

addition, these recommendations will be enhanced

with the necessary proactiveness based on the

envisioned interaction with the Workload Predictor.

Data-Intensive Application Fragmentation &

Deployment Recommender that will assist in the

appropriate fragmentation of data-intensive

applications into smaller parts that can be efficiently

deployed over network resources. Specifically, it will

be based on the interpretation of the code level

annotations (provided by the cloud application

developer), in order to recommend meaningful

operations of a cloud application to be distributed and

deployed over a STORM-like topology on multi-

clouds and Edge resources, for resilience and

performance reasons. Different properties like

response time, security and locality constraints or

other quantitative or qualitative attributes, will be

used for deciding on the most optimal configuration

at run-time.

Situation Detection Mechanism which will provide

the necessary situation awareness for detecting

interesting situations by considering Big Data streams

and RTPNs deployed on cloud resources or at the

extreme edge of the network (i.e. mobile RTPN).

Such situations will be completed by any inferred or

detected contextual information (provided by the

Mobile Context Analyser) and might lead to

resources adaptation recommendations or data-

intensive application reconfigurations or

redeployments. Thus, this mechanism will enhance

PrEstoCloud with reliability in terms of the stream

processing topology as it will be able to detect

possible failures and inform accordingly the two

recommenders of the meta-management layer of the

PrEstoCloud framework.

Mobile Context Analyser that it will focus on the

acquisition and understanding of relevant contextual

information derived from any resources at the

extreme edge of the network that are or will be

engaged in either providing data streams or

undertaking parts of the processing effort from the

data-intensive applications. The detected or inferred

contextual information will be propagated to the

Situation Detection Mechanism.

Workload Predictor for fusing proactiveness to

the PrEstoCloud solution. Specifically, this module

will be able, given an appropriate model and method,

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

586

recent monitoring information and workload

evolution over time to predict the workload that may

be experienced in the near future. In addition, it will

be also able to predict possible failures because of the

overuse of certain processing nodes, thus enhancing

the reliability of the processing topology and

minimizing any chances for down time incidents.

The second layer of PrEstoCloud architecture is

the Control layer that manages resources of the Cloud

infrastructure layer and contains the following

modules:

Autonomic Resources Manager which involves

monitoring and management of cloud resources

capabilities that can be extended to the edge of the

network. Specifically, this module is considered as a

master-node that involves “Nimbus-like”

(http://storm.apache.org/) functionalities, i.e.

enhanced nodes with advanced capabilities for

reliably (multi-cloud support) and adaptability,

dealing additionally with resources management at

the edge of the network. This STORM-like approach

uses Coordinator Servers (i.e. Zookeper-like

functionality for managing stateful nodes across

multi-clouds) and Supervisors for coordinating the

real-time processing network (RTPN) clusters

(deployed on the Cloud infrastructure layer). This

component will interact with Resources Adaptation

Recommender and will exploit the spatio-temporal

processing capabilities of the respective module. It is

composed of the following microservices: i) Smart

monitoring, ii) Multi-Iaas manager and connector, iii)

Manager of the resources at the edge, iv) Hybrid

cloud deployment manager that implements TOSCA

(https://www.oasis-open.org/committees) interfaces,

v) Resources adaptation manager.

Autonomic Data-Intensive Application Manager

which is responsible for the scheduling of big data

applications execution. This module also constitutes

a “Nimbus-like” node as a master-node which is

responsible for distributing meaningful fragments of

data-intensive applications across clusters and

launching the appropriate workers for controlling the

processing workflow (deployed on the Cloud

infrastructure layer). In this STORM-inspired

approach the notion of a Bolt is uplifted into a

Processing Node in the sense that it doesn’t only

address data/event processing using small stateless

processing units but it may cover more complex

operations of a cloud service that should be

distributed across different cloud infrastructures for

failover and performance issues. This also entails

more complex communication and orchestration

schemes than just TCP (Darpa, 1981) connections

that are traditionally used in bolts taken from current

STORM approaches. Thus, we also propose the use

of uplifted Relay Nodes inspired by STORM Spouts.

This component will interact with the Autonomic

Resources Manager and the Data-Intensive

Application Fragmentation & Deployment

Recommender. It includes the following

microservices: i) Big Data application scheduler

which will orchestrate the process execution on the

different resources managed by the Autonomic

Resources Manager, ii) Processing distribution

manager, iii) Application reconfiguration manager

Spatio-Temporal Processing which copes with

clustering groups of devices, network congestion

detection and geo-fencing capabilities for providing

location-awareness with respect to cloud resources

management and on/offloading processing tasks to

the devices layer. This actually entails uplifting of

raw data (i.e. detect meaningful event patterns) before

submitting them to cloud resources for further

processing or because of poor network coverage

situations, autonomously communicating and

processing between devices and sensors in order to

transmit the minimum information possible.

Mobile Offload Processing which focuses on

shifting parts of processing on the resources at the

extreme edge of the network, using local information

(e.g. location, power level etc.) as well as information

that may be provided by other mobile devices, sensors

or cloud resources. It will be instructed accordingly

by the Autonomic Resources Manager to look for

appropriate mobile devices and efficiently offload

processing nodes from the RTPN.

Security Enforcement will be responsible for

providing the appropriate access and usage control

mechanisms with respect to accessing, reallocating

and reconfiguring network and edge resources as well

as exploiting their processing outcomes.

The four PrEstoCloud layer is the Cloud-Edge

communication which refers to the following

components:

Inter-site Network Virtualization Orchestrator for

coping with the need of virtualizing hardware

resources situated in multi-cloud environments,

managing their orchestration and provisioning across

different and heterogeneous providers. This also

includes the control of the inter-sites network

virtualization process in a secure way, through a close

interaction with the Security Enforcement

Mechanism. We note that we are examining the

provision of a Virtual Network Orchestrator, which

will rely on Software Defined Networking (SDN)

technology.

Communication Broker which will undertake the

responsibility of relaying data streams on and off the

PrEstoCloud: Proactive Cloud Resources Management at the Edge for Efﬁcient Real-Time Big Data Processing

587

PrEstoCloud platform providing standard

publish/subscribe event brokering capabilities.

We note that Coordination Servers, Supervisors,

Processing nodes and any other PrEstoCloud

components can be placed on multi-cloud

environments using either VM-based on Container-

based deployment for scalability reasons.

3 BEYOND STATE OF THE ART

Among the greatest challenges of cloud computing is

to find balance between under-provisioning

infrastructure resources and overprovisioning, which

might unnecessarily increase the cloud fees. An

alternative way to save resources is to reconfigure the

resources allocated to the application, as explored in

(Kokkinos et al., 2015) for Amazon EC2. This also

requires being able to accurately model the workload

variations, which is a tedious task, especially for

public clouds where only few trace data are available.

A Few recent works paved the way for modelling the

dynamicity of the workload experienced in

heterogeneous cloud computing platforms (Wolski et

al., 2014). In the multi-cloud management side, the

main challenges are related to integration issues.

Configuration management (CM) tools represent

another type deployment management tools focused

on the configuration capabilities, which in general

address a similar problem. The most representative

ones are Chef (http://chef.io) and Puppet

(http://puppetlabs.com). However, they have certain

limitations with respect to Fog computing such as the

pull-based approach with clients running on the

machines or the dependency resolution which is not

suitable for resource constrained devices.

Another challenge in the proactive cloud

computing is the timely placement of resources on to

the infrastructure. To provide efficient placements

and evolutive algorithms, complete (but time-

bounded) approaches become viable candidates.

More specifically, Constraint Programming (CP)

(Rossi et al, 2006) based solutions tend to outperform

other approaches such as mathematical or logic

programming, even more with composite aspects.

Multi-Cloud/Fog management and configuration

automation extension to the Edge of the network is

still an in-progress domain with several unresolved

challenges (Shi et al., 2016). Indeed, the Edge part is

critical in the sense that it is even more heterogeneous

than the cloud resources. PrEstoCloud intends to

provide the appropriate extensions to available

virtualisation, cluster management and distributed

scheduling technologies in order to introduce

proactive cloud resources management at the Edge.

4 CONCLUSIONS

This position paper has sketched the PrEstoCloud

novel idea which encapsulates a dynamic, distributed,

self-adaptive and proactively configurable

architecture for processing Big Data streams. Driven

by the challenges elaborated in section 2.1 and the

limitations of the current approaches, discussed in

section 3, this paper suggests the combination of real-

time Big Data, mobile processing and cloud

computing research in a unique way that entails

proactiveness of cloud resources use and extension of

the fog computing paradigm to the extreme edge of

the network.

The envisioned PrEstoCloud solution is currently

under development and its innovative aspects will be

thoroughly evaluated through a number of data-

intensive pilots. These pilots will stress-test and

validate PrEstoCloud claims against real use cases

from the transport, journalism and video surveillance

domains.

ACKNOWLEDGEMENTS

This research has received funding from the EU’s

Horizon 2020 research and innovation programme,

under grant agreement No 732339 (PrEstoCloud).

REFERENCES

Cisco (2015) White Paper: Fog Computing and the Internet

of Things: Extend the Cloud to Where the Things Are.

Available online at: http://www.cisco.com/c/dam/

en_us/solutions/trends/iot/docs/computing-

overview.pdf.

Cuomo, G., Martin, B.,K., Smith, K.,B., Ims, S., Rehn, H.,

Haberkorn, M., Parikh, J. (2013). Developing Edge

Computing Applications. IBM White Paper, Available

online at: http://www.ibm.com/developerworks/cn/

websphere/download/pdf/OnDemandEdgeComputing.

pdf.

Darpa, (1981). Transmission Control Protocol. Darpa

Internet Program Protocol Specification. Available

online at: https://www.ietf.org/rfc/rfc793.txt.

Gartner (2016), Innovation Insight for Dynamic

Optimization Technology for Infrastructure Resources

and Cloud Services. Available online at: https://

www.gartner.com/doc/3231420?srcId=1-

2819006590&cm_sp=gi-_-rr-_-top.

Kiran, M., Murphy, P., Monga, I., Dugan, J., Baveja, S., S.,

2015. Lambda architecture for cost-effective batch and

speed big data processing. In IEEE International

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

588

Conference on Big Data (Big Data), DOI:

10.1109/BigData.2015.7364082.

Kokkinos, P., Varvarigou, T.A., Kretsis, A., Soumplis, P.,

Varvarigos E.A., 2015. SuMo: Analysis and

Optimization of Amazon EC2 Instances. J Grid

Computing 13(2): 255-274. doi:10.1007/s10723-014-

9311-x.

Mims, M., (2014). Forget 'the Cloud'; 'the Fog' Is Tech's

Future. In The Wall Street Journal. Available online at:

http://www.wsj.com/articles/SB100014240527023049

08304579566662320279406.

Mone, G., 2013. Beyond Hadoop. In Communications of

the ACM, Vol. 56 (1), pp. 22-24.

Rossi F., P. van Beek, and T. Walsh, editors. Handbook of

Constraint Programming, volume 2 of Foundations of

Artificial Intelligence. Elsevier, 2006.

Shi, W., Cao, J., Zhang, Q., Li, Y., Xu, L., 2016. Edge

Computing: Vision and Challenges. IEEE Internet of

Things Journal, 3(5), pp 637 – 646.

Wolski, R., Brevik, J., 2014. Using Parametric Models to

Represent Private Cloud Workloads. IEEE Trans.

Services Computing 7(4): 714-725.

PrEstoCloud: Proactive Cloud Resources Management at the Edge for Efﬁcient Real-Time Big Data Processing

589
