An Ontology-based Approach to Analyzing the Occurrence of Code

Smells in Software

Luis Paulo da Silva Carvalho

1,3

, Renato Novais

2,4

, La

ıs do Nascimento Salvador

3,4

and Manoel Gomes de Mendonc¸a Neto

3,4

Federal Institute of Bahia, Av. Amazonas 3150 - Zabel

e, Vit

oria da Conquista, Brazil

Federal Institute of Bahia, Rua Em

ıdio dos Santos, s/n, Salvador, Brazil

Federal University of Bahia, Av. Ademar de Barros, s/n - Campus de Ondina, Salvador, Brazil

Fraunhofer Project Center for Software and Systems Engineering at UFBA, Av. Paralela, Salvador, Brazil

Keywords:

Ontology, Reasoner, Code Smells, Ontocean.

Abstract:

Code Smells indicate potential ﬂaws in software design that can lead to costly consequences. To mitigate

the bad effects of Code Smells, it is necessary to detect and ﬁx defective code. Programmatic processing of

Code Smells is not new. Previous works have focused on detection and representation to support the analysis

of faulty software. However, such works are based on a syntactic operation, without taking advantage on

semantic properties of the software. On the other hand, there are several ways to provide semantic support

in software development as a whole. Ontologies, for example, have recently been usedl. The application

of ontologies for inferring semantic mechanisms to aid software engineers in dealing with smells may be of

great value. As little attention has been given to this, we propose an ontology-based approach to analyze the

occurrence of Code Smells in software projects. First, we present a comprehensive ontology that is capable

of representing Code Smells and their association with software projects. We also introduce a tool that can

manipulate our ontology in order to provide processing of Code Smells as it mines software source-code.

Finally, we conducted an initial evaluation of our approach in a real usage scenario with two large open-source

software repositories.

1 INTRODUCTION

Code Smells are deﬁned as metaphors that describe

patterns associated with bad design and bad pro-

gramming practices (Van Emden and Moonen, 2002).

They can lead to issues in software maintenance (Ol-

brich et al., 2010). One well-known example of Code

Smell is God Class, which is related to poorly de-

signed classes that tend to concentrate functionalities

and relegate other classes to minor roles (Smith and

Williams, 2000). Common negative impacts of Code

Smells include (Tufano et al., 2015): (a) increasing

in both software change and fault proneness; and (b)

reduced understandability and maintainability of the

software. Thus, it is important to investigate the oc-

currence of Code Smells to prevent their bad effects

in software development.

Previous works in this area can be divided into

two main branches: (a) detection and visualization

of Code Smells, e.g., (Moha et al., 2010)(Fenske

et al., 2015), which rely on metrics obtained from the

software’s source-code to spot occurrences of Code

Smells; and (b) analysis of the effects of Code Smells,

e.g., (Chatzigeorgiou and Manakos, 2014)(Palomba

et al., 2014), which perform a statistical analysis of

the occurrence of Code Smells and provide insights

about their consequences in software development.

Related works are based on syntactic operations

without taking advantage of the semantic properties

of the software. They show that previous efforts have

given little attention to the association of semantics

with information obtained from the detection of Code

Smells. On the other hand, there have been exam-

ples to provide semantic support in software. Ontolo-

gies have been used as an effective tool to this end, as

can be seen in recent works, e.g., (Civili et al., 2013),

(Sivaraman, 2014), and (Daraio et al., 2016). Ap-

proaches to detection, visualization and analysis of

Code Smells may be enriched by the use of ontolo-

gies along with inferring semantic mechanisms to aid

software engineers in dealing with defective code.

Carvalho, L., Novais, R., Salvador, L. and Neto, M.

An Ontology-based Approach to Analyzing the Occurrence of Code Smells in Software.

DOI: 10.5220/0006359901550165

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 155-165

ISBN: 978-989-758-248-6

155

Rules and reasoners are key features related to

ontologies that can produce semantic information re-

lated to Code Smells. The association of such fea-

tures with detection tools, e.g., tools that detect Code

Smells, can help software engineers to manage their

occurrences. For instance, a reasoner can be used to

reveal developers who add Code Smells to a piece

of software. Once identiﬁed, the developers can be

trained in object-oriented programming techniques to

prevent further additions of smells to software. Fur-

thermore, ontologies are able to incorporate other

conceptualizations in such a way as to allow the ex-

pansion of the initially intended analysis (according

to principles related to the open-world assumption

(Djuri

c et al., 2005)). For example, in this work we

conducted a case study into two types of Code Smells

(God Classes and Brain Methods), however the result-

ing ontology can be expanded, later on, to add other

types of smells.

In this context, we propose an ontology-based ap-

proach to support the detection and analysis of Code

Smells in software projects. Our ONTOlogy for

Code smElls ANalysis (ONTOCEAN) is capable of

representing the knowledge necessary to keep track of

Code Smells and to evaluate their impact on software.

We have associated our ontology with a tool:

Ontology-driven Code smElls ANalyzer (OCEAN).

OCEAN is a source-code mining automation de-

signed to beneﬁt from the information that Code

Smells can offer. OCEAN is integrated with Visminer

(Mendes et al., 2015), which is an API that furnishes

a set of functionalities that are capable of performing

the automated calculation of software metrics and de-

tection of Code Smells. As a proof of concept, we

also conducted a study to demonstrate the execution

of OCEAN to mine large open-source software repos-

itories: JUnit and Log4j. The intention is to showcase

OCEAN’s functionalities and the use of mined data

to populate instances of our ontology with the pur-

pose of enabling the inferrence of information related

to anomalous code artifacts.

As a result we were able to: (a) produce an on-

tology, ONTOCEAN, suited to represent information

related to Code Smells and to provide ways to detect

their presence and evaluate their impact by activating

reasoners upon semantic rules; (b) make available a

new tool, OCEAN, that is capable of populating ON-

TOCEAN with information extracted from software

projects.

The remainder of this paper is structured as fol-

lows: Section 2 introduces our ontology, ONTO-

CEAN, and all of its conceptualizations; Section 4 ex-

plains how our tool, OCEAN, was created and how it

is integrated with ONTOCEAN; Section 5 describes

the tests executed to evaluate the applicability of ON-

TOCEAN; conclusions and future work are discussed

in Section 7.

2 ONTOLOGICAL

REPRESENTATION OF CODE

SMELLS

One of the most widely known deﬁnition of what on-

tologies means is provided by (Gruber, 1993): “an

ontology is an explicit speciﬁcation of a conceptu-

alisation”. ‘Conceptualisation’ represents an abstract

model of some aspect of the world and takes the form

of a collection of concepts and their respective at-

tributes and the relationships between the concepts.

Ontologies have attracted attention in several areas of

expertise, such as knowledge representation and man-

agement, information integration and semantic web.

To be effectively applied, ontologies must be com-

bined with reasoners. Reasoners ensure the quality

of the ontology and are important to exploit the struc-

tures encapsulated in it (Staab and Studer, 2013). Our

work is consistent with this view because it not only

presents an ontology but it also makes use of a rea-

soner to expand the capacity of our ontology to gen-

erate semantic knowledge related to Code Smells.

(Chandrasekaran et al., 1999) pointed out some

advantages of the use of ontologies: (a) Ontolo-

gies are ﬁtting resources to represent the vocabu-

lary of a domain of knowledge - as we have mod-

eled Code Smells as an ontology we are providing

a vocabulary related to bad coding; (b) Ontologies

enable knowledge sharing - the resulting vocabulary

can be (re)used by other works to understand phe-

nomenon associated with bad software development

techniques; (c) Ontologies contribute to the expan-

sion of knowledge - this can be the case with a Code

Smells ontology as it is used to base other ontologies

which add concepts to the vocabulary we have pro-

vided. We are positive that the relationship between

ontologies and Code Smells can offer these advan-

tages.

According to the deﬁnition of ontology and its ap-

plication in the representation of concepts related to

Code Smells, we have ranked a set of requirements,

i.e., as we want our solution to have the aforemen-

tioned advantages we decided to transform them into

requirements. Thus, in order to evaluate our work we

managed to fulﬁl:

• REQ1 – the resulting ontology must contain

conceptualisations to represent Code Smells and

items of object-oriented programming which the

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

156

smells are related to;

• REQ2 – the ontology has to be furnished with se-

mantic rules to support the inferring of informa-

tion associated with Code Smells;

• REQ3 – it must be compatible with reasoners so

that they can be invoked to produce the inferred

information.

These requirements were used to evaluate related

works and our own.

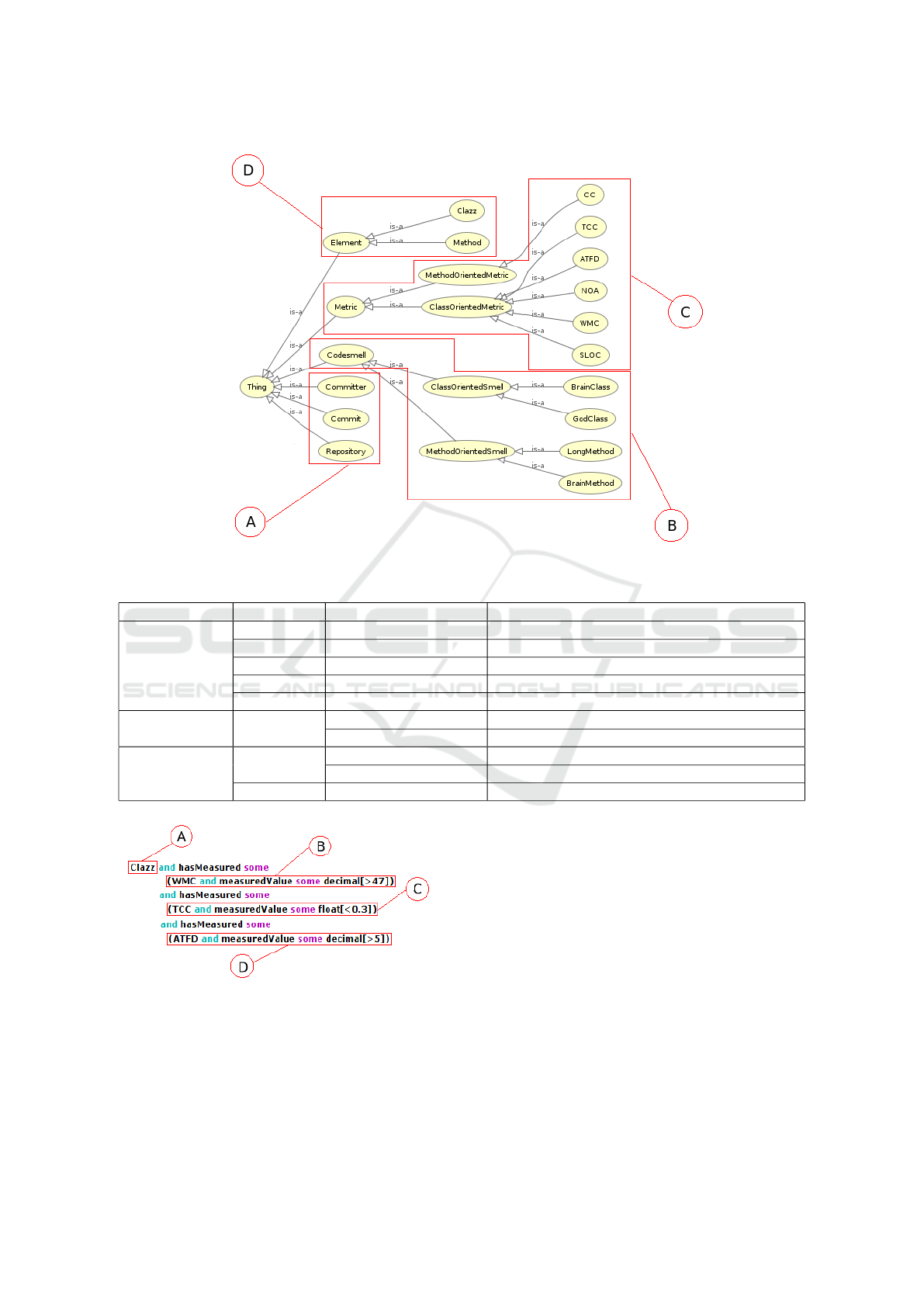

REQ1 is fulﬁlled by the items found in Figure 1

which illustrates the taxonomy of our proposed on-

tology, ONTOCEAN. ‘A’ points to VCS-related in-

formation; ‘B’ encloses Code Smells and sub-types:

Method-oriented and Class-oriented Code Smells;

‘C’ contains classes to represent Metrics and its sub-

types: Method-oriented and Class-oriented Metrics;

and ‘D’ points to object-oriented Classes and Meth-

ods to be associated with the calculated metrics and

detected Code Smells

The implementation of requirements REQ2 and

REQ3 are explained in the sections bellow.

An important part of the ontology is the set of

Code Smells-related conceptualizations. They are

used to represent the anomalies found in the source-

code. The ‘Commit’ class, for instance, is semanti-

cally associated with the ‘Clazz’ class to create lists of

classes which are affected by commits. A ‘ClassOri-

entedSmell’ instance can be associated with a ‘Clazz’

to indicate the occurrence of a class-like Code Smell

(e.g., ‘GodClass’) found in the source-code. Asso-

ciations (i.e., object properties relating the classes of

the ontology) can be created to represent the software

metrics (instances of classes inherited from the ‘Met-

ric’ class) which take part in the production rules used

to detect Code Smells. We have also added classes

to enclose the projects’ metadata: a list of commits

(‘Commit’) and a committer (‘Committer’) and the

repository (‘Repository’) from which the project is

mined.

ONTOCEAN’s classes are obtained from three

main sources: (a) the mined data found in project’s

VCS; (b) calculated by OCEAN after processing the

mined data; (c) the inferred information produced by

reasoners. Table 1 describes the classes and groups

them according to the way how they are created/pro-

duced.

It is also relevant to point out that the set of con-

ceptualizations we have embedded in the ontology is

not exhaustive; i.e., despite the fact that it sufﬁces for

OCEAN, it can be expanded to include extra sets of

metrics and Code Smells.

An expanded version of ONTOCEAN classes and their

relationships can be found at the end of the article

3 SEMANTIC INFERRING OF

CODE SMELLS

In this section we explain how we have embedded se-

mantic rules into ONTOCEAN with the purpose of

enabling the retrieval of Code Smell-related informa-

tion by inferring routines. By doing so, we were able

to fulﬁl requirement REQ2. The intention behind in-

serting Code Smells’ production rules into ONTO-

CEAN is to enable the ontology to point out instances

of defective code with the help of no other tool than a

reasoner. Thus, the ontology is self-sufﬁcient in terms

of automatic retrieval of Code Smells.

Code Smells can be obtained by detection strate-

gies. For instance, in order to mine God Classes, such

strategies can test candidate classes against the rule

(Lanza and Marinescu, 2010)(Olbrich et al., 2010),

GC(C) =











1, ((W MC(C) > 47)

∧(TCC(C) < 0.3))

∧(AT FD(C) > 5),

0, otherwise,

(1)

where C is the class being inspected; WMC represents

the ‘Weighted Method Count’, which is the sum of the

CC (‘Cyclomatic Complexity’) (McCabe, 1976) of all

methods contained in C; TCC stands for ’Tight Class

Cohesion’ and counts the number of directly con-

nected methods of C; and ATFD, ‘Access to Foreign

Data’, is the number of attributes of foreign classes

accessed by C. WMC, TCC and ATFD are software

metrics that can be used by detection tools to ﬁnd

God Classes. With the purpose of replicating the rule

we have added axioms to ONTOCEAN. The result is

shown in Figure 2. ‘A’ represents the top ontological

class, Clazz, indicating that only the individuals that

are classes (object-oriented classes) must be consid-

ered. ‘B’ restricts the measured value of the WMC

metric to greater than 47. ‘C’ constrains the TCC

metric to values lower than 0.3. ‘D’ limits the ATFD

metrics to values greater than 5.

ONTOCEAN is able to represent method-oriented

Code Smells as well. The Brain Method Code Smell

is applicable to methods (of classes) that concentrate

logic, a characteristic that must be avoided since they

tend to increase the complexity of software (Fowler,

1997). The occurrences of Brain Method can be de-

tected by applying the rule (Lanza and Marinescu,

2010),

BM(M) =











1, ((MLOC(M) > 65)

∧(CC(M) > 0.24)

∧(MN(M) > 5)

∧(NOAV (M) > 8))

0, otherwise,

(2)

An Ontology-based Approach to Analyzing the Occurrence of Code Smells in Software

157

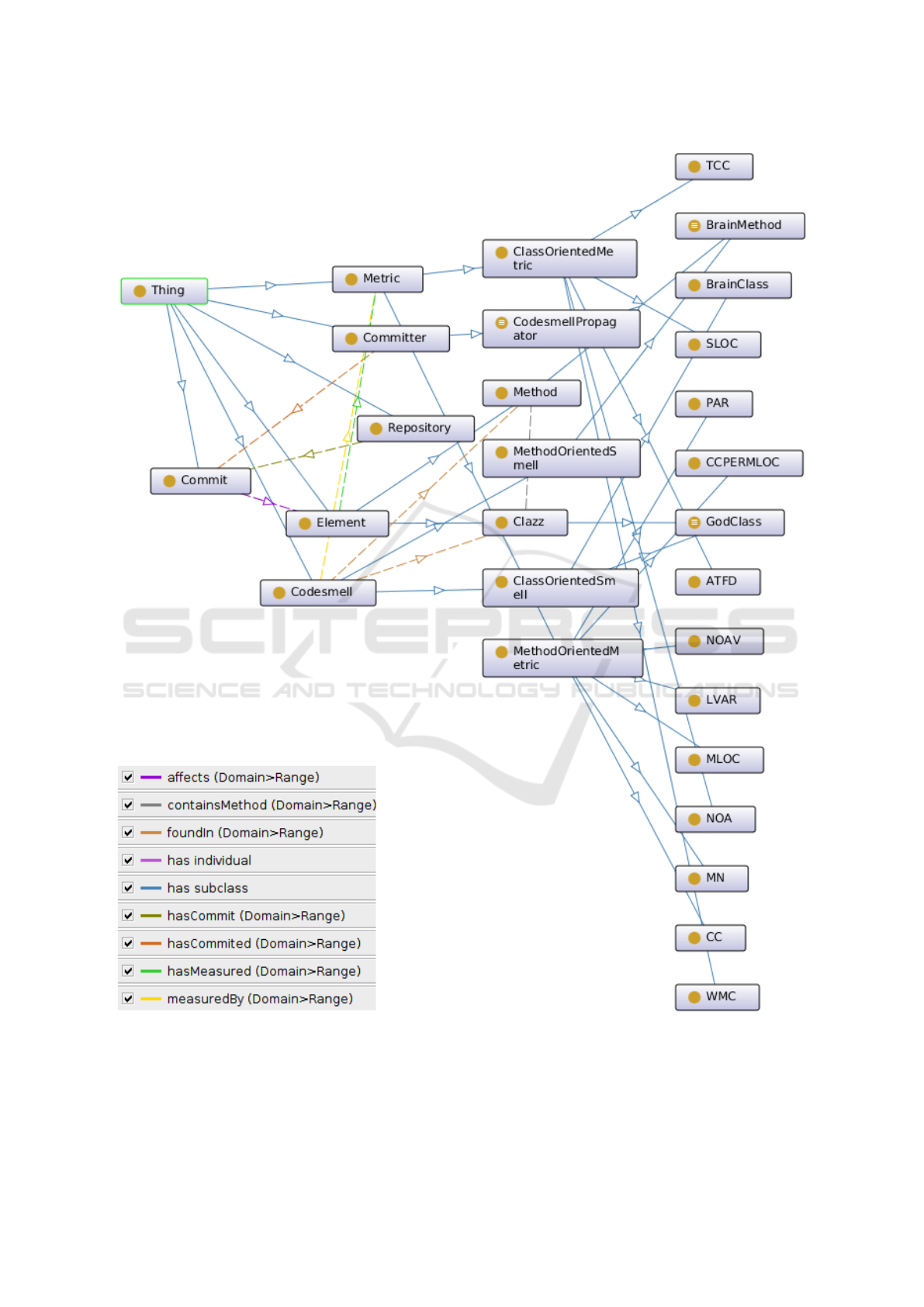

Figure 1: The taxonomy of ONTOCEAN.

Table 1: Origins of ONTOCEAN’s conceptualizations.

Origin Class Sub-classes Description

From VCS

Repository Software’s GIT repository

Commit Set of modiﬁcations on software’s artefacts

Committer Developer that pushes commits to the repository

Clazz Object-oriented classes from source-code

Method Methods contained in classes

Calculated Metrics

ClassOrientedMetric Metrics that apply to object-oriented classes

MethodOrientedMetric Metrics that apply to methods of classes

From reasoners

Code Smell

ClassOrientedSmell Smells embedded in object-oriented classes

MethodOrientedSmell Smells embedded in methods of classes

Propagators Committers who introduce smells in software

Figure 2: Translating the GC detection rule as an ontologi-

cal axiom.

where M is the method being evaluated; MLOC repre-

sents ‘Method’s Lines Of Code’, which is the number

of lines of code in the method’s body; CC counts the

number of all the linearly independent paths of execu-

tion within the method; MN, ‘Max Nesting’, indicates

the maximum number of nested conditional tests in

the method; NOAV counts the ‘Number of Accessed

Variables’ to indicate the value of the variables ac-

cessed directly by the method.

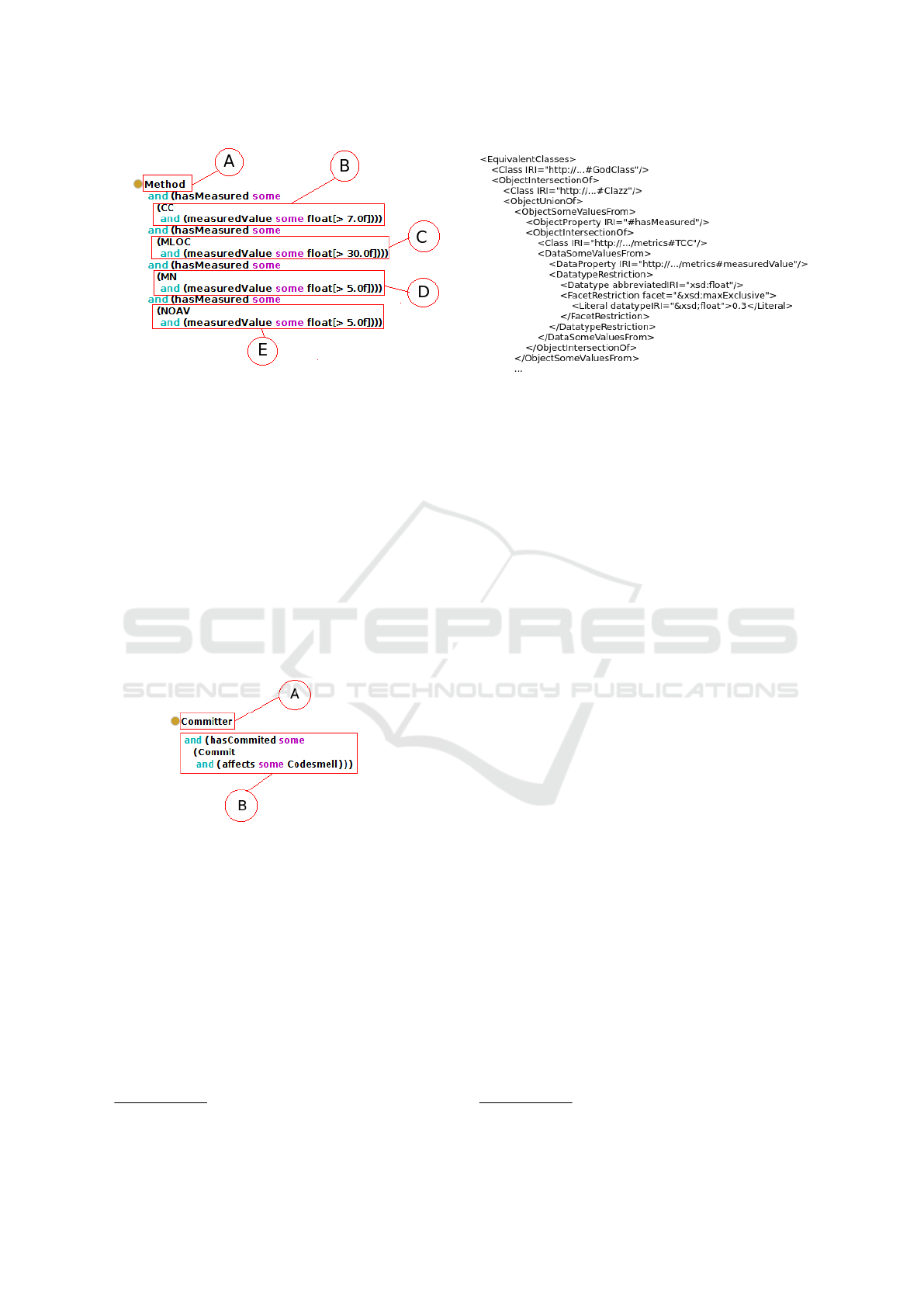

The axiom equivalent to the Brain Method de-

tection rule is shown in Figure 3. Like the God

Class detection axiom, it comprises a set of metrics

and thresholds. ‘A’ points to the ontological class,

Method, used to ﬁlter out individuals that are not

methods.‘B’ includes methods that have a CC greater

than 7. ‘C’ grants that M is a Brain Method only if

its MLOC is above 30. ‘D’ constrains the maximum

nesting in M to greater than 5. ‘E’ limits the number

of accessed variables accessed by M to a value sur-

passing 5.

A reasoner (Abburu, 2012) can use the axioms

presented in Figures 2 and 3 to perform semantic in-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

158

Figure 3: Translating the Brain Method detection rule as an

ontological axiom.

ferring. As a result, occurrences of God Classes and

Brain Methods can be retrieved. The retrieval is per-

formed automatically, reducing the effort required by

software engineers to handle Code Smells detection

in projects.

Other axioms can be added to ONTOCEAN to ex-

pand its capacity to produce relevant information. For

instance, the axiom contained in Figure 4 is capable

of identifying developers (i.e., committers) who cre-

ate and propagate problematic code. ‘A’ points to the

ontological class, Committer, used to ﬁlter out indi-

viduals that are not developers. ‘B’ grants that only

committers who make modiﬁcations that insert Code

Smells are listed as smell propagators.

Figure 4: Axiomatic rule to identify Code Smells propaga-

tors.

All of the proposed axioms are tested against real

projects in Section 5.

ONTOCEAN was created and deﬁned using

the second generation of Web Ontology Language

(OWL2)

. The language was used to model Code

Smells and respective axioms. The document exhib-

ited in Figure 5 is an excerpt from the God Class de-

tection axiom which is part of ONTOCEAN’s source-

code. It shows a rule of equivalence between a God

Class and a Class (God Class is a sub-type of Class) to

which a value of the TCC is measured and no-greater

than 0.3.

https://www.w3.org/TR/owl2-overview/

Figure 5: OWL excerpt.

As OWL is an open format, ONTOCEAN can be

adapted to meet speciﬁc needs. The thresholds of the

metrics that take part in the smells detection rules can

be adjusted. For instance, the ontology can be modi-

ﬁed to specify a threshold for TCC different from the

initial default (0.3).

Considering that we were able to represent Code

Smell detection equations (the ones illustrated in 1

and 2) as semantic rules (ﬁgures 2 and 3 respectively)

the fulﬁlment of requirement REQ2 is granted. In

Section 5 we will use the rules to extract instances

of Code Smells from the source-code of a software

project.

4 OCEAN, A TOOL TO

POPULATE ONTOCEAN

OCEAN is composed of a set of components that per-

form both the source-code mining and the production

of ontological individuals that represent Code smells.

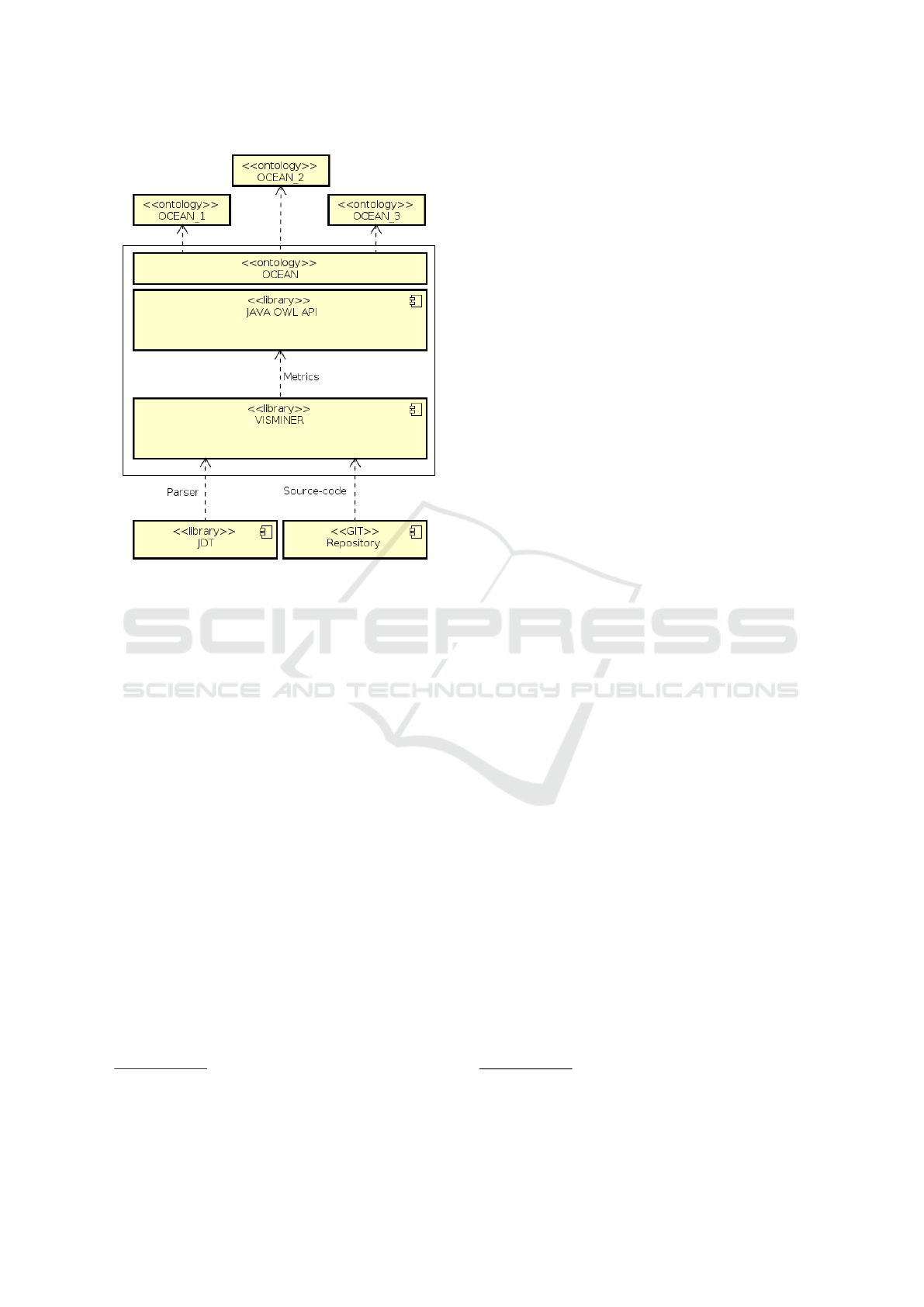

OCEAN’s component-based architecture is illustrated

in Figure 6.

OCEAN relies on Visminer API to extract met-

rics from the source-code of software. Visminer of-

fers a collection of functionalities and automations

that are capable of translating source-code Object-

Oriented Classes into Abstract Syntax Trees (AST).

Java Development Tools (JDT)

is the library used

by Visminer to create ASTs from source-code. Each

AST is analysed to obtain metrics that are evaluated

against Code smells production rules, such as 1 and

2. Along with the production of ASTs, Commits are

retrieved from GIT repositories and they come asso-

ciated with other relevant information: the Committer

who pushed the commit, the affected ﬁles and how

they were affected (e.g., lines that were added and/or

http://www.eclipse.org/jdt/

An Ontology-based Approach to Analyzing the Occurrence of Code Smells in Software

159

Figure 6: The componentized architecture of OCEAN.

removed), the commit’s message and the date-and-

time when the commit was sent to the repository.

Java OWL API

is another library used by

OCEAN. It is responsible for translating Visminer’s

output (VCS-related information and software met-

rics) into ontological individuals: Code Smells and

Code Smells propagators. As OCEAN runs, an in-

stance of ONTOCEAN is populated by the addition

of information extracted from the targeted GIT repos-

itory. As a result a new instance of ONTOCEAN is

created to encapsulate the individuals of the software

project under analysis. Thus, OCEAN provides an ex-

clusive instance of its ontology for every new piece of

software being investigated.

We have decided to create a new instance of ON-

TOCEAN for every new project. The purpose is to

isolate the mined/inferred information from the onto-

logical items that deﬁne our vocabulary about Code

Smells. That is to say, ONTOCEAN is a TBox

and it represents our chosen classes to represent Code

Smells and related information. Each instance of ON-

TOCEAN is a new ABox

that encapsulates TBox-

compliant statements about the vocabulary. There-

fore, it is possible to inherit different ABoxes (for

each different project being analysed) from the same

http://owlapi.sourceforge.net/

Terminological Box

Assertional Box

unique TBox. While ONTOCEAN’s TBox works as

a template, we minimize the number of individuals

to be processed by reasoners by dispersing them into

different ABoxes.

At the end of the mining, instances of the classes

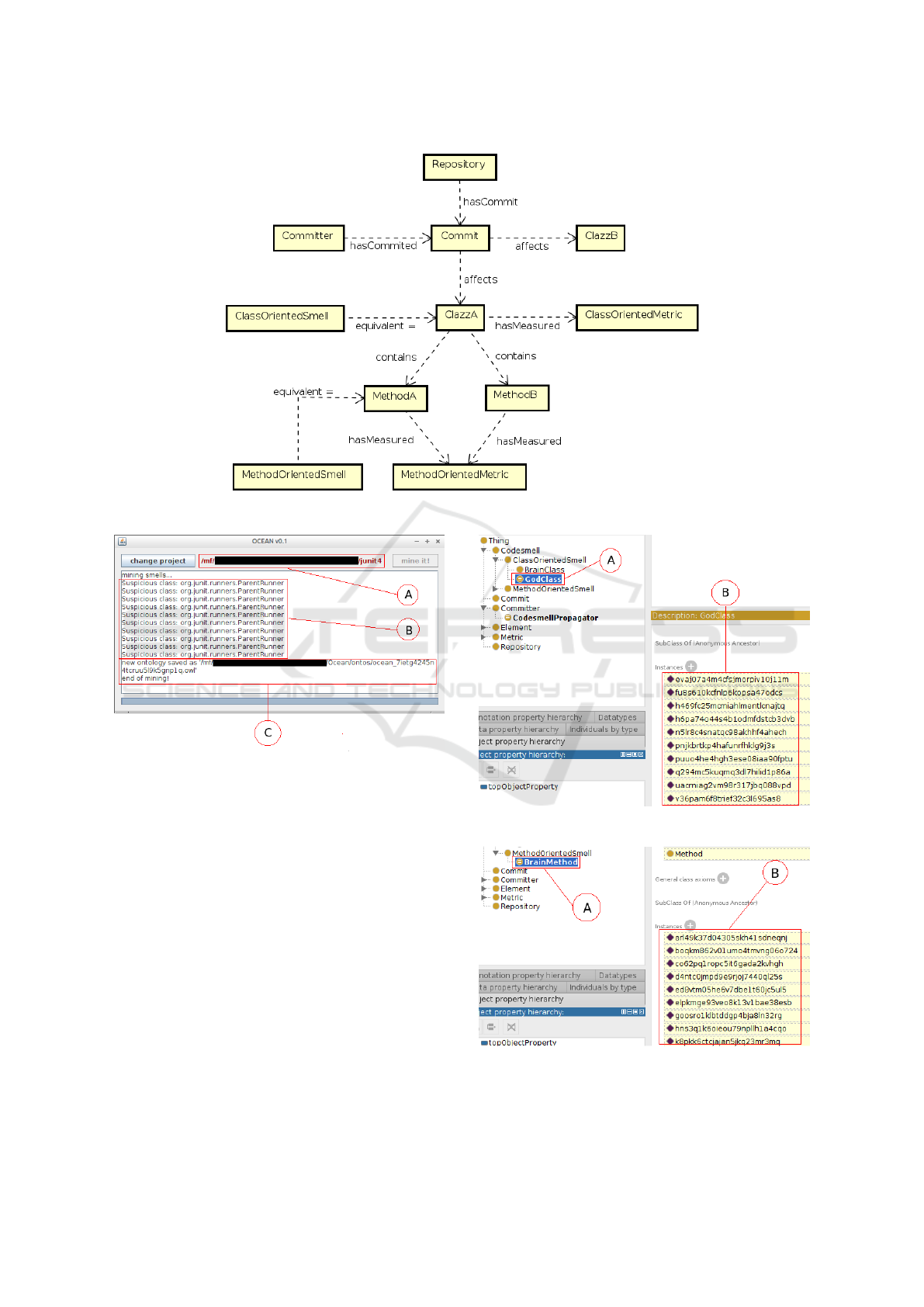

contained in the ONTOCEAN are produced. Figure 7

illustrates the instances and how they are connected to

each other. An instance of ‘Repository’ is associated

with its commits by the ‘hasCommit’ object property.

The ‘hasCommitted’ property points a ‘Committer’

to the commits he/she has pushed to the repository.

A ‘commit’ can affect (add/modify) several classes

(‘ClazzA’ and ‘ClazzB’), and this relationship is rep-

resented by the ‘affects’ object property. A ‘Clazz’

may contain one or more ‘Method’ (‘MethodA’ and

‘MethodB’) and this relationship is represented by the

‘contains’ property. The ‘hasMeasured’ identiﬁes ei-

ther a ‘Clazz’ or a ‘Method’ associated with speciﬁc

metrics (‘ClassOrientedMetric’ and ‘MethodOrient-

edMetric’). ‘ClassOrientedSmell’ and ‘MethodOri-

entedSmell’ contain the rules that produce individuals

that are equivalent to ‘Clazz’ and ‘Method’ to which

the smells’s detection rules apply.

5 EVALUATING ONTOCEAN IN

USAGE SCENARIO EXAMPLES

To evaluate ONTOCEAN in usage examples, we used

it to store information mined by OCEAN from two

projects found in GITHUB: JUNIT

, which is a soft-

ware testing framework and LOG4J

, a logging API.

Both JUNIT and LOG4J have been applied in the

creation of much software, making them a relevant

choice for testing. They are public open source

projects with access to their source-code which makes

the generation of ASTs to obtain software metrics

possible. Figure 8 shows OCEAN being executed. ‘A’

points to the open source project being processed. ‘B’

shows the list of suspicious software artifacts found.

‘C’ is the output of the execution: a new instance of

our ontology.

Considering JUNIT, OCEAN scanned a total

amount of 2299 commits, resulting in the detection

of God Classes. Their presence was later conﬁrmed

by the execution of a reasoner, HermiT OWL Rea-

soner(Horrocks et al., 2012), in the Protege

envi-

ronment. It was revealed that all the instances of

God Class were related to only one speciﬁc class,

“org.junit.runners.ParentRunner”. In this case, we as-

https://github.com/junit-team/junit4

https://github.com/apache/log4j

http://protege.stanford.edu/

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

160

Figure 7: Mined instances of ONTOCEAN’s classes.

Figure 8: Executing OCEAN to mine a project.

sumed that the God Classes were introduced in the

past and had remained that way throughout the soft-

ware evolution, i.e., the same class that produced the

instance of God Class was found in early commits, but

the project was not revised to solve the anomaly later

on. The inferred instances of God Classes are exhib-

ited in Figure 9. ‘A’ is the ontological class that repre-

sents God Class to which the rule exhibited in Figure

2 is attached. ‘B’ points to the inferred instances of

God Class.

After mining 3561 commits from LOG4J, the Her-

miT reasoner revealed two types of Code Smells: God

Classes and Brain Methods. Figure 10 shows the in-

stances of Brain Methods that were found. ‘A’ is the

ontological class that represents Brain Method. All

the instances were produced by the rule shown in Fig-

ure 3. ‘B’ points to the instances of Brain Method.

ONTOCEAN is also capable of representing de-

Figure 9: JUNIT’s inferred God Classes.

Figure 10: LOG4J’s inferred Brain Methods.

tailed information about Brain Methods. Figure 11

shows data and object properties that were automat-

An Ontology-based Approach to Analyzing the Occurrence of Code Smells in Software

161

ically created by OCEAN. The properties enable the

precise location of the methods that are Brain Meth-

ods. ‘A’ is the ontological class from which Brain

Method instances are inherited: Method. ‘B’ points to

object properties that represent the metrics that took

part in the detection: MN (Max Nesting), CC, NOAV

and MLOC (according to the rule shown in Figure

3. ‘C’ is the data property that identiﬁes the method

that was detected as a Brain Method: ‘LocationInfo’

method.

Figure 11: LOG4J’s inferred Brain Methods.

The mining of both projects has also produced oc-

currences of Code Smell propagators. Such infor-

mation may be interesting in decision making. For

instance, the identiﬁed developers can be trained in

techniques and good practices to combat the occur-

rence of Code Smell. Figure 12 shows the list of Code

Smells propagators found in LOG4J. ‘A’ is the onto-

logical class that represents Code Smells Propagators

produced by the rule deﬁned in Figure 4. ‘B’ points

to the inferred instances of propagators, each instance

identiﬁed by an email, which is the way each devel-

oper is uniquely identiﬁed in GITHUB.

Figure 12: LOG4J’s inferred Code Smells propagators.

By combining ONTOCEAN with a reasoner and

evaluating it against software projects we have man-

aged to fulﬁl requirement REQ3. The inferred in-

stances of artifacts affected by Code Smells were

manually checked to dissipate any doubt regarding

the detection of problematic code, i.e., we are posi-

tive that the association of ONTOCEAN with a rea-

soner is capable of extracting Code Smells from the

source-code of software projects.

6 RELATED WORK

To the best of our knowledge, the ontologies proposed

by previous works do not fulﬁl our requirements (as

stated in Section 2). Luo et al. (Luo et al., 2010), for

instance, developed an ontology to encapsulate Code

smells and to evaluate their impact on software. How-

ever they do not provide the resources to enable the

inferring of Code Smells (REQ2). For the same rea-

son we discarded the ontological solution proposed

by Cheng and Liao (Cheng and Liao, 2007).

Other works focus on partial data. This is the

case, for instance, with the ontology created by Mar-

tin and Olsina (de los Angeles Martin and Olsina,

2003). While they cover the representation of met-

rics, how such metrics can be used to detect smells is

not explained. Thus, REQ1 is not fulﬁlled.

Approaches proposed by (Kiefer et al., 2007),

(Rießet al., 2010), and (Tappolet et al., 2010) are

similar to our solution. They created ontologies to

represent software elements (e.g., packages, classes,

variables, Code Smells) and proposed the use of iS-

PARQL to detect instances of smells from mined

source-code. Reasoning, when applied, was not used

to retrieve smells, so REQ2 and REQ3 are not ful-

ﬁlled.

We did not revise works which analyse the pres-

ence of Code Smells without using ontologies. Our

analysis of related works did not take into considera-

tion works that do not output the detection of smells

as an open format like ontologies. This is important

because, as pointed out by a recent study conducted

by Fernandes et al. (Fernandes et al., 2016), Code

Smell detection tools have lacked ways to adequately

export analysed smells to reusable formats.

7 CONCLUSION AND FUTURE

WORK

It is important to mitigate or alleviate the problems

caused by the presence of Code Smells in software

projects. To do this, it is necessary to locate pre-

cisely the parts of the projects that have been affected

by defective coding. Considering that little has been

done to promote the use of ontologies and reasoners

to perform such a task, we present a combination of

an ontology (ONTOCEAN) and tools (OCEAN and

reasoners) to support software engineers in dealing

with Code Smells. In our understanding we have

opened the possibility of expanding the manipulation

of smells from the point of static analysis of code to a

semantically enriched approach.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

162

By outputting occurrences of Code Smells to on-

tologies we promote the reuse of this type of infor-

mation in a way that it would not be possible had we

chosen a static format as output (e.g., a PDF-based

report on the occurrences of Code Smells). Static

outputs are not easily subject to automated reuse as

ontologies are. As ontologies are written in a open

machine-readable format they show potential for var-

ied applications. In this respect, the information about

Code Smells can be expanded and/or reinterpreted to

meet other needs.

One may argue that the ontology can be re-

placed by other storage mechanism, e.g., relational

databases. Undoubtedly, using relational databases is

the preferred strategy to deal with information stor-

age, but we want to emphasize that the embedding

of semantic rules (as the ones used to infer the Code

Smells) could not be done as easily and intuitively as

with the use of ontologies.

As we conducted tests on large software projects

(as seen in Section 5) we realized that both the embed-

ding of detection rules into ontologies and their later

activation by reasoners can provide an automated way

to spot Code Smells. We were also able to expand

the set of axioms to process information beyond the

detection of defective code only. This the case with

identifying the developers who create and propagate

Code Smells. As for our initial requirements, they

were fulﬁlled:

1. REQ1: all of the information that is mined by

Visminer API was successfully mapped as on-

tological classes. Thus, we were able to repre-

sent software projects (and related information) as

well as Code Smells.

2. REQ2: although we have not tested a broader set

of Code Smells detection rules, we believe that

semantic axioms are able to represent them ade-

quately. Plus, they are applicable in combination

with reasoners to ﬁnd instances of faulty code.

3. REQ3: granted, as we were able to activate a rea-

soner upon a populated instance of ONTOCEAN

to collect Code Smell data.

An ontology-oriented approach such as ONTO-

CEAN in association with a source-mining tool

such as OCEAN shows potential, if it is considered

that: (a) important information associated with Code

Smells can be represented as ontological entities; (b)

it is possible to represent Code Smells detection rules

as axioms to evaluate software metrics; (c) reason-

ers suche as HermiT can be used to create detection

strategies using the axiomatic rules as input; (d) the

variability of the data mined from software projects

can be used to support decision making processes to

guarantee the quality of coding tasks.

We have limited this work to experimenting on

the use of an ontology to represent Code Smells and

to make use of inferring mechanisms. However we

would like to investigate further the advantages that

an ontological approach to mine Code Smells can pro-

vide. It might be the case with using ONTOCEAN in

the context of Semantic Web. Computational agents

can collect Code Smell information from ontologies

synchronized with projects maintained in GITHUB

(or any other VCS) to provide services for software

developers, e.g., to either indicate or discard reuse of

software parts/components based on the occurrence

or absence of Code Smells; or to automatically infer

and notify the actions of bad coding propagators to

software projects supervisors and teammates.

It would also be interesting to implement varia-

tions of the Code Smell production rules or to make

the indication of different values for the thresholds

of metrics possible. Considering that ontologies are

not static formats, the instances of ONTOCEAN can

be evolved to encapsulate other rules. The new rules

could overlap the default ones and replace the detec-

tion strategies, expanding the scenarios illustrated in

this work.

It is also of our interest to embed the Hermit rea-

soner into OCEAN. All the examples of semantic in-

ferring and presentation of the mined information de-

scribed in this paper were performed by Protege, but

OCEAN could be evolved to execute reasoners sup-

ported by JAVA OWL API and provide high-level vi-

sualizations of Code Smells.

We encourage the replication of our tests and fur-

ther use of ONTOCEAN and OCEAN. With this pur-

pose, we have made the following available for down-

load and use:

1. ONTOCEAN’s set of ontologies

2. The source-code of OCEAN

3. Ontologies obtained from the mining of JUNIT

and LOG4J

REFERENCES

Abburu, S. (2012). A survey on ontology reasoners and

comparison. International Journal of Computer Ap-

plications, 57(17).

https://www.dropbox.com/s/xbhcmx4negtkij1/

ontocean.zip?dl=0

https://www.dropbox.com/s/j2nn5t83s0ssezk/

ocean.zip?dl=0

https://www.dropbox.com/s/bqabnc8ctbscyp0/

tests.zip?dl=0

An Ontology-based Approach to Analyzing the Occurrence of Code Smells in Software

163

Chandrasekaran, B., Josephson, J. R., and Benjamins, V. R.

(1999). What are ontologies, and why do we need

them? IEEE Intelligent Systems, 14(1):20–26.

Chatzigeorgiou, A. and Manakos, A. (2014). Investigating

the evolution of code smells in object-oriented sys-

tems. Innov. Syst. Softw. Eng., 10(1):3–18.

Cheng, Y.-P. and Liao, J.-R. (2007). An ontology-based tax-

onomy of bad code smells. In Proceedings of the third

conference on IASTED International Conference: Ad-

vances in Computer Science and Technology, Phuket,

Thailand.

Civili, C., Console, M., De Giacomo, G., Lembo, D., Lenz-

erini, M., Lepore, L., Mancini, R., Poggi, A., Rosati,

R., Ruzzi, M., Santarelli, V., and Savo, D. F. (2013).

Mastro studio: Managing ontology-based data access

applications. Proc. VLDB Endow., 6(12):1314–1317.

Daraio, C., Lenzerini, M., Leporelli, C., Naggar, P., Bonac-

corsi, A., and Bartolucci, A. (2016). The advantages

of an ontology-based data management approach:

openness, interoperability and data quality. Sciento-

metrics, pages 1–15.

de los Angeles Martin, M. and Olsina, L. (2003). Towards

an ontology for software metrics and indicators as the

foundation for a cataloging web system. In Proceed-

ings of the IEEE/LEOS 3rd International Conference

on Numerical Simulation of Semiconductor Optoelec-

tronic Devices (IEEE Cat. No.03EX726), pages 103–

113.

Djuri

c, D., Ga

sevi

c, D., and Deved

c, V. (2005). Ontol-

ogy modeling and mda. Journal of Object technology,

4(1):109–128.

Fenske, W., Schulze, S., Meyer, D., and Saake, G. (2015).

When code smells twice as much: Metric-based detec-

tion of variability-aware code smells. In Source Code

Analysis and Manipulation (SCAM), 2015 IEEE 15th

International Working Conference on, pages 171–180.

Fernandes, E., Oliveira, J., Vale, G., Paiva, T., and

Figueiredo, E. (2016). A review-based comparative

study of bad smell detection tools. In Proceedings of

the 20th International Conference on Evaluation and

Assessment in Software Engineering, page 18. ACM.

Fowler, M. (1997). Refactoring: Improving the design

of existing code. In 11th European Conference.

Jyv

askyl

a, Finland.

Gruber, T. R. (1993). A translation approach to portable

ontology speciﬁcations. 5:199–220.

Horrocks, I., Motik, B., and Wang, Z. (2012). The hermit

owl reasoner. In ORE.

Kiefer, C., Bernstein, A., and Tappolet, J. (2007). Mining

software repositories with isparol and a software evo-

lution ontology. In Proceedings of the Fourth Inter-

national Workshop on Mining Software Repositories,

page 10. IEEE Computer Society.

Lanza, M. and Marinescu, R. (2010). Object-Oriented Met-

rics in Practice: Using Software Metrics to Charac-

terize, Evaluate, and Improve the Design of Object-

Oriented Systems. Springer Publishing Company, In-

corporated, 1st edition.

Luo, Y., Hoss, A., and Carver, D. L. (2010). An on-

tological identiﬁcation of relationships between anti-

patterns and code smells. In Aerospace Conference,

2010 IEEE, pages 1–10. IEEE.

McCabe, T. J. (1976). A complexity measure. IEEE Trans-

actions on software Engineering, (4):308–320.

Mendes, T. S., Almeida, D., Alves, N., Spnola, R., Novais,

R., and Mendona, M. (2015). Visminertd an open

source tool to support the monitoring of the technical

debt evolution using software visualization. In 17th

International Conference on Enterprise Information

Systems. ICEIS.

Moha, N., Gueheneuc, Y. G., Duchien, L., and Meur, A.

F. L. (2010). Decor: A method for the speciﬁcation

and detection of code and design smells. IEEE Trans-

actions on Software Engineering, 36(1):20–36.

Olbrich, S. M., Cruzes, D. S., and Sjøberg, D. I. (2010). Are

all code smells harmful? a study of god classes and

brain classes in the evolution of three open source sys-

tems. In Software Maintenance (ICSM), 2010 IEEE

International Conference on, pages 1–10. IEEE.

Palomba, F., Bavota, G., Di Penta, M., Oliveto, R., and

De Lucia, A. (2014). Do they really smell bad? a

study on developers’ perception of bad code smells.

ICSME, 14:101–110.

Rieß, C., Heino, N., Tramp, S., and Auer, S. (2010). Evopat

- pattern-based evolution and refactoring of rdf knowl-

edge bases. In Proceedings of the 9th International

Semantic Web Conference on The Semantic Web - Vol-

ume Part I, ISWC’10, pages 647–662, Berlin, Heidel-

berg. Springer-Verlag.

Sivaraman, K. (2014). Effective web based e-

learning. Middle-East Journal of Scientiﬁc Research,

19(8):1024–1027.

Smith, C. U. and Williams, L. G. (2000). Software per-

formance antipatterns. In Proceedings of the 2Nd In-

ternational Workshop on Software and Performance,

WOSP ’00, pages 127–136, New York, NY, USA.

ACM.

Staab, S. and Studer, R. (2013). Handbook on ontologies.

Springer Science & Business Media.

Tappolet, J., Kiefer, C., and Bernstein, A. (2010). Seman-

tic web enabled software analysis. Web Semant., 8(2-

3):225–240.

Tufano, M., Palomba, F., Bavota, G., Oliveto, R., Di Penta,

M., De Lucia, A., and Poshyvanyk, D. (2015). When

and why your code starts to smell bad. In Proceed-

ings of the 37th International Conference on Software

Engineering - Volume 1, ICSE ’15, pages 403–414,

Piscataway, NJ, USA. IEEE Press.

Van Emden, E. and Moonen, L. (2002). Java quality as-

surance by detecting code smells. In Reverse Engi-

neering, 2002. Proceedings. Ninth Working Confer-

ence on, pages 97–106. IEEE.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

164

Figure 13: Full display of ONTOCEAN’s elements.

An Ontology-based Approach to Analyzing the Occurrence of Code Smells in Software

165
