Situational Awareness based Risk-adaptable Access Control in

Enterprise Networks

Brian Lee, Roman Vanickis, Franklin Rogelio and Paul Jacob

Software Research Institute, Athlone Institute of Technology, Athlone, Ireland

Keywords: Risk based Access Control, RAdAC, Zero-trust Networking, Security Situational Awareness,

Abstract: As the computing landscape evolves towards distributed architectures such as Internet of Things (IoT),

enterprises are moving away from traditional perimeter based security models toward so called “zero trust

networking” (ZTN) models that treat both the intranet and Internet as equally untrustworthy. Such security

models incorporate risk arising from dynamic and situational factors, such as device location and security

risk level risk, into the access control decision. Researchers have developed a number of risk models such as

RAdAC (Risk Adaptable Access Control) to handle dynamic contexts and these have been applied to

medical and other scenarios. In this position paper we describe our ongoing work to apply RAdAC to ZTN.

We develop a policy management framework, FURZE, to facilitate fuzzy risk evaluation that also defines

how to adapt to dynamically changing contexts. We also consider how enterprise security situational

awareness (SSA) - which describes the potential impact to an organisations mission based on the current

threats and the relative importance of the information asset under threat - can be incorporated into a RAdAC

scheme.

1 INTRODUCTION

The enterprise computing landscape has evolved

considerably over the last decade with the

emergence of technologies such as cloud computing

and mobile devices, including the “bring your own

device”, (BYOD) phenomenon. These trends are

likely to be amplified even further in coming years

with the increasing deployment of Internet of Things

(IoT) applications. Also, over the same period, there

has been a dramatic escalation in both the number

and sophistication of security-attacks on business

(Broadhurst et. al. 2014).

This combination puts pressure on the traditional

perimeter based security model toward the

application of so called “zero trust networking”

(ZTN) models that treat the intranet with the same

degree, i.e. lack, of trust as the internet (Forrester

Research, 2013). Access control decisions are now

made based on the degree of trust in the user and the

device, irrespective of whether the user is inside or

outside the internal network (Ward and Beyer,

2014). Furthermore the level of access assigned to a

device or user may change over time and the access

control system is able to dynamically infer the

current trust level by consulting various data sources

and make decisions accordingly.

One approach to the capability of an access

control system to adapt dynamically to changing

context is Risk-Adaptable Access Control (RAdAC),

(McGraw, 2009). The key concept of RAdAC is the

trade-off, or balance, between operational need and

security risk when making access control decisions -

in some conditions operational need will override

security risk and access to otherwise restricted

resources will be granted. RAdAC was originally

proposed for highly variable environments such as

those in the military but is increasingly seen applied

in other situations characterised by dynamic contexts

such as medical emergencies and the IoT.

Similarly, dynamic access control for enterprise

networks has been considered for some time,

(Hernandez R., 2006) and is becoming ever more

appropriate as the variety and sophistication of

security attacks and the complexity of these

networks increases (Farroha and Farroha, 2012). The

types of factors used for access control in enterprise

ZTN scenarios includes user and device as well as

situational factors such as location and access

history, (Ward and Beyer, 2014; Vensmer and

Kiesel, 2012).

In most applications of RAdAC described to date

400

Lee, B., Vanickis, R., Rogelio, F. and Jacob, P.

Situational Awareness based Risk-adaptable Access Control in Enterprise Networks.

DOI: 10.5220/0006363404000405

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 400-405

ISBN: 978-989-758-245-5

the focus has been relaxation of the access controls

in order to maximise the benefit for the organisation

by granting temporary access to restricted objects. In

certain cases however the goal might be to restrict

access as e.g. in the case of heightened security

situation (Hernandez R. 2006) and it is this

particular issue we address here.

In particular we consider how enterprise security

situational awareness (SSA) - which describes the

potential impact to an organisations mission based

on the current threats and the relative importance of

the information asset under threat - can be

incorporated into a RAdAC scheme. We extend the

RAdAC model of Kandala, Sandhu and Bhamidipati

(2011), in this direction and define a framework to

manage risk based access control in zero trust

networks.

The remainder of the paper is structured as

follows: Section 2 describes the background

concepts. Section 3 describes our proposed RAdAC

approach to zero-trust networking. Section 4

describes related work while conclusions and future

work are outlined in Section 5.

2 BACKGROUND

2.1 Access Control

For many years the dominant model of access

control has been Role Based Access Control

(RBAC). RBAC is centred around the notion of

authorisation via groups or roles i.e. access rights are

allocated to a group rather than an individual.

However RBAC has limitations for the evolving

enterprise computing landscape. In particular it does

not very well support multi-factor decisions such as

those based on location, special training received

etc. as well as rank in the organisation, (Hu et al.

2013) Nor are it’s primarily static role definitions

well suited for dynamic access control decisions. As

a result a more dynamic access control approach has

been proposed i.e. Attribute Based Access Control

(ABAC), (OASIS 2013). ABAC decisions are based

on the use of subject and object attributes and

enables very flexible access control capabilities.

ABAC also introduces the concepts of obligations

and access based on environment conditions.

Obligations are additional actions required by the

subject as part of pre- or post-conditions of granting

authorisation. Environment conditions enable the

inclusion of context specific criteria into the access

control decision-making such as the location of the

user, the state of emergency in a hospital theatre etc.

ABAC systems are beginning to see significant

deployment in the enterprise including use for

dynamic access control based on environment

conditions, (Osborne et al. 2016; Vensmer and

Kiesel, 2012).

While ABAC significantly increases the

dynamic capability of access control systems it does

not include the capability to factor risk into

authorisation decision-making. To this end McGraw

(2009) proposed an extension of ABAC to manage

dynamic risk assessment - the Risk Adaptable

Access Control (RAdAC) concept. According to

McGraw (2009) – “RAdAC incorporates a real time,

probabilistic determination of security risk into the

access control decision rather than just using a hard

comparison of the attributes of the subject and object

as in traditional models”. RAdAC is based on

assessing the trade-off between security risk and

operational need. The definition of these terms is

very much context and organisation dependent

though possible inputs to security risk determination

could include e.g. trust in user or device, the current

threat level, sensitivity, or criticality to the mission,

of the requested information, role of the user etc.

(Farroha and Farroha, 2012).

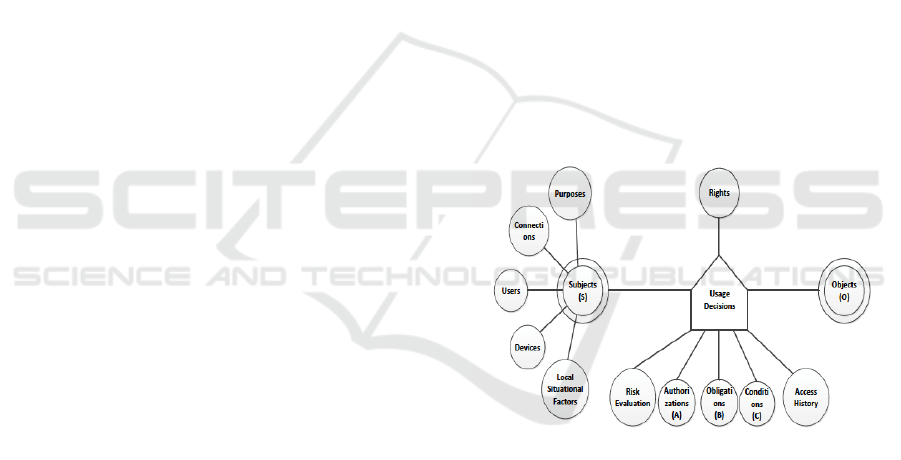

Figure 1: UCON Model with RAdAC Components. (from

Kandala, Sandhu and Bhamidipati 2011).

Kandala, Sandhu and Bhamidipati (2011) define

an abstract model for RAdAC in terms of the “Usage

Connection” (UCON) access control approach–

shown in Figure 1. UCON is an extended access

control approach that seeks to unify both traditional

access control i.e. access at the start of the

transaction with the need for on-going control of

access to the object during the transaction – what

UCON terms decision continuity. This latter

property is a significant addition to RAdAC as it

allows adaptation to changing environment

conditions. In Figure 1 above the subject concept has

been decomposed into a number of components i.e.

users, devices, connections and purposes. The

Situational Awareness based Risk-adaptable Access Control in Enterprise Networks

401

usage/access control decision process is shown to

include a Risk Evaluation component as well

predicate/rule-based components for Authorisation,

(based on the attributes) Obligations (as for ABAC)

and Conditions (captures the environmental

conditions). Usage access decision-making is based

on all three rule/predicate components i.e.

authorisation, obligation and conditions and all can

be evaluated pre, during or post the session.

2.2 Zero Trust Networking

There is an increasing move away from the

traditional perimeter-based security approach both in

the enterprise and in cloud computing (Ward and

Beyer 2014). This trend has been dubbed “Zero

Trust Networking” (Forrester, 2013). The key

element of this approach is to treat the internal

network as untrusted to the same degree as the

Internet. This usually entails partitioning the internal

network into a number of network segments or zones

each of which houses different functions and

information. Each zone may have a different trust

level that indicates the importance of the assets

housed within the zone (Gontarczyk et al. 2015). In

order to access an asset, a subject’s trust level

assignment must be equal to or greater than the

zone’s minimum trust level (Osborne et al. 2016).

Traffic between zones is thus restricted by firewalls

in accordance with the overall access control policy.

Access control in ZTN is transaction based and

dynamic i.e. a decision is made for each access

request and firewall rules are updated as a result of

each decision. Access control decisions are based on

user and device attributes as well as environment

attributes such as location. Deployments include

enterprise security e.g. Google’s BeyondCorp

(Osborne et al. 2016) as well as campus (Vensmer

and Kiesel 2012) and cloud computing security

(Giannakou et al. 2016).

2.3 Mission Impact Modelling

As outlined above environmental factors that are

critical parameters in determining situational risk

include those relating to the current threat level and

the business or mission criticality of the related

assets. This approach can also play a part in the

access control system to determine if access should

be granted based on the criticality of the resource

being accessed and the current threat level.

At the heart of this approach is the “mission

dependency graph” (Holspopple and Yang 2013;

Innerhofer–Oberperfler and Breu 2006; Jakobson

2011; Watters et al. 2009). The mission dependency

graph maps the organisations strategic mission

objectives to the IT assets by defining, and

prioritising, the dependencies between both via the

different layers of the graph i.e. business objectives

are realised (depend on) by business functions and

processes which in turn are, completely or partly,

realised (depend on) by IT capabilities and assets.

The edges in the graph record a causal

relationship/influence between two nodes and may

be assigned a weighting to reflect the extent of that

influence as in Holspopple and Yang (2013) and

Watters et al. (2009). These values are typically

assigned through consultation with key business and

IT personnel responsible for the various processes

and components that constitute the graph.

A mission graph is used for two complementary

purposes. Firstly it is used to assign to each IT asset

an asset criticality dependent on the particular

missions or business goals it supports. This is done

by trickling the mission objective priority down the

graph to the individual asset. This feature is used to

help analysts improve situational awareness as

discussed above. Secondly the degree of severity of

a particular threat to a particular asset can be

evaluated to determine the risk to the mission

objectives by percolating the risk up the graph. This

risk assessment feature can be used for off-line

what-if analyses and it also forms the basis for our

situational awareness risk based access control.

Another consideration that must be taken into

account is how the base impact -the impact to the

information asset at the root of the mission tree that

is the subject of a threat - is calculated. Watters

(2009) uses vulnerability severity as a base for his

calculation as does Jakobson (2011). Holspopple and

Yang (2013) simply assume a measure of impact

without specifying how it may be calculated while

Innerhofer–Oberperfler and Breu (2006) do not

address the issue at all.

3 FURZE

Whilst Kandala, Sandhu and Bhamidipati (2011)

have provided a sound abstract model for “UCON-

ised” RAdAC a number of significant research

questions remain open around the practical

deployment of RAdAC. Our area of interest is to

explore enforcement architecture issues for the

application of RAdAC in ZTN through the

development of a policy enforcement framework

that we designate FURZE (Fuzzy Risk Framework

for ZTN).

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

402

Specific issues we wish to investigate include i)

the definition of a policy management architecture to

include the on-going monitoring needed to enable

decision continuity in ZTN access, ii) the design of

an access control policy language to specify and

manage such updates, iii) the design a risk

evaluation function based on fuzzy logic to enable

probabilistic access control decisions to be taken and

iv) to investigate how the proposed approach works

for enterprise security situational awareness.

The starting point for FURZE is strongly hinted

by Kandala, Sandhu and Bhamidipati (2011) in

Figure 1. This contains a number of elements that

form the functional, logical and linguistic basis for

the proposed policy framework for ZTN shown in

Figure 2. The architecture is broadly based on the

XACML policy framework (OASIS 2013). Access

requests are received via a Policy Enforcement Point

(PEP) as e.g. a WiFi base station. The Context

Handler coordinates the access control process

including decision continuity handling. The

Environment Evaluation contains plug-in

components that convert session and other relevant

factors into attributes that can be used for risk

evaluation e.g. through the use of rules. Examples

include SSA (discussed below), operational need

and locations - for a simple access control case these

components could simply default to session

attributes. The Risk Evaluation Function and Access

Decision Function jointly act as a Policy Decision

Point (PDP) to control access while the subject and

object attributes are stored in a management

database. The Firewall Provisioning module

converts generic firewall rules to device specific

filtering rules for appropriate firewalls.

In FURZE the application of decision continuity

imposes the need on the access control function to

maintain session state information so that access

control can adapt to reflect situational or other

influencing factors that change the balance between

operational need and security risk and trigger policy

re-evaluation. Risk assessment is made as part of the

initial authorisation predicate evaluation and,

possibly, subsequently as part of either an

authorisation or condition predicate evaluation that

in turn has been triggered by some event during the

session.

The definition of the FURZE policy language

will be based on i) subject and object entities and

their attributes and ii) policy rules formed from

authorisation and condition predicates. The subject

entity is decomposed into a number of components

that including e.g. device (from which the user

requests access), purpose, which reflects operational

need and is the underlying reason for the users

access request, local situational factors impacting

the individual user e.g. location etc. Objects define

the services, data and other resources users wish to

access. Global situational factors such as enterprise

security risk are evaluated as condition predicates

independent of any individual user.

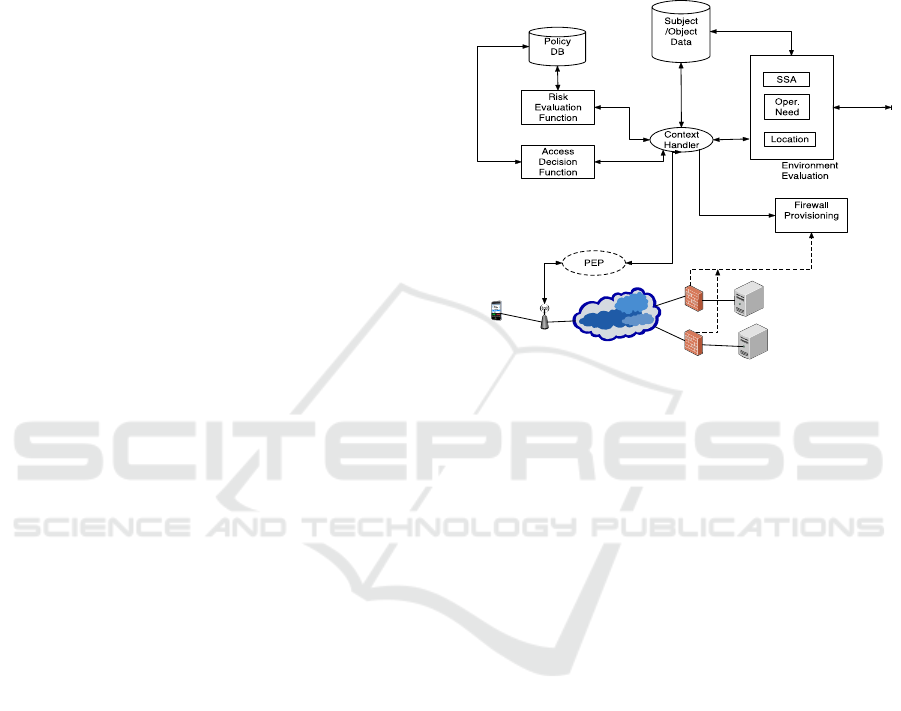

Figure 2: FURZE Framework.

For the ZTN specific case the BeyondCorp

framework gives broad hints at policy factors while

the DynFire framework also suggests some specific

factors to consider as access control credentials

(Vensmer and Kiesel 2012). Similarly previous work

on policy management for firewall access control

(e.g. Zhang et al. 2007) can contribute to the

development of the policy language. The principal

challenge here for FURZE is to combine selected

elements of previous work with language constructs

to incorporate i) decision continuity and ii) risk

evaluation. Decision continuity will be handled in

the Context Handler.

Risk evaluation is at the heart of RAdAC access

control languages, as RAdAC must include the

capability to reckon with uncertainty. The proposed

approach for risk evaluation in FURZE – through

the Risk Evaluation component- will be based on the

use of fuzzy logic inferencing. Fuzzy logic is a

mathematically sound approach to draw

unambiguous conclusions from vague or imprecise

information and subjective if-then rules (Ni, Bertini

and Lobo, 2010) and has been widely used for

decision-making under uncertainty including risk

assessment. Furthermore as Ni shows, fuzzy logic is

flexible can be used to model a variety of access

control approaches. In FURZE we propose to

leverage existing fuzzy logic language developments

Situational Awareness based Risk-adaptable Access Control in Enterprise Networks

403

– specifically the use of the Fuzzy Control Language

(FCL) (IEC 61131-7 2000). FCL is a domain

specific language (DSL) created for use in fuzzy

control application in industrial automation. It

enables the definition of domain relevant fuzzy

concepts including linguistic variables, term sets and

rule sets. The principal challenge is to wrap or

embed the FCL risk evaluation into the overall

FURZE policy language. This includes not just

seamless language syntax but also satisfactorily

resolving DSL implementation issues.

Our proposed approach to evaluate mission

impact (via the SSA component) is based on the use

of Fuzzy Cognitive Maps (FCM) (Kosko, 1986) to

model both the information asset threat impact and

the mission graph. FCM is a graph based approach

to modelling systems in which the concepts that

capture different aspects of the behaviour of the

system as represented as nodes while weighted

edges capture interactions between concepts that

represent the dynamics of the system. We base our

threat modelling on the approach proposed by

Jakobson (2009) but extend it to deal with different

aspects of impact relating to the security trio of

confidentiality, integrity and availability. We will

use Rule Based Fuzzy Cognitive Maps (RB-FCM) to

model the mission tree as it allows us to represent a

richer set relationship than standard FCM (Carvalho

and Tome, 1999).

4 RELATED WORK

In relation to RAdAC the present work can be

regarded as an extension of the earlier conceptual

work (Kandala, Sandhu and Bhamidipati (2011;

Barroha and Barroha 2012) toward implementation

of an enforcement architecture.

Google has adopted a ZTN approach for access

control that, as described, seems partly similar to the

work defined here (Ward and Beyer 2013; Osborne

et al. 2016). However they have not described the

policy language, risk management or decision

continuity implementation in detail. Vensmer and

Kiesel (2012) describe Dynfire, an access control

policy management framework for ZTN applied to a

university campus that encompasses a number of

the ideas described in our work. However it does not

include either risk management nor decision

continuity.

Giannoku et al. (2016) describe AL-SAFE a

ZTN access control implementation for cloud

computing –however they also do not include policy

language, risk management or decision continuity

aspects.

Firewall policy management is a mature research

area and a number of authors have described have

described efforts in this direction (Zhang et al. 2007;

Lobo, Marchi and Provetti 2012; Cisco 2010).

However none of these authors have described

access control risk management as part of their

contributions.

A number of researchers have modelled the

impact of information security attacks on the

organisation business and mission (Jakobsson 2008;

Innerhoffer—Oberperfler and Breu 2006;

Holspopple and Yang, 2013). However none have

included mission impact assessment as part of the

access control decision continuity process.

Cheng et al. (2007) developed a fuzzy logic

approach to access control risk assessment that

proposed the gradation of security risk as services of

levels between “allow” and “deny” where each level

has an associated risk mitigation countermeasure.

Ni, Bertini, and Lobo (2010) investigated the

applicability of fuzzy inference for risk based access

control and concluded that the approach was flexible

and scalable. Our work most closely matches that of

Ni, Bertini, and Lobo (2010) as we also propose the

use of fuzzy inference for risk calculation – however

our scope of research is somewhat wider.

5 CONCLUSIONS

We have described a novel approach to risk based

access control for ZTN networking. The key element

of our contribution is a policy control framework

based on UCON that facilitates situational

awareness based decision continuity and which

embeds a fuzzy inference component to make the

actual risk estimates. Further we have shown how

asset criticality based on mission importance can be

used as part of the situational awareness process.

Future areas of research are to implement and

evaluate the proposed approach for a ZTN scenario

and to investigate its applicability to virtualised

networking in cloud computing and software-

defined networking (SDN).

ACKNOWLEDGEMENTS

This paper has received funding from the European

Union’s Horizon 2020 research and innovation

programme under grant agreement 700071.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

404

REFERENCES

Broadhurst, R., Grabosky, P., Alazab, M., Bouhours, B.,

and Chon, S., 2014.An Analysis of the Nature of

Groups engaged in Cyber Crime, International

Journal of Cyber Criminology January-June 2014,

Volume 8 (1): 1-20.

Carvalho, J.P. and Tomè, J.A., 1999. Rule based fuzzy

cognitive maps-fuzzy causal relations. Computational

Intelligence for Modelling, Control and Automation,

Edited by M. Mohammadian.

Chen P-C., Rohatgi P., Keser C. ,. Karger P. A,. Wagner

G.M, and Reninger A. S.. 2007,Fuzzy multi-level

security: An experiment on quantified risk-adaptive

access control. IEEE Symposium on Security and

Privacy, pages 222–230. IEEE Computer Society,

2007.

Cisco Corp. 2010 Zone-Based Policy Firewall Design and

Application Guide. Available at <http://

www.cisco.com/c/en/us/support/docs/security/ios-

firewall/98628-zone-design-guide.html#topic6 >

Forrester Research, 2013. Developing a Framework to

Improve Critical Infrastructure Cybersecurity,

Available at <http://csrc.nist.gov/cyberframework/

rfi_comments/040813_forrester_research.pdf>.Access

ed Oct21 2016.

Farroha, B., and Farroha, D. 2012, Challenges of

“Operationalizing” Dynamic System Access Control:

Transitioning from ABAC to RAdAC, Proceedings

IEEE International Systems Conference (SysCon)

2012.

Fernandez, R., 2006, Enterprise Dynamic Access Control.

Version 2, Overview, NIST, Available.

<csrc.nist.gov/rbac/EDACv2overview.pdf> ,

Accessed Oct 15, 2016.

Gontarczyk A., McMillan P. and Pavlovski C. 2015,

Blueprint for Cybersecurity Zone Modelling,

Commonwealth Bank of Australia Sydney, IT in

Industry, Vol. 3, No. 2, 2015, pp 38-46.

Giannakou A., Rilling L, Morin C., Pasage J-L., AL-

SAFE: A Secure Self-Adaptable Application-Level

Firewall for IaaS Clouds, SEC2 2016 - Second

workshop on Security in Clouds, Lorient,. 2016.

Holspopple, J., and Yang, S.J. 2013, Handling Temporal

and Functional Changes for Mission Impact

Assessment, Proceedings International

Multidisciplinary Conference on Cognitive Methods in

Situational Awareness and Decision Support

(CogSIMA) San Diego, 2013.

Hu, V. C. et al., 2013, Guide to Attribute Based Access

Control (ABAC) Definition and Considerations, NIST

Special Publication 800-162, April 2013.

IEC 61131-7:2000 Programmable Controllers – Fuzzy

Control Programming, International Electrotechnical

Commission. Available at <https://webstore.iec.ch/

publication/4556?

Innerhofer–Oberperfler, F. and Breu, R., 2006, Using an

Enterprise Architecture for IT Risk Management,

Proceedings Information Security South Africa, 2006.

Jakobson, G., 2011, Mission Cyber Security Situation

Assessment Using Impact Dependency Graphs,

Proceedings 14th International Conference on

Information Fusion, Chicago, Illinois, USA, July 5-8,

2011.

Kandala, S, Sandhu, R. and Bhamidipati, V., 2011, An

Attribute Based Framework for Risk-Adaptive Access

Control Models, ARES 11, Proceedings of the 2011

Sixth International Conference on Availability,

Reliability and Security :236-241.

Kosko, B., 1986. Fuzzy cognitive maps. International

Journal of man-machine studies, 24(1), pp.65-75.

Lobo J., Marchi M. and Provetti. 2012 A.,Firewall

Configuration Policies for the Specification and

Implementation of Private Zones , Proceedings IEEE

International Workshop on Policies for Distributed

Systems and Networks, pp. 78-85 (2012).

McGraw, R.,, 2009, Risk Adaptable Access Control,

National Security Agency, Sept. 2009 Available at

<http://csrc.nist.gov/news_events/privilege-

management-workshop/radac-Paper0001.pdf>

Accessed Oct 18 2016.

Ni Q., Bertino E. and Lobo J., 2010,Risk-based Access

Control Systems Built on Fuzzy Inferences,

Proceedings of the 5th ACM Symposium on

Information, ASIACCS’10 April 13–16, 2010,

OASIS 2013, “eXtensible Access Control Markup

Language (XACML)”, Available at <http://www.

oasis-1690 open.org/committees/xacml/> Accessed

Nov 18 2016.

Osborne, B., Mcwillians J., Beyer B. and Saltonstall M.,

2016, BeyondCorp: Design to Deployment at Google,

;login, Vol 41, No. 1, pp. 28-34, Spring 2016.

Vensmer, A. and Kiesel, S. 2012, DynFire: Dynamic

Firewalling in Heterogeneous Networks, Proceedings

World Congress on Internet Security (WorldCIS),

2012, Pages: 57 - 58.

Ward, R. and Beyer, B., 2014., BeyondCorp: A New

Approach to Enterprise Security, ;login: December

2014.

Watters, J., Morrisey, S., Bodeau, D., Powers, S.C., 2009

The Risk-to-Mission Assessment Process (RiskMAP):

A Sensitivity Analysis and an Extension to Treat

Confidentiality Issues, The Mitre Corporation

Research Report 09-2994, July 2009.

Zhang. B. Al-Shaer E., Jagadeesan R., Riley J., Pitcher C

2007, Specifications of a high-level conflict-free

firewall policy language for multi-domain networks,

SACMAT 2007, Proceedings of the 12th AC

Symposium on Access Control Models and

Technologies, pp. 185-194.

Situational Awareness based Risk-adaptable Access Control in Enterprise Networks

405
