A Low-cost Vehicle Tracking Platform using Secure SMS

Rune Hylsberg Jacobsen

, Drini Aliu

and Emad Ebeid

Department of Engineering, Aarhus University, Finlandsgade 22, Aarhus, Denmark

The Mærsk Mc-Kinney Møller Institute, University of Southern Denmark, Campusvej 55, Odense, Denmark

Keywords:

Location-based Services, Low-cost, Vehicle Tracking, Short Message Service, SMS, Security, Internet of

Things.

Abstract:

This paper investigates the possibility of elevating SMS (Short Message Service) to support a cloud-based

vehicle-tracking platform. A secure application protocol over SMS is introduced to circumvent the security

issues that may succumb the SMS. We propose a cost-effective Internet of Things (IoT) solution to countries

dominated with GSM mobile infrastructure taking into consideration technology usage and the mobile net-

work infrastructure available. A commercial off-the-shelf (COTS) IoT device such as the Raspberry Pi single

board computer is depicted relying on GPS-GSM technologies envisioned as the in-vehicle device. Further-

more, a cloud web-platform is built involving the de-facto modern web-applications standards and carefully

tailored concerning the security aspects. The cost-effectiveness of our solution results from the use of COTS

components, open source software, and cheap SMS subscription packages.

1 INTRODUCTION

Outdoor positioning and object tracking are well-

established disciplines in science and engineering. In

this regards, the Global Positioning System (GPS) has

been a great success story (Bajaj et al., 2002) and a

large number of tracking systems has been developed

based on GPS technology. However, the widespread

use of GPS-based object tracking is hindered by high

system cost. This has led to the study of low-cost

systems (Hasan et al., 2009). Even more problema-

tic is people’s concern with location-tracking servi-

ces (Barkhuus and Dey, 2003). A malicious user can

get unauthorized access to location updates thus dis-

closing the position of an object or a person.

The work presented here is inspired by an ur-

gent need for a potential low-cost IoT infrastructure

in countries dominated by 2G mobile infrastructure

and where opportunities of using 3G communication

and beyond have not yet been fully exploited (Niel-

sen and Jacobsen, 2005). In Macedonia, only a few

mobile network operators have upgraded to support

3G technology with a wide coverage area. Howe-

ver, almost the entire young generation is owning a

smartphone, which has profoundly changed how they

socially inter-communicate. Consequently, the habit

of Short Message Service (SMS) has been replaced

with messaging apps like WhatsApp, Viber, and Line,

which require Internet connectivity. Because of this,

mobile network operators have modiﬁed prices of the

different subscription packages offered. This has re-

sulted in an extremely low price for SMS communi-

cation and costly packages for 3G data usage. Essen-

tially, these SMS package deals are promised with an

unlimited number of SMS as long as they are within

the mobile network of the Macedonian mobile net-

work operator. As a result, the price cut has offered

new opportunities to provide cost-effective IoT solu-

tions that revolve around the use of mobile communi-

cation technologies with high coverage such as SMS.

Unfortunately, Global System for Mobile communi-

cations (GSM) has a number of security ﬂaws (Toor-

ani and Beheshti, 2008a) and it can be concluded that

the system is not living up to current security stan-

dards. To address the security and privacy concerns

of end-users, SMS needs to be elevated with added

security measures to circumvent the inherent shortco-

mings of SMS in today’s IoT solutions.

In this paper, we propose a low-cost, secure appli-

cation protocol over SMS that connects with a cloud-

based vehicle tracking system. The system is based

on an end-to-end secure application protocol that uses

a two-way communication between Mobile Stations

(MSs) and a Data Concentrator (DC) entity connected

to the cloud. The system offers an Application Pro-

gramming Interface (API) that enables MSs to push

Jacobsen, R., Aliu, D. and Ebeid, E.

A Low-cost Vehicle Tracking Platform using Secure SMS.

DOI: 10.5220/0006366201570166

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 157-166

ISBN: 978-989-758-245-5

157

location information to the cloud. MSs are authorized

based on a whitelist concept. A DC is authorized by

the cloud service by using a light-weight implemen-

tation of the OAuth 2.0 protocol. The accompanying

web platform will be an IoT cloud service where van

companies may sign up, authenticate themselves and

manage their vehicle data.

2 RELATED WORK

Real-time tracking systems have been a ﬁeld of in-

terest for many researchers during the past decades.

Tracking systems have been introduced for various

purposes like vehicle position tracking systems, anti-

theft systems, ﬂeet management systems and intel-

ligent transportation systems. Some of the propo-

sed systems involve the use of SMS communication

hence providing cost-effectiveness due to the low rate

for SMS and the restricted availability of later gene-

ration of mobile network infrastructures (i.e., 3G and

4G in developing countries).

Verma and Bhatia presented a tracking system

using GPS and GSM technologies (Verma and Bha-

tia, 2013). However, the system neglected to co-

ver security aspects of using SMS service to send

location data which may be considered as compro-

mising privacy. In another study, Lee et al. de-

pict a hybrid vehicle tracking system (GPRS alterna-

tive) able to send data over GSM (Lee et al., 2014).

Although the study includes many technical details

about how data is stored and later visually presen-

ted to the users, the authors seem not to have addres-

sed security and privacy concerns imposed when sen-

ding private information over SMS. A recent study

reports on a vehicle tracking and monitoring system

built on top of the GPS-GSM technology emphasi-

zing the provided security against possible vehicle

thefts but failing to address the security perspective

of the GSM networks and SMS itself (Kumar et al.,

2016). An extensive vehicle tracking and monitoring

system using a single-board computer (Raspberry Pi)

with an SIM900A module have been proposed and

designed (Shinde et al., 2015). Besides the exciting

features, they introduce such as interfacing a ﬁle sy-

stem of a single board computer from a smartphone to

select and load a pre-ﬁxed path to ensure secure trave-

ling, SMS security aspects, and proposed rectiﬁcation

mechanism are not depicted. In common, the above-

referenced studies all rely on the security provided in

SMS, which is known to be insufﬁcient (Toorani and

Beheshti, 2008a).

Some studies report on solutions that aim to

provide authentication, integrity, conﬁdentiality, and

non-repudiation for SMS. SMSSec is a protocol

founded on a combination of asymmetric-key and

symmetric-key cryptography that relies on a two-

factor authentication strategy for their initial hands-

haking phase (Lo et al., 2008). A major drawback

of the protocol is the implications produced by their

inclusion of Rivest, Shamir, & Adleman (RSA) en-

cryption scheme with 2048-bit keys resulting in cip-

hertext block that exceeds 140 bytes. Thus, two SMS

messages are needed for a single protocol message

in the initialization of the handshaking phase. For

their communication back from the server, a symme-

tric technique is used with smaller key-size to ensure

that the message sent back ﬁts within a single SMS

message.

Another proposed solution called SMSS uses a

certiﬁcate-based protocol that suggests following ty-

pical rules of Public Key Infrastructures (PKIs) by is-

suing of a unique public-private key pair for each user

(subscriber) and the involvement of a Certiﬁcate Aut-

hority (CA) (Toorani and Beheshti, 2008b). It applies

an encryption scheme based on Elliptic Curve Cryp-

tography (ECC) that uses public keys for the esta-

blishment of a shared secret key. Moreover, each time

an entity tries to establish communication, it must pre-

conditionally query the OCSP server completely de-

legating validations to a trusted server. However, this

appears to be done in an insecure way using plain text

via SMS. The system has a number of vulnerabilities.

The OCSP server’s original address can be spoofed.

The SMS response, that the source entity expects to

receive after trying to establish and communicate with

the destination entity, can be forged. An attacker can

derive the signature and can replace the public key

of the destination entity to be used by the origina-

ting identity for encrypting its messages. This indu-

ces problems in decrypting of the incoming messa-

ges since they were not rightfully encrypted. Further-

more, the proposed protocol would require that net-

work operators modify their existing infrastructures.

Other protocols are based on the identity-based

cryptosystems, where users need to communicate

with a trusted agent providing a Private Key Gene-

rator (PKG) whose master key must be kept secret.

The requirement to have an authentic CAs public key

for verifying certiﬁcates in a solution as SMSS is re-

placed by the requirement to have authentic PKG’s

system to bootstrap the ID-based cryptosystems (Ja-

cobsen et al., 2015). The proposed ID-based encryp-

tion scheme will require network operators to adapt

their infrastructure as well as require them to pre-

load and conﬁgure secret information for their cor-

responding private key within the Subscriber Identity

Module (SIM) cards before distributing them to the

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

158

subscribers. The proposed ID-based scheme surely

provides a simpliﬁcation of key distribution since all

public keys can be derived from the identities of the

users.

The SecureSMS protocol proposed by Saxena and

Chaudhari makes use of two trusted entities within

the workﬂow: the Authentication Server (AS) and

CA (Saxena and Chaudhari, 2014). The protocol uses

several messages (5-6 messages) to establish a secure

connection for speciﬁed period of time. They also

state that the generation of the delegation key, that the

AS computes for a particular timestamp, uses a shared

secret key between the MSs and the AS, which has to

be embedded onto the SIM at manufacturing time.

While some tracking systems based on the SMS

protocol have been proposed they rely on the security

inherited from GSM to protect location data. In con-

trast, our system advances security beyond the secu-

rity provided by SMS and apply this to a cloud-based

vehicle tracking platform.

3 SYSTEM DESIGN

Figure 1 shows a conceptual overview of the proposed

vehicle tracking system. The system consists of Mo-

GSM

GPS

GSM

Mobile Station 1

(MS1)

Data Concentrator (DC)

pri,MS1

pub,DC

GSM

GPS

Mobile Station 2

(MS2)

pri,MS2

pub,DC

pub,MS1

pub,MS2

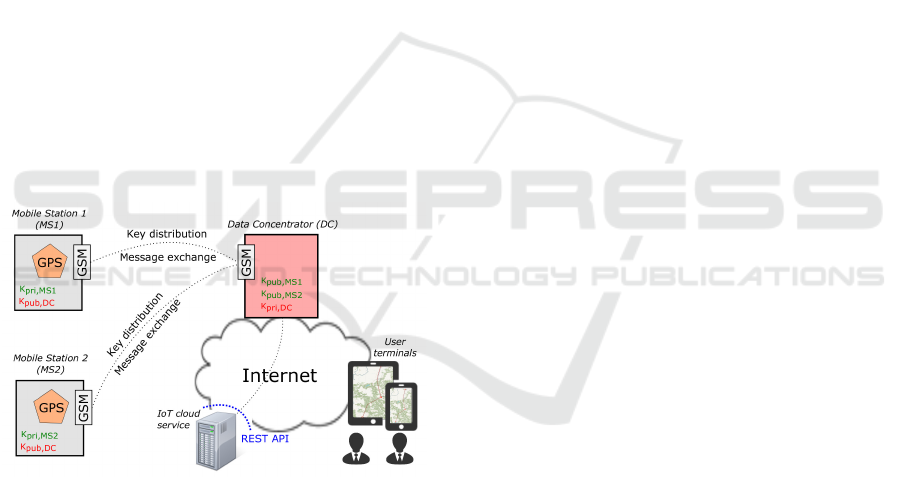

Figure 1: Conceptual system overview.

bile Stations (MSs), a Data Concentrator (DC), and an

IoT cloud service employing a RESTful web platform

where van companies manage their data, and public

users can access, search, and ﬁlter these data with the

consent of van companies operating a ﬂeet of vehi-

cles. The MS is an IoT device which reports GPS

measurements to its assigned DC. The DC is part of

an IoT cloud service platform used by van companies

to access the data reported from their devices, moni-

tor their MSs in real-time, manage their van schedules

and manage their data availability to the public end-

points in different formats.

3.1 Mobile Station (MS)

The MS of the system is the entity envisioned to be

a consumer product that would be available for pur-

chase and supposed to work with ordinary SIM cards.

Each MS will be bound to a DC device. The MS will

communicate with DC by applying a secure SMS pro-

tocol.

3.2 Data Concentrator (DC)

A DC is a physical IoT device equipped with a GSM

module. It is able to receive the GPS measurements

via SMS from the particular MS that are assigned to it.

The DC resides on the edge of the cloud. A Represen-

tational State Transfer (REST) API offers access to an

application that will be deployed to the cloud, which

will serve as the core endpoint where the DC will be

pushing the received data to over HyperText Transfer

Protocol (HTTP) over SSL/TLS i.e., HTTPS. The sy-

stem can be scaled by adding more DCs (horizontal)

and the IoT cloud service can be scaled with respect

to CPUs and memory (vertical) as the rate of the inco-

ming requests increases. In order to make our system

ﬂexible enough, so that it can support load balancing

after the ﬁrst establishment, we introduce a special

type of message that will serve to regulate this.

3.3 Communications

The SMS interface depicted in Figure 1 shows a two-

way communication, where data ﬂows between the

DC to the MS will be less frequent as designed in the

protocol. The DC acts as a proxy gateway towards

the Internet whose duty is to communicate the loca-

tion data to a pre-deﬁned web endpoint, each time

they would receive an SMS from a particular device.

By pushing and storing this location data from a par-

ticular MS device to the cloud service, we make it

possible for users to access this information in real-

time. The pushing of location data received by SMS

to the cloud will be performed via HTTP endpoints,

a well-tailored web-application following the REST

architectural style (Fielding and Taylor, 2000).

The DC will be pre-processing the received SMS

messages and is envisioned to hold the logic of distin-

guishing whether the inbound SMS originates from

an authentic source before location data is pushed to

the cloud. The REST API will be extended with a

token-based authentication layer by implementing a

light-weight security protocol reusing design practi-

ces from available authentication and authorization

frameworks to secure the DC to cloud communica-

tion. It is a “must” to hinder any possibilities of other

A Low-cost Vehicle Tracking Platform using Secure SMS

159

Internet-enabled appliances to push the location data

and ensure that the entire data pushing process will be

done in a secure and reliable way.

4 PROTOCOL DESIGN

In order to provide a sufﬁcient level of security, anot-

her layer of security must be provided on top of SMS.

We have designed our protocol to meet the limitati-

ons of the constrained payload size of a single SMS

message (limited by the constraints of the signaling

protocol to 140 octets). In order to keep our messa-

ges within the design goal of using as few messages

as possible, we have to carefully choose between al-

ternative encryption schemes and key sizes. Conse-

quently, trade-offs have been made with respect to the

efﬁciency, usability, and security we are targeting to

achieve for our platform. Below we present the essen-

tial system requirements followed by a description of

the protocol design.

4.1 Requirement Analysis

The secure SMS protocol used in our vehicle tracking

platform must support conﬁdentiality as well as mes-

sage authentication and integrity. For the message for-

mats, the message content of an SMS protocol mes-

sages is divided into multiple ﬁelds to accommodate

the various security checks required. One byte of the

message denotes the message type. The message type

is an indicator of how to process the preceding infor-

mation. Each MS must be assigned a unique device

identity (ID), represented by 16 bits, and conﬁgured

with a binding to a DC. The device ID value will be

carried in all messages sent from the MS. The com-

munication between an MS and their assigned DC

will be encrypted. After each encryption of the plain-

text of the constructed messages, the ciphertext will

be encoded. The encoding will ensure that no bit se-

quence of the generated ciphertext will occasionally

be interpreted as an ending symbol in the GSM com-

munication. Furthermore, a message must contain a

timestamp introduced in Unix epoch format. Finally,

the protocol should support protection against replay

attack as well as the ordering of messages by using

the timestamp.

4.2 Protocol Messages

Two sets of messages deﬁne the communication bet-

ween the MS and the DC. In the following, the mes-

sage types of our protocol are introduced.

4.2.1 Mobile Station to Data Concentrator

The MS supports three types of messages in its com-

munication with the DC: HELLO, REPORTING and

ALIVE messages. HELLO messages are sent upon po-

wering on the MS. It is a special message type no-

tifying the system that the MS has been powered on

and is ready to begin tracking. As a unique message

type, a signiﬁcant role of the HELLO message is that it

requests a SESSION TOKEN message from the system,

which carries a token to be used in the communication

with the IoT cloud service. REPORTING messages,

which are sent right after receiving a SESSION TOKEN

message from an authentic DC carries the location

data. These REPORTING messages are sent periodi-

cally every 5 minutes (default conﬁguration) unless

the MS has paused its movement. Finally, ALIVE mes-

sages are sent when a delay of sending the REPORTING

messages occurs because the MS has paused its mo-

vement. A tolerance of 5-10 meters is used.

4.2.2 Data Concentrator to Mobile Station

The DC supports three message types in its commu-

nication with the MSs: SESSION TOKEN, CHANGE DC,

and CHANGE PUB KEY. The SESSION TOKEN messages

are mainly responses to HELLO messages from the

MSs. A SESSION TOKEN message will be returned

to the sender, after having received a valid HELLO

message checked against a whitelist of the registered

phone number. Finally, CHANGE DC message is a type

of a SESSION TOKEN, which alongside distributing the

token to be used for the reporting session, also orders

the receiving MS to change its communication to a

newly assigned DC. The CHANGE PUB KEY messages

are designed to be sent from the DC to disseminate

the global public key in use for the MSs.

4.3 Message Exchange

ECC is established as our preferred encryption

scheme since it can support the same level of secu-

rity as RSA but with much shorter key lengths. There

will be a public key (K

pub,DC

) of the DC distributed

to all MSs and the associated private key (K

pri,DC

) re-

sides on the DC. For communication from the DC

to MS, each of the MS will have a unique secret key

pre-installed at provision time. This means that the

DCs or the cloud infrastructure must possess the cor-

responding key-value pairs for each of the MS in the

ﬁeld.

Figure 2 illustrates the scenario where a van dri-

ver powers on an MS, sends a HELLO message, recei-

ves a token from the DC and starts reporting location

data periodically. In Figure 3, we show the interaction

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

160

Figure 2: A normal activity for MS movement. After the

initialization phase, the MS starts periodic reporting.

between an MS and a DC for a moving vehicle that

stops for 6-7 minutes when trying to wait for more

passengers at the stop. As one may see, every mes-

Figure 3: MS is powered on. The vehicle starts moving but

then stops for 6-7 minutes.

sage sent out from an MS is done in a ﬁre-and-forget

manner, without any acknowledgments from the DC.

This is also the case with ALIVE messages. The sce-

nario shown in Figure 3 will require an MS to detect

these events accordingly and take decisions on itself.

An internal algorithm is able to calculate this by using

the GPS data and the system internal clock.

5 IMPLEMENTATION

In the following, we will introduce the key implemen-

tation aspects of the MS, DC, and the IoT cloud ser-

vice.

5.1 Mobile Station (MS)

For the MS hardware, a Raspberry Pi 1(B+) single

board computer platform is chosen because of its low

cost and high degree of ﬂexibility. The hardware is

extended with a red-green-blue (RGB) LED, which

will elevate the ease of use. The visual light signals

provide a simple user interface of the MS to signal sta-

tus of the device (booting, connected/not connected

etc.). The MS hardware is equipped with a GPS mo-

dule to allow the hardware to determine position ba-

sed on GPS satellites. Additional geo-data can be

used to reﬁne the accuracy of the estimation algorithm

such as the current driving speed to be sent alongside

the vehicle position. The Raspberry Pi device keeps

track of time so that the timestamps can be correct

when pushing data to the IoT cloud service. The MS

system time will be kept up to date and synchronized

periodically.

As for the decision of this module, we went with

a reasonably priced and yet a small GPS component

like the UBLOX-NEO-6M GPS module. It is a com-

plete GPS smart antenna that includes an embedded

antenna (1575R-A E). This module comes with a fast

time-to-ﬁrst-ﬁx, one-second navigation update, and

low-power consumption. It matches with the capabi-

lity of the sensitivity required for vehicle navigation,

as well as other location-based applications (ublox,

2011). For the General Packet Radio Service (GPRS)

module, we chose to integrate the SIM800L hardware

building block (SimCom, 2013) in our system design

because of its ease of use and low cost.

Figure 4 pictures the hardware platform for the

MS. The device runs the Linux OS Raspbian with

RGB LED

SiM800L

Antenna

SiM800L

RPi base

Figure 4: Raspberry Pi (RPi) with an RGB LED light and

SIM800L attached.

A Low-cost Vehicle Tracking Platform using Secure SMS

161

Python and the programming of the platform can be

done right away after installing the necessary soft-

ware libraries. In order to be able to facilitate com-

munication, it is required to create a thread that will

run in the background and fetch geo-data provided by

the gpsd service that has been initialized. The varia-

bles to be extracted and then used for the MS are the

latitude, longitude, current speed and the global time.

Figure 5 shows a typical console output resulting from

the GPS output.

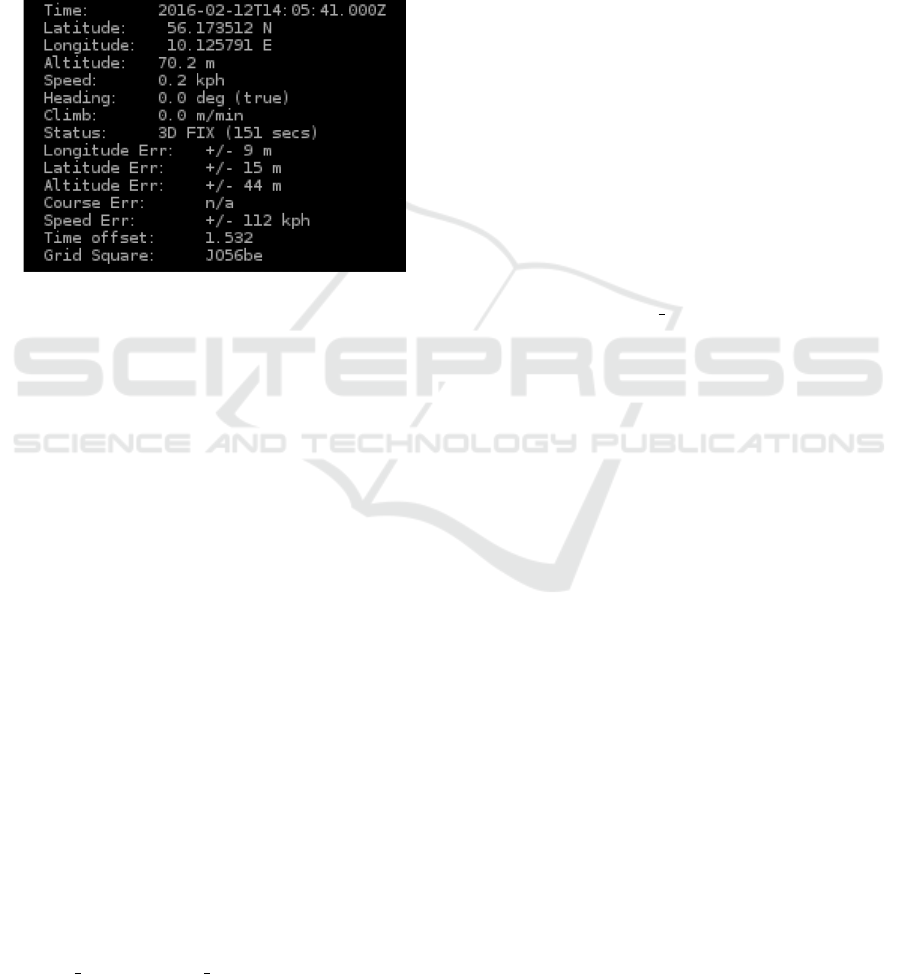

Figure 5: Example of a console output results from the gpsd

service.

5.2 Data Concentrator (DC)

The DC is based on the same hardware platform as

the MS. The main loop of the application will be re-

ading SMS messages without using the silent mode

read because a single phone number (SIM card), that

will be attached to a GSM module, will only serve

the DC functionality. The GSM modules are constrai-

ned devices with limited processing capabilities and

can only be accessed synchronously through the in-

terface. They support up to 115,200 bits per seconds

but also recalling that the operational commands is-

sued take also time to be performed. A starting point

could be to poll the GSM module to read arrived mes-

sages, each 5 seconds and read its result. Then right

after reading, to delete the read messages avoiding a

message queue to build up. Another important com-

ponent of the main application will be the software

component that will be responsible for pushing the re-

ceived content through the speciﬁed endpoints. This

will be done through asynchronous requests from a li-

brary named requests. The responses will be expected

via a callback. If a particular request fails to connect

with the servers, the request will be queued to be re-

tried later.

There are different ways a DC can send

SESSION TOKEN/CHANGE DC messages. Due to sim-

plicity, we have chosen a solution where the DC lis-

ten to the request callbacks whenever a HELLO mes-

sage gets a reply and interpret the particular HTTP

response. We must be careful building our applica-

tion using a non-blocking way of pushing the loca-

tion. Sequentially executing a request and blocking

until the server response has arrived is not a very ﬂex-

ible, nor a scalable solution. To maximize the throug-

hput and utilize the DC’s resources efﬁciently, the ap-

plication will have to asynchronously execute reque-

sts and handle them via a callback function. For this,

we use a software library like grequests. This library

offers asynchronous capabilities of making HTTP re-

quests and specifying their connection timeout varia-

bles, retry number similar to using the built-in library

request. For all the requests towards the cloud, their

connection timeout would be set at 2 seconds. A re-

quest that fails to get a response will be re-tried twice,

also considering a maximum pool of concurrent re-

quests would be set accordingly.

The DC maintains a whitelist of authorized

phone numbers to check if messages received co-

mes from an authorized MS before the correspon-

ding data is pushed to the IoT cloud service.

This list will be retrieved from a dynamic end-

point: /tel/<country abbreviation>/whitelist

where the country abbreviation variable (e.g. DK,

MK) can be any country. The process of retrieving

the whitelist will be among the ﬁrst instructions of

the DC when it is booted. This will be done by inte-

racting with the cloud from the speciﬁed variables de-

noting from which server port the REST API will be

available. When the whitelist is retrieved, it has to be

kept up to date since additional MSs can be continu-

ously registered/de-registered through the web plat-

form. A publish-subscribe paradigm would ﬁt best

for this purpose, utilizing a messaging service techno-

logy to notify DCs for every change that happens after

their ﬁrst fetch. However, this latter part was not im-

plemented in our prototype.

5.3 IoT Cloud Service

The IoT cloud service offers a REST API for hand-

ling incoming messages originating from the MSs.

These messages are routed through and authentica-

ted by the DC. The message exchange uses HTTPS.

The SSL/TLS protocol ensures mitigation of replay

attacks and provides conﬁdentially to content that is

pushed through the speciﬁc resource endpoints.

The IoT cloud service is developed by using the

Flask micro web framework (Grinberg, 2014). A key

challenge is to limit access of which of the online ena-

bled devices will have the privilege of using the IoT

cloud service to push the geo-data. DCs are the only

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

162

devices that are authorized to communicate with the

REST endpoint of the cloud service.

To support authorization of DCs, we have im-

plemented a simpliﬁed version of the OAuth 2.0

protocol (Hardt, 2012). Starting from the roles of

OAuth 2.0, we do not need a client because the appli-

cation making requests on the protected resources will

be a single entity i.e., the program installed on each of

the DCs. The resource server and authorization ser-

ver can be brought up as a single entity in our case.

Thus, from the protocol ﬂow of OAuth 2.0 (Hardt,

2012) the authorization request (step A) and the aut-

horization grant (step B) between the client and the

resource owner are skipped. For the authorization

grant type, we are choosing the resource owner pas-

sword credentials anticipating a high degree of trust

between the resource owner and the client, which are

fully controlled in our system. We can choose to rely

on this scheme so future partners can scale up the IoT

cloud-based backbone of our system just by logging

in, to ﬁnd the particular valid token to set their DC up

and running.

To enhance security beyond the level provided by

HTTPS, we decided to create our own token-based

authentication as an extra layer to enhance our pro-

tection. The token issued by our IoT cloud plat-

form, will be generated by a cryptographically secure

random generator and will have a length of 95 by-

tes. With a Base64 representation, this translates to

128 ASCII characters. Each of the generated tokens

will be stored in a database with a 24 hour expiration

time. These tokens will be used by the DC as means

of identifying itself with the cloud service and gain

the authorization rights to push geo-data to it. The to-

ken’s value is intended to be installed and deployed

to the DC. The system will automatically refresh ex-

pired tokens by creating new ones each time they get

expired. This is accomplished by a daemon mecha-

nism that checks token validity against their creation

timestamp. A DC that tries to push geo-data via the

POST method to an endpoint using a just expired to-

ken (the previously valid token) would get a reply the

new valid token and retry the same exact request with

the obtained token.

6 EVALUATION

This section analyzes various aspects of the proposed

protocol including security such as authentication, at-

tack resistance, and performance.

6.1 Authentication Between MS and DC

In our proposed SMS protocol, both the MS and the

DC can authenticate each other for any of the message

types designated to them. The authenticity of messa-

ges arriving from a DC is achieved through the se-

crecy of the encryption keys. We can rely on authen-

tication by encryption method, since we can ensure

that only our IoT cloud service possesses the corre-

sponding public keys corresponding to the secret keys

deployed in each of the MS and the fact that they are

completely unique from each other. It is impossible

to forge authentic messages without knowing: 1) the

phone number being used for the DC, 2) the MS’s

phone number the attacker is targeting and whether

they are associated together, and 3) the particular pu-

blic key used to encrypt the messages ﬂowing from

the DC to the designated phone number being used

with the MS. Any attempt to forge an authentic mes-

sage will fail due to the cryptographic integrity. We

are also protected by the prior integrity check offered

from the encoding technique and the posterior times-

tamp integrity.

To ensure authentication for messages that ar-

rive in the DC, our protocol relies on two important

techniques to tackle message authenticity issue for

different message types. The ﬁrst one, the inclusion

of long-term random 10 digits number that is shared

between the user (van company) through the web plat-

form as soon as a phone number is successfully veri-

ﬁed via the two-factor authentication veriﬁcation pro-

cess. This is the main technique that basically limits

the attacks to send out SESSION TOKEN message con-

taining the valid token. The second setting, mainly

used to ensure authenticity for the REPORTING and

ALIVE messages that are sent from an MS, is con-

cerned with the 50 byte token that the MS is envi-

sioned to be obtained from the SESSION TOKEN mes-

sages. Because we are sure that only the phone num-

ber that actually sent the valid HELLO message will

receive the SMS message, respectively the particular

SESSION TOKEN message. Any attempts to snoop and

derive the token from the SESSION TOKEN content,

from intermediary transmission layers in the GSM in-

frastructure will end in a failure, since the whole mes-

sage content is strongly encrypted with ECC crypto-

graphy, providing full conﬁdentiality.

6.2 Resistance to Attacks

SMS messages are easily intercepted during its trans-

mission which thwarts the privacy of location data

that ﬂows out of the MS. Our platform ensures full

conﬁdentiality and no SMS message content is dis-

A Low-cost Vehicle Tracking Platform using Secure SMS

163

closed because the whole two-way communication is

encrypted. That being said, the communication from

an MS to the DC is encrypted with a public key, which

is the same key deployed to all of the MSs. The only

party that possesses the secret pair of this global pu-

blic key deployed, is the IoT cloud service. The com-

munication from the DC towards the MS (phone num-

ber being used) is encrypted with a different public

key that is unique for each MS.

Replay attacks are another security challenge to

be addressed. The timestamp ﬁeld introduced in the

structure of our proposed protocol will serve as a me-

chanism to prevent replay attacks in both ends of the

communication. MS will only accept and execute va-

lid message from the DC whose timestamp is bigger

than the timestamp created upon sending its HELLO

message on power-up and neglect any messages that

arrive earlier than this HELLO message. After having

received any valid message from an authentic DC, the

timestamp variable is overwritten with the particular

timestamp when the message was issued making re-

play attacks of previously issued commands impossi-

ble.

Along the same lines, the DC will have to store

the last-received HELLO message timestamp and a me-

chanism is employed to check the replay of previous

HELLO messages that were used on earlier trips. In this

way, we will prevent previous HELLO messages to ge-

nerate another valid token and issue a SESSION TOKEN

reply, making the HELLO message of a one-time use

type.

6.3 Performance Evaluation

We have examined the computational overhead requi-

red for the encryption and encoding techniques per-

formed on a low-cost and resource-constrained device

as the Raspberry Pi single board computer. The tests

were done using a Python built-in module called ti-

meit, which avoids common traps for measuring exe-

cution times providing more accurate results than ot-

her techniques of time measurement. The encryption

tests are done with a 160 bit key size over the p160

elliptic curve provided by the seccure crypto-library.

Table 1 lists the results from tests using p160 ellip-

tic curve and the Base92 encoding/decoding techni-

que with the MS hardware platform.

We also tested the time required to read the contact

phone number via the SIM800L module, where the

user is supposed to save the 10-digits secret number,

retrieved from the web platform. That is done by the

issuing AT+CPBF=<contact to find> that initiates a

ﬁnd operation on the speciﬁed storage of the phone

book entries. It takes 2.1 seconds in average and up

Table 1: Records of time used to encrypt/decrypt and en-

code messages.

Tasks Average time

Encrypt + encode HELLO 113 ms

Encrypt + encode

REPORTING/ALIVE

124 ms

Decode + Decrypt HELLO 64 ms

Decode + Decrypt

REPORTING/ALIVE

70 ms

to 3 seconds to read the phone number of a contact.

6.4 Web Service Testing

The experimental setup to test the IoT cloud service

are performed using mock-up data to emulate MS mo-

vement and to see that the endpoints are correctly re-

ceiving the information from the DCs. The tools used

for testing includes Postman, Twilio, and Nexmo.

Postman is a browser plugin to test the REST API

endpoints by allowing the construction of requests

quickly, save them in collections and analyze the re-

sponses. Twilio offers a cloud-based messaging plat-

form that enables the use of virtual phone numbers

to potentially substitute the physical DCs. Nexmo

is another cloud-based messaging platform we used

to send mock-up SMS messages from an MS with a

spoofed originator’s address and check how they are

received by the Twilio platform. By using the men-

tioned protocol messages formats, the authentication

mechanisms, location update mechanism, have been

successfully veriﬁed. However, a thorough documen-

tation of the testing of the IoT cloud service is beyond

the scope of this paper.

7 DISCUSSION

The low-cost motivation of the project was realized

by choosing cheap Commercial off-the-shelf (COTS)

products and open source software, assembling them

into a prototype for an MS. The cloud infrastructure

was built based on a software development process

where the requirements elicitation was done through

observations of the current transport industry environ-

ment in Macedonia.

A main goal of the work was to design a secure

and reliable application-level protocol that would ele-

vate mature technology like GSM into a value ad-

ded service for supporting vehicle-tracking systems.

We have successfully identiﬁed and analyzed the we-

aknesses that this service inherits and circumvented

its drawbacks by enhancing the security of the de-

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

164

sign. The choice of ECC over RSA allows our pro-

tocol to be easily adapted and applied even to con-

strained devices with limited computing capabilities.

The Base92 encoding technique proved to be more ef-

ﬁcient in the production of shorter encoded ciphertext

than traditional alternatives. The message protocol

ﬁelds of the shared 10-digit number and the reporting

session token can be of variable length, thus carefully

tailored according to the type of the application and

the MS capabilities. The token length of 50 bytes was

set as a default for our platform and assessed to pro-

vide a sufﬁciently good level of security.

A REST API for location data to be pushed to the

cloud infrastructure. The DC can, through the propo-

sed API, maintain their current valid token conﬁgu-

ration via a fully automated mechanism. Our system

can be applied in different countries without the ne-

cessity to physically own DC devices equipped with

local phone numbers. However, the possibility of re-

placing a DC with a cloud service like e.g., a rented

Twilio phone number, imposes modiﬁcations to our

cloud infrastructure including the REST API. Not

only implying that the logic of decoding and decryp-

tion must be done on cloud’s end, but also introduce a

completely new Universal Resource Identiﬁer (URI)

approach how the messages are pushed through the

endpoints. The latter problem arises because Twilios

platform only allows us to set a single dedicated URI

where they will retrieve the SMS-related data either

by POST or GET method. Therefore, to support that

we must create a unique universal endpoint especially

dedicated from this alternative, where Twilio will be

transmitting information upon SMS reception on their

side, directly to our servers. In this case, the phone

number in our application will not be distinguished

from the URI segment, but rather from their passed

parameter ‘From’ alongside other important parame-

ters of the SMS message that is pushed from Twilio’s

servers.

As part of the project, an online survey was con-

ducted to a group of people from different cities

around Macedonia that are traveling via inter-city li-

nes that van (bus) companies offer. The total num-

ber of the survey responses collected was 53, from

where 12 people within the 16-20 age group, 39 be-

longing to the age group of 21-25 and 2 people within

the 26-30 age range. All of the interviewees stated

that they own a smartphone. The majority of them

(77.4%) answered that they often use the navigational

apps on the smartphone to ﬁnd their way around cities

and 71.1% of interviewees would be willing to share

their location with these navigational apps. A consi-

derable amount of interviewees (37.5%), that belong

to the latter group, have privacy concerns and with re-

spect to sharing their location information with apps

or websites that have nothing to do with navigational

services.

When asked how do they approach ﬁnding infor-

mation about their current available trips, the majo-

rity of the interviewees (60.4%) claim that they per-

sonally call the van companies to ask about their offe-

red lines, schedules, and location information. Howe-

ver, the majority of the interviewees (65.6%) of the

group that claimed to call van companies by phone,

complain about their ofﬁce telephone lines being busy

and 25% of them think that the location information

the van companies give over the phone can be misle-

ading. All of the interviewees have been asked about

how they deal with issues when the vehicle of the par-

ticular trip is late according to the schedule. In this

case, 47.2% of them would immediately call their of-

ﬁce phone number for explanation and 30.2% would

furthermore try and contact the vehicle driver of the

trip asking for status and plans.

As the last question, they were asked how they

would like to be informed about the arrival times

of the van (buses) if a web platform existed where

they could subscribe to receive notiﬁcations about ex-

pected arrival. The answers indicate a lead of the SMS

communication by 67.9%, followed by email (22.6%)

and lastly voice-calls (9.4%).

8 CONCLUSIONS

In this paper, we have presented a low-cost and secure

vehicle tracking platform to be used in countries do-

minated with GSM mobile infrastructure. The system

is based on a security-enhanced messaging protocol

delivered over SMS. The vehicle tracking platform

employs a Mobile Station (MS) based on a single-

board computer that accesses an IoT cloud service

through a Data Concentrator (DC) residing on the

edge of the cloud.

The proposed platform solves the problems of ﬁn-

ding the reliable, up-to-date schedules and unambigu-

ous locations of where the vehicle picks up the pas-

sengers. The system will offer a search capability

presenting passengers with choices over current al-

ternatives and our platform will be aware of all the

available trips that intercept that route (city). Hereby,

the platform would signiﬁcantly reduce the number

of phone calls a van company receives as well as their

employees (drivers) phones.

The steps of achieving the low-cost motivation of

the project were realized by choosing cheap COTS

products. Future work will include an investigation

of the Raspberry Pi Zero hardware as a potential plat-

A Low-cost Vehicle Tracking Platform using Secure SMS

165

form to drive down the cost of the MS further. We

will investigate further the potential seamless integra-

tion with cloud-based platforms such as Twilio and

Nexmo providing virtual phone numbers to possible

fully substitute the function of the DC. This could po-

tentially also improve the scalability of the platform

as more virtual phone numbers can be activated as the

number of MSs increases.

REFERENCES

Bajaj, R., Ranaweera, S. L., and Agrawal, D. P.

(2002). GPS: location-tracking technology. Compu-

ter, 35(4):92–94.

Barkhuus, L. and Dey, A. K. (2003). Location-based ser-

vices for mobile telephony: a study of users’ privacy

concerns. In Interact, volume 3, pages 702–712. Cite-

seer.

Fielding, R. T. and Taylor, R. N. (2000). Principled design

of the modern web architecture. In Proceedings of the

22nd international conference on Software engineer-

ing, ICSE ’00, pages 407–416, New York, NY, USA.

ACM.

Grinberg, M. (2014). Flask web development: developing

web applications with python. O’Reilly Media, Inc.

Hardt, D. (2012). The oauth 2.0 authorization framework.

Hasan, K. S., Rahman, M., Haque, A. L., Rahman, M. A.,

Rahman, T., and Rasheed, M. M. (2009). Cost ef-

fective gps-gprs based object tracking system. In Pro-

ceedings of the international multiconference of engi-

neers and computer scientists, volume 1, pages 18–20.

Jacobsen, R. H., Mikkelsen, S. A., and Rasmussen, N. H.

(2015). Towards the Use of Pairing-Based Cryp-

tography for Resource-Constrained Home Area Net-

works. In 2015 Euromicro Conference on Digital Sy-

stem Design, pages 233–240.

Kumar, B. H., Tehseen, S. F., Thanveer, S., Krishna, G. V.,

and Akram, S. M. (2016). Vehicle monitoring and

tracking system using gps and gsm technologies.

Lee, S., Tewolde, G., and Kwon, J. (2014). Design

and implementation of vehicle tracking system using

gps/gsm/gprs technology and smartphone application.

In Internet of Things (WF-IoT), 2014 IEEE World Fo-

rum on, pages 353–358. IEEE.

Lo, J. L.-C., Bishop, J., and Eloff, J. H. P. (2008). Smssec:

An end-to-end protocol for secure sms. Computers &

Security, 27(56):154.

Nielsen, T. T. and Jacobsen, R. H. (2005). Opportunities for

ip in communications beyond 3g. Wireless Personal

Communications, 33(3):243–259.

Saxena, N. and Chaudhari, N. S. (2014). Securesms: A se-

cure sms protocol for vas and other applications. Jour-

nal of Systems and Software, 90:138–150.

Shinde, P. A., Mane, Y. B., and Tarange, P. H. (2015). Real

time vehicle monitoring and tracking system based on

embedded Linux board and android application. In

2015 International Conference on Circuits, Power and

Computing Technologies [ICCPCT-2015], pages 1–7.

SimCom (2013). SIM800L Hardware Design V1.00.

Technical report, SIMCom.

Toorani, M. and Beheshti, A. (2008a). Solutions to the

GSM Security Weaknesses. In 2008 The Second In-

ternational Conference on Next Generation Mobile

Applications, Services, and Technologies, pages 576–

581.

Toorani, M. and Beheshti, A. (2008b). SSMS - A secure

SMS messaging protocol for the m-payment systems.

In 2008 IEEE Symposium on Computers and Commu-

nications, pages 700–705.

ublox (2011). NEO-6 u-blox 6 GPS Modules Data Sheet.

Technical Report GPS.G6-HW-09005-E.

Verma, P. and Bhatia, J. (2013). Design and development

of gps-gsm based tracking system with google map

based monitoring. International Journal of Computer

Science, Engineering and Applications, 3(3):33.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

166
