Challenges for the Adoption of Model-Driven Web Engineering

Approaches in Industry

Esteban Robles Luna

, F. J. Domínguez-Mayo

, José Matías Rivero

1, 2

J. A. García-García

J. M. Sánchez-Begines

, M. J. Escalona

and G. Rossi

1, 2

LIFIA, Facultad de Informática, UNLP, La Plata, Argentina

Conicet, Argentina

Web Engineering and Early Testing Group, University of Seville, Seville, Spain

Keywords: Model-Driven Web Engineering, Human-centred Interfaces, MDE, Industry.

Abstract: Model-driven web engineering approaches have become an attractive research and technology solution for

Web application development. However, after 20 years of development, they have attracted little attention

from the Industry due to the mismatch between technical versus research requirements. In this joint work

between academia and industry, the authors present the current problems of using these approaches in scale

and provide guidelines to convert them into viable industry solutions.

1 INTRODUCTION

Model Driven Web engineering (MDWE) approach-

es appeared 20 years ago to fulfill a missing area of

Model Driven Development: Web application de-

velopment (Selic, 2003). From that moment, about 7

to 8 of MDWEs (Rossi et Al, 2007) were created but

only a few ended up providing tool support and one

became the mayor player with small company and

support from OMG to convert its language to a

standard.

Though MDWEs have claimed to improve

multiple aspects of Web application development

such as: code quality, development speed and level

of abstraction , Why has the industry given little

attention to it? A recent study (Hull, 2013) has

presented the 20 obstacles that hinder Web

application scalability and though they are not

specifically targeted to the applications derived from

MDWEs, they are still affected by them. Another

study related to Web Engineering in the Cloud

clearly explains some of the problems of moving the

current tools to support this kind of applications.

Though the study is not focus on why MDWEs are

not a viable solution in the Industry, some of the

problems presented clearly show related technical

limitations of current MDWEs.

In this study, we present a list of issues that

hinders the usage of MDWE in medium to big size

companies and as a consequence shows clear

practical problems that need to be resolved to

support the claims that the MDWE community have

done for years. To provide a context for the issues

we have found, Figure 1 presents an agile

development life-cycle process of a Web

application. In this figure, the main phases appear in

bold type format and the issues that hinders the

usage of MDWE are represented by posits that are

sticked to the picture in the affected phase in which

the issue is localized.

The study uses small experiments to apply

MDWE in a company in addition to exhaustive

literature review to give support to its claims. As

many different aspects are considered (not only

technical) when dealing with limitations of MDWE

approaches, we have created a categorization to

stress the area where the issue was found:

 Social [S]: A social issue is related with prob-

lems between the people involved in the

project or between the people and the soft-

ware artifact.

 Technical [T]: A technical issue is related

with the software elements that constitute

the Web application.

 Economical [E]: An economical issue is re-

lated with the project’s budget or money

involved in the development of the applica-

tion.

Luna, E., Domínguez-Mayo, F., Rivero, J., García-García, J., Sánchez-Begines, J., Escalona, M. and Rossi, G.

Challenges for the Adoption of Model-Driven Web Engineering Approaches in Industry.

DOI: 10.5220/0006382704150421

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 415-421

ISBN: 978-989-758-246-2

415

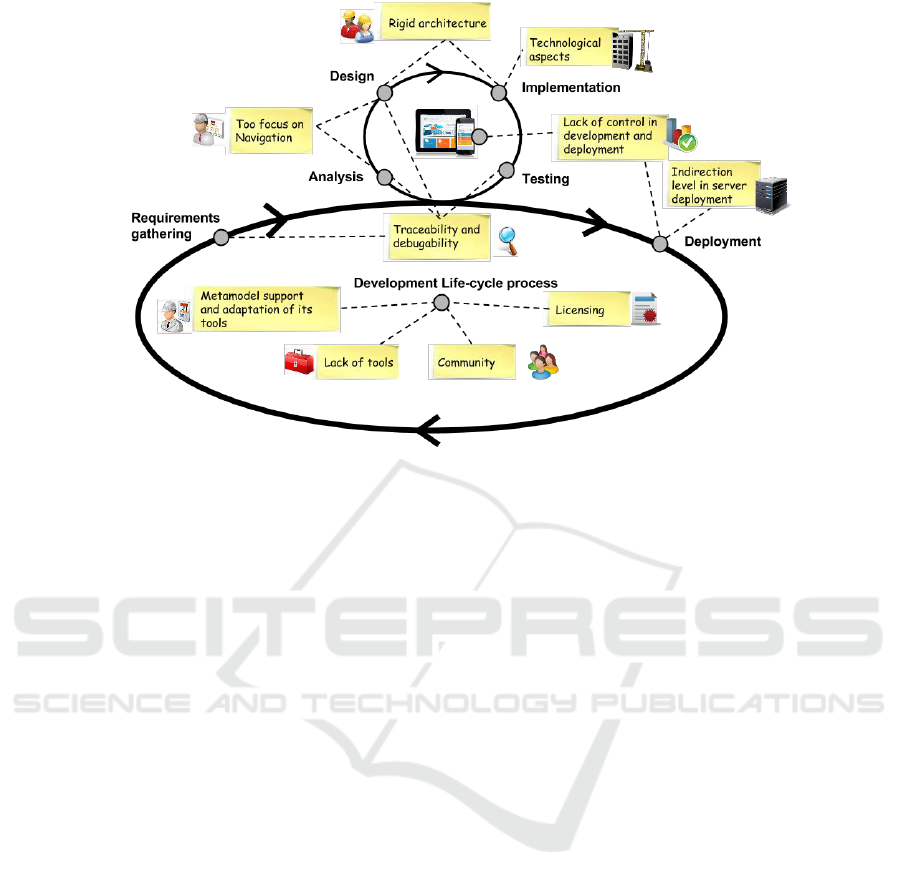

Figure 1: Issues that hinders the usage of MDWE in medium to big size companies.

In Table 1, we sum up the categorization of the

issues that we will next present in the following

subsections. Each subsection explains the issues and

offers a final guideline to solve it.

2 CHALLENGES

2.1 Lack of Control in Development

and Deployment [S, T, E]

Creating a Web application is a complex process

that involves not only coding/modeling but also

having meetings with stakeholders and debugging

the application to fix production problems. In

particular, when the application is deployed, aspects

such as monitoring, logging and profiling become

more important (Hull, 2013). Therefore, the

engineering teams that develop the web application

have the ownership and responsibility for the

deliverables and as a consequence they want to have

to control the complete process (from development

to deployment).

Though model driven technologies provide many

benefits, they also add an extra level of complexity

as the derivation process feels like a “magic wand”

that obtains an application from a set of models.

Most MDWE tools hide and make this process

“close source” creating a dependency between the

MDWE tool and the development teams. This

dependency is not good with time constraints and

not having the source code available to everyone

makes things worst. Additionally, it is highly

probable that the commitment from the MDWE tool

team requires paying fees in the form of licenses that

adds another economic cost to the development.

2.1.1 Guideline

To give more control of the actual development,

MDWE tools need to provide:

 Ways to hook in the modeling and transfor-

mation phases so that developers can add

and improve the development process

based on the application they are building.

This could be done if the transformation al-

gorithm works using the template method

design pattern.

 Make the code open source so that the tool is

easy to debug by the development team in

case problems arise during development or

maintenance.

2.2 Too Focused in Navigation [T]

Original hypermedia based Web applications that

were developed 10 years ago are rather different

from the current integration Web paradigm were

navigation is one tiny concern. Aspects such as Rich

Internet applications, integration with different

systems, search capabilities, personalization and

recommendation have become aspects that are more

complex and more important than navigation.

In the early stages, MDWEs were created to

adapt the navigation paradigm from hypermedia to

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

416

Table 1: List of issues by category.

Social

Technical

Economical

Lack of control in development and deployment

Too focused in navigation

Metamodel support and adaptation of its tools

Traceability and debugability

Lack of tools

Rigid architecture

Technological aspects

Community

Just in time development

Licensing

the Web. Many new concepts were introduced and

although most of these enhancements have been

reported in the literature (Robles et Al, 2011) only a

few of them has been actually implemented. As a

consequence, still today, the main model of industry

leading WebRatio is the navigational model that

describes the navigational paths that a user can

follow. On the contrary to what many researches

have shown about the importance of the UI aspects,

integration (among others), navigation is still the

most important aspect for MDWE approaches.

2.2.1 Guideline

MDWEs need to detach from being focus in navi-

gation to support navigation as one concern of the

Web application lifecycle. Additionally, there is a

special need to provide a real tool support for the

features that MDWEs claim to have and in the case

that they are not supported, provide hooks to per-

form manual coding of these features.

2.3 Metamodel Support and Adapta-

tion of Its Tools [T, S]

The increasing number of technologies that are

being developed every day in addition to customer’s

time constraints poses multiple challenges to Web

application development. Although these tasks can

be performed manually (in code based

environments) and may be time consuming, they can

be easily done by extending and hooking into the hot

spots that code base frameworks provide.

In MDWEs, this kind of extensions may be

either done by instantiating some preexisting

metamodel classes or, if the functionality is not

supported, by metamodel extensions. Extending a

metamodel does not only require to add the new

classes and transformations but also to adapt the

tools in a timely manner. Some approaches such as

NDT

or UWE

are extensions of the UML profile,

so, these approaches can be adapted easily than

others such as IFML

2.3.1 Guideline

Due to the existing technology and economic time

constraints, metamodels and tools need to be

adapted within days to cope with customer’s

demands.

2.4 Traceability and Debugability [T]

One of the most important aspects of software

development is the ability to introspect, change and

monitor the “live” application under development to

quickly fix the problems; these actions are

considered as “debugging” an application. Code

based development in high order languages such as

Smalltalk, Java and .NET have these features from

the beginning and they make easy to iterate in the

development process.

In MDWE tools where code is generated from

models, the ability to debug is related to derive

traceability links between the models and the

generated code. Nowadays, only WebRatio partially

supports this schema (Fraternali and Tissi, 2011) by

allowing debugging the application under

development. Still, WebRatio needs further work to

help tracing back the problems while the application

is running in production and exceptions occur as

non-support is provided in this case. All these

aspects make core engineers to avoid adopting

MDWE tools as they lack control over the system

under development.

NDT and NDT-Suite, Retrieved April 2014 from

http://www.iwt2.org

UWE and MagicUWE, Retrieved April 2014 from

http://uwe.pst.ifi.lmu.de

IFML: The Interaction Flow Modeling Language, Retrieved

April 2014 from http://www.ifml.org

Challenges for the Adoption of Model-Driven Web Engineering Approaches in Industry

417

2.4.1 Guideline

As high-level languages (e.g. Java) provide ways to

trace back problems to concepts of the language

(e.g. classes and line numbers in exception stack

traces), MDWE should provide those features in

order to detect the root causes of the problems.

Additionally, further debug support must be

provided to debug, evaluate and alter the application

while it is running in a development environment.

2.5 Lack of Tools [T]

Building a Web application requires a set of tools

that eases the process of development, deployment

and monitoring. For example, a typical JEE Web

application can be developed using Maven4 as a

build system, Jenkins 5 for continuous integration

and a variety of frameworks to actually build the

application (Spring, Hibernate and JQuery to name a

few). To perform the actual deployment, a set of

tools that automate and control the process from the

moment the application is built to the instantiation of

the servers and application deployment and its initial

monitoring is provided. All these tools though from

a lower level of abstraction (if compare with

MDWE) clearly help to build and deploy an applica-

tion.

However, in the MDWE area to much focus has

been put in the actual development of the application

from high-level models. Though that is correct from

the MDWE philosophy, it increases the effort put in

development and monitoring for many other topics

discuss in this work (Technological features and

Traceability and debugability). To provide concrete

examples to the reader:

 There are no tools to trace back stacktrace

exceptions back to the model elements.

This aspect makes super hard to correct er-

rors of the application deployed.

 There are no tools to support the monitoring

of the model elements and as a conse-

quence detecting performance issues is

hard. By using New Relic6, we can detect

some of these aspects but those would be

classes derived from the MDWE tool that

may correspond to multiple model ele-

ments.

Maven, Retrieved April 2014 from http://maven.apache.org

Jenkins, Retrieved April 2014 from http://jenkins-ci.org

New Relic, Retrieved April 2014 from http://newrelic.com

2.5.1 Guideline

To provide an industry valid approach, MDWEs

need to support a handful set of tools that help with

the complete application lifecycle. Some of tools

mentioned in this section (Maven, Jenkins, New

Relic) are fully extensible so building some of these

tools can be fairly simple by having good traceabil-

ity links and extending them with the right infor-

mation. Tools around the Web applications are one

of the most critical aspects to keep the application

running 24 by 7.

2.6 Rigid Architecture [T]

Creating a Web application of any size may require

small to big changes in a standard 3-tier Web appli-

cation. Some aspects that need to be considered may

involve integration with external services, asynchro-

nously processing of queued information, exposed of

REST services for external users or internal mobile

applications, etc. As a consequence been able to

adapt the architecture to support any of these types

of requirements is extremely important.

In current MDWE tools, the architecture is not

modeled at all and as a consequence they derive a

simplistic 1 tier Web application7. A 1-tier architec-

ture can only handle a few sets of uses cases and

doesn’t allow the development team to be able to

adapt to future needs. A recent paper (Toffetti, 2012)

showed the need to model theses aspects in some

way so that they can be considered through the deri-

vation process. In its current state, MDWE tools can

derive simple applications that may not scale well,

thus making harder to gain adoption in medium to

big size companies.

2.6.1 Guideline

To be able to adapt to more complex requirements

that may involve functional (e.g. processing offline

data) or non functional (e.g. performance and scala-

bility issues) requirements, MDWE need to model

the architecture in such a way that development

teams can decide which approach to use. We must

stress that though some architectures (e.g. 3-tier

Web app) can be pre-configured, it is important to

model the architecture primitives and let develop-

ment teams abstract higher-level concepts from them

such as the 3-tier Web app instead of hardcoding it.

A big limitation of this approach is that they are not able to

handle more the a few hundred of users as they have a tight de-

pendency with the database and database generally handle less

than 300 concurrent connections.

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

418

2.7 Technological Aspects [T]

Logging, caching, load balancing and profiling (to

name a few) are some of the aspects that engineers

need to build high scalable Web applications (Hull,

2013). The lack of any of these poses some limita-

tions on the type of application that you can build.

For instance, lacking a caching strategy forces the

application to compute or fetch information for eve-

ry request limiting the application growth. Addi-

tionally it may add the following problems:

 Run out of DB connections: Being not able to

cache information stored in a DB requires

the usage of a DB connection for every re-

quest. Thus, because of a DB limitation is-

sue, the maximum number of users able to

access the Web application is equal to the

number of DB connections and as a conse-

quence, new users won’t be able to access

the DB.

 Increasing response time: If we can’t cache

external service calls, those calls need to

happen every time thus increasing the over-

all response time of the requested Web

page.

 Increase in hardware needed: If no cache is

provided, we may need to use more hard-

ware to recompute values that were com-

puted before.

Though caching is fairly simple aspect that is in-

trinsic to application development, MDWE consider

it, and the aforementioned aspects, as “technologi-

cal”. Being part of this category means that little

importance has being paid in the models and as a

consequence engineers will have to tweak them in

the generated code. As none of the MDWE tools

provide a roundtrip between the generated code and

the models, these “technological” tweaks have to be

adjusted every time the application is derived.

2.7.1 Guideline

The “technological” aspects need to be considered in

some way inside the model driven development. If

MDWE move to consider and model them, it would

provide a great benefit for the size and quality of the

application that can be built with MDWE tools. At

the same time, the response time can be tweak to

decrease while a bigger amount of work is handled

by the same amount of hardware; and that will clear-

ly show the benefits of using a model base solution.

2.8 Community [S, E]

In the MDWE research area, there is a good initia-

tive like the MDWEnet

which the main research

focus is on meta-modelling and on model transfor-

mations, and it was created with the aims of improv-

ing the interoperability between existing MDWE

approaches and their tools and to provide better

methods and solutions to the industry. Today, the

fact is that most approaches have a great lot of not

agreed aspects; i.e. (Dominguez-Mayo et Al, 2012):

Meta-models and models are different, different way

to implement transformations or different tools and

used technology among other things. Then, there is a

lack of consensus and documentation between ap-

proach designers and this entire context is causing

different situations:

 On one hand, organizations do not know how

they can take advantage of these approach-

es and how they can be helped in their par-

ticular context due to the diversity set of

characteristics offered by these approaches

and the global heterogeneity associated

with specific aspects or ideas processed by

each approach.

 On the other hand, under this situation is very

complicated for designers of approaches to

identify the real organization’s needs and

demands in order to improve their ap-

proaches or design new ones.

However, within the context of MDWE, there is

an exception with WebRatio. This tool support pro-

vides a big community with a big variety of tutori-

als, webinars, user guides, support, forums, and dif-

ferent types of tool certifications for users. There is

no doubt that WebRatio is the current leader tool in

the market within the context of MDWE approaches.

However, neither this tool nor this community can

be compared to other communities in the world re-

lated to Web development.

The other side of the coin of MDWE are existing

and very extended Web development frameworks in

the world like Ruby on Rails

, Django

, Grails

Codeigniter

among others. All of them count with

big communities of developers that provide lot of

documentation, tutorials, user guides, forums and

support among other things. In addition, these

MDWEnet, Retrieved April 2014 from http://www.iswe-

ev.de/activities/2007/mdwe/

Ruby on Rails, Retrieved April 2014 from http://rubyonrails.org

Django, Retrieved April 2014 from

https://www.djangoproject.com

Grails, Retrieved April 2014 from http://grails.org

Codeigniter, Retrieved April 2014 from

http://ellislab.com/codeigniter

Challenges for the Adoption of Model-Driven Web Engineering Approaches in Industry

419

frameworks have in common lot of features and

common components that let developers compare

these frameworks between them.

2.8.1 Guideline

So, these limitations and problems of description on

MDWE not only entail understanding these issues,

but also require unifying criteria and define common

strategies in a shared quality model (Dominguez-

Mayo et Al, 2012). In addition, this common model

could help to approach designers when improving or

designing new approaches in future. Besides, a

common model can help to developers to compare

all these MDWE approaches between them.

2.9 Licensing [E]

Today, two main business models to exploit these

approaches in industry have been found on MDWE.

The first business model consists in implementing

a specific tool support for the approach from free

source environments. This specific tool can be of-

fered to organizations by a license fees or freely. As

regards license fees, there are different types of fees

by each tool depend on the case of the organization.

According to existing license fees on MDWE, we

have classified their costs in “High” (more than

5.000 $ by activated seat), “Medium” (between

5.000 $ and 1000 $ by activated seat) and “Low”

(less than 1000 $ by activated seat) costs. For in-

stance, WebRatio is developed under a free source

environment like eclipse but with extensions that

transform the eclipse environment in a practical and

valuable product like WebRatio. In this case, We-

bRatio is a powerful tool to support the IFML visual

modeling standard. In this case, WebRatio offers an

enterprise edition license in which organizations

must pay a fee for each activated seat. This price can

be classified by “High” costs.

The second business model consists in imple-

menting the approach under the environment of a

powerful but payment CASE tool support. So, the

use of the approach is free but organizations must

pay for the license of this CASE tool support in

which the approach is supported. For example, the

NDT-Suite is a tool to support that is developed un-

der the Enterprise Architect

environment. This

CASE tool allows organizations to have and work

with all elements of the NDT approach and, under

the environment of Enterprise Architect enables or-

ganizations to work with the concepts of the ap-

Enterprise Architect, Retrieved April 2014 from

http://www.sparxsystems.com

proach and lot of other visual modeling diagrams

and characteristics that EA additionally offers to

organizations. In this case, one activated seat of EA

licenses can be classified by “Low” costs. Other

example of this business model is MagicUWE,

which is a tool that has been developed for the com-

puter-aided design of Web applications using the

UWE (UML-based Web Engineering) approach.

MagicUWE has been built as a plugin of

MagicDraw

, which is a tool support that can be

classified by “Medium” costs.

We must consider that organizations just going to

pay a fee for these licenses if it is sure that they are

going to receive the value they need but with mini-

mal costs, risks and incertitude. As regards value of

tool support, it is not possible to know what the most

valuable approach is because it depends on the con-

text. So, each tool support has its strength and weak-

ness points. So, just with the context we could say

which approach is the most suitable one for it. The

adoption of these tools in industry could be achieved

maximizing their competitiveness: Competitiveness

= Value / (Cost + Risk + Incertitude).

In fact, in the market, there are other very known

and used frameworks for the development of Web

applications that they are not so abstract approaches

but effective solutions for developers. Frameworks

like Ruby on Rails or Django that encourages rapid

development and clean, pragmatic designs for de-

velopers and they are completely free of costs. And

one of the most important things is that they are cur-

rently very extended solutions by developers. So,

this increases the trust in organizations to consider

their use.

2.9.1 Guideline

Key questions are not only the costs of a license but

also the value (although it depends on the context),

risks and incertitude that organizations assume with

the implementation of these approaches and tools.

So, it is important to offer a high value solution,

with no costs and minimal risks and incertitude for

developers.

ACKNOWLEDGEMENTS

This research has been partially supported by the

POLOLAS project (code TIN2016-76956-C3-2-R)

of the Spanish Ministry of Science and Innovation,

MagicDraw, Retrieved April 2014 from

http://www.nomagic.com/products/magicdraw.html

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

420

by the SoftPLM Network (TIN2015-71938-REDT)

of the Spanish the Ministry of Economy and Com-

petitiveness.

REFERENCES

Selic, B., "The pragmatics of model-driven development"

IEEE Software, vol.20, no.5, pp.19,25, 2003, doi:

10.1109/MS.2003.1231146

Rossi, G., Pastor, O., Schwabe, D., Olsina, L.: Web Engi-

neering: Modelling and Implementing Web Applica-

tions. Springer. (2007)

Hull, S. (2013), “20 Obstacles to Scalability". Communi-

cations of the ACM, Vol. 56 No. 9, Pages 54-59, DOI:

10.1145/2500468.2500475.

Esteban Robles Luna, Gustavo Rossi, Irene Garrigós:

WebSpec: a visual language for specifying interaction

and navigation requirements in web applications. Re-

quir. Eng. 16(4): 297-321 (2011)

Rivero, J. M., Grigera, J., Rossi, G., Robles Luna, E.,

Montero, F., & Gaedke, M. (2014). Mockup-Driven

Development: Providing agile support for Model-

Driven Web Engineering. Information and Software

Technology, 56(6), 670–687. doi:10.1016/

j.infsof.2014.01.011

Nathalie Moreno, Antonio Vallecillo: Towards interopera-

ble Web engineering methods. JASIST 59(7): 1073-

1092 (2008)

Piero Fraternali, Massimo Tisi: Using Traceability Links

and Higher Order Transformations for Easing Regres-

sion Testing of Web Applications. J. Web Eng. 10(1):

1-20 (2011)

Francisco José Domínguez Mayo, M. José Escalona, Ma-

nuel Mejías, M. Ross, G. Staples: Quality evaluation

for Model-Driven Web Engineering methodologies.

Information & Software Technology 54(11): 1265-

1282 (2012).

Toffetti G.: Web engineering for cloud computing (web

engineering forecast: cloudy with a chance of oppor-

tunities). In Proceedings of the 12th international con-

ference on Current Trends in Web Engineering (IC-

WE'12). Springer-Verlag, Berlin, Heidelberg, 5-19

(2012)

Schön, E. M., Escalona, M. J., & Thomaschewski, J. Agile

values and their implementation in practice. IJIMAI,

3(5), 61-66.(2015)

Challenges for the Adoption of Model-Driven Web Engineering Approaches in Industry

421
