An Extension of NDT to Model Entity Reconciliation Problems

J. G. Enríquez, F. J. Domínguez-Mayo, J. A. García-García and M. J. Escalona

Computer Languages and Systems Department, University of Seville, Av. Reina Mercedes s/n, 41012, Seville, Spain

Keywords: Web Engineering, Model-driven Engineering, Entity Reconciliation, NDT.

Abstract: Within the development of software systems, the development of web applications may be one of the most

widespread at present due to the great number of advantages they provide such as: multiplatform, speed of

access or the not requiring extremely powerful hardware among others. The fact that so many web applications

are being developed, makes grotesque the volume of information that it is generated daily. In the management

of all this information, it appears the entity reconciliation problem, which is to identify objects referring to

the same real-world entity. This paper proposes to give a solution to this problem through a web perspective.

To this end, the NDT methodology has been taken as a reference and has been extended adding new activities,

artefacts and documents to cover this problem.

1 INTRODUCTION

At present, the development and creation of web

applications is imposed in the world as a

technological tool to unite the regions, create

business, support companies, appear in the market

and plethora of applications according to the

perspectives of people and their scope, finding on the

internet, a vital source of job creation, effective and

intelligent business and great help in achieving

objectives and approaches.

In this world where there are more than 6.400

million devices connected to the Internet generating

information, where more than 1,570 terabytes of

information per minute are transferred and where the

information about any topic takes a lot of interest by

the civilization (Gubbi et Al., 2013), it appears a very

big and difficult problem when someone tries to look

for an information, the heterogeneity of data.

The problem of heterogeneity of data resides in

the multiple data sources where the information

related to the same topic is stored adding to this

problem that the most of these data sources do not

share the same structure and even data that they store,

even though they are related to the same subject, may

not be the same.

In this context it appears the problem of the entity

reconciliation. This problem lies in the difficulty of

identifying entities in different data sources that

describe the same real-world entity although the

information that describes this entity are not equals.

This paper aims to give a solution to this kind of

problems through a model-driven web perspective.

To achieve this goal, it has been taken as reference

the Navigational Development Techniques (NDT)

methodology and it has been extended with a set of

activities and documents to carry out an entity

reconciliation problem. It has been selected NDT

because of the

The remainder of this paper is organized as

follow: section 2 summarizes the background of this

paper, presenting the two main pillar of this proposal,

MDE and NDT. Section 3 describes the problem of

the entity reconciliation. In section 4 it is explained

the different activities that this paper proposes in

order to extend NDT for covering an entity

reconciliation problem into a software development

process. Finally, section 5 states a set of conclusions

and future works.

2 BACKGROUND

2.1 Model-Driven Engineering (MDE)

In the scientific activity, abstraction has been and is

widely used, and often referred to it as the activity of

modeling. If a model is defined as a partial or

simplified reality representation, that allows the final

user to address a complex task for a specific purpose,

it can be considered a model as the result of

abstraction (García-Borgoñón, 2015).

430

Enríquez, J., Domínguez-Mayo, F., Escalona, M. and García-García, J.

An Extension of NDT to Model Entity Reconciliation Problems.

DOI: 10.5220/0006393604300436

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 430-436

ISBN: 978-989-758-246-2

The complexity of software development has

been growing up drastically. In this sense, developers

noted in models, an alternative for addressing this

complexity. MDE emerged to address the complexity

of software systems in order to express the concepts

of the problem domain in an effective way (Schmidt,

2006). Thus, in the early stages of development,

models are more abstract than in the final stages

where the models are much closer to implementation.

It means, abstract models are transformed into

concrete ones the aim of producing software.

Studying this process, (Brambilla et Al., 2012)

defined the two fundamental pillars of the MDE

paradigm for creating software automatically: models

and transformations.

 Models must be defined according to the rules

of a concrete Modelling Language (ML). This

language defines the syntax and semantic of the

model (Metzger, 2008). The ML syntax is

composed of a concrete and an abstract syntax.

The abstract one defines the language structure

and how the different elements can be

combined, regardless of its representation. The

semantic one, that provides the static and

dynamic part, poses restrictions and establishes

the meaning of the elements of the language

and different ways to combine them. In this

moment, it appears the concept of metamodel.

A metamodel can be defined as a special type

of model that specifies a ML. The metamodel

defines the structure and constraints for a

family of models (Mellor et al., 2004).

 Transformations are the mechanisms that

allow to derive models from other existing

ones. A transformation between models

represent a relation between two abstract

syntaxes and it is defined by a set of relations

between the elements of the metamodels (Thiry

& Thirion, 2009). There are two types of

transformations: horizontal (the derived model

and the original one have the same abstraction

level) and verticals (the derived model has a

lower abstraction level than the original one).

A very interesting concept found in the MDE

literature is proposed by Bézivin, (2005) where

“Everything is a model”. In this sense,

transformations themselves, are also considered as

models. Generally, a transformation models program

takes as input a model according to an origin

metamodel and produces as output a model according

to the target metamodel. The transformation program,

should be considered as a model itself.

One of the advantages of MDE is its support for

automation, as the models can be automatically

transformed from the early stages of development to

the final stages. Therefore, MDE allows automating

the tasks involved in a software development, such us

the testing tasks.

2.2 Navigational Development

Techniques (NDT)

NDT is a Model-Driven Engineering-based

methodology that provides formal and complete set

of processes that allow to support for software

lifecycle management. Using NDT, it is possible

cover the phases of the software engineering life

cycle in a structured way, reducing errors and

redundancies (Escalona & Aragón, 2008).

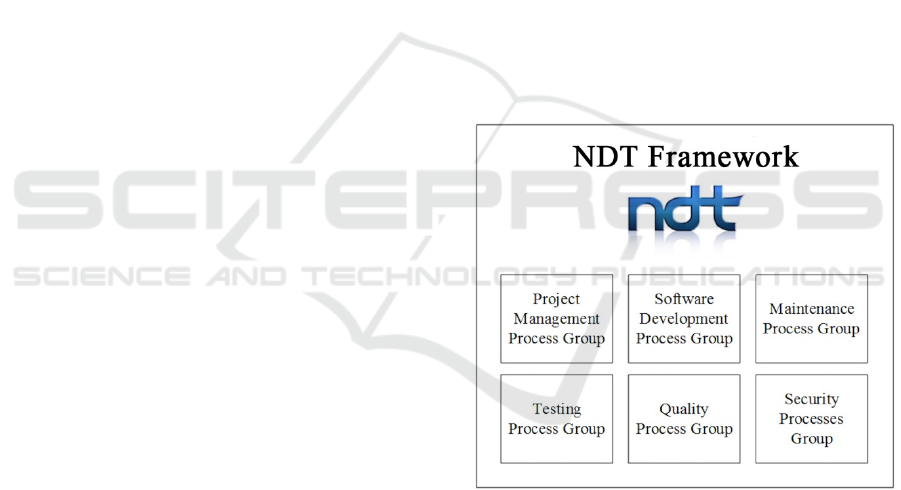

NDT Framework (Figure 1), stablishes six big

groups of processes that allow to develop a complete

software system in all its phases. These groups are:

project management process, software development

process, maintenance process, testing process, quality

process and security process. For the scope of this

paper, the focus will be put in the software

development process group.

Figure 1: NDT Framework.

Software development process group describes all

the processes, activities, artefacts and documents that

makes a software engineer be able to satisfy the

software development lifecycle. In this sense, NDT

methodology, to carry out this objective, stablishes

the following set of processes: feasibility process,

requirements process, system analysis process,

system design process, system building process and

system implementation process.

 Feasibility Process. In this process the

feasibility of a particular software project

An Extension of NDT to Model Entity Reconciliation Problems

431

should be analysed. It is usually done on

demand of the project or when the project is

developed in a complex or little known

environment that may make the feasibility of

the project doubtful.

 Requirement Process. Defines a requirements

catalogue that must define the system

requirements. The catalogued requirements

should be established according to their

typology and should not go into any detail

about how development will be solved.

 System Analysis Process. Products resulting

from the analysis, definition and structuring of

the requirements established in the previous

process, independently of the technological

platform that is finally used to develop the

software.

 System Design Process. Specific aspects of

how the analysis will be implemented in the

machine. It is oriented to the concrete platform

with which it is going to work and must

correspond with the structure of the future

code.

 System Building Process. This process refers

to the implementation or development of the

software system.

 System Implementation Process. This

process refers to the implementation period of

the product developed in the final customer.

In this context, what this paper proposes is extend

this software development process group of NDT

Framework, adding a set of activities, documents and

artefacts in order to make a software engineer able to

carry out an entity reconciliation problem.

3 ENTITY RECONCILIATION

Entity reconciliation (also called entity resolution or

ER) is a fundamental problem in data integration. It

refers to combining data from different sources for a

unified vision or, in other words, identifying entities

from the digital world that refers to the same real-

world entity. It is an uncertain process because the

decision to allocate a set of records with the same

entity, cannot be taken with certainty, unless these

records are identical in all their attributes or they have

a common key (Getoor and Machanavajjhala, 2012;

Wang et al., 2013).

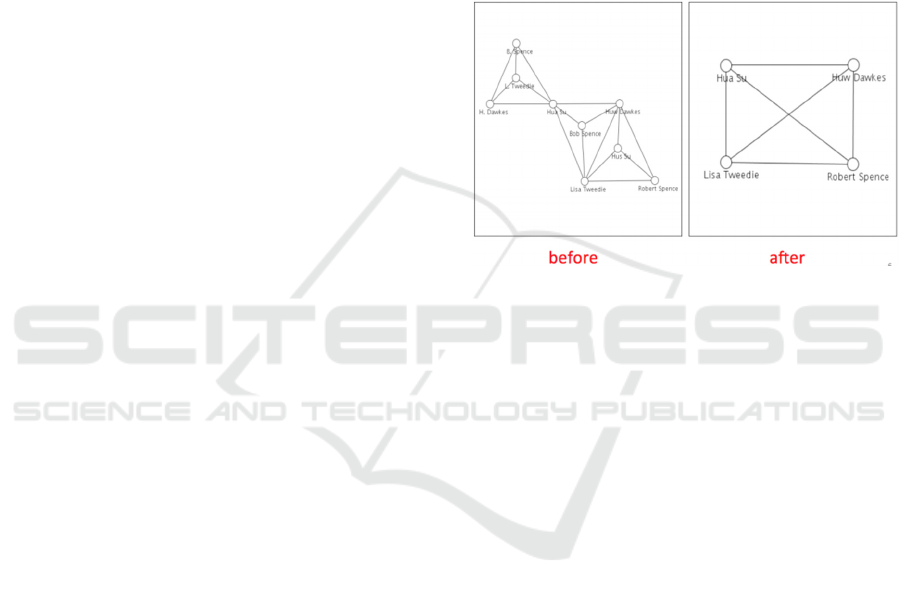

Figure 2, illustrates a very clear example of entity

reconciliation proposed by McCallum et al., (2000).

This example is based on the bibliographic author

names of a database where the entitles to reconcile are

the authors. Left side of the Figure 2 shows the

“before” part of an entity reconciliation process. It is

possible to see that there are different authors related

between them, and some of them, seems to be the

same author although it is named by a different way.

Right side of the Figure 2 shows the “after” part of an

entity reconciliation process. It is possible to see that

the result structure after applying an entity

reconciliation process is much more clear,

understandable and clean, eliminating all possible

duplications, both in existing relationships and in the

entities themselves.

Figure 2: Entity Reconciliation example (McCallum et al.,

2000).

Entity reconciliation is a well-known problem and

it has been investigated since the birth of relational

databases (Whang & Garcia-Molina, 2014) and it can

be applied to many different domains. If to everything

mentioned, a very trending topic nowadays such as

the Big Data is added, this problem receives a much

more significant attention due to the new challenges

that it arises.

4 NDT-RECONCILIATION

This paper proposes the extension of NDT in order to

integrate the entity reconciliation process into a

software development process. This integration has

been proposed with the aim of formalizing all the

activities that must be carried out to perform the entity

reconciliation process within a software

development. As mentioned before and taking into

account the size of software development process

group of NDT, this paper will only cover the block of

requirement and system analysis processes.

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

432

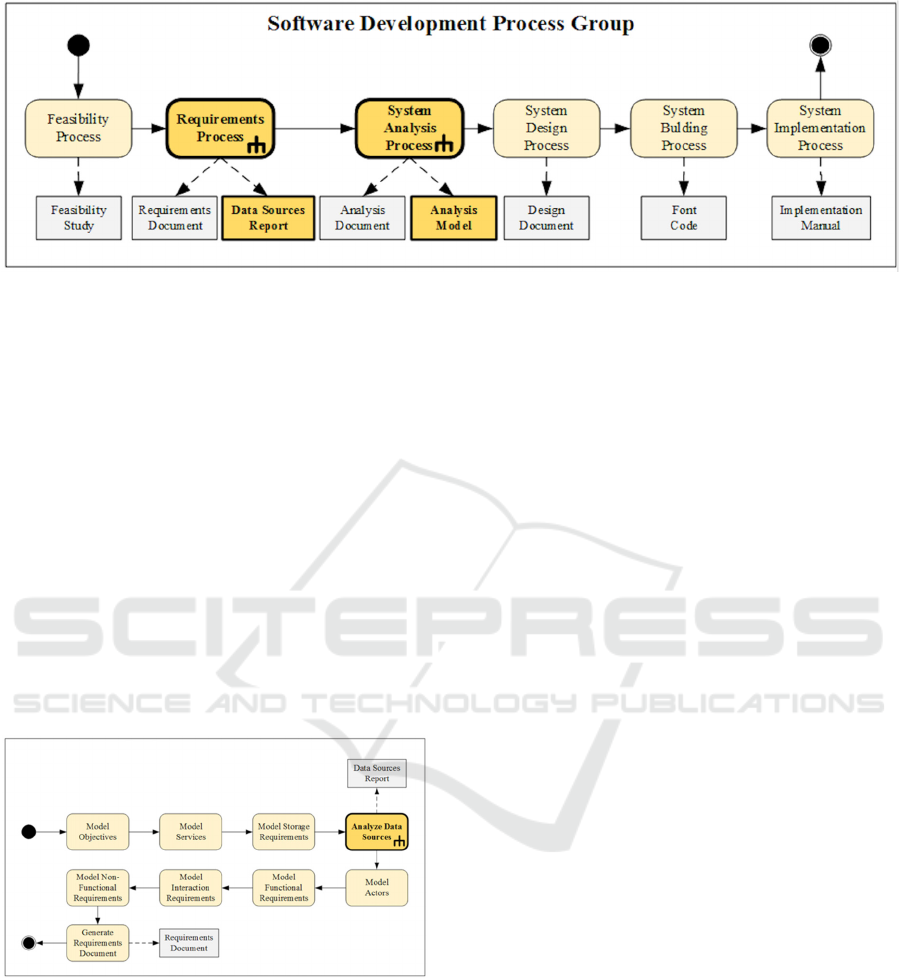

Figure 3: Extended Software Development Process Group of NDT.

Figure 3 shows the extended software

development process group of NDT. The strong and

bold yellow boxes show the process blocks that have

been extended and also, the new documents that must

be generated. This extension, proposes the generation

of two new documents: the data sources report and

the analysis model.

The main goal of the requirement process of NDT

is to define a requirements catalogue that define the

system requirements. To achieve this goal, the

following activities are proposed: model objectives,

model services, model storage requirements, model

actors, model functional requirements, model

interaction requirements, model non-functional

requirements and generate requirements document.

This proposal presents a new activity called:

“Analyse Data Sources” (Figure 4).

Figure 4: Extended Requirement Process Group of NDT.

“Analyse Data Sources” activity is the activity

where the data analysts study and analyse the

different data sources that the data consumers have

presented for their problem. This activity is divided in

four main steps (Figure 5). Three of them can be

performed in parallel: analyse data source format,

analyse data access and analyse number of records of

the data source. Once these activities have been

finished, it takes place the generate data sources

report activate where the data source report is

generated.

 Analyse Data Source Format is the activity

where the data analysts will have to study and

analyse the data structure of the data sources

that the data consumers have defined as

problematics. In this sense, they have to

analyse if each data source refers to a plane text

file, a relational database, Oracle, MySQL, a

non-relational database or any other type.

 Analyse Data Access is the activity where the

data analysts will have to study and analyse the

data access way of the data sources that the data

consumers have defined as problematics. In

this sense, they have to analyse if each data

source refers web service, ODBC any other

type of database connection or access.

 Analyse Records Number is the activity

where the data analysts will have to study and

analyse the number of records of each of the

data source that the data consumers have

defined as problematics (hundred, thousands,

millions, etc.). This activity will provide some

knowledge and help to choose the technology

in which the system will be implemented in the

design phase.

 Generate Data Sources Report it the activity

where the data analysts will have to create the

data sources report with all the information

studied and analysed in previous steps.

An Extension of NDT to Model Entity Reconciliation Problems

433

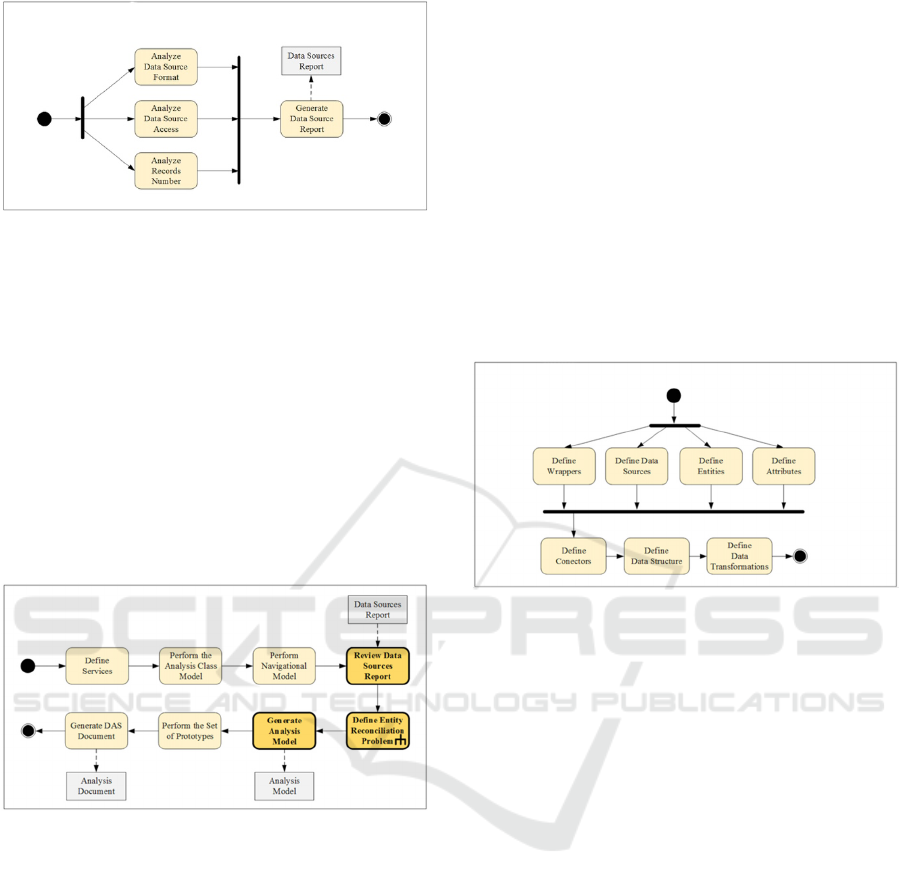

Figure 5: Description of “Analyse Data Sources” activity.

After Requirement Process block, NDT

methodology continues with the System Analysis

Process. Once this process is completed, it is obtained

products resulting from the analysis, definition and

structuring of the requirements established in the

previous phase. This block of processes is composed

of a set of activities, these are: define services,

perform the analysis class model, perform

navigational model, perform the set of prototypes and

generate the DAS document. This proposal presents

three new activities called: “Review Data Sources

Report”, “Define Entity Reconciliation Problem” and

“Generate Analysis Model”. (Figure 6).

Figure 6: Extended System Analysis Process Group of

NDT.

“Review the Strategy Document” activity is based

on the on the study, analysis and review by the

software engineer of the strategy document generated

in the requirement process. This activity receives as

input the strategy document generated in the

requirement process and generates the analysis

document model as result. The software engineers in

charge of carrying out this phase will have to, with

the support of the strategy document, analyze data

stored in each database, in order to define: (i) a clear

vision of what represents an entity in the problem

where the user is working on (studying their attributes

and relationships) and (ii), what will be the data

structure in which the result of reconciliation will be

stored.

“Define the Entity Reconciliation Problem”

activity (Figure 7) is the activity where the software

engineer has to model the entity reconciliation

problem. This activity will be carried out through the

use of the MaRIA Tool (Enríquez et al., 2015).

MaRIA (Model-Driven entity ReconcilIAtion) Tool

is a domain specific language (DSL) (Cook, Jones,

Kent, & Wills, 2007) that allows a software engineer

to model entity reconciliation problems. This activity

is divided in seven main steps. The four first ones,

define wrappers, define data sources, define entities,

define attributes, can be performed in parallel. Once

defined, the software engineer hast to define the

connectors, the data structure and finally, define the

transformations.

Figure 7: Description of “Define the Entity Reconciliation

Problem” activity.

 Define Wrappers is the activity where the

software engineer will have to model the

wrappers that will allow the transfer of

information from the data sources that the data

consumers have defined as problematics into

the entities that will be defined later. In this

sense, the software engineer has to use the

wrapper element of the MaRIA tool and model

in the diagram one element for each data

source.

 Define Data Sources is the activity where the

software engineer will have to model the data

sources that the data consumers have defined as

problematics. In this sense, the software

engineer has to use the data source element of

the MaRIA tool and model in the diagram one

element for each data source.

 Define Entities is the activity where the

software engineer will have to model the

entities where the information coming from the

data sources will be stored in. In this sense, the

software engineer has to use the data entity

element of the MaRIA tool and model in the

diagram one element for each data source.

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

434

 Define Attributes is the activity where the

software engineer will have to model the

attributes that compose the entities. In this

sense, the software engineer has to use the data

source attribute element of the MaRIA tool and

model as many attributes as each entity needs.

 Define Connectors is the activity where the

software engineer will have to model the

connectors between the elements that have

been defined in the three previous steps. The

connectors will relate the wrappers with the

data sources, the data sources with the entities

and the entities with their attributes. In this

sense, the software engineer has to use the

different types of connectors element that

MaRIA tool offers depending on the elements

needed to be related.

 Define Data Structure is the activity where

the software engineer will have to model the

data structure where the data reconciled of the

final solution will be stored. For performing

this activity, the user will have to use the entity,

attribute and connector elements of the MaRIA

tool. In this software engineer will have to

create the entities, related between them if

necessary and the attributes that describe each

entity. For each data source must be created a

structure and in addition to these, it has to be

created another one that will store the final

solution.

 Define Data Transformations is the activity

where the software engineer will have to model

the data transformations between the different

attributes already created or between the data

structures. In this sense, the software engineer

has to use the transformation operations that the

MaRIA tool offers and use it for relating

attributes or data structures depending on the

necessities of the problem.

Finally, the “Generate Analysis Document”

activity is presented. The main function of this

activity is to collect all the information generated in

the different previous activities of the analysis phase

in a single document, which will serve as a

knowledge base and input for the design phase. Also

it will be provided the model defined using the

MaRIA tool.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, it has been proposed an extension of the

NDT methodology with the aim of giving support to

cover an entity reconciliation problem during a

system software development.

Concretely, and taking into account the scope of

this paper, it has been extended the requirement and

system analysis processes of the NDT Framework

that NDT methodology proposes.

The activities proposed for the requirement

process aim to understand the problem as well as the

data sources that must be reconciled for giving a

solution to the entity reconciliation problem. The

activities proposed for the system analysis process

aim to model the entity reconciliation problem. To

achieve this purpose, a DSL-based tool called MaRIA

is proposed.

Taking into account that NDT Methodology

covers the complete process of the software

development, the main future work of this proposal is

to extend this methodology in order to cover the

remaining blocks of processes that have not been

covered in this proposal. Also, new methodologies

are being considered in order to see how the activities

described and added to the NDT should be integrated

for checking the scalability of this proposal.

ACKNOWLEDGEMENTS

This research has been supported by the MeGUS

project (TIN2013-46928-C3-3-R), Pololas project

(TIN2016-76956-C3-2-R), by the SoftPLM Network

(TIN2015-71938-REDT) of the Spanish the Ministry

of Economy and Competitiveness and Fujitsu

Laboratories of Europe (FLE).

REFERENCES

Bézivin, J. (2005). On the unification power of models.

Software and Systems Modeling, 4(2), 171–188.

http://doi.org/10.1007/s10270-005-0079-0

Brambilla, M., Cabot, J., & Wimmer, M. (2012). Model-

Driven Software Engineering in Practice. Synthesis

Lectures on Software Engineering (Vol. 1).

http://doi.org/10.2200/S00441ED1V01Y201208SWE0

Cook, S., Jones, G., Kent, S., & Wills, A. C. (2007).

Domain Specific Development with Visual Studio DSL

Tools. Library.

An Extension of NDT to Model Entity Reconciliation Problems

435

Enríquez, J. G., Domínguez-Mayo, F. J., Escalona, M. J.,

García-García, J. A., Lee, V., & Masatomo, G. (2015).

Entity Identity Reconciliation based Big Data

Federation-A MDE approach. In International

Conference on Information Systems Development

(ISD2015). Retrieved from

http://aisel.aisnet.org/isd2014/proceedings2015/MDD

Concepts/7/

Escalona, M. J., & Aragón, G. (2008). NDT. A model-

driven approach for web requirements. IEEE

Transactions on Software Engineering, 34(3), 377–

394. http://doi.org/10.1109/TSE.2008.27

García-Borgoñón, L. (2015). Un marco de referencia para

facilitar la interoperabilidad y mantenibilidad de los

modelos de procesos de software.

Getoor, L., & Machanavajjhala, A. (2012). Entity

resolution: Theory, practice & open challenges.

Proceedings of the VLDB Endowment, 5(12), 2018–

2019. http://doi.org/10.14778/2367502.2367564

Gubbi, J., Buyya, R., Marusic, S., & Palaniswami, M.

(2013). Internet of Things (IoT): A vision, architectural

elements, and future directions. Future Generation

Computer Systems, 29(7), 1645–1660.

http://doi.org/10.1016/j.future.2013.01.010

McCallum, A., Nigam, K., & Ungar, L. L. H. (2000).

Efficient clustering of high-dimensional data sets with

application to reference matching. Proceedings of the

Sixth ACM SIGKDD International Conference on

Knowledge Discovery and Data Mining, 169–178.

http://doi.org/10.1145/347090.347123

Mellor, S., Scott, K., Uhl, A., & Weise, D. (2004). MDA

Distilled - Principles of Model Driven Architecture.

Addison Wesley. Retrieved from

http://dx.doi.org/10.1007/3-540-46105-1_33

Metzger, A. (2008). A Systematic Look at Model

Transformations. Nature, 451(7), 644–647.

http://doi.org/10.1038/451644a

Schmidt, D. C. (2006). Guest Editor’s Introduction : Model-

Driven Engineering. IEEE Computer, 39(2), 25–31.

http://doi.org/http://doi.ieeecomputersociety.org/10.11

09/MC.2006.58

Thiry, L., & Thirion, B. (2009). Functional metamodels for

systems and software. Journal of Systems and Software,

82(7), 1125–1136. http://doi.org/10.1016/

j.jss.2009.01.042

Wang, F., Wang, H., Li, J., & Gao, H. (2013). Graph-based

reference table construction to facilitate entity

matching. Journal of Systems and Software, 86(6),

1679–1688. http://doi.org/10.1016/j.jss.2013.02.026

Whang, S. E., & Garcia-Molina, H. (2014). Incremental

entity resolution on rules and data. VLDB Journal,

23(1), 77–102. http://doi.org/10.1007/s00778-013-

0315-0

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

436
