SPDC: Secure Proxied Database Connectivity

Diogo Domingues Regateiro, Óscar Mortágua Pereira and Rui L. Aguiar

DETI, University of Aveiro, Instituto de Telecomunicações, 3810-193, Aveiro, Portugal

Keywords: Access Control, Software Architecture, Security and Privacy Protection, Network Communications,

Database Connectivity.

Abstract: In the business world, database applications are a predominant tool where data is generally the most

important asset of a company. Companies use database applications to access, explore and modify their data

in order to provide a wide variety of services. When these applications run in semi-public locations and

connect directly to the database, such as a reception area of a company or are connected to the internet, they

can become the target of attacks by malicious users and have the hard-coded database credentials stolen. To

prevent unauthorized access to a database, solutions such as virtual private networks (VPNs) are used.

However, VPNs can be bypassed using internal attacks, and the stolen credentials used to gain access to the

database. In this paper the Secure Proxied Database Connectivity (SPDC) is proposed, which is a new

methodology to enhance the protection of the database access. It pushes the credentials to a proxy server

and separates the information required to access the database between a proxy server and an authentication

server. This solution is compared to a VPN using various attack scenarios and we show, with a proof-of-

concept, that this proposal can also be completely transparent to the user.

1 INTRODUCTION

Security is an important aspect to consider when

sensitive data is being served by some service.

However, no computer system can be completely

secure without making it unusable, so the key is to

find the right balance. When it comes to databases,

the usage of standard APIs to access and manipulate

data, such as Java Database Connectivity (JDBC)

(Oracle, 1997), Hibernate (Bauer and King, 2005)

and other similar mechanisms, is very pervasive.

When client database applications connect

directly to databases using such connectivity tools,

some problems may arise in regards to access

security. If an attacker gets access to the client

application of a business that connects directly to a

database, he can potentially obtain the database

credentials and use them to connect to the database

in an unsupervised manner. This is possible because

the database credentials are normally written directly

into the application code or configuration files,

meaning that users of the application do not need to

know them. This issue is normally addressed by

securing the access to the database service using

solutions such as virtual private networks (VPNs).

However, a global VPN solution to access many

services in a company has limited security, since

anyone with access to one service may attempt to

connect to another. Similarly, a service specific VPN

does not protect against internal attacks that can

bypass the VPN altogether. By compromising the

VPN server, the database becomes much more

exposed, and many times just looking at the client

application source code or configuration files can

reveal the database credentials to an attacker.

Using an authentication service on top of the

database service is another solution to this problem,

e.g. web services, but the client application must use

the interface of the service and discard database

tools such as JDBC. Therefore, frameworks like

Hibernate that rely on them do not work.

Furthermore, simply removing the credentials from

the application code is not easy since there may be

many of them, so providing the user of the

application with all the credentials is not an option in

most cases.

The reason behind it is that, among others, the

user would be prone to write the credentials down if

a complex credential policy is in place, i.e. policies

regarding password complexity and length (Shay et

al., 2016), making it easier to be disclosed. Various

results also show that developers are aware of the

Regateiro, D., Pereira, Ó. and Aguiar, R.

SPDC: Secure Proxied Database Connectivity.

DOI: 10.5220/0006424500560066

In Proceedings of the 6th International Conference on Data Science, Technology and Applications (DATA 2017), pages 56-66

ISBN: 978-989-758-255-4

security issues regarding passwords (Yang et al.,

2016). One might consider the usage of one-time

passwords to secure the credentials, which also

assumes the user has some sort of smartcard or

similar device. However, database management

systems (DBMS) do not usually support this type of

authentication natively. Implementing them

manually to verify if a valid one-time password was

provided requires the exclusive use of stored

procedures, which becomes hard to manage in

complex scenarios, or triggers to be added to each

query, which decays the database performance.

In this paper, we propose a solution called Secure

Proxied Database Connectivity (SPDC) which aims:

to provide a mechanism that separates the

information needed to connect to the database

between a proxy server and an authentication server

running within the database server; allow standard

database connectivity tools, such as JDBC or

ADO.NET, to be used; and take the database

credentials out of the client application, so that a

compromised client application does not disclose

them. This solution requires a malicious user to

compromise both servers to be able to establish a

connection to the database and access its data.

This proposal emerged from the work done in

(Pereira et al., 2015; Regateiro et al., 2014; Pereira

et al., 2014), where a distributed access control

framework allows the clients to connect to a

database through runtime generated access control

mechanisms. There, client applications can use an

interface based on JDBC, where the methods are

only implemented by the access control mechanisms

to access and manipulate data stored in a database if

the user has permission to use them. A connection to

a server side application is also established to

configure the runtime generation of the access

mechanisms, based on the security policy that

applied to that client. While this eases the

development effort to write a database application

by giving developers interfaces tailored to the

permissions given to the application, it lacks security

in term of access to the database itself. SPDC was

designed to enhance the access security to the

database, while keeping support for the convenience

of database connectivity tools, such as JDBC.

The paper is divided as follows: chapter 2

presents the related work, chapter 3 presents the core

concepts of SPDC, chapter 4 presents a proof-of-

concept implementing SPDC, on chapter 5 a

performance assessment regarding network traffic is

made and chapter 6 finalizes with a brief discussion

of the presented contents.

2 RELATED WORK

To be best of our knowledge, there is not much work

done to secure the JDBC or ADO.NET driver type

protocols. A possible explanation is that most drivers

used with these tools already support SSL/TLS

(IETF, 2008) connections to DBMS using digital

certificates. While this normally protects the

credentials from being obtained from the network by

eavesdropping it or through some other means, if the

malicious users have access to the client application

it may be possible to steal the credentials from there.

While there is not much work done to secure the

driver protocols, the SSL/TLS protocol on the other

hand has seen some work to try to improve its

security. In (Oppliger et al., 2006) and (Oppliger et

al., 2008), a session aware user authentication is

introduced and expanded to thwart Man-In-The-

Middle (MITM) attacks. Nevertheless, an internal

attack on the database service to establish a direct

connection is enough to allow a malicious user to

access the data if the credentials are obtainable from

the client application. In (Abramov et al., 2012) a

methodology is proposed to assist developers and

database designers to design secure databases that

follow the organization’s guidelines for access

control. It is applied and verified at the organiza-

tional and application development levels to ensure

the satisfaction of the security requirements. Once

more, it does not protect the database from being

read from or even from being modified directly if

the credentials are stolen from the client application,

depending on the client application permissions.

Another solution to this problem is to connect to

the database through a web service instead of a

direct connection to the database, such as a login

service. While this has several advantages, such as

only the server can establish connections to the

database and the operations performed by the client

applications can be more easily controlled, they

must use the web service interface to access the

database. The issue with this approach is that in most

cases the interface provided differs from web service

to web service. This means that the developers must

master them, whereas tools such as JDBC and

ADO.NET provide a well-known and well-

established interface to access any supported

database. The work presented in (Gessert et al.,

2014) leverages the importance of this problem,

stating the need to create a unified interface for

cloud data stores that have emerged recently.

Furthermore, compromising the login service may

be enough to access the database, since the

malicious user knows the database endpoint and the

SPDC: Secure Proxied Database Connectivity

Table 1: State of the art summary in relation to SPDC features.

Solution Cred. on the Client Nodes to Breach API Other Notes

Basic Driver Yes Client Standard N/A

Oppliger et al. Yes Client Standard MITM mitigation

Abramov et al. Yes Client Standard Security Guidelines

Webservice No Webservice Custom Access Proxy

HA-JDBC Yes Client Standard Access Proxy

Other Auth Methods Yes Client Standard May not be supported

VPN Yes Client Standard Internal access not prevented

SPDC No Auth. and Proxy Servers Standard Architecturally costly

database credentials are still configured in the client

application.

Web services can almost be seen as proxy servers

that users use to access to manipulate the data stored

in a database according to their permissions, albeit

with their own interface. Proxy servers are used

throughout the literature in some way to provide

better security to access resources, be it a database,

the Internet, etc. The work presented in (Zarnett et

al., 2010) and (Naylor et al., 2015) show how proxy

servers can be beneficial in both providing security

and additional services. We restate that use of proxy

servers in this paper aims to provide increased

security by removing the need for client applications

to possess real credentials to the database, while

allowing them to use database connectivity tools

transparently. Furthermore, a malicious user should

only get access to the data in the database by

successfully compromising both the proxy server

and the authentication server, where other solutions

usually only require one service to be compromised.

HA-JDBC (Ferraro, n.d.) is an existing JDBC

proxy project that has been implemented, is readily

available and provides many features on top of what

JDBC currently supports. However, it only focuses

on being light-weight, transparent, and providing

fault tolerant clustering capabilities to the underlying

JDBC driver. Therefore, it still requires the client

application to use the database credentials. In this

light, it differs from the work done in this paper in

which the client authenticates with the proxy itself

using a server generated token and never uses the

database credentials directly.

Other methods of authentication with databases

have been proposed, such as using biometric data

(Villager and Dittmann, 2008), digital certificates

(Lavarene, 2010), third-party based authentication

(Oracle, n.d.), etc. In the case of digital certificates,

the application would have to store it within itself,

meaning that it could be stolen just like we argue

with username/password credential pairs.

Additionally, SQL Server is able to use Microsoft

Windows Integrated Security (Microsoft, n.d.) to use

the operating system’s user account as the

credentials used for authentication. While it does

prevent the client applications from having

credentials hard-coded, it now matters which

account the user is logged into when using the

application. Furthermore, normally an application

only has one set of credentials to access a database.

User biometric data suffers from the same issue and

is not necessarily a safer or a more convenient

option over the alternatives (Zimmerman, 2003).

A summary of the information presented on this

section can be seen in Table 1, showing if the

database credentials are on the client application, the

nodes required to breach to get the credentials and

the API provided to the client to access the database.

3 SOLUTION CONCEPT

In this section the core concepts behind SPDC are

presented

. The main goal is to offer a new approach

to secure the access to a database while allowing a

standard tool, such as JDBC, to be used through a

proxy server

. Furthermore, we show that this

method protects the database from being accessed by

a malicious user even if information stored in the

proxy server or the authentication server are

disclosed individually

To reiterate the issue SPDC is trying to solve,

solutions like VPNs do protect access to services,

such as databases, while still allowing client

applications to use standard APIs such as JDBC to

connect to them

. However, VPN solutions can be

used to access a global set of services within a

company, a single service or something in-between

If a database service is provided within a VPN along

with other services, then it becomes less secure,

since users that can access one of the other services

may attempt to connect to the database

. If another

mechanisms must be implemented to support the

usage of standard database connectivity tools, such

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

as JDBC, to connect to it

. In the case the database

service is served in its own VPN, and like the login

layer solution just described, internal attacks can still

leave the DBMS vulnerable to malicious users that

have access to client applications with the

credentials hard-coded

. It only takes the VPN server

to be compromised to leave a DBMS much more

exposed, and if just by looking at a client application

source code the database credentials can be

obtained, then the data becomes accessible.

3.1 Conceptual Architecture

SPDC was designed to protect the database by using

a proxy server to communicate with the database, as

shown in Figure 1. The idea is that the client

connects to a proxy server, authenticating with it,

and then the proxy server connects to the database

using credentials it has stored, proceeding to relay

the communication between them. This proxy server

was then devised to serve as a credentials provider,

using the client application real credentials when

establishing the connection to the database

. These

credentials are also encrypted to prevent them from

being disclosed in plain text in the event the proxy

server is compromised.

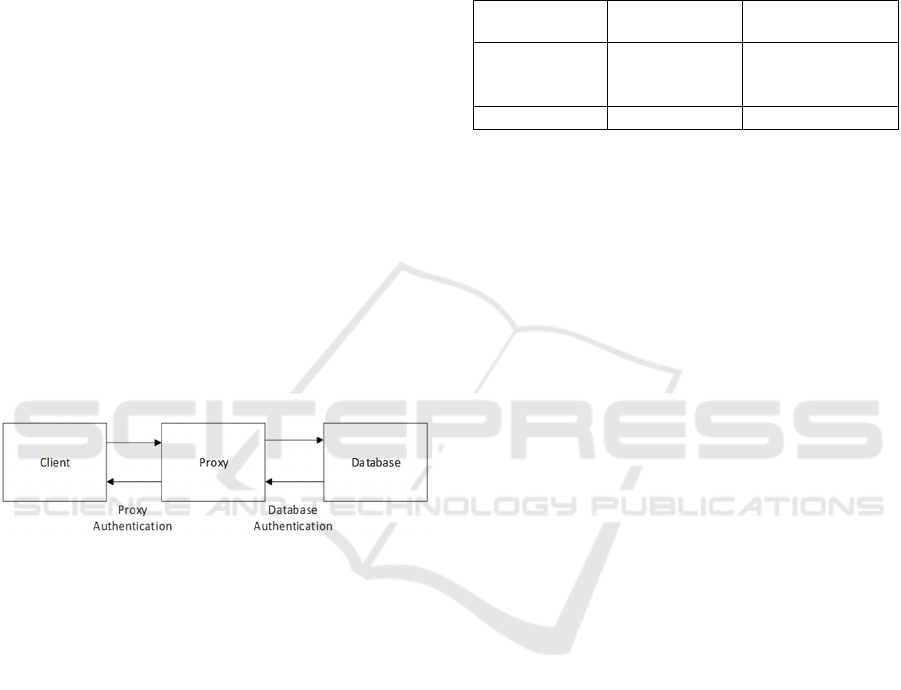

Figure 1: Conceptual Client to Database connection.

It is stated that the presented solution protects a

database even when the information in the proxy

server or the authentication server is compromised.

The only exception is if the DBMS itself is

compromised in an internal attack and access is

granted without proper authentication. To achieve

this goal, both the proxy server and the

authentication server were given an asymmetric key

pair and the information required to access the

DBMS was divided between them as follows:

• The proxy server possesses the user

credentials, encrypted using the symmetric

key C which is unique for each user, and

requires them to establish the connection to

the DBMS

. It does not store the symmetric

key C.

• The authentication server possesses the

symmetric key C for each user and can open

endpoints to the DBMS

. It does not store the

credentials to the database.

• The client application possesses no relevant

information for authentication. This means

that the user must know the credentials to

connect to the authentication server and

continue the process. It does possess dummy

credentials to a database.

Table 2: Stored sensitive data per protocol participant.

Client

Application

Proxy

Server

Authentication

Server

Dummy

database

credentials.

Encrypted user

database

credentials.

Open database

connection

endpoints.

Symmetric keys C.

Table 2 shows a summary of this information.

The dummy credentials stored in the client

application must have connection permissions to the

database. This comes from a shortcoming in the

database connectivity tools used. In the case of

JDBC, a connection object is only instantiated if a

valid connection is made to a DBMS, and a

connection object is required to be able to use JDBC

on the client

. Nevertheless, a separate DBMS with

no data or an account stripped of permissions may

be used for this purpose, making the credentials

stored in the client application effectively useless to

access the data.

In this scenario, the user must first authenticate

with the authentication server to obtain the server

generated token and present it to the proxy server

The proxy server uses this token to authenticate the

user and establish a valid connection to the DBMS

endpoint

3.2 Deployment Assumptions

Let us consider what happens when each party in

this exchange is compromised and what other

security technologies are assumed to be deployed

During the SPDC design, there were a few security

assumptions that were made

. Thus, they are

important to be considered when creating security

attack scenarios.

First, it is assumed that the communication

between all parties is protected to prevent the data

from circulating in clear text, either using TLS or

some other mechanism.

Second, access to the network where the

database and authentication server are deployed is

assumed to be restricted, for example by a firewall,

allowing access to the database to be controlled and

monitored

Third, the credentials used to authenticate with

SPDC: Secure Proxied Database Connectivity

the authentication server to obtain the token T are

assumed to not be stored anywhere in the client

. If

the user cannot be trusted with a password, a

solution based on one-time passwords, for example,

should be used.

Finally, the proxy server is assumed to be trusted

by all the parties to not eavesdrop on data and to

keep the database credentials protected

. If this is not

a possible scenario, the entity in charge of the

database server should provide a proxy server on a

distinct network with the same security requirements

to access the database. It is also assumed that the

asymmetric keys of the proxy and authentication

servers are heavily secured and cannot be obtained

easily by breaching the applications running on

them.

3.3 Attack Scenarios

In this section, different attack scenarios that target

distinct parts of the proposed solution are detailed

and discussed.

Following the information shown in Table 2, if

the proxy server is breached, then a malicious user

would be in possession of the following data:

• The encrypted user credentials, which are a

known function of the symmetric key C with

the user username and password. Without the

symmetric key C to decrypt them only a brute

force attack is available.

However, the following data is not in the

malicious user possession:

• An open database endpoint to connect to,

which can be random for every access

attempt. This prevents the malicious user from

attempting online attacks.

• The user symmetric key C, which is different

for every user and that only the authentication

server stores and provides inside each token T.

This prevents the malicious user from

decrypting the credentials.

Attempting to impersonate the proxy server is

impossible without stealing the proxy server

asymmetric private key, since token T passed by the

legitimate user was encrypted using the public key.

Without it, the token T cannot be decrypted to

retrieve the symmetric key C and the connection

endpoint. Therefore, the connection to the database

is impossible to be established, which also alerts the

legitimate user that an attack could have occurred,

If the authentication server is compromised,

then a malicious user would be in possession of the

following data:

• The open database endpoints to connect to,

which are only open when an access attempt is

made. This could allow the malicious user to

attempt online attacks on the database.

• The user symmetric keys C, which is different

for every user. Without the encrypted

credentials stored on the proxy server they are

useless.

However, the following data is not in the

malicious user possession:

• The encrypted user credentials, which are a

known function of the symmetric key C with

the user username and password. Therefore,

the credentials are still safe.

Impersonating an authentication server is useless

to the malicious user since the legitimate users do

not provide the database credentials for

authentication. Since the users do not have to know

the database credentials, these should be randomly

generated for each one of them.

If the client application is compromised, the

malicious user is not capable of obtaining any

relevant information to authenticate with the DBMS,

since the credentials were pushed to the proxy

server. Note again that the credentials used to obtain

the token T are not meant to be stored on the client

application, but to be known by the user of said

application or using another authentication scheme

such as one-time passwords.

3.4 Database Connection Proxying

In this section, a proposal to secure access to

databases while allowing the usage of standard

database connectivity tools are shown

. This is

achieved by separating the authentication material

between the authentication and a proxy server,

which relays the connection to the database

Unfortunately, most database connectivity tools do

not allow the usage of proxy servers or custom

sockets to communicate with the DBMS, requiring

the usage of alternatives such as reflection

mechanisms to achieve it

To setup the proxy server on the client

application, it must first create a connection object to

communicate with the database, such as a JDBC

connection object, and then modify it so that it

connects to the proxy server instead

. Furthermore,

the proxy server is required to relay the

communication between client application

connection and the connection it established to the

DBMS

. This setup allows the client application to

communicate with a database directly using a

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

database connectivity tool while keeping the real

database credentials unknown to the user.

In short, setting an existing generic

communication socket to the proxy server to be used

by a database connectivity tool connection will

generally require the following steps:

1. Create a generic communication channel to

connect the client application and the proxy

2. Obtain a token T from the authentication

server and pass it on to the proxy server.

3. Have the proxy server connect to the DBMS

using the information on the token T provided

by the client and start relaying the data

between them.

4. The client application creates a connection

object from the database connectivity tool of

choice, using a DBMS account without

privileges if required.

5. The client application sets the socket to be

used by the database connectivity tool to the

pre-existing generic communication socket

with the proxy server

. The database

connectivity tool can now be used as normal.

This is implemented in the proof-of-concept

using reflection mechanisms, in which the SQL

Server DBMS and JDBC are used to implement this

solution

. The authentication server must ensure

that an endpoint is open so the proxy server can

connect.

3.5 Deployment Considerations

Implementing the concept discussed so far allows

for a functional system to be implemented, but it is

not enough to make it secure given the assumptions

made in section 3.2

. It must be ensured that all the

connections are made over secure connections, such

as TLS, and that the database cannot be accessed

using information stored on the client application,

proxy server or authentication server individually

This would force a malicious user to compromise

both the proxy server and authentication server to be

able to access the data, unless the database can be

exploited using the unprivileged account

. For this

reason, a separate DBMS instance can be used for

this purpose

. SPDC also allows to set arbitrarily

complex passwords on the database accounts, since

the clients are not meant to know them.

Hence, SPDC has a few limitations that should

be taken into consideration when deploying

First, it does not protect the network

communications, depending on existing protocols,

such as TLS, to provide that protection

. Its purpose

is just to protect access to a database without

disrupting existing database access APIs

Second, if a malicious user were to be able to

compromise the proxy server with an online attack

to a point where the decrypted token is leaked from

memory, then the user credentials could be obtained,

as well as an endpoint to access the database

. For

this reason, the proxy server software must be robust

to prevent memory from leaking

Furthermore, the proxy server must be trusted or

provided by the database server for the simple

reason that, due to the proxying procedure, the proxy

server would be able to eavesdrop on the

communication

. Finally, if a user chooses a poor

password to authenticate with the authentication

server, the client application was modified by an

attacker, or the communication between the client

application and the authentication server is not

protected, then it would be possible to impersonate

the user

SPDC can be enhanced with other security

mechanisms and protocols, such as one-time

passwords, to address this last issue to some degree.

Finally, the solution has a whole has an increased

cost in the architecture, since it requires a proxy and

an authentication server, and should be considered

against the security level required for a use case.

4 PROOF OF CONCEPT

In this chapter the SPDC implementation details and

how the client can connect to the database with

credentials that grant them no read/write permissions

on the database is presented

. For the proof-of-

concept, Java was used as the programming

language, SQLServer 2012 as the RDBMS with the

Northwind sample database and JDBC to connect to

. The JDBC driver used was the SQL Server

official release for JDBC version 4.

As mentioned, our previous work relied on data

structures that communicated with the DBMS to

execute operations and retrieve data

. However, the

client application’s credentials were statically

defined in the application’s source code, allowing

any user to retrieve those using mechanisms like

reflection

. This was a big security vulnerability,

since the user had access to the credentials used to

connect to the database with the sensitive data. This

allowed him to bypass the security components

completely and connect directly to the DBMS

outside the application

. Not only that, but the

sensitive information was transmitted through the

SPDC: Secure Proxied Database Connectivity

network in clear text, so any eavesdropper could see

the information.

To implement SPDC using JDBC, the following

structures/mechanisms were implemented:

1. The token T, generated by the database side

authentication service when the client

application authenticates.

2. The JDBC connection object modification to

use a custom communication socket so that

the client application can use it while having

the communication relayed through the proxy

server.

3. The relaying mechanism between the

database and the client application.

4. A mechanism to open endpoints to access the

database on the database server side.

For the first point, a JSON (JavaScript Object

Notation) object was used to encode the token

. It is

comprised of two main parts: the token_data and the

token_sig

. The token_data is another JSON object

that contains the fields necessary for the proxy

server to establish a database connection

. In this

proof-of-concept the token_data contains the

following fields:

• username: The username of the user

attempting to connect

. This is an encrypted

field.

• database: The name of the database being

requested access

. This is an encrypted field.

• created: The timestamp of the token creation.

• expires: A timestamp of the instant the token

expires and can no longer be used.

• nounce: A random 32-bit integer.

• endpoint: The IP address and port to which the

proxy must connect

. This is an encrypted field.

• C: The symmetric key associated to the user,

required to decrypt the credentials stored by the

proxy server

. This is an encrypted field.

All encrypted fields are encrypted using the

proxy public key, previously shared with the

authentication server

. The symmetric key C is first

generated when the user is given an account for the

database. The associated credentials are then

encrypted with it and sent to the proxy server

securely

. Since the proxy server must decrypt the

credentials to establish a database connection, it may

be possible to update the symmetric key periodically

by providing both the old and the new symmetric

keys on the token T

The second half of the token, the field token_sig,

contains a signature of the hash of the token_data

field, signed using the authentication server private

key so that the proxy server can validate it.

Considering the second point presented, some

problems were found when trying to implement it

As discussed in section 3, the JDBC implementation

does not allow an existing socket to be used to

connect to the database

. Using a connection string

and successfully connecting to the database is the

only option available to get the connection object

instantiated, which is required to make requests to

the database

. The problem is that this connection

object is connected to a DBMS directly and not the

proxy server.

It so happens that to create a connection object,

the real credentials are not required, just the

credentials to an account that has no permissions to

execute queries, i.e

. an unprivileged public account,

provides the client with the necessary connection

object

. To have the connection object communicate

with the proxy server and not the DBMS, the client

application can utilize reflection mechanisms

. Using

reflection, the internal socket and input/output

streams can be set to those of the socket used to

communicate with the proxy server using the generic

communication channel

. The usage of reflection

mechanisms to achieve this has the downside of

making the proof-of-concept work only for the

Microsoft SQLServer driver

. Other drivers may use

other internal structures for the connection object,

requiring a deep analysis of them to make them

work with SPDC as it stands.

The connection class implementation of JDBC

for SQL Server has several variables, but one is of

particular interest: a variable named tdsChannel

This is the variable that holds the socket, named

channelSocket, two identical input streams, named

inputStream and tcpInputStream, and finally two

identical output streams, named outputStream and

tcpOutputStream

. When it is said that they are

identical, it is meant that they hold the same

reference when the driver is used normally

. The

input/output streams are the streams used by the

socket to read and write data

With this information, it is easy to understand

how the communication to the database can the

transmitted through the socket that is connected to

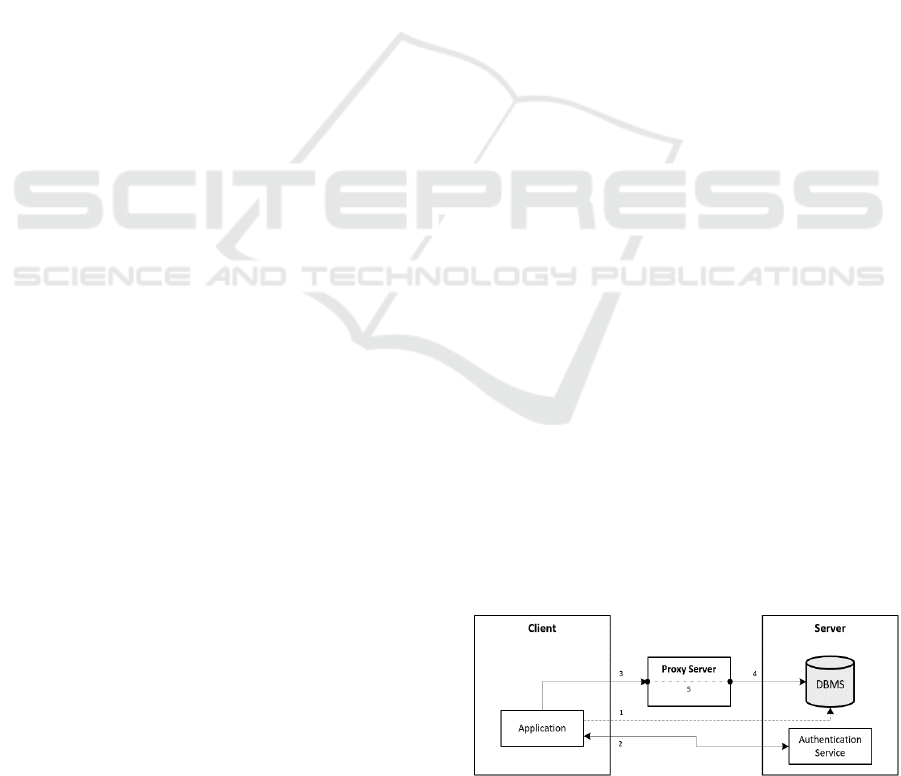

Figure 2: Sequence implementation diagram of the

solution.

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

Table 3: Protocol messages between the client application

and database server running the authentication server.

Client

Application

Network

Authentication

Server

1 u, p → (u, p)

2 u, p ← (OK|NOK) u, p, auth(u, p)

3 u, p ← (T)

u, p,

T = genToken(u)

4 u, p, T

the proxy instead of the database itself. All that is

needed is to set the proxy socket and its input/output

stream object references as the new values for the

variables mentioned.

For the third point, the relaying between the

client and the database performed by the proxy

server is achieved using two worker threads, one for

each communication direction, and the Apache

Commons IO library for copying the data between

the socket streams

. With this setup, the client can

continue to use the original connection object that

was created to communicate with the database

without ever knowing the real account credentials.

For the final point, simple firewall commands

can be used to open and close ports to access the

database by the authentication server.

To summarize, Figure 2 shows a diagram of the

SPDC implementation, which is comprised of five

main steps:

1. The client application instantiates the JDBC

Connection object, using an unprivileged

account on the database to achieve it.

2. The client application connects to the

authentication server using the credentials

given by the user

. The server then generates

and sends to the client application a security

token T with the necessary information for

the proxy server to be able to connect to the

database. An access endpoint is also created.

3. The client application connects to the proxy

server, presents the token T, waits for the

token validation and modifies the JDBC

Connection object as described

. The proxy

server decrypts the token T when it is

received and validates the signature before

replying to the application if the token is

valid or not.

4. Using the symmetric key C within the token

T, the proxy decrypts the credentials stored

for that user and establishes a connection to

the database using the endpoint indicated in

the token.

5. The proxy server relays the data between the

client application and the database.

Table 3 and Table 4 show the network protocol

implemented in the proof-of-concept is shown.

Table 3 shows the network messages between the

client application and the authentication server that

runs on the database machine. It starts (1) with the

client application presenting a username u and

password p pair to the authentication server, which

authenticates (2) using its own password database.

The authentication result is sent back to the client

application with a successful message ("OK") or not

successful ("NOK"). If the authentication is not

successful, the communication is terminated and

additional security measures may be taken to prevent

online password attacks. If the authentication is

successful, then the authentication server generates a

token T and (3) sends it back to the client

application. This completes the communication

between the client application and the authentication

server (4).

Table 4 shows the network messages between the

client application and the proxy server. It starts (1)

with the client application presenting the token T it

obtained from the authentication server beforehand

and connecting to the database using the public

account

. The proxy server decodes and validates the

received token T (2), replying to the user with a

validation successful message ("OK") or not

successful ("NOK")

. Again, if the authentication is

not successful, the communication is terminated and

additional security measures may be taken to prevent

online attacks to crack the authentication server

private key

. If the token T is valid, then the proxy

server connects to the database using the information

stored within the token T and the credentials stored

in its own credentials database (3)

. This process also

includes retrieving the stored encrypted credentials

and decrypting them using the symmetric key C in

the token T

. At the same time, the client application

sets the connection object it has with the database to

Table 4: Protocol messages between the client application and proxy server.

# Client Application Network Proxy Server

1 T, O = connectToDatabase() → (T)

2 O ← (OK|NOK) T, validateToken(T)

3 O, useProxySocket(O) T, connectToDatabase(T)

4 O, applicationCode(O) relay()

SPDC: Secure Proxied Database Connectivity

use the network socket connected to the proxy

server

. Finally, the proxy server begins relaying the

communication between the client application and

the database while the client application executes the

application code (4)

All unnecessary variables and attributes are

removed from memory to minimize the possibility

that they may be leaked

. This is most evident with

the token T, which the client application only stores

until it is sent to the proxy server

. Furthermore, the

proxy server only keeps the token T in memory until

the database connection is established.

Other more complete authentication protocols can be

used to authenticate the user, such as Kerberos

(Neuman and Ts’o, 1994) or RADIUS (IETF, 2000b)

and even implementing the GSSAPI (IETF, 2000a)

to support a wide variety of protocols, since SPDC is

not concerned with the way users are authenticated.

SPDC is only concerned with the proxy server

obtaining the information required to establish a

database connection and relay the communication to

the client, which is why this proof-of-concept uses a

basic authentication protocol.

5 PERFORMANCE ASSESSMENT

In this section the performance assessment made to

test the solution is presented. This performance

assessment includes a comparison between the

network traffic generated by a VPN and the solution

proposed in this paper. However, the performance in

terms of delay is not included because everything is

done during connection time.

The network traffic tests between the relay

method herein described and using a direct

connection through a VPN were made by

establishing the initial connection and then issuing

an aggregation query to the SQLServer Northwind

sample database that calculates the total amount of

money per order, sorting by the total

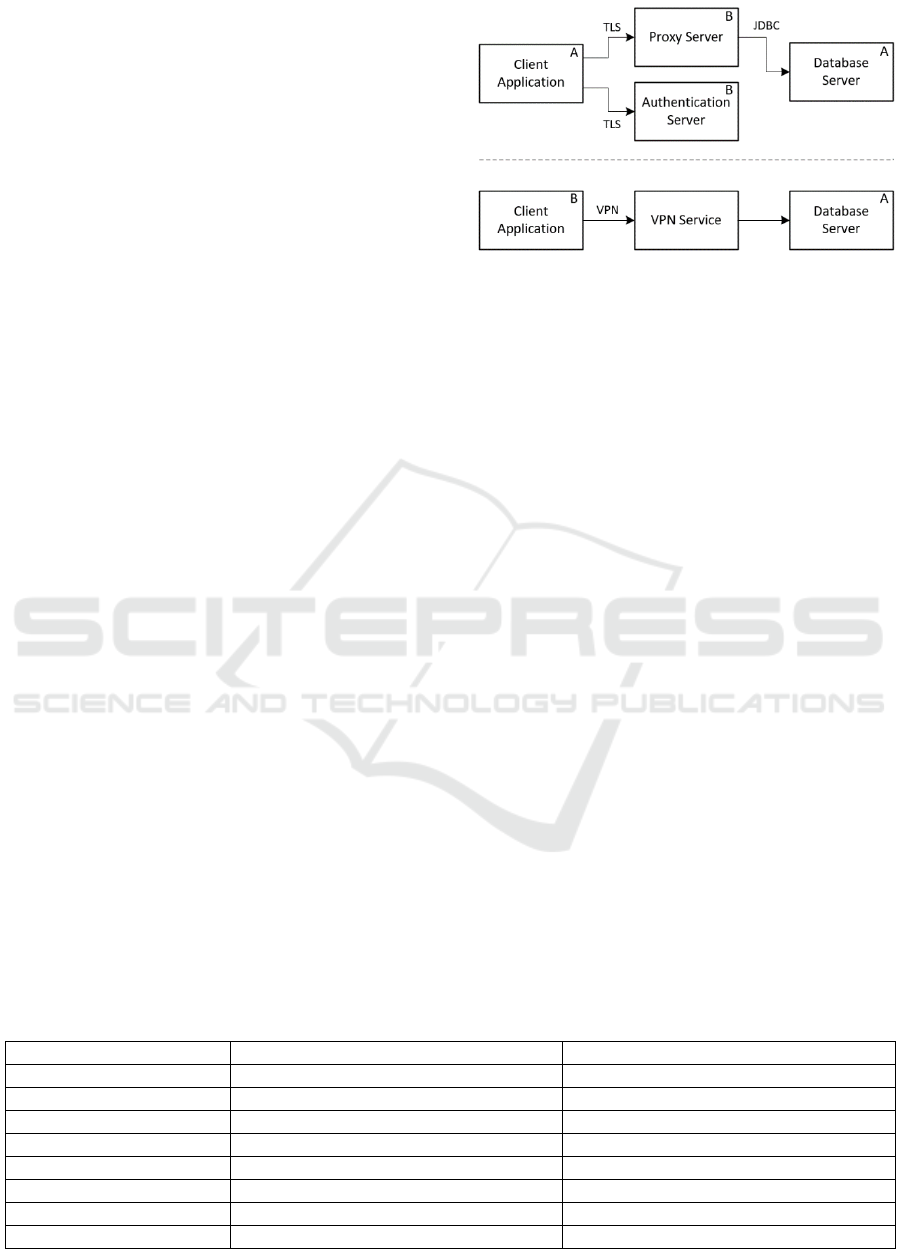

Figure 3: Test deployments, the top case using SPDC and

the bottom using a VPN.

The machines used to carry these tests are

specified on and the traffic was captured using

Wireshark v2.2.2.

The direct approach using a VPN is trivial and

was conducted by instantiating a JDBC connection

object and then executing an aggregation query over

Northwind’s Orders table which contains 1000 rows

A third-party VPN server, supported by OpenVPN,

was used to establish the VPN connection

. The

network traffic was captured by the client

application to measure the amount of data sent

through the VPN

. The SPDC solution uses TLS to

secure the connections described in this paper and

was deployed on two machines: machine A and

machine B. Both test cases, using a VPN and SPDC,

are illustrated in Figure 3, which also shows which

role each machine had.

To reiterate, after the client application

authenticates with the authentication server, it waits

for the authentication server to reply with the token

T as described on section 3

. The authentication

server also opens an endpoint on the firewall, so the

proxy server can connect using the details provided

in the token. The client application (machine A) then

connects to the proxy server (machine B), and sends

the token it received from the authentication server

At the same time, it connects to a DBMS instance

using the account that holds no privileges to

Table 5: Testing machines specification.

Machine A B

OS Windows 10 Home Windows 7 Ultimate

Architecture x86_64 x86_64

Motherboard LENOVO Lancer 5A2 (U3E1) Gigabyte H87-HD3

CPU Intel Core i7 4510U @2.00GHz Intel Core i5 4670K @3.40GHz

Memory 8.00GB DDR3 @797MHz 8.00GB DDR3 @665MHz

Hard Drive 465GB SSHD-8GB 1863GB SATA

RDBMS Microsoft SQL Server 2012 -

Other Programs Netbeans IDE, Wireshark Netbeans IDE, Wireshark

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

instantiate a JDBC connection object. When the

proxy server acknowledges that the token is valid,

the client application exchanges the socket on the

JDBC connection object to the socket it used to

connect to the proxy server

. At the same time, the

proxy server creates the actual JDBC connection

object to the database, using the user credentials that

it decrypted with the symmetric key C from the

token, and begins relaying the communication

between the client application and the database

The query execution made by the client is the

same as in the VPN approach, since it now possesses

a JDBC connection object with permission to access

the data on the database

. From this point on, SPDC

adds no further traffic overhead to the connection,

meaning that it has no further impact after the

connection is established

On Table 6 a summary of the results obtained

when capturing the traffic generated by each

solution can be seen

. On both solutions, the network

traffic was captured by the client application and the

packets were filtered to only the relevant ones

. To

ensure no unwanted traffic was captured on the VPN

solution, the VPN server was configured to only

allow connections made to the database server

through

Table 6. Traffic overhead results.

Solution #Packets Bytes Transmitted

Connection: VPN 177 31409

Connection: SPDC 48 19303

100 Queries: VPN 2356 1480972

100 Queries: SPDC 1649 1316834

It is possible to see that overall, SPDC using TLS

to secure the connections is better than a VPN based

solution in regards to network traffic

. During

connection, SPDC used around 73% less packets

than the VPN counterpart, needing only 48 packets

compared to the 177 used by the VPN

. Further-

more, SPDC transmitted about 39% less data,

needing only about 19KB compared to the 31KB

used by the VPN

. This is expected since VPN also

must transmit information regarding routes and other

network related information needed so the client can

setup the VPN.

Considering the applicational data transmission

with the database queries, the SPDC transmitted

30% less packets, using 1649 packets when the VPN

solution used 2356

. This can be explained due to the

fact that SPDC, after the connection is established,

has no other traffic overhead

. Thus, the overhead in

the SPDC solution is added just by the TLS protocol

itself

. The same reason can be applied to explain the

data transmitted, since SPDC was able to serve 100

database queries while transmitting 11% less data

than the VPN solution, needing about 1.26MB

compared to the 1.41MB needed by the VPN.

It is important to note that it is possible to have

the proxy server establish a VPN connection to the

database server before connecting to the database

. In

this case, the network traffic overhead is expected to

be the same as if only a VPN was being used, since

SPDC adds no overhead once the connection is

established.

6 CONCLUSION

This paper presented SPDC, a mechanism to secure

access to databases using a proxy server while

allowing client applications to access data in

databases using standard database connectivity tools

Furthermore, it splits the information needed to

access the database between the proxy server and the

authentication server, as well as removing the hard-

coded database credentials from client applications

This way, a malicious user with access to the

client application is not able to obtain database

credentials just by looking at the source code

. By

having the proxy server connect to the database

using the credentials associated with the client and

relaying the communication between the client and

the database, it is possible for the client to connect to

the database using database connectivity tools

without any useful credentials

. Since neither the

proxy server or the authentication server possess all

the information needed to access the database, a

malicious user must compromise both servers to be

able to gain access.

However, several aspects of this solution must be

taken into consideration. The cost of the architecture

is greater than that of a VPN solution, for example,

since it requires a proxy server and an authentication

server, in contrast to only one additional server in

the case of a VPN. Furthermore, the proxy server

must be carefully monitored to avoid eavesdropping,

given the nature of proxy servers the data must be

taken from one secure channel to another. This data

should not remain in memory or cached.

Additionally, and while it is not a very hard

adaptation to make, JDBC drivers other than SQL

Server’s must have a procedure created to modify

the communication sockets.

Concerning performance, it was shown that

connecting to the database using the proposed SPDC

mechanism can be better than using a VPN solution

in terms of network traffic overhead, both in terms

SPDC: Secure Proxied Database Connectivity

of connection and applicational data transmission

One last possible concern with the use of a proxy

server could be raised regarding scaling, since a

server-side application must relay the communica-

tion between the client and the DBMS in the SPDC

presented in this article

. However, there is no issue

in having several of these proxy servers to process

the client’s requests to connect to the database since

they are inherently stateless

. They establish a

connection given a token, and once the connection

terminates a new connection can only be made by

presenting another token.

Finally, in terms of future work it would be

interesting to address the eavesdropping issue on the

proxy server. This could be achieved by adding a

layer on top of the database that accepts connections

and all data is encrypted using, for example, the

authentication server password of the user. The

implications of such alteration must be carefully

studied and tested.

ACKNOWLEDGEMENTS

This work is funded by National Funds through

FCT - Fundação para a Ciência e a Tecnologia under

the project UID/EEA/50008/2013 and

SFRH/BD/109911/2015.

REFERENCES

Abramov, J. et al., 2012. A methodology for integrating

access control policies within database development.

Computers {&} Security, 31(3), pp.299–314.

Bauer, C. & King, G., 2005. Hibernate in Action.

Ferraro, P., HA-JDBC: High-Availability JDBC.

Available at: https://ha-jdbc.github.io [Accessed

September 13, 2016].

Gessert, F. et al., 2014. Towards a scalable and unified

REST API for cloud data stores. Lecture Notes in

Informatics (LNI), Proceedings - Series of the

Gesellschaft fur Informatik (GI), P-232, pp.723–734.

IETF, 2000a. RFC 2743: Generic Security Service

Application Program Interface Version 2, Update 1.

IETF, 2000b. RFC 2865: Remote Authentication Dial In

User Service (RADIUS).

IETF, 2008. RFC 5246: The Transport Layer Security

(TLS) Protocol - Version 1.2.

Lavarene, J. de, 2010. SSL With Oracle JDBC Thin

Driver. Available at: http://www.oracle.com/

technetwork/topics/wp-oracle-jdbc-thin-ssl-

130128.pdf.

Microsoft, SQL Server Security Modes. Available at:

https://msdn.microsoft.com/en-

us/library/aa266913(v=vs.60).aspx [Accessed

September 13, 2016].

Naylor, D. et al., 2015. Multi-Context TLS (mcTLS).

ACM SIGCOMM Computer Communication Review,

45(5), pp.199–212.

Neuman, C.B. & Ts’o, T., 1994. Kerberos: An

Authentication Service for Computer Networks. IEEE

Communications Magazine, 32(9), pp.33–38.

Oppliger, R., Hauser, R. & Basin, D., 2006. SSL/TLS

session-aware user authentication - Or how to

effectively thwart the man-in-the-middle. Computer

Communications, 29(12), pp.2238–2246.

Oppliger, R., Hauser, R. & Basin, D., 2008. SSL/TLS

session-aware user authentication revisited. Computers

and Security, 27, pp.64–70.

Oracle, Authentication Using Third-Party Services.

Available at: https://docs.oracle.com/cd/B19306_01/

network.102/b14266/authmeth.htm#i1009853

[Accessed August 13, 2016].

Oracle, 1997. JDBC Introduction. Available at:

http://docs.oracle.com/javase/tutorial/jdbc/overview/in

dex.html [Accessed March 3, 2014].

Pereira, O.M., Regateiro, D.D. & Aguiar, R.L., 2014.

Role-Based Access control mechanisms. In 2014 IEEE

Symposium on Computers and Communications

(ISCC). Vancouver, BC, Canada: IEEE, pp. 1–7.

Pereira, Ó.M., Regateiro, D.D. & Aguiar, R.L., 2015.

Secure, dynamic and distributed access control stack

for database applications. International Journal of

Software Engineering and Knowledge Engineering,

25(9–10), pp.1703–1708.

Regateiro, D.D., Pereira, Ó.M. & Aguiar, R.L., 2014. A

secure, distributed and dynamic RBAC for relational

applications. University of Aveiro.

Shay, R. et al., 2016. Designing Password Policies for

Strength and Usability. ACM Transactions on

Information and System Security, 18(4), pp.1–34.

Villager, C. & Dittmann, J., 2008. Biometrics for User

Authentication. In Encyclopedia of Multimedia.

Boston, MA: Springer US, pp. 48–55.

Yang, X.L. et al., 2016. What Security Questions Do

Developers Ask? A Large-Scale Study of Stack

Overflow Posts.

Journal of Computer Science and

Technology, 31(5), pp.910–924.

Zarnett, J., Tripunitara, M. & Lam, P., 2010. Role-based

access control (RBAC) in Java via proxy objects using

annotations. Proceeding of the 15th ACM symposium

on Access control models and technologies - SACMAT

’10, p.79.

Zimmerman, M., 2003. Biometrics and User

Authentication. Available at: https://www.sans.org/

reading-room/whitepapers/authentication/biometrics-

user-authentication-122.

DATA 2017 - 6th International Conference on Data Science, Technology and Applications
