Supporting Pre-shared Keys in Closed Implementations of TLS

Diogo Domingues Regateiro, Óscar Mortágua Pereira and Rui L. Aguiar

DETI, University of Aveiro, Instituto de Telecomunicações, 3810-193, Aveiro, Portugal

Keywords: Software Architecture, Secure Communications, Information Security, Network Protocols.

Abstract: In the business world, data is generally the most important asset of a company that must be protected.

However, it must be made available to provide a wide variety of services, and so it can become the target of

attacks by malicious users. Such attacks can involve eavesdropping the network or gaining unauthorized

access, allowing such an attacker to access sensitive information. Secure protocols, such as Transport Layer

Security (TLS), are usually used to mitigate these attacks. Unfortunately, most implementations force

applications to use digital certificates, which may not always be desirable due to trust or monetary issues.

Furthermore, implementations are usually closed and cannot be extended to support other authentication

methods. In this article a methodology is proposed to slightly modify closed implementations of the TLS

protocol that only support digital certificates, so pre-shared keys are used to protect the communication

between two entities instead. A performance assessment is carried out on a proof-of-concept to demonstrate

its feasibility and performance.

1 INTRODUCTION

Security is an important aspect to consider when

sensitive data is being served by some service, but as

in many software solutions, it is often regarded at

later phases of their development cycle

. Therefore,

many companies end up relying on the usage of

secure communication channels to authenticate client

applications and encrypt the data transmitted

. To this

end, digital certificates are many times used to secure

the transmission of that data.

Digital certificates, which uses asymmetric

cryptography, is a very good solution for situations

where communication is required between endpoints

that are unknown to each other, such like browsers

and webservers. However, the usage of digital

certificates places extra responsibility on the users of

the client applications, among other security

problems (Leavitt, 2011). The users have to maintain

the public key certificate of the server secure if it is

not signed by a certificate authority whose public key

certificate is distributed along with the device being

used, making the whole system rely on a Public Key

Infrastructure (Weise, 2001)

There are several reasons as to why a company

might not want to have their certificates signed by an

external certificate authority, e.g

. the fact that the

company must trust a third-party company or the

money required to sign the company certificate

. This

can lead to self-signed certificates being used, which

requires a level of trust in the users of the client

applications that may not be compatible with the

business policies

. A self-signed public key certificate

can be easily replaced on the client application host

device without the user noticing, meaning that an

intruder can still impersonate the server to obtain

sensitive information that can be used later for

follow-up attacks

. Even when the server certificate is

signed by a certificate authority, it is still possible for

an attacker to install a new root certificate authority

on the client application host device and forge a new

certificate claiming the attacker to be the server, since

root certificate authorities’ certificates are always

self-signed

. Incidentally, human users of systems that

rely on these certificates do not always verify which

root certificate authority signed the certificate in use.

This paper argues that TLS implementations

based on pre-shared keys can address these concerns,

because using pre-shared keys removes the need to

trust certificate authorities, and by extension paying

them to sign a digital certificate. Hence, it will focus

on situations where asymmetric keys are not

necessarily the best option, such as between a server

and a custom client application that connects to it.

Furthermore, the client application does not have

to validate the certification chain of the certificate

192

Regateiro, D., Pereira, Ó. and Aguiar, R.

Supporting Pre-shared Keys in Closed Implementations of TLS.

DOI: 10.5220/0006424701920199

In Proceedings of the 6th International Conference on Data Science, Technology and Applications (DATA 2017), pages 192-199

ISBN: 978-989-758-255-4

presented by the server

. If the server does not know

the pre-shared key, then the connection simply cannot

be made.

Additionally, using pre-shared keys is less prone

than certificate authentication to certain types of

configuration mistakes, such as expired certificates or

mismatched common name fields

. However, the

system must apply restrictions on the accepted pre-

shared keys to avoid low entropy.

Furthermore, such an implementation provides

mutual authentication (i.e

. the client and the server

both authenticate each other), while TLS with server

certificates only authenticates the server to the client,

leaving the client authentication to the application

logic

. Client certificates can be used to authenticate

the client, but it may be easier for a user to remember

a pre-shared secret, such as a password, than to

manage a certificate. Additionally, the business would

have to trust the client to keep their private key safe.

However, using pre-shared keys can give rise to

some new issues, such as the possibility of the users

writing down the keys or how the endpoints agree on

a shared-key securely. These issues can also be

mitigated and will be discussed.

A previous work is presented (Pereira et al.,

2014)(Regateiro et al., 2014) and (Pereira et al.,

2015), called Dynamic Access Control Architecture

(DACA), where a distributed access control

framework allows the clients to connect to a database

through runtime generated access control

mechanisms. There, the client applications can use an

interface based on Java Database Connectivity

(JDBC), which is implemented by the access control

mechanisms, to access and manipulate data stored in

a server. A connection to a server side application is

also made to configure the runtime generation of the

access control mechanisms, based on the security

policy that applied to that client. The method

proposed in this paper can then be used to secure this

framework without the issues described.

This paper contributes with a method to avoid the

usage of digital certificates to authenticate the server

and the client using TLS. It also analyzes the changes

necessary to make this possible, the security

considerations that must be taken into account and its

impact on the performance of a system.

The paper is divided as follows: chapter 2 presents

the related wok, chapter 3 presents the proposed

concept solution, chapter 4 presents a proof of

concept detailing the method of implementation and

the related issues, on chapter 5 a performance

assessment is carried out to measure the overhead of

the solution and on chapter 6 a discussion of the

proposed work is made.

2 RELATED WORK

The work described in this article attempts to add

support for pre-shared keys in SSL/TLS (IETF,

2008), even though the standard does define cipher

suits that make use of pre-shared keys instead of

digital certificates. Therefore, this article is not aimed

to modify the standard, but instead to make it possible

to use pre-shared keys with closed implementations

of TLS that do not support these cipher suits. One

such case is the Java implementation (Oracle, n.d.),

which is not extensible to support new cipher suits

programmatically and does not implement the cipher

suits using pre-shared keys. The method described in

this paper will allow to use pre-shared keys in the Java

implementation of TLS.

In terms of security, the SSL/TLS protocol has

seen some work to try to improve it. In (Oppliger et

al., 2006) and (Oppliger et al., 2008), a session aware

user authentication is introduced and expanded in an

attempt to thwart Man-In-The-Middle (MITM)

attacks. Unfortunately, these approaches still use

digital certificates. While the proposed solution is not

completely invulnerable to these kind of attacks, it

can detect when one occurs and preventive measures

can be taken before sensitive data is disclosed.

There are SSL/TLS cipher suits that do not require

digital certificates, and therefore certificate

authorities and a public key infrastructure, that

provide secure communication based on passwords

such as TLS-SRP (Taylor et al., 2007). The Secure

Remote Password (SRP) (Wu, 1998) is a password

authenticated key exchange that allows to parties to

agree on a common value derived from a password

and a salt, known in advance. This value is then used

to establish a TLS connection. The SRP protocol is

also a form of augmented password authenticated key

exchange, meaning that the server does not store any

password equivalent data. The solution in this paper

does not possess this feature, but is not as complex

and requires less computing power to use since it does

not utilize complex mathematics.

Other password authenticated key exchange

protocols exist, such as the Simple Password

Exponential Key Exchange (SPEKE) (Hao and

Shahandashti, 2014) (MacKenzie and MacKenzie,

2001) or Password Authenticated Key Exchange by

Juggling (J-PAKE) (Hao and Ryan, 2010) (Toorani,

2014) (MacKenzie and MacKenzie, 2001). However,

no known actively supported implementation in TLS

exist.

Supporting Pre-shared Keys in Closed Implementations of TLS

193

3 SOLUTION CONCEPT

The goal with this work is to adapt the SSL/TLS

encryption protocol to use pre-shared keys instead of

digital certificates on closed implementations that do

not support the specific cipher suits that makes use of

them.

To achieve this goal, the capabilities of the

SSL/TLS encryption protocol are required to be

maintained without the need for certificate authorities

or a public key infrastructure

. Instead, a pre-shared

key will be used to establish the secure connection

While a pre-shared key can be obtained from a user

of the client application for server impersonation, it is

likely to be different between users. Provided that

non-trivial pre-shared keys are used, any attempt at

server impersonation will only affect that user/client

application

. This differs from a server certificate

because, since it is the same for every client

application, one forged certificate signed by a

certificate authority installed on the device is all that

is required to impersonate the server for every client,

even easier if the certificate is self-signed.

In the event a pre-shared key is stolen from a user,

many methods of determining that a non-legitimate

client is trying to use the pre-shared key of another

client can be put in place, such as authentication

attempt notifications or client location based validation

using the IP address

. The protocol behavior of the

proposed solution under certain attack scenarios will

also be shown.

This chapter is divided as follows: section 3.1

introduces the adapted protocol which use pre-shared

keys without the required cipher suit and section 3.2

will open some discussing regarding security

considerations that are raised in the standard in the light

of the adapted protocol.

3.1 TLS Protocol Adaptation Method

In this section the adapted protocol that is being

proposed will be discussed. The basis of the solution

for an SSL/TLS based protocol using a pre-shared

key relies on setting up an initial SSL/TLS channel

using the Diffie-Hellman key exchange protocol

(Diffie and Hellman, 1976) in anonymous mode. This

mode allows a connection to be made without the use

of certificates, but it leaves the connection vulnerable

to MITM attacks and neither the server or the client

are authenticated. The connection encryption keys are

then modified to provide these features.

The basic TLS handshake protocol message

exchange pattern can be seen in Figure 1. since a

certificate is used in this example, and for both parties

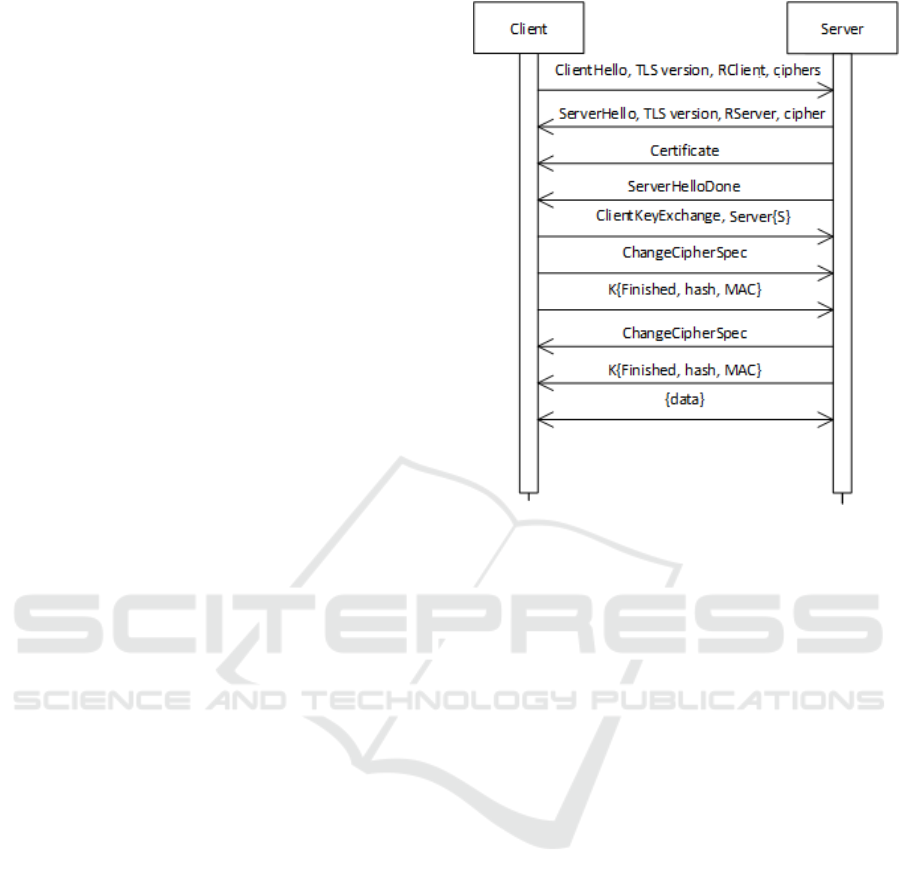

Figure 1: Basic TLS protocol using server certificate.

to agree on a common secret to encrypt the

communication, the client must generate a secret and

send it encrypted with the server public key

. Since the

data encrypted with the public key can only be

decrypted with the private key and only the server

should possess the private key, only the server can

decode the shared secret that will be used to encrypt

the communication with the client

. Given that the

client trusts the certificate authority that signed the

server certificate, it has some degree of confidence

that the secret can only be decrypted by the intended

server

. Further communication is then encrypted

using the agreed secret.

Instead of using digital certificates due to the

issues presented, the adapted protocol makes use of

the Diffie-Hellman key exchange protocol

. The basic

Diffie-Hellman key-exchange protocol uses a mixture

of public and private values so that two parties can

agree on a secret, exchanging only public information

that does not allow a third party to easily arrive at the

agreed secret.

The TLS implementation using the Diffie-

Hellman key exchange protocol in anonymous mode

uses an agreed key K to derive the session key for

encrypting the rest of the communication, but it does

not authenticate the client or the server

. Hence, it is

vulnerable to MITM attacks since the endpoints are

not verified before the key exchange takes place

A small variation was introduced in the Diffie-

Hellman protocol which aims to change the agreed

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

194

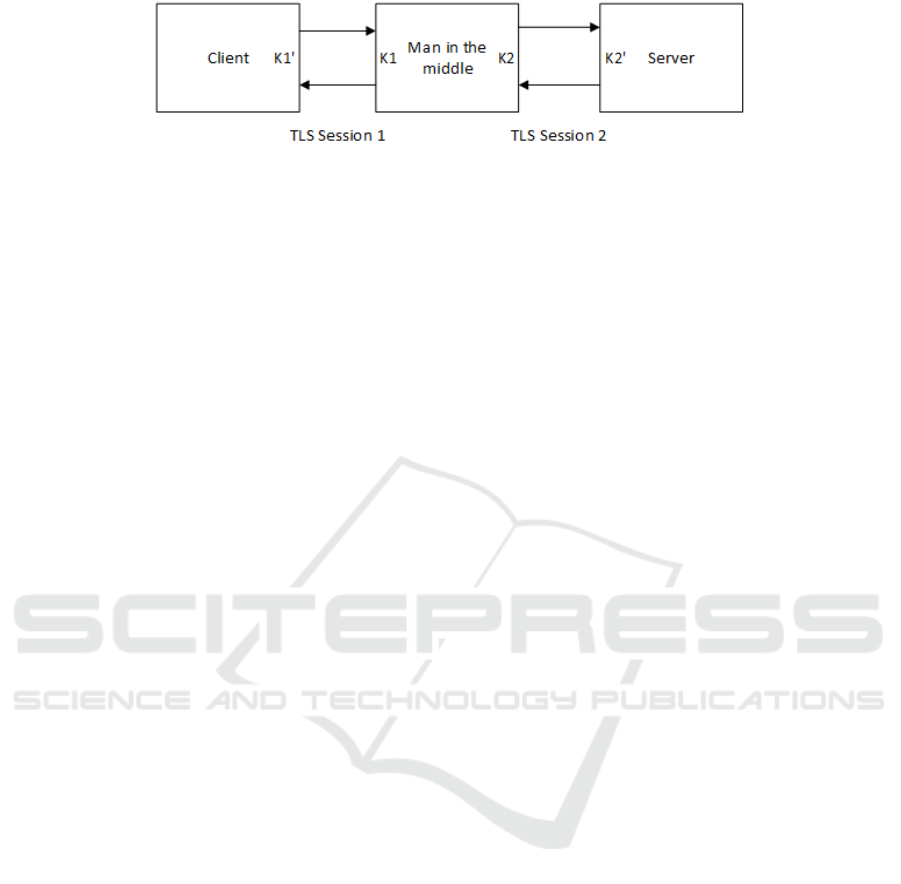

Figure 2: MITM attack scenario on the adapted TLS protocol.

key K the same way on both endpoints using a pre-

shared key (PSK)

. This PSK should be agreed upon a

priori using a separate communication channel

If the key agreed initially using the Diffie-

Hellman protocol is K, then the new agreed key K’

used to calculate the session key becomes:

’ =  + 







 (1)

With PSK in Formula 1 being the pre-shared key,

F a known function of the pre-shared key and H a

cryptographic hash function

. The function F can be a

simple concatenation of a user’s pre-shared secret

with a salt value or something more complex, its main

goal is to prevent the usage of rainbow tables

(Marechal, 2008).

This transformation of the agreed key cannot be

performed by an intruder in a MITM attack scenario,

since they should not know the pre-shared key of the

client. This way, when no MITM attack is in effect,

both the client and the server can communicate using

the SSL/TLS channel as normal, since they both

perform the same transformation of the base key K.

However, if an MITM attack is in effect, then the

intruder cannot decrypt the data coming from either

endpoint after the key K is transformed into K’.

This occurs because the modified keys K’ do not

match between the client and the server, as shown in

Figure 2 (K1’ and K2’), since the client and the server

agreed on the initial key K with the MITM on two

separate sessions and not between themselves. Thus,

when the client and the server transform their agreed

keys with the pre-shared secret, the attacker cannot

decrypt the messages sent by either of them. In fact,

even if the attacker tries to relay the data between

them to hide the attack, neither can decrypt the data

they receive since they agreed on different K’ keys.

However, this method still contains one

vulnerability

. In a MITM attack scenario, after the

agreed key has been hashed and the new session key

calculated, the client will send a message to the server

with a known structure

. The intruder can then

perform an offline dictionary attack to transform the

known key K agreed with the client into K’ and

attempt to decrypt the message until the known

structure is obtained

. Fortunately, it is always

possible to detect that a MITM attack has occurred

. If

a client does not receive a valid response from the

server inside a time window or an invalid message is

received instead, then it is best to assume a MITM

attack has occurred and take precautionary measures

as necessary, such as expire the user pre-shared key.

3.2 Security Considerations

In this section the security considerations made in the

standard (Eronen and Tschofenig, 2005) that should

be taken into account when dealing with security for

communication protocols such as SSL/TLS are

discussed.

The first consideration is regarding perfect

forward secrecy (Günther, 1989) and it expresses the

property of a communication protocol to not

compromise past session keys if the long-term keys

are compromised. Considering that the adapted

protocol uses the Diffie-Hellman private key

exchange, which generates a different key K for each

handshake of the protocol, when the key K’ is

compromised it is only possible to decrypt that

communication session, given that the attacker is also

in possession of the client pre-shared key. Since the

agreed keys K are independent from one another, all

past communications remain uncompromised,

providing perfect forward secrecy.

The second consideration regards to brute-force

and dictionary attacks

. The use of a fixed shared

secret of limited entropy such as a pre-shared key

chosen by a human (e.g

. a password) may allow an

attacker to perform a brute-force or dictionary attack

to recover the shared secret

. This may be either an

off-line attack (against a captured TLS handshake

message) or an on-line attack where the attacker

attempts to connect to the server and tries different

keys

. In the case of a protocol that uses Diffie-

Hellman, such as this adapted protocol proposal, an

attacker can only obtain the message it requires by

getting a valid client to connect to him, for example

by using a MITM attack

. While a weak pre-shared

key can be obtained from such methods, only future

communications between the client and the server are

vulnerable, since the key K agreed via the Diffie-

Supporting Pre-shared Keys in Closed Implementations of TLS

195

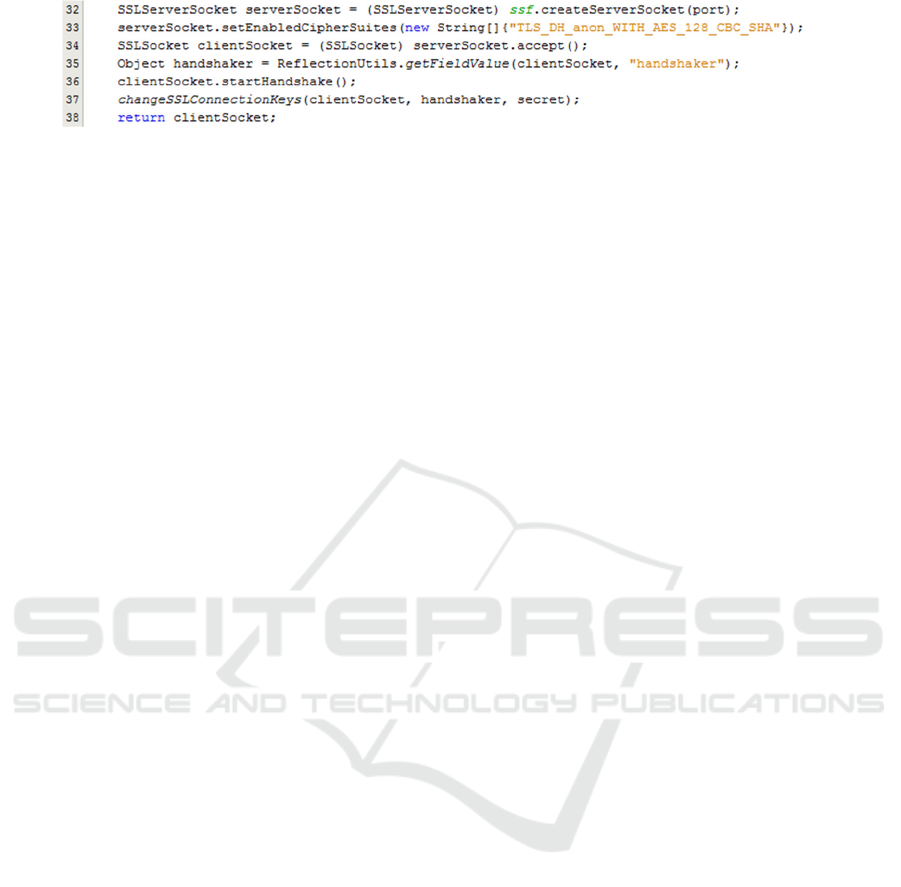

Figure 3: Server socket creation process with the pre-shared key authenticated key exchange.

Hellman key exchange changes every time a new

connection is established

. Additionally, since a MITM

attack is required to obtain the data needed for an

offline attack, it is always detectable as explained in

section 3.1. If the system triggers a forced pre-shared

key reset, then future communications are not

vulnerable

. However, as with many other protocols,

one attacker could carry out a denial of service attack

by making MITM attacks on every communication

attempt.

Finally, considering identity privacy, currently the

adapted protocol does send the client identity in clear

text

. It is possible to enhance the protocol by sending

the client entity after the Diffie-Hellman key

exchange protocol has finished and the

communication is encrypted by the agreed key

However, since the client identity is required for the

server to know which pre-shared key to use to modify

the agreed key K, this method would only prevent

eavesdroppers from knowing the communicating

parties

. In a MITM attack scenario, the attacker

would still be able to know the identity of the client.

4 PROOF OF CONCEPT

For the proof of concept, Java was used as the

programming language for the client application and

SQL Server 2012 as the relational database

management system (RDBMS)

. In this section, the

method for supporting pre-shared keys in the native

Java implementation of TLS will be detailed.

The generic approach to implement the

modifications needed to make the adapted protocol

work can be seen in Figure 3, and it shows how an

anonymous SSL/TLS connection is established using

Diffie-Hellman and where the agreed key is altered

However, a problem surfaced while trying to

implement this method

. Since the SSL/TLS

implementation in Java is closed and cannot be

extended, the agreed key K mentioned on section 3.1

cannot be easily changed

. Reflection features in the

Java programming language were used to access the

Java implementation of the SSL/TLS protocol and

perform the necessary changes to make it work.

First, an SSL socket is created (line 32) and the

desired cipher suit is specified (line 33)

. The cipher

suit is a named combination of authentication,

encryption, Message Authentication Code (MAC)

algorithms and a pseudorandom function

. The cipher

suit “TLS_DH_anon…” states that the key exchange

protocol to be used is Diffie-Hellman (DH) and no

authentication will be made (anon), which removes

the need to use certificates since they are used to

provide authentication. The other fields are not

relevant to this work.

The server then waits for a client to connect

(line 34)

. When a client connects, the server saves the

reference to the handshaker, which is an internal

object of the clientSocket that handles the

handshaking process of the SSL/TLS protocol

(line 35)

. ReflectionUtils is a class that provides

several functionalities based on reflection, where

getFieldValue(obj, fieldName) retrieves variable with

the name fieldName from the object obj

. It is required

to save this reference because after the handshaking

process finishes, its reference is set to null

. Then a

normal handshaking process takes place (line 36),

after which the agreed key is changed (line 37).

Figure 4 shows the same process from the client

point of view

. First an attempt to connect to the server

is made (line 46)

. Since the cipher suit used is

disabled by default it must be enabled in the client as

well (line 47)

. Then a reference to the handshaker

object is saved for the same reason as in the server

(line 48) and then start the normal handshake process

(line 49)

. Finally, the agreed key is changed using the

same process as the one used on the server (line 50).

This handshake process uses Diffie-Hellman key

exchange protocol to agree on a preMasterKey which

is then used to derive a masterKey (our key K) from

which the read and write ciphers are initialized

. Since

the preMasterKey is disposed of after the masterKey

is created, it is not possible to change it. Therefore, it

was decided that changing the masterKey instead was

the better option, since it remained available

throughout the whole process.

Only changing the masterKey into K’ is not

enough, however, because the read and write ciphers

that read and write into the communication channel

have already been initialized

. The process necessary

to change the masterKey into K’ and update the read

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

196

Figure 4: Client socket creation with the pre-shared key authenticated key exchange.

and write ciphers in Java is as follows.

1. Obtain the current private state of the socket and

save it.

2. Obtain the masterKey (K) from the TLS session

3. The masterKey bytes is hashed per Formula 1

and the output truncated to the original size of

the masterKey (K’).

4. The calculateConnectionKeys private method

from the handshaker object, which calculates

the connections keys for the read and write

ciphers, is invoked

5. The handshaker reference in the socket is set,

since it has been set to null after the handshake

This is required for step 7.

6. The socket state is set to cs_HANDSHAKE

. The

methods invoked in step 7 assert that the socket

is still handshaking

7. Call the private methods changeReadCiphers

and changeWriteCiphers declared in the socket

class

8. Cleanup by setting the socket state back to the

original value and the socket handshaker

reference back to null.

The previous process requires the usage of Java

Reflection in every step except step 3, because the

variables set and methods invoked in the socket are

private.

The reliability on the reflection functionality has

the big problem of destroying the abstraction created

by the public interface

. Any changes made to the Java

SSL/TLS internal structure could potentially break

this particular solution since it is dependent on the

implementation.

However, the overall methodology of changing

the masterKey to implement the adapted protocol

should remain the same at its core.

5 PERFORMANCE ASSESSMENT

In this section, several tests aiming to measure the

performance of the proposal are presented

. One

aspect that is important to note is that the proposal had

to be implemented using Java Reflection, which

impacts performance considerably, but since it is only

needed at the start of the communication its impact

will be limited.

The performance was measured over three distinct

variables: 1) the time it takes for of the adapted TLS

protocol (PSK) and an anonymous TLS to connect; 2)

the usage of TLS sessions; 3) and sending 50MBs of

random data for communication overhead

. The first

variable aims to test the performance difference

between establishing a normal TLS connection, albeit

using anonymous Diffie-Hellman to be comparable

with the adapted version, and the adapted version

connection

. The second variable aims to show how

the automatic resumption of TLS sessions impacts

performance on both cases

. This is worth testing since

when a TLS session is resumed, the adapted protocol

procedure to change the master key is not executed,

as the previous master key (K’) is reused

. Finally, the

third variable aims to show how the performance

compares when data is sent over the connection.

This section is divided as follows: Section 5.1

defines the test environment and section 5.2 shows

and discusses the results obtained.

5.1 Environment

This section details the test environment and the

machine used to run the performance tests, shown in

Table 1. Note that all unneeded programs and services

were not running or disabled

. Network connectivity

was also disabled

Furthermore, to maximize the overhead

introduced by this proposal, simple client and server

applications were run on the same machine to

simulate an optimal environment with low network

delay

. The results shown were obtained from these

client and server applications.

Table 1: Testing machine specification.

Windows 10 Home

Architecture

x86_64

Motherboard

LENOVO Lancer 5A2 (U3E1)

CPU

Intel Core i7 4510U @ 2.00GHz

Memory

8.00GB Dual-Channel DDR3 @

797MHz (11-11-11-28)

Hard Drive

465GB Seagate ST500LM000-

SSHD-8GB (SATA)

Other Programs

Netbeans IDE

Supporting Pre-shared Keys in Closed Implementations of TLS

197

5.2 Performance Tests

In this section the performance tests conducted and

their results will be presented

. The tests show the time

it took to establish a TLS connection, either using this

approach with pre-shared keys (PSK) or not (TLS)

The performance impact of session resumption is also

tested by invalidating a session after each iteration of

a test (NS) or not (S) and finally by the time it takes

to send 50MBs of data (D)

. Each test had 10.000

running iterations except when the 50MBs of data

were sent, in which case 100 iterations were used.

Table 2 shows the data that was obtained from the

tests, including the average time, the standard

deviation and the 99

, 95

and 90

percentile. The

names of the tests indicate the test itself, i.e

. PSK-NS

indicates that the test used the approach using pre-

shared keys and did not allow for session resumption

Note that to obtain these times, the

System.nanoTime() service was used, which uses the

current JVM’s high-resolution time source and

returns its value with a nanosecond precision and

nanosecond resolution in the case of the machine

used

. It is not related to the current time and it is only

usable to calculate elapsed time.

Table 2: Performance tests measurements in milliseconds.

PSK-

TLS-

PSK-

TLS-

Avg.

Time

7.40 7.19 1.44 1.32 2266 2256

Std.

Dev.

2.92 2.25 4.42 4.57 39 43

Perc.

18.3 15.6 8.91 7.28 2332 2395

Perc.

11.3 10.3 2.56 2.35 2326 2325

Perc.

9.38 9.19 1.95 1.74 2324 2310

Overall, these results show that the unaltered TLS

connection is established faster than the adapted PSK

connection by about 6ms, from 7ms with PSK to 1ms

with TLS

. This is expected, since the master key of

the TLS connection is modified in the PSK

connection for each connection

. Furthermore, it

rarely takes more than 18ms as shown by the 99

percentile, with a 10ms difference to the TLS version

However, this increase in connection time does not

impact the communication of data. This is discernable

from the PSK-D and TLS-D test results, given that the

difference of 10ms is well within the standard

deviation of about 40ms

. In many applications, the

connection is made while they initialize, which can

take some time (up to a few seconds). In these cases

an increase in 6ms for the connection time can be

considered negligible, since the connection, once

made, can be reused for the entire duration of the

session.

These results also show that resuming past

sessions is beneficial, even though its benefit is

decreased due to the minimal network delay in the

performance setup. This is attributed to the fact that

session resumption decreases the number of TLS

protocol messages needed to establish a connection

Nevertheless, it allows a connection to be completed

faster on average 0.12 ms (9%) for the PSK

connection and 0.21 ms (3%) for the normal TLS

connection

These results confirm that the process of

modifying the master key of a TLS connection does

impact performance, given the different in connection

time. However, the impact can be neglected in most

use cases since it only occurs during the

establishment of the connection and has no impact in

the data communication process

. Hence, the adapted

TLS version to use pre-shared keys proposed in this

article can be used in situations where digital

certificates are not required and/or desirable, even

when closed implementations of TLS are used, and

with just a few milliseconds of overhead during

connection.

6 CONCLUSION

This article presented an adapted version of the TLS

communication protocol that was developed to

encrypt the communication between the client

applications and the server without the need to use

digital certificates

. This was meant to not only protect

the database but also to allow companies that cannot

trust certificate authorities or that cannot buy the

certificates to not have to use self-signed certificates.

These self-signed certificates were argued to not

be secure, since anyone can create a new self-signed

certificate stating that they are the company they

claim to be.

The proposed protocol in this paper works by

using the anonymous Diffie-Hellman key exchange

algorithm and by performing the same transformation

of the agreed master key with a pre-shared key known

a-priori by the server and the client

. While this

approach allows attackers under certain conditions to

know the identity of the client, the attackers cannot

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

198

decrypt any communication made between them in

the past

If the pre-shared key is made vulnerable by a

MITM attack, this fact is always known by the client

and the server since they cannot communicate with

one another

. Forcing a pre-shared key reset will keep

future communications secure, while past communi-

cations are always secure due to the ephemeral nature

of the Diffie-Hellman keys

Concerning performance, the creation of the

communication channel using the adapted TLS

protocol introduces just a few milliseconds when

compared to the time a normal TLS connection in

anonymous mode takes

. Performance could be

enhanced if the Java SSL/TLS API allowed to add

new key exchange algorithms, avoiding the overhead

resulting from Java Reflection, but the performance

should be satisfactory in most use cases as is

Further work into this problem can be carried out

to fully evaluate and minimize the overhead caused

by the usage of Reflection mechanisms, as well as

evolving this solution to try to avoid the identity of

the clients from being disclosed.

ACKNOWLEDGEMENTS

This work is funded by National Funds through

FCT - Fundação para a Ciência e a Tecnologia under

the project UID/EEA/50008/2013 and

SFRH/BD/109911/2015.

REFERENCES

Diffie, W. & Hellman, M., 1976. New directions in

cryptography. IEEE Transactions on Information

Theory, 22(6), pp.29–40.

Eronen, P. & Tschofenig, H., 2005. [PSK] Pre-Shared Key

Ciphersuites for Transport Layer Security (TLS) [RFC

4279]. RFC 4279, pp.1–15.

Günther, C., 1989. An identity-based key-exchange

protocol. Advances in Cryptology—Eurocrypt’89, 434,

pp.29–37. Available at: http://link.springer.com/

10.1007%2F3-540-46885-4_5 [Accessed April 5,

2016].

Hao, F. & Ryan, P., 2010. J-PAKE: Authenticated Key

Exchange without PKI. Lecture Notes in Computer

Science (including subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

6480(PART 2), pp.192–206.

Hao, F. & Shahandashti, S.F., 2014. The SPEKE Protocol

Revisited. , (July).

IETF, 2008. RFC 5246: The Transport Layer Security

(TLS) Protocol - Version 1.2. Available at:

http://tools.ietf.org/html/rfc5246.

Leavitt, N., 2011. Internet Security under Attack: The

Undermining of Digital Certificates. Computer, 44(12),

pp.17–20.

MacKenzie, P. & MacKenzie, P., 2001. On the Security of

the {SPEKE} Password-Authenticated Key Exchange

Protocol., (2001/057), pp.1–17. Available at:

http://eprint.iacr.org/2001/057.ps.gz.

Marechal, S., 2008. Advances in password cracking,

Oppliger, R., Hauser, R. & Basin, D., 2006. SSL/TLS

session-aware user authentication - Or how to effecti-

vely thwart the man-in-the-middle. Computer

Communications, 29(12), pp.2238–2246.

Oppliger, R., Hauser, R. & Basin, D., 2008. SSL/TLS

session-aware user authentication revisited. Computers

and Security, 27, pp.64–70.

Oracle, Java Cryptography Architecture Oracle Providers

Documentation for Java Platform Standard Edition 7.

Available at: https://docs.oracle.com/javase/7/docs/

technotes/guides/security/SunProviders.html

[Accessed October 10, 2016].

Pereira, O. M., Regateiro, D. D. & Aguiar, R. L., 2014.

Role-Based Access control mechanisms. In 2014 IEEE

Symposium on Computers and Communications

(ISCC). IEEE, pp. 1–7.

Pereira, Ó.M.Ó.M., Regateiro, D.D.D.D. & Aguiar,

R.L.R.L., 2015. Secure, Dynamic and Distributed

Access Control Stack for Database Applications.

International Journal of Software Engineering and

Knowledge Engineering, 25(09n10), pp.1703–1708.

Regateiro, D. D., Pereira, Ó. M. & Aguiar, R. L., 2014. A

secure, distributed and dynamic RBAC for relational

applications. University of Aveiro. Available at:

https://www.academia.edu/7913868.

Taylor, D., Wu, T. & Mavrogiannopoulos, N., 2007. Using

the Secure Remote Password (SRP) protocol for TLS

authentication, Available at: http://www.hjp.at/doc/

rfc/rfc5054.html.

Toorani, M., 2014. Security analysis of J-PAKE. 2014

IEEE Symposium on Computers and Communications

(ISCC), pp.1–6. Available at: http://ieeexplore.ieee.org/

lpdocs/epic03/wrapper.htm?arnumber=6912576.

Weise, J., 2001. Public key infrastructure overview. Sun

BluePrints OnLine, August, pp.1–27.

Wu, T., 1998. The Secure Remote Password Protocol. In

Proceedings of the Symposium on Network and

Distributed Systems Security NDSS 98. pp. 97–111.

Supporting Pre-shared Keys in Closed Implementations of TLS

199
