Interaction Platform for Improving Detection Capability

of Dynamic Application Security Testing

Jonghwan Im, Jongwon Yoon and Minsik Jin

PA Division, Fasoo.com R&D Center, 396 World Cup Buk-ro Mapo-gu, Seoul, Republic of Korea

Keywords: Web Application Security Testing, SAST, DAST, IAST, XSS, SDLC.

Abstract: Dynamic application security testing detects security vulnerabilities by sending predefined strings to web

applications. So if the web applications have filters which restrict input parameters, the detection capability

of dynamic application security testing is degraded. To solve this problem, interactive application security

testing have emerged in which dynamic application security testing interact with static application security

testing. In this paper, we propose an interactive platform for storing, processing, and distributing

information collected from each security test in the software development life cycle. And we use this

platform to verify that we can detect cross-site script vulnerabilities that could not be detected due to web

application filters. Experiments on the proposed approach for the cross-site script vulnerability test case of

OWASP Benchmark show that the detection rate of the dynamic analyzer is improved by about 32.11%.

1 INTRODUCTION

Dynamic Application Security Testing (DAST),

which is performed during the test and operation

phases of the Software Development Life Cycle

(SDLC) of web applications, is highly accurate

because of detecting vulnerabilities in real-time

execution of web applications. Whereas it is difficult

to examine all execution paths of web applications

(Ernst, 2003). And it uses a predefined attack string

to check security vulnerabilities such as Cross-Site

Script (XSS) that can be caused by input value (Fu

et al., 2007). So, it is hard to detect security

vulnerability of web application that has filter to

restrict input value (Kiezun et al., 2009).

To overcome these drawbacks, an Interactive

Analysis Security Testing (IAST) was proposed.

IAST is a way to improve the quality of security

tests by surmounting the limits of each security

analysis through the interaction of Static Application

Security Testing(SAST) and DAST (MacDonal,

2012).

To perform IAST on SDLC, a module is needed

to store, process, and transfer the information

gathered from each security testing.

Our paper makes the follow contributions:

 We propose a platform to manage information

flow between security tests on SDLC.

 It uses the information provided by the platform

to detect XSS that could not be detected by the

filters of the web applications, thereby improving

the detection capability of the dynamic analyzer.

In Section 3, we explain how to collect information

from a static analyzer, how to send collected

information to the platform and how to generate

attack strings to bypass filter with information

received by the platform. In Section 4, the

effectiveness of the proposed approach is verified

through experiments.

2 RELATED WORK

Several studies have been suggested to become

better a dynamic analyzer by combining static and

dynamic analysis.

Saner (Balzarotti et al., 2008) is a tool which

extracts input value validation process of the web

application source codes and checks whether the

validation process during execution extracted works

properly.

WebSSARI (Web application Security by Static

Analysis and Runtime Inspection) (Huang et al.,

2004) applies type system for inspecting input

values of web application finds source codes where

vulnerabilities occurs. And then it monitors and

protects those codes in real time.

474

Im, J., Yoon, J. and Jin, M.

Interaction Platform for Improving Detection Capability of Dynamic Application Security Testing.

DOI: 10.5220/0006437104740479

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 474-479

ISBN: 978-989-758-259-2

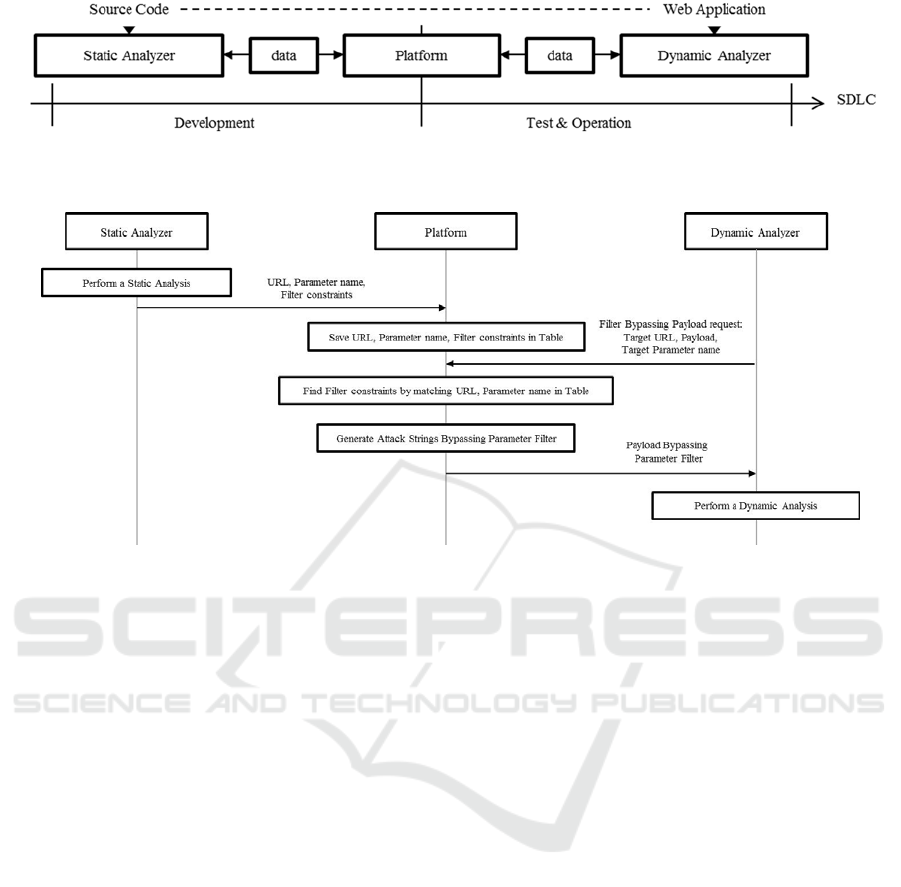

Figure 1: Platform for interaction between static and dynamic analyzer in SDLC.

Figure 2: Interaction flow chart between static and dynamic analyzer using platform.

Some studies address dynamically, statically

tracing web application input values to monitor

sensitive information flow and control input values

that cause vulnerabilities (Ruso and Sabelfeld, 2010).

In additional, there have been studies to

circumvent filters of web applications using string

constraint solver, a string generation tool that avoids

constraints. During the compilation process,

SAFELI (Fu et al., 2007) is a framework that uses

symbolic execution to statically analyse the

bytecode of the web application to find the parts

where the value is input. And, it generates SQL

queries using a string constraint solver and enters

these into the found parts to discover SQL injection

vulnerabilities. SUSHI Constraint Solver (Fu et al.,

2007) blocks security holes by resolving SISE

(Simple Linear String Equation), which is a

constraint that is consisted of data enter conditions

and attack patterns gotten by static analysis.

However, these studies have focused on

including a getting source code information feature

in the dynamic analyzer. It is difficult to exploit the

static analyzers used on SDLC.

This paper suggests an approach that can make

use of the static analyzers worked on SDLC and

enhance detection capability of the dynamic

analyzers at the same time.

3 PROPOSED APPROACH

Figure 1 presents a proposed interaction platform

structure. This platform stores, processes and shares

the information sent from each analyzer on SDLC. It

helps interactions between the analyzers.

To overcome the limit, which cannot catch

vulnerabilities when payloads with attack strings

sent from a dynamic analyzer are restricted due to

filters of web applications, attack strings bypassing

the filters are required. A string constraint solver

creates the attack strings to circumvent filter with

input parameter constraints of the web application

filters. The Input parameter constraints are obtained

by the static analyzers. The platform has a string

constraint solver, so this platform creates the attack

strings circumventing the filter constraints and sends

the strings to the dynamic analyzer. The dynamic

analyzer uses these attack strings as the payloads for

detecting vulnerabilities.

This section describes data flow between the

static analyzer, dynamic analyzer and the platform.

And it explains what information collected by the

static analyzer and how to generate the attack strings

that avoid web application filter constraints in the

platform.

Interaction Platform for Improving Detection Capability of Dynamic Application Security Testing

475

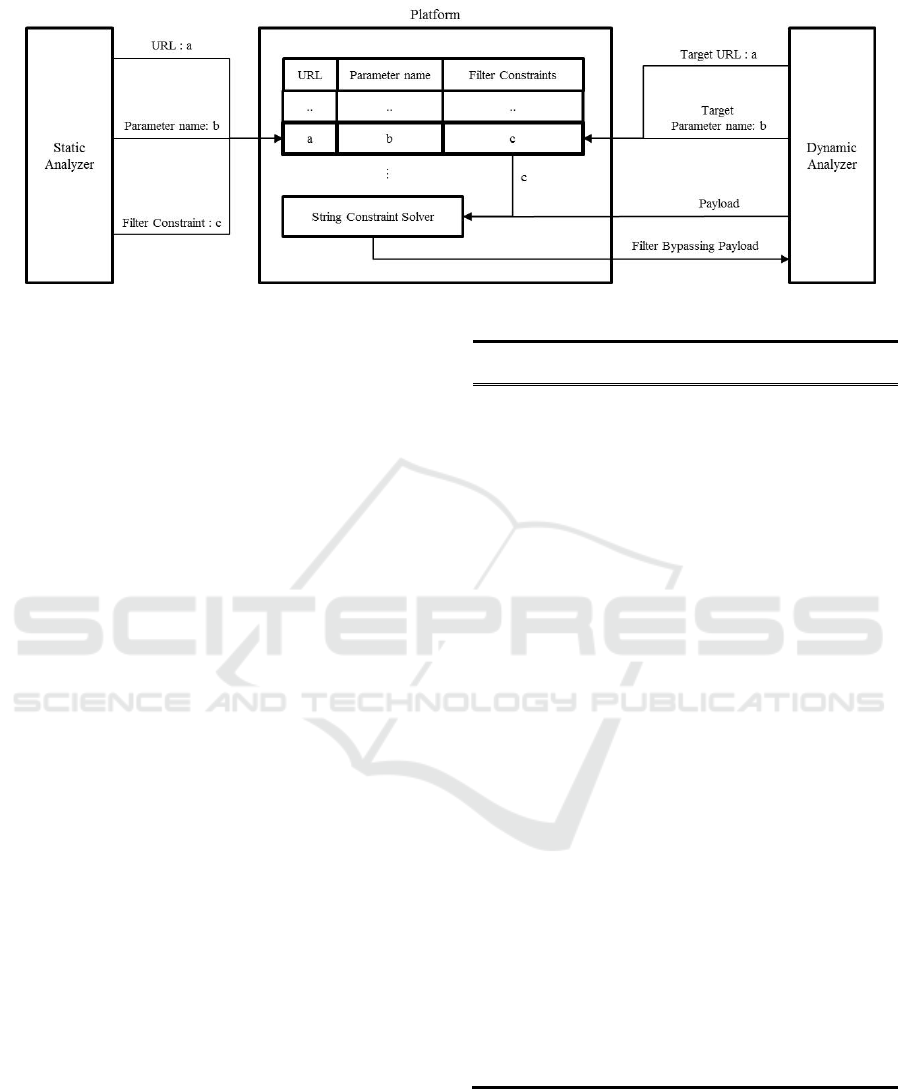

Figure 3: Data flow from static analyzer to platform, platform to dynamic analyzer.

3.1 Interaction Process

Figure 2 shows information flow between the static

analyzer, dynamic analyzer and the platform. After

the static analyzer performs analysis, it sends URL,

parameter name, filter constraints information to the

platform. These data are treated in Section 3.2. The

platform saves these data. Before the dynamic

analyzer attacks a target for detecting vulnerabilities,

it requests attack strings circumventing filter to the

platform with a target URL, payload to be used, and

parameter name that is assigned the payload. Then

the platform looks for filter constraints that match

the data sent by dynamic analyzer form the stored

data. If the filter constraints are found, the string

constraint solver generates strings that avoid the

filter constraints and these strings are sent to the

dynamic analyzer. The dynamic analyzer uses these

strings as payloads to attack web applications and

detect vulnerabilities. Through such a procedure, the

platform is used for interaction between each

analyzer.

3.2 Gather Filter Information

Left side of Figure 3 means a data flow from the

static analyzer to the platform. The following

information is transmitted.

 URL: URL information that has filters for input

values

 Parameter name: Parameter name information

assigned the input values

 Filter Constraints: The constraints for input

values in the filters.

The static analyzer gathers URL, parameter name

and filter constraints information by

getFilterInfo function.

FUNCTION getFilterInfo(function)

Http request

s a data which a client

sends to a server.

Http request parameter consists of a

name and input value.

The function

hould have URL

information.

The callStack

s a stack structure

which saves all caller of the function.

The callStackList is a list of all

the function’s callStack gotten by

static analyzer.

START

parameterList ← a list of using

parameters in

function.

WHILE parameter in parameterList

name ← parameter.name

WHILE callStack in callStackList

WHILE callStack is not empty

constraints ← find parameter

constraints

callerFunction ← callStack.pop

ENDWHILE

IF there are constraints

url ← URL imformation of caller

sendToPlatform(url, name

constraints)

ENDIF

ENDWHILE

END

Figure 4: Pseudo code of getFilterInfo function.

In the Figure 4, getFilterInfo receives a

function that invokes parameters for getting input

value. Then all parameters used in the function are

saved in parameterList. A name of a parameter

SECRYPT 2017 - 14th International Conference on Security and Cryptography

476

that is an element of parameterList is sought

and assigned to name variable. And the constraints

of the parameter are found by popping a caller in

callStack that is the stack on which all callers of

the function are piled up. Then those constraints are

saved in constraints variable. When there are

no more callers to pop from the callStack, URL

information of the last extracted caller is saved in a

url variable. Finally, the information saved in

name, constraints, url variables are

transmitted to the platform by calling

sendToPlatform function.

3.3 Create Attack Strings Bypassing

Filter

A data flow between the platform and the dynamic

analyzer is shown in the right side of Figure 3. The

information that the dynamic analyzer sends with a

request is as follows.

 Target URL: URL information to be attacked for

detecting vulnerabilities.

 Target parameter name: The name information of

parameter to be assigned attack payload.

 Payload: The predefined string to be used for

attack.

FUNCTION getBypassPayload

(url, parameterName,

payload)

The filterTable stores the url,

parameter name, and filter constraints.

The solver(payload, constraints)

creates a bypass payload.

START

constraints

←

filterTable.getConstrain

(url, parameterName)

IF there are constraints

bypass

←

solver(payload,

constraints)

RETURN bypass

ELSE

RETURN payload

ENDIF

END

Figure 5: Pseudo code of getBypassPayload function.

When the request with the information come to

the platform from the dynamic analyzer, the

getBypassPayload function of the platform

creates attack strings avoiding filter and transmits it

to the dynamic analyzer.

In the getBypassPayload function of

Figure5, filter constraints that are found by matching

target URL and target parameter name in

filterTable, which has the information sent

from the static analyzer, are stored in

constraints variable. If there are values in

constraints variable, a string constraint solver

generates strings that circumvent the constraints. If

not, the platform gives back the payload sent from

the dynamic analyzer.

The dynamic analyzer puts the strings obtained

from the platform in http request messages as attack

payloads and attacks the target for detecting

vulnerabilities. In this way, the dynamic analyzer

can detect vulnerabilities that could not be found

because the predefined attack strings are restricted to

the parameter constraints of the filters.

4 EXPERIMENT

This section verifies the proposed approach actually

improves the detection performance of the dynamic

analyzer by conducting experiment.

4.1 Experiment Environment

An experiment were performed with XSS among the

test cases of OWASP Benchmark v1.2 (OWASP,

2016). OWASP Benchmark for security automation

is an open test suite designed to evaluate the speed,

coverage, and accuracy of automated software

vulnerability detection tools and services. The XSS

test cases of OWASP Benchmark total of 455 test

cases, of which 246 test cases are true vulnerability

test cases and 209 test cases are false vulnerability

test cases. SPARROW v4.6_46(Fasoo Inc., 2016),

which has been commercialized by Fasoo Inc., was

used as a static analyzer. ZAP (Zed Attack Proxy)

v2.4.3 (OWASP, 2015) which is one of the OWASP

open source projects was used as a dynamic analyzer.

Z3str2 v1.0.0(Zheng et al., 2016) used for a string

constraint solver in the platform.

4.2 Experiment Result

When DAST was performed only the dynamic

analyzer, 71 vulnerabilities out of 246 true

vulnerabilities were discovered and the detection

rate was about 28.86%. On the other hand, the

Interaction Platform for Improving Detection Capability of Dynamic Application Security Testing

477

Detections Detection Rate (Detections / Valid Vulnerabilities, %)

DAST only 71 28.86%

Suggestion 150 60.97%

Figure 6: OWASP Benchmark XSS vulnerabilities detection results of dynamic analyzer whether a platform is used.

Table 1: Http Request / Response to BenchmarkTest02134 whether a Platform is used.

Http Request Http Response

DAST Only

vector=<SCRIPT>alert(“XSS!”);</SCRIPT

vector=<SCRIPT>alert(“XSS!”);<SCRIPT

Suggestion

vector=<SCRIPT>alert(“XSS!”);<SCRIPT>

aaabbbb

vector=<SCRIPT>alert(“XSS!”);<SCRIPT>

aaabbb

suggestion, which is the interaction of static and

dynamic analyzer through the platform, founded 150

vulnerabilities out of the true vulnerabilities. The

detection rate was about 60.87%. The suggestion

was improved by about 32.11% than only using

dynamic analyzer. Figure 6 presents this result as a

graph and sheet.

Figure 7: Benchmark02134 input value processing source

code containing parameter constraint.

Figure 7 is input value processing source code of

BenchmarkTest02134 test case which has an input

parameter constraint. In line 10, a parameter, whose

name is vector, is invoked. The name is saved

according to the method in Section 3.2. Likewise, a

filter constraint on line 17 that the last character is

removed from the input string value is stored. The

static analyzer transmits a URL information, which

is /BenchmarkTest02134 in first line, the

vector parameter name, and the constraint to the

platform.

The http request messages which were sent from

the dynamic analyzer for attacking target URL and

the http response message to the request message are

shown in Table 1. When the platform was not used,

the dynamic analyzer assigned predefined attack

string,

<SCRIPT>alert(“XSS!”);</SCRIPT>, to

the vector parameter of http request message and

sent it to the target. But this attack string could not

bring about XSS vulnerability since the filter

constraint blocked this attack. So, this attack did not

detect XSS vulnerability.

Using the proposed method, the string constraint

solver in the platform generated

<SCRIPT>alert(“XSS!”);</SCRIPT>aaab

bbb, an attack string which avoids filter constraints,

with information that had been sent from the static

analyzer. This string were assigned vector parameter

as a payload and sent to the target. In the web

application, this string changed to

<SCRIPT>alert(“XSS!”);</SCRIPT>aaab

bb because the filter removed the last character b.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

478

This modified string caused XSS so the dynamic

analyzer could detect XSS vulnerability.

Experimental results showed that using the

proposed approach, the dynamic analyzer could

detect XSS vulnerability because attack string sent

the dynamic analyzer circumvented the web

application filter constraints.

5 CONCLUSION

This paper suggested the platform which stores,

processes, and distributes information between each

analyzer on SDLC. And we verified that proposed

method improves the detection performance of the

dynamic analyzer by approximate 33% through the

experiment on XSS of OWASP Benchmark.

SAST has a limit that the static analyzer can

bring about FP (False Positive), which it detects

wrong vulnerabilities(Chess and McGraw, 2004).

Like a DAST, the problem of SAST can be solved

by interaction (Balzarotti et al., 2007). The platform

can provide the information not only sent from the

static analyzer but also sent form the dynamic

analyzer.

In the future, a research is needed to improve the

detection capability of the static analyzer by

breaking through the problem of SAST using the

information provided by the dynamic analyzer as a

platform.

ACKNOWLEDGEMENTS

This work was supported by Institute for

Information & communications Technology

Promotion (IITP) grant funded by the Korea

government (MSIP) (No.R0190-15-1099,

Development of an integrated management system

and a security testing system that enables interaction

between security vulnerability detection

technologies in development and operation phases of

web application).

REFERENCES

Fu, X., Li, C., 2010. A String Constraint Solver for

Detecting Web Application. In Proc. of International

Conference on Software Engineering and Knowledge

Engineering, pp.535-523.

Kiezun, A., Ganech, V., Guo, P. J., Hooimeijer, P., Emst,

D., 2009. Hampi: A solver for string constraints. In

Proc. of International Symposium on Testing and

Analysis, pp.105-116.

Balzarotti, M., Cova, V., Flmetsger, V., Jovanovic, N.,

Kirda, E., Kruegel, C., Vigna, G., 2008. Saner:

Composing static and dynamic analysis to validate

sanitization in web applications. In Proc. of the IEEE

Symposium on Security and Privacy.

OWASP, 2016. Benchmark. Available at

https://www.owasp.org/index.php/Benchmark.

OWASP, 2015. Zed Attack Proxy(ZAP). Available at

https://www.owasp.org/index.php/OWASP_Zed_Atta

ck_Proxy_Project.

Zheng, Y., Dolby, J., Tripp, O., Ganesh, V., Subramanian,

S., Berzish, M., Zhang, X., 2016. Z3str2: An Efficient

Solver for Strings, Regular Expressions, and Length

Constraints. Formal Methods in Systems Design,

invited paper at the Formal Methods in Systems

Design Journal, vol.50, pp.1-40.

Fu, X., Lu, X., Peltsverger, B., Chen, S., Qian, K., Tao, L.,

2007. A Static Analysis Framework for Detecting

SQL Injection Vulnerabilities. In Proc. of 31st Annual

International Computer Software and Applications

Conference, pp.519-531.

Fasoo Inc., 2016. SPARROW. Available at

http://www.fasoo.com/%EC%8A%A4%ED%8C%A8

%EB%A1%9C%EC%9A%B0-sparrow.

Chess, B., McGraw, G., 2003. Static analysis for security.

In Proc. of the IEEE Symposium on Security and

Privacy, pp.74-79.

Ernst, M. D., 2003. Static and dynamic analysis: synergy

and duality. In Proc. of the ICSE Workshop on

Dynamic Analysis, pp.24-27.

Russo, A., Sabelfeld, A., 2010. Dynamic vs. static flow-

sensitive security analysis. In Proc. IEEE Computer

Security Foundations Symposium, pp.186-199.

Balzarotti, D., Cova, M., Felmetsger, V., Vigna, G., 2007.

Multi-module vulnerability analysis of web-based

applications. In Proc. the 14th Computer and

Communications Security, pp.24-35.

Huang, Y.-W., Yu, F., Hang, C., Tsai, C.-H., Lee, D. T.,

Ku, S.-Y., 2004. Securing Web Application Code by

Static Analysis and Runtime Protection. In Proc. of

the 12th International World Wide Web Conference,

pp40-52.

Wassermann, G., Yu, D., Chander, A., Dhurjati, D.,

Inamura, H., 2008. Dynamic Test Input Generation for

Web Applications. In Proc. of International

Symposium on Software Testing and Analysis, pp.249-

260.

Emmi, M., Majumdar, R., Sen, K., 2007. Dynamic Test

Input Generation for Database Applications. In Proc.

of International Symposium on Software Testing and

Analysis, pp.151-162.

MacDona, N., 2012. Interactive Application Security

Testing. Available at http://blogs.gartner.com/

neil_macdonald/2012/01/30/interactive-application-

security-testing/

Interaction Platform for Improving Detection Capability of Dynamic Application Security Testing

479
