WebRTC Testing: State of the Art

Boni García, Micael Gallego, Francisco Gortázar and Eduardo Jiménez

Universidad Rey Juan Carlos, Calle Tulipán S/N, 28933 Móstoles, Spain

Keywords: WebRTC, Software Testing, Software Quality.

Abstract: WebRTC is the umbrella term for a number of emerging technologies that extends the web browsing model

to exchange real-time media (Voice over IP, VoIP) with other browsers. The mechanisms to provide quality

assurance for WebRTC are key to release this kind of applications to production environments.

Nevertheless, testing WebRTC based application, consistently automated fashion is a challenging problem.

The aim of this piece of research is to provide a comprehensive summary of the current trends in the domain

of WebRTC testing. For the sake of completeness, we have carried out this survey by aggregating the results

from three different sources of information: i) Scientific and academia research papers; ii) WebRTC testing

tools (both commercial and open source); iii) "Grey literature”, that is, materials produced by organizations

outside of the traditional commercial or academic publishing and distribution channels.

1 INTRODUCTION

Multimedia applications and services are becoming

the main force of the Internet. A recent forecast by

Cisco (Index, 2016) shows that IP video traffic will

be 82 percent of all consumer Internet traffic by

2020.

Among the diversity and multiplicity of

multimedia technologies, in this paper we focus on

Web Real-Time Communications (WebRTC),

whichis a set of emerging technologies and APIs

having the ambition of bringing high-quality RTC to

the Web (Loreto and Romano, 2014). WebRTC is a

joint standardization effort between the World Wide

Web Consortium

(W3C) and the Internet

Engineering Task Force

(IETF). On the one hand,

W3C is defining the JavaScript APIs in so-called

WebRTC 1.0 and the standard HTML5 tags to

enable peer-to-peer (P2P) connections between web-

enabled devices. The WebRTC APIs are

getUserMedia: which gain access to camera,

microphone, or screen device; RTCPeerConnection:

encoding and decoding media, sends it over the

network, NAT (Network Address Translation)

traversal; and RTCDataChannel: send arbitrary data

directly between browser with low latency. On the

http://www.w3.org/TR/webrtc/

http://tools.ietf.org/wg/rtcweb/

other hand, IETF is defining the underlying

communication protocols, such as SRTP (Secure

Real-time Transport Protocol), SDP (Session

Description Protocol), or ICE (Interactive

Connectivity Establishment), for the setup and

management of a reliable communication channel

between browsers.

WebRTC has come a long way since its

inception in May 2011. Among its highlights, we

can point out the interoperability between Chrome

and Firefox browsers in 2013, and the support for

Android mobile in 2014 (Kaul, 2015). Moreover,

market momentum is expected to continue growing.

A recent analysts report predicts that with Apple and

Microsoft supporting WebRTC in their browsers,

there might be 7 billion devices compliant WebRTC

by 2020 (Sal and Rebbeck, 2014).

Since the beginning of 2014, a new initiative has

seen the light in the W3C: the ORTC (Object Real-

time Communications) Community Group, which

has initially been identified as a clear opponent to

WebRTC. Nowadays, ORTC and WebRTC are

converging in the so-called “Next Version” of

WebRTC (sometimes called WebRTC 1.1 or

WebRTC-NV).

Due to this strong growth rate of WebRTC, it is

imperative for software engineers and testers to have

a strategy in place in order to assess WebRTC

applications efficiently. Nevertheless, testing

WebRTC based application in a consistently

García, B., Gallego, M., Gortázar, F. and Jiménez, E.

WebRTC Testing: State of the Art.

DOI: 10.5220/0006442003630371

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 363-371

ISBN: 978-989-758-262-2

363

automated fashion is a challenging problem. When

developers use WebRTC for integrating audio and

video communications into their web applications,

they usually consume a complex media pipeline

transporting multimedia information, and therefore

this kind of applications cannot be tested using the

usual simple comparison-based oracles. For

example, validating the functional correctness of a

WebRTC application requires the ability of

evaluating aspects such as media connectivity (e.g.

whether the media bits are being sent end-to-end) or

media continuity (e.g. whether the media is

decodable).

This paper presents a survey of the state of the

art in the domain of testing for WebRTC-based

applications. The aim of this piece of research is to

provide a comprehensive summary of the current

trends in this domain for researchers, engineers, and

practitioners. For the shake of completeness, we

have carried out this survey by aggregating the

results from three different sources of information.

First, we study the most remarkable scientific papers

and articles in peer-reviewed journals, magazine,

and international conferences. Second, we analyze

the features of public available WebRTC testing

tools, both commercial and open source. Third, we

summarize several contributions available in the so-

called “grey literature”, that is, materials produced

by organizations outside of the traditional

commercial or academic publishing and distribution

channels. We find examples of grey literature on

technical reports, white papers, newsletters, blogs,

among others.

The remainder of this paper is structured as

follows. Section 2 provides a brief overview of the

background of this work (i.e. software testing and

WebRTC). Section 3 presents a collection of

scientific and academic contributions on WebRTC

testing. Section 4 summarizes the main features of

several tools on this domain. Section 5 details

several publications of the grey literature. Finally,

section 6 concludes the paper summarizing the most

remarkable findings as conclusions of this survey.

2 BACKGROUND

Verification and Validation (V&V) is the set of

techniques that assess software products and

services. Software testing is the most commonly

performed activity within V&V. Given a piece of

code, software testing consists of observing a sample

of executions (test cases), and giving a verdict over

them (Bertolino, 2007).

Testing of web applications shares the same

objectives of traditional application testing, i.e. to

ensure quality and finding defects in the required

functionality and services. Due to its heterogeneity,

web applications present important challenges for

their quality assurance and testing (Li et al., 2014).

In order to perform a complete assessment

procedure, it is required to evaluate web applications

from functional and non-functional perspectives.

According to Di Lucca and Fasolino, the most

important non-functional requirements for web

applications are performance, load, stress,

compatibility, accessibility, usability, and security

(Di Lucca and Fasolino, 2006).

WebRTC applications and services enable

human-to-human communication. The real-time

nature of WebRTC traffic makes QoS (Quality of

Service) parameters such as network latency,

network jitter or packet loss to affect significantly,

and in non-trivial ways, the end-user's QoE (Quality

of Experience). The most widely accepted way to

classify QoE metrics is based on subjective or

objective methods (Jain and Scheirer, 2014).

Subjective methods are conducted to obtain

information on the quality of multimedia services

using opinion scores, while objective methods are

used to estimate the network performance using

models that approximate the results of subjective

quality evaluation. Subjective QoE measurement is

time consuming, and is not particularly applicable in

a production environment. Instead of directly

collecting quality information, objective methods

can be used, namely:

 Traditional point-based metrics. For example,

peak signal-to-noise ratio (PSNR), which is

the proportion between the maximum signal

power and the corruption noise power

(Huynh-Thu and Ghanbari, 2008).

 Natural visual characteristics oriented metrics.

For example, structural similarity (SSIM),

which is a method for predicting the perceived

quality of images and videos based on its

similarity (Wang et al., 2004).

 Perceptual oriented metrics. In these metrics,

is predicted using Mean Opinion Score (MOS)

ratings. The typical MOS scale has five-

points: 1 = bad, 2 = poor, 3 = fair, 4 = good

and 5 = excellent. For example, perceptual

evaluation of speech quality (PESQ) for audio,

and perceptual evaluation of video quality

(PEVQ) for video (Viswanathan and

Viswanathan, 2005).

ICSOFT 2017 - 12th International Conference on Software Technologies

364

3 SCIENTIFIC AND ACADEMIC

RESEARCH

This section provides a summary of the main

contributions found concerning testing of WebRTC

applications in peer reviewed contributions in

journals, magazines, and international conferences.

In order to carry out this study, the following search

engines for scientific and academic have been used:

 Google Scholar

is a free academic search

engine that indexes academic information

from various online web resources.

 CiteSeerx

is a digital library and an online

academic journal that offer information within

the field of computer science.

 Microsoft Academic Research

is yet another

top search engine for academic resources.

 ScienceDirect

is a full-text scientific database

offering journal articles and books.

Table 1 summarizes the selection of papers.

(Sandholm et al., 2013) presents a solution for

tunneling WebRTC traffic using JavaScript Session

Establishment Protocol (JSEP). Then, the authors

carried out some experimentation in order to show

the evolution of several QoS parameters such as

round-trip-time (RTT) or jitter in different network

configurations (WiFi and Ethernet) and number of

users.

(Cinar and Melvin, 2014) uses a black-box

testing technique to evaluate, via PESQ, the voice

quality of WebRTC sessions under varying network

delay and jitter. In this paper, network emulators are

employed to implement the delay and jitter

variations. The results highlight the dangers of

black-box testing, whereby test-bed issues can result

in very misleading results.

(Vucic and Skorin-Kapov, 2015) study QoE for

mobile video conferencing focusing on the impact of

different smartphone configurations (CPU, display

size, and resolution). They conduct subjective

studies involving interactive three-party audiovisual

conversations based on WebRTC technology in a

natural environment over a Wi-Fi network with

symmetric and asymmetric bandwidths. The finding

of this work shows that different device factors

impact clearly on user QoE.

http://scholar.google.com/

http://citeseerx.ist.psu.edu/

http://academic.research.microsoft.com/

http://www.sciencedirect.com/

(Amirante et al., 2016) present Jattack, a general-

purpose WebRTC stressing tool capable to simulate

the activities of multiple WebRTC sessions. This

tool is based on the Janus media server, which is

able to create a big number of WebRTC

PeerConnection to stress the SUT. Jattack monitors

de physical parameter of the SUT (CPU. Memory)

and gather the number of negative acknowledgments

(NACKs) to estimate the QoE of the system.

(Taheri et al., 2015) introduces WebRTCBench,

an open source tool for performance assessment of

WebRTC implementations which allows testing

applications making use of video and audio through

WebRTC standards and collects performance

indicators. It consists of a Node.js application with a

HTML5 client, supporting Chrome and Firefox

browsers.

(Spoiala et al., 2016) compares the performance

of the WebRTC media server Kurento hosted in two

different platforms: virtual machines and Docker

containers. The authors of this work concluded that

the Docker performance is better than Kernel-based

Virtual Machine (KVM), especially for latency,

which is critical metric for real-time applications.

(García et al., 2016a) presents the Kurento

Testing Framework (KTF), a high-level framework

aimed to carry out different kind of testing activities

for WebRTC services. KTF provides several

mechanisms for assessing the functional parameters

(media communication events, detection of color),

performance (monitor system latency measurement

based on the color comparison means sent and

received), and QoE (evaluation audio quality

through PESQ). KTF uses Selenium

WebDriver/Grid for automatic interaction with

WebRTC applications. This work is continued in

(García et al., 2016a), in which the framework is

extended QoE indicators for video, concretely

structural similarity (SSIM) and peak signal-to-noise

ratio (PSNR). Moreover, the framework proposed in

this work is able to calculate the end-to-end latency

in a WebRTC connection using an Optical Character

Recognition (OCR) applied to the media sent by a

browser and received by other one. Finally, the

framework proposed is completed by adding the

capability of creating fake browsers in order to

generate a huge load of WebRTC traffic in the SUT

(García et al., 2017). Moreover, KTF supports the

use of Docker

containers in order to configure

complex networking scenarios where NAT traversal,

firewalls or different traffic loss, latency, and

bandwidths are enforced.

https://www.docker.com/

WebRTC Testing: State of the Art

365

Table 1: Selection of WebRTC testing research papers.

Title Keywords Reference

On-Demand WebRTC Tunneling in Restricted Networks Black-box testing, QoS,

networking

(Sandholm et al., 2013)

WebRTC quality assessment: Dangers of black-box testing Black-box testing, QoS,

objective QoE

(Cinar and Melvin,

2014)

The impact of mobile device factors on QoE for multi-

party video conferencing via WebRTC

Subjective QoE (Vucic and Skorin-

Kapov, 2015)

WebRTCbench: a benchmark for performance assessment

of WebRTC implementations

Performance testing, framework,

open source

(Taheri et al., 2015)

Jattack: a WebRTC load testing tool Load testing, QoS, framework (Amirante et al., 2016)

Performance comparison of a WebRTC server on Docker

versus virtual machine

Load testing, QoS (Spoiala et al., 2016)

Testing Framework for WebRTC Services Black-box testing, QoE, QoS,

framework, open source

(García et al., 2016a)

Analysis of Video Quality and End-to-End Latency in

WebRTC

Load testing, QoS, objective

QoE, framework, open source

(García et al., 2016b)

WebRTC Testing: Challenges and Practical Solutions Load testing, QoS, objective

QoE, framework, networking

(García et al., 2017)

4 WebRTC TESTING TOOLS

Traditionally, tools such as Apache JMeter

have

been used to analyze and measure the performance

of a variety of services, with a focus on Web

applications (Halili, 2008). Nevertheless, these kinds

of tools are not valid to test WebRTC applications

because it is required to use browsers implementing

the WebRTC stack.

In order to perform tests for WebRTC

applications, it is a must to be able to automate test

execution using real web browsers (Chrome,

Firefox, and so on). The well-known open source

testing framework Selenium

is capable of drive a

browser automatically using different programming

languages (Java, C#, Python, Ruby, PHP, Perl, or

JavaScript). To that aim, the following Selenium

projects are very useful (Avasarala, 2014):

 Selenium Remote Control (RC): This piece of

software injected a JavaScript library (called

Selenium Core) in the SUT. This library was

controlled with an intermediate component

called Selenium RC Server which receives

requests from the test code (see Figure 1-i).

Selenium RC had important security problems

due to Same-Origin Policy. For that reason, it

was deprecated on 2016 in favor of Selenium

WebDriver.

http://jmeter.apache.org/

http://www.seleniumhq.org/

 Selenium WebDriver makes direct calls to the

browser using each browser’s native support

for automation. The language bindings

provided by Selenium WebDriver (labeled as

Test in Figure 1-ii) communicates with and a

browser-specific binary which acts as a bridge

between real browser (Liang and Collins,

2016). For instance, this binary is called

chromedriver

for Chrome and geckodriver

for Firefox. The communication between the

Test and the driver is done with JSON

messages over HTTP using the so-called

JSON Wire Protocol. This mechanism,

originally proposed by the WebDriver team is

standardized in the W3C WebDriver

API.

 Selenium Grid: It allows distributing browser

execution on remote machines. There are a

number of Nodes, each running on different

operating systems and with different browsers.

The Hub server keeps a track of the nodes and

proxies requests to them (Figure 1-iii).

The inconvenient of Selenium WebDriver is the

need of browser instances installed in the local

machine running the test. A common workaround to

solve this problem in operative systems without

graphical user interface is using Xvfb

(X virtual

https://sites.google.com/a/chromium.org/chromedriver/

https://github.com/mozilla/geckodriver

https://www.w3.org/TR/webdriver/

https://www.x.org/releases/X11R7.6/doc/man/man1/Xvfb.1.xhtml

ICSOFT 2017 - 12th International Conference on Software Technologies

366

framebuffer) as display server implementing the

X11 server protocol or dockerized browsers (i.e.

browser running inside a Docker container).

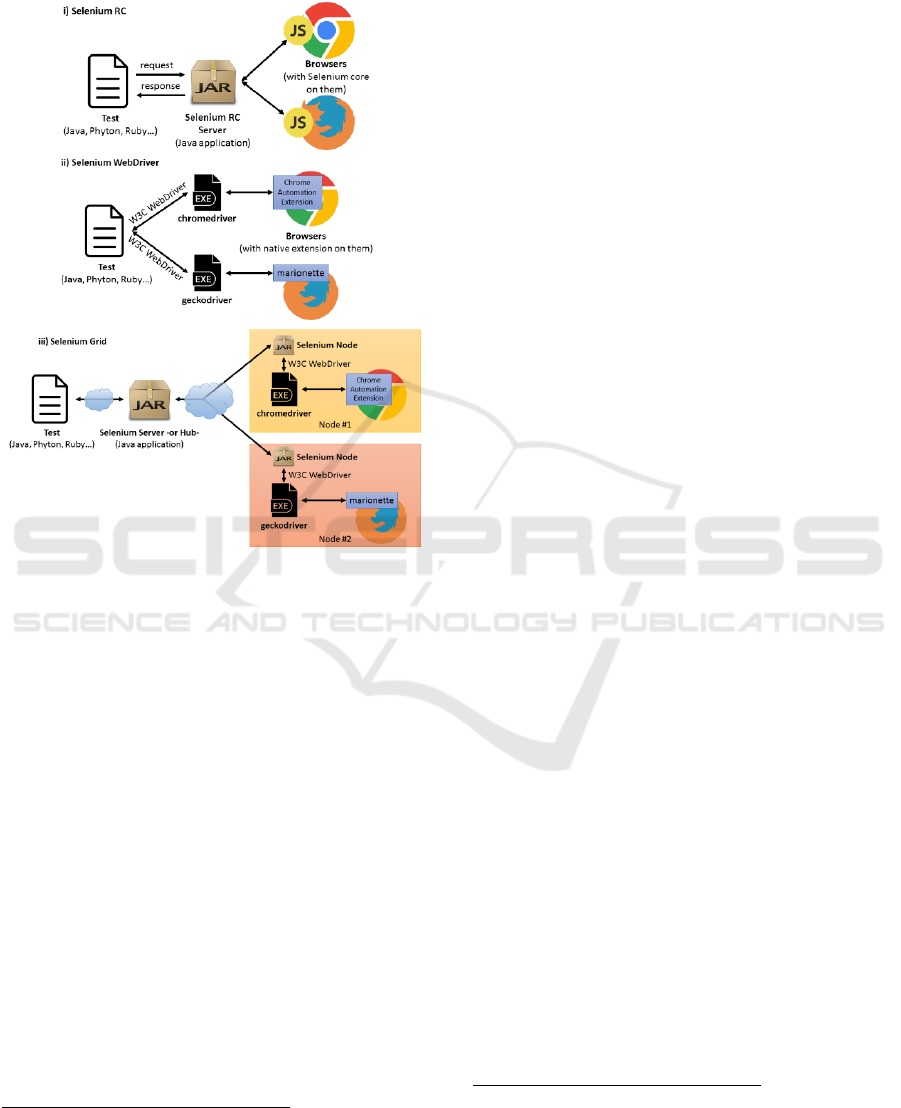

Figure 1: i) Selenium RC; ii) Selenium WebDriver; iii)

Selenium Grid.

Moreover, nowadays there are several cloud

testing providers which allows to run Selenium Grid

tests in different browsers. These providers are:

 Saucelabs

is a commercial PaaS (Platform as

a Service) cloud solution to support remote

testing based on supporting many

combinations of platform (Linux, Windows,

Mac OS X, Android, iOS), browser (Chrome,

Firefox, Opera, etc.), and browser versions

(including beta and development releases).

 BrowserStack

is another commercial PaaS

which provides instant access to mobile and

desktop browsers for live and automated

testing across different browser (Chrome,

Firefox, Edge, Opera, etc.), operating systems

(Windows and Mac OS X) and mobile real

devices (iOS, Android, Windows Phone).

Another framework aimed to create automated

end-to-end tests for web applications is

https://saucelabs.com/

https://www.browserstack.com/

Nightwatch.js

. It has been written in Node.js and

use W3C WebDriver API to consume browsers. It

can be integrated with cloud services support such as

SauceLabs and BrowserStack. At the time of this

writing the Nightwatch.js is developing its own

cloud-based platform called Nightcloud

Finally, we find a commercial tool specifically

designed to carry out testing of WebRTC

applications called TestRTC

. It can be seen as an

integrated platform aimed to test, monitor and

analyze WebRTC-based communications. The main

features of TestRTC are:

 Use of real browsers. This is one the major

strategic decisions of TestRTC: support only

real web browsers as agents to assess the SUT

instead of building something on top of

WebRTC directly. At the time of this writing,

TestRTC supports Chrome and Firefox

browsers (stable, previous stable, beta,

unstable). Thanks to its own global cloud

infrastructure, TestRTC allows to choose

these browsers from different locations (east

US, west US, Europe, and Asia).

 JavaScript API. Developers using TestRTC

can write test scripts using an API built on the

top of Nightwatch.js. These tests can be

directly uploaded to the web dashboard.

 Network awareness. TestRTC allows to

configure the underlying network with custom

setups, including different firewall and NAT

configurations, different bitrates (static and

dynamic ones), and different packet loss. To

simplify this task, it provides preconfigured

scenarios of the typical access networks, such

as 3G, 4G, DSL, or WiFi among others.

 Signaling protocol agnostic. TestRTC can test

standards-based signaling protocols (such as

SIP over WebSocket, XMPP over WebSocket,

or BOSH) and proprietary (based on either

WebSocket or HTTP(S) and REST).

 WebRTC tests at scale. TestRTC allows to run

different media sessions at the same time. In

addition, it allows to leverage the number of

concurrent users per session

 TestRTC allows to monitor Key Performance

Indicators (KPIs) such as channel types,

bitrate, timing, packet loss, and jitter.

 WebRTC-internals analyzer. Chrome allows

to download the PeerConnection updates and

http://nightwatchjs.org/

https://nightcloud.io/

http://testrtc.com/

WebRTC Testing: State of the Art

367

Table 2: Selection of WebRTC testing grey literature.

Title Keywords Reference

WebRTC Audio Quality Testing Black-box testing, objective QoE (Höglund, 2013a)

Automated Video Quality Measurements Black-box testing, objective QoE (Höglund, 2013b)

Chrome-Firefox WebRTC Interop Test Interoperability testing (Höglund, 2014)

Audio Testing - Automatic Gain Control Black-box testing (Höglund, 2015)

The WebRTC Troubleshooter: test.webrtc.org Black-box testing, QoS (Pascual, 2015)

Overcoming the Challenges in Testing WebRTC Services Testing methodology (Levent-levi, 2015)

Quality Assurance for WebRTC Services Testing methodology (Levent-levi, 2016)

 stats data (as defined in the W3C WebRTC’s

statistic API

) in JSON notation. This data

can be uploaded with drag-and-drop to the

TestRTC web client and provided a detailed

report about the data.

 Live preview of the remote browser tests by

means of VNC (Virtual Network Computing)

connections.

 Use customizable user media for WebRTC

sessions, namely VGA, HD, Full-HD, only-

audio, among others.

 Reporting. The TestRTC dashboard shows

reports by collecting and calculating KPIs

related to the voice and video streams.

 Test history. TestRTC stores the full test

execution history, allowing developers to keep

tracking the evolution of the SUT in time.

 Layer of synchronization across browsers, so a

user can indicate in the script tasks that wait

for events to occur on other browsers that are

running in parallel.

5 WebRTC TESTING GREY

LITERATURE

Grey literature is an important source of information

for complete review syntheses. There are many

kinds of grey literature, such as dissertations,

technical reports, white papers, government

websites, newsletters, blogs and other social

networking sites are examples of grey literature.

In order to narrow the problem of seeking the

grey literature of WebRTC testing, in this work we

are going to limit the spectrum to a set of important

websites and initiatives focused on WebRTC and/or

testing, namely:

 Google Testing Blog

. Official Google blog

for testing activities.

https://www.w3.org/TR/webrtc-stats/

https://testing.googleblog.com/

 Google Test Automation Conference

(GTAC). Annual test automation conference

hosted by Google.

 WebRTC Conference

. Global summit aimed

to bring together everyone in the WebRTC

ecosystem.

 BlogGeek.me

. Blog of Tsahi Levent-Levi,

independent analyst and consultant for

WebRTC and a co-founder at TestRTC.

 WebRtcHacks.com

. One of most remarkable

blogs in the WebRTC arena, maintained by

Chad Hart, Victor Pascual, Tsahi Levent-Levi,

and Philipp Hancke.

As a result, several contributions were selected

and summarized in Table 2.

(Höglund, 2013a) describes a test aimed to

analyze the audio quality of a WebRTC one-to-one

video call. The audio is recorded in the receiver side

directly recording what the audio system sends to

default audio out (like speakers or headphones). In

order to compare the sender audio to the audio

recorded in the receiver, the algorithm PESQ is

used. As a result, a MOS score is assessed (it should

be at least 4 out of 5).

(Höglund, 2013b) illustrates a test aimed to

measure the video degradation in a WebRTC

session. This test was run continuously with

regression monitoring in the Chromium testbed. In

order to synchronize the media sent and received by

a pair of browsers, each frame was identified single

a single barcode. Finally, two different algorithms

were used to evaluate the video quality: PSNR and

SSIM.

(Höglund, 2014) describes an interoperability

automated test between Chrome and Firefox. To

carry out the test, a Chromium browser is launched

as part of every Google Chromium browser test.

https://developers.google.com/google-test-automation-

conference/

https://webrtc-conference.com/

https://bloggeek.me/

https://webrtchacks.com/

ICSOFT 2017 - 12th International Conference on Software Technologies

368

Then, a Python library called mozrunner is used to

launch Firefox. In order to feed the WebRTC media

session, the test use the convenient Chrome --use-

fake-device-for-media-stream flag that

feeds the user media which is a spinning green ball

plus a timestamp. In order to establish the WebRTC

connection between peer, first it is needed to

exchange SDP signaling messages. Once the media

session is established, in order to verify that the

audio is playing, the WebRTC stats are read to

measure the audio track energy level. To assess

video, the test verifies the CSS opacity property of

the HTML5 video tag. Moreover, a built-in

JavaScript function is used to control the color

change ratio of the received media.

Automatic Gain Control (AGC) is a mechanism

provided out of the box by WebRTC aimed to adjust

the audio of a WebRTC stream in order to make it

louder and clearer for the receiver side. (Höglund,

2015) describes an automated end-to-end test to

verify AGC. This test uses the Chrome flag --use-

file-for-fake-audio-capture to inject a

custom audio file in the WebRTC stream. The audio

level difference is calculated as the subtraction of

the audio level in the receiver less the audio level in

the sender side. In order to avoid biases due to

packet loss and clock drifts (i.e. audio differences

due to sample clocks on the sending and receiving

sound cards are not perfectly synced) the reference

audio file had several small silences among the real

audio. The audio was trimmed using these silences

and the resulting parts are computed.

(Pascual, 2015) describes the WebRTC

Troubleshooter

, which is a website that provides a

set of tests that can be easily run by a user to help

diagnose WebRTC related issues. These tests are

focused on verify: i) Microphone: audio capture; ii)

Camera: check resolution; iii) Network: UDP/TCP

and IPv6 connectivity; iv) Connectivity: relay

(verifies connections can be established between

peers through a TURN server), reflexive (verifies

connections can be established between peers

through NAT), host (verifies connections can be

established between peers with the same IP address);

v) Throughput: throughput and video bandwidth

(Levent-levi, 2015) illustrates 5 challenges in

testing WebRTC services: i) browser version

changes: different versions of browsers (stable, beta,

dev, canary) should be consistently testes to avoid

regressions and service breaks; ii) NAT traversal:

WebRTC is not always P2P since between 5-50% of

https://test.webrtc.org/

WebRTC sessions are relayed via TURN servers,

and this should be properly tested by providing

browsers in remote locations; iii) test at scale should

be taking into account (in other words, the question

“is my SUT able to scale to thousands of user?”

should be properly addressed); iv) service uptime:

WebRTC involves heterogenous infrastructure that

should be constantly tested in order to verify that our

SUT is working every time; v) orchestration: test

scripts can be designed to be simple and should be

executed in parallel to simulate the real conditions of

the system.

(Levent-levi, 2015) provides 7 suggestions to

create an WebRTC testbed: i) use real browsers,

which can be easily driven by Selenium WebDriver;

ii) handle the media feed using the Chrome support

for faking media device and FFMPEG

to create

custom video files in the required format by Chrome

(Y4M); iii) use heterogenous setup: with network

impairments (bitrate limitation, packet loss, jitter

and latency), firewall configuration, and multiple

browser locations; iv) handle synchronization of the

multiple possible use cases (caller/callee, meeting

point, conference, etc.); v) visualize the result: create

meaningful reports as a result of the test execution;

vi) establish the expectation: define how the test

outcome should be in a precise way; vii) collect

everything: chrome internal dump, browser console

logs, media recordings, machine performance.

6 CONCLUSIONS

WebRTC is a set of technologies aimed to provide

RTC media capabilities in an easy way to web

applications. Despite the fact that it is still in its

infancy, WebRTC services are more and more

demanded by practitioners. In order to release these

kinds of services to production, software engineers

and testers demand testing mechanisms to assess the

functional correctness of the SUT, but also the

stability, scalability, compatibility, and security of

these services. Moreover, WebRTC services involve

complex, distributed and heterogeneous network

topologies where failures or inefficiencies on any of

the comprising components may prevent the service

to operate offering a successful user experience.

This paper presents a comprehensive state of the

art on WebRTC testing. We have made this survey

by aggregating different sources of information: i)

academia research papers; ii) WebRTC testing tools;

https://ffmpeg.org/

WebRTC Testing: State of the Art

369

iii) other sources (the so-called “grey literature”).

Our findings show that there is an increasing interest

in the evaluation of WebRTC services, both in the

academic and research arena (integrating QoS and

QoE in WebRTC testbeds) and the commercial

domain (for example with complete WebRTC

testing platforms such as TestRTC).

ACKNOWLEDGEMENTS

This work has been supported by the European

Commission under project ElasTest (H2020-ICT-10-

2016, GA-731535); by the Regional Government of

Madrid (CM) under project Cloud4BigData

(S2013/ICE-2894) cofunded by FSE & FEDER; and

Spanish Government under project LERNIM (RTC-

2016-4674-7) cofunded by the

Ministry of Economy

and Competitiveness, FEDER & AEI.

We would like to thank to Tsahi Levent-levi,

author of BlogGeek.me and cofounder of TestRTC,

for his valuable comments on this piece of research.

REFERENCES

Amirante, A., Castaldi, T., Miniero, L. and Romanoy, S.

Jattack: a WebRTC load testing tool. IEEE, 2016.

Avasarala, S., 2014. Selenium WebDriver practical guide.

Packt Publishing Ltd.

Bertolino, A., 2007, May. Software testing research:

Achievements, challenges, dreams. In 2007 Future of

Software Engineering (pp. 85-103). IEEE Computer

Society.

Cinar, Y. and Melvin, H. WebRTC quality assessment:

Dangers of black-box testing. Digital Technologies,

2014 10th Int. Conference on, 2014. IEEE, 32-35.

Di Lucca, G.A. and Fasolino, A.R., 2006. Testing Web-

based applications: The state of the art and future

trends. Information and Software Technology, 48(12),

pp.1172-1186.

García, B., López-Fernández, L., Gallego, M., and

Gortázar, F., 2016, Testing Framework for WebRTC

Services. In 9th EAI International Conference on

Mobile Multimedia Communications (pp. 40-47).

Garcia, B., López-Fernández, L., Gortázar, F., and

Gallego, M., 2016, Analysis of Video Quality and

End-to-End Latency in WebRTC. In Globecom

Workshops (GC Wkshps), 2016 IEEE (pp. 1-6). IEEE.

Garcia, B., Gortázar, F., López, L., Gallego, M., and París,

M., 2017, WebRTC Testing: Challenges and Practical

Solutions. IEEE Communication Standards. IEEE.

Halili, E.H., 2008. Apache JMeter: A practical beginner's

guide to automated testing and performance

measurement for your websites. Packt Publishing Ltd.

Höglund, P., 2013. WebRTC Audio Quality Testing.

Available at: https://testing.googleblog.com/2013/11/

webrtc-audio-quality-testing.html. Accessed on 23

March 2017

Höglund, P., 2013. Automated Video Quality

Measurements. Available at: https://www.youtube.

com/watch?v=IbLNm3LsMaw. Accessed on 23 March

2017

Höglund, P., 2014. Chrome-Firefox WebRTC Interop:

https://testing.googleblog.com/2014/08/chrome-

firefox-webrtc-interop-test-pt-1.html. Accessed on 23

March 2017.

Huynh-Thu, Q., and Ghanbari, M., 2008. Scope of validity

of PSNR in image/video quality assessment.

Electronics letters, 44(13), 800-801.

Index, C.V.N., 2016. Forecast and methodology, 2015-

2020 white paper. Technical Report, Cisco, Tech. Rep.

Jain, L.P., Scheirer, W.J. and Boult, T.E., 2004. Quality of

experience. In IEEE multimedia.

Kaul, N., 2015. WebRTC and Its Impact on Testing.

Available at: http://blog.smartbear.com/user-

experience/webrtc-and-its-impact-on-testing/.

Accessed on 23 March 2017

Levent-levi, T., 2015. Overcoming the Challenges in

Testing WebRTC Services. Available at:

https://www.slideshare.net/tsahil/overcoming-the-

challenges-in-testing-webrtc-services. Accessed on 23

March 2017

Loreto, S. and Romano, S. P., 2014. Real-Time

Communication with WebRTC: Peer-to-Peer in the

Browser. "O'Reilly Media, Inc.".

Li, Y.F., Das, P.K. and Dowe, D.L., 2014. Two decades of

Web application testing—A survey of recent

advances. Information Systems, 43, pp.20-54.

Pascual, V., 2015, The WebRTC Troubleshooter:

test.webrtc.org. Available at: https://webrtchacks.com/

webrtc-troubleshooter/. Accessed on 23 March 2017

Sal, S. and Rebbeck, and T., 2014. Operators need to

engage with WebRTC and the opportunities it

presents. In October 2014 Analysis Mason.

Sandholm, T., Magnusson, B., and Johnsson, B. A., 2013,

On-Demand WebRTC Tunneling in Restricted

Networks. arXiv preprint arXiv:1312.6501.

Spoiala, C. C., Calinciuc, A., Turcu, C. O., & Filote, C.,

2016, Performance comparison of a WebRTC server

on Docker versus virtual machine. In Development

and Application Systems (DAS), 2016 International

Conference on (pp. 295-298). IEEE.

Taheri, S., Beni, L.A., Veidenbaum, A.V., Nicolau, A.,

Cammarota, R., Qiu, J., Lu, Q. and Haghighat, M.R.,

2015, October. WebRTCbench: a benchmark for

performance assessment of webRTC implementations.

In Embedded Systems For Real-time Multimedia, 2015

13th IEEE Symposium on (pp. 1-7). IEEE.

Viswanathan, M., and Viswanathan, M., 2005. Measuring

speech quality for text-to-speech systems:

development and assessment of a modified mean

opinion score (MOS) scale. Computer Speech &

Language, 19(1), 55-83.

Vucic, D., and Skorin-Kapov, L., 2015. The impact of

mobile device factors on QoE for multi-party video

conferencing via WebRTC. In Telecommunications

ICSOFT 2017 - 12th International Conference on Software Technologies

370

(ConTEL), 2015 13th International Conference

on (pp. 1-8). IEEE.

Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E.

P., 2004. Image quality assessment: from error

visibility to structural similarity. IEEE transactions on

image processing, 13(4), 600-612.

Liang, Y. and Collins A., 2016. Selenium WebDriver.

From Foundations to Framework. Leanpub.

WebRTC Testing: State of the Art

371
